03/07/23 Prototypes, Sound Test, Design Changes pf F13 TKL

Contents:
1. Introduction
2. Specifications
3. Simple Renders
4. Weight Design
5. Plate & Layouts
6. Prototypes
7. Links

Hello, late update due to... life happening, but excited to share these updates!

Specifications:
8 degree typing angle.
22mm front height (EKH = 24.5mm)
F13 TKL layout with ISO and tsangan support.
ESD protection through the C3 Unified Daughterboard
Centred USB-C
Adhesive Poron Gasket mount
OR
Sandwich O-Ring top mount (Subject to change to just be top mounted)
VIA compatibility


Hot-swap has now been added, standard ANSI layout.
PCB is designed by me, south-facing and will not have any RGB or LED support.


Planned Materials:
Aluminium 6063 (Top and Bottom)
Stainless Steel 303, Mirror Finish (Weight and Midsection)

Estimated Price: $500 - $600

Length: 364mm
Width: 138mm
Height (Highest Point): 40.7mm
Weight: ~2.6kg (~5.7lbs) not fully assembled

Top Bezel: 10mm
Side Bezels: 7.5mm
Bottom Bezel: 8.2mm

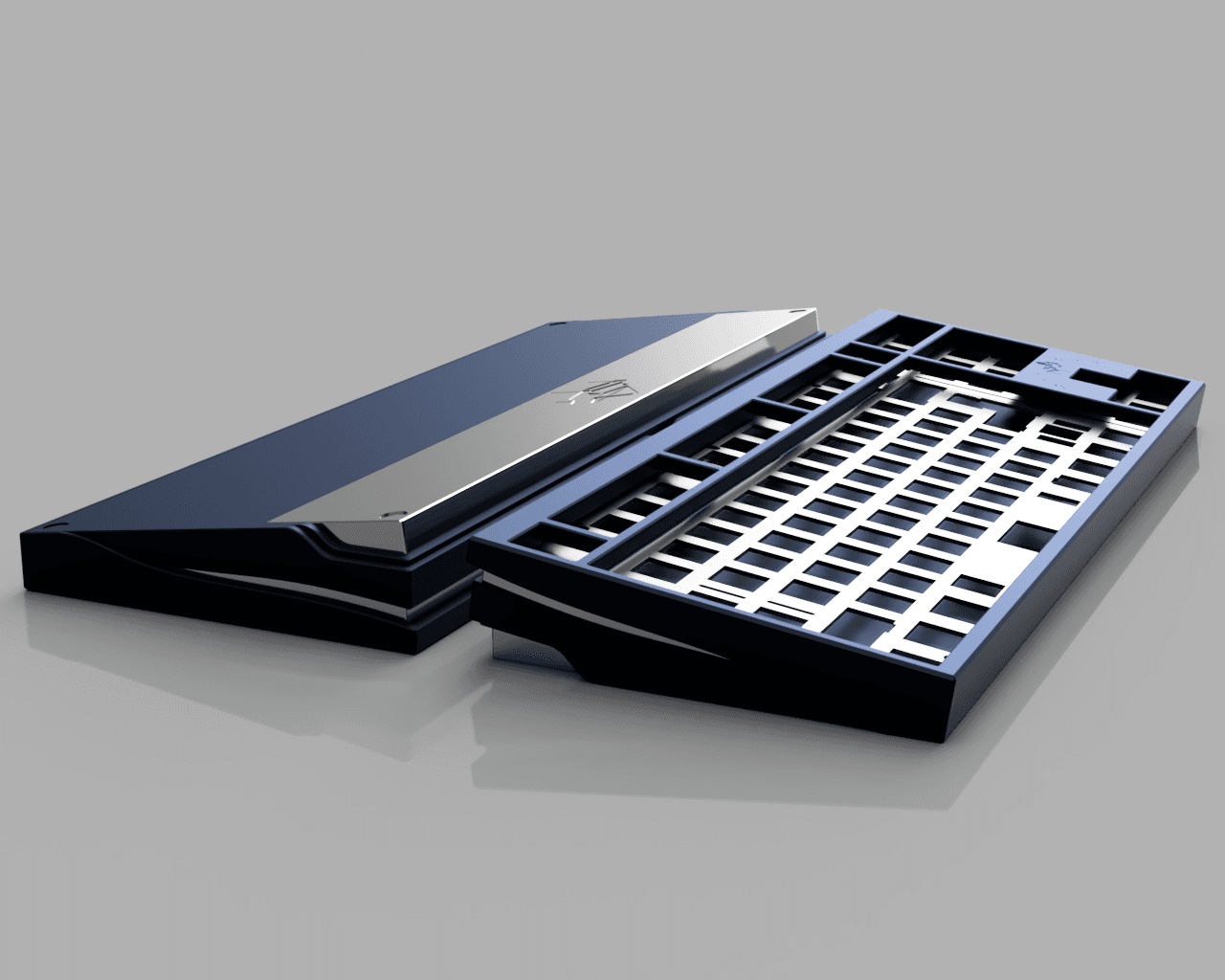

(Exploded SE Version shown, will not be in production)

Current Weight Design
This is the current weight design. What the current weight design will look like and the finish will be bead blasted: here.



Plate & Layouts


The current plan for plate materials will be: Brass, Aluminium, PC



Prototypes:

2 rounds of prototypes have finished, as there is an additional cost & waste to creating a new anodization pool for prototypes with custom colours anodization chips will be used to represent the custom colours. At this current moment, I have decided to commit to a blue and green variant, though red will be reconsidered in the near future.

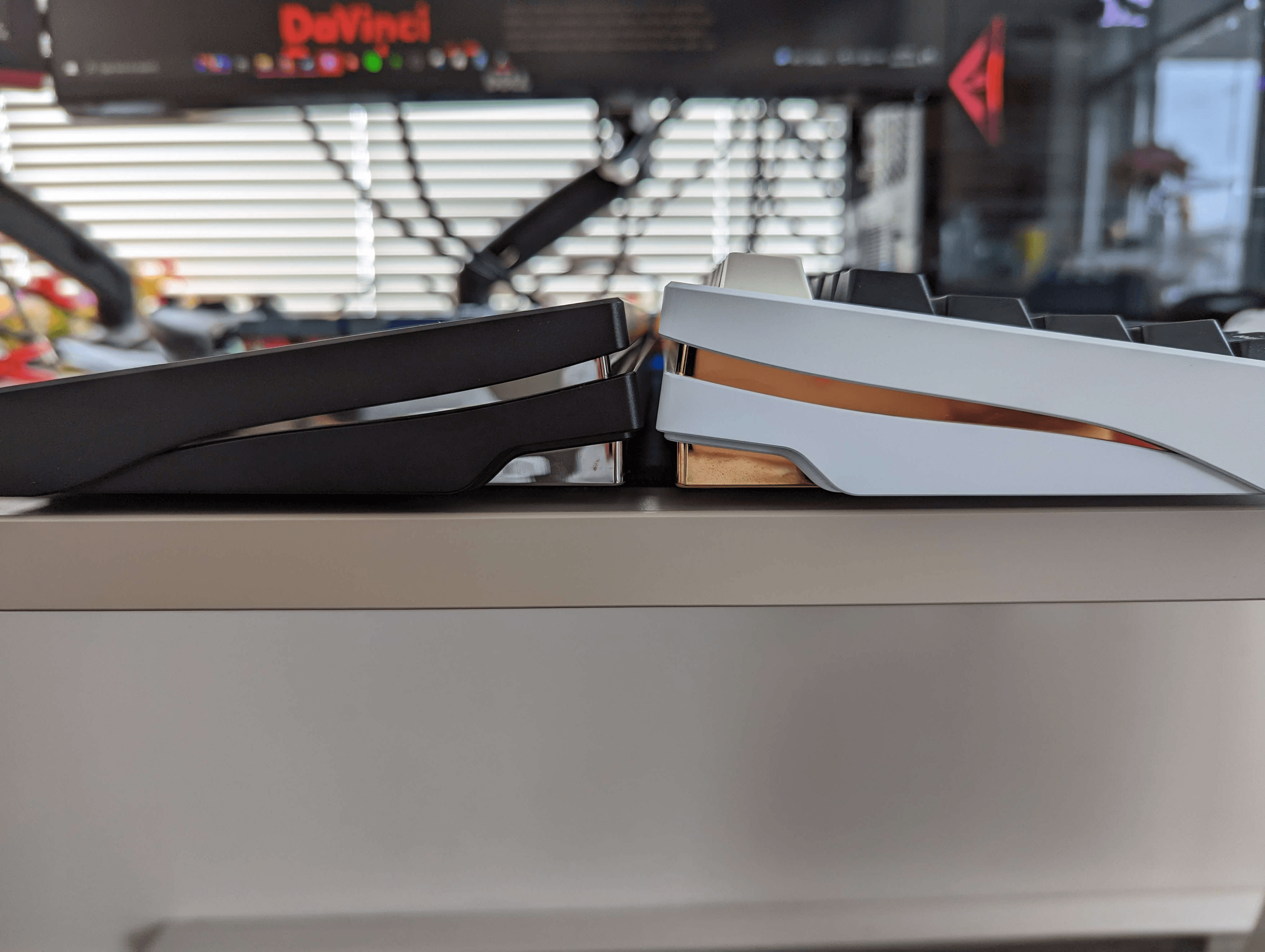

(Left: picture from production, Right: picture from me)


Prototype 1 Images Gallery Here and Here


Prototype 2 Images Gallery Here (yet to be edited)
Visible difference from V1 and V2


Assembly midsection change (Top is previous, Bottom is new)


An SE proto has also been made, reviewed, and I have decided against in pursuing this variant.

MOQ will range from 300-500.

Sound Test:
It isn't the best of sound tests, but should be the gist of what it is. I will create a new and more consistent sound test in the near future.

Renders with all colors and metal combos here:
Brass
Stainless Steel

Required changes:
I will have to discuss the supplier for the carrying case, as the current mould is pretty tight and an incredibly snug fit. The change should allow for easier insert and removal of the board, and the addition of cloths if need-be.
Please comment and share! I am dedicated to make this keyboard the best it can be and would love to know your thoughts and opinions.

Collab(s):

I will be working with FJ Laboratories for the PCB production processes.
