Hello,
We are daringrun.

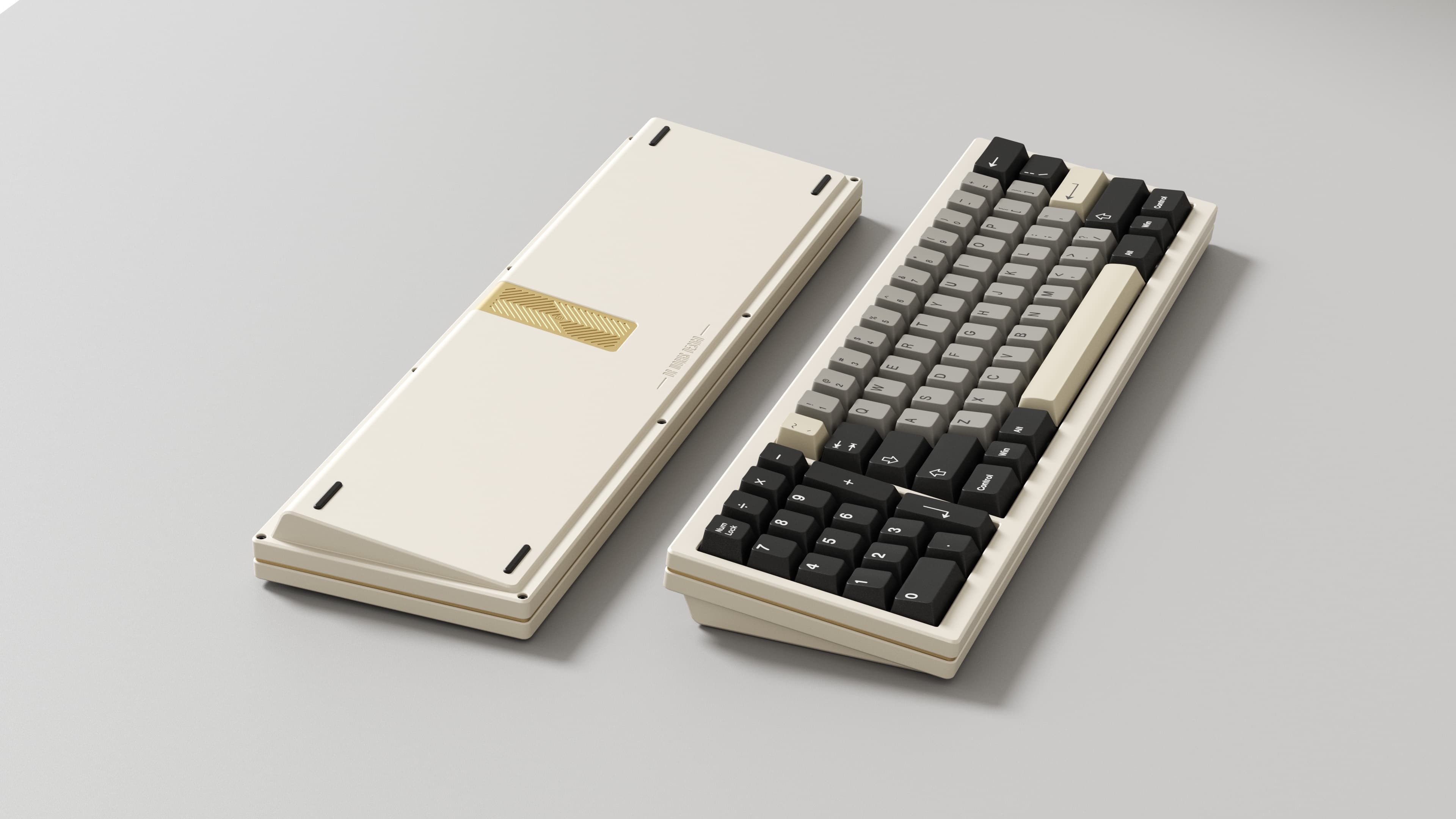

Today we bring a new keyboard kit, Flip 6p.
This is a keyboard kit of 60% with pad layout,but by flipping the top case and swapping the main structure area and numpad structure area,
you can easily change between normal layout and southpaw layout(provide mirrowed and non mirrowed pad).So we name it flip 6p.
Not only this,the main area can be HHKB or WKL layout by installing the detachable badge on the top case.The entire design is based on maintainingconvenience and practicality,provide more playability.
一.Layout

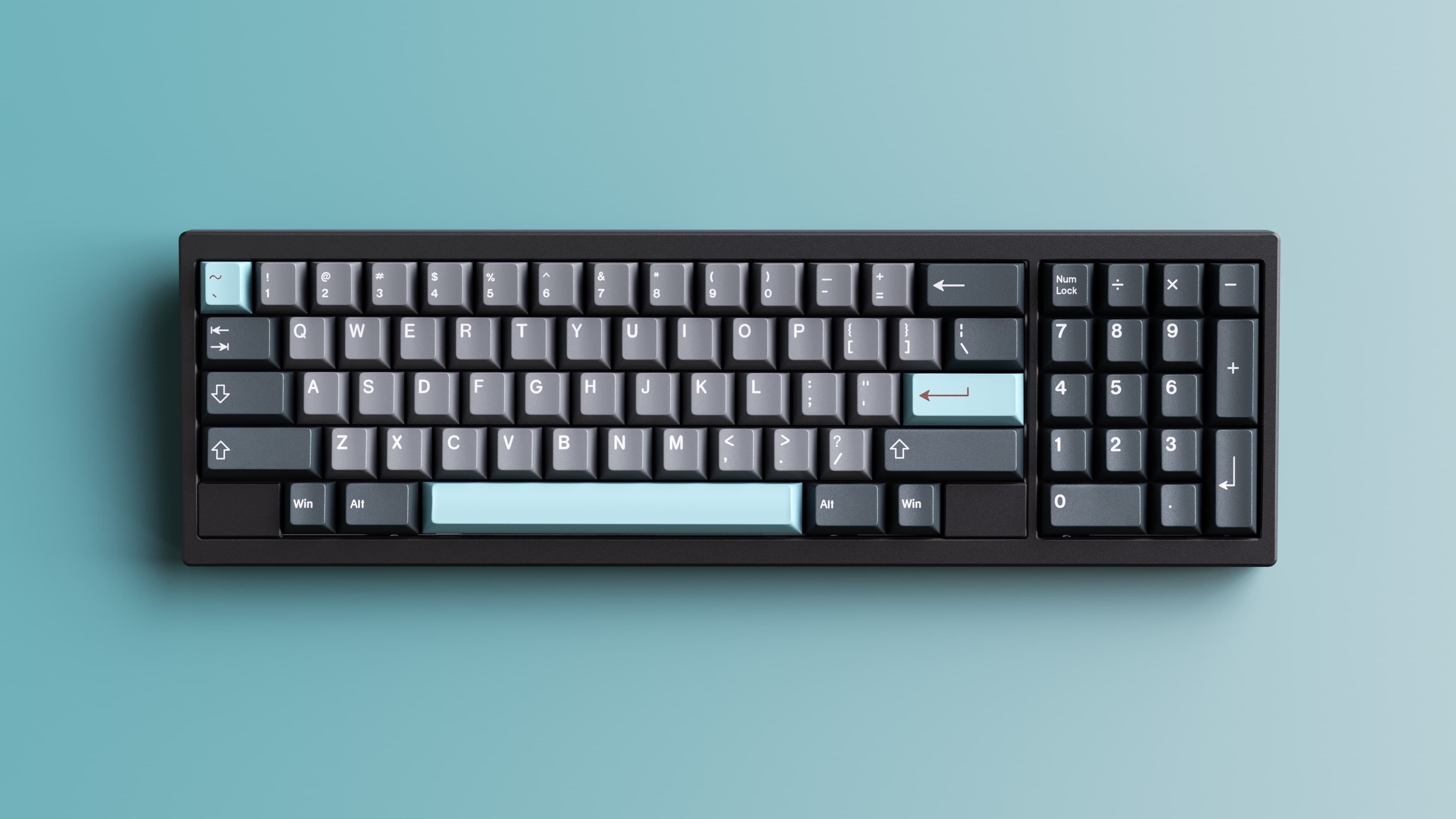

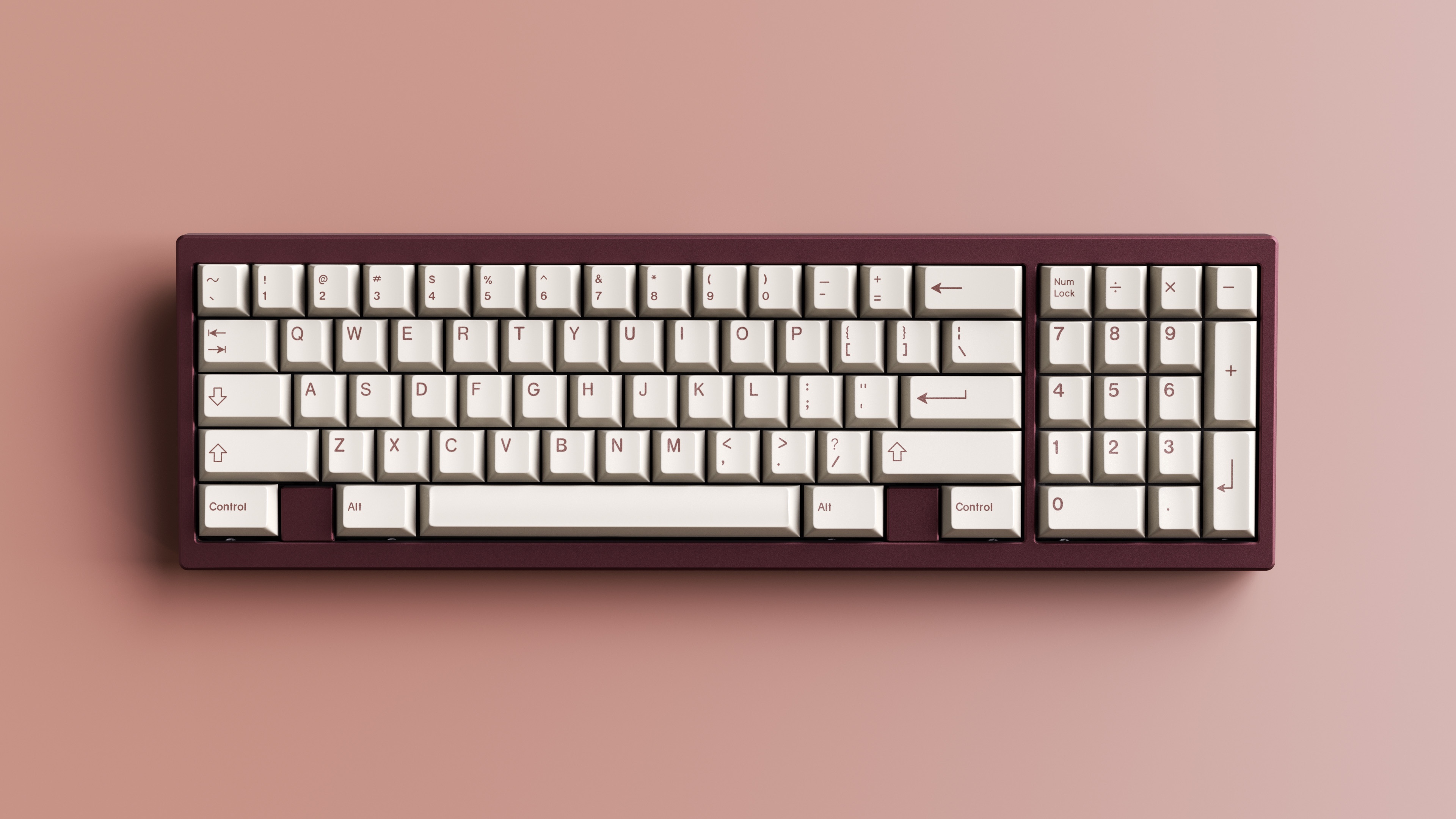

Normal Layout

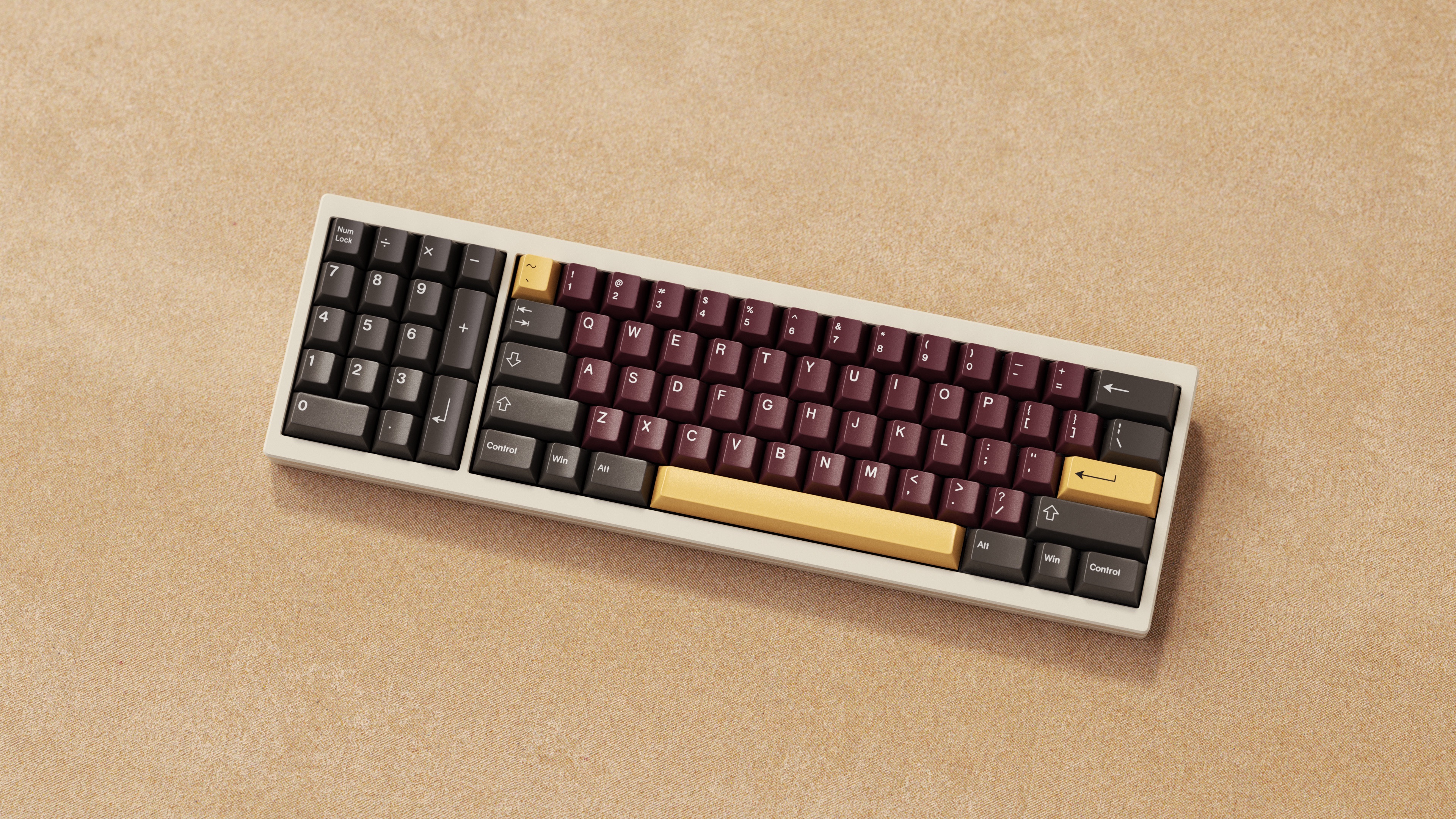

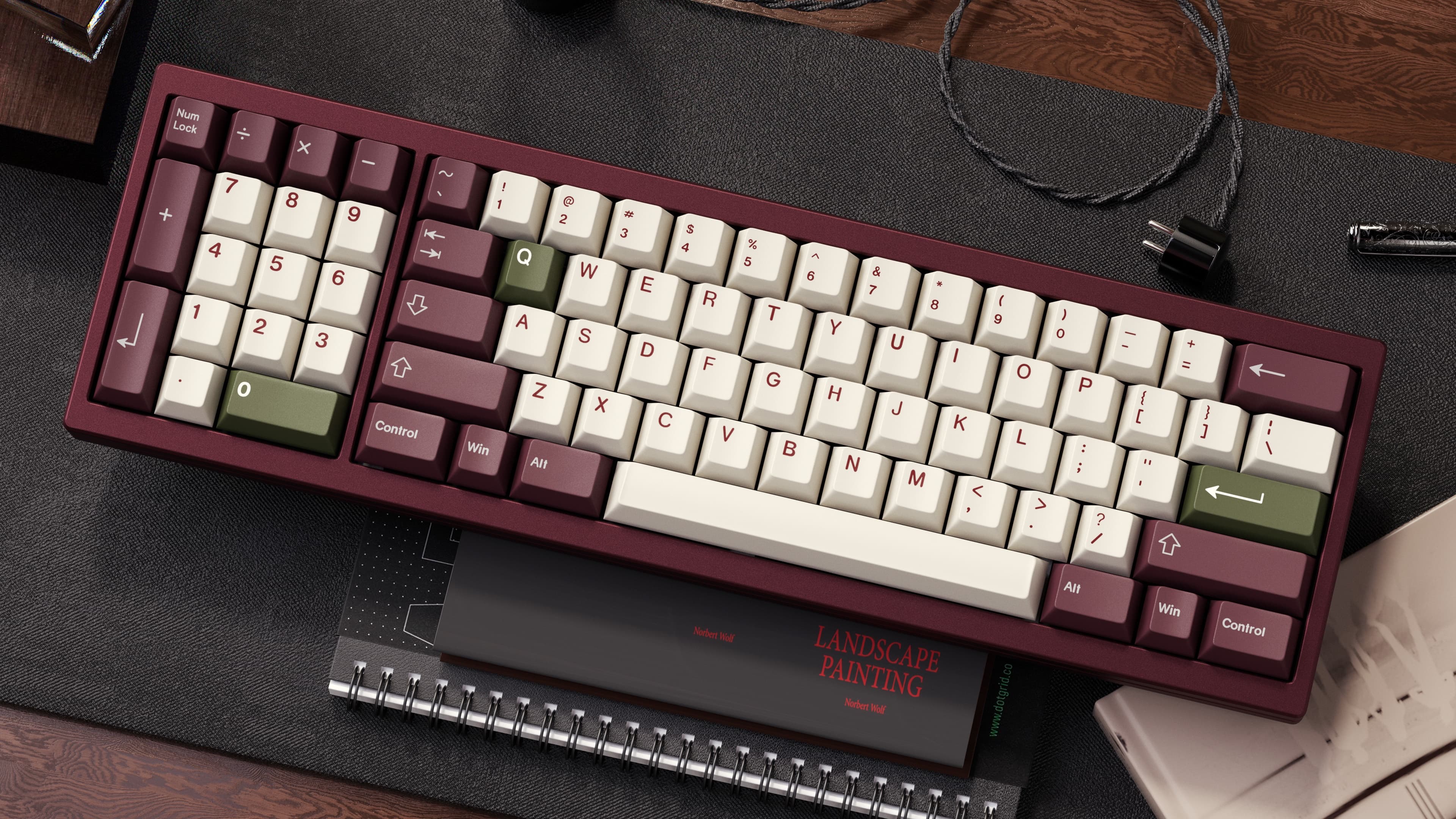

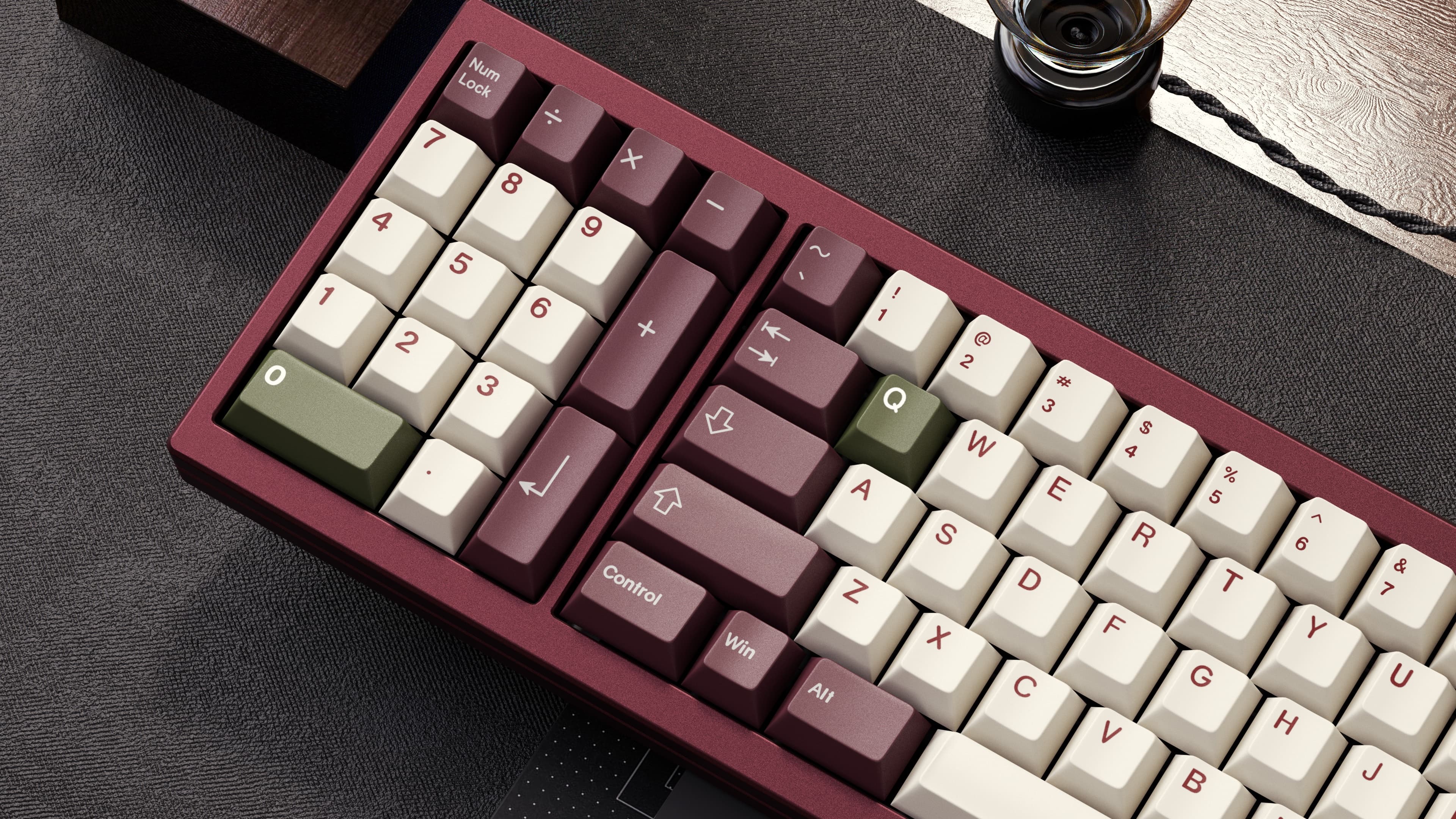

Southpaw mirrowed Layout
Southpaw non mirrowed Layout

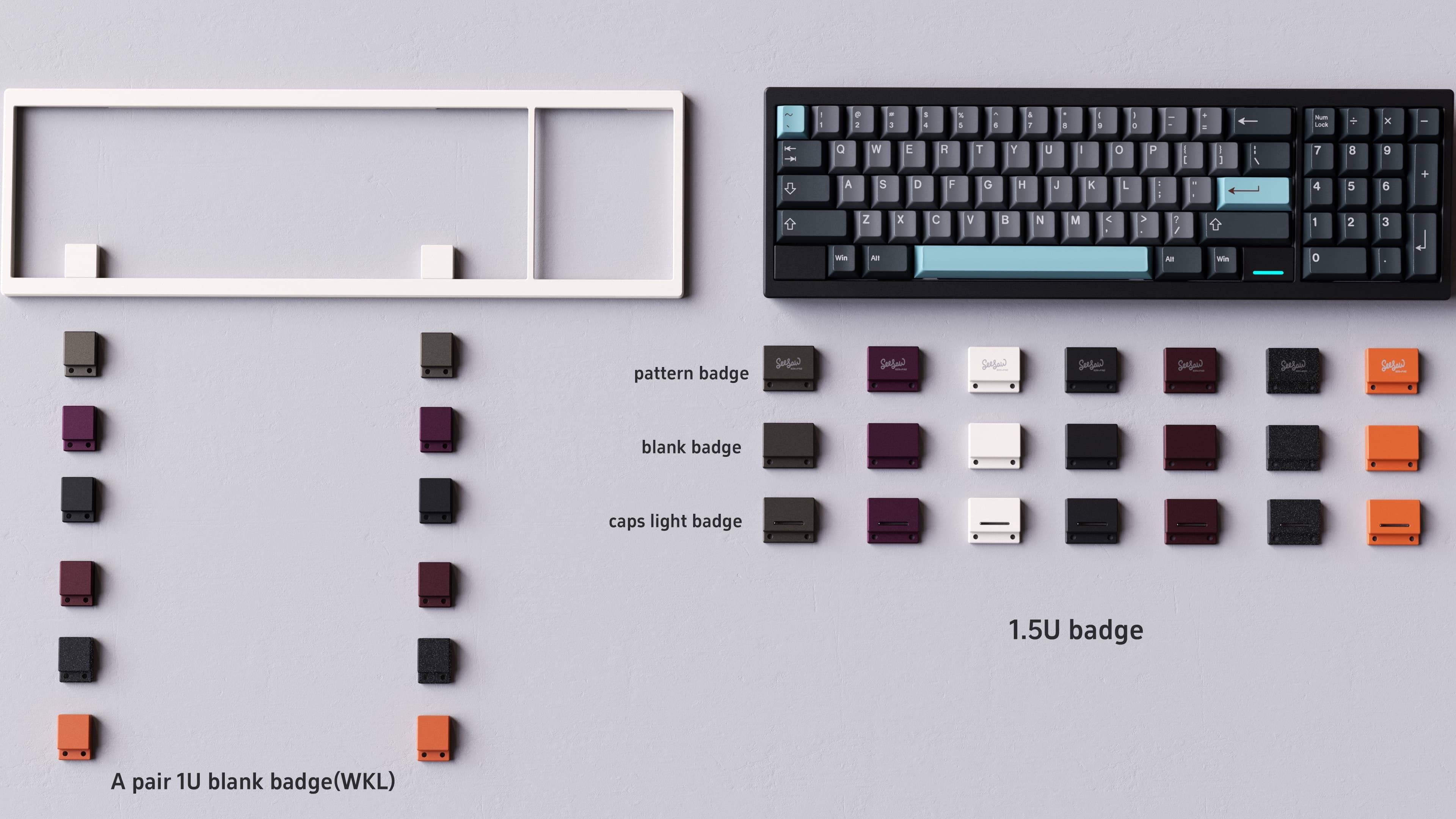

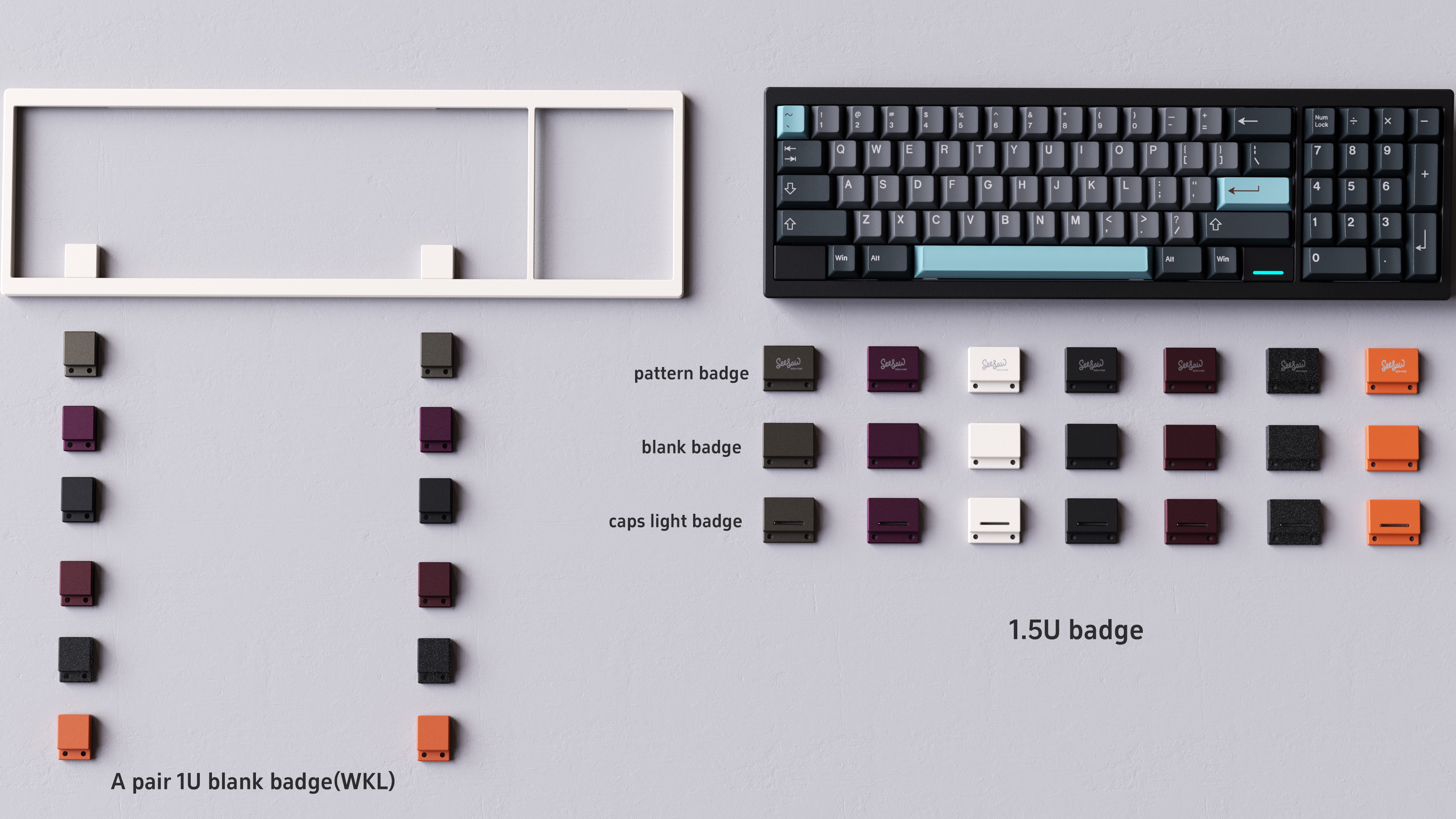

By installing detachable badge on the top case, can HHKB or WKL Layout.
Three different badge can be free choiced and combined bring different visual effect.
Buy extra a pair 1U detachable badge can be WKL layout.

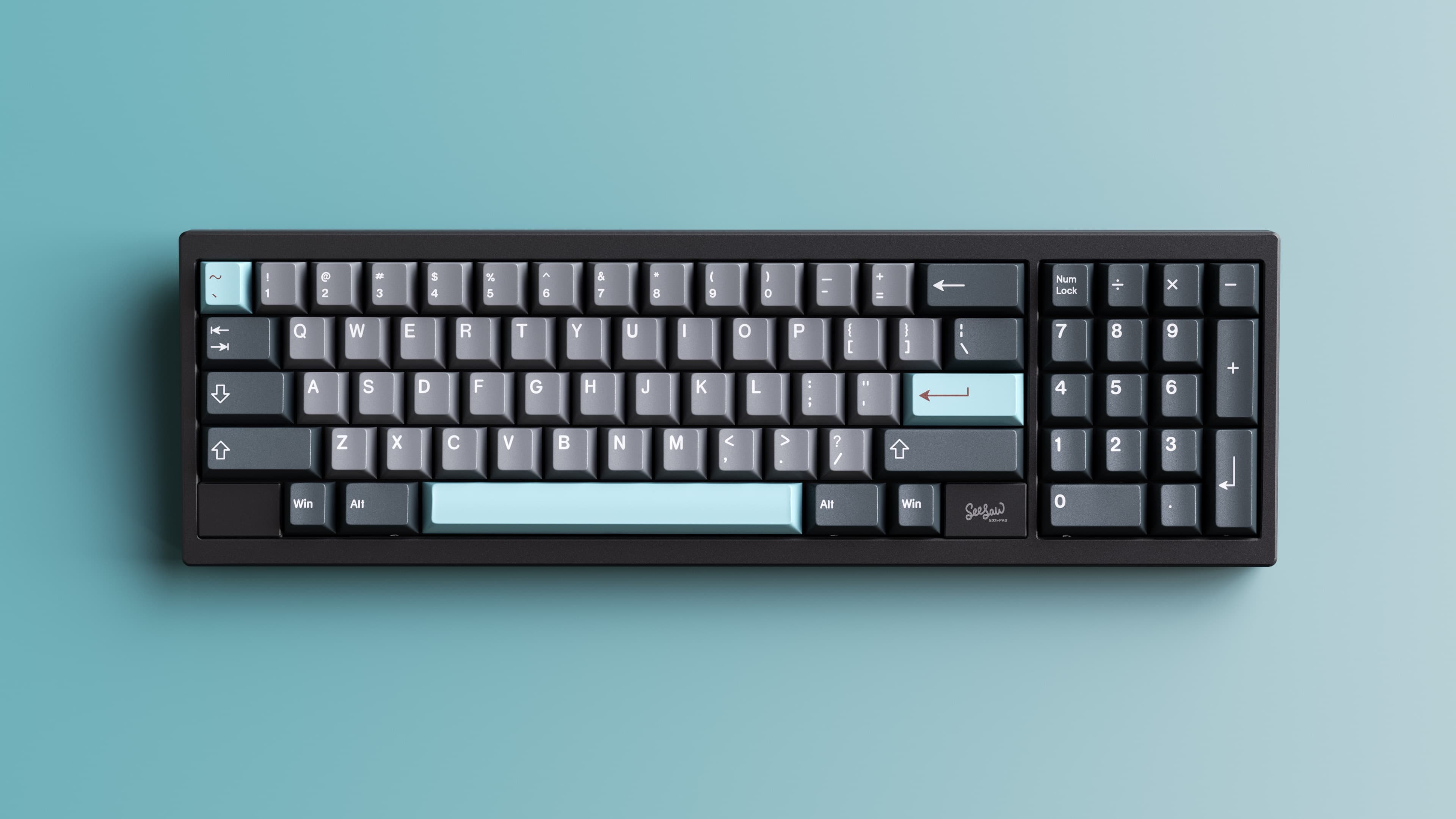

Some combined renderings for HHKB layout：
A pair 1.5U blank badge
1.5U blank badge with 1.5U caps lights badge
1.5U pattern badge with 1.5U caps lights badge
1.5U blank badge with 1.5U pattern badge

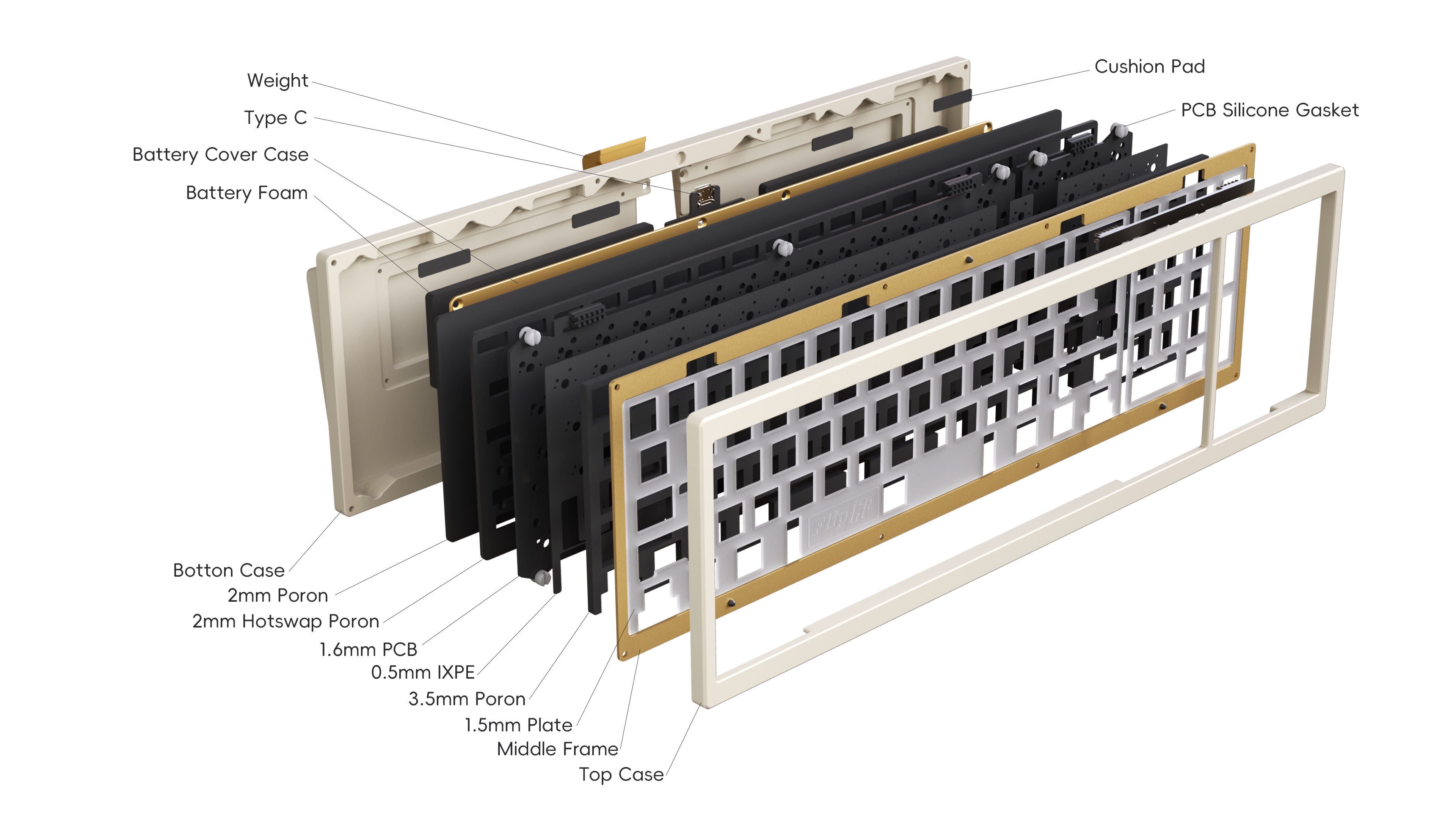

二.Structure

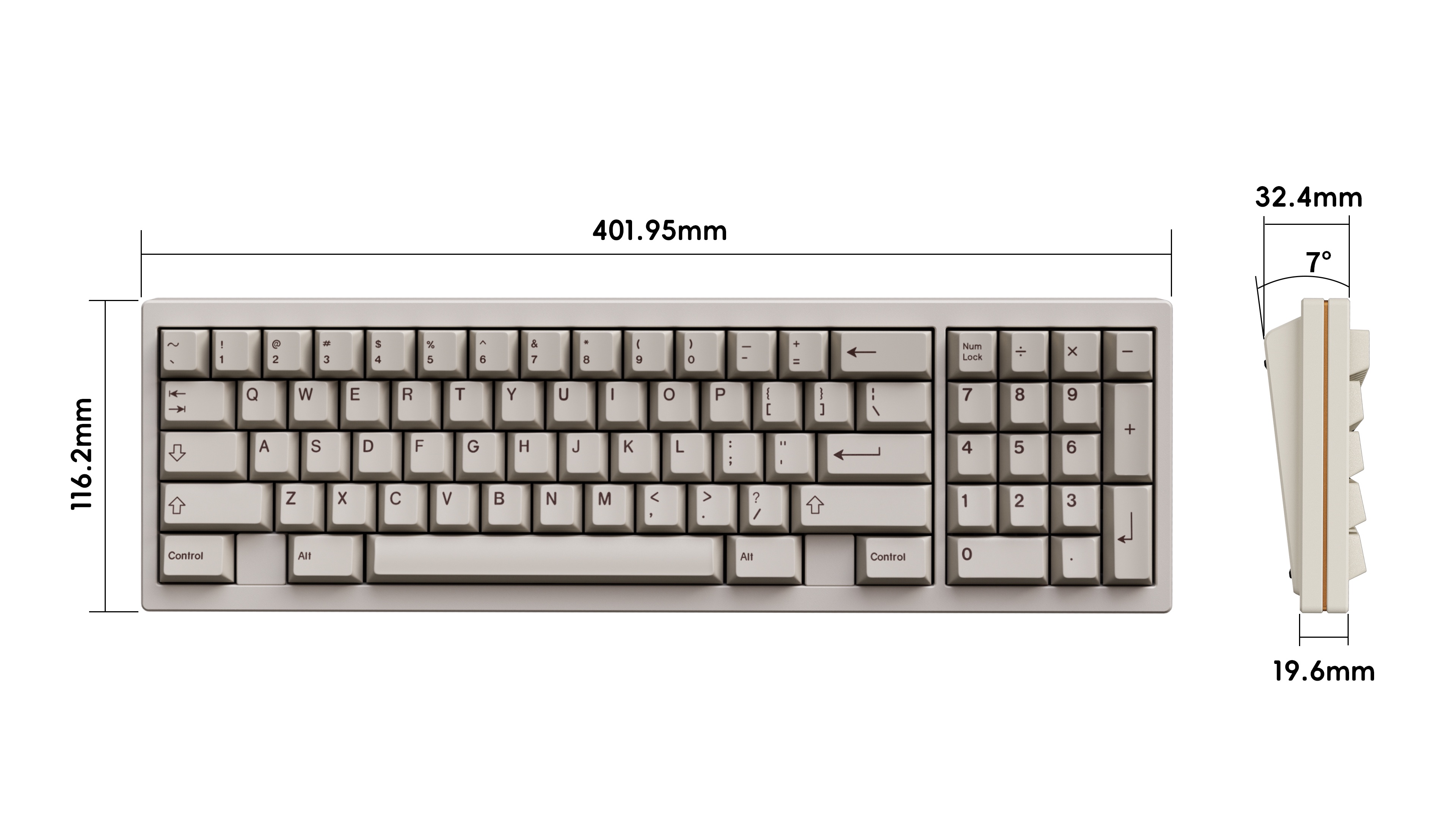

Size:

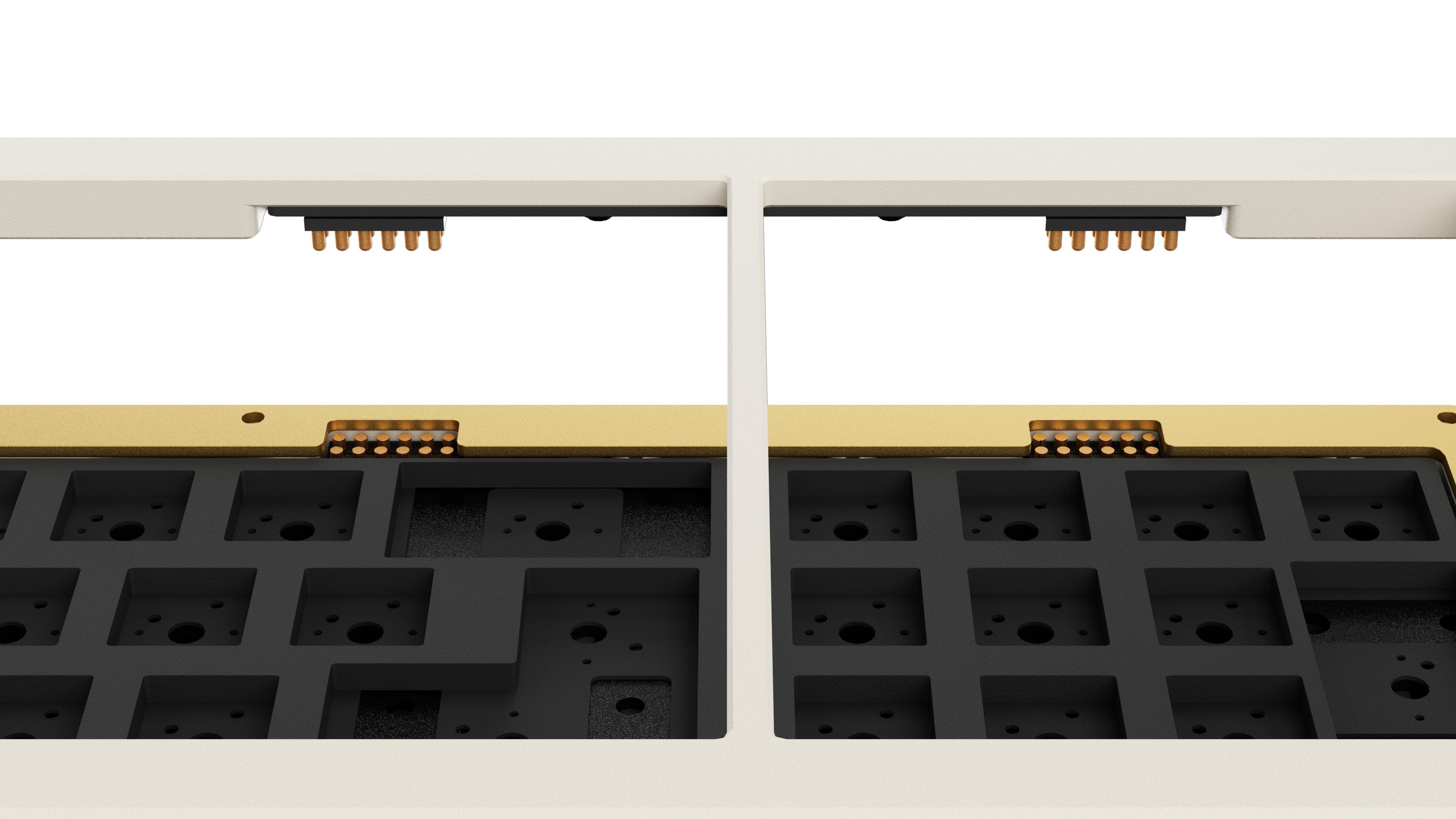

The PCB adopts pogo pin design,the contacts are connected between the PCB and the top case.
So no worry to connect the ribbon cable,it is convenient to switch between normal layout southpaw layout,
only to need to swap the main area and numpad area,flip the top case.The pogo pin pcb design will improve installation and switching experience.

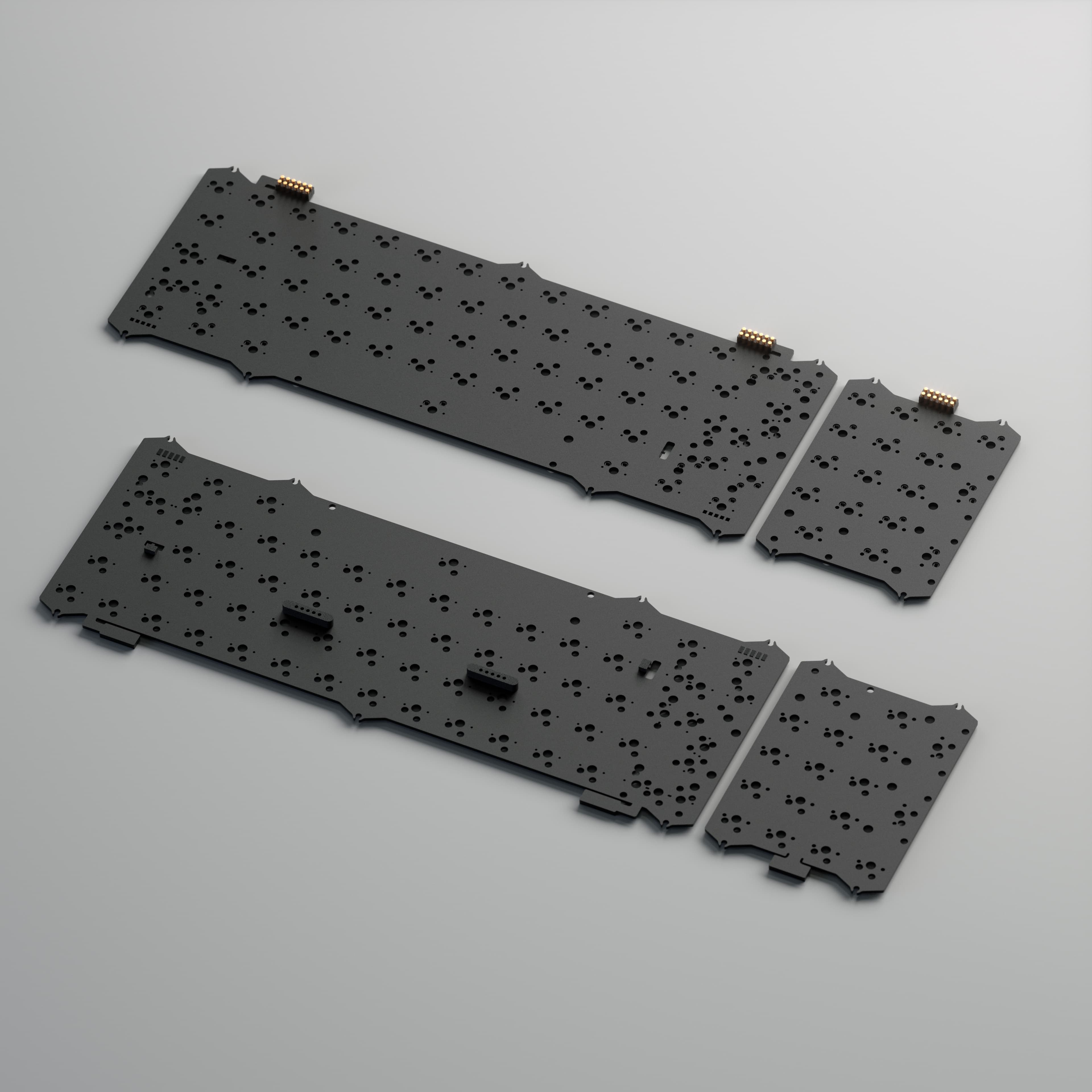

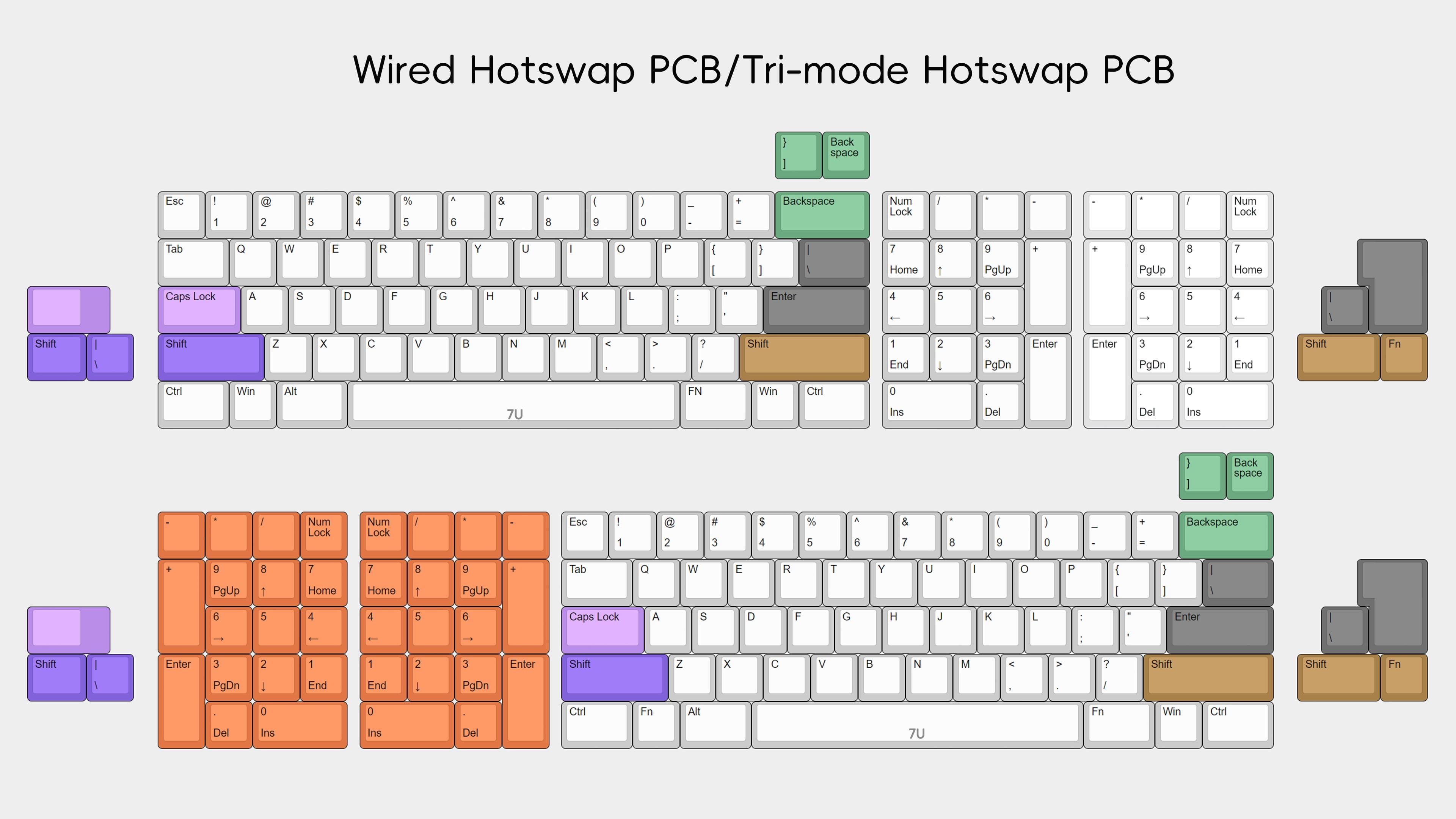

Wired hotswap pcb and tri-mode hotswap pcb(with 4400mah battery) are available,1.6mm no felx cut.
Wired hotswap pcb support on VIAL, tri-mode hotswap pcb support on VIA
Only support 7U

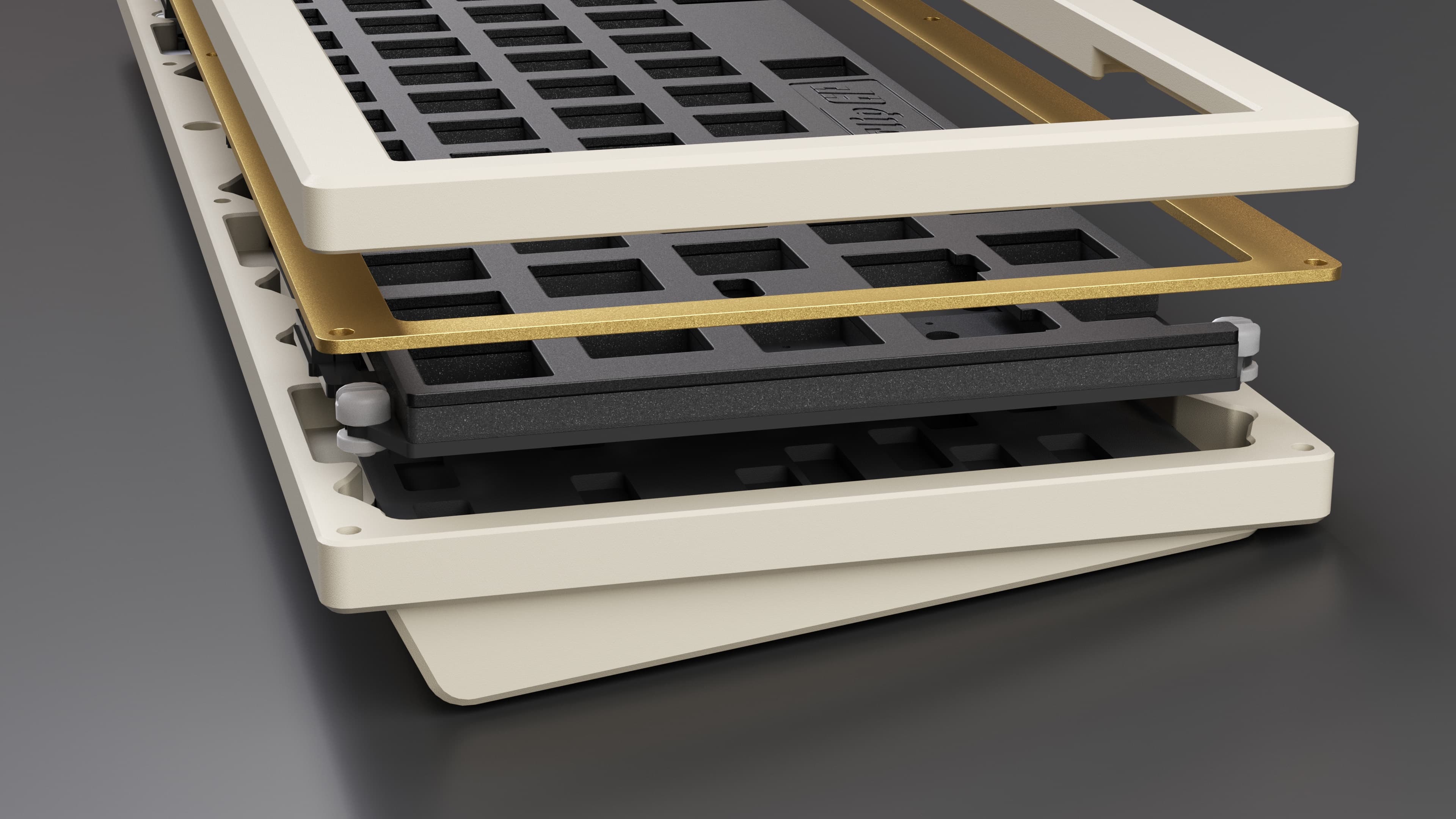

Flip 6p keyboard kit still use the same pcb gasket mount and sandwich mount as 70F keyboard.
When you use PCB gasket,it is separate middle frame and 1.5mm split plate installation.

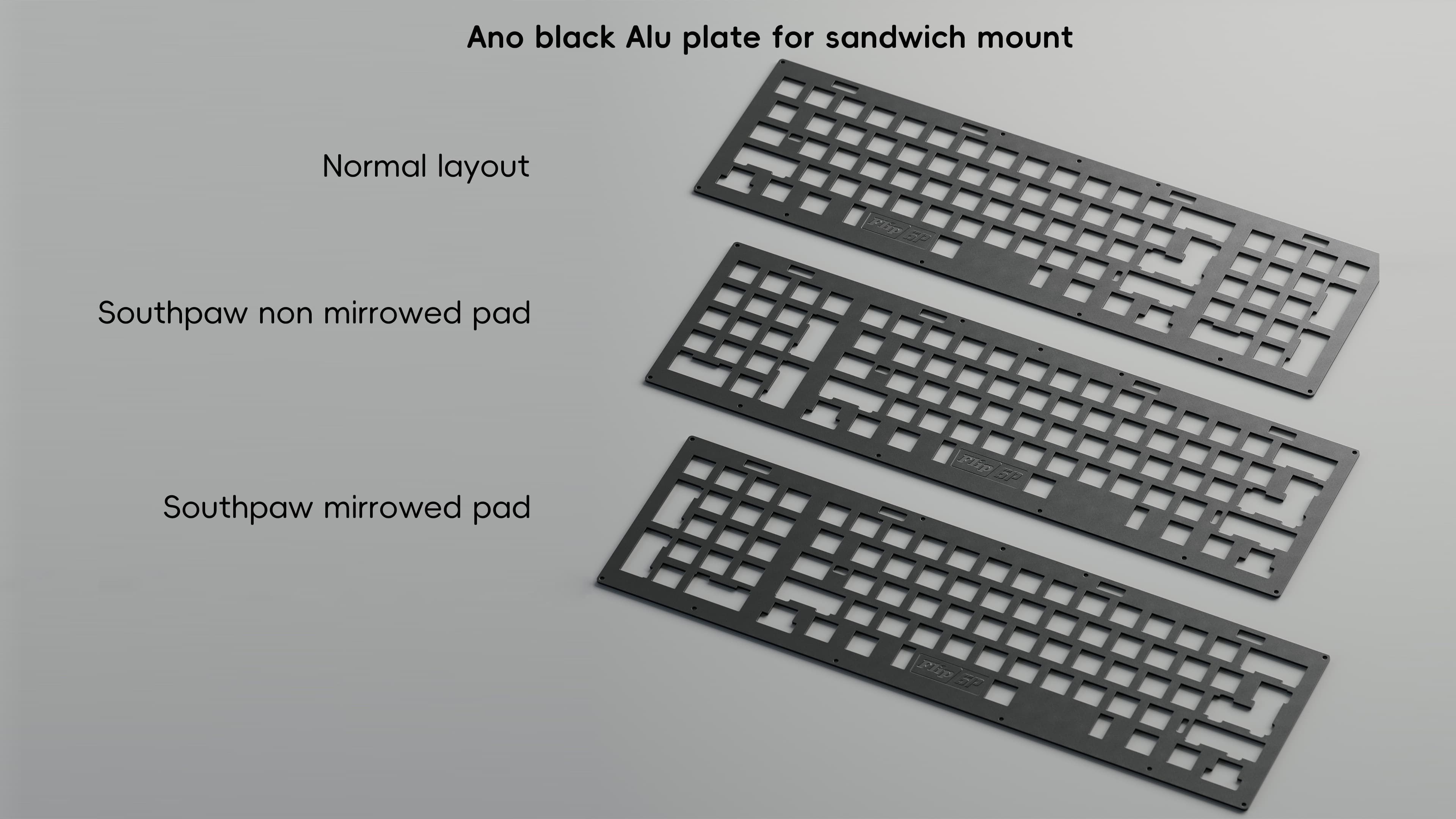

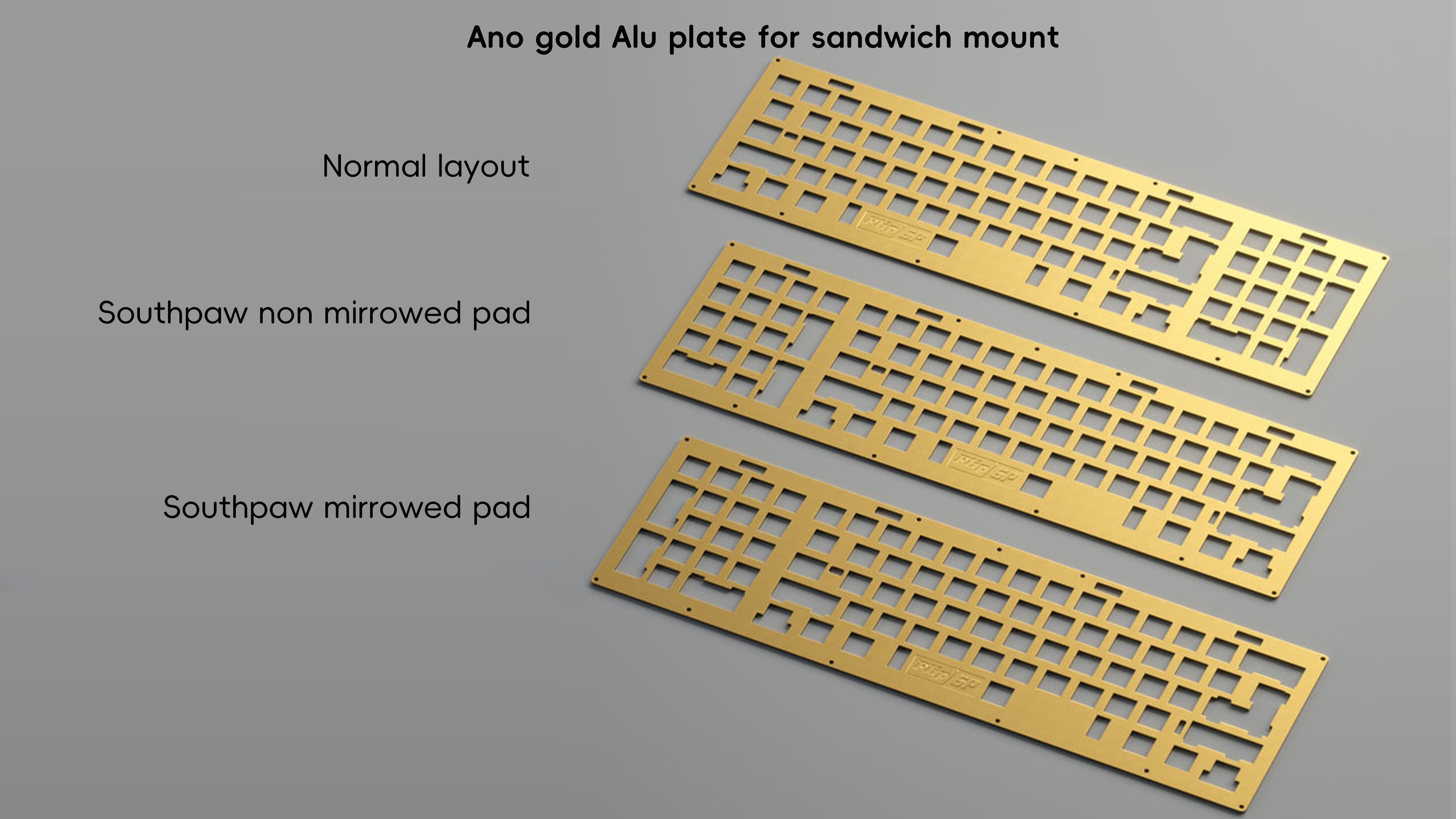

When you use sandwich mount, the whole sandwich mount plate is both the middle frame and plate.
Pls note that you need to buy a extra sandwich mount plate if you want to build sandwich mount.
Gasket mount :
Sandwich mount:

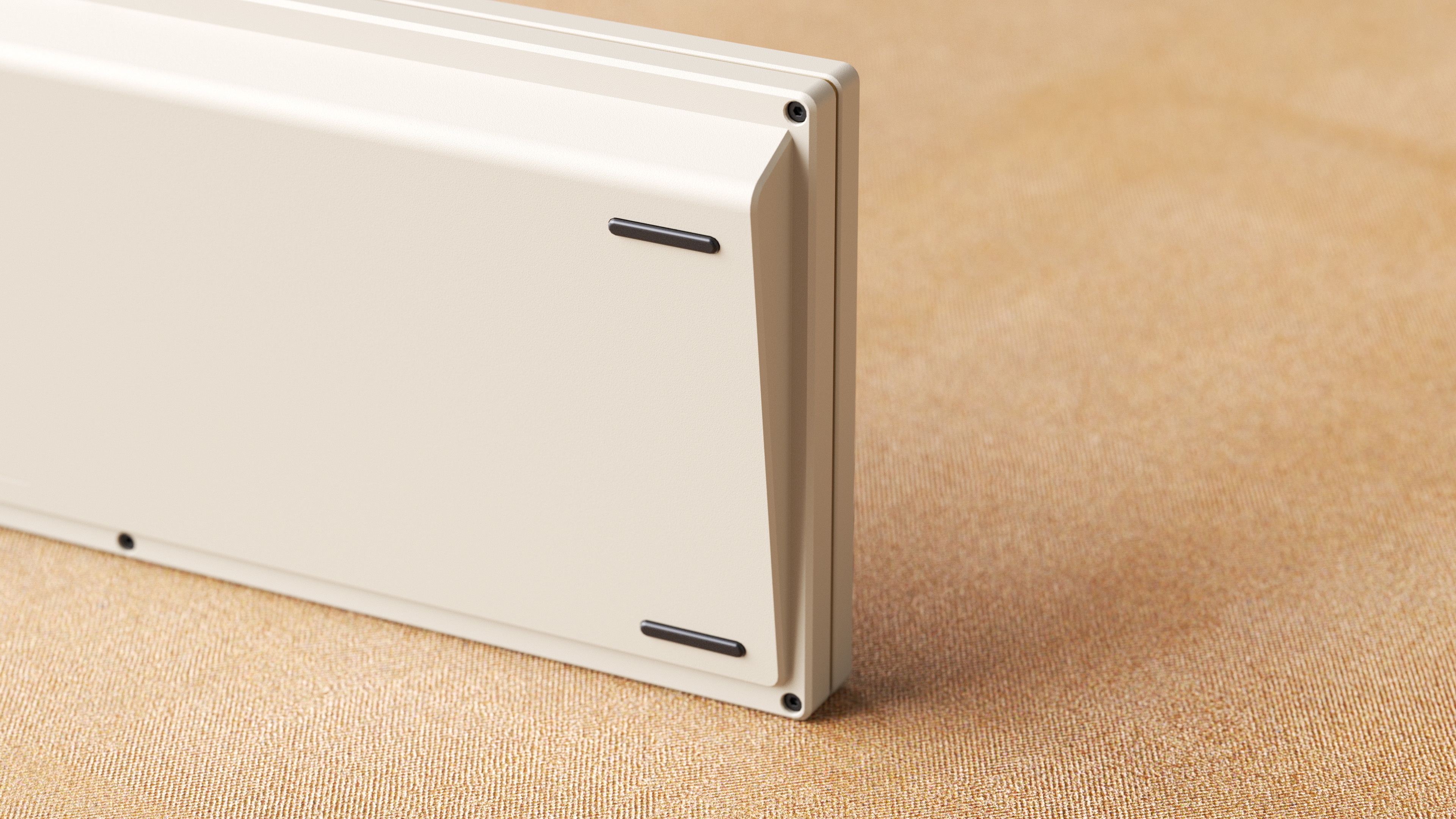

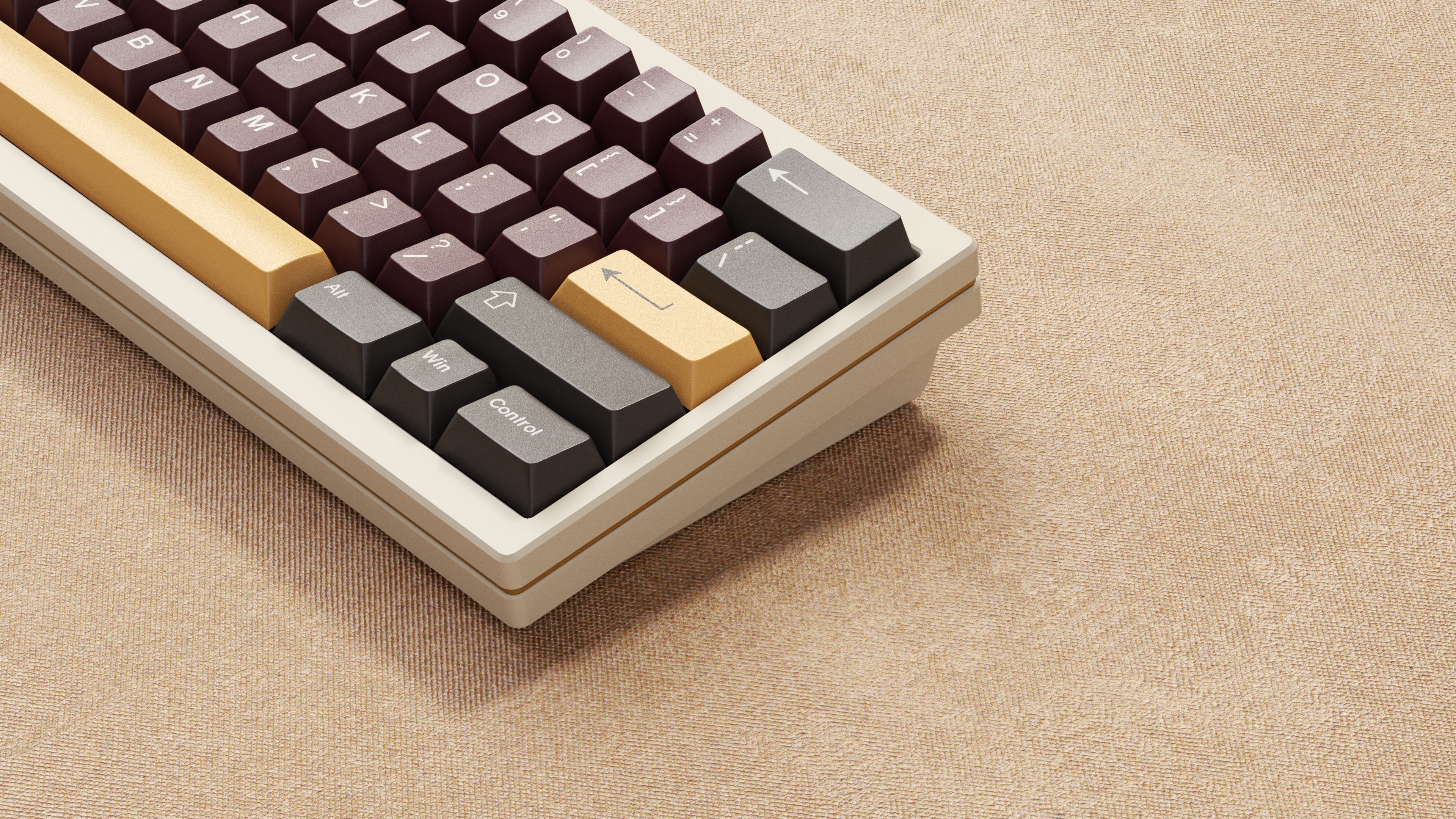

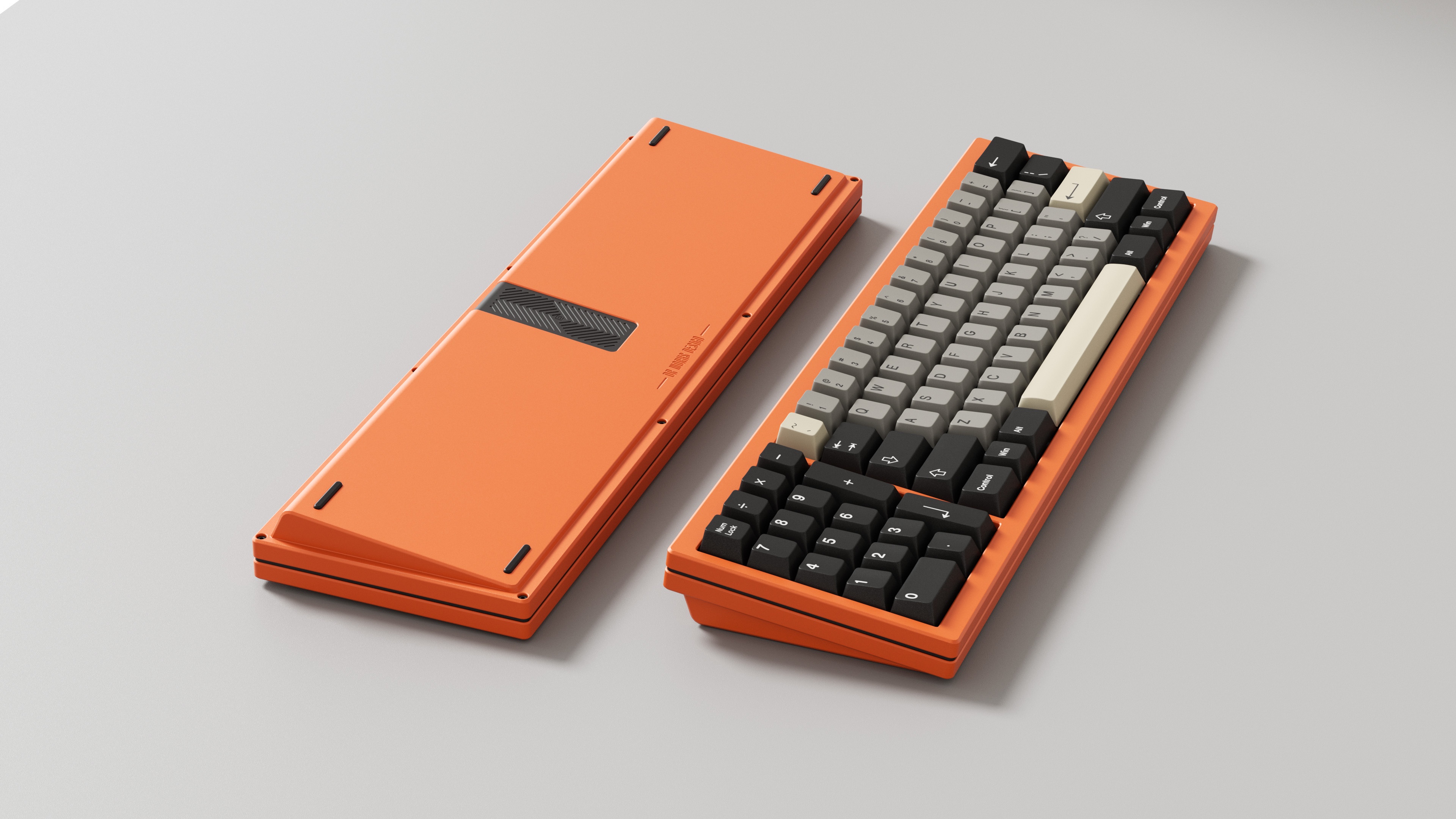

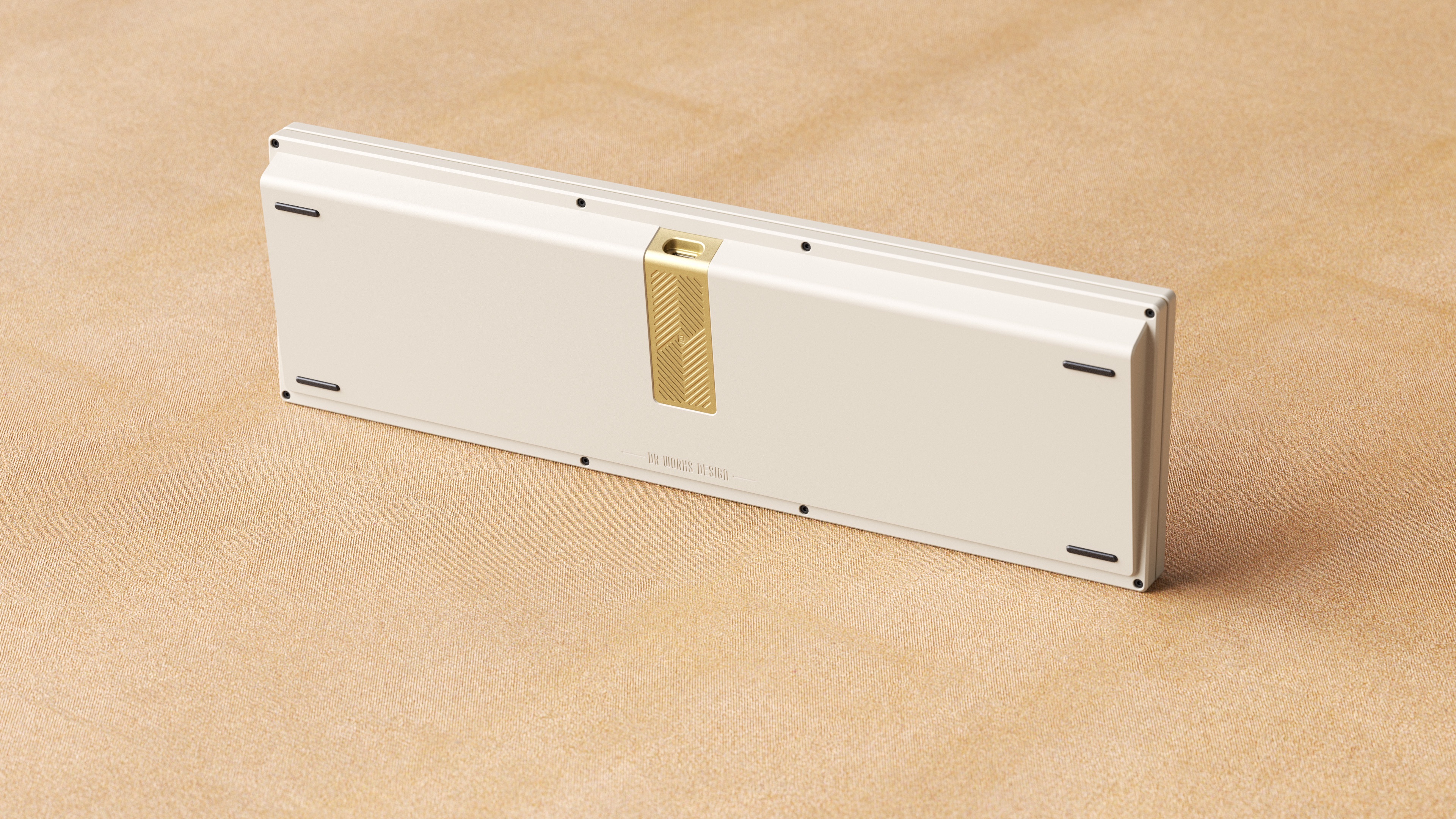

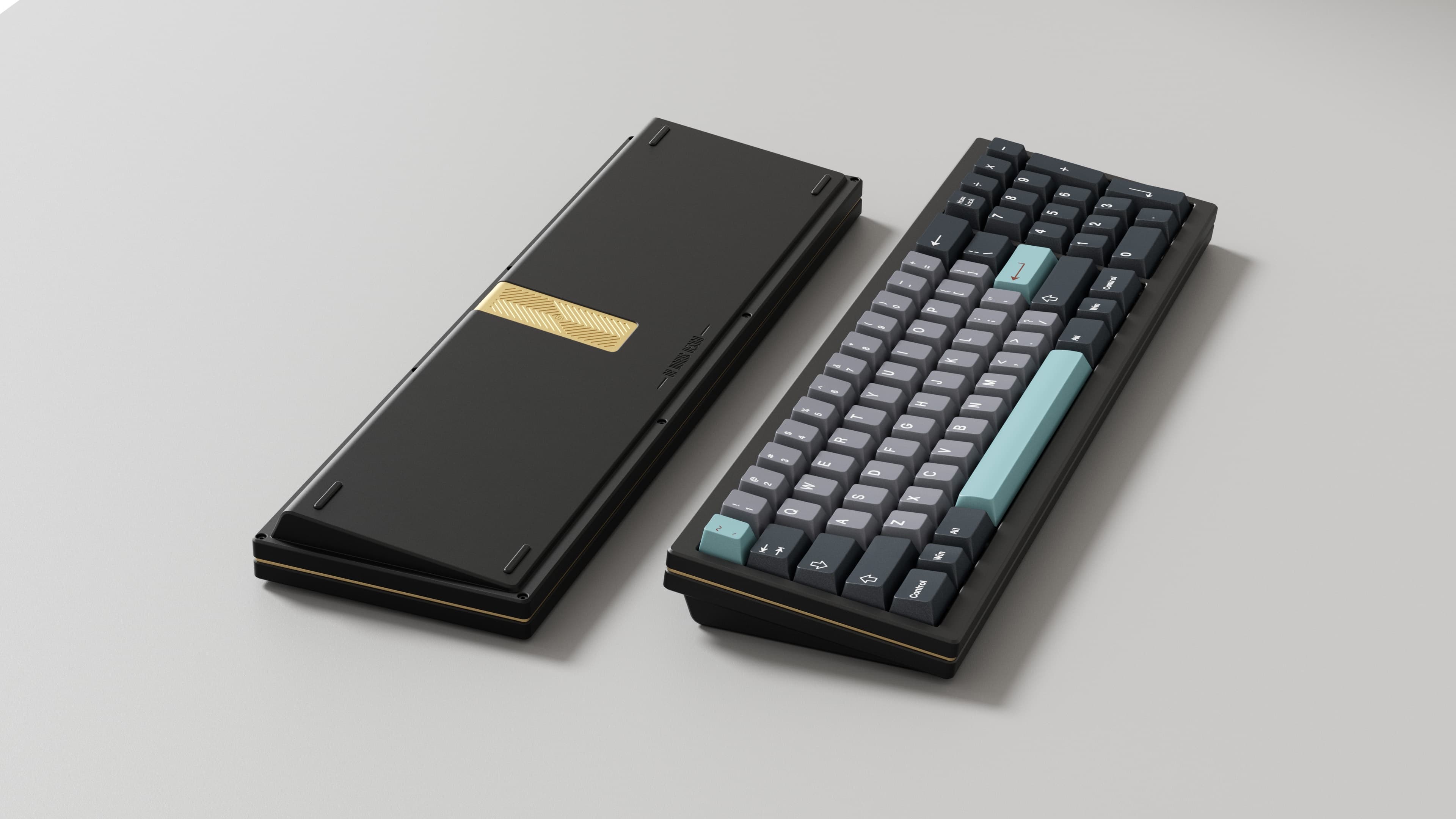

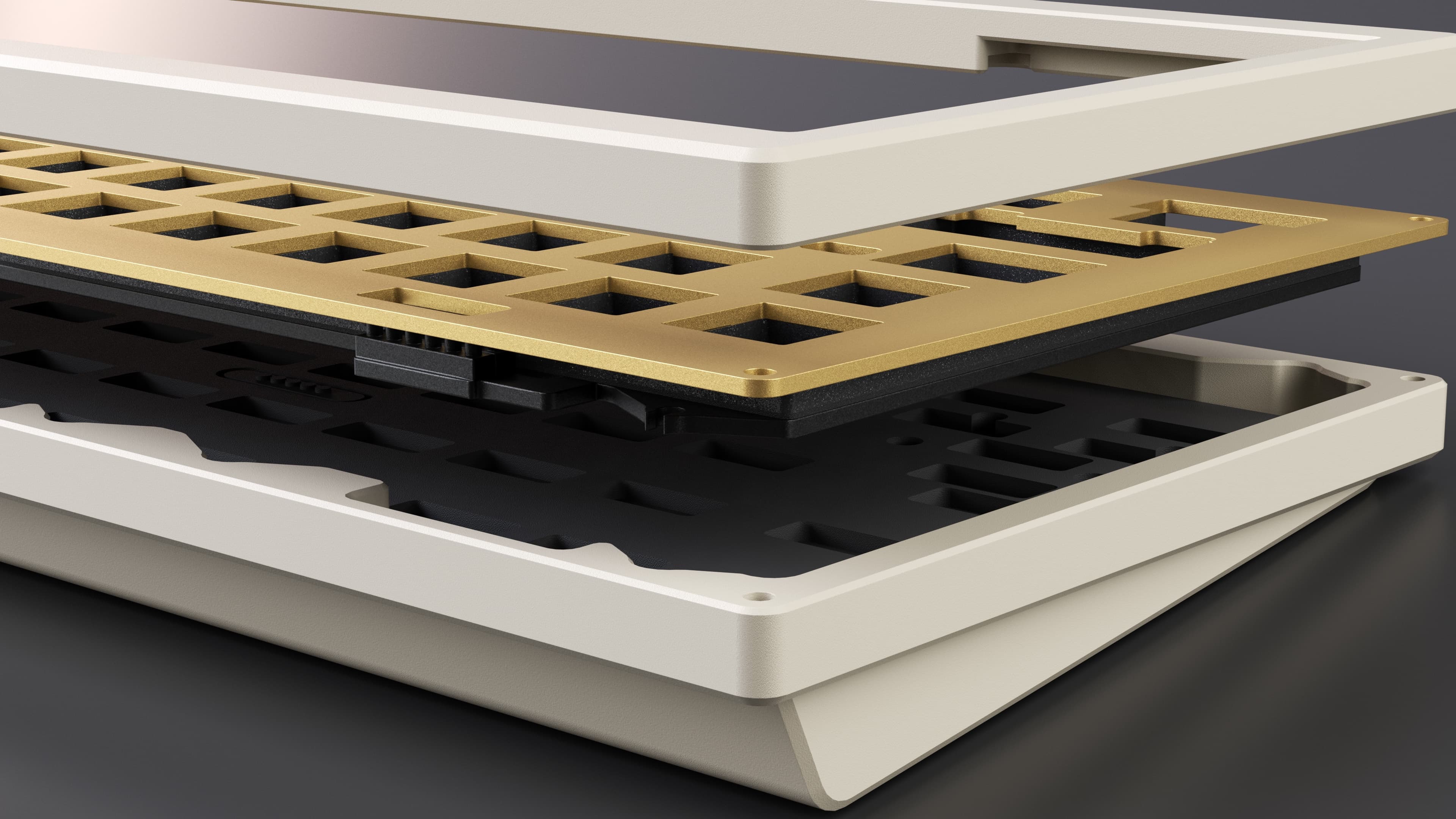

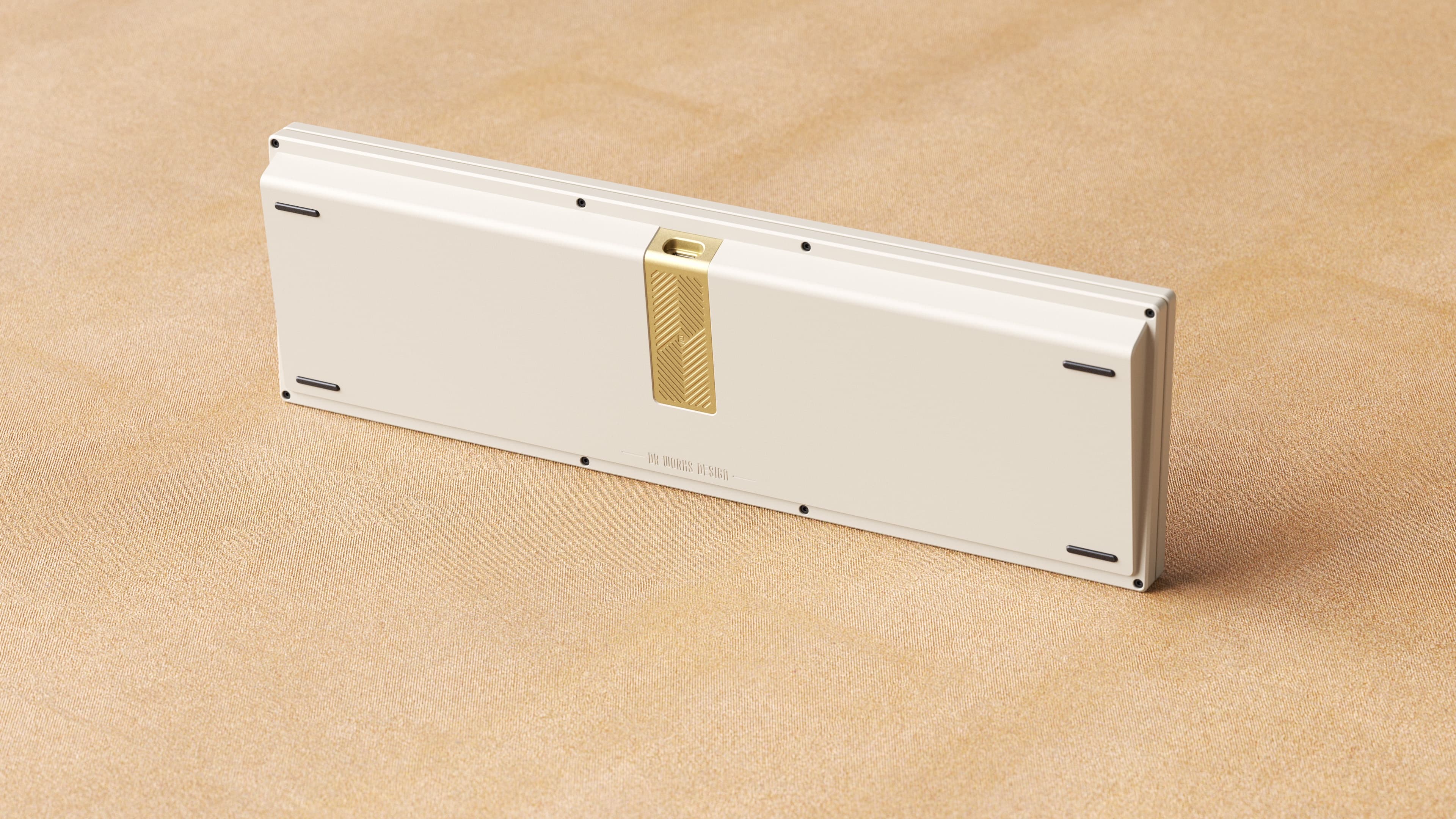

三.Appearance Details

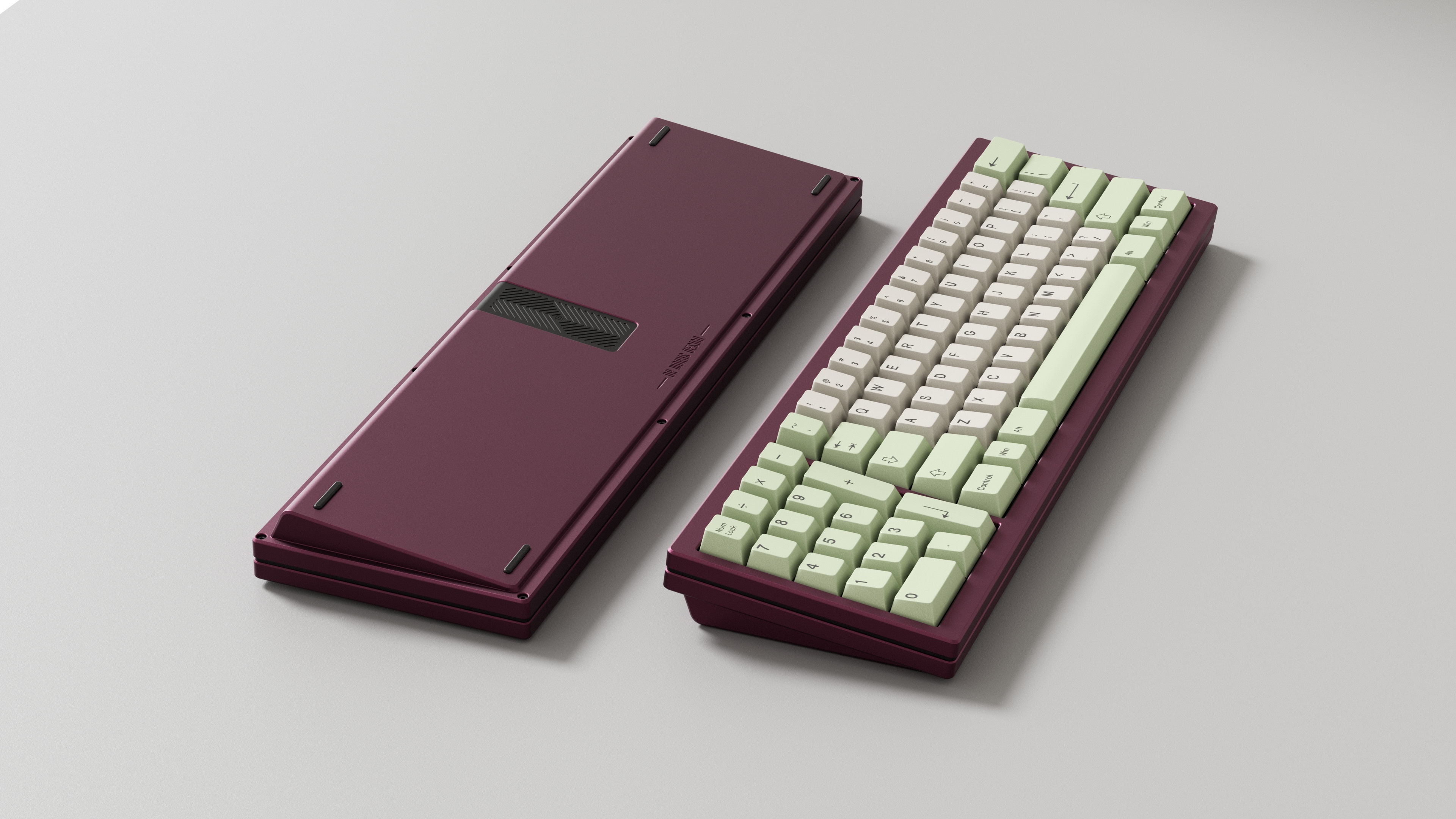

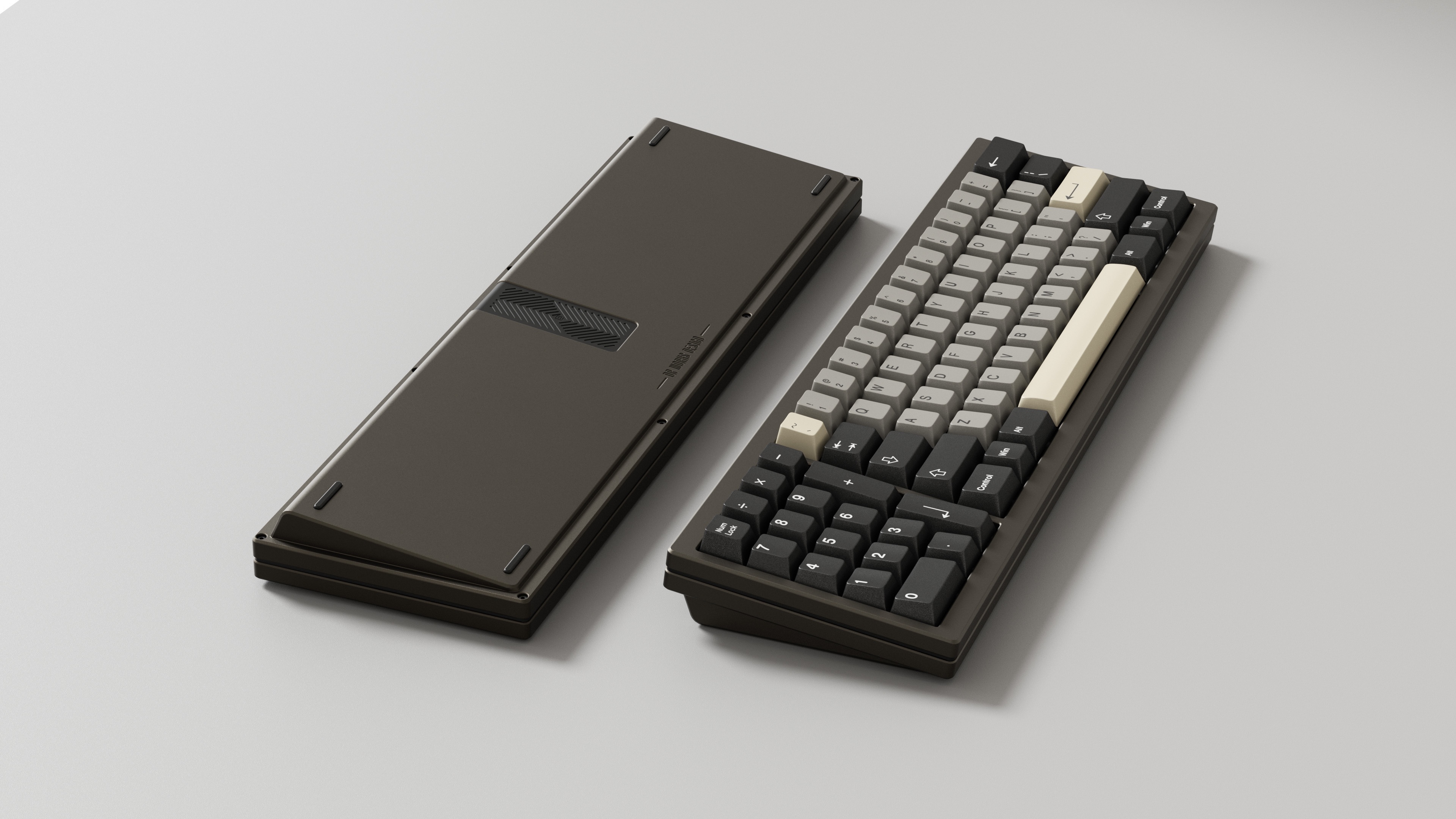

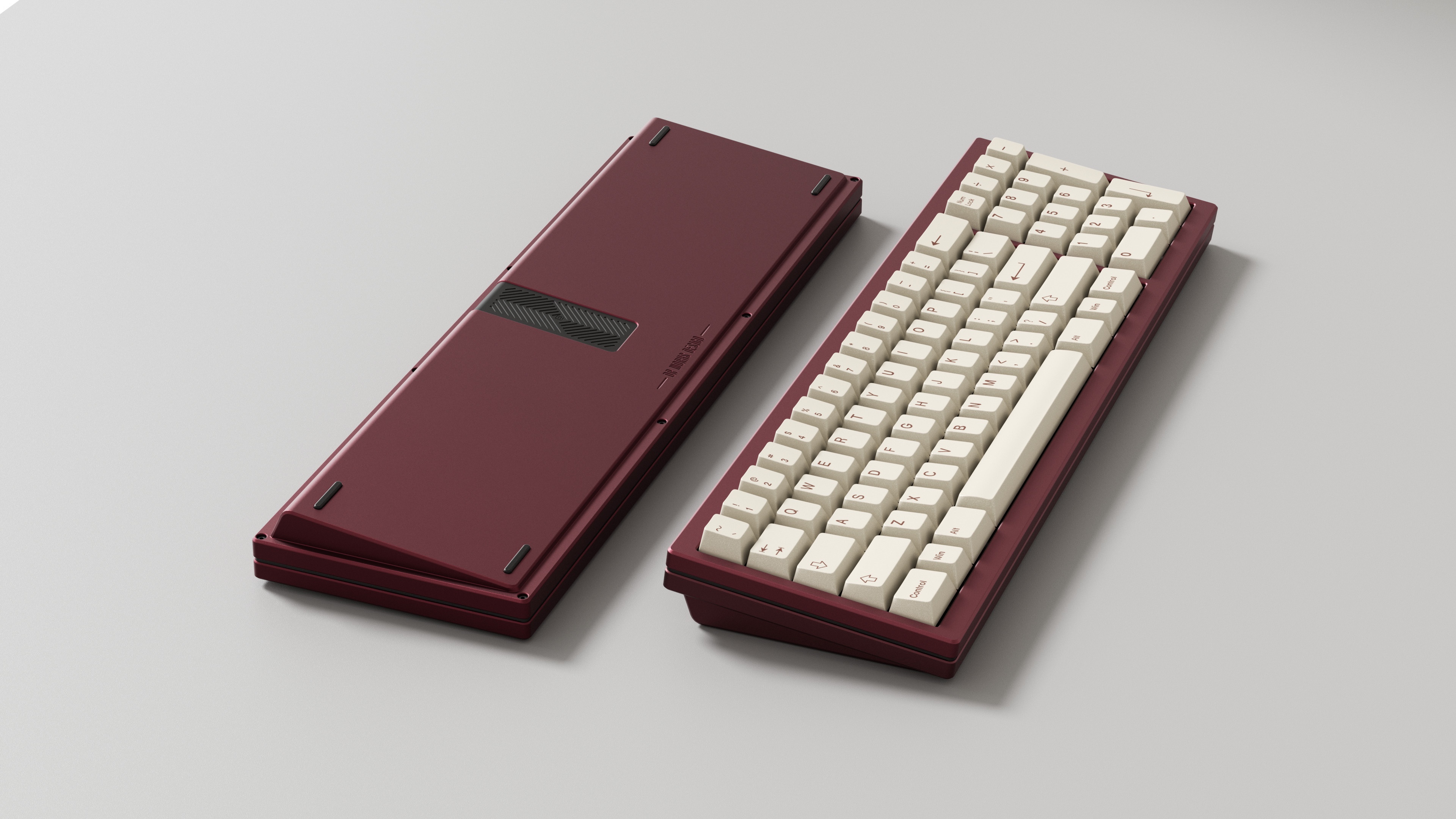

四.Case Color
Case Material:6063 ALU

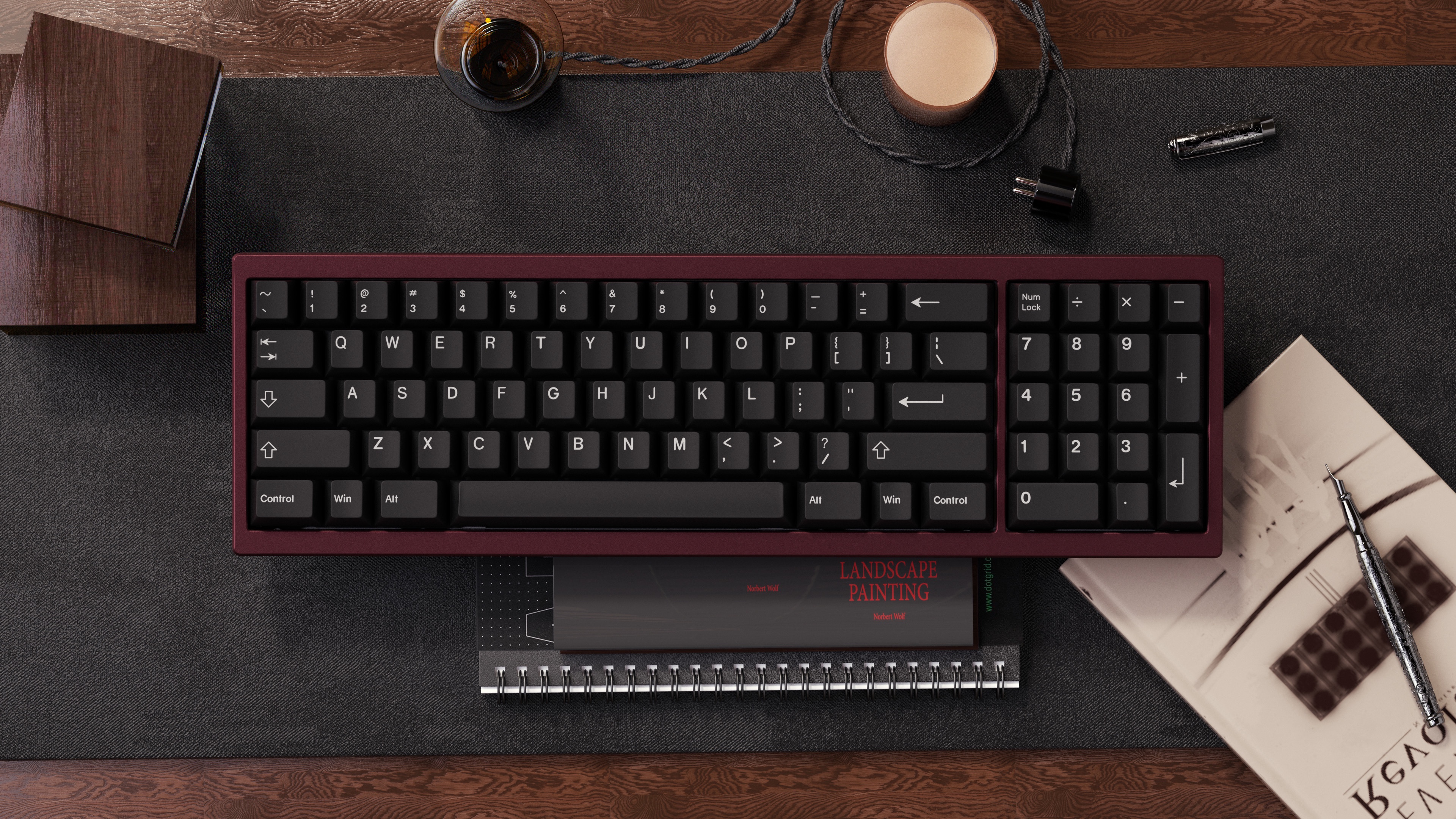

Case Color:Ano Black/E-retro White/Ano Burgundy/Ano dark gold/Ano purple/Spray-coated Black/Spray-coated Orange
五.Optional
Detachable badge

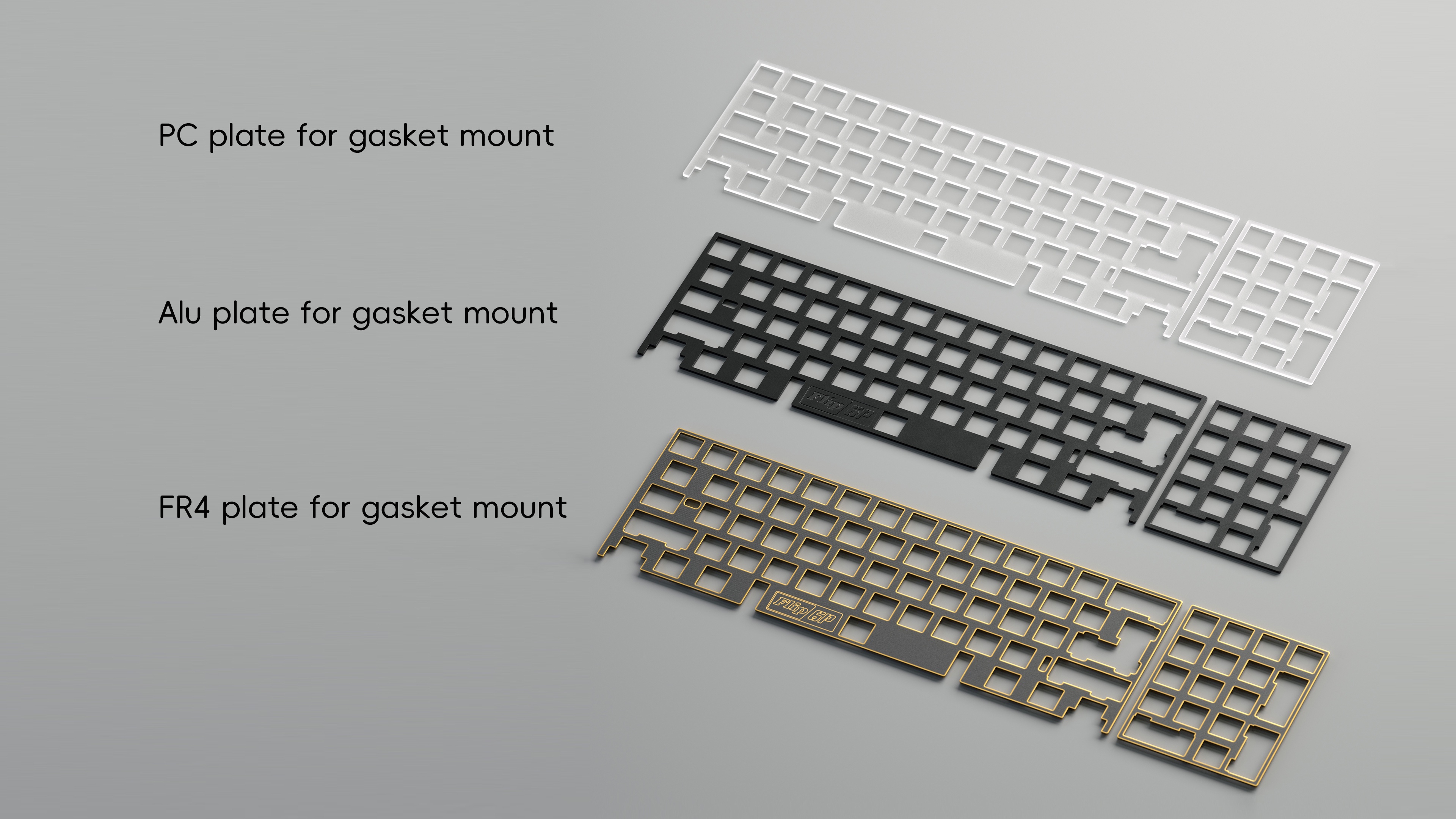

Plate

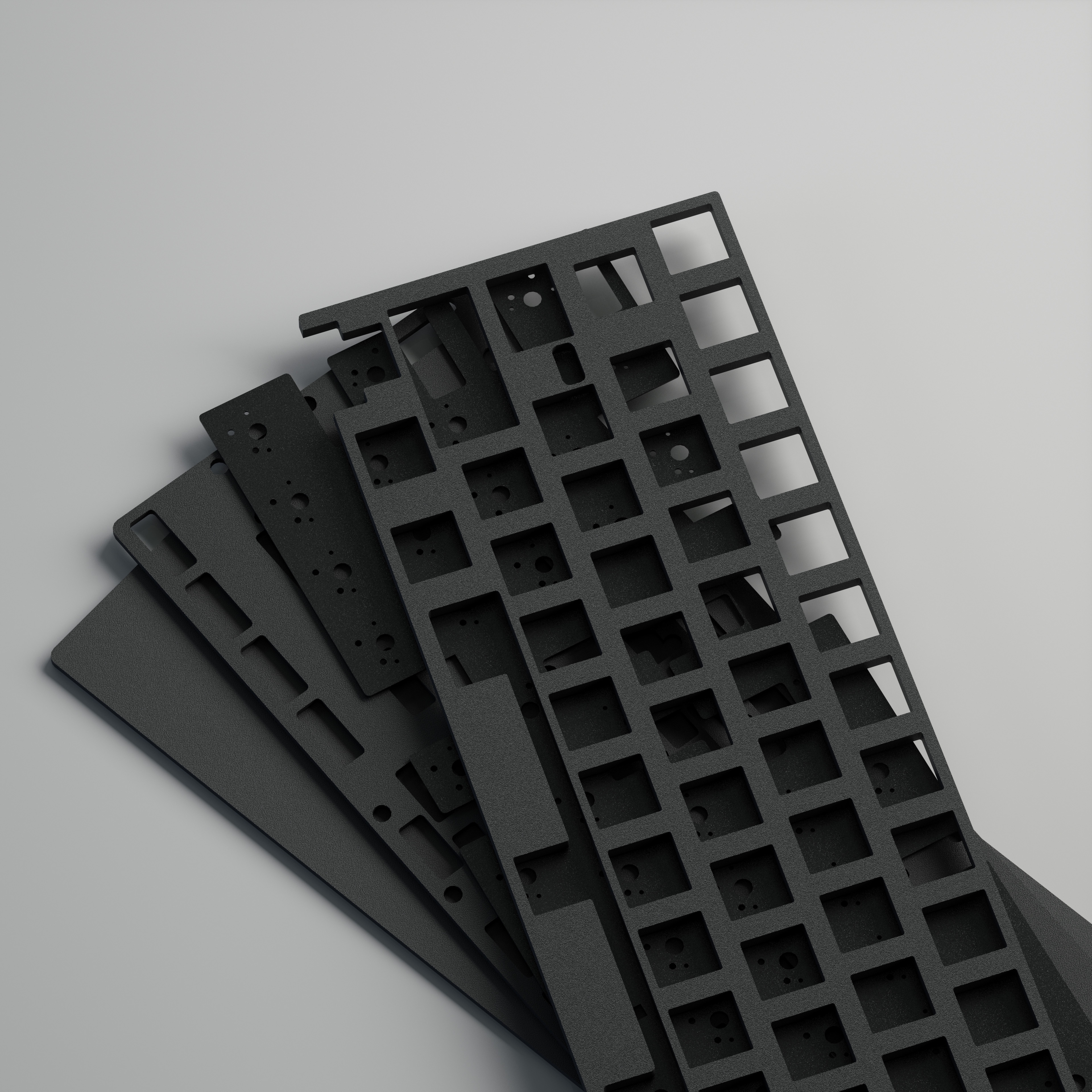

Foam kit(2mm poron+2mm hotswap poron+0.5mm IXPE+3.5mm foam）
[/center]
六.More information
Group buy date:estimated on August,determined on GB
Price:Wired $149,Tri-mode $169Weight:Brass (transparent electrophoresis)/or stainless steel PVD
Structure:PCB gasket mount,Sandwich mount
PCB:1.6mm no flex cut,wired hotswap pcb on VIAL,Tri-mode hotswap pcb on VIA.
Plate:1.5mm
Package include:
1*Top case
1*Bottom case
1*Middle frame(Ano black/white keyboard with alu gold color middlle frame, other color keyboards with alu black color middlle frame)
1*Weight(Ano black/white keyboard with brass weight, other color keyboards with stainless steel PVD weight)
1*PCB（one main pcb,one mirrowed numpad pcb,one non-mirrowed numpad pcb/Tri-mode pcb comes with 4400mah battery）
1*Type-c daughterboard
1* PC plate for gasket mount
1*Foam kit(2mm poron+2mm hotswap poron+0.5mm IXPE+3.5mm poron+battery foam)
1*Accessories bag
1*User guide
Optional price:
Wired hotswap pcb：$15
Tri-mode hotswap pcb: $45
Foam kit:$6
Plate for pcb gasket mount:$10
Sandwich mount alu plate:$10
A pair 1U blank badge:$20
One piece 1.5U blank badge:$10
One piece 1.5U caps light badge:$10
One piece 1.5U pattern badge:$10
Check flip 6p product link on our offical website:
https://d-r.works/products/in-stock-flip-6p-keyboard?variant=48664341807425Or you can subscribe instock notice if you are interested in.
Also there will be review videos before instock sale,join our discord and discuss anything!
