Description

Hello,
We are wind studio. According to the suggestions of wind x alice few months ago, we decide to do the no F area alice with pad layout.

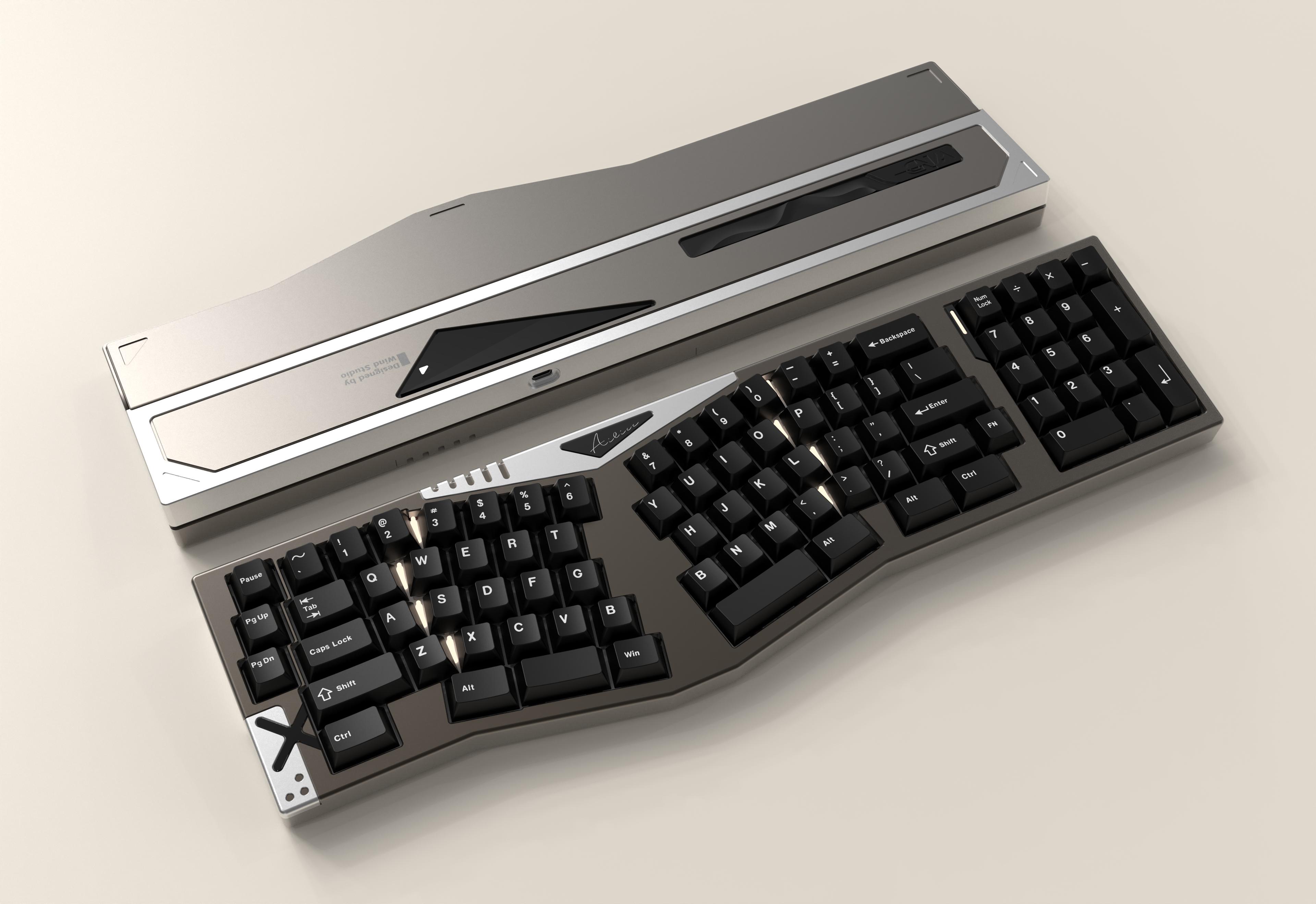

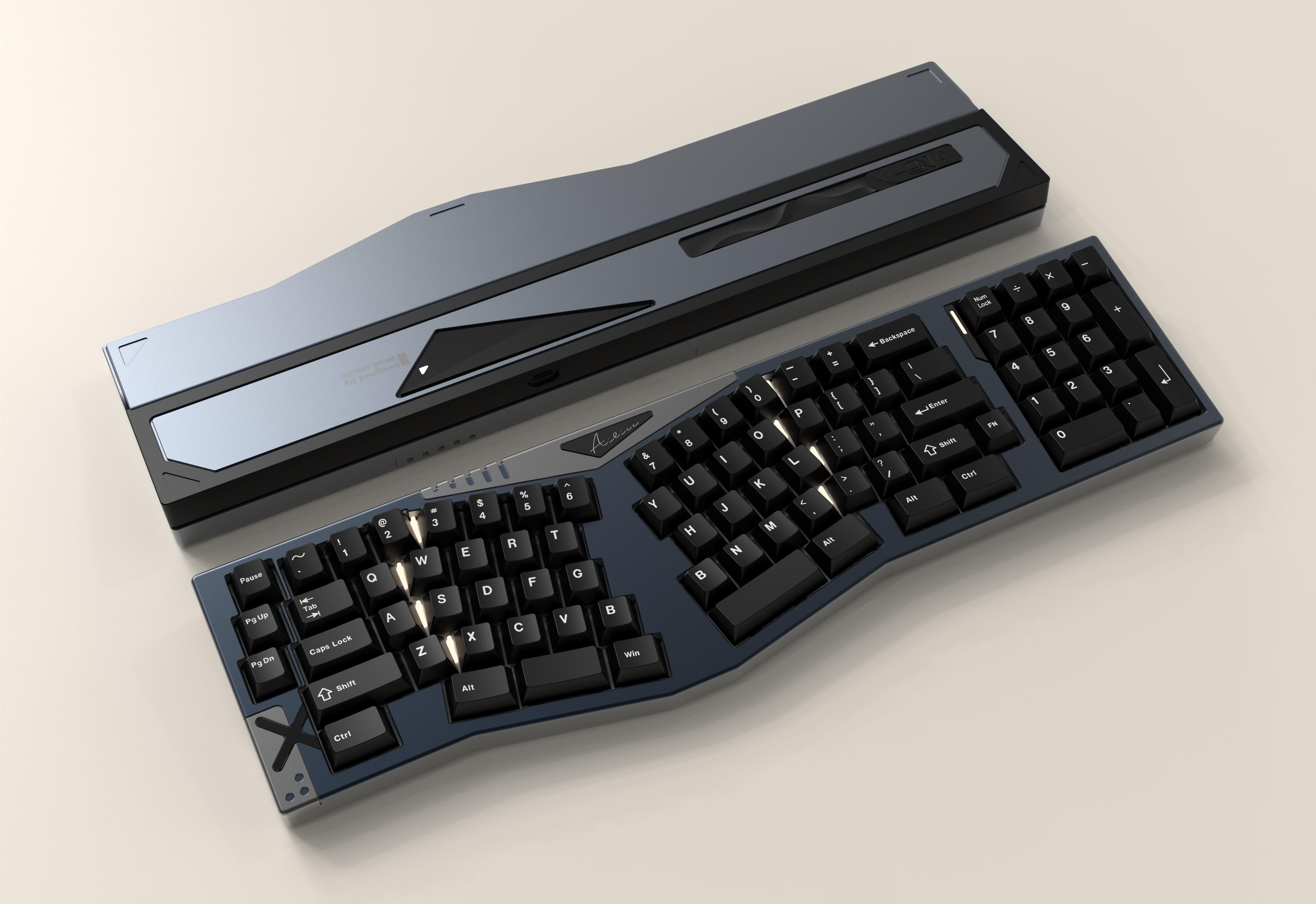

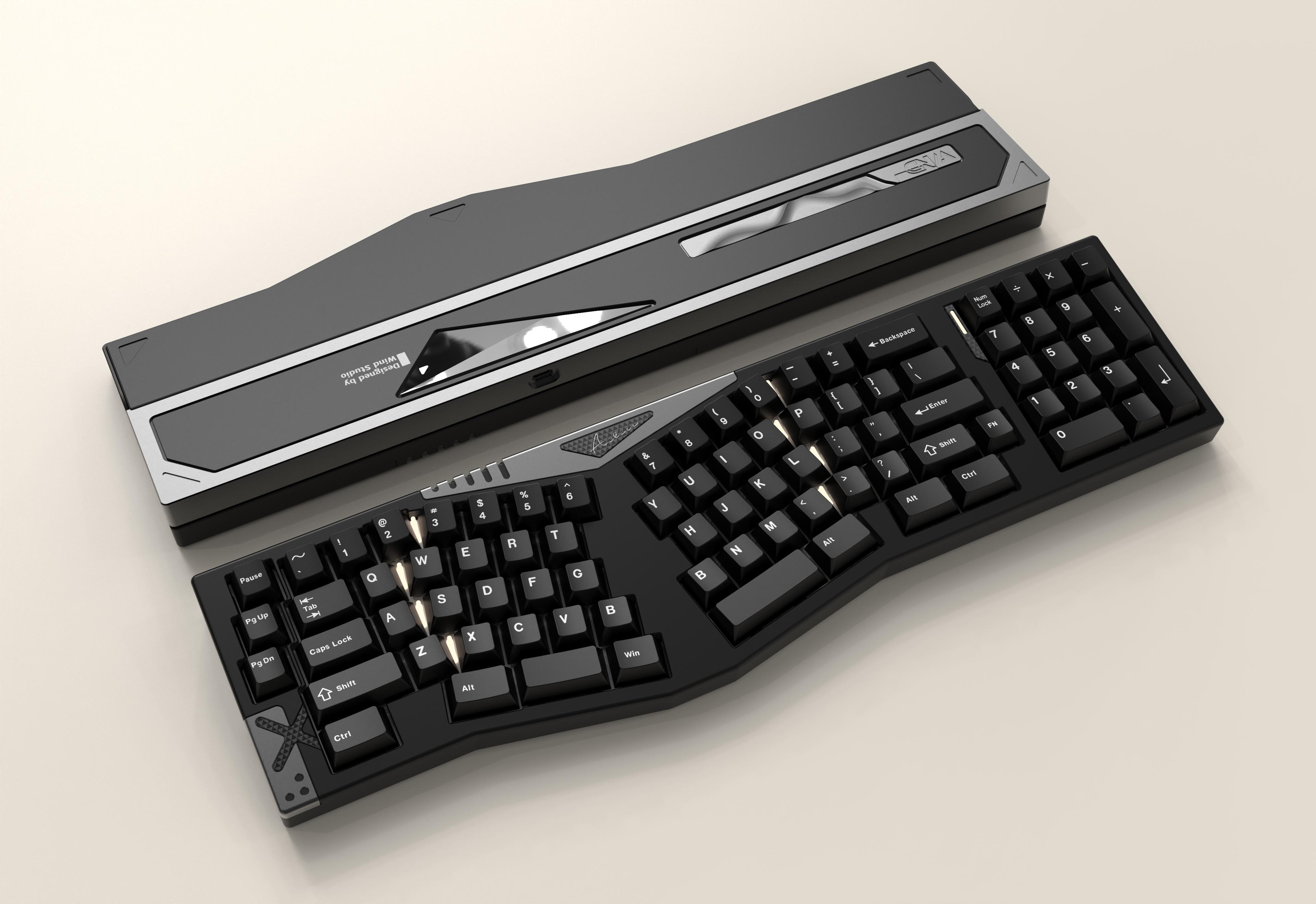

一. Appearance

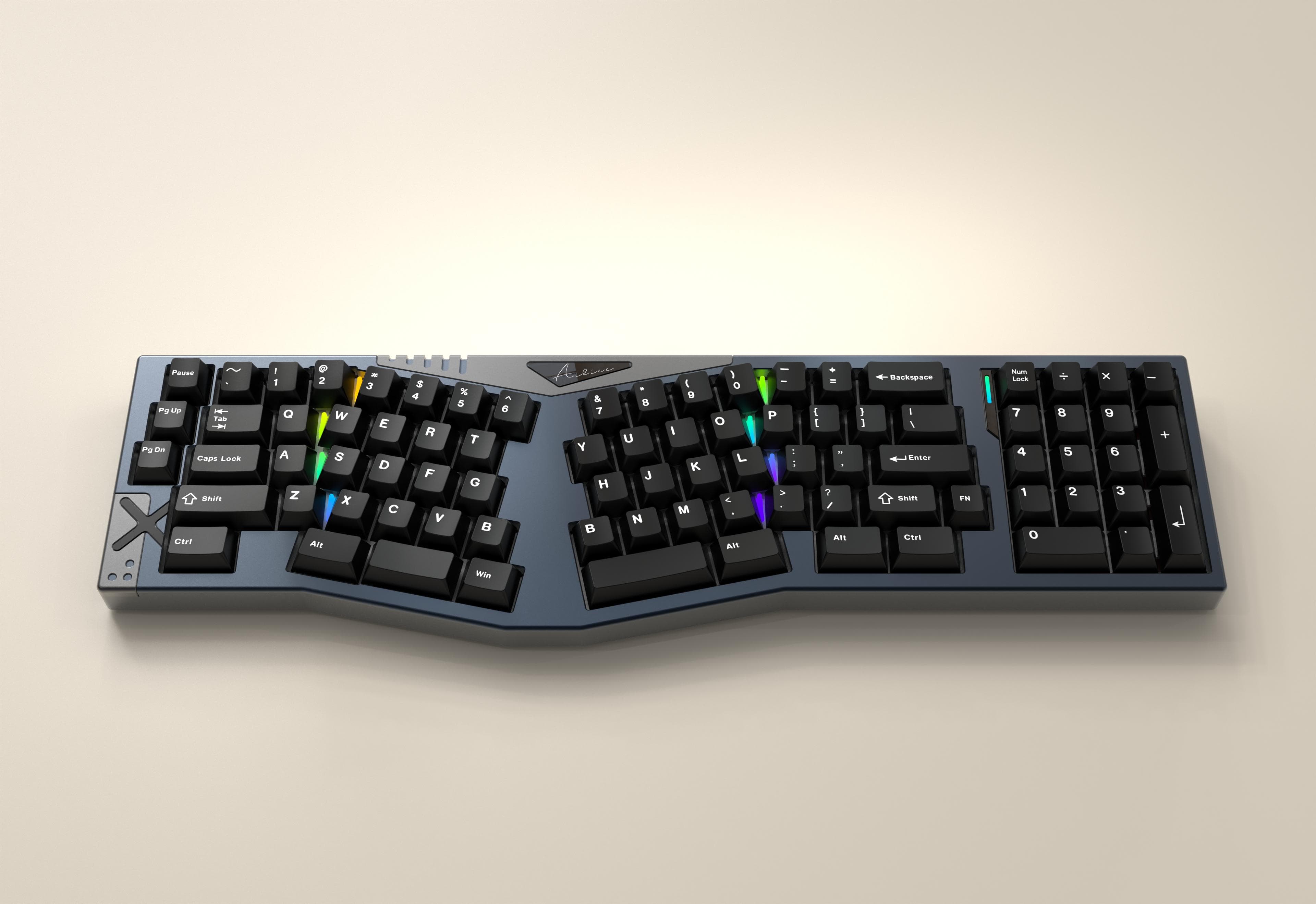

Different from our previous simple style, this whole keyboard kit adopts a multi-piece splicing combination and contrasting color design,and adds rgb embellishments in multiple positions，
hope to bring you a cool and more attractive feeling.

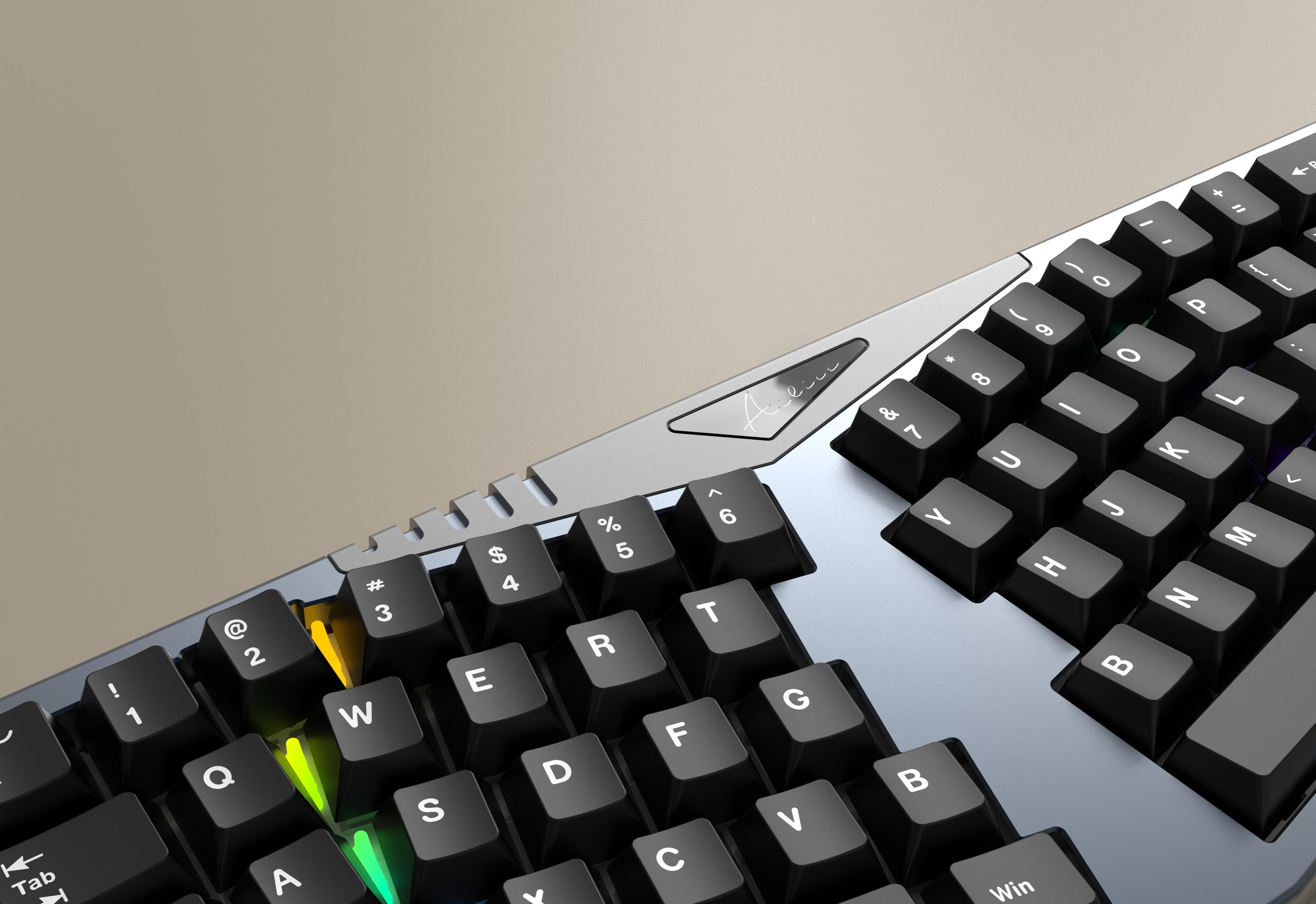

The entire forehead on the front is made up of a large inverted triangle of anodized aluminum badge and a stainless steel mirror PVD badge (engraved with Alice).

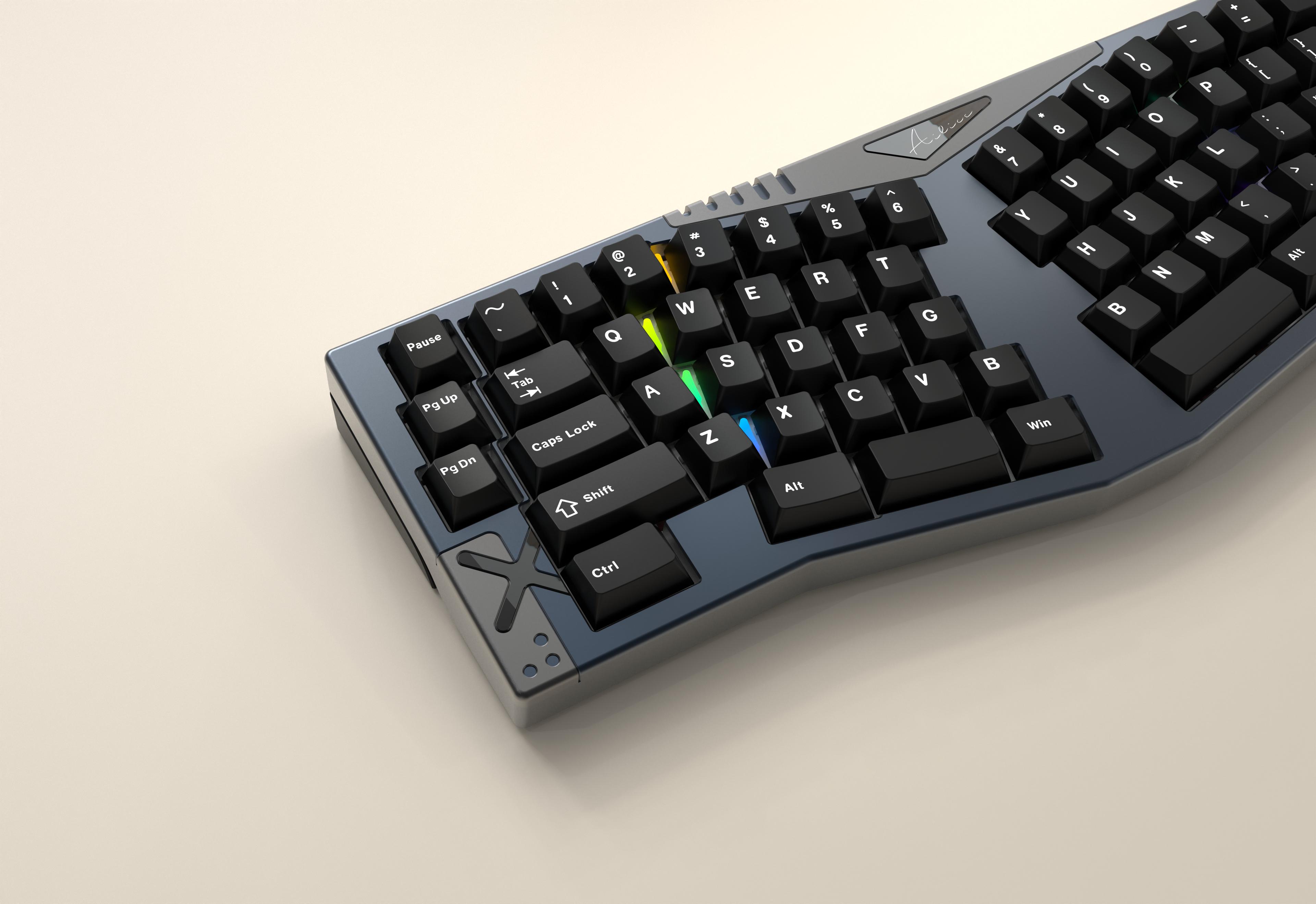

The lower left corner is combined with a X logo mirrowed stainless steel pvd badge and a rectangle alu badge, three dots on the alu badge are hollowed out for decoration

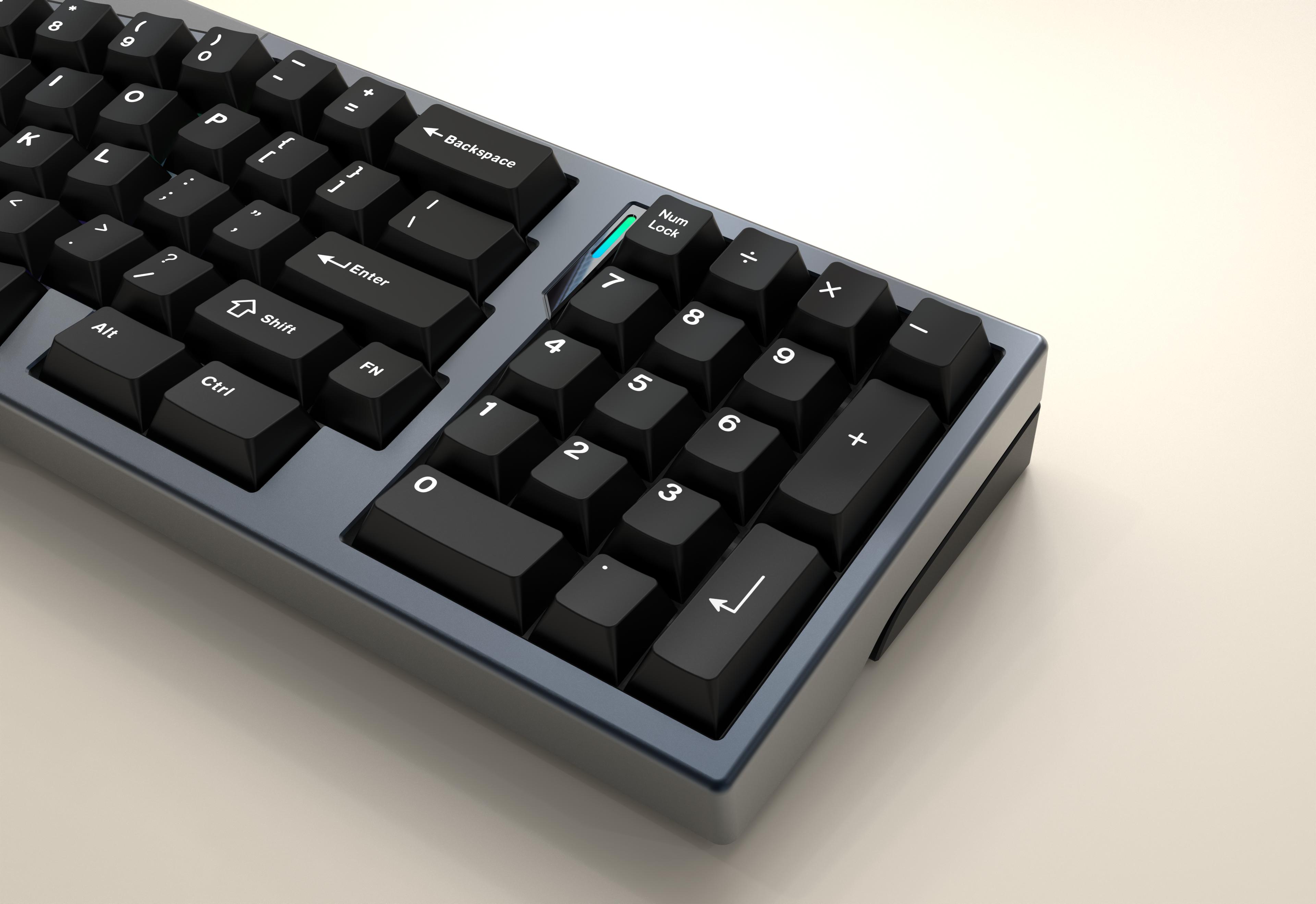

The RGB light of the mirrowed stainless steel pvd badge near the numpad also can be NumLock indicator lights.

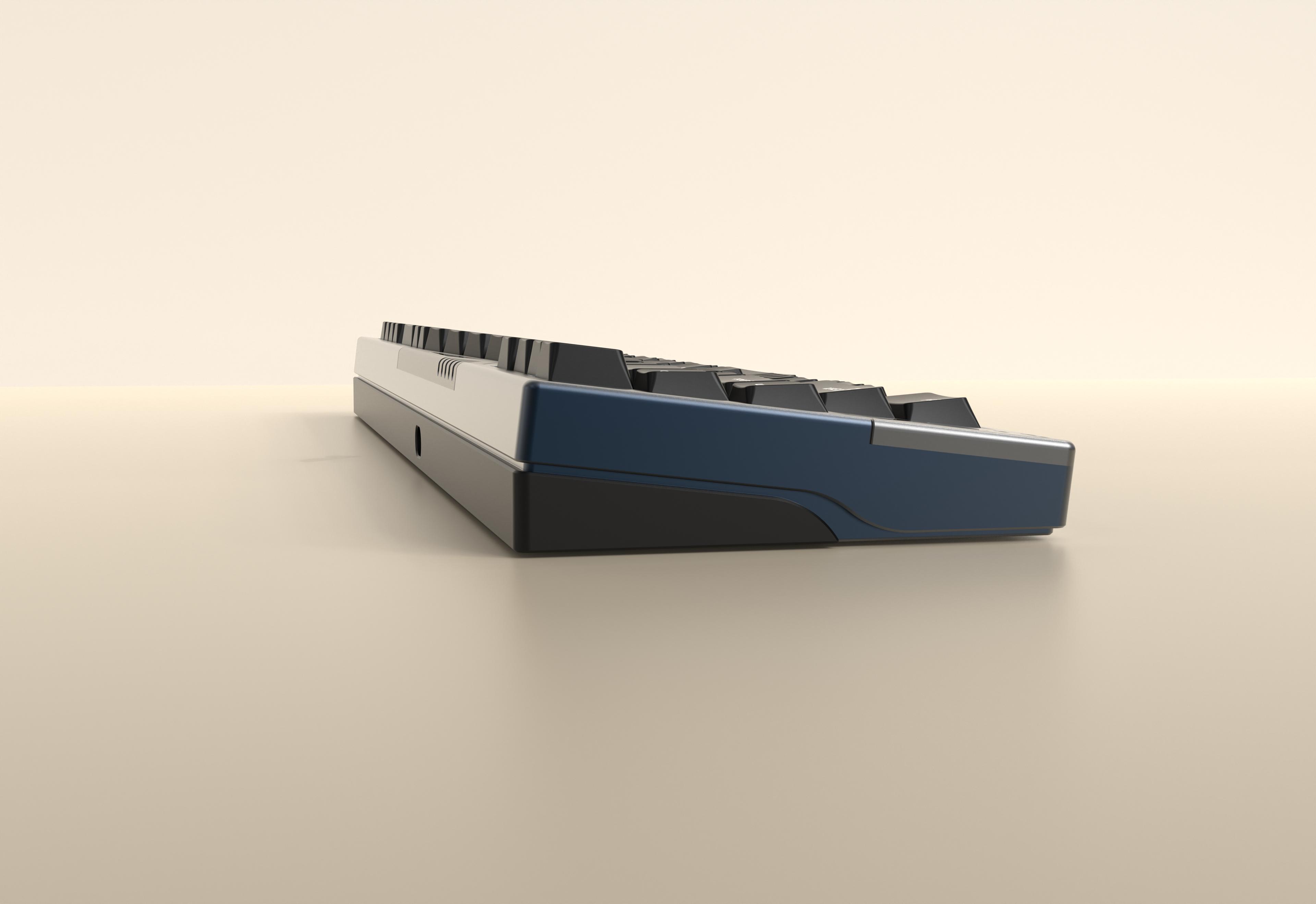

The top and bottom alu case with matte stainless steel PVD weight,is still the contrast waistline design

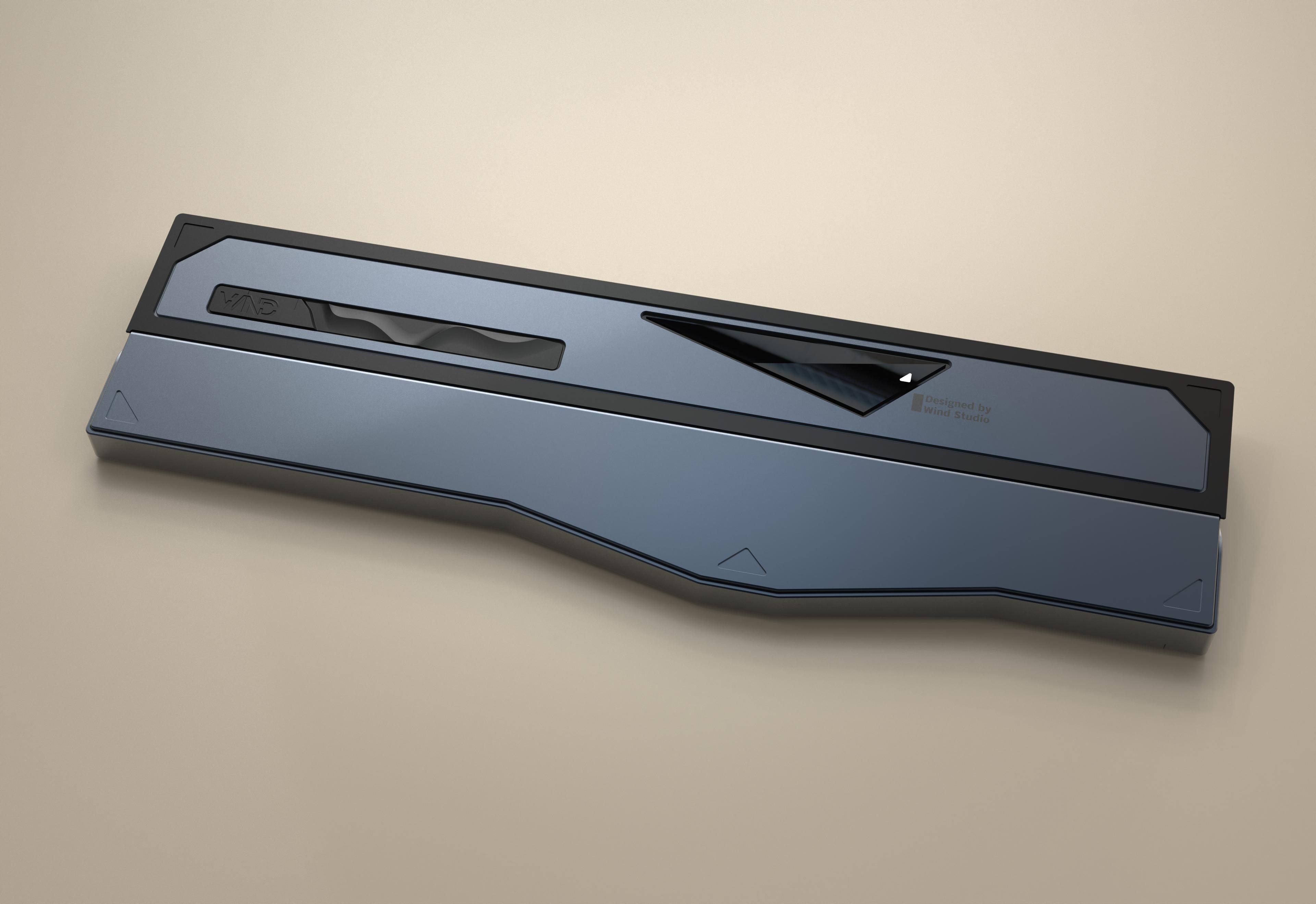

The stainless steel frosted PVD rectangular badge on the back adopts a hill-shaped curved surface process and stainless steel mirrored pvd sloped triangle badge.

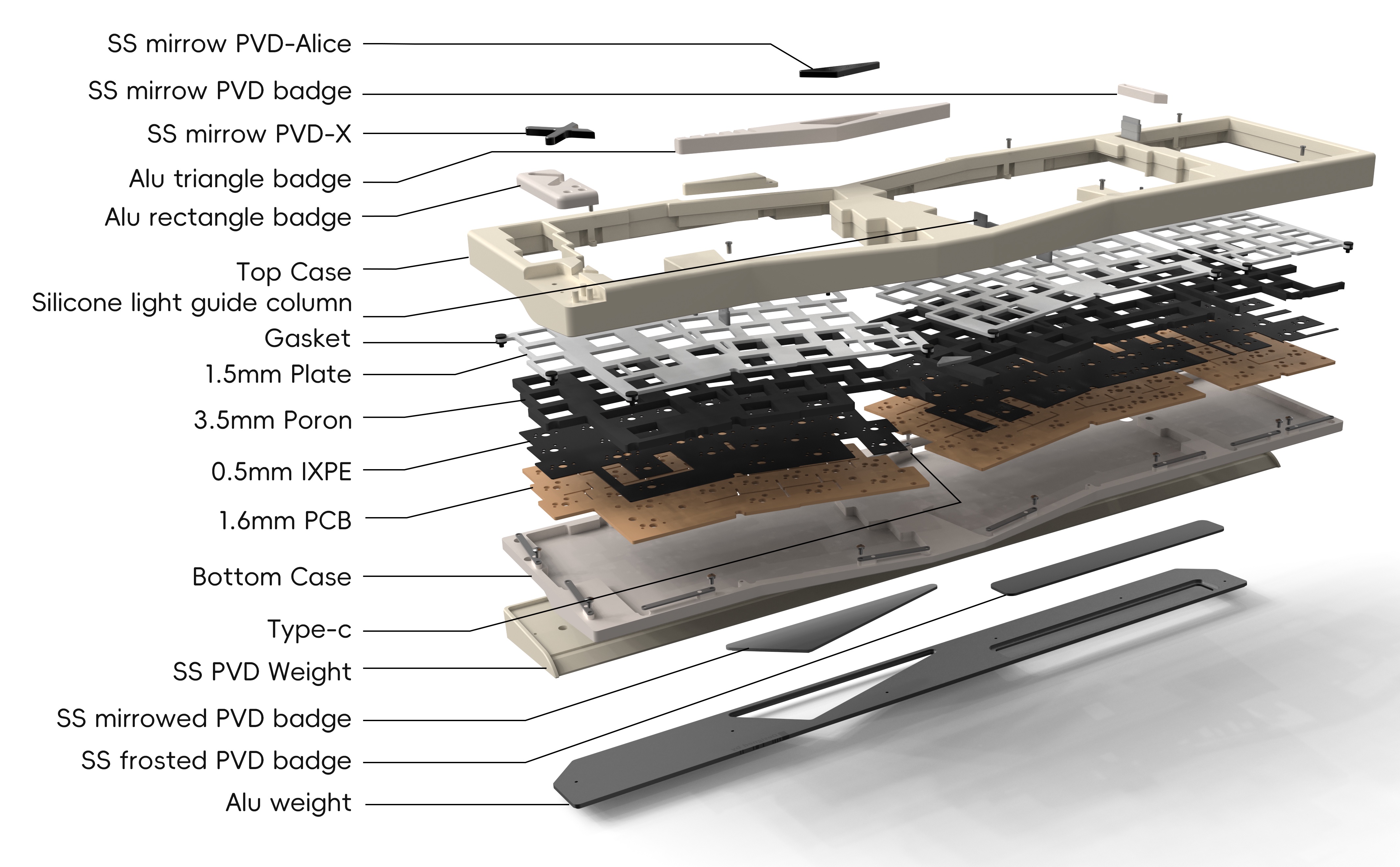

二.Structure

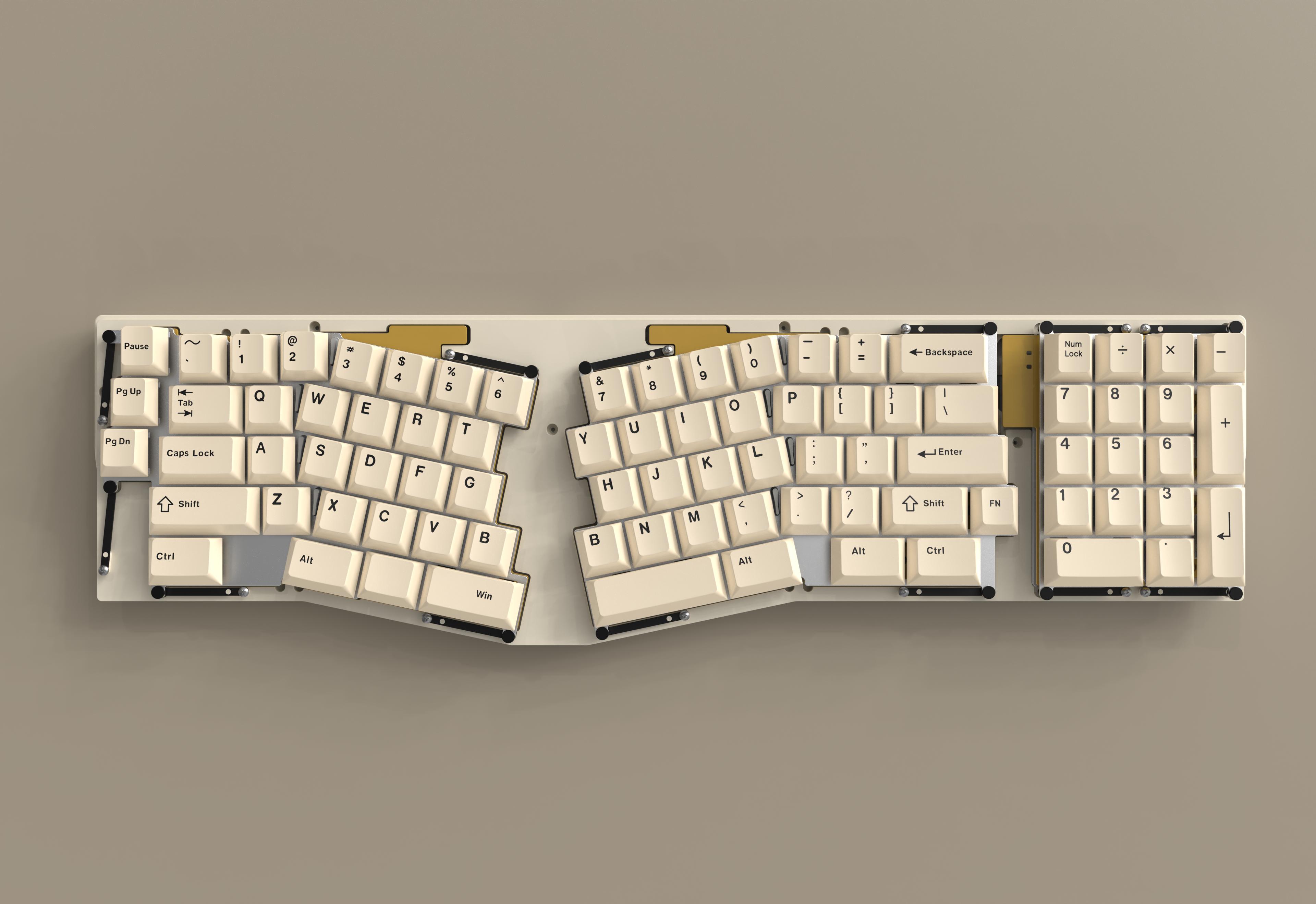

Support leaf spring mount and top mount

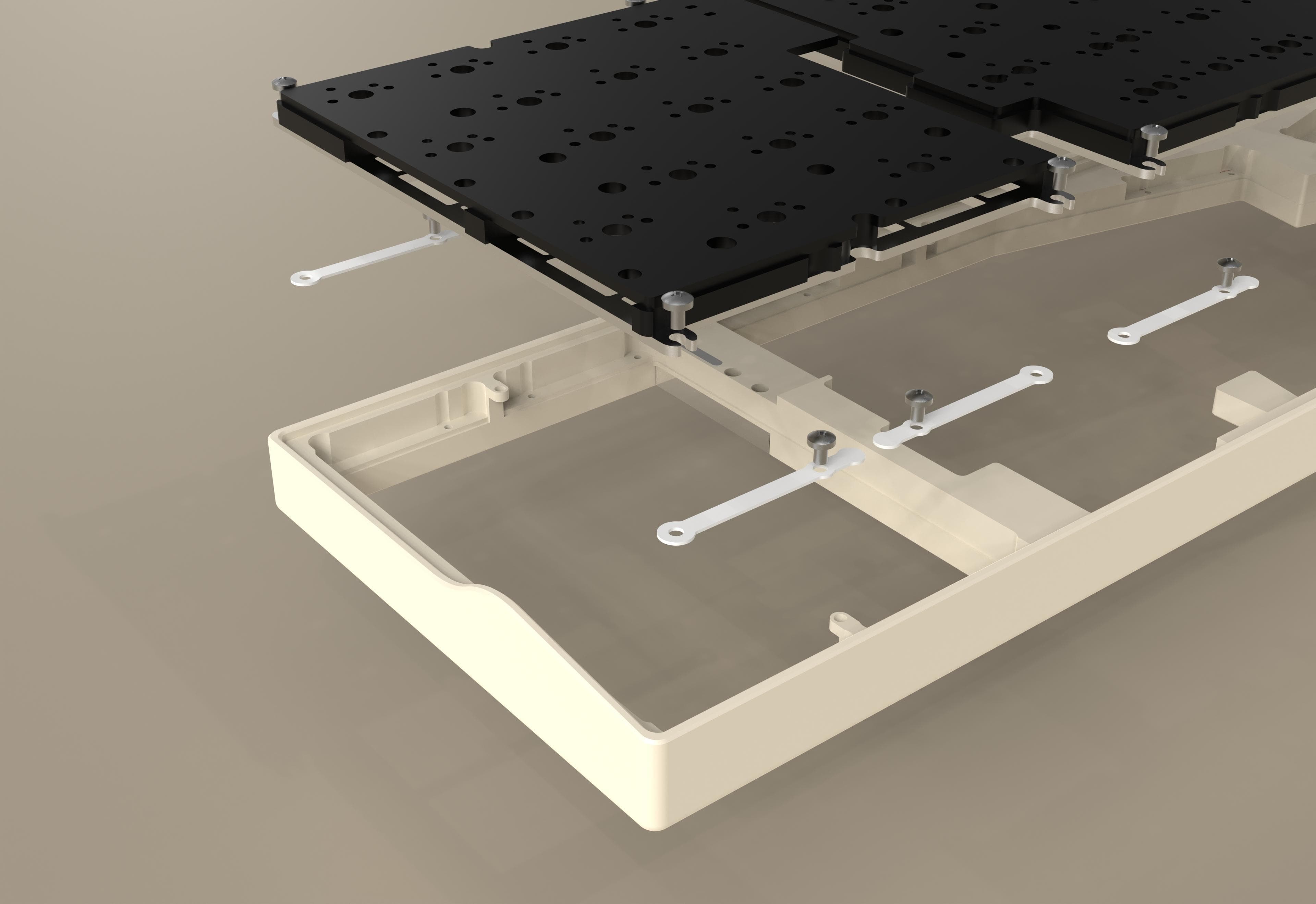

Leaf spring mount

Top mount

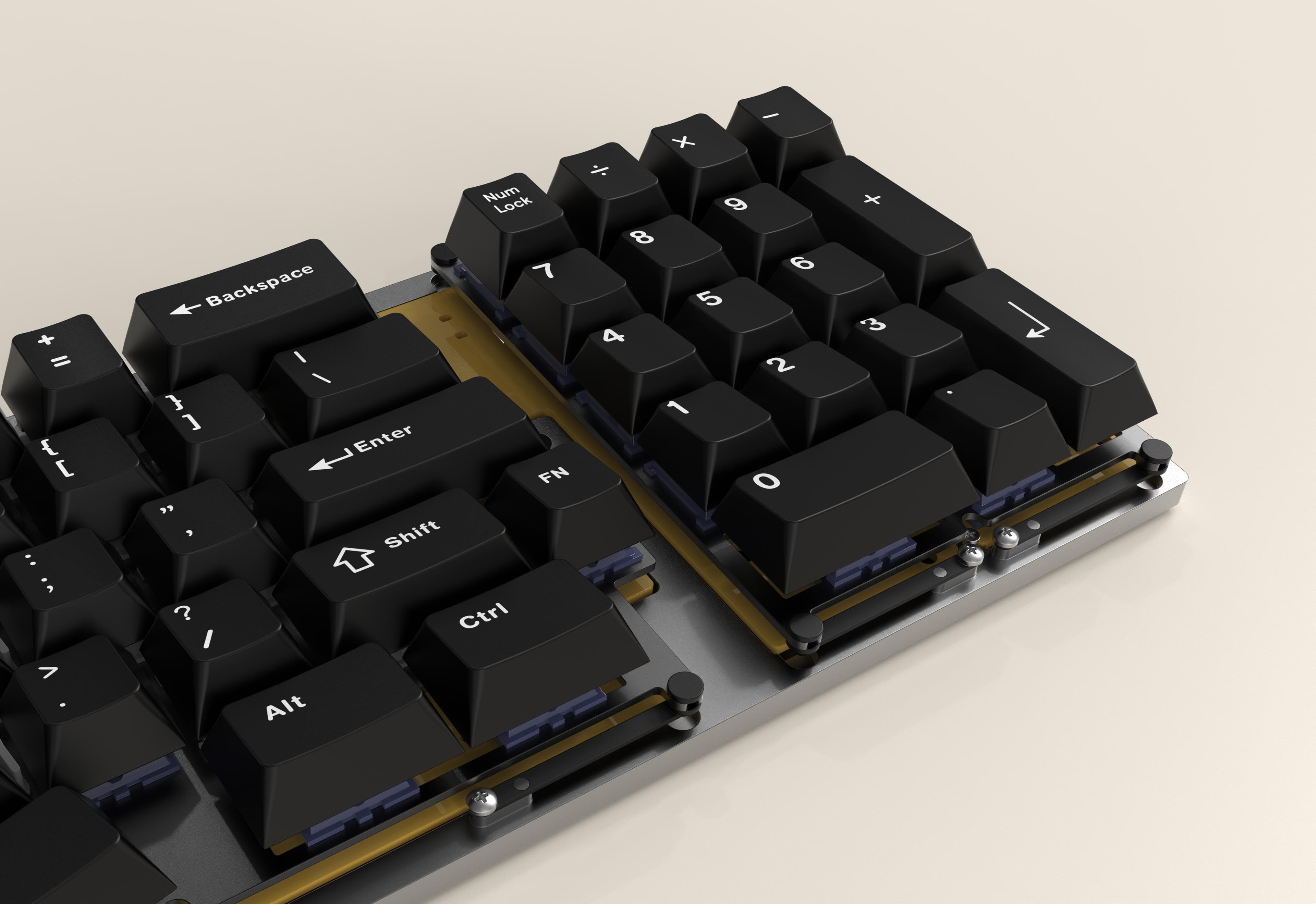

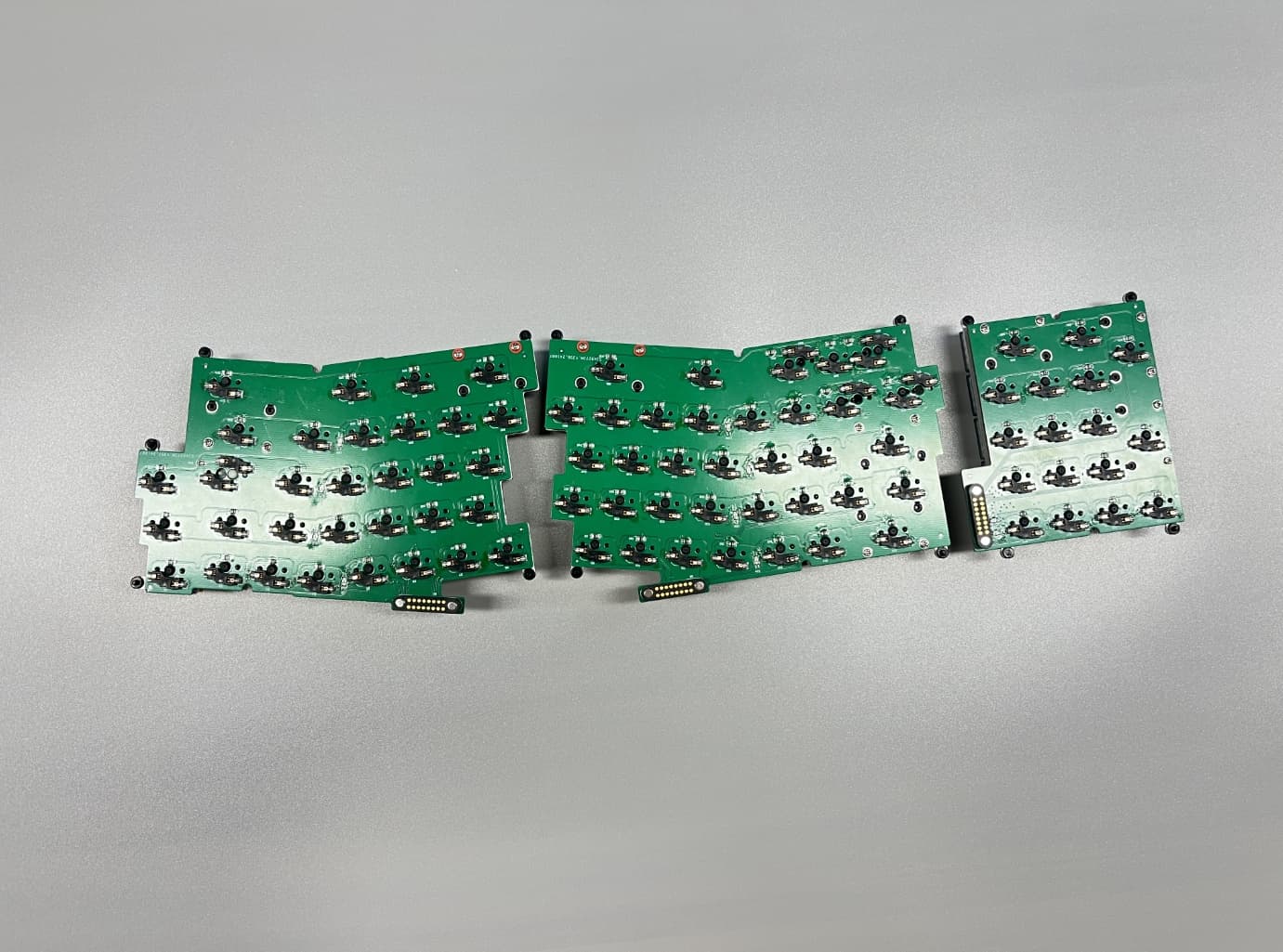

Split pcb with pogo pin connector,automatic adsorption directly when install, no need to connect any ribbon cable or align the contacts.
Support wired hotswap pcb and wired soldered pcb.

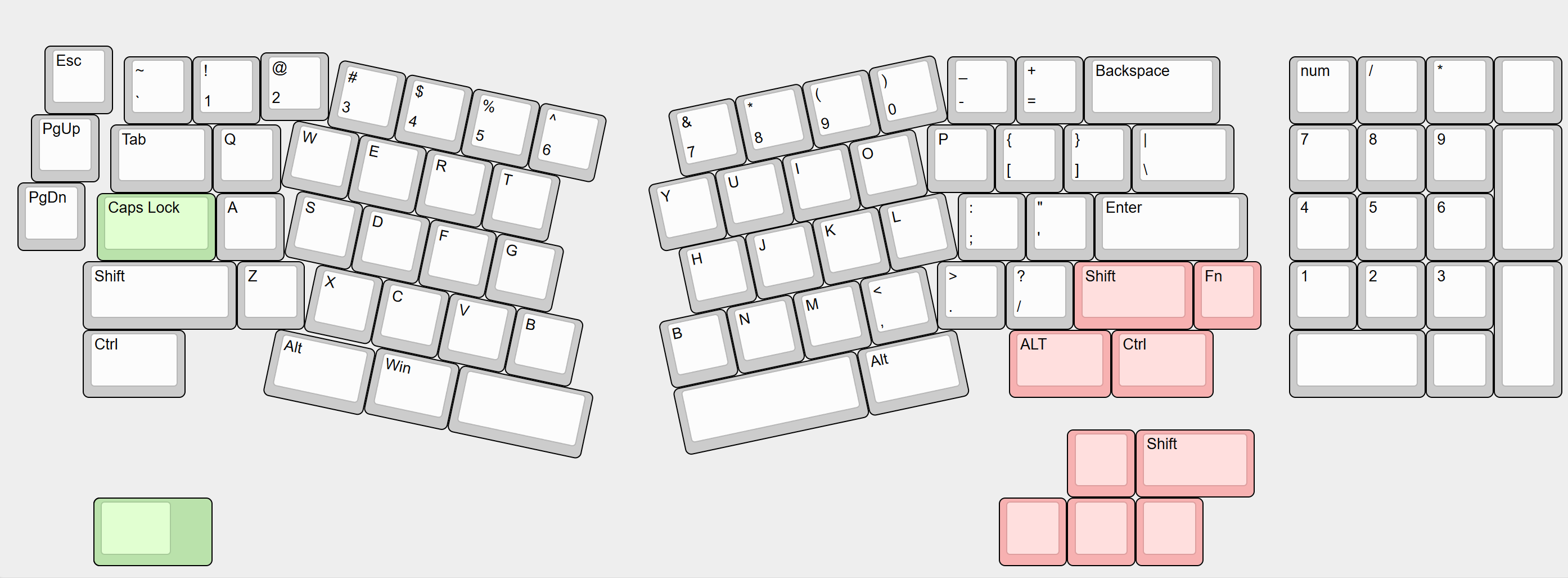

Ergonomic Alice layout with pad area can improve typing efficiency. The front height of 17.8mm make finger input more convenient and comfortable.

三.Color
Ano black

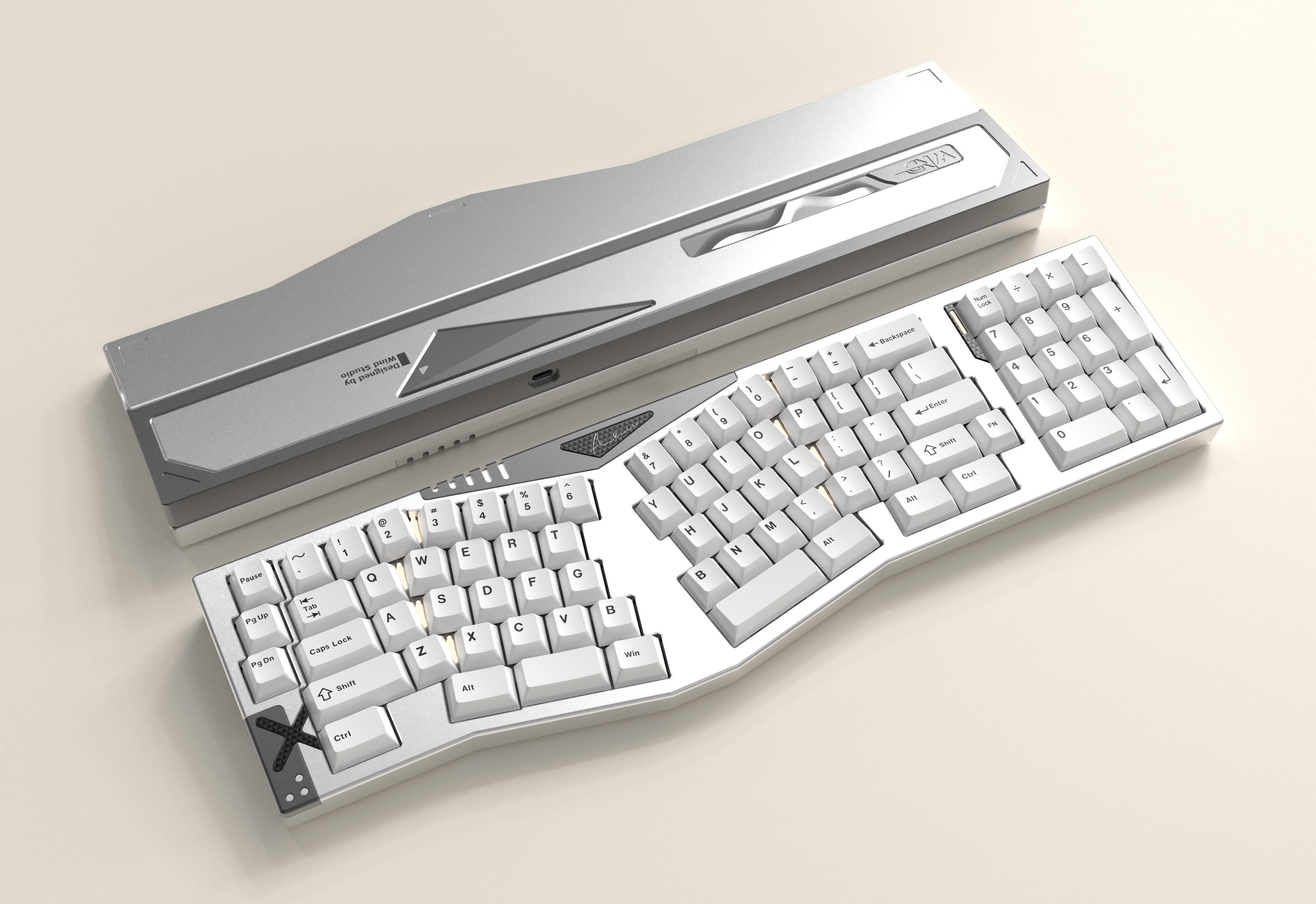

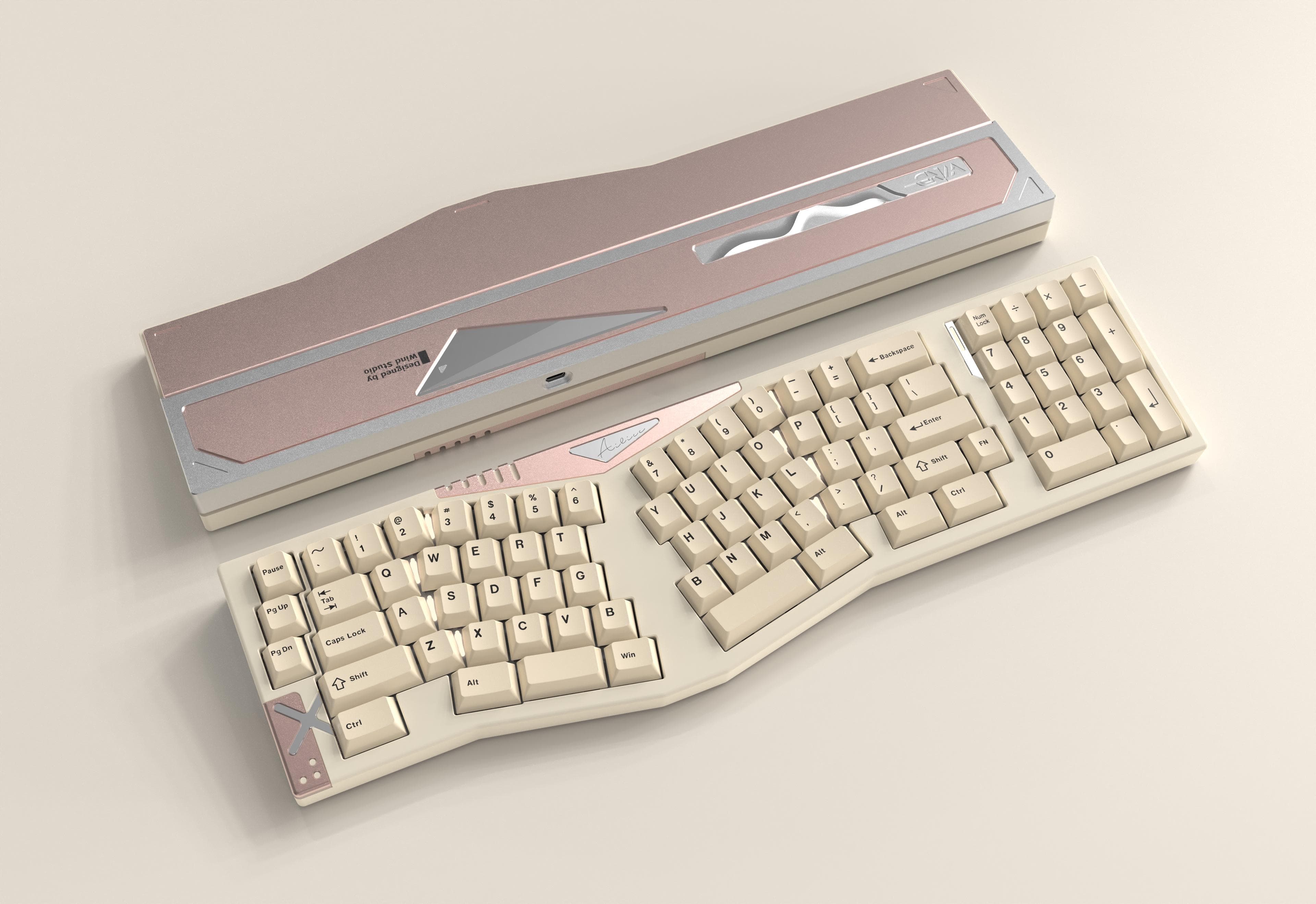

E-retro white

Ano Blue

Ano Dark Gold

Ano Silver

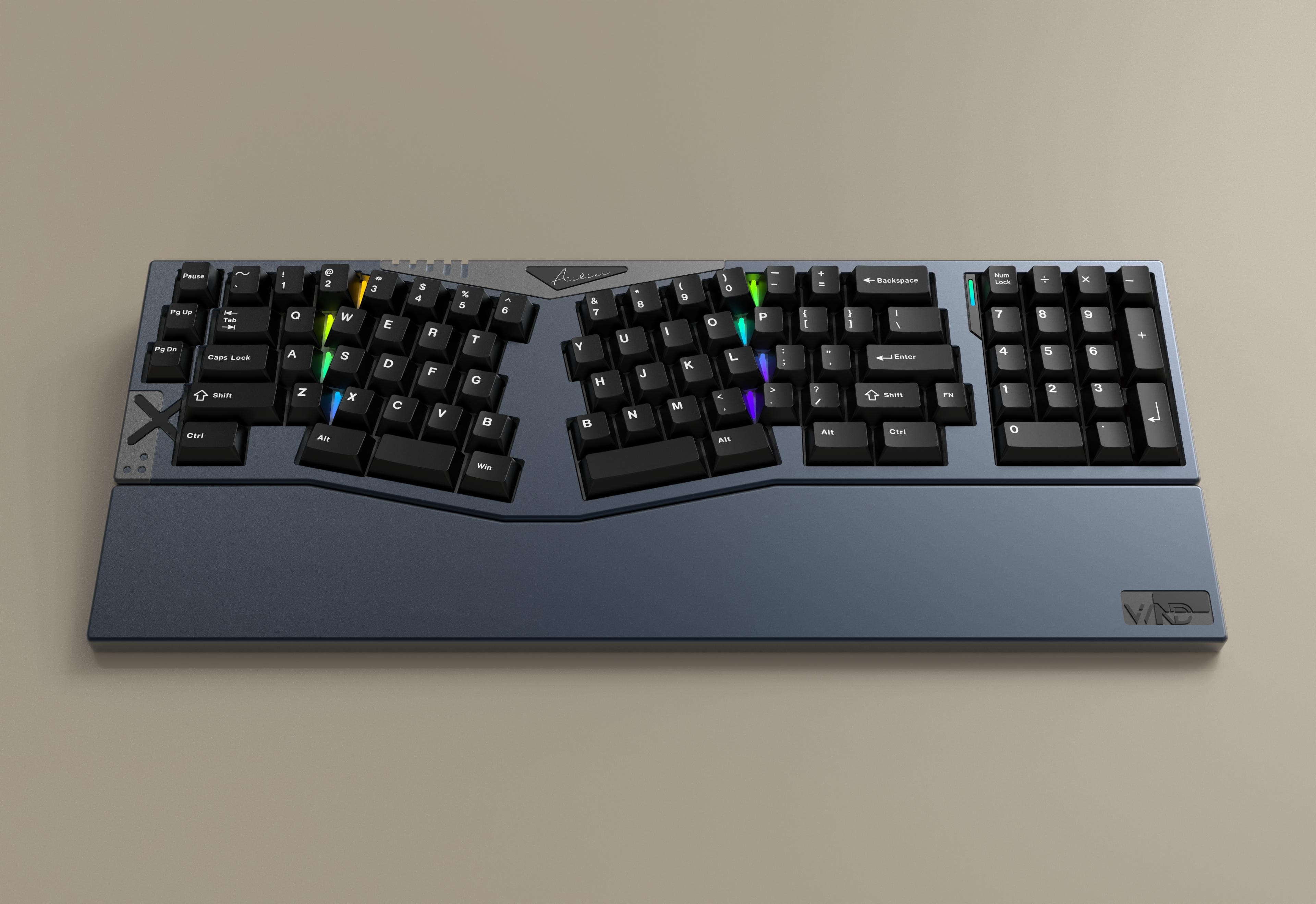

Provide wrist rest optional(the color and material keep the same as the case

四.Keyboard information
Case Material:6063 Alu

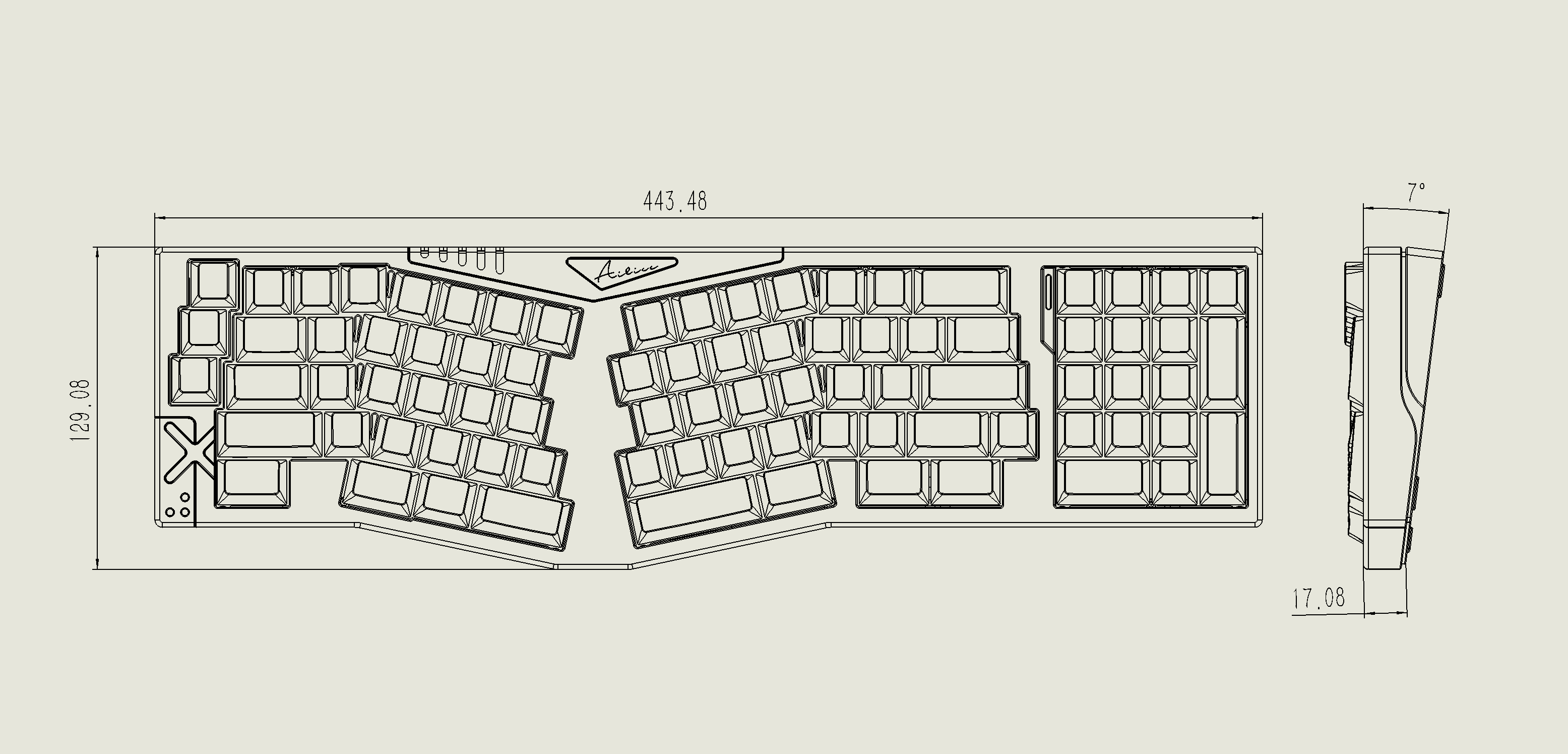

Size:443.48x129.08x17.08mm
Typing angle: 7°
Mount structure:: Leaf spring mount and top mount
PCB: 1.6mm no flex cut,support on VIAL
Plate:1.5mm PC/ALU/ FR4/Carbon Fiber
Price：Around $300

Join our discord and let me know your any thoughts (include appearance/color/structure/southpaw version)at IC,any suggestions will be appreciated and encourage us to improve our products.
https://discord.gg/qXJtBVWwnc
