40rmie LX (GB ended, cases ordered.)

geekhackauto-imported

0 followers0 bookmarks0 comments

Description

40rmie LX
Group buy from September 1st to October 3rd, at 10am CST
Orders are set to ship 3-4 months once the GB ends

Vendor
p3dstore

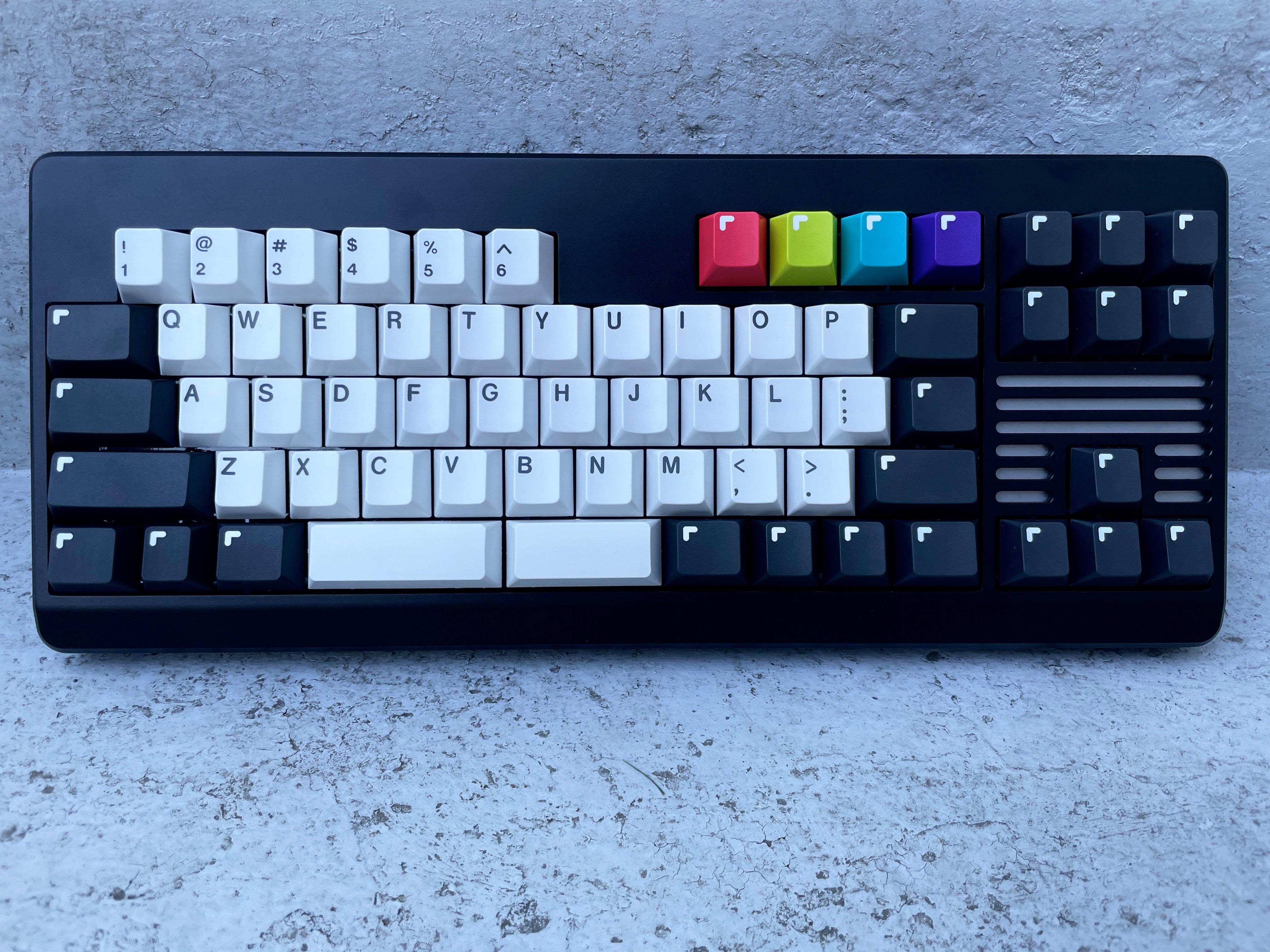

Kuro's prototype, with nav top, mirror ss base, and brass grill

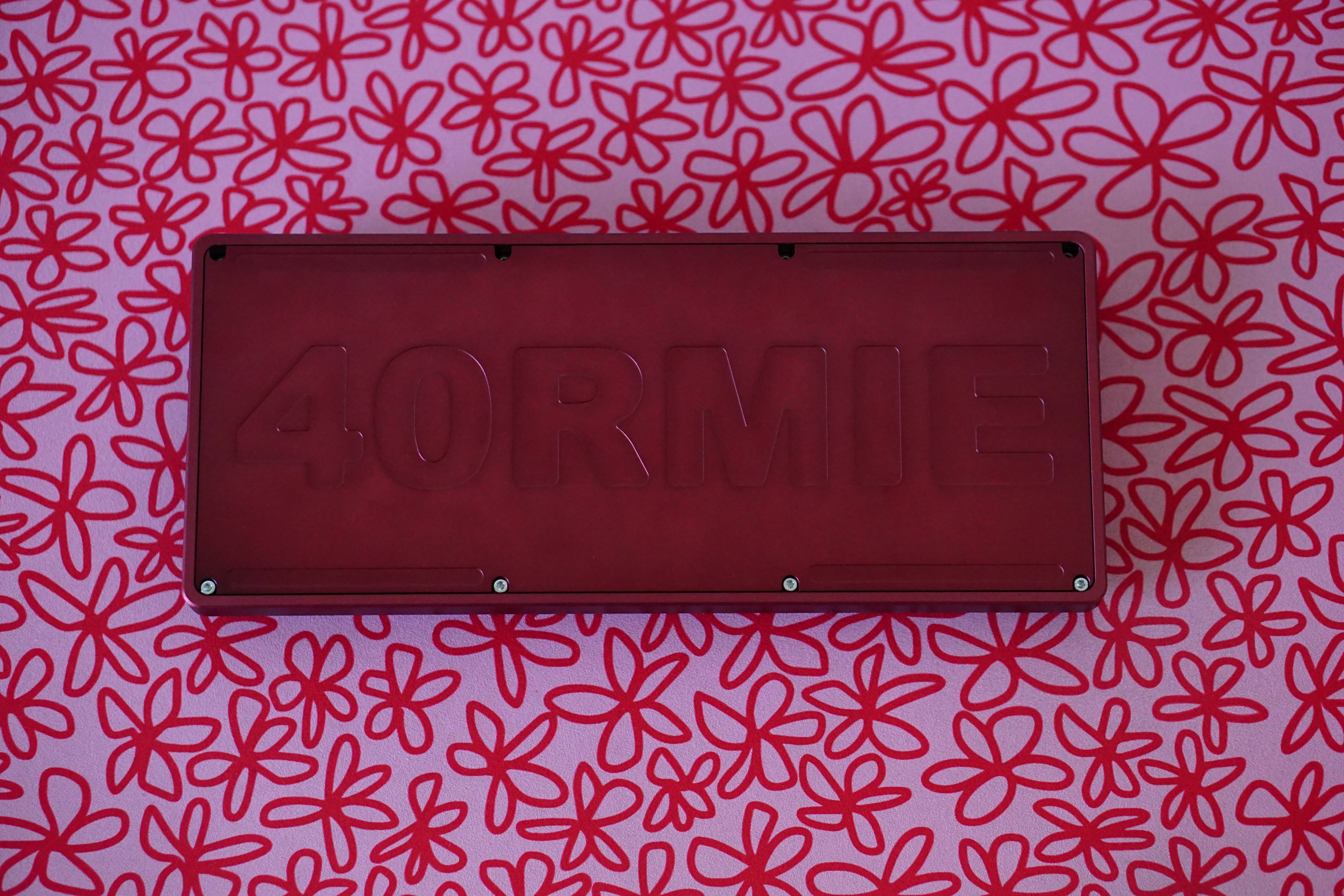

My updated prototype, with the final placement for the bottom text

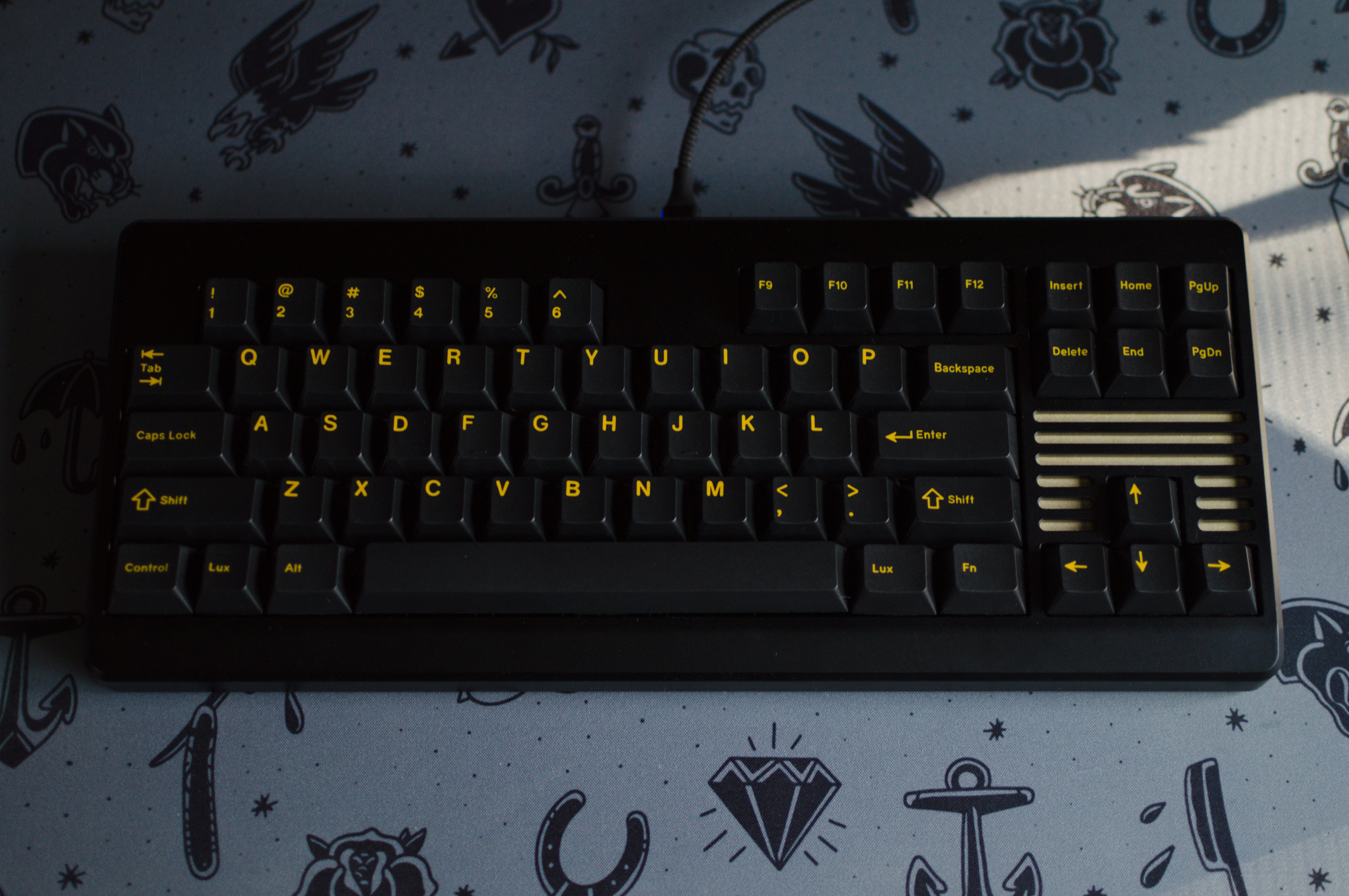

Dede's prototype, with nav top, mirror ss base, and ss grill

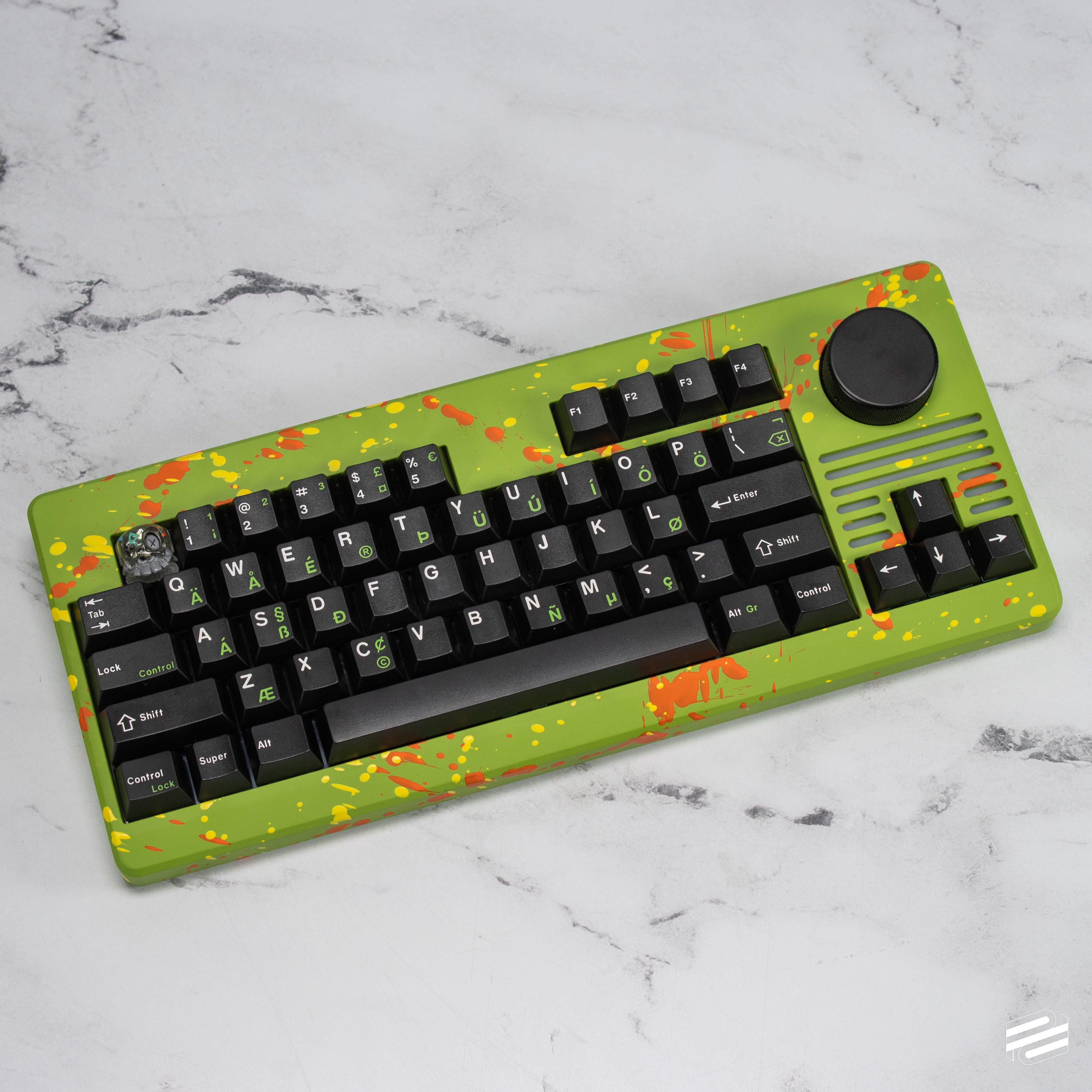

Jake's prototype, with knob top, Alu base, and brass grill

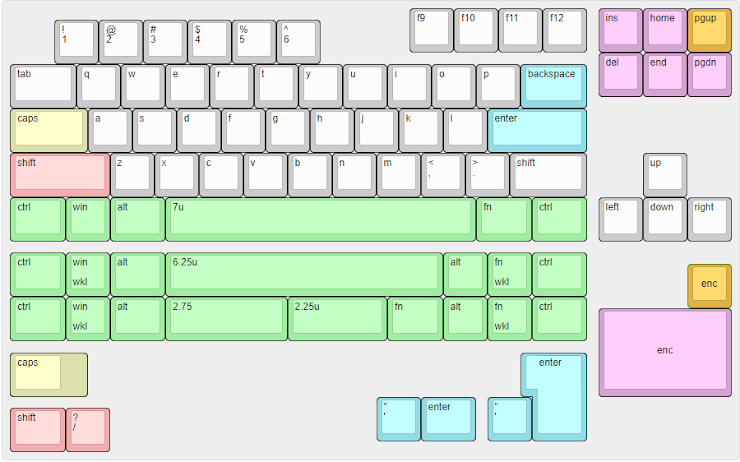

40rmie KLE including Winkeyless option

"The 40rmie came about as my own love letter to a few of my favorite boards in the 40% scene (including the Equinox, V4N4G0N, and Field Trip). What I’ve always enjoyed about 40s was the wide variety of boards available, and from that I wanted to combine what I really enjoyed - a gasket pcb mount keyboard with a 13u ‘big mod’ main cluster, a half numrow, and arrow, fn, and nav cluster. This gives you a little bit of everything that you may want or need with easy functionality, but with a comfortable 40s main cluster.
The board had its initial group buy with an acrylic case designed and made by Jake at P3D in September 2021. While I had made the layout for my own preferences, I ended up being shocked by how popular the board ended up being during the original group buy. After the huge amount of love we got for this board, I wanted to approach my real dream of making my ideal 40% keyboard - a metal case."

-Kuro, designer of the 40rmie pcb and layout.

I was happy to be able to bring this dream to life, making the case compatible with the original pcb and mounting method, while completely redesigning the case from stacked acrylic to a 2 piece cnc'd design, with a cherry front lip, lightly chamfered edges, quadratic diffuser, seamless design, and the same 4 degree typing angle.

Stay up to date on Discord and Instagram here!

Specs/Features

pcb gasket mount
4° typing angle
Quadratic residue diffuser
4 Top options, Nav or Knob, with or without Winkeys.
QMK and VIAL-compatible PCBs
Weight built: 4 lbs 2 oz

Kit contents
not including add ons

Aluminum top case, with choice of blockers
Aluminum bottom case
6x custom p3d gaskets
4x custom p3d feet
4x m1.6 3mm hex screws (grill badge)
8x m3 8mm hex screws (case)

Pricing & Addons
Black Anodized Aluminum: $225 USD
Discounted Cerakote options listed below.
Orders are set to ship 3-4 months once the GB ends

Optional Add-Ons:

40rmie PCB- $40 when added on using the 40rmie LX order page and ordering with the case.
Low profile detent-less encoder is available-$4
15mm encoders are ideal for this case. The product pictures with the artisan knob is a 20mm encoder and sticks up much more than the product pictures showing the custom Cerakote prototype and knob.
38mm knobs are available:
Black anodized knob- $25
Single Color Cerakote Available- $15
Multicolor Cerakote Available- $30+
Milled Resin Knobs: $30 (Additional Colorway Pictures Here)
Abalone Colorway
Blush Colorway
Pastel Dreams Colorway
Peacock Colorway
Starry Night Colorway
Solid White Colorway
ABS, POM, PP, PC, PETG, and IMA plates available.
3/16" (4.75mm) Thick Glossy Black or White ABS plate is also available.
This plate is not compatible with plate foam.
Plate EVA foam- $10
Case EVA foam- $10
In addition to the included acrylic milky white diffuser, there are multiple accent inserts available:
1.6mm Brass (Raw or Raw Bead Blasted)-$10
1.6mm Copper (Raw or Raw Bead Blasted)-$10
1.6mm Stainless Steel (Raw or Raw Bead Blasted)-$10
Multipack of 1.6m IMA in all our colors listed below (Gallery)- $20
Colors include- Black, White, Graphite, Gold, Copper, Green, Purple, Red, Pink, Yellow, Blue, and Light Blue.
Additional Case Top in selected layout- $65
The color will match your original color selection by default. Contact us after your order if you would like a different color.
