Hello, Geekhack! We are introducing our 3rd board Z67-YUN to the market, 65%, 67 keys gasket mount keyboard. Inherited by 2 previous projects Z40-Pastry and Z60-Evolve, simplicity aesthetics is in Z67's blood stream. Hidden screw design for the weight and flushed surface between weight and bottom makes the weight rooted in the bottom aesthetically. Vibration insulation foams between every contacting surface absorbs unwanted noises.

QUARKEYS.COM

Discord

IC Form

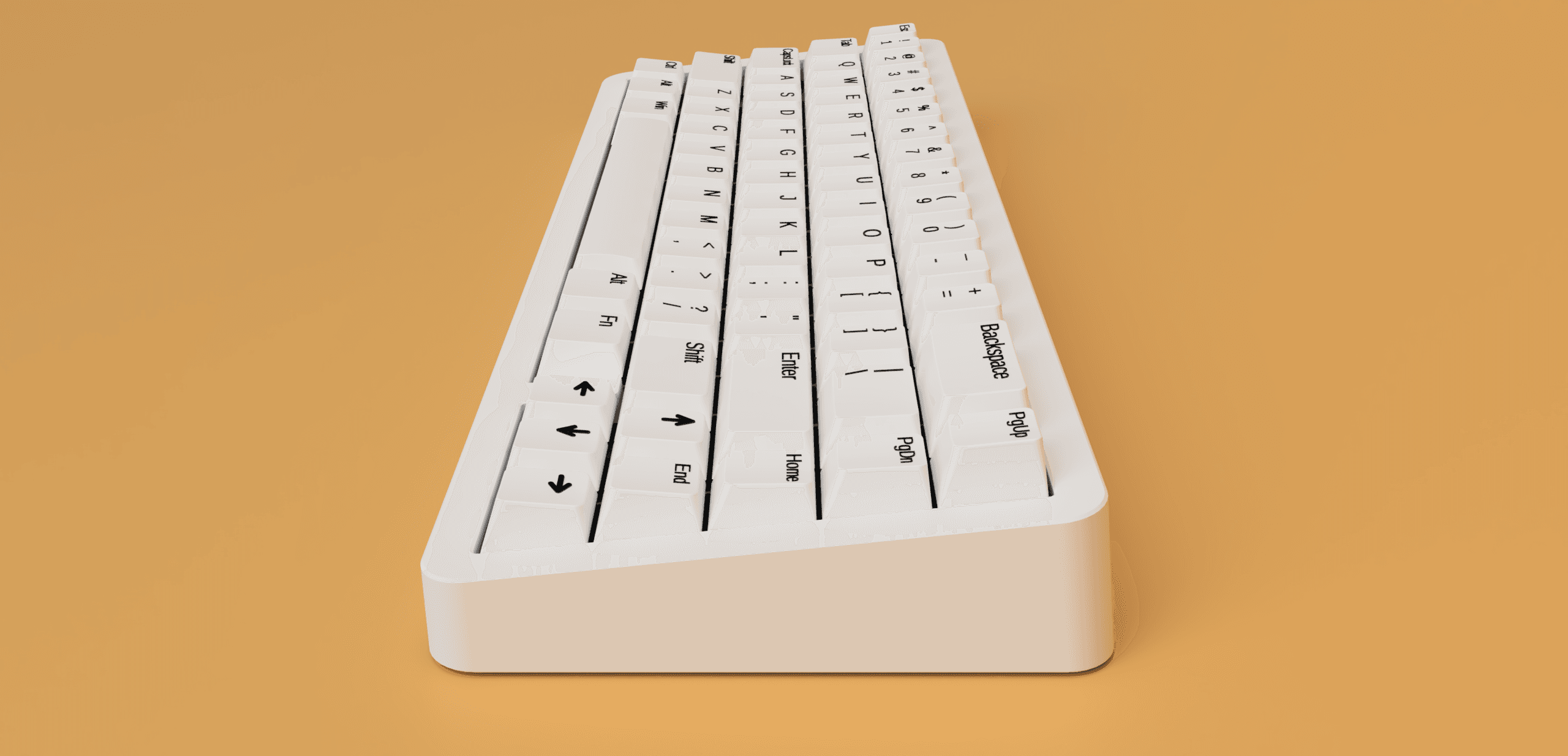

Rendered Image

Powder-White

Anodized-Dark Grey

Powder-Yellow

Features:

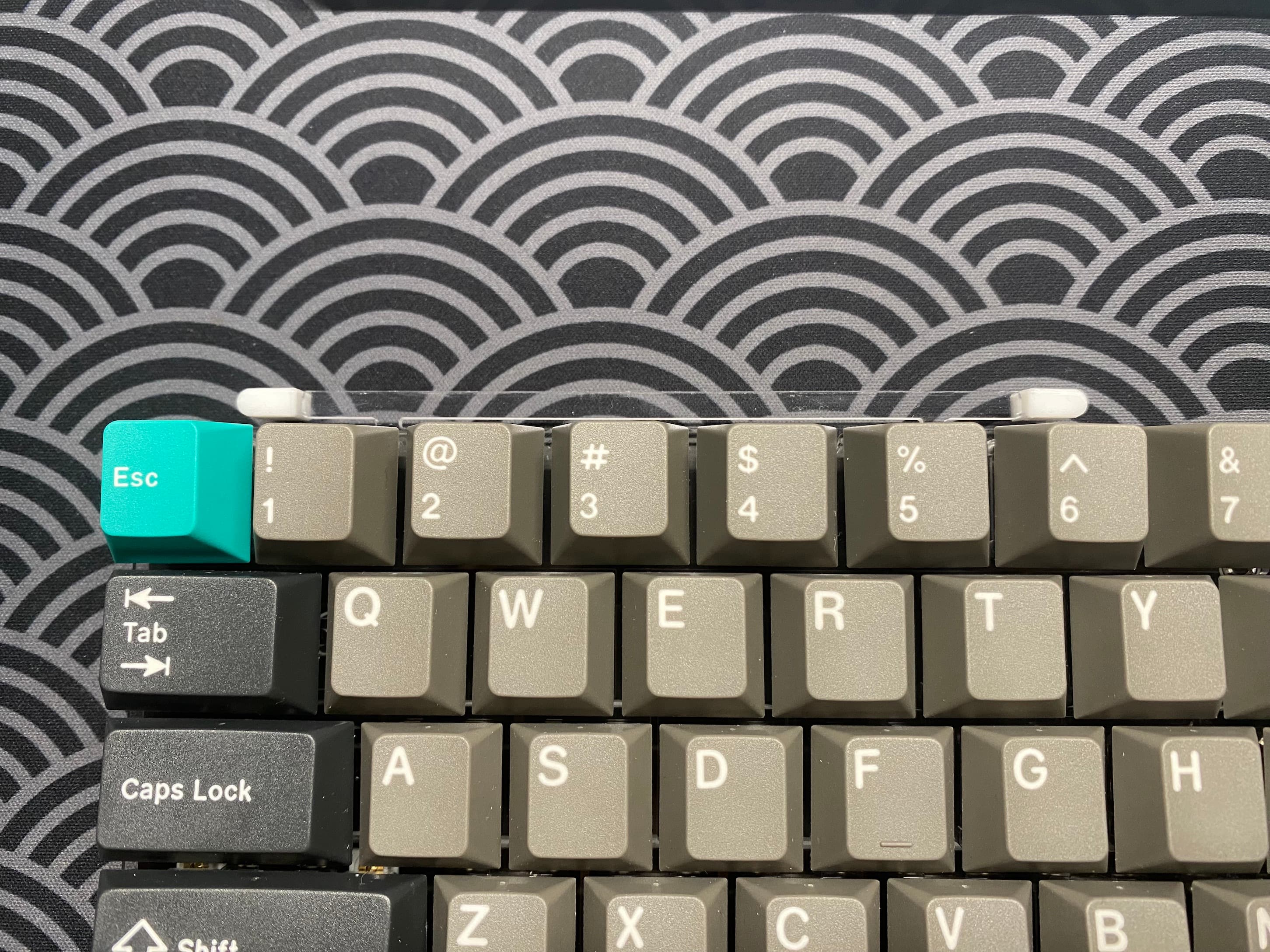

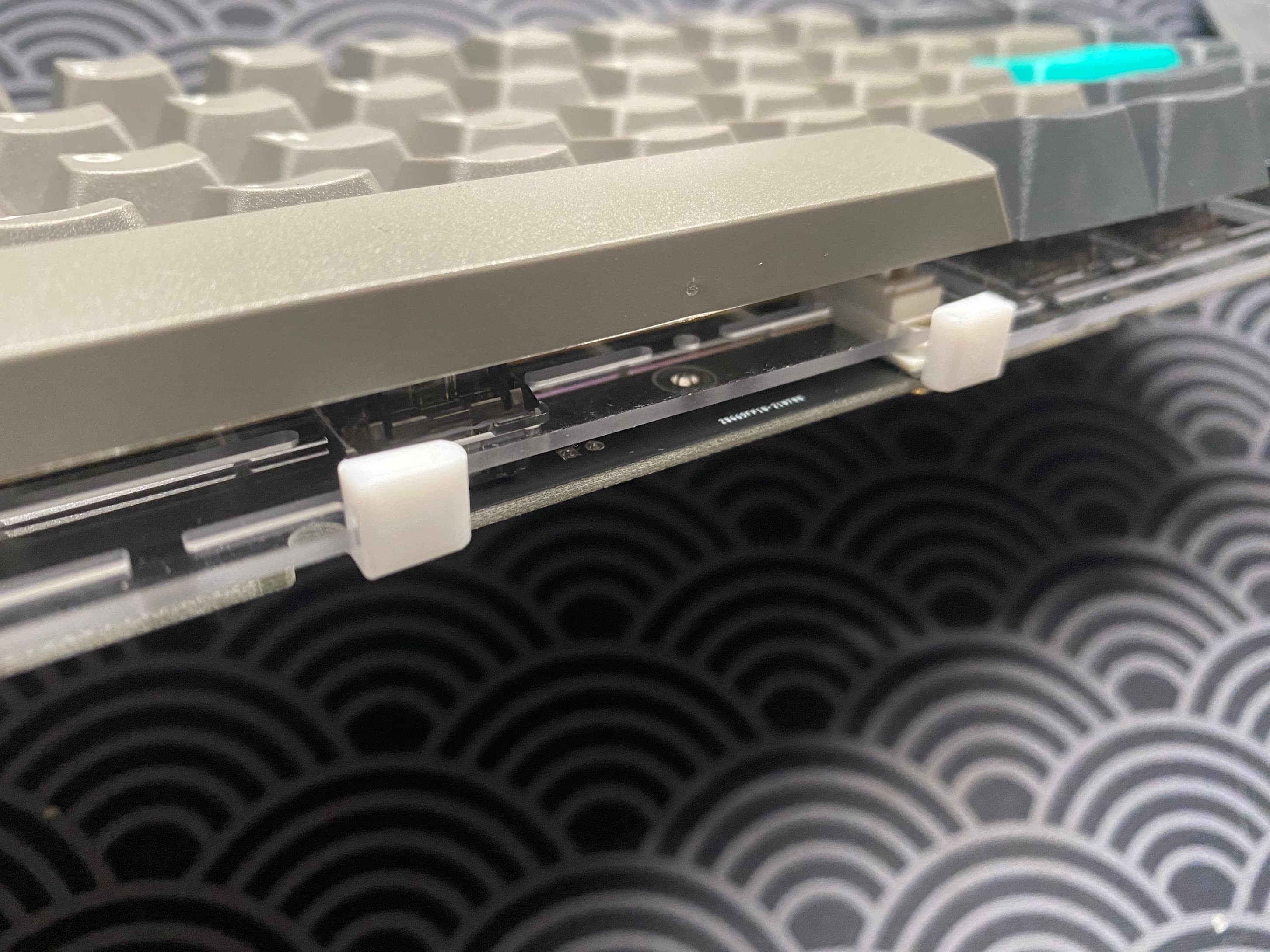

Gasket mount: Poron/Silicon (Update#1)
Base kit with PE Foam included

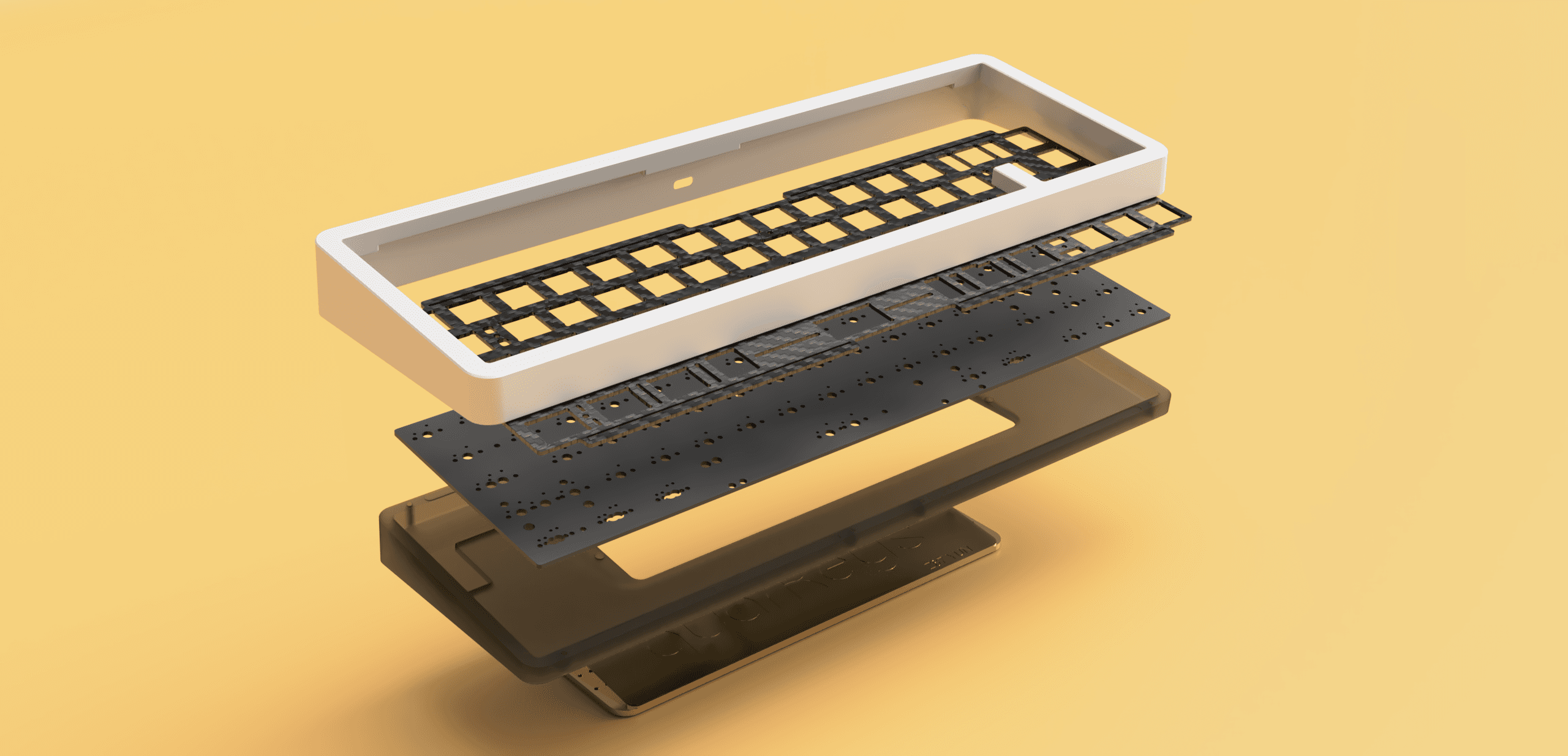

Three piece enclosure

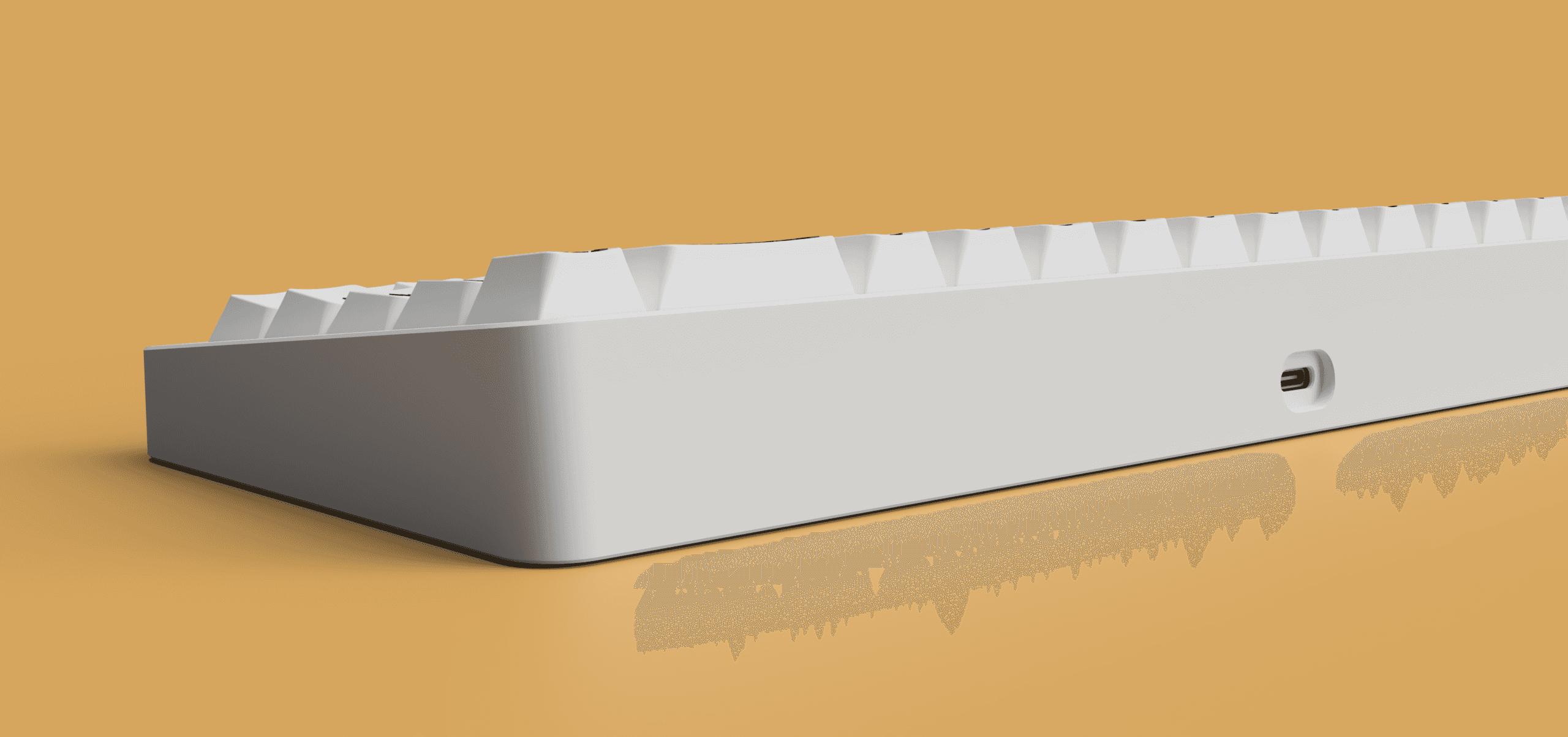

Centered USB-C port
18.05mm Low front-height
Brass weight mirror polished

Dimension:

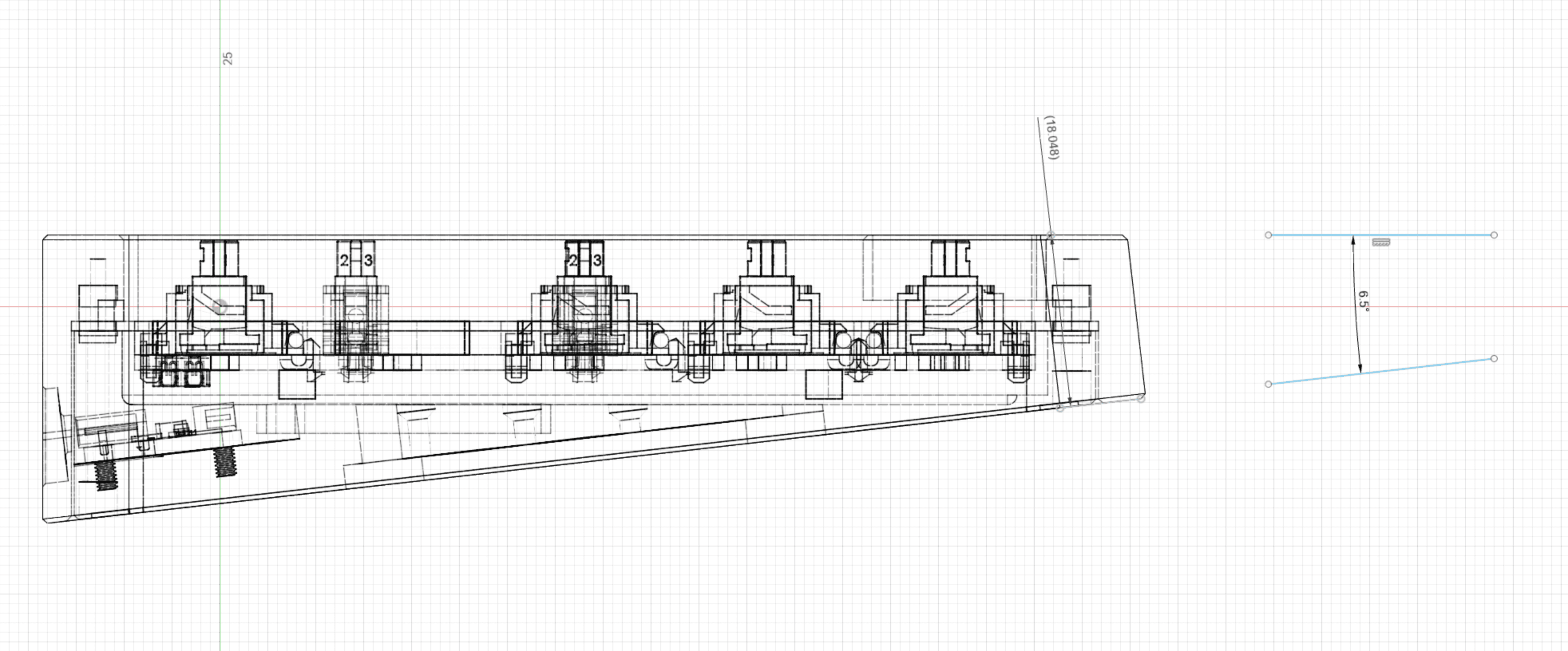

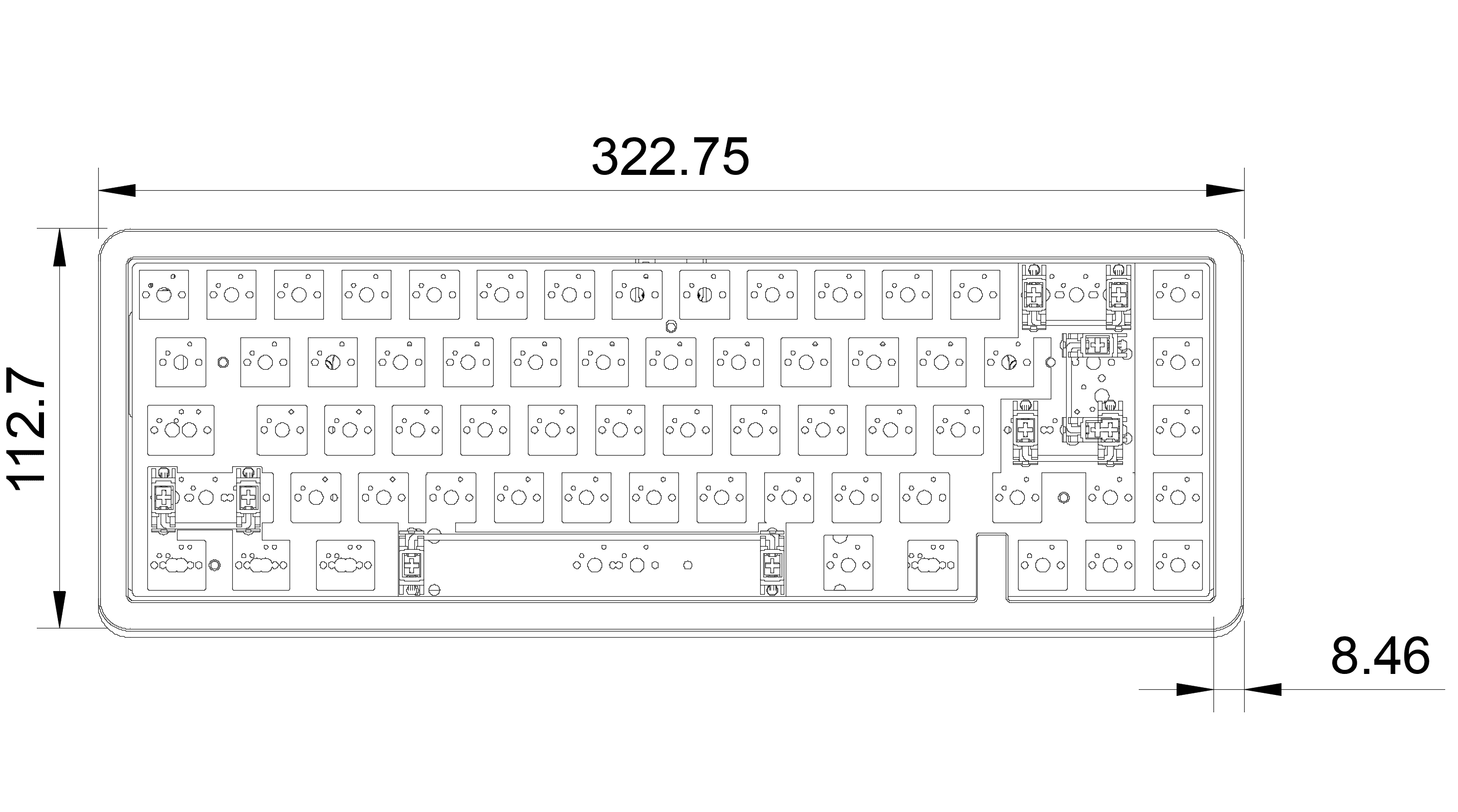

Length: 322.75mm, width: 122.7mm, front-height: 18.05mm

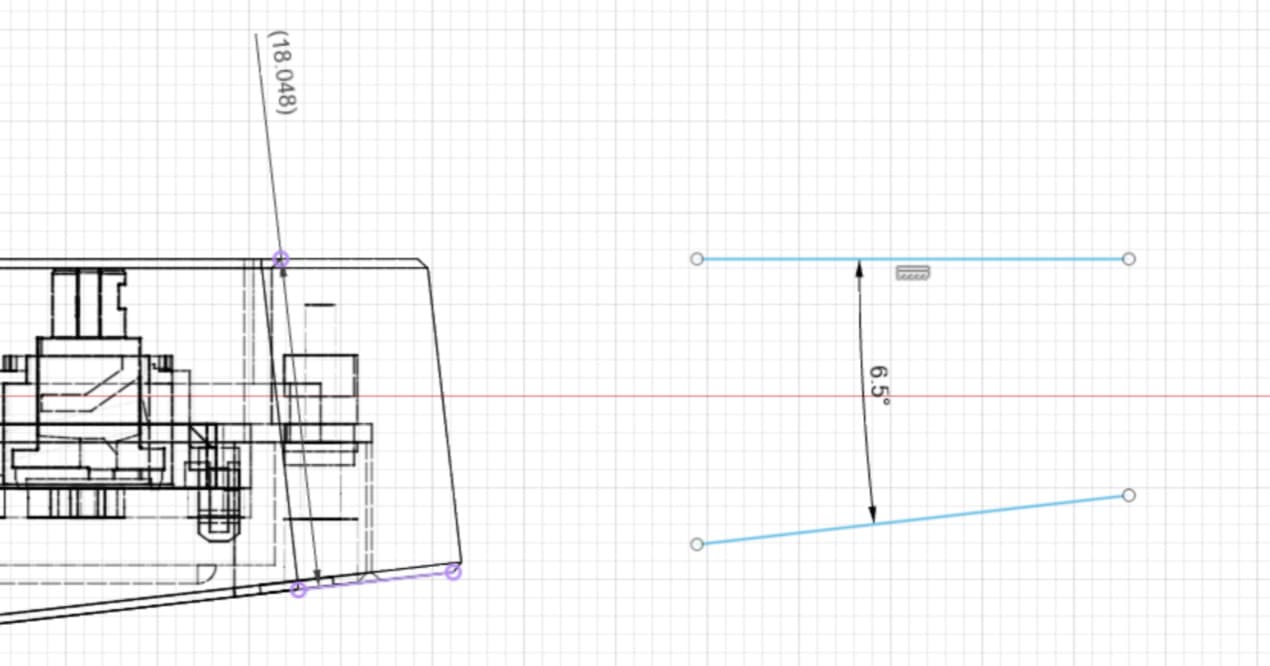

Typing angle: 6.5 deg
Bezel: 8.46mm
Weight: 1.1kg, 2.43lb (Aluminum Top+PC Bottom+Brass Weight+PCB+CF Plate)

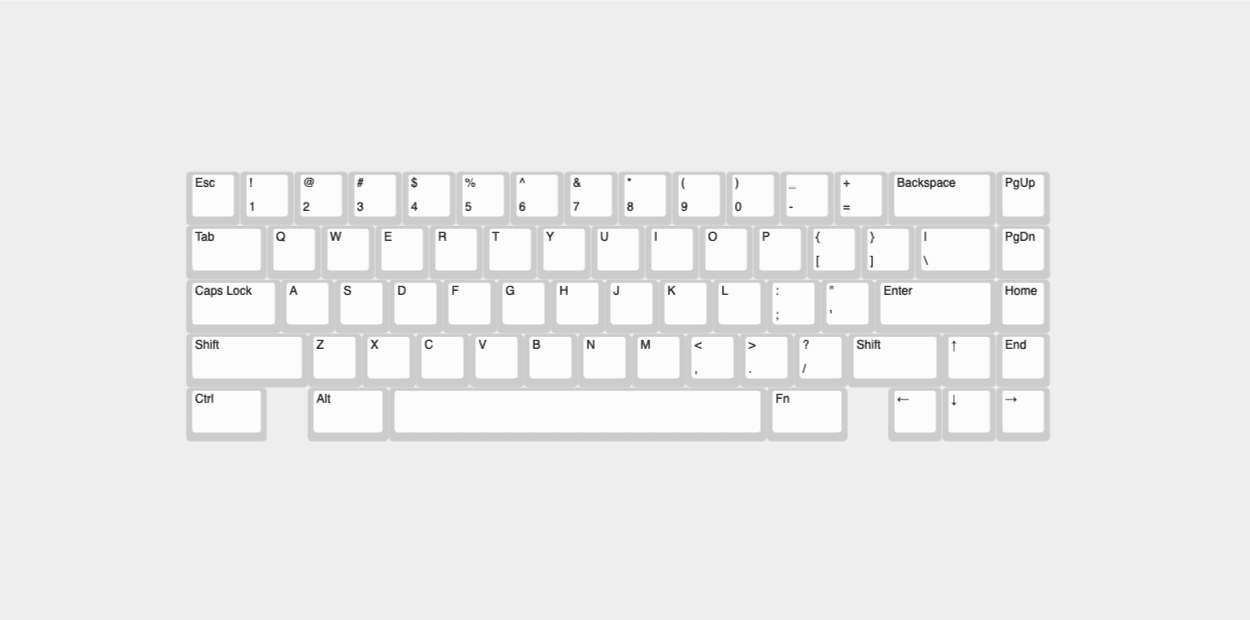

PCB Layout:

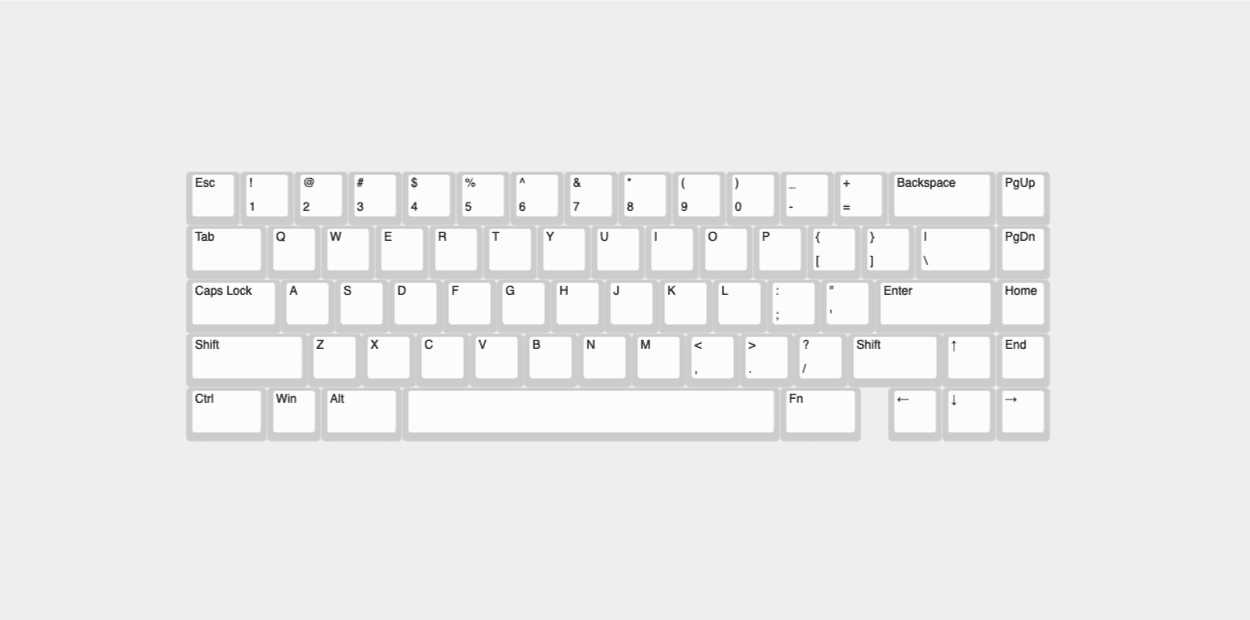

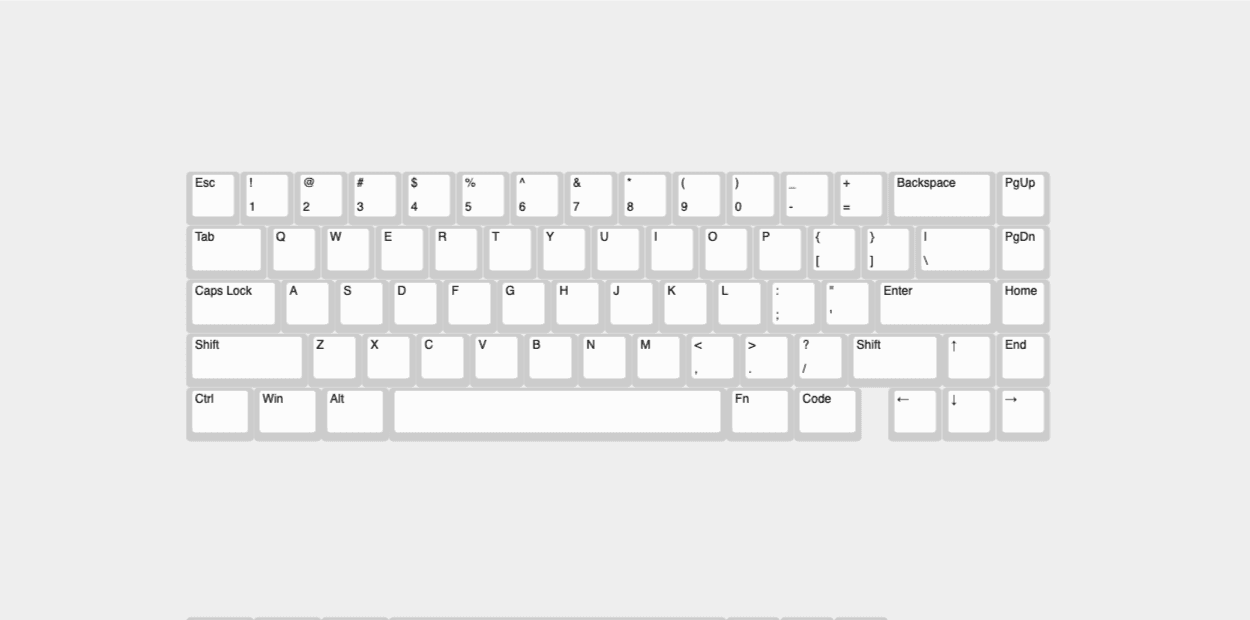

Layout-Overall
Layout Standard
Layout 7U Spacebar
Layout Bauer
Layout Compact

Base Kit Include:

Case x1

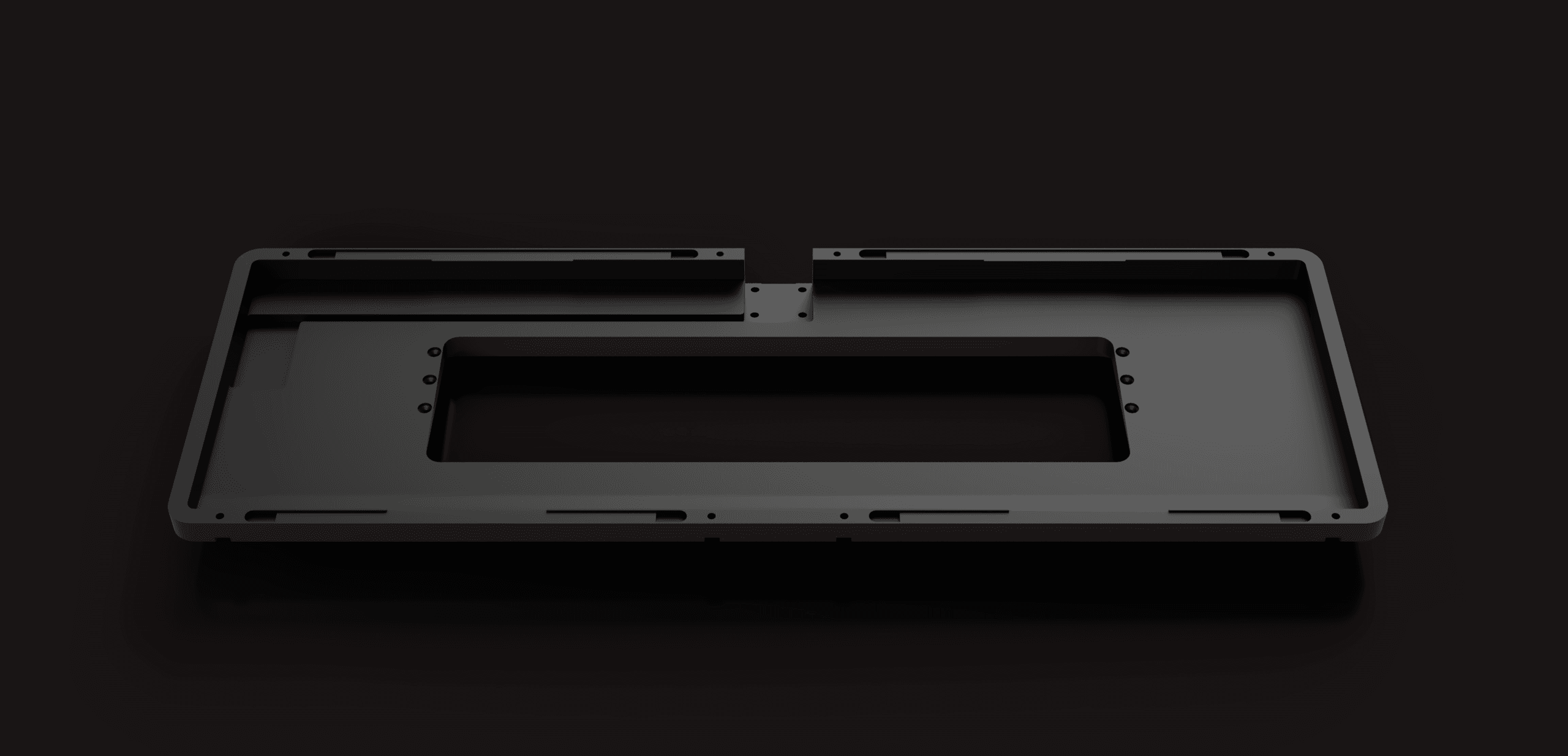

- Top enclosure x1
- Bottom enclosure x1
- Weight x1
Switch Plate x1
PCB x1
Accessories:
- Vibration insulating foam (Force break mod) x1
- PE Foam x1
- Plate Foam x1
- Poron Gasket x1set
- C-3 daughter board x1
- USB-C cable x1
- Cap/switch puller x1
- Screws x1 set
- Silicone foot pads x1set
- Silicone Shoes x1set (Update#1)

Specs:

Case: Gasket mount Poron/Silicon (Update#1)

Centered USB-C socket
18.05mm Front-height
Top enclosure: CNC machined 6063 aluminum
Bottom enclosure: CNC machined Polycarbonate(Default), 6063 aluminum(Optional)
Brass Weight: CNC machined H62 Brass, PVD Titanium coating, mirror polished, nano coating

Plate material options:

FR4
Carbon fiber
PC
Aluminum(Sand blasted & Anodized Silver)
FR4 as default, Carbon Fiber, PC and Aluminum optional

PCB:

C3 Daughter board with ESD protection

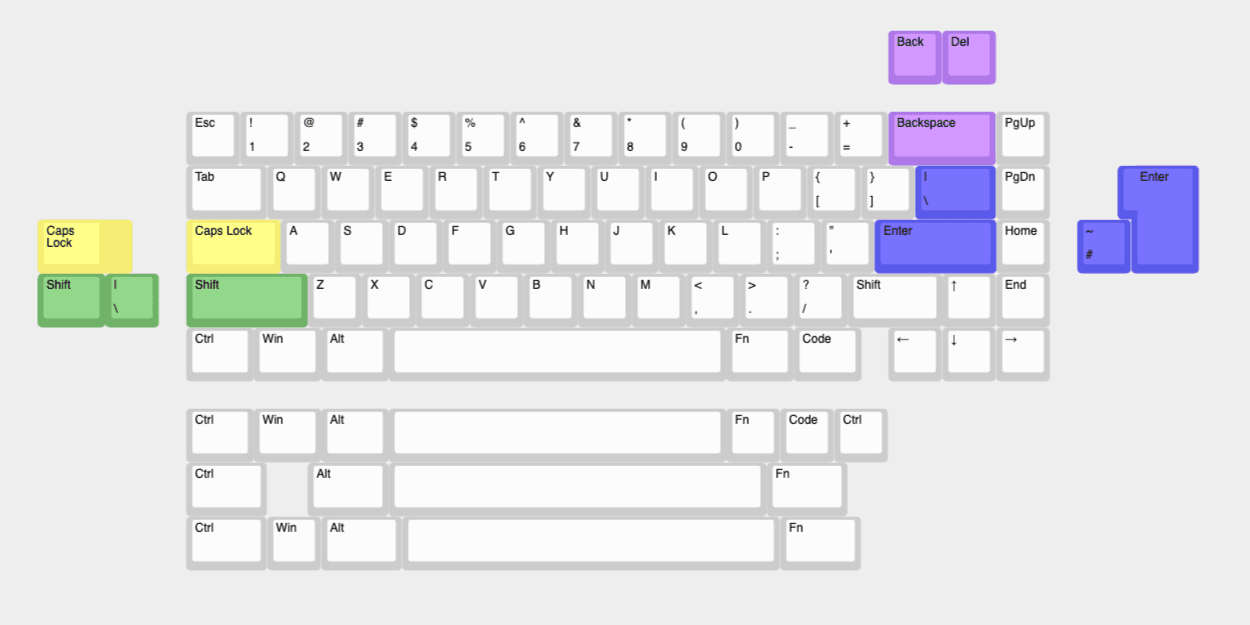

Solder version with layouts compatible, 'split-backspace', 'ISO enter', 'Stepped capslock' and 'split-left shift'
Bottom row option:
- 1.25+1.25+1.25+6.25+1.25+1.25
- 1.5+1+1.5+7+1.5
- 1.25+1.25+1.25+6.25+1+1+1
Hotswap version, ANSI layout only
Solder version PCB will have through holes for per-key LED(Not included)
Hotswap version PCB with per-key RGB
