Project is open sourced now. Please use the files for whatever you wish
Project SiteHello everyone,
This is Spooknik from Keyboard Collective. I have a design for a 65% keyboard design that I'd like to do an interest check for.
It's called the 651 Keyboard. 65% + First design = 651.
Please fill out the IC form here.
AboutThe 651 is based on Scandinavian Modern Movement of design. It emphasizes a minimalism and simplicity combined with functionalism and aesthetics. I'd done my best to incorporate all of these traits into the 651 Keyboard.
- Simplistic - Large bezel that is equal distance the whole way around.
- Minimalism - There are no outward facing logos, branding, screws, or seams. No unnecessary curves, fillets, or chamfers. Everything you need nothing you don't.
- Functionalism - The side profile has cutouts that allow the user to pick up and move the keyboard easily. Large chamfer protects edges from damage. All parts are held together by the same length M3 screws.
- Aesthetics - Modern and simple looks that will stay timeless for years. The bezel and large chamfer allows a better transition between your desk and keycaps. Heavy and solid board.
I've written a
small article about my design philosophy if anyone cares to read it.
DetailsCase:Blocker or Non-Blocker bottom row [Depends on IC numbers]
6061 Alu
65% Layout
Unibody Design
Top mount
7 Degree Angle
2.5 kg (5.5 lbs)
Plate:1.5 mm plate
Screws to case with 12 M3x5mm
Brass, Aluminum and maybe POM
Supports ANSI and ISO
Separate MX and Alps Plates
Weight:Internal
Sandblasted Brass
Natural color PVD coating
Not Shiny
~0.6 kg (1.3 lbs)
PCB:QMK
USB-C
ESD Protection
MX & ALPS
RGB Underglow
LED backlighting for key swtiches
Maybe Bluetooth [Voice your opinion in IC]
Layouts
MX Layout
Alps Layout
Pictures
Brass PVD Sample
Internal Weight - View of bottom from inside.
Plate Assembly
Bottom Assembly

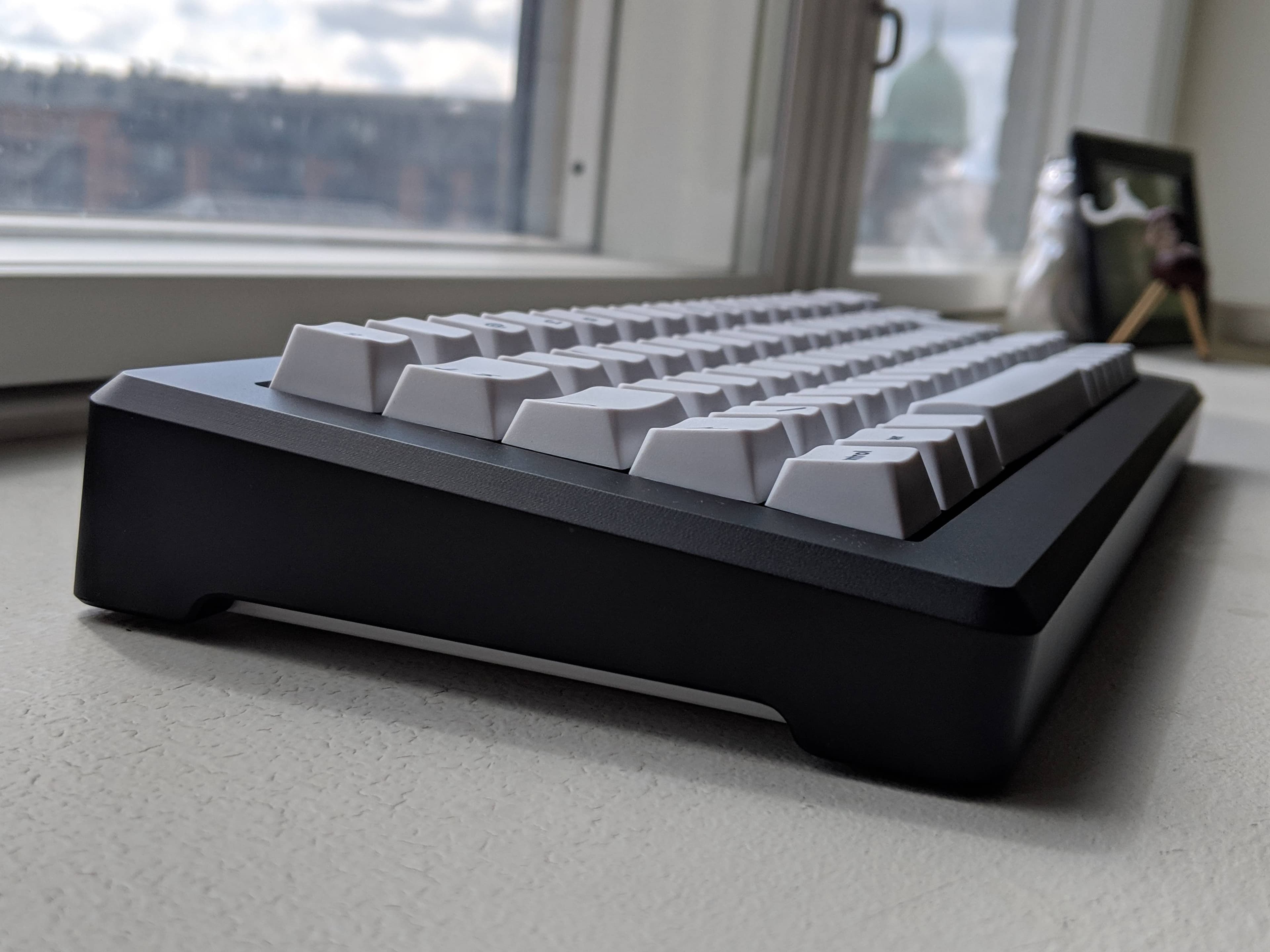

Back Profile
Maybe more pictures on Google PhotosCurrent StatusTwo prototypes have been made.
IC form is live and community feedback is welcomed!
Please fill out the IC form here.
