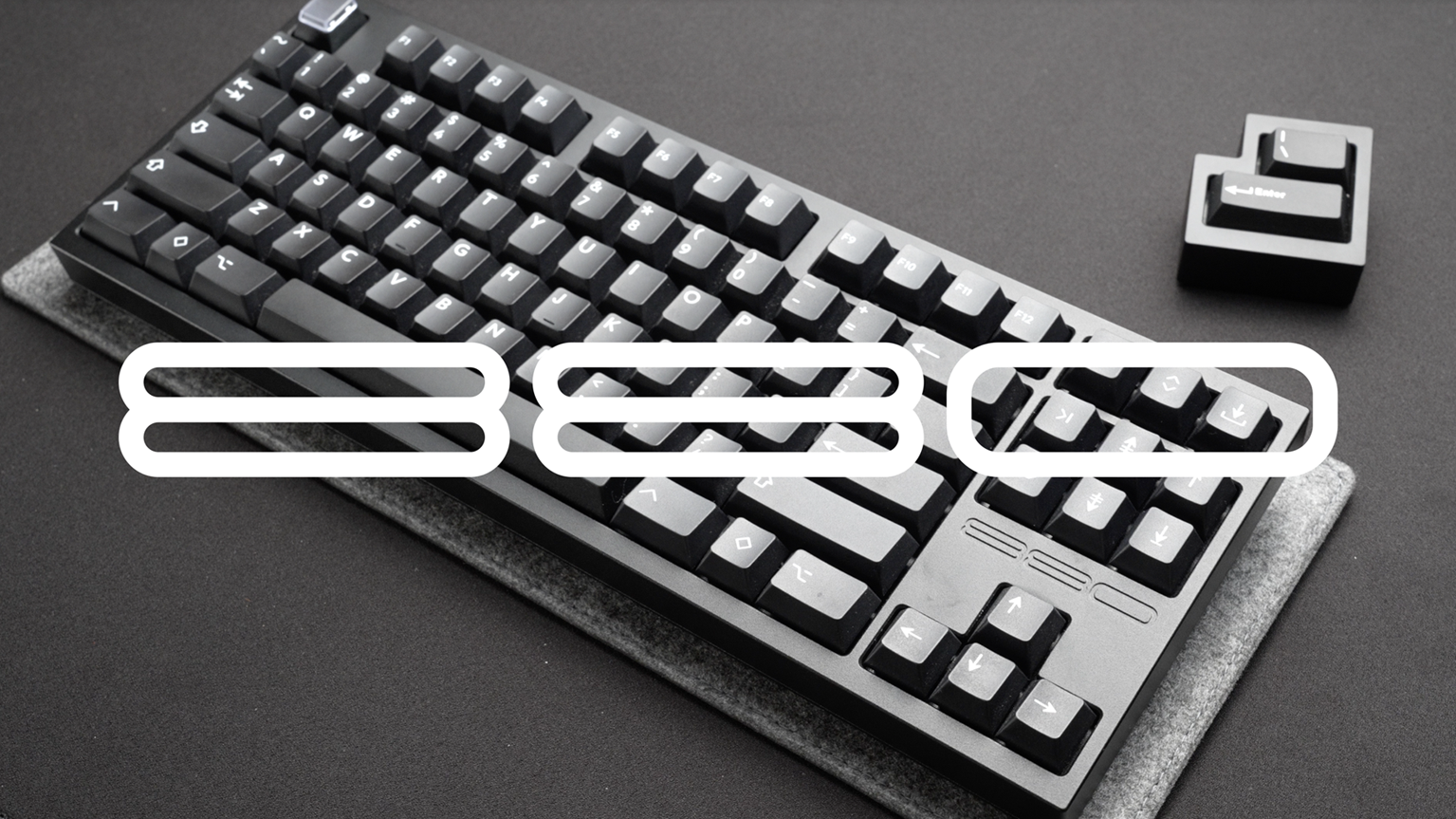

880 | Cone feet TKL

geekhackenriched

0 followers0 bookmarks0 comments

Description

A TKL with cone feet.

DISCORD IC FORM

I guess I got into the hobby too late to truly experience kustoms.
Therefore, I wanted to explore the world of kustoms through making them.
First, by achieving the aesthetic (specifically the 356L for this one), then tweaking the sound to make it what I enjoy.

This is as much an interest check as a journal of the development process of this keyboard.

Hopefully, I will be able to offer this keyboard down the line to people who enjoy the same aesthetic and typing experience.

Still very early, and under active development!

---
S P E C S

- Adjusted front height: 21mm (v1), 21.9mm (v2)

- Typing angle: 8 degrees (hence 8 80 - 8 deg, 80%. Thanks paul for the inspo)

- Weight: 1.2kg unbuilt

- Full aluminum construction, with optional brass weight. (testing out a v2 prototype with full aluminum!)

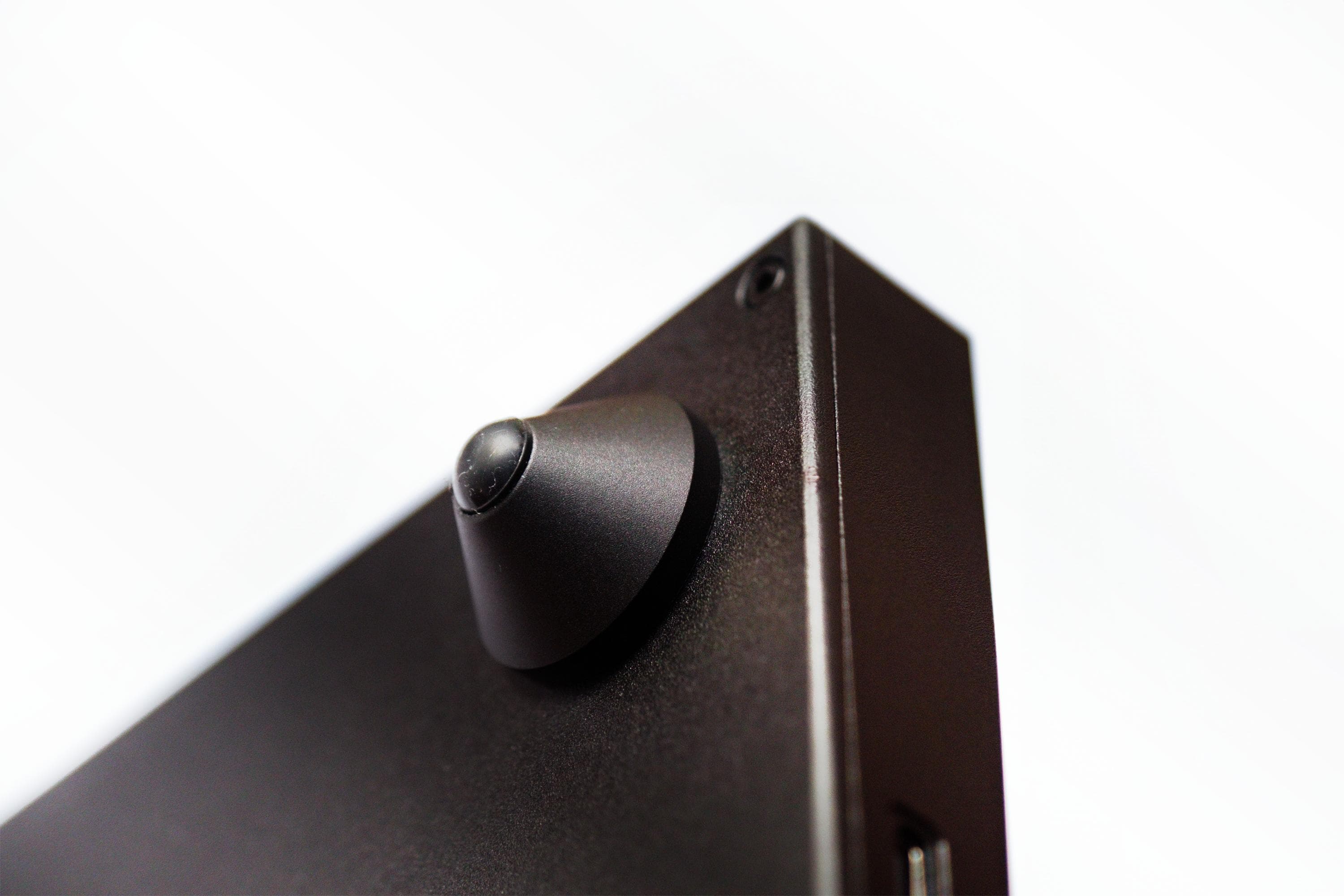

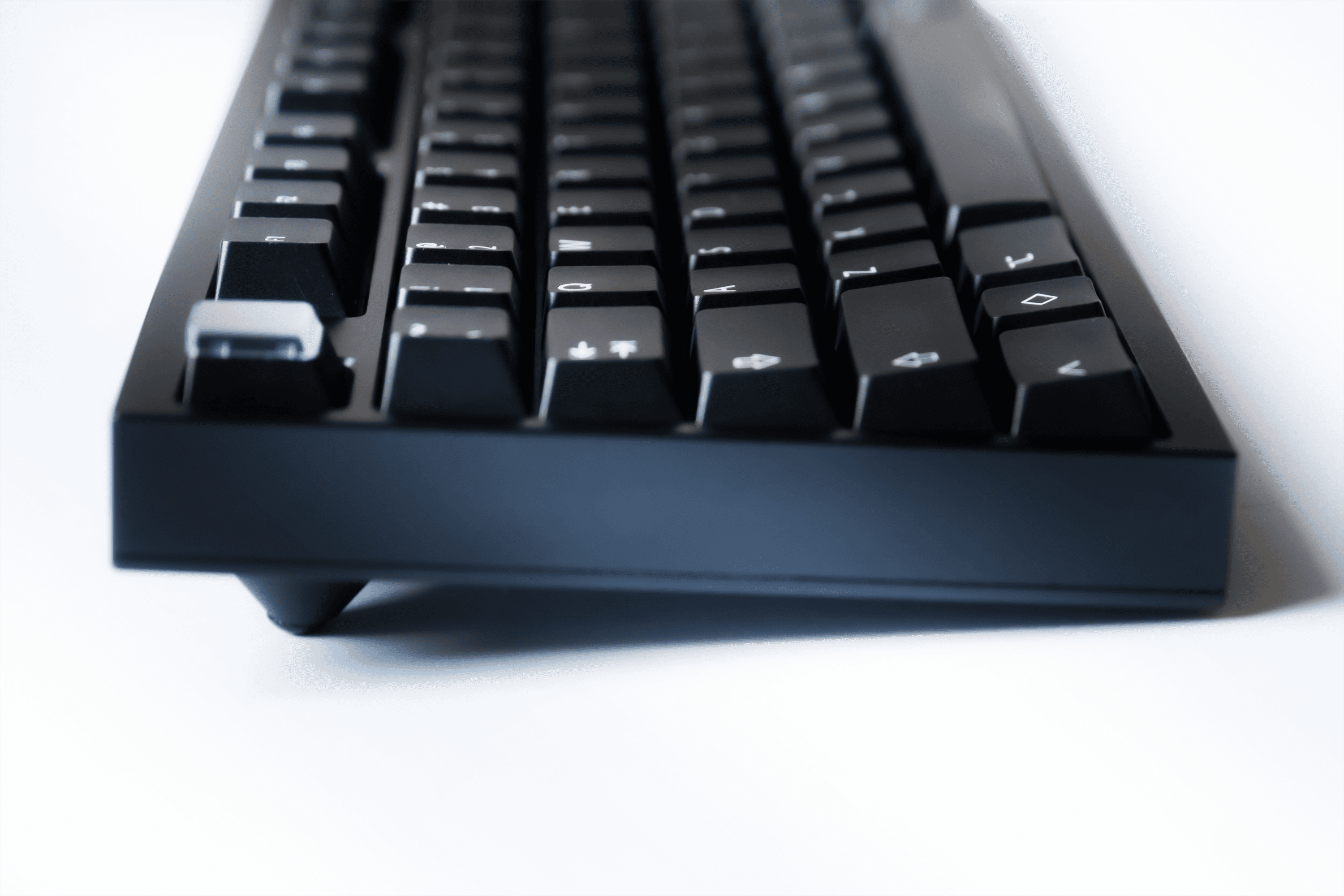

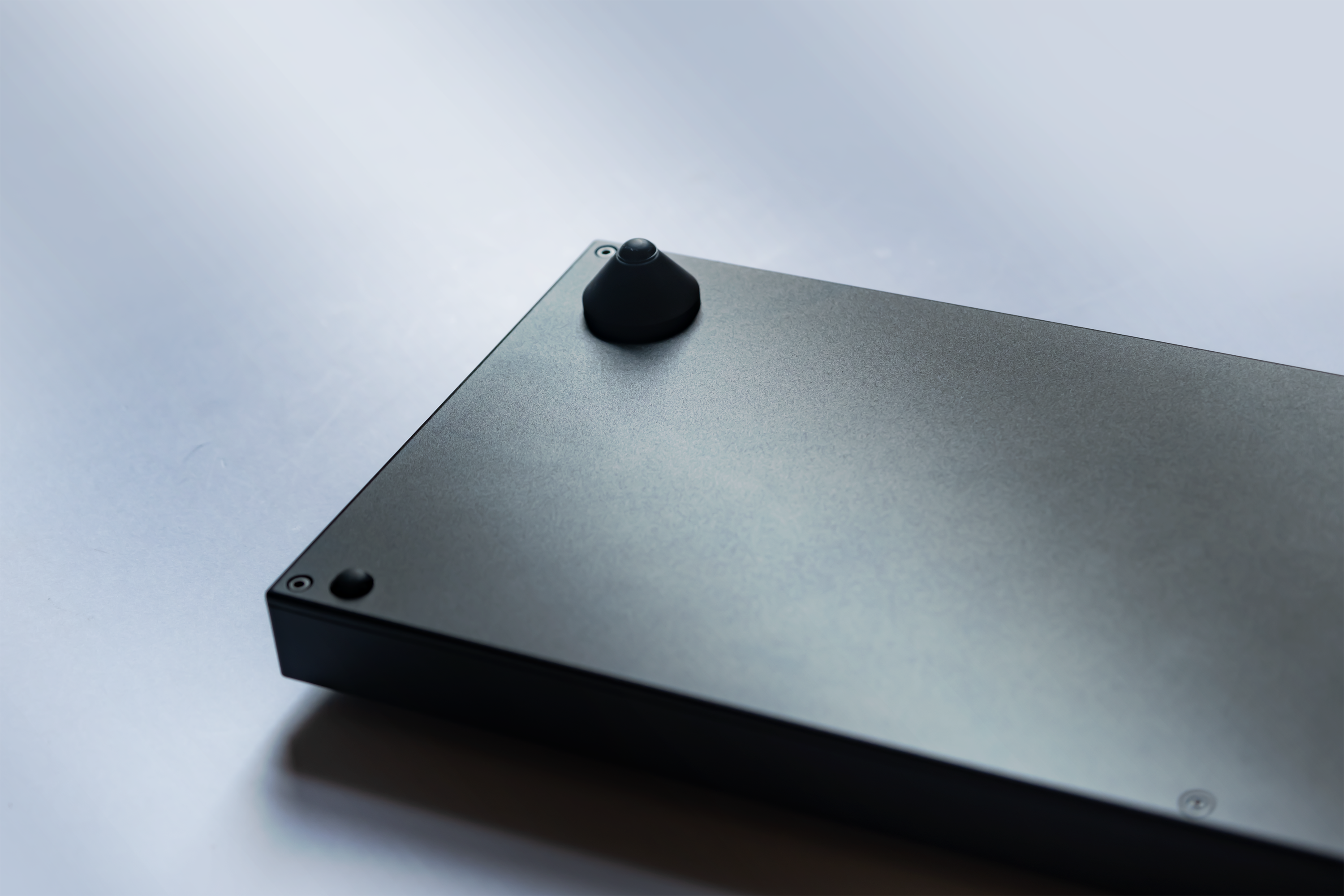

- CONE FEET (will probably offer cones and spacers, to customize typing angle)

- Compat with H87 PCBs (with on board type-c connector) eg Hiney h87c, galatea

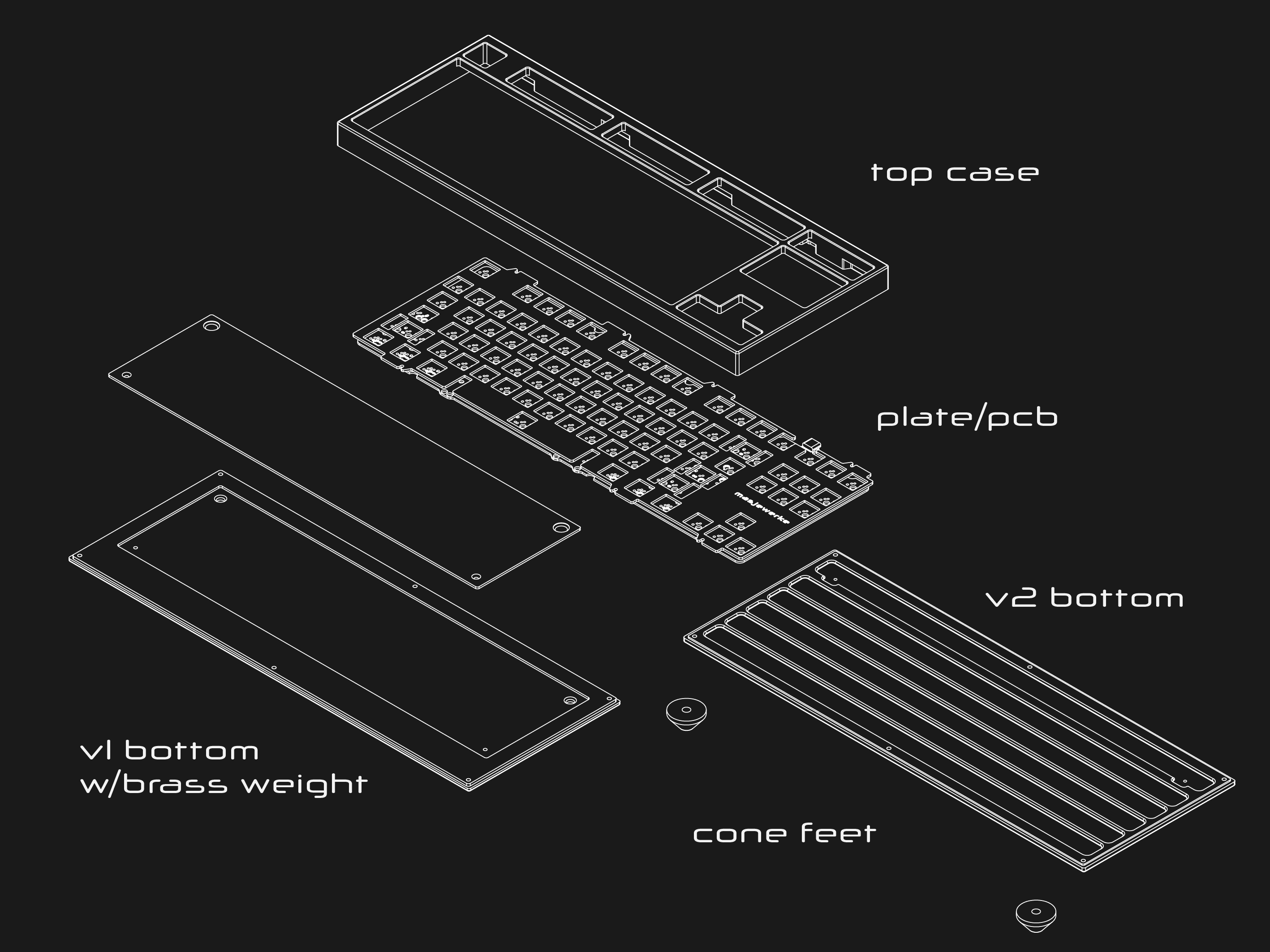

- Explosion diagram

---
P R I C I N G

Aiming around 420USD (worst case scenario) without PCB, with hard case @ 5 MOQ

At 25 MOQ I can probably include the PCB at the same price

---
M O U N T I N G

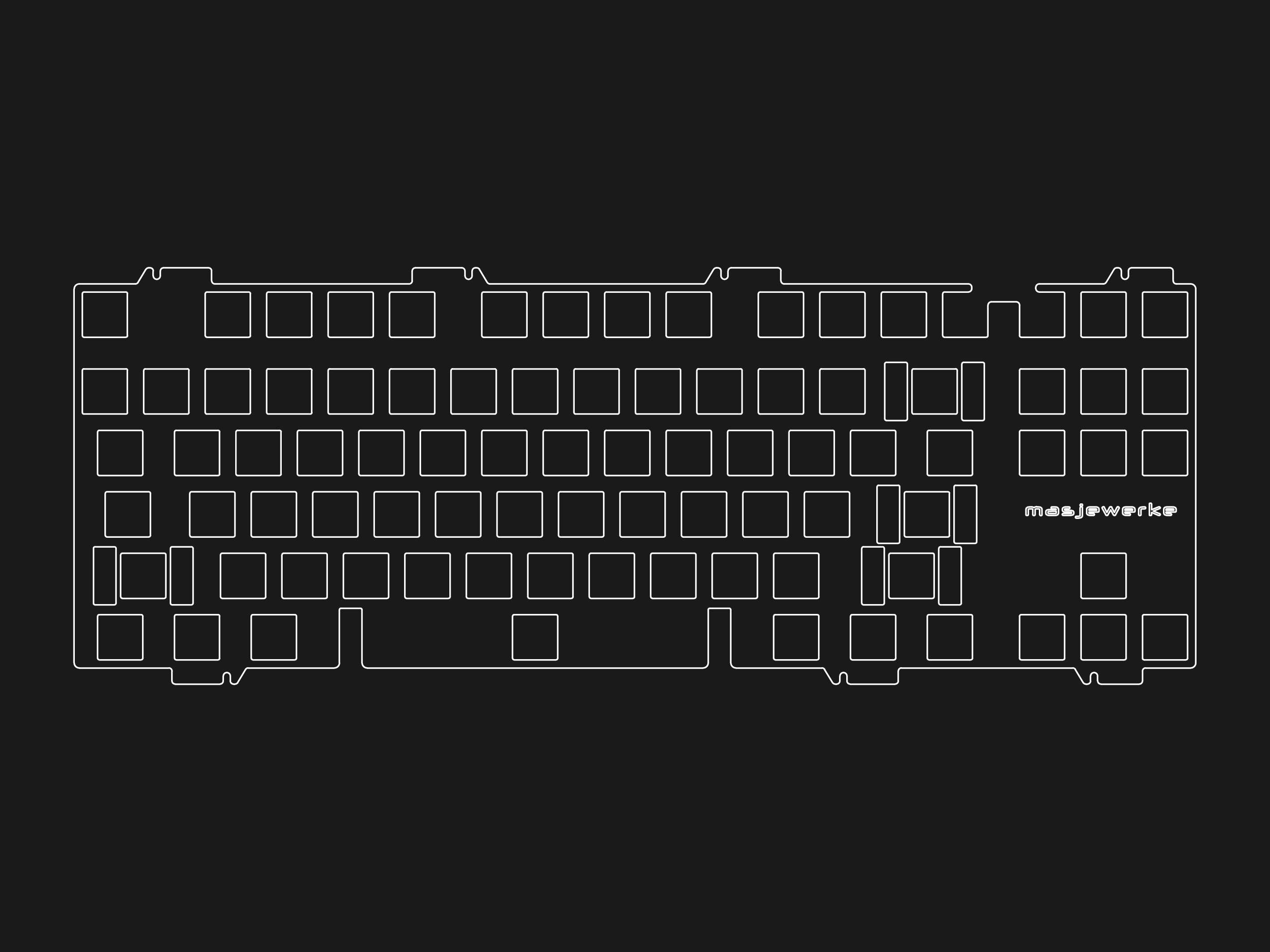

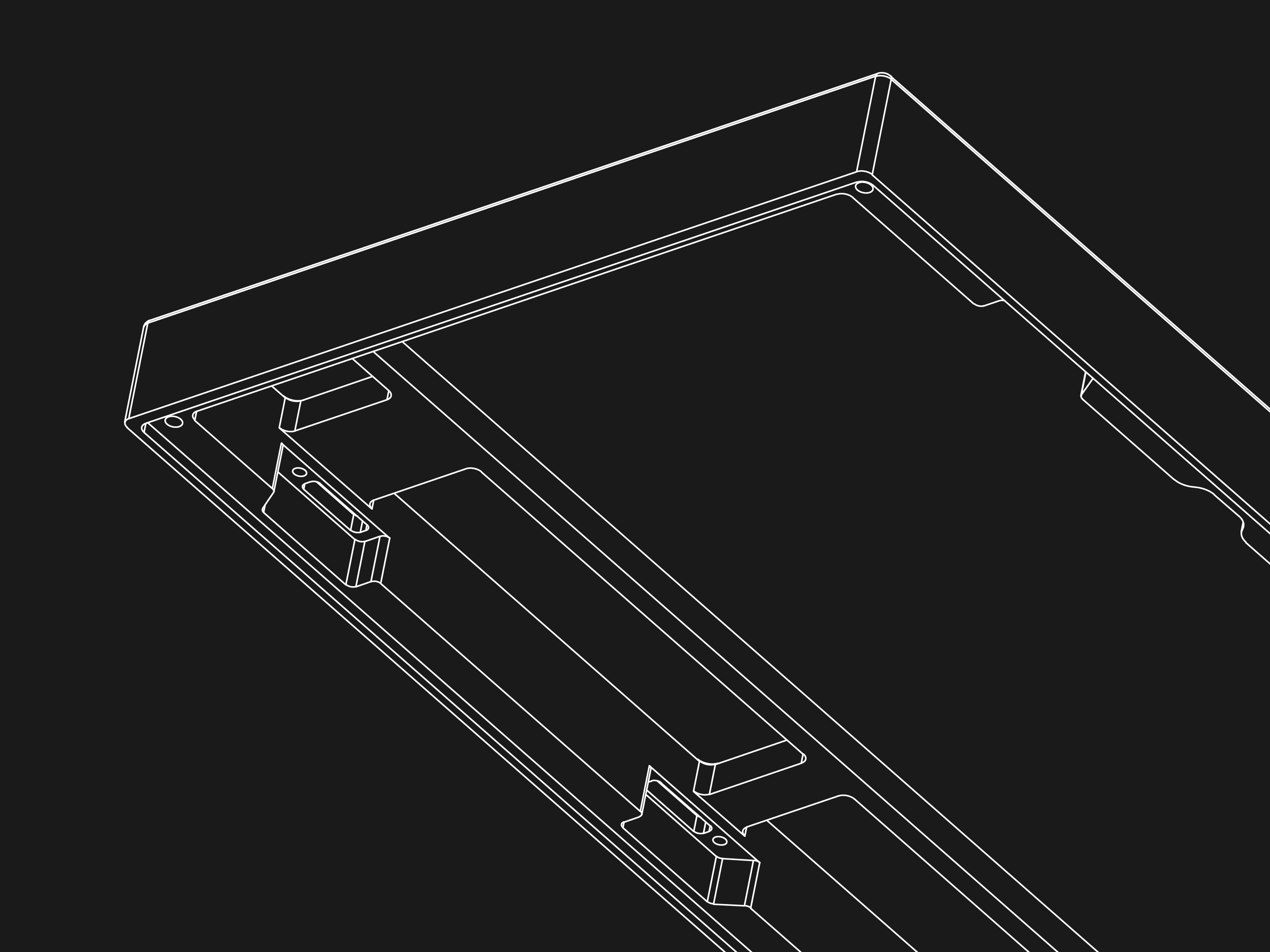

- Top mount with Jane-ish mount points. Plate will be changed to have more compat (6.25 bottom row, stepped caps, ISO etc)

- testing out hot-dog top mount (with orings in the wedges)

---

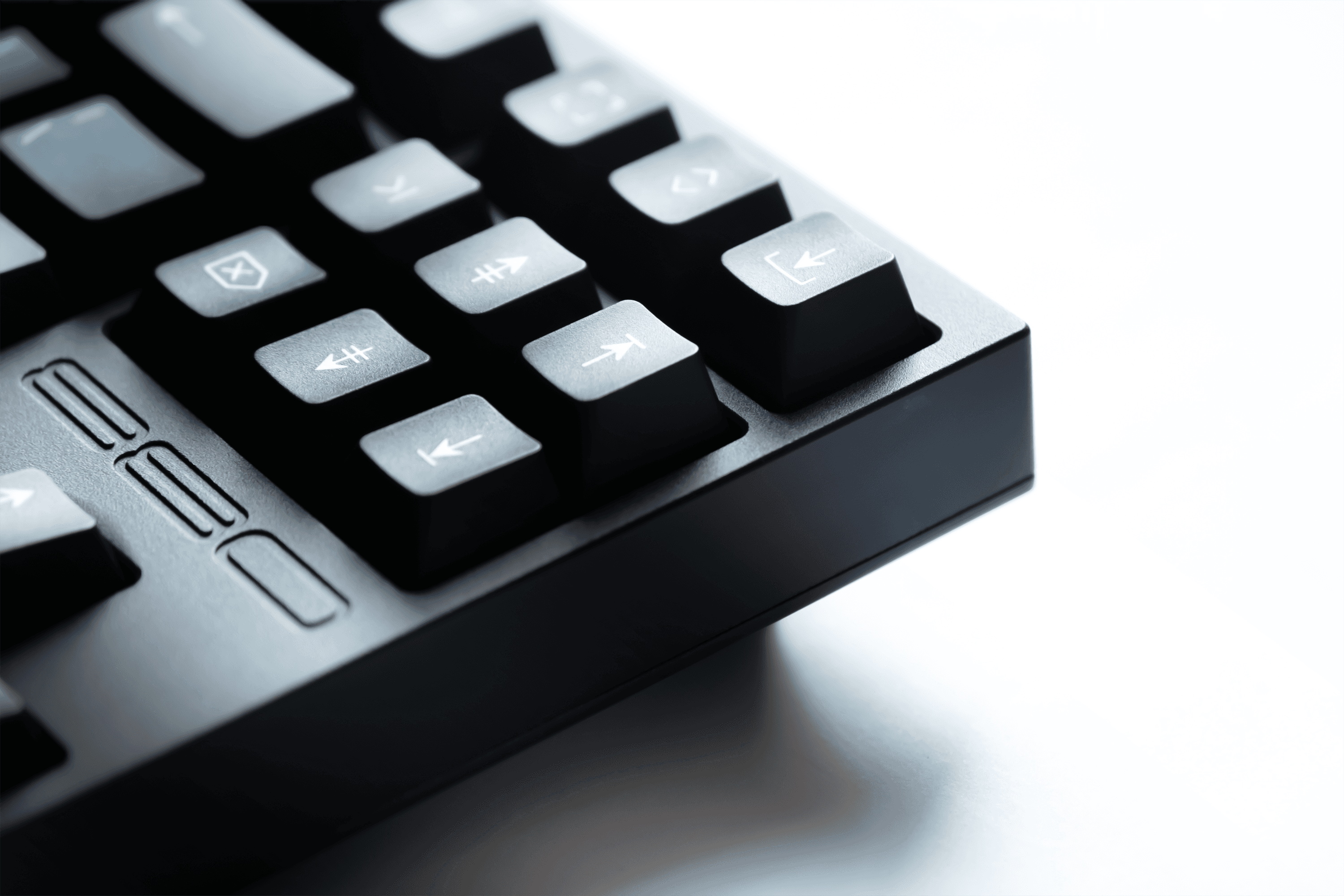

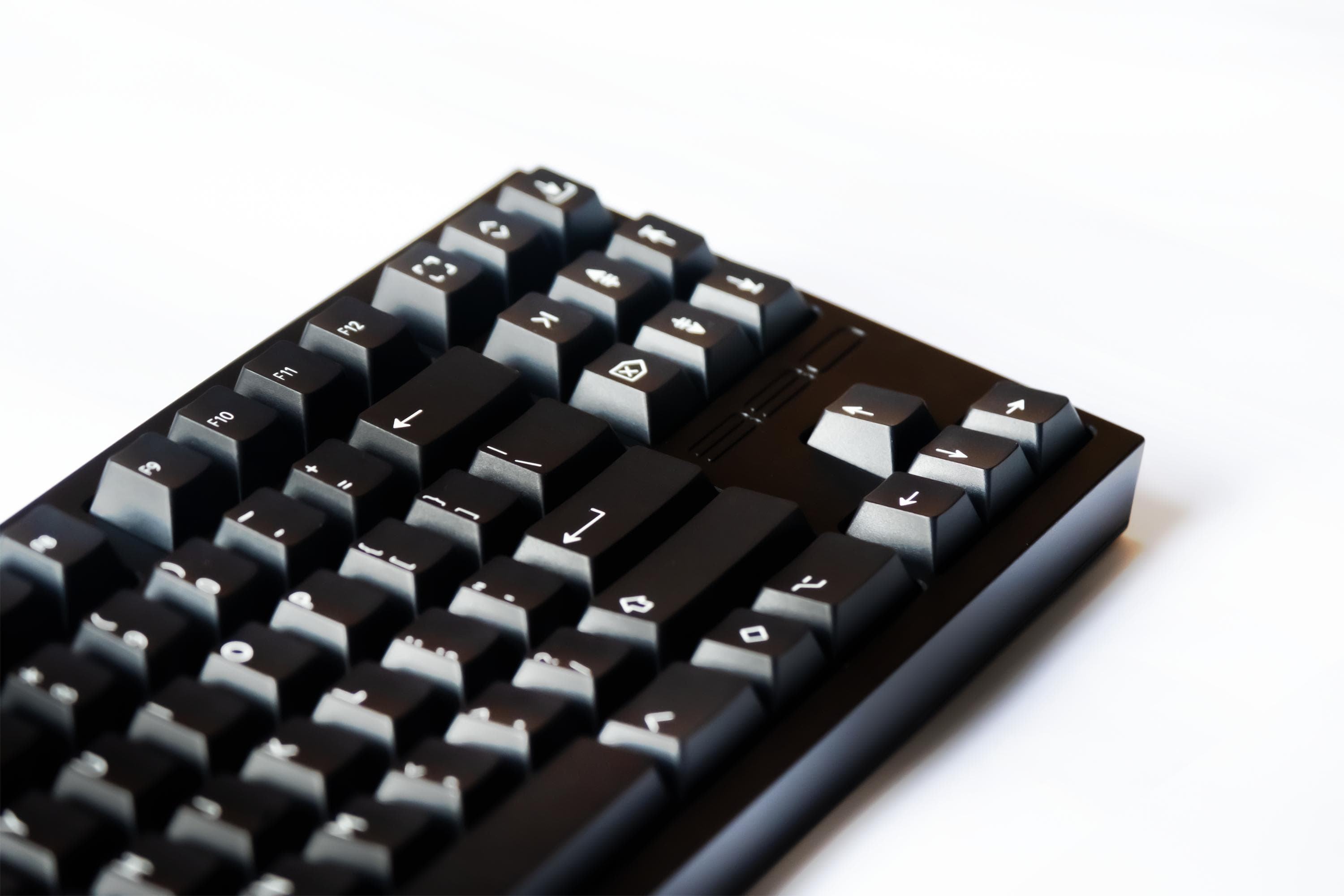

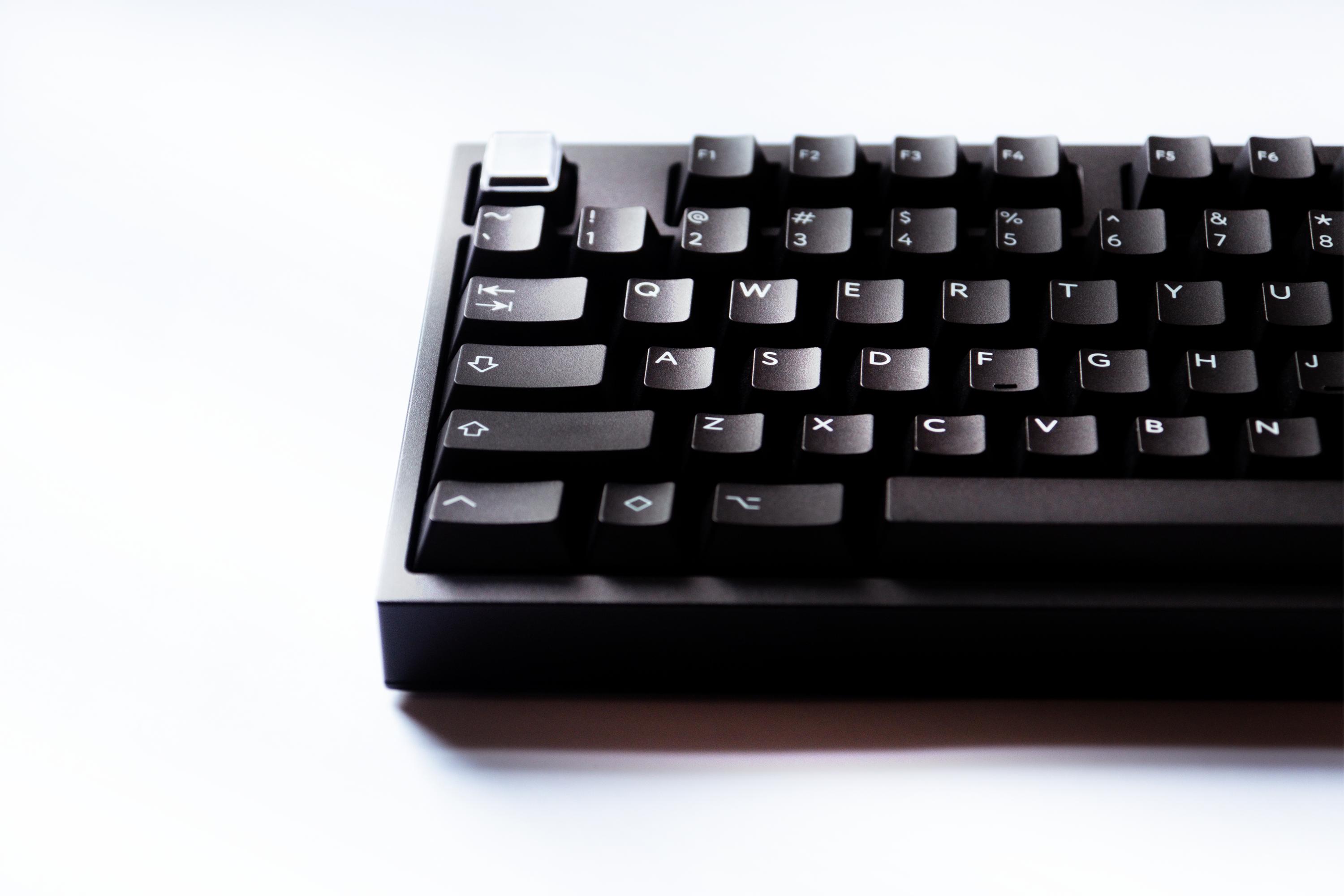

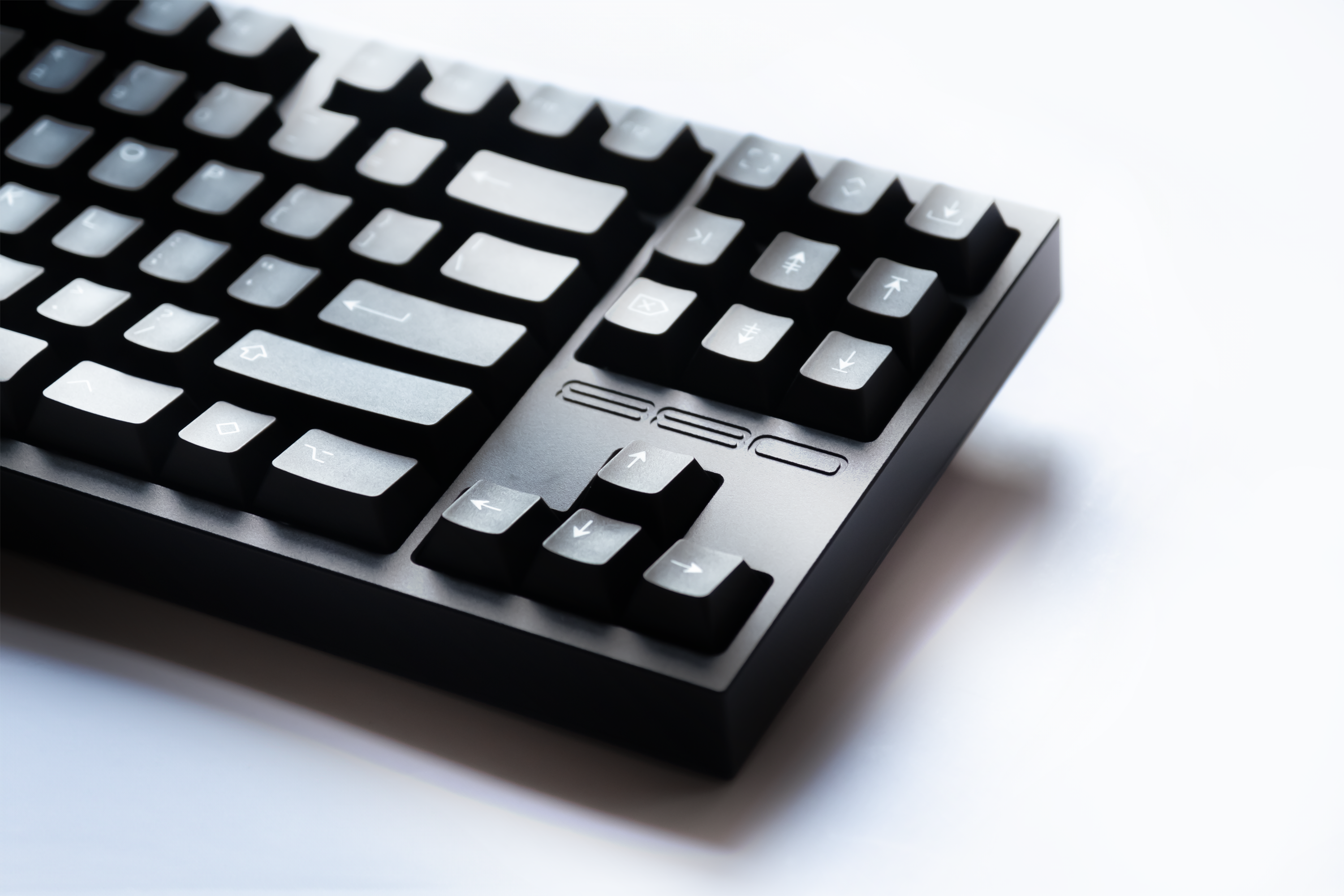

P R O T O

---
S O U N D T E S T

- obviously sound tests are a lie, but i like it

- sussy alu plate with mx2a blacks, pbtfans wob

---
T H A N K S

Thanks to the amazing Hana for taking these photos!!! Ur the best.
Thanks to everyone who's provided feedback on this project! I really appreciate it!
Thanks to all my discord server members
