篆Seal TKL
SENSY
Hello world, this is SENSY.
Here we go. Seal 80, the sequel to 100% is coming. Thanks to your affirmation previously, and all your thoughts and feedback too, they�ve all been heard, loud and clear. After several rounds of sampling, this current version has been shown and shared during meetups in Shanghai and Tokyo. With these little improvements, its domestic GB was done and now it�s time for its global tour.
Some features we meant to deliver:
Versatility
We always recall the joy this hobby brought to us since the beginning. From Cherry MX, Alps,Micro Switch,Beamspring,Fujitsu leaf spring to EC Topre and so forth, those little surprises has delighted us for years.
The pity is we don�t have plenty options of Alps supporting keeb.That's why we previously employed a relatively common PCB design on Seal100 that is compatible with both MX and Alps SKCM/SKCL switches.But this is far from sufficient, especially for those who favour vintage keyboards.

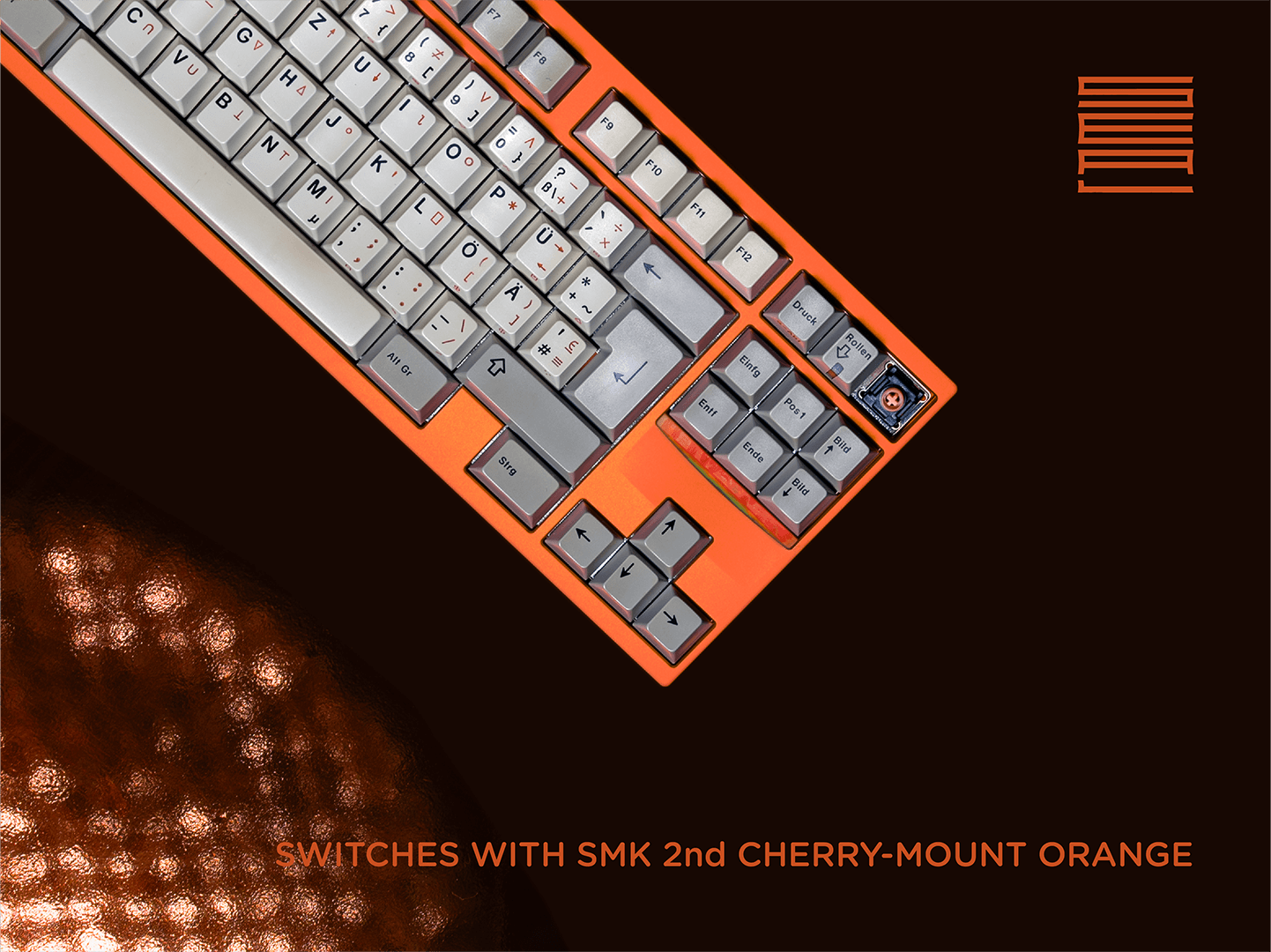

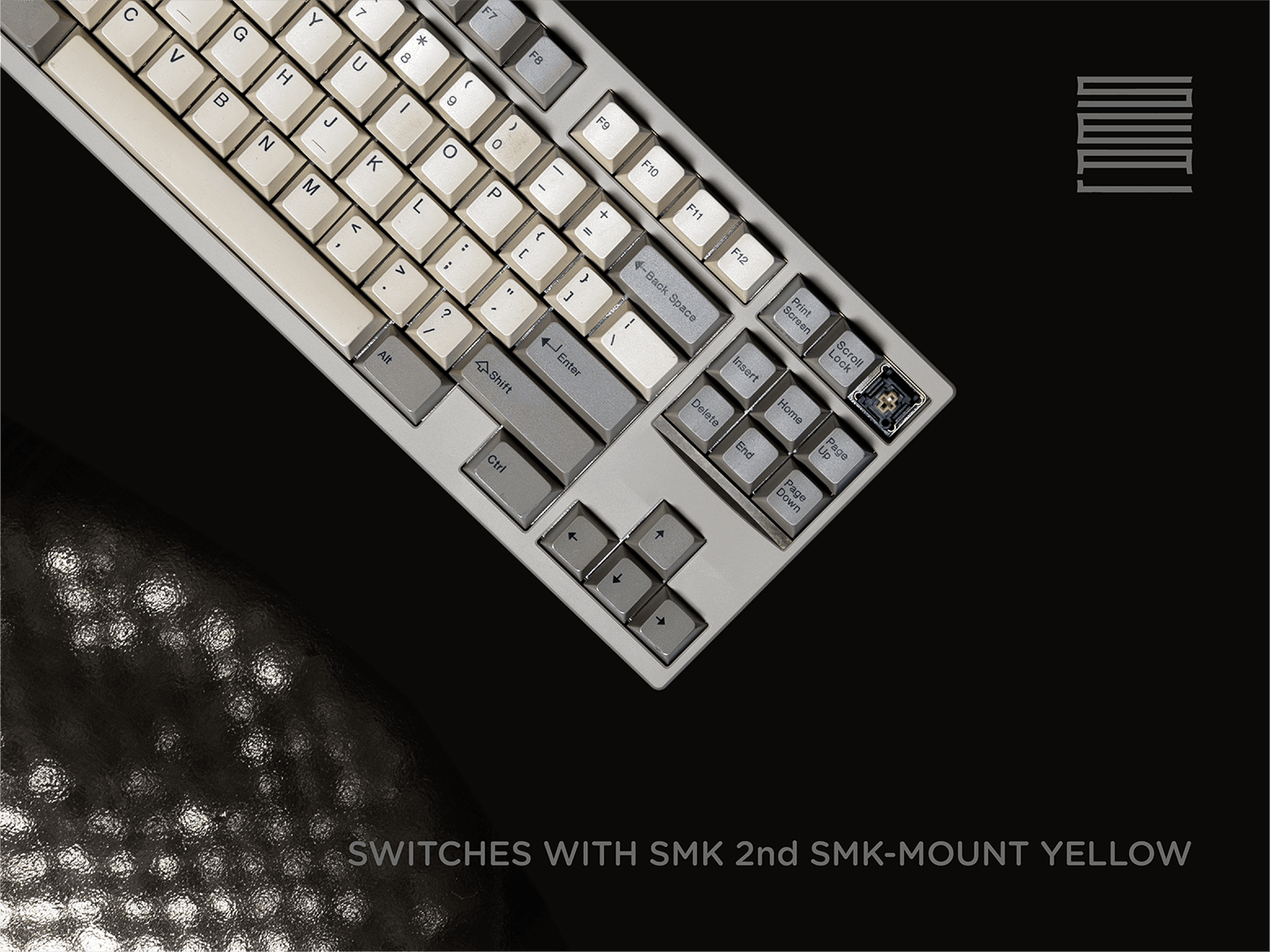

Therefore, when Seal comes to the Gud&Old 80%, it�s determined to adopt the A87 standard, which is compatible for MX, Alps, SMK, Omron B3G, EC and even Hi-Tek (AKA Space Invaders, respect to 4ppleT who made it open source for us). This might be the PCBs with the most cheese holes you've ever seen lmaooo.
Structure
Top mount + the �Smoke� buffer
We introduced PEI plate with silicone block(70A/90A) to Smoke65�s top mount. Although this plan had caused high cost and complex assembly, it provided most superior typing feel we ever had so far. Smoke 65�s PEI plate plan is designed to reproduce the force break effect which results in expanded thickness and excessive screws.
In order to lower the front height (2mm reduced) and simplify its assembling, we brought the separated buffer bar & PVC bottom cushion to improve the smoke 65�s plate plan.
Outlook

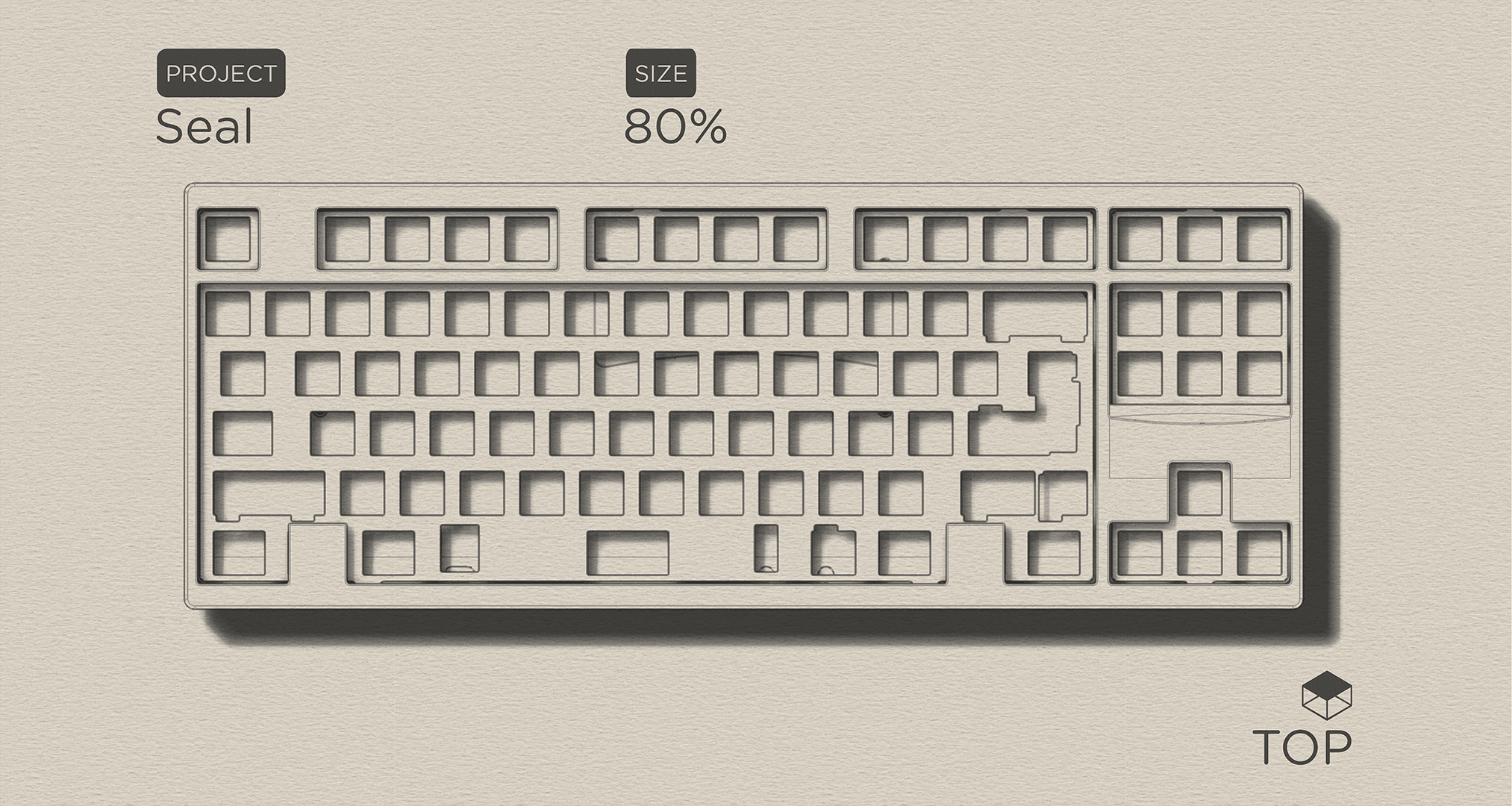

Layout: 80% TK/TKL
Dimension: 356.2x137.2x38.5mm

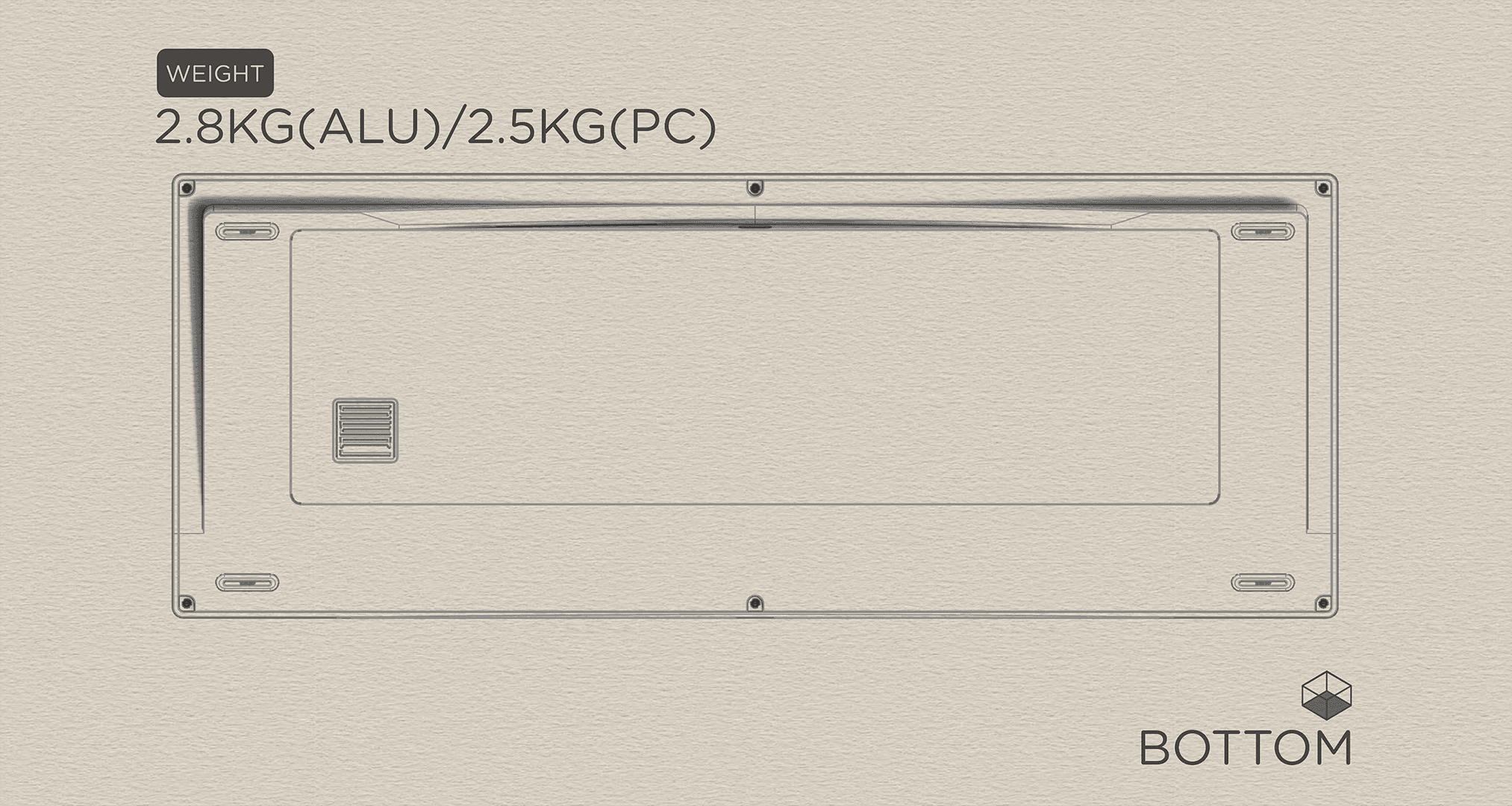

Full weight: 2.5kg-2.8kg

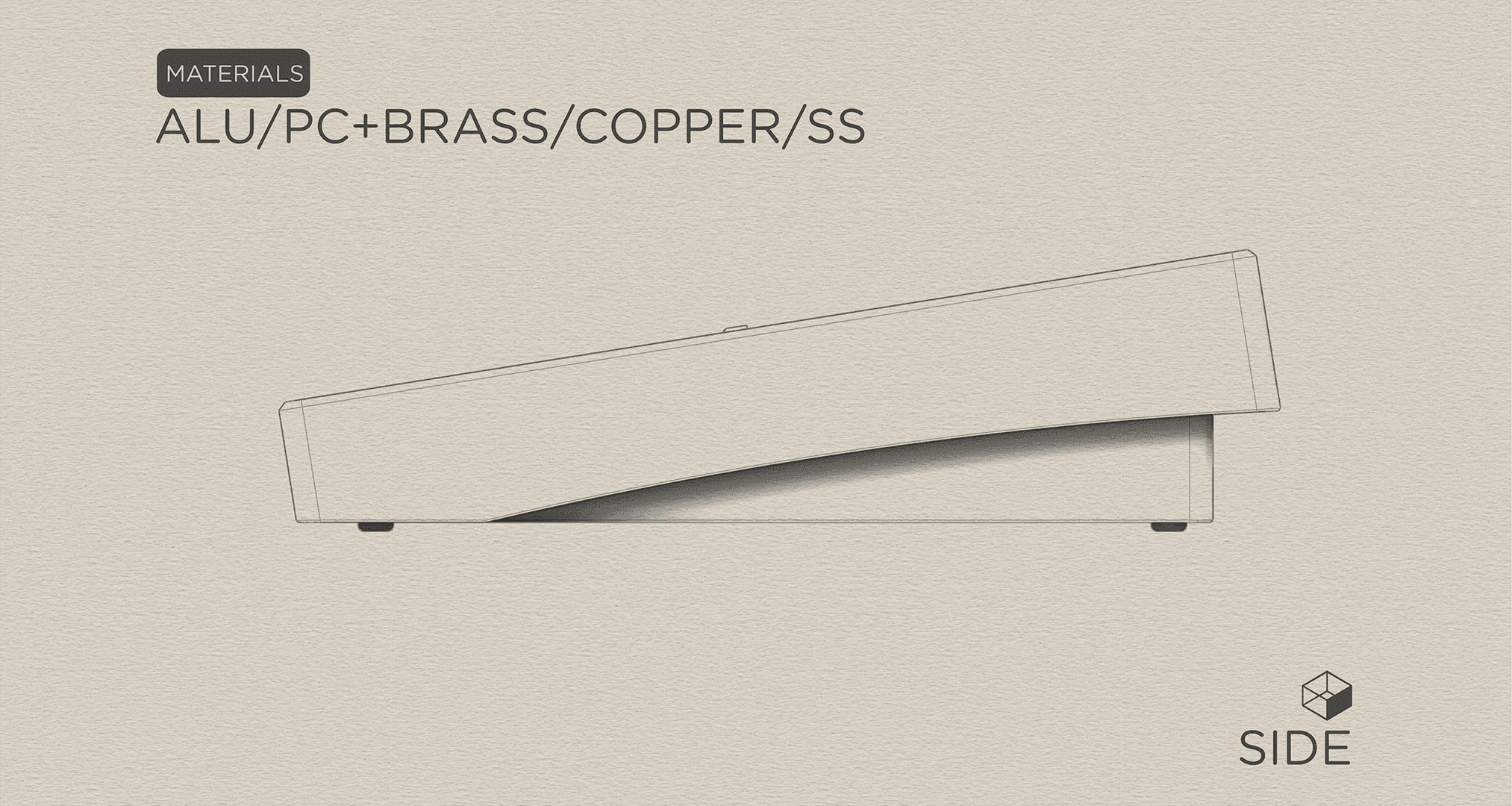

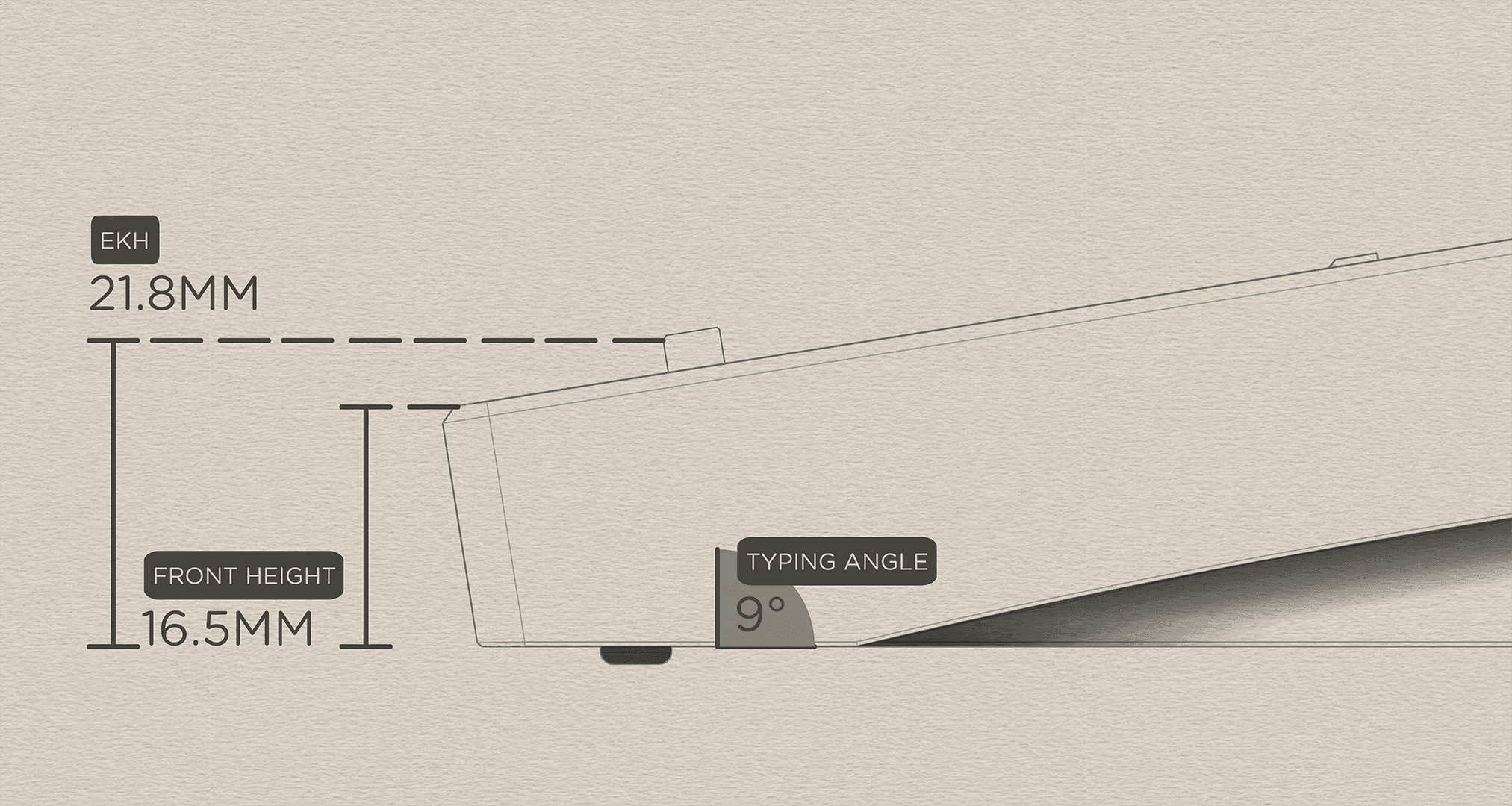

Angle&Height: 9� typing degree
FH=16.5mm/EKH=21.80mm(bumper excluded)

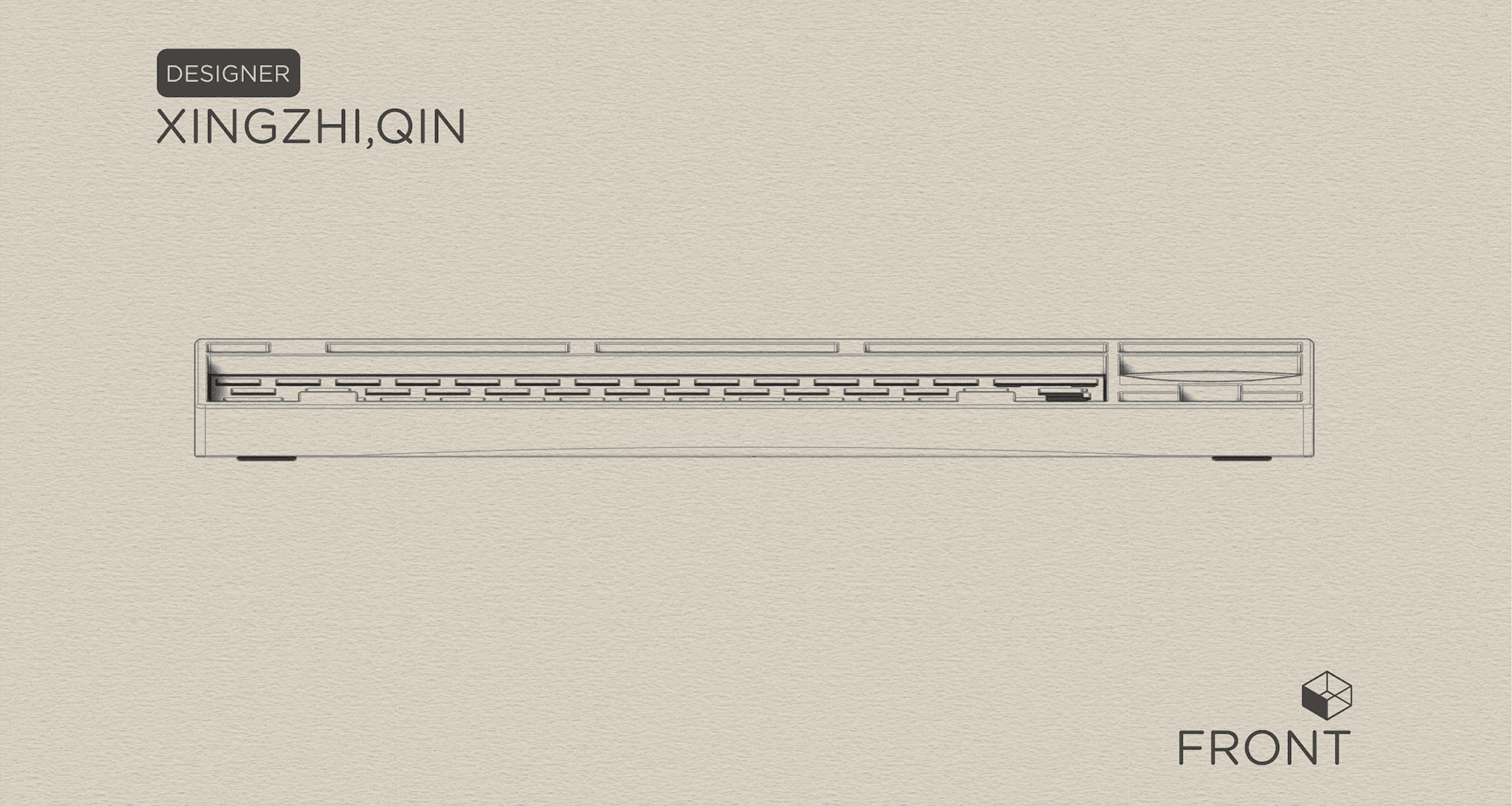

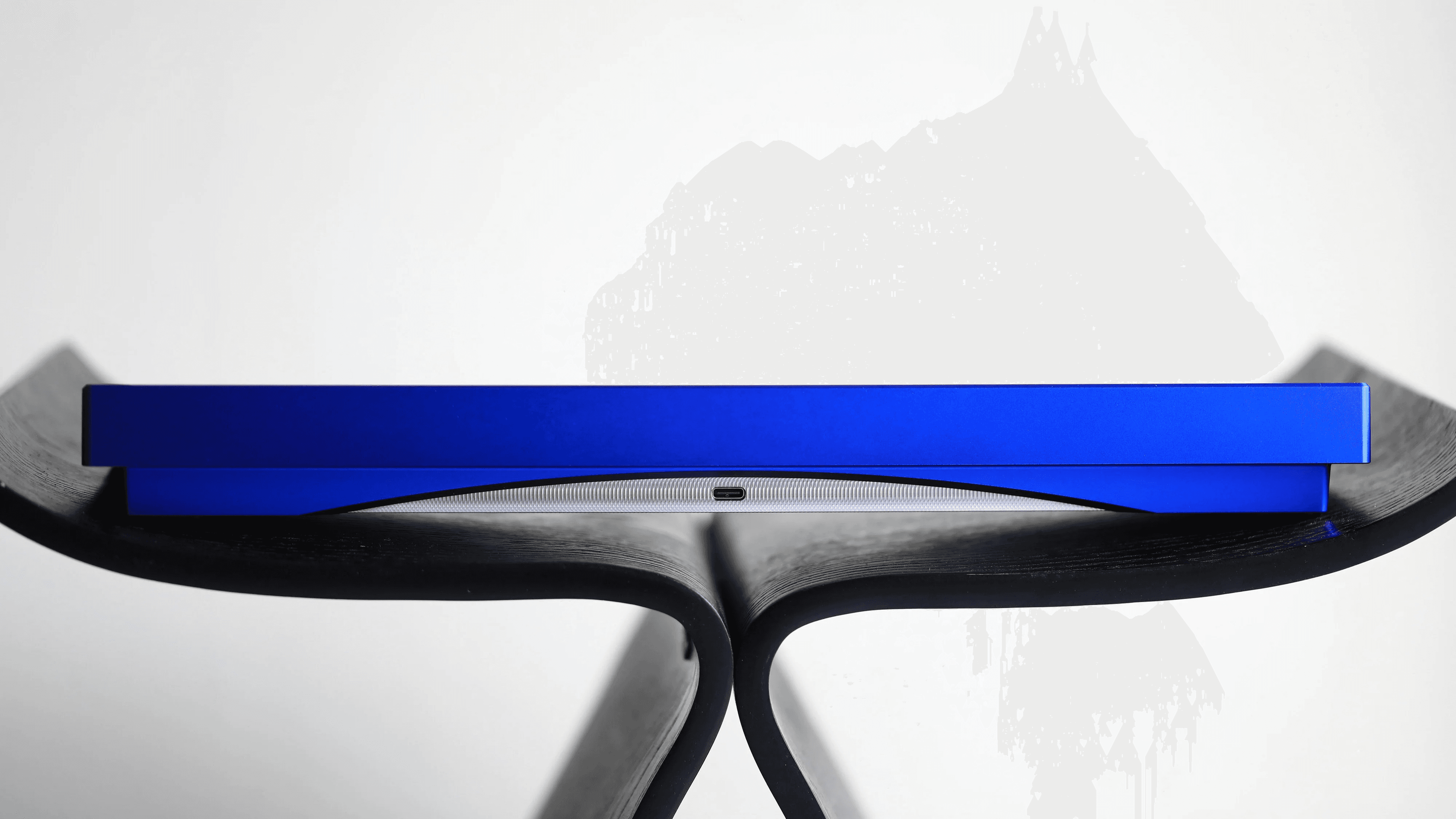

Front side profile: 7.9mm(with chamfer)
Anodizing&Coating
Case：Aluminium anodized 6063/E-coating/PC

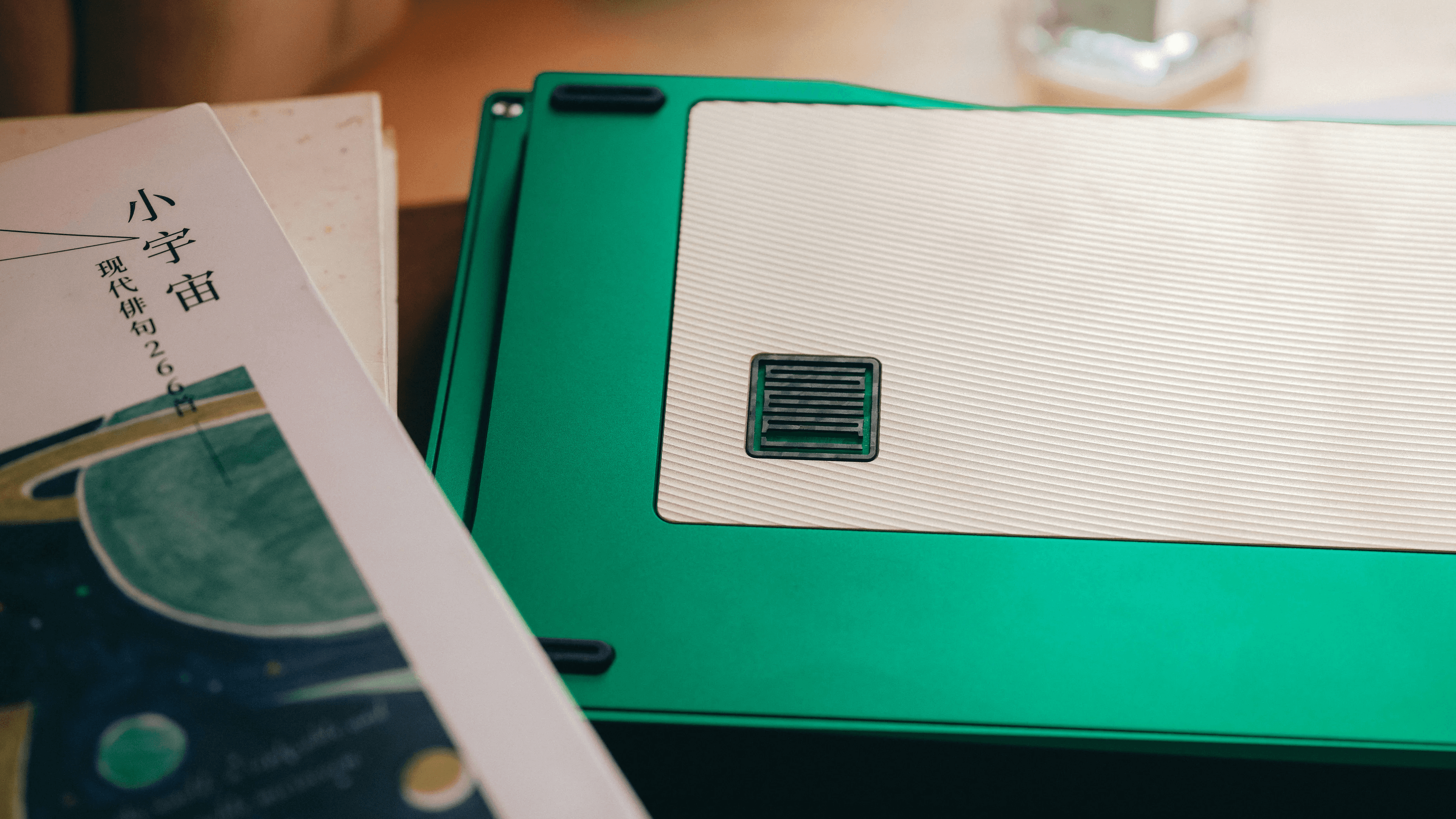

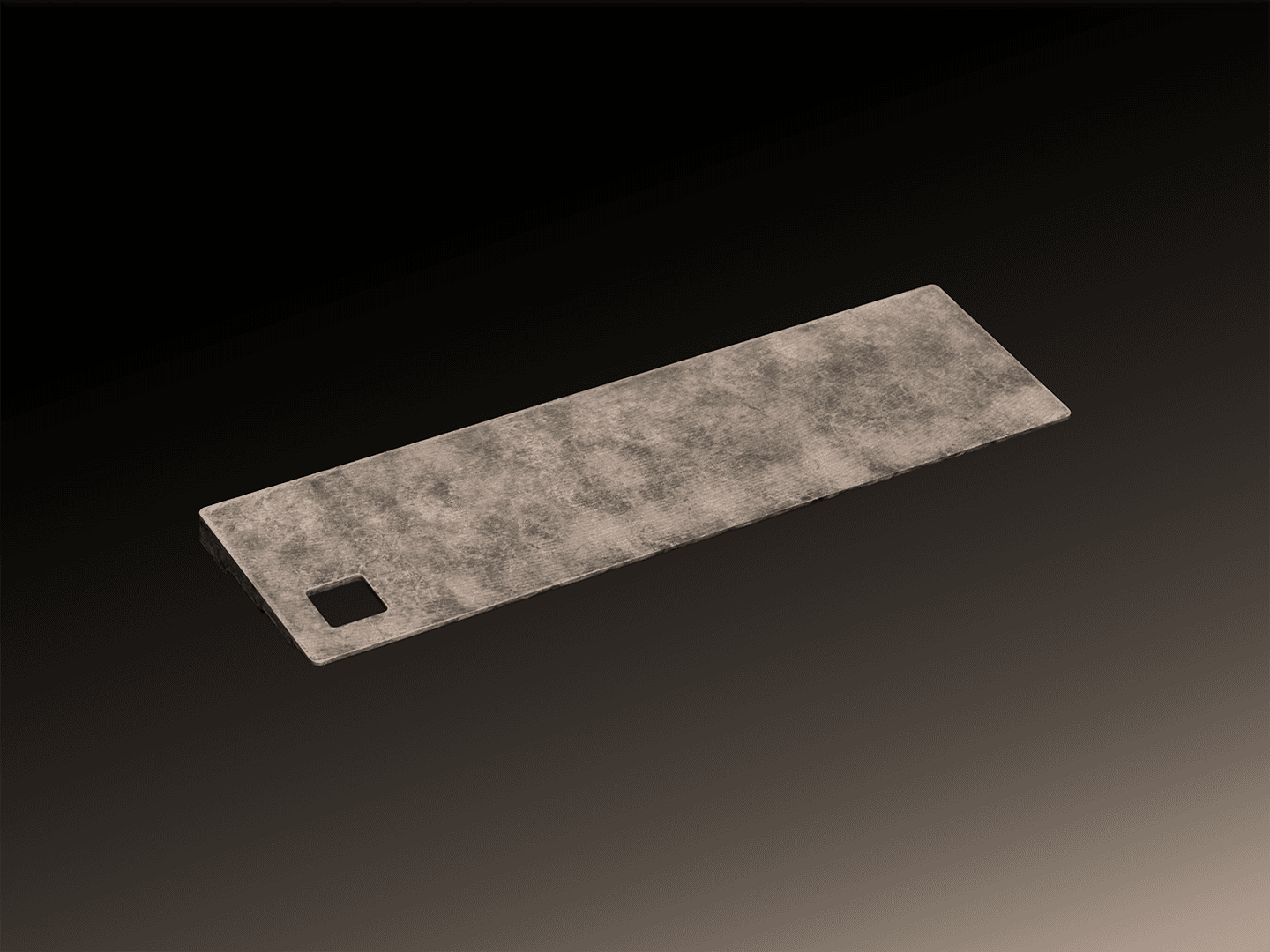

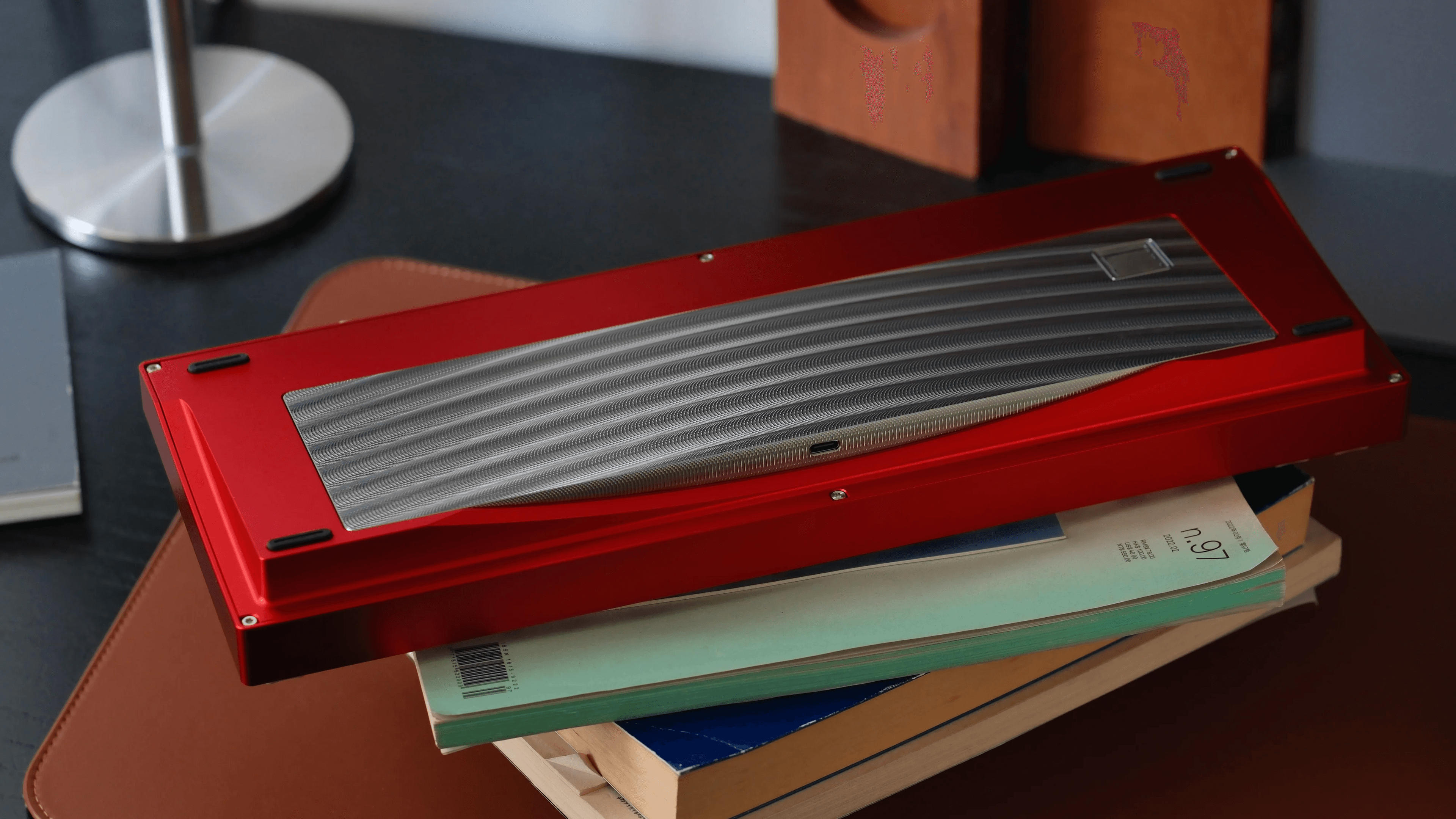

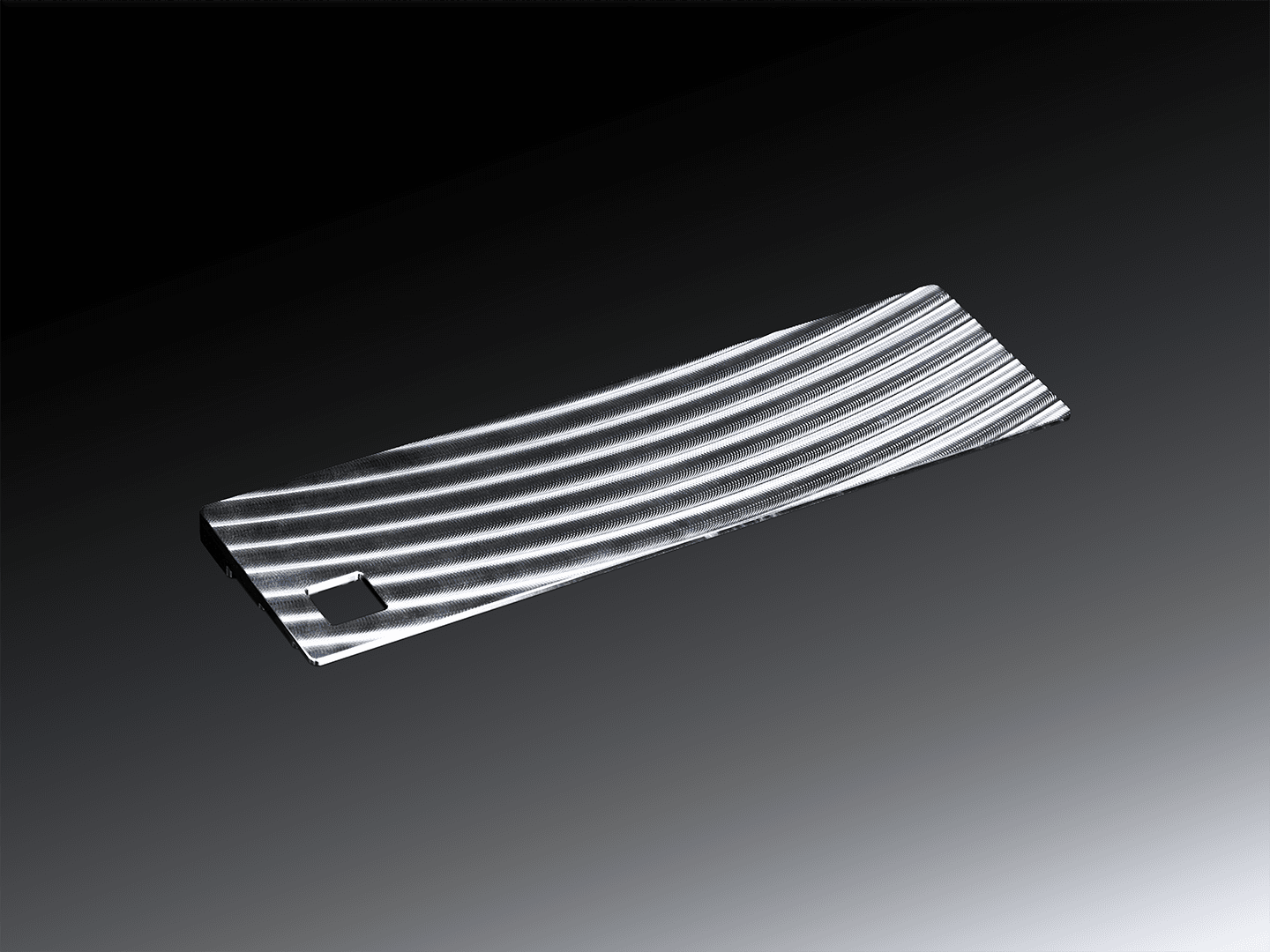

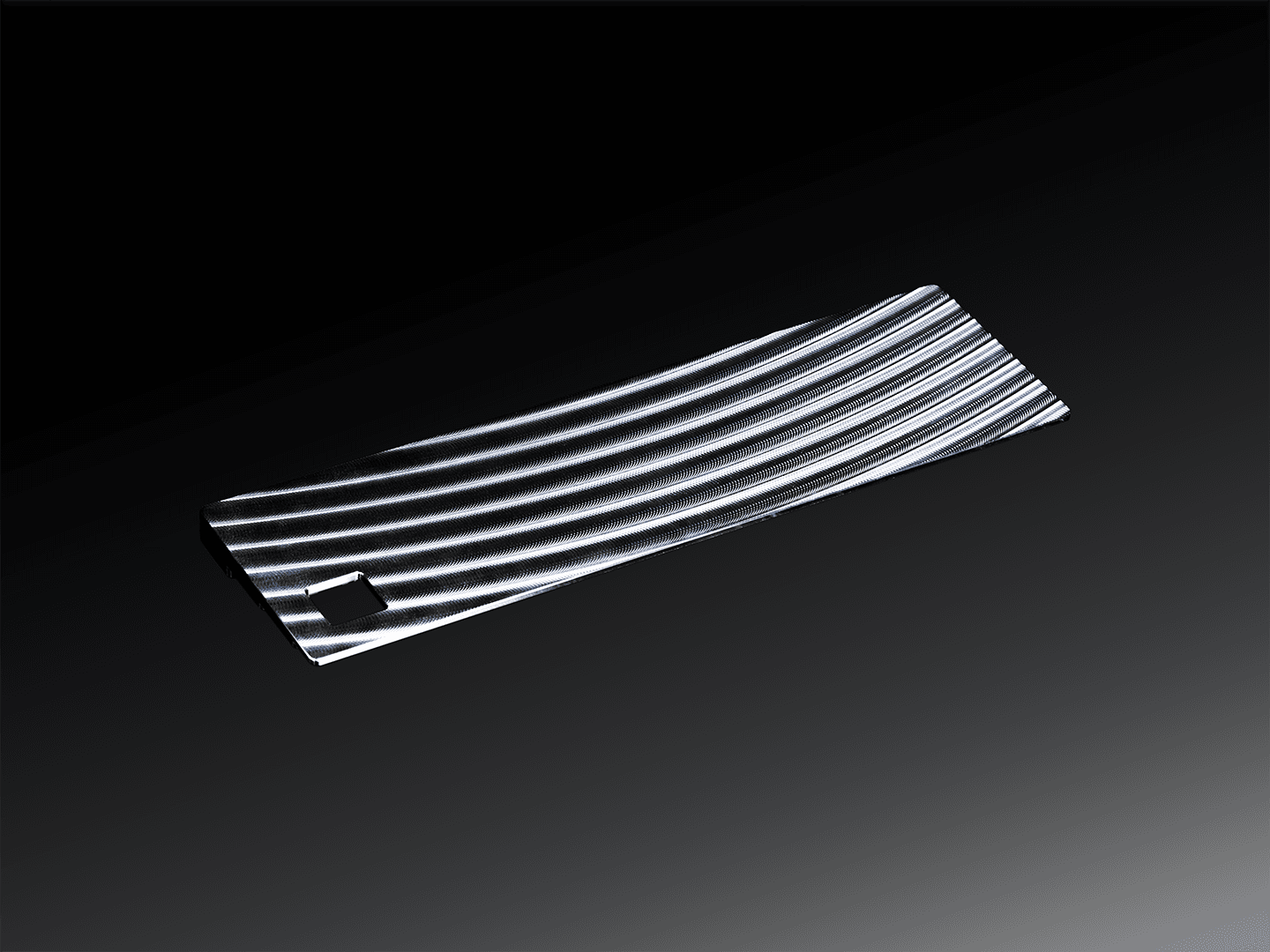

Weight: Brass AF/Brass patina/Copper AF/SS Milled PVD

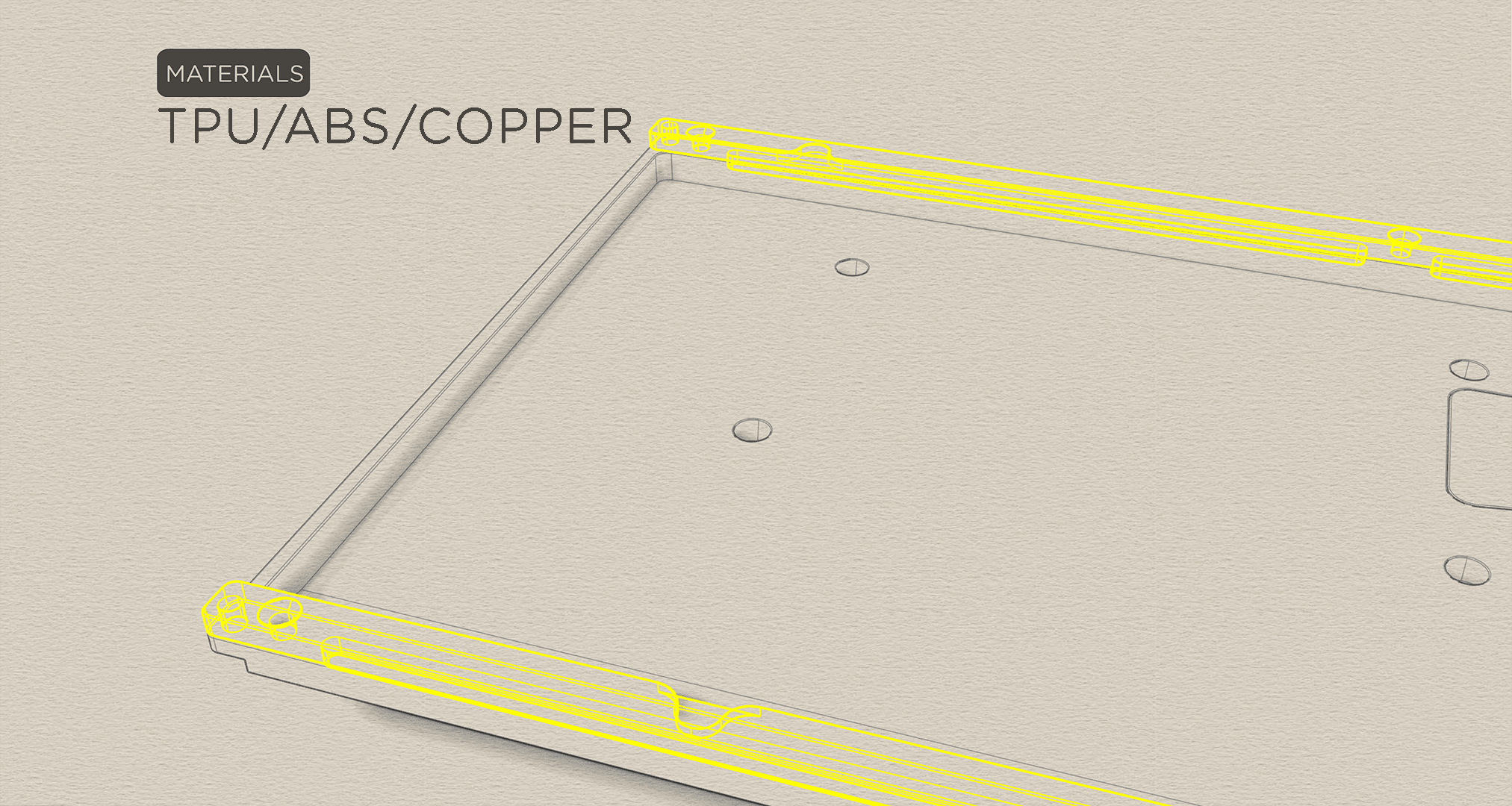

Buffer bar: TPU/PCABS/Copper AF
Plate: Alu/PEI/PCABS
Strip&Badge: Refer to pictures shown
PCB
VIAL supported, match with A87 standard. You can use Hiney87 if you want.

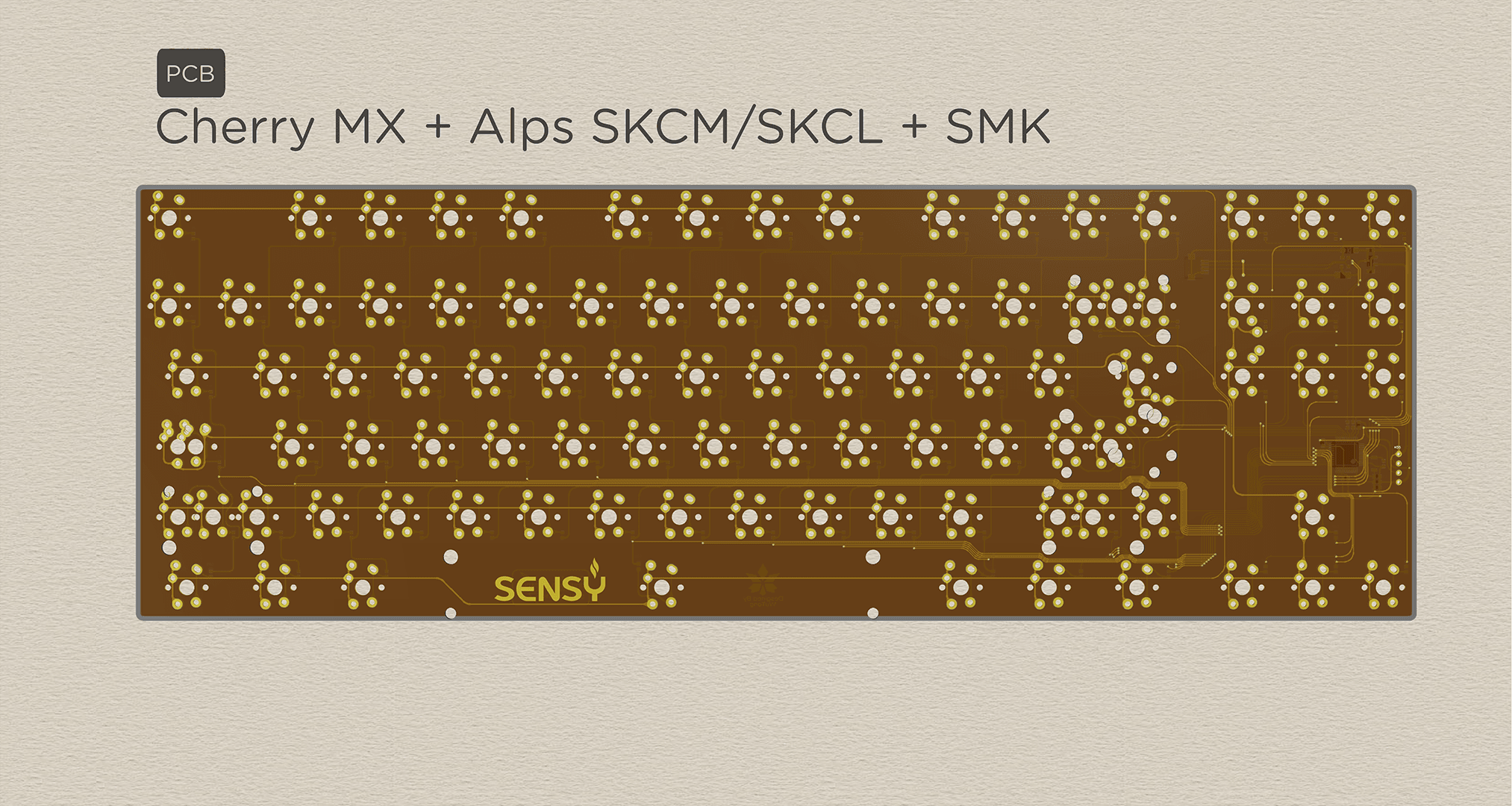

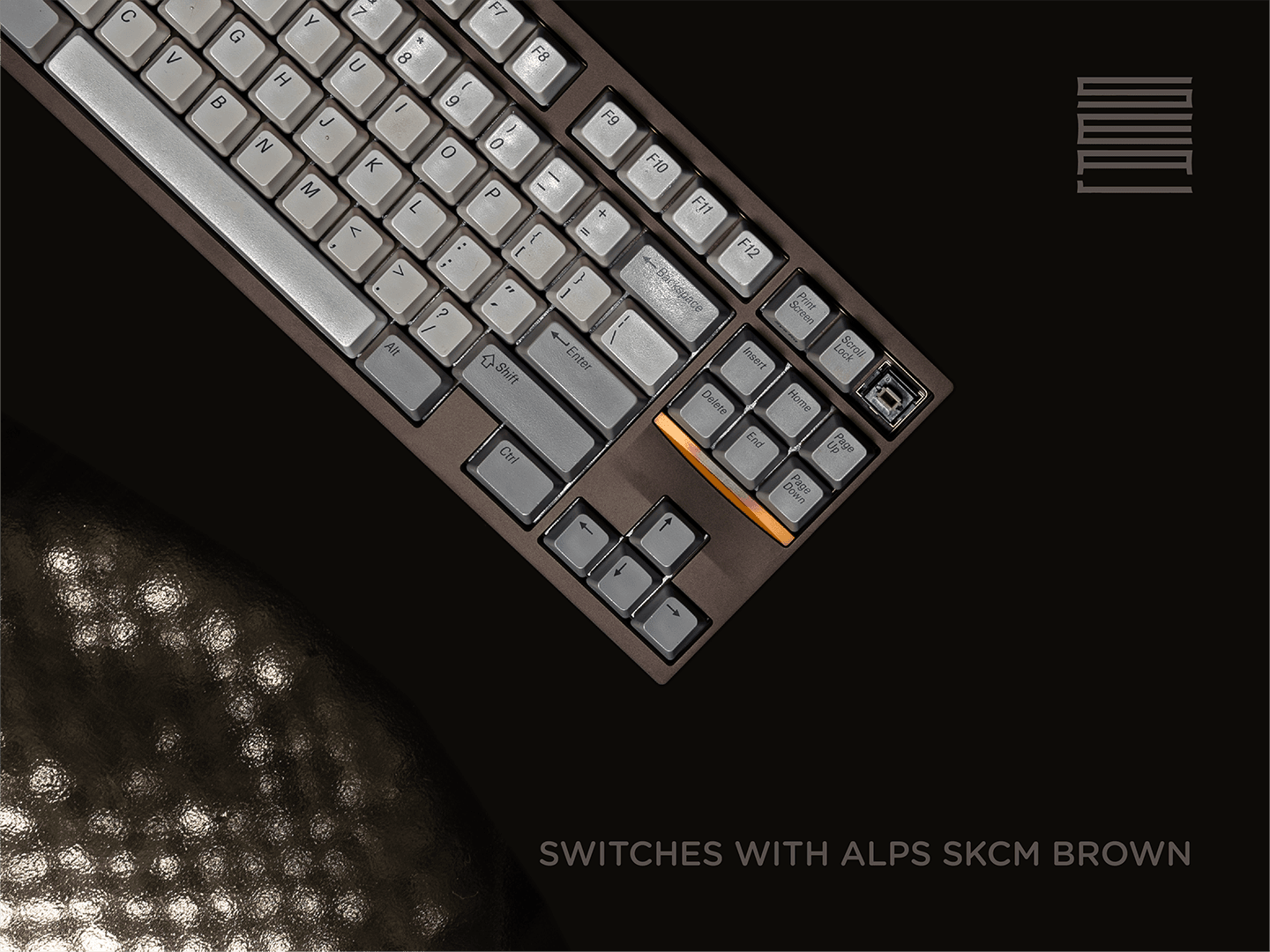

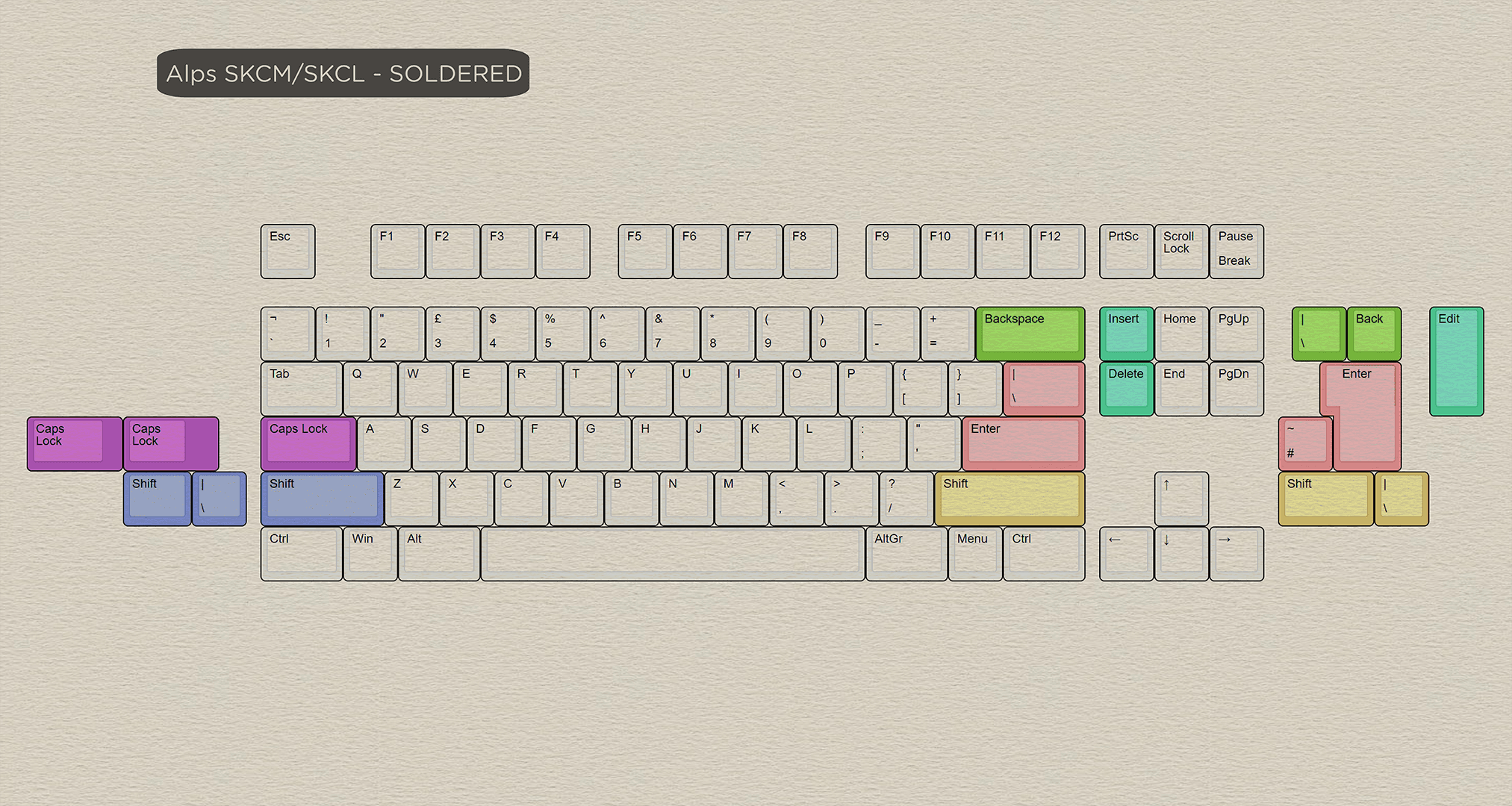

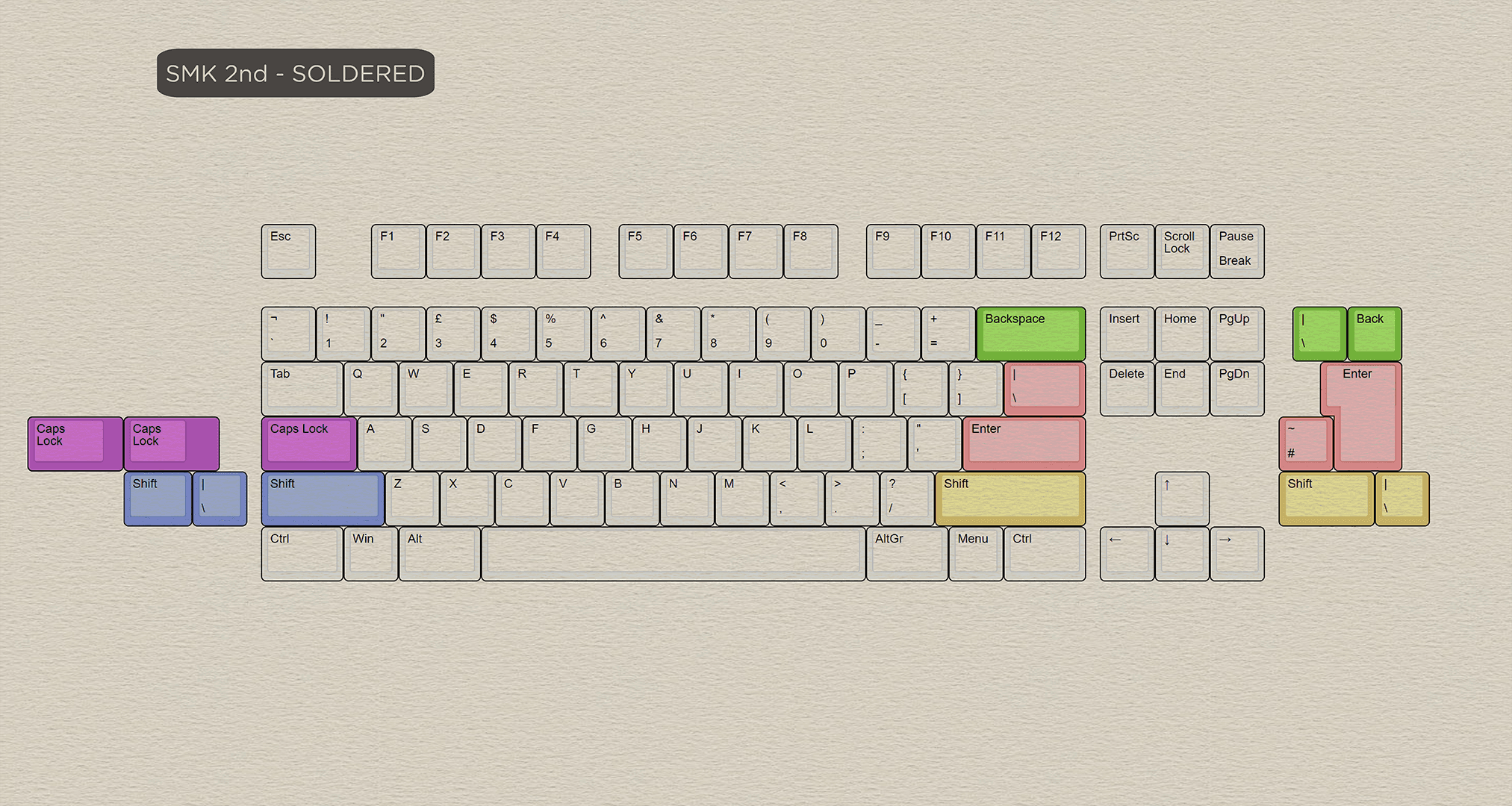

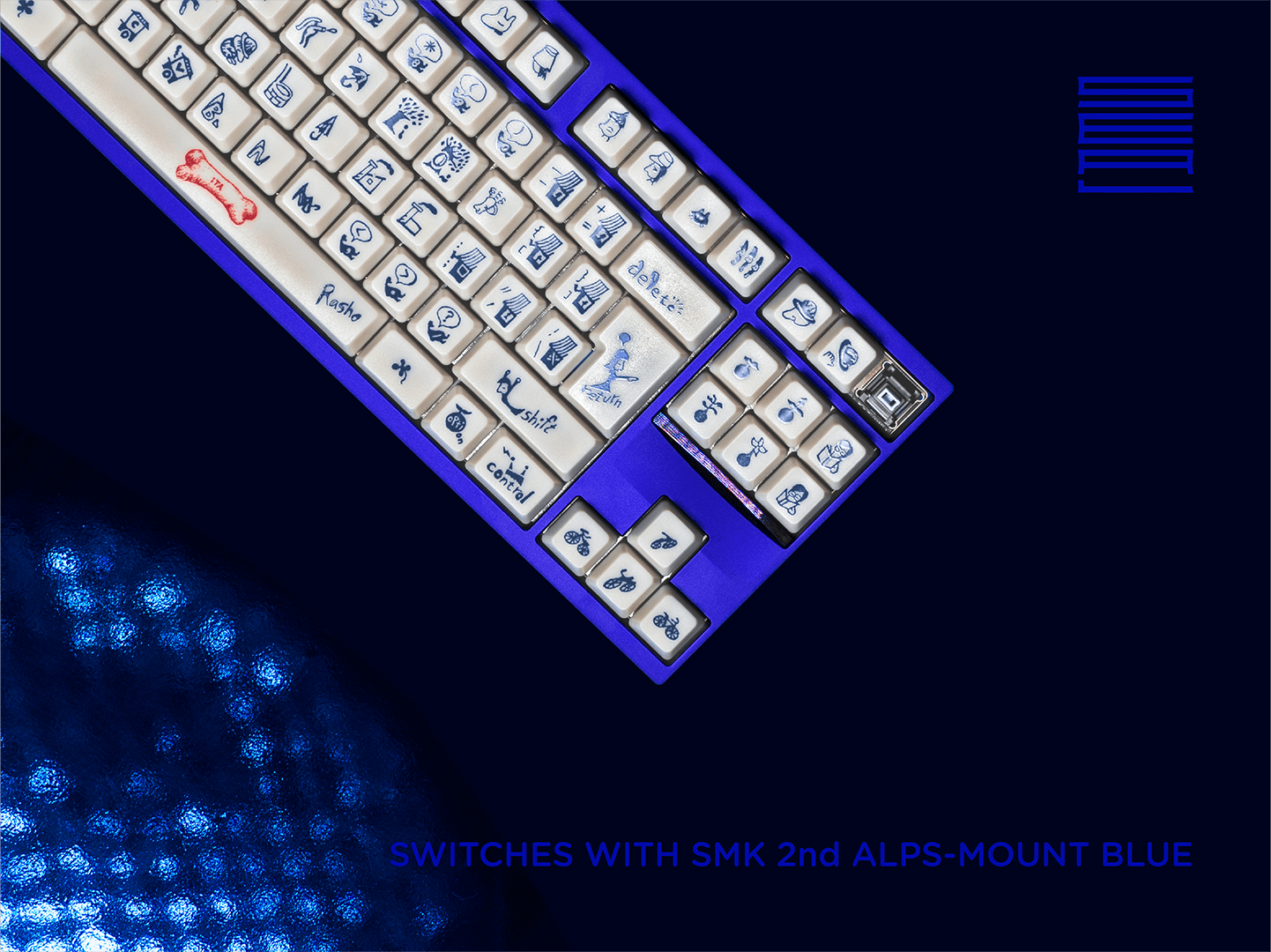

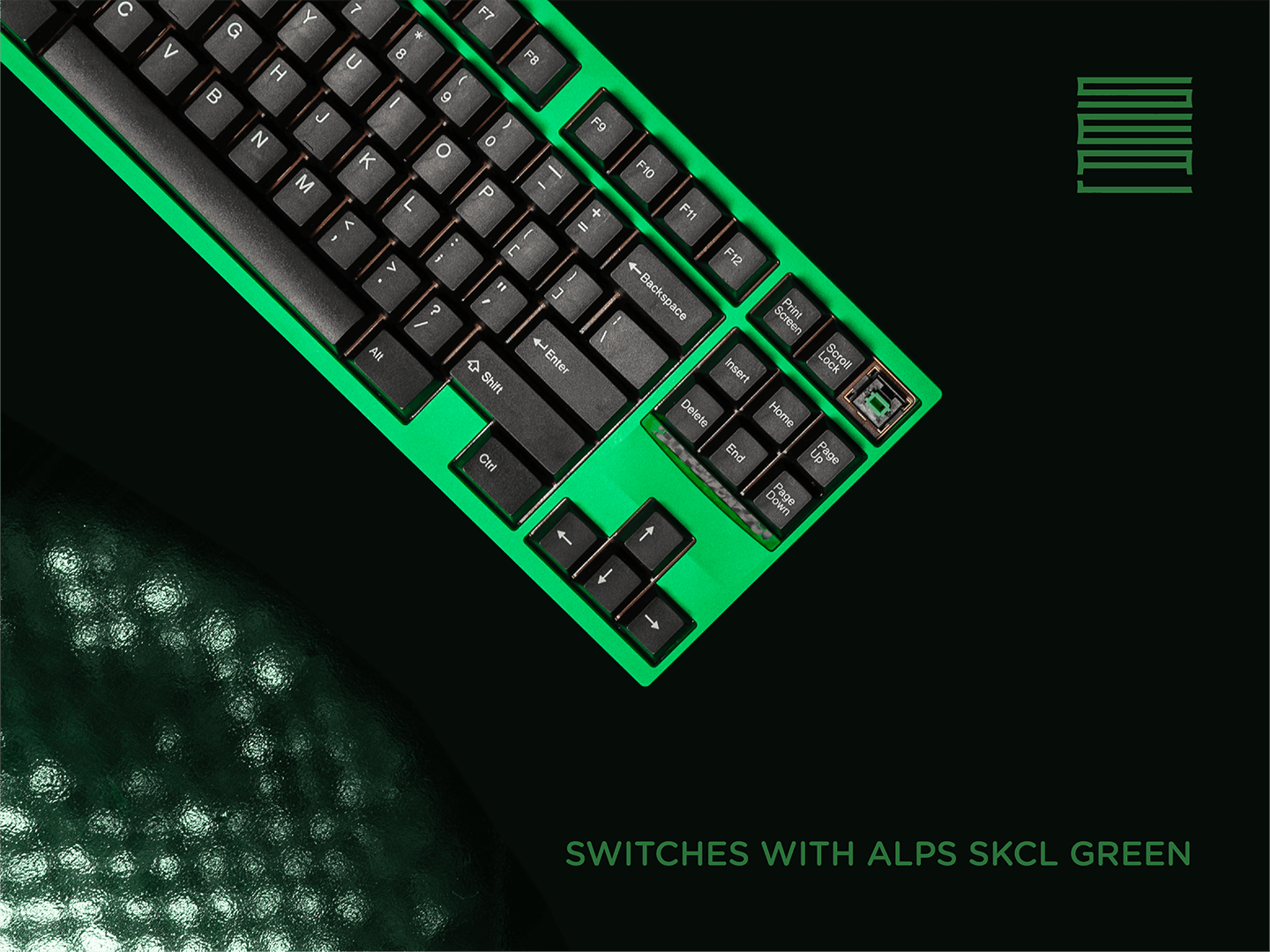

Cherry MX+Alps SKCM/SKCL+SMK / Soldering Only

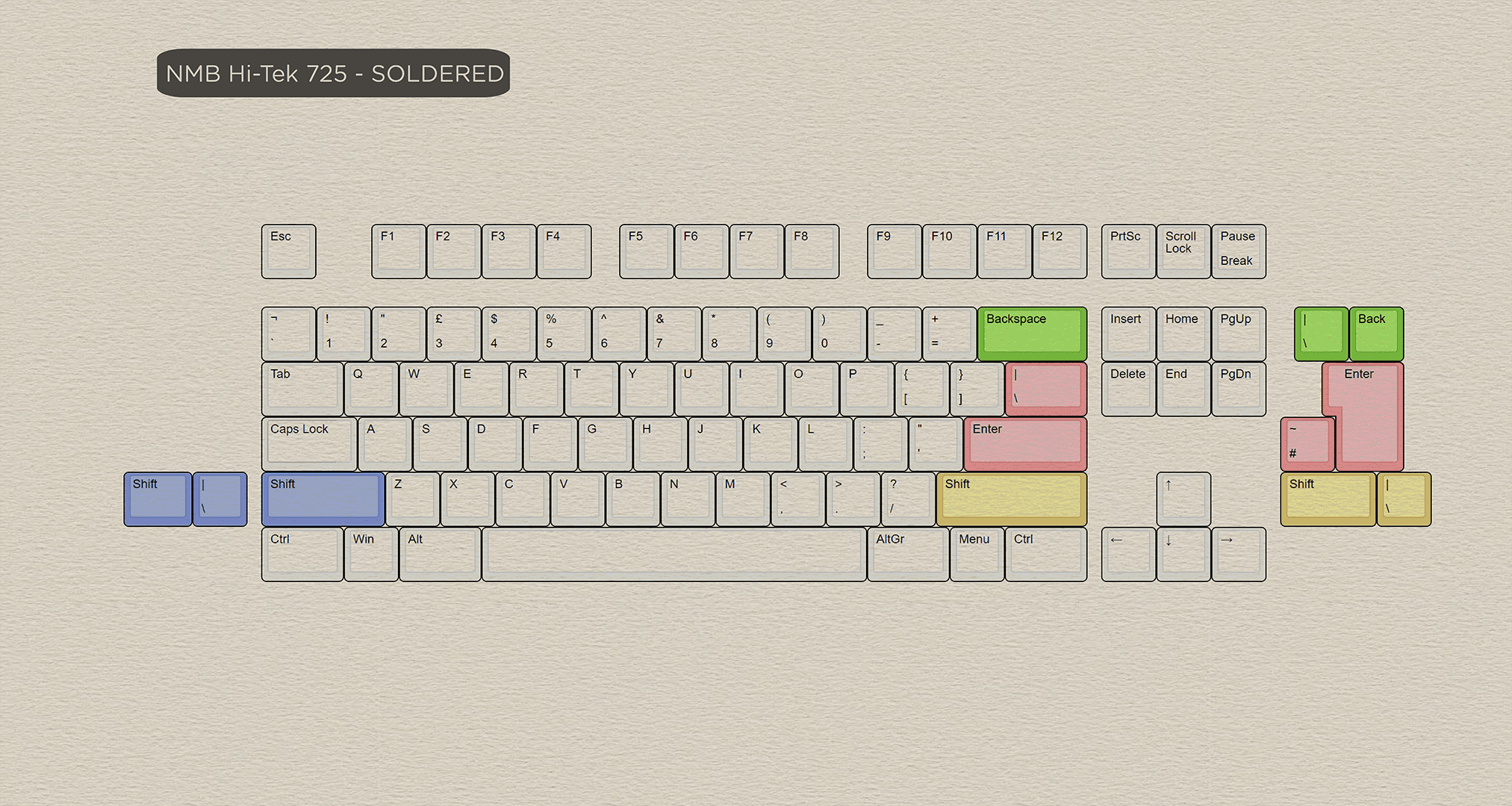

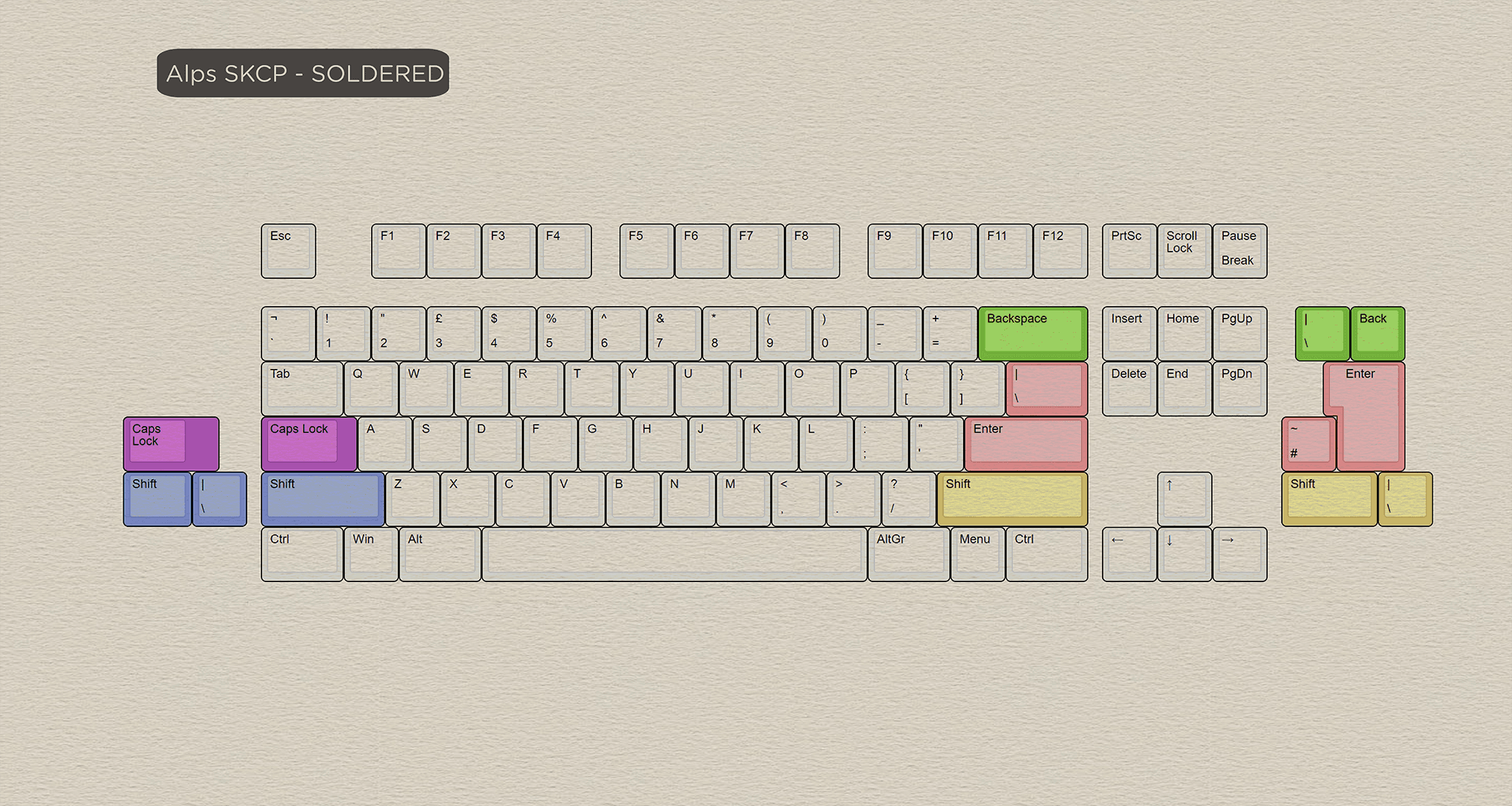

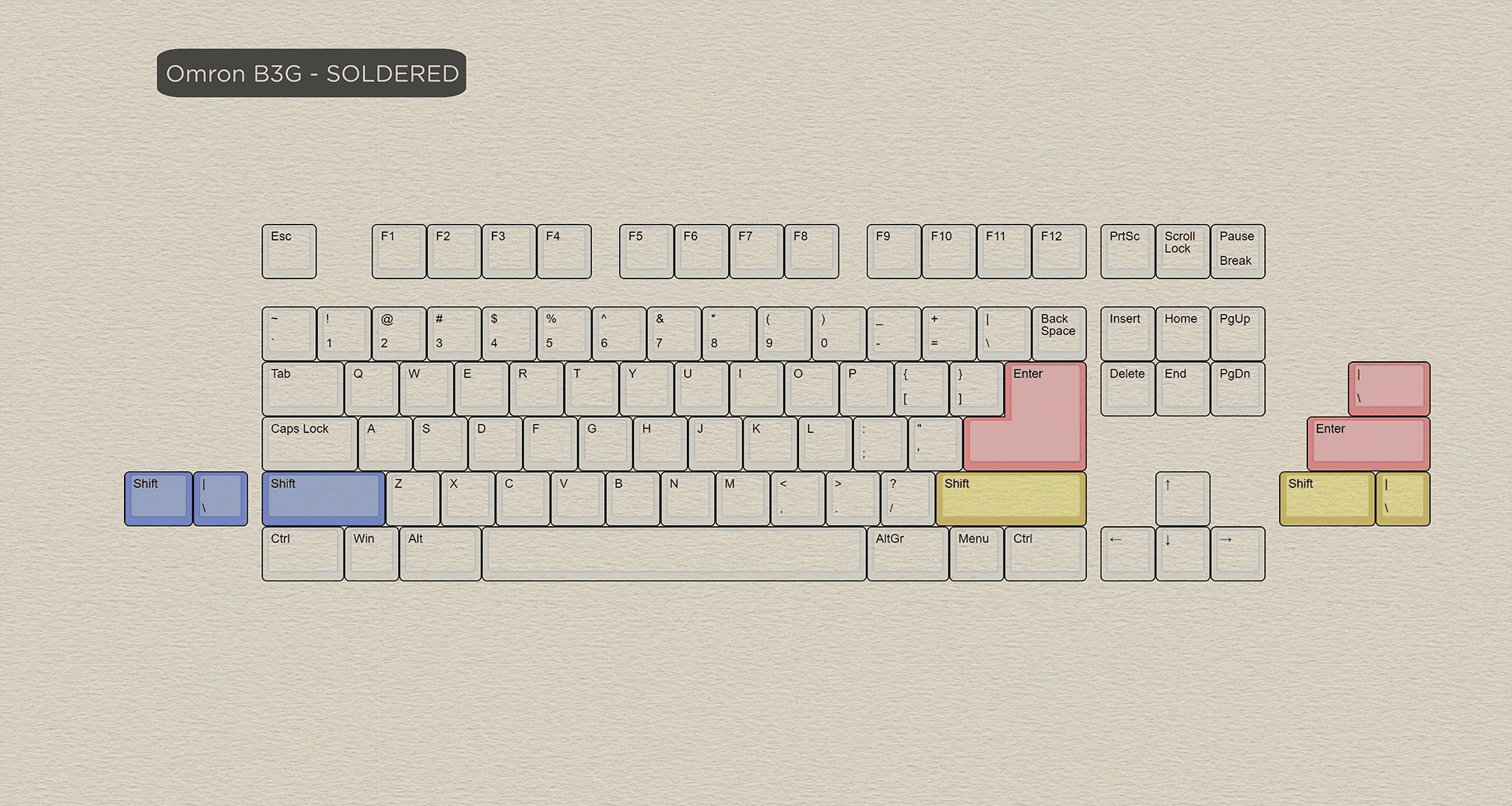

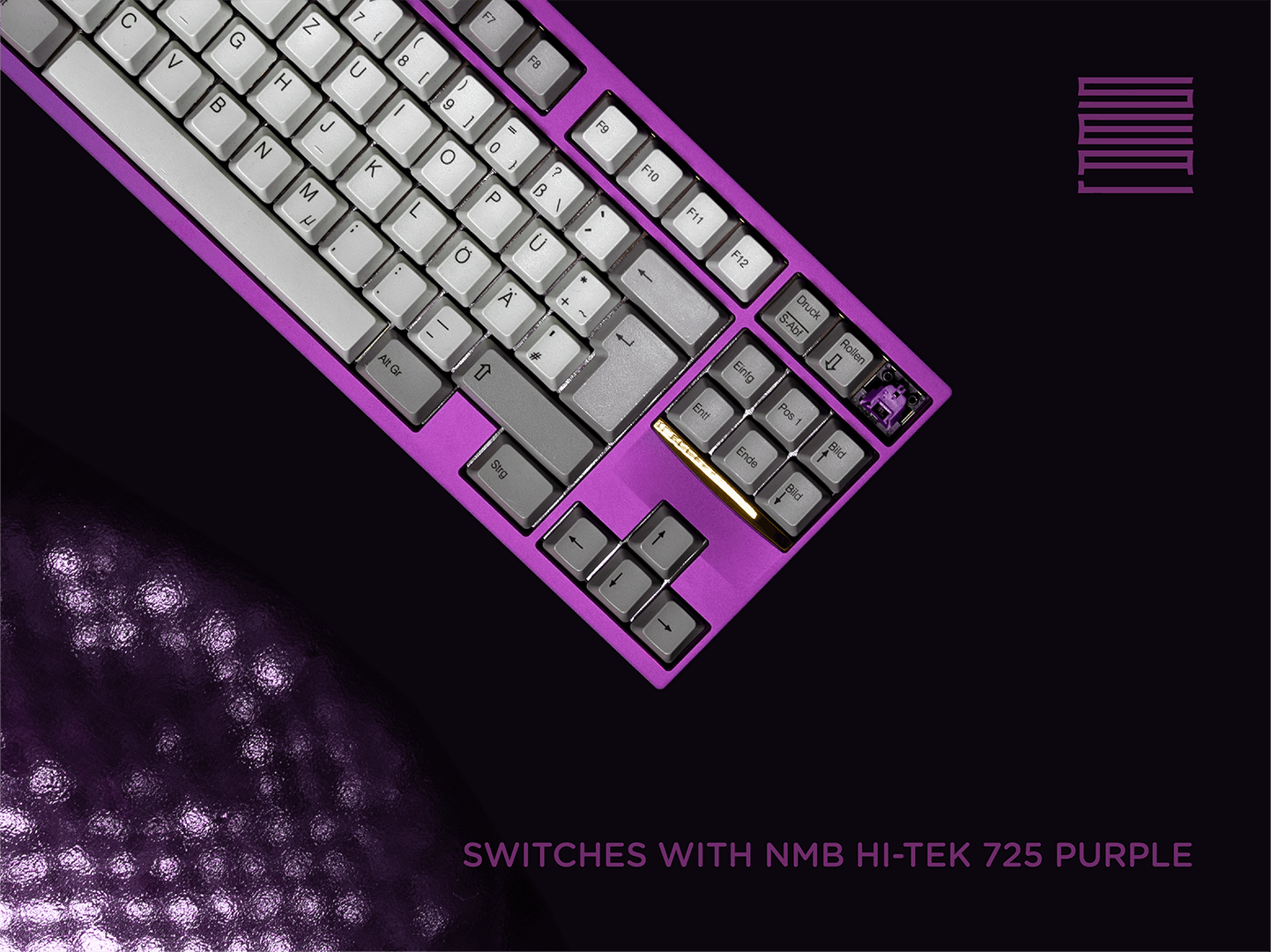

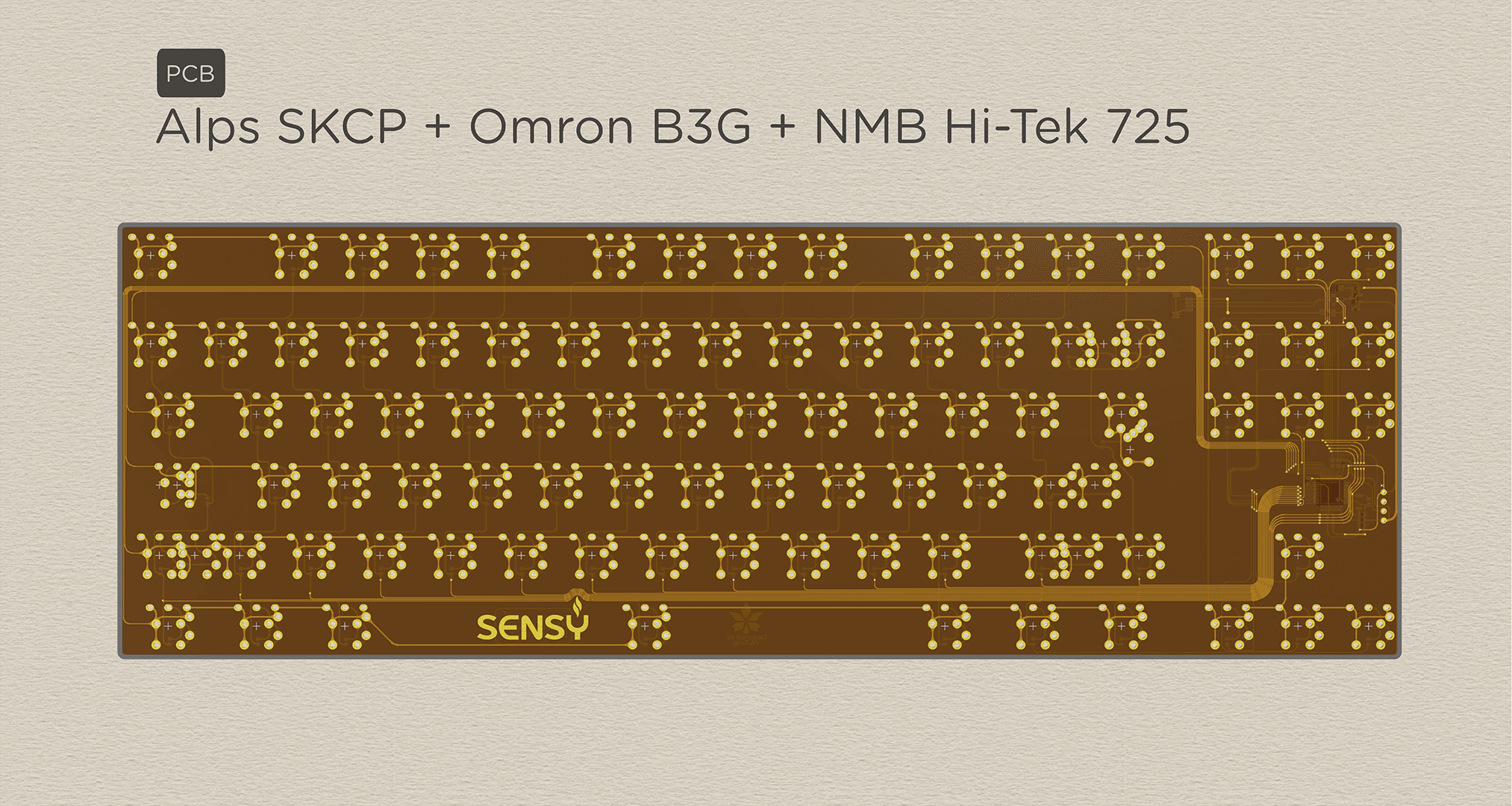

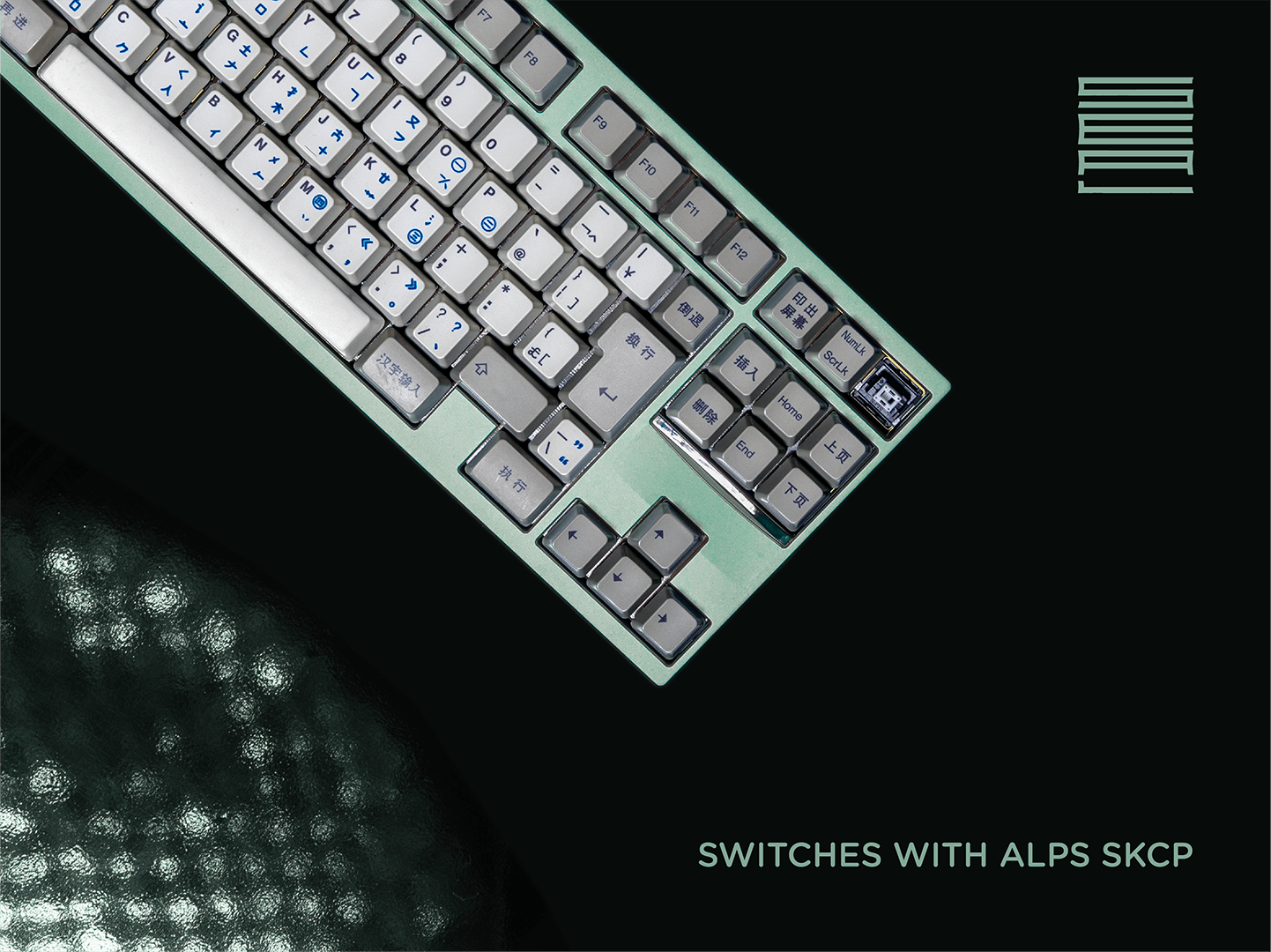

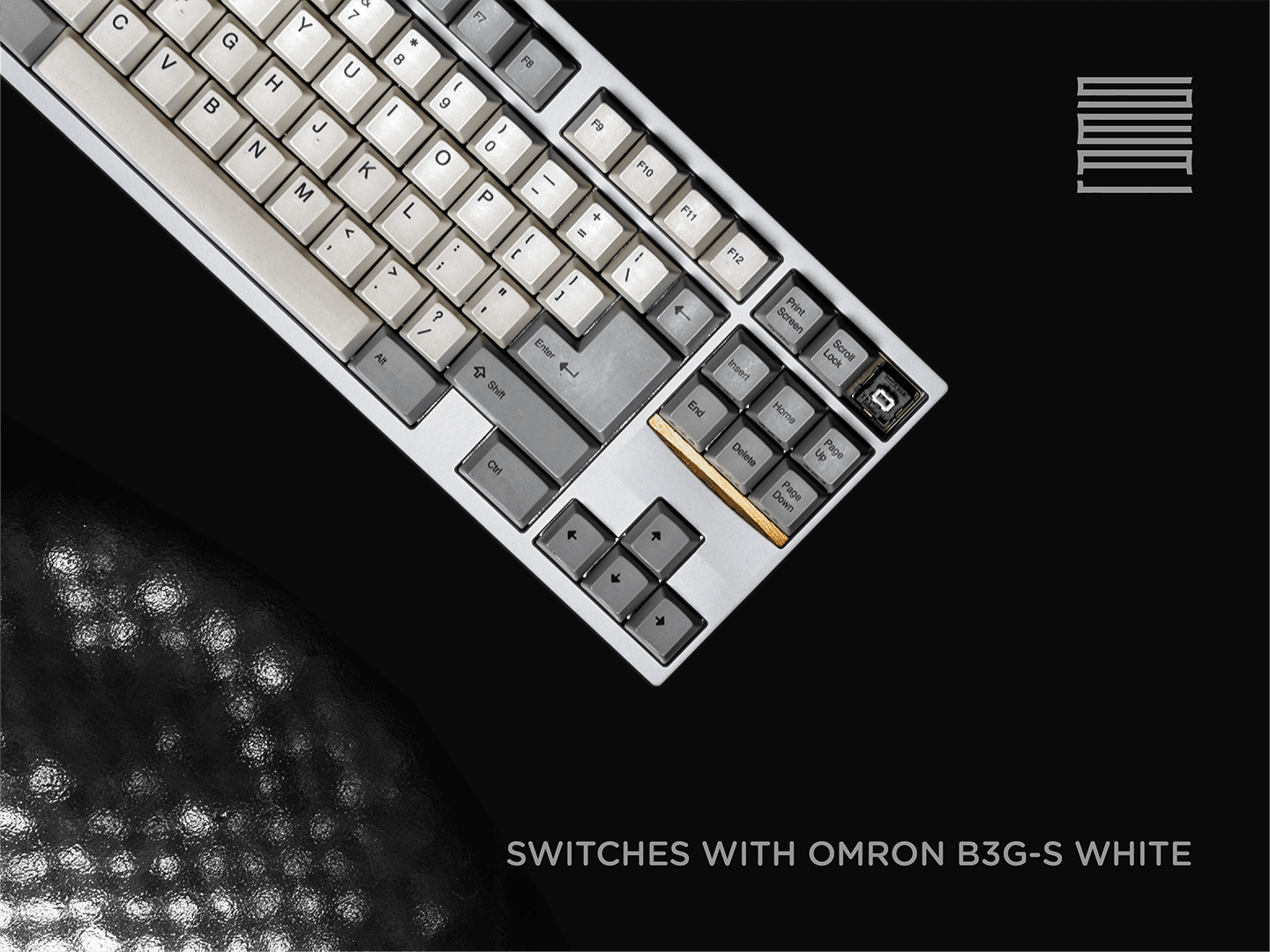

Alps SKCP+Omron B3G+NMB Hi-Tek 725 / Soldering Only

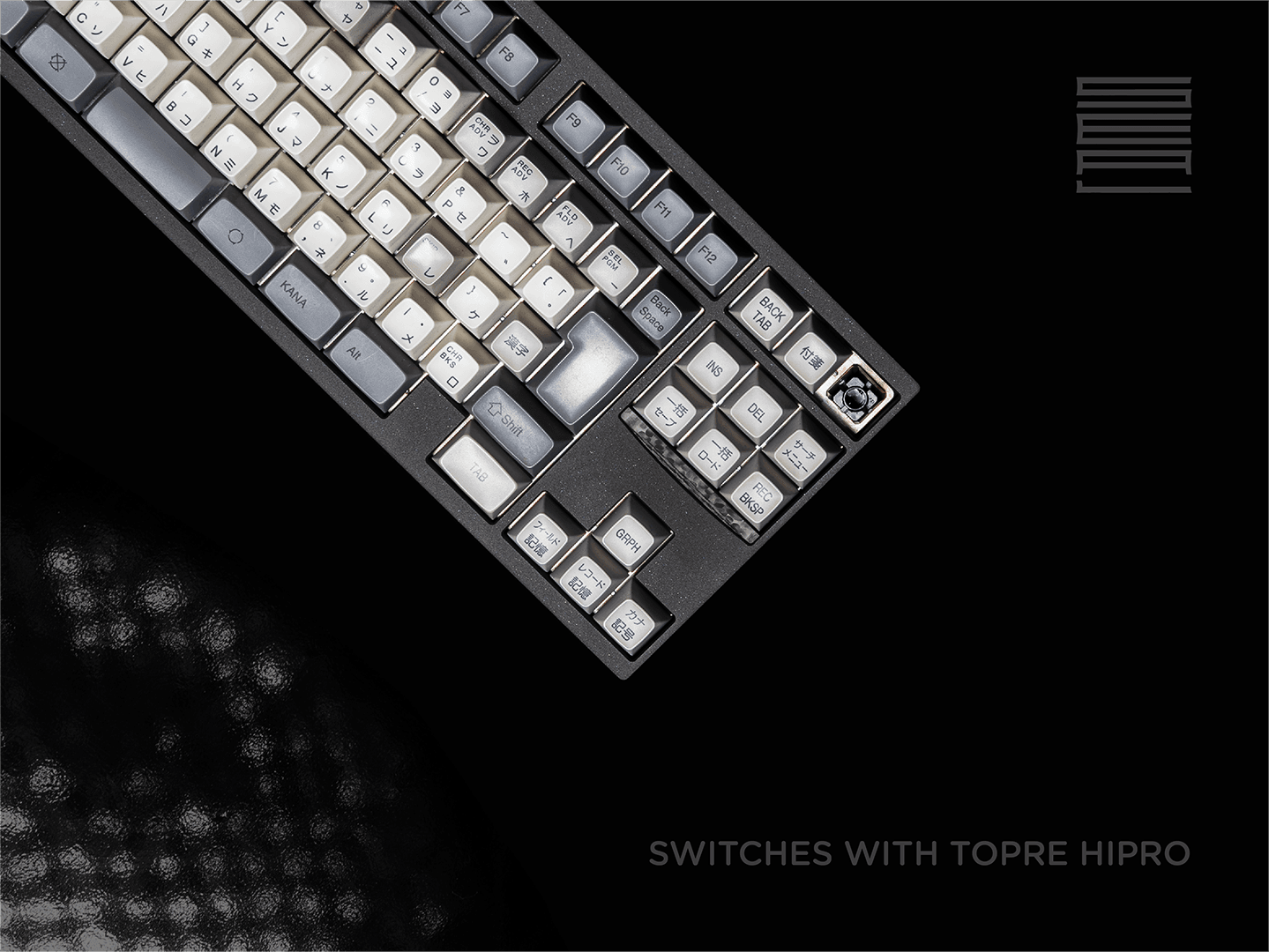

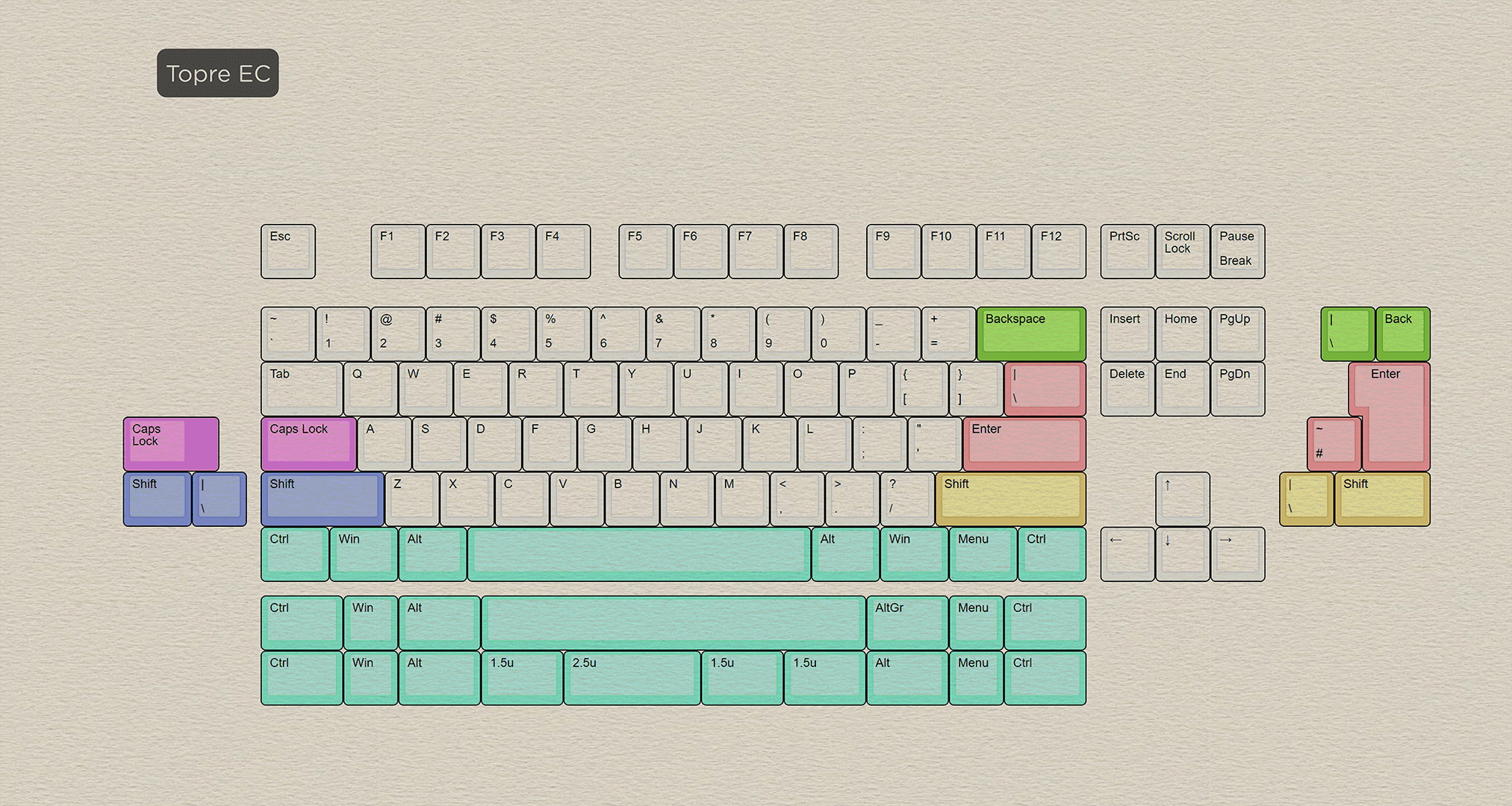

Topre EC

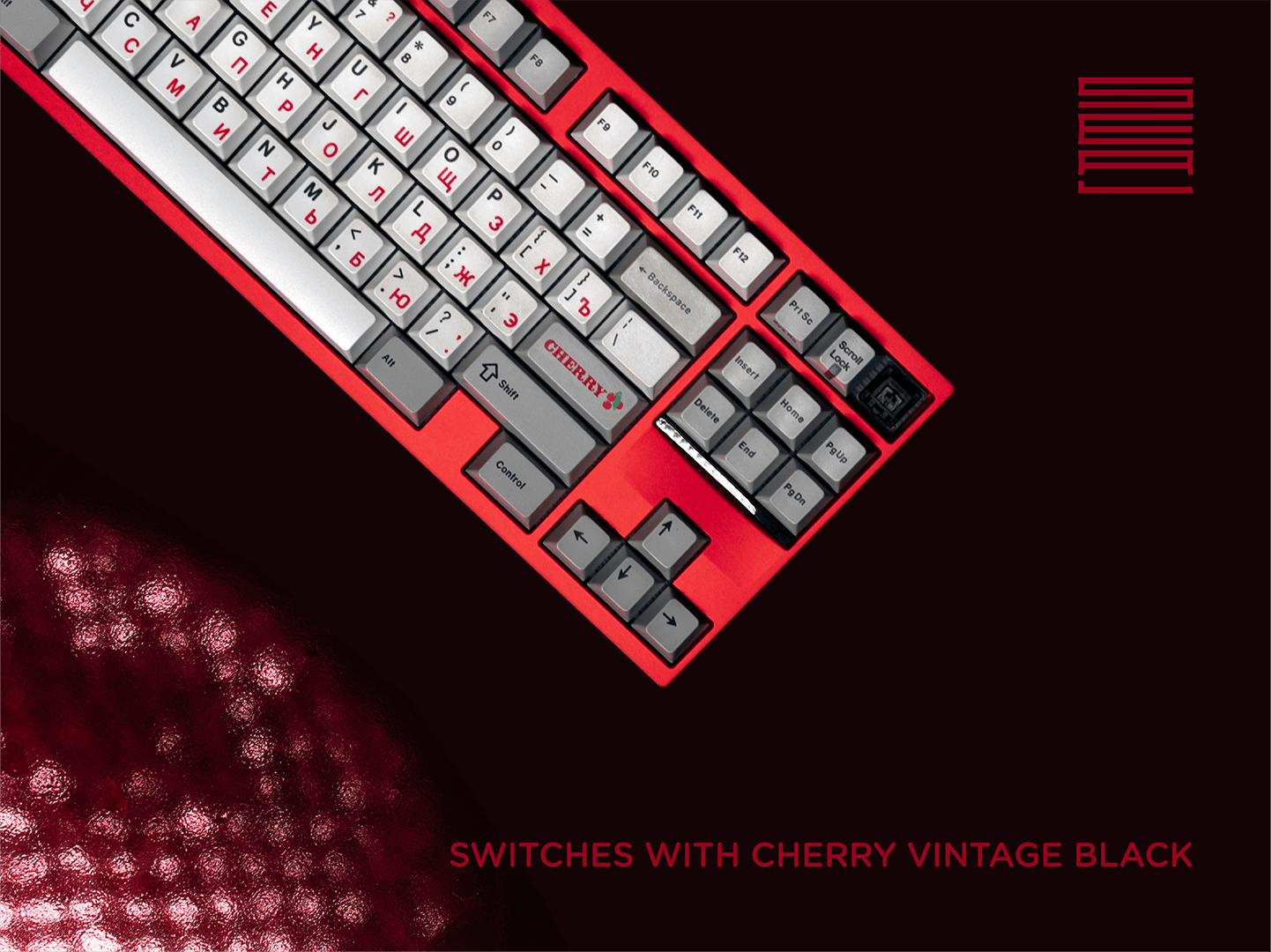

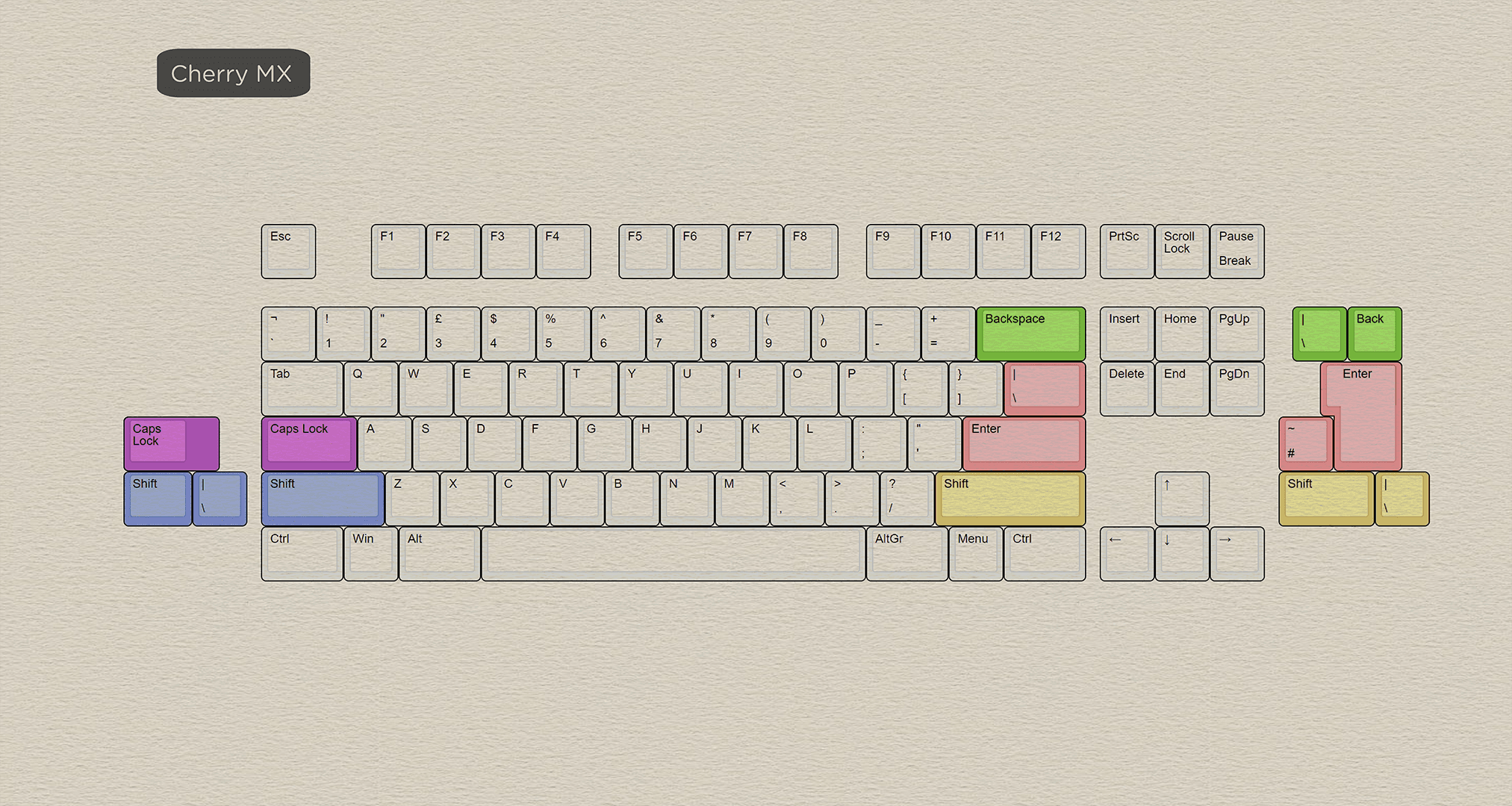

Cherry MX / Soldering & Hotswap
Color option
Case
Anodizing x 8
Silver

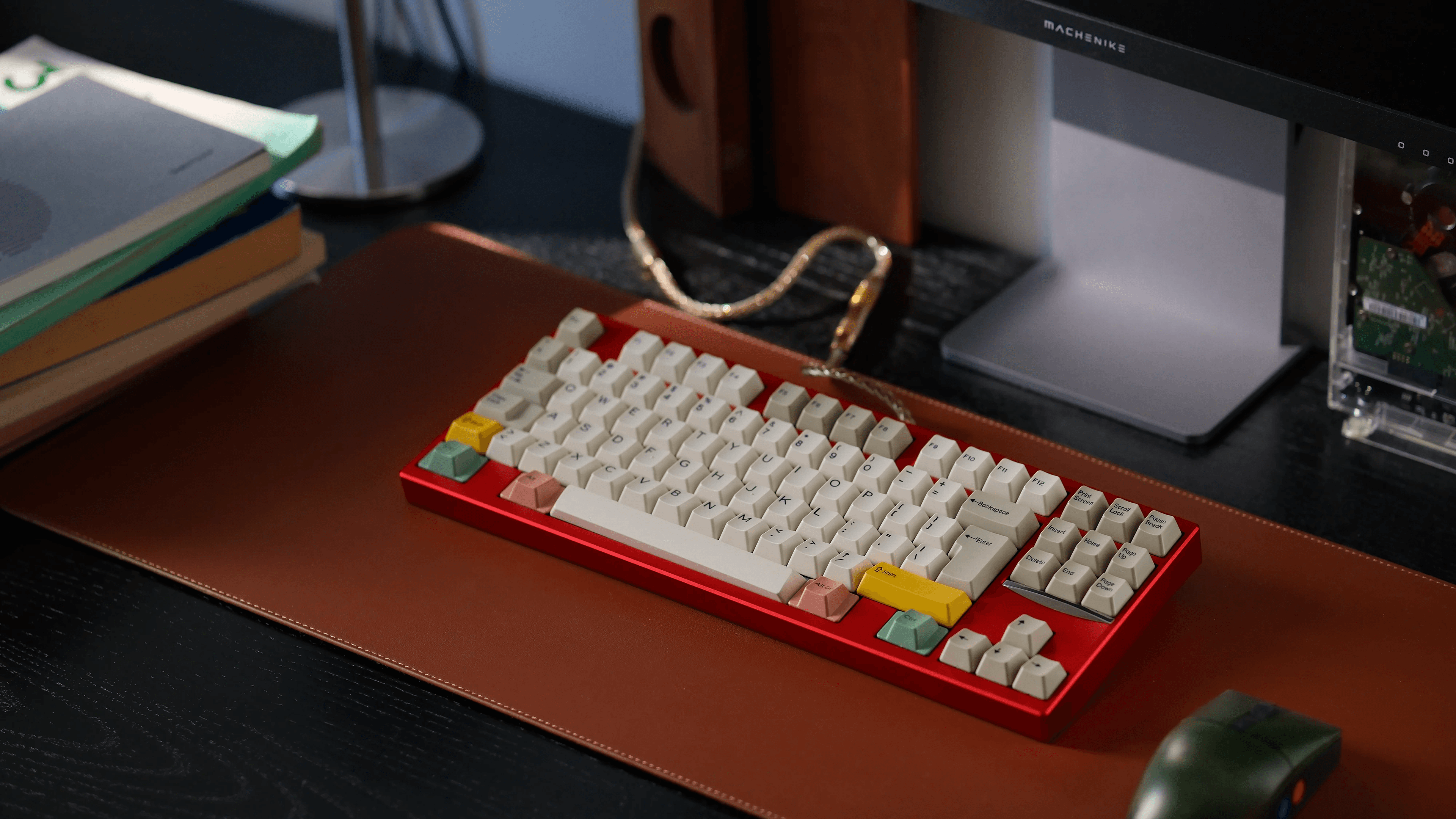

Red
Orange
Green
Ching
Blue
Purple
Brown
E-coating x 2
Vintage Grey
Sparkle black

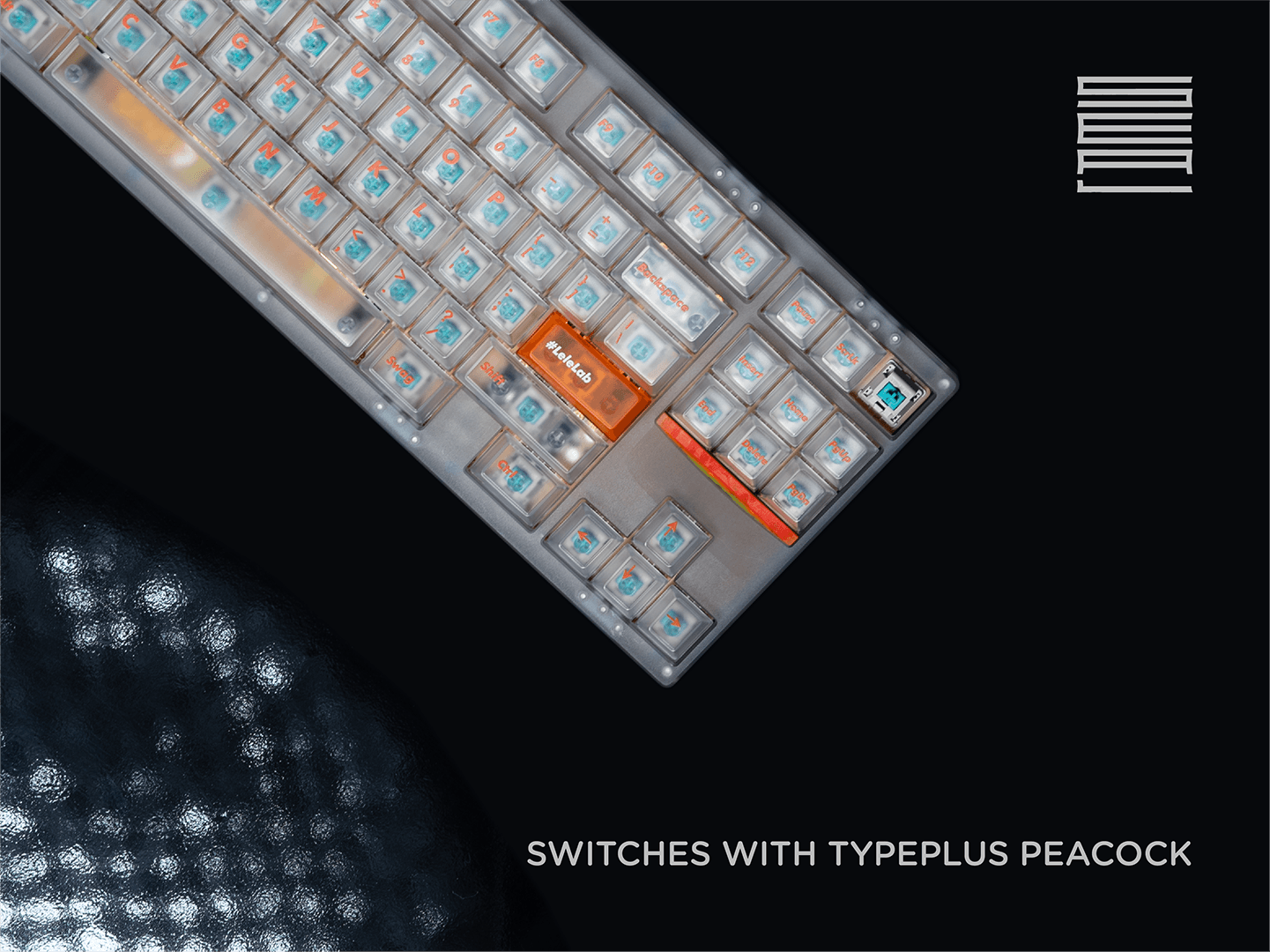

PC

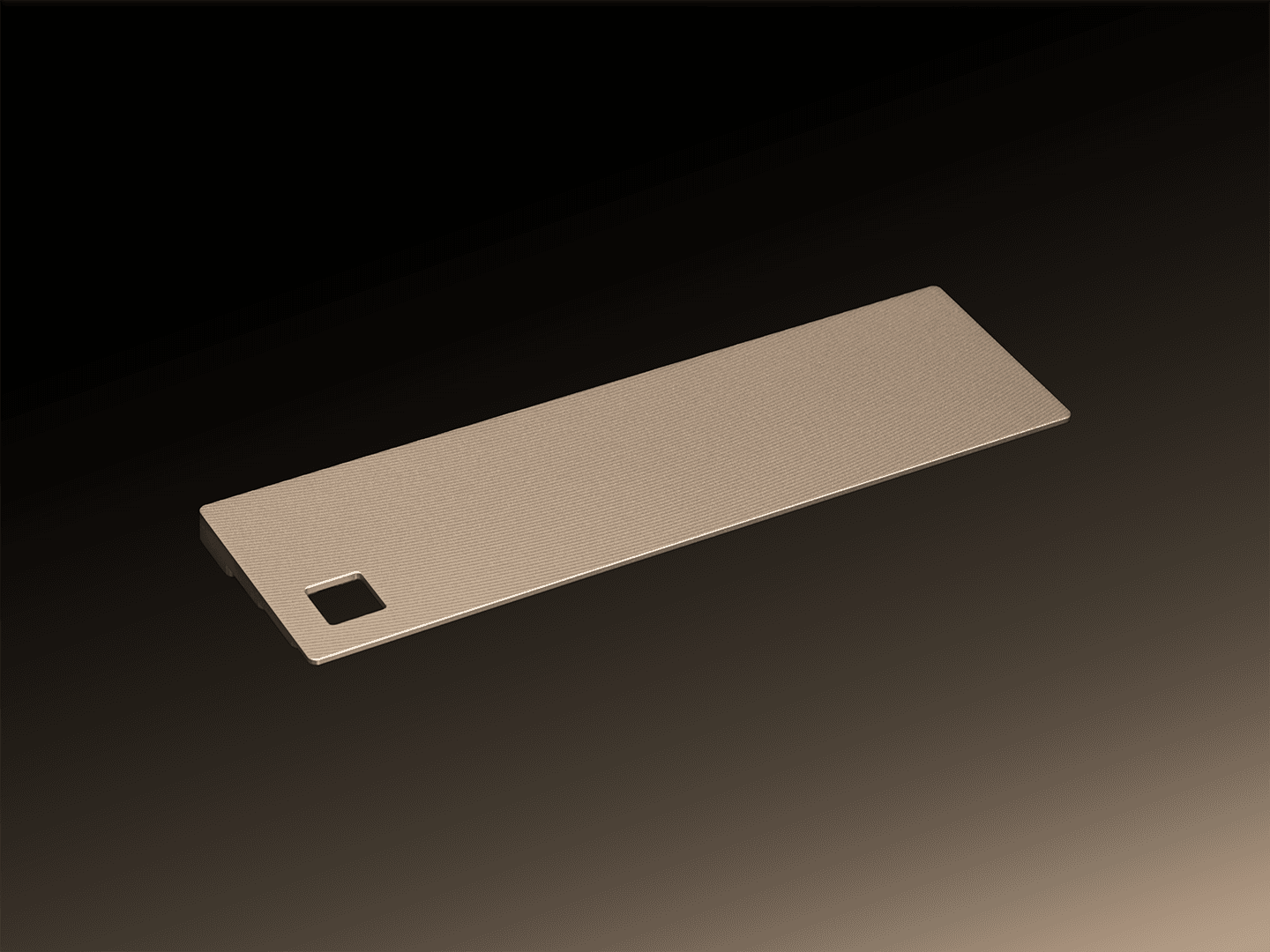

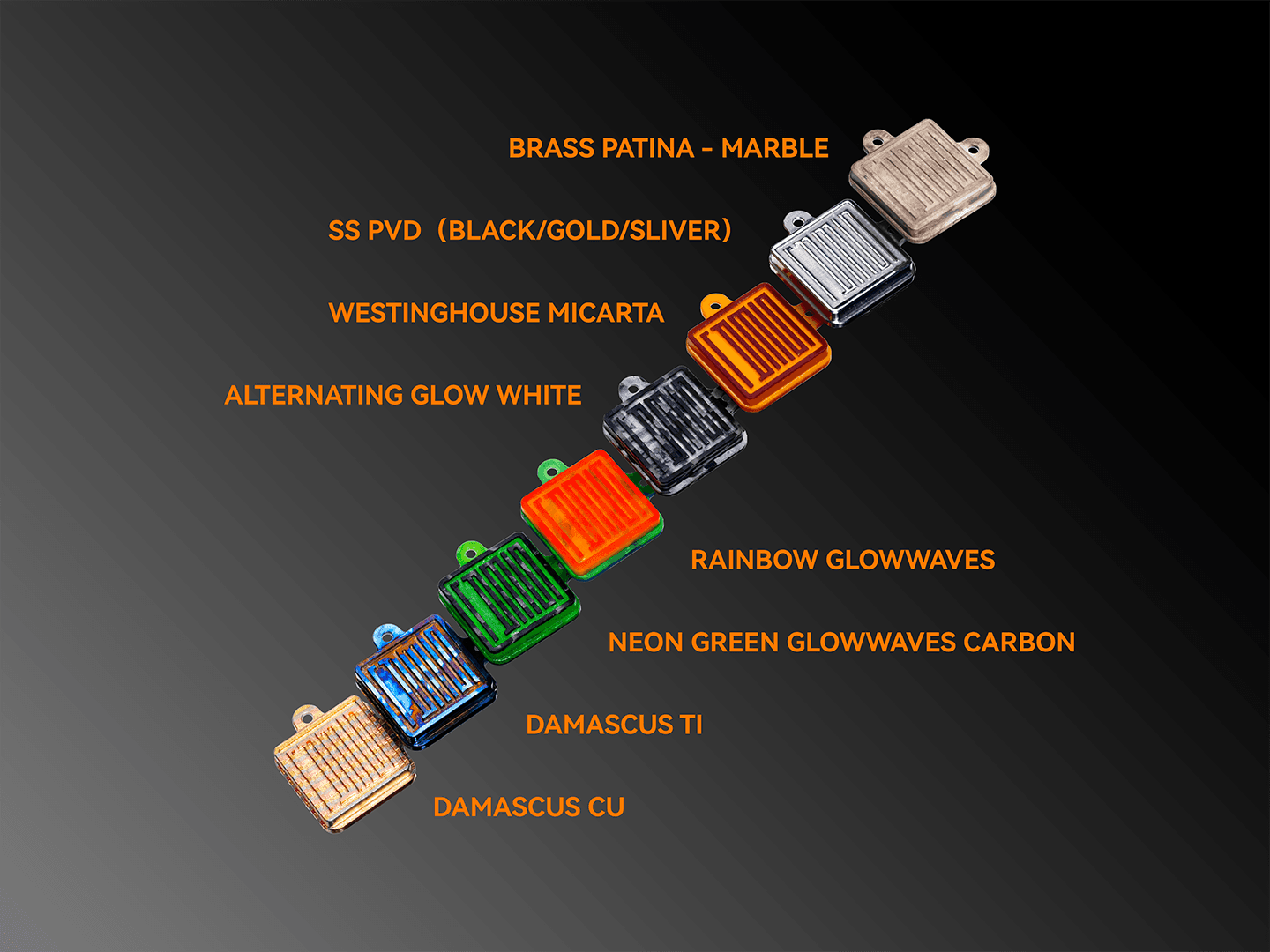

Weight
Brass AF
Brass Patina
Stainless steel Raw/Black/Gold

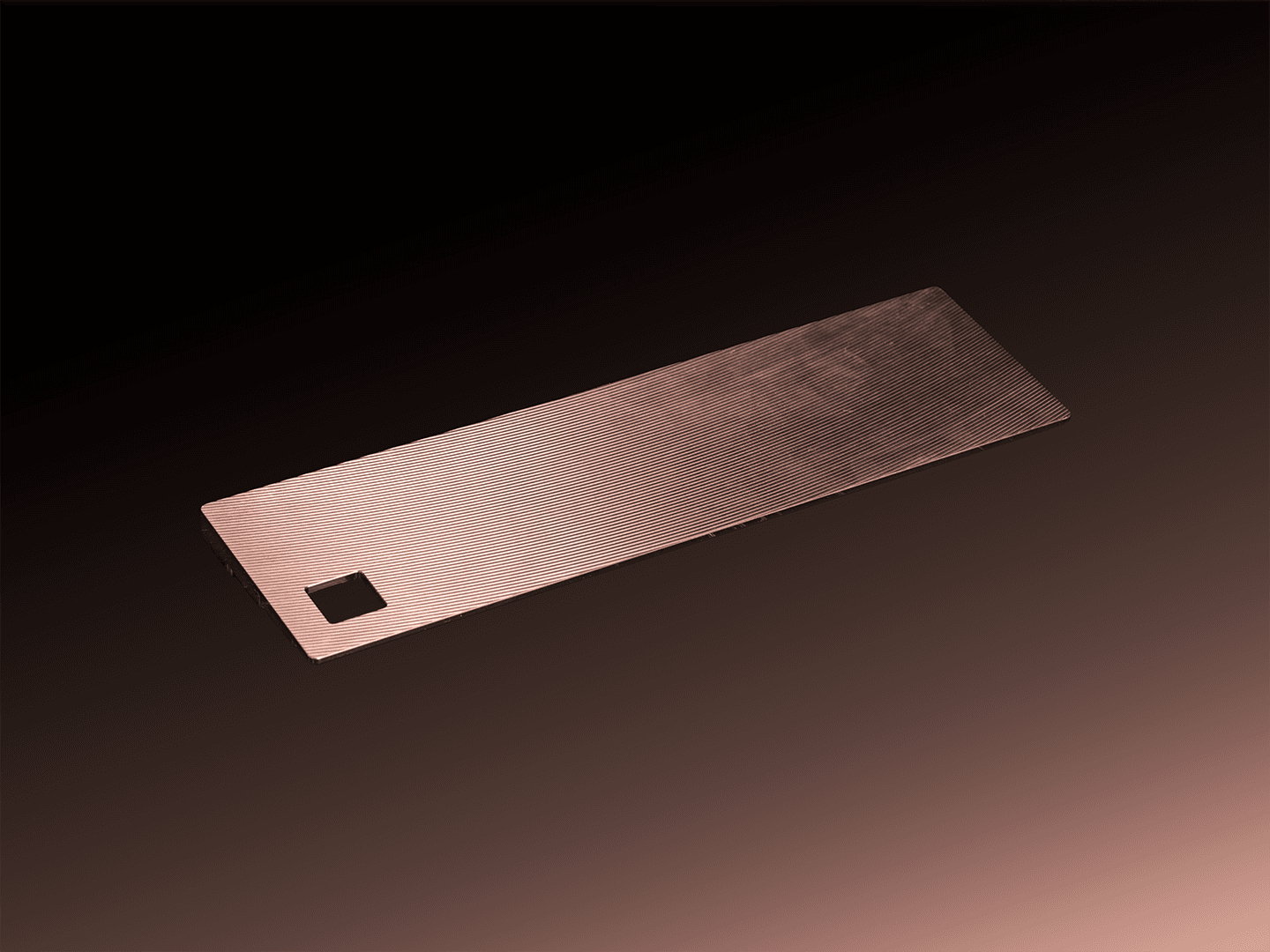

Copper Raw
considering copper is quite easily oxidized, it�s normally used for patina. So we provide it RAW. Please think twice before you choose this option.

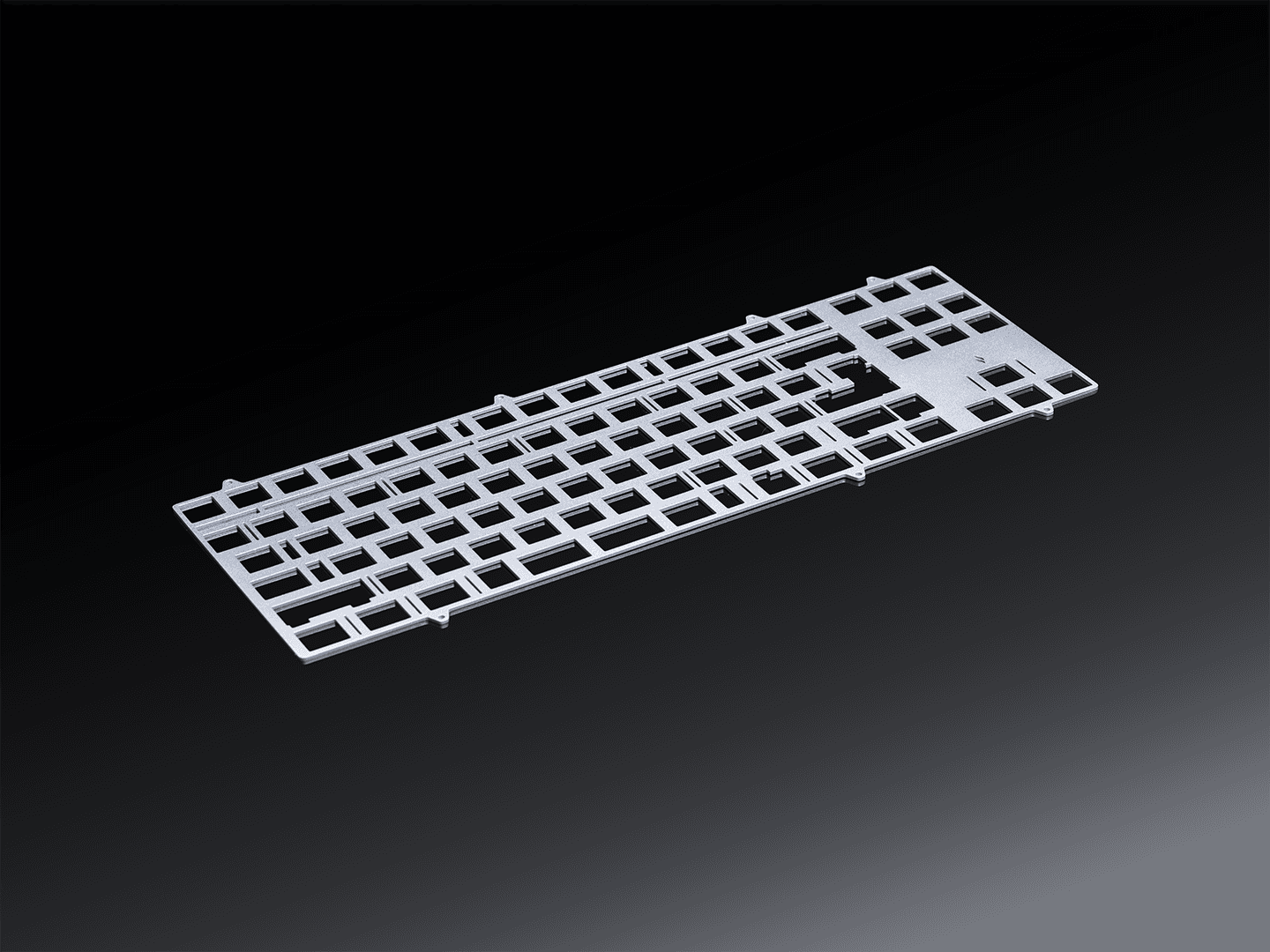

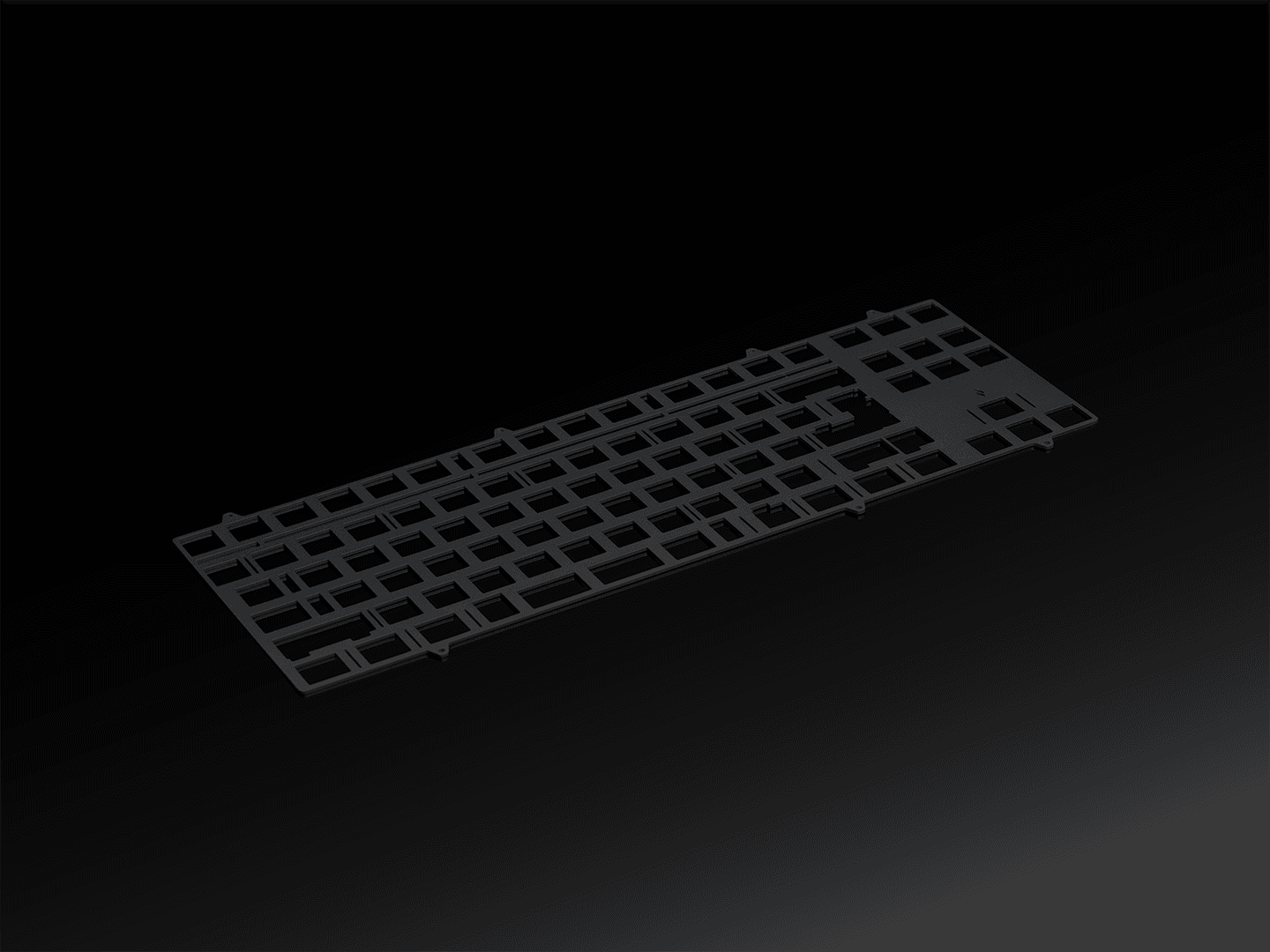

Plate
1.5mm Alu Silver/Black
4mm PCABS
4mm PEI
Strip
Black/Silver/Gold for Stainless steel, others as in picture
Badge
Black/Silver/Gold for Stainless steel, others as in picture
Other bits&pieces
In accordance to Seal�s successive design language, the bridge arch look remains plus the trim added above arrow keys, some kind of meaning like �Front to Back, Call and Response�.
Regarding to the PC option, it�s pointless to hang on to the �force break�, so we replaced the buffer with two copper AF bars. You may find its beauty of decoration beneath PC case, either seamless or screwless or whatever you call it.

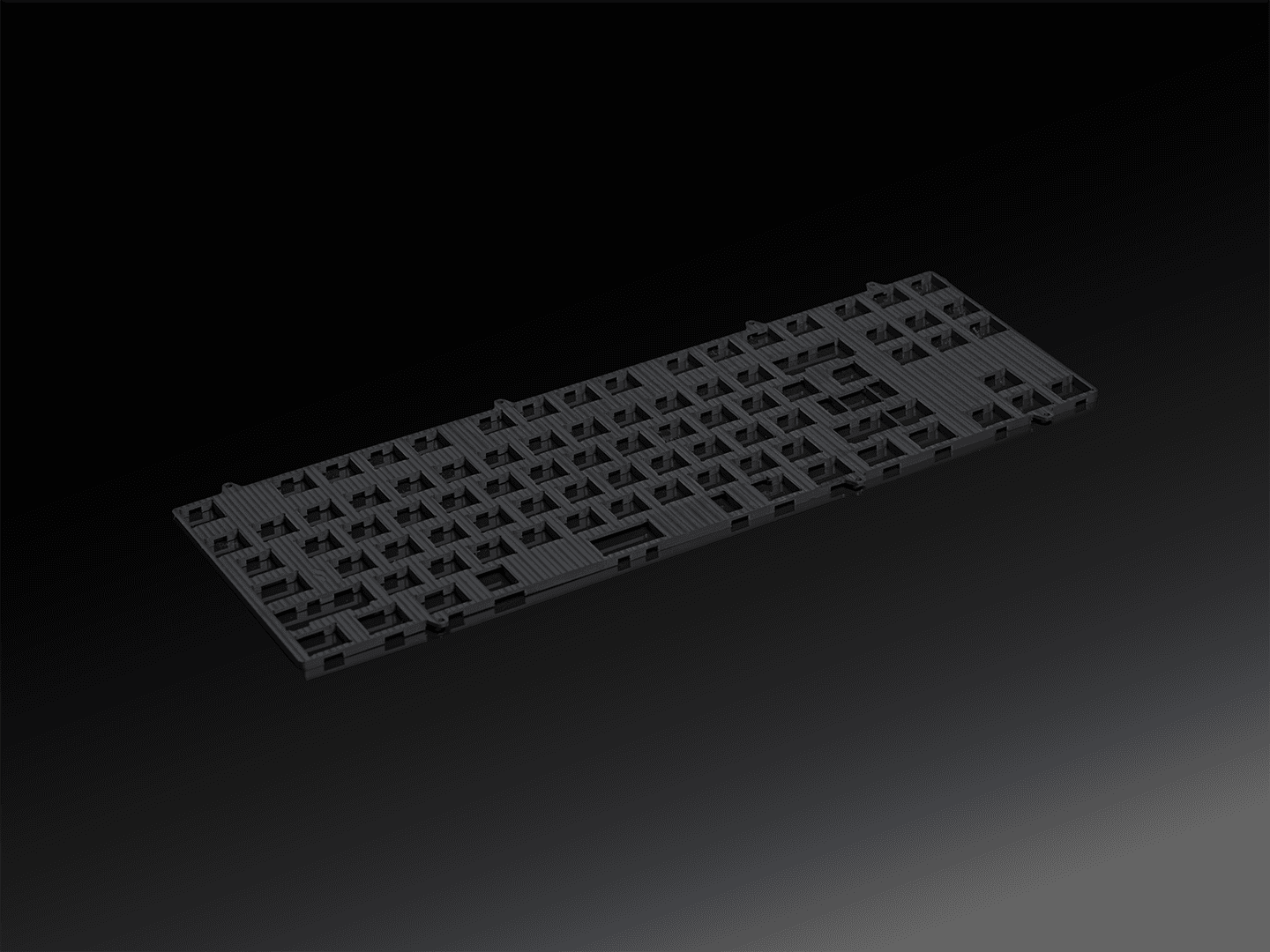

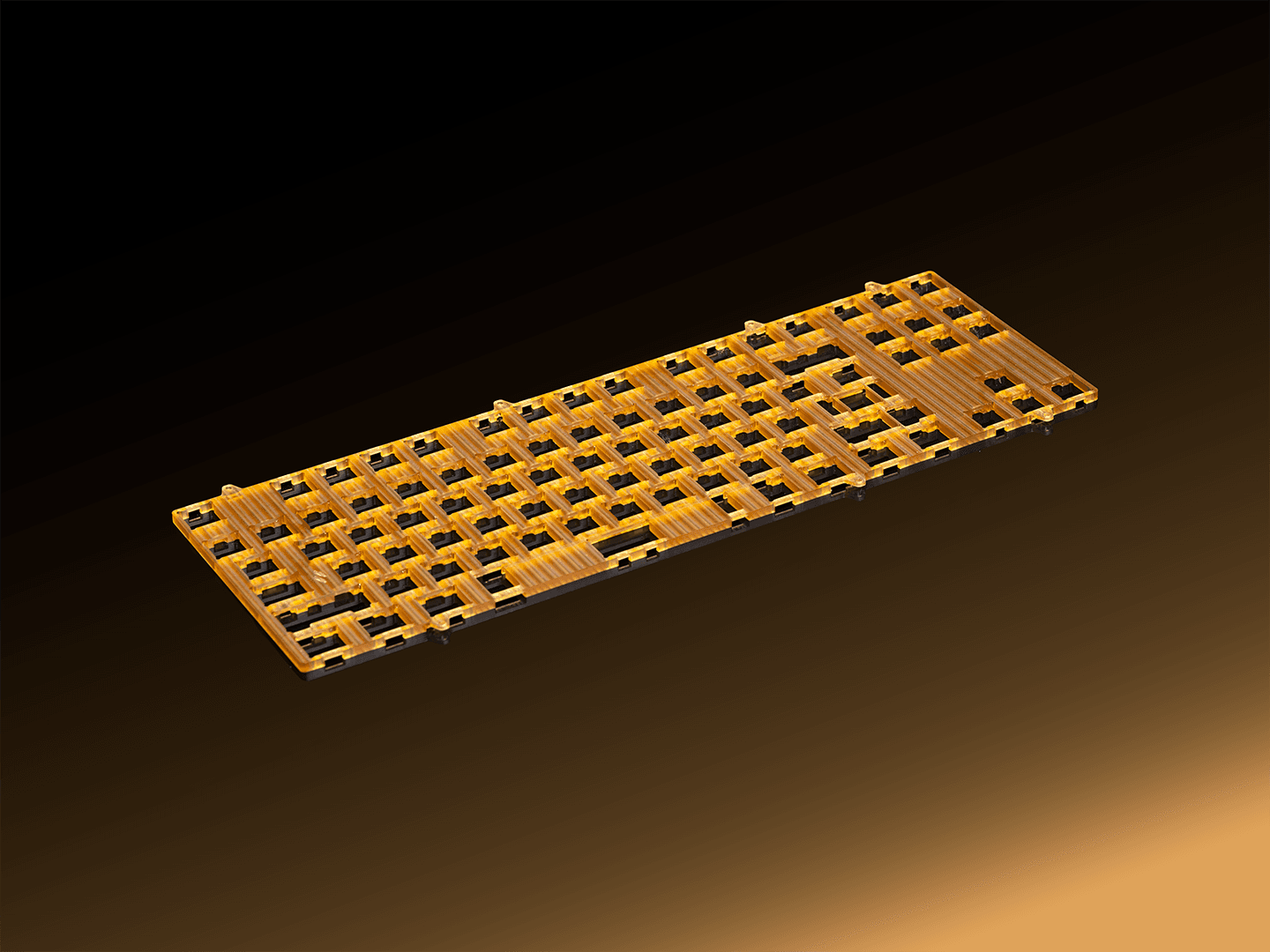

PEI 4mm from Smoke65 is provided. Furthermore, after careful testing, PCABS plate (also 4mm) is ready for GB too. Comparing with PEI�s crispy sound, you may find ABS much more bouncy and thooooocker.
We found uncomfortable hollow feel generated from Smoke65�s space bar area due to too much layouts options. So we canceled 6.25U option in Seal 80. Meanwhile, we divide ANSI and ISO into two separate plate options to maximize the filled FEEL.
Regarding to the silicone block, not only 70A&90A, we found an interesting material called TPU with hardness of 98A. It�s 3D printed, tested, and will be available for GB.
Package contents
Case top&bottom x 1 set
Weight x 1 pc
Strip x 1 pc
Badge x 1 pc
Internal aluminium badge x 1 pc
Buffer bar x 1 pair
PCB x 1 pc
JST x 2 pcs
PVC cushion x 1 pc
70a silicone block x 7 pcs
90a silicone block x 7 pcs
98a TPU printed block x 7 pcs
Bumper x 1 set
Carry bag x 1 pc
Packing box x 1 pc
T6/T8screw driver x 1 set
Manuel x 1 pc
Some tiny thoughts
To conclude this IC, after seeing so many designers and producers come and go in this hobby, I usually ask myself what�s the essence of Mechanical Keyboards and how people want it nowadays. To include all those little joys of different solutions ever created and existed, is why and how this baby Seal 80 was born.
And that�s why I love this game.
Really hope you could like it.
Thanks for reading.
How to follow news of the Seal
You can also Follow our or vendors� Website, Instagram and Discord for updates.
Vendors
America - Divinikey
Australia - Toro Studio
Canada - Unikeys
Europe - MonacoKeys
Japan - NEKOYUI
Korea - Geon Works
Singapore - iLumkb
Thailand - Aiglatson Studio
United Kingdom - Proto Typist
Vietnam - MOKB
International - Zfrontier
More Vendors - TBD
