Akuma TKL, Keyboard - PBTfans Akuma doubleshot Keycaps - Deskpads

Akuma
In other words, Devil.
Designed By Mighty Setup




UPDATES

There are stil some hope for you who missed your shot at KBDfans!
Akuma TKL ISO version is coming to Sweden!
You will be available to find Akuma TKL with ISO layout, in-stock at swedish vendors!

OBS: There will only be 1 version available to order.

Layout: 80% - TKL WKL F13 ISO.
Case colour: Black
Plate: Polycarbonate
Weight: PVD Brass Multicolour

Nordic Vendors:
Maxgaming.se
Webhallen.se
Inet.se

International Vendor:
Maxgaming.com

More information about Akuma TKL:

KBDfans Akuma 80%

Alexotos build stream

Key Features
• Leafspring mounting system with option for top mount.
• 3 Piece Construction
• Typing angle: 6.9°
• Front height: 17mm, front typing height: 20mm, Back height: 39mm
• Weights: Estimated 2.9kg

Sell Details

• Date: Sep 22nd at 7:00 PM PST (Pacific standard time)
• MOQ: 500 Units Limited Edition
• Vendor: KBDfans (worldwide shipping)
• Colour options: Black / E - White / Purple / Gray / Blue / Red


Package includes:
• Aluminum Top and Bottom case x1
• Weight bar x1
• PCB x1
• USB Daughter Board x1
• Plate x1
• PCB foam x1
• Case foam x1
• Switch pads x1
• Silicone socks set x1
• Designed tape mod x1
• Akuma Themed card x1
• Stabilizer shims x1
• Rubber feet x1


PCB:
Hotswapable, Flex Cut, 1.2 mm thickness, RGB underglow, QMK firmware, Daughterboard

Material:
6063 Aluminium Top
6063 Aluminium Bottom
Plate Options: PVD Brass, Aluminium, Polycarbonate
Weight options: PVD Brass, PVD Brass multi coloured, Pvd Brass black mirror

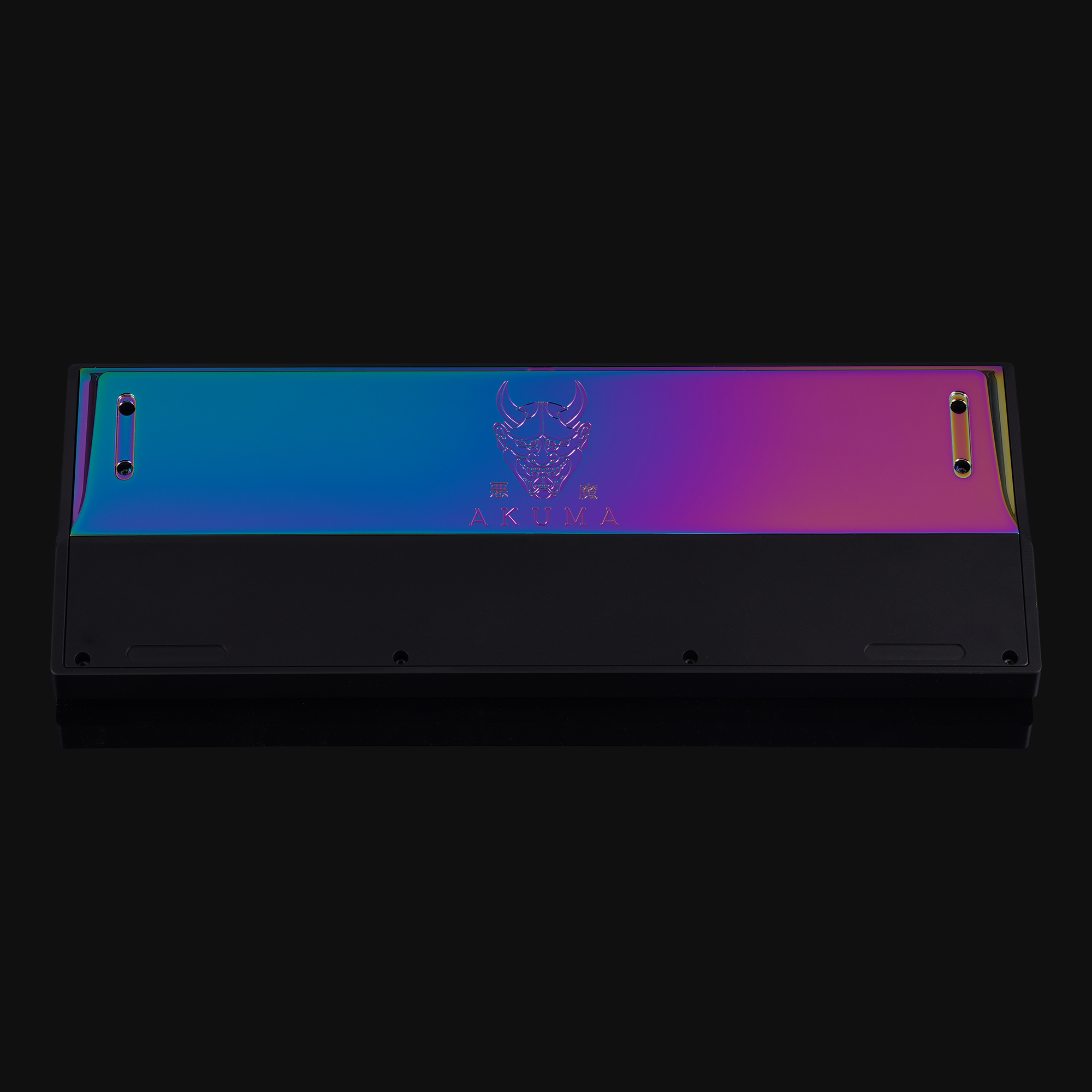

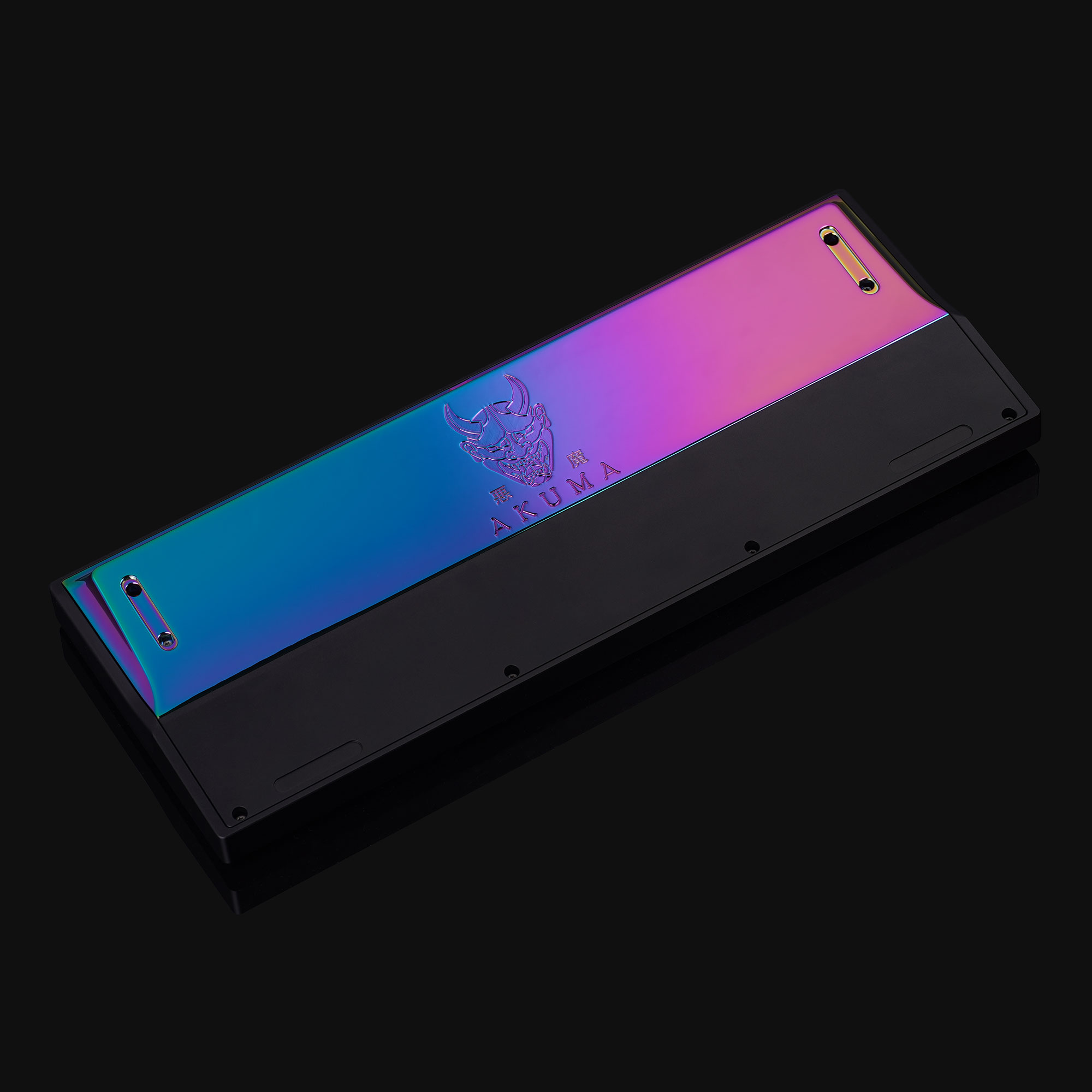

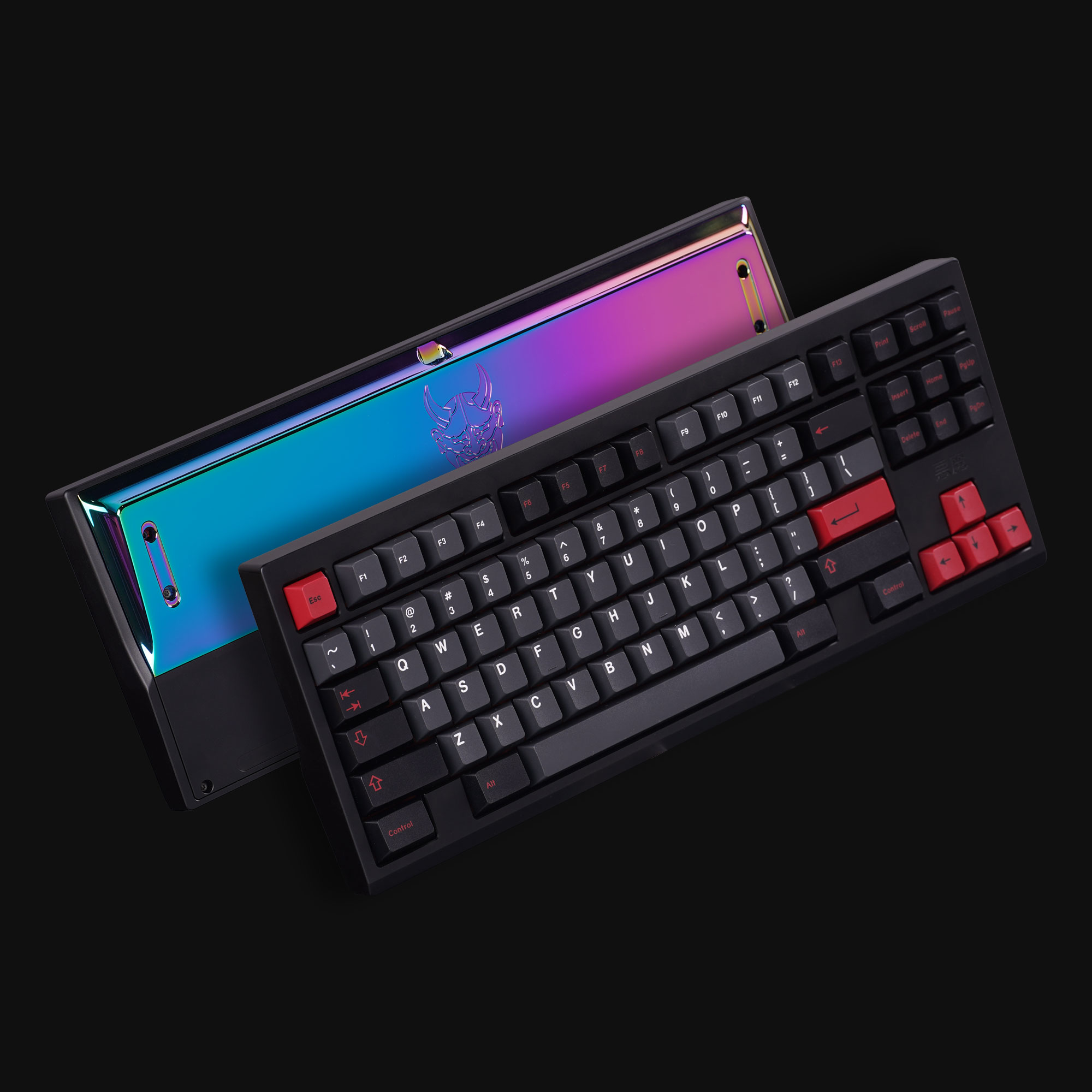

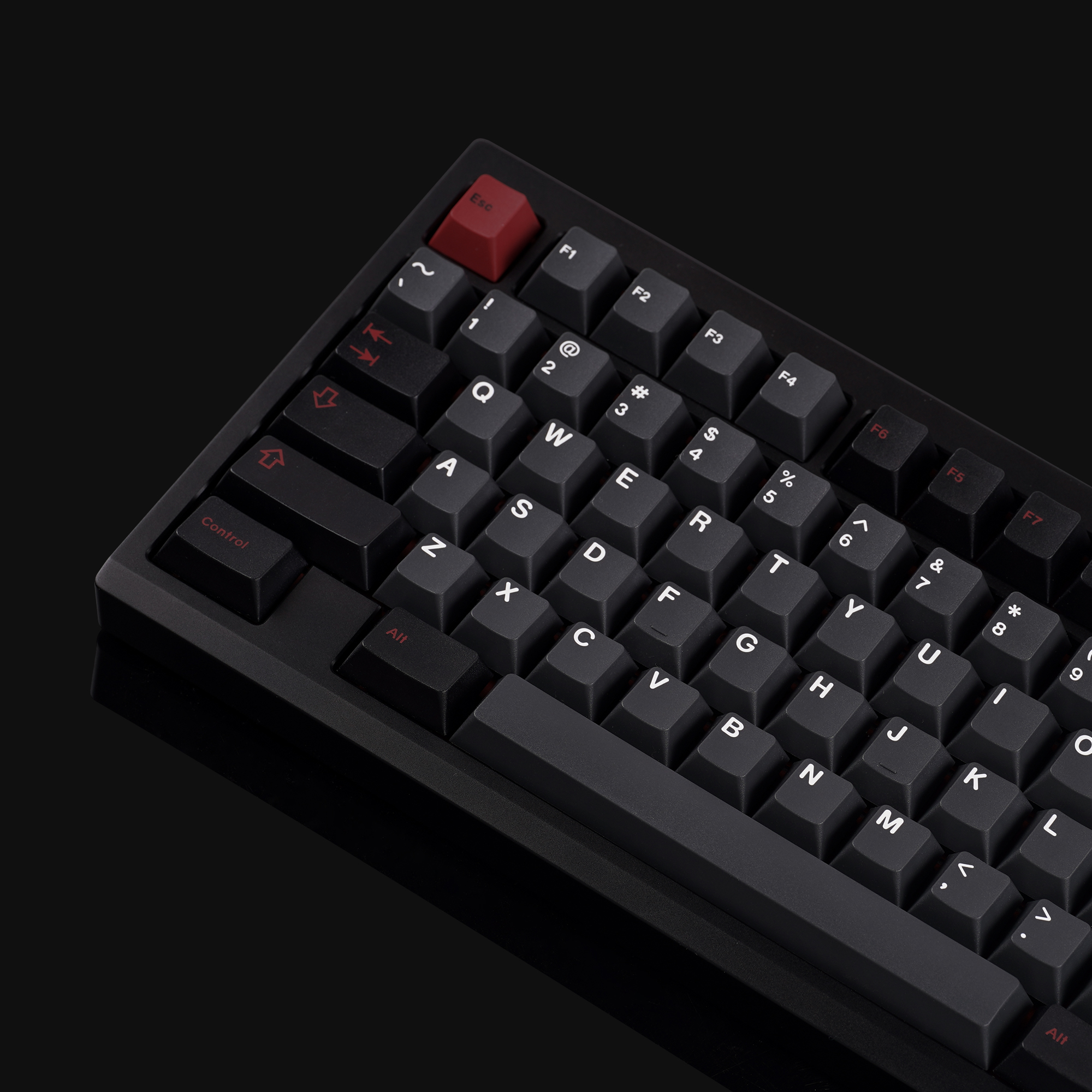

Real pictures of the prototype taken by Kbdfans:

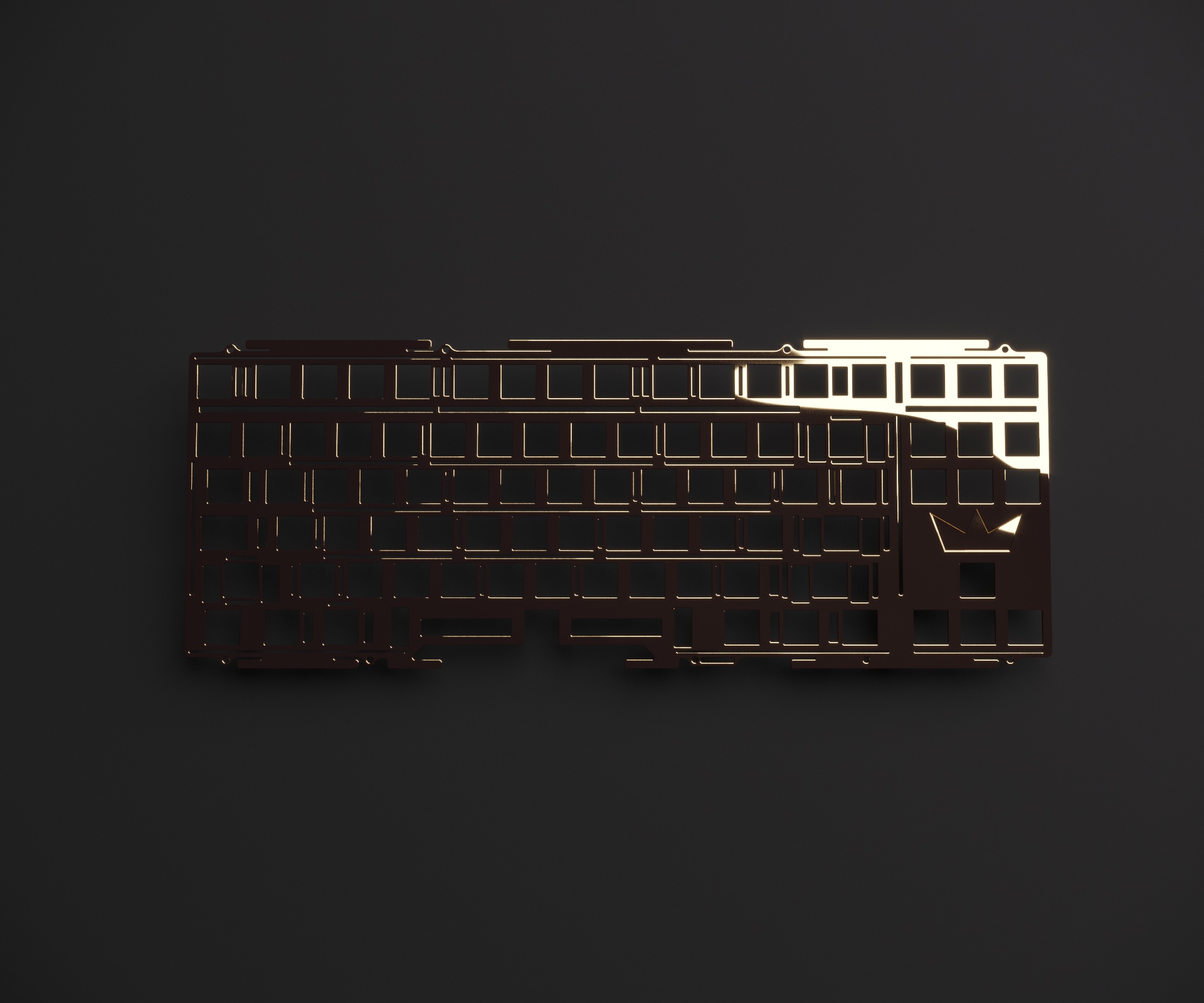

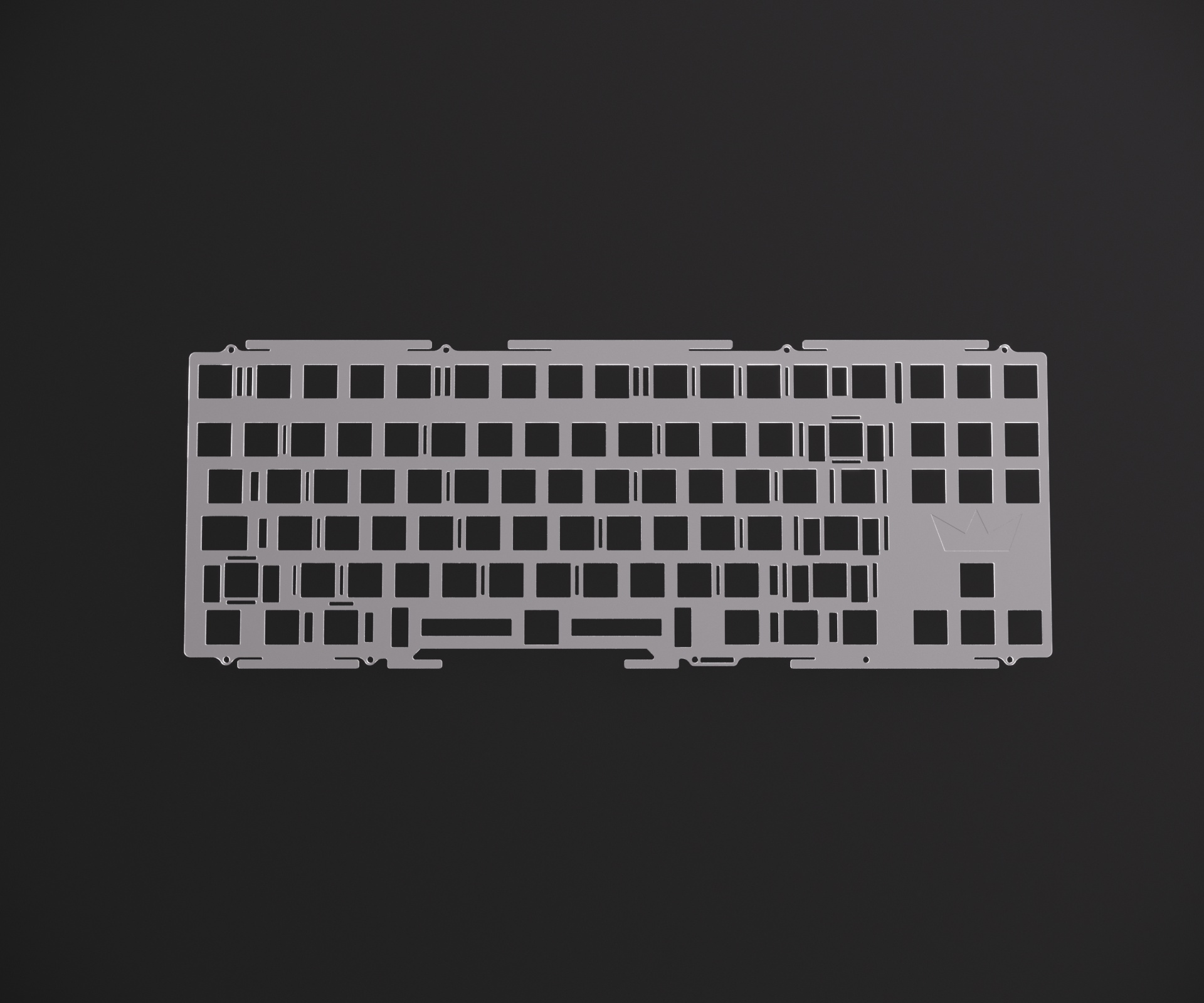

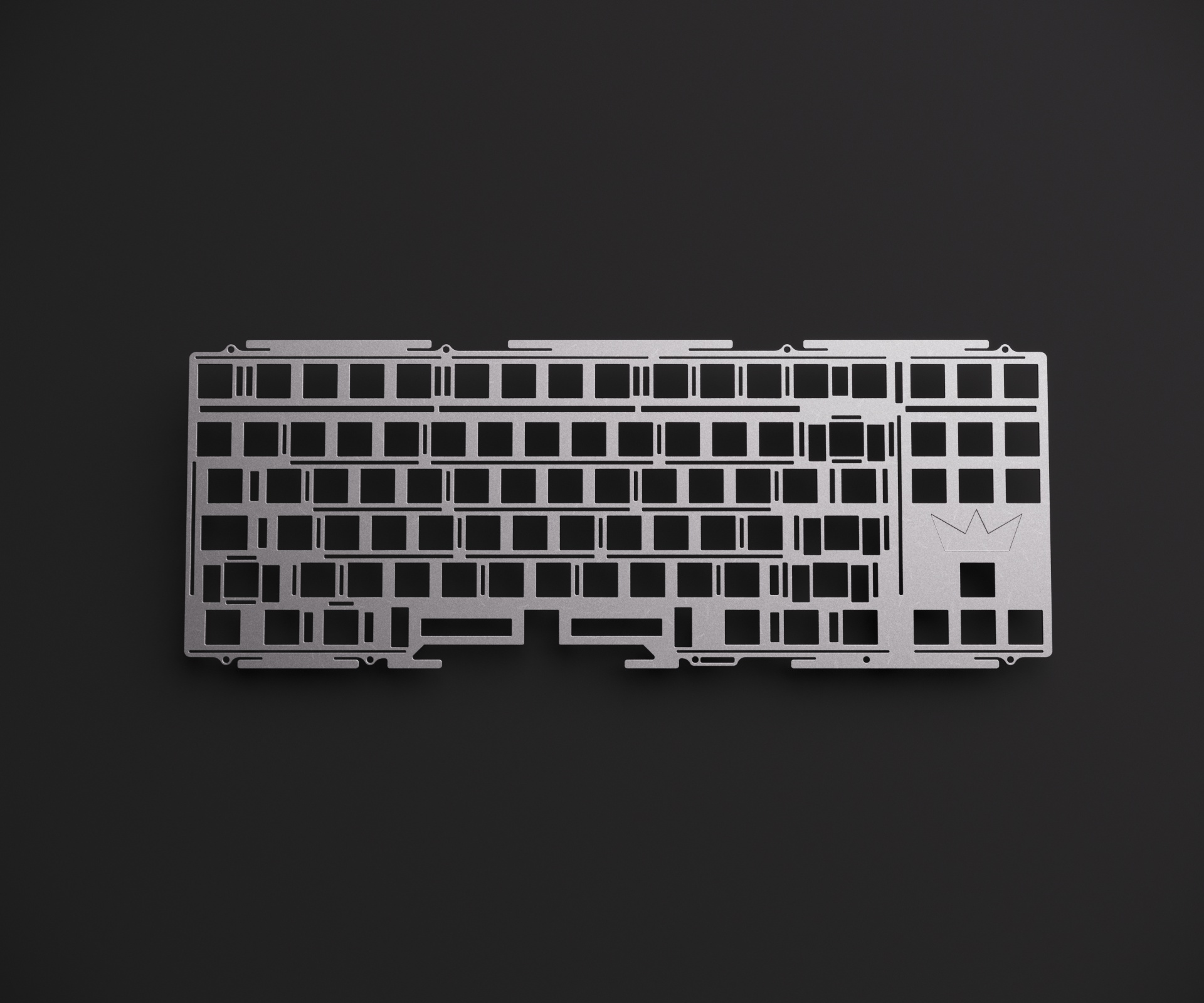

Plate:


Layout: TKL WK F13 / TKL WKL F13

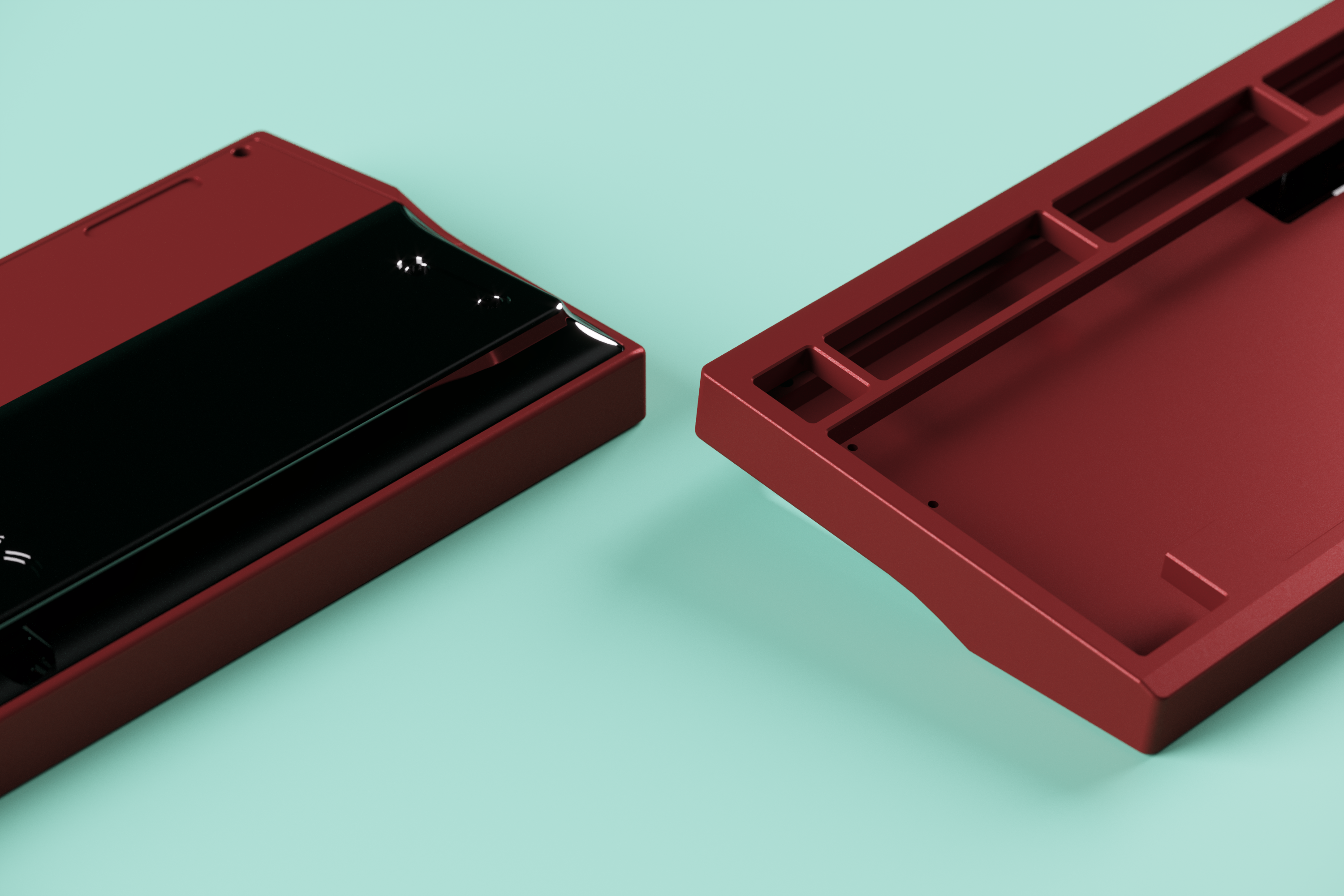

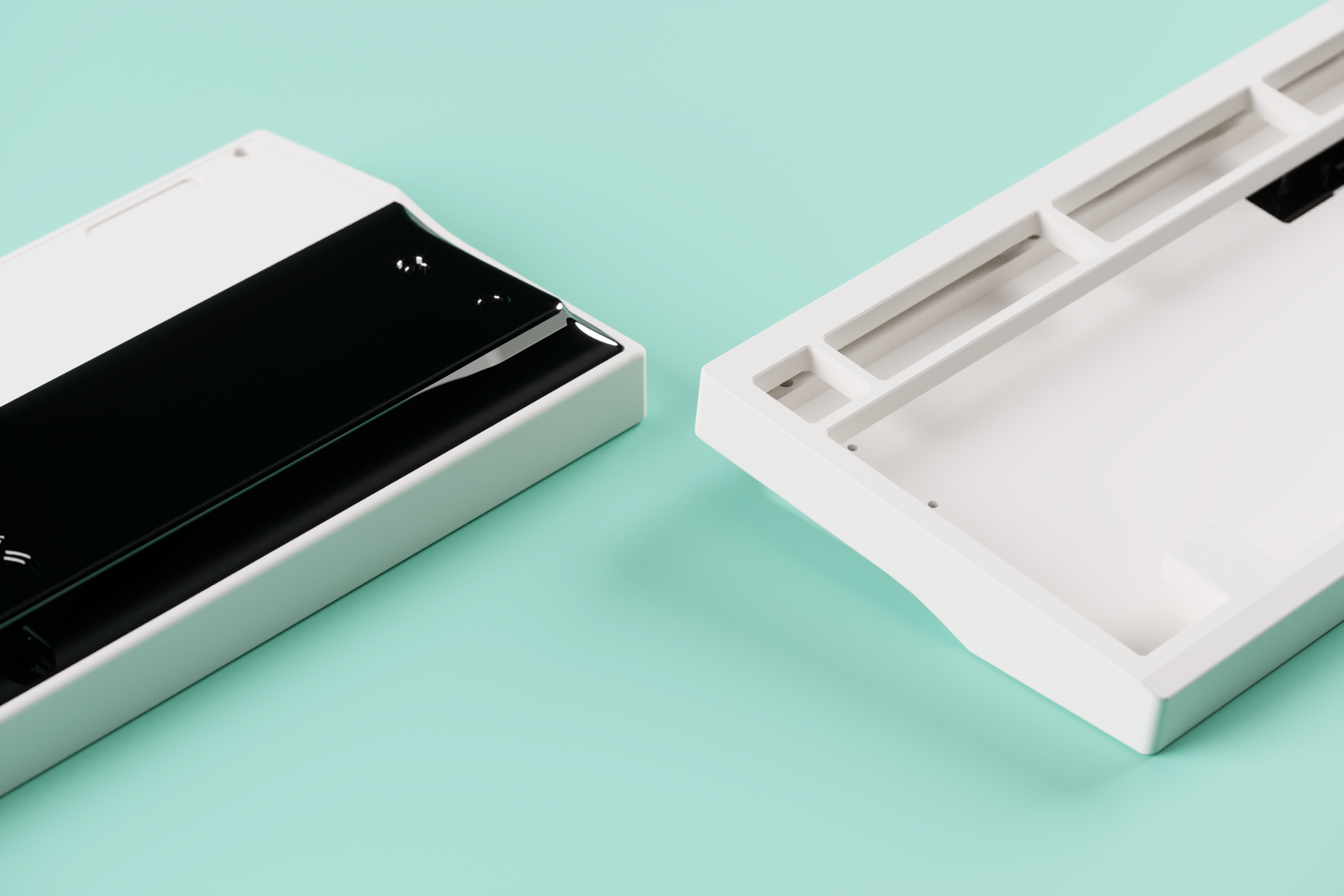

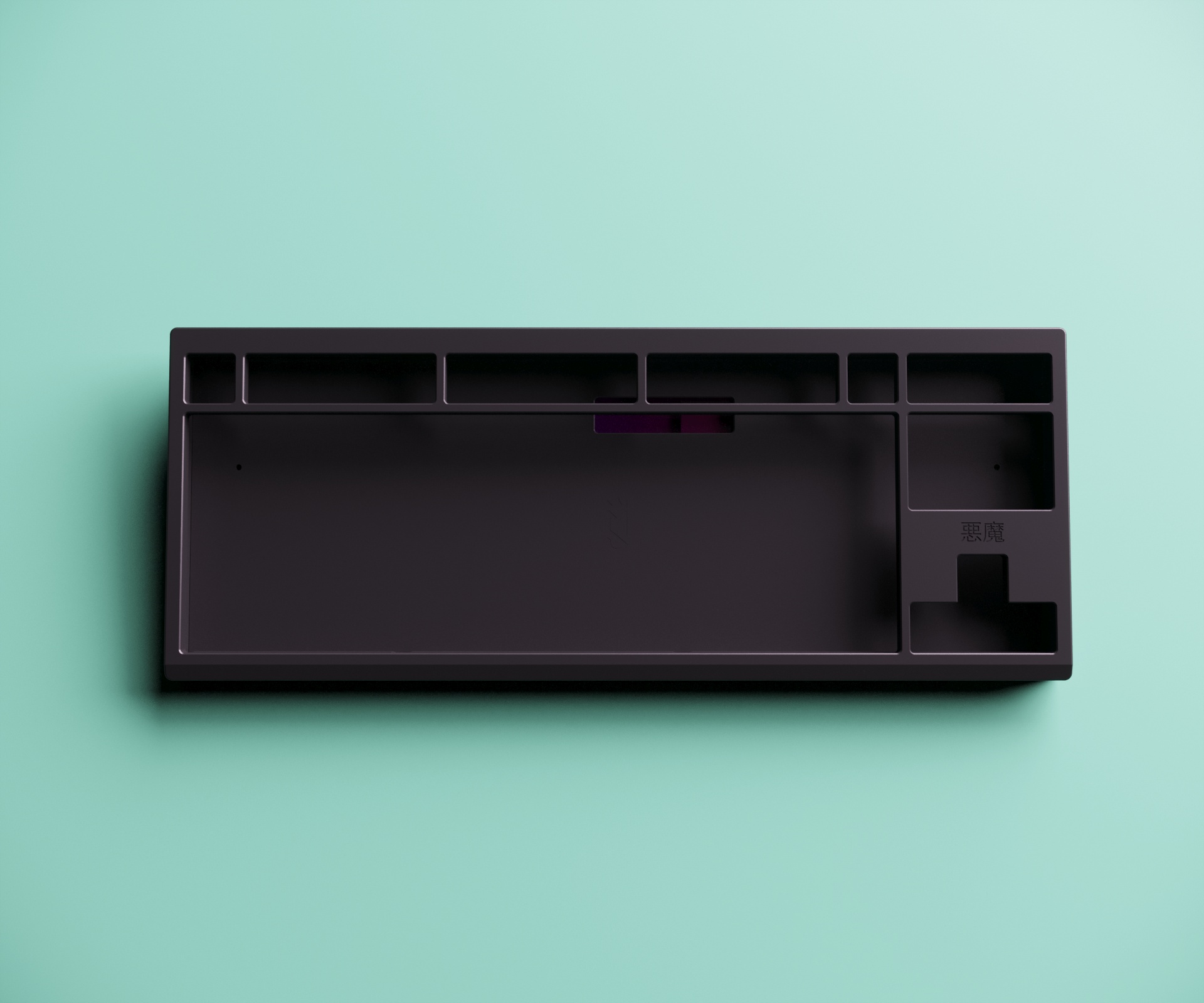

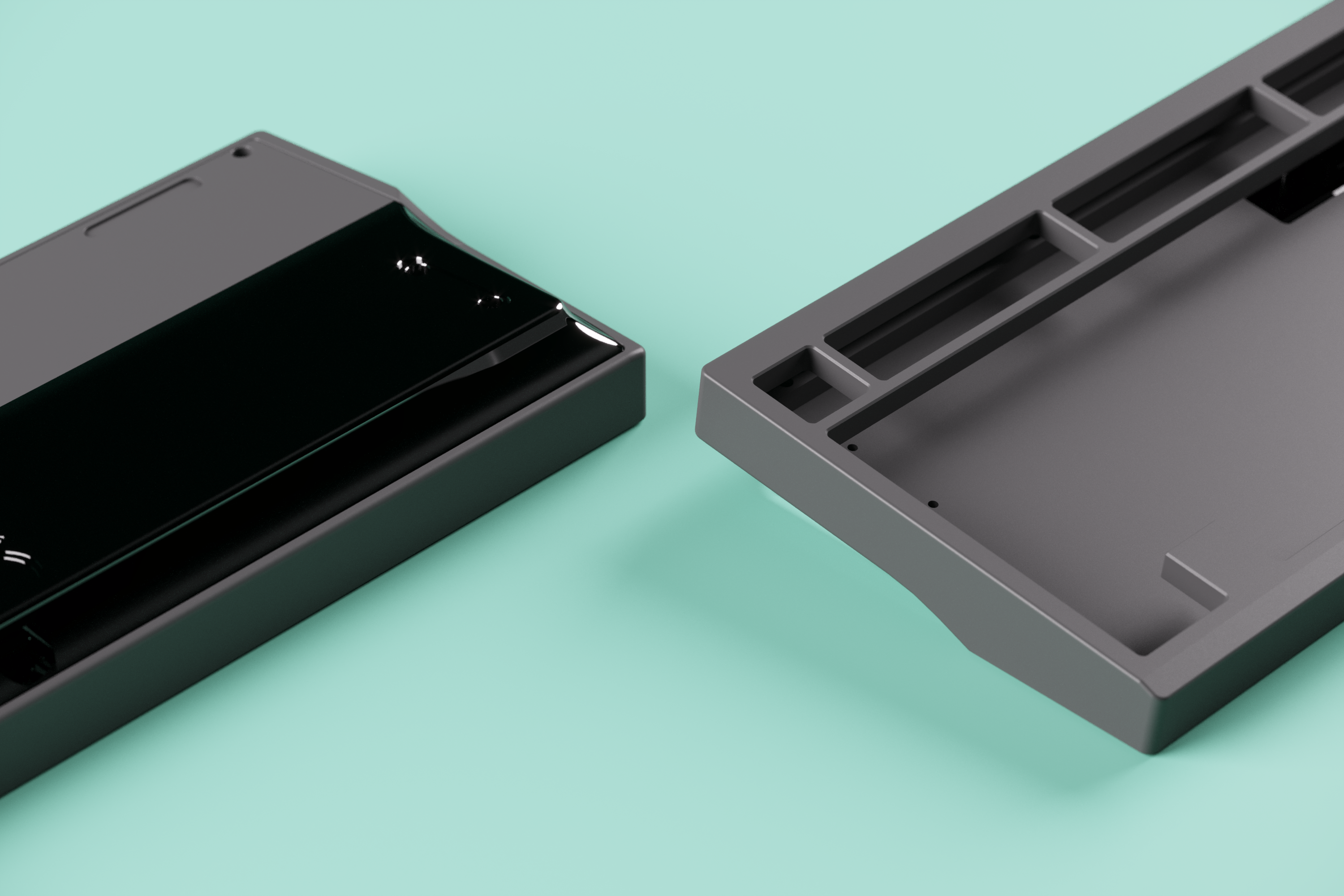

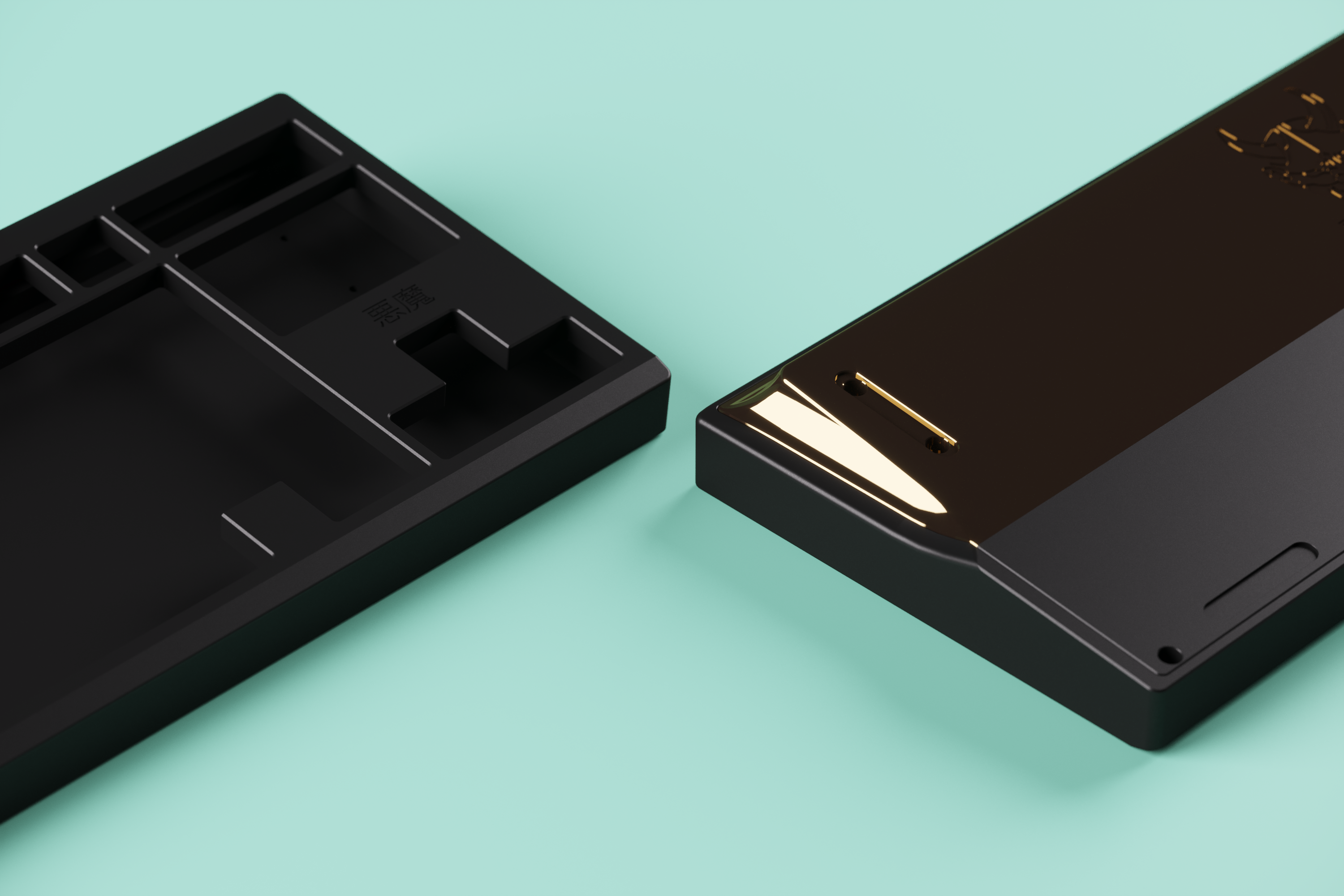

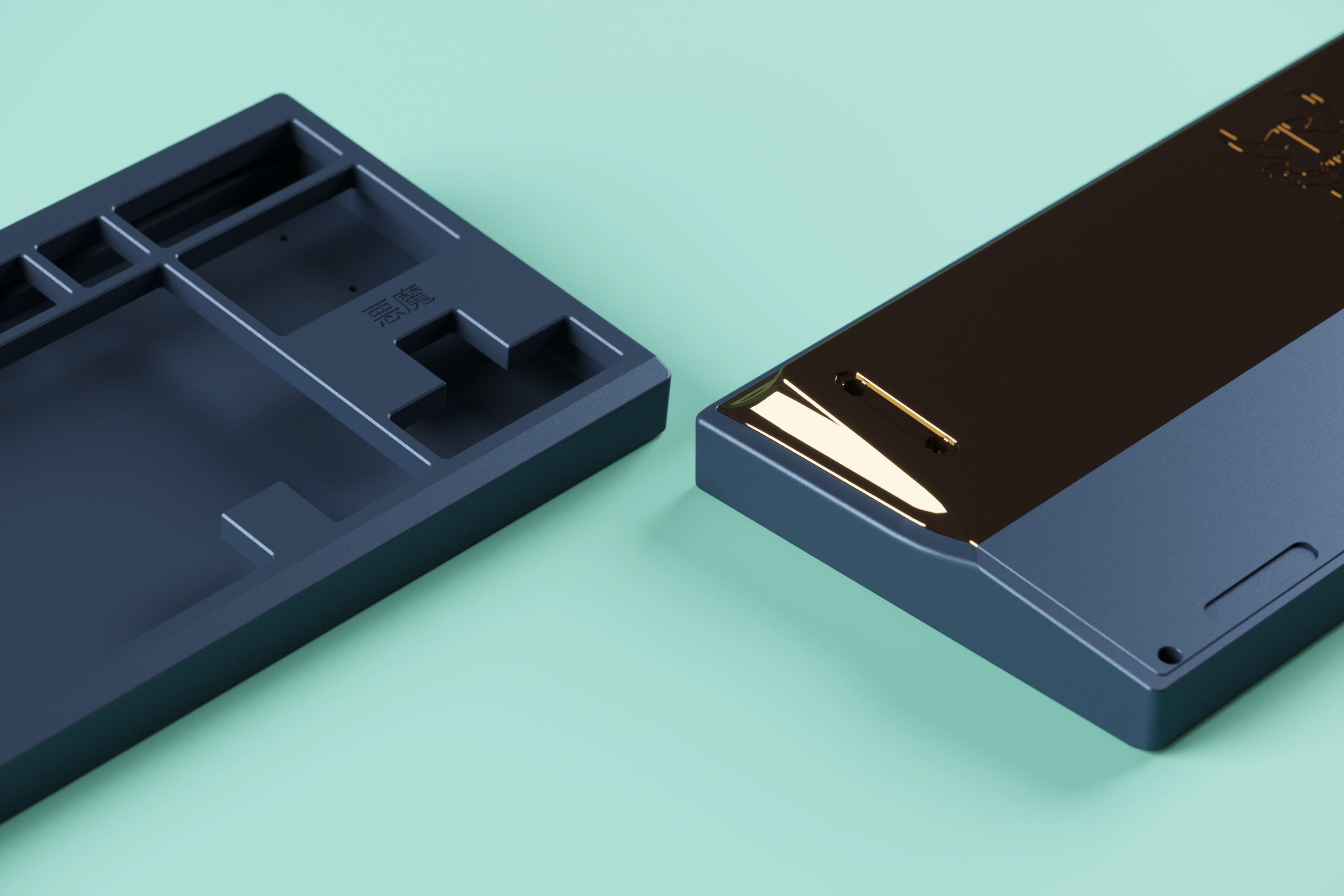

Colour versions (These are renders and might not be 100% accurate in colours)

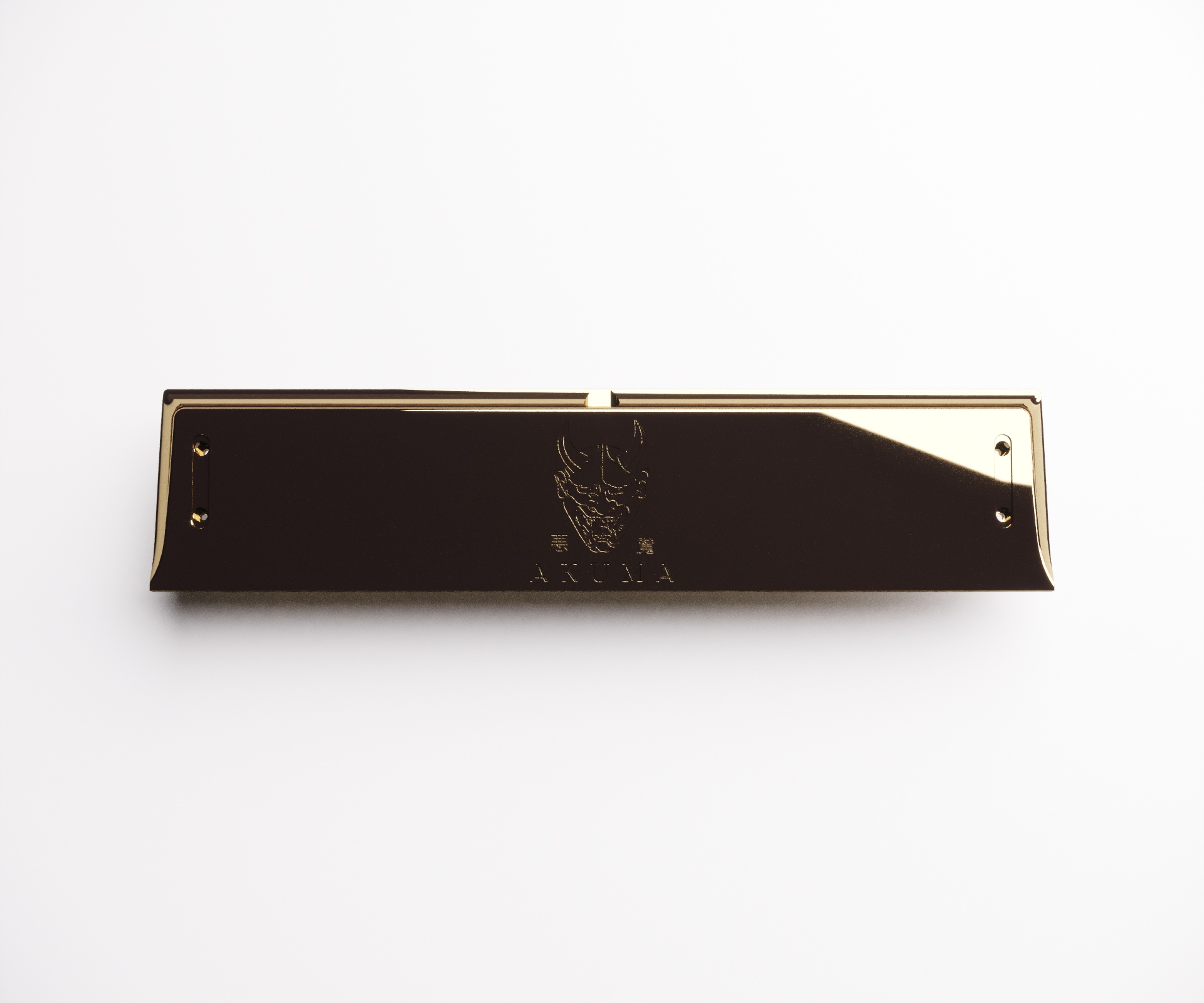

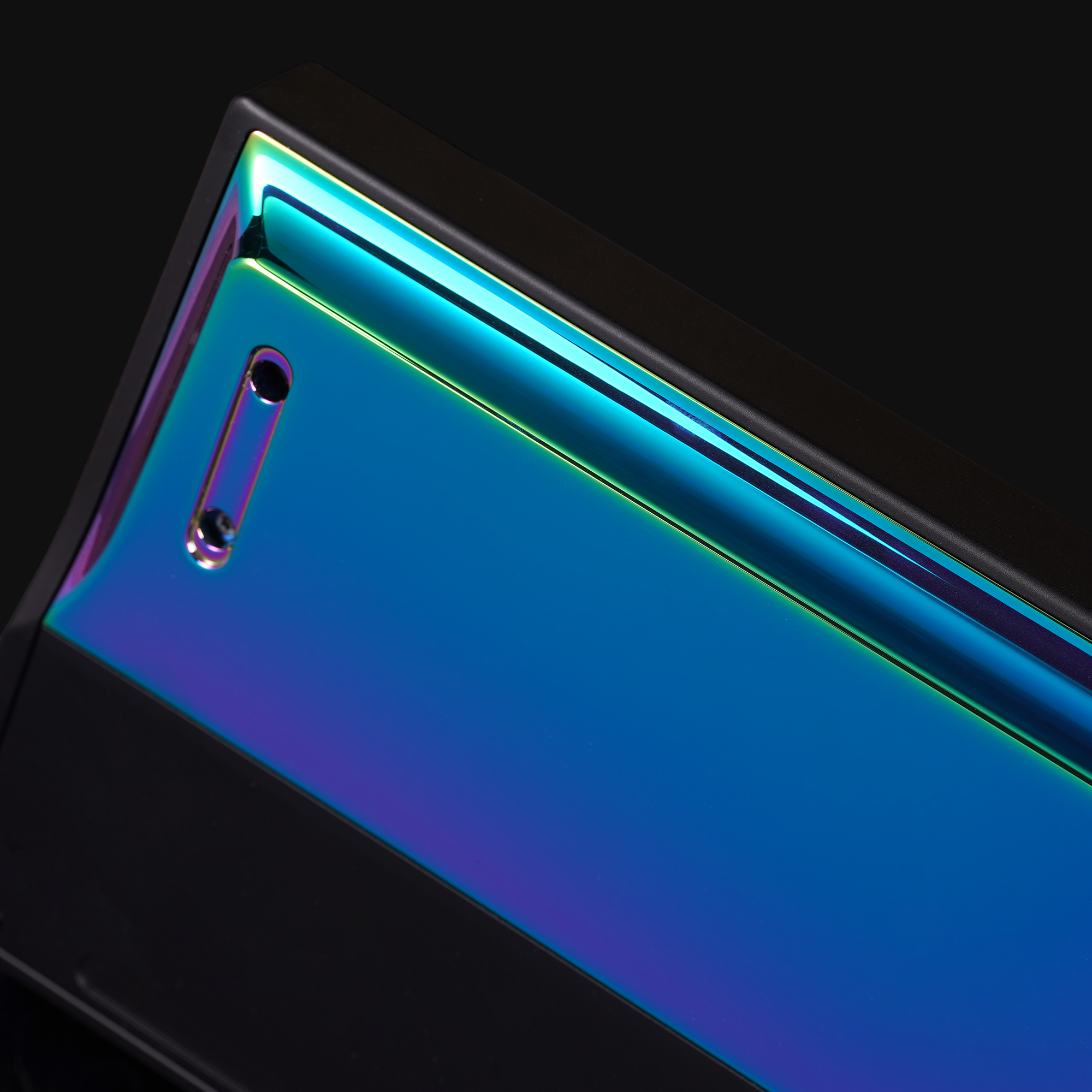

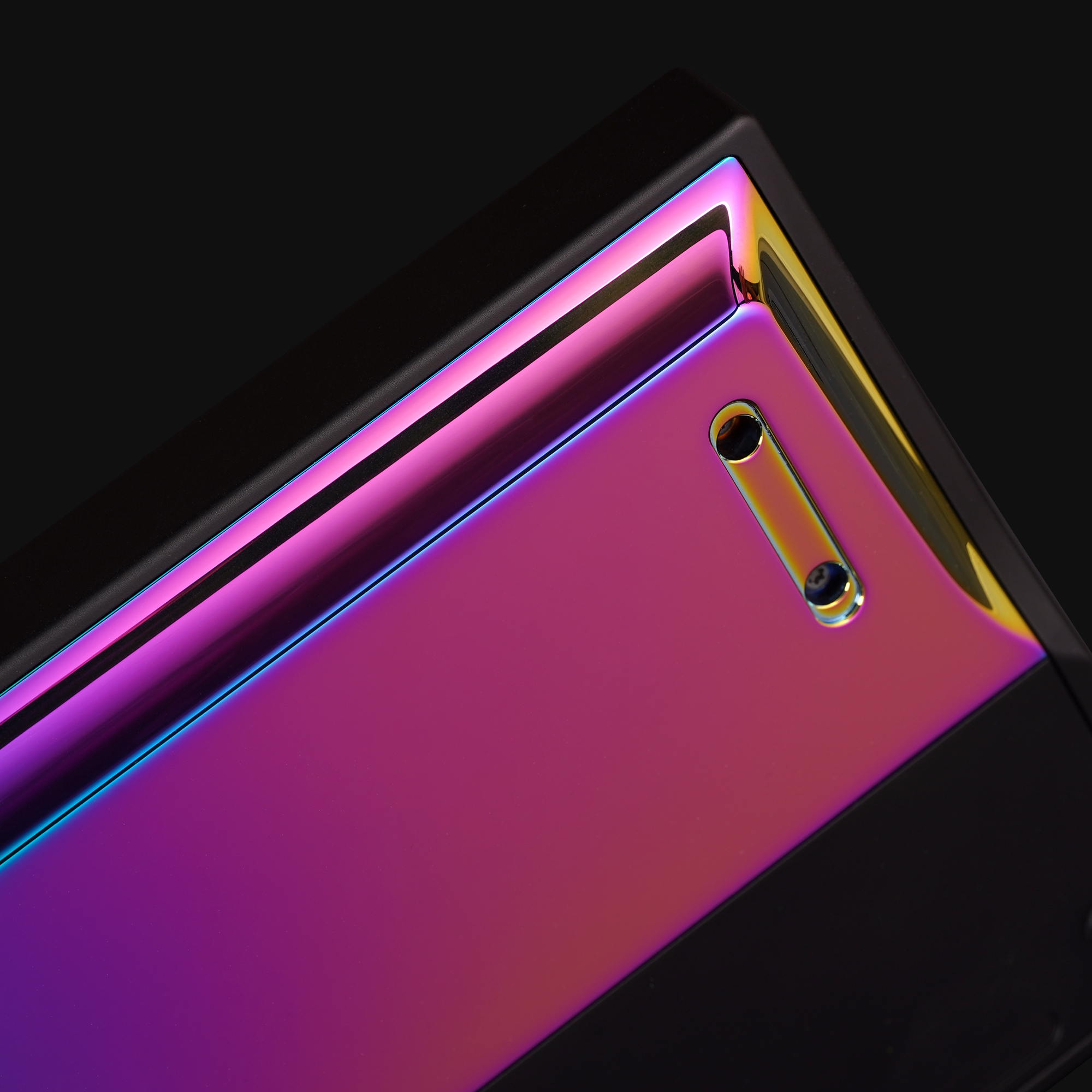

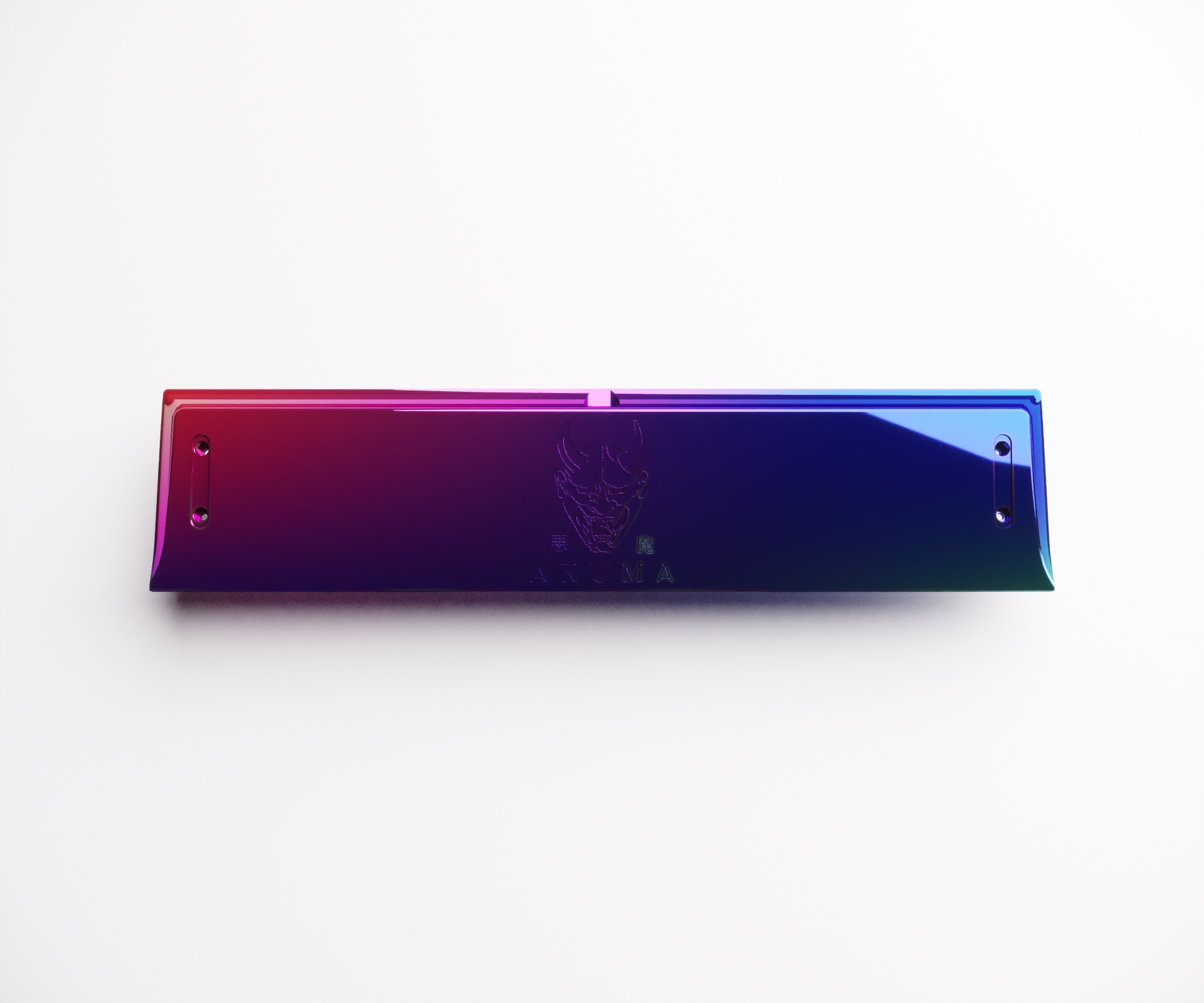

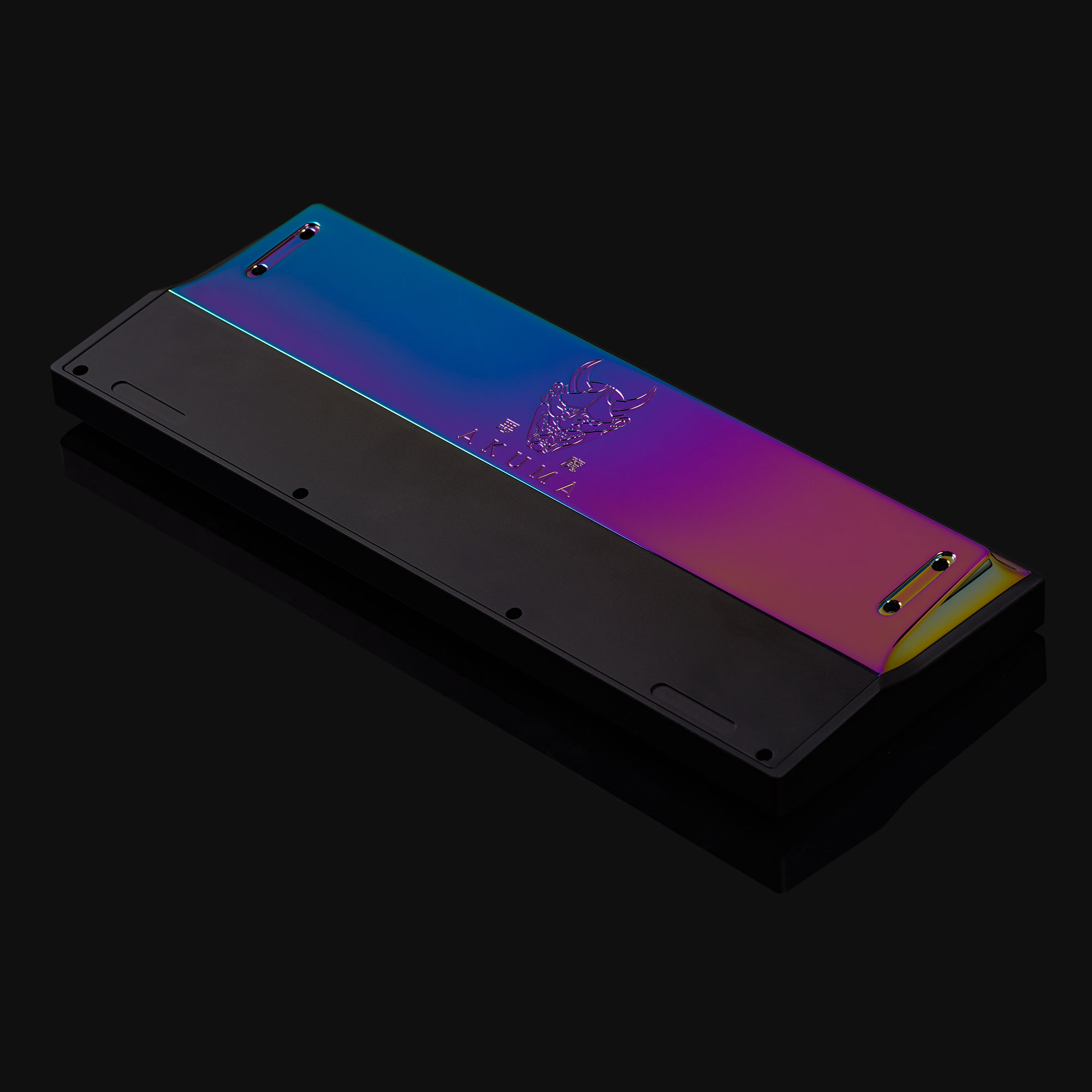

Weights:

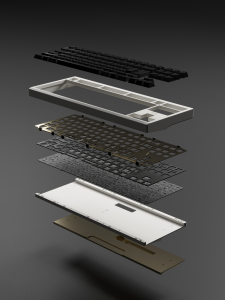

Assembly:

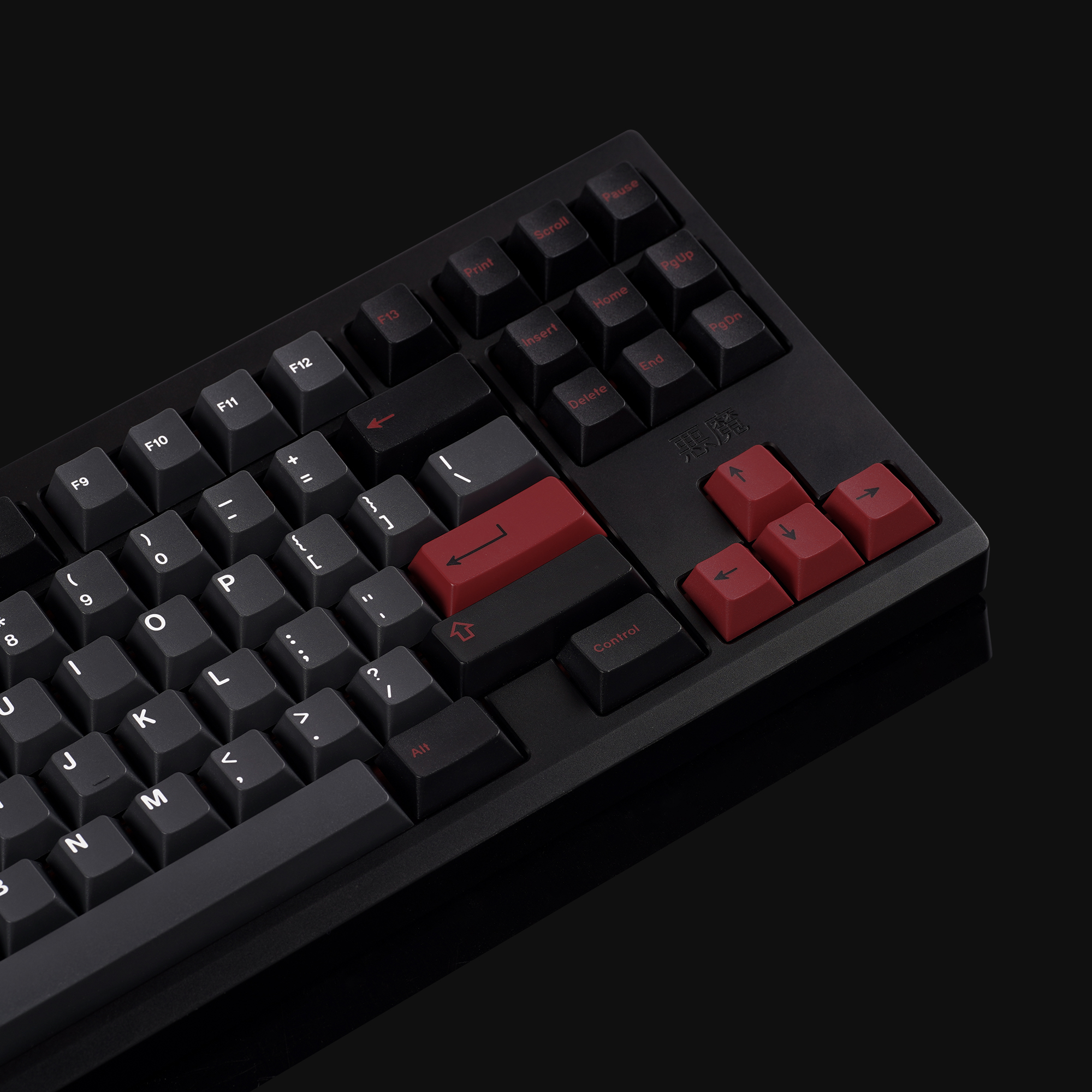

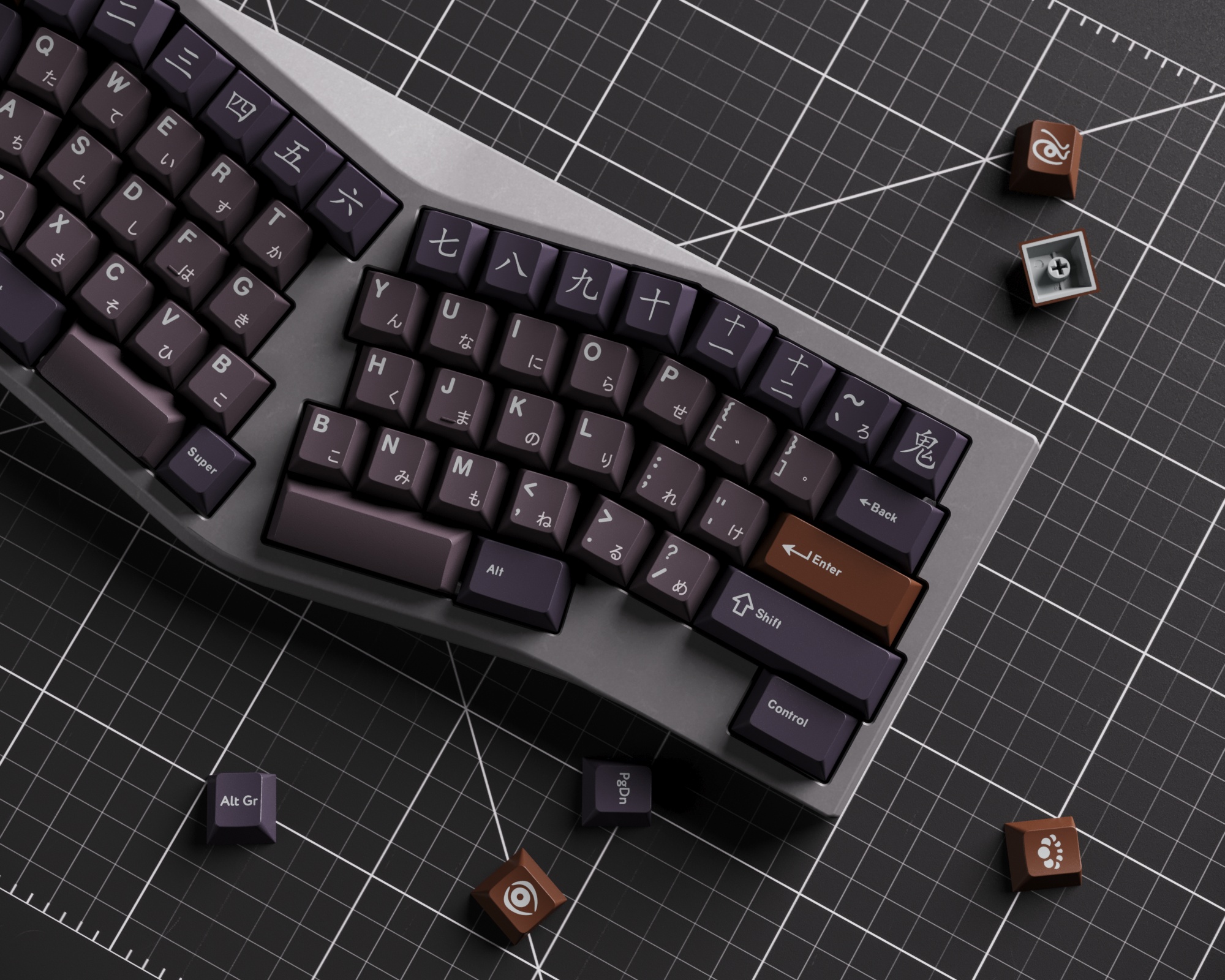

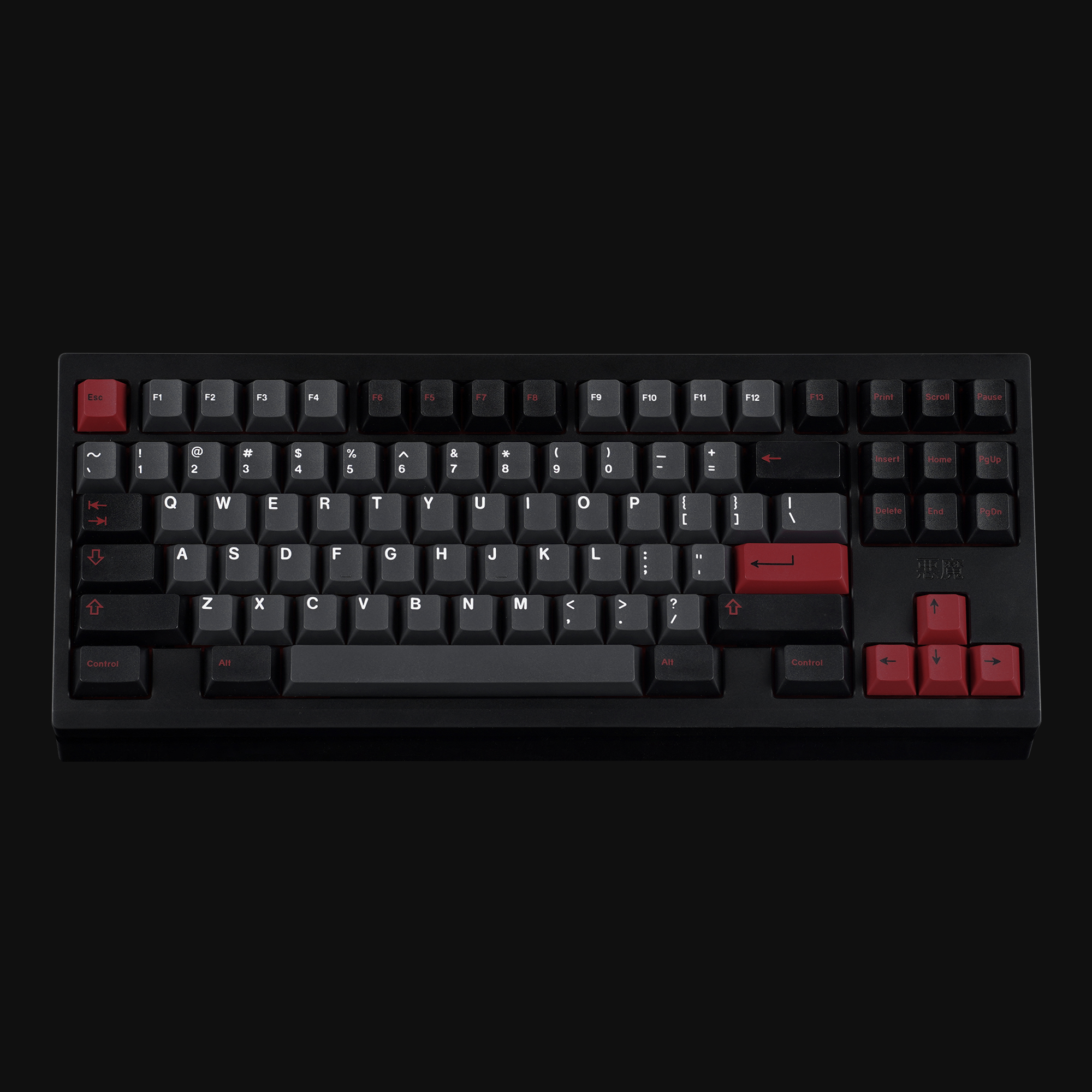

Akuma Keycaps




Details:
Material: PBT material
Profile: Cherry profile
Production Method: Doubleshot
Manufacturer: PBTfans
Compatibility: Cherry MX switches and MX-style clones
Colors - Violet black / Heron Blue / Wild Brown / Celery White

Akuma Base Kit


Akuma Novelties


Akuma Spacebar


Akuma Numpad


Akuma Nordic


Sell Details
Pricing: TBD
Date: TBD
MOQ: TBD

Vendors:
Global Vendor: KBDfans
US Vendor: VALA SUPPLY
EU Vendor: KEYGEM
AU Vendor: Daily Clack
JP Vendor: Yushakobo
CA Vendor: Deskhero
UK Vendor: Prototypist Keyboards

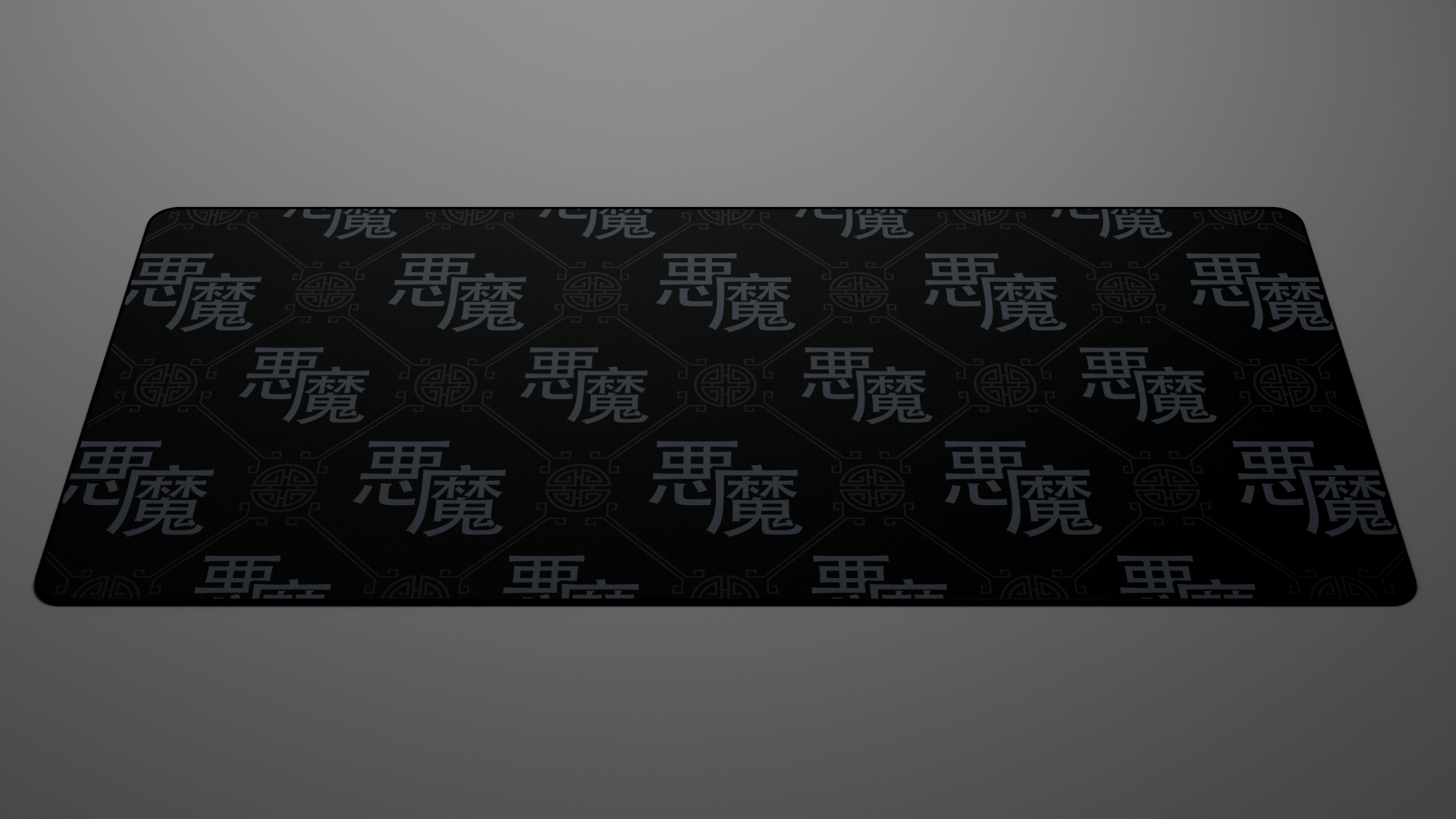

Akuma Deskpads




Details
Size: 900 x 400 x 4
Cloth top Surface
Rubber bottom
Black Stitches

Sell Details
Pricing: TBD
Date: TBD
MOQ: TBD

Vendors:
Global Vendor: KBDfans
US Vendor: TBD
EU Vendor: TBD
AU Vendor: TBD
JP Vendor: TBD
CA Vendor: TBD
UK Vendor: TBD


Please consider this post a living document, i accept all feedback!
If you have any questions or need to reach me please contact me on: [email protected] or Discord you can also follow me on Instagram
Thank you for your time!
- Fredrik at Mighty Setup

All renders are made by: its.hymn

To-Do List:
Round 2 samples (In process)
Send prototype unit to content creator for build and review content
Announce sale date


Updates 2022-06-09
Round 1 of prototypes have been made and I have to say they look amazing!
We made changes while waiting for the prototypes to be made, here are the changes we made:

• We changed the mounting system and added a leafspring mounting system.
• We added a bridge at the space bar on the plate so that the hotswap PCB will work.

R2 Prototypes are ordered

We also confirmed the price and MOQ
The keyboard price will be: 450$ and the MOQ: 500.

(Photos of the first round of prototypes will soon be updated on the IC)

The front engraving will remain, but there will also be option to remove it when you create your order.


Updates 2022-08-02
R2 Prototypes are made and everythings works perfect! (We had to change the PC plate version cutouts, it had to much flex. This is already fixed.)

We are waiting for the package to be done, this should only take a few more days.
Kbdfans will send one prototype to me and one to Taeha Types for content.


Updates 2022-09-17
GB date announced: Sep 22nd at 7:00 PM PST (Pacific standard time)

Alexotos build stream on Akuma 80%

GB timer kbdfans website

IC-FORM
