Alyssia - A thin bezel, dual mount Alice style keyboard - Updates 10/25/23

geekhackauto-imported

0 followers0 bookmarks0 comments

Description

ALYSSIA
Interest Check Form
https://forms.gle/yTjhn8gMeKgrjX7P7
Interest Check Form 2
https://forms.gle/dMaLfJygH7tRD9yX9
Interest Check Form 3
size=10pt]https://forms.gle/x8HV8jicN2gQe4Ta7[/size]
Final Interest Check Form
https://forms.gle/z8xjMY3uy6H5J1Pz5

Discord
https://discord.gg/PrPU83efVe

Introduction

I’ve been in the hobby for a few years now and have attempted on and off to design my own board, specifically an Alice layout.
I’ve tried several Alice boards, as well as other boards and settled on my own personal preferences in terms of design.
Hence, the Alyssia, my first completed design, incorporates thin bezels, a 4 degree board angle and a fancy outer piece to look at.

Technical Details
Board front height: 18.5mm (measured at chin)

EKH: 22.64mm/23.64mm with feet (measured at right alt)

Materials: aluminum 6063 (top, bottom), copper (inner weight, coated), polycarbonate (light diffuser, DB wire cover)
The outer piece will be available in alu 6063, coated copper and raw SS304

Weight: ~3.1lbs built (1406.14g), 2.45lbs unbuilt (1111.301g) with the alu outer piece

Mounting Style: O-Ring tab gasket mount, top mount

Screws: 6x M2x12mm button torx (for body), 5x M2x4mm countersunk torx (for light diffuser,db wire cover),
4x M3x4mm countersunk torx (for inner weight and outer piece), 8x M2x4mm button torx (for top mount)

Manufacturer: DDS

Standard Alice layout compatible with top-mounted USB-C PCBs, some USB-C daughterboard Alice PCBs

Mounting Explanation

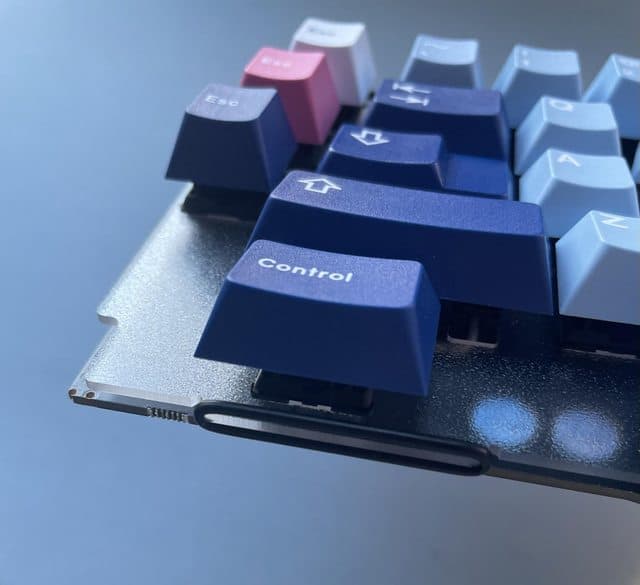

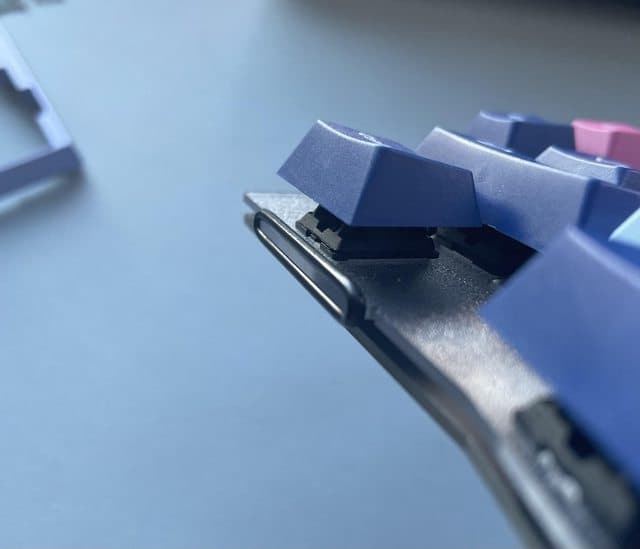

The Alyssia uses 8 o-rings that fit around 8 tabs on the plate

The o-rings are tightly wrapped around the hooks of the plate tabs, with a bit of the gasket left out on the outer edge to ensure the plate doesn’t touch the board directly

The o-rings are lightly compressed by the top and bottom piece, creating a firm typing experience that can be softened depending on the plate/o-rings used
This mounting method also helps with alignment of the top and bottom pieces of the board

O-Ring info: 22mm OD x 18mm ID x 2mm thickness, 70 duro, NBR material

I've added top mounting capabilities to the board, it's not the universal Alice mounting points as the board is too small to use a universal Alice plate,
it'll use M2 screws, the plate will accommodate both gasket mounting and top mounting

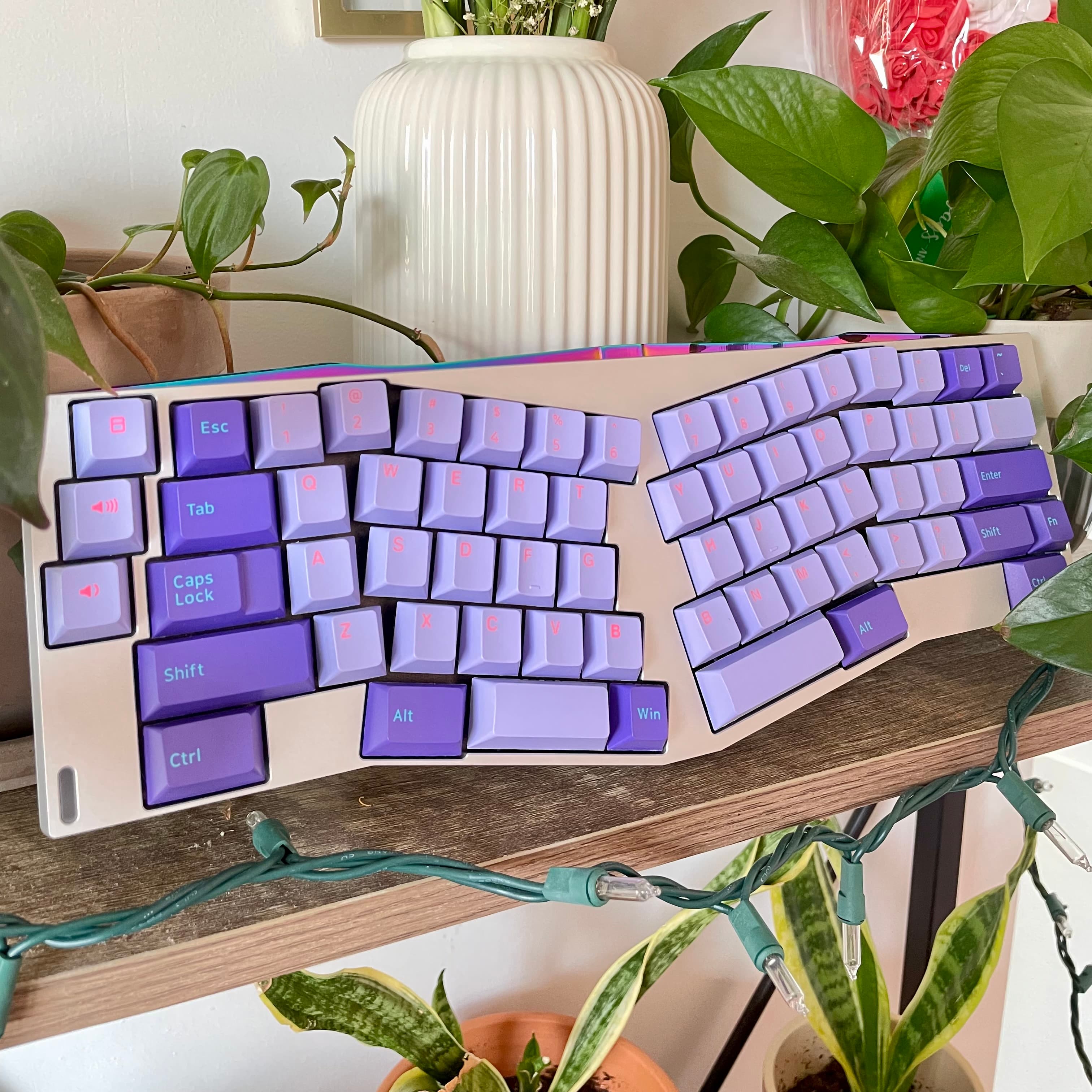

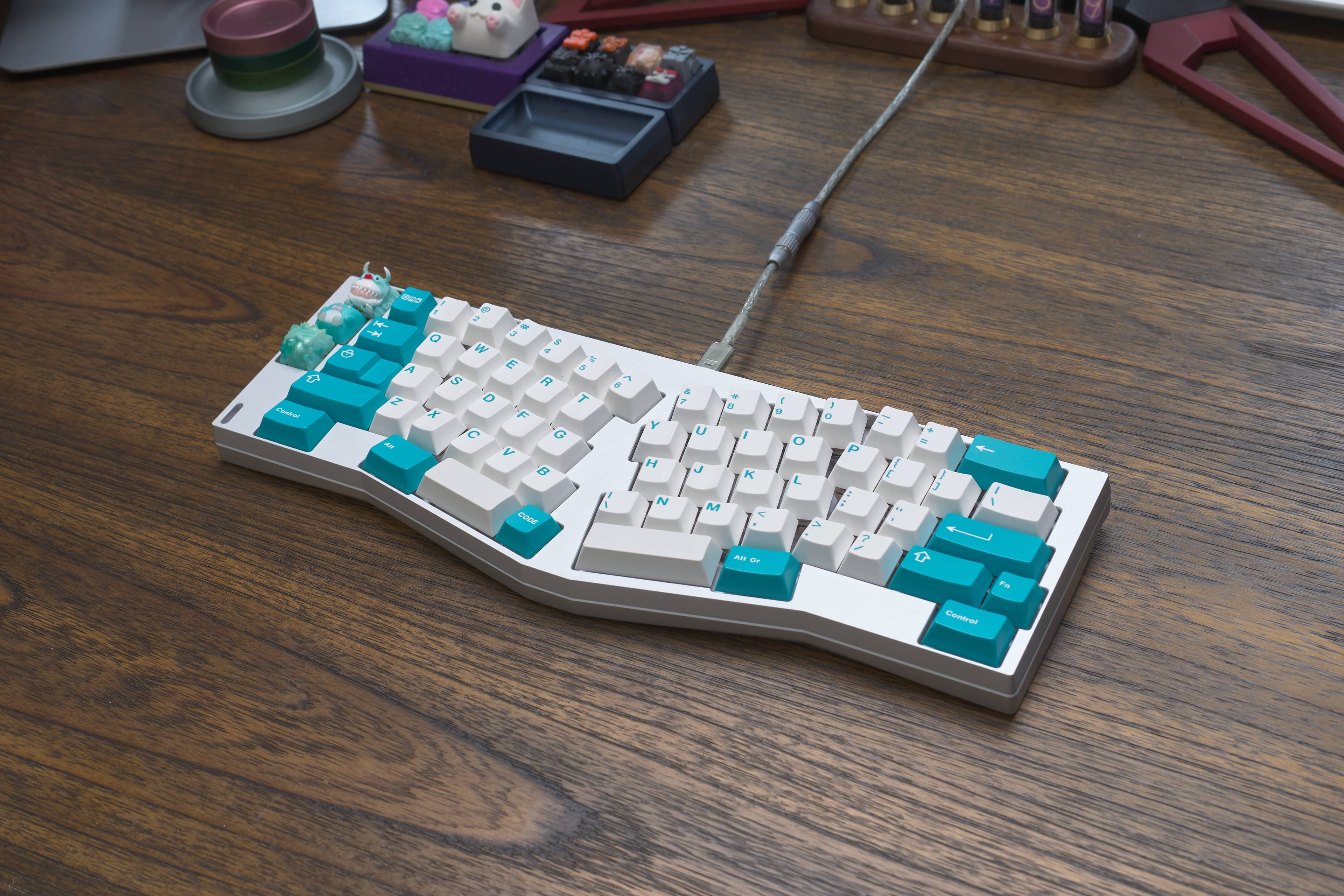

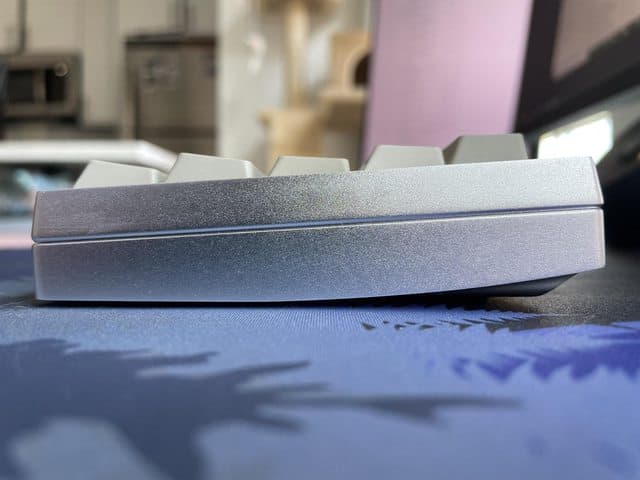

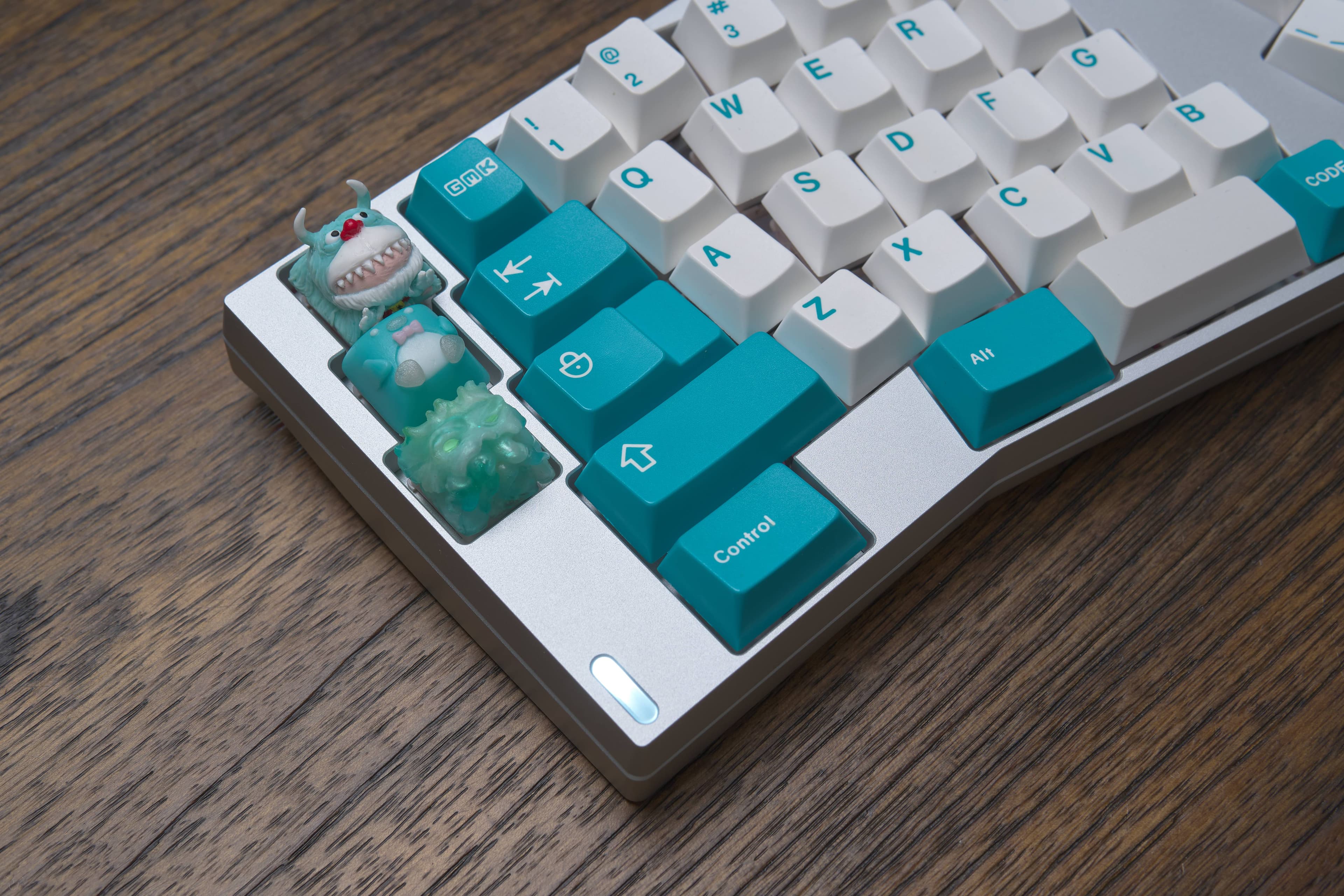

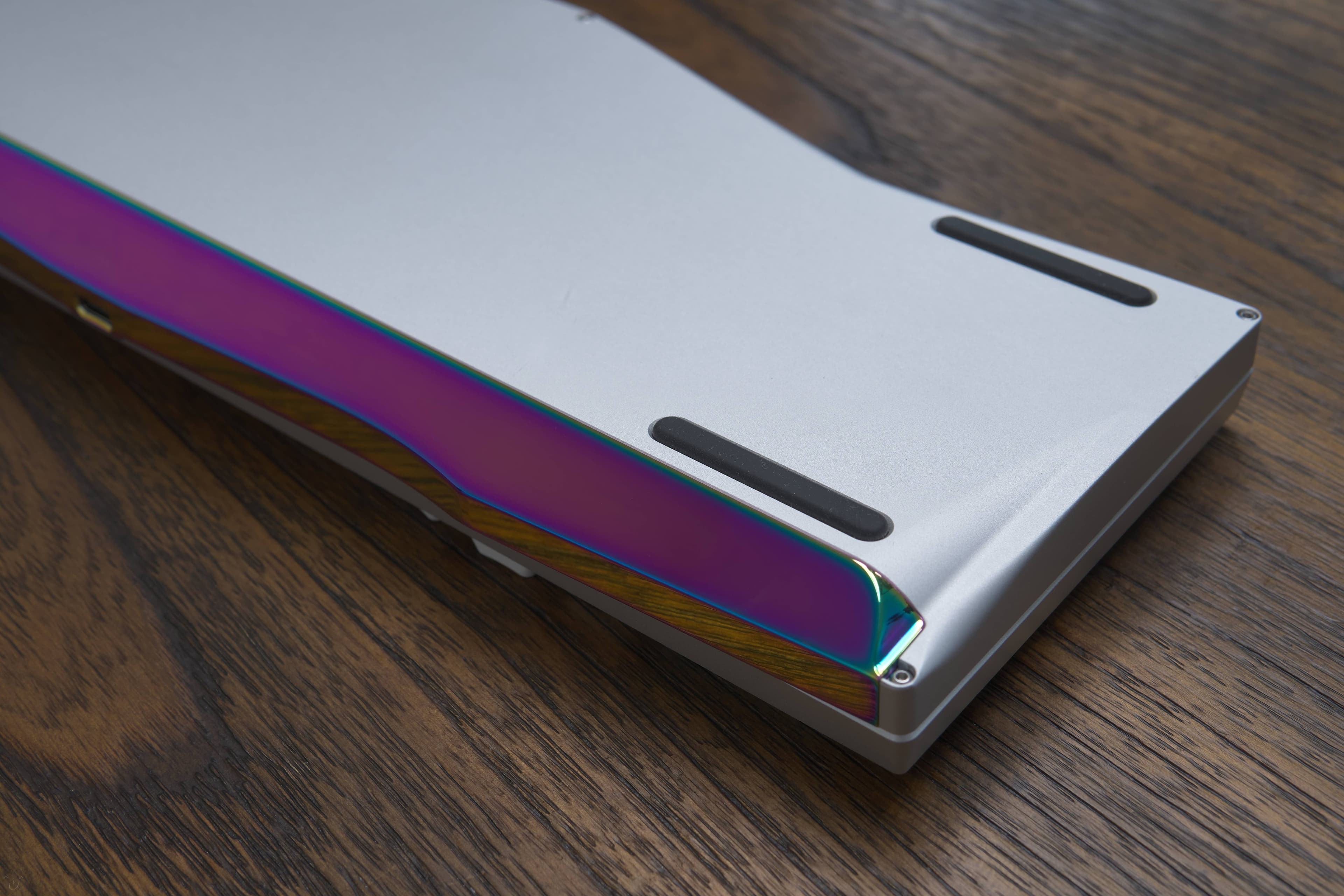

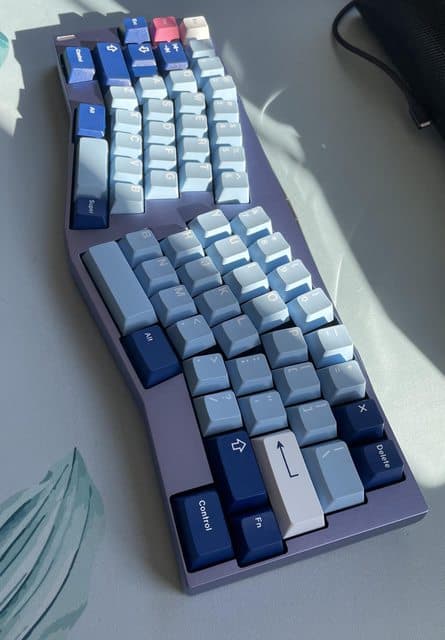

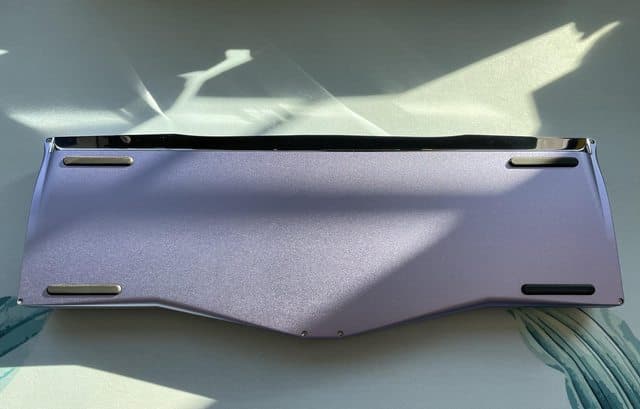

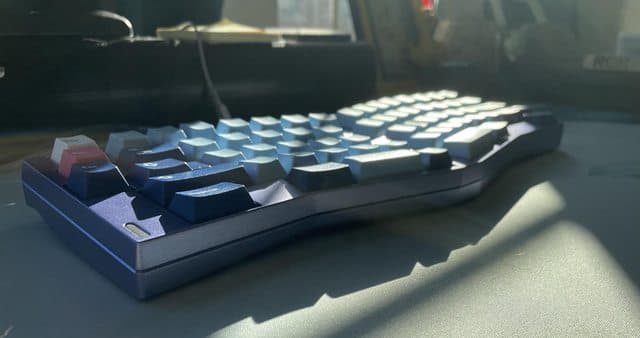

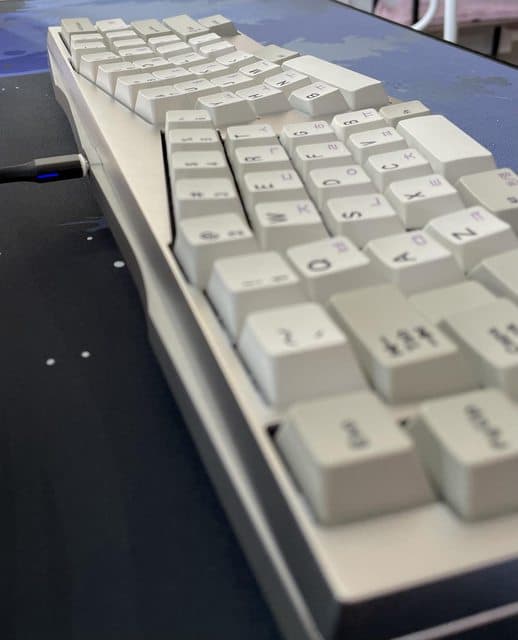

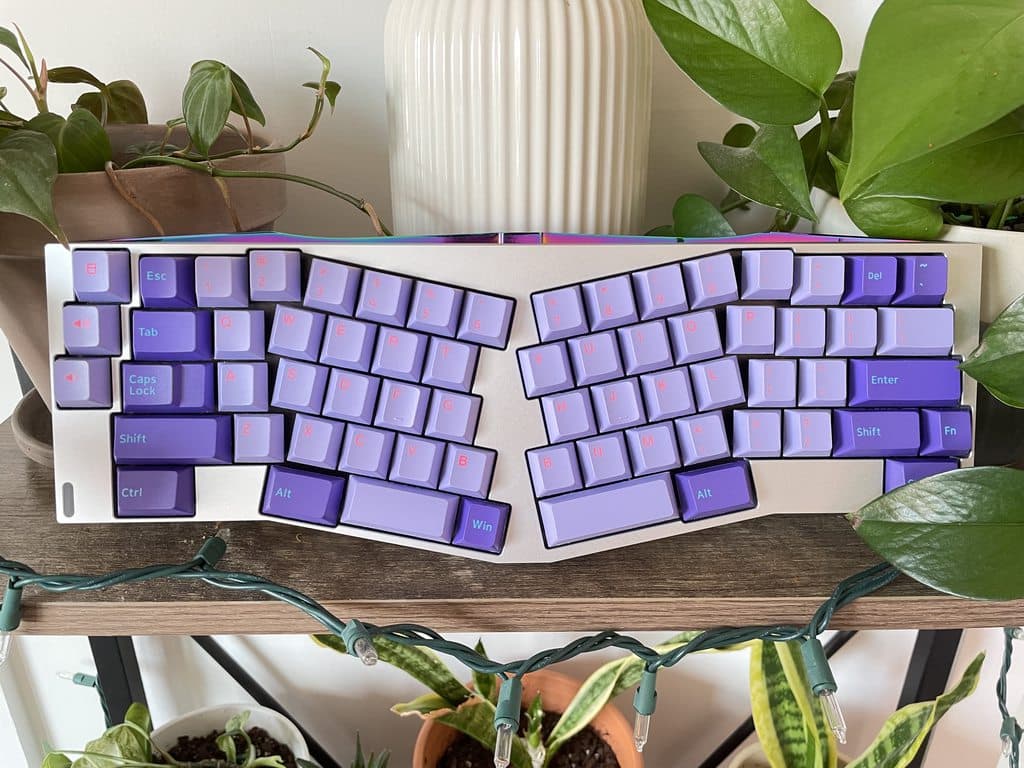

Pictures of the Prototypes

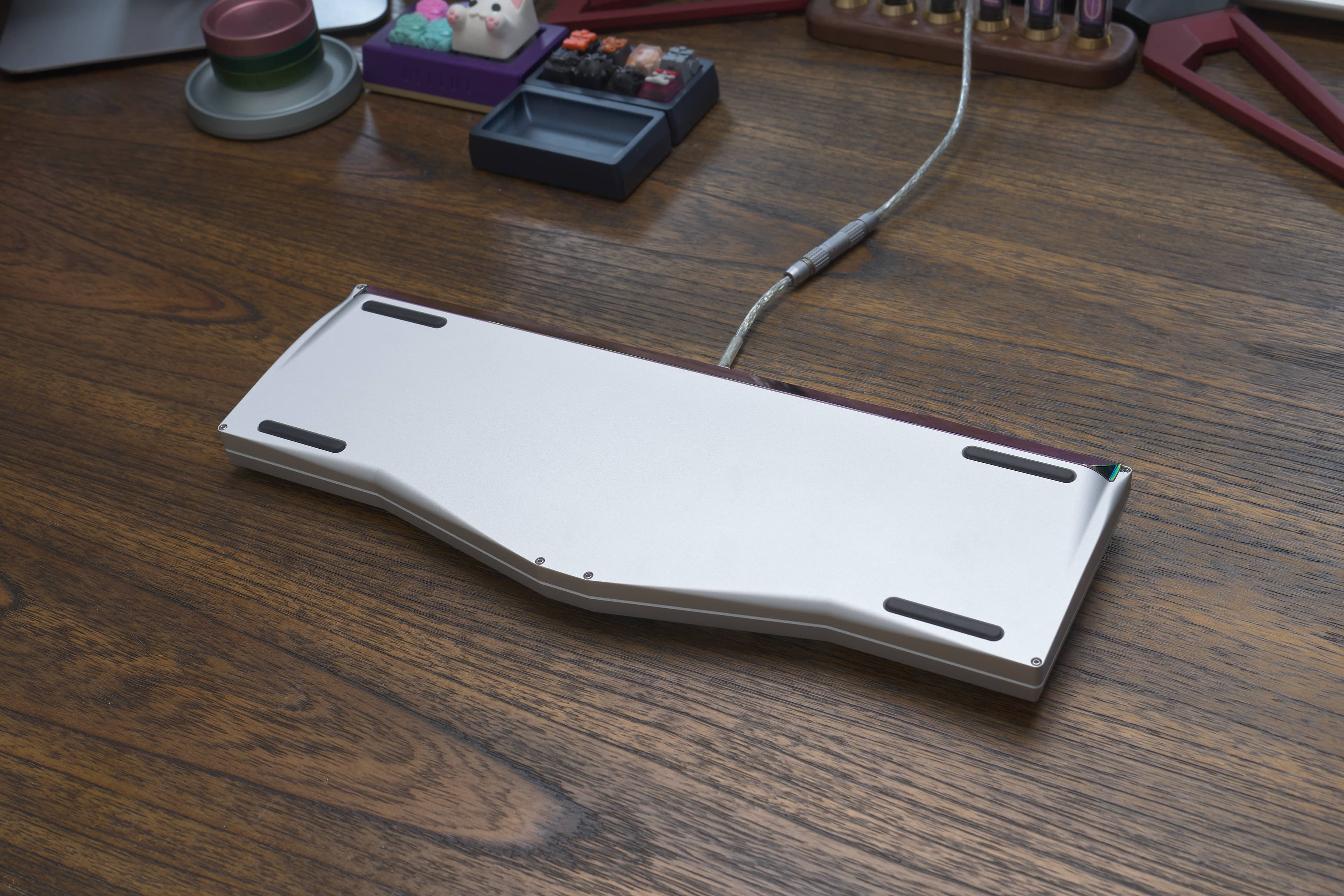

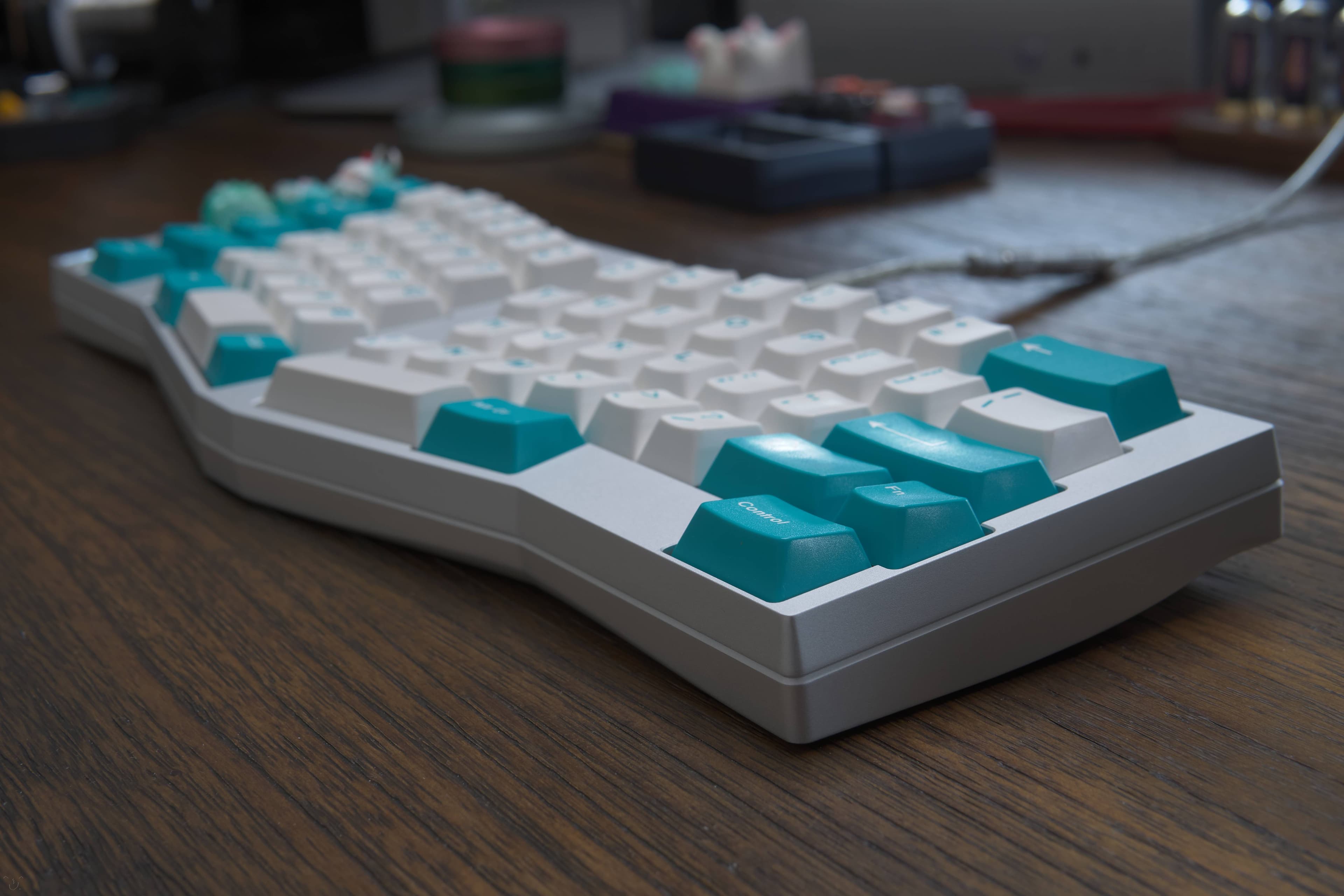

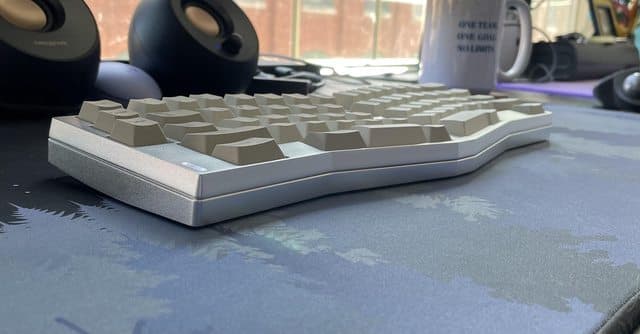

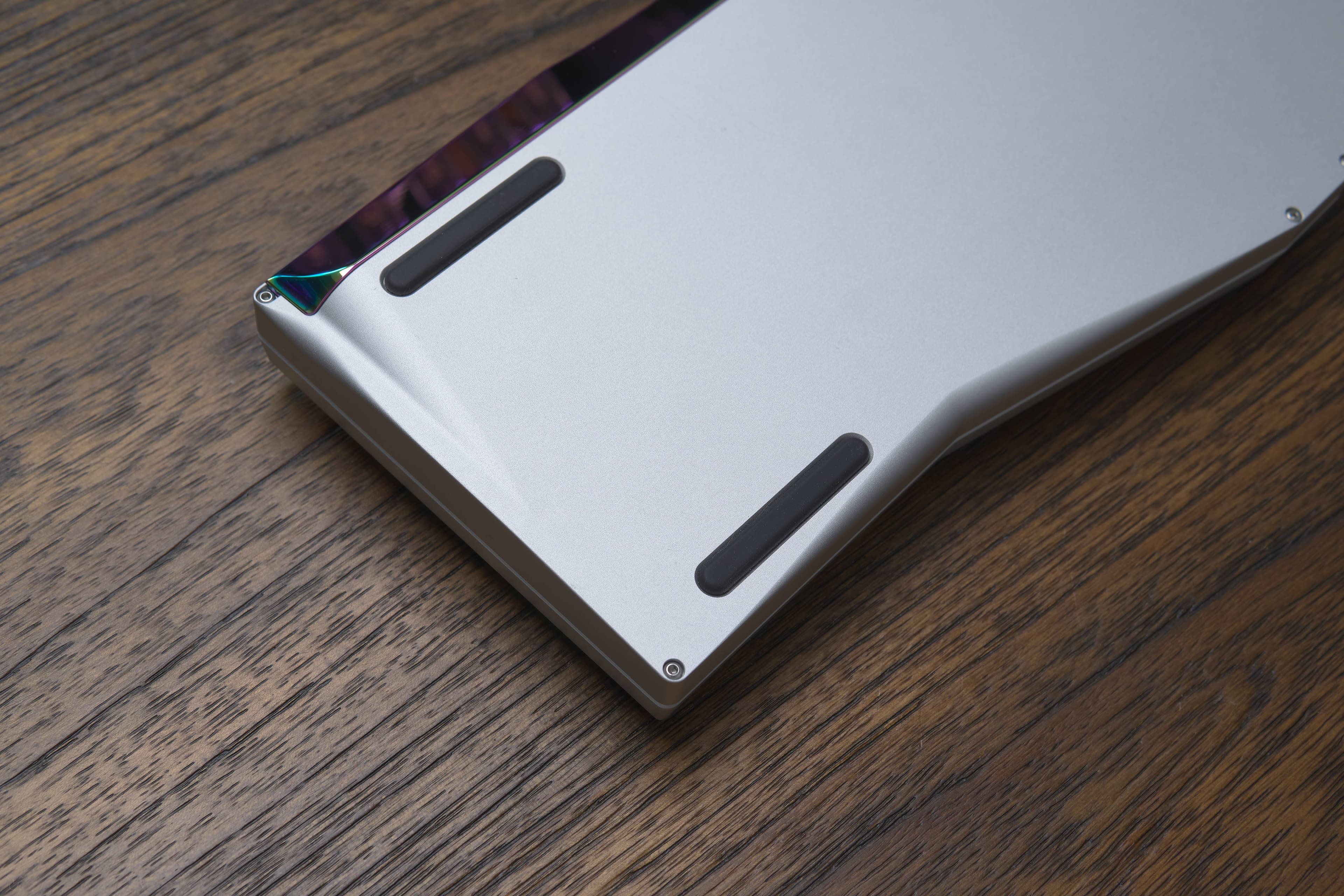

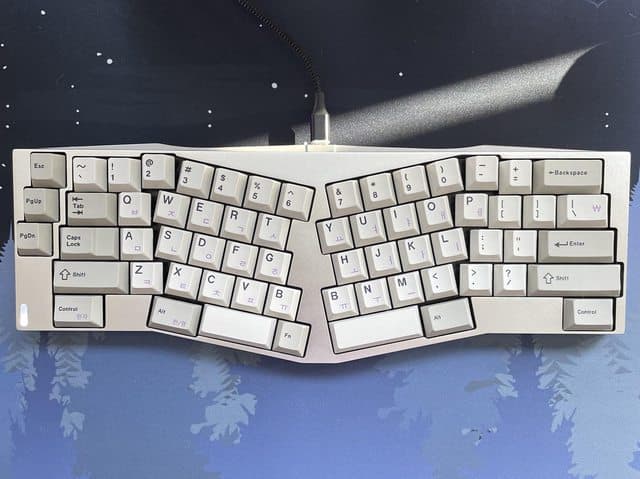

Prototype 3

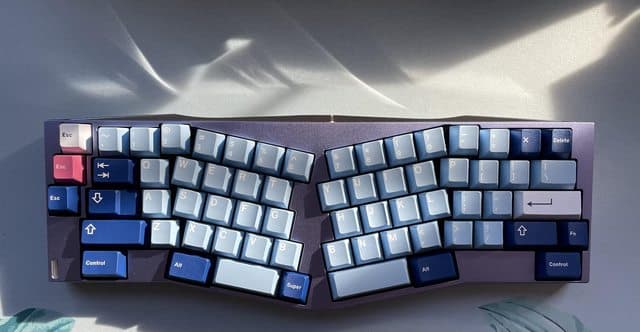

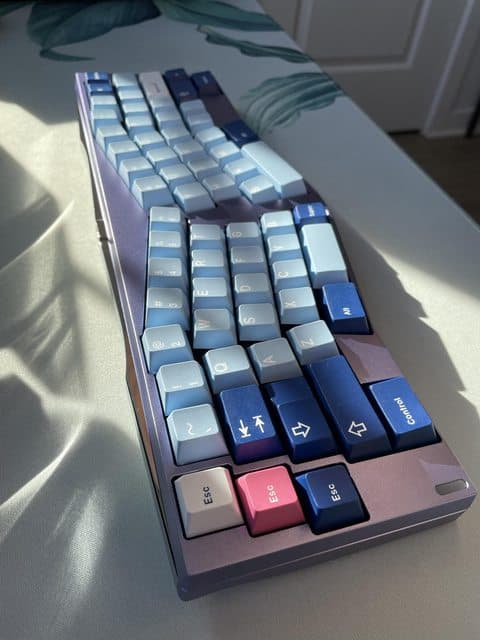

Prototype 2

Prototype 1

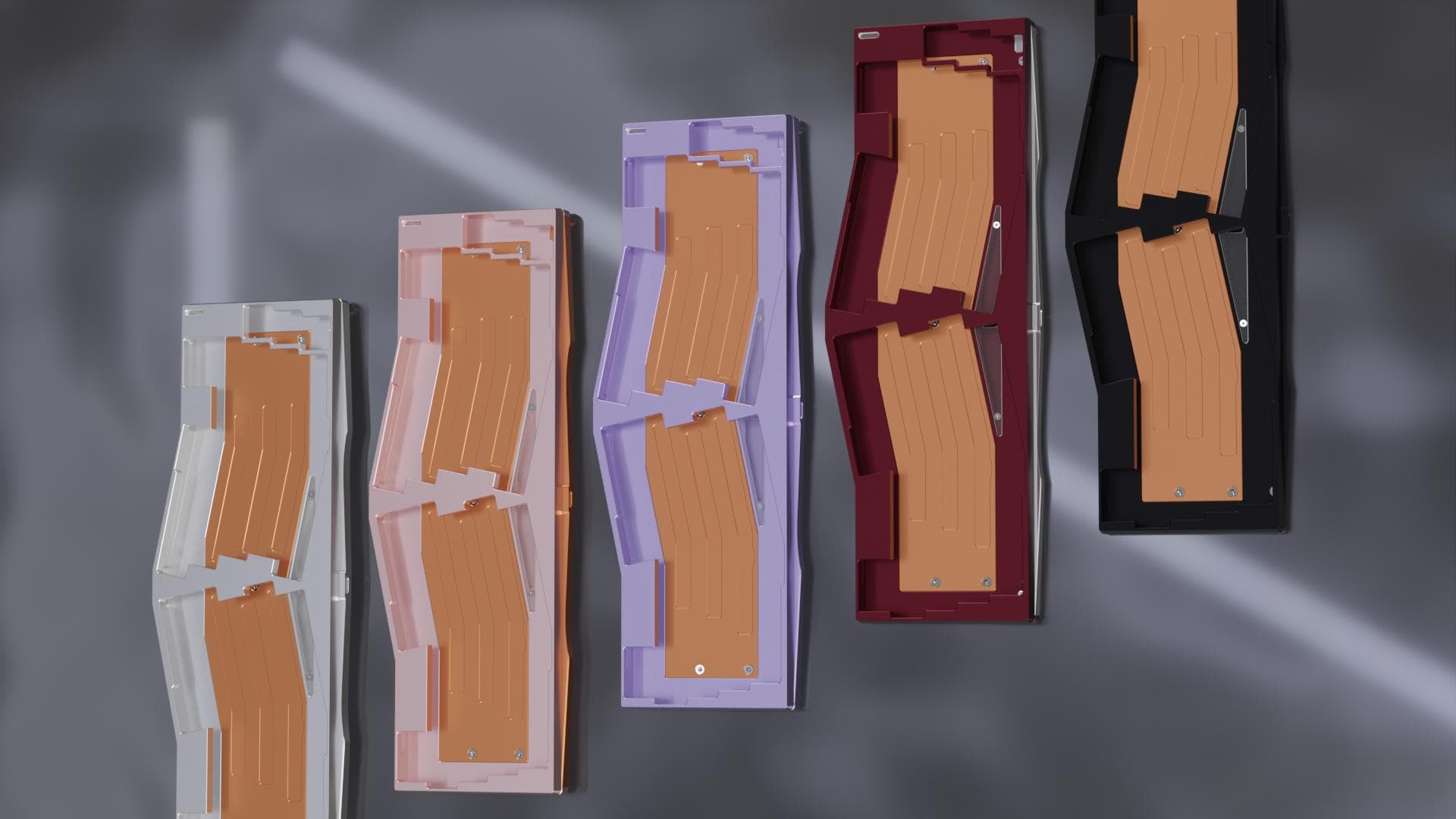

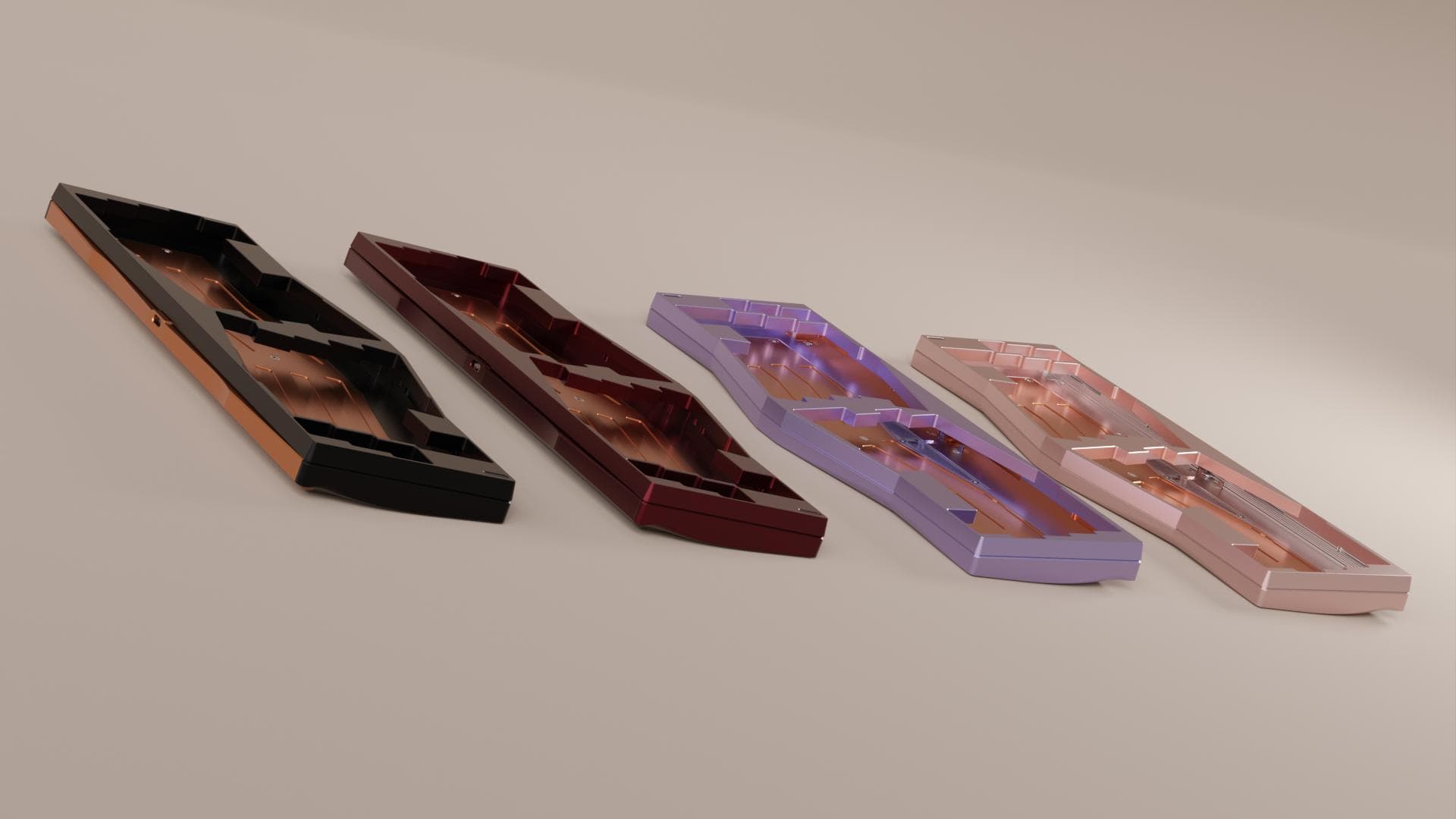

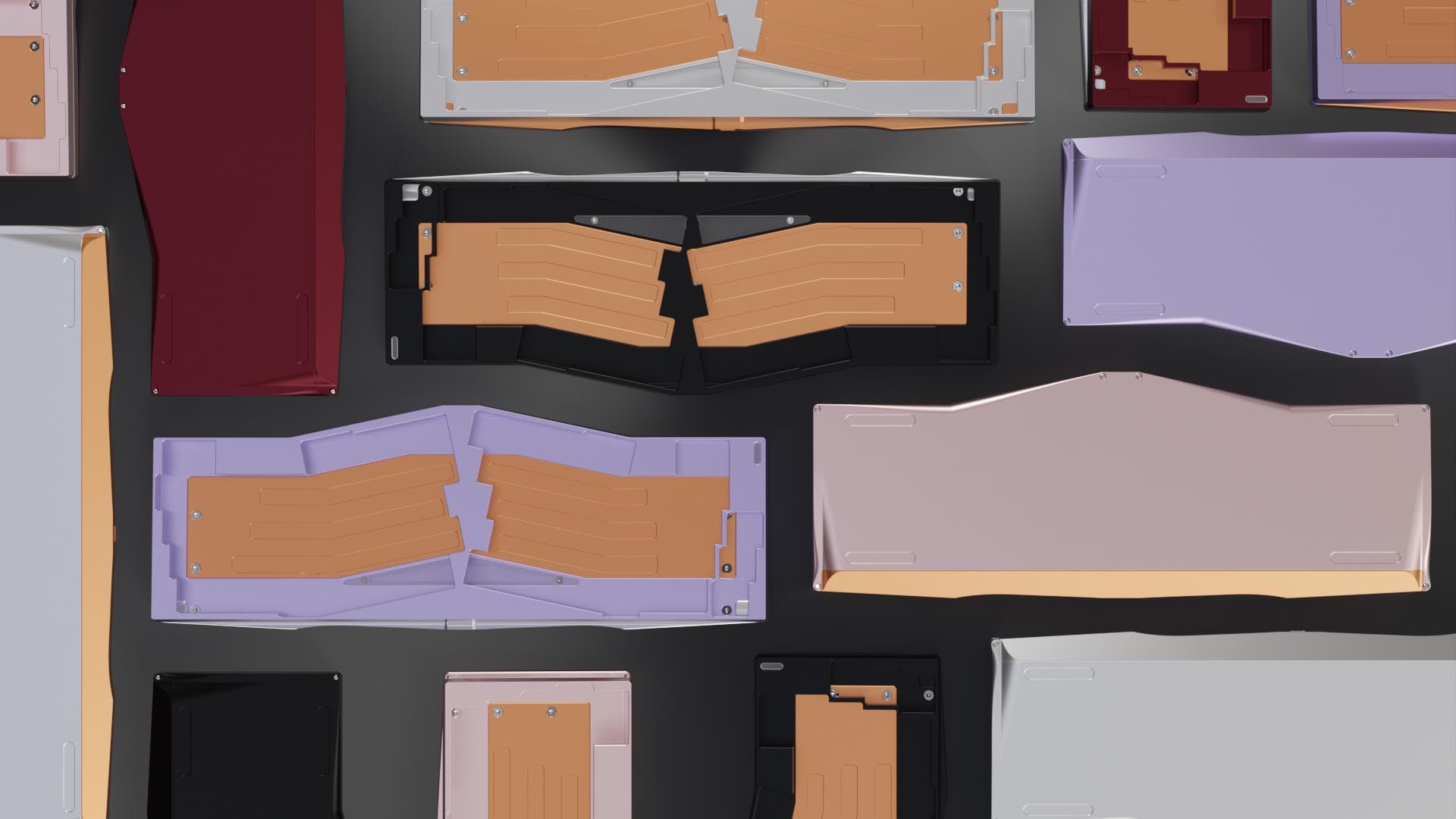

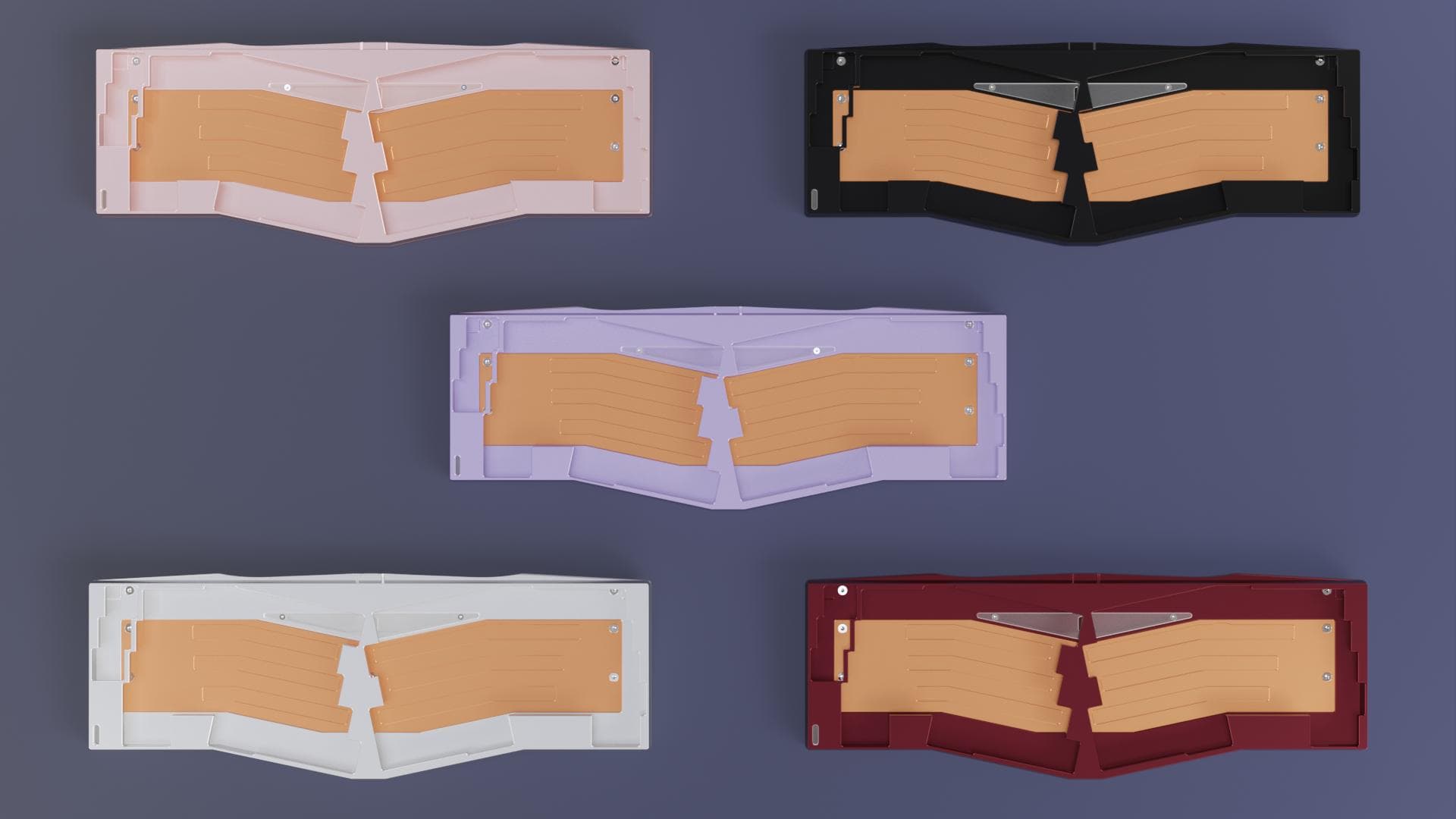

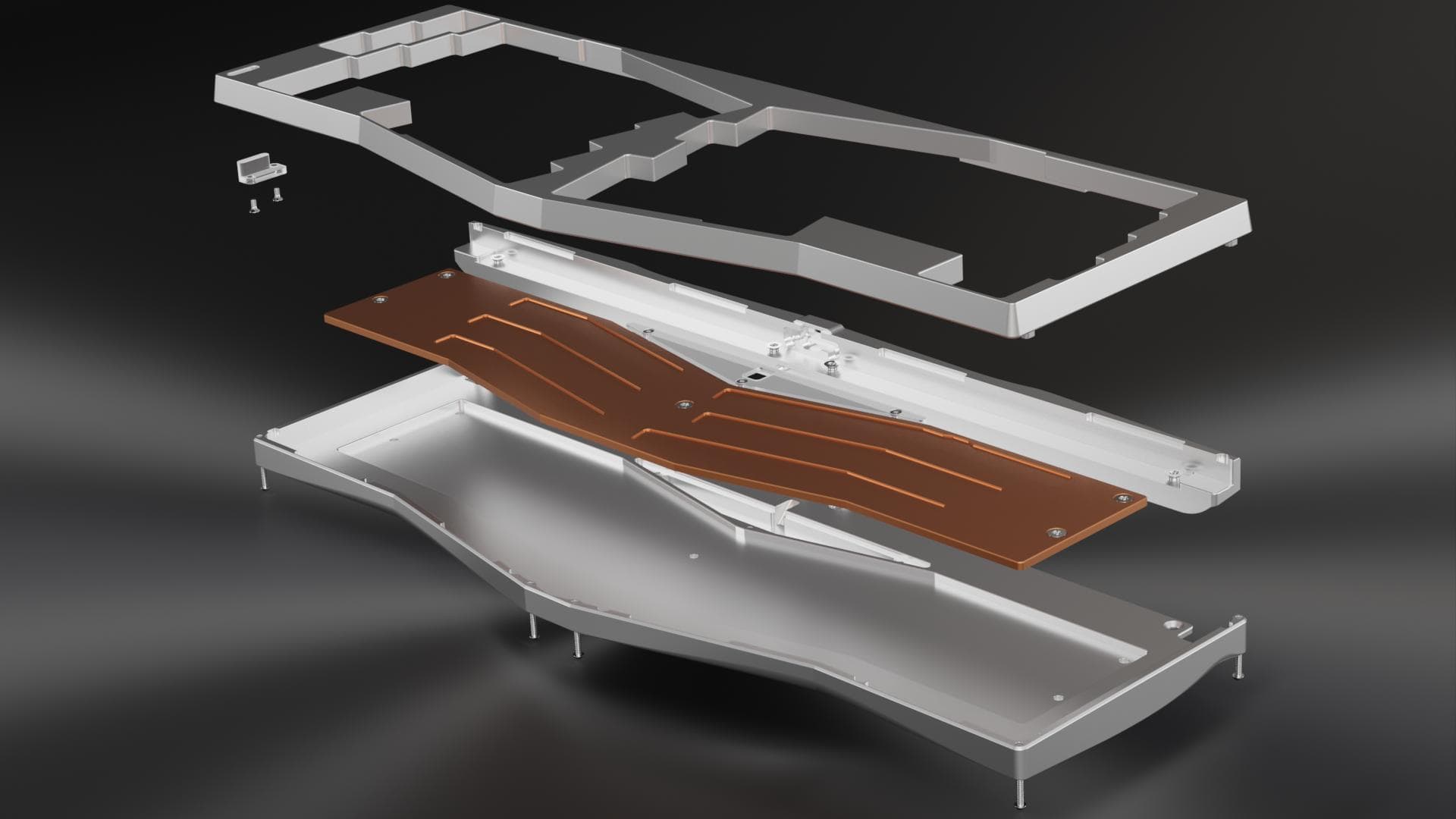

Renders

Render Album:
https://imgur.com/a/fWmSfvR

Sound Tests
This is the third prototype
Lightning Sound Test (Alu half, JWK Cotton Candy, Tab O-Ring mount)

Nainaigogo Sound Test 1 (PC Plate, Stock Mode Obscuras, Tab O-Ring mount)

Nainaigogo Sound Test 2 (PC Plate, Stock Punkshoo Runners, Tab O-Ring mount)

This is the second prototype
Alexotos VOD

Built with broken-in MX blacks on a PC plate, GMK WoB

Color Options, Plates and PCBs
Body: Black, Silver, Light Purple, Dark Red, Pink
Outer Piece: Anodized Alu (matched to the body), Clear-Coated Copper, Raw SS304
Due to a manufacturer change, the outer piece can no longer be offered in PVD options

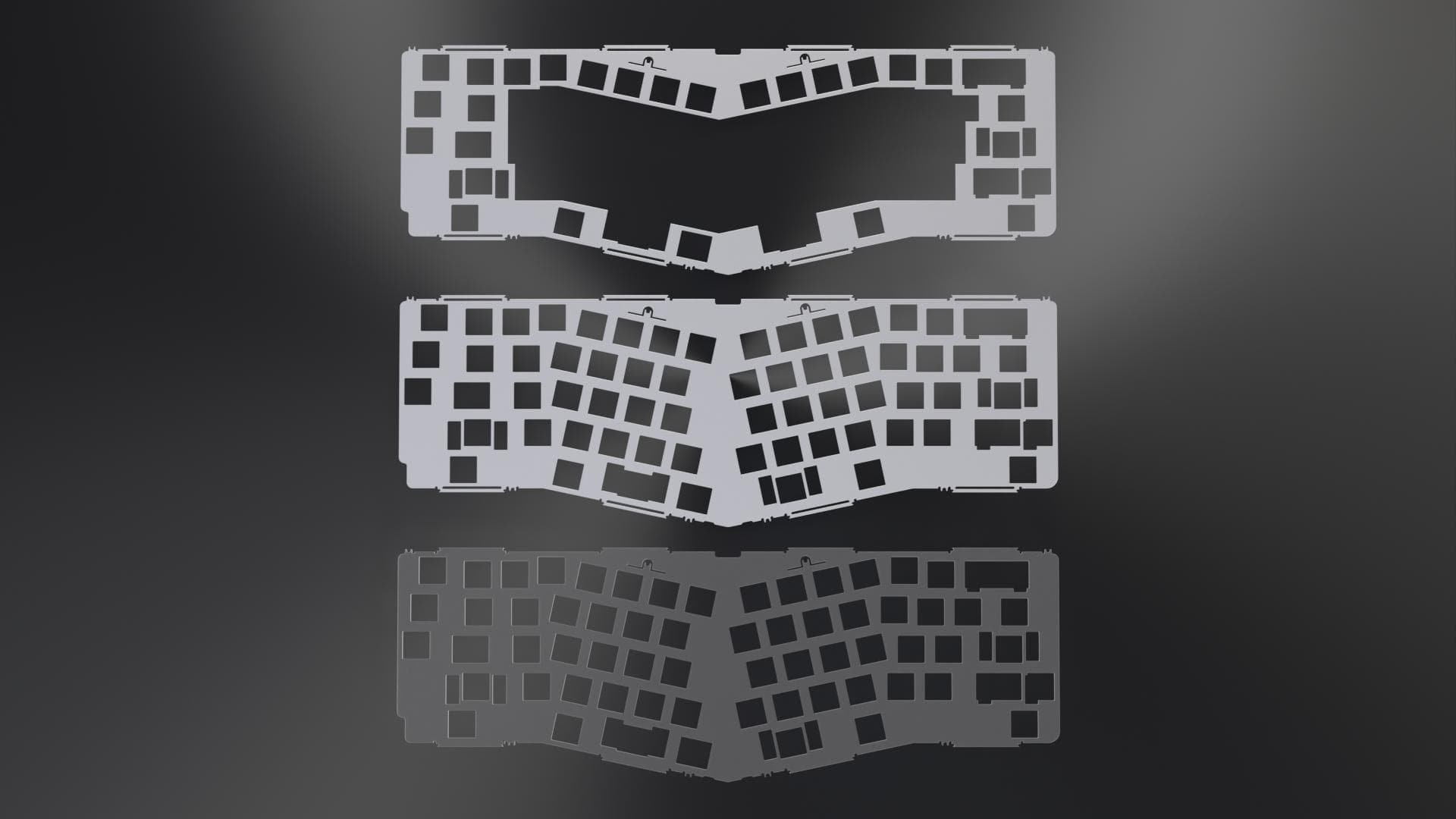

Included plate options will be PC and Aluminum, Alu Half plates can be purchased as an add-on

You can choose between no PCB, the Sneakbox Alice Clone PCB, or the Sneakbox M5 PCBs (either hotswap or solder)

Sale Information
Units: 100 with the possibility of increasing if there is more demand

Pricing (@50 MOQ):
With PCB
Alyssia Standard: $430USD + shipping/tax
Alyssia Copper Upgrade: $480USD + shipping/tax
Alyssia Raw SS Upgrade: $520USD + shipping/tax

NO PCB
Alyssia Standard: $390USD + shipping/tax
Alyssia Copper Upgrade: $440USD + shipping/tax
Alyssia Raw SS Upgrade: $480USD + shipping/tax

Purchase-able Extras:

Outer Pieces (anodized alu, copper and raw SS)
PCBs offered by Sneakbox
Alu plate, pc plate, alu half plate

What's included:

Alyssia Body, Outer Piece, DB Wire Cover, Light Blocker, Inner Weight
PC or Aluminum Plate
PCB or no PCB
Case screws, top mount screws
O-rings
Feet
Carrying Case
Microfiber cloth
DB M3 standoffs (for the M5 PCBs)
Torx screwdrivers (T6, T10)
4.5mm Hex Nut Driver (to help screw/unscrew standoffs)

Vendors and GB Date
Worldwide: Sneabox Design (Woohoo!)
GB Date is currently set for November 19th (11/19/2023)

Prototype Showcase and Streams

Xinxinwong and StarfirePenguin will be showcasing the 5th prototype in November/December!

Alexotos will be building a special Alyssia unit sometime in November/December as well!

Lightning showcased and streamed a build of the 3rd prototype!
You can watch the VOD here: https://www.youtube.com/watch?v=eqzDwSM2MbM

Nainaigogo showcased and streamed a build of the 3rd prototype!
You can watch the VOD here: https://www.twitch.tv/nainaigogo

Alexotos showcased a build of the 2nd prototype!
You can view the VOD here https://www.youtube.com/watch?v=MSx6JCNESB8

Changelog

Prototype 1:

Initial design, had a sandblasted stainless steel outer piece, no external fillets/chamfers,
used 4 M1.4 screws to screw the case together, uniform floor below PCB, slightly larger internal weight, less aggressive exaggerated seam

Prototype 2:

Changed outer piece to PVD aluminum/increased size of outer piece, added more external fillets and chamfers,
uses 6 M1.6 screws to screw the case together, floor below PCB has been raised around modifiers and numbers, internal weight shaped around alphas,
more aggressive exaggerated seam, changed design of case alignment tabs, added more material to the top case

Prototype 3:

Reduced feet height by 0.5mm
Lowered height of USB-C opening by 0.3mm
Top mount added
Alignment pins are larger
Alignment post added to outer piece
Top piece now has a uniform fillet all around rather than a larger fillet at the front edge with smaller fillets on the other edges
Ledge in bottom piece has a more stepped design
Inner weight thickness increased to 2.5mm, .5mm alpha cuts added
Plate tabs adjusted to better fit o-rings
Changed screws to M2

Prototype 4:

Added compatibility for Sneakbox M5 PCB, added compatibility for fly daughterboard
Added a wire channel for daughterboard wires, designed a cover for the hole
Changed miscellaneous fillets to chamfers
Removed two alignment pins that were unnecessary

Prototype 5:

Cleaned up minor issues with Proto 4 daughterboard implementation

Comments

I plan on releasing these files after the GB:
Plate file
Light diffuser file
Internal weight file
DB Wire Cover file
Shape of gaskets file (to allow people to get custom cut foam gaskets if they prefer)

As there are no widely available Alice PCBs that use a daughterboard I opted to design the board around top-mounted USB-C Alice PCBs,
but if there ever comes a time when Alice PCBs that use daughterboards do become widely available
I will redesign the outer piece to fit them if possible and release the file

I've decided to add compatibility with Sneakbox's M5 PCB (which has it's own db design) and the fly daughterboard,
although there are some limitations when using the fly daughterboard

1. PCB shape needs to have a small cutout at the top like the M5 PCB
(meaning the Dolice PCB isn't gonna work cause it has the same shape as original Alice PCBs)

2. If the PCB uses a molex connector it should be good, if it uses JST you'll have to either remove the inner weight
or the JST has to be in the same spot as the M5 PCB

Special Thanks To

Yuktsi for the TGR Alice, for open sourcing the layout, and for my eventual love of typing on Alice keyboards
All the Alice designers out there, I love all of your boards, they are all beautiful
heyimpanda for being a great friend both in and outside of this hobby and for building the second prototype/creating the sound test
Alexotos for agreeing to showcase the 2nd prototype, love you Alex!
Nainaigogo for agreeing to showcase the 3rd prototype, YOU'RE AMAZING NAINAI!
Lightning for agreeing to showcase the 3rd prototype, THANK YOU SO MUCH LIGHTNING I'M A HUGE FAN
Muji from Sneakbox Design for being an awesome dude and for supporting the project, thank you so much Muji!
The community for being awesome, for instilling in me my love of keyboards and design, and for creating amazing stuff that continues to inspire me

To Do
Get IC 1 results
Get IC 2 results
Get IC 3 results
Order proto 3
Send proto 3 out to streamers/reviewers
Do more renders and get better ones
Order proto 4
Get a vendor onboard
Finalize pricing and options
Begin GB!

Once again, please consider filling out IC 3! https://forms.gle/cexUrgT3Hv2bEGqe8
