ASCII-F : 65TK || Plateless Top Mount - GB OVER

ASCII-F
PCB Top Mount 65TK




When I picked up an old WYSE ASCII off Craigslist, it reminded me of a keyboard layout I desired a few years ago: a full 65% keyboard with a complete numpad that includes arrow keys, a navigation cluster (PgUp, PgDn, Home, End), and a 2u 0 (zero) key on the numpad.

Taking design cues from some of my favorite keyboards, I kept the bezel quite thin and the overall profile simple and slim.

The Plateless Top Mount provides a soft and 'bouncy' typing experience without being flexible. If soldering plateless is a daunting task for you, we will have options available for hotswap PCBs and plates.

Group Buy starts on January 13th, 2025 and ends on March 1st, 2025
Estimated fulfillment date - May 2025

- enomooshiKey IG
- zenclack IG
- Zenclack Discord



0. CONTENTS

• DETAILS
• STATUS & UPDATES
• VENDORS & PRICING
• RENDERS
• PHOTOS
• OTHER MEDIA
• SPECIAL THANKS

1. DETAILS

• Typing angle 7.0°
• Front Height : 17.8mm (after cherry lip), 20mm (before cherry lip)
• Mounting Method : Plateless Top Mount

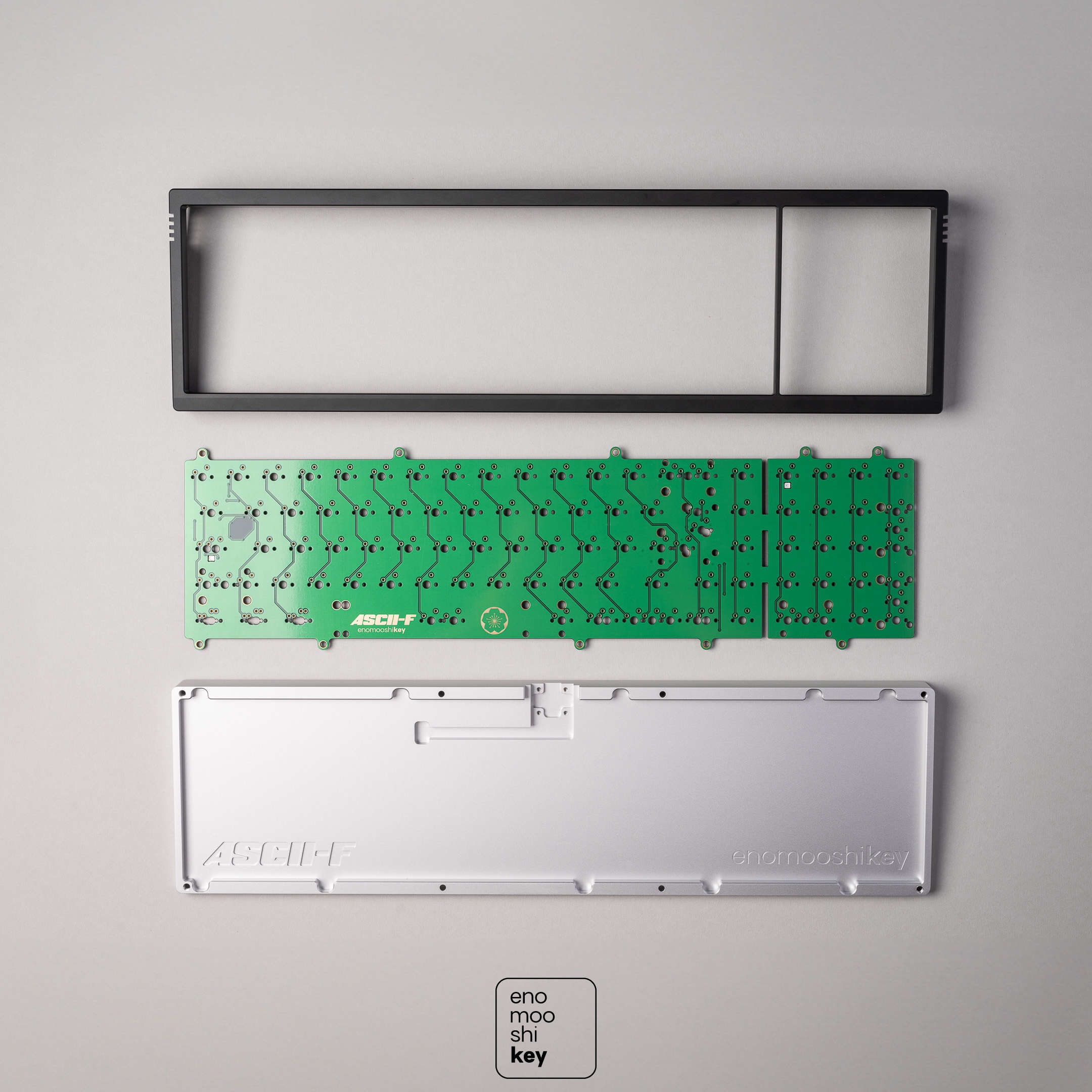

• PCB : Designed by Freather with Universal USB-C daughteboard - configurable with QMK/VIA

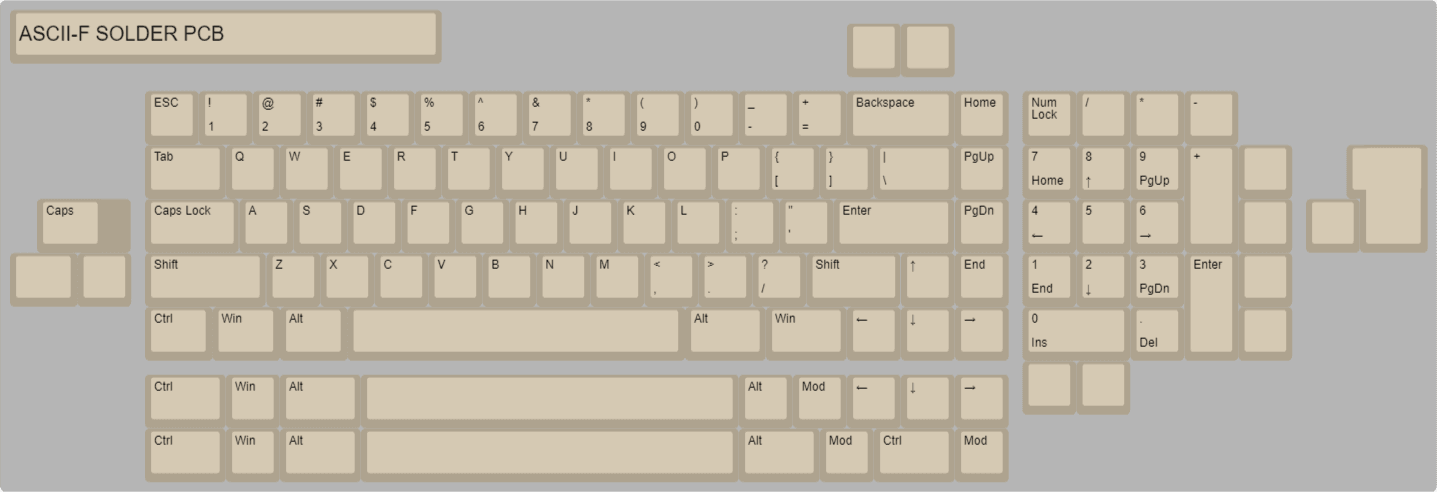

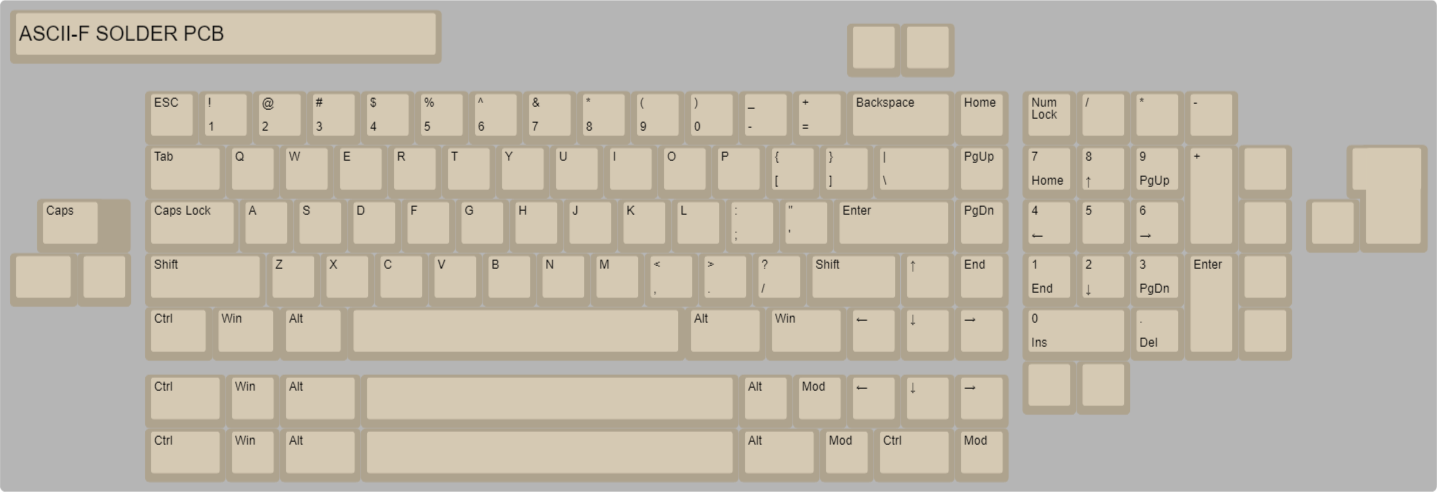

• Solder PCB Layout Option

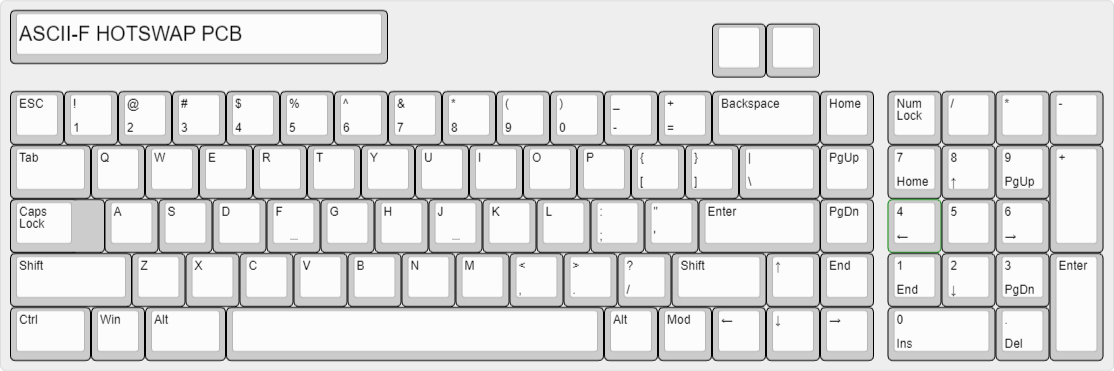

• Hotswap PCB Layout Option

• Base Kit
  - Top Case
  - Bottom Case
  - Daughter Board with JST Cable
  - Solder PCB
  - Carry Case
  - Microfiber Towel
  - Case screws
  - DB screws
  - Top Mount screws

• Case Options
  - Alu Top + Alu Bottom
  - Alu Top + Brass Bottom
  - Alu Top + Copper Bottom (Limited Edition maybe)
• Colors For Alu Top + Alu Bottom
  - Black Top + Silver Bottom
  - E-Beige Top + Silver Bottom
  - E-Beige Top + Black Bottom
  - E-White Top + Black Bottom
  - Silver Top + Black Bottom
• Colors For Alu Top + Brass Bottom/Copper Bottom
  - E-Beige
  - E-White
  - Black
  - Silver
• Weight Unbuilt
  - Alu Top + Alu Bottom = 1.34kg
  - Alu Top + Brass Bottom = 3.46kg
• Plate Options for Hotswap PCB
  - PC
  - FR-4
  - PP
  - Alu
• Optional Alu Wrist Rest : matching anodization or e-coat with top case
• Indicator LED for Caps Lock and Num Lock keys

2. Status & Updates

• Group Buy Started

3. Vendors & Pricing

• Vendors
  -NA: Zenclack
  -Asia/AUS: Zenclack , fulfillment for Korea to be out of Busan
  -UK&EU: Prototypist
  -China : Keyspensory/Freather

• Price
  - Alu Top + Alu Bottom = $250 (with solder PCB) $280 (with Hotswap PCB + plate)
  - Alu Top + Brass Bottom = $450 (with solder PCB) $480 (with Hotswap PCB + plate)
  - Alu Top + Copper bottom (10 units from Zenclack, 5 units for Prototypist, 5 units for Freather's Studio) = $500 (with solder PCB) $530 (with Hotswap PCB + plate)
  - Alu Wrist Rest (color matched to top case) = $50
  - Extra Solder PCB = $40
  - Extra Hotswap PCB = $45
  - Plates = $25


4. Renders

Actual coating and anodizing may look a bit different from these renders. Please use these renderings as a reference.
renders by mur1_fat

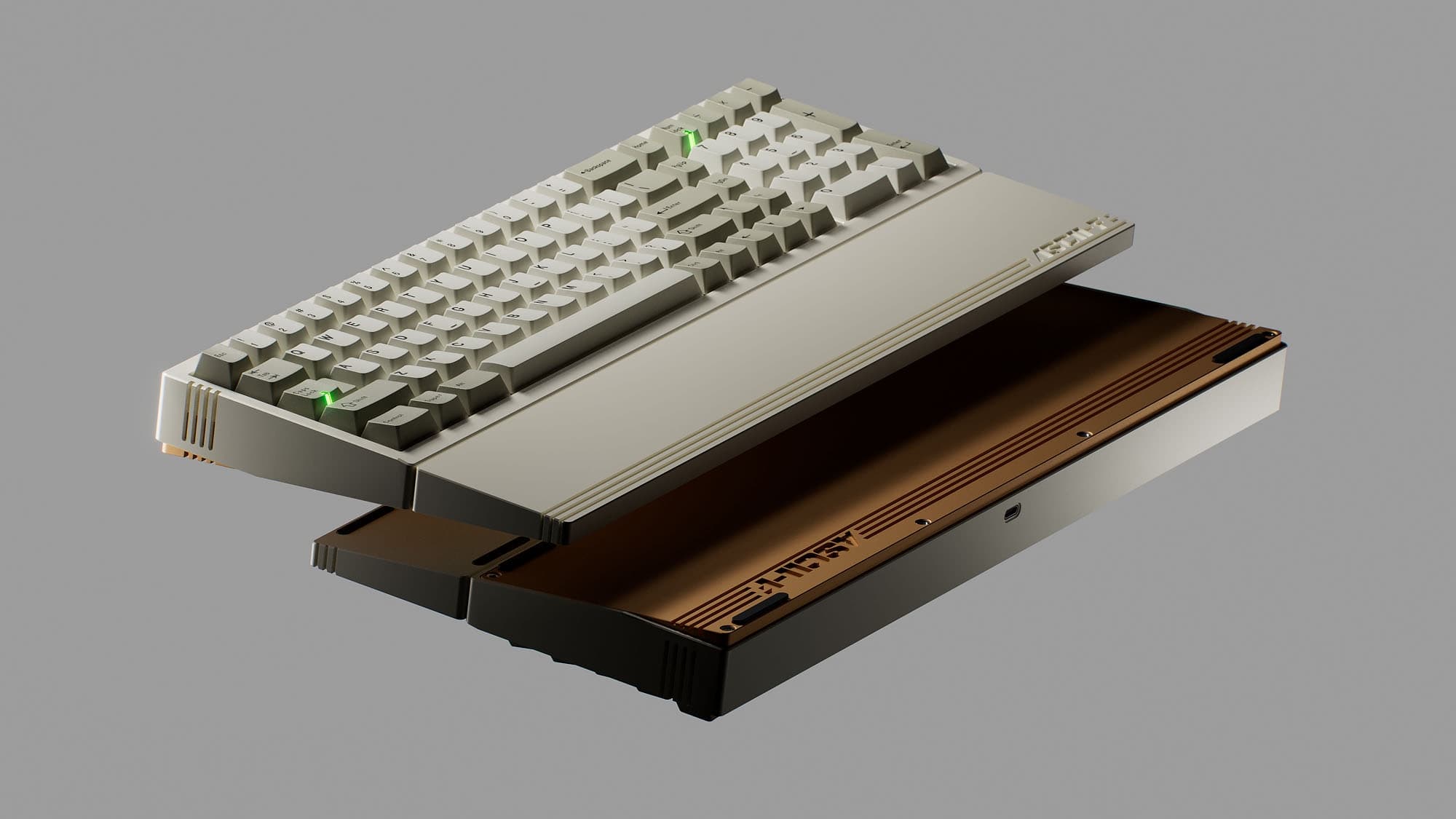

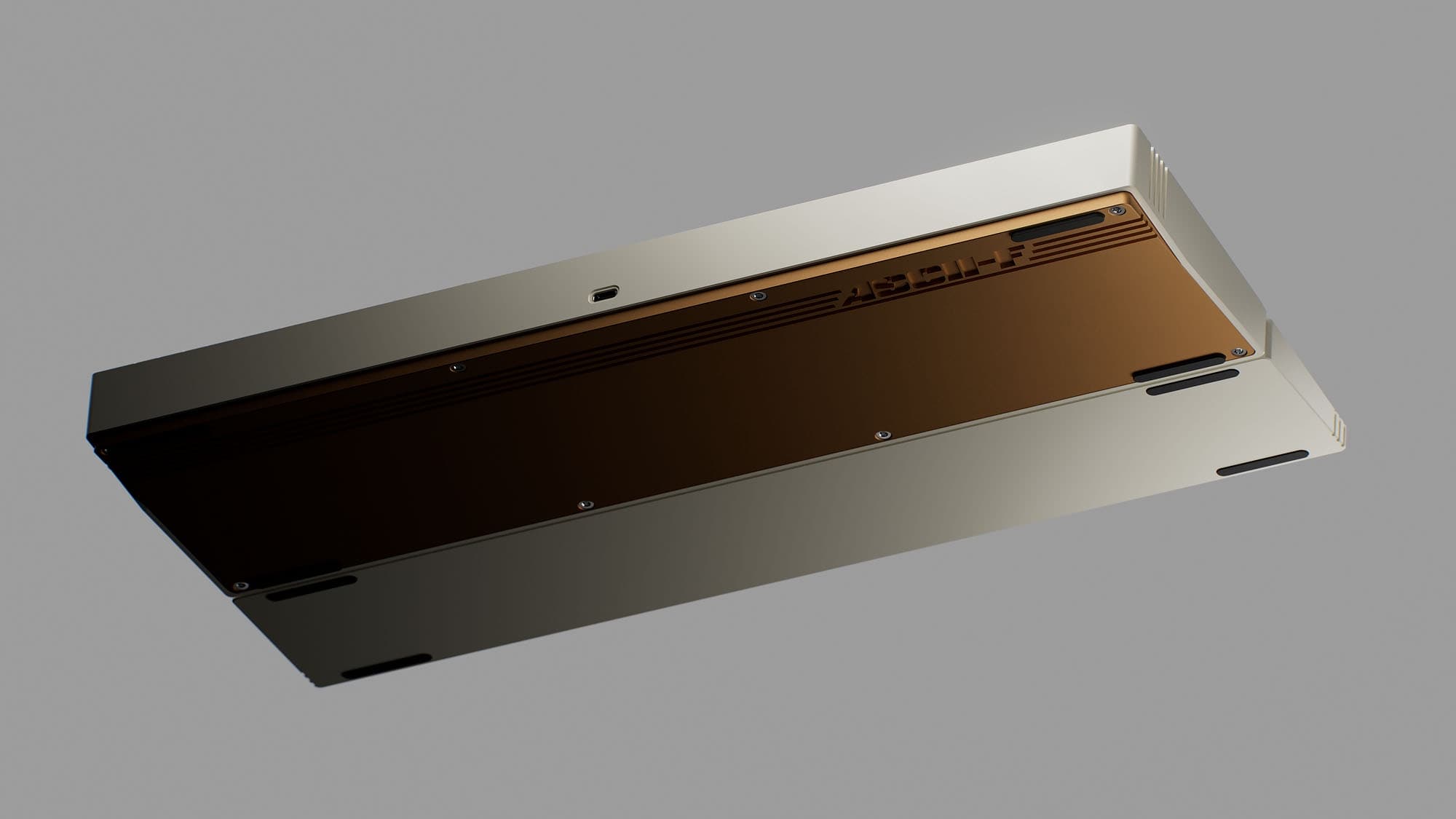

Beige Coating Top + Brass Bottom + GMK Hiney Beige


White Coating Top + Black Ano Bottom + GMK WoB


Silver Ano Top + Brass Bottom + GMK Evil Eye

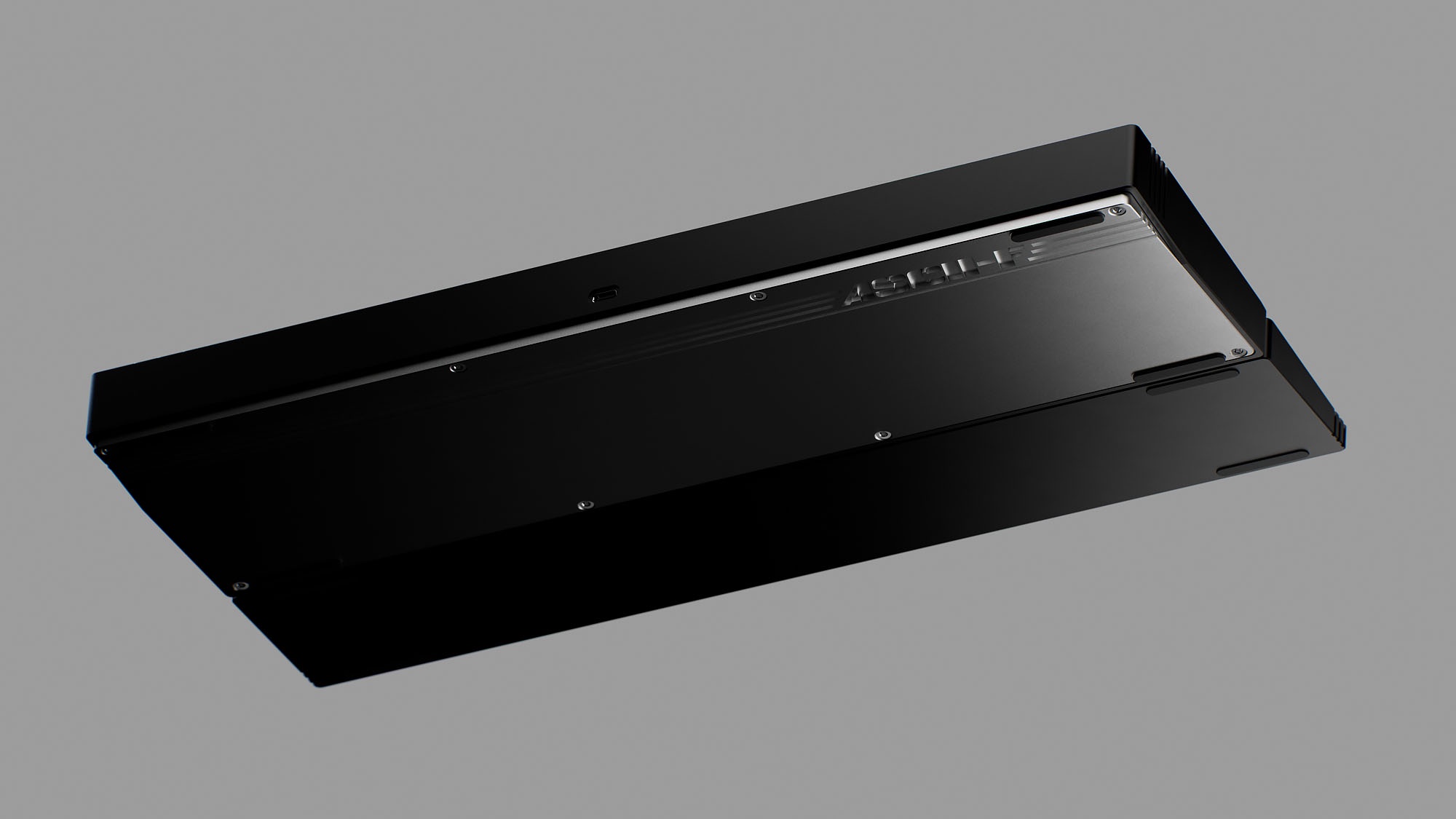

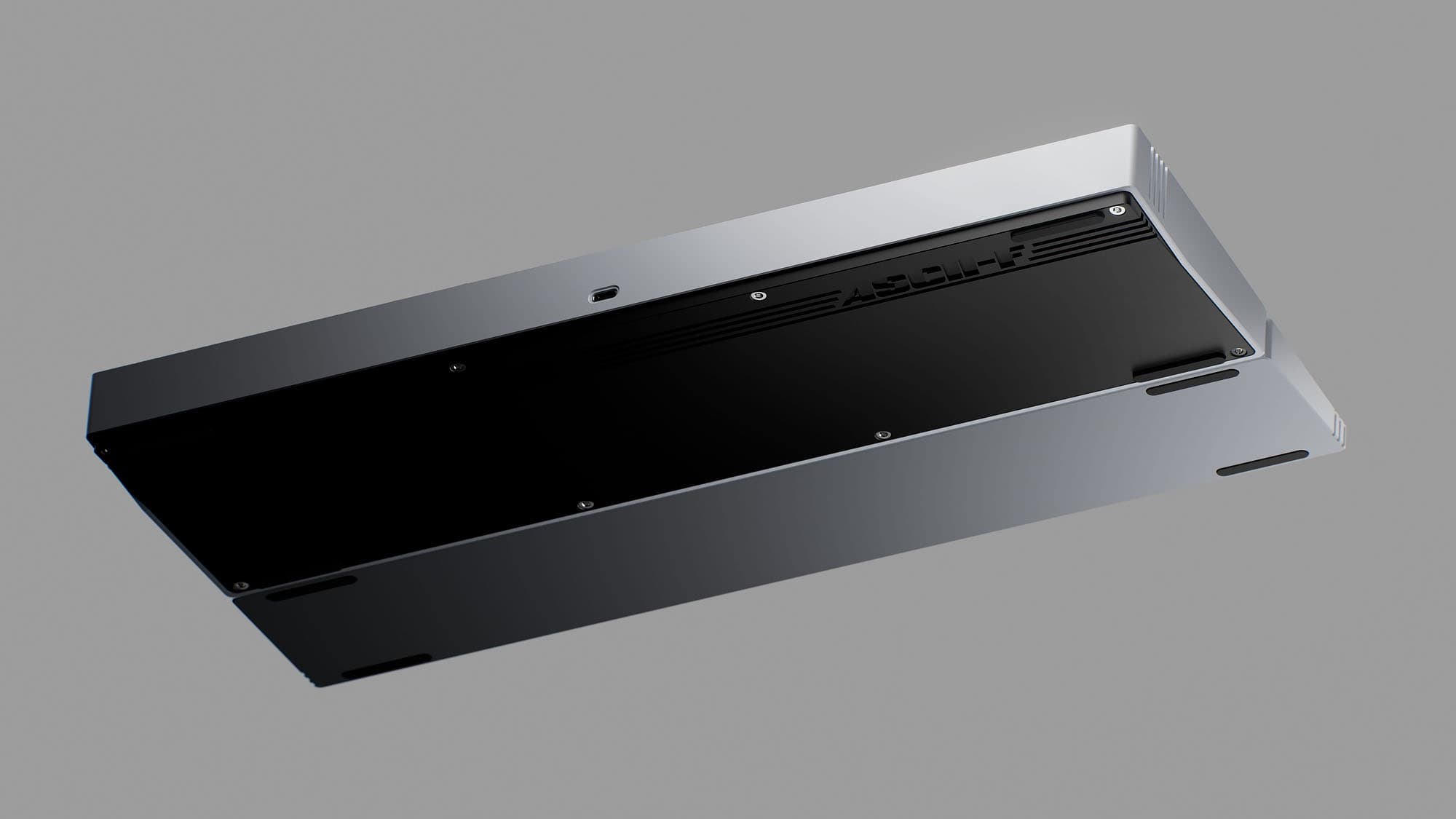

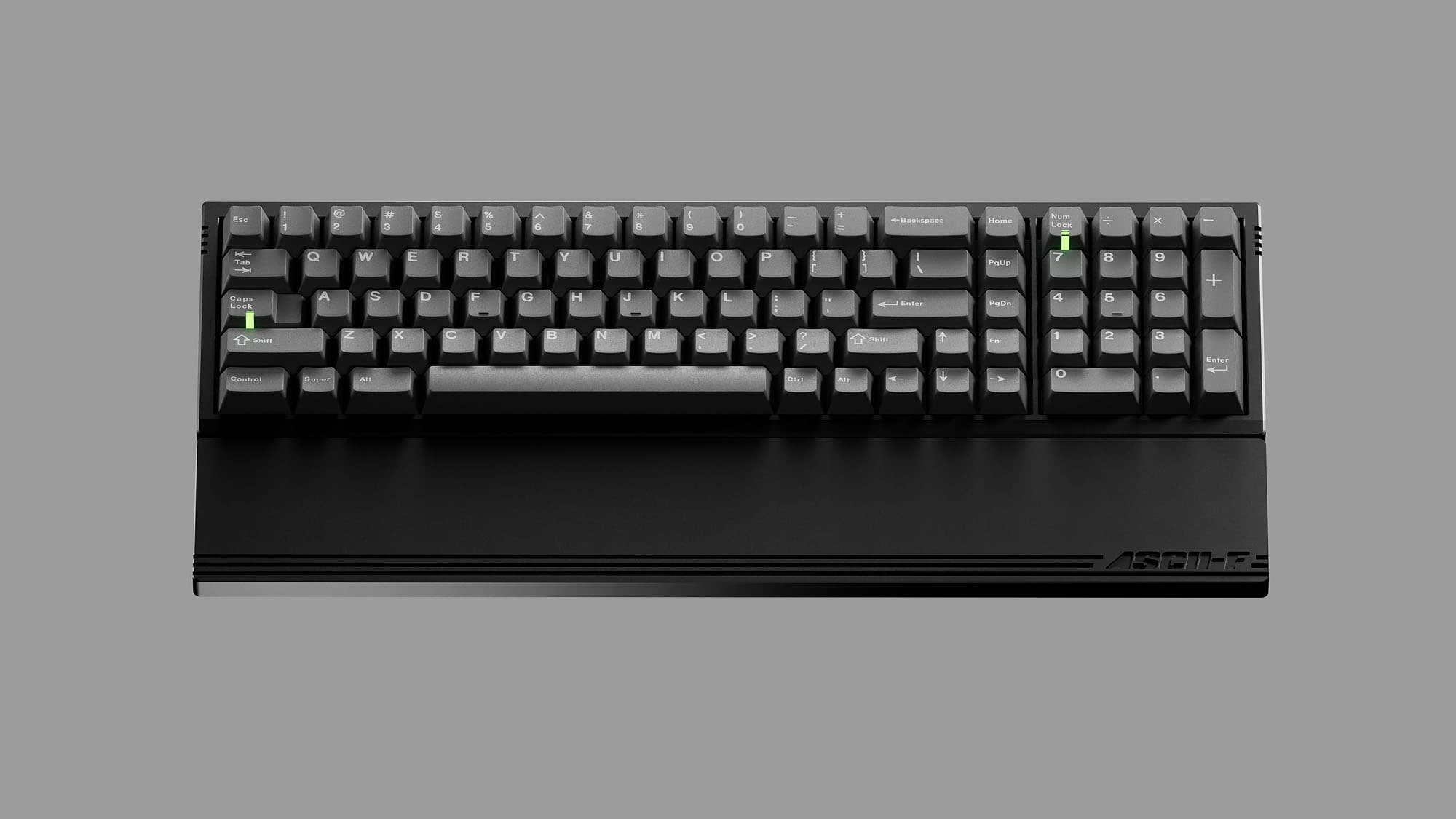

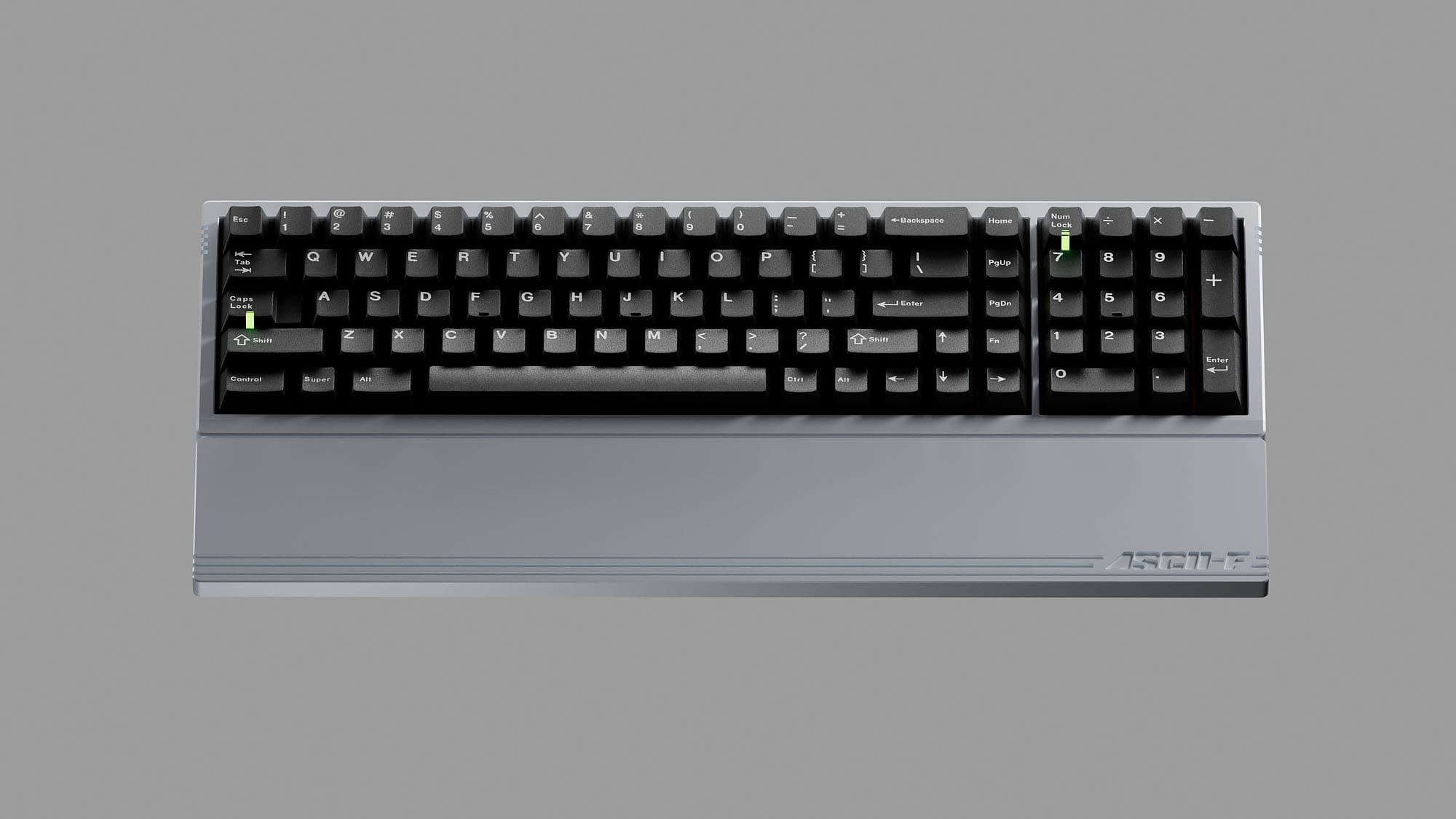

Black Ano Top + Silver Ano Bottom + GMK ASCII

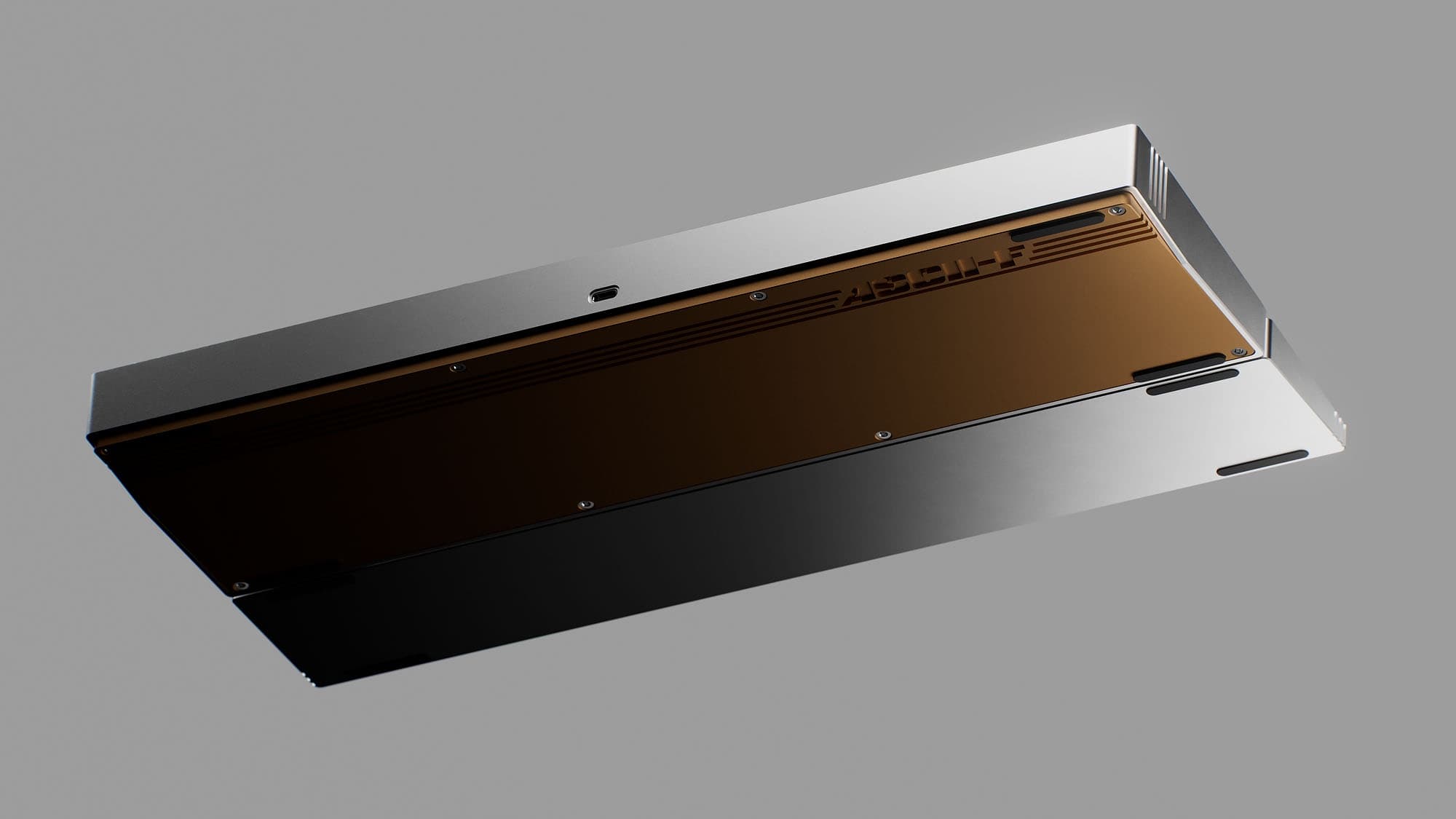

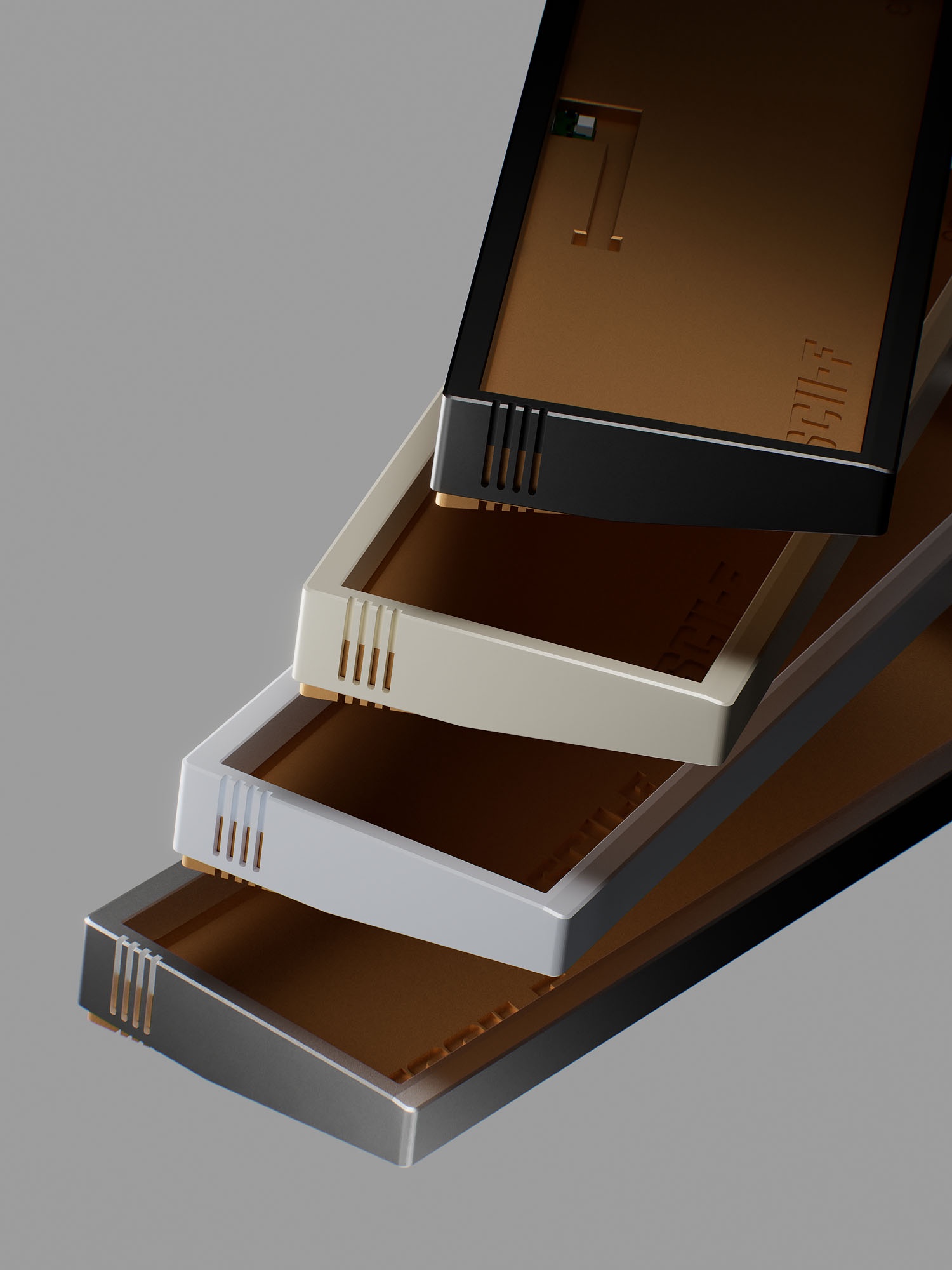

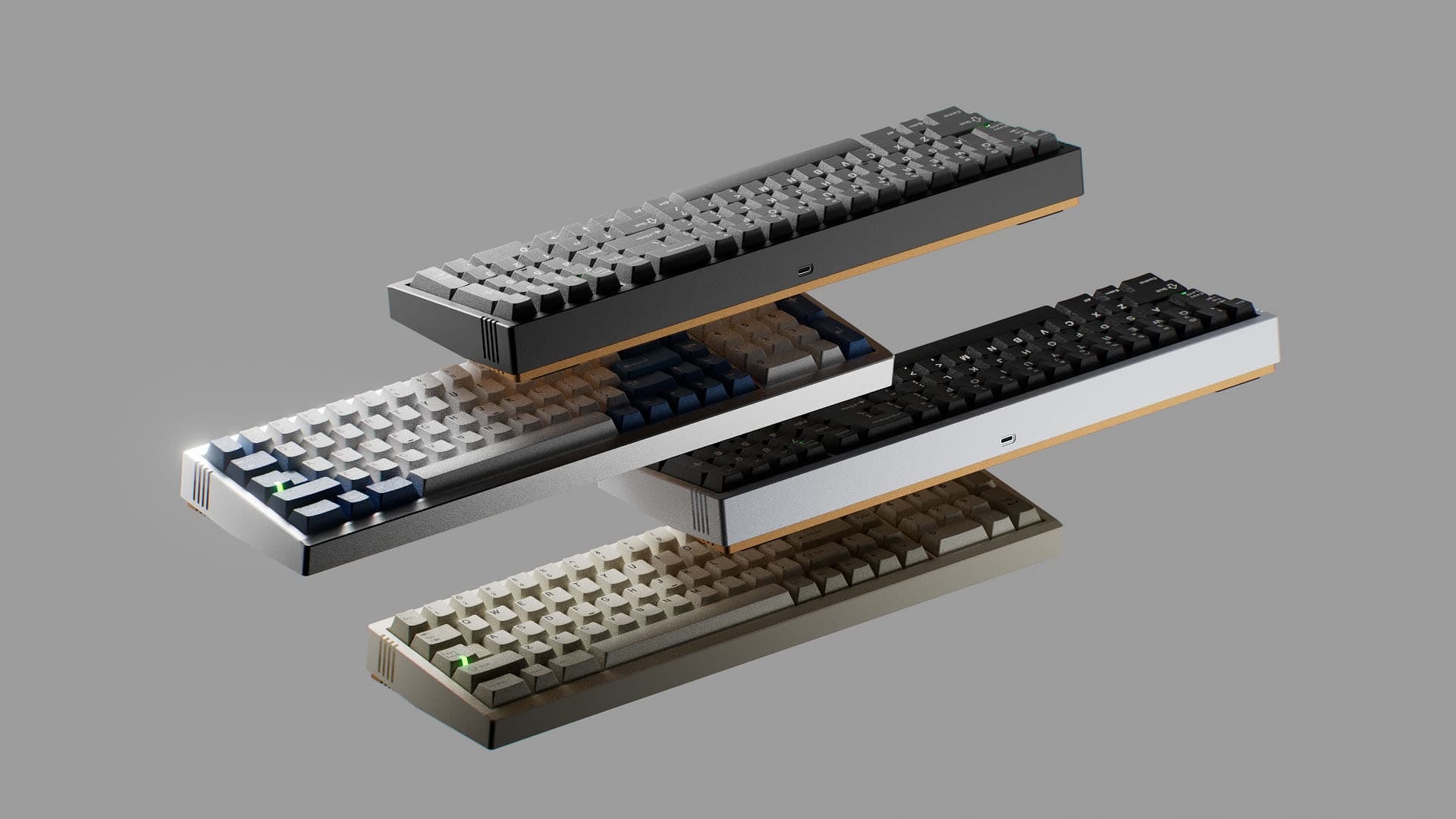

4 Options for Brass Bottom

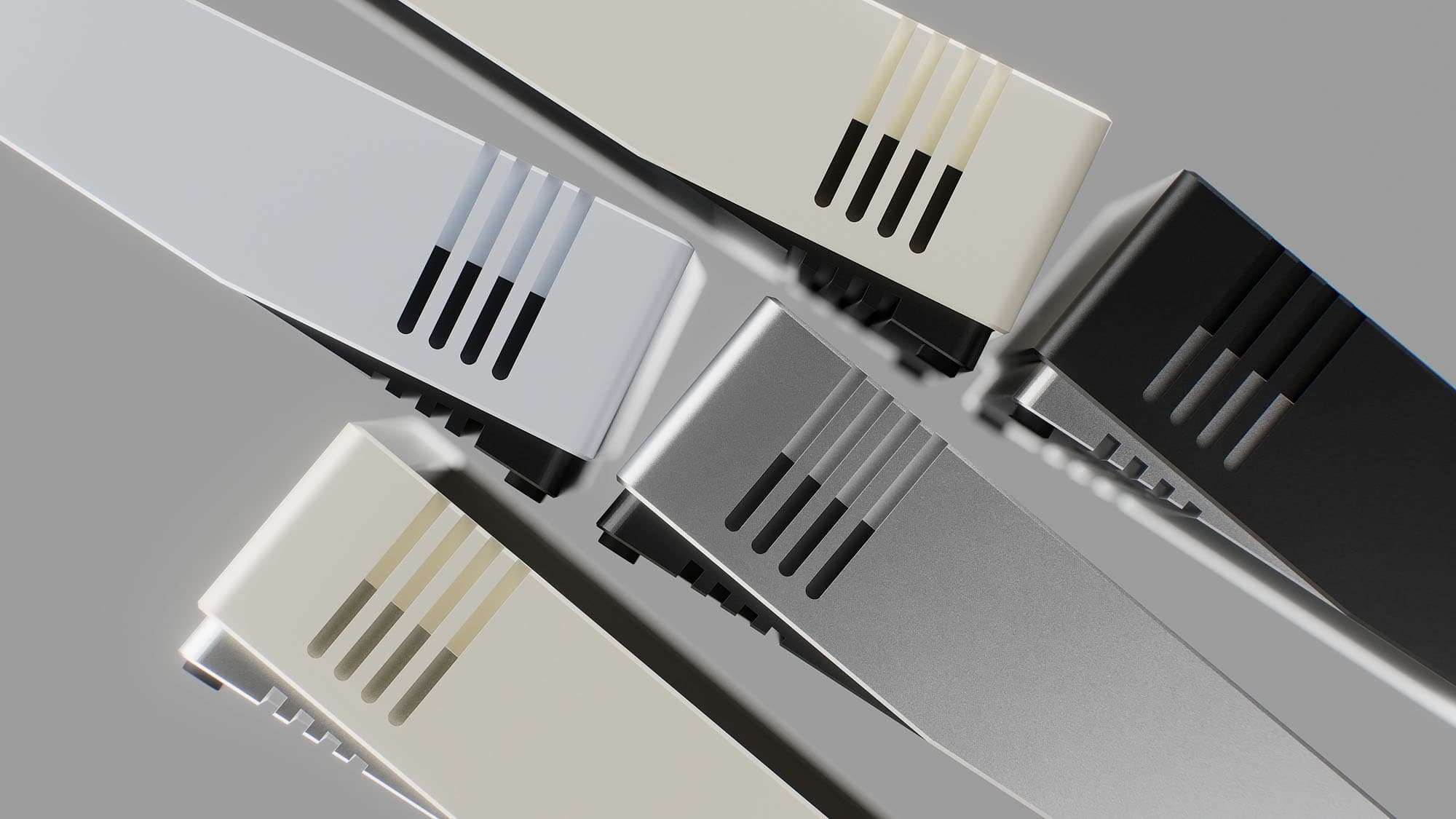

5 Options for Alu Bottom

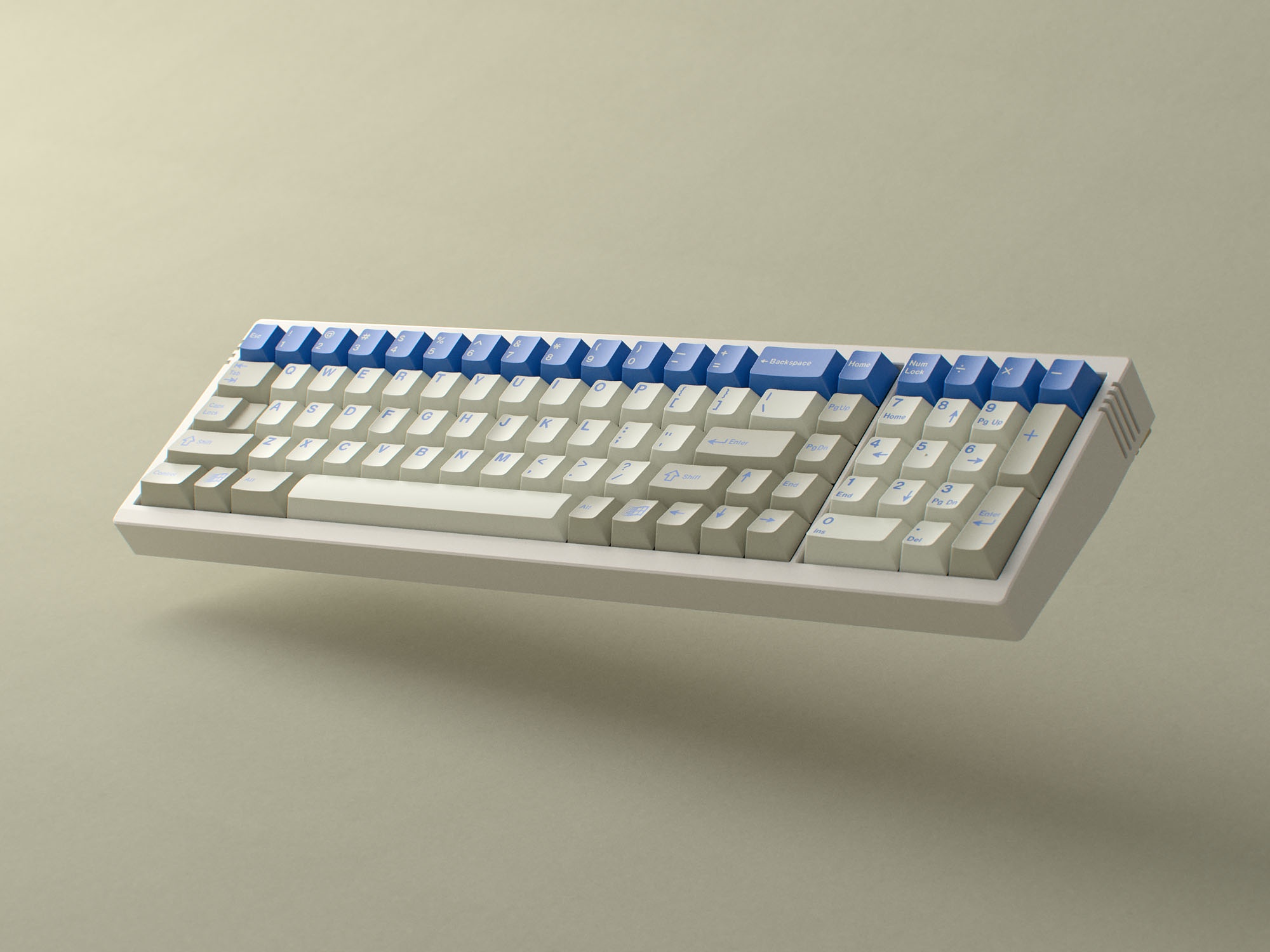

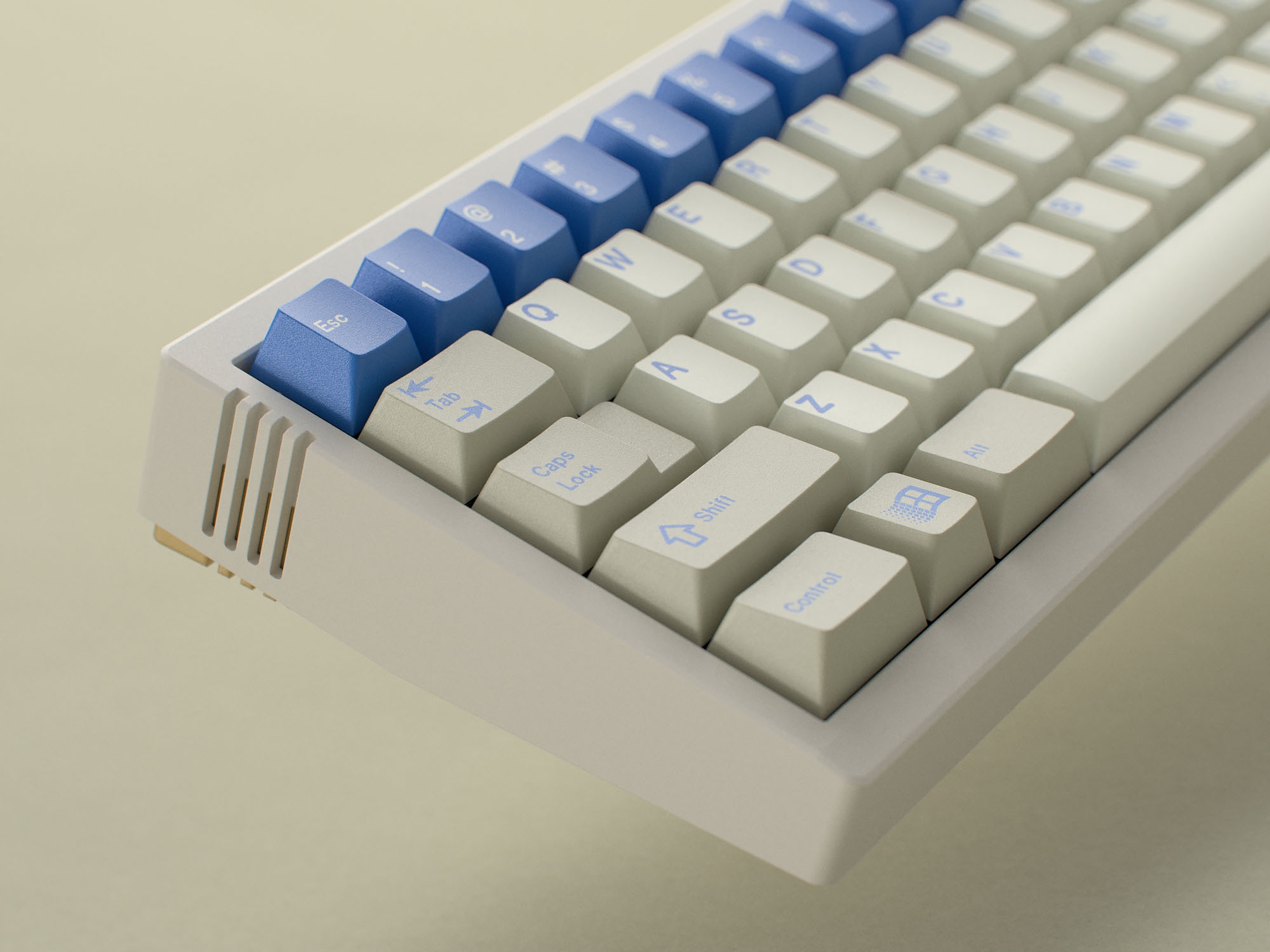

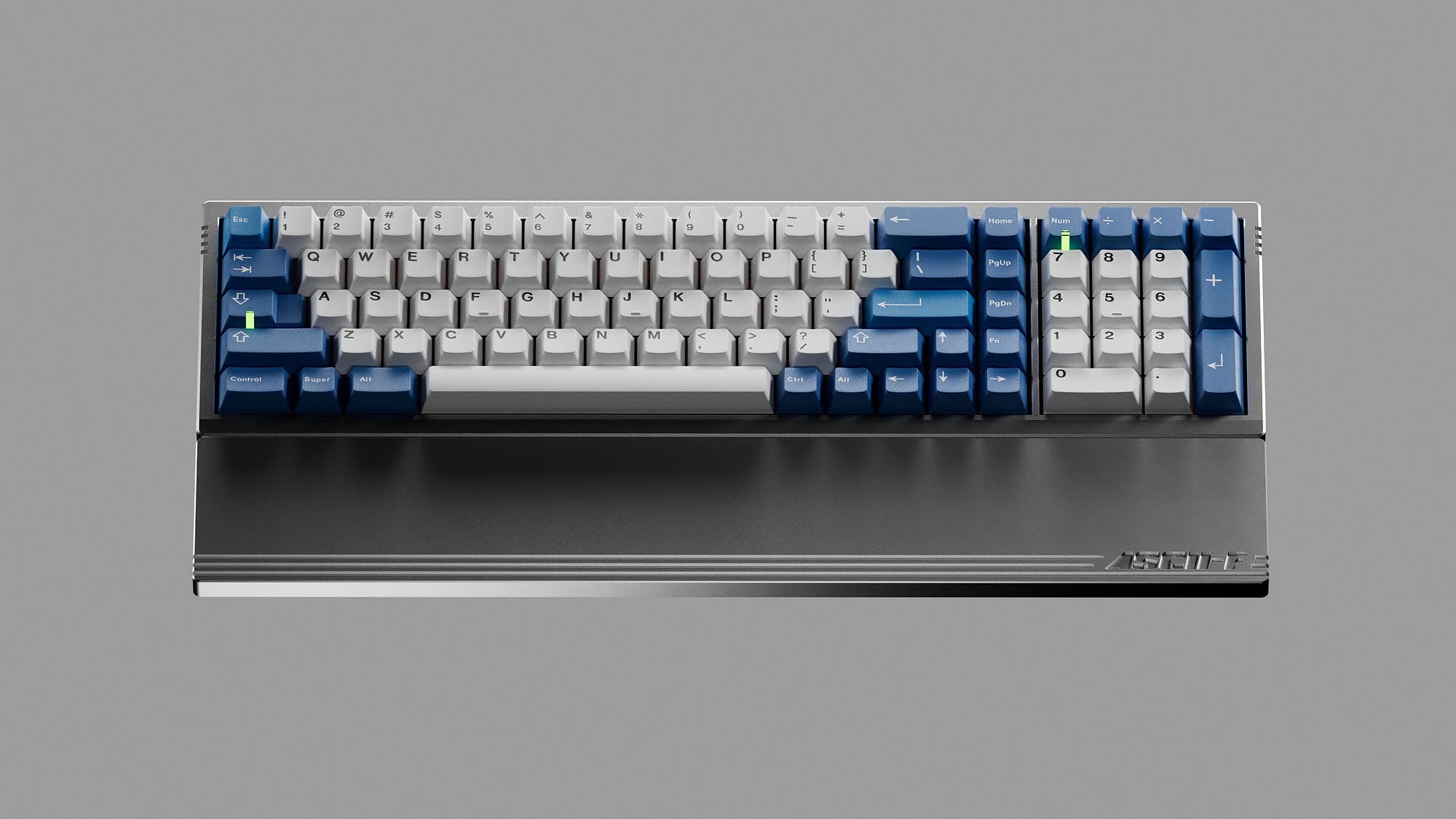

Beige Coating Top + Brass Bottom + GMK Blue Alert R2 (special render by Steven Olver)



5. Photos

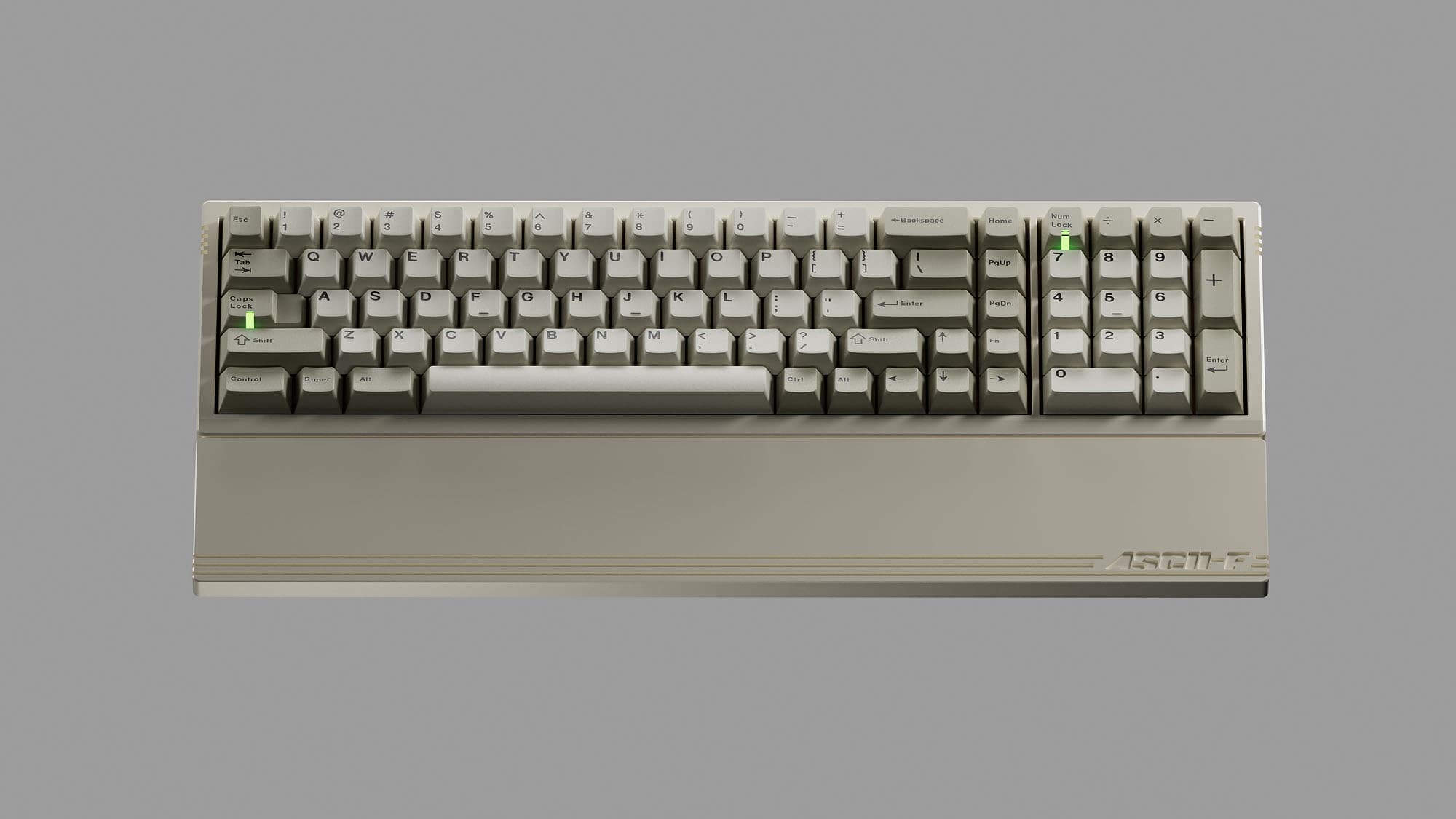

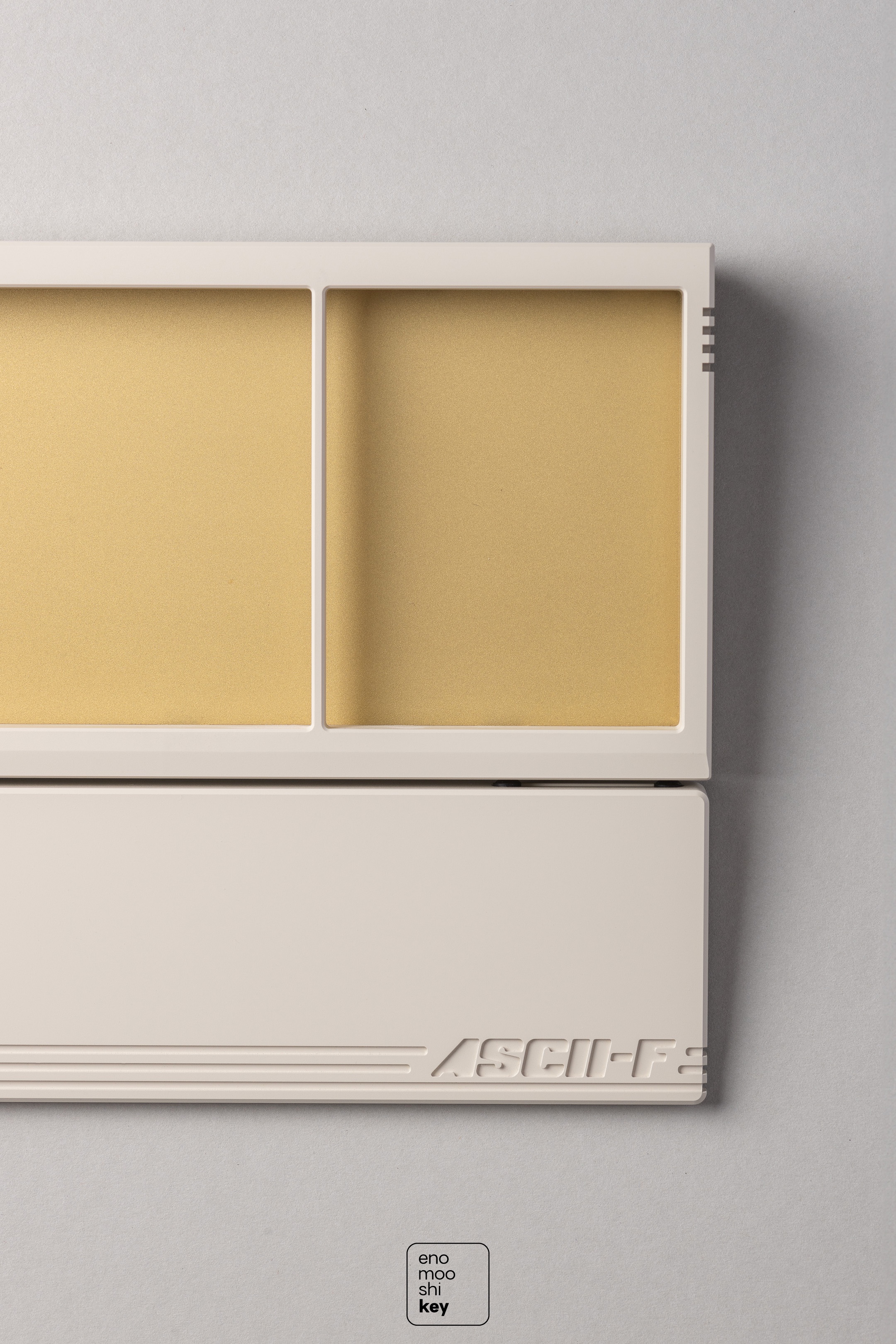

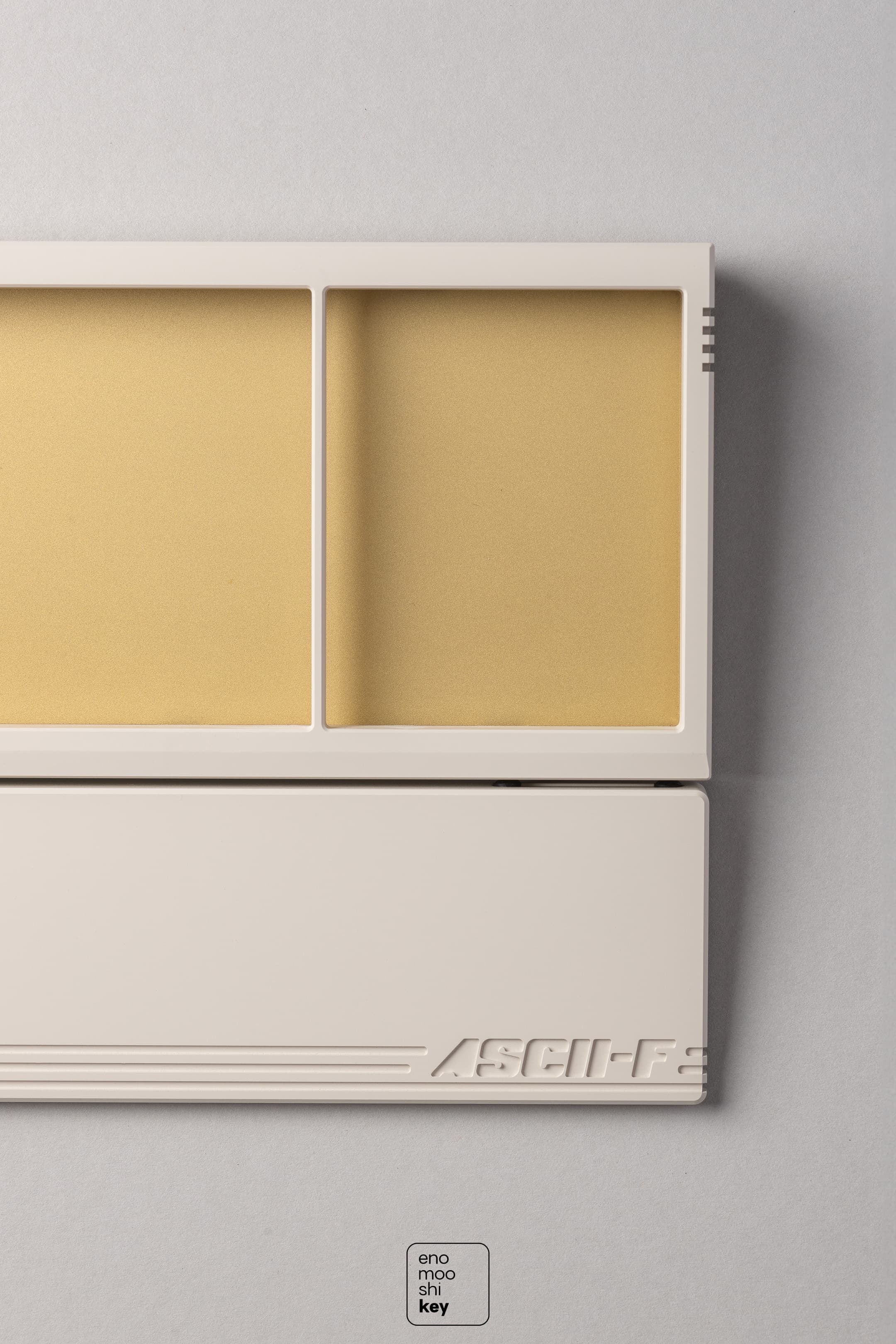

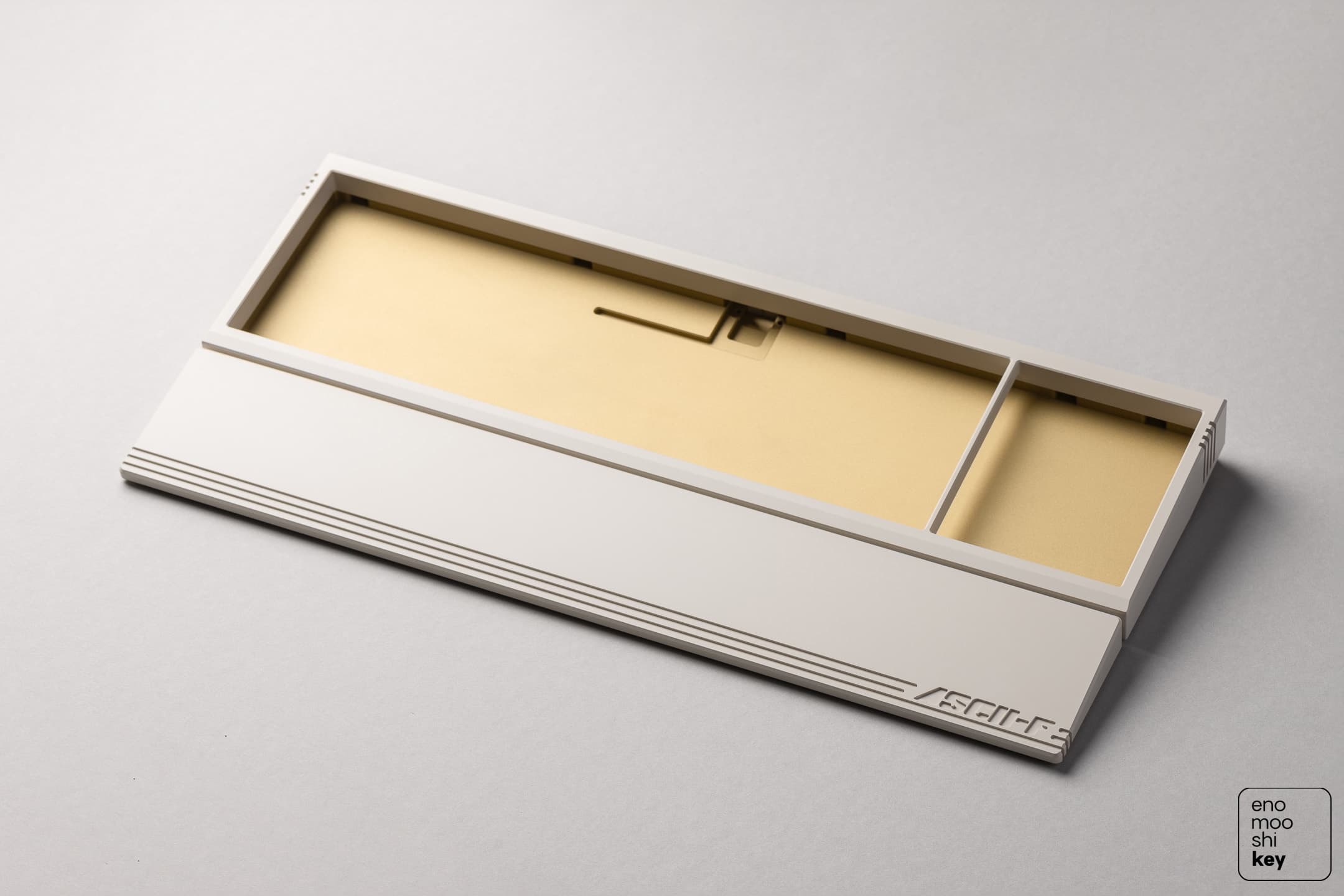

Proto V1 with matching wrist rest

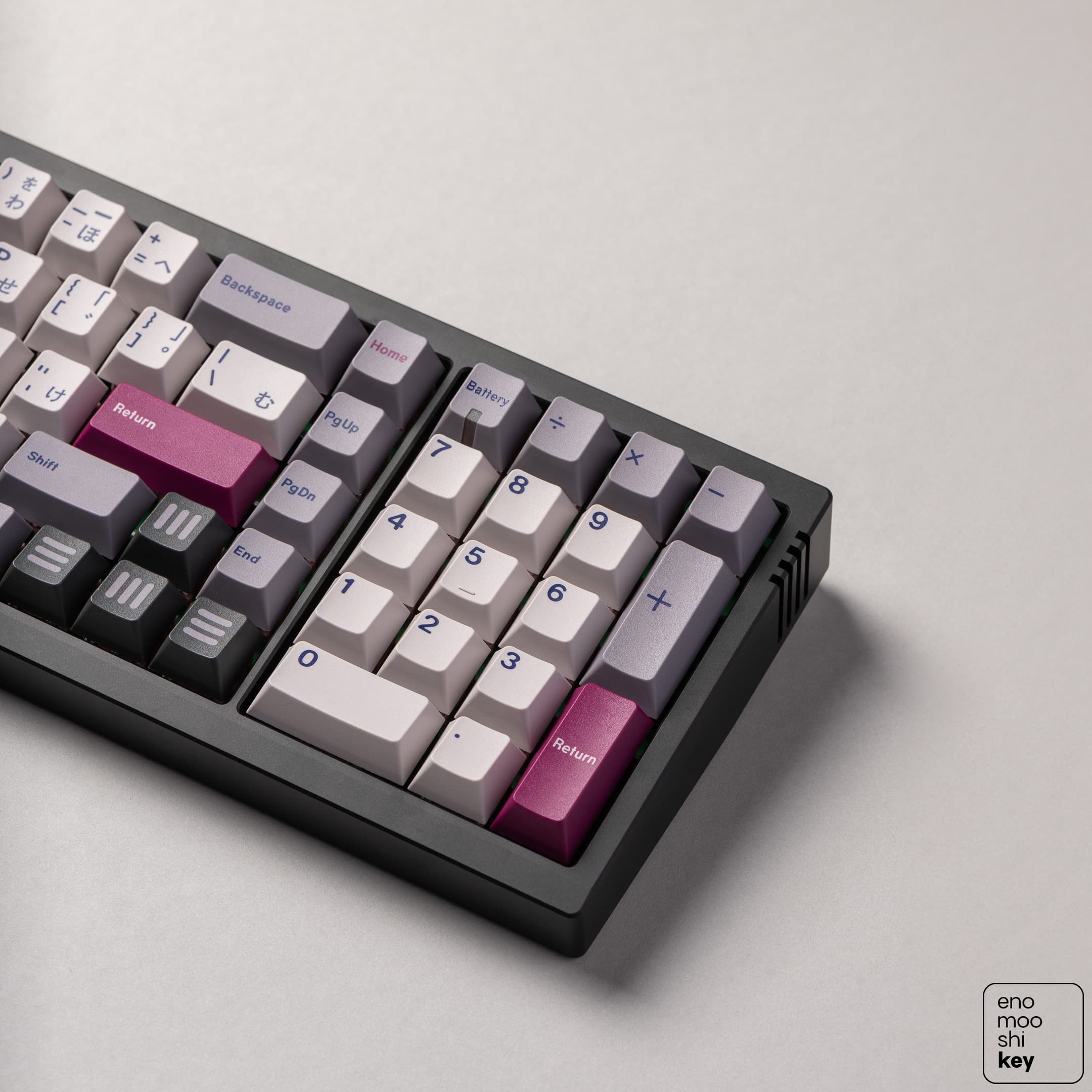

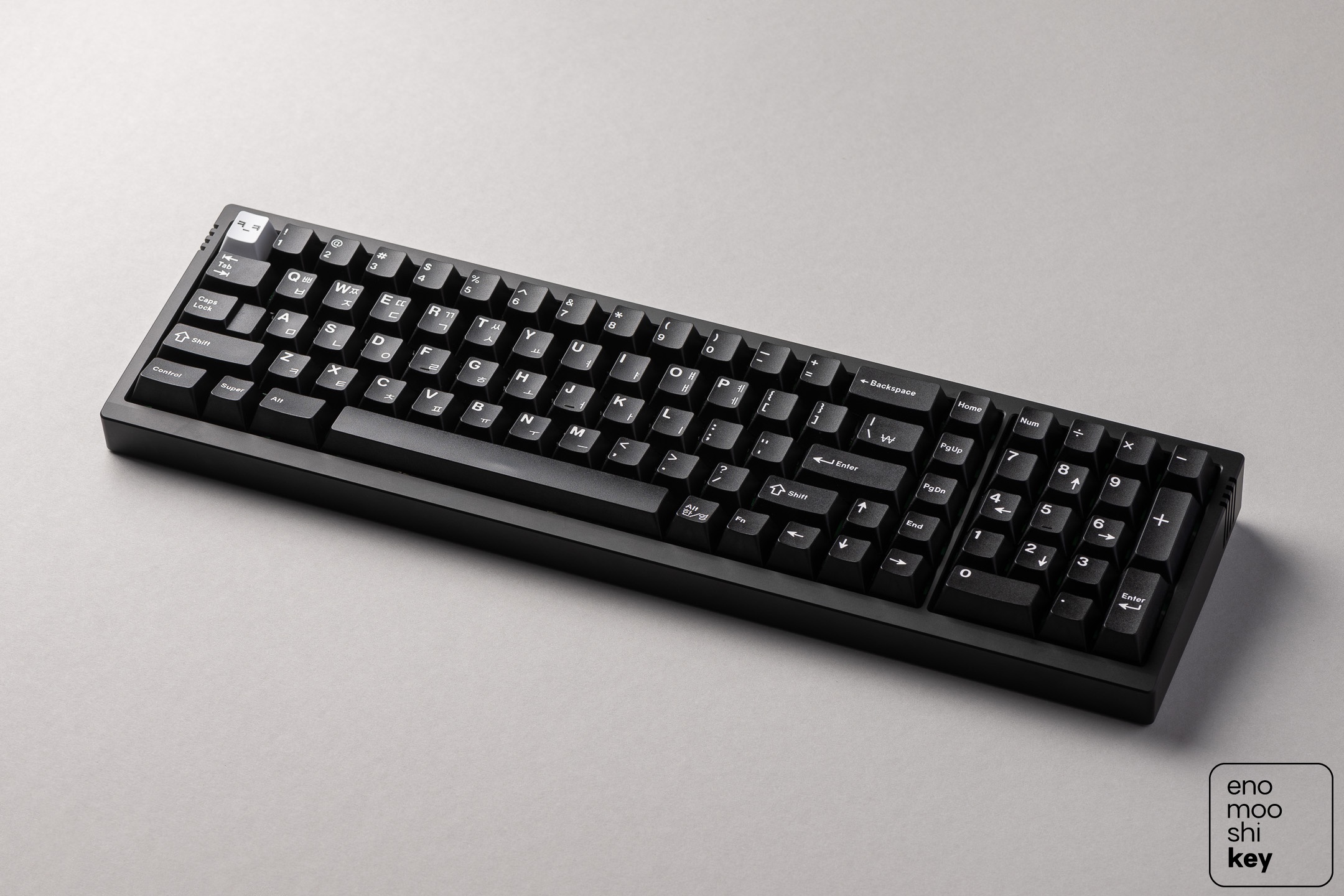

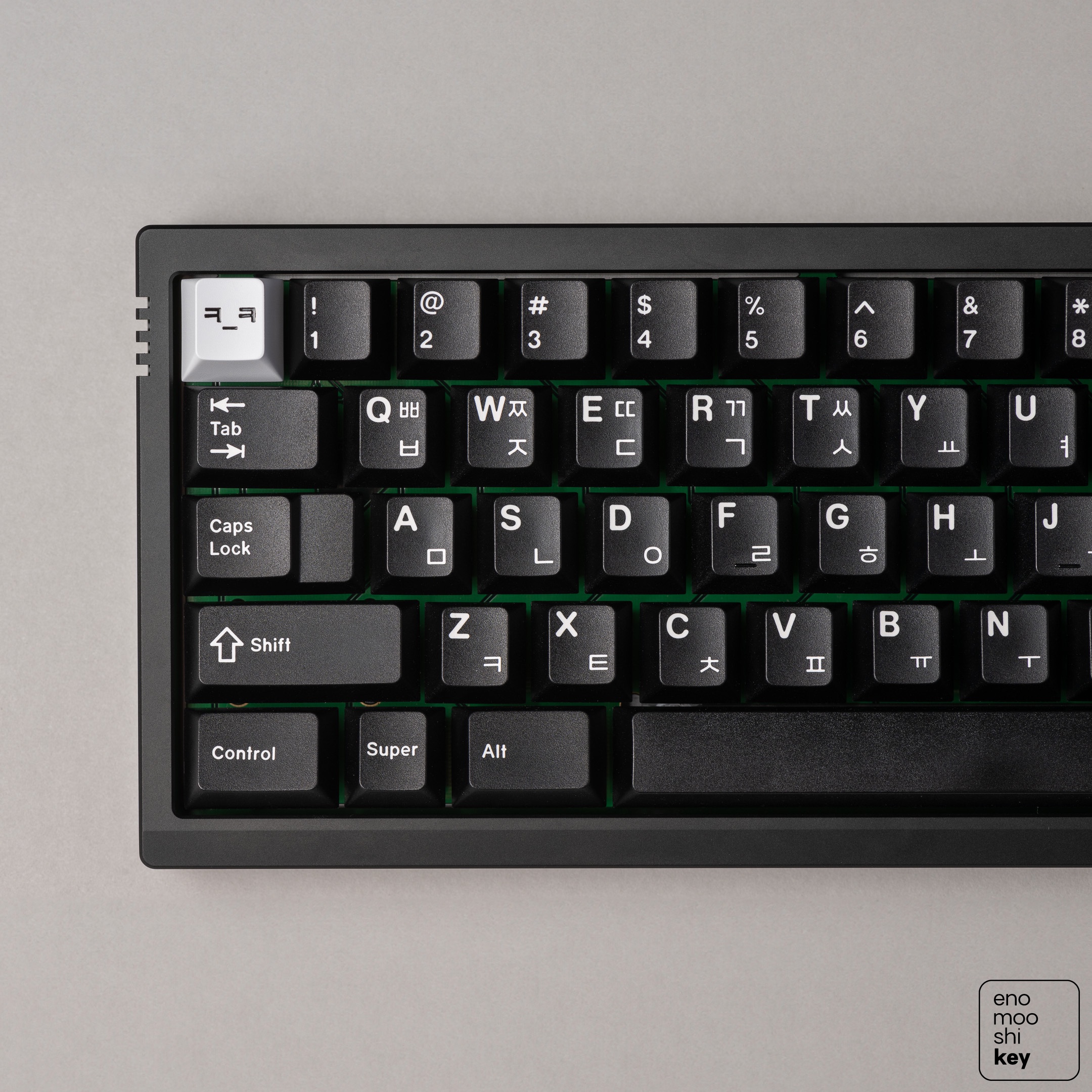

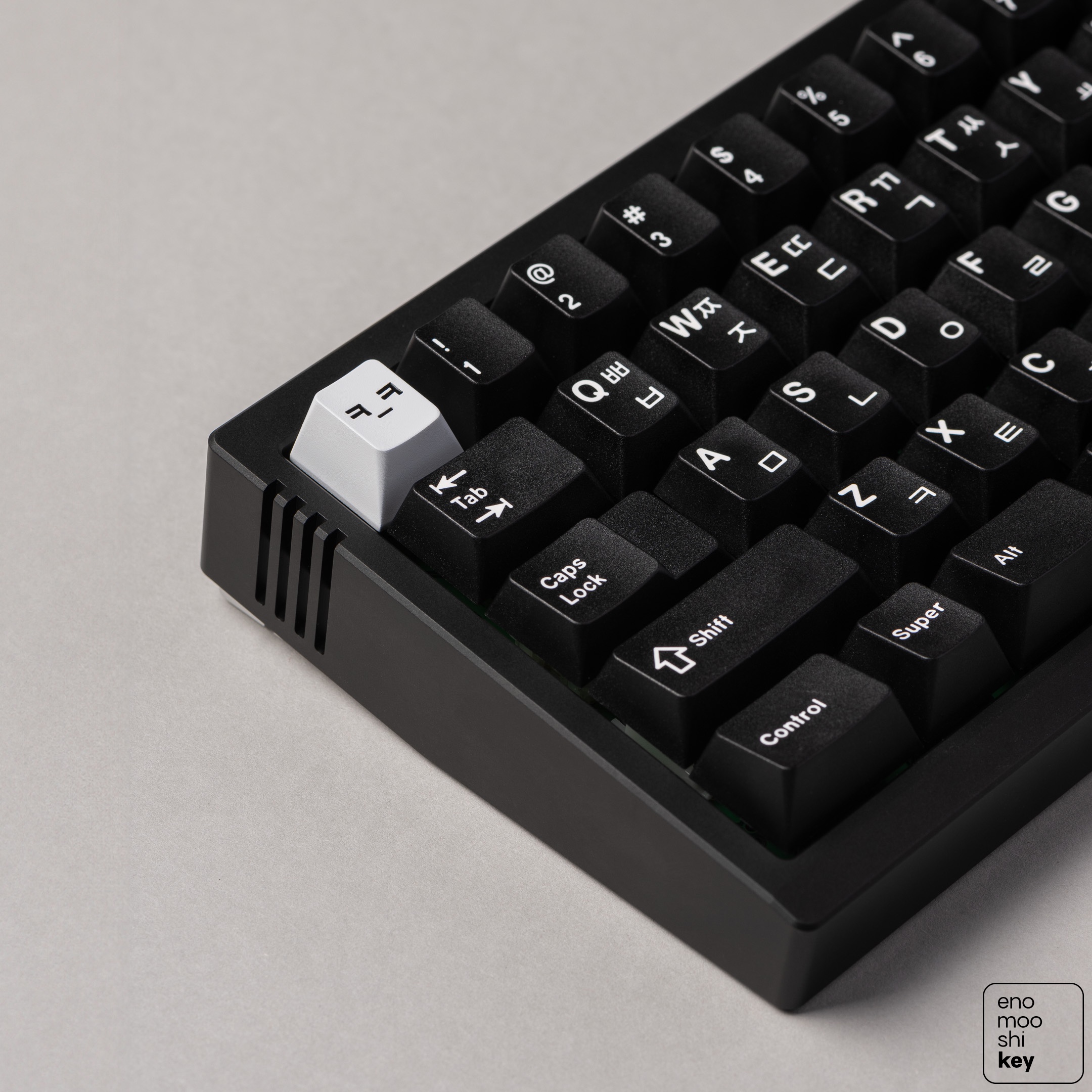

Proto V2 with GMK WoB Hangul

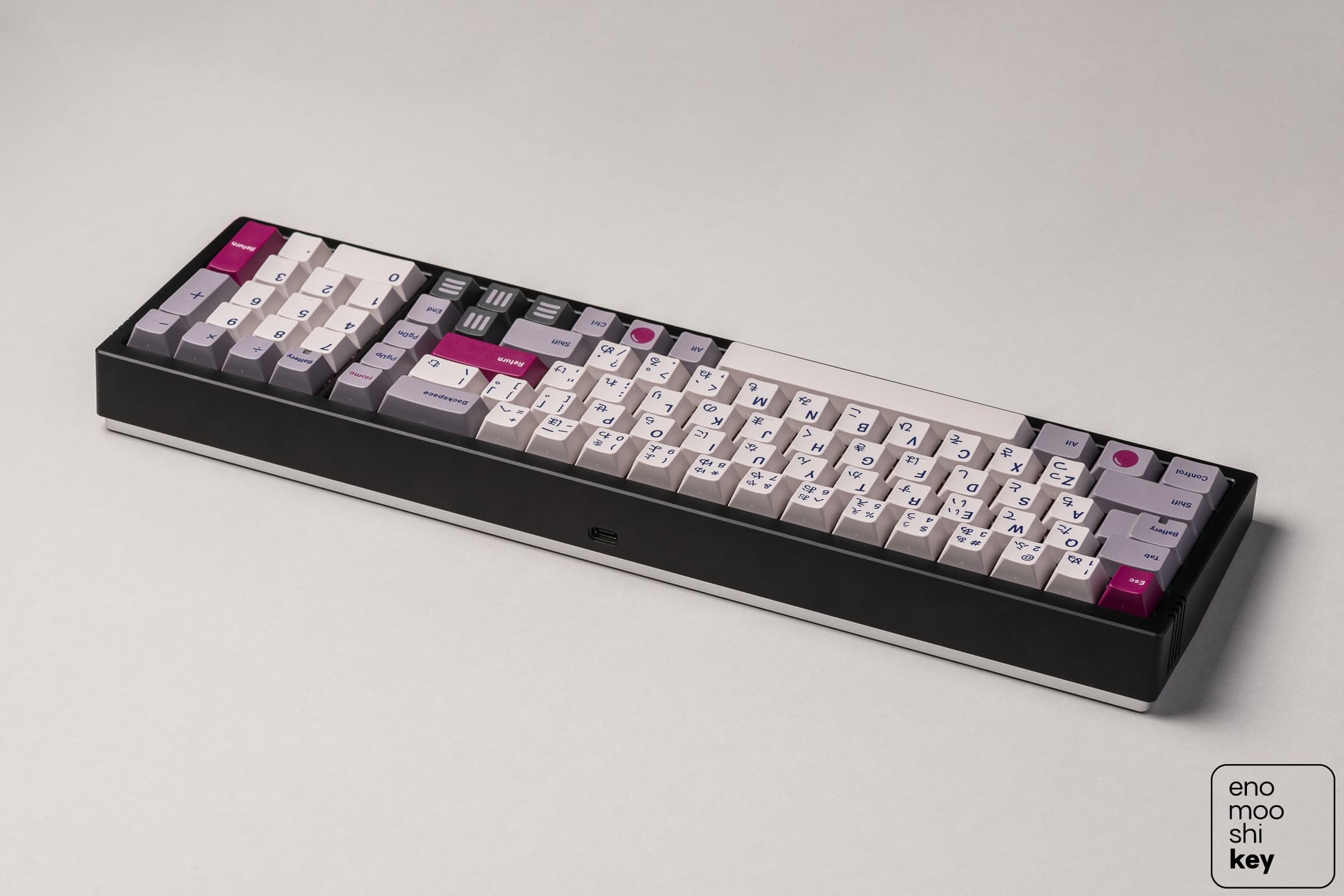

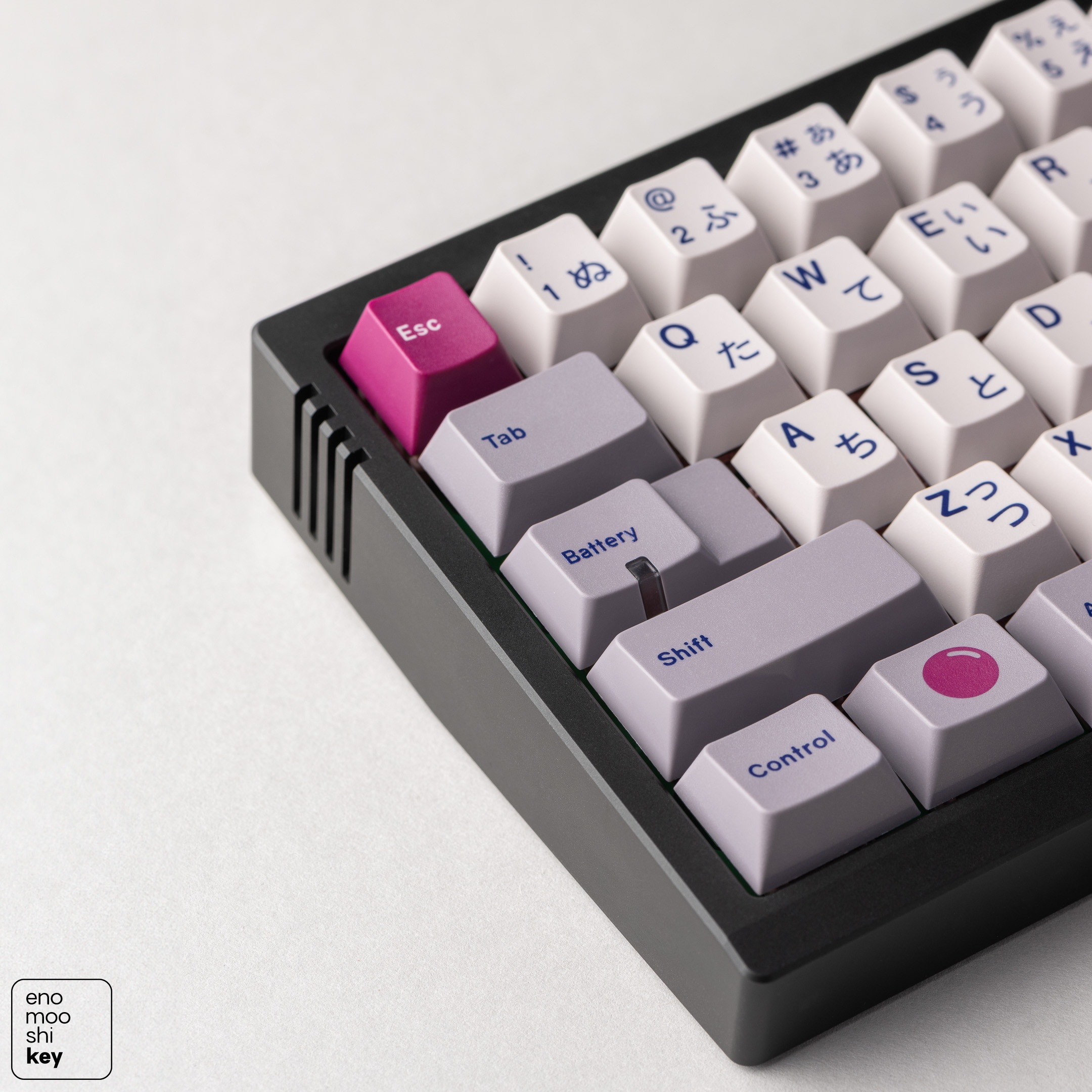

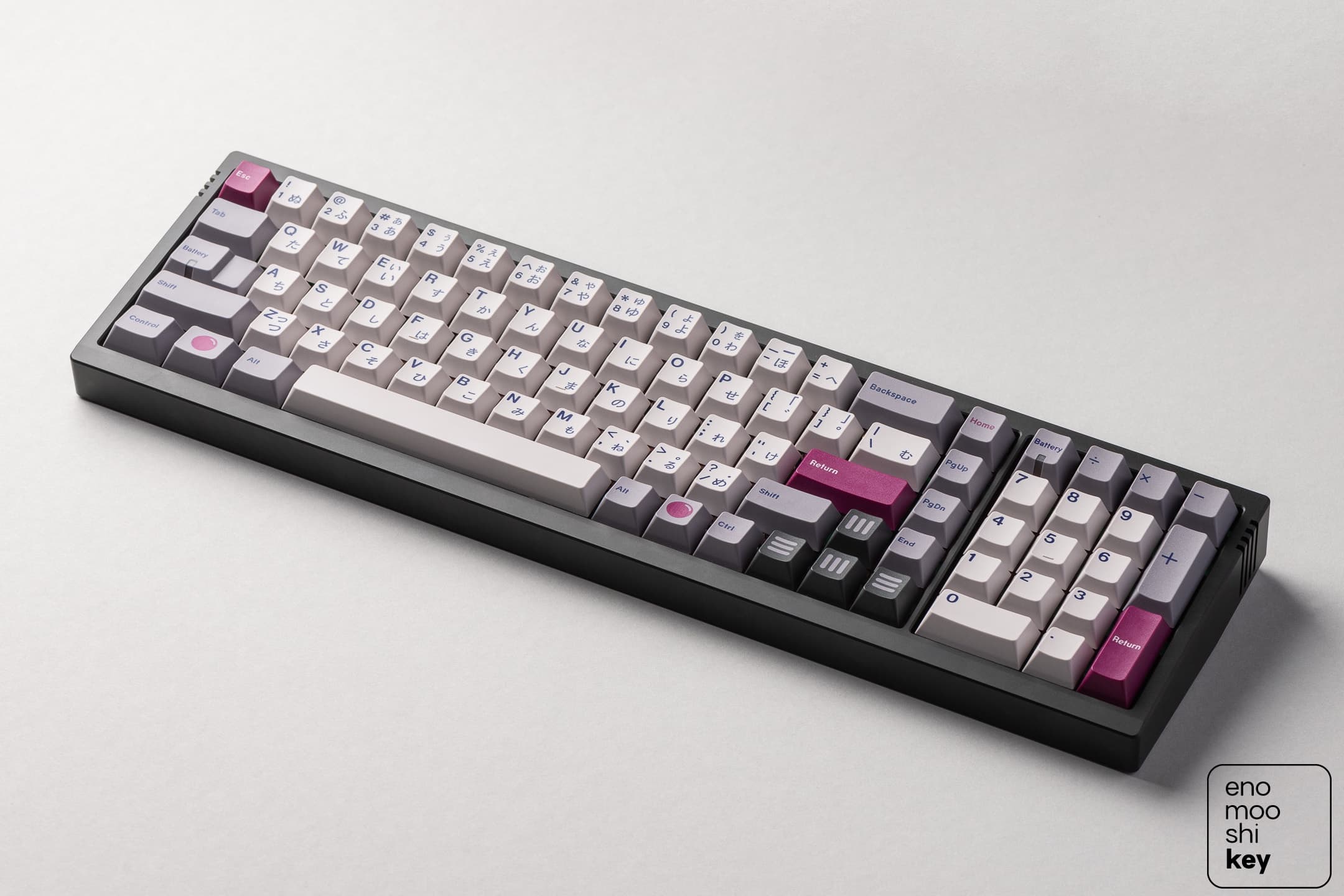

Proto V2 with GMK DMG


7. OTHER MEDIA















8. SPECIAL THANKS

• My lovely wife, for putting up with my numerous hobbies
• Tofumania, for putting my vision into Fusion 360
• Glendel/Zenclack, for having faith in ASCII-F
• Freather, for coming in clutch with PCB design
• TimKeyLess, for getting me into this crazy hobby
• Gok, for letting me use his IC page style
• Lightning & Manoli, for helping me through IC creation

Thank you very much.
