Atlas 5x12 ortholinear board
Live now on
CannonKeys.com and
MyKeyboard.EU100 FCFS on Cannon Keys and 50 FCFS on MyKeyboard
For those having trouble with firmware, please see THIS postPlate File: HERESpecs: - 5x12 ortholinear layout
- hotswap - full grid, MIT (1, 2u spacebar, and 2, 2u spacebar options)
- top mount with no seams (PCB and plate slide up through the bottom similar to the Neuron)
- bottom plate also curves up into the back (similar to Keycult No. 2 rev.1 TKL)

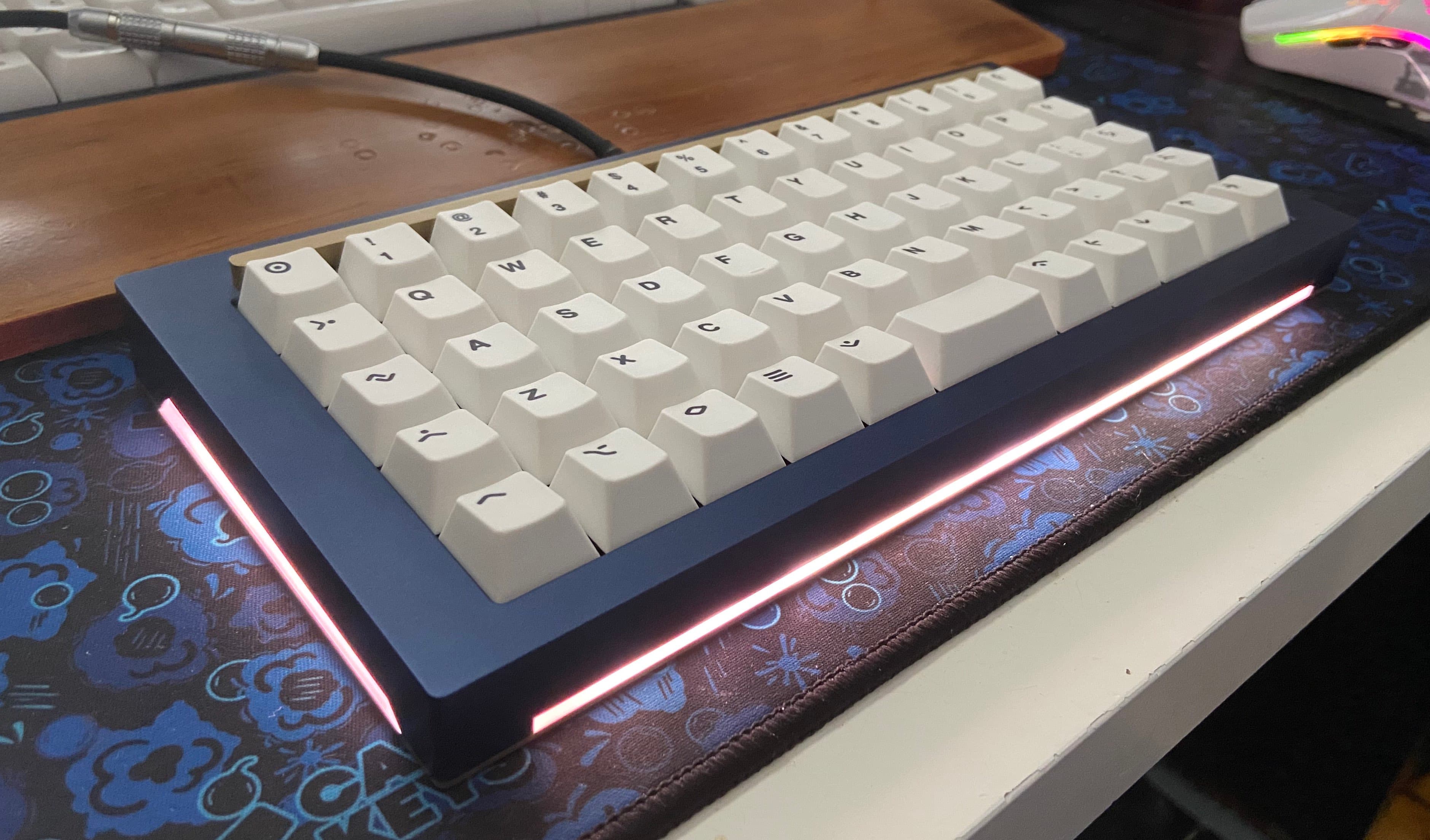

- LED acrylic diffusers on front and sides for LED underglow
- 2 degree angle - mostly so the pen rail can be more functional (angle helps keep pen on the board
- QMK compatible and open source PCB
Typing test at:
https://www.twitch.tv/apiarykeyboards/Price: $350 - which includes:
- main aluminum body
- brass* bottom lid
- brass* plate

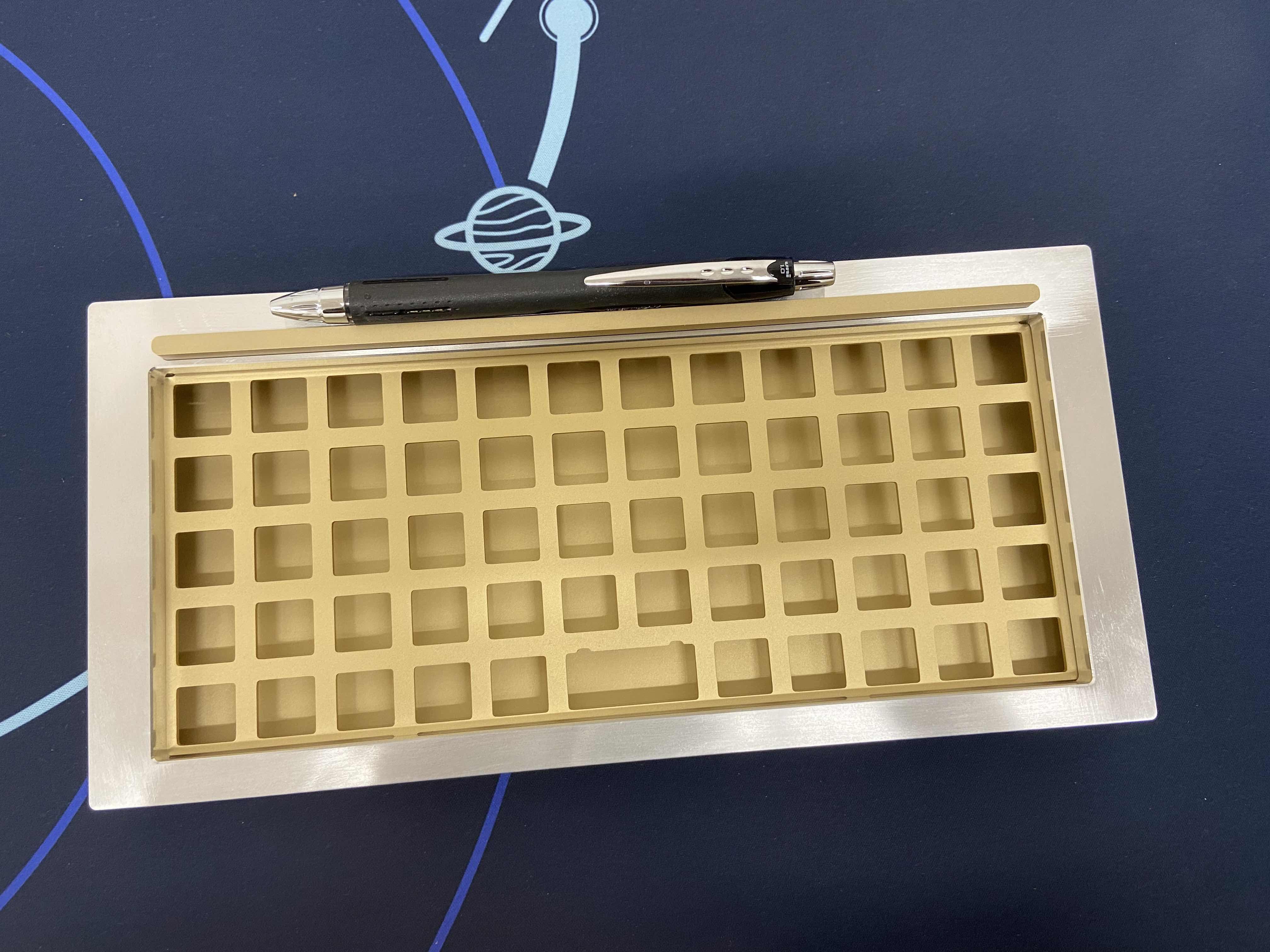

- brass* pen rail
- 3 acrylic diffusers (1 on each side and 1 on front)

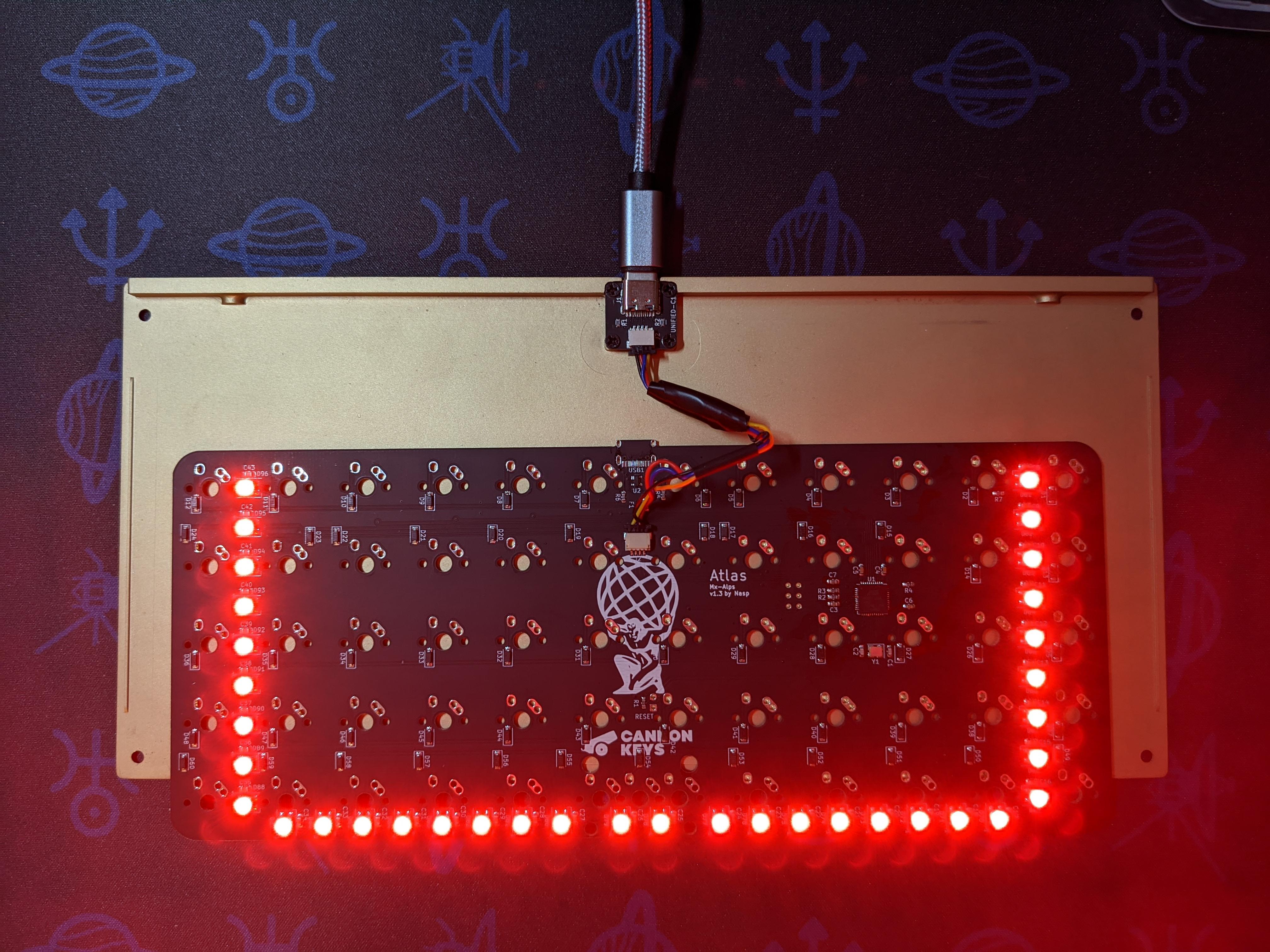

- hotswap PCB and daughterboard with cable
- bumpons and all necessary hardware
- vendor stickers
*all brass is treated and sandblasted
Add-ons:- PC plate: $40
- Extra PCB and daughterboard: $55
Colors available:- e-white (additional $20)*
- navy*
- grey - matched to Pantone 432c as closely as possible
*white and navy should closely match the same colors on the Satisfaction75
GB will be open for two weeks or until all units are sold out. Fulfillment is 6 months from the end of the GB (December).
Typing test and build stream on Apiary's Twitch channel:

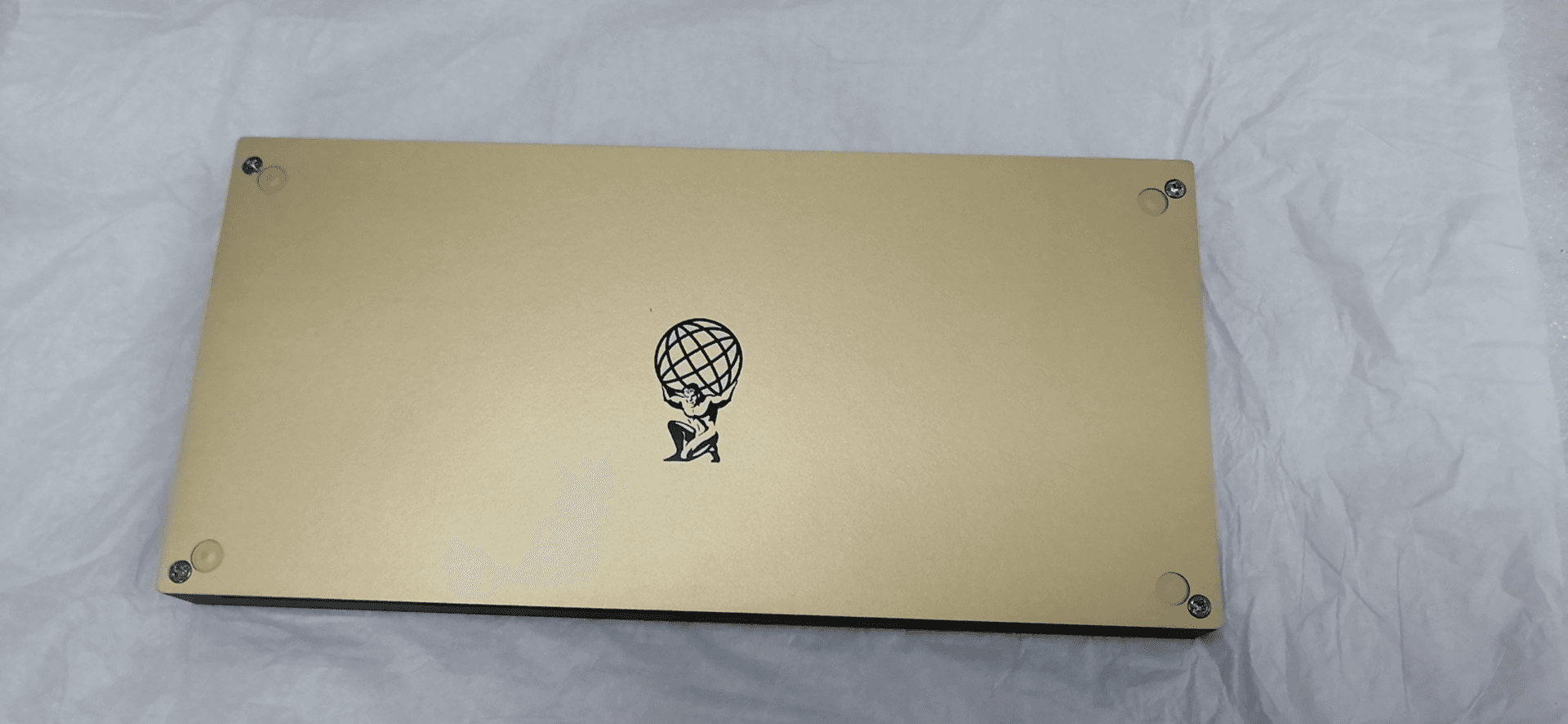

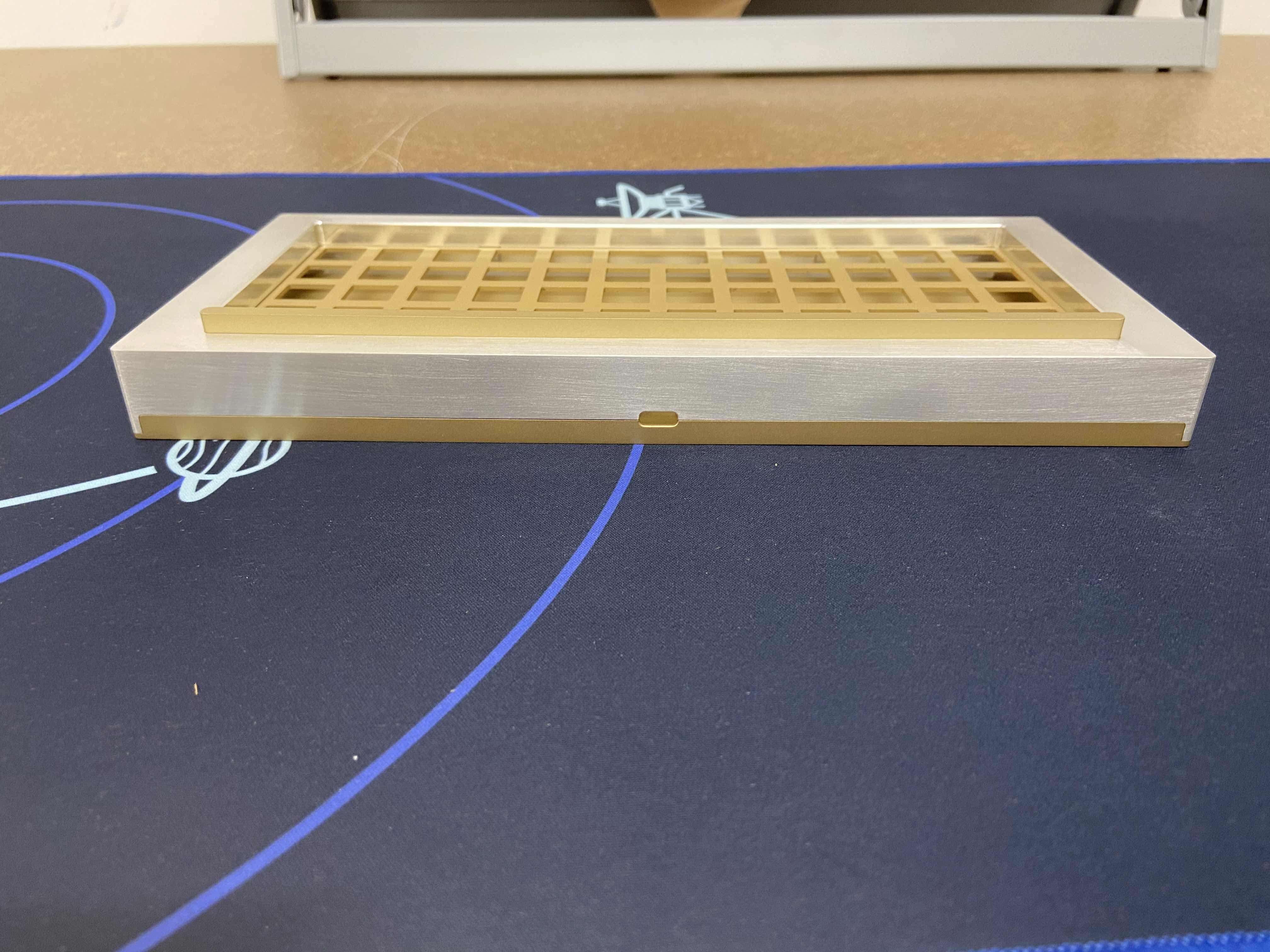

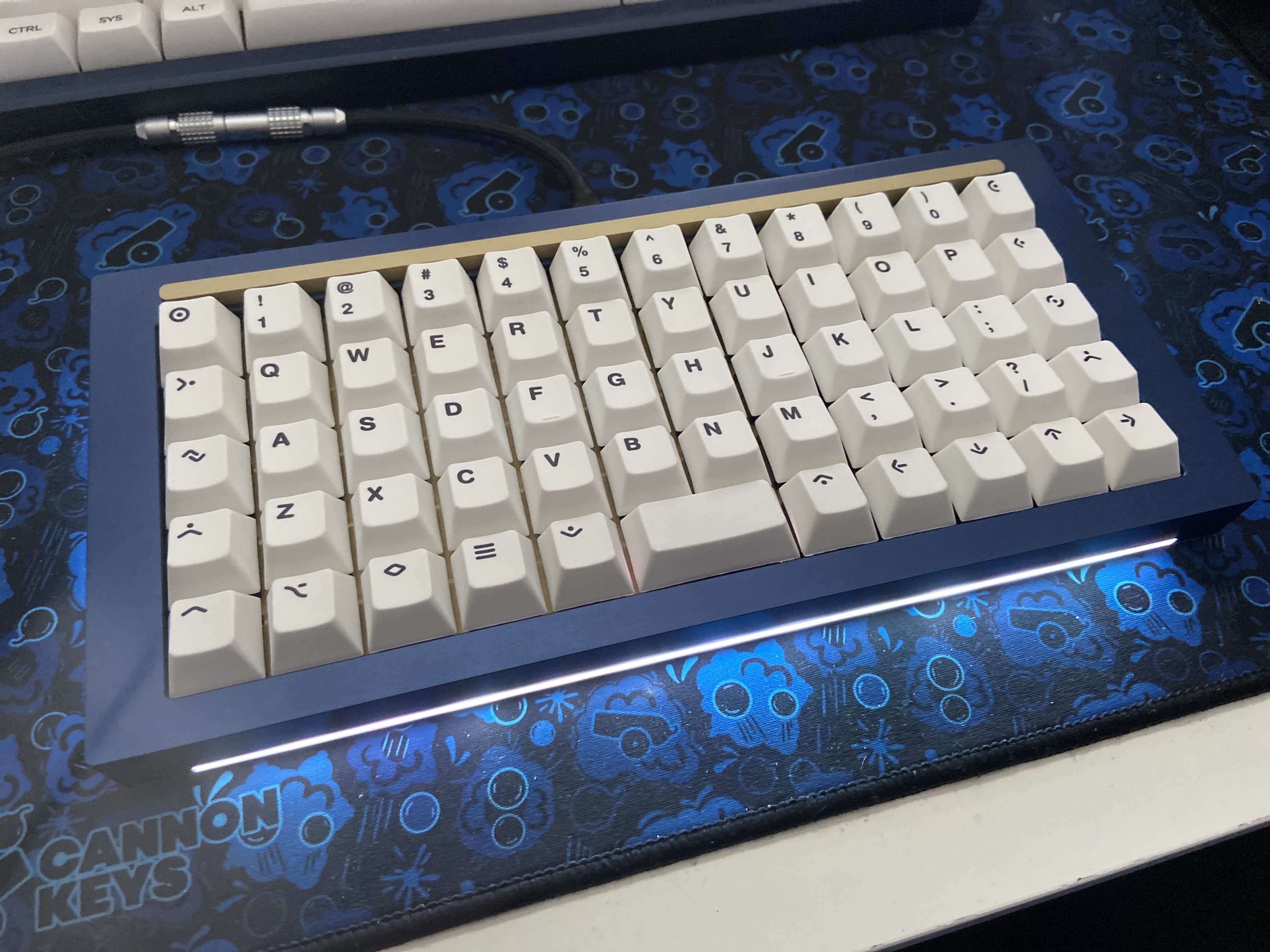

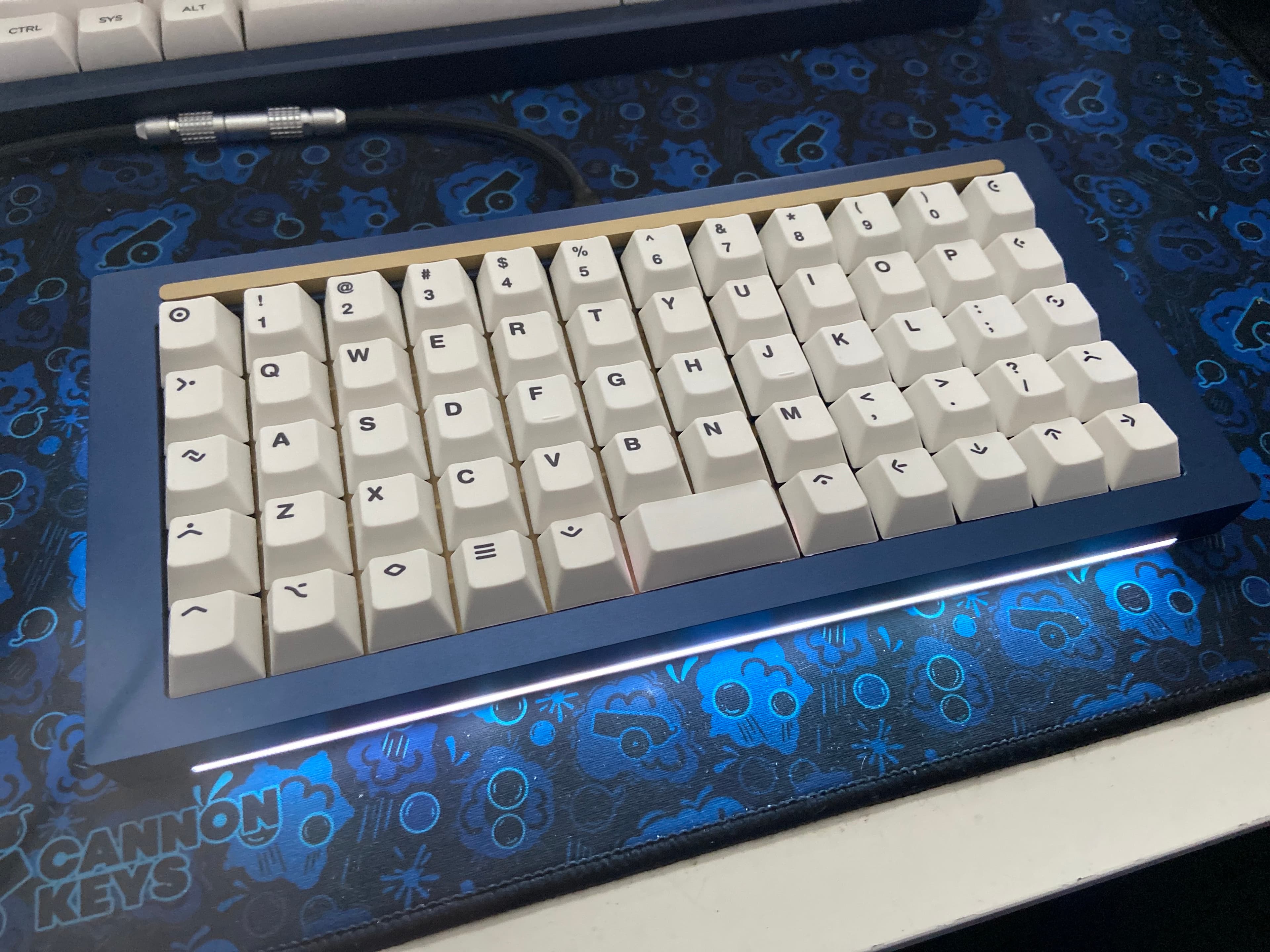

https://www.twitch.tv/videos/633899272Proto Pics:
More

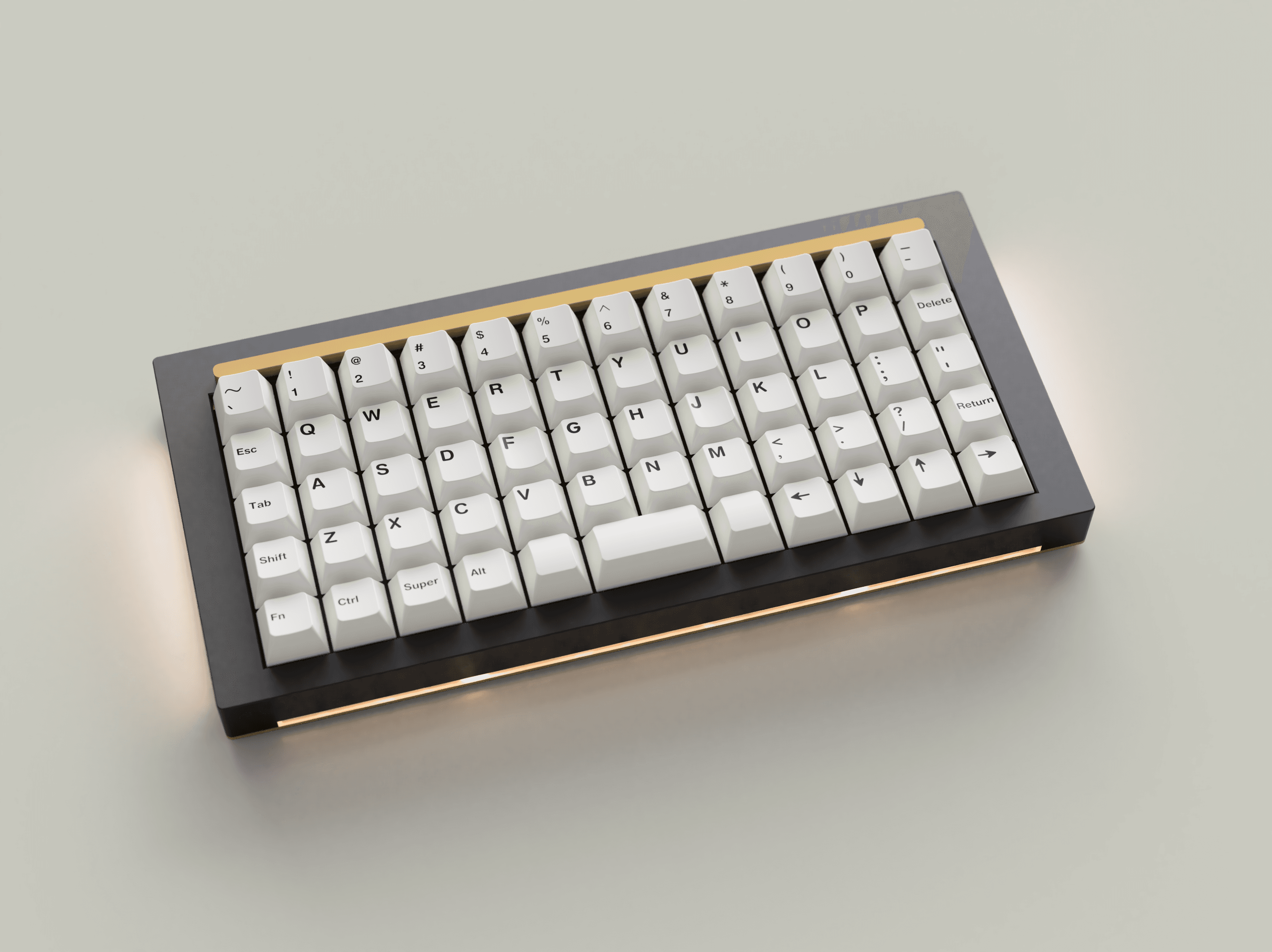

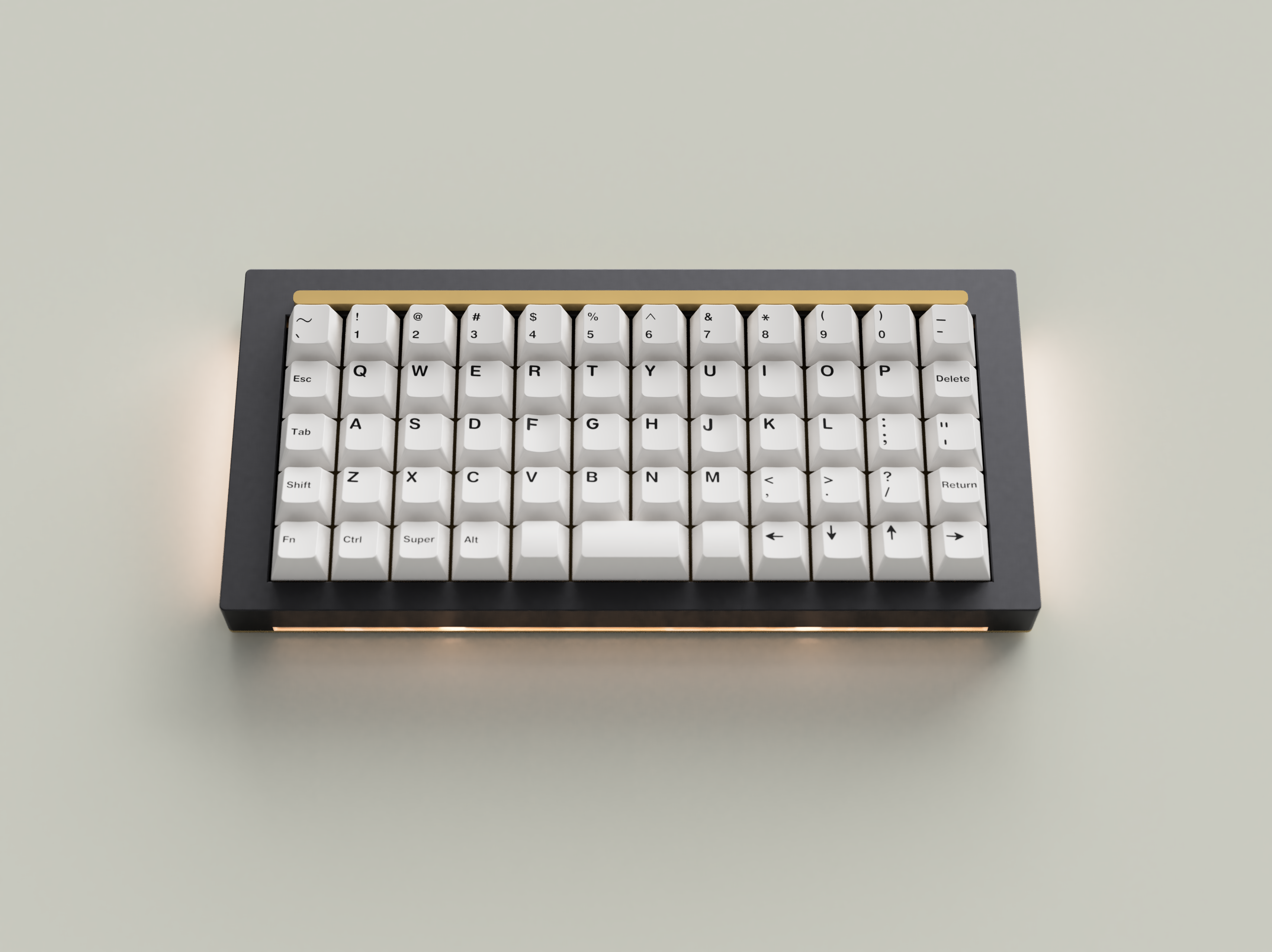

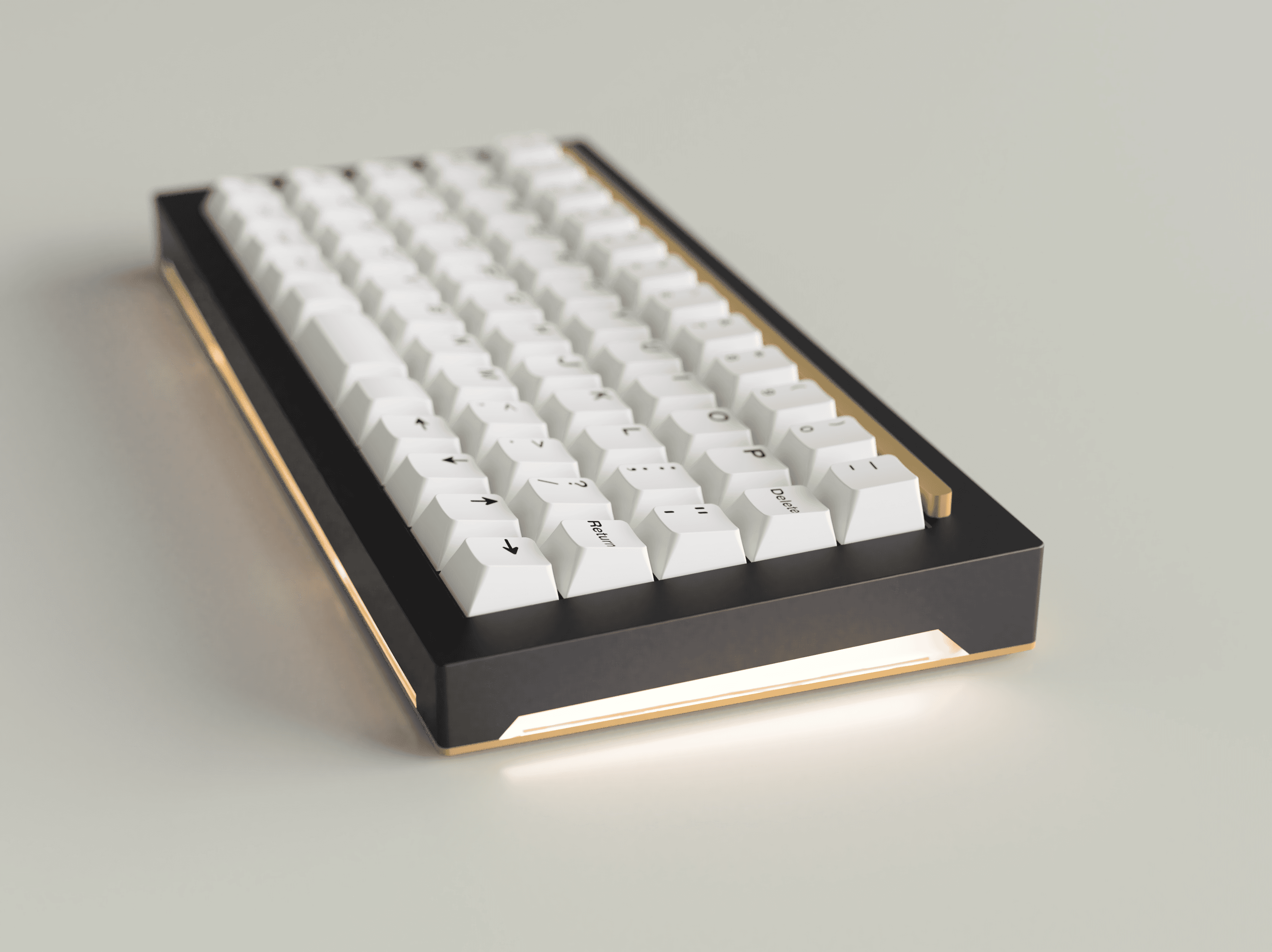

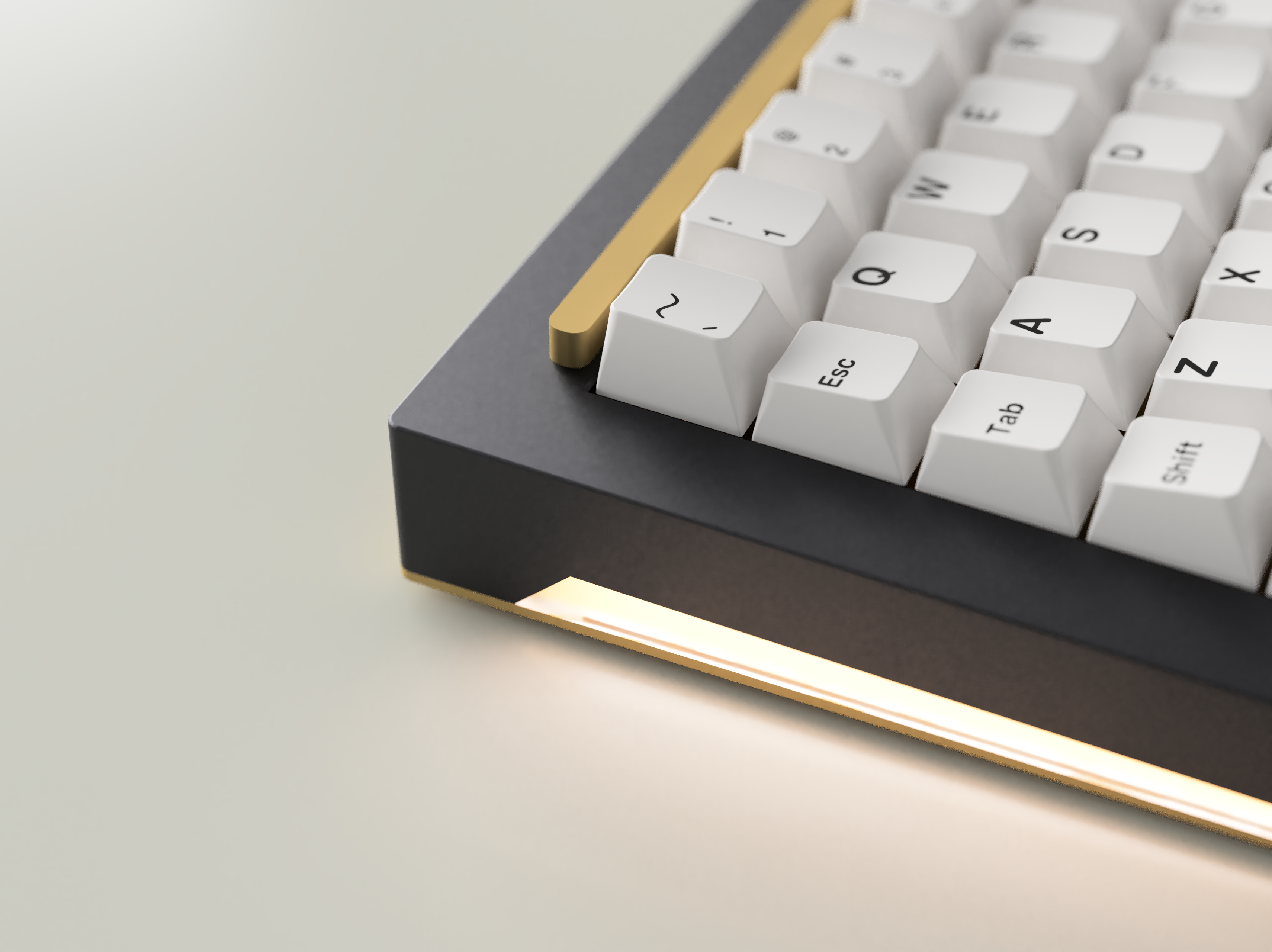

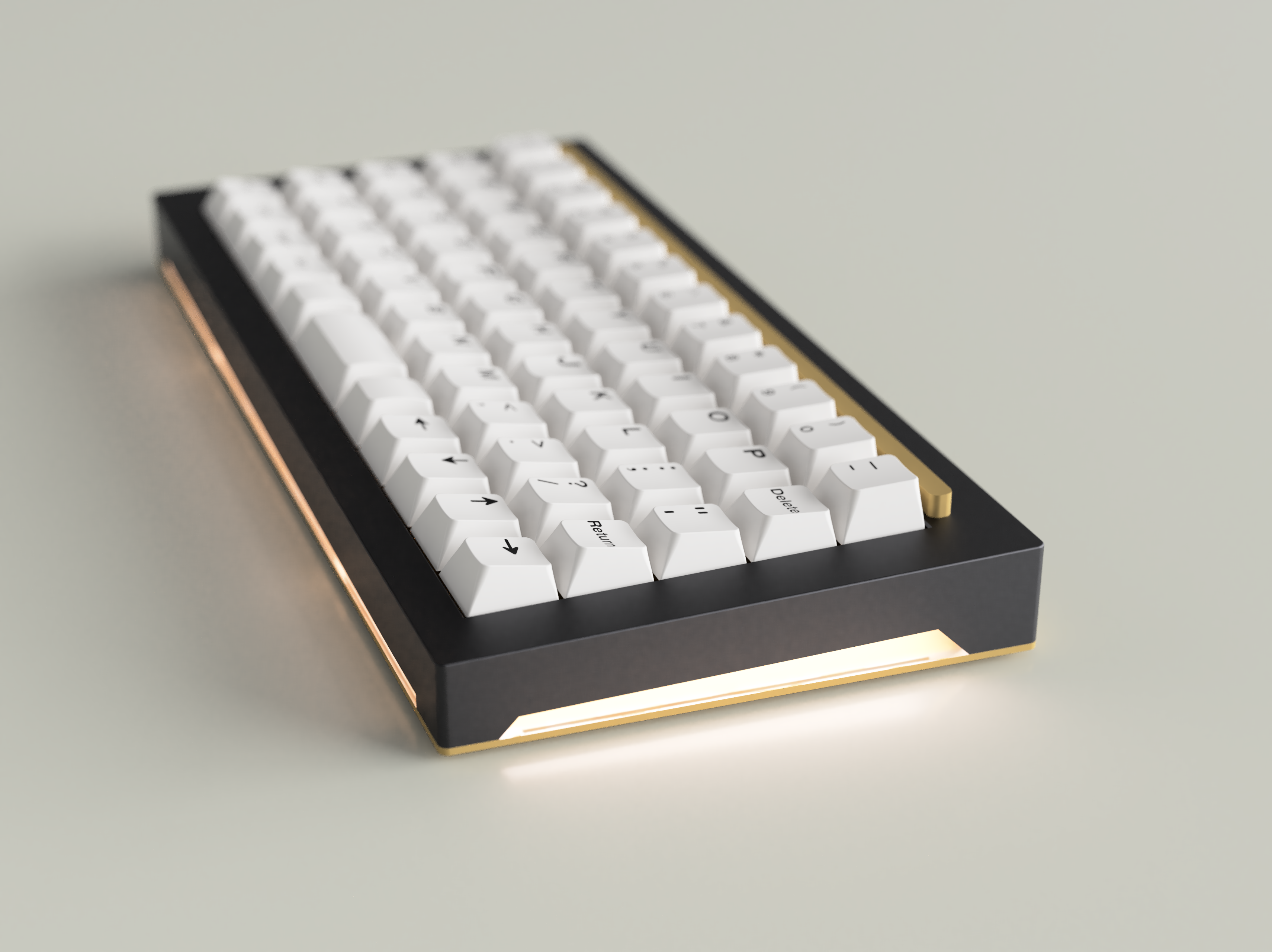

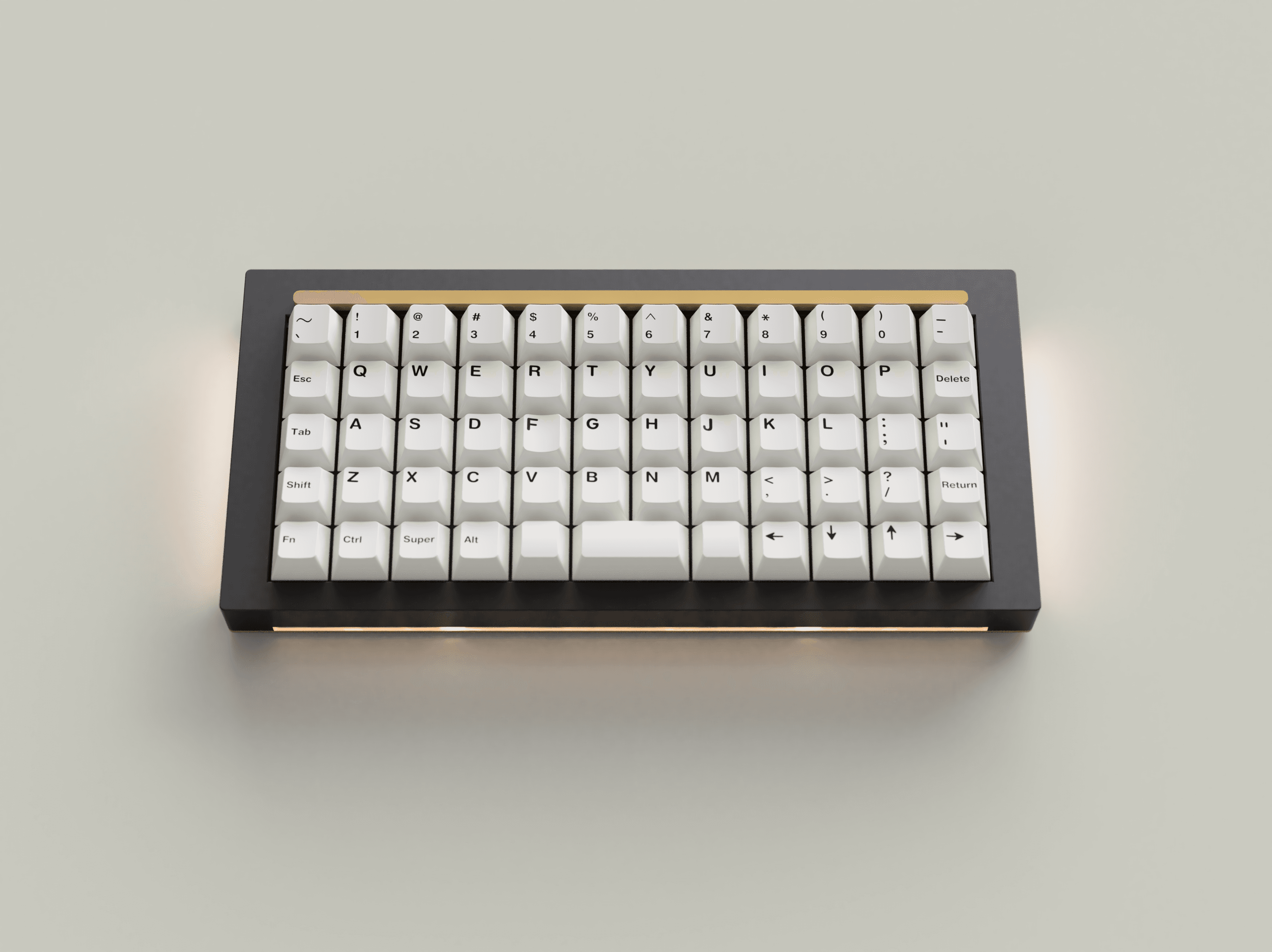

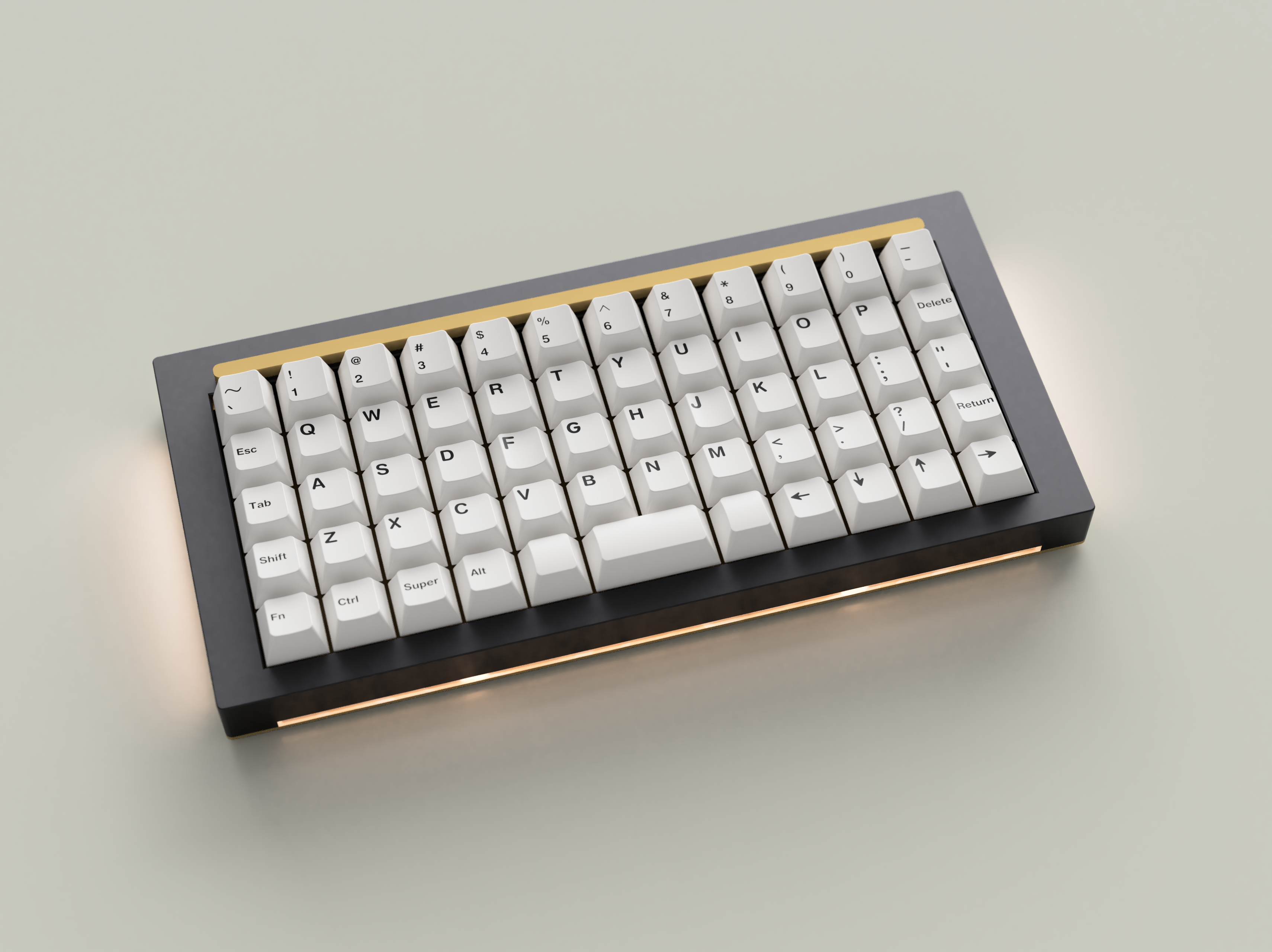

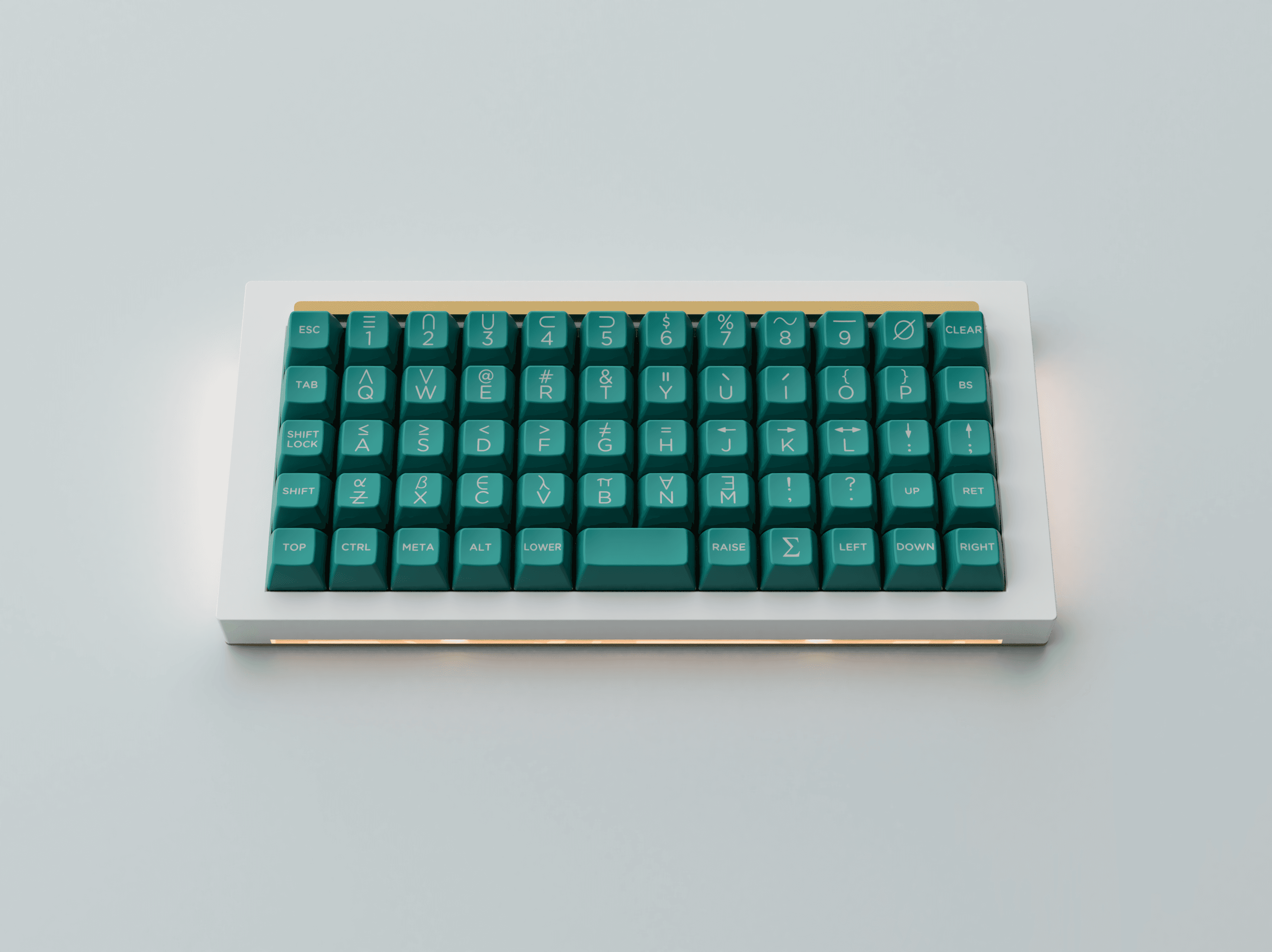

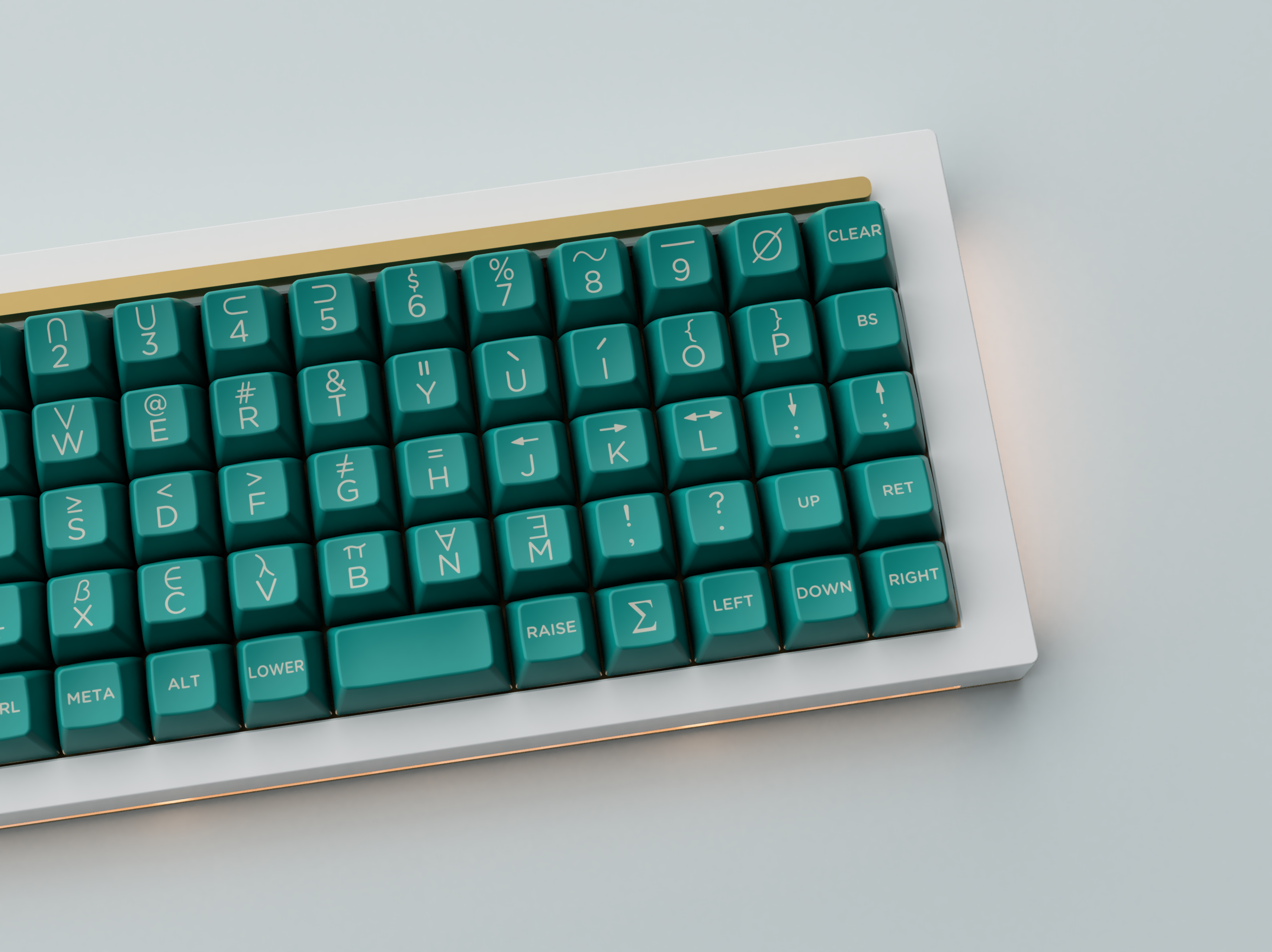

Renders with GMK Minimal and SA Sail:
More
More
