Hi all,

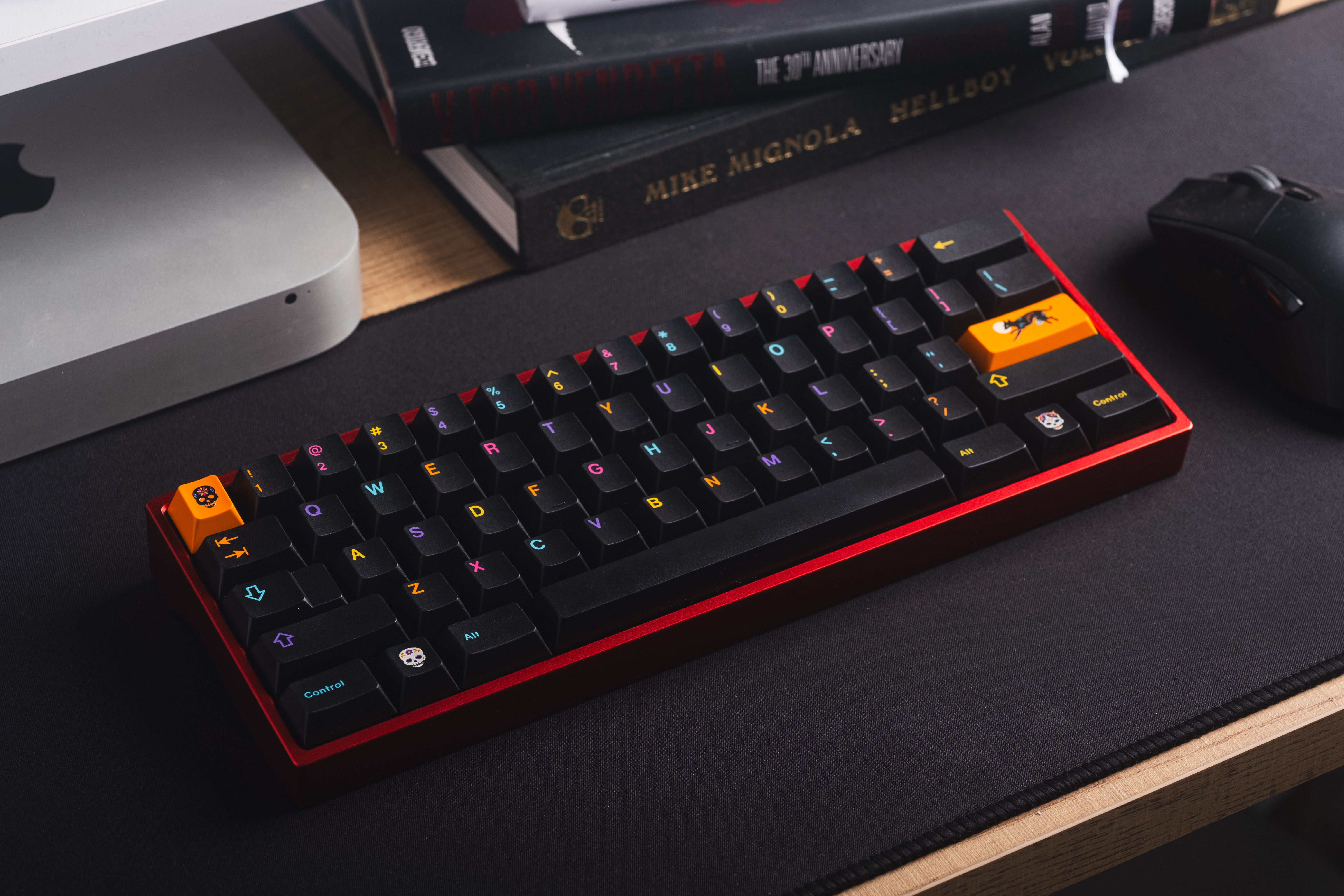

From my little workshop Wuqi.works. I'm excited to introduce my new project keyboard - Baby Dragon
This project is 60% layout with o-ring mount. The theme of the keyboard inspired from the movie How to train the dragon "Toothless"
PrototypePrototype soundtestSpecifications: - Typing angle: 8°
- Dimensions: 294.7mm x 108.9mm
- Front height: 19.06mm

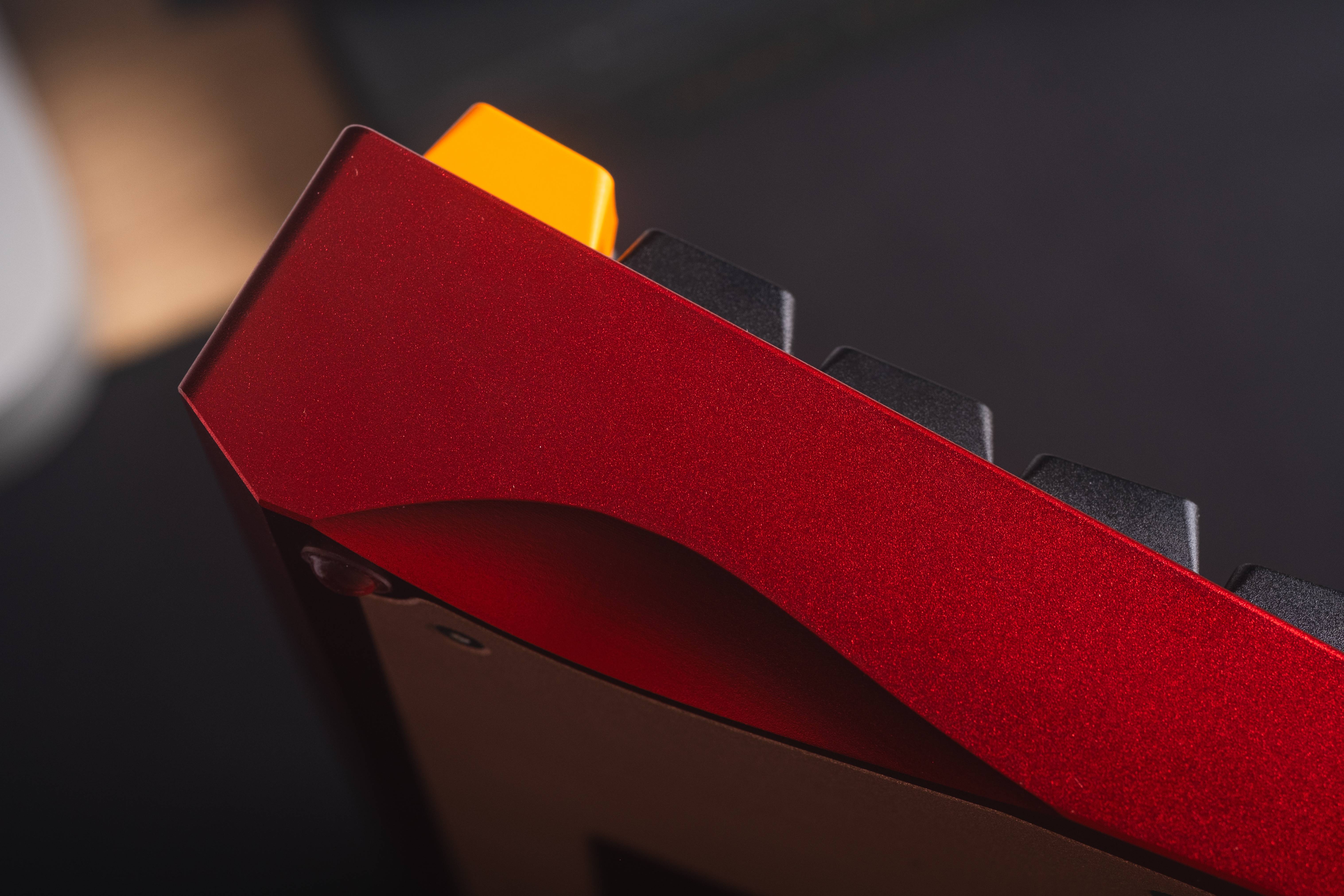

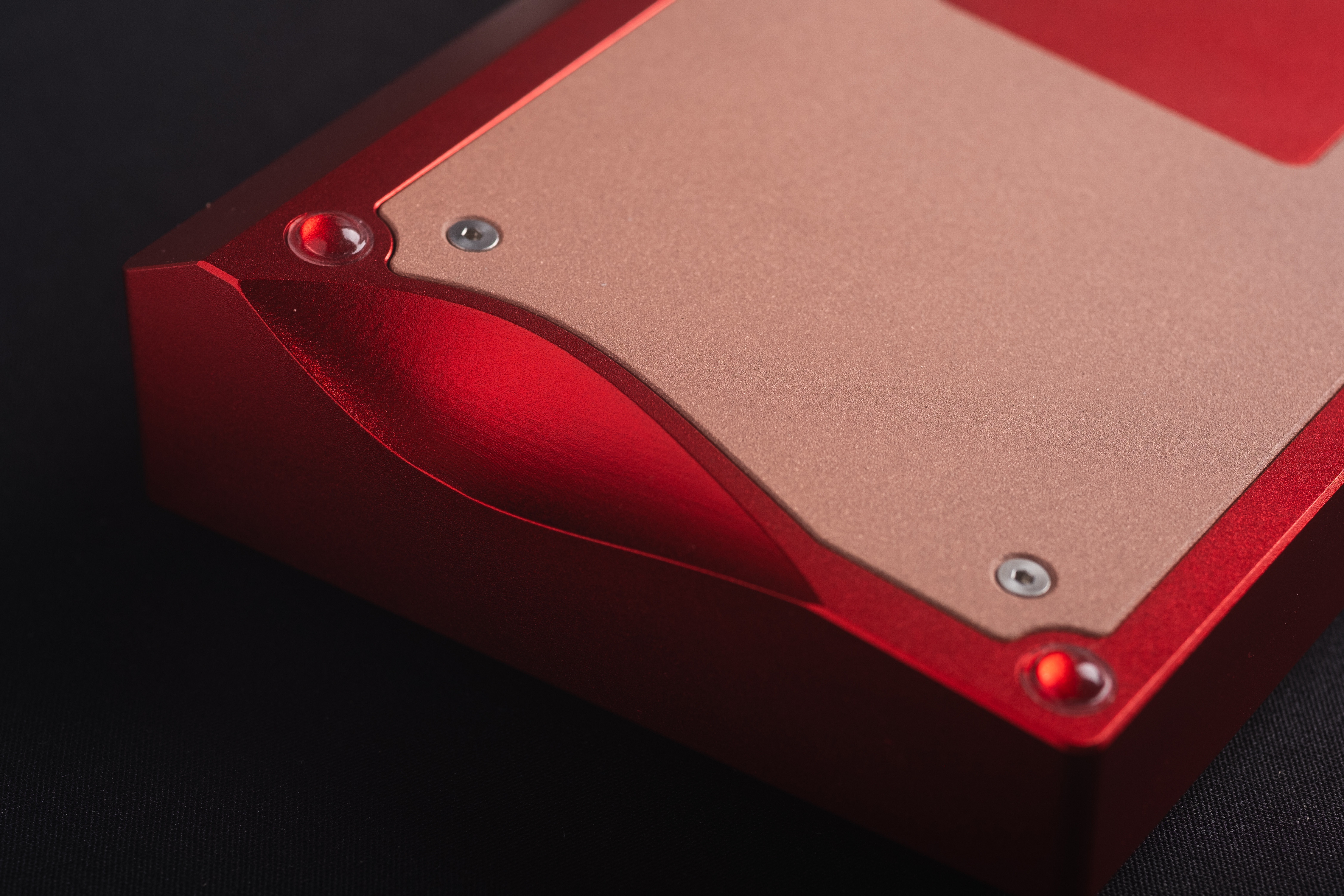

- Case marterial: 6061 aluminum
- O-ring mount
- Clip-in stab support
- Inner weight: copper

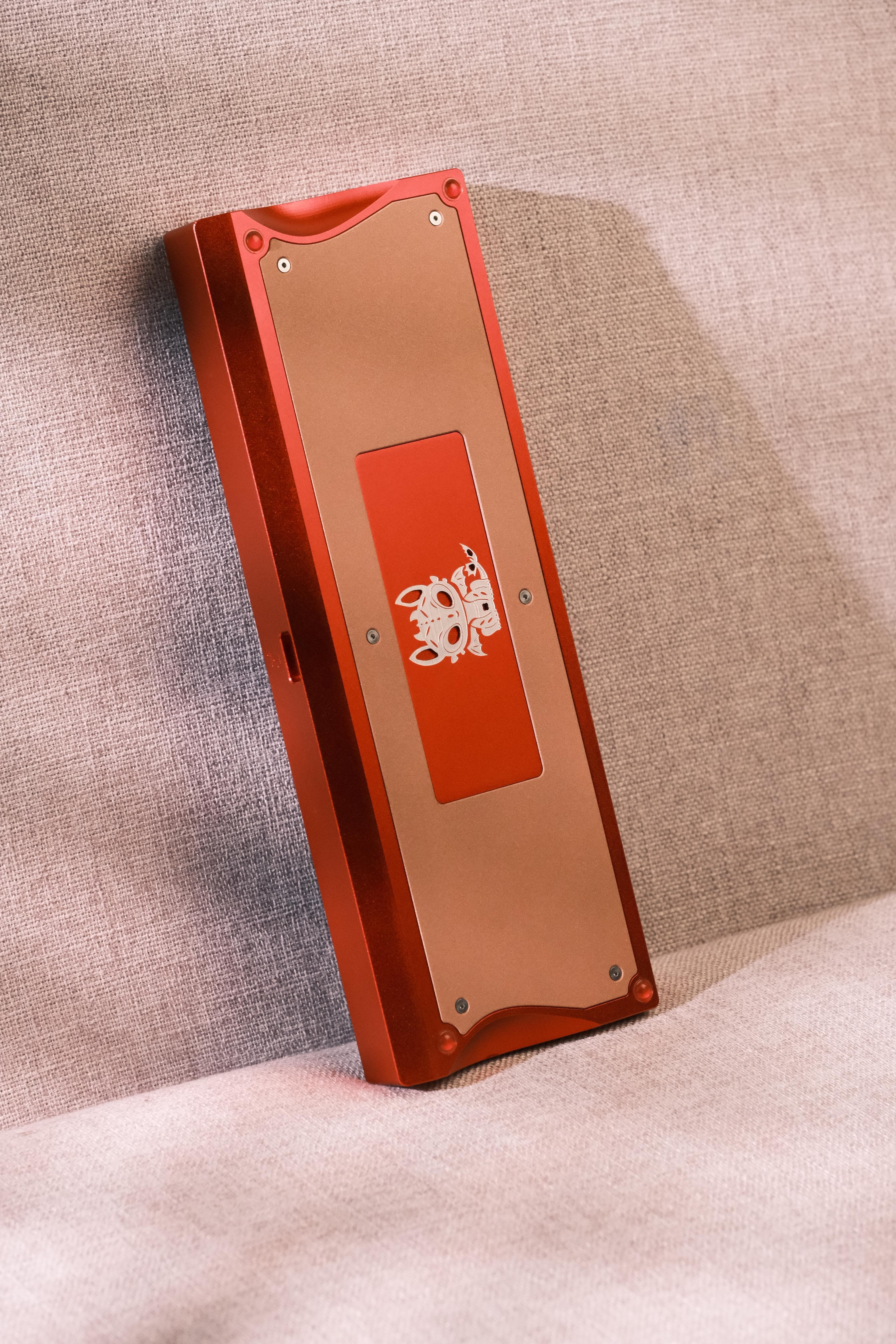

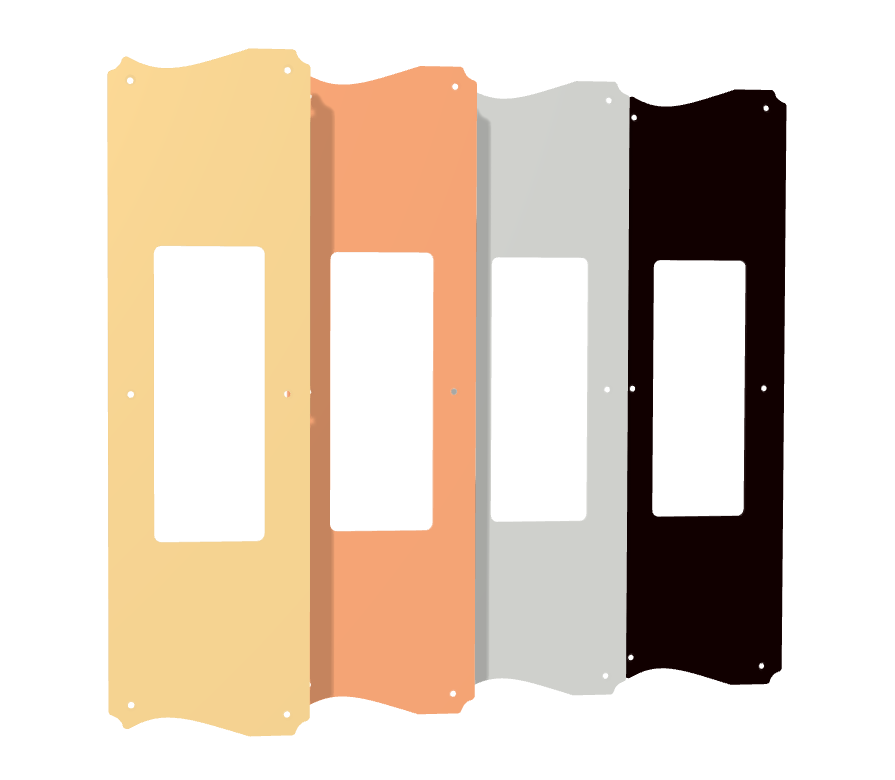

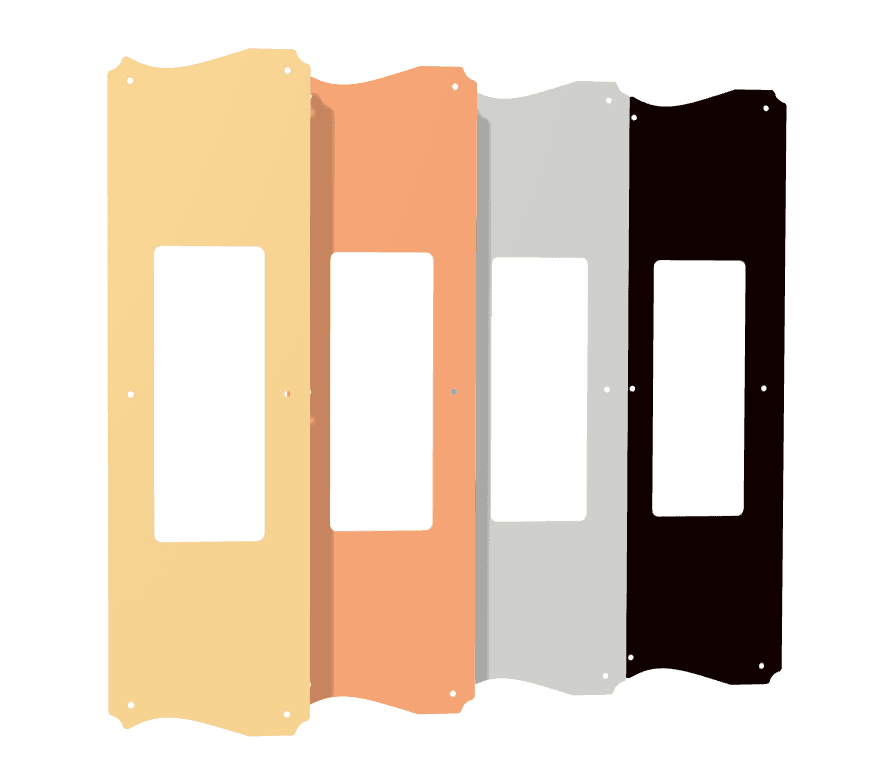

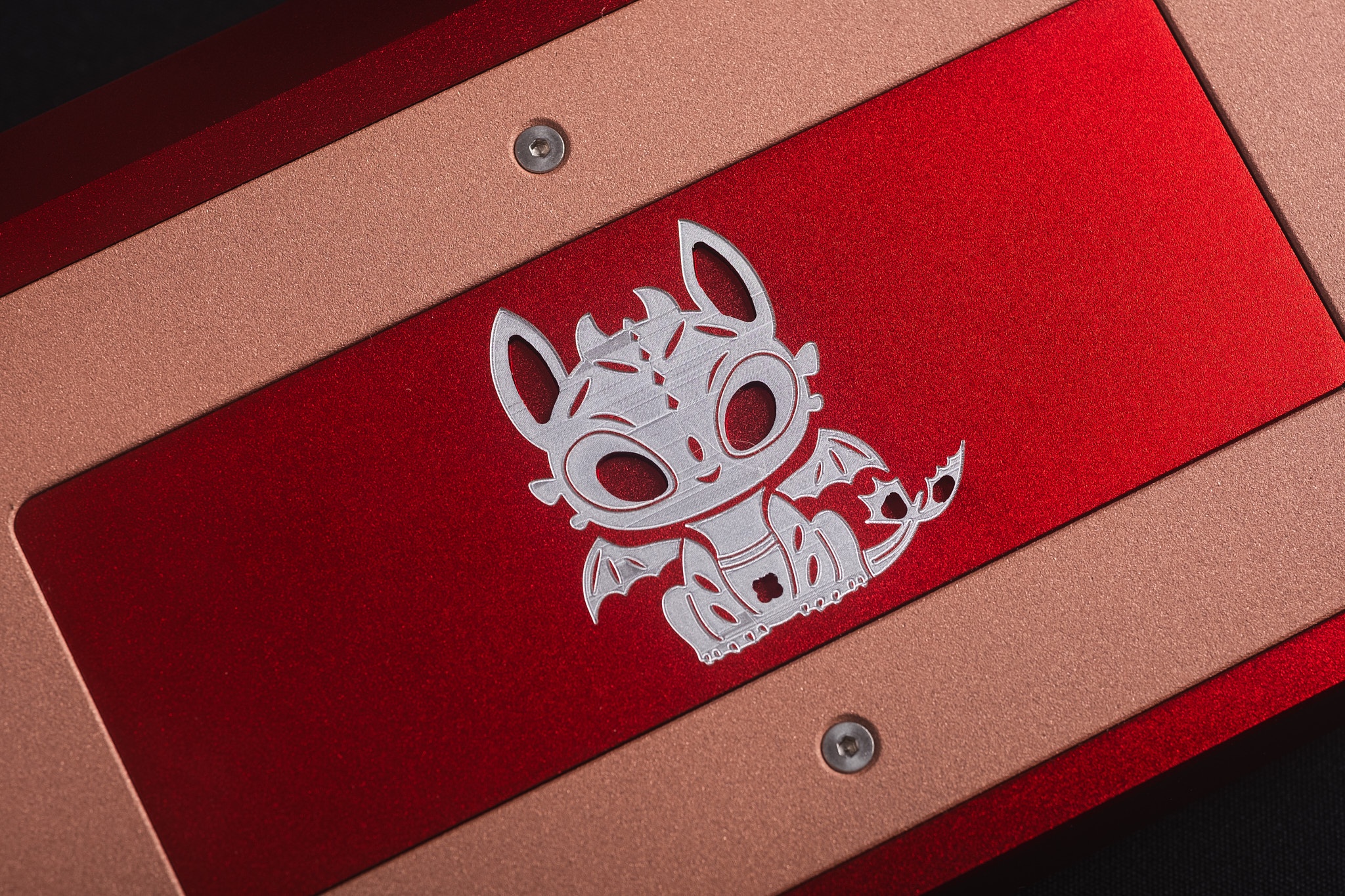

- Backplate: brass/copper with sandblasting and clear cover or Black/silver aluminum anodized

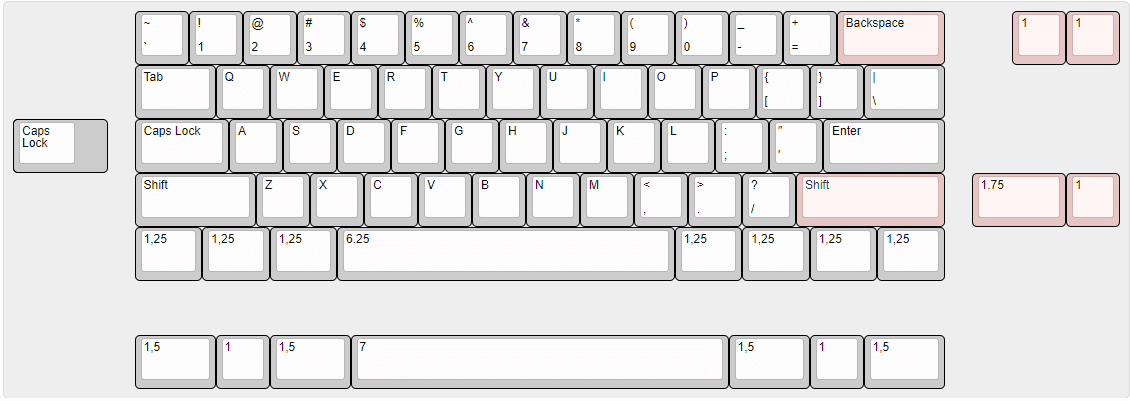

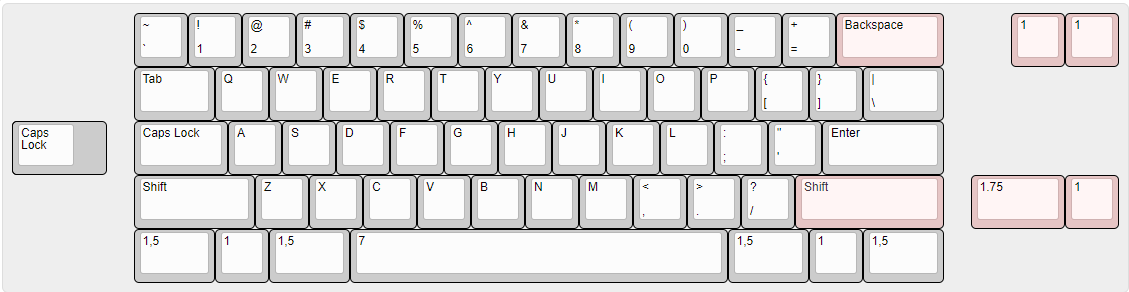

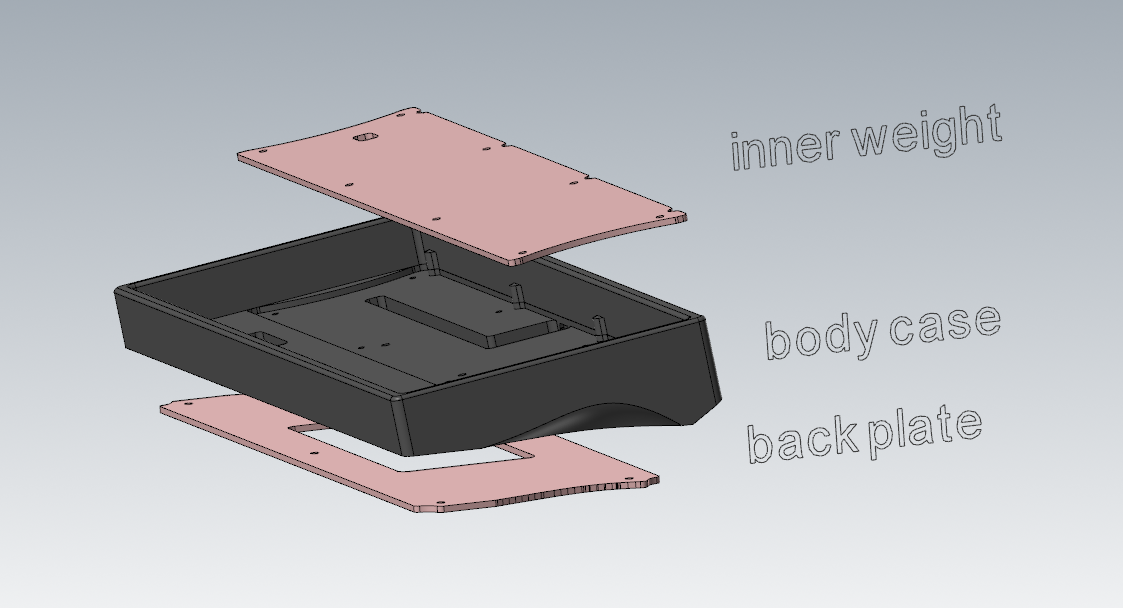

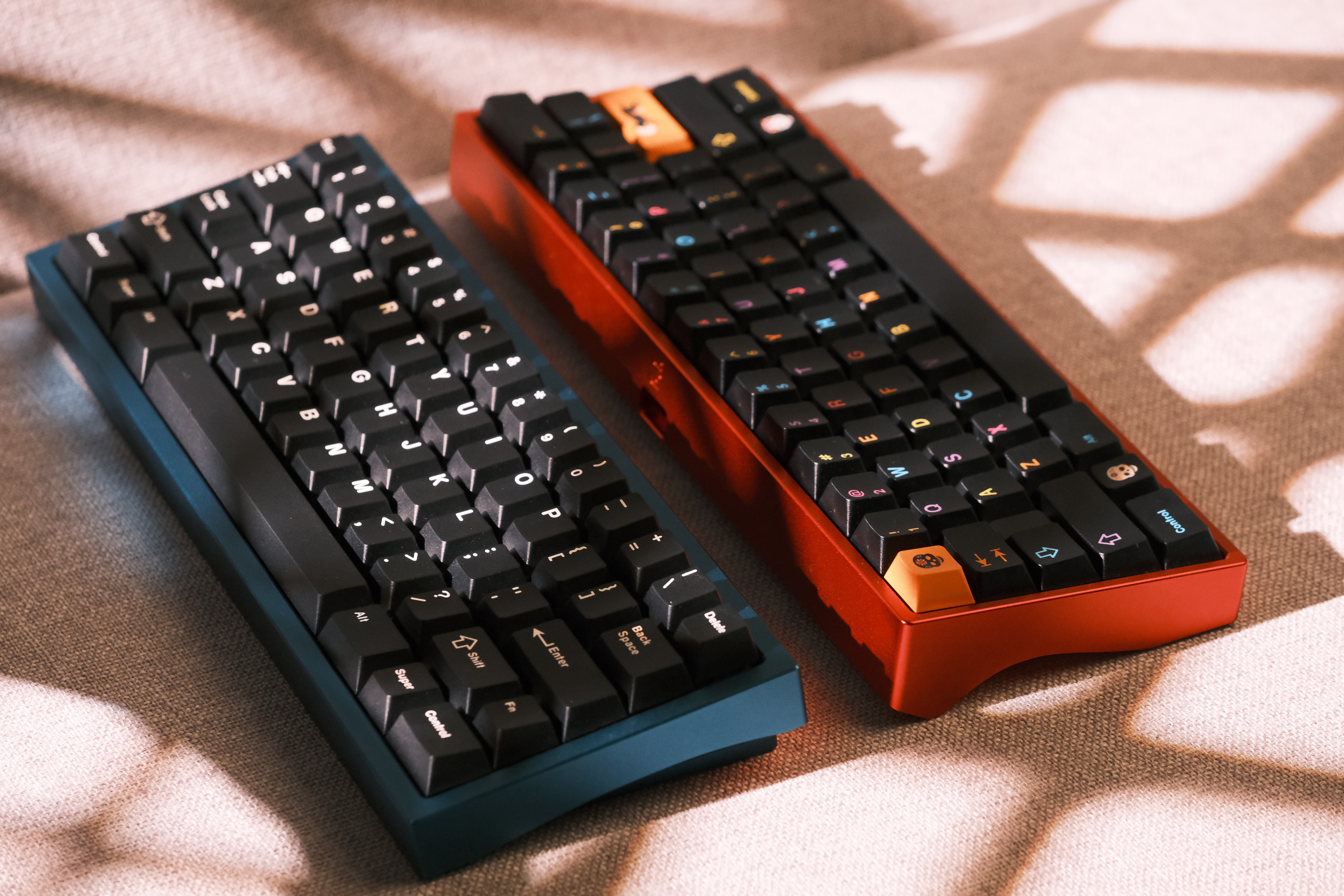

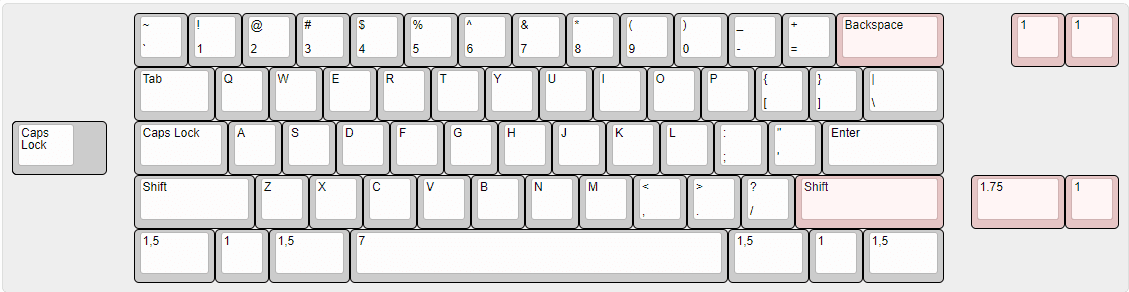

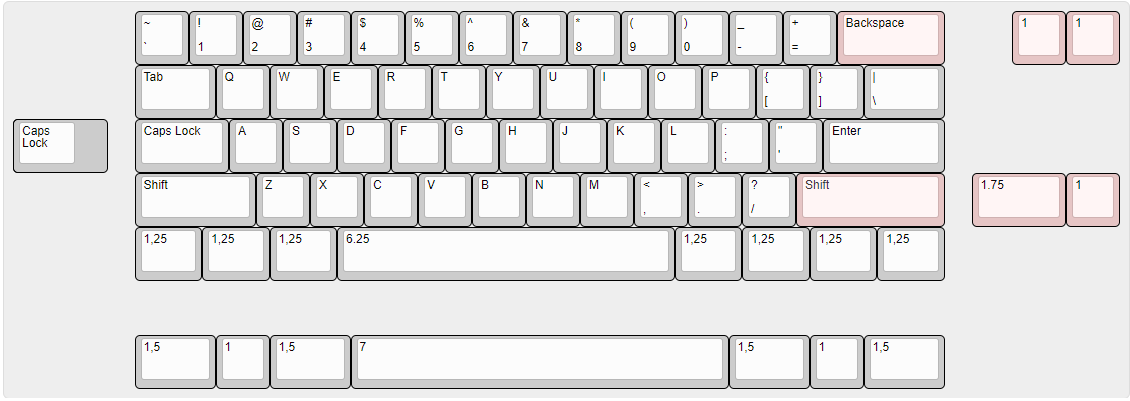

- Fullbuild : 1.6 kgSolder PCB layout supportHotswap PCB layout supportColorIt's red color on the first prototype. I running with few more color: Black, Blue, Grey and Pink. i'll update when new color on handKit Content- Body Case
- Aluminum plate (Black anode)
- Inner weight copper
- Backplate
- 1.6mm PCB
- 50A oring rubber
- Daughter boardPricing- My planning is in-stock few pcs per color
- Price: about 220$ for kit
