BHS60—Centennial Classic , Review and try

Hello everyone, this is B-LAB.
I am the new team leader SR, a former architect.
The first kit I brought was named BHS60, inspired by Bauhaus, which Abbreviations for Bauhaus.

catalogue
1、 Preface
2、 Appearance design
3、 Keyboard information
4、 Q&A

1、 Preface
What is Bauhaus?
The definition of Bauhaus may be perceived by most people as design style, language, academic system, including various buildings, furniture, and so on.
But throughout the entire history of development, Bauhaus should be more of a "spirit".
In the early stage of the design, I referred to many overseas websites, and most of the 60% of the configurations were designed with a minimalist style and pure inner lining to restore the sound of the shaft itself, which coincides with the design concept of this BHS60.
So I adapted to the times and also used stable diffusion, generating a large number of "reference materials" and using them to carry out the design.

2、 Appearance design

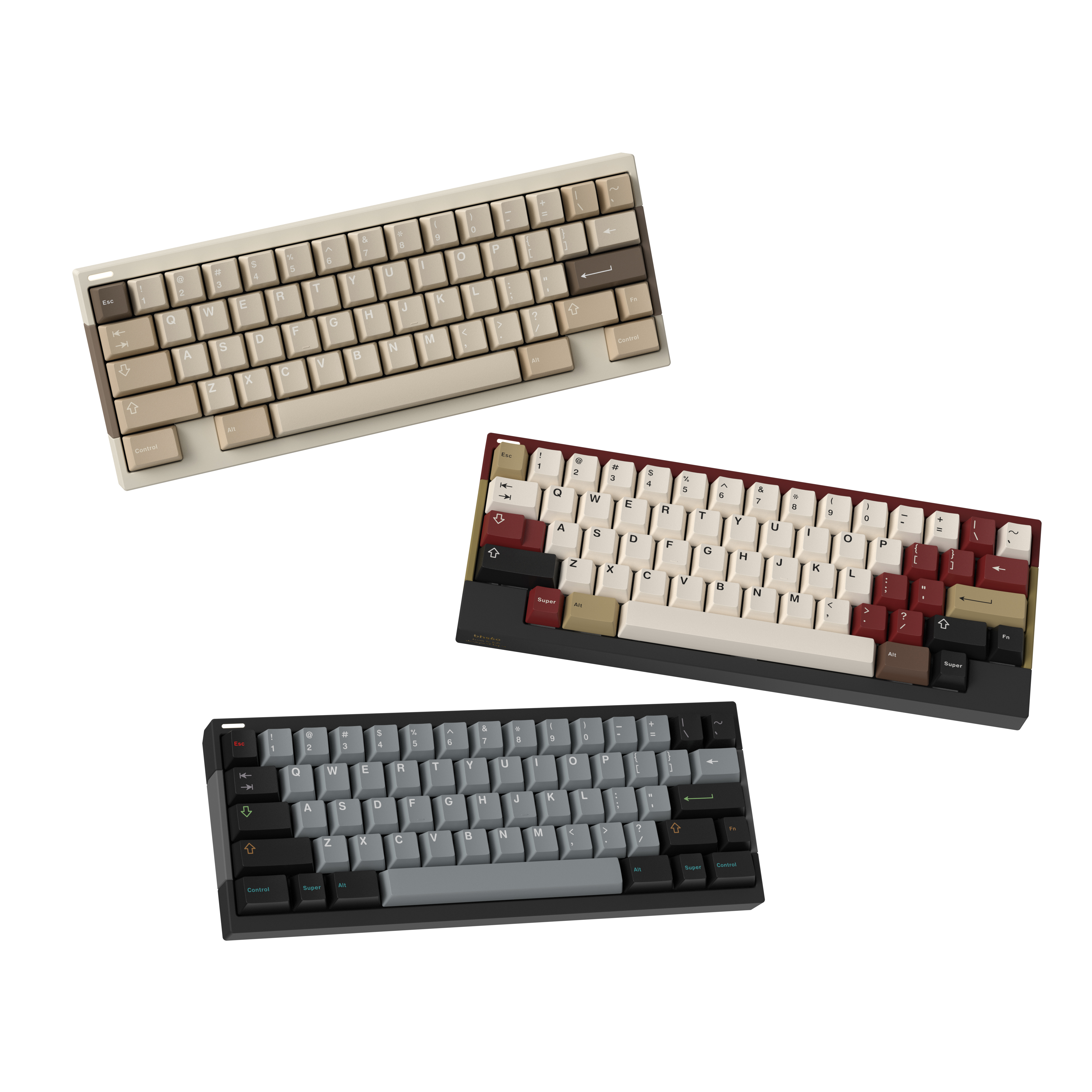

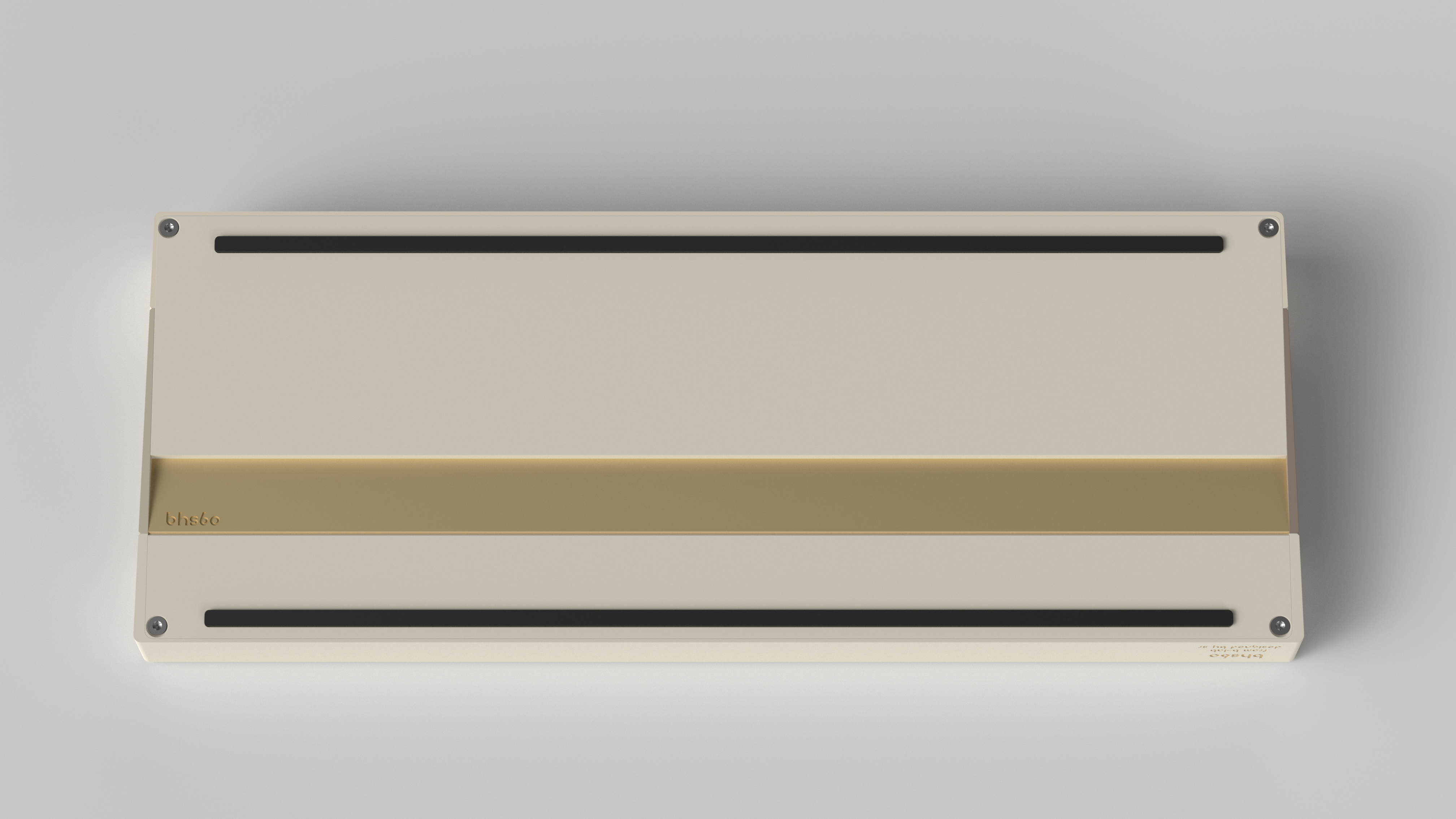

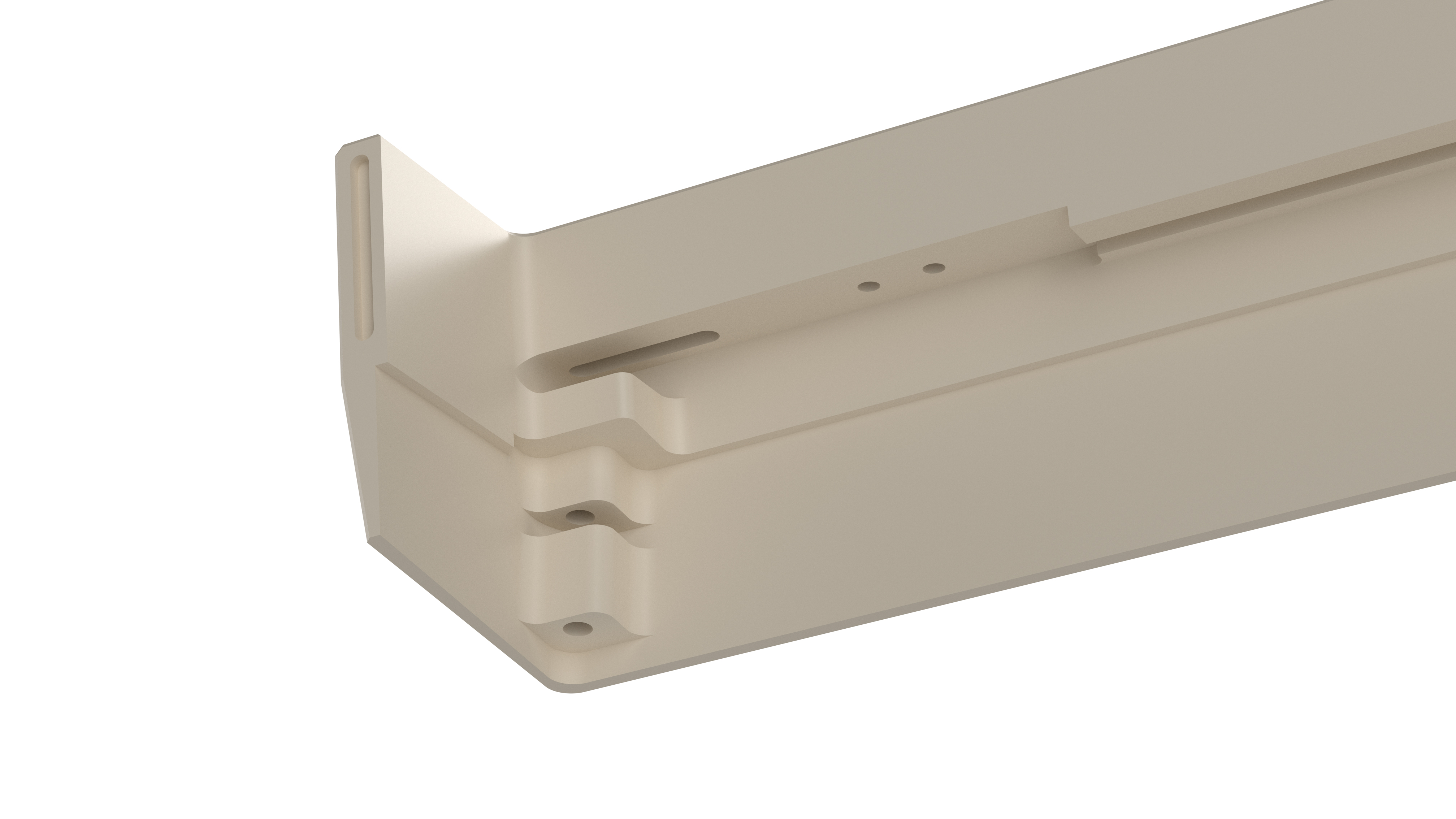

①Three layouts can be replaced by changing the bottom cover

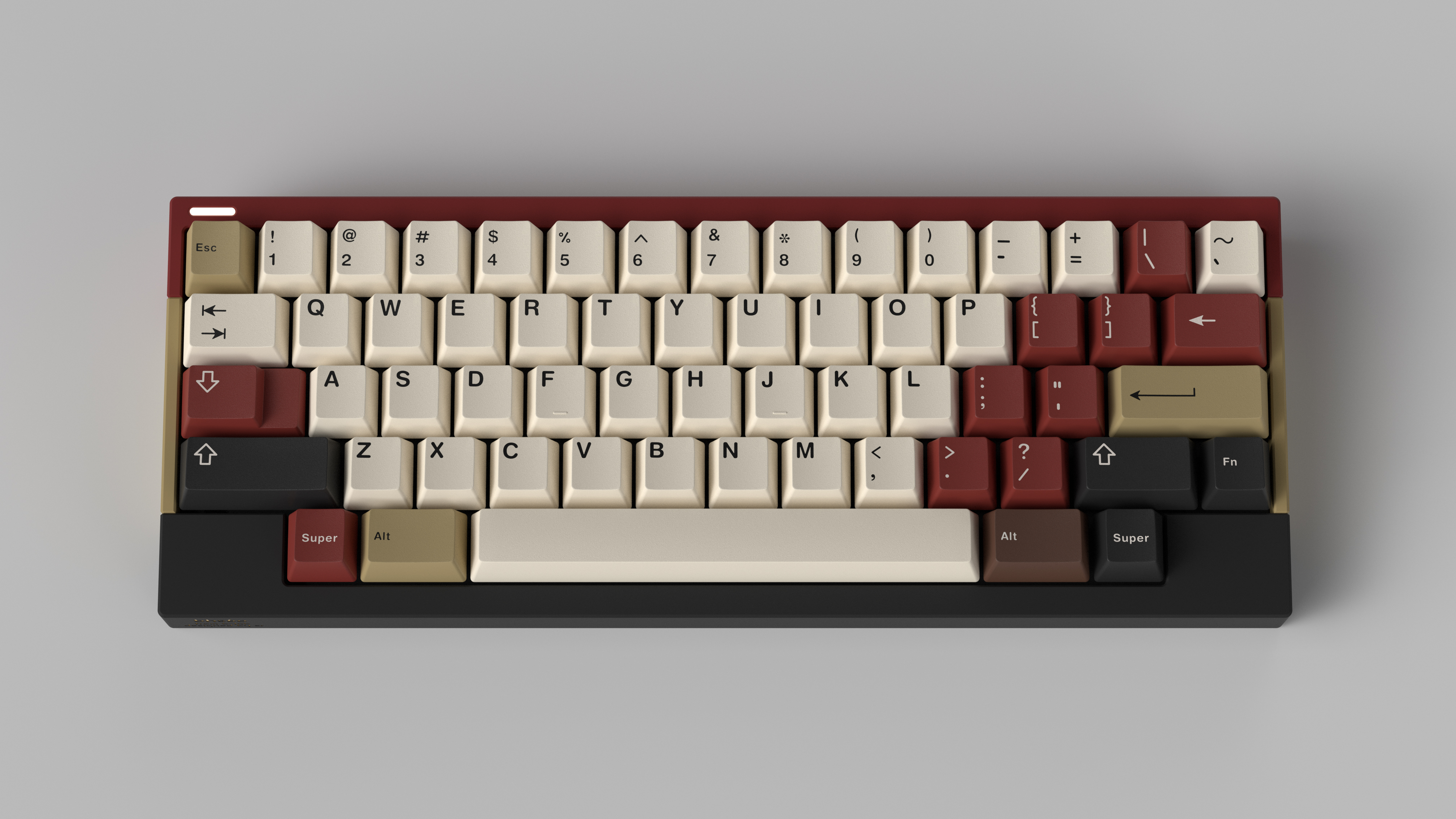

②The three-stage layout can adapt to more different styles of keycaps

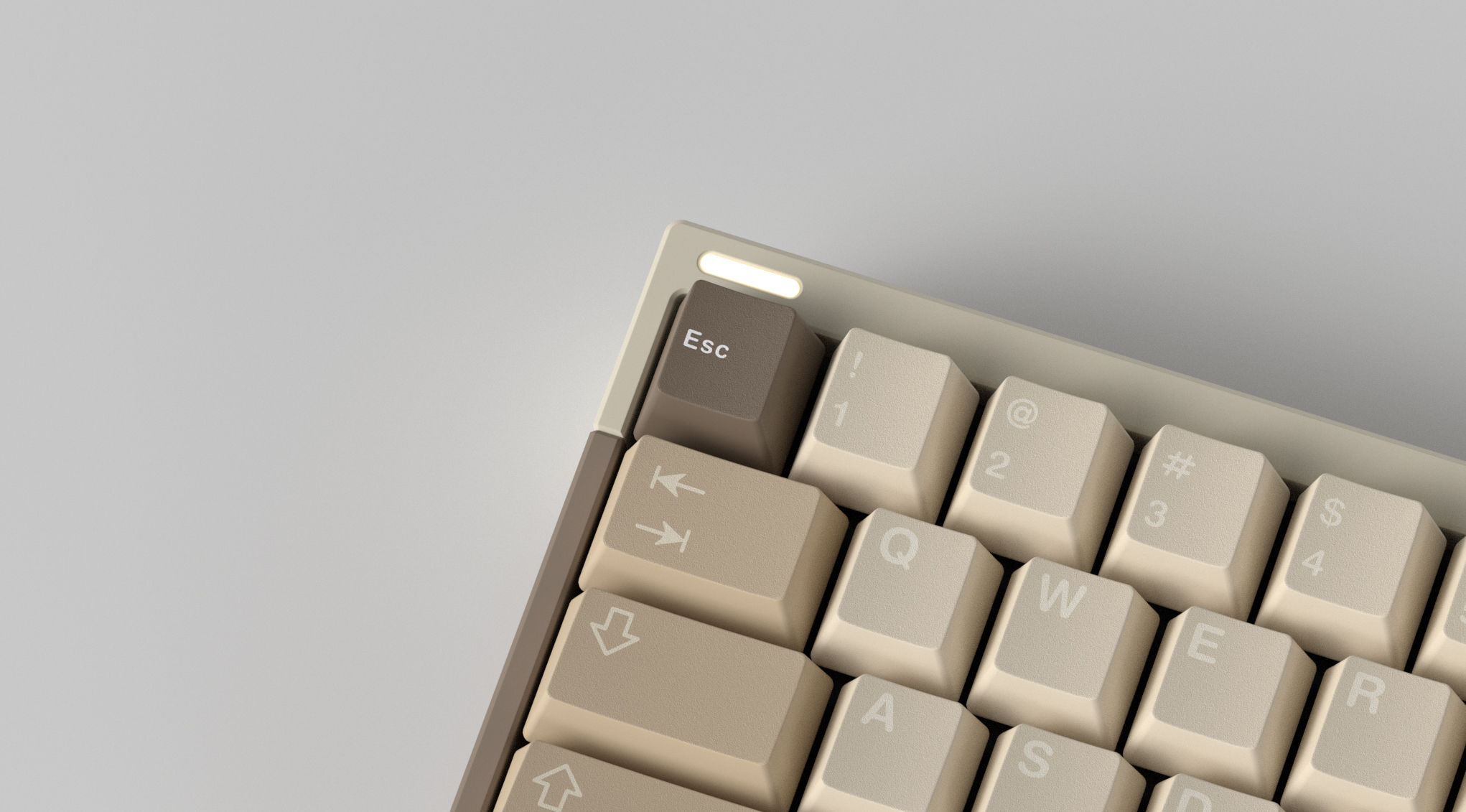

③Designed with light strips and sufficient height to meet daily use

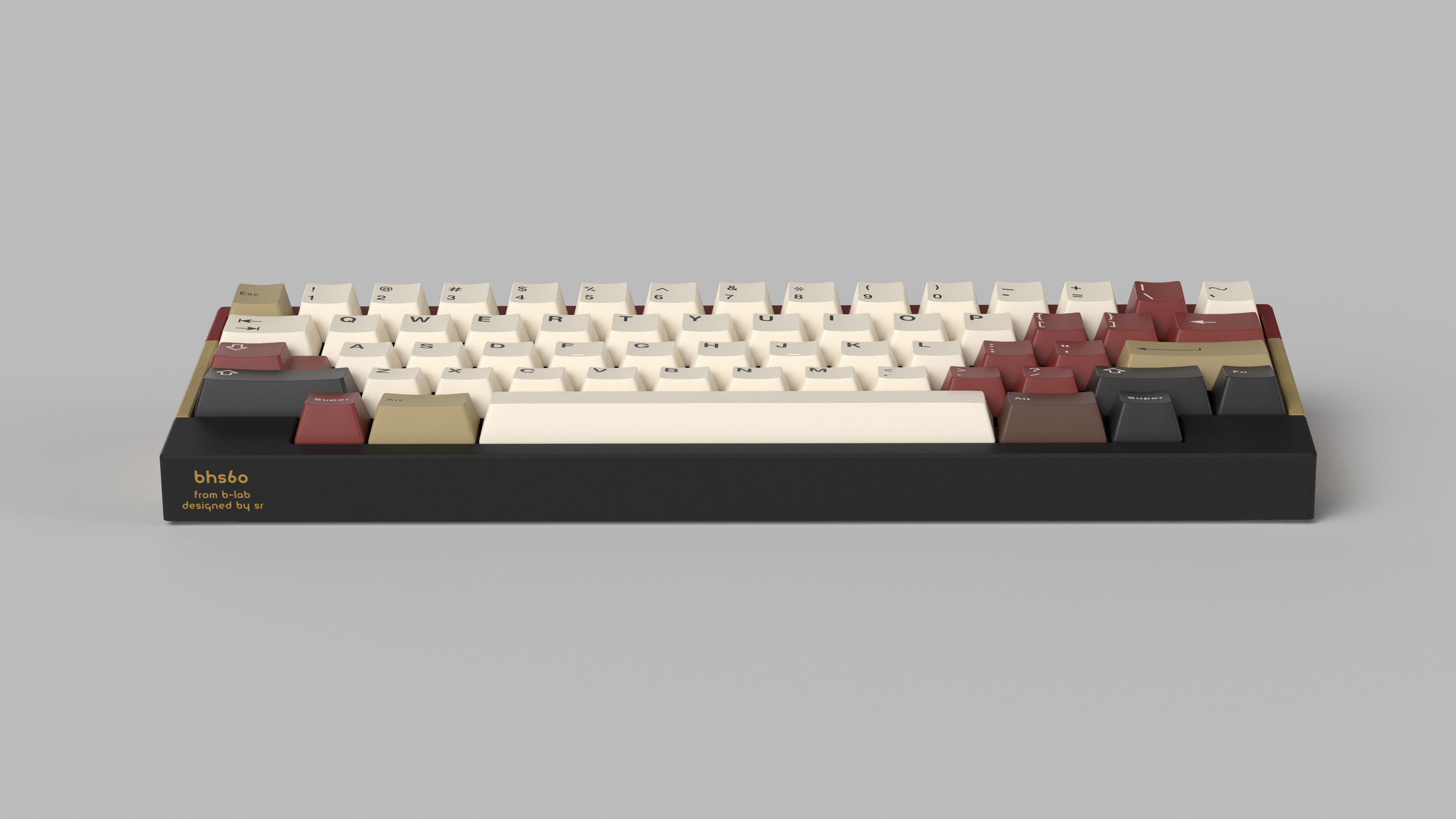

④The inscriptions are all in the font of Herbert Bayer
[ Specified attachment is not available ]













3、 Keyboard information

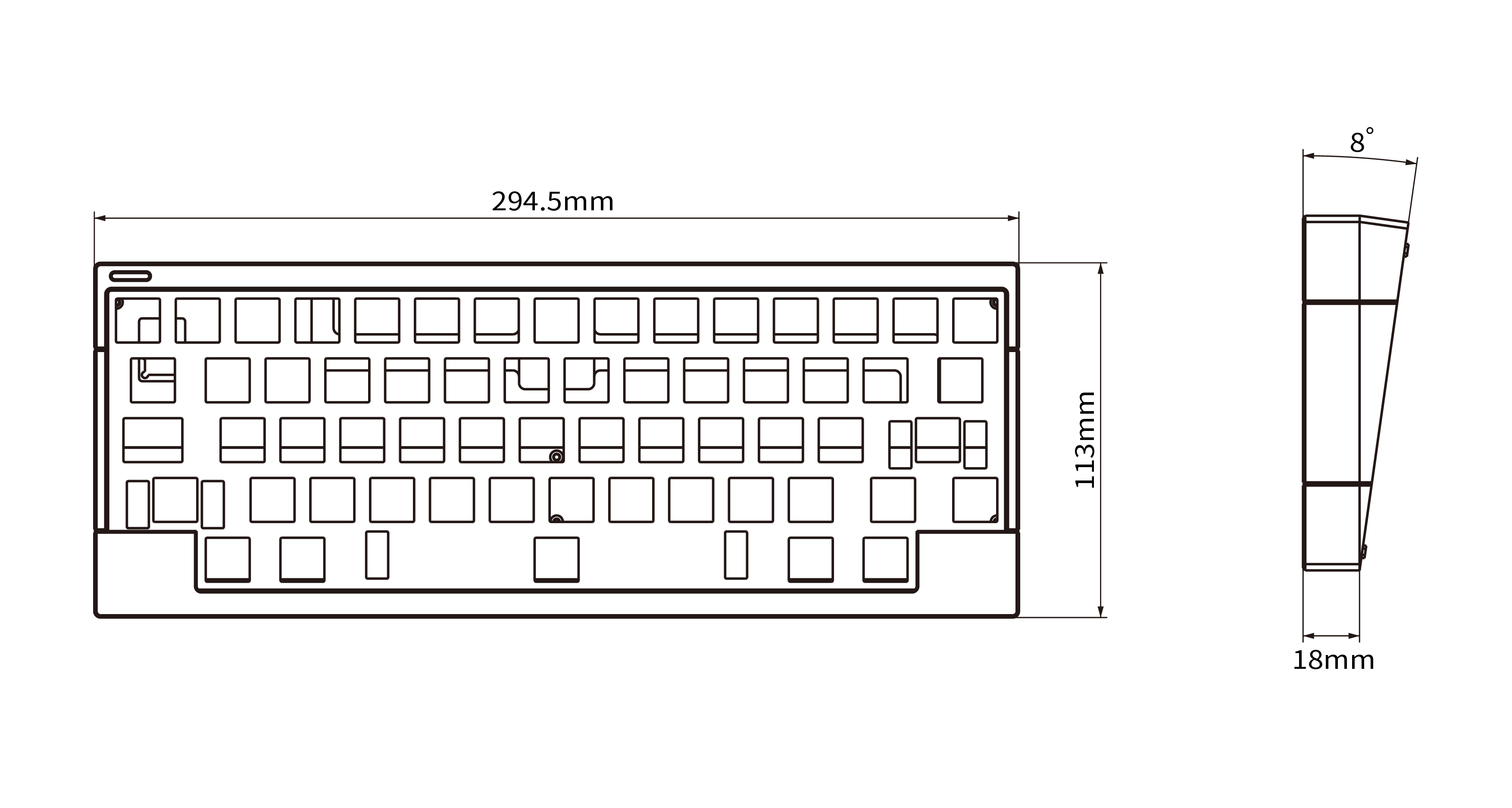

Slope: 8%
Front height: 18mm (excluding foot pads)
Allocation: 60% (WK, WKL, HHKB)
Colors: Beige (beige), RML (mixed light)
Price: TBD
Quantity: 100 sets, futures
Weight: 1.3kg (outer shell only, excluding inner liner)
Structure: GAS

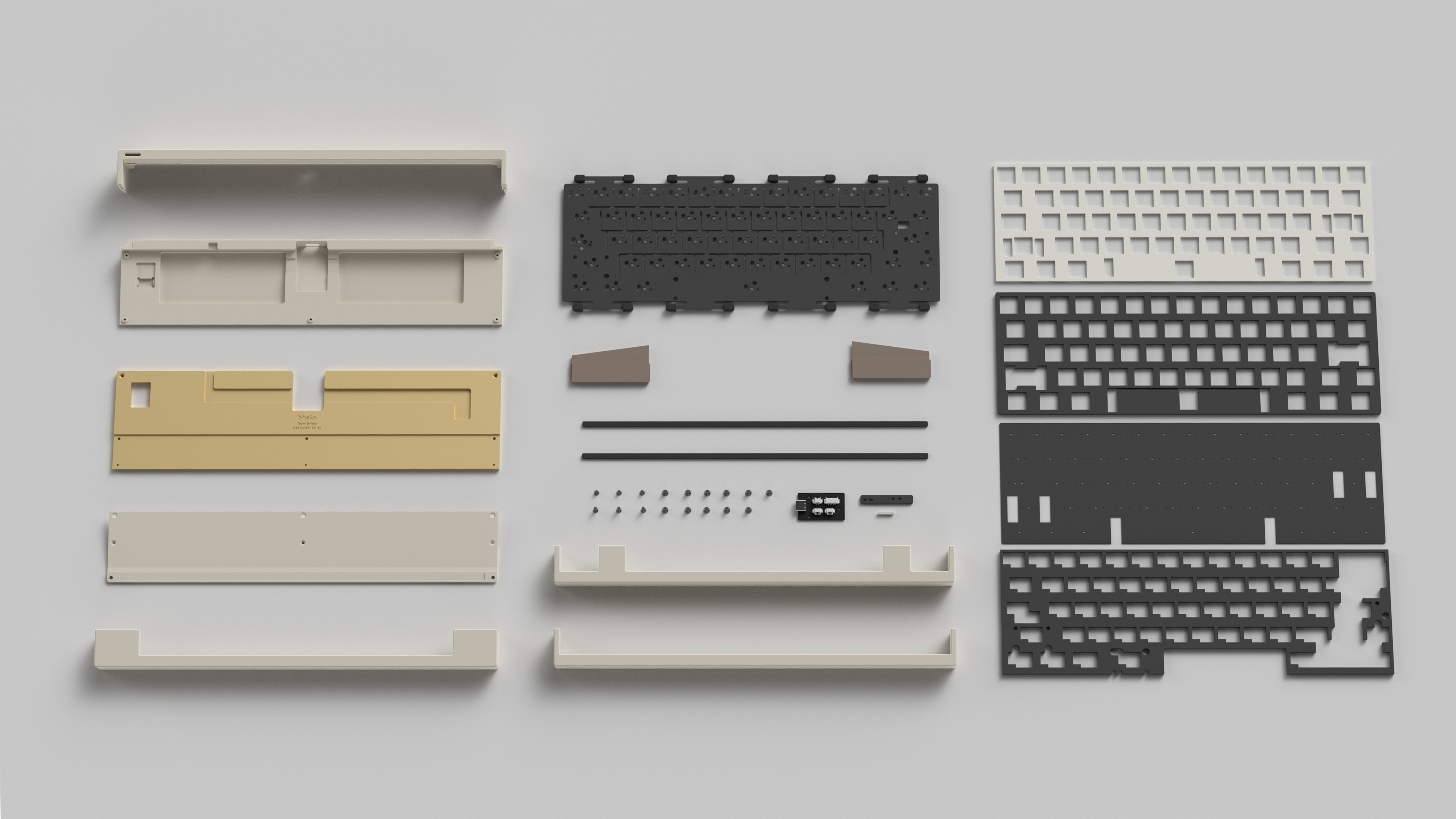

Positioning board: PC slotted, FR4 slotted, AL non slotted (one standard)
PCB: 1.2mm single-mode slotted hot swappable, 1.6mm single-mode non slotted welding (welding plate must meet MOQ standards)
Sound package: PORON sandwich cotton, IXPE shaft bottom pad, PORON bottom cotton

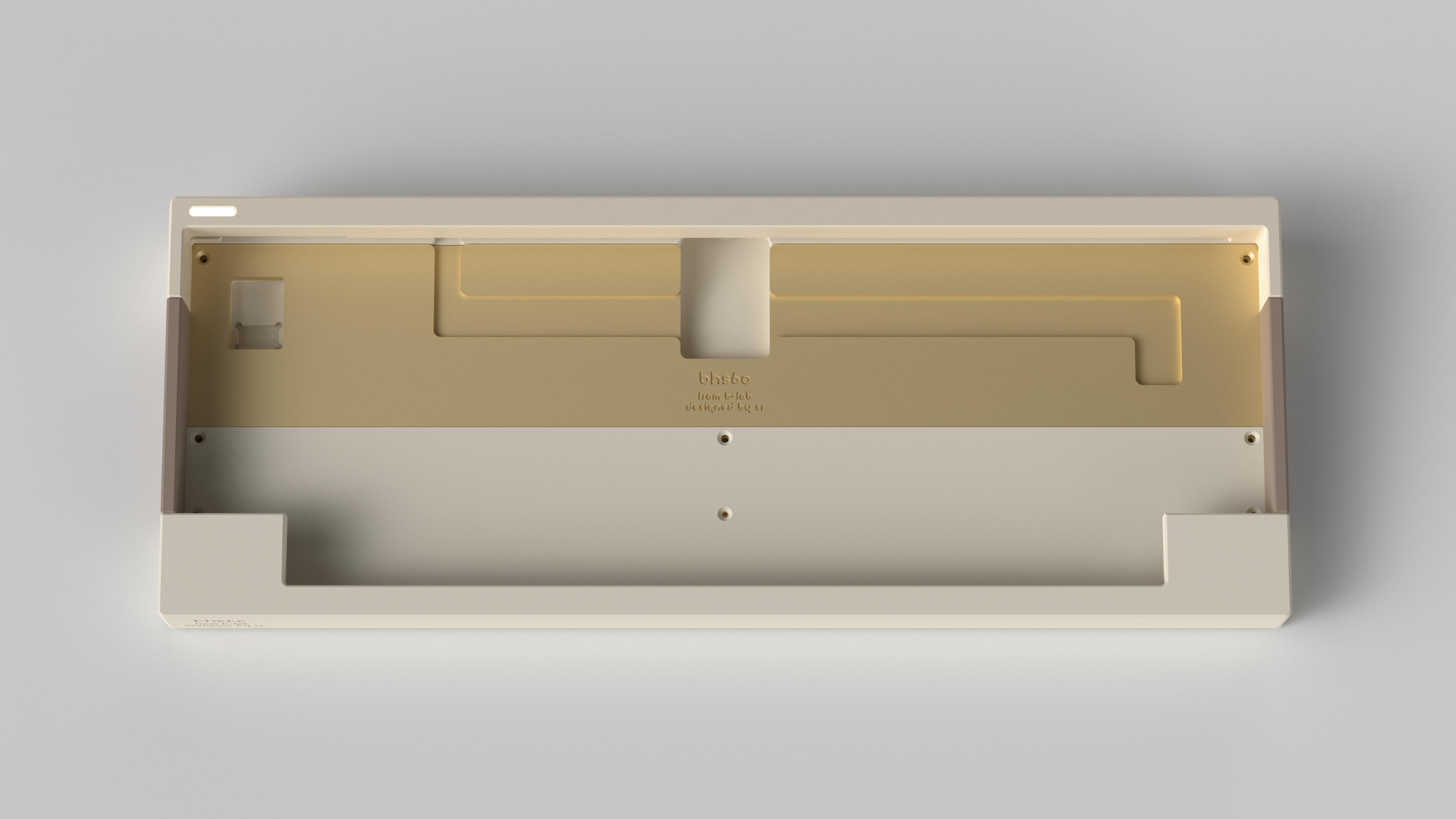

Surrounding: BHS60 metal block

If you are interested, welcome to join our discord： https://discord.gg/dBJpgpnP
