BNR1
1 KNOB MULTIPLE JOB
BNR1 is an CNC machined rotary encoder knob from a solid rod of aluminium.
It can be configured via QMK flashable Atmega32U4 to do just about anything you want it for. It uses EC11 encoder with no detent that means it is smooth when you rotate the knob.
It takes both rotary and click input.
GROUP BUY : 14th March - 29th March 2021

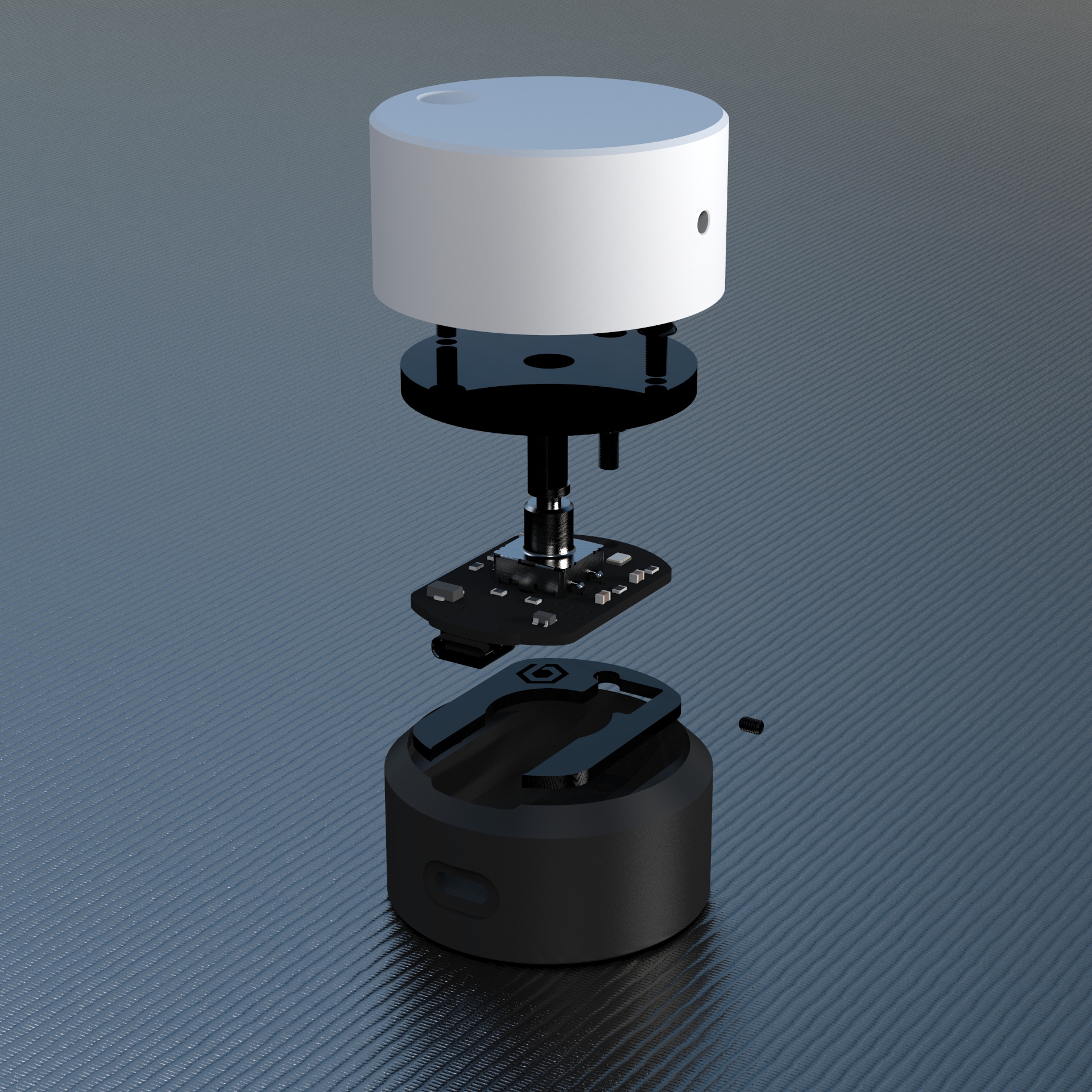

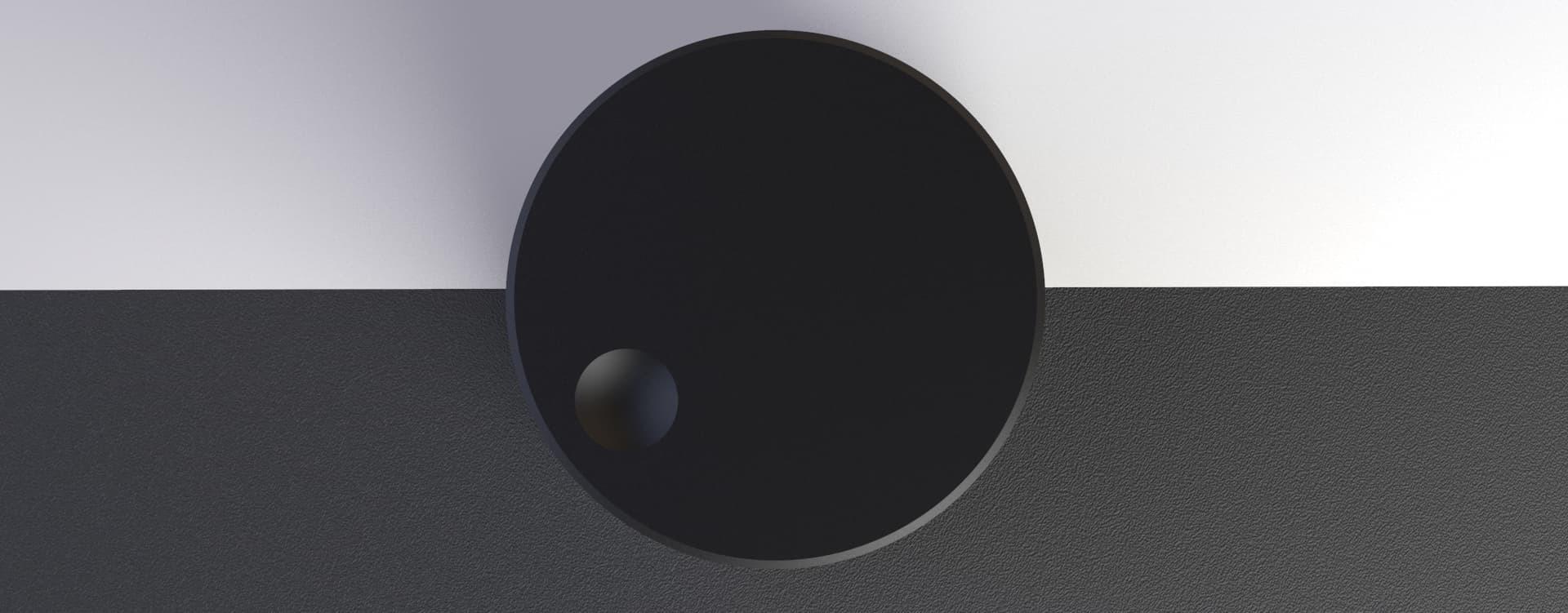

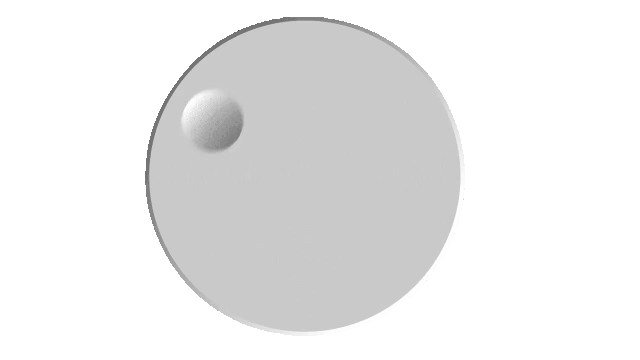

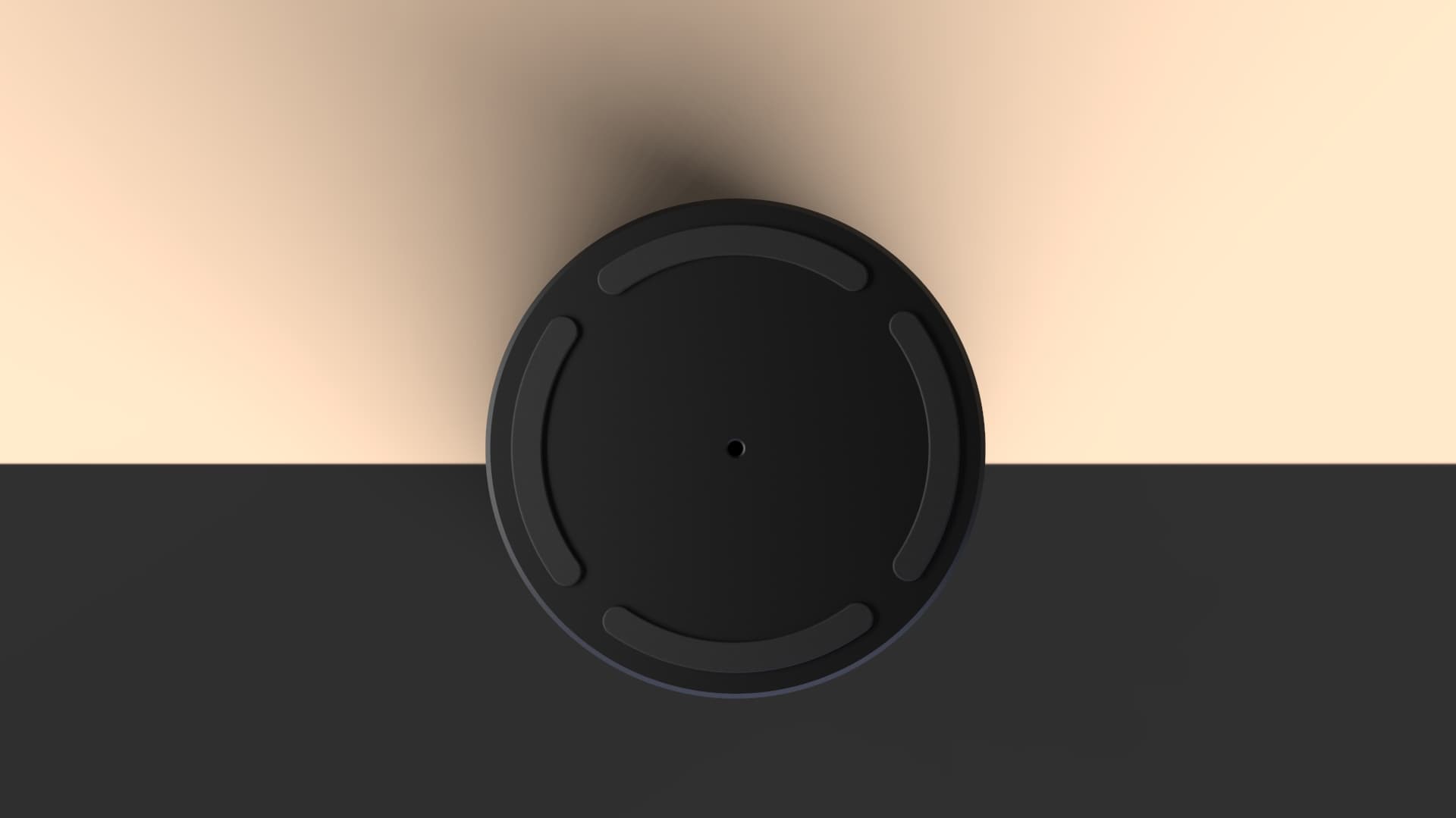

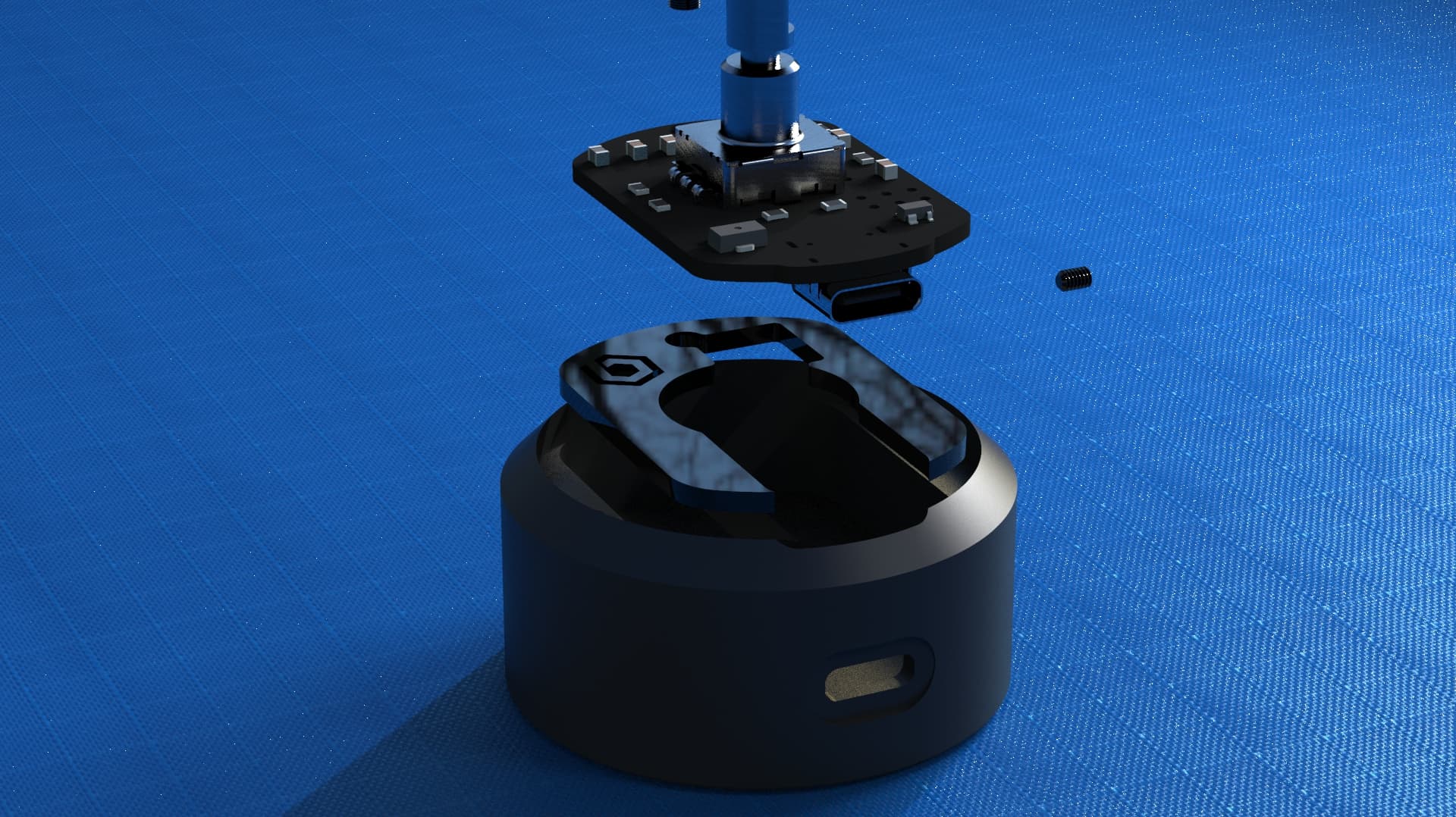

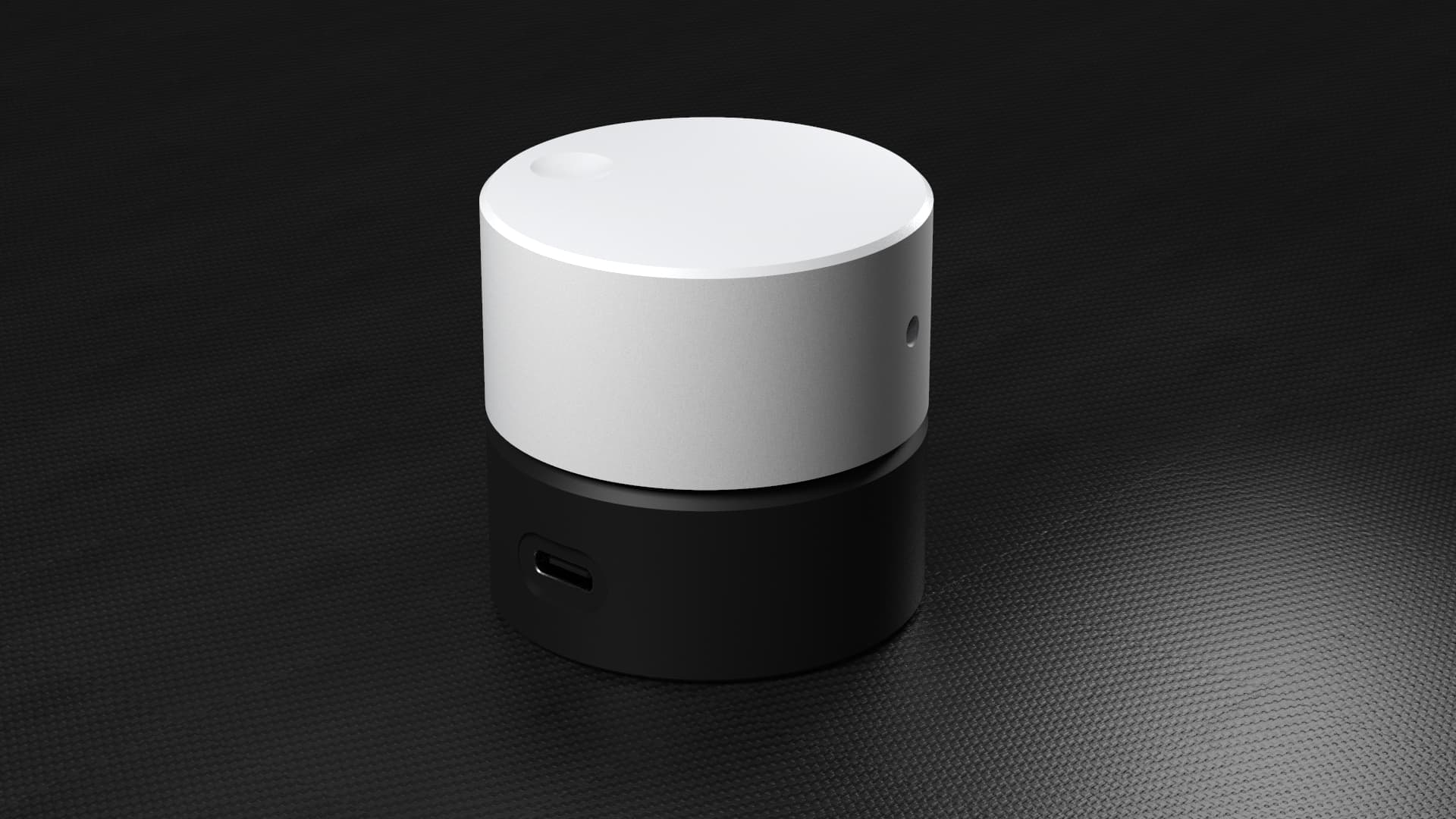

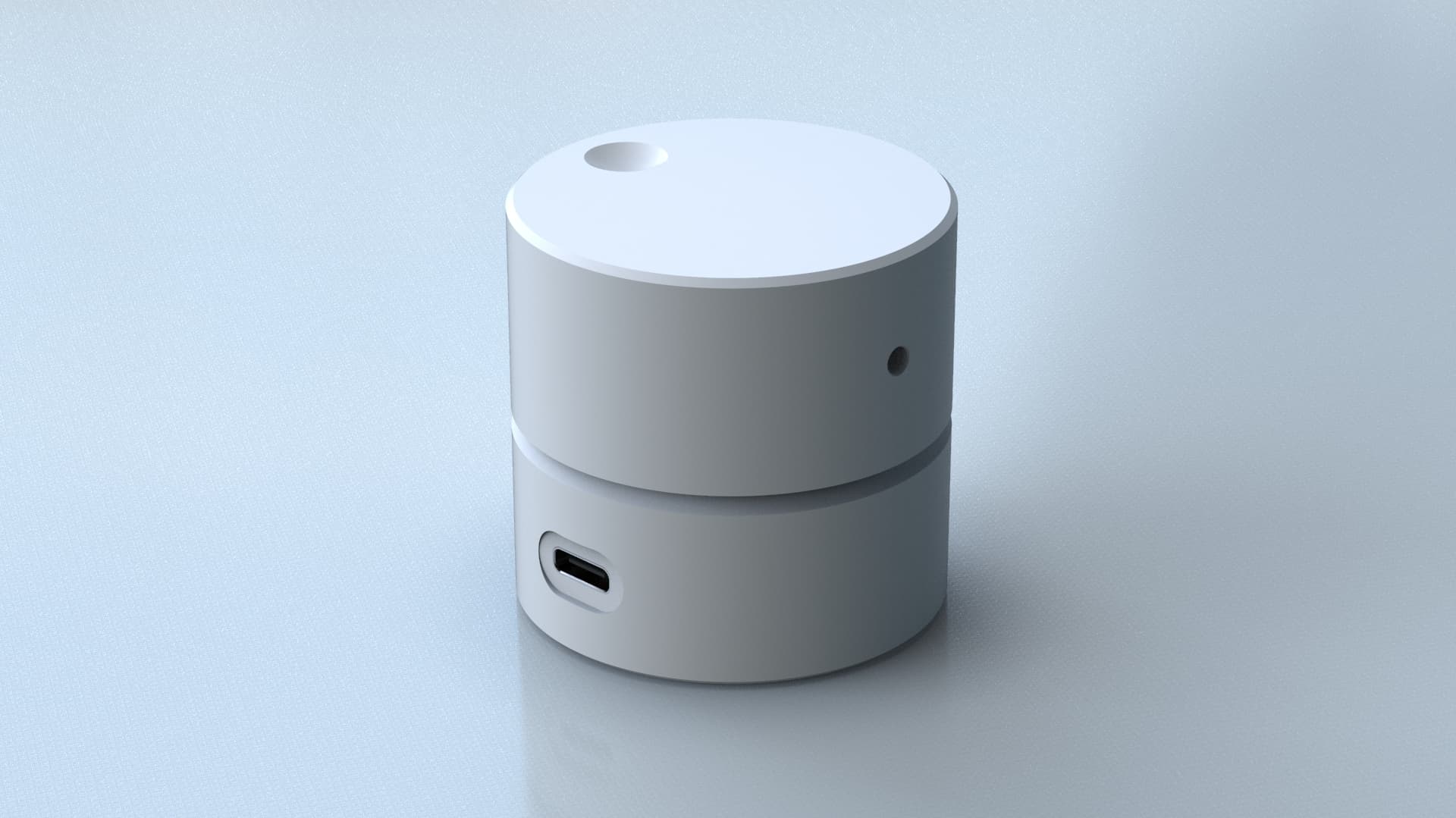

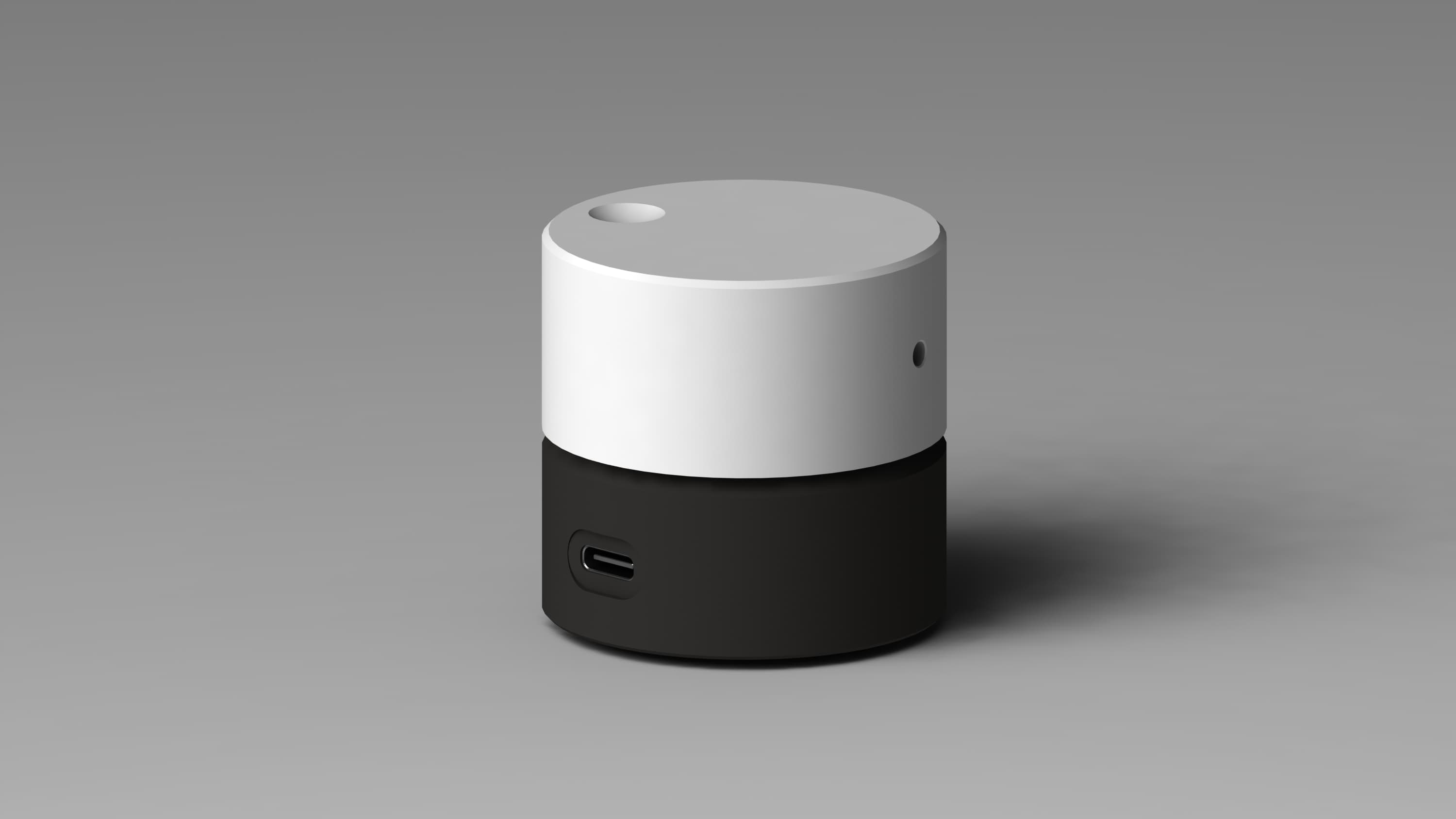

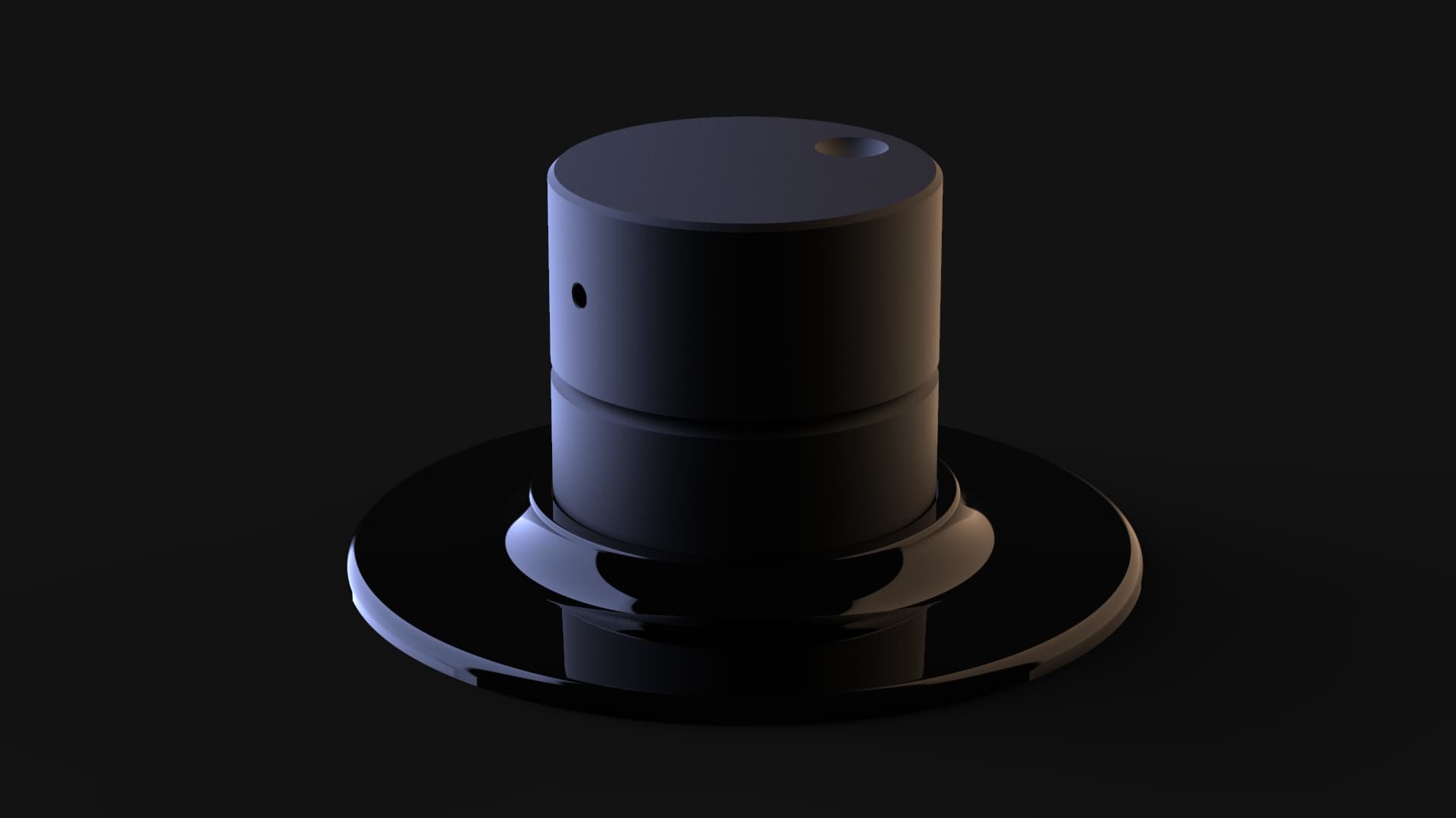

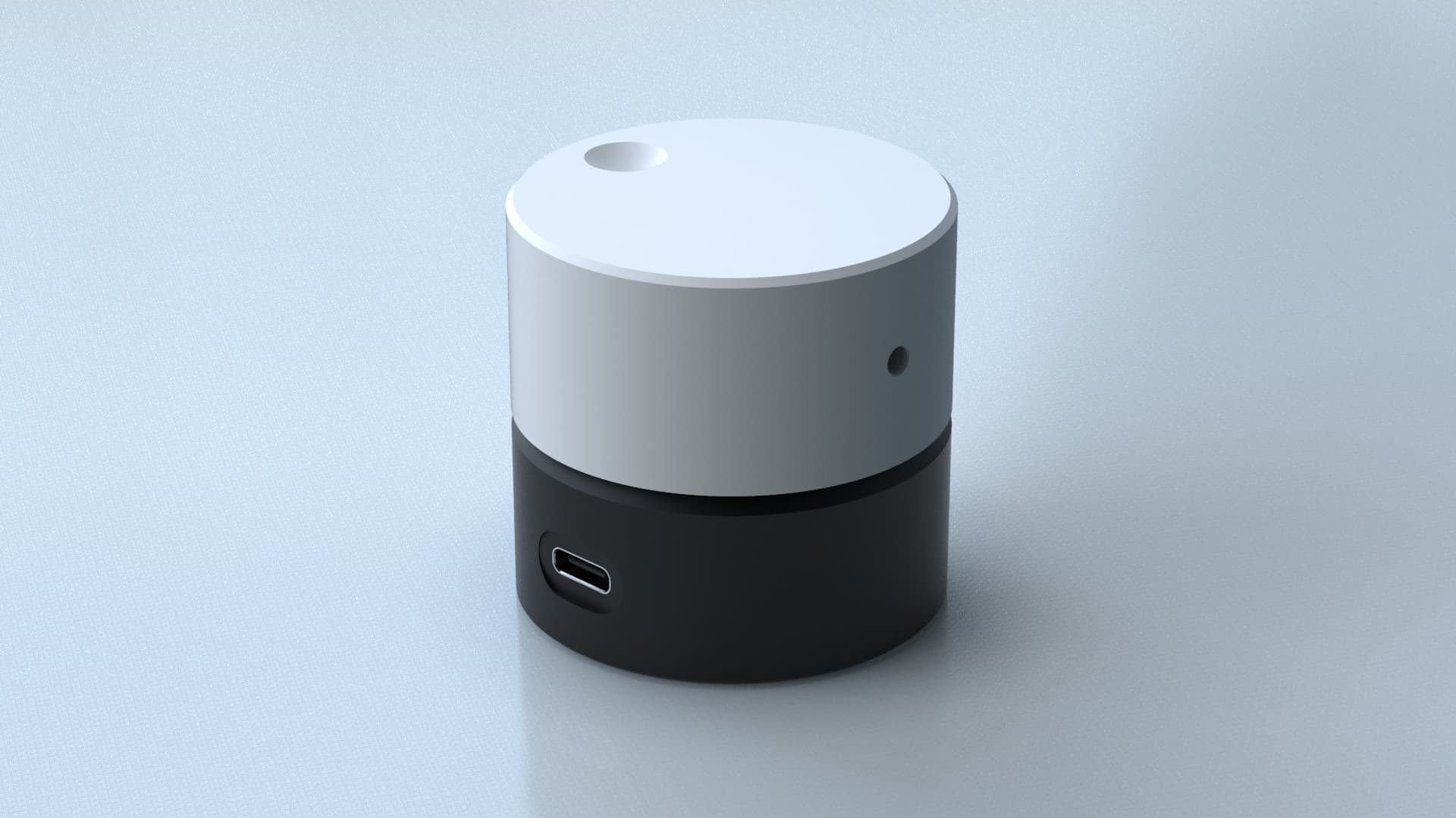

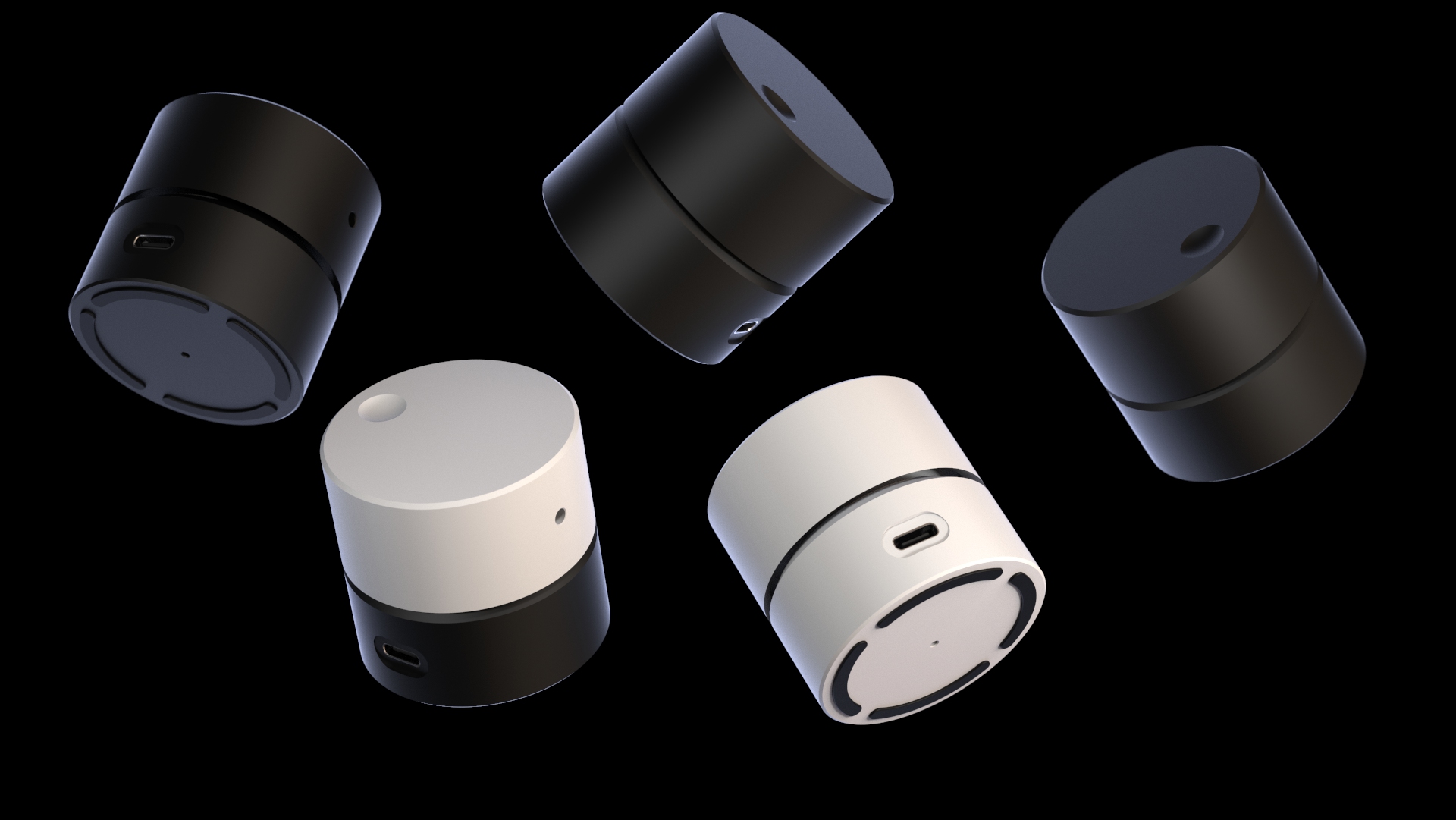

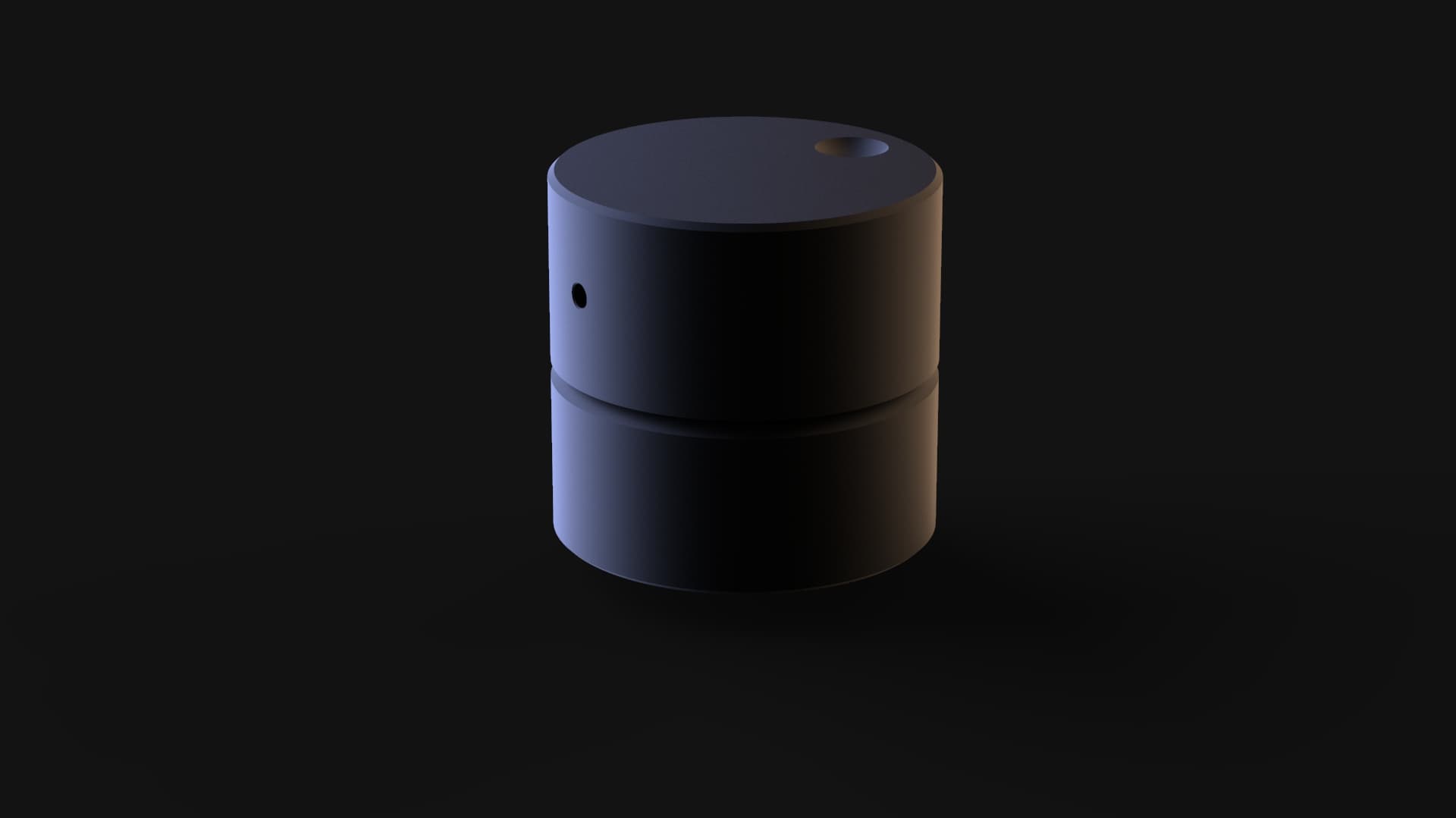

RENDERS

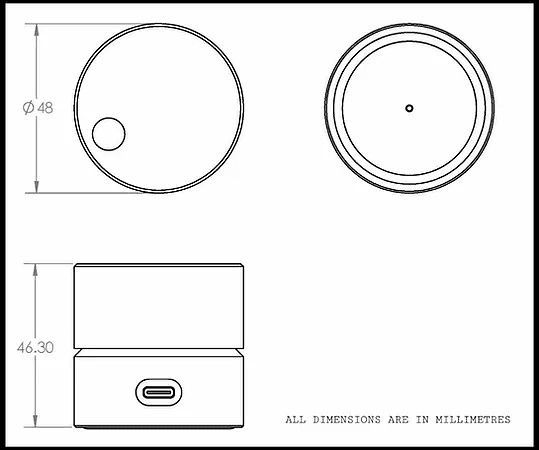

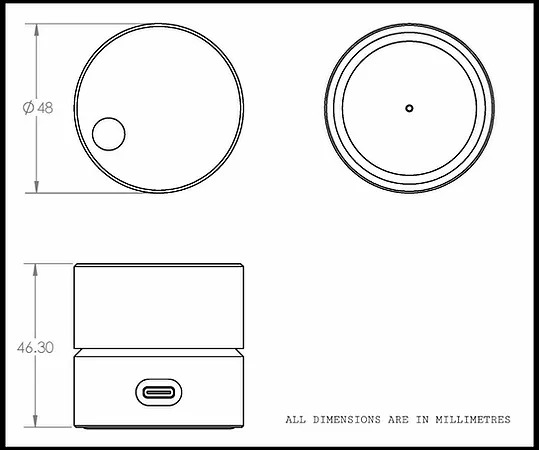

DIMENSIONS

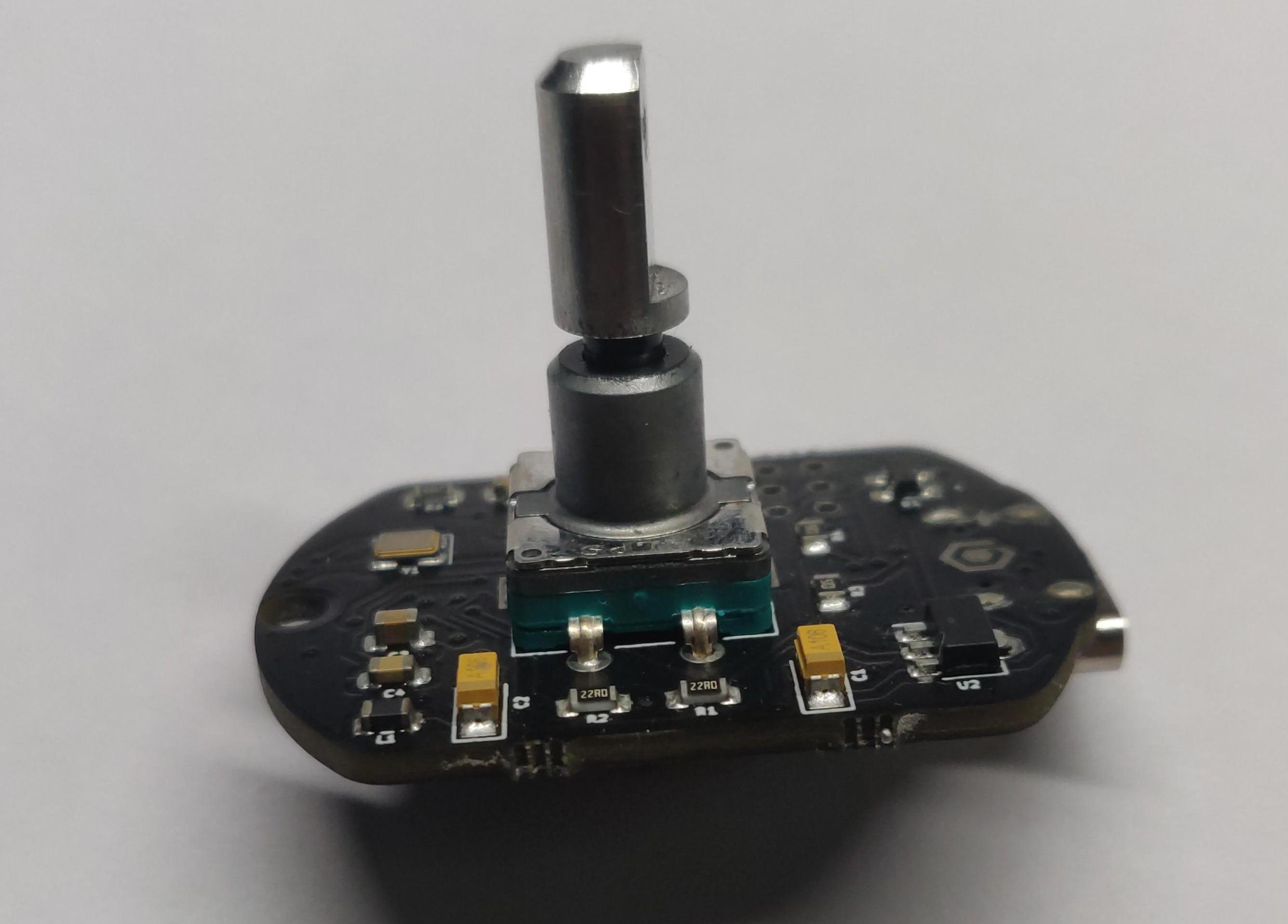

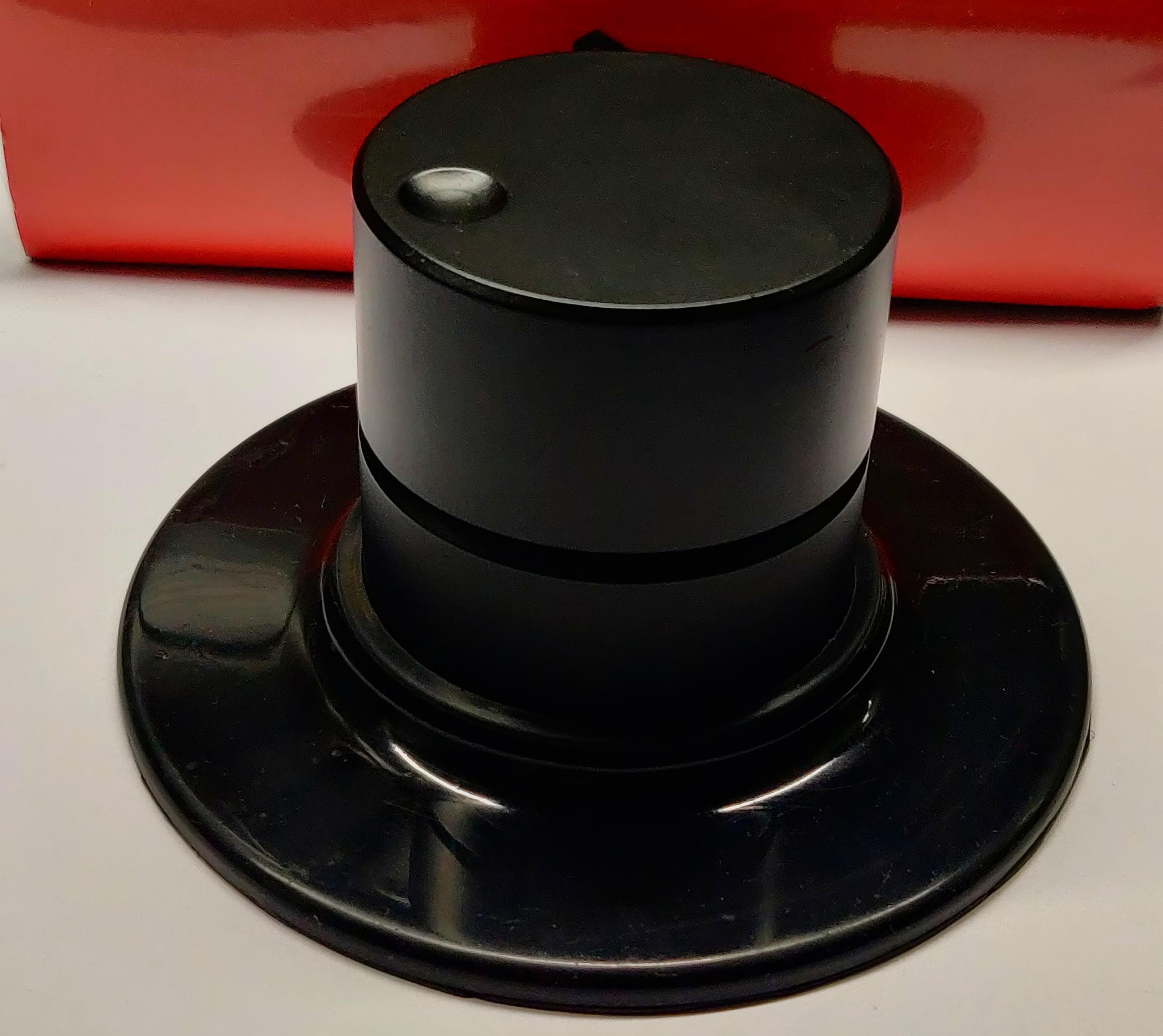

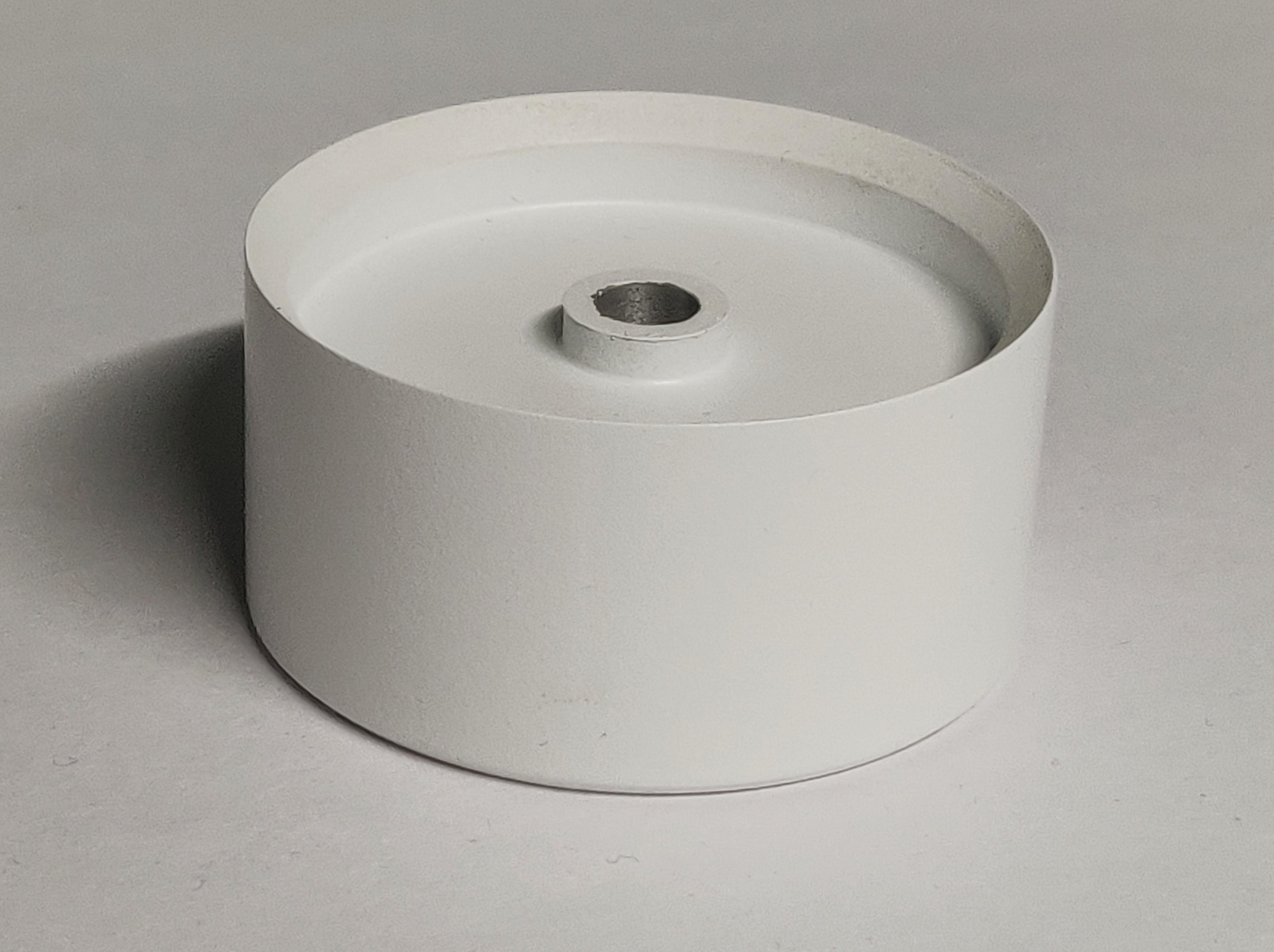

PROTOTYPE
Programing with VIAL Conf.

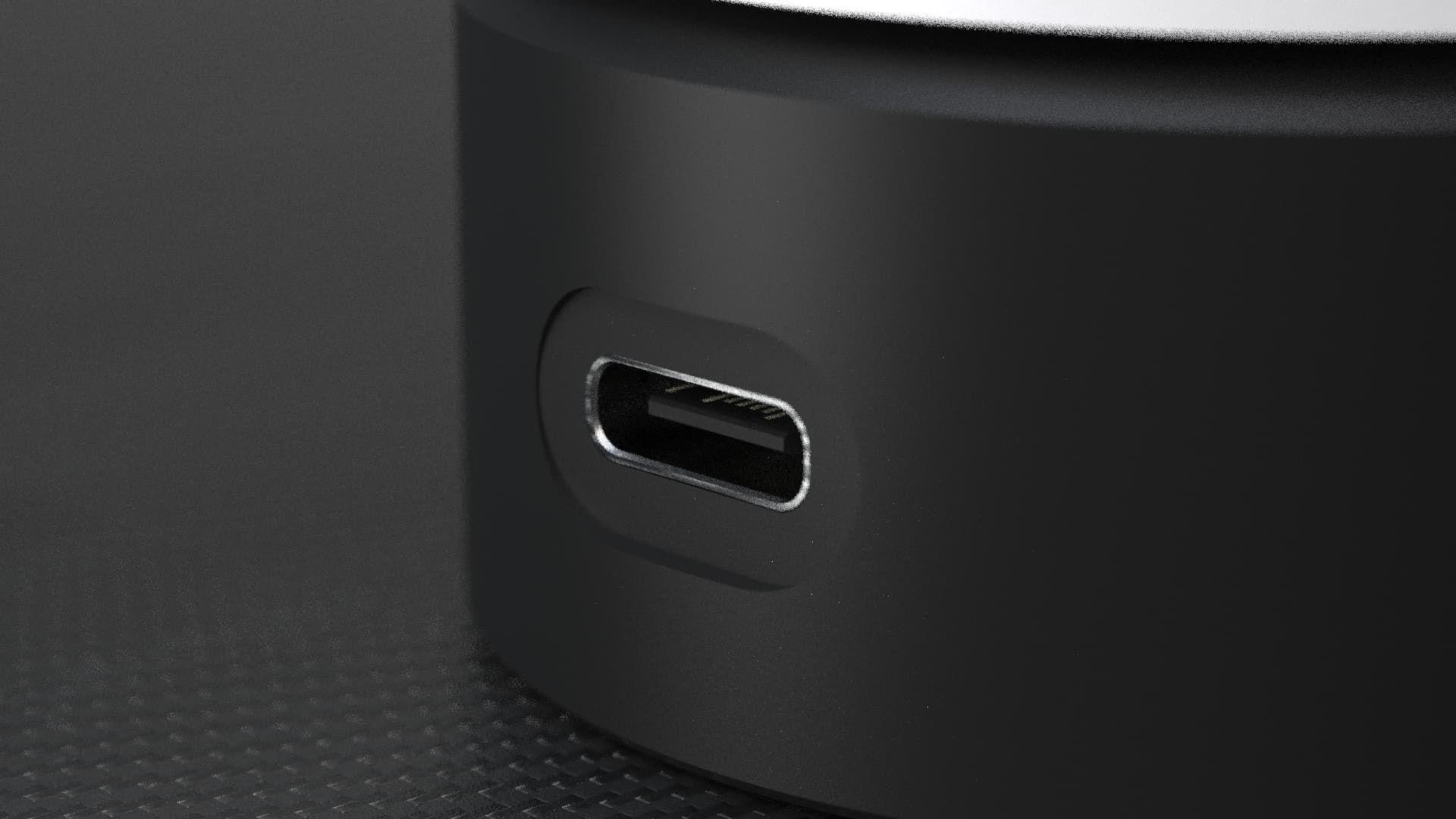

FEATURES• TYPE C PORT
• Programmable by VIAL QMK configurator
• 2-Piece Machined Aluminum-6061 Available in two color:• WHITE (Top/Bottom)
• BLACK (Top/Bottom)

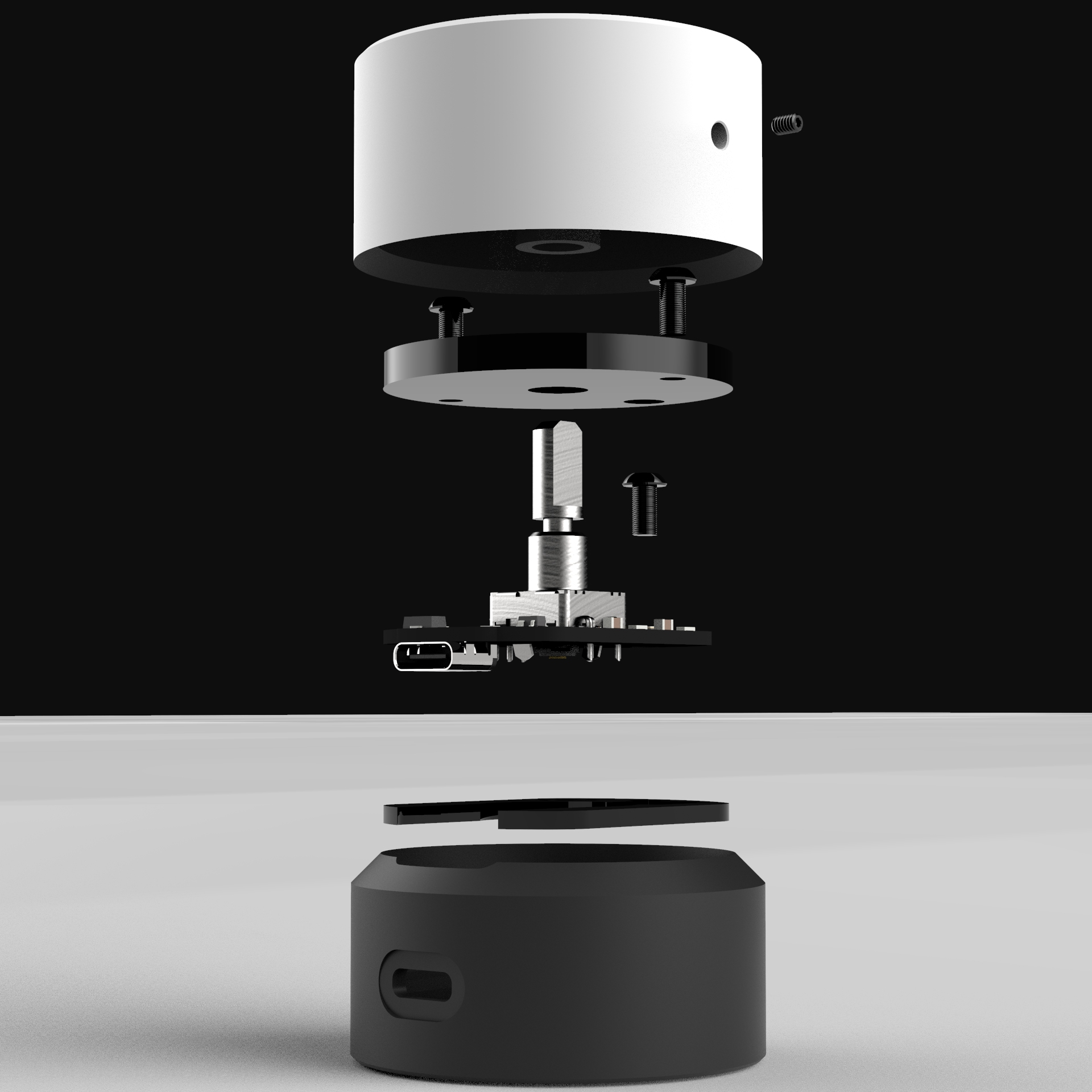

BNR1 SHIPS WITH
• 1 x Top CNC Machined Aluminium Knob
• 1 x Bottom CNC Machined Aluminium Frame
• 1 x PCB with TYPE-C Port (Designed by Team Mechlovin')
• 4 x Rubber Feet
• 1 x Rotary Encoder EC11
• 3 x M3 Screw
• 1 x M3 Set Screw
• 1 x 4MM Acrylic Plate
• 1 x Reset Pin
• 1 x L-Key(Pre Assembled)GEEKHACK ICContactDiscord:
binepad#6855Email:
[email protected]Please leave your feedback below
Thank You so much for your support
Here is the update:-
• CNC Machining has been completed and sent for painting
• PCB has been Ordered from vendor.
• Packaging has been ordered.
• Once we receive everything assembly will start.
Estimated delivery to vendors will start from 15th May, 2021 7th JUNE, 2021 (Due to lockdown in India)

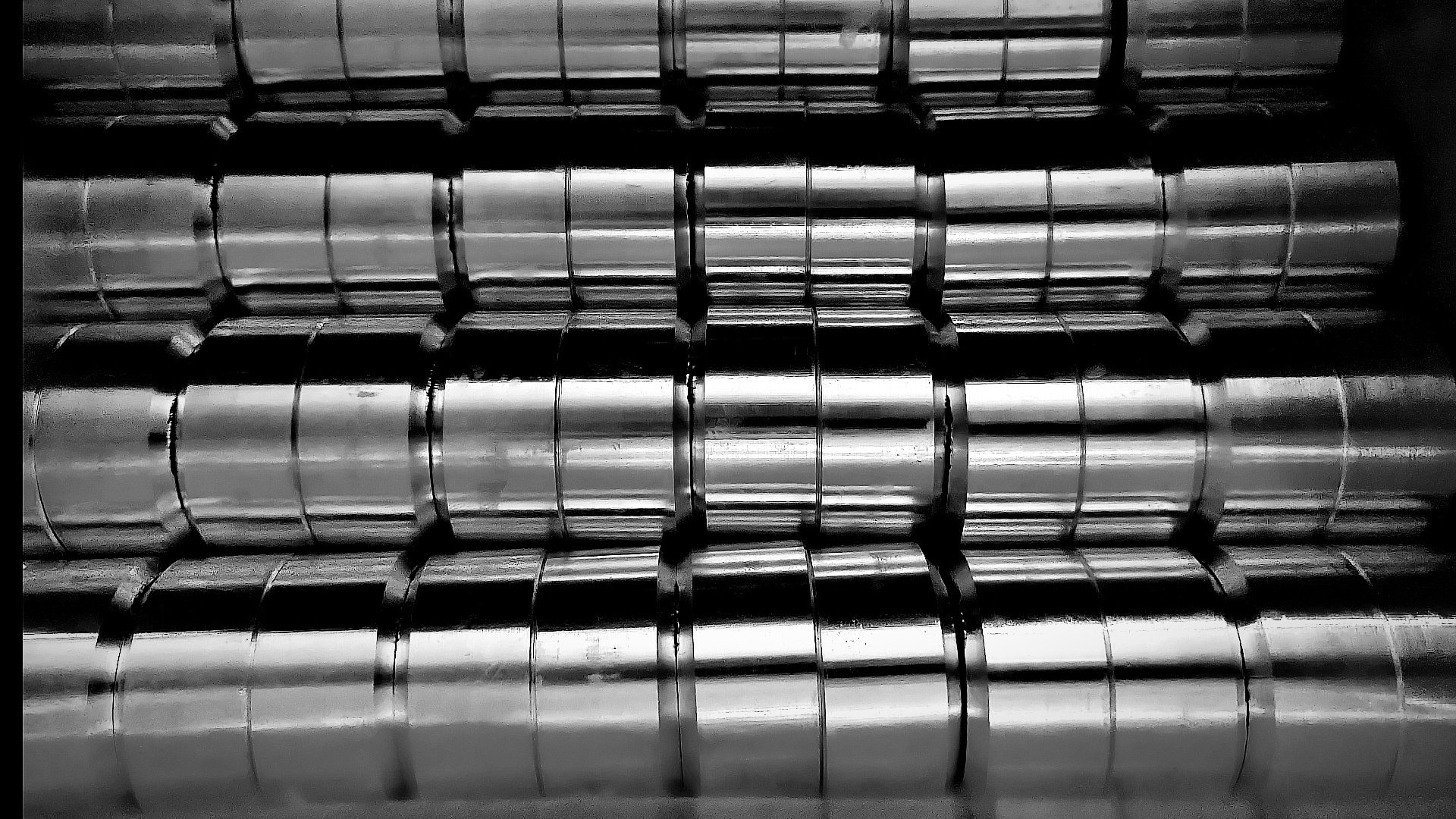

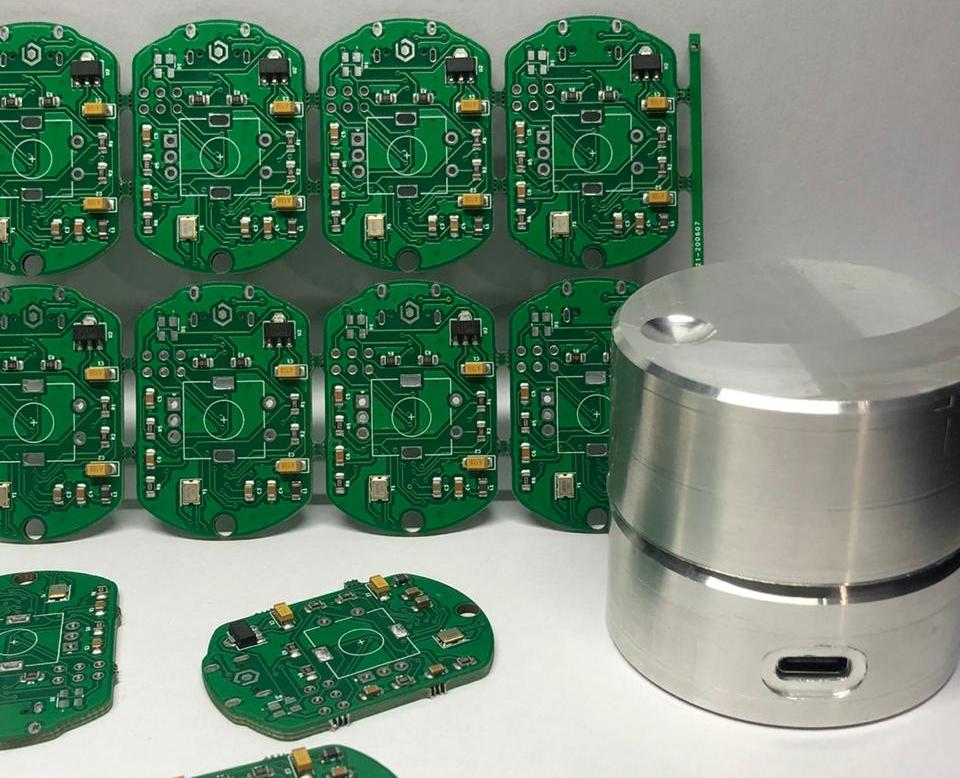

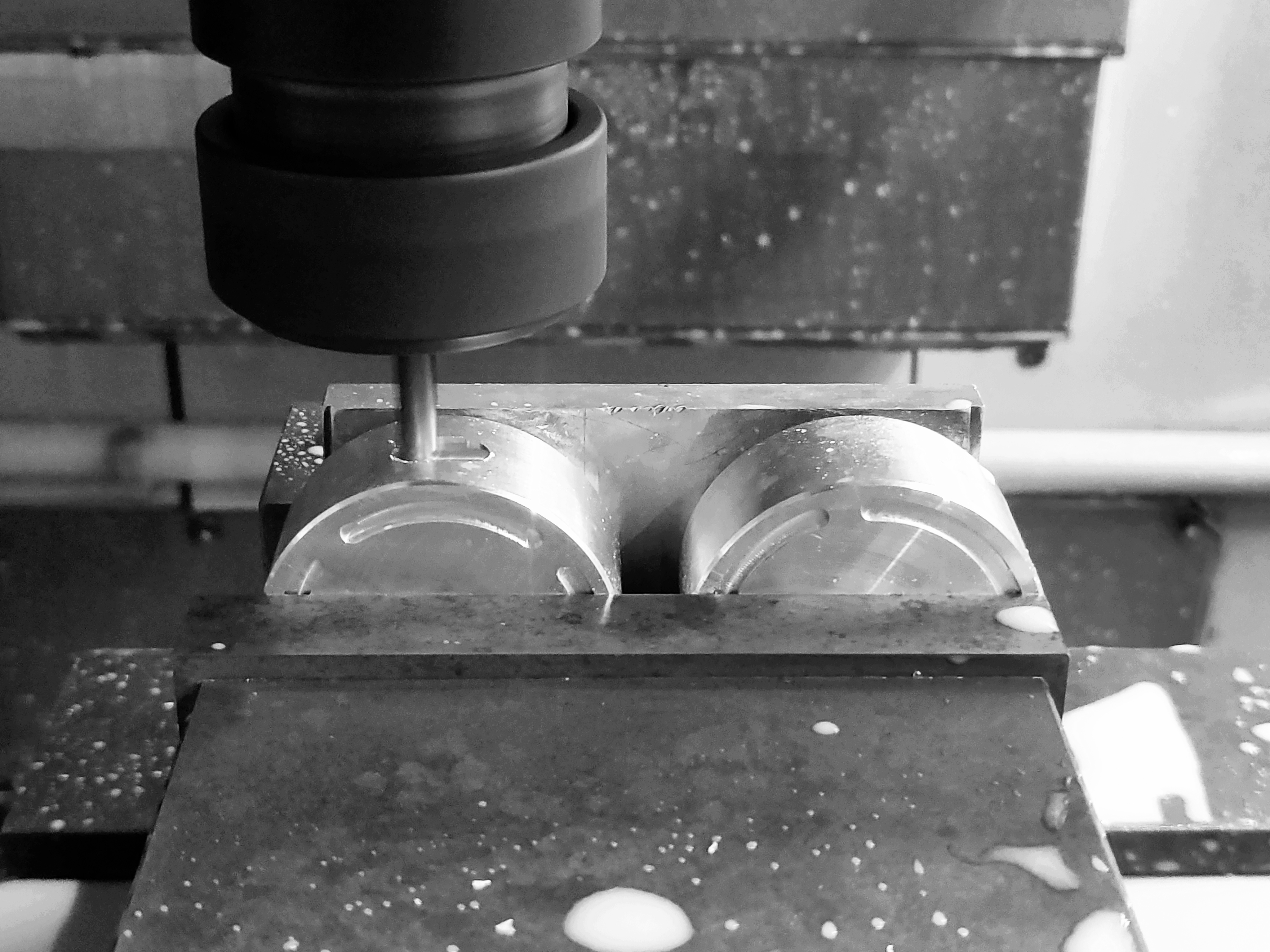

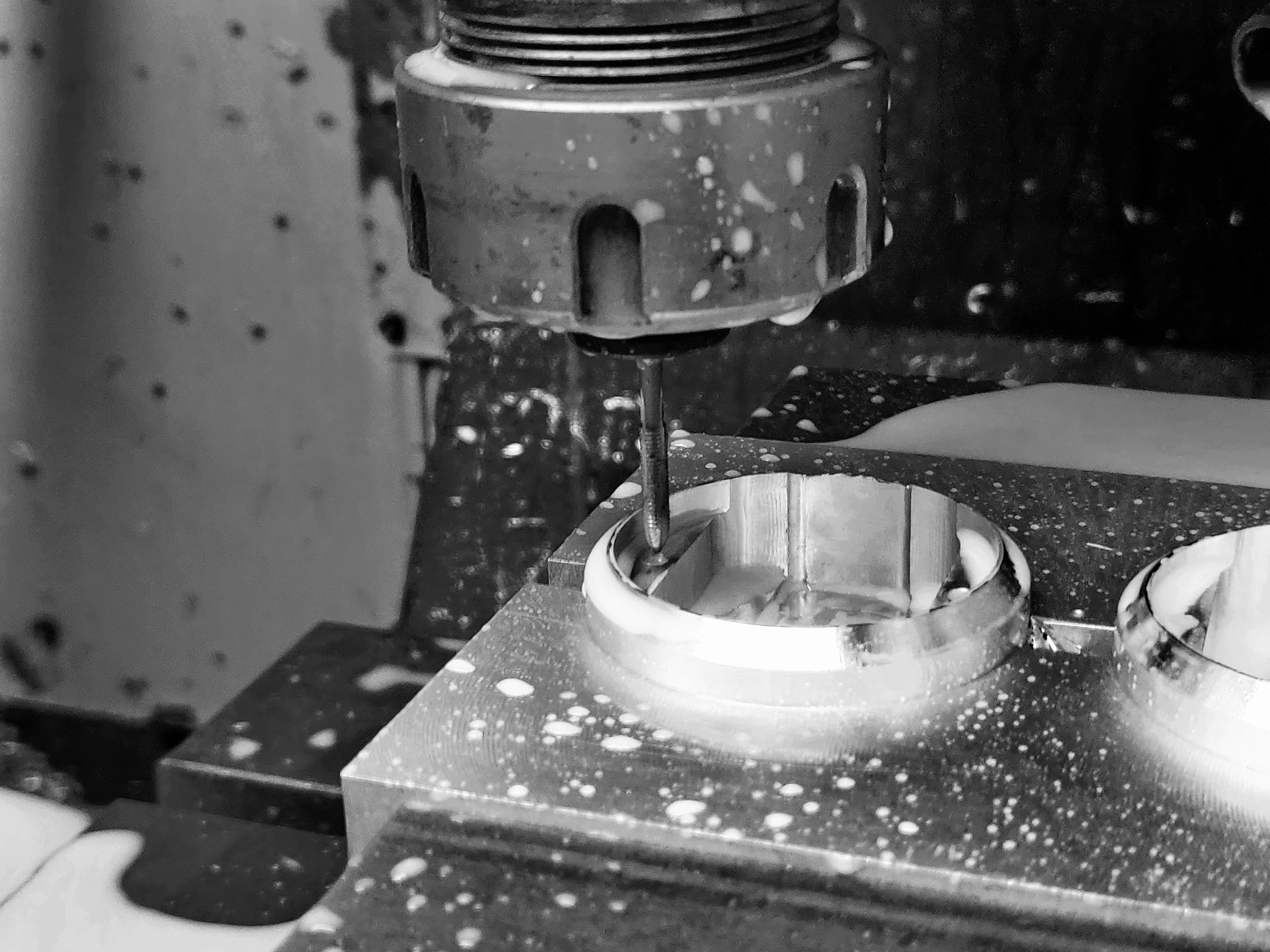

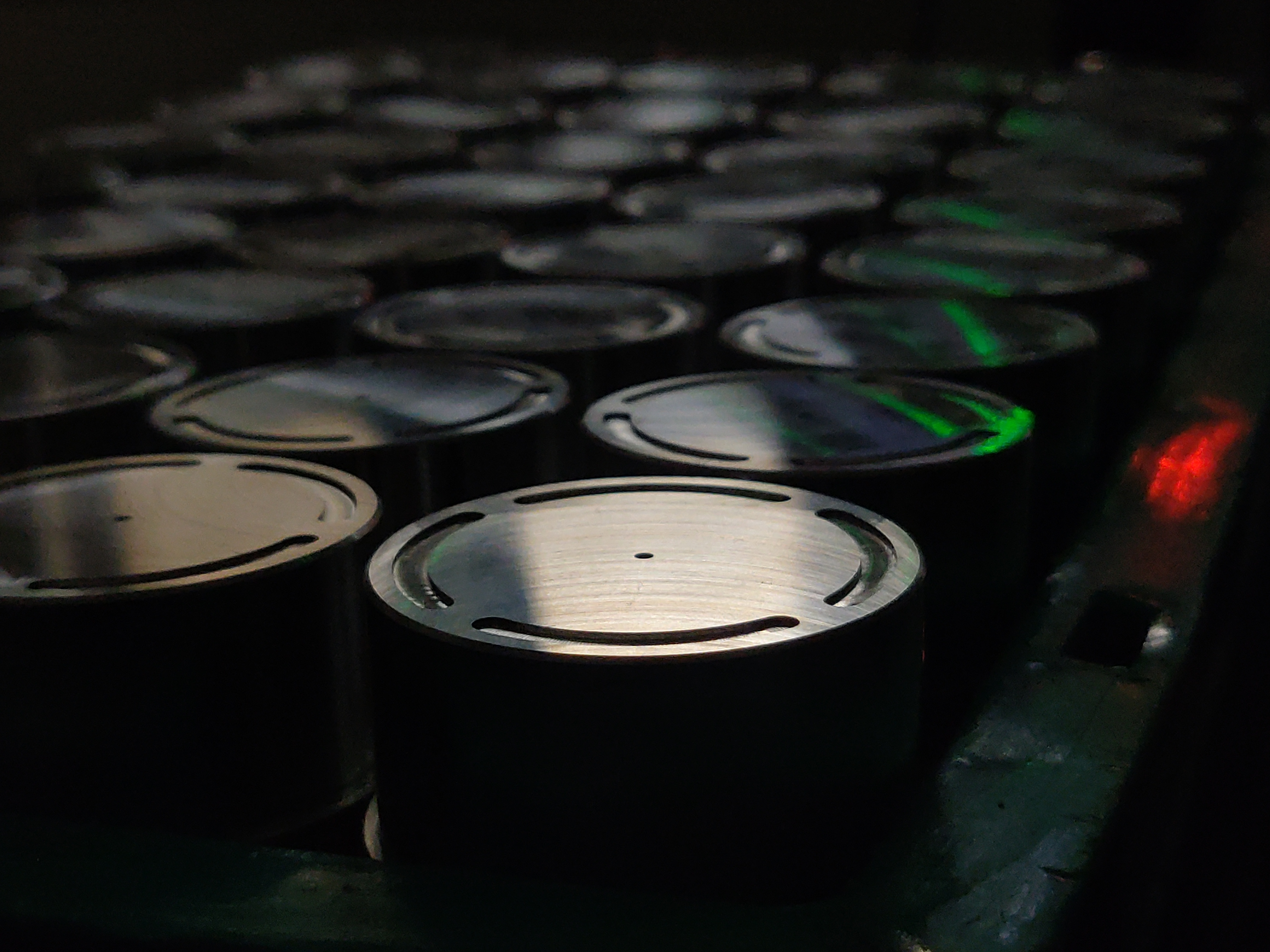

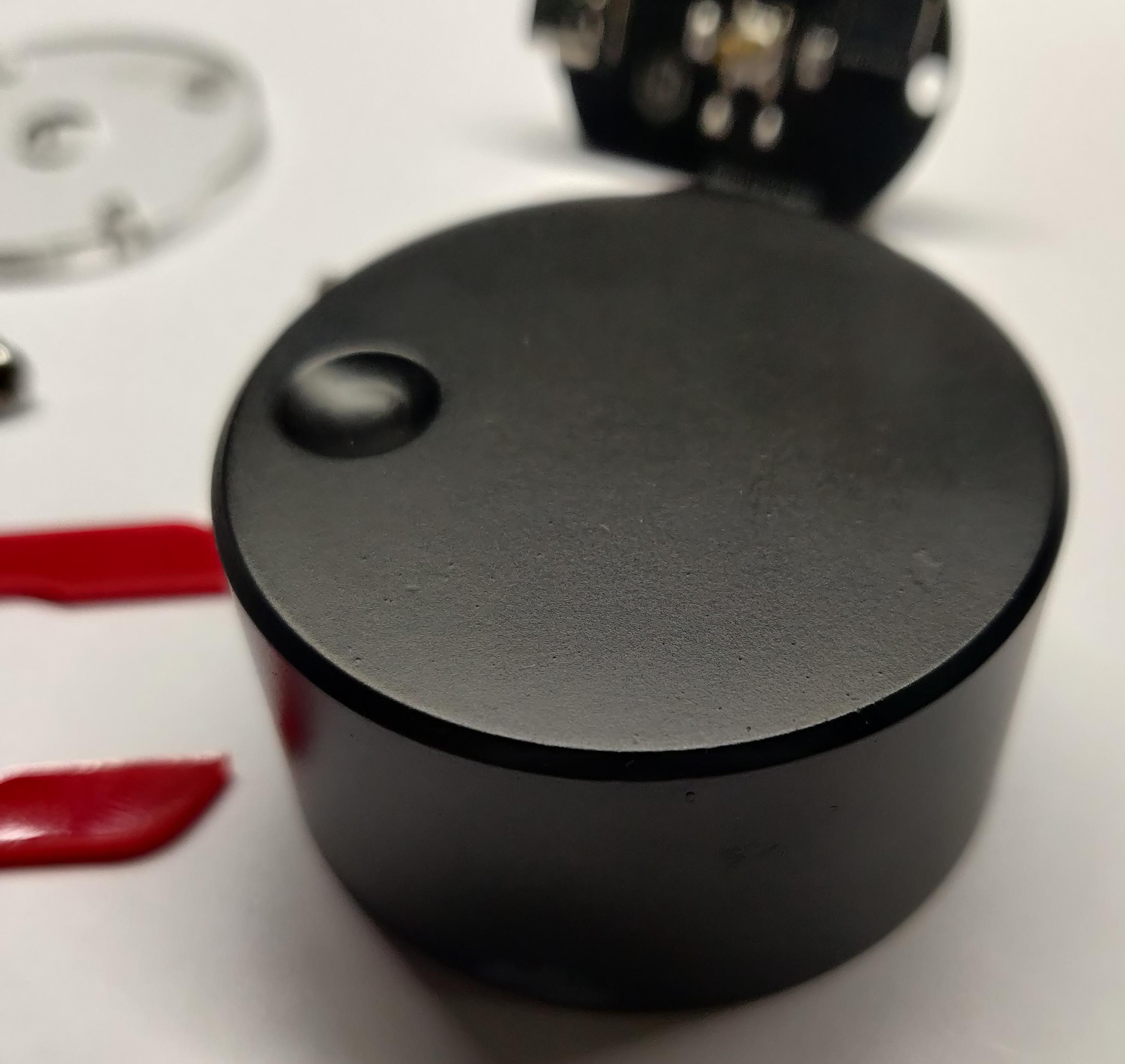

Images from production
