BNR1V2
1 KNOB MULTIPLE JOB
BNR1 is an CNC machined rotary encoder knob from a solid rod of aluminium.
It can be configured via QMK flashable Atmega32U4 to do just about anything you want it for. It uses EC11 encoder with no detent that means it is smooth when you rotate the knob.
It takes both rotary and click input.
GROUP BUY : 30th Dec 2021 - 17th Jan 2022

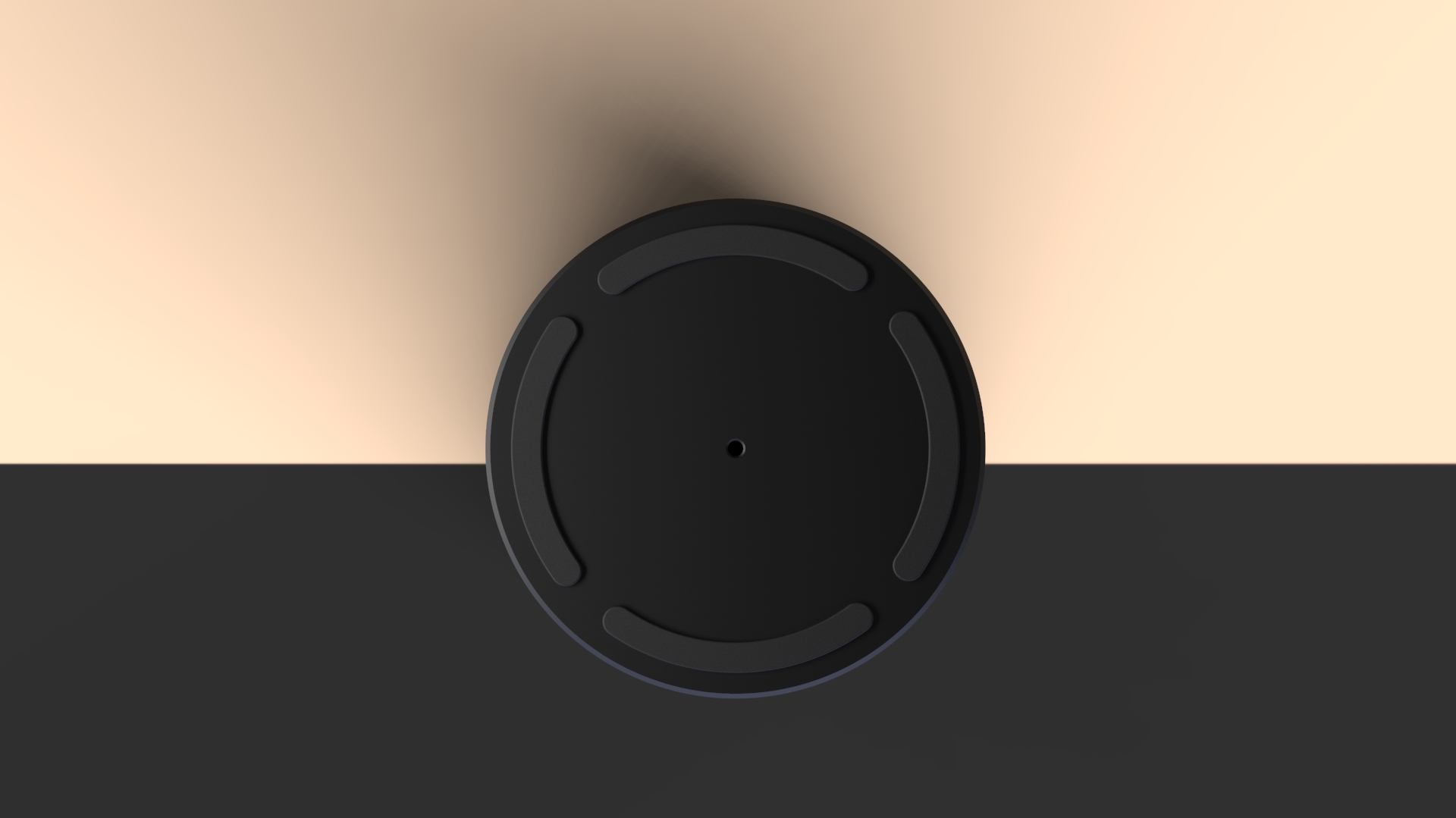

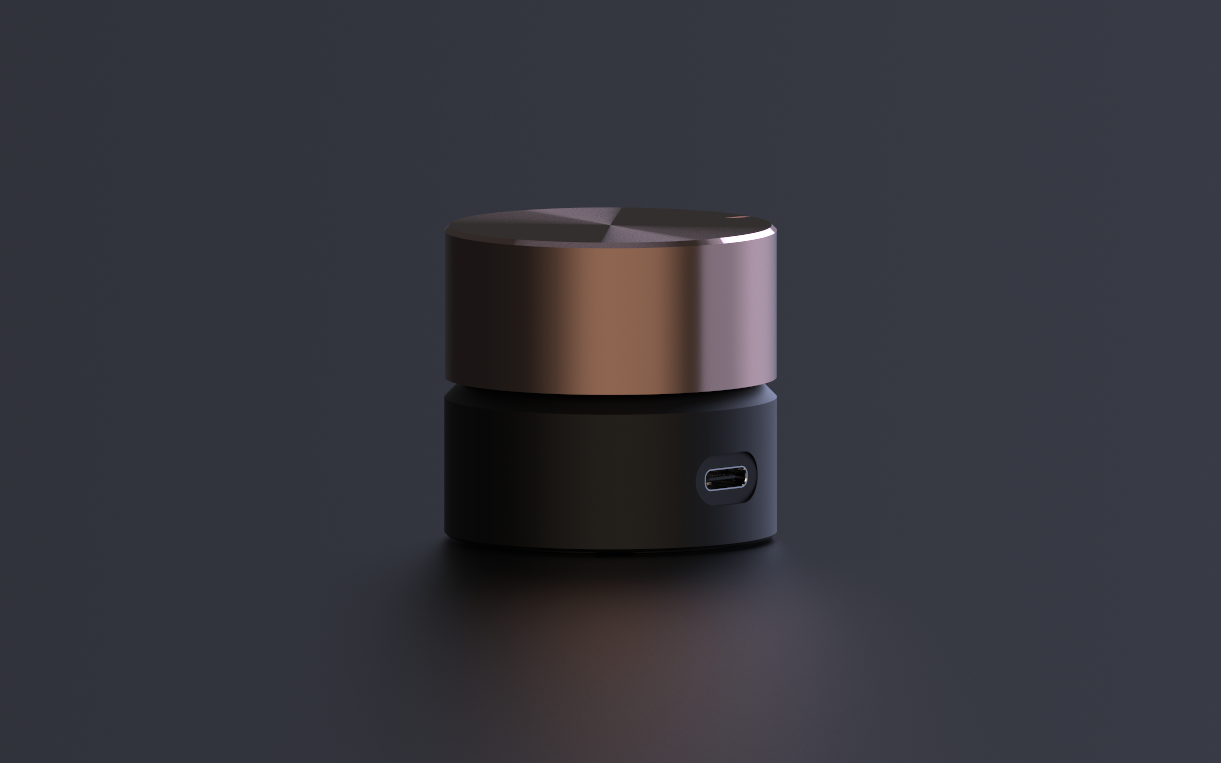

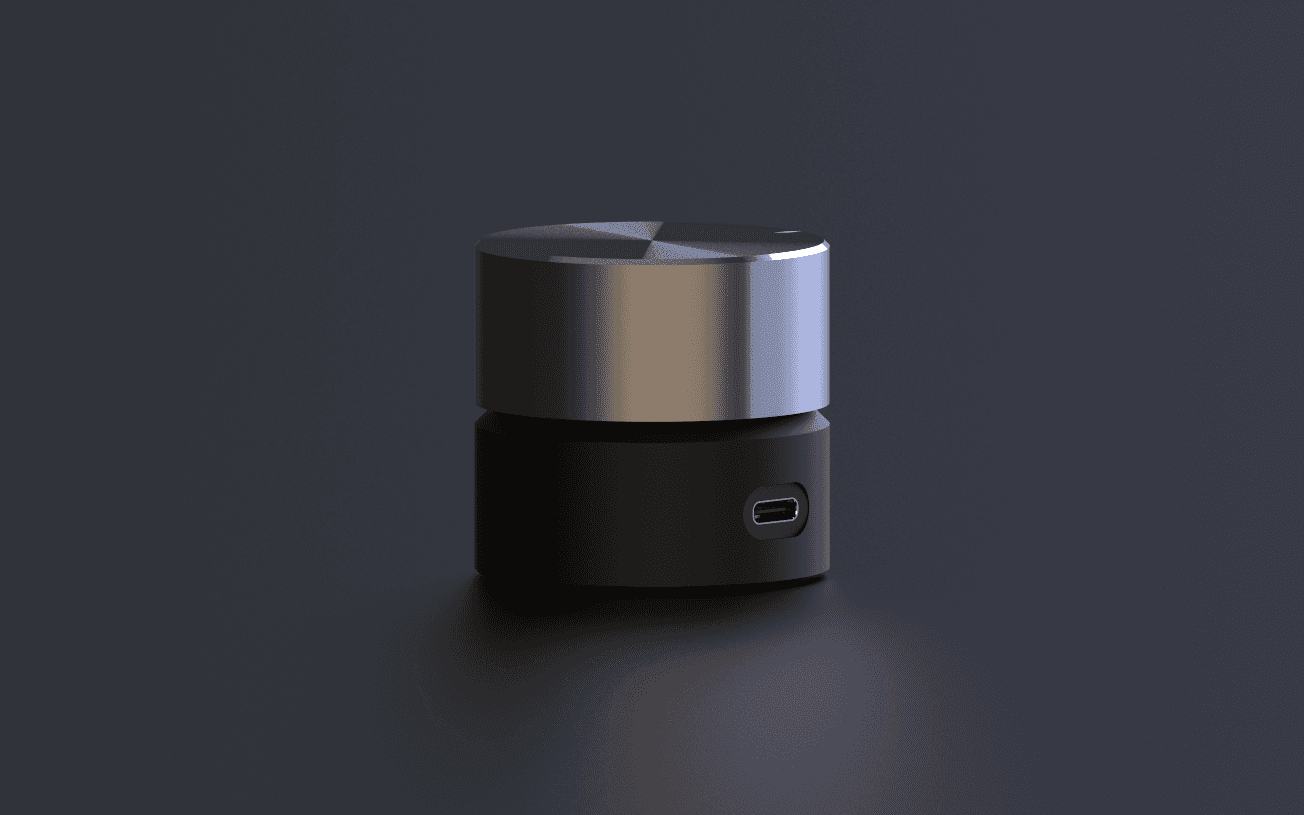

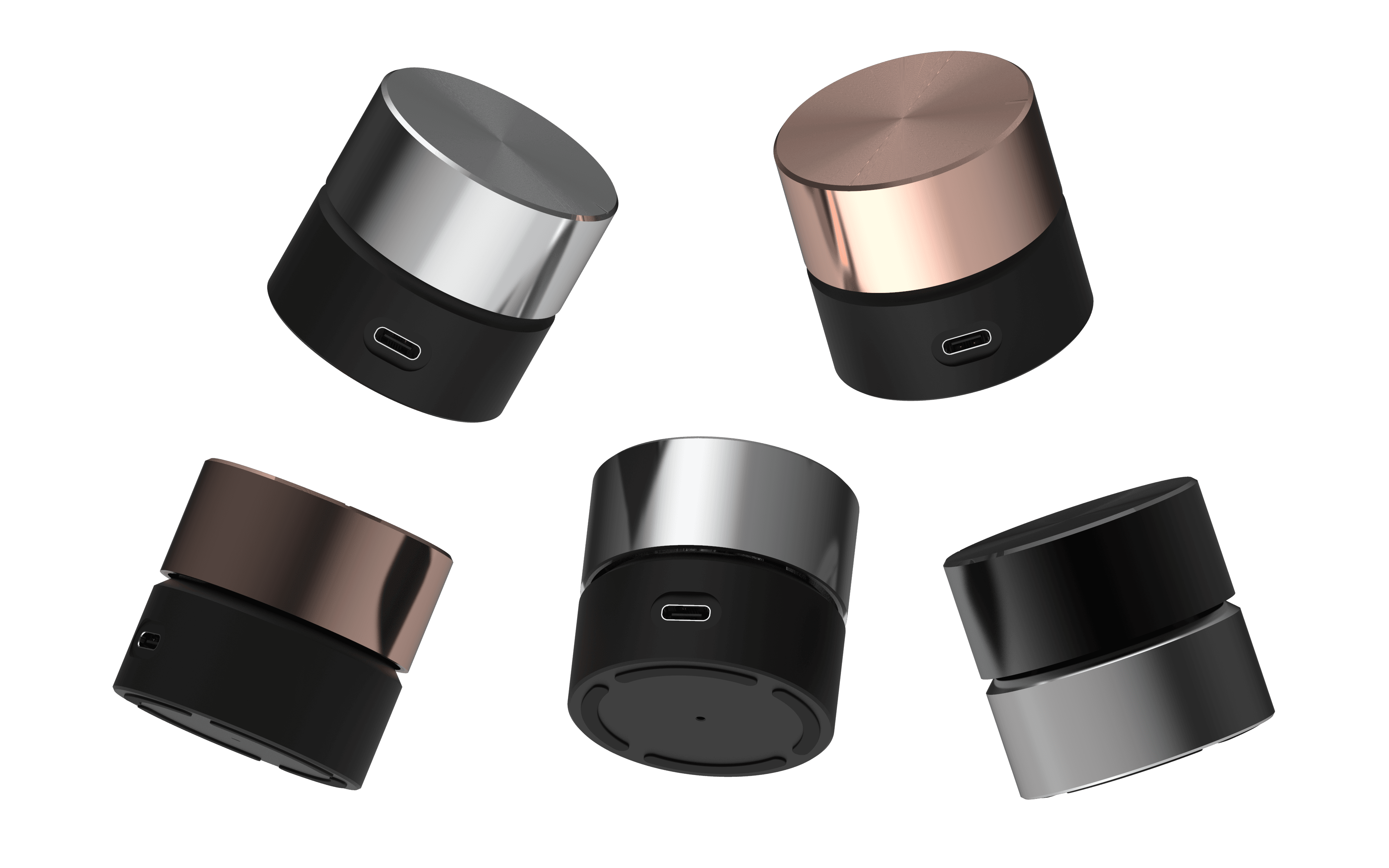

RENDERS

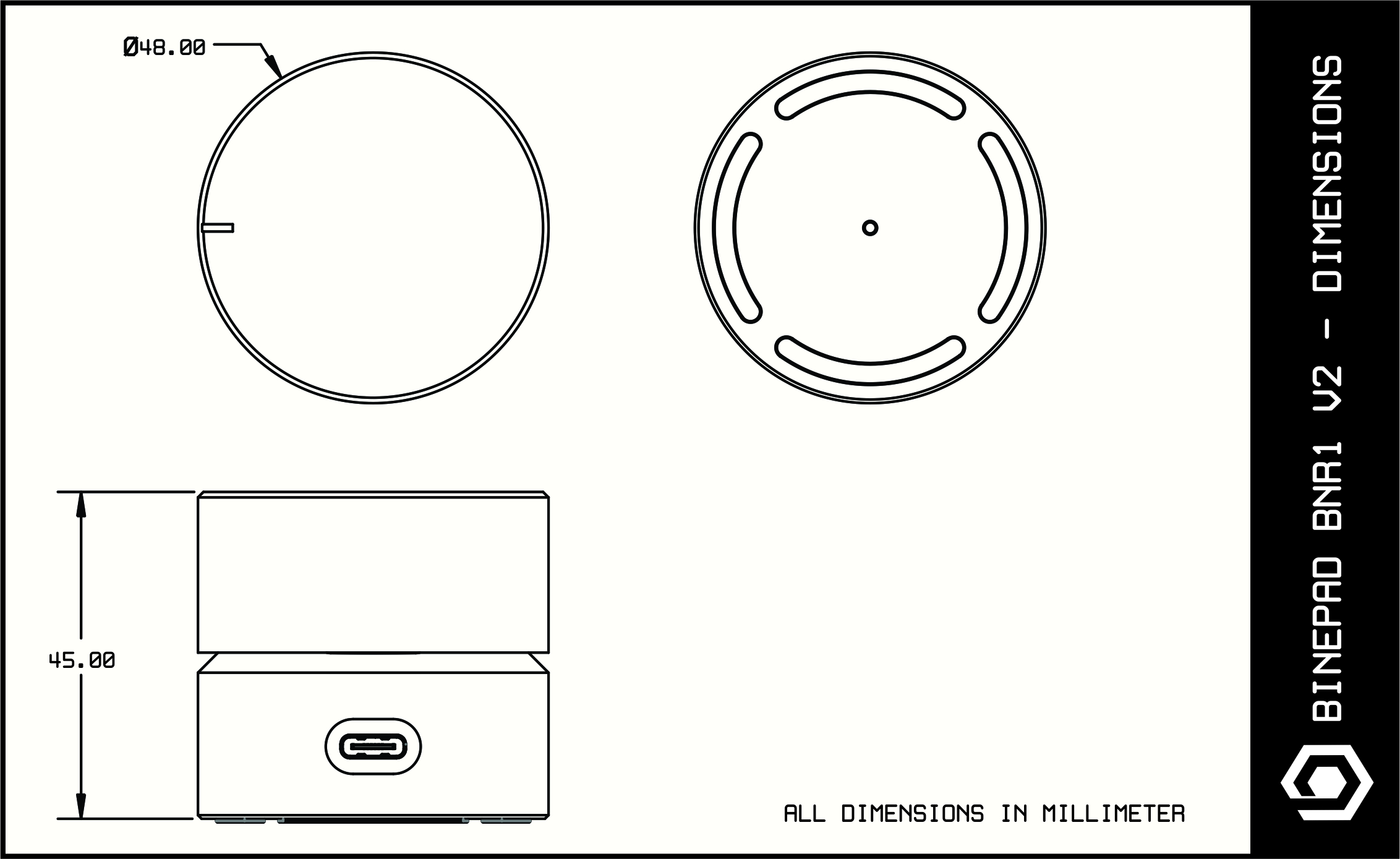

DIMENSIONS
PROTOTYPE
Programing with VIAL Conf.
BNR1-V1 Unboxing
Improvement in V2 from V1• Less wobble in knob as weight is reduced.
• Less clicky sound as it have foam filling inside to dam the sound.FEATURES• TYPE C PORT
• Programmable by VIAL QMK configurator

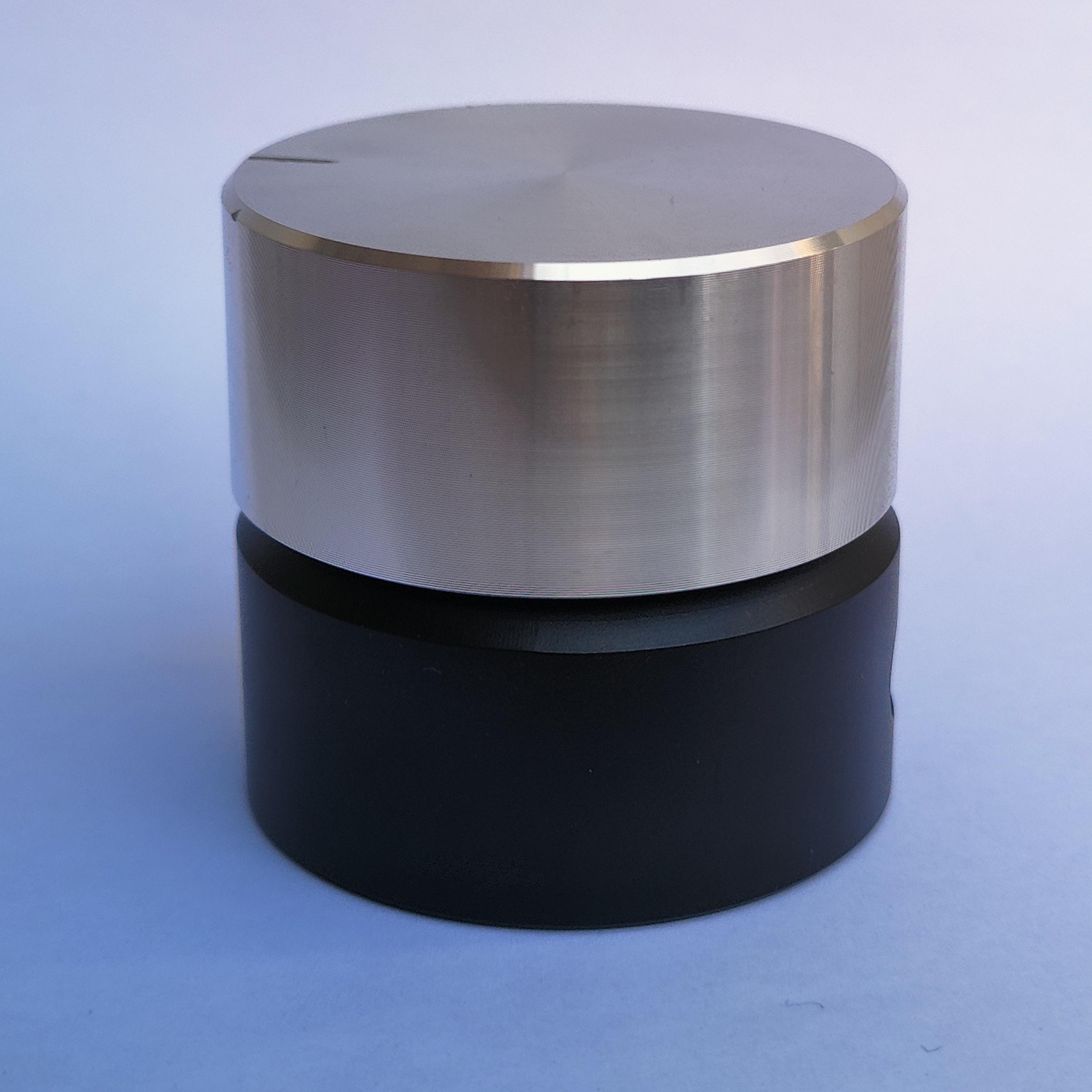

• 2-Piece Machined Aluminum-6061 Color options:• Silver Knob X Black Bottom

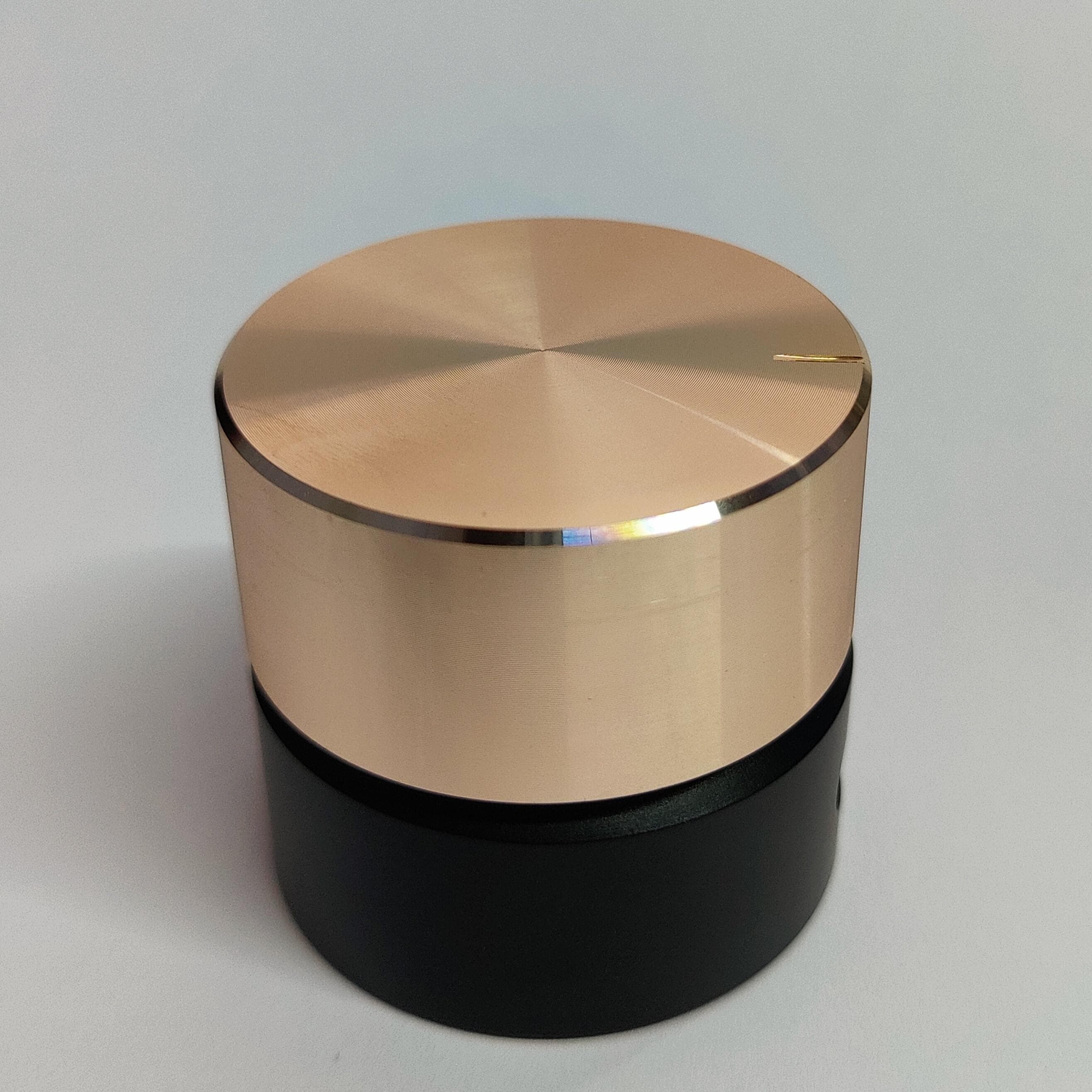

• Copper Knob X Black Bottom

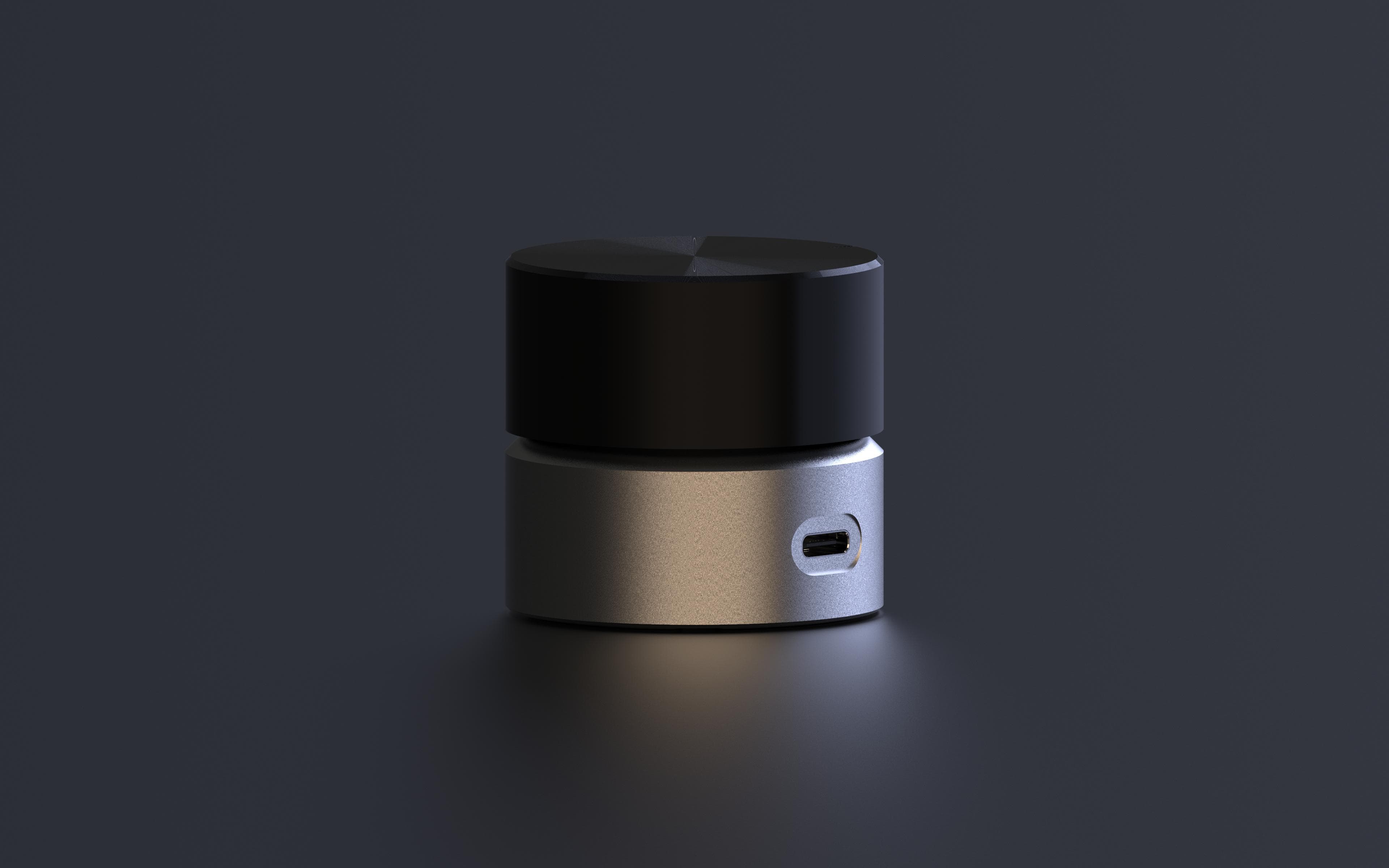

• Black Knob X Silver Bottom
Surface Finish:• Top - CNC turned CD finish and anodized

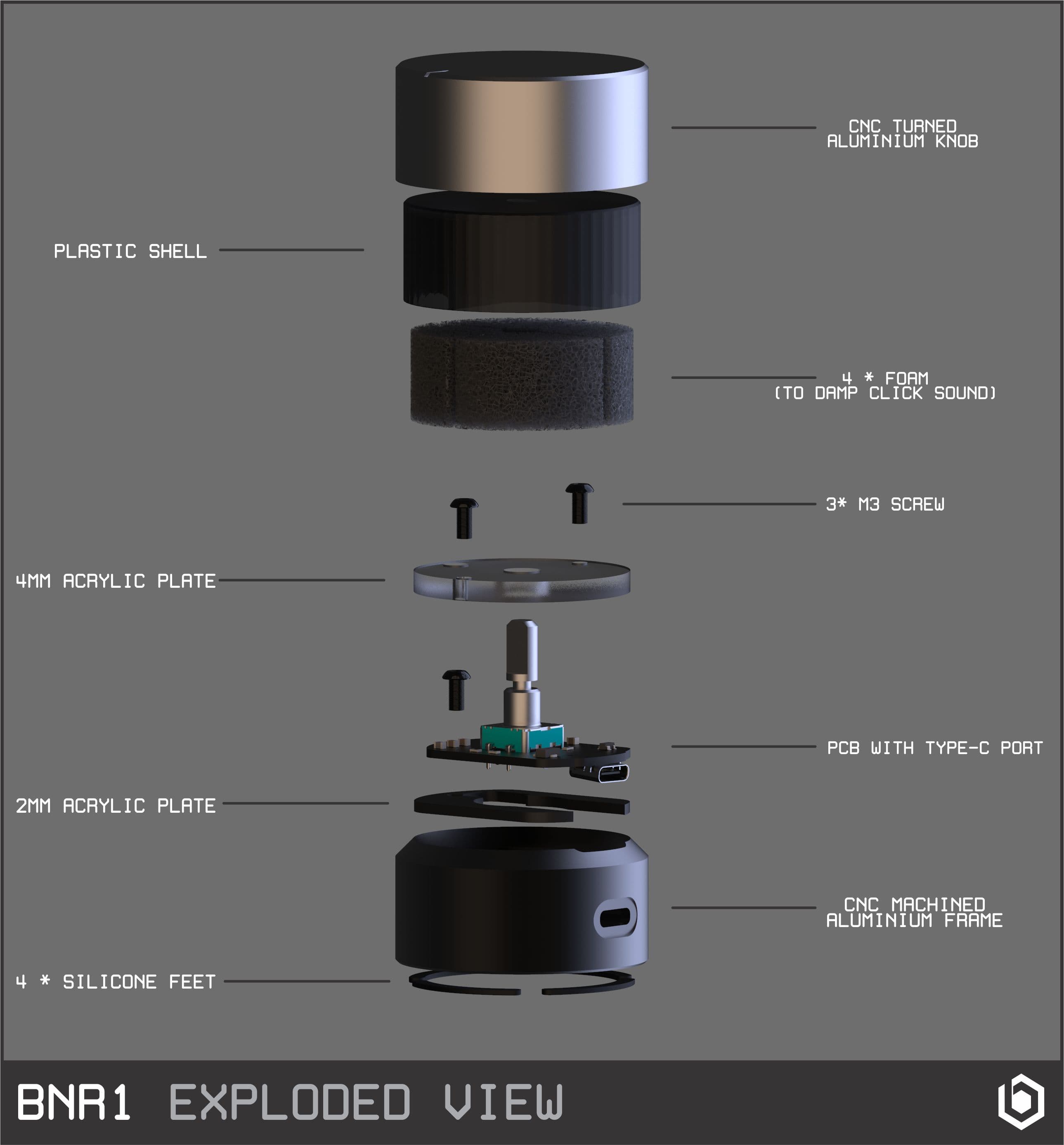

• Bottom - Sand Blasted and anodizedBNR1 SHIPS WITH
• 1 x Top CNC Machined Aluminium Knob
• 1 x Bottom CNC Machined Aluminium Frame
• 1 x PCB with TYPE-C Port (Designed by Team Mechlovin')
• 4 x Rubber Feet
• 1 x Rotary Encoder EC11
• 3 x M3 Screw
• 1 x M3 Set Screw
• 1 x 4MM Acrylic Plate
• 1 x Reset Pin(Pre Assembled)
