BIOI G60BLE Rev2 Dual Mode Bluetooth PCB + Cora 60% Keyboard Case - KeyAtlas
Group Buy
Keyboards
BIOI G60BLE Rev2 Dual Mode Bluetooth PCB + Cora 60% Keyboard Case
geekhack
auto-imported
0 followers
0 bookmarks
0 comments
Share
Description
Hello community! This groupbuy is following our IC thread:
https://geekhack.org/index.php?topic=111082.0

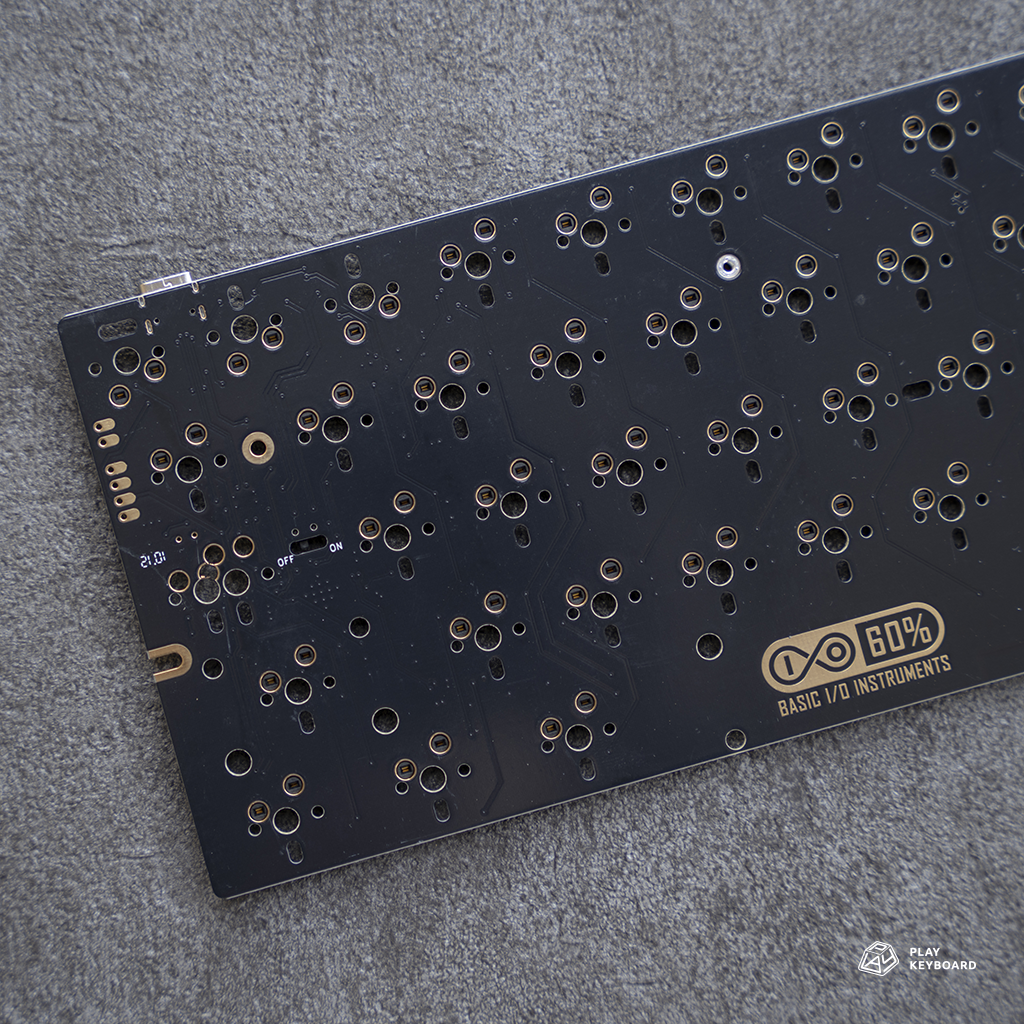

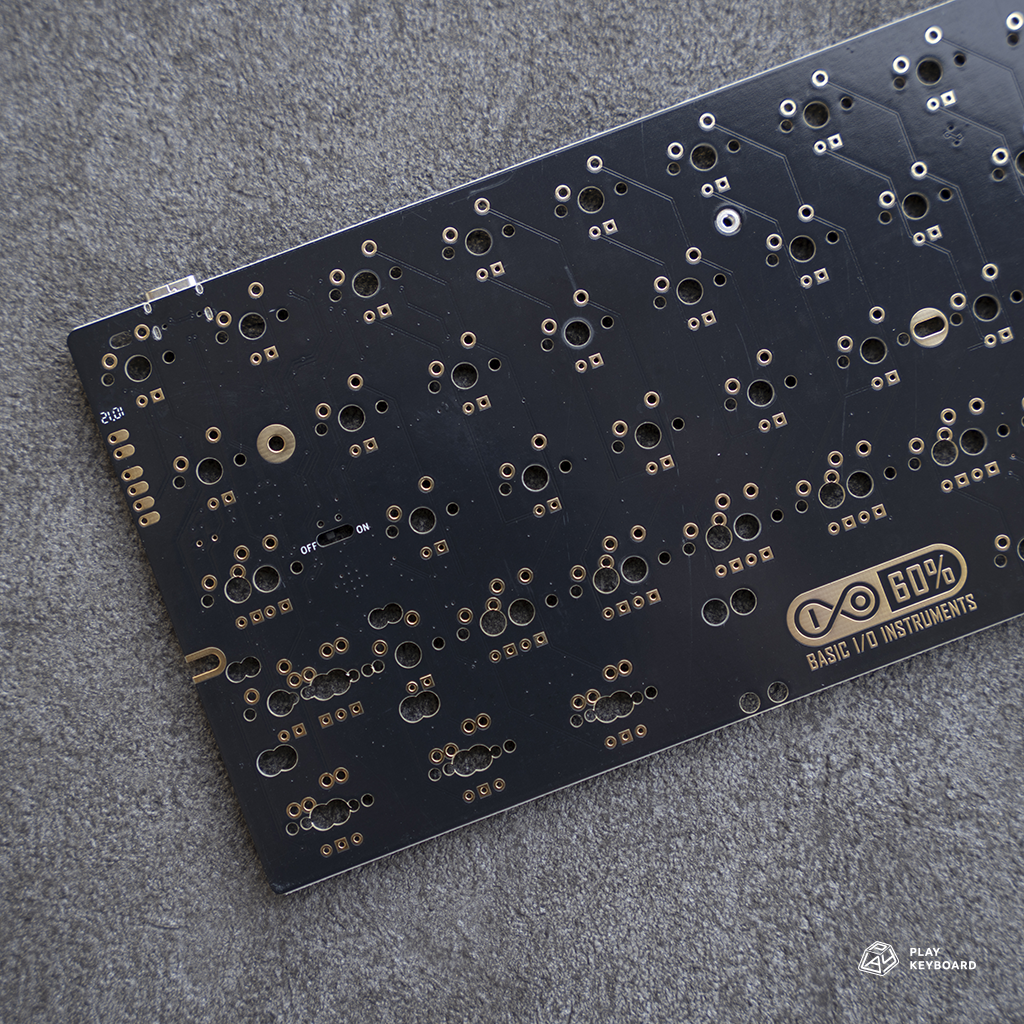

BIOI G60BLE PCB is a dual-mode bluetooth PCB. Now is the rev2 groupbuy.
Specs:
Matte black (sample photos are shown in black color), gold pads
QMK firmware, VIA compatible
Multiple layouts support for default version
Tsangan layout for hotswap version.
BT4.0, available on most devices and systems like Win10, iPad and iPhone
Supports USB/BT devices switching
Battery module installing position
Additional 1.0mm SH connector for battery socket
Full guide by Scott Wei:
https://scottywei.github.io/bioi-g60ble/
Compatible with C3 daughter board
(2021.3.18 confirmed, will add it to this round GB)
PCB upgradations comparing to previous versions:
Add ESD ic to protect PCB from electrostatic disturbance
Add anti-insert protection for battery. You don't burn your PCB if you plug in wrong this time.
Add 2u L-shift layout for default version, which is so called 64 arrow keys layout.
Add connector for battery module which is compatible with Nokia BL-5J or BL-5c batteries.

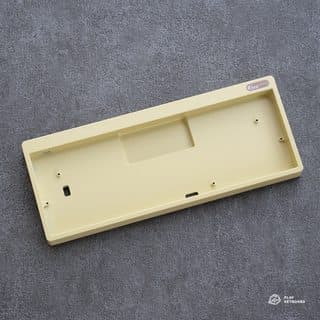

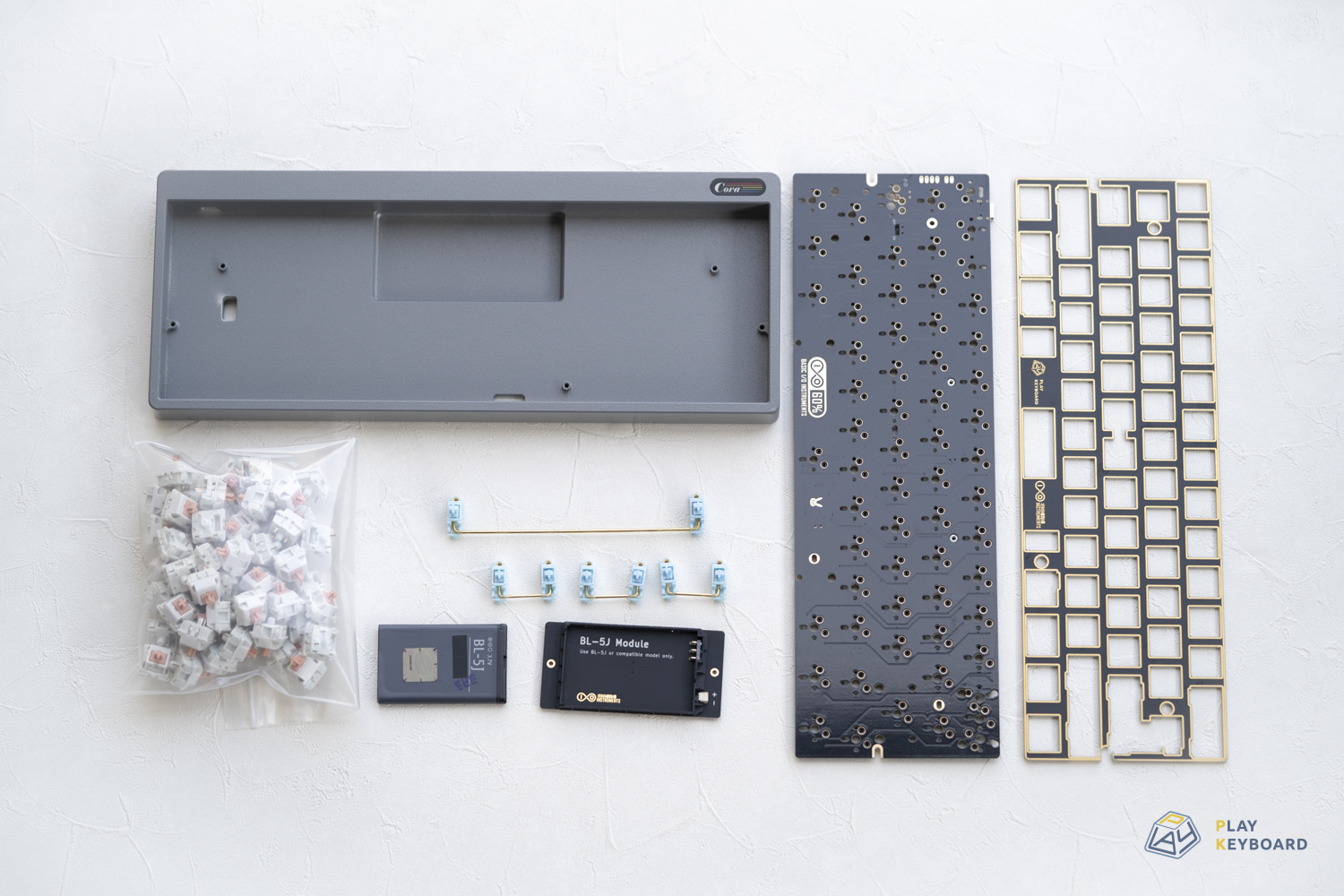

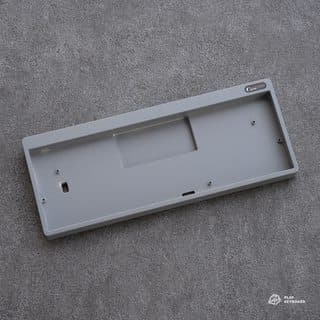

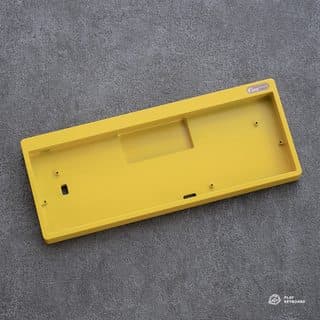

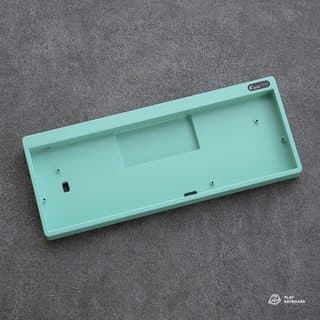

This time we specially design a case for it - Cora:
Aluminum, coated coloring
6 degree slope
Size 296.5mm x 116mm x 30mm
Battery compartment size 90mm x 44mm x 8.75mm
1kg approximately
Standard GH60 screw positions (middle one is removed for flexibility)
Colors: banana, light sand, concrete and turquoise

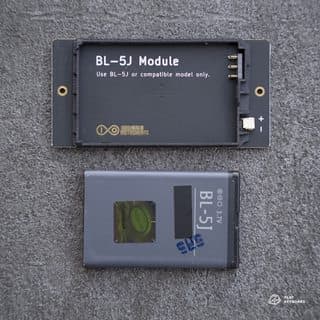

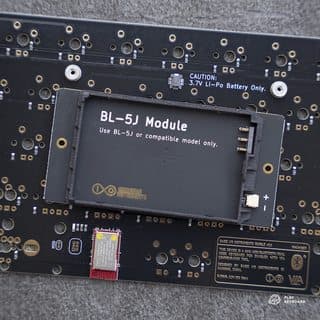

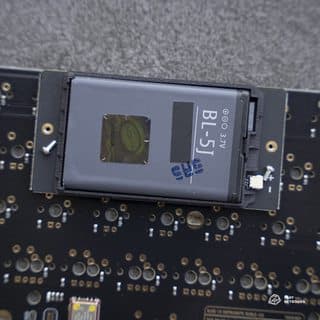

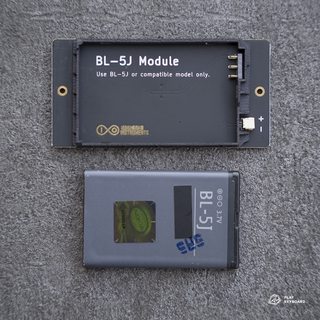

And another specially designed part for both PCB and Cora - battery module:
Compatible with Nokia BL-5J & BL-5C batteries
Easily installed by connector and screws
Groupbuy time:
2021.2.22 ~ 2021.3.24
Estimated date shipping time of PCB order:
2 month after GB ends
Estimated date shipping time of orders including Cora:
3 month after GB ends
Price:
Default version PCB: 55USD
Hotswap version PCB: 60USD
Cora 60% keyboard case: 90USD → 85USD
Battery module: 8USD
PK x BIOI 60% FR4 plate: 20USD → 18USD (is only available for additional purchasing when put a PCB in your cart in product pages for both items)
Buy Link:
https://www.play-keyboard.store/collections/bioi-g60ble-rev2-pcb-cora-60-case-groupbuy
Payment:
Paypal
