Black Diamond 75 Forged Carbon

Join our discord: https://discord.gg/2dwG9Nfn
Our IG: https://www.instagram.com/drystudiox/


Table of content

1. Background and intro
2. Gallery
3. Specifications and features
4. Pricing and delivery
5. Vendors
6. Changelog


Background and intro

Hello Geekhack, this is Dry Studio.

If some of you still remember, we launched our first keyboard, Black Diamond 75, a couple of months ago. And we received tons of love and support. The group buy went better than expected, and we are here again with more to offer.

In case you haven't seen our project before, here is the link to our post on Makingstufftogether: https://geekhack.org/index.php?topic=120525.msg3175227#msg3175227
(This is the first IC post of this project)

The Carbon colorway is famous among our supporters from the last GB. After collecting ideas via IC form and within our discord, we decided to go further with it and use forged carbon.

PS： We do have a plan to do another colorway as well. Please let us know what you prefer via the IC form below

IC form:https://forms.gle/pvXFqRC7Ja4d3KLw9


Gallery

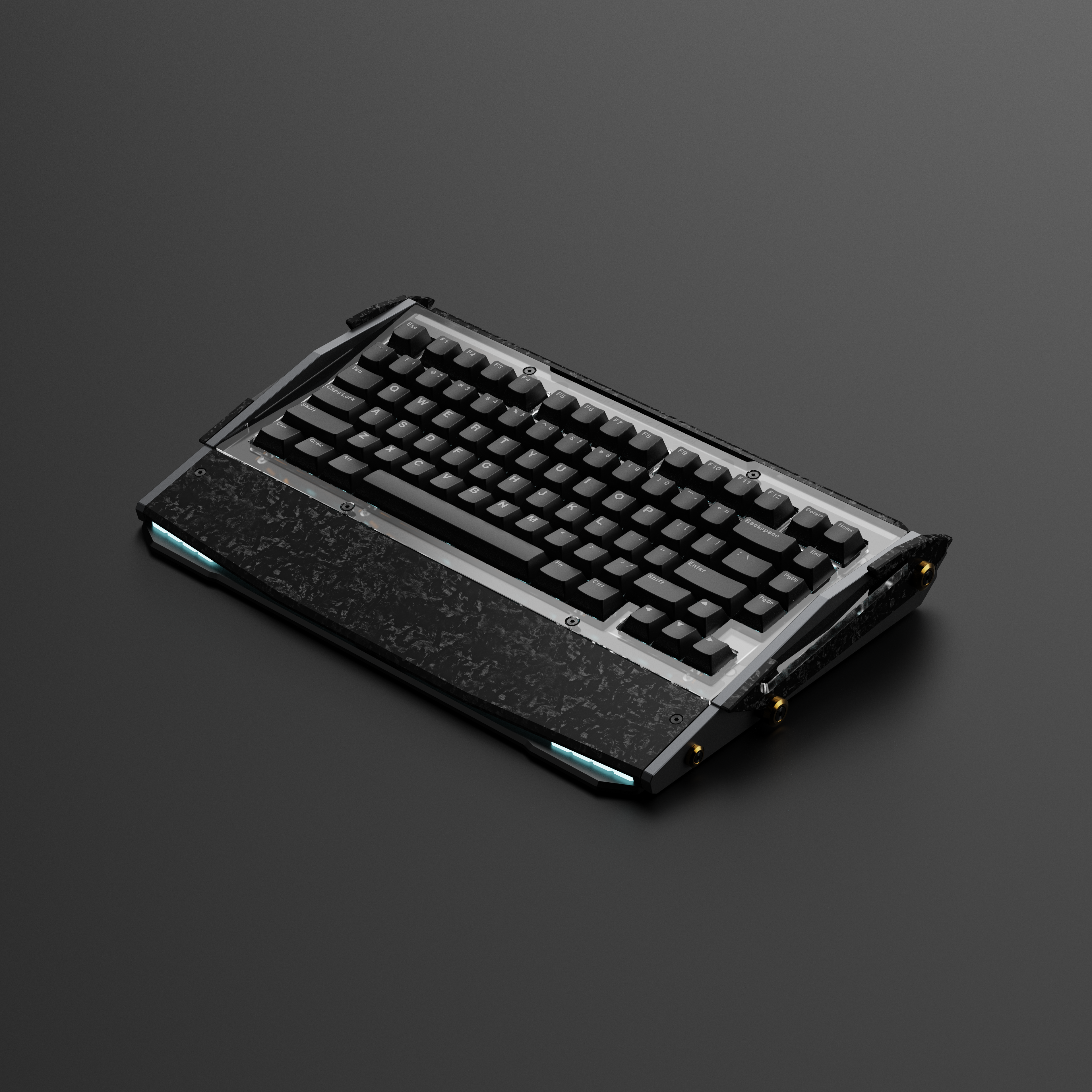

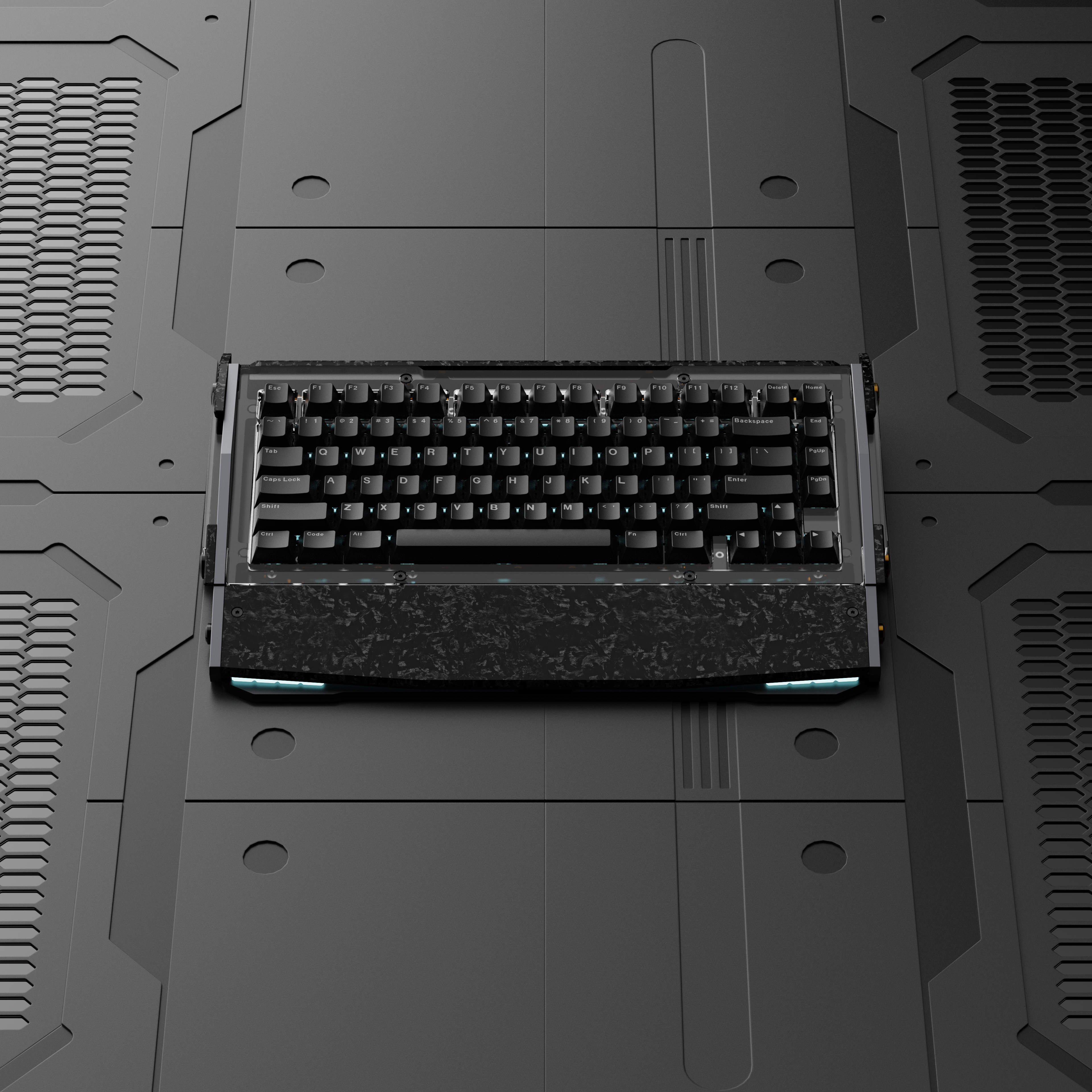

Renders

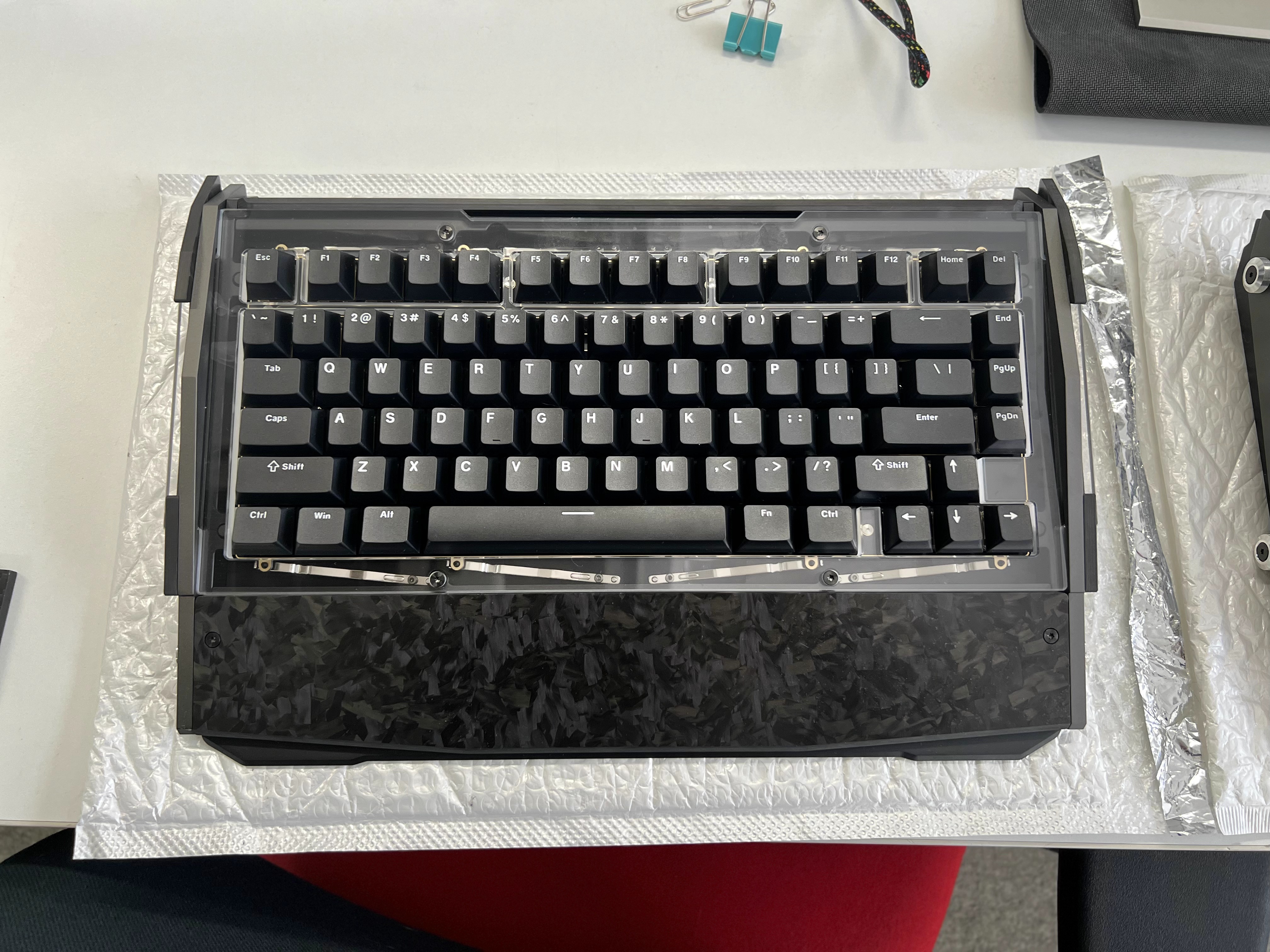

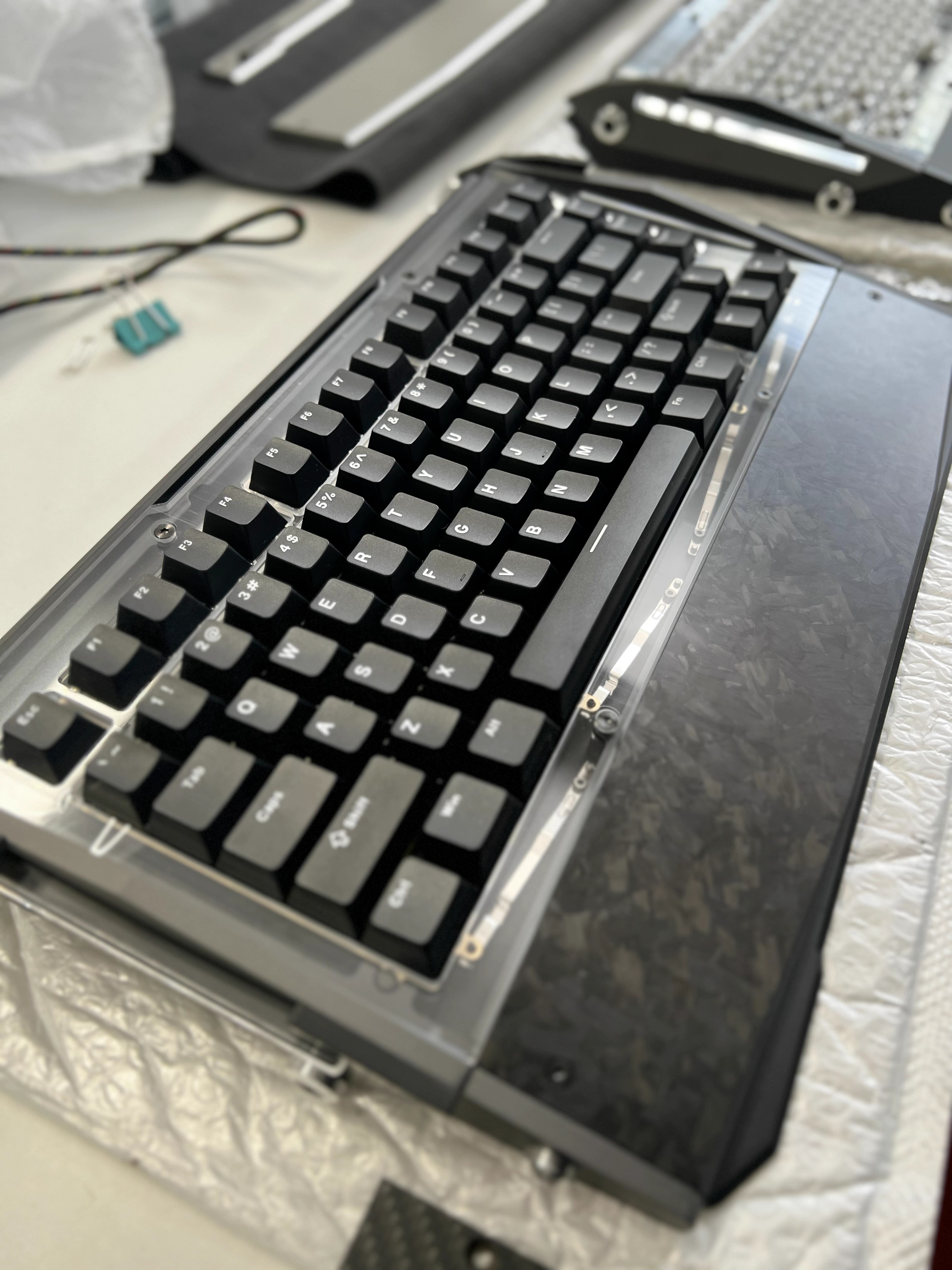

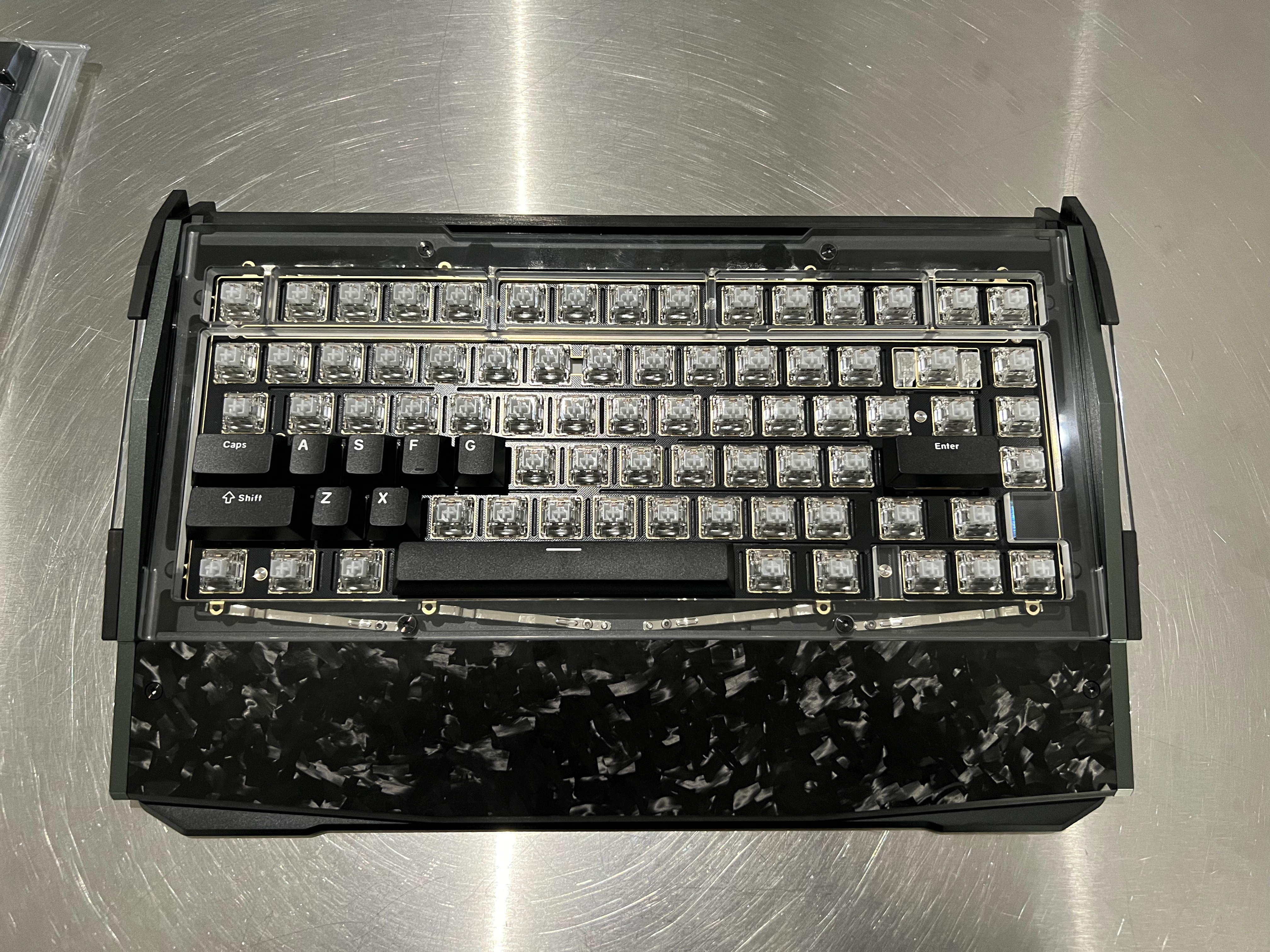

Photos for prototype




Specifications and features

Mounting method: Leaf spring mount (non-adjustable)
Typing angle: 7°
Weight: 2.8kg (±0.1)
Material and craftmanship: Black Forged carbon fiber. Highly-transparent, PMMA acrylic with increased hardness exterior parts.
PCB: 1.6mm hot-swap PCB with 81 in-switch LEDs. 4 additional programmable RGB LEDs in each corner on the front for Advance version.
Plate: FR4
Foam: IXPE switch pad, Poron foam and a thickened honeycomb silicone pad
Dimensions: 36cm (L) * 25cm (W) * 5cm (H)
Connectivity: 2.4G, Bluetooth 5.1, Wired (USB 2.0, Type-C)
Battery: Lithium polymer 5000mAh. 60 Days battery life under 2.4G. Wireless charging support for Advance.
Configuration: RGB and key layout configurable via AM Master. All keys support remapping and assigning multimedia keys (except the Fn+Esc Power On combo), support up to 7 layers.

Layout


Mounting system
World's First Leaf Spring Gaming Keyboard. Stable yet durable. Enjoy more flex with ultimate comfort.

Connections
Supports Private 2.4G Protocol with only 2ms 2.4G Latency.
Bluetooth 5.1 and wired connection are also supported.

Switches
DRY STUDIO x Gateron co-developed custom esports switches - DR Rapid Ice.
1.0mm actuation travel. Ultra-fast response. High precision, minimum vibration. Factory lubed for maximum consistency.
40gf actuation force. 45gf bottom-out force. Supported by stainless steel leaf springs. Perfect for long gaming sessions.


Price and delivery
Pricing (estimated)
Base bundle: 240 USD
Advance bundle: 295 USD

Open sales（estimated）
Mid May 2024

Delivery (estimated)
Late May 2024


Vendors
South Korea: Funkeys
Vietnam: Mechkey
Australia: Scorptec Computers; Centre Com
Thailand: Mercular

We will update more vendor info when it's confirmed


Changelog
2024.2.8---Open post
