CA66 replacement PCB R2 - in production

Hey there,

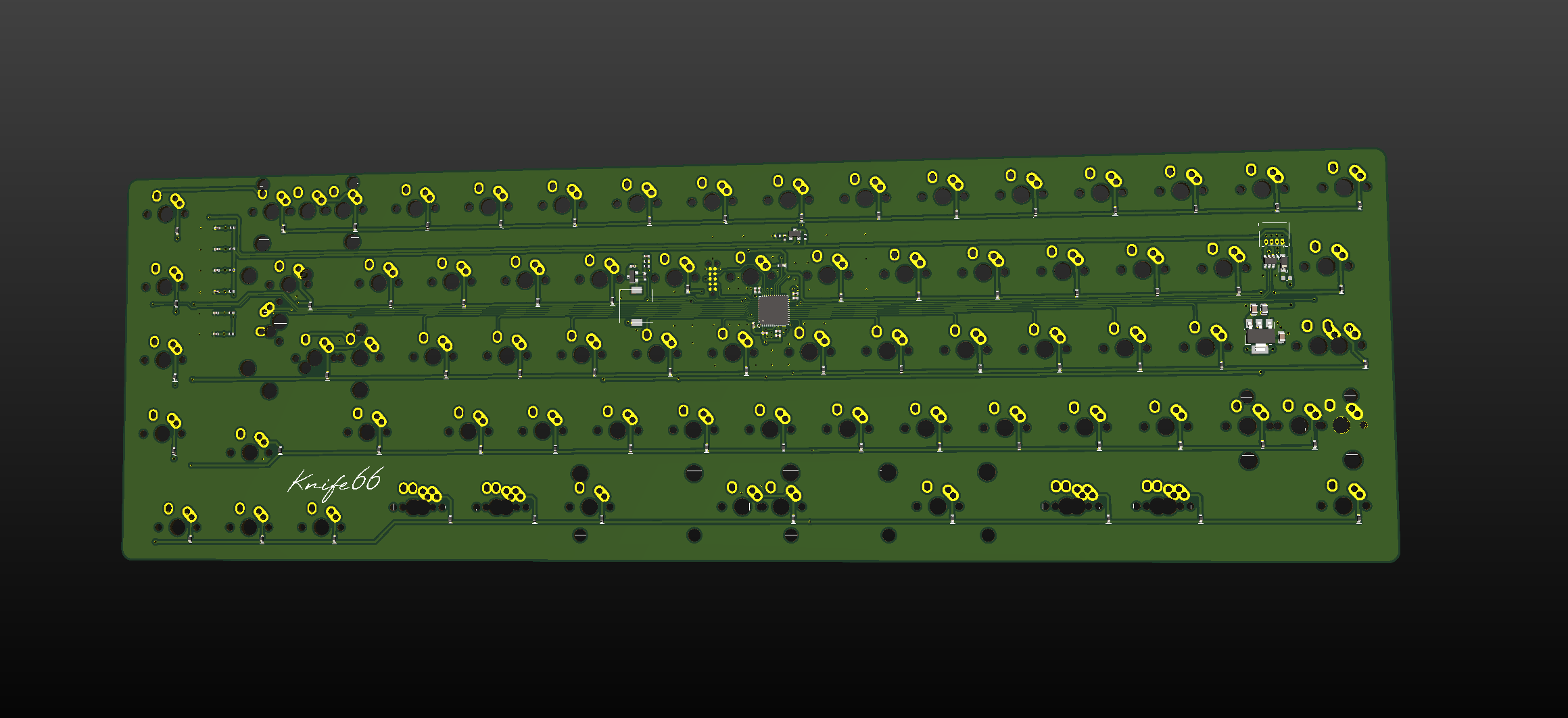

I've made a PCB for the CA66 with stm32. This is the second round and I've added iso support in this version.

IC
https://geekhack.org/index.php?topic=107319.0

GB form
https://docs.google.com/forms/d/e/1FAIpQLSfw44ePnrLQRNyQ-il12eWuuwNwQR8guwUOr44aHyI9pCXG9A/viewform?usp=sf_link

Features
- STM32F072
- QMK compatible
- ALPS and MX compatible
- ESD protection
- Green PCB
- ENIG-RoHS
- Case grounded
- 6 RGB LEDs
- Molex Pico connector between the two boards
- Iso support
- No LEDs for the keys (backlight)
- push button to put the MCU into DFU mode for when flashing really failed. (normal bootloader via ESC key)
- usb-c breakout pcb

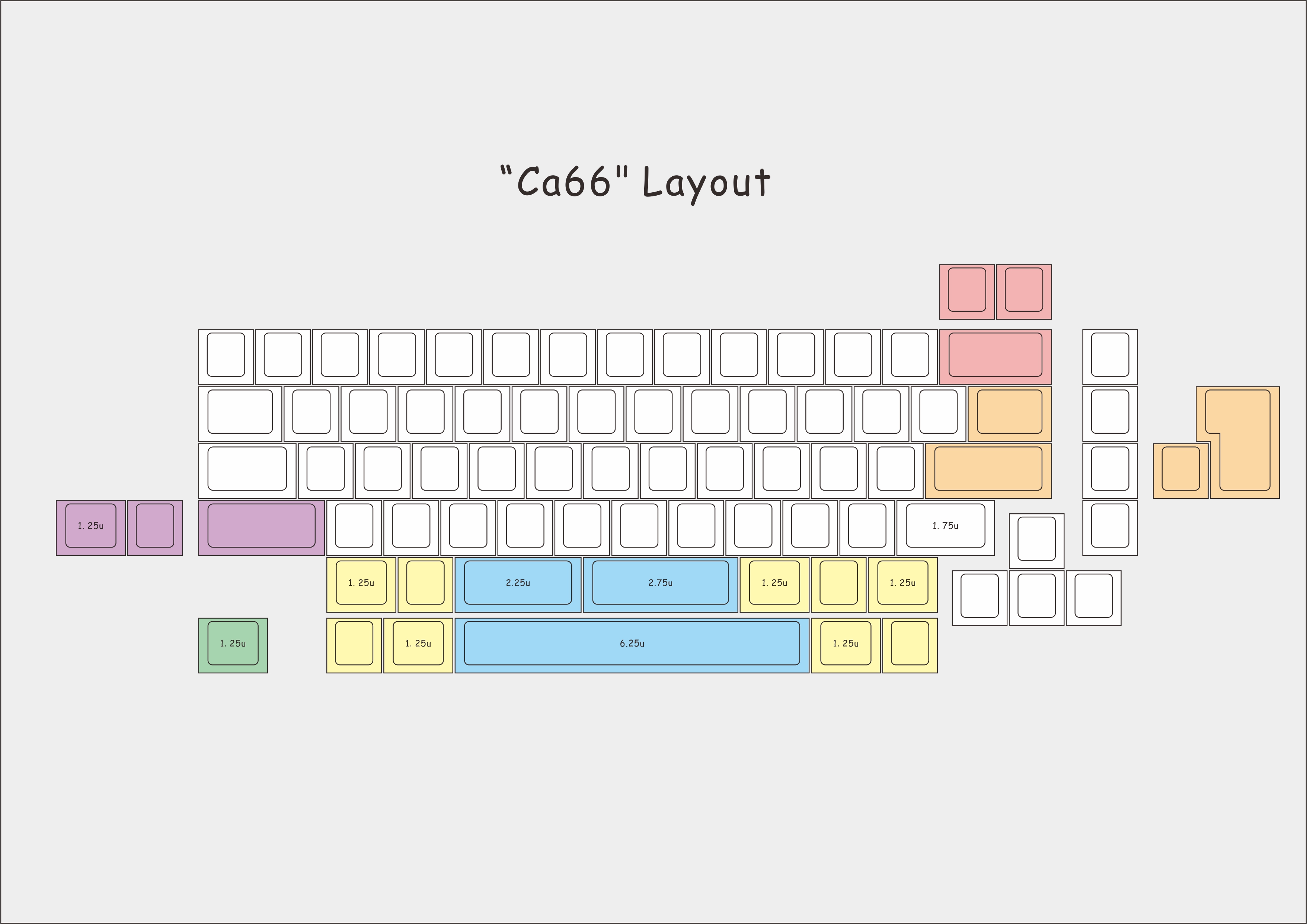

Layouts


the caps lock key has two different placements

Price
45 EUR


Shipping
Shipping will be done via DHL non-express. it's dependable for where you are what the price is going to be.
After the group buys is full and all the transfers are complete it will take approx 2-3 weeks to get everything shipped.

please also add your country to the shipping information


Start date
Sunday 20th of September


End date
Wednesday 7th of October

Payment
Via PayPal, I'll send out the invoices.

I will send a tailored shipping price to everybody that participates after the gb ends
