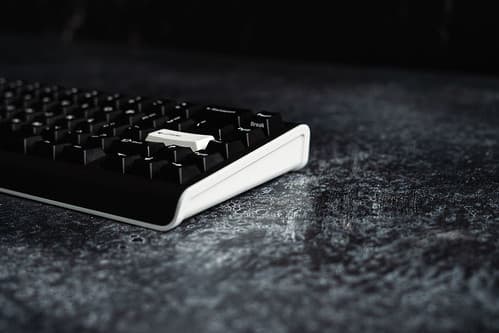

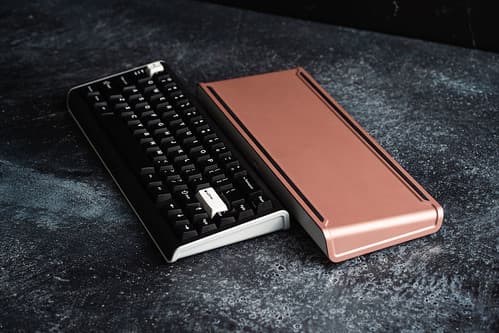

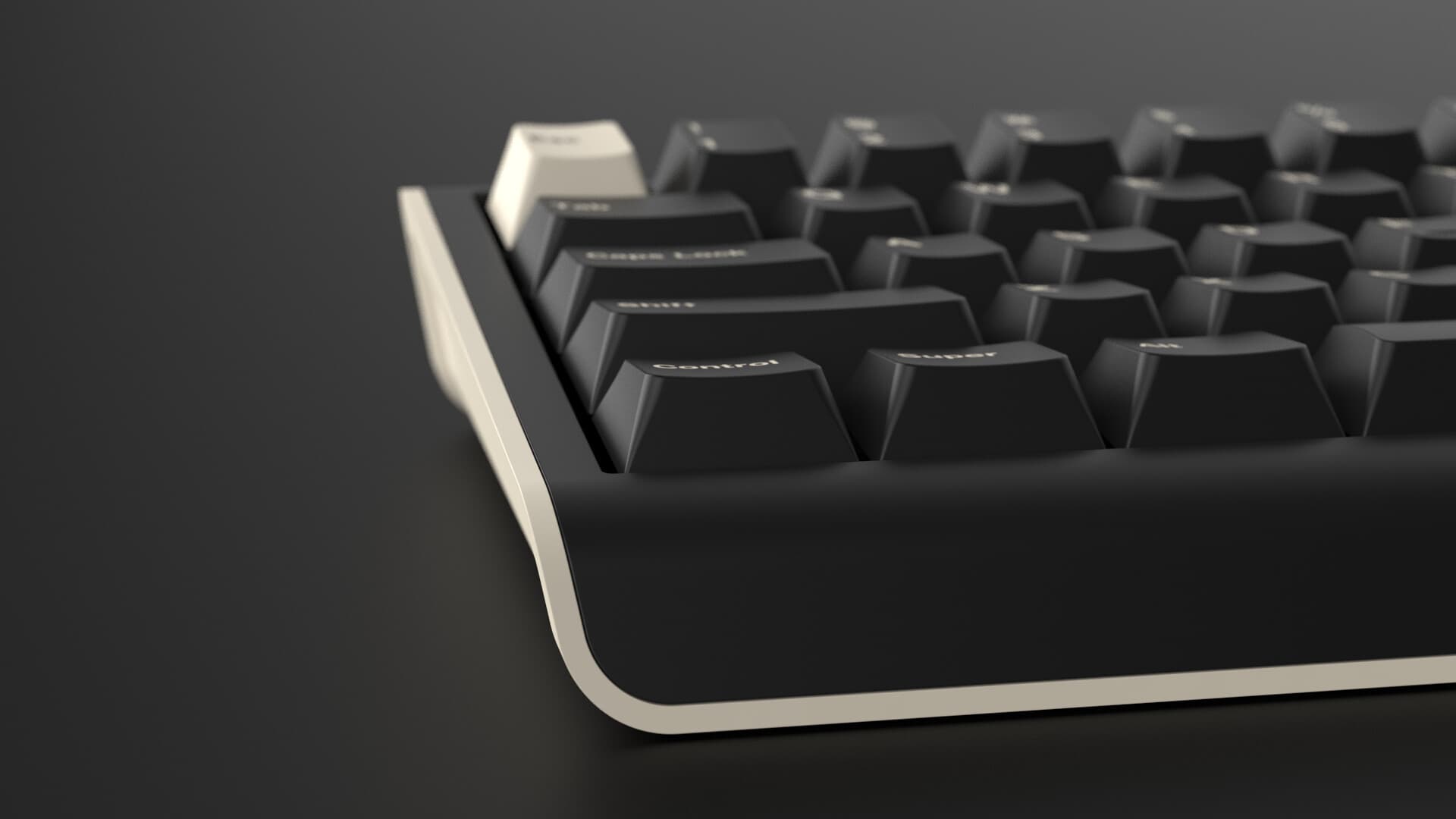

Named for the Dolores river in Utah and Colorado, this board is a two piece aluminum case with a new type of gasket system that creates a much more even flex across keys and transmits much less vibration to the case.
- 6061 Aluminum

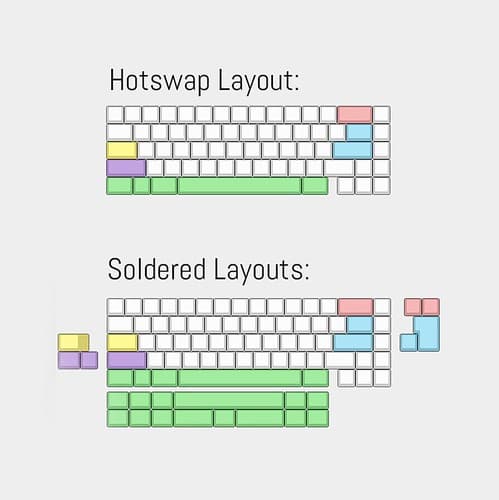

- Custom 65% hotswap PCB compatible with VIA in ANSI layout
- Custom 65% soldered PCB compatible with VIA with ISO, split spacebar, split backspace, stepped caps, and 7u spacebar

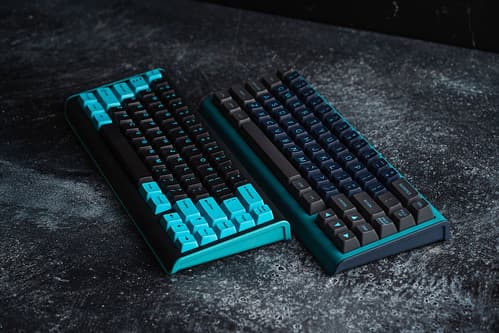

- 13 Cerakote colors to choose for both top and bottom.
- Completely hidden screws internal to case
- 6 degree typing angle
- Top plate is available in aluminum, FR4, and POM
- Delivery in late Q3 2022
- GB starts January 20th at 9am PST
- First come, first serve to 300 500 units
- Price is $585. High due to machining complexity and two Cerakote applications per board.
- Switching to commissions only. Reach out directly on Discord or currentkeyboards.com if interested.
- Will be available worldwide directly through my website currentkeyboards.com, I use Stripe as a payment system on my GBs without issue.

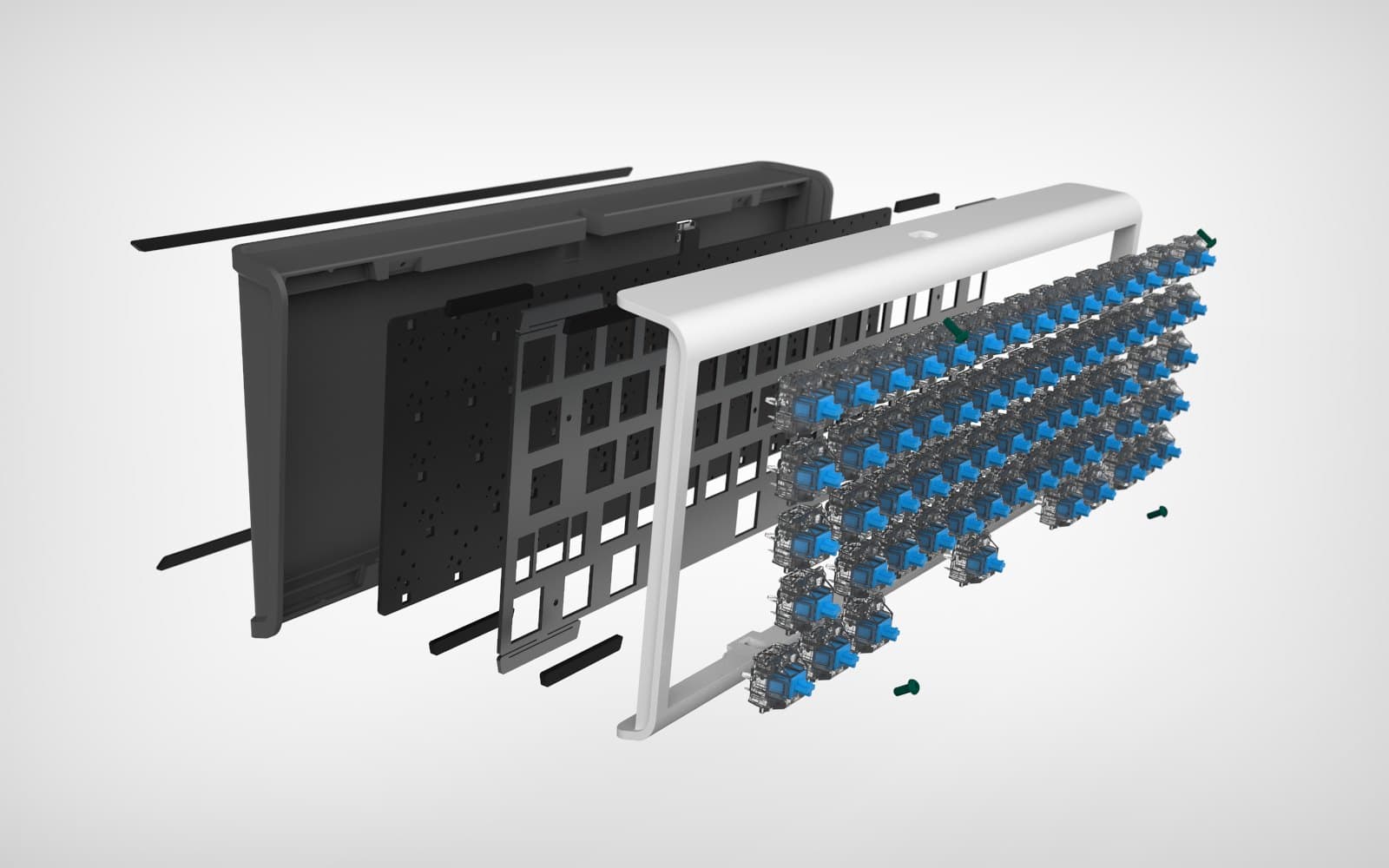

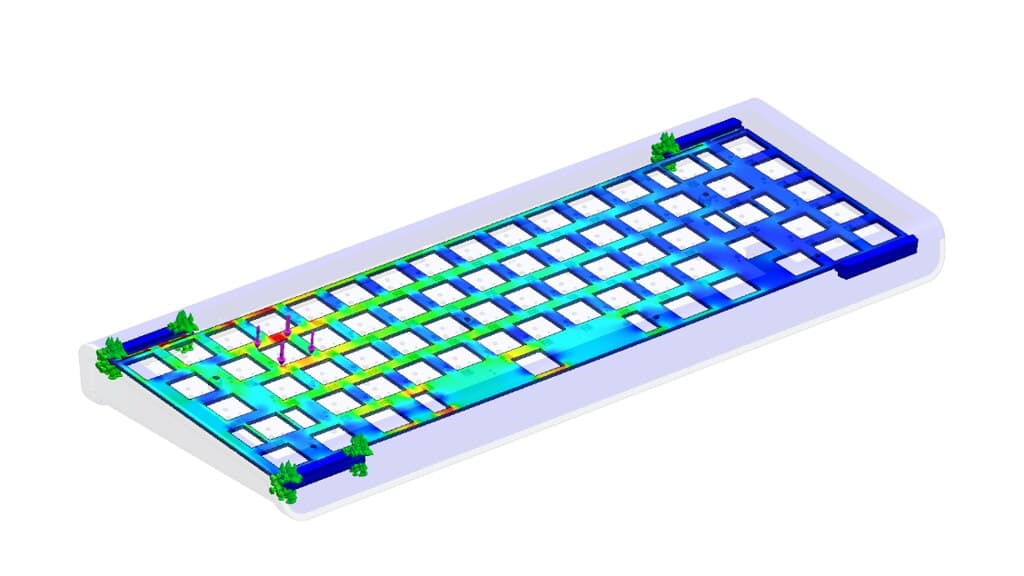

Being a consumer product mechanical engineer, I spent a lot of time in finite element analysis testing different ideas for the top plate gasket system. I quickly found that many of the traditional 6 gasket systems were much too stiff to damp out vibrations and the center alphas were much stiffer than the corners. Some six gasket variations I tested saw the alphas only flexing 20-30% of what the corners flexed. Using the plate to integrate flex like many do seemed to be flawed. To solve both these issues, I've moved to a much smaller gasket with stiffer lever arms at the corners. The smaller gasket allows more of the vibration energy to be dissipated into it (as counter-intuitive as that sounds). I found that with four gaskets in the prototype the center did vibrate a little (which wouldn't have shown up in FEA) and moved to an 8 gasket system but with softer gaskets. The concept is even better now as the plate is stiffer and translates more of the energy into the gaskets.
