Class80 by MM Studio-We're coming!- Finished

by Totoro

$345.00

Group Buy starts: Sep 25, 2022

geekhackgmkenriched

0 followers0 bookmarks0 comments

byTotoro

Description

Hello, everyone! This is MM studio.

Sorry we're late, But good stuff takes time!

GB Information

Sales Date:
September 25th 2022, 08:00 GMT+0 to October 25th 2022, 12:00 GMT+0

Quantity: unlimited group buy

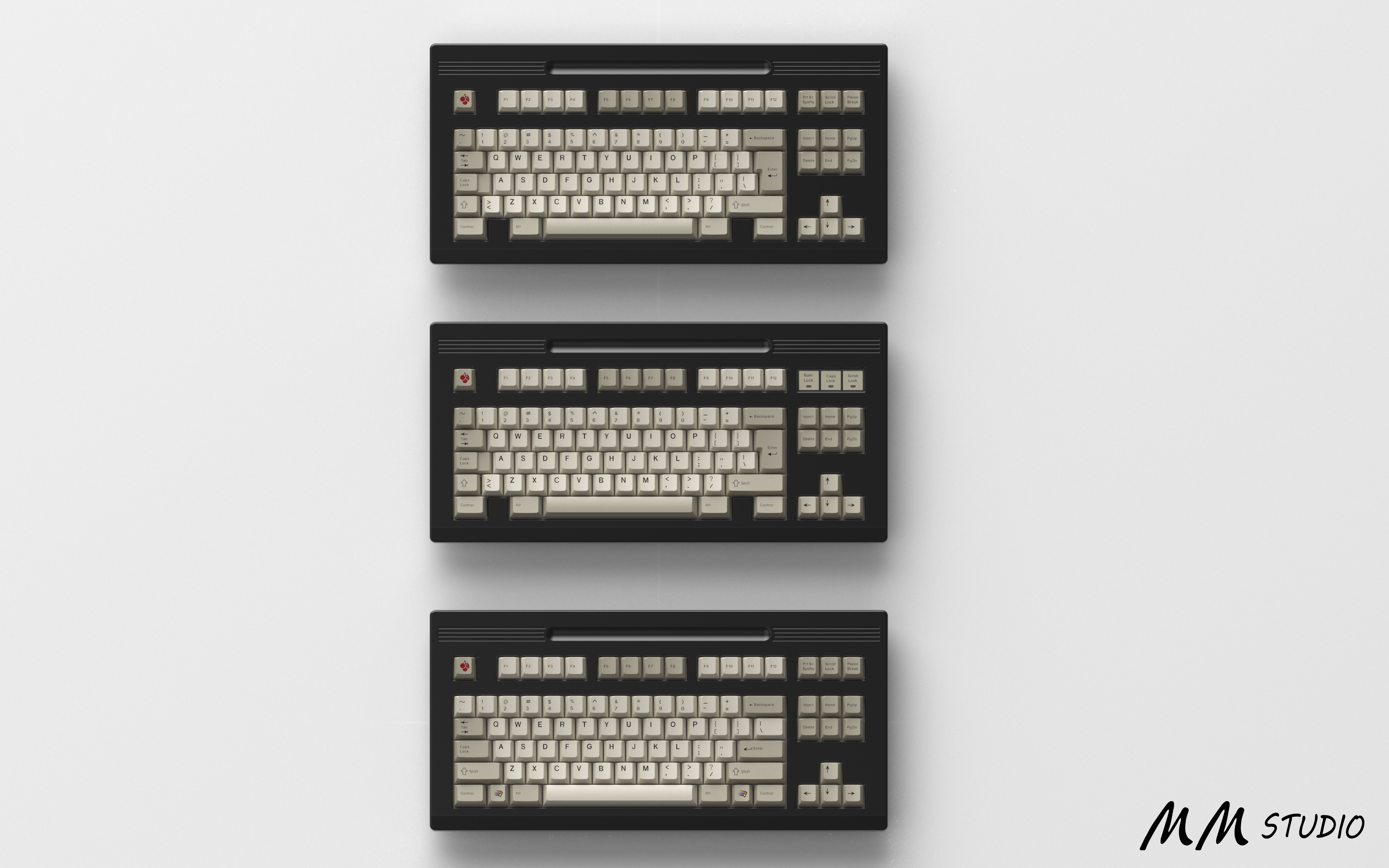

Colors: Retro E-White, Retro E-Red, Ano-Black

Fulfilment: 90-120 days after GB concludes

Prices:
Wired standard kit: $345 USD
Bluetooth standard kit: $375 USD

Vendors:

United States: https://epomaker.com
Korea:
Wired version: https://www.monstargears.com/46
BLE version: https://mmstudio.store/
(due to Bluetooth module import restriction in Korea)
Australia: https://www.switchkeys.com.au/
Europe: https://mykeyboard.eu/
United Kingdom: https://keebcats.co.uk/
Canada: https://www.ashkeebs.com/
Japan：https://basekeys.jp
Vietnam: https://mokbstore.com/
Thailand: https://ntchkeys.com/
Philippines： https://zionstudios.ph/
Indonesia: https://instagram.com/curatedbykwok
Singapore: https://hexkeyboards.com/】
Malaysia：https://www.rebultkeyboards.com/
Taiwan: https://www.inpad.com.tw/
Others: https://mmstudio.store/

Reviews & Builds:

Keybored Review Video：

FOFO Studio Review Video:

Chyrosran22 Unboxing:

nearLucid Review Video:

nearLucid Sound Test:

AKS Review Video:

Scuffed Boards Build Stream VOD:

Scuffed Boards Sound Test:

FingerTips Workshop Build Stream VOD:

Epomaker (US Vendor) Teaser:

MORE REVIEWS INCOMING!
(Alexotos, Badseed Tech, Hipyo, 3ildcat, DBOKEY, Shoobs.. Just to name a few

)

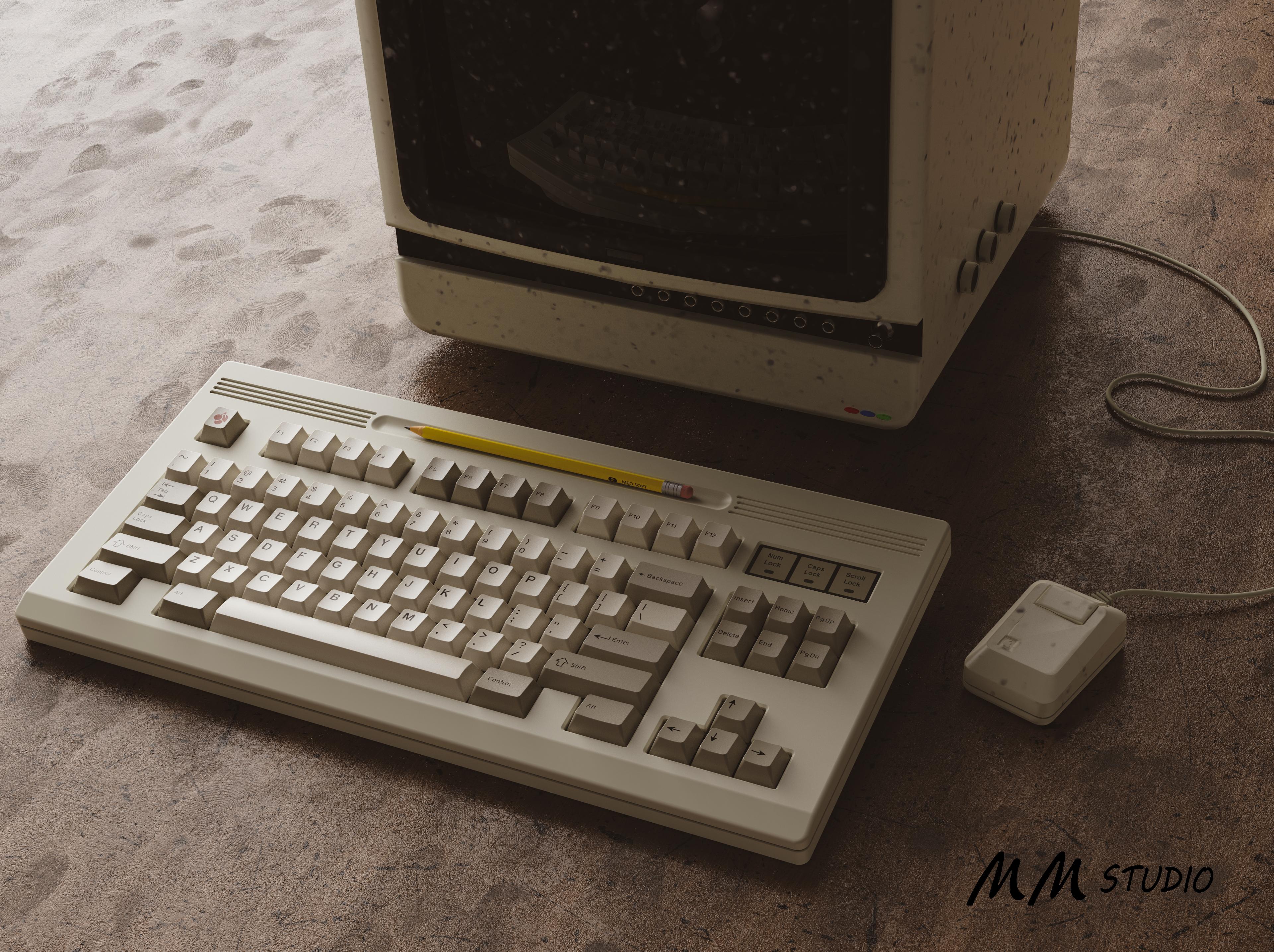

About Class80:
The Class80 builds on the big bezel design of the Class65 and intensify the chonk.

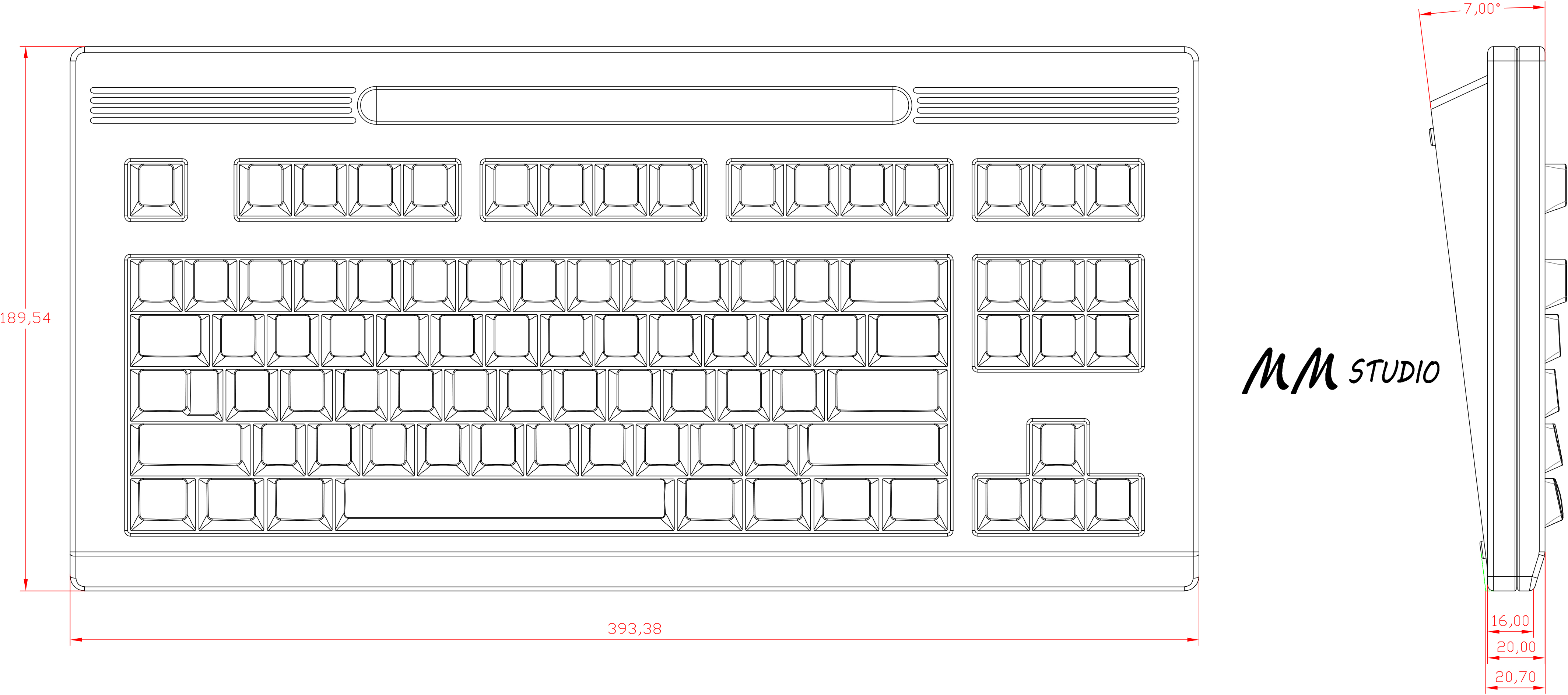

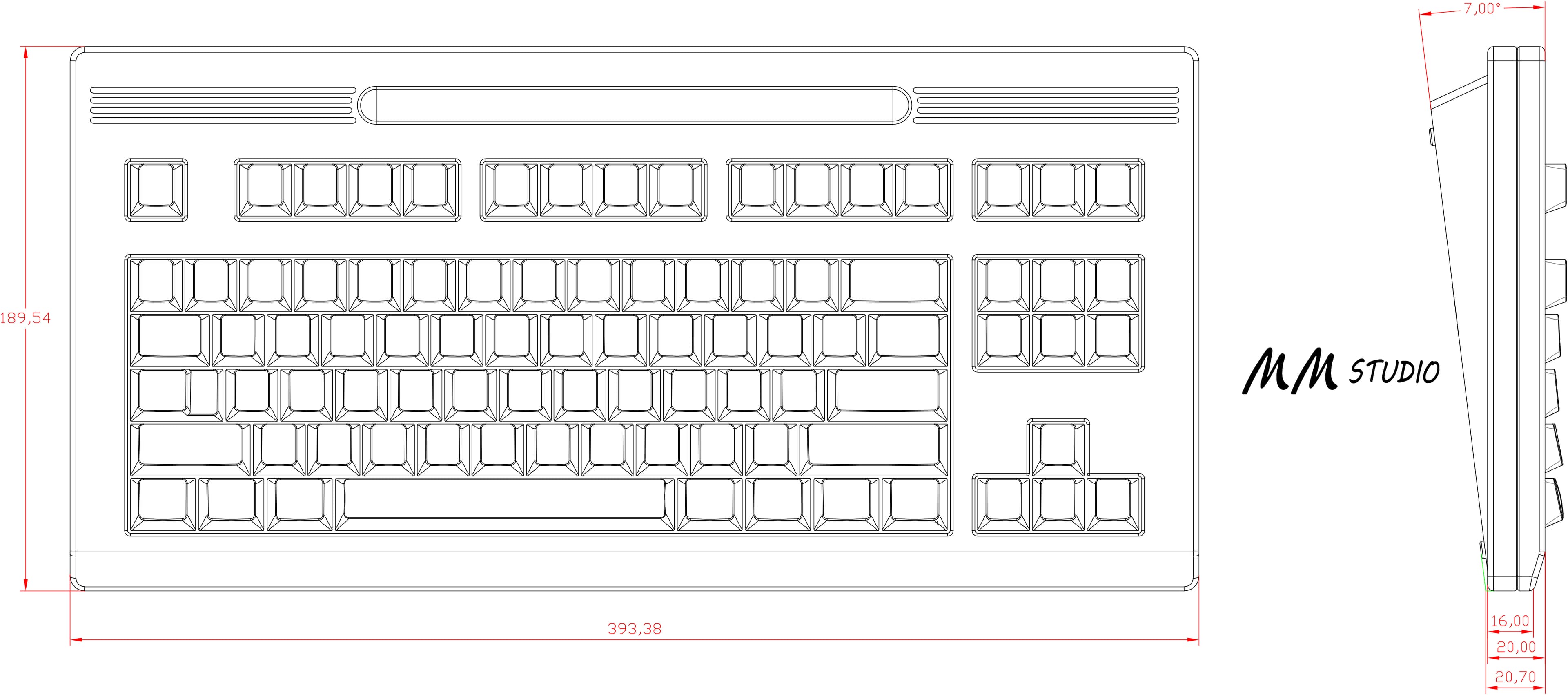

It measures 39.34cm*18.9cm and the big boy weighs about 3.5kg unbuilt.
In addition, we made a 1.6cm slope on the front edge to make the typing angle of the board to 7°.

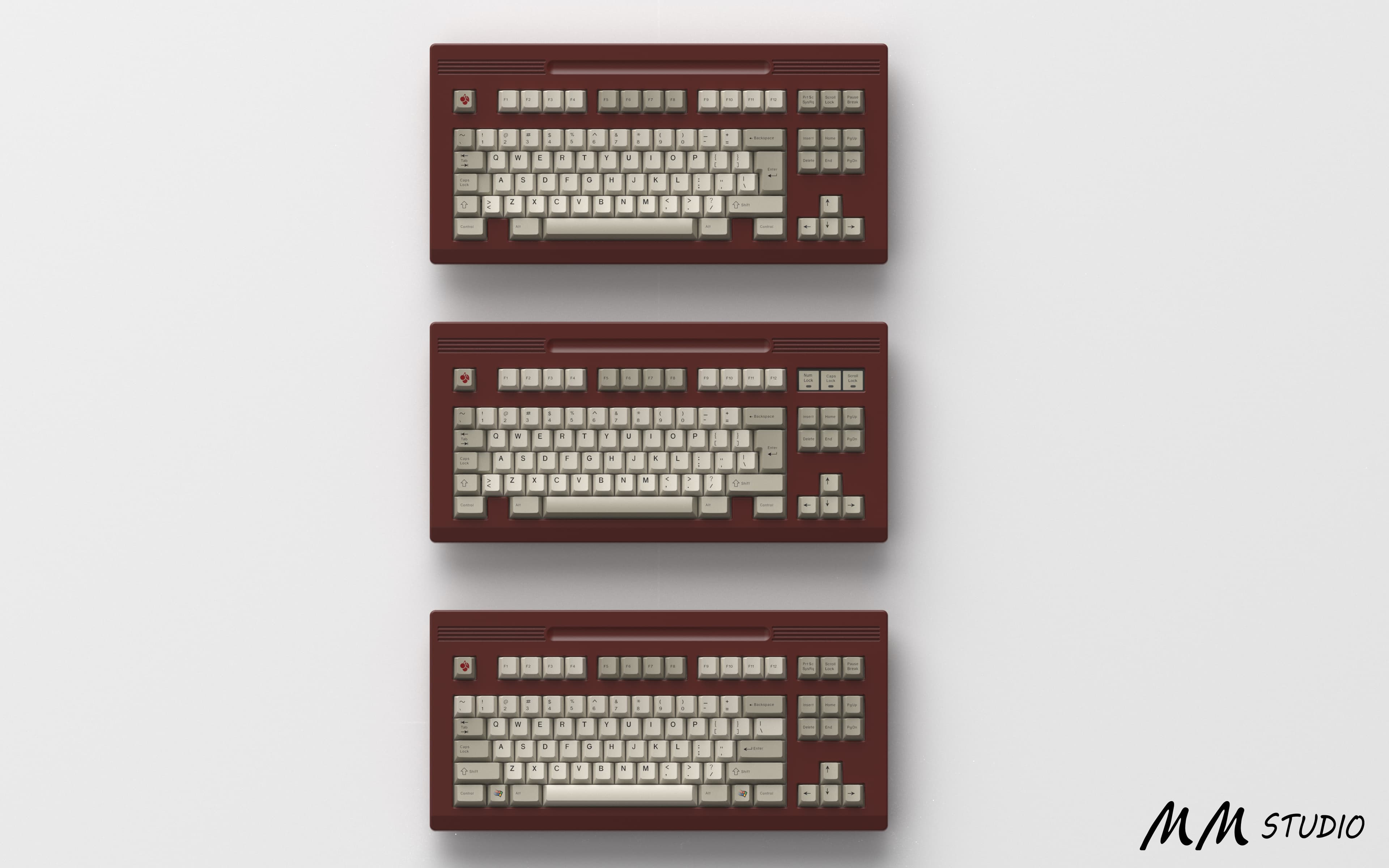

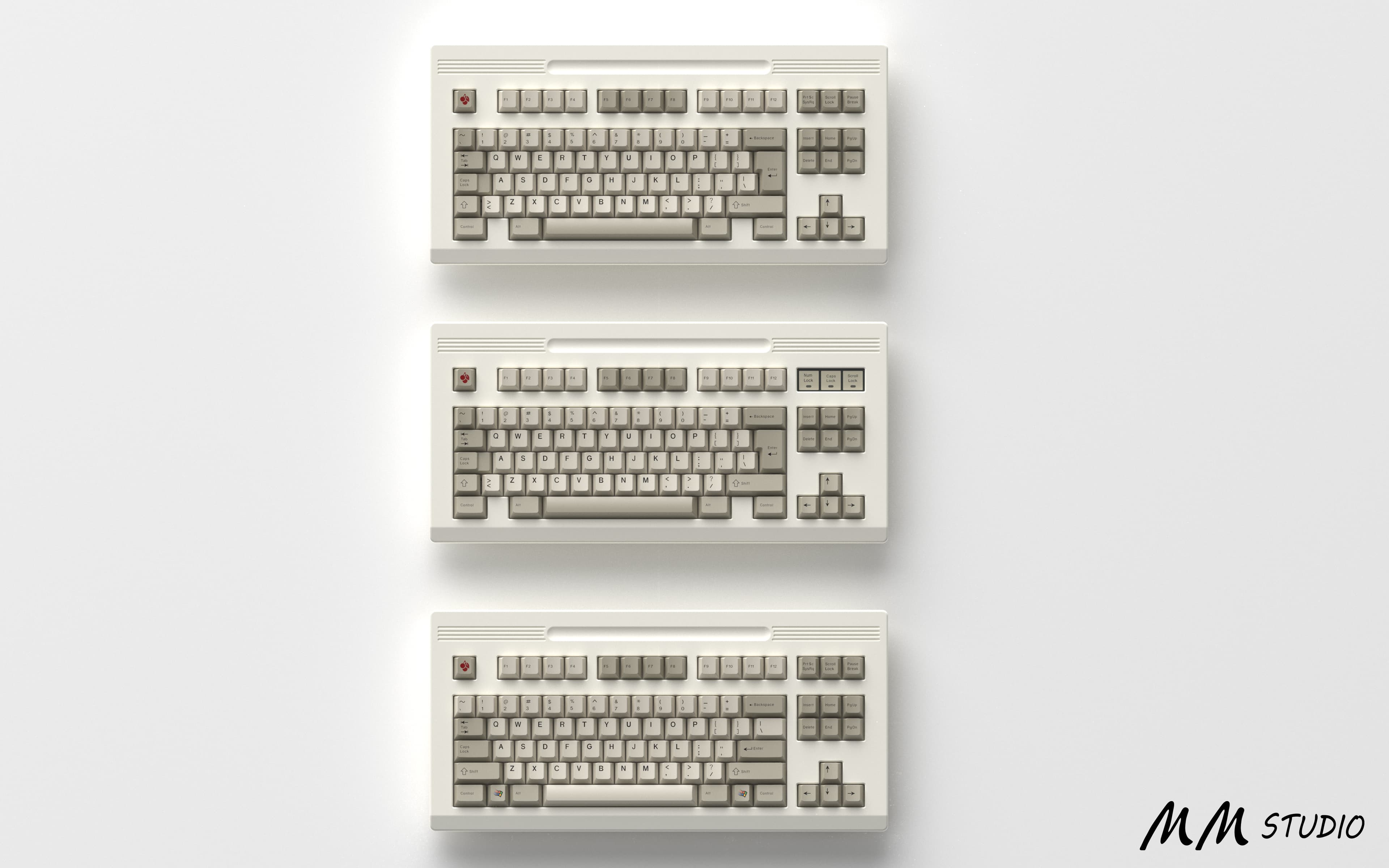

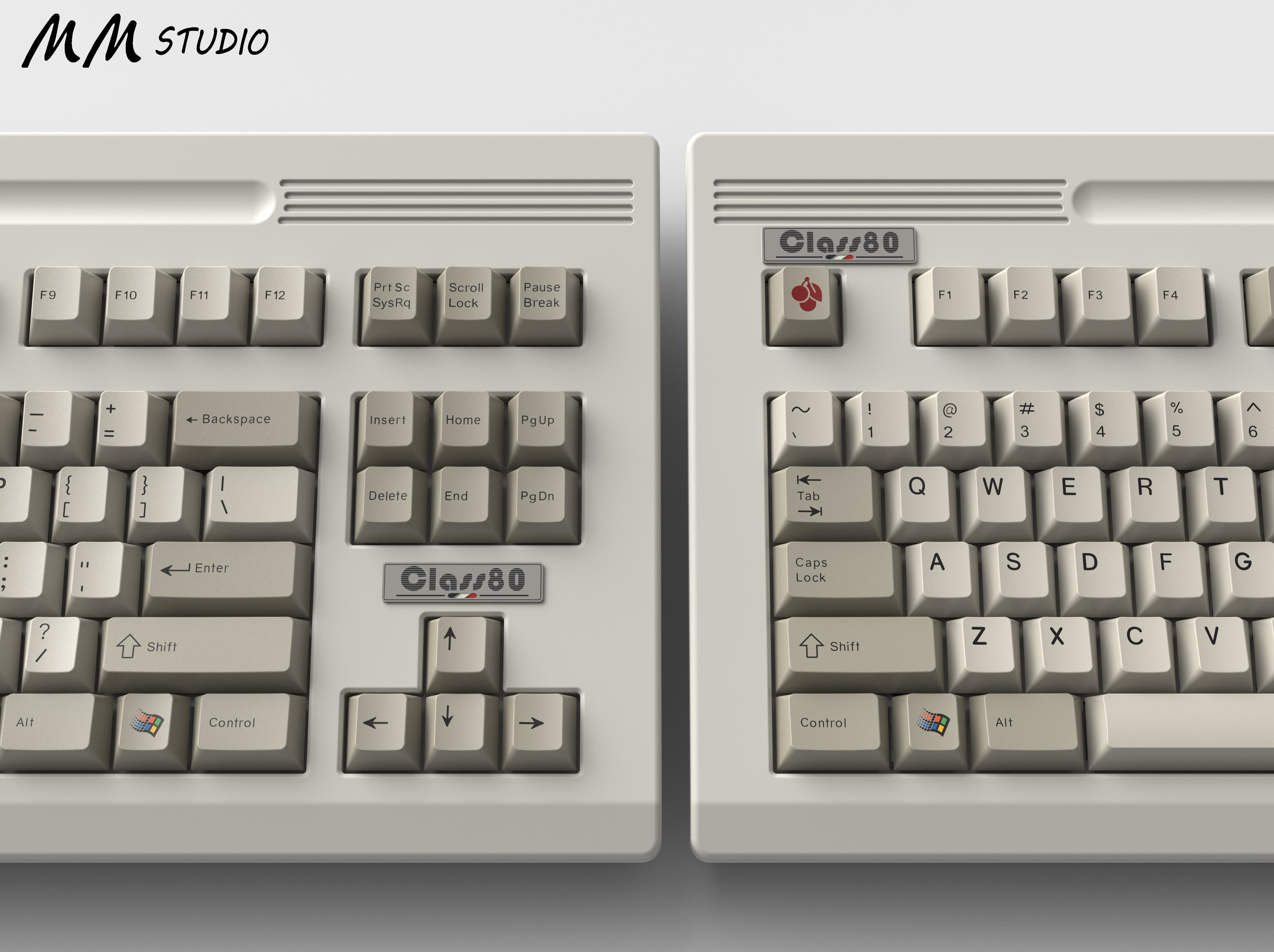

Colors:
we retained the much loved retro E-white and Ano-black of the Class65
and added a FAMICOM inspired E-Red to the selection.

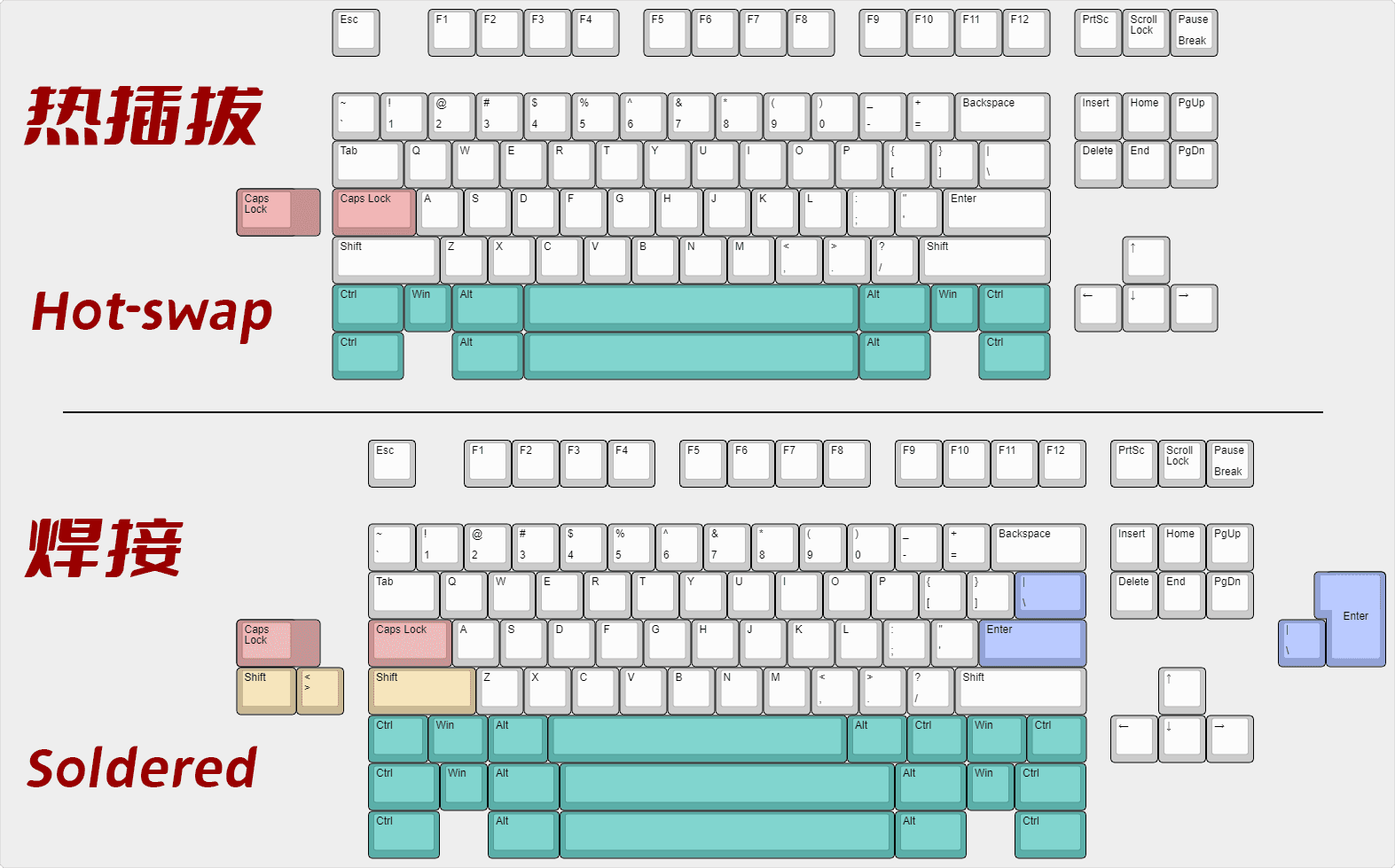

Layout:
Select between WK or WKL

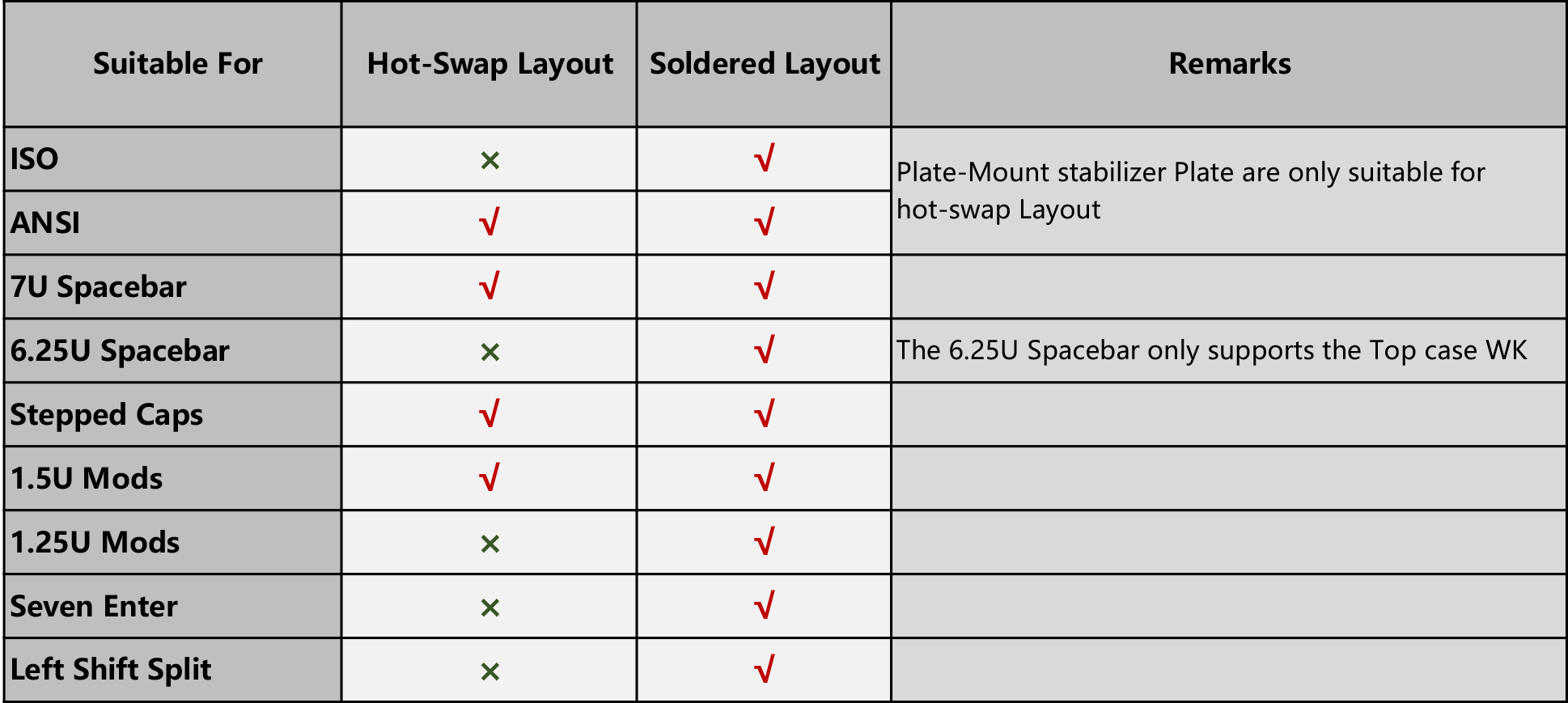

Hot-swap PCB only supports ANSI and 7U spacebar Tsangan, stepped caps is possible;

Soldered PCB supports 6.25U spacebar, 1.25 mods or Tsangan, stepped caps, ANSI or ISO both supported.

Plate support details can be checked here

PCB:
The new double “S” on the PCB leaf-spring-mount retains the ultra-soft typing experience of the original class65
but also allows the PCB to be top mounted.
We will offer both Wired and Bluetooth Version of the PCB, wired PCB supports QMK and VIA,
Bluetooth software support is provided by Dana through the program LDN .
For wired PCB, there are Hot-swap and soldered version, the Bluetooth PCB only comes with Hot-swap.
(Class80 firmware:download here )
The Bluetooth version comes with a 5000mAh battery included in the kit.

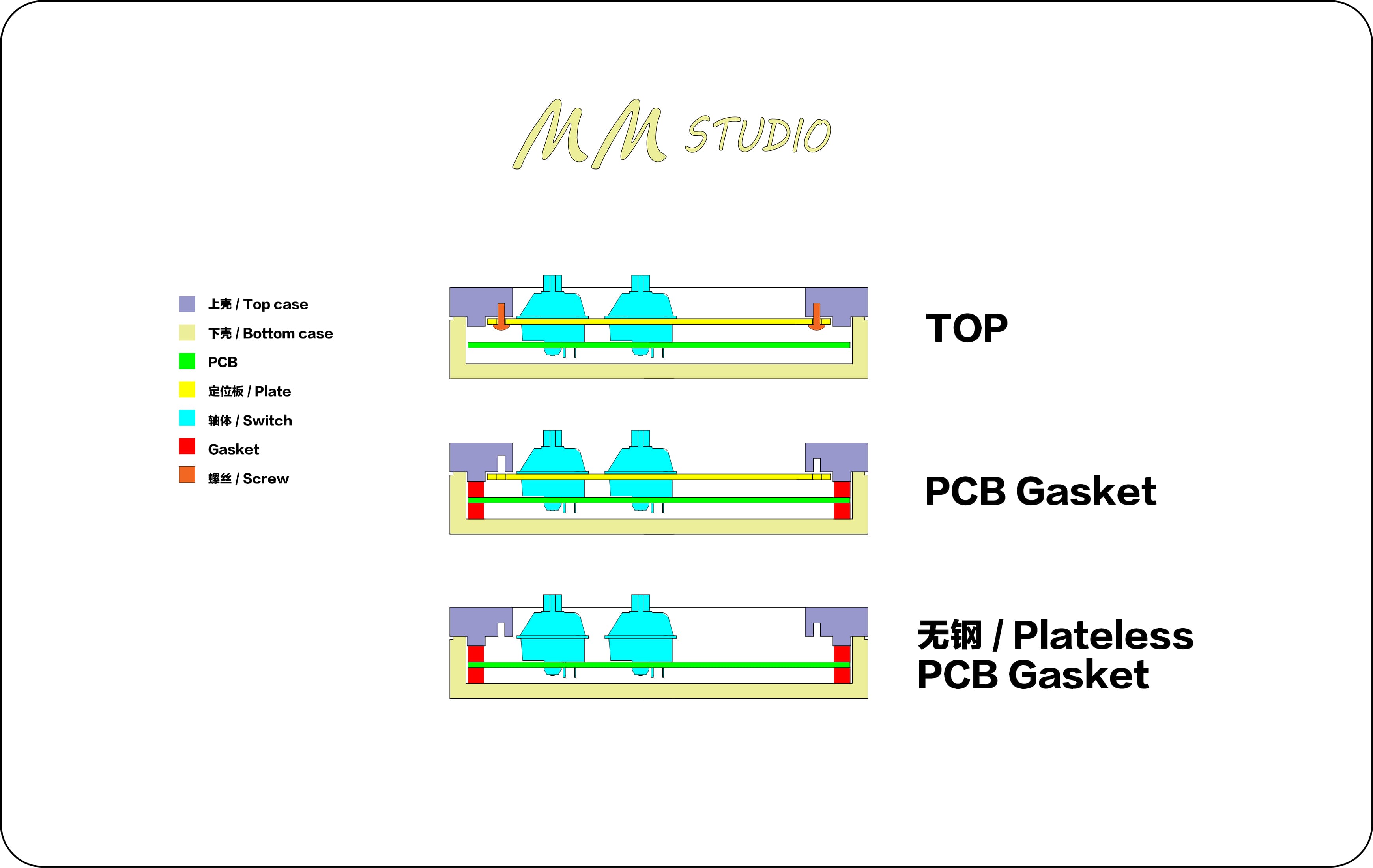

Mounting styles:
the Class80 supports 3 different mounting styles

Top mount with plate

PCB gasket mount with plate

PCB gasket mount plateless

We highly recommend you trying out the plateless build, it’s amazing if you like some flex.

Plate:
Standard kit comes with PC plate and only supports PCB mounted stabs.
Extra Plates comes in 10 variations which can be purchased separately here

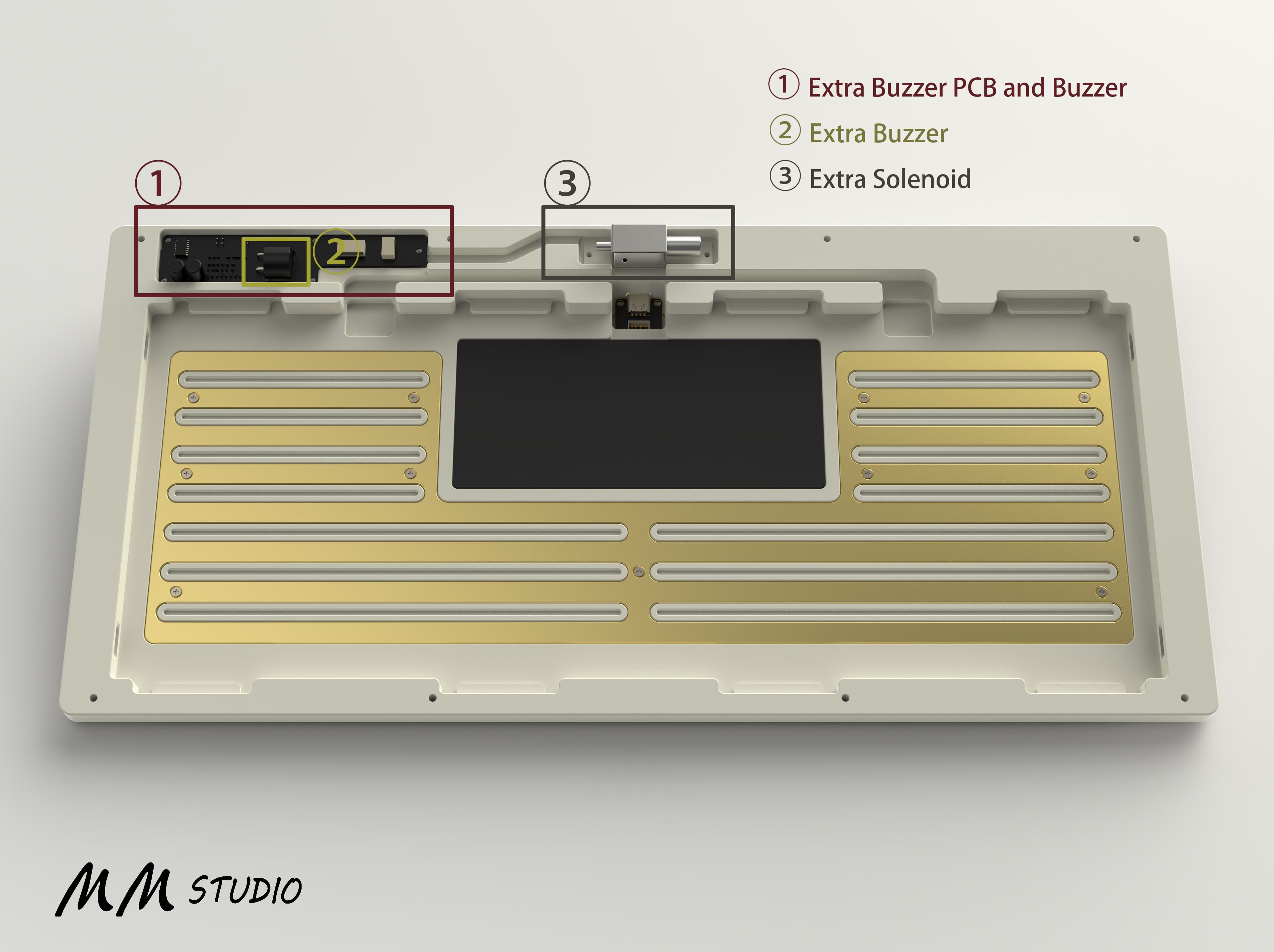

Buzzer & Solenoid:
The standard wired kit includes the Buzzer and Solenoid.
Unfortunately, the Bluetooth PCB can’t be used with the buzzer and solenoid,
so we excluded the parts from the Bluetooth kit to reduce the cost.
On the backside of the bottom case, there is a switch with 3 stages: Left-Off, Middle-Buzzer, Right-Solenoid.
The Buzzer and Solenoid can’t be used at the same time, stop trying to get fired.

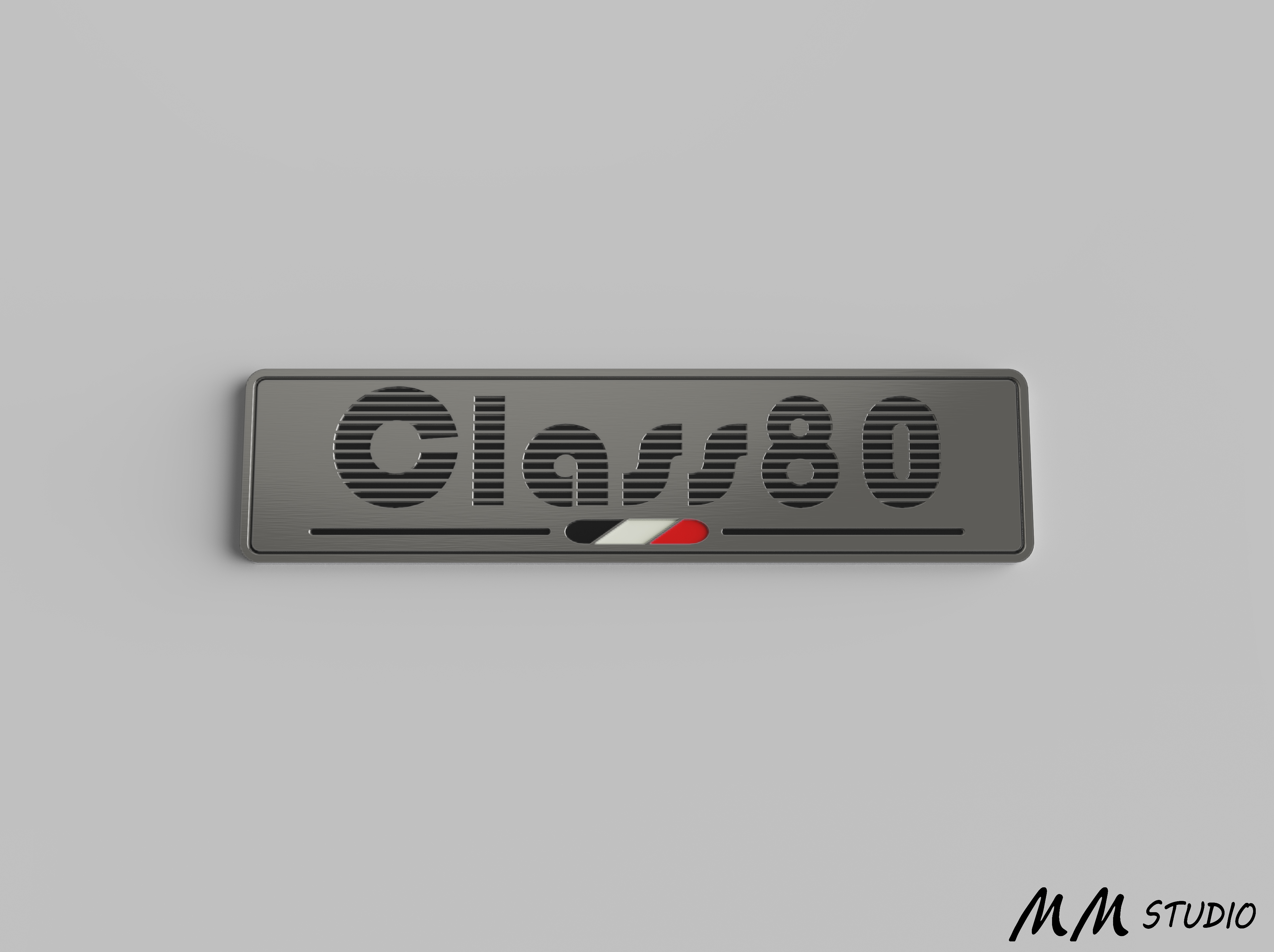

Sticker Badge:
For even more retro feel, we added a "Class80" sticker badge made out of stainless steel to the standard kit,
which you can freely choose where to stick it on your class80.

Carrying Case:
Last but not least, we included a keyboard carrying case to the standard kit,
since we know it’s not easy to find a case for a such chonky boy. You are welcome.

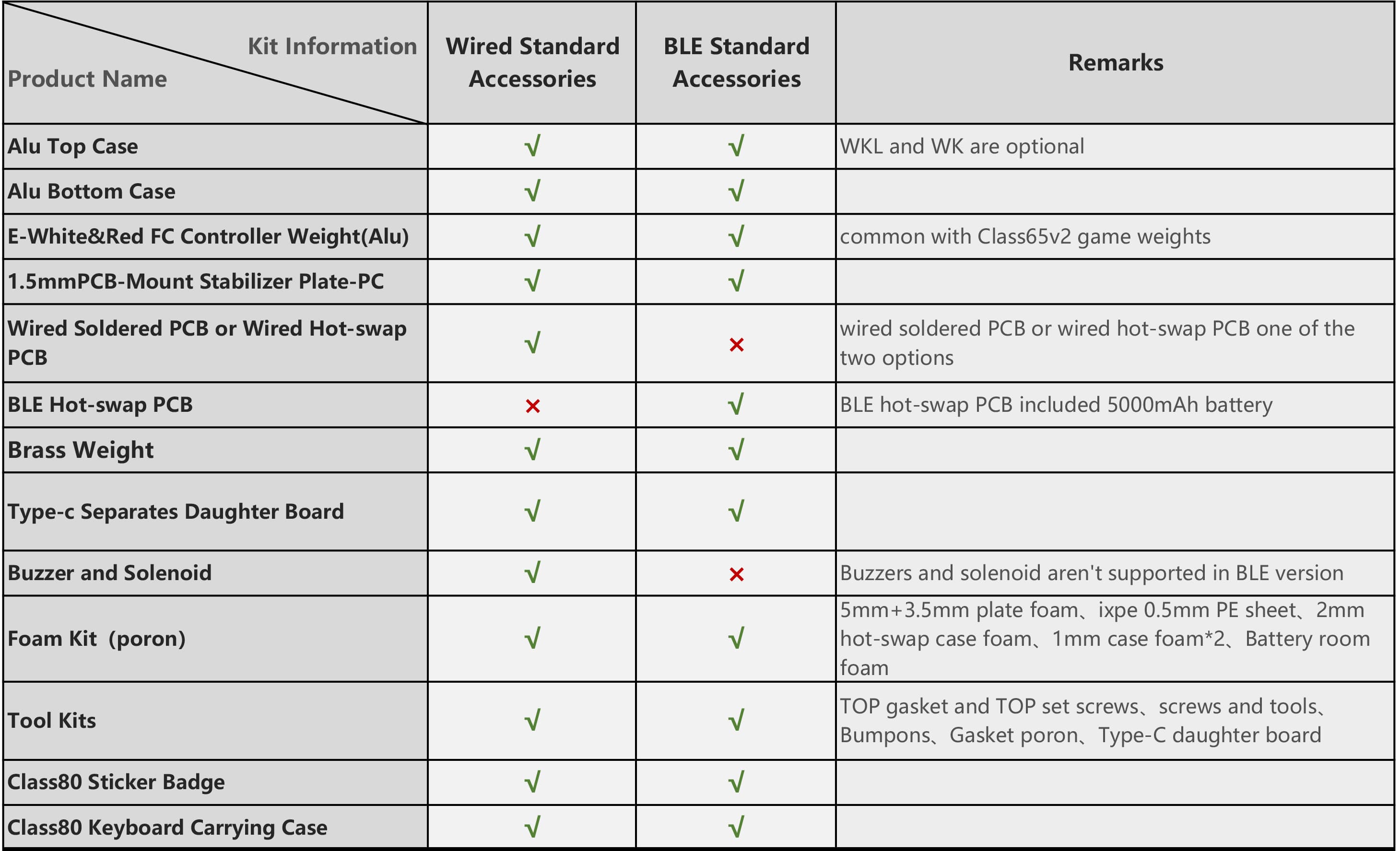

Standard Kits List:

Alu keyboard case

E-white&red FC controller weight(Alu)

Plate：1.5mm PCB-Mount stabilizer Plate-PC(One PCB-Mount stabilizer Plate-PC is included in the kit. If you need other plate, you can buy extra)

Plate foam: 5mm+3.5mm poron plate foam

Switch foam: 0.5mm ixpe

PCB：Solder/Hot-swap/ LDN BLE (Hot-swap)

Type-c Ai03 daughter board

Case foam and battery room foam：poron

Gasket poron

Bumpons

Screws and tools

Solenoid and Buzzer(Wired version only)

5000 mAh Battery (BLE version only)

Class80 Sticker Badge

Carrying Case

Extras

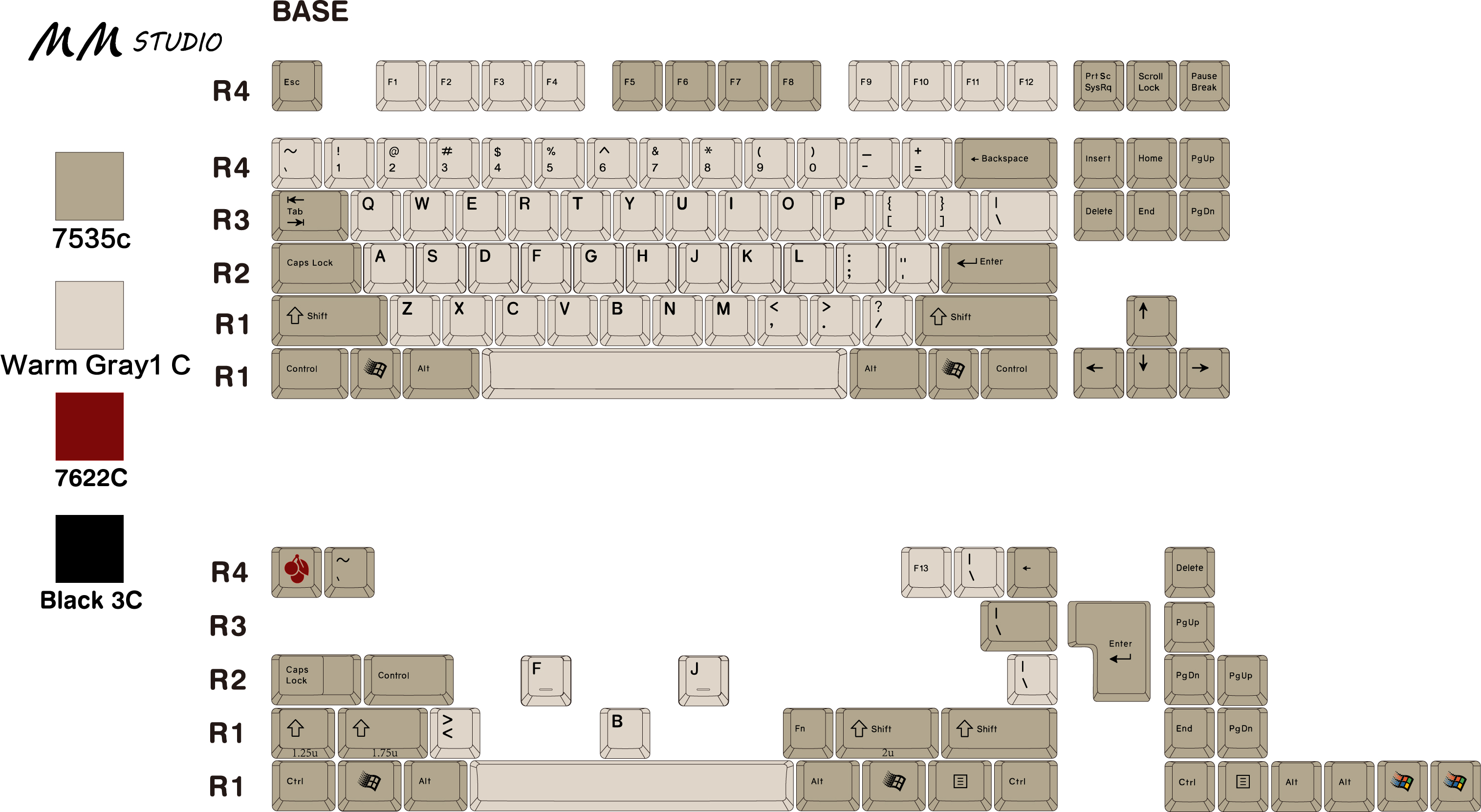

Keycaps: $45
A set of retro inspired keycaps set as optional extras can be purchased with the Class80
(Not included in the standard kit).The color is close to GMK L9 and U9.

Extra PCB (Presented Gasket )

Wired Soldering PCB: $45

Wired Hot-swap PCB: $45

BLE Hot-swap PCB: $75

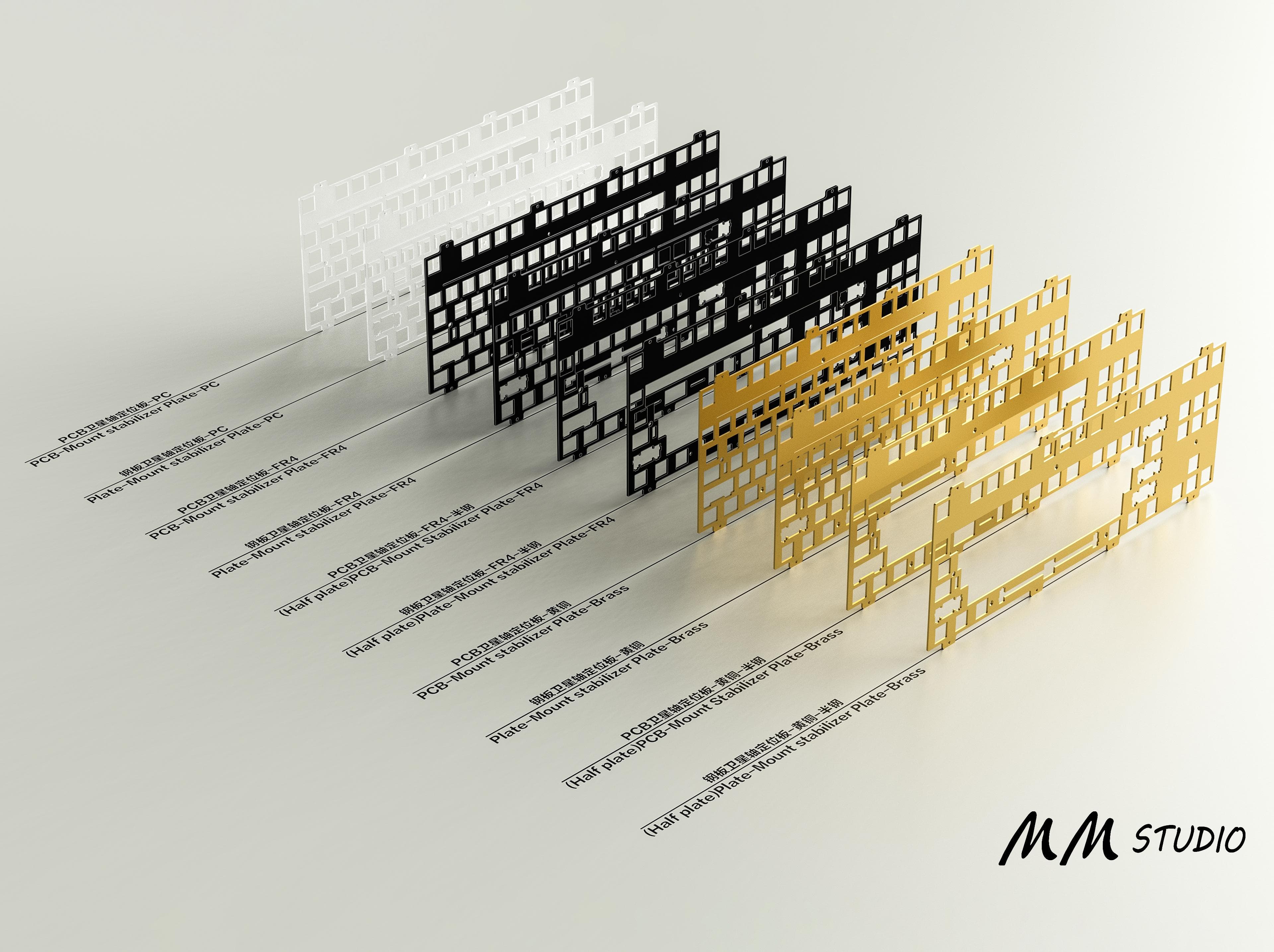

PC Plate

Plate-Mount stabilizer Plate-PC(ansi only): $25

PCB-Mount stabilizer Plate-PC(iso/ansi) : $25

Black core FR4 Plate

Plate-Mount stabilizer Plate-FR4(ansi only): $25

PCB-Mount stabilizer Plate-FR4(iso/ansi): $25

(Half plate)Plate-Mount stabilizer Plate-FR4(ansi only) : $25

(Half plate)PCB-Mount Stabilizer Plate-FR4(iso/ansi): $25

Brass Plate

Plate-Mount stabilizer Plate-Brass(ansi only): $42

PCB-Mount stabilizer Plate-Brass(iso/ansi): $42

(Half plate)Plate-Mount stabilizer Plate-Brass(ansi only) : $42

(Half plate)PCB-Mount Stabilizer Plate-Brass(iso/ansi): $42

Extra FC controller weight(Alu): $25
Indicator Light Module（Optional）: $20
Extra Foam Kit（Optional）: $15

5mm plate foam*1

3.5mm plate foam*1

0.5mm PE sheet*1

2mm hot-swap case foam*1

1mm case foam*2

Battrey room foam*1

Extra Tools and others（Optional）: $5

Gasket poron

Screws and Drivers

Bumpons

Type-C daughter board

Shipping:
Shipping from MM Studio Store: According to the actual transportation cost
Shipping from regional vendors: please check your vendor’s conditions

For Class65V2 buyers:
The controller weight are compatible with the Class80.
If you don’t want a new controller weight, you can contact us to deduct the price by the cost of the controller weight
(just to make sure: of course, you won’t get a new controller weight with the Class80 in this case)

Please join our DISCORD to get more update, you are very welcome to join our small community!
