21XX - A Modern Unsaver Keyboard by Pontus
※ Original IC Post ※ CannonKeys Page ※ My Instagram ※ CannonKeys Discord ※Hello everyone! I am happy to finally be able to announce the group buy details for the 21XX.
The 21XX will be running as an unlimited group buy with CannonKeys as the lead vendor in June 2025.
History
More
The unsaver layout was originally featured on the IBM 3290 Model 1 keyboard and to my knowledge predates the more common 122 layout. IBM's boards featuring the layout have always been highly desired in the hobby and back in the early 2010s there were a few Cherry G80-2*** boards modified to have the unsaver layout. The first time I saw one of these customized boards I was amazed and started looking for a way for me to obtain them. With minimal luck and no good alternative available I started drafting the 21xx design back in 2021. It took a few years but suddenly I had a prototype on hand and a lot of people showing interest so I decided to perfect the design to my tastes hoping to one day be able to offer it to everyone.
Thanks to Shark for having a great wiki on IBM keyboards that let me check what came first

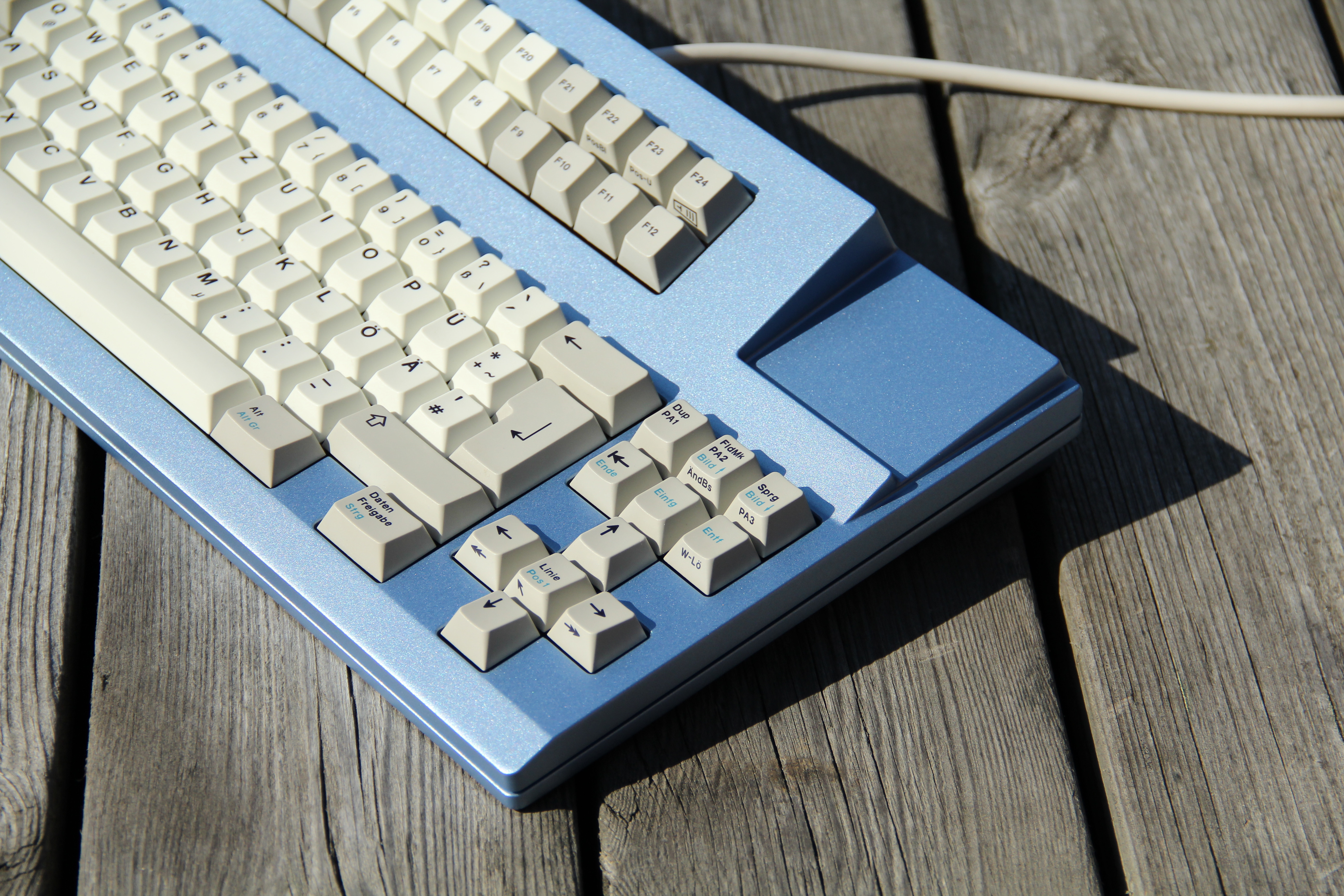

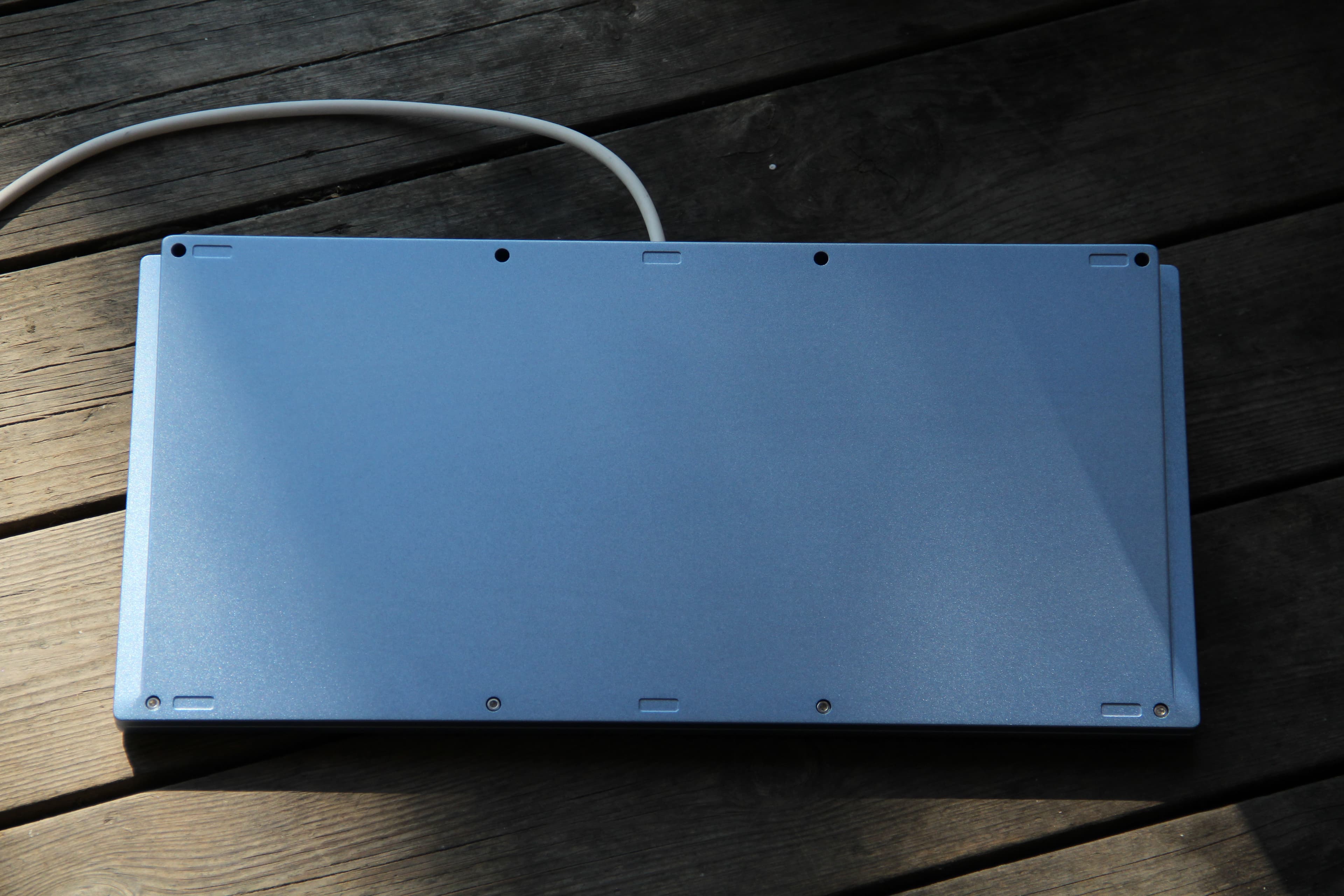

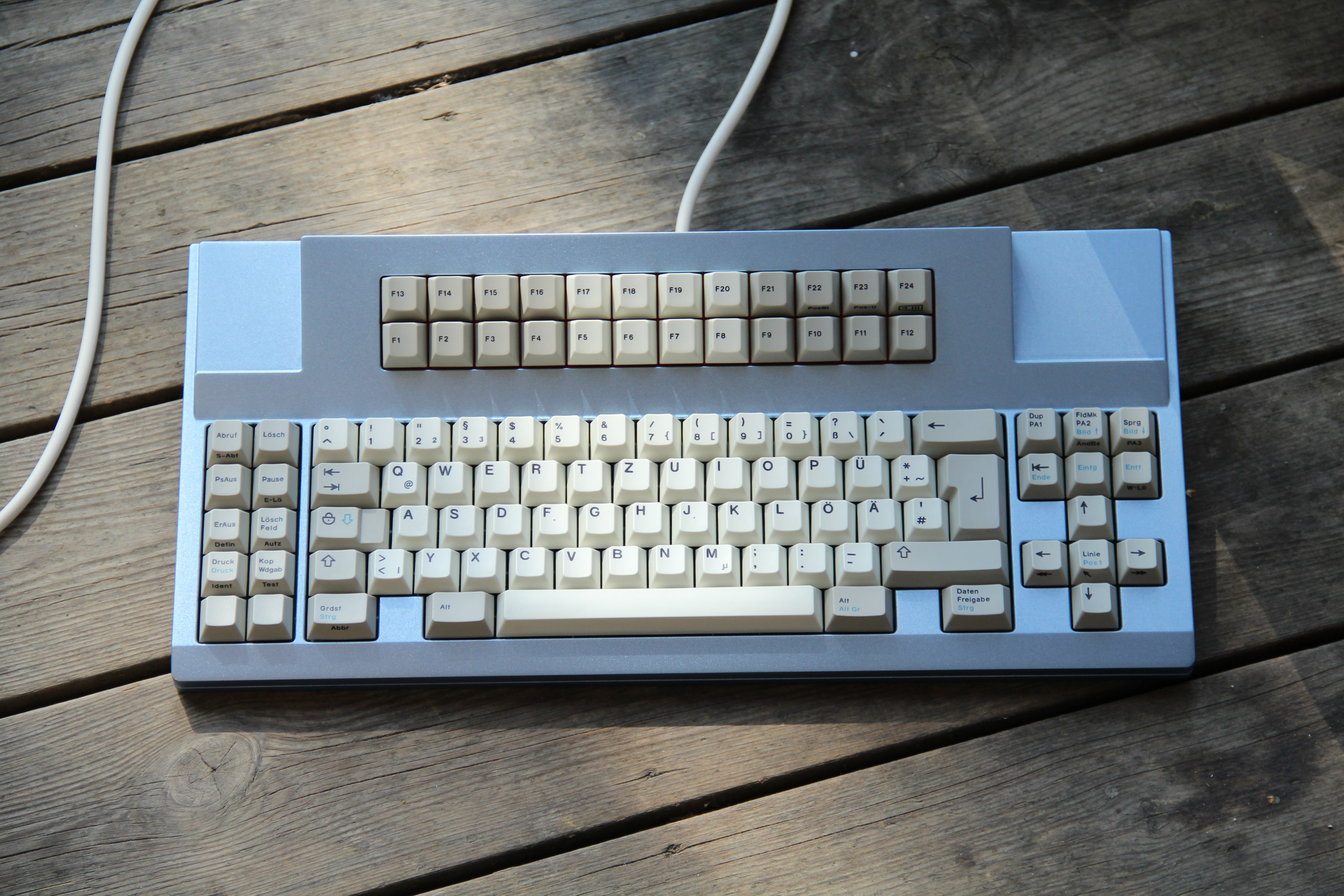

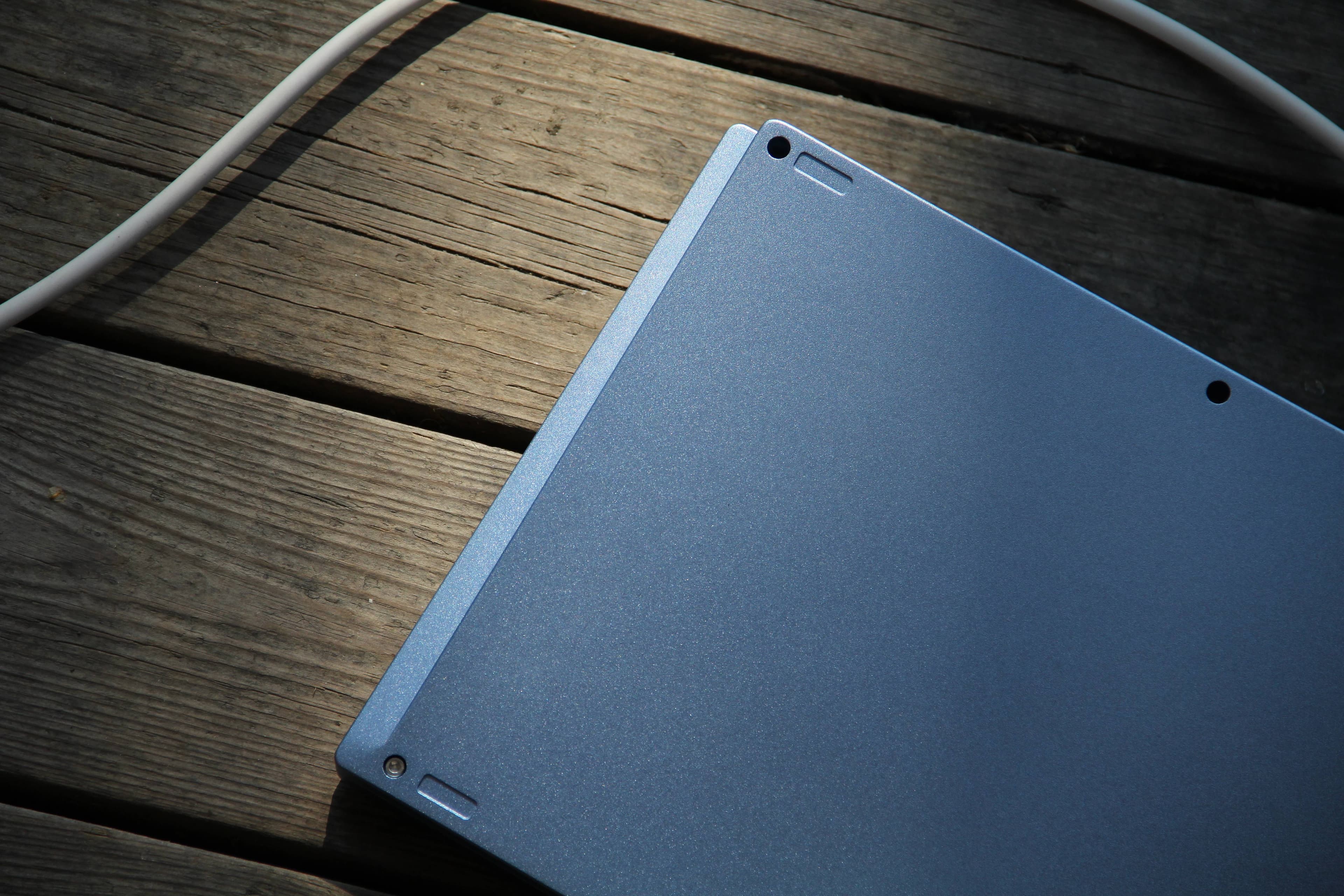

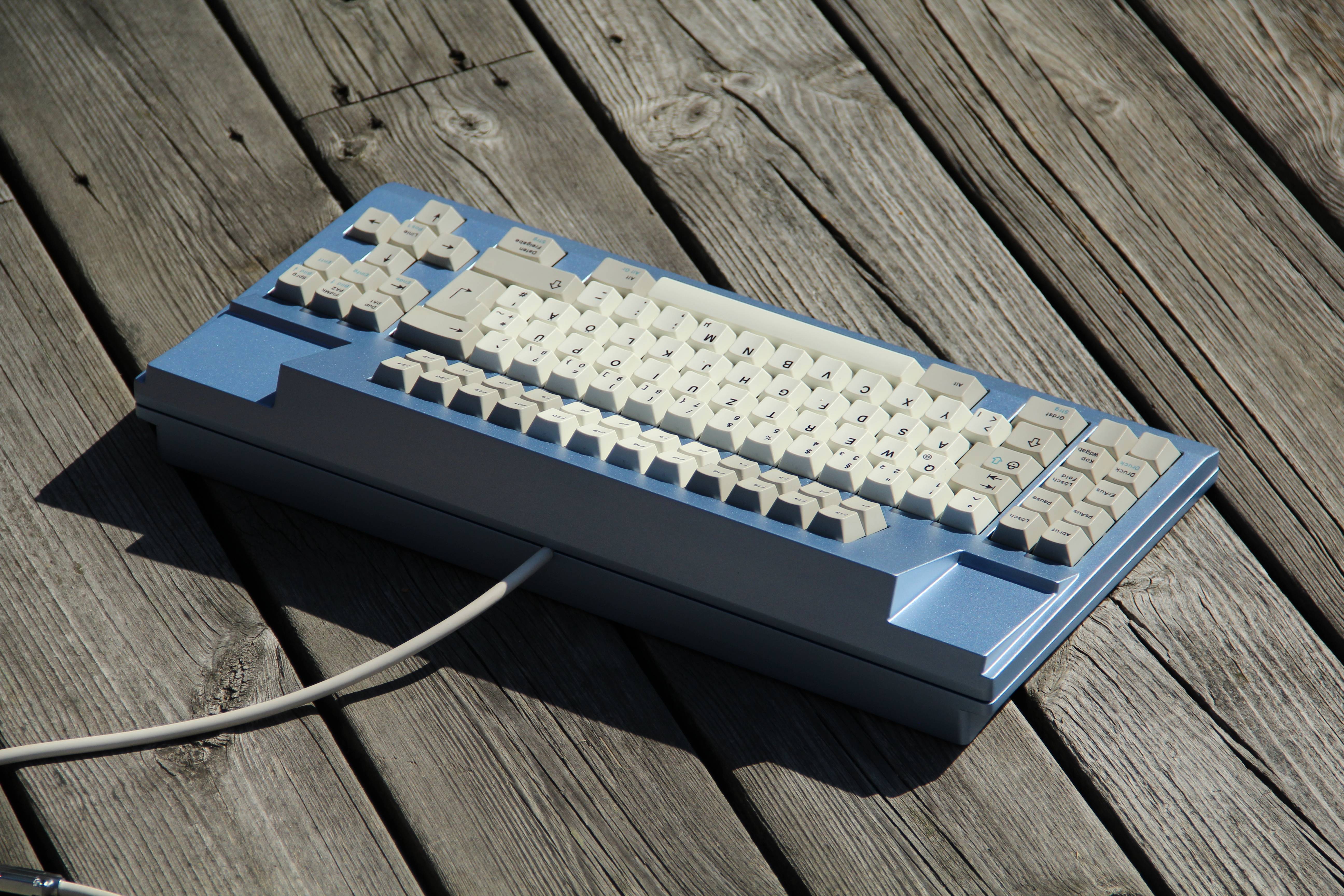

Old prototype pictures.
Please note that the design and colors have been adjusted, the blue will be slightly different on group buy boards.More
SPECIFICATIONS
⏵Unsaver Layout
⏵Plateless PCB Topmount (main area)
⏵Traditional Plate Topmount (F-Rows)
⏵ 5.5° typing angle
⏵ 25.5° on F-rows
⏵ 20.2mm Front Height
⏵ ~4300g/9.5lbs Built
⏵ Solenoid for Acoustic Feedback
⏵ THT Indicator LED support
⏵ Faux Integrated Cable (Internal USB-C)
⏵ 1.6mm FR4 PCB designed by Cipulot
⏵ Solder ONLY

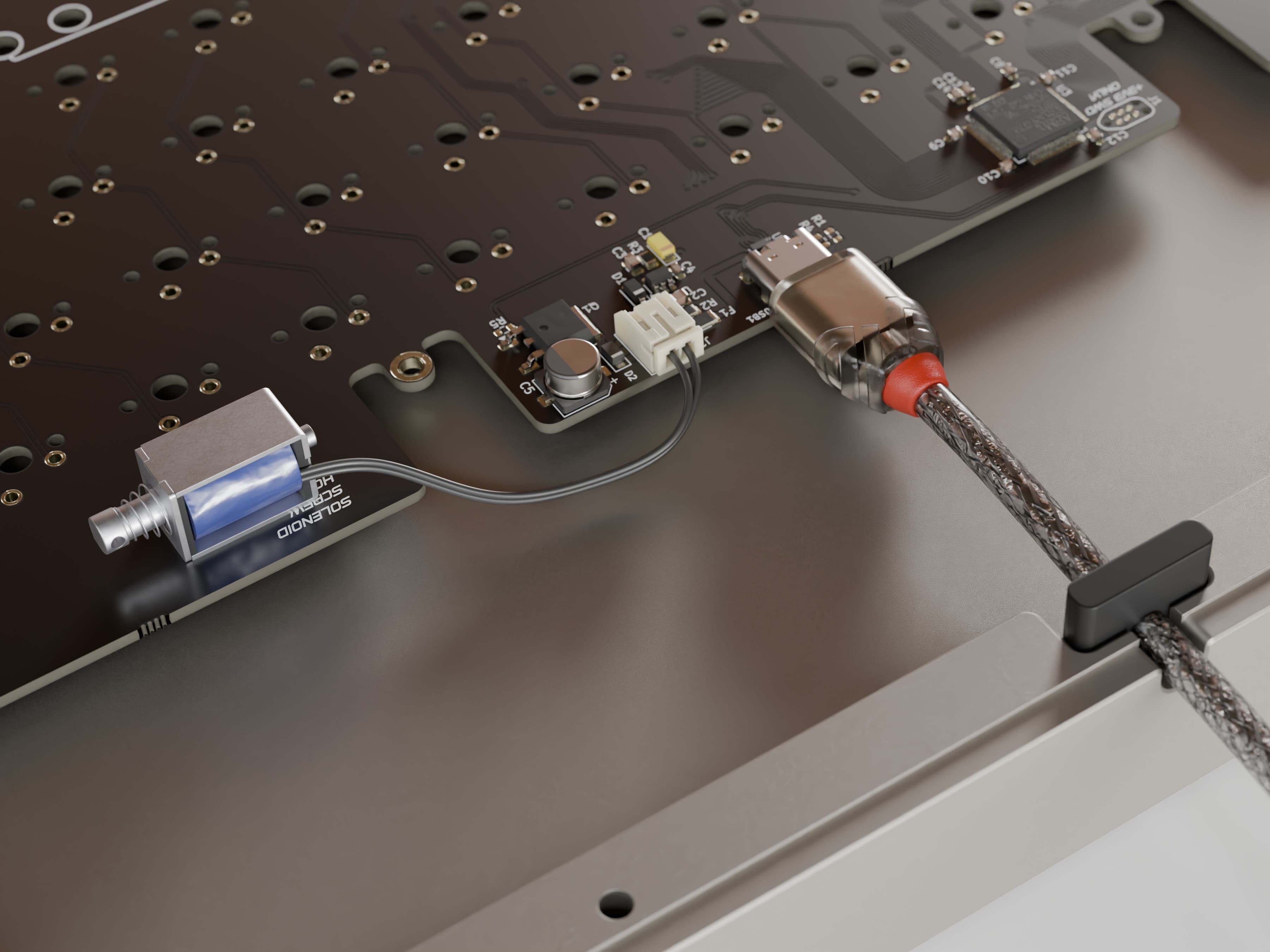

Cable & Solenoid Solution
More
Layout Options

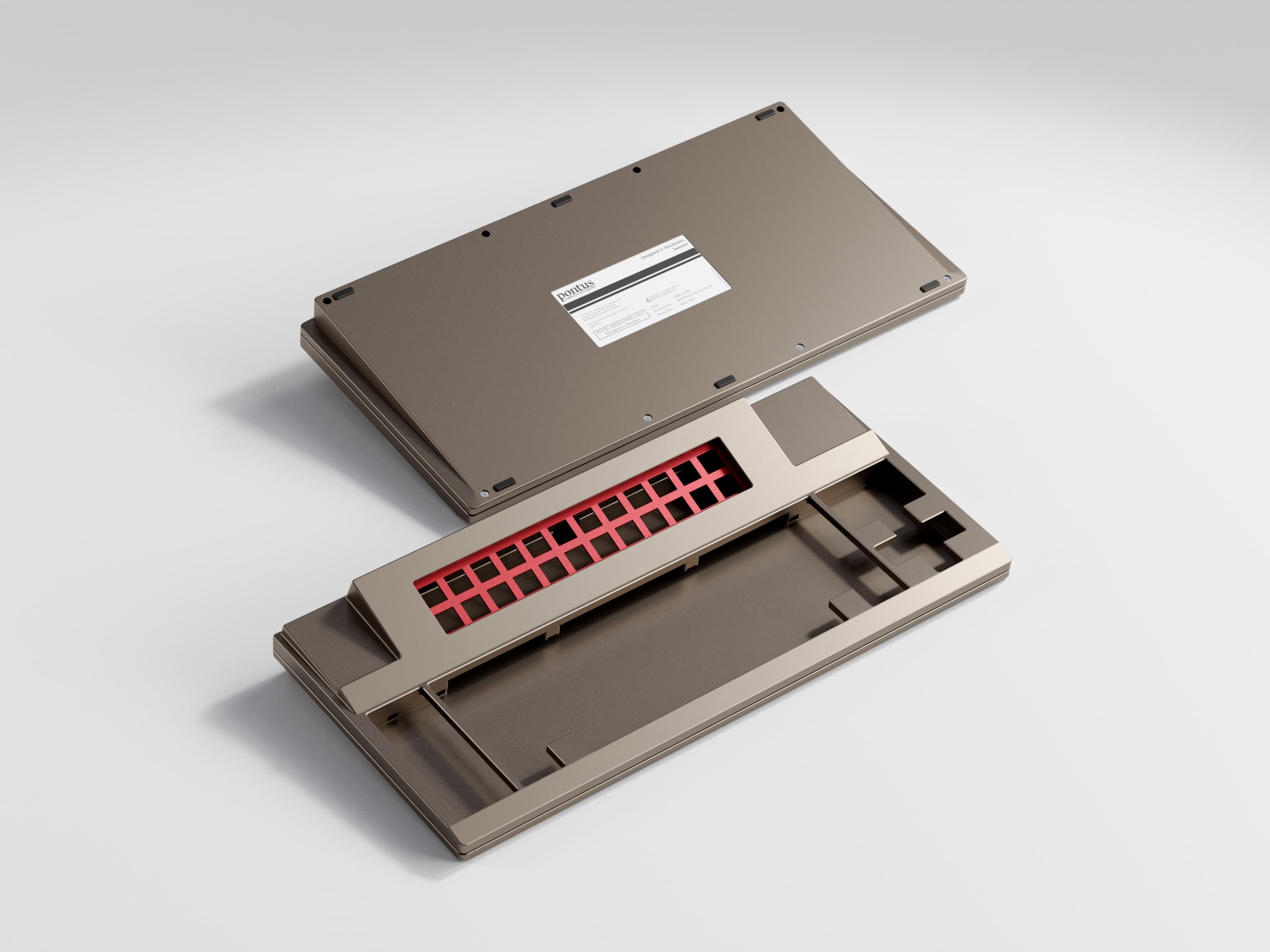

What's included?
⏵ 21XX Keyboard Case in your color of choice
⏵ Red Aluminum Plate
⏵ PCBs (Main + F-row)
⏵ Ribbon interconnect cable
⏵ 5V Solenoid
⏵ Cable grommet
⏵ AKB bumpons
⏵ Sticker
⏵ Torx screws
⏵ Carrying case & Microfiber cloth
CONFIGURATIONSWKL Cross Nav
Light Blue, Warm Gray, Black

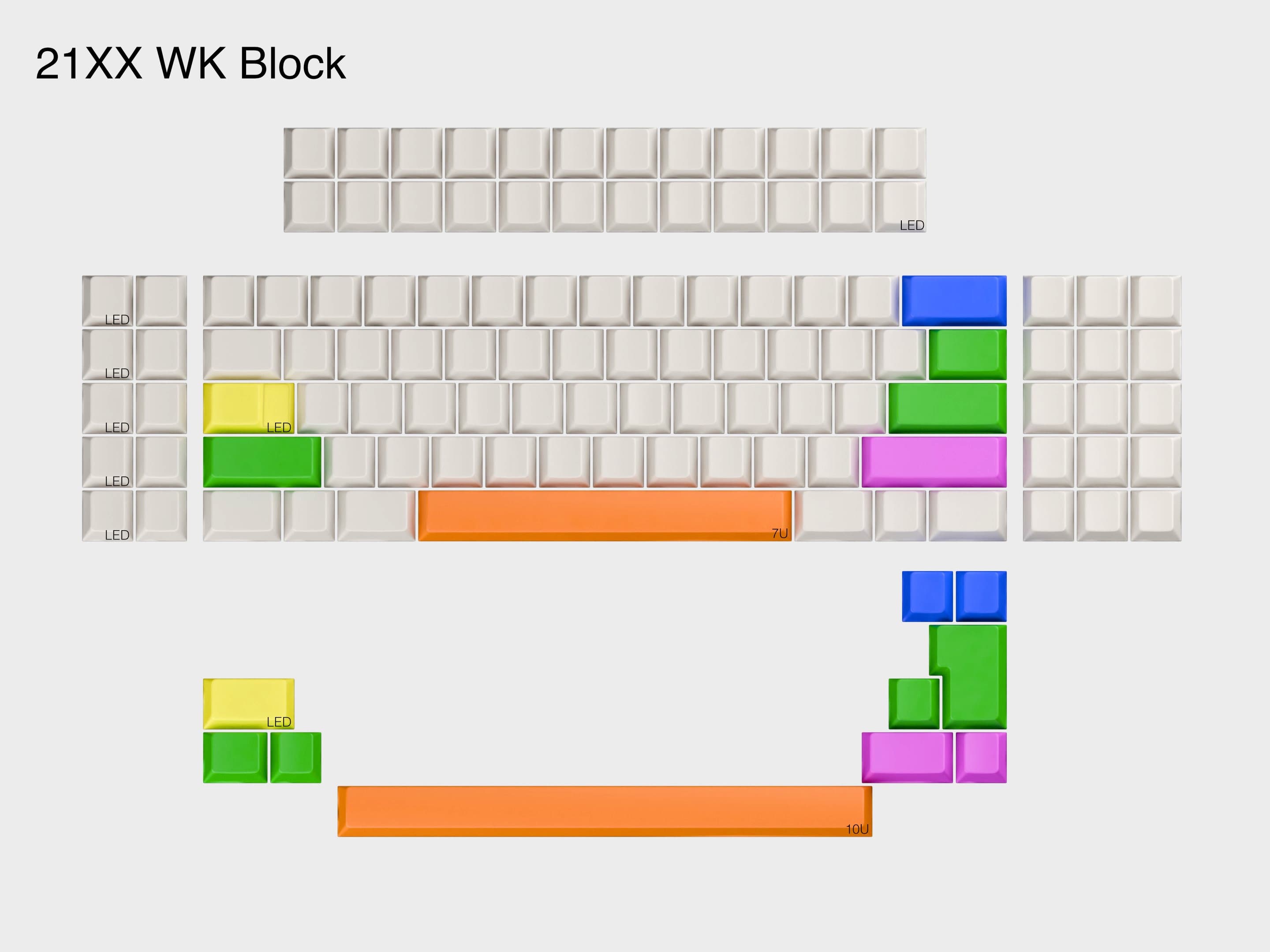

WK Block Nav
Light Blue, Warm Gray, Black
DATESGroup Buy: 20th June - 20th 30th July 2025Estimated Delivery: Q1 2026
PRICING⏵ 21XX 715USD
Extras:
⏵ Extra PCB set - 65USD
⏵ Extra Solenoid - 5USD
⏵ Extra F-row plate (Carbon Fiber) - 22USD
⏵ Extra F-row plate (Red Aluminum) - 22USD
⏵ Extra AKB bumpons (12x) - 4USDVENDORSUS:
CannonKeys (lead)UK:
ProtoTypistCA:
RndkbdSG:
Ktechs.storeCN:
KbdfansEU:
KeygemMEDIAPrevious streams
⏵
ProtoTypist build stream VOD (Previous prototype)
⏵
Lightning - Cherry clear top black & Ultramarine Soundtests⏵
Alexotos⏵
MechmerlinUpcoming streams
⏵ Blacksimon
July 23rdTHANKSThe CannonKeys team & everyone else who's helped make this project a reality
UPDATES2025/05/15 ⏵ Adjusted shipping estimate (Q4 2025 -> Q1 2026)
⏵ Added Vendors (CA, CN, & SG)
2025/05/17 ⏵ Added Keygem as a vendor (EU)
2025/06/20 ⏵ Group Buy LIVE across all vendors
