(CLOSED) TX1800 [Finished]

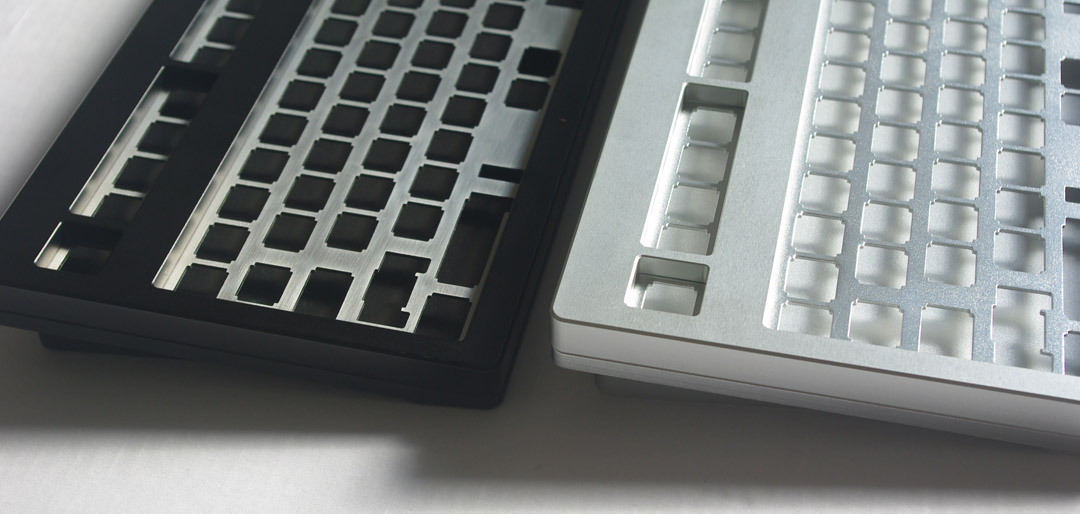

1) TX1800 - Full alu custom build
Aluminum Case + Plate + Leeku 1800 PCB = USD 335
•Full aluminum case, weighs about 3.5 ~ 4Kg

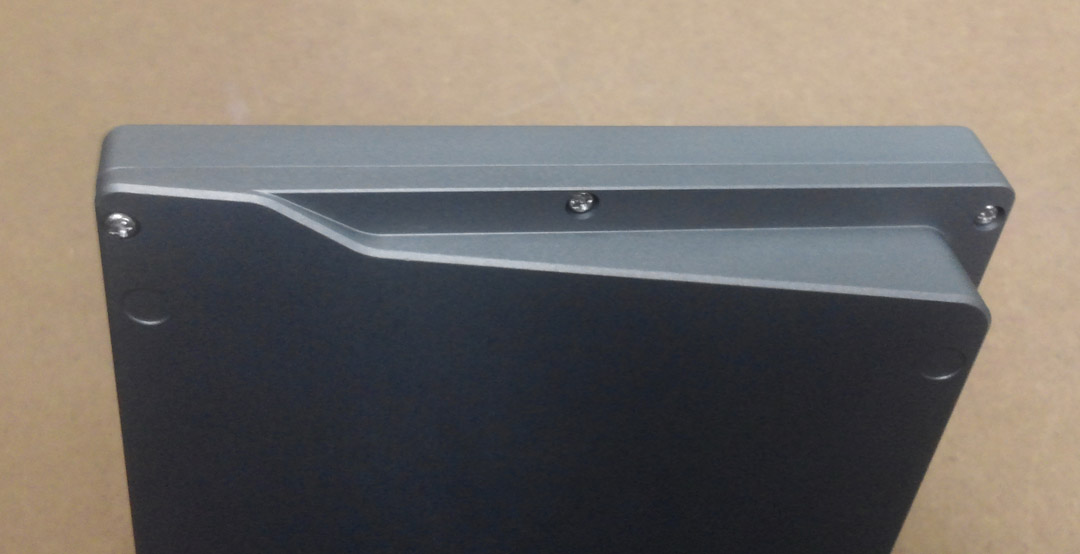

•Angled
•Anodizing colors available for the case: silver, black, dolch (dark gray-ish)

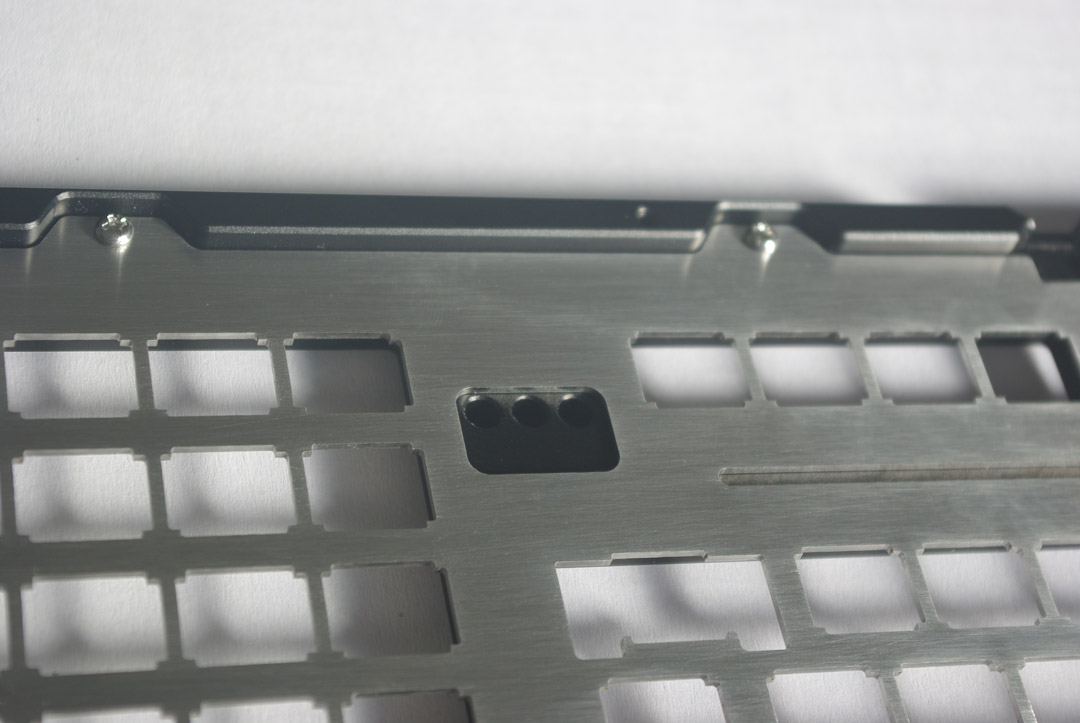

•Plate materials available: stainless steel, aluminum (silver)
•Supports switch top removal
•NOT compatible with stock Cherry 1800 case/PCB
•Fully programmable PCB designed/developed by Leeku
•Supports full LED backlighting
•Only the controller parts are pre-soldered


2) PCB + Plate Combo
Leeku PCB + Plate = USD 70
•No PCB only, plate only orders. You have to buy both
•Supports stock Cherry 1800 case, NOT compatible with the alu case in 1)
•Plate materials : stainless steel, aluminum(silver)
•Supports switch top removal
•For PCB, only the controller parts are pre-soldered
•Fully programmable, LED backlighting
•1800 layout
top-SS, bottom-alu, cherry logo might be changed/removed
•3000 layout also available for the same price


## Parts for TX1800

1] Diodes are 1n4148 for smd : $1(qty105)

2] Resistors for smd : free of charge (qty around 105)
* 1.3k/910/820/750/680ohm

3] Stabilizers : not new but I clean (and new sus wires) for TX1800 : $3 (qty5)
(wires : 4 short wires and 1 long spacebar wire)
* Let me know winkey or winkeyless.

4] 2x3x4 LED (white/red/blue/green/yellow) : $4 (qty105)

5] Gap film (like switch sticker, no adhensive strength, transparent or white color) : $5 (qty105)
* Gap film make you save time 1/3.

6] New MX Switches(black/blue/red/brown) : $45 (qty105)

7] Old MX Black Switches(cleaned, seperated, WYSE) : $53(qty105)

8] Old MX White Clear Switches(cleaned, seperated) : $48(qty105)

9] Springs (52g/55g/57g/62g/67g) : $5(qty105)

10] Switch Remover (steel wire) : $6(qty2)

11] Keycap Puller (steel) : $4

12] Sockets for changing LED : $2(qty210 for 105switches) <----- added




** Shipping
Shipping will be directely from South Korea with EMS.
Shipping cost for Case + PCB + Plate will be $70 to North America, $60 to Europe and $40 to Asia.
PCB + Plate orders will be $40 to NA, $30 to Europe and $20 to Asia.


** Payment ex) US/Housing
GB participants will make two separate payments.
1) Send your order to my email ([email protected])
2) I will send an invoice(non-refundable DEPOSIT) to you.
3) Send 1st payment(DEPOSIT) to me. Until Feb.28 ex) $104.3704
4) Before Shipping I will send an invoice (the balance of 305$)
5) Send 2ndpayment(the balance) to me. ETA is around the middle of April. ex) $317.6899
* After shipping, The rest of shipping cost will be refunded.
(Now I don't know exact shipping cost, so I put a high price)

## Paypal fee Function ##
(MINE + 0.3)/(1-0.039)=YOURS

** Send e-mail to [email protected]
Subject : [TX1800]
Message :
* HOUSING
HOUSING Color : (Black/Silver/Gray)
QTY :
Plate : (SUS/ALU)
PCB color : (Red/White/Green)

* Option
PCB&Plate(for cherry original case) : 1800/3000 __

* Parts & Keycaps
1] Diodes are 1n4148 for smd : $1(qty105)
2] Resistors for smd : free of charge (qty around 105) * 1.3k/910/820/750/680ohm
3] Stabilizers $3 (qty5) winkey or winkeyless.
4] 2x3x4 LED (white/red/blue/green/yellow) : $4 (qty105)
5] Gap film (like switch sticker, no adhensive strength, transparent or white color) : $5 (qty105)
6] New MX Switches(black/blue/red/brown) : $45 (qty105)
7] Old MX Black Switches(cleaned, seperated, WYSE) : $53(qty105)
8] Old MX White Clear Switches(cleaned, seperated) : $48(qty105)
9] Springs (52g/55g/57g/62g/67g) : $5(qty105)
10] Switch Remover (steel wire) : $6(qty2)
11] Keycap Puller (steel) : $4
12] Sockets for changing LED : $2(qty210 for 105switches)

13] PBT Dyesub 105keycaps for TX1800 : $70/$75/$80/$85 (Black/Blue/Orange/Purple)


* Personal Info
GH ID :
Name :
Phone :
Address :
ZIP code :
Paypal :



## Keycaps for TX1800 ##

I have prepared all parts for TX1800 for a long time.
All parts were ready(even packing box). but keycaps not yet.
But, today I heard a good news.
Korean keycap producer(=LYN3) can make keycaps for TX1800.
The keycaps are PBT dyesub, Cherry profiles, 105key set. (1800WKL 101keys + WK 4keys)
Colors of Letters are black, blue, orange and purple on white and gray bases.
The price of keycaps is $70 + $5(Hangul Letter) (the price for TX1800 buyer), $80 + $5(Hangul Letter) (the price for only keycaps buyer).

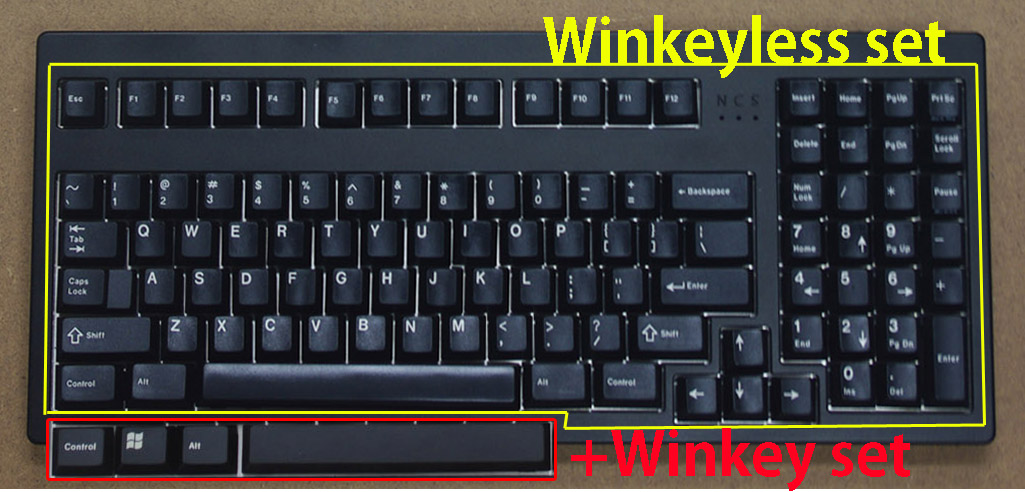

Here is 105keys layout example. (NOT Black doubleshot)

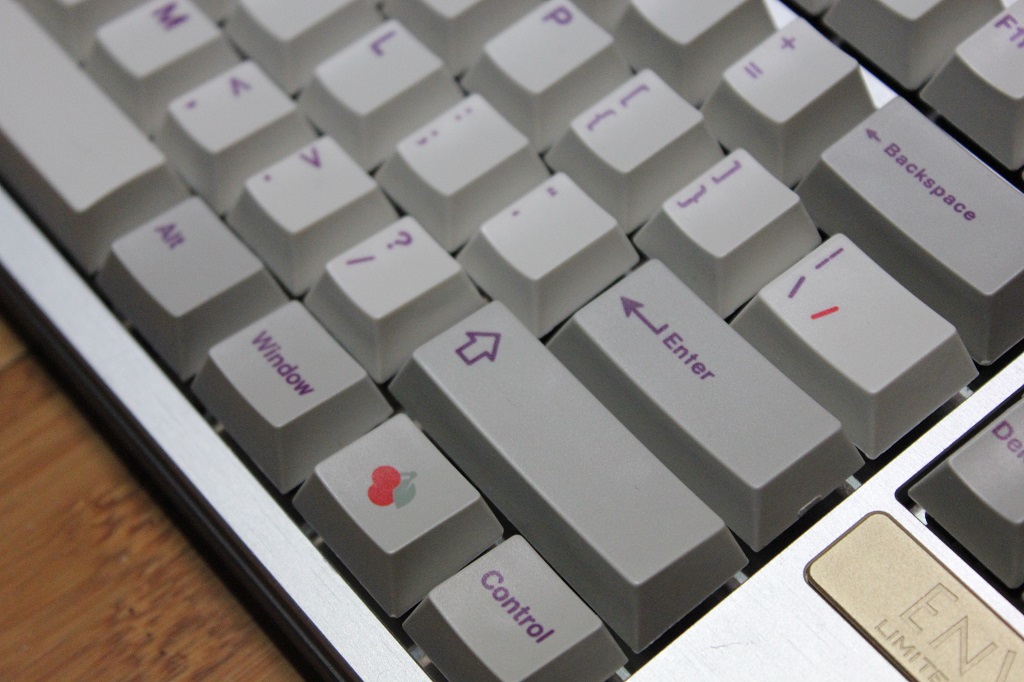

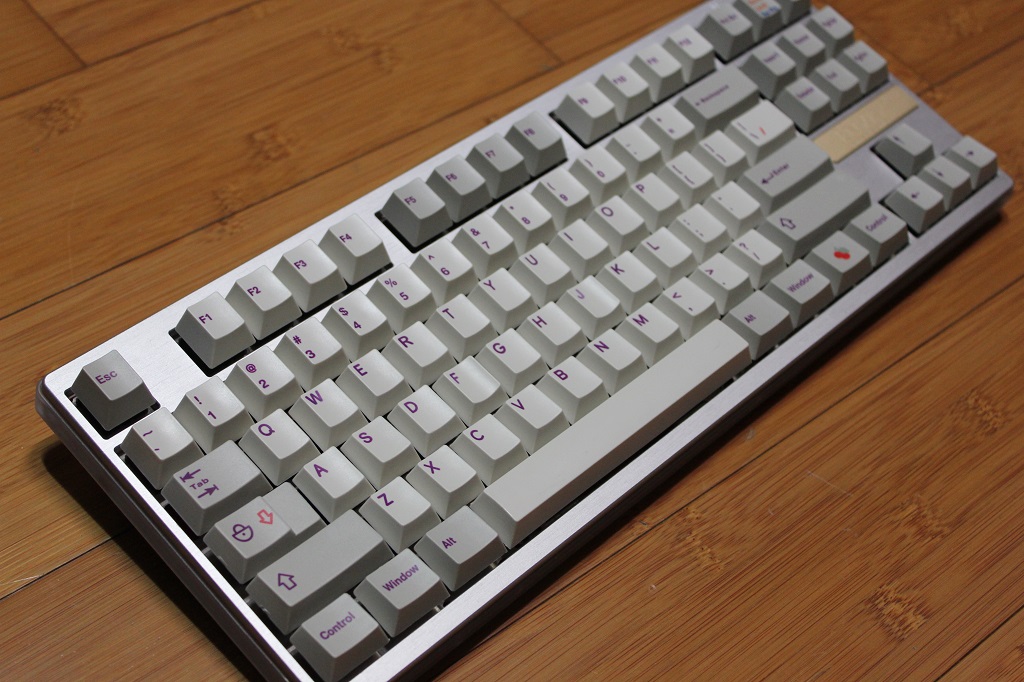

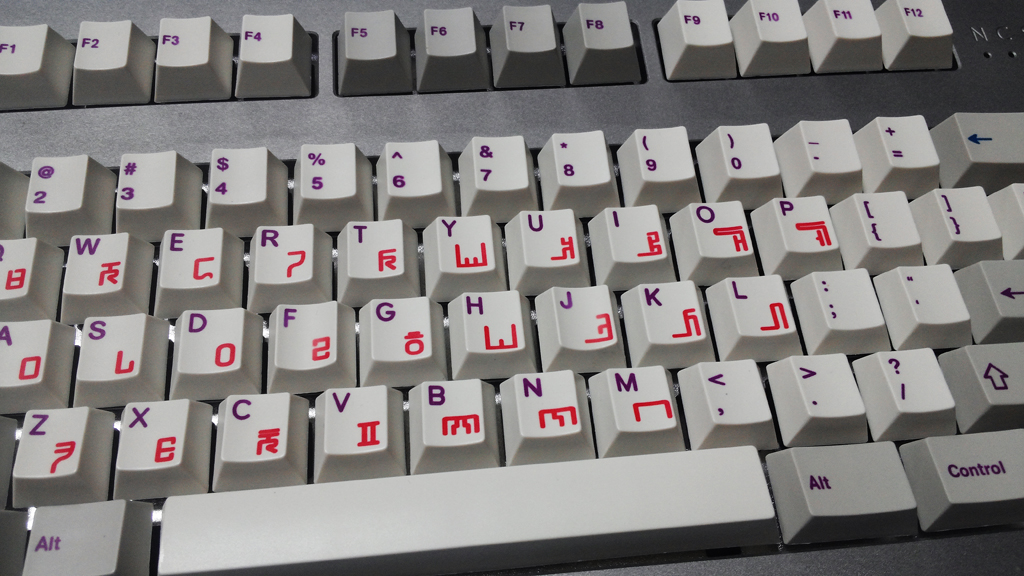

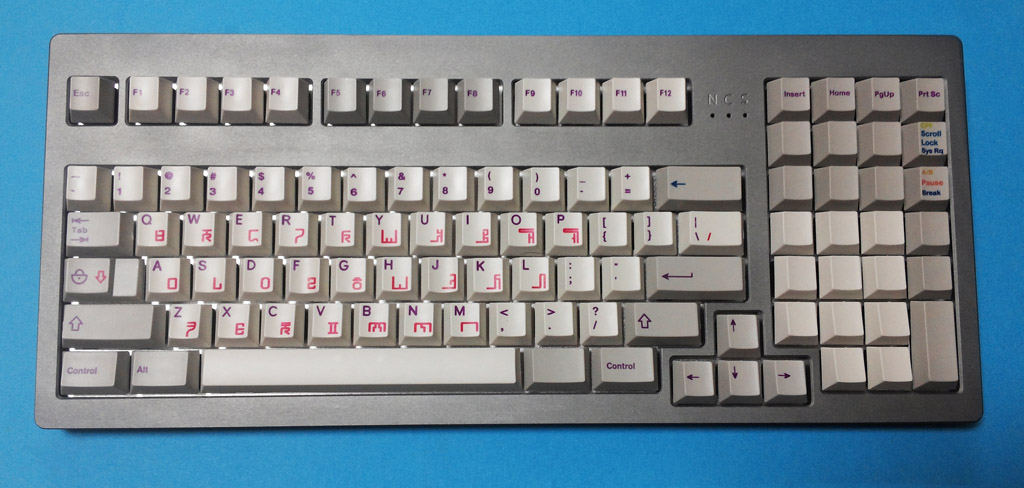

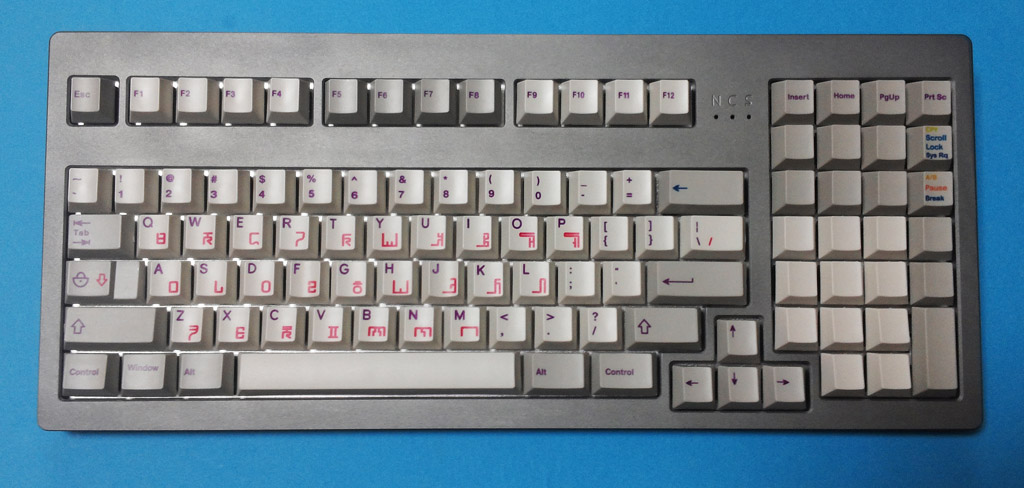

TX1800 (Purple with Korean Letters, NumberPad Keycaps are not finished printing dyesub)
** These are just Proto.. the quality is getting better.

Winkeyless


Winkey

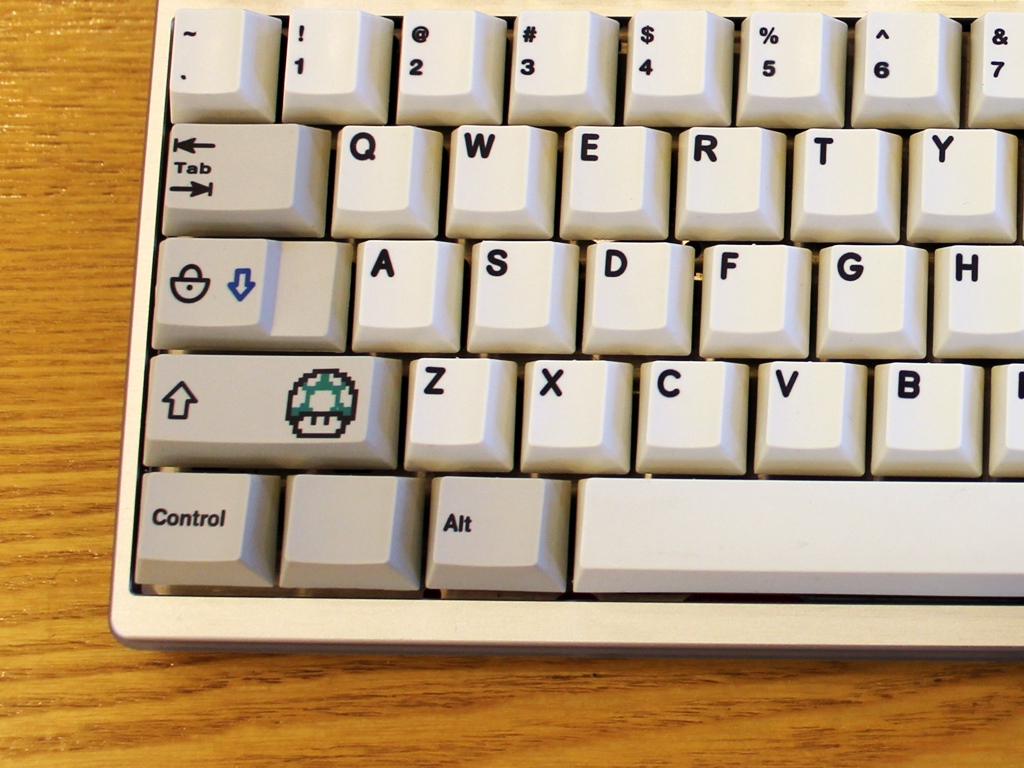

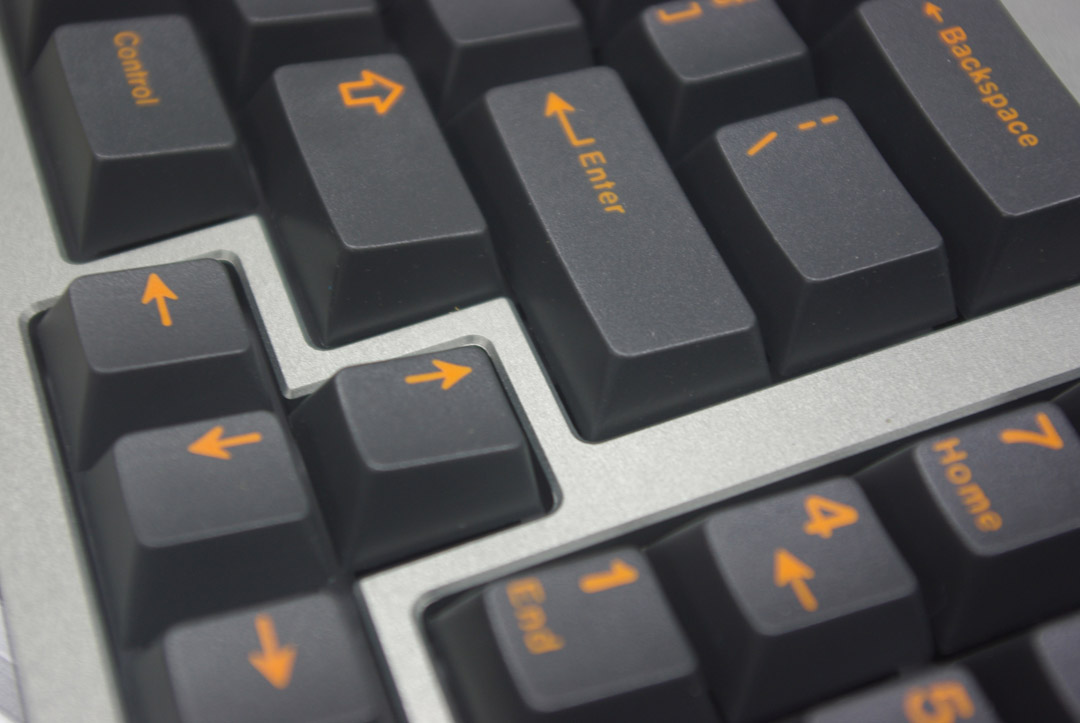

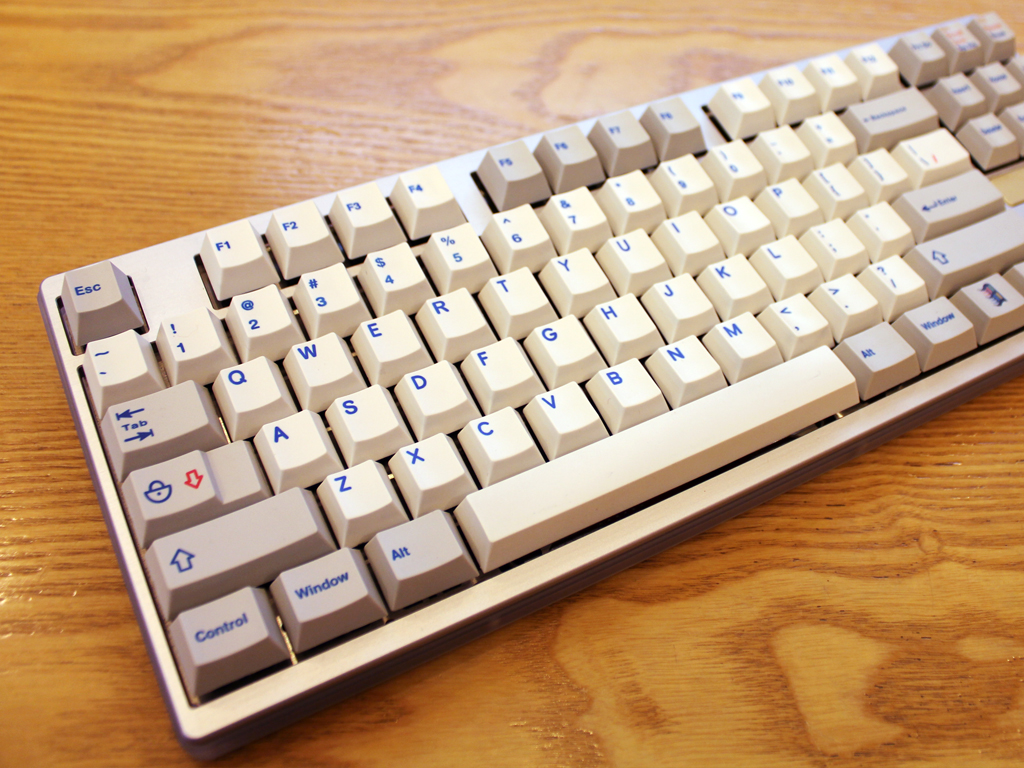

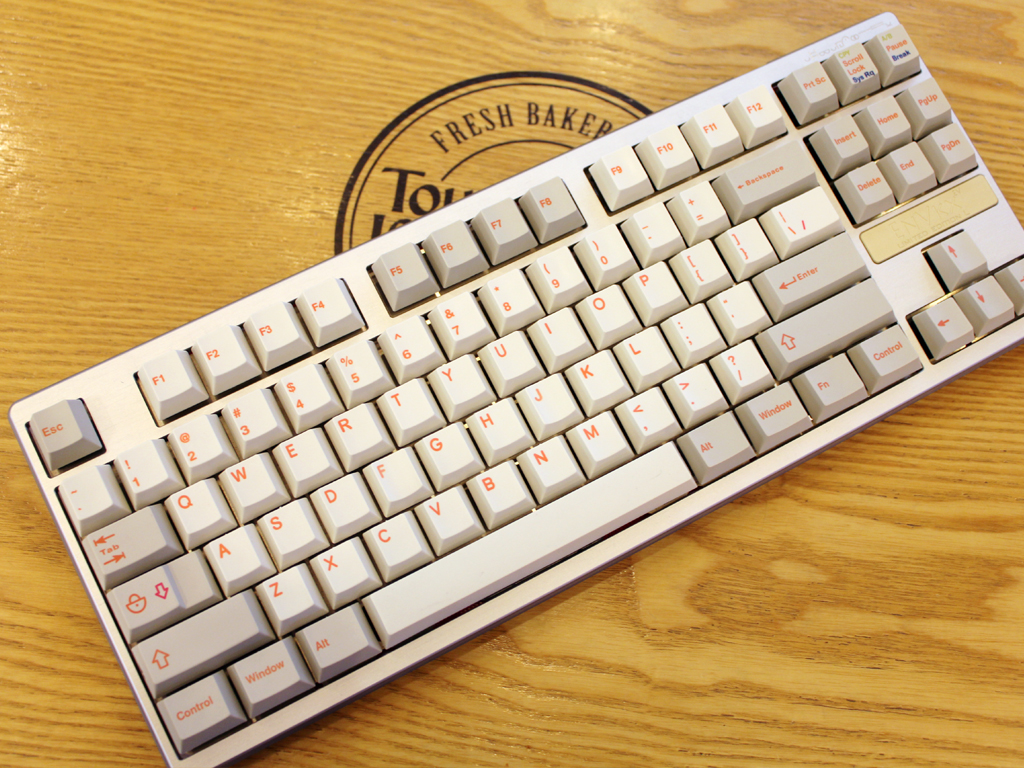

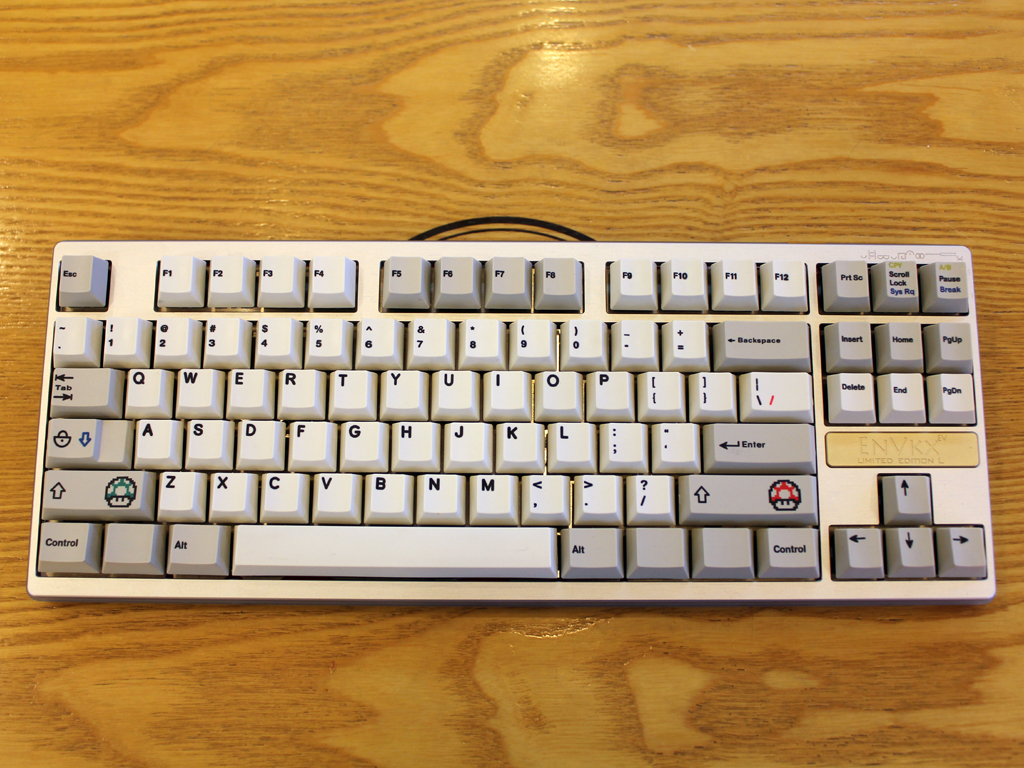

Here are Lyn3's Proto keycaps.

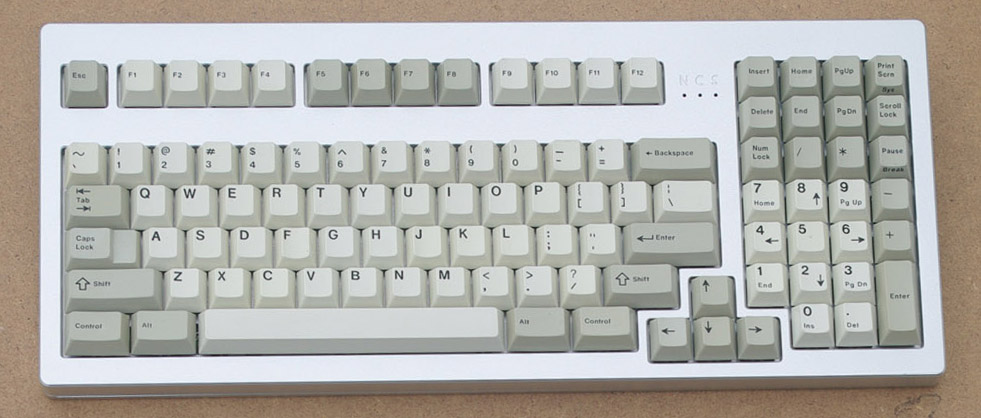

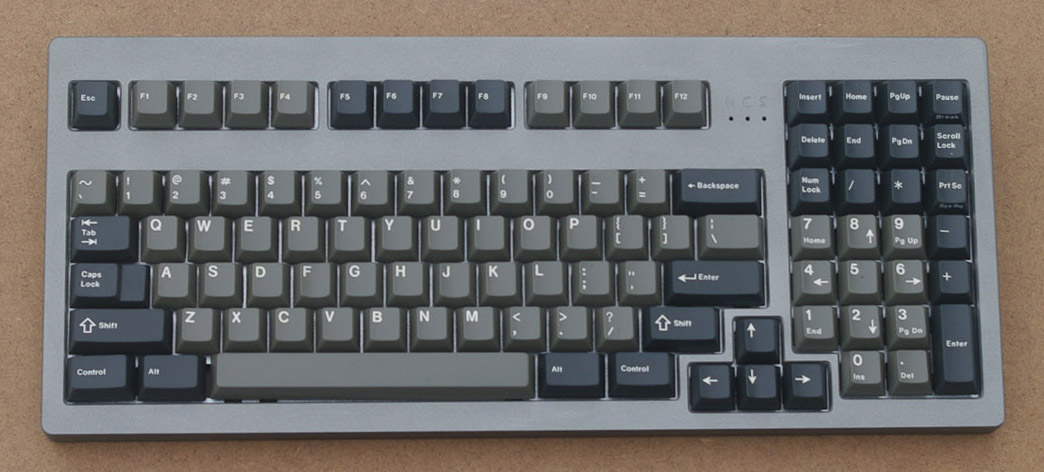

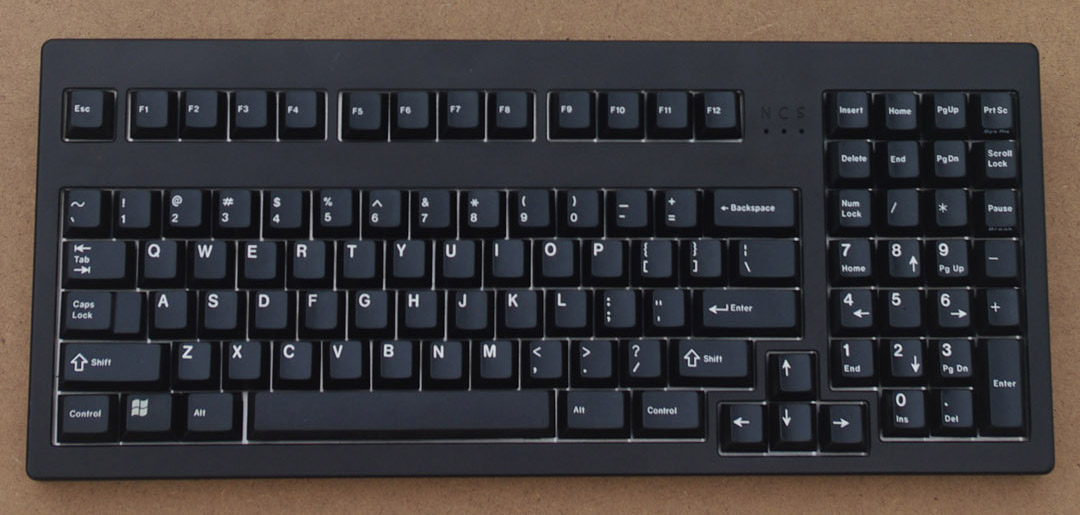

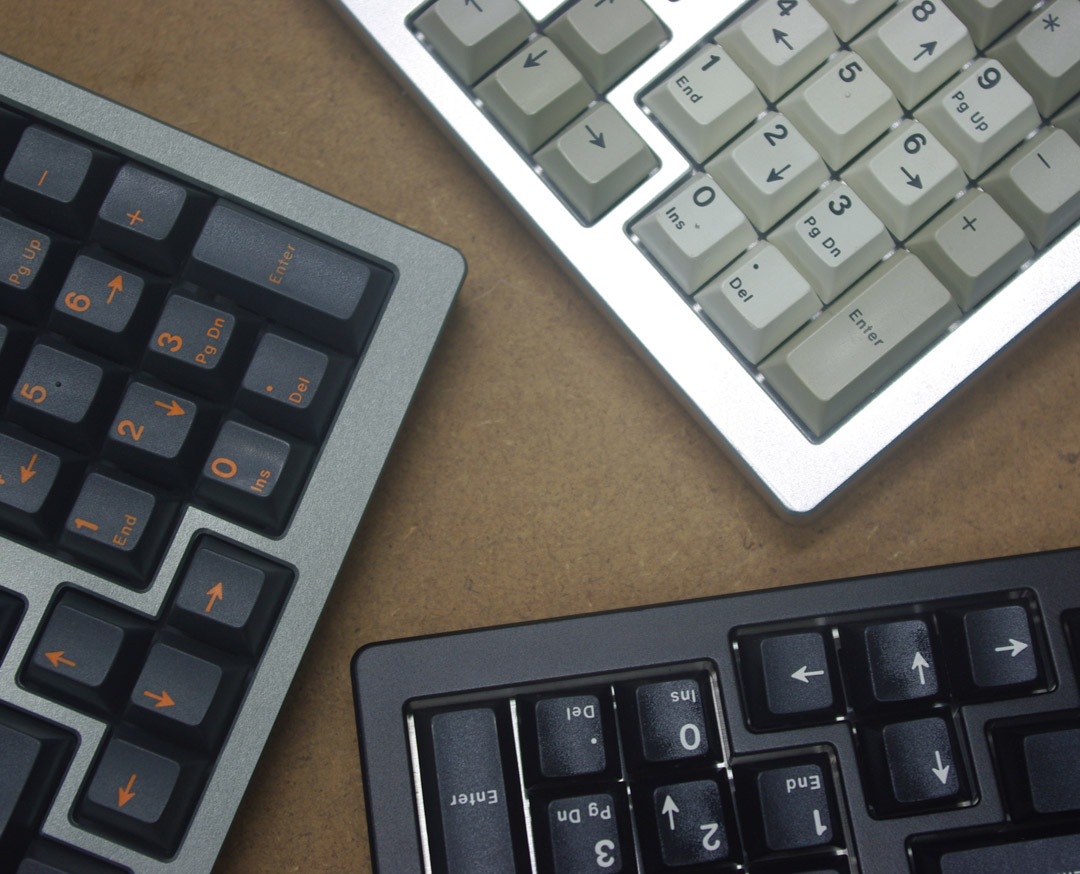

TX1800 Proto Pictures
