Cosmo65: Space Themed Leaf Spring Stacked Acrylic Board

Introducing the Cosmo65


Hi everyone, thanks for stopping by

Since our last IC post, we’ve made a ton of progress on the Cosmo on both the manufacturing and the design side and so we’d like to (re)present the board to you guys today so we can get more feedback and better gauge interest.

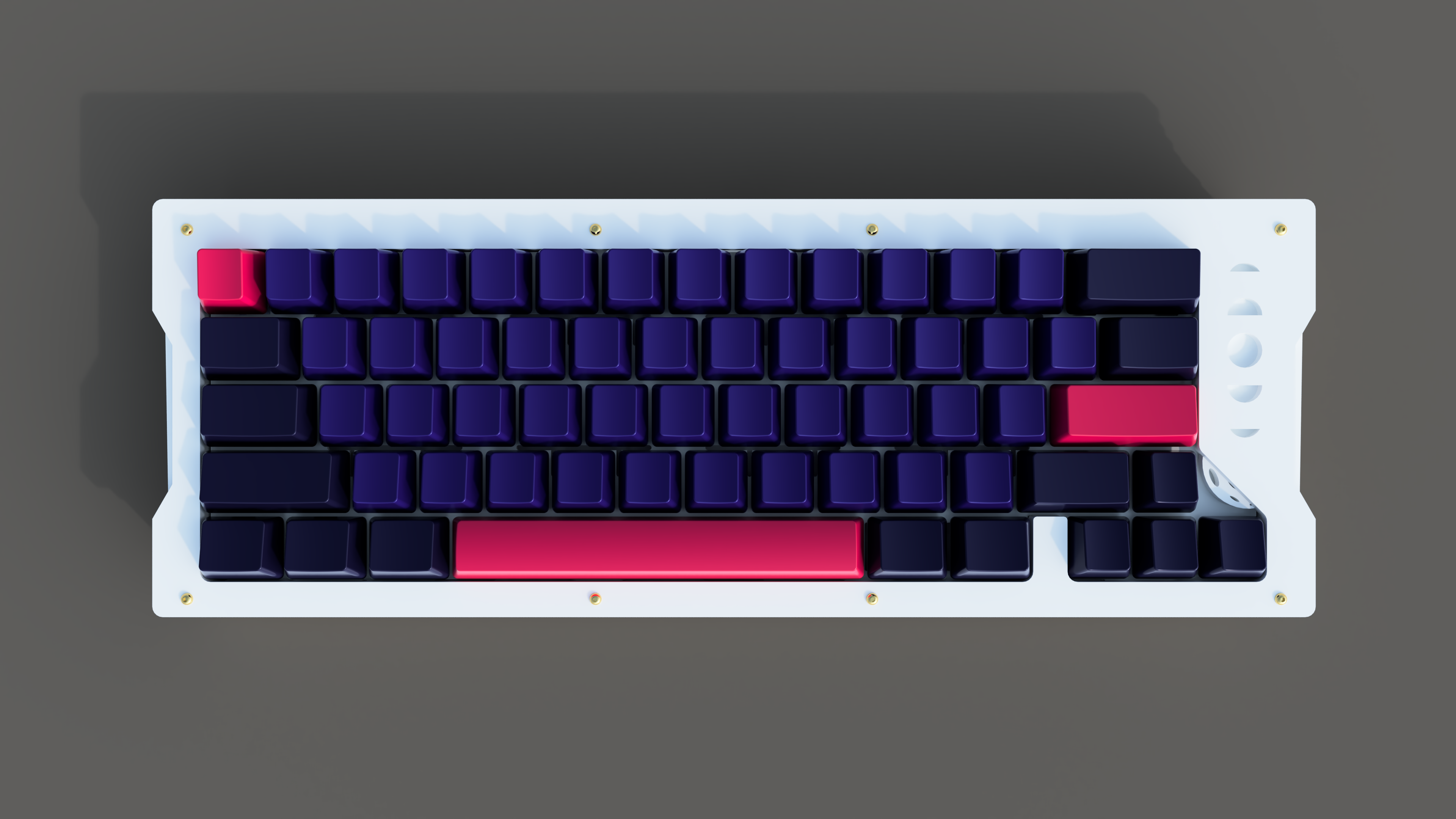

Front View (White)

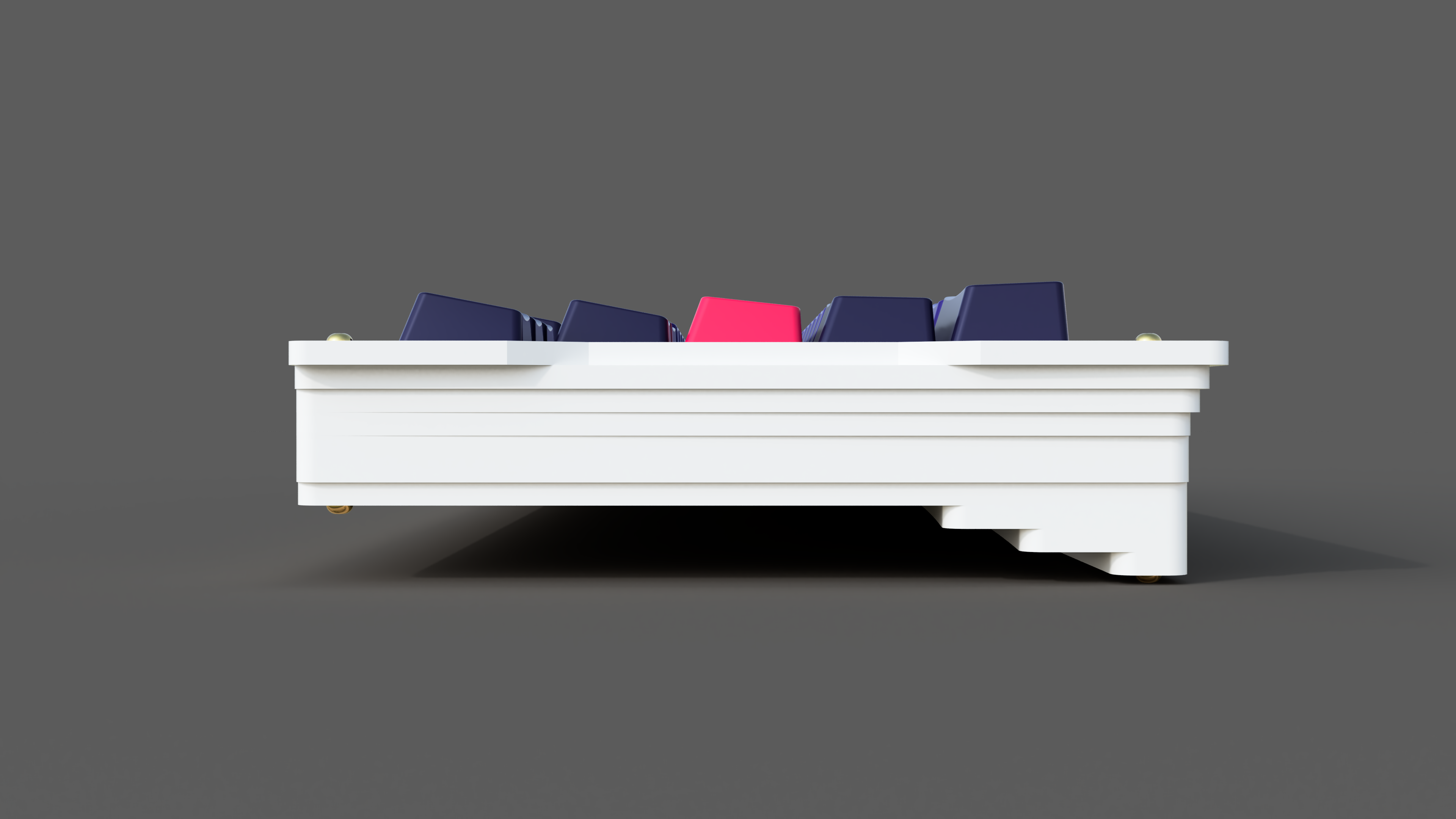

Side View (White)


Back View (White)

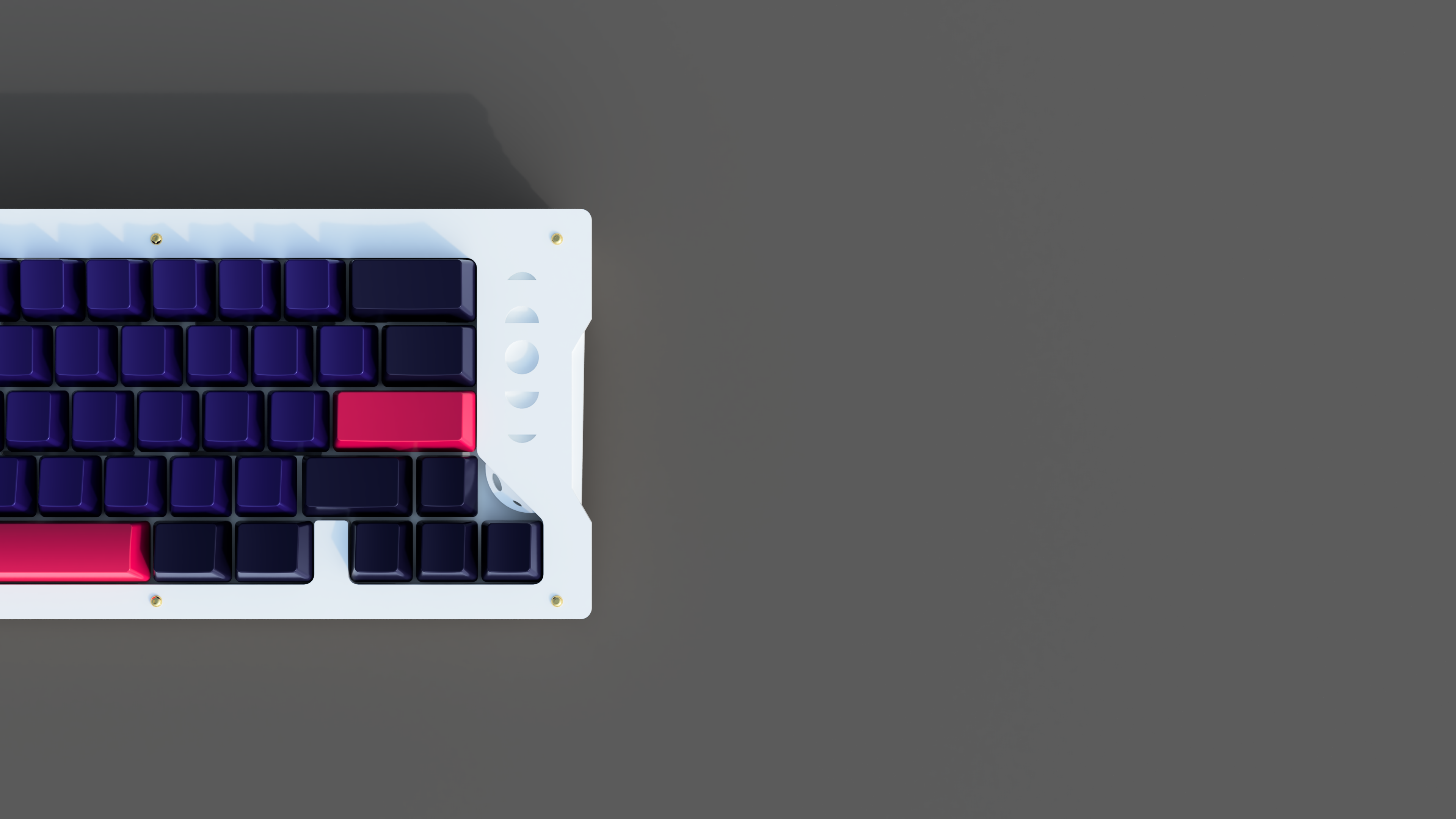

Render Gallery

Design
This board was designed with a space motif in mind, and so the overall design goal was to include stylistic callbacks to this theme in a way that was tasteful while also maintaining a sleek and elegant look overall.

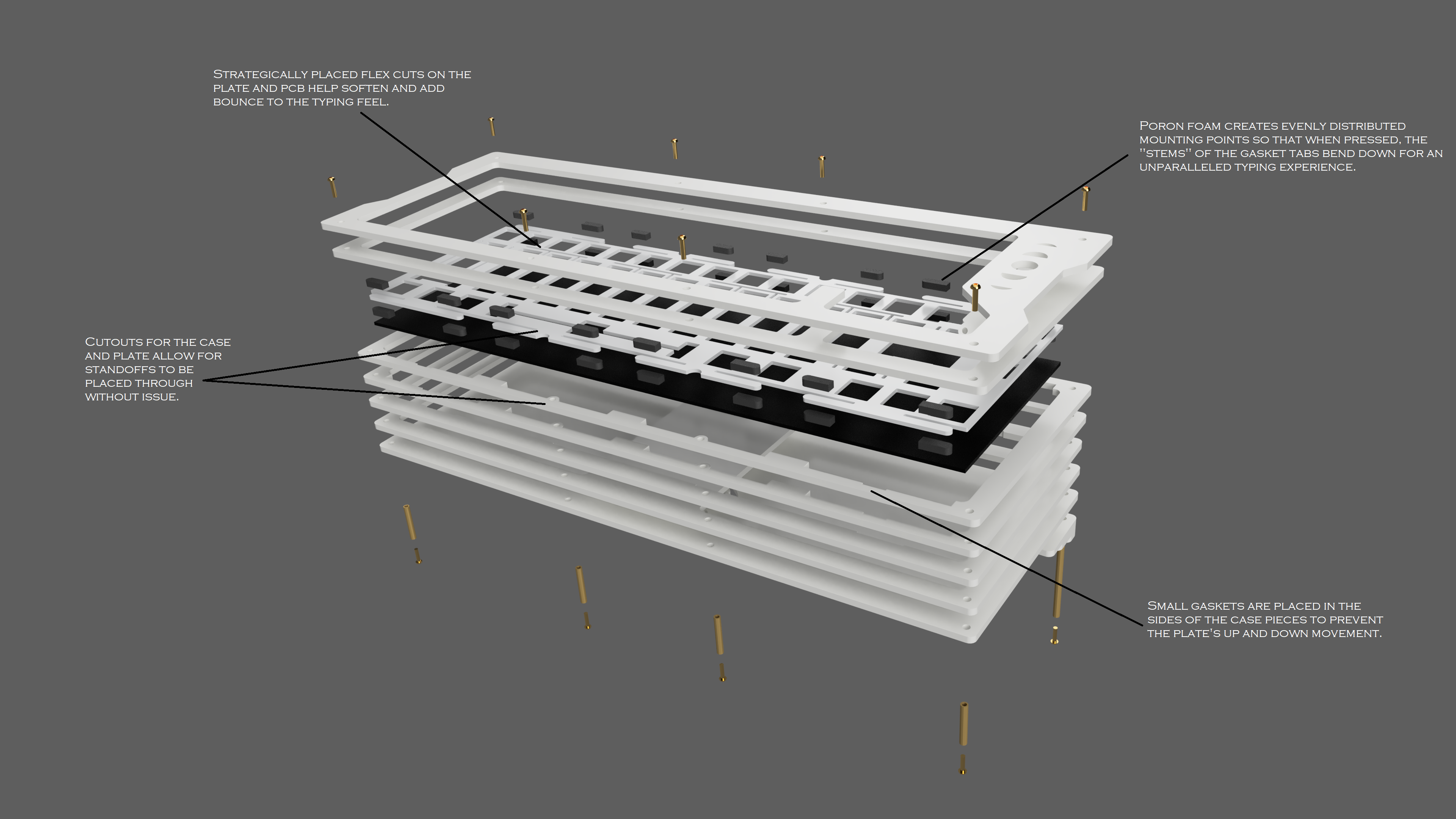

In terms of sound and feel, we designed the Cosmo primarily to provide a soft and flexible typing experience, achieved by the leaf springs and the pcb and plate flex cuts.
We also wanted to play to the strengths of the naturally deeper tones of acrylic without the muddying of the low end; in other words, a deep, yet clean sound signature.





Status:

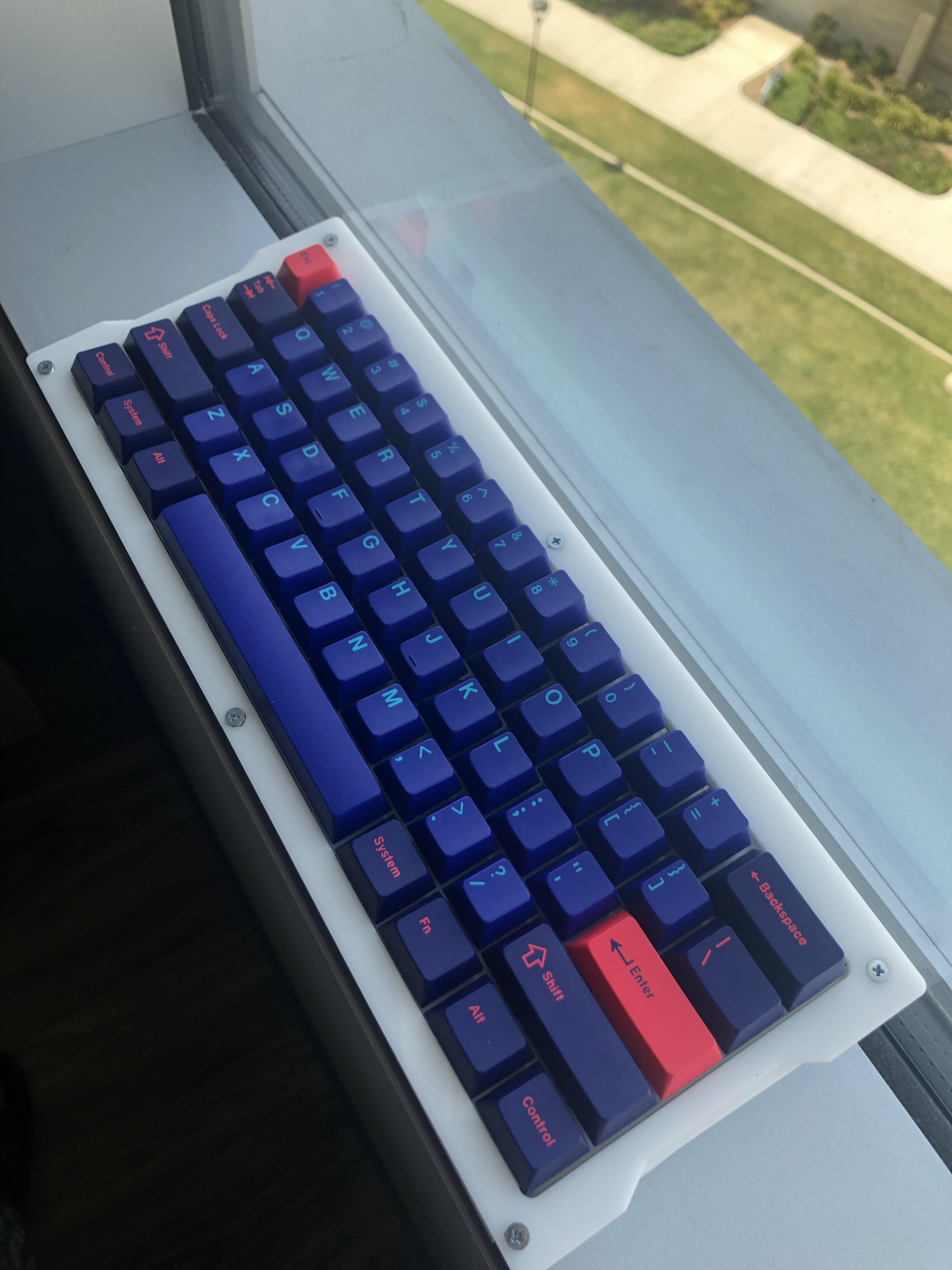

Our first prototype has arrived! Its design is outdated, but we’ve still been able to get good information from it and are making design improvements for the second prototype.

Prototype 1 w/ a rgb and flex demo.
Sound Test w/ Black Cherry Pie switches.

IC Form

Board Features
Leaf Spring Gasket Mounted
Typing Angle: ~6 degrees
Front Height: 21mm

Included In Kit
Stacked Acrylic Case & Feet
FR4 Plate
Custom Hotswap PCB
M2x0.4 screws
M2x0.4 standoffs

Planned Color Options: Lunar White, Deep Space Black, Cosmic Blue
Pricing: TBA but we’re aiming for a starting price of $129.99 or lower.
GB Date: TBA

Discord
Join our discord to stay updated on the board & follow its progress!

(We'll also be in the comments answering any questions you have, so ask away!)

Change Log
Redesigned the backpiece & acrylic feet to better fit the theme of the board
Redesigned plate & case internals for more consistent flex
Changed standoff diameter and length
Various Aesthetic Case Changes
Converted design from 60 to 65% for better accessibility and more room for design elements
Added Custom Graphics on the PCB
Changed the case to allow for better leaf spring flex

Big Thanks To
Laminar, Marius, and Crokto from the Keyboard Atelier discord server for patiently helping us with our plate and gasket tab designs.
Suzu and ht12345, also from Keyboard Atelier, for picking apart our pcb design and helping us make the wire traces cleaner.
ai03 and his keyboard designer's wiki
