=Product InformationThe CU75 and CU24 are the first custom mechanical keyboards developed by capsunlocked, and are the first to join the capsunlocked Originals range of keyboards.
Supporting a large amount of configurations respectively, the physical layouts of both the CU75 and CU24 can be customised and tailored to your specific requirements. However the customisation does not stop there, because once you have settled on your perfect physical layout you have the opportunity to customise the digital layout, with the QMK software. Want to swap Caps Lock and the Left Control key? No problem! Want to have a dedicated layer for your media keys? That is also no problem! QMK coupled with the large amount of physical configurations means that there is a level of customisation that has previously been unseen on a 75% and numpad.
Included in each kit is a Cherry MX Positioning Plate, however an Alps Plate is available as an optional extra. The Alps Plate will support the standard ANSI 75% layout only.
Both the CU75 and CU24 have solid, durable cases that have been CNC machined and anodised black. Both cases are built up from two pieces of Aluminium that are held together with M2.5 screws, for added durability. Sandwiched between the case parts are the positioning plate and PCB. The positioning plate is mounted to the top case, meaning that no screws are visible when using the keyboard. M2 screws are used to hold the plate to the top case. When fully assembled, both cases sit at a comfortable 5 degrees.
Each keyboard comes with a selection of added extras, with a Mini-USB cable and microfibre cleaning cloth in each of the CU75 and CU24 boxes. The CU75 also comes with two-part screw-in, black 1.5u Aluminium blockers and a microfibre sleeve.
Both keyboards support screw in stabilisers, but do not support holtites or per switch RGB LEDs.
Whats in the box? CU75:CU75 Aluminium Top Case (Black)
CU75 Aluminium Bottom Case (Black)
Brass Cherry MX Positioning Plate
CU75 PCB
12 x M2.5 Screws
8 x M2 Screws
M2.5 Allan Key
M2 Allan Key
2 x 1.5u Aluminium Blockers (Black)
CU75 Sleeve
CU75 Microfibre Cloth
Mini-USB Cable

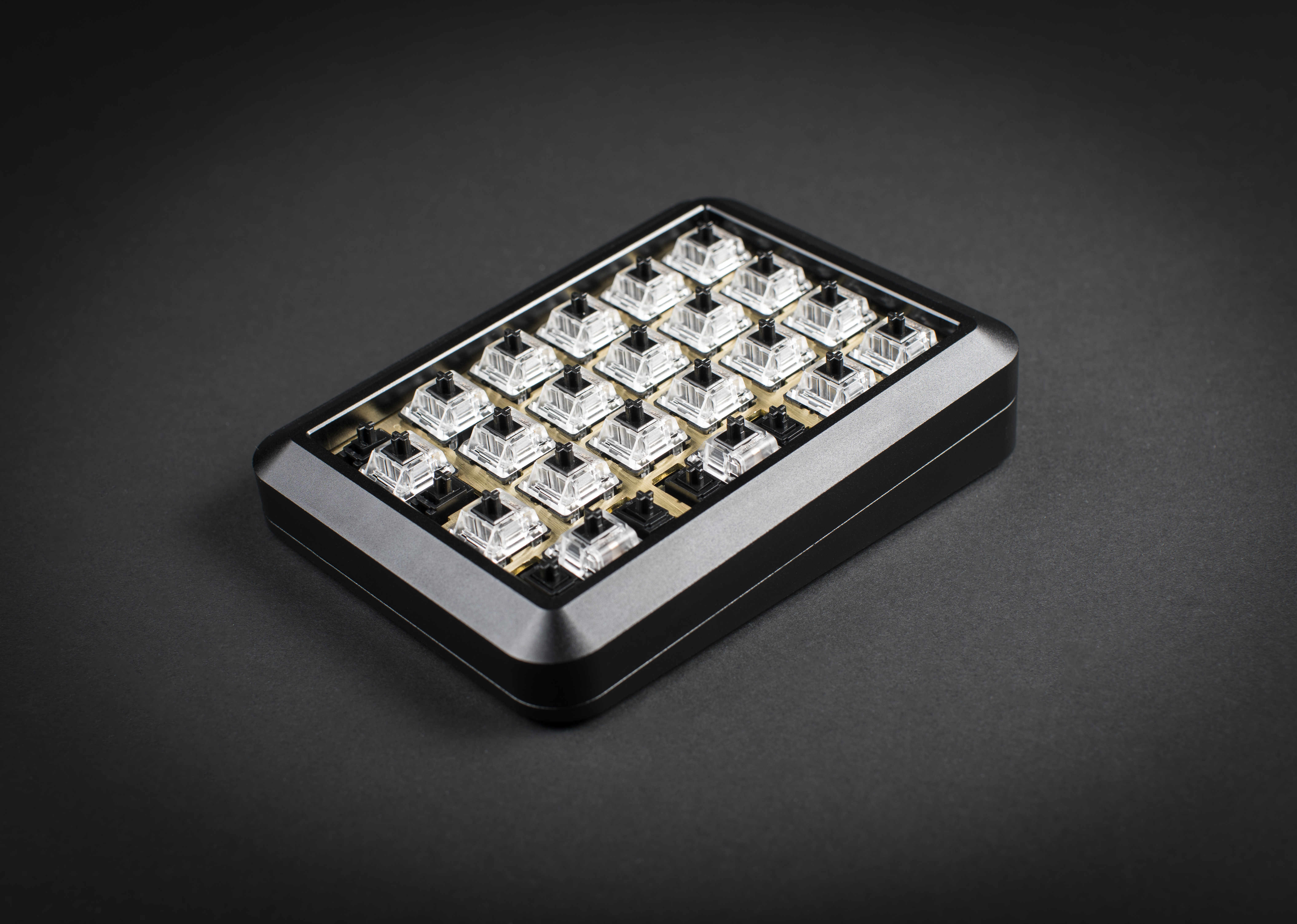

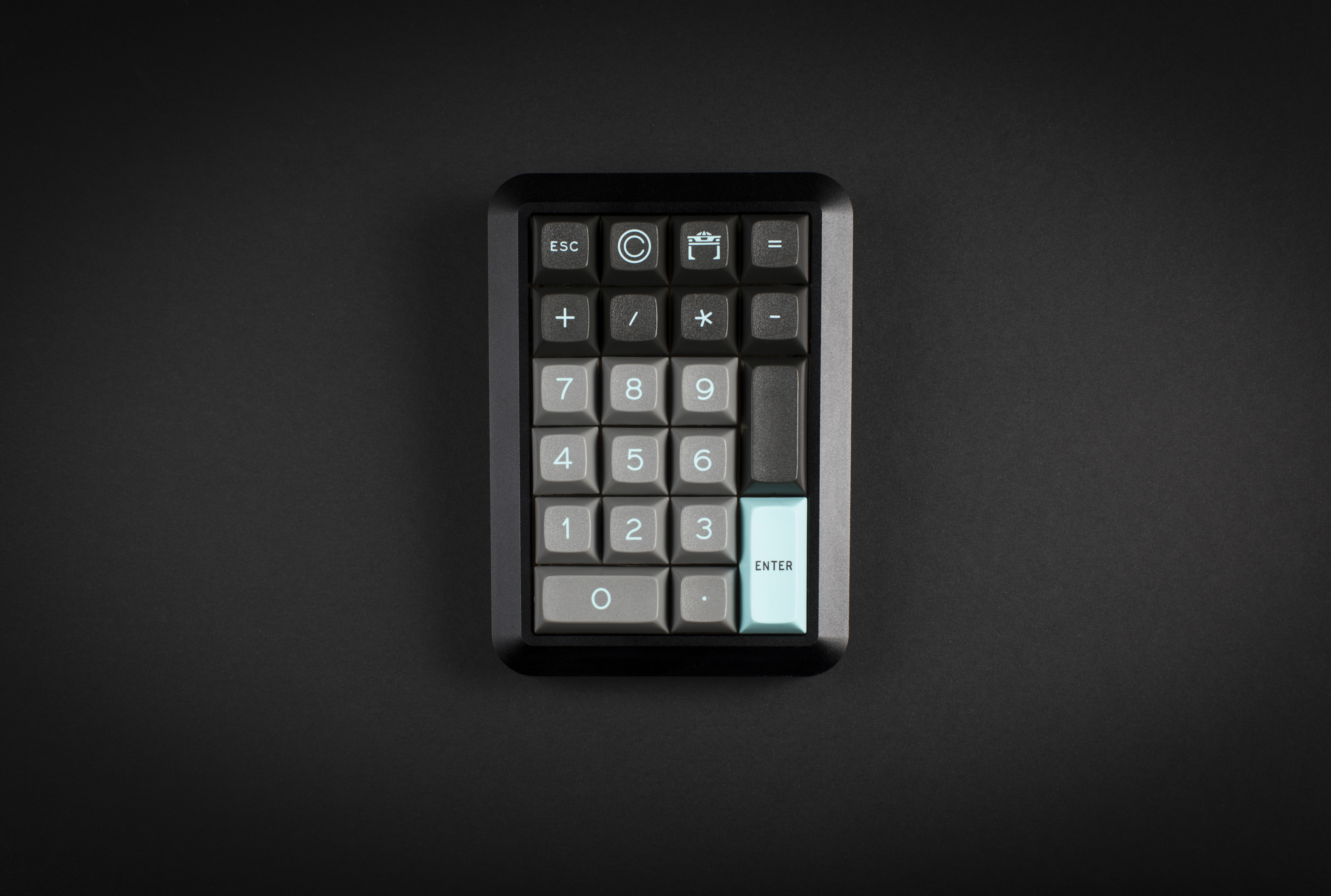

CU24: CU24 Aluminium Top Case (Black)
CU24 Aluminium Bottom Case (Black)
Brass Cherry MX Positioning Plate
CU24 PCB
4 x M2.5 Screws
6 x M2 Screws
M2.5 Allan Key
M2 Allan Key
CU24 Microfibre Cloth
Mini-USB Cable
Where can I buy these products?!Europe: capsunlocked (
https://caps-unlocked.com/cu-originals/)
Australia: Amtra5 Keyboards (
https://amtra5keyboards.com.au/product-tag/capsunlocked/)
North America (and all other NonEU Countries): Cartel (
https://cartel.ltd/)
China: zFrontier
All prices are the same worldwide!
Group Buy InformationCU75 Base Kit MOQ: 50
Current Orders: 12
--------------------------
CU75 Alps Plate MOQ: 10
Current Orders: --------------------------
CU24 Base Kit MOQ: 50
Current Orders: 7
--------------------------
CU24 Alps Plate MOQ: 10
Current Orders: --------------------------
Lead Time: 10 - 12 Weeks
End Date: 15/05/2018
Credits: Designer of the CU75 Case and Plates: Hineybush
Designer of the CU75 PCB: ca178858
Designer of the CU24 Case and Plates: Sayu
Designer of the CU75 PCB: yiancar
Graphic Designer of capsunlocked logo and all capsunlocked Orginal logos: Blerc
Photographer: Mathew Teague
