DGL TKL keyboard | Closed

Interest Check post


Features
- Luxurious and original design keyboard
- Sandwich-mount
- Indicator LEDs

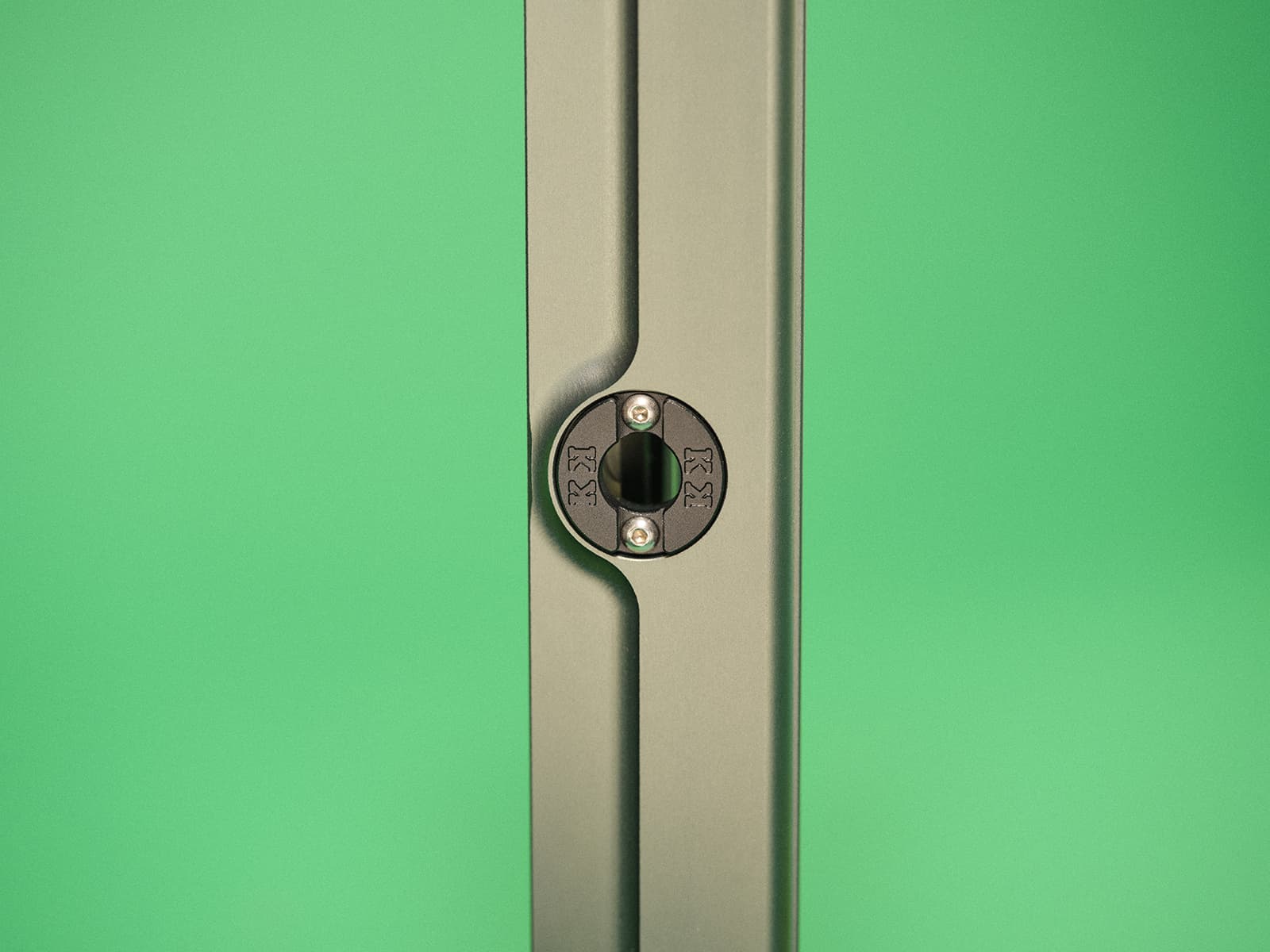

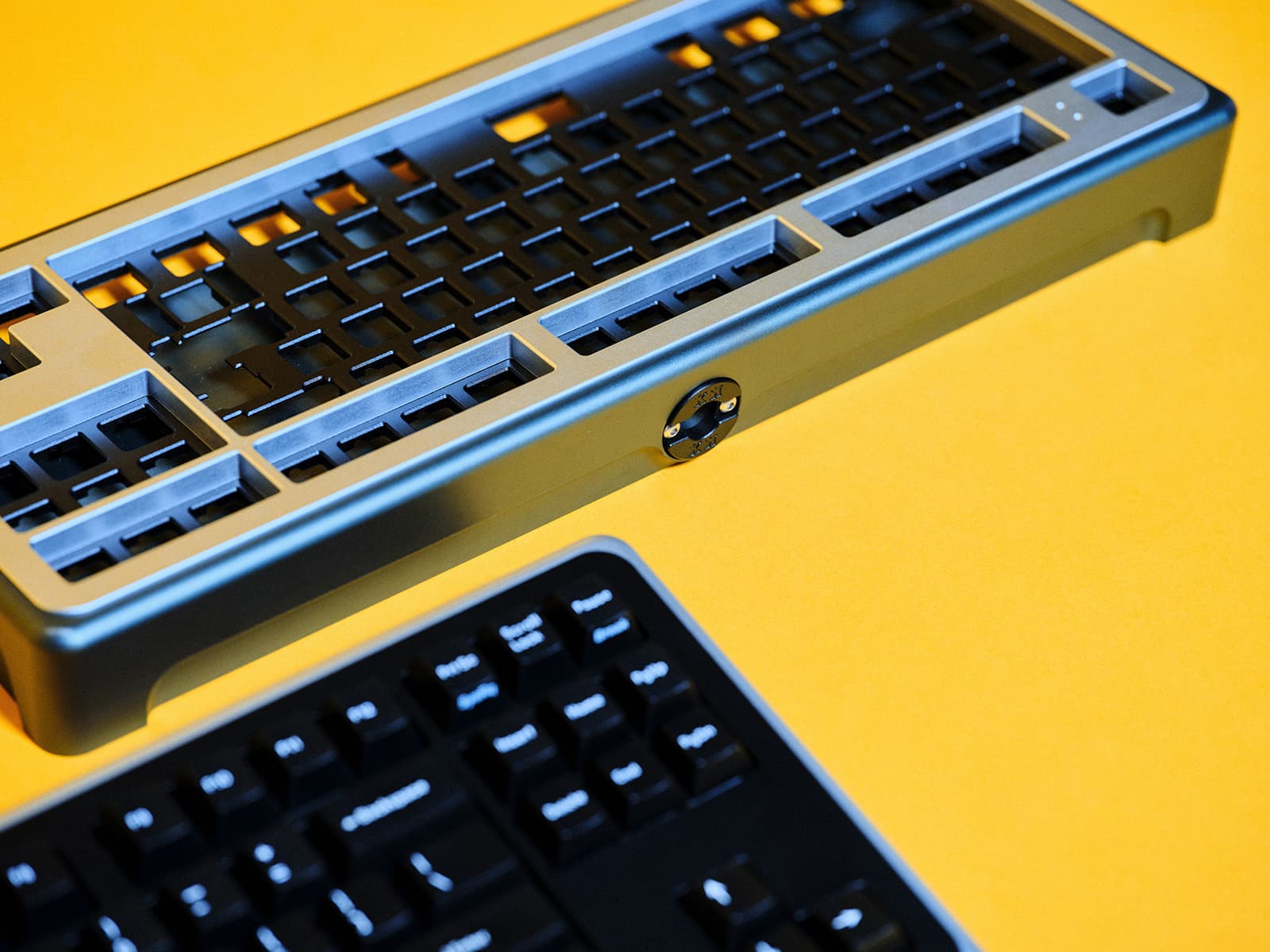

- Centered USB Type-C Port
- Pointed plate or Brass weight

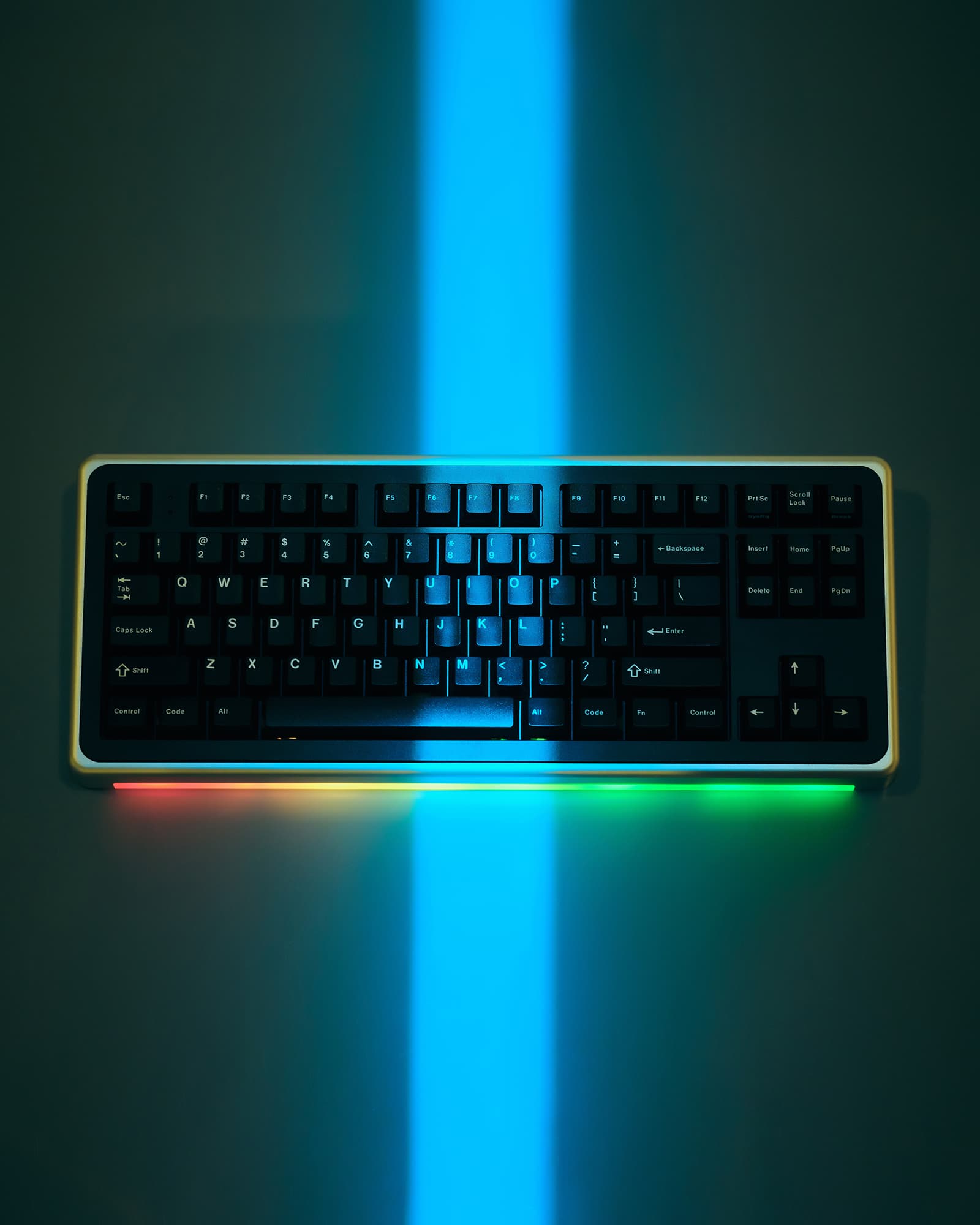

- RGB point strip located at the bottom of the front
- 4T (4mm) plate for quiet and uniform typing feels
- QMK supported PCB
- 20mm height from the front
- Supports both ANSI and ISO layouts

Included

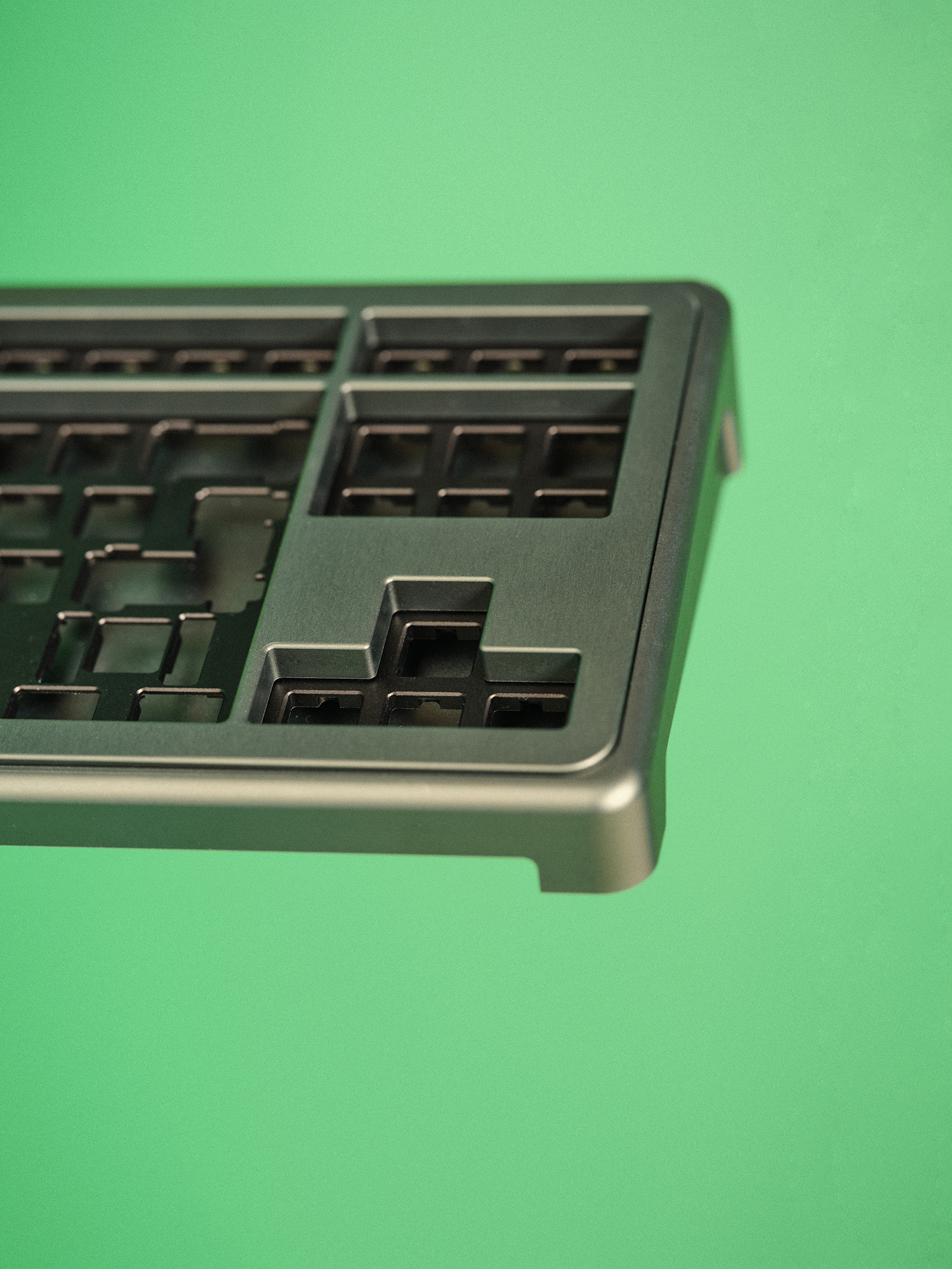

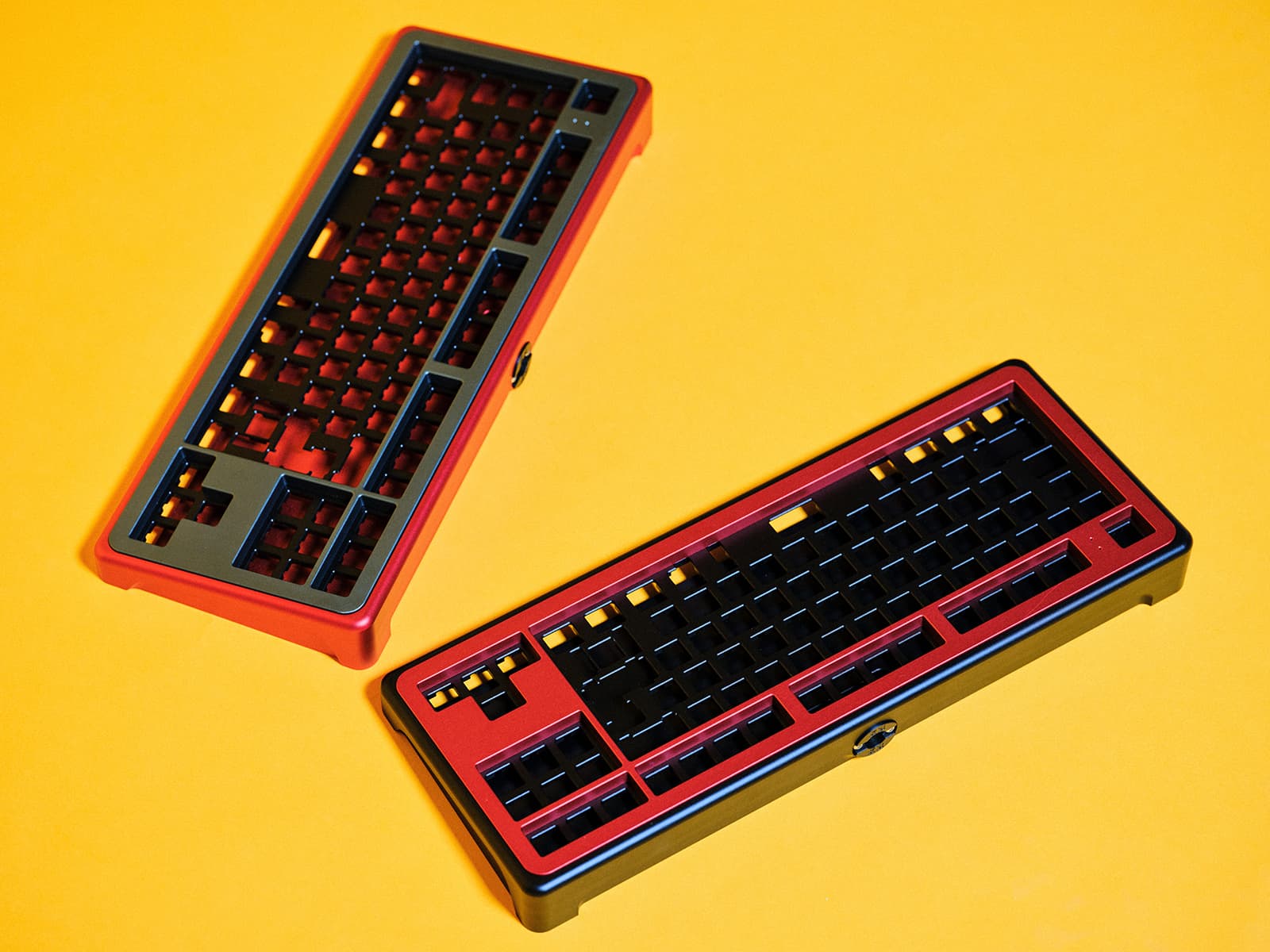

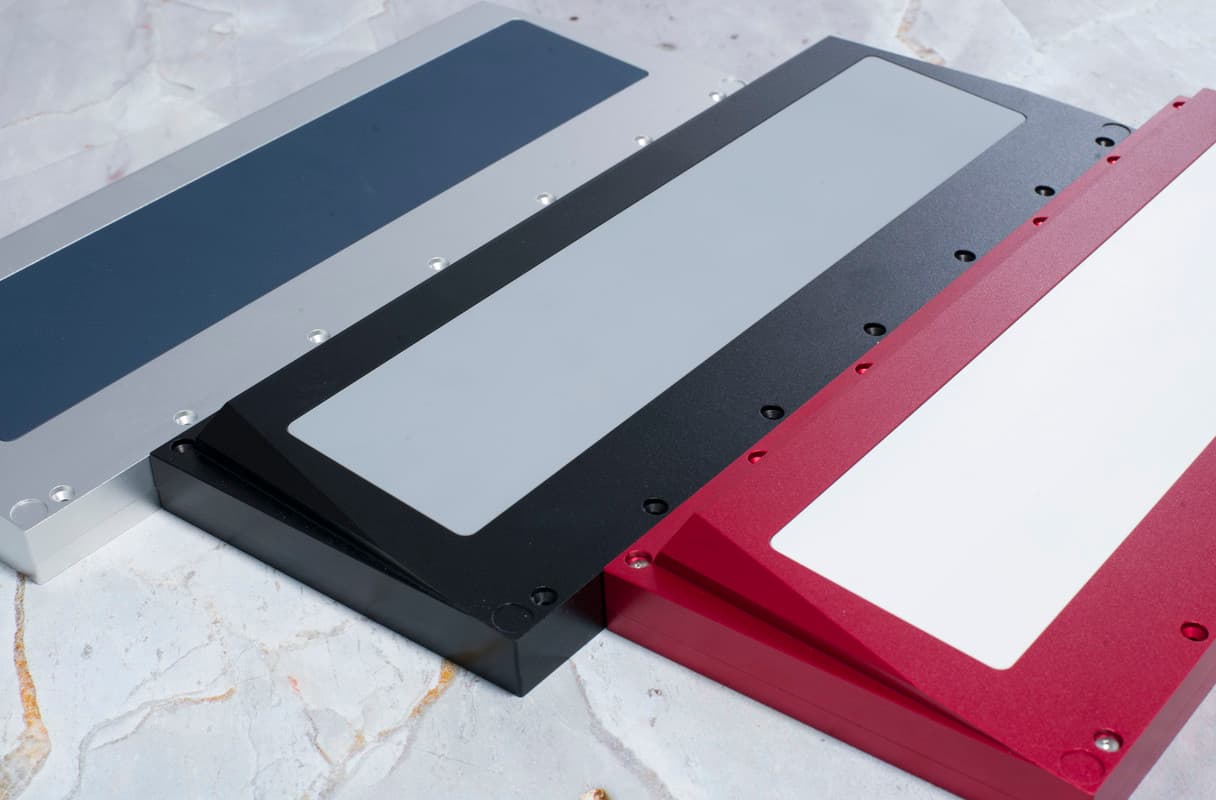

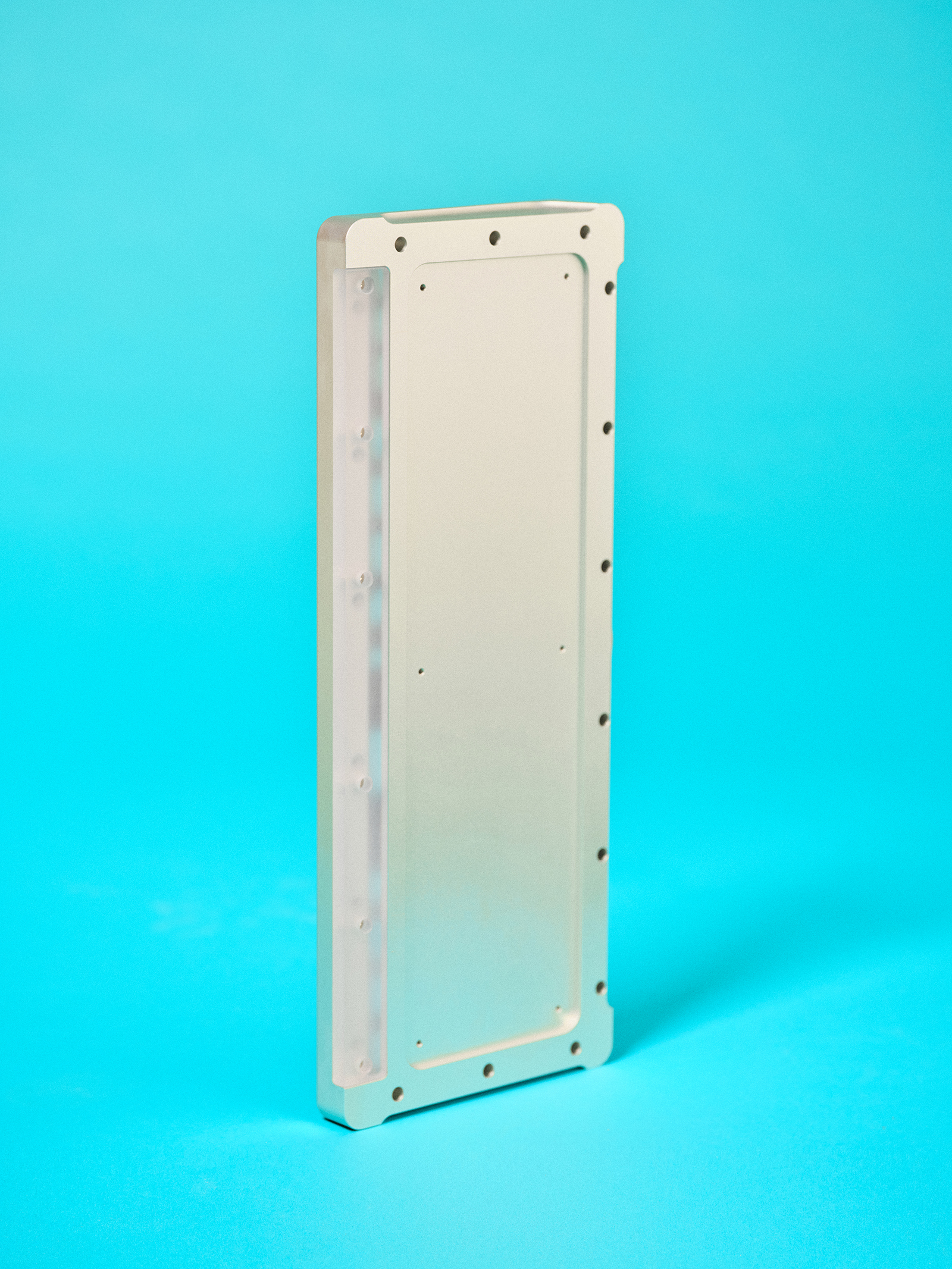

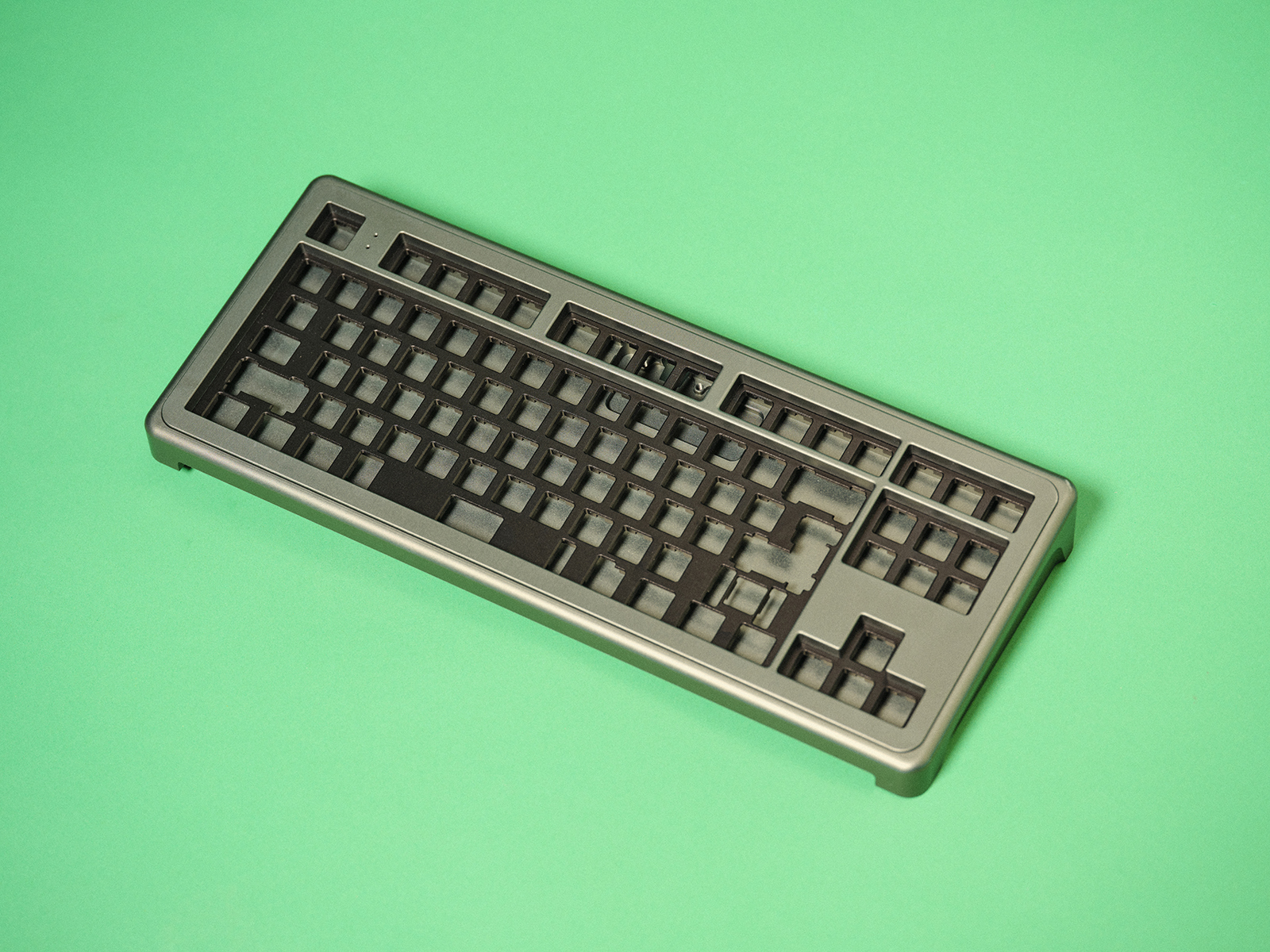

Case

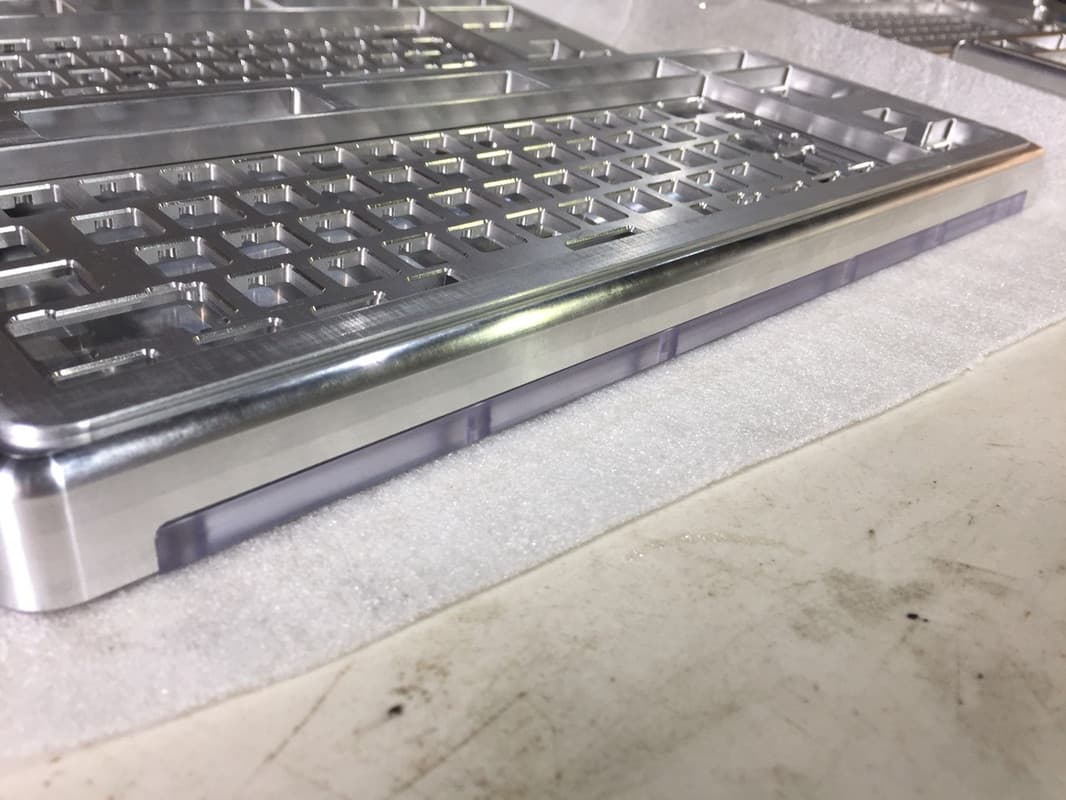

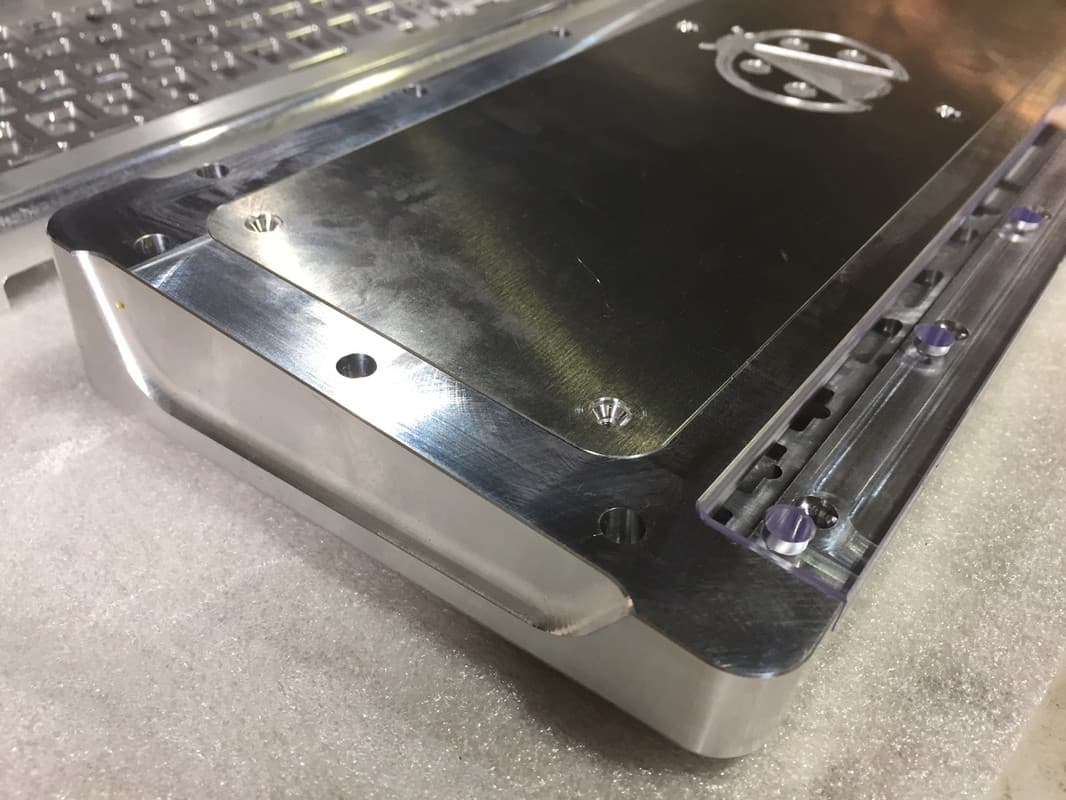

- CNC machining 606X aluminum case
- Approx. 3 kg weight
- Sandwich-mount
- 7-degree typing angle
- Plates, PCBs and point plates can be purchased additionally
- Top and bottom can be ordered in two-tone colors differently.

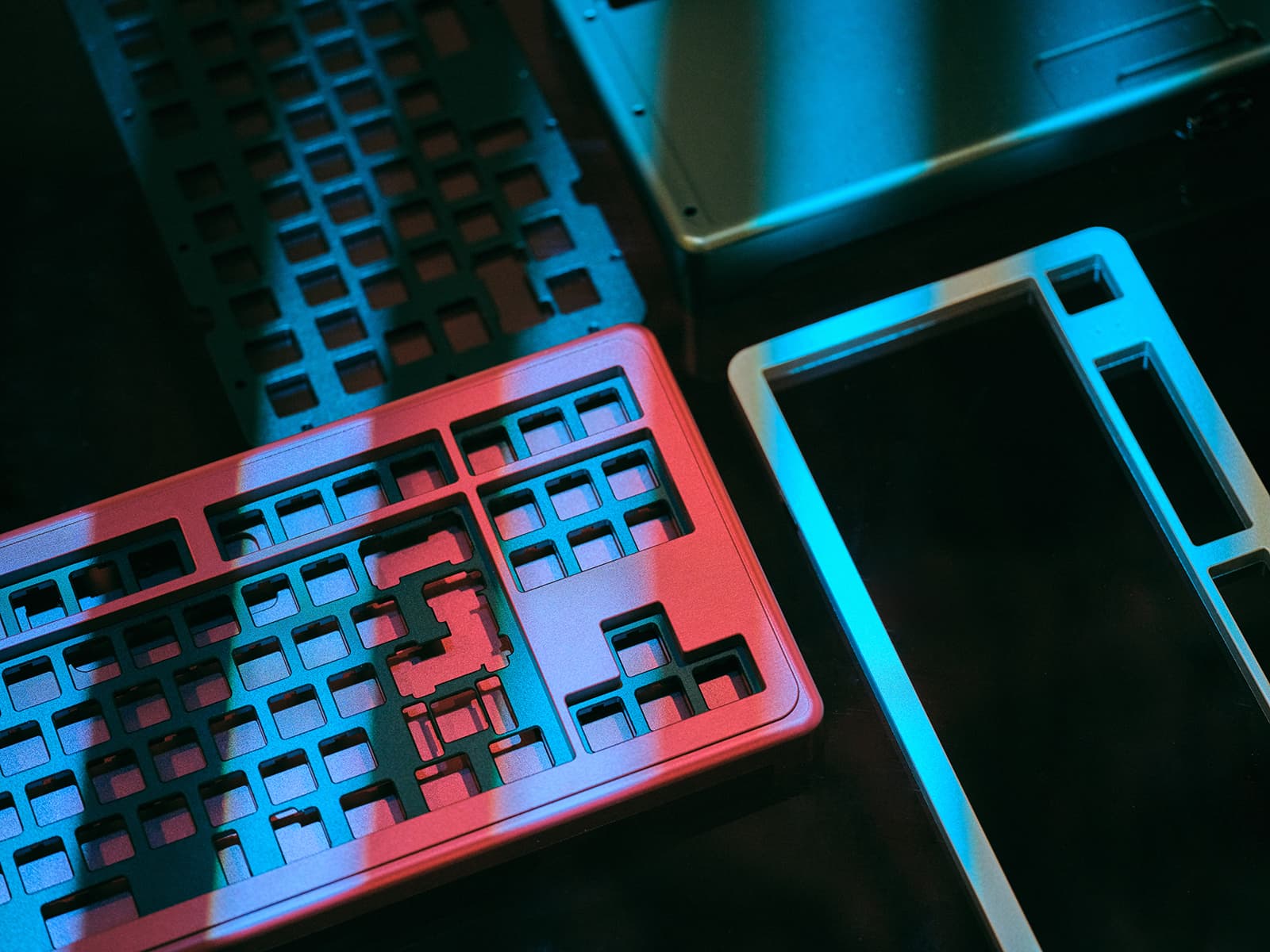

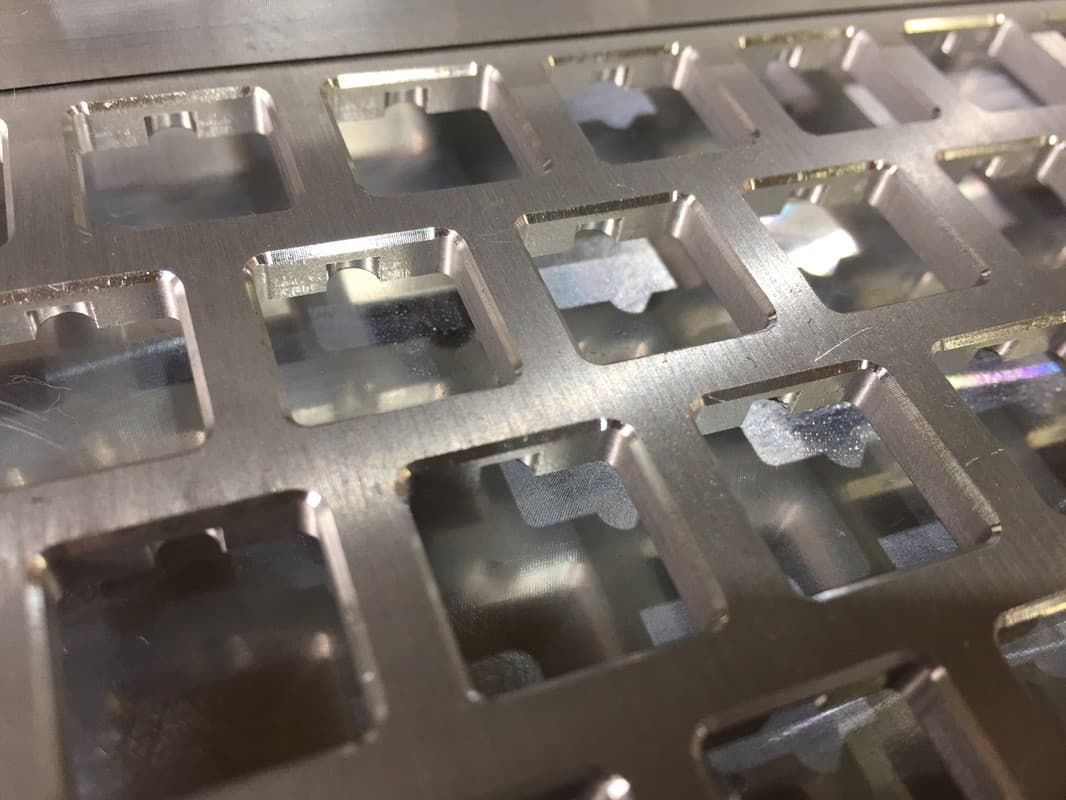

Plate
- Cherry MX switch support (Alps compatible plates will be released later)
- The 4mm thick plate provides a more stable switch holding and uniform typing experience.
- There are three plates. Brass, FR4, aluminum
- The FR4 plate includes a 2.4mm gasket to match the thickness.
- The brass plate is made of a precision CO2 laser and has a deburring finish.

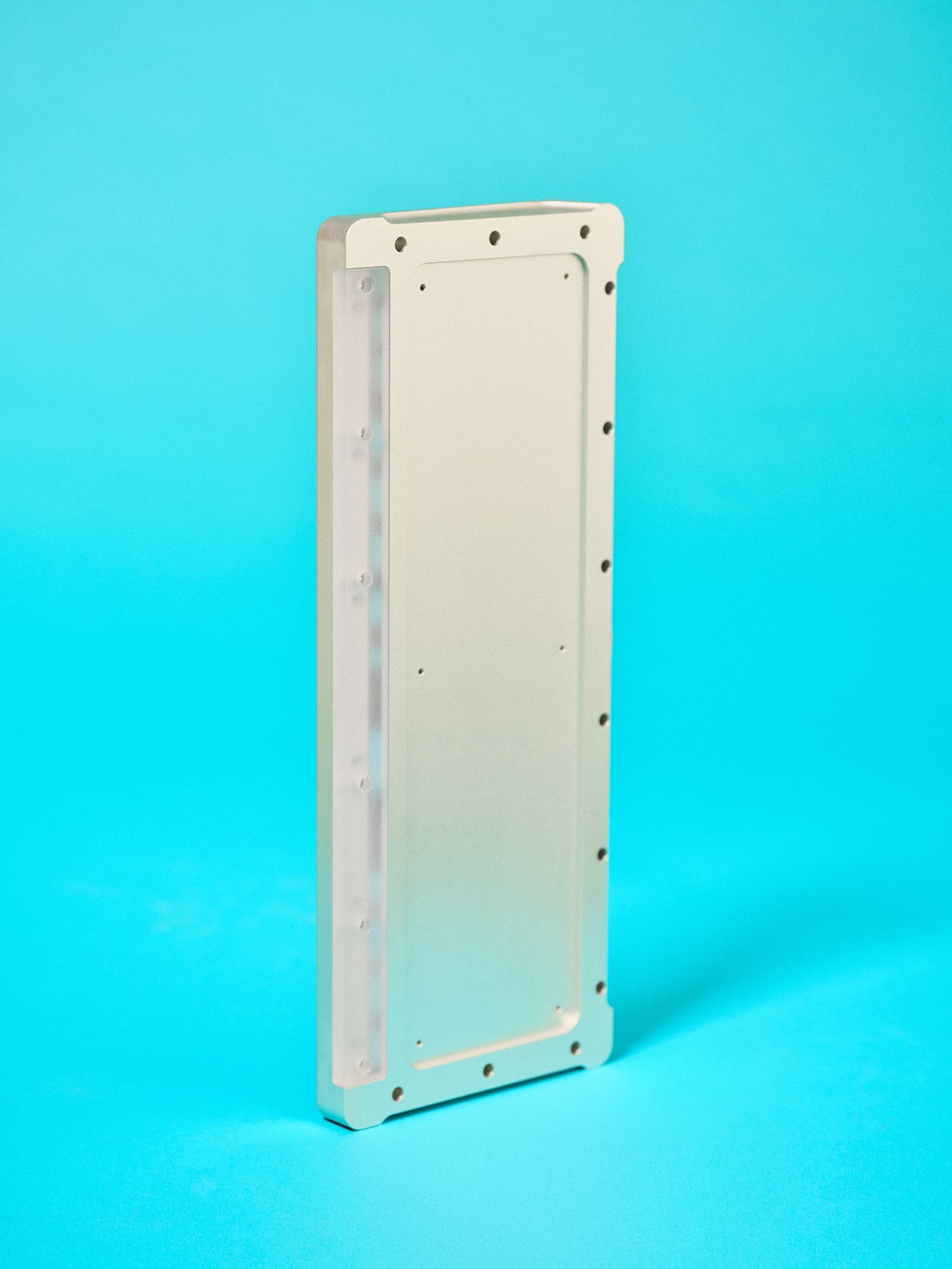

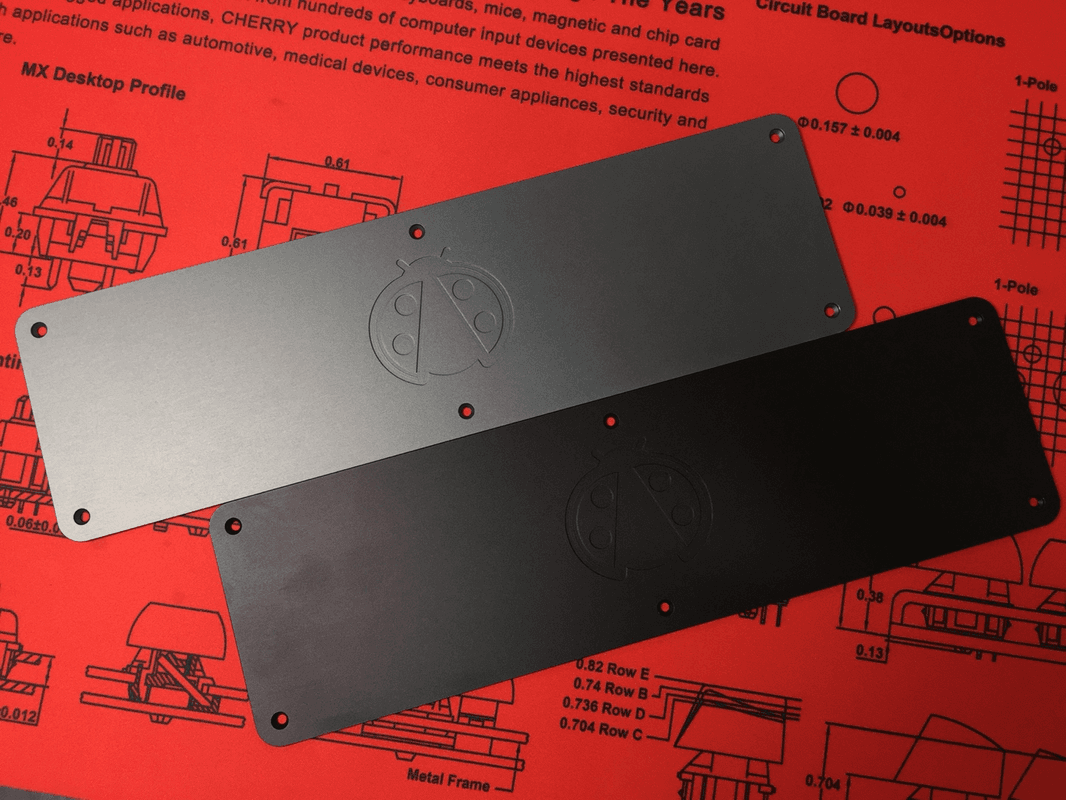

Weight / Point Plate
- Add color points at the bottom of the keyboard.
- If you want, you can choose brass weight option

PC Diffuser
- sandblasted Polycarbonate diffuser makes the RGB strip located in front of the keyboard look more natural.
- If you don't like RGB light, you can use brass bar instead of PC diffuser.

PCB
- QMK firmware Support
- Cherry MX / Alps SKCM compatible
- All SMD components are pre-soldered in the factory.
- Switch, indicator LED, switch LED (Optional) soldering required

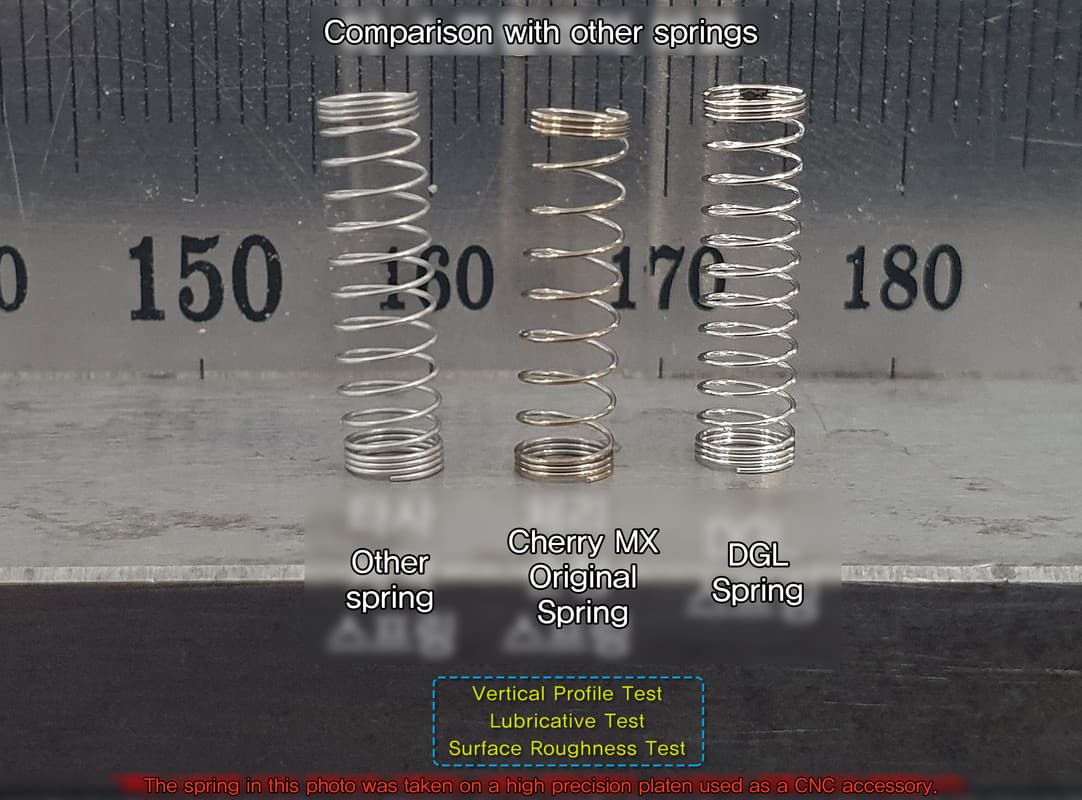

Spring
- For buyers only, we offer 90 compatible springs for Cherry MX for free.
- You can choose between 50g, 57g, 64g, and 71g.
- This spring, which we have produced, has passed the Vertical Profile Test, Lubricative Test, Surface Roughness Test.
- We put a lot of effort into this spring, and it's made very precisely. The spring has an error rate of ±0.5 g. It is glossy and upright when compared to other springs.

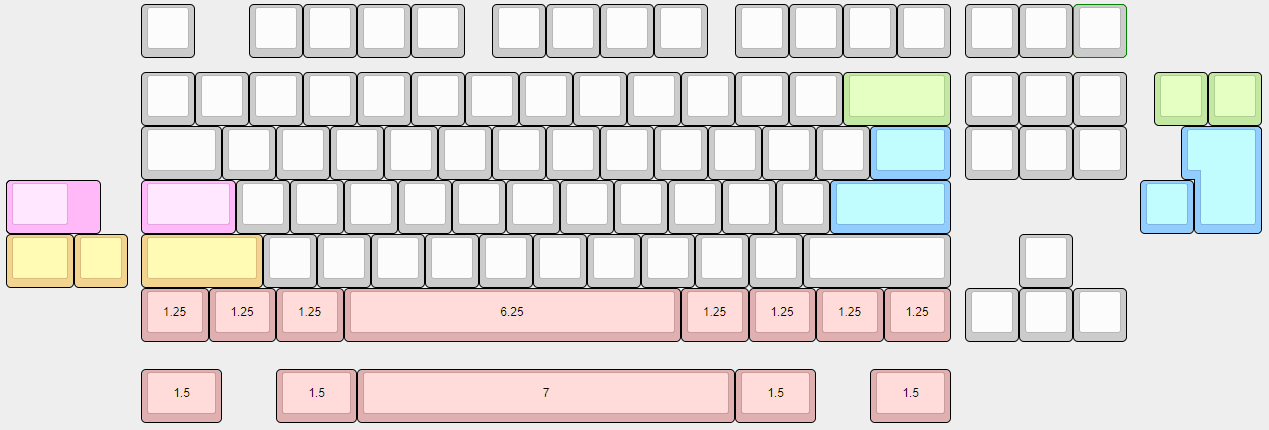

Support layout


Options

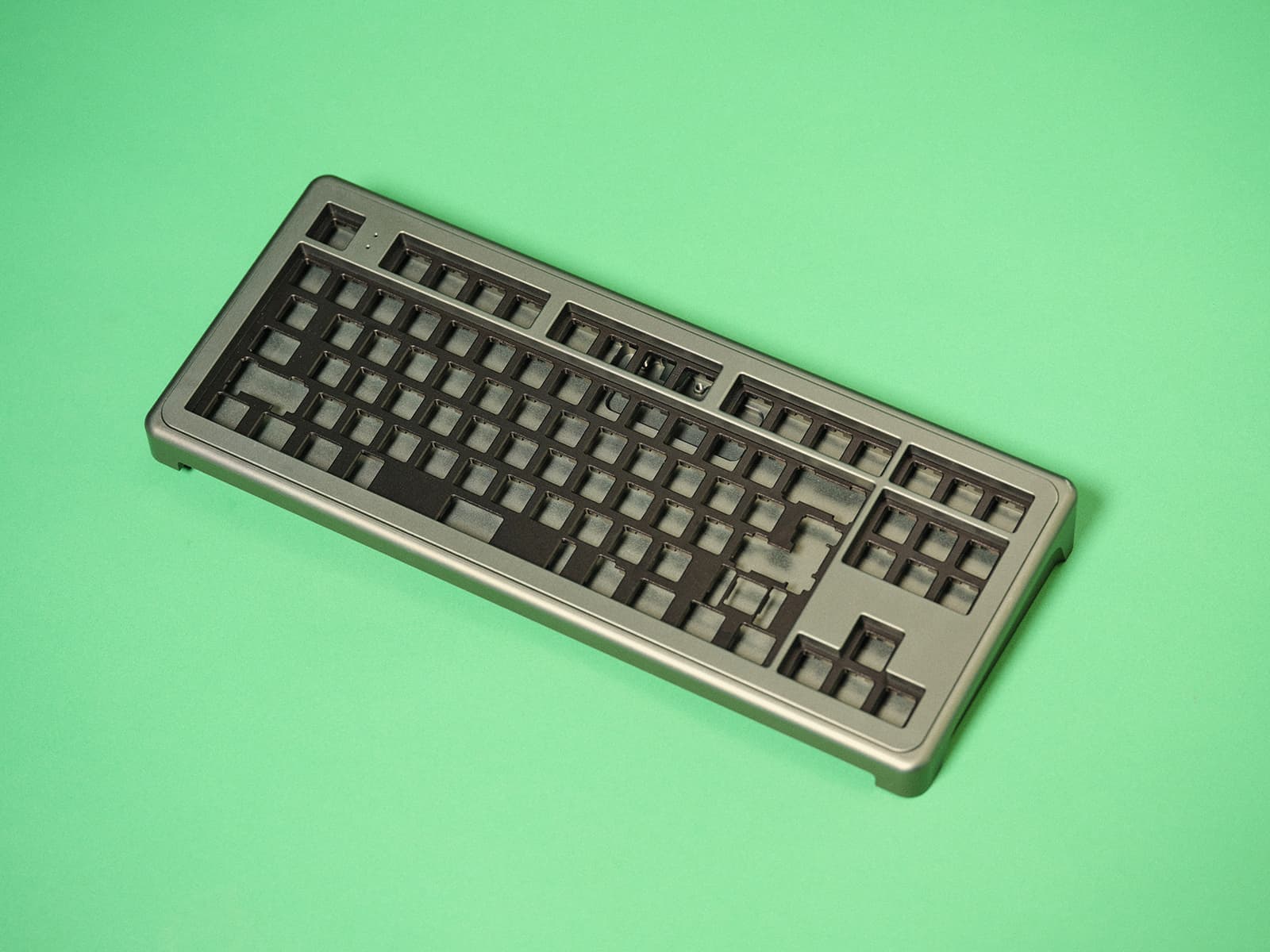

Top Case type
- Standard (ANSI / ISO)
- Winkeyless (ANSI / ISO)

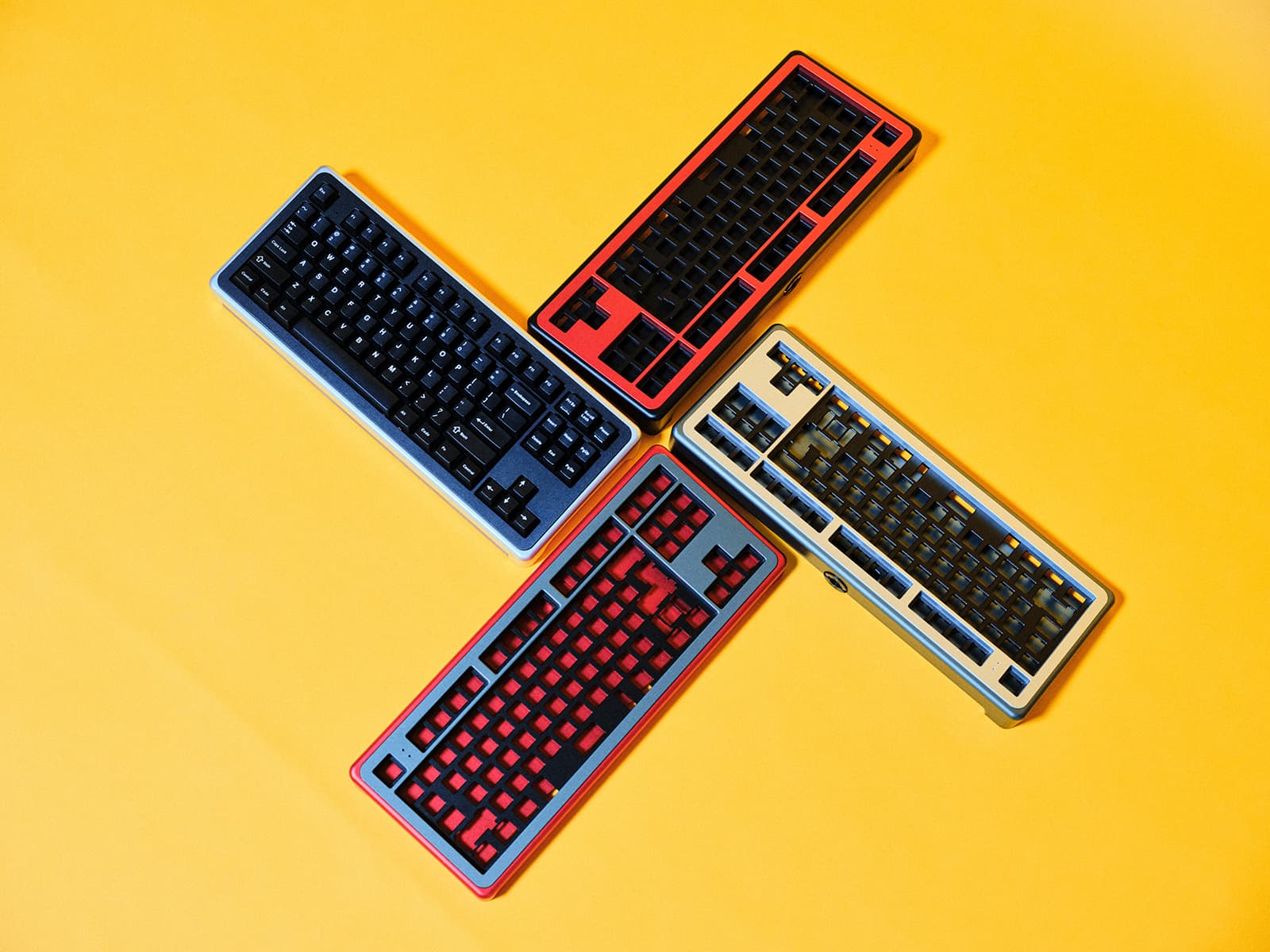

Top color / Bottom color / Point plate color
- Anodizing: Black, Gray, Silver, Red, Orange gold, Metal Green, Rose gold, Champagne gold
- Cerakote™: White, Beige, Gray, Pink, Navy, Yellow

Plate color / material
- Aluminium: Black, Gray, Silver, Red, Orange gold, Metal Green, Rose gold, Champagne gold
- Brass
- FR4 (with Gasket)

Pricing

- Base kit - $450 (Anodizing, Cerakoat™ charges additional cost depending on the option)
- Extra PCB - $40
- Extra Plate - $45

Includes in Basekit (Anodizing Option)
- 1x 606X Aluminium Top Case (Standard or WKL)
- 1x 606X Aluminium Bottom Case
- 1x 606X Aluminium 4T Cherry MX Plate
- 1x 606X Aluminium Back connector guide Part (black)
- 1x Sandblasted clear acrylic diffuser
- 1x DGL-80 PCB
- 1x DGL Spring pack (for Cherry mx, 90pcs)
※Can be modified as desired in the above configuration (additional cost incurred)
※Shipping charges are not included and the price varies depending on the destination.

Where Can I Order?
https://forms.gle/pavD31V1FnqeJPxF6
Order Closed


Timeline
Group Buy will be open 2020.05.15 - 2020.05.31 ( 16 days )
It will be manufactured and packaged from June 1 to September 30, and shipped worldwide from October 1.

If you place an order, You will receive it at the end of September.
We will do our best to meet the schedule.
But we don't know exactly what will happen in the future.
If there is a delay in the delivery schedule due to unavoidable reasons, we will notify you quickly.

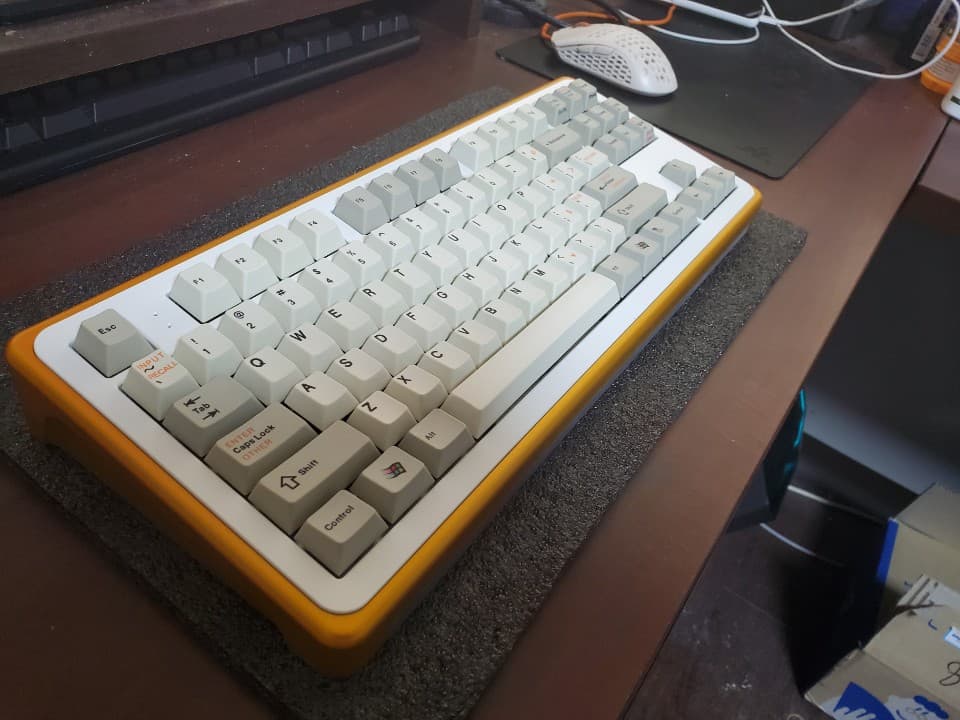

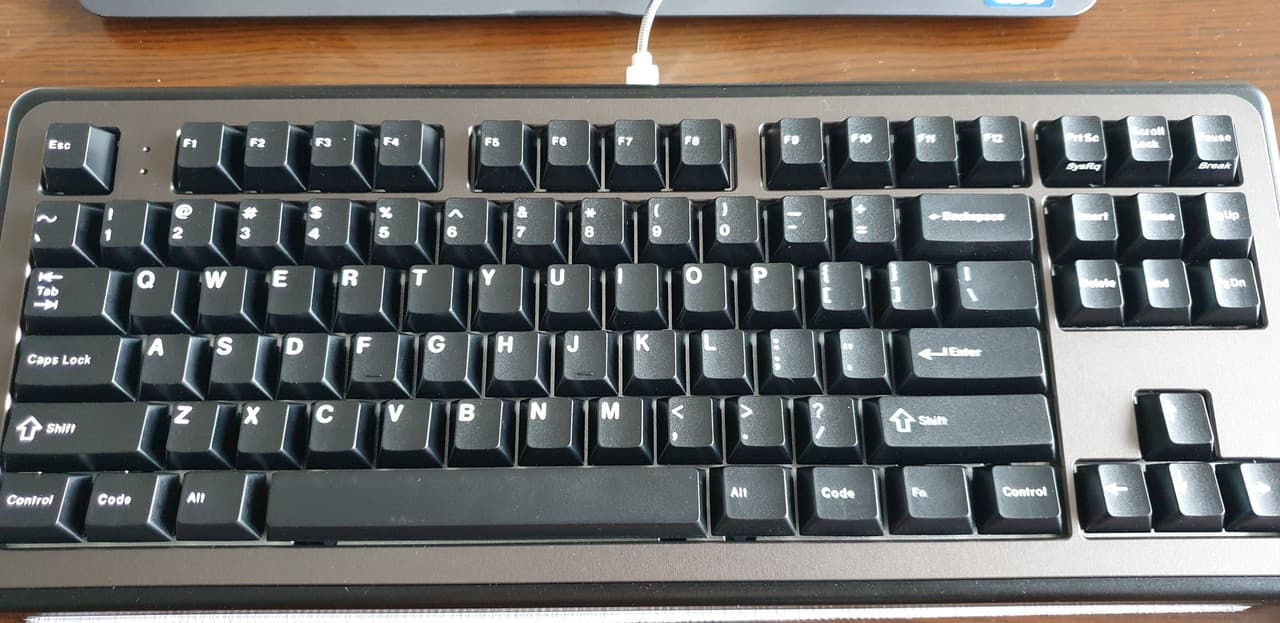

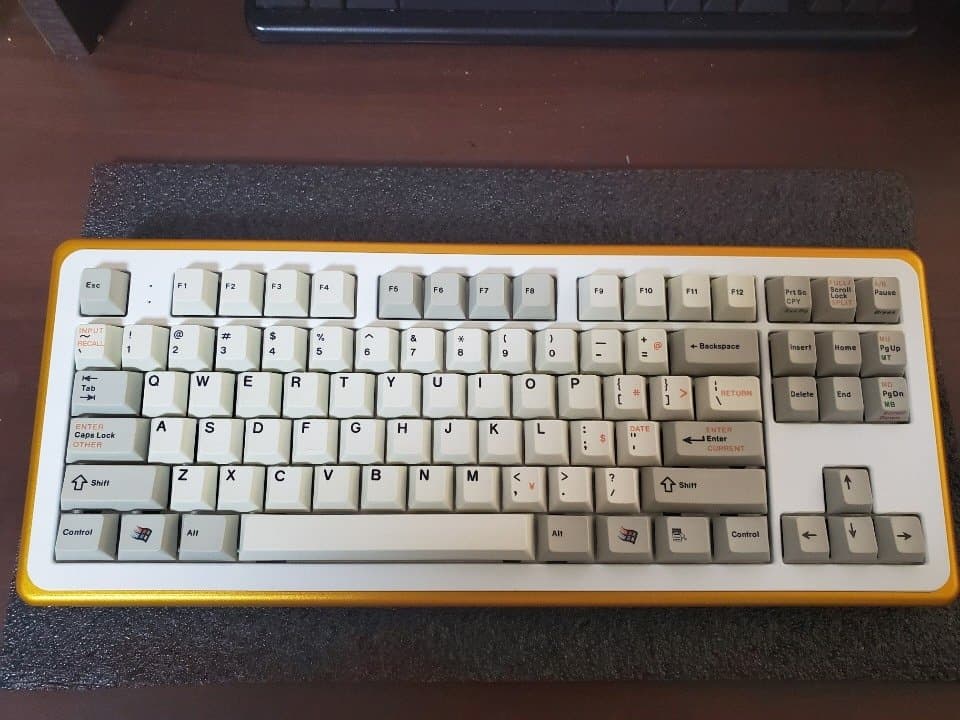

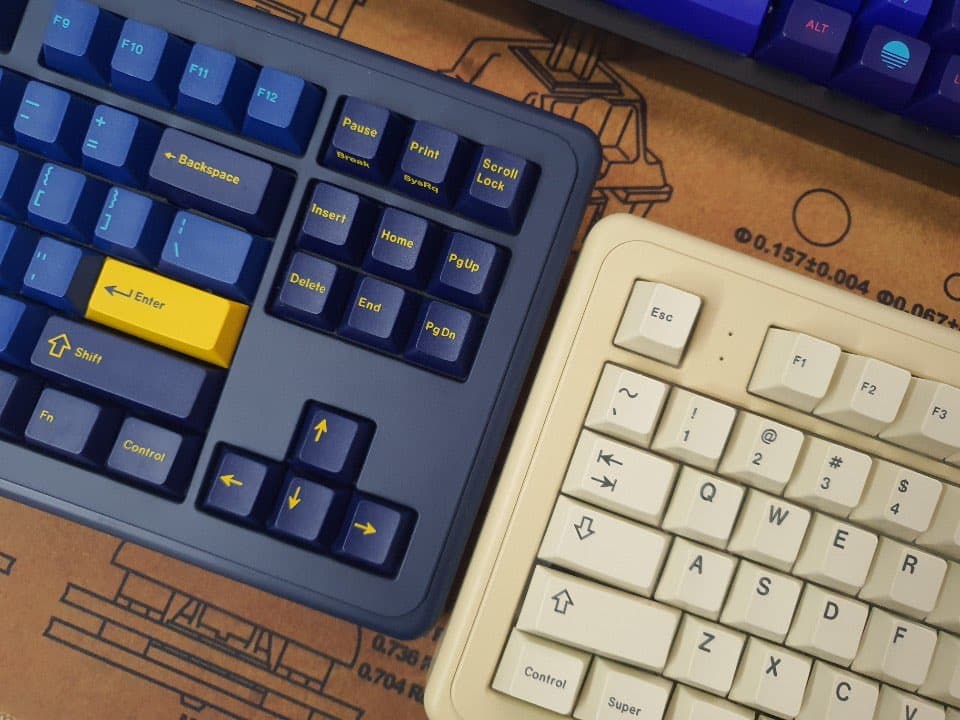

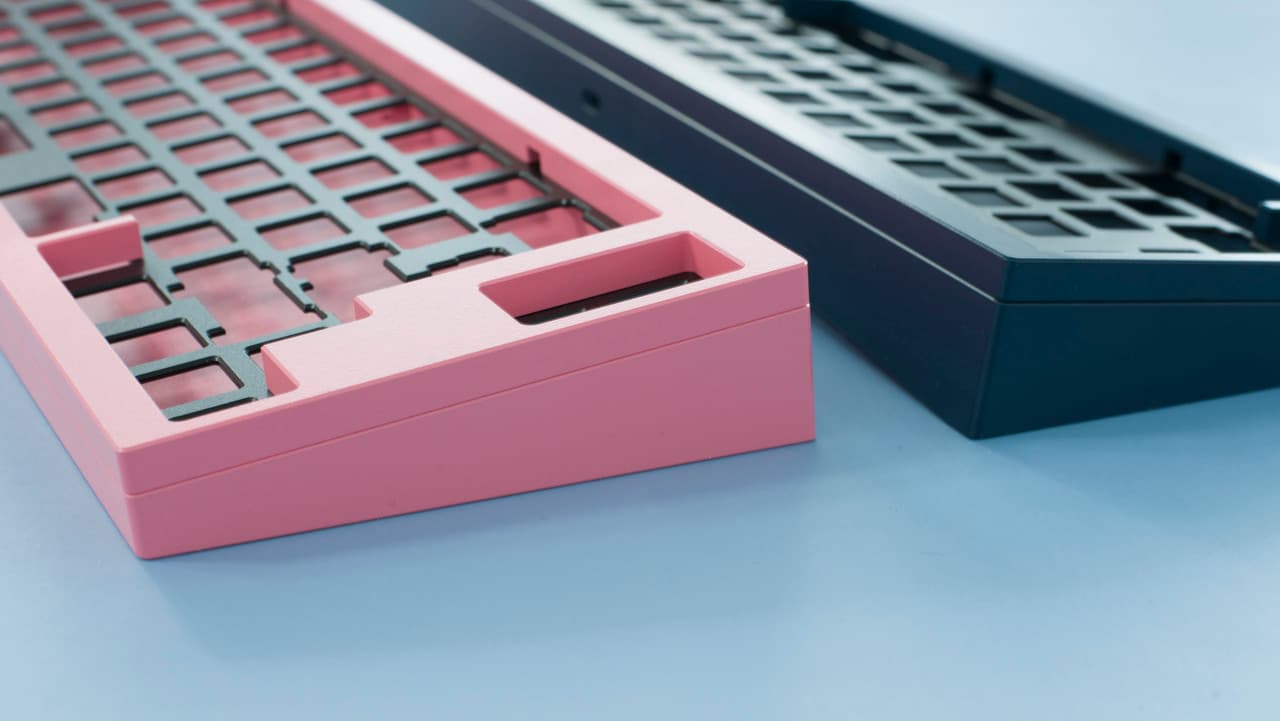

Gallery










UPDATE

01-June-2020

The order period is over.
We are organizing order history, address, options selected, etc.
The actual production will begin on June 4th. If anyone hasn't paid yet, please complete all payments by June 3rd.
Whenever there is a new update, the will be added here.
