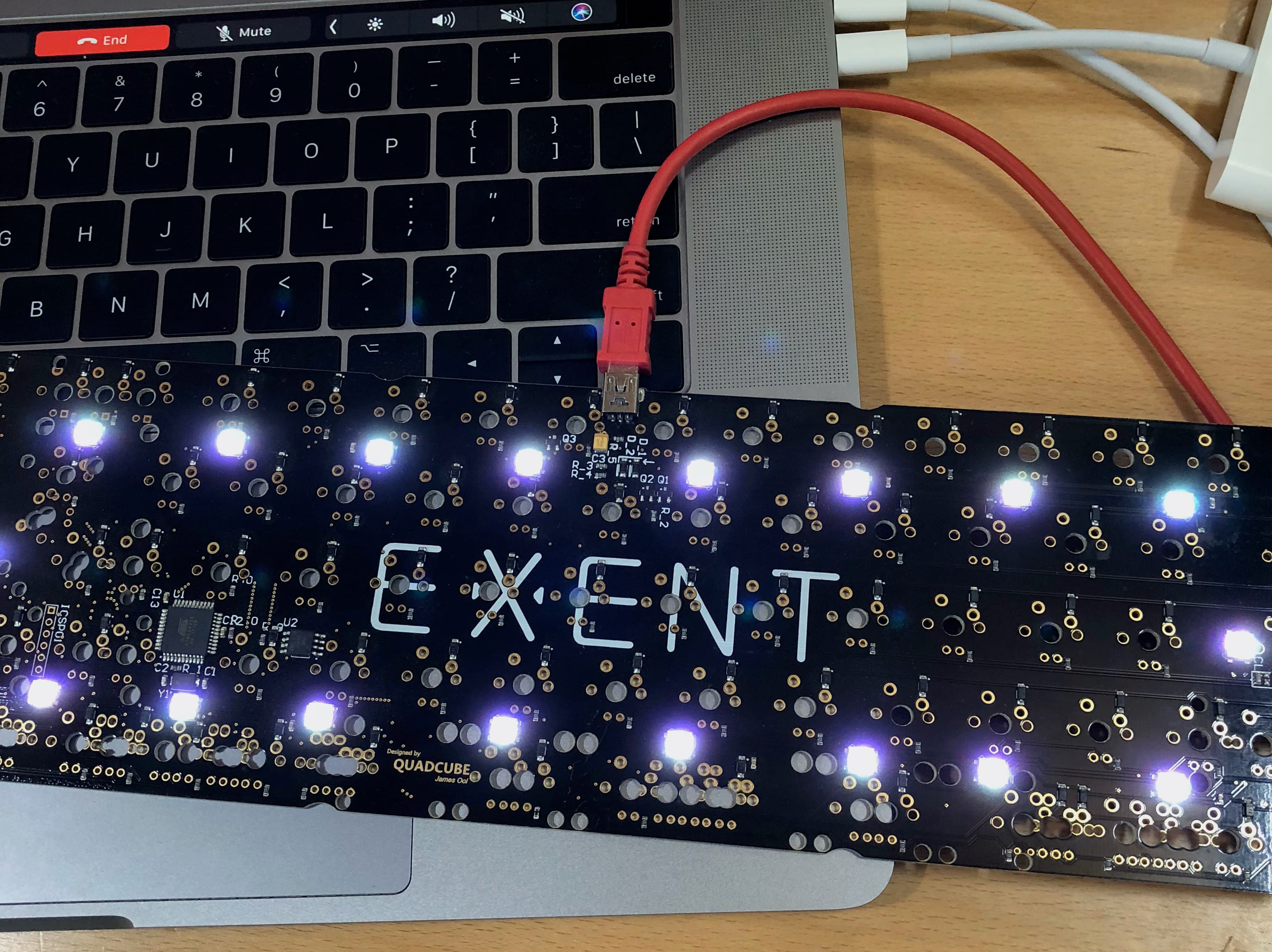

Direct replacement PCB for EXENT and TGR 910 - round 2

Previous details: https://geekhack.org/index.php?topic=87213.msg2799758&fbclid=IwAR15NPcChxVj4khdz1CmQGRADt8yCRZBQRF9rH3ysQowpw5OIAZcgD6AOeY#msg2799758

1st GB completed 18 Dec 2019.

2nd round GB form is here: https://forms.gle/jjrLZ1ch8WMghhRd9

Price: $55 (not inclusive of PayPal and shipping fees)

Shipping: Shipping will either be from Malaysia/Japan using DHL/JP Post, etc. Shipping cost will depend on your location ( approx. $35 for 1 PCB to US, $36 for 2 PCB to US from MY ).

Deadline for order/payment: The GB will end as soon as the QTY is met, deadline for payment is 48 hours after invoice is sent.

Lead time: 2 months

Status:
16 Oct - Waiting for shipping quotations.
17 Oct - All invoices have been sent.
19 Oct - GB google form reopened to accept a couple more order as 48 hr deadline have passed.
19 Oct - PCB production have started.
23 Oct - PCB production completed.
31 Oct - PCB assembly on-going
13 Nov - PCB assembly complete, shipping to MY for QC
18 Nov - PCB received, QC on-going
19 Nov - some set back with the PCB, unable to program the MCU
21 Nov - flew back to MY, picked up the problematic PCB from codywanks, couldn't fully troubleshoot the PCB as I left my tools in JP
28 Nov - new tools arrived
30 Nov - turned out the manufacturer did not program/wrongly program both MCU. manually programming the MCU is fine but the sub-MCU is problematic as it is soldered without any programming pinout on the PCB. I would either have to solder wires to the sub-MCU for each board and program them, or maybe desolder them and program them on the SOIC programming jig that I had and re-solder them back later or build a very ugly programming jig to program soldered SOIC
1 Dec - dug through my stockpile of junk parts to build a programming jig to program the sub-MCU, it's easy to find 2.56mm thru-hole parts but 1.28mm is kinda rare. turned out an RJ45 ethernet jack has 1.28mm pitch, tested out various design to ensure that they work reliably.
11 Dec - PCB programming & QC completed. Awaiting pickup, tentatively on the 14th Dec.
12 Dec - Awaiting shipping related phone contacts from those who joined the GB.
16 Dec - Completed 2nd round QC before final packaging.
17 Dec - Shipped out half of the GB
18 Dec - Shipping completed. DHL tracking number have been updated into Paypal.
