Dolphin 60% GB

Dolphin 60 GB






1. Specification

Form Factor : 60% (3 different types of layout : HHBK, WKL, Standard)
Mounting : Top Mount
- Silicon part and divide gasket will be provided to support Sandwich mount for those who prefer sandwich mount
PCB : FAve60 Series (1.2T Solder and Hot Swap / 1.6T Solder) QMK & VIA Support
Plate : Aluminum (Silver) / PC, POM, FR4 plates will be offered as extra parts
Weight : Brass (Sand Blast & Ceramic Coated)
Typing Angle : 7.5 degree
Colors :
Top Case (Silver, Burgundy, Black = Anodized / Beige = E Coating) - The burgundy color will be slightly brighter than Dolphin 2021
Bottom Case (Silver – Anodized)


2. What is included in the base kit
- Top & Bottom Case (Alu, 6061-T6) *1ea
- Alu Plate (Silver) * 1ea
- Brass Weight * 1ea
- Aluminum Logo Insert Part *1ea
- Bottom Poron Sheet* 1ea
- Plate Poron Sheet *1ea
- PE Switch Pad *1ea
- Screws and Bump on
- Carrying Case

*PCB is not included in the base kit. You can choose your preferred PCB from 3 different types of PCB (1.2t solder, 1.2t HS, 1.6t solder)

3. PCB Specification

Dolphin 60 PCB Spec

1.2T FLX Cut PCB

Solder Type (USD 50)
1. 1.2t with flx cut PCB
2. Underglow RGB
3. Single LED (LED is not included)
4. Universal Daughter Board & Cable Included
5. QMK & VIA Compatible

Hot Swap (USD 60)
1. 1.2t with flx cut PCB (Simpler FLX cut than soldered PCB)
2. Switch RGB
3. No Underglow RGB
4. Universal Daughter Board & Cable Included
5. QMK & VIA Compatible

1.6T PCB (USD 39)
1. 1.6t pcb without FLX cut
2. Single LED (Led is not included)
3. No underglow
4. Universal Daughter Board & Cable Included
5. QMK & VIA Compatible


4. Supporting Layout
Hot Swap layout


Solder PCB layout



5. Sales detail
- Price
Base kit : USD 440 for Anodized Colors (+20 for E-Coating)
- Total QTY : 100 units
- Sales Type : Raffle
- Sales Venue : KLC Discord (https://discord.gg/GVZKp5UFyt)
- Time Line (Time Zone – KST, GMT+9)
: Raffle form release – 2023 March 10th / The form will stay for 72 hours)
Invoice to winners – 2023 March 14th
Payment Due – 24 hours after invoice received
ETA – 2023 Sep
- There will be Extra units offered after fulfillment as instock sale

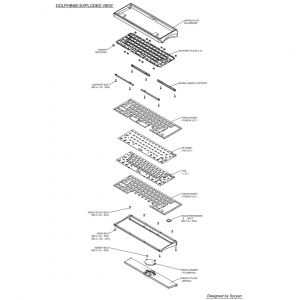

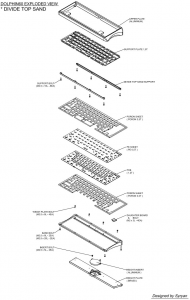

Exploded View

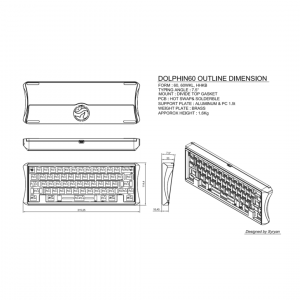

Dimensions


More Pictures
https://imgur.com/a/v3hSFUx
