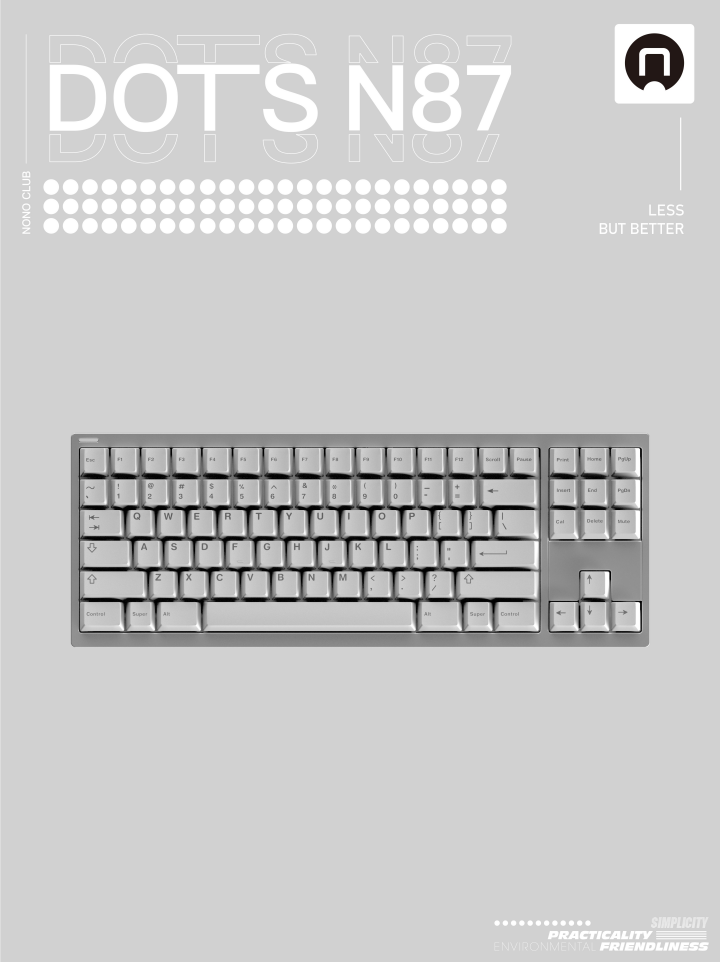

DOTS 87
by NONO Club
Post edited by Click Clack

The highlight of this set's design is inspired by Dieter Rams. Since his products often feature a 'dot' motif, we have creatively incorporated this element. Additionally, as one of GMK's favorite keycap themes, this 80% set is named 'Dots'.

Index

- Layout
- Design Philosophy
- Product Showcase
- Specifications
- Colorways
- Accessories
- Follow the development

Layout

This is a keyboard designed to be interchangeable for users who prefer 'left-hand' layouts.

Therefore, it needs to be 'versatile' first and 'practical' second, which is why we chose the 80% layout.
Since it can be switched between left and right, and the 80% layout has a larger function key
area, the key positions in this area can be adjusted more flexibly.

For example, it can be transformed into a numpad area, and the removable space bar offers
users who prefer a smaller space bar an additional option, while also accommodating those
who like a larger one.

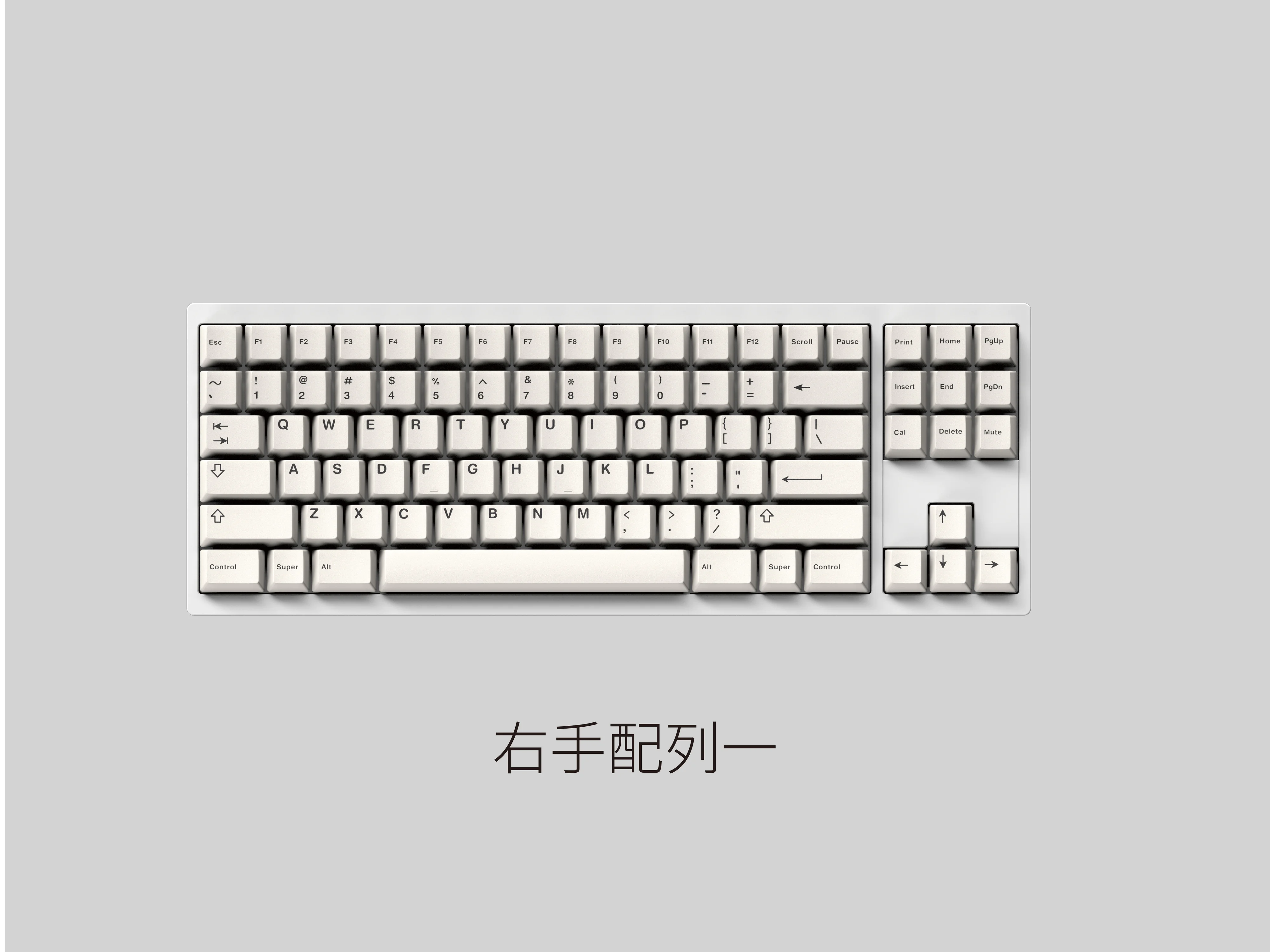

Right-Hand Layout 1:

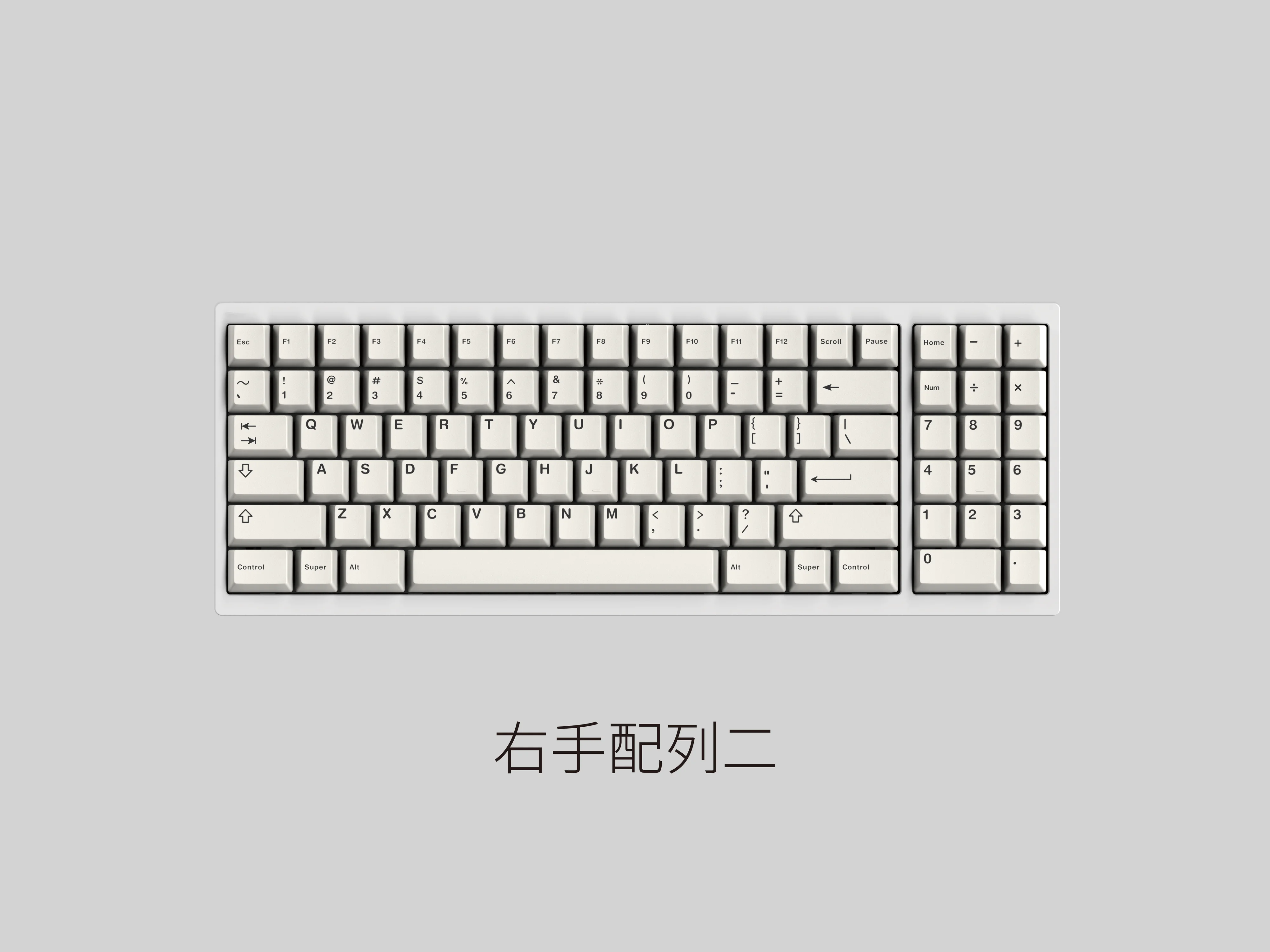

Right-Hand Layout 2:

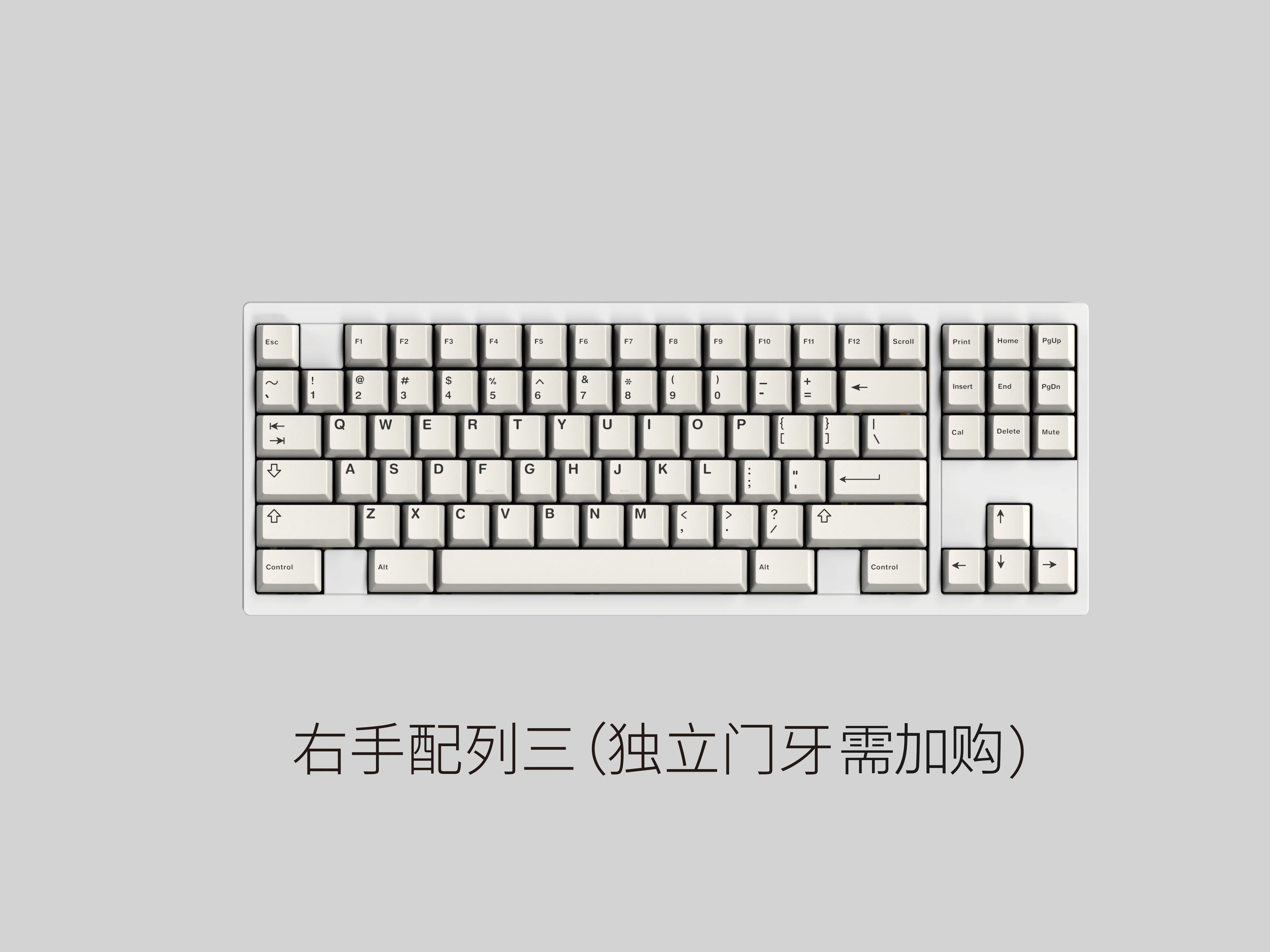

Right-Hand Layout 3:

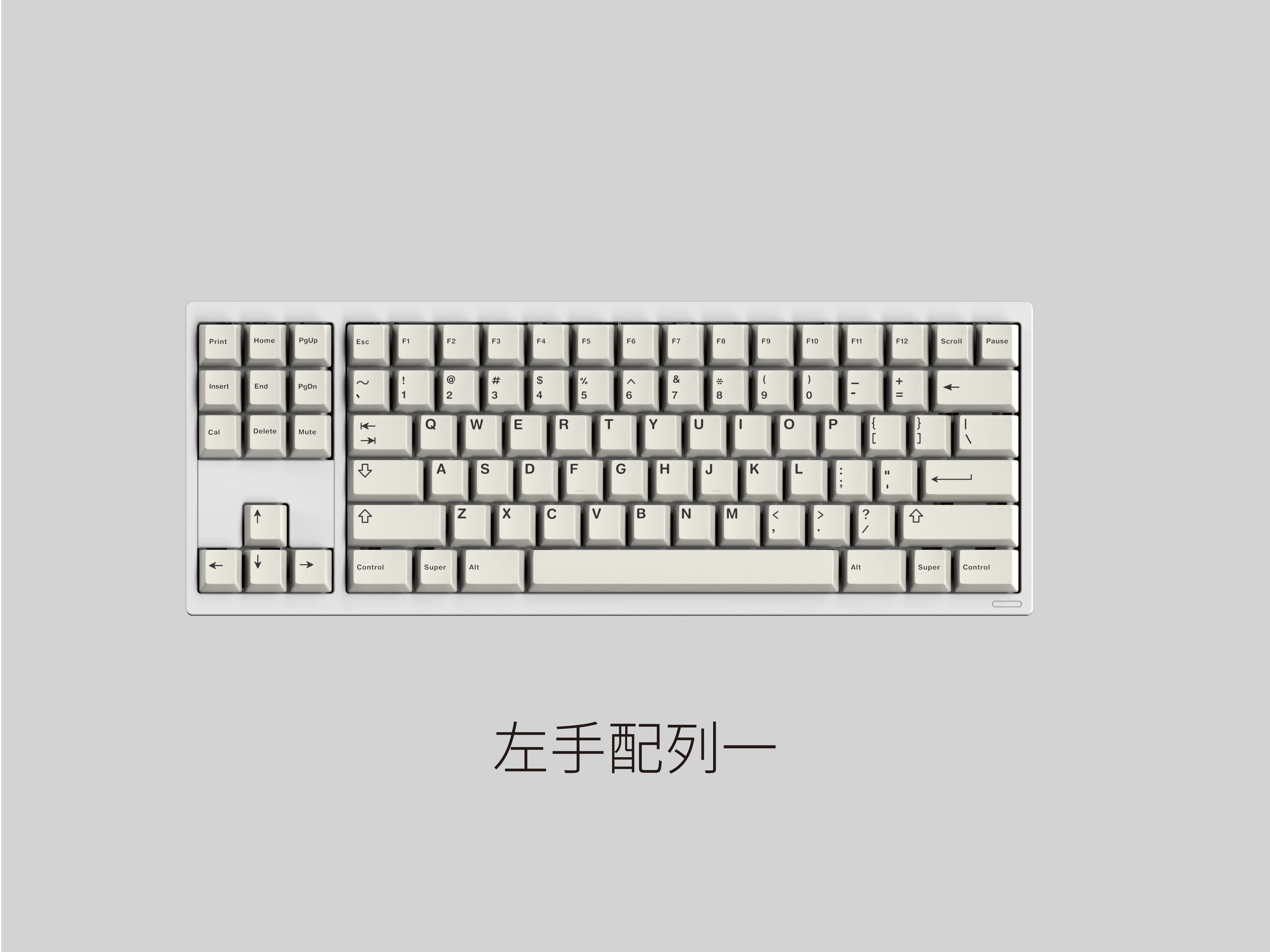

Left-Hand Layout 1:

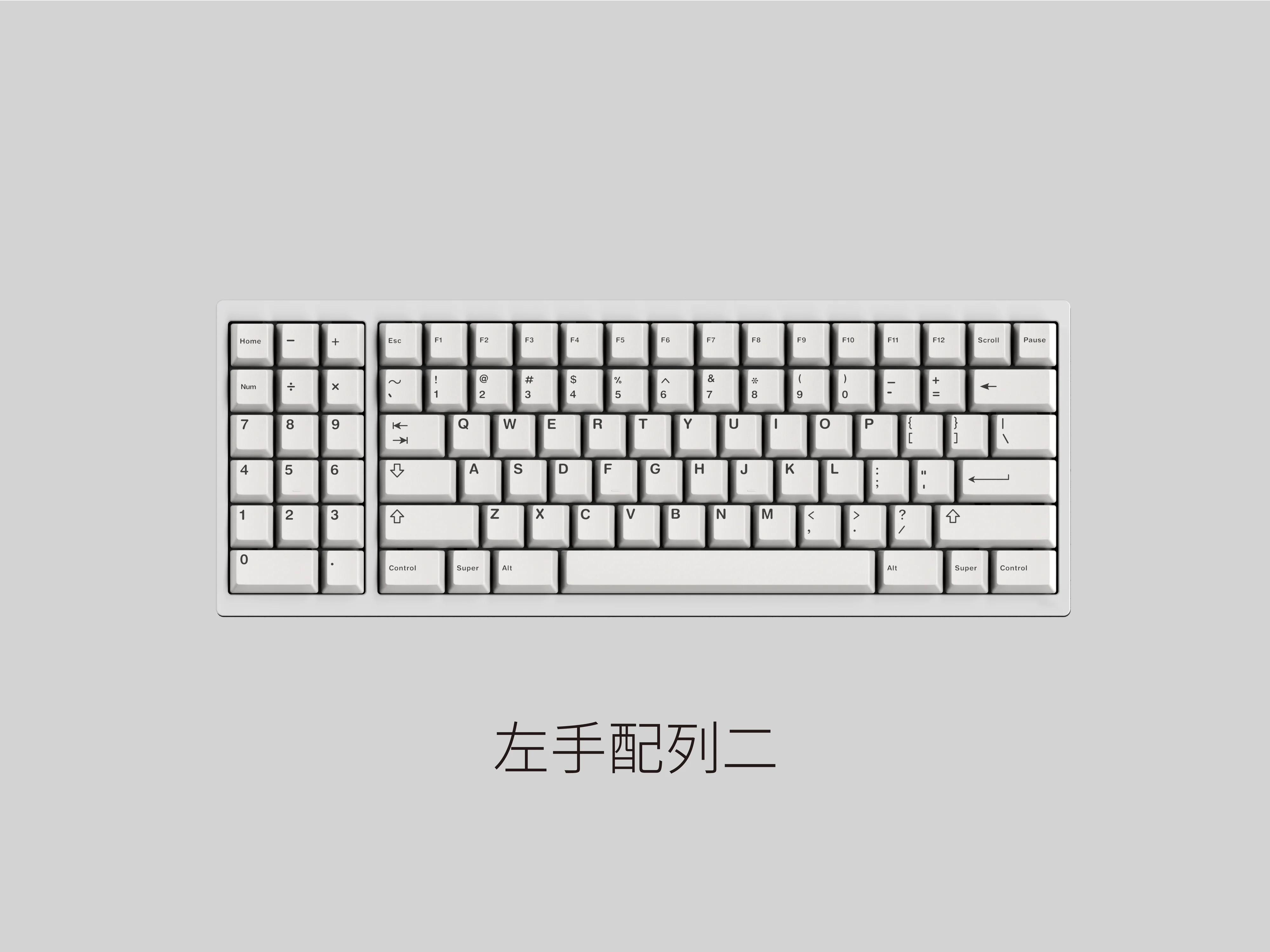

Left-Hand Layout 2:

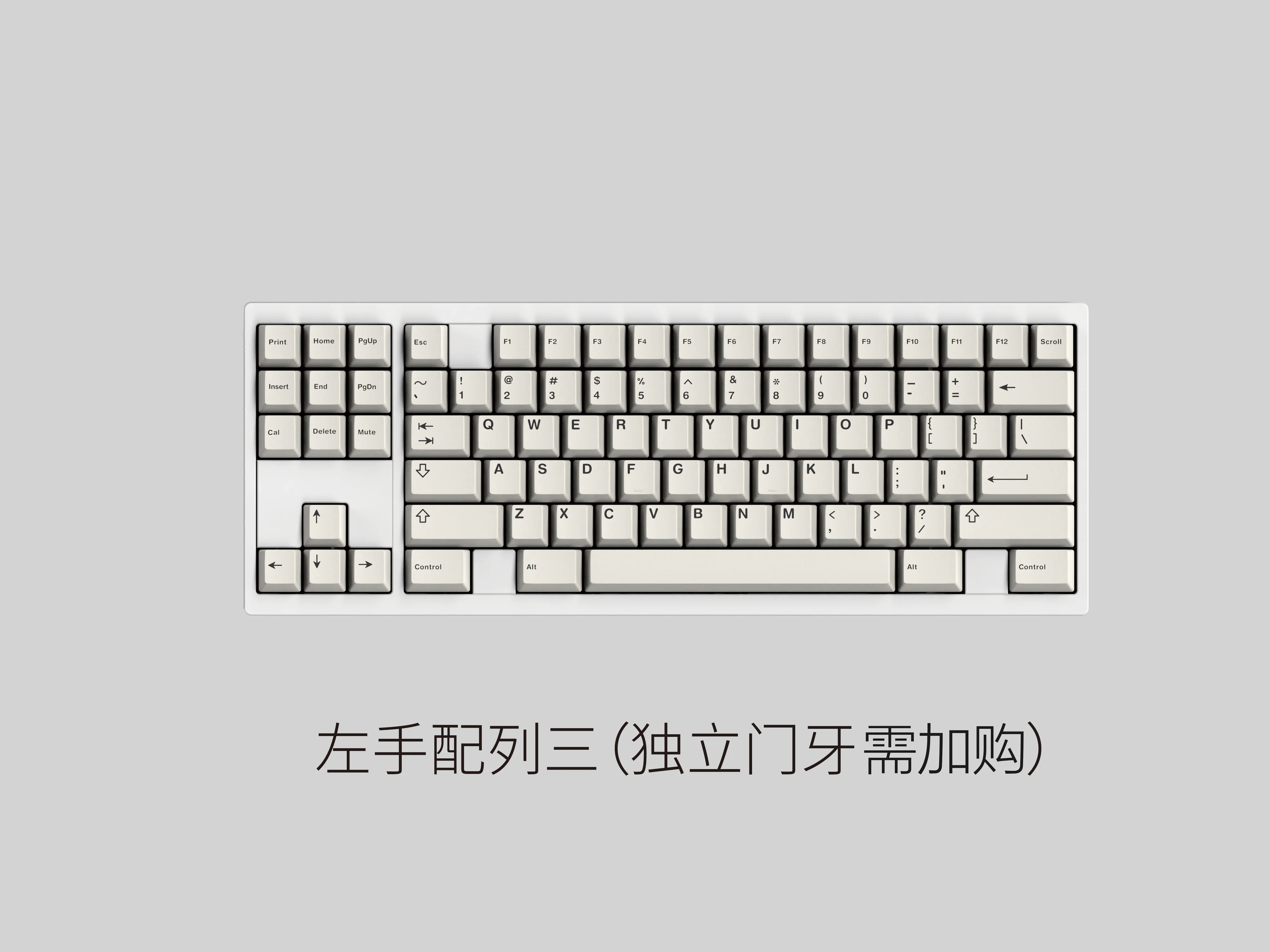

Left-Hand Layout 3:

Structure

Since versatility is the main feature, we aim for a more convenient swapping process, which is why we continue to consider a quick-release structure.

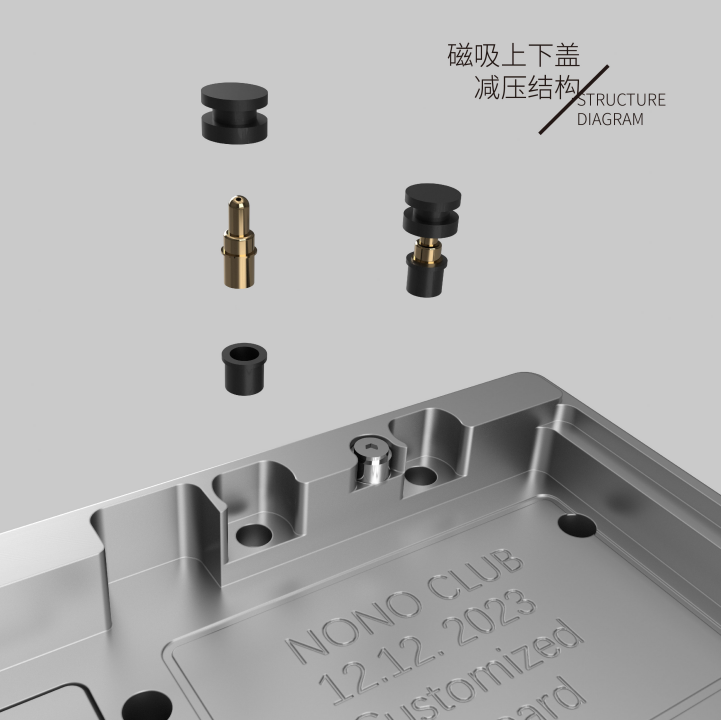

The top case is designed without any handheld stress points, so we have adopted a magnetic quick-release method.

For the gasket structure design, we have implemented a 'spring tube' structure for support, which enhances both the support and elasticity based on the limited rebound of the original gasket beans.

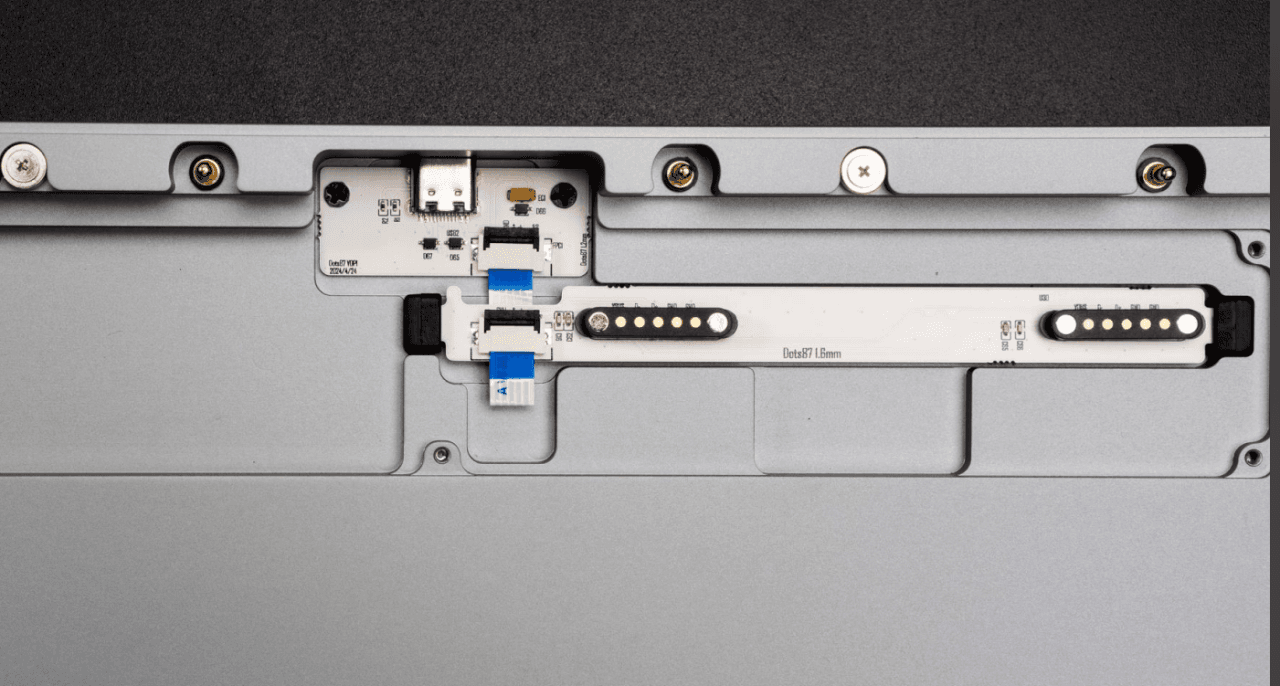

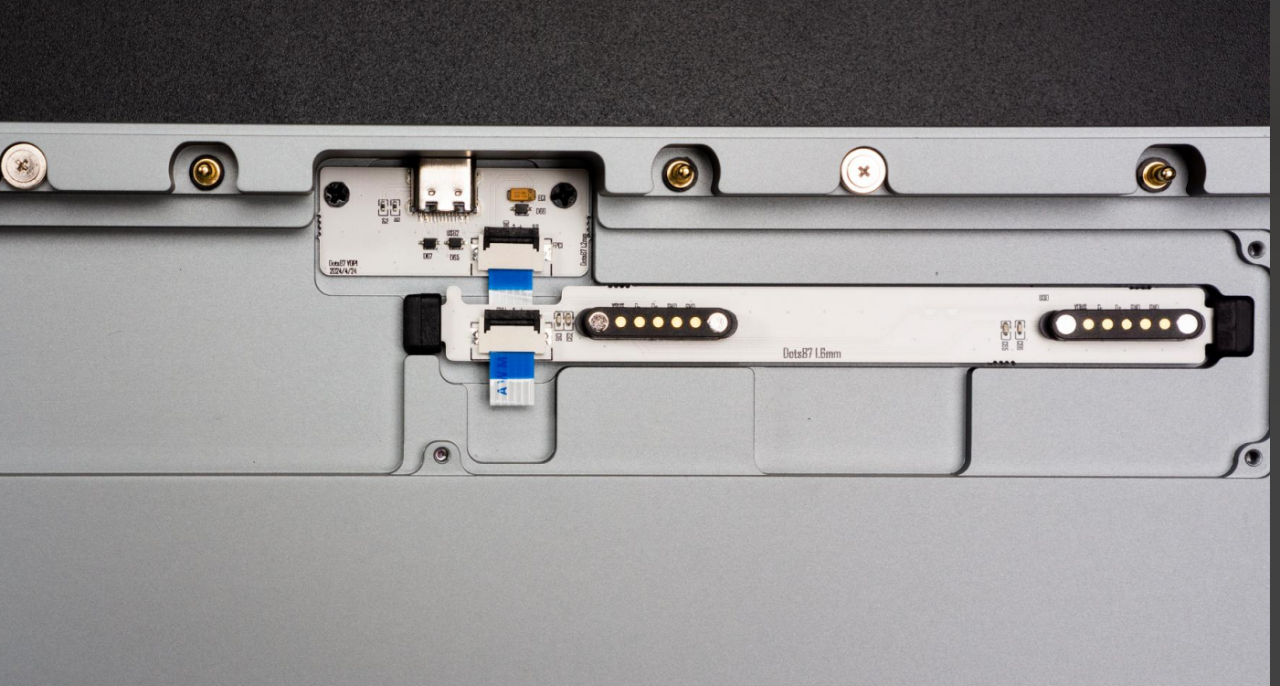

Magnetic USB contact design for effortless layout changes.

*The Badge can be customized

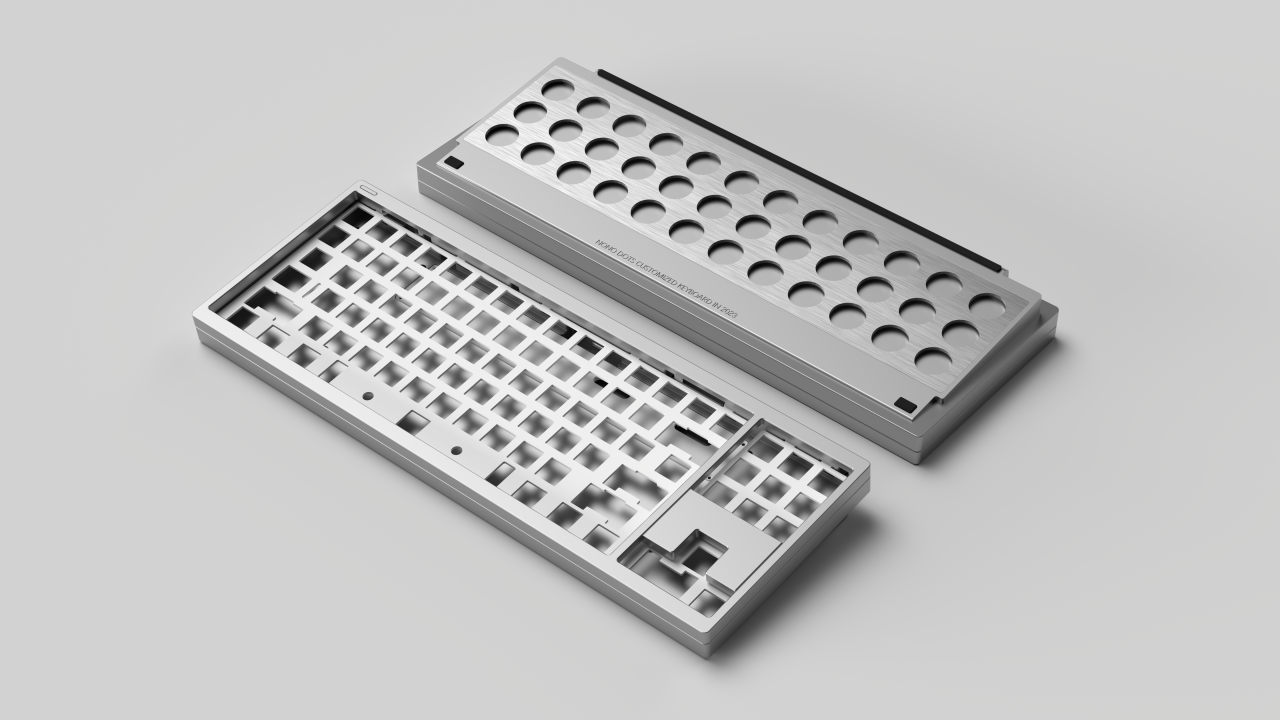

Shape

As the keyboard market becomes increasingly competitive, entry-level products have reached a point where 'NO competition = NO survival.'

To ensure our product has a place in this competitive market, we have repeatedly adjusted its shape to achieve a level of 'less is more.'

While keeping costs down, we strive to adhere to the design philosophy of 'Less, but better,' creating a product that is simple yet not simplistic.

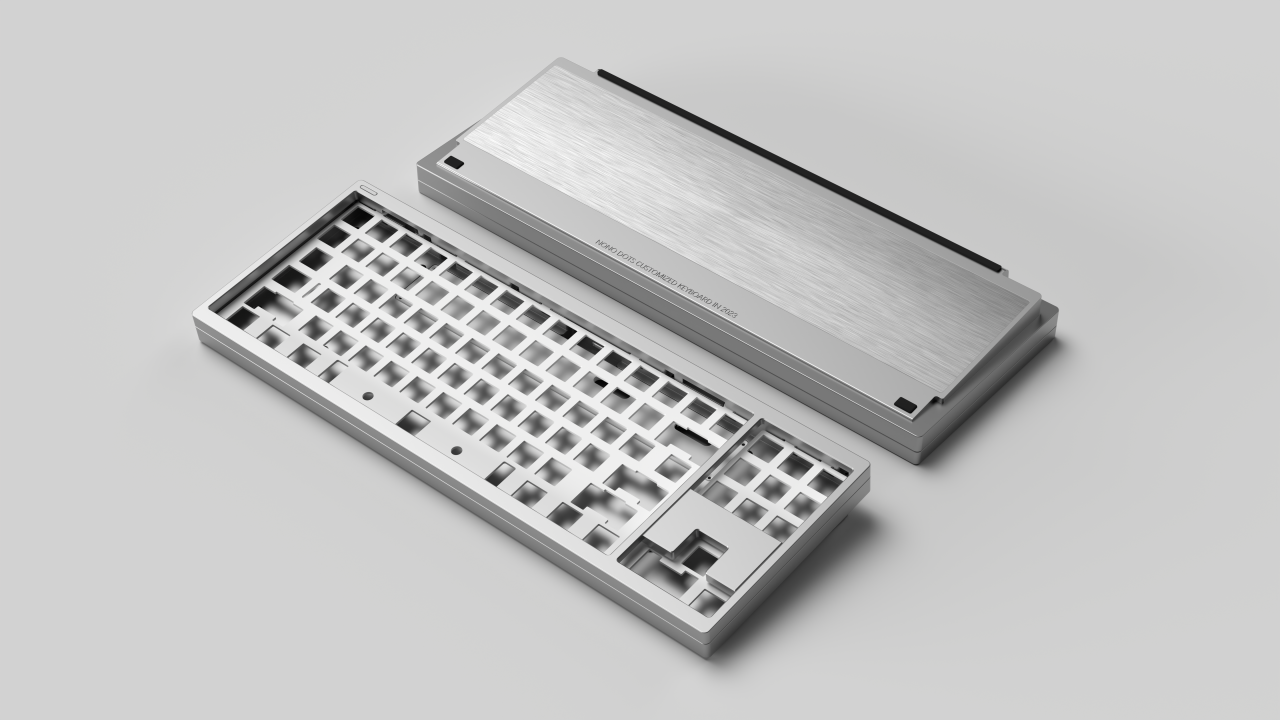

(With Regular Weight)

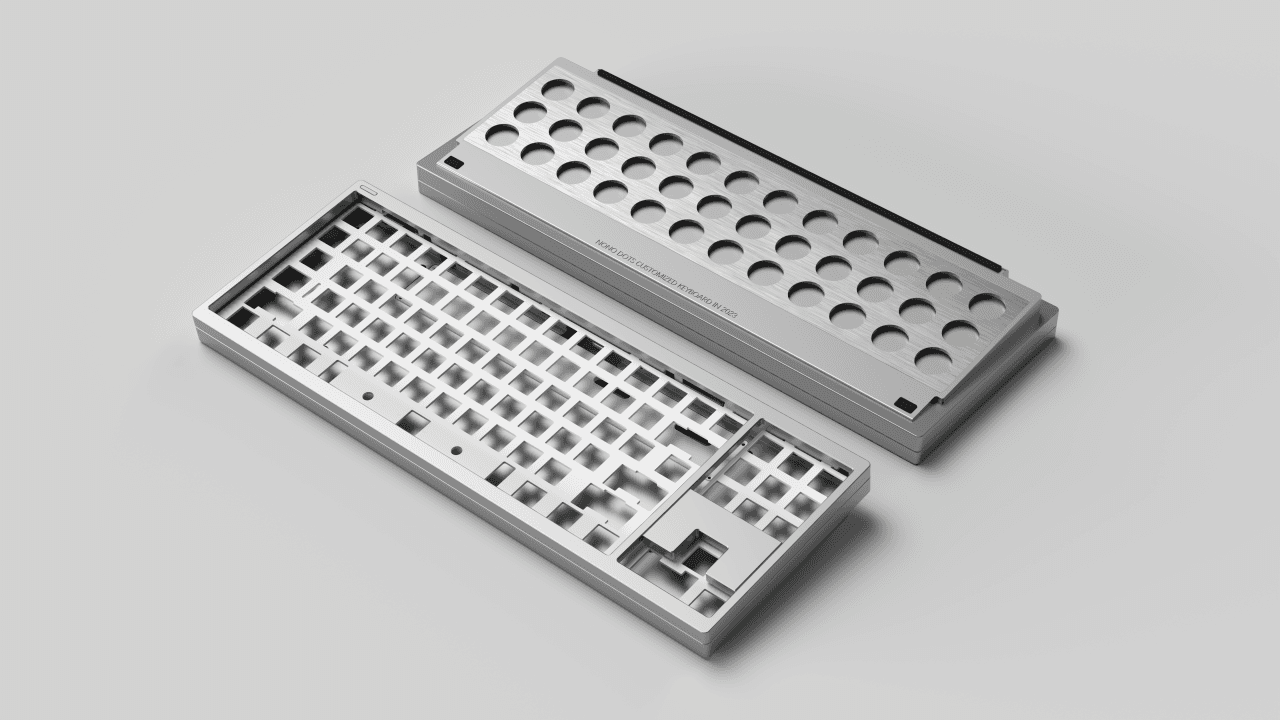

(With Pop Weight)

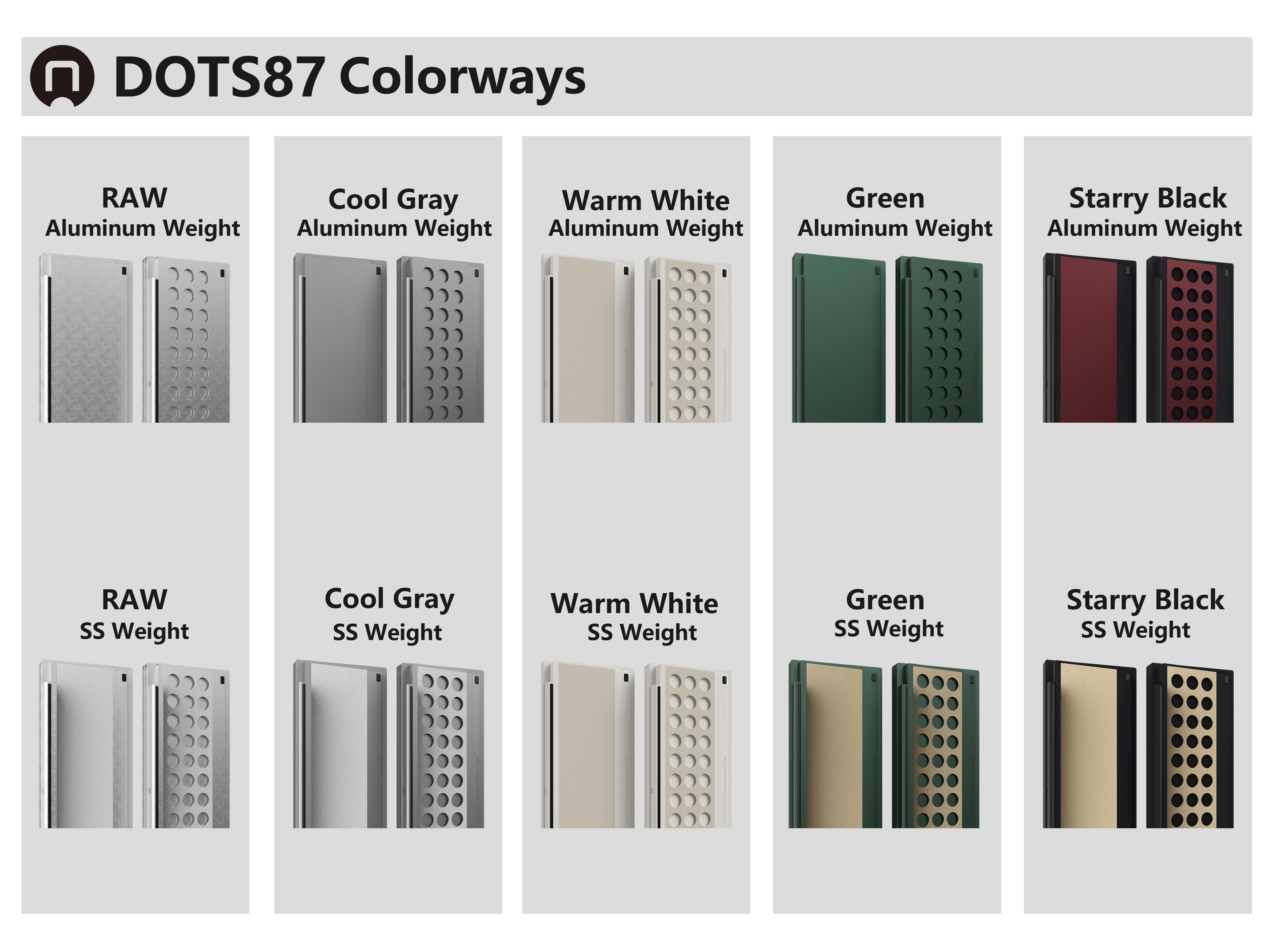

Colorways

Surface treatments:
• Anodized(Cool Grey, RAW, Green);
• Electrophoretic(Warm White);
• Coating(Starry Black)

Configuration

Weight:
POP Weight and Regular Weight, with material options of aluminum or stainless steel.

Plate:
PC/FR4

PCB options:
Wired（Single-Mode）/Wireless(Tri-Mode)

What’s Included

Case
Battery Cover
Weight(Option: Pop Weight/Regular Weight)
PCB(Option: Wired/Wireless PCB)
Plate(Options: FR4/PC)
Poron Foam
0.5mm IXPE
2.5mm Case Foam
0.1mm PET Foam

Extra Addons

Extra Weight
PCB
Plate
Winkey

Pricing

~$230 including shipping fee

Join ClickClack’s Discord for the latest updates, discussions, and questions:
