[Update Mar 20 '19]
Hi,
We found we got some error paypal setting last week.
Some of orders can not go through.
This groupbuy will extend a week to late Mar
[End of Mar 20 '19]
Hey, everyone! I'm Shiang Yu from Doyu Studio.

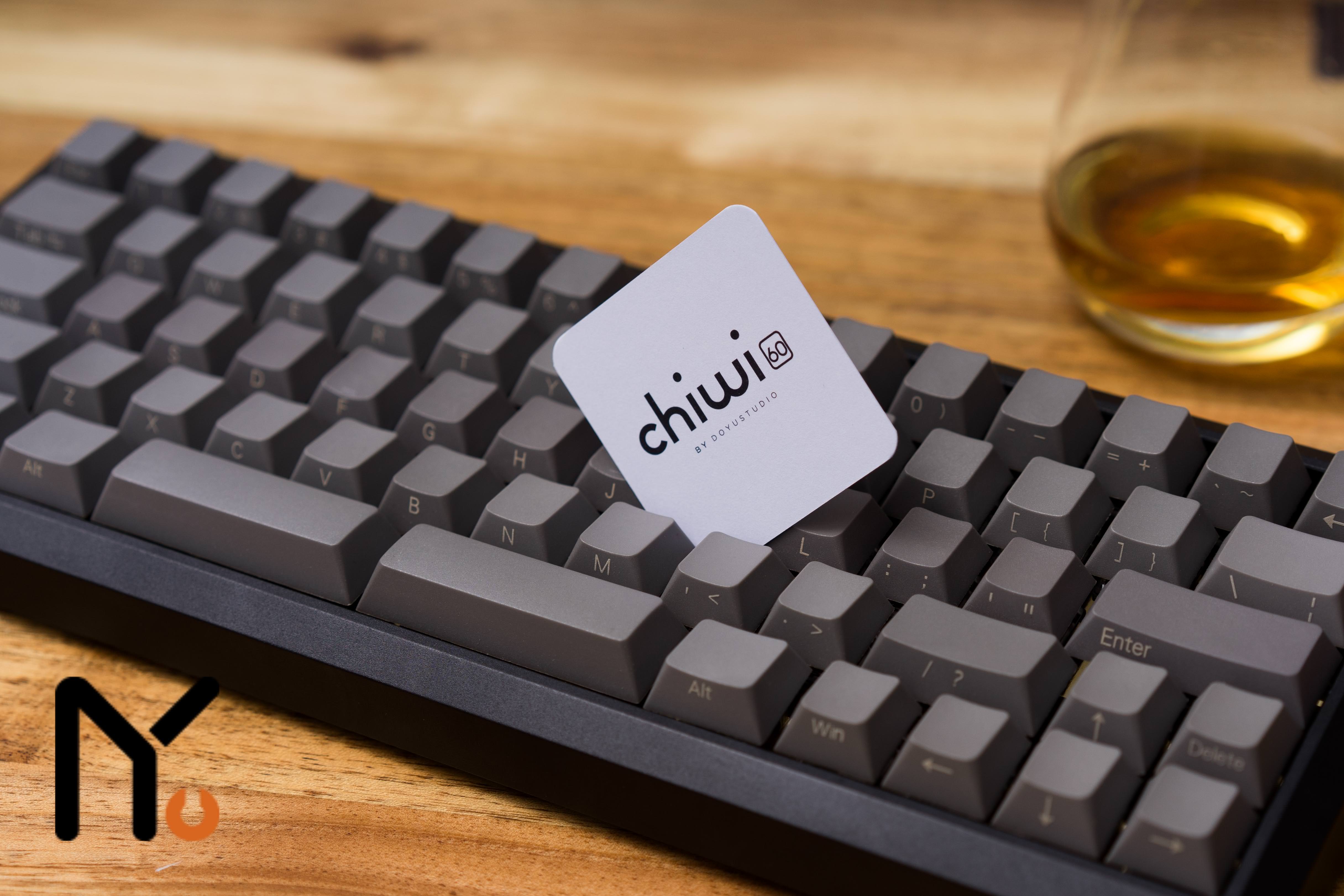

This is group buy for Doyu Studio - Chiwi60 kit R2.
The Chiwi60 was conceived by the mechanical keyboard community member gok from New Zealand who named the keyboard after a colloquial term that was short for Chinese Kiwi.

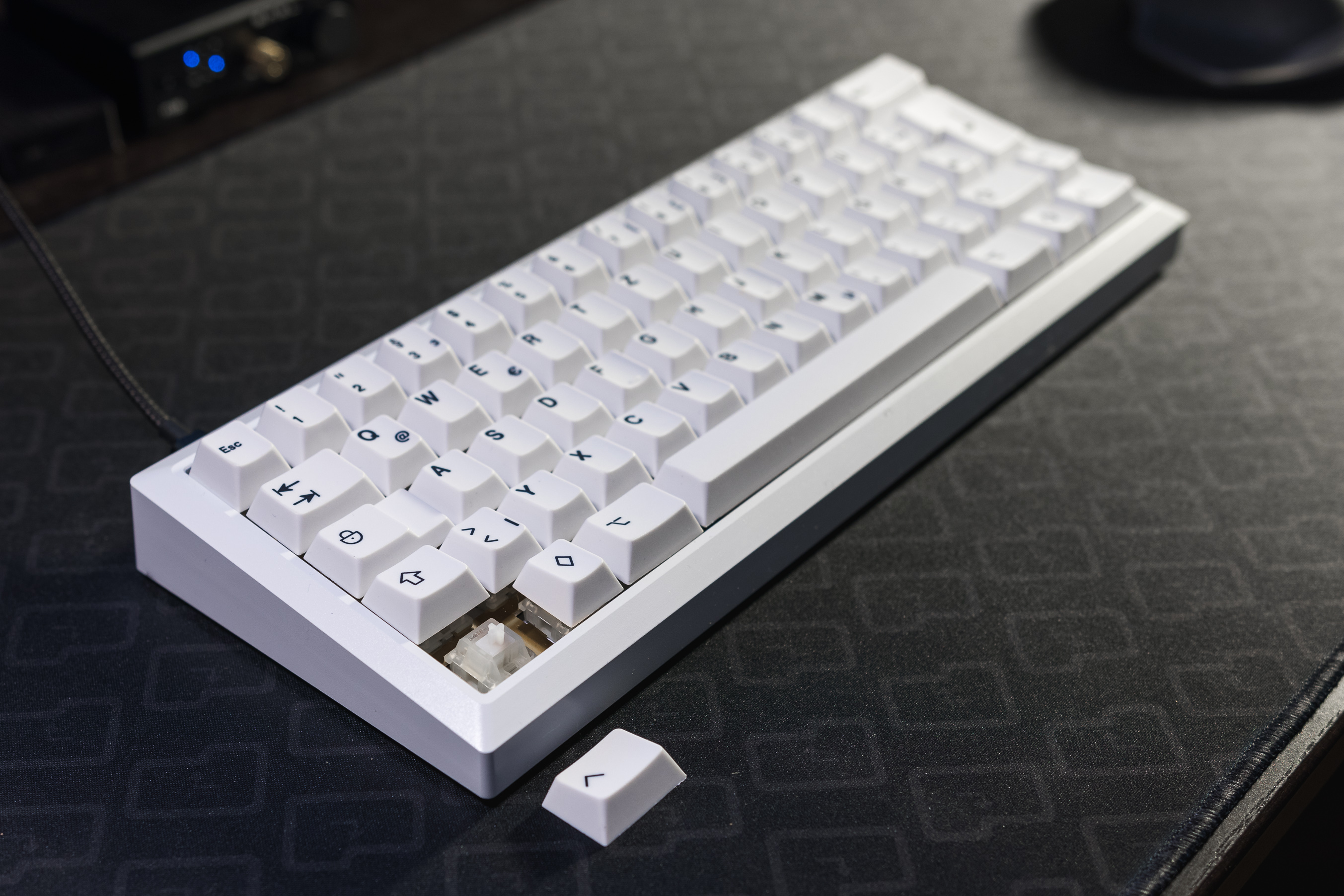

The board is designed to have medium sized bezels with a 30 degree chamfer on the top face to provide visual interest to the most visible face of the keyboard.
30 degrees has been specifically chosen so that the top and side bezels still have presence from natural viewing angles despite the faces tapering away and also makes the keyboard appear shorter and sleeker.

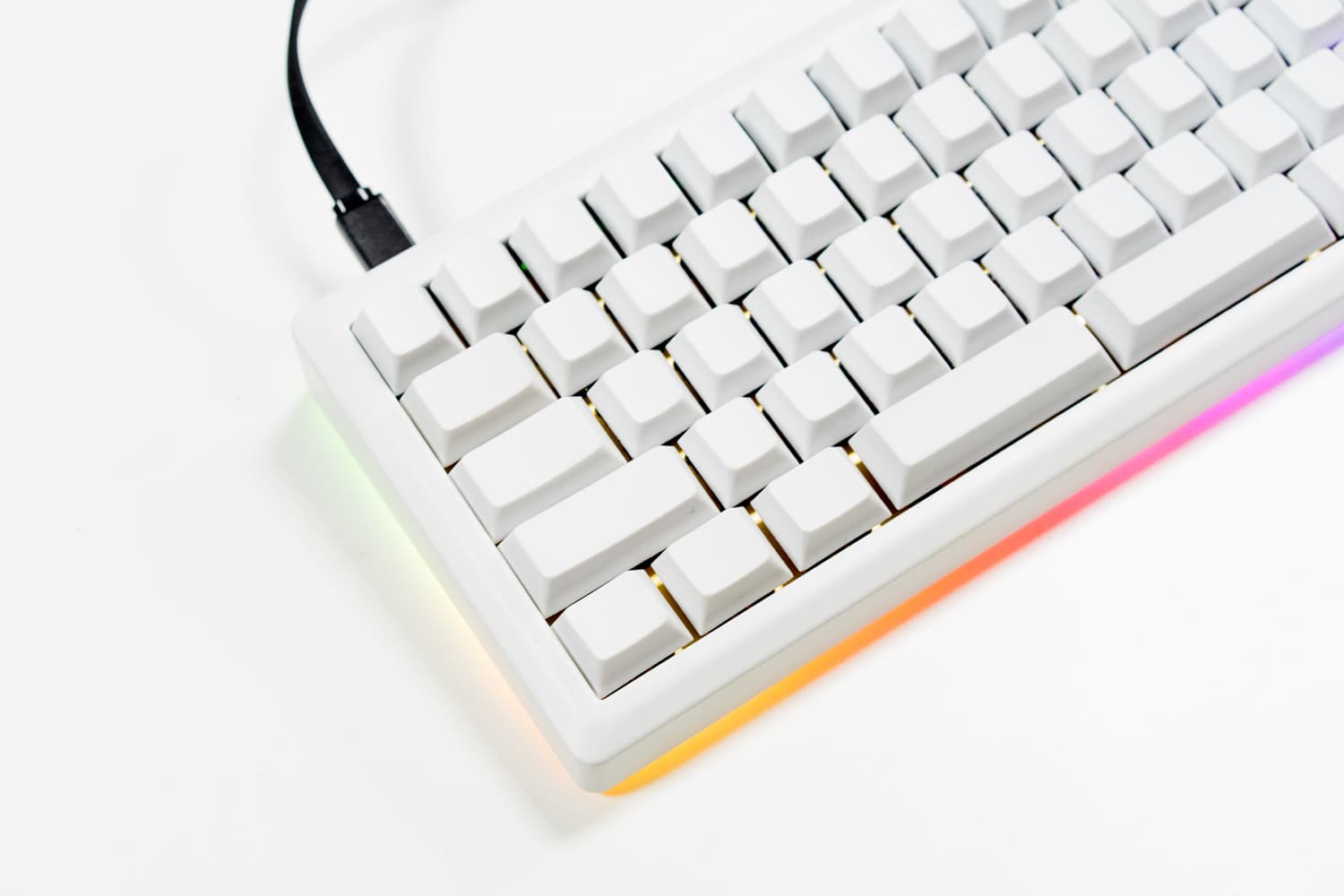

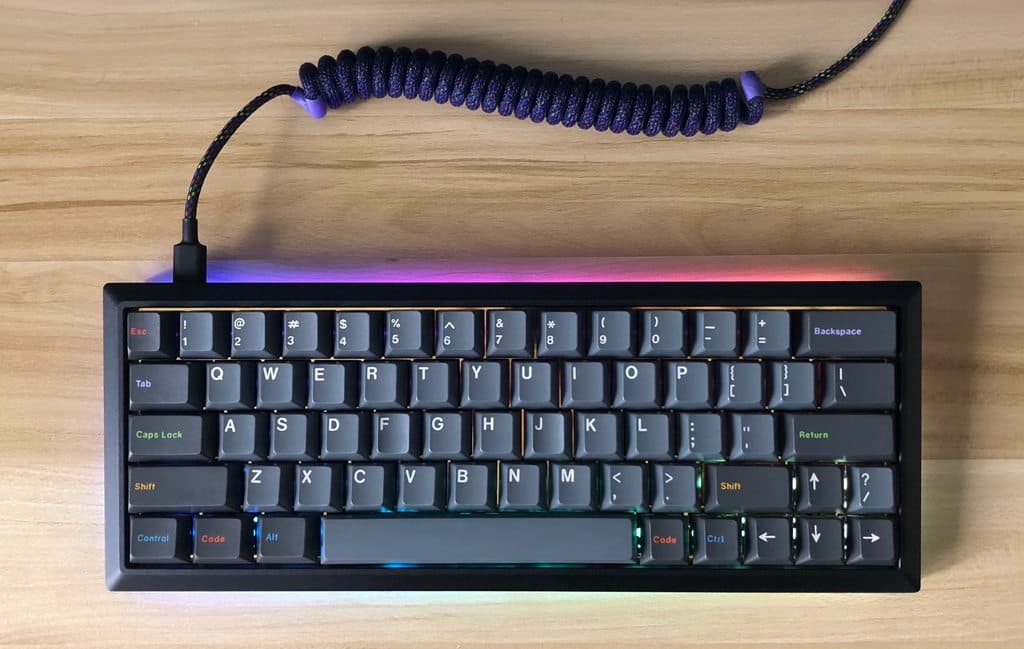

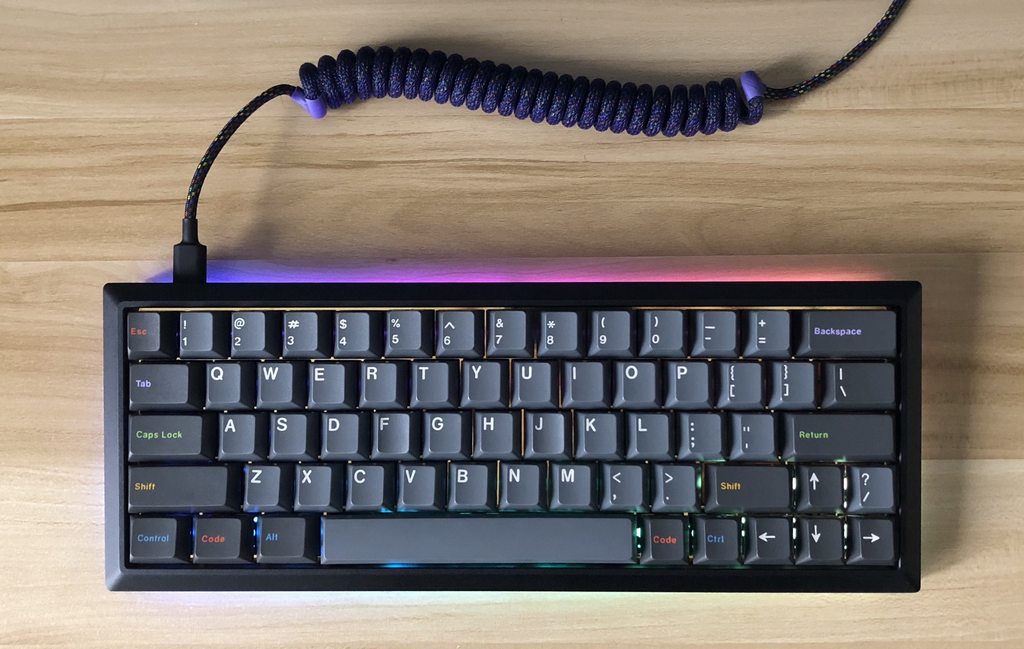

The design aims to provide the keyboard with a seamless aesthetic and underglow that is integrated rather than just an afterthought.

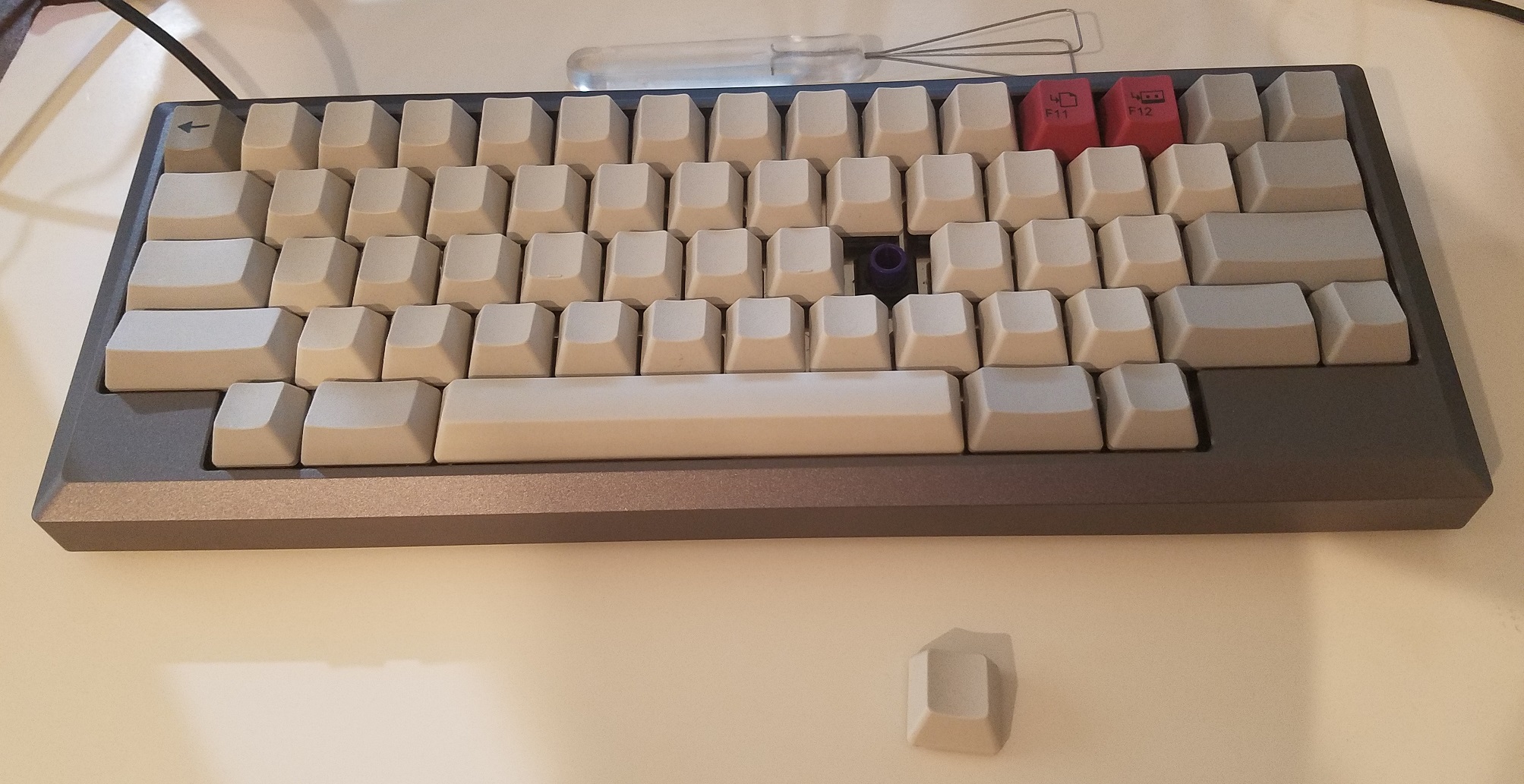

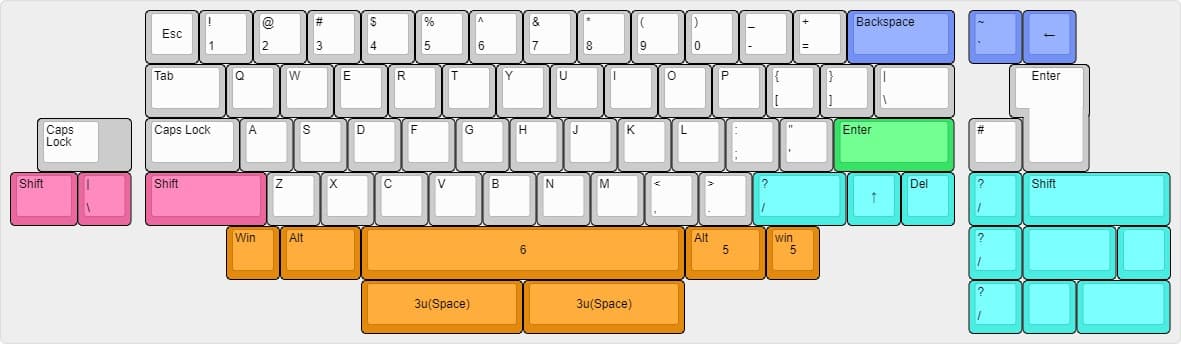

A unique features of the keyboard are the optional dual 3u spacebar layout which allows for splitspace with convex spacebars rather than what you would usually have with the 2.25/1.25/2.75 split.

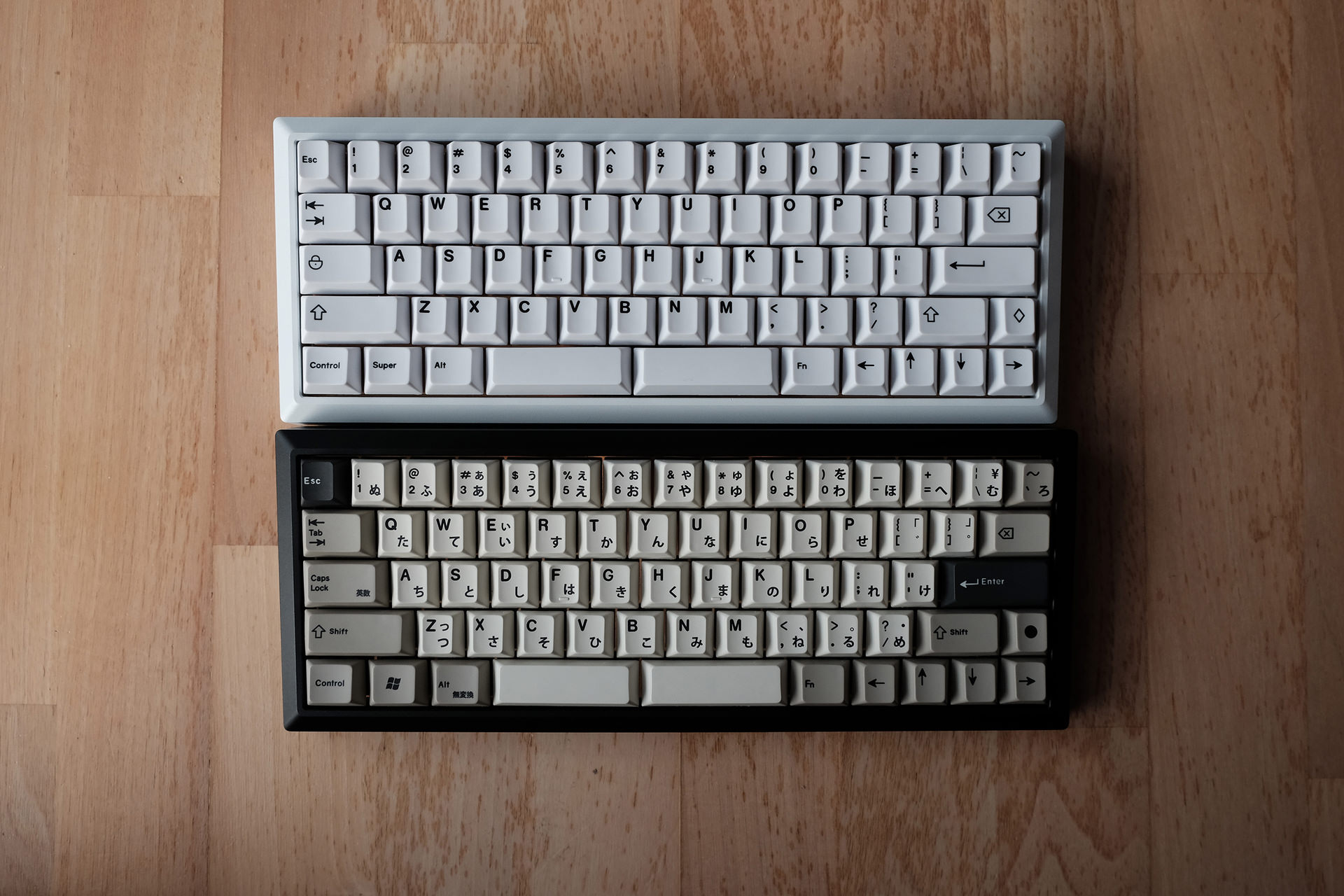

See more images with larger size here!PVD/DLCAnodizedSome moreR1 productsMajor changes in R2 :- Stainless steel instead of brass for DLC/PVD kitsDO60s PCB
- Major parts made in Taiwan
- Removed unpopular layout to reduce cutouts
- Removed universal USB port option
- Change to screw-in stabilizers
- upgrade to DO60s PCB (Kit compatible with DO60)
Links :Buying page : Check here
Interest Check Thread : https://geekhack.org/index.php?topic=92790.100
Group buy thread of round 1 : https://geekhack.org/index.php?topic=93969.0

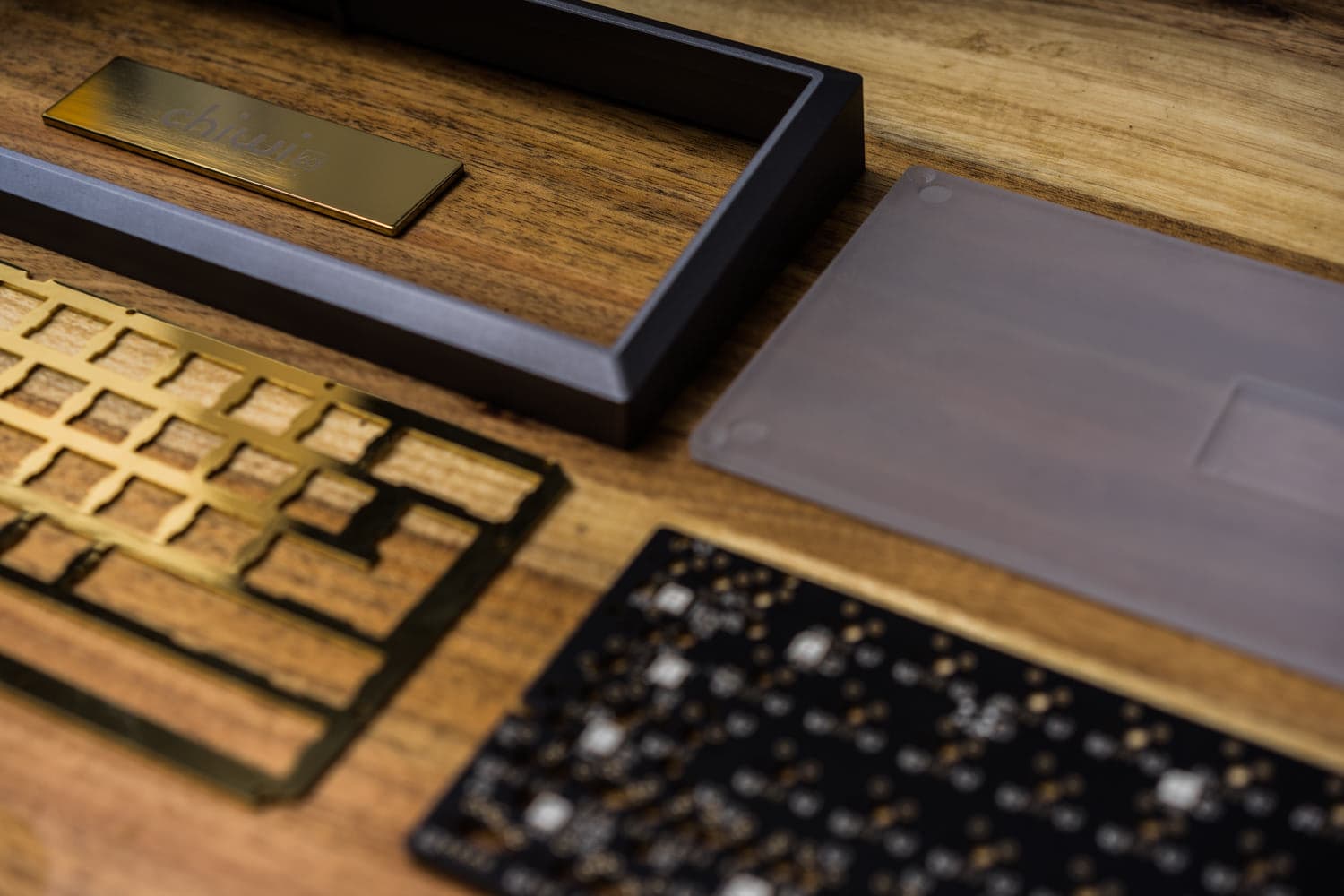

Kit include :- Body
- Mount plate
- Bottom plate
- Name plate
- Screws
- Round rubber feet
- Manual cards
- PCB
- Glove(DLC body kit only)
Features/Specs/Design :- Non-floating
- 7 deg angled
- Aluminum Body / stainless steel Body
- Brass plate and name plate
- PVD gold brass with mirrored polishing.
- PC bottom plate with sandblast
- 1.5mm thickness mount plate
Surface finishing:- Black DLC with mirror polished stainless steel.
- Sandblasted raw stainless steel
- Sandblast & ED aluminum for white
- Sandblast & Anodized
*Why not powercoating for white one?
1. ED offer a thinner and controllable coating layer
2. ED is much more even than powercoating
3. Lesser human work, stable quality, powercoating rely on worker skill more
Add-ons and Upgrades :- Wedged shape bottom piece
- Flat DLC/PVD bottom
- Extra PCB and plate
- Screw-in stablizers by Cherry
- Other combination? contact us!

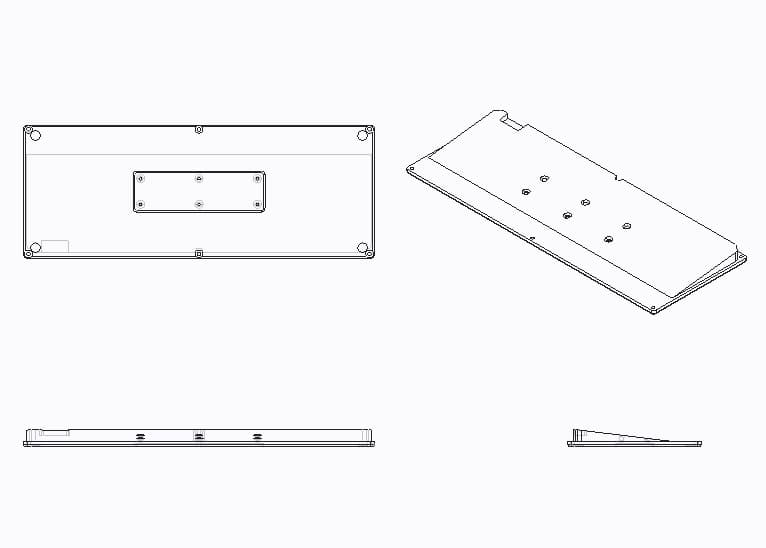

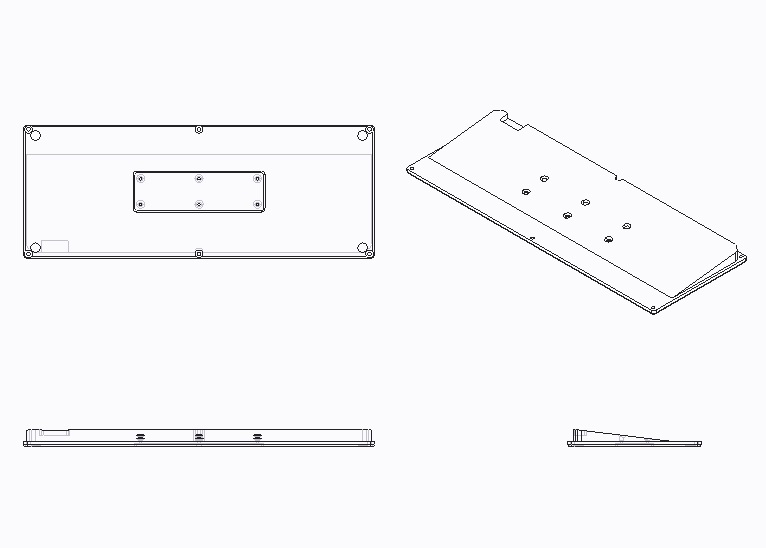

Wedged shape bottom design
Time frame & to do :Collecting orders till : Mar 18 '19 Extend to late Mar
Est. deliver : Sep, '19
For more details please
Find out on Trello* stabilizer pack contains :- plastic part for up to 6 caps (Genuine Cherry parts)
- 4*2u wires, 2*3u wires, 1*6.25u wire, 1*7u wire
Things you might want to know / FAQs :- Will XXX PCB fit this kit? :
Quick answer : NO.
Details : we made USB port fit with only 0.5mm tolerance for the cutout.
That means no other PCB will fit the design unless they made their PCB based on out design.
Which means the only 1 fit I know is PCB for Chiwi60 made by Maarten.
- Shipping cost :
put item into cart and you can check it before payment made.
If it not shows up, contact us with following info, so we can check shipping table db and spot issue:
1. Destination country
2. Address include will be appreciate
3. Order details include quantity. - Weight for kit(switches and cap included, cable not included)
Aluminum : around 1.2 kg
Stainless : around 1.8 kg
DLC bottom : around 0.8~1 kg
* weight might vary due to different layout or parts using - Will bottom and plate fit R1 ki?
Yes, but we didn't list it.
If you want one of them, please contact us include one of the following info, we'll check what layout you have :
1. directly tell us your layout include pics (sorry, we found there's people confused with layout name)
2. Order number
3. Order mail (not paypal id if you use 2 mail address)
4. Other info, ie. paypal transaction id, paypal user id, name of billing or shipping. (Other info might hard to find correct info or take longer time) - Will we run away with your money?
Maybe A_A
