Ellipse 60% keyboard by Skepur | GB ENDED

What is Ellipse about?
Having been in the hobby for a while (since late 2015), I’ve seen plenty of 60% designs, trends and features.
This made me hesitant to do a standard layout design as I didn’t know what to add to the table without the design looking… like a nice rectangle.

Ellipse is my take on the always popular and in-demand 60% keyboard layout. It also marks a new chapter in my journey in keyboard design.
I thought about making Ellipse a bit more… different while still keeping it sleek, modern and versatile.

My goal with Ellipse was to design a board that:

• Kept in with that “minimal & sleek” look which so many of us like and chase.
• Set itself apart from other 60% keyboard designs from a “top-down” view.
• Offer true customizability within a single keyboard for the end-user to experiment and build his own preferred setup.

Notable features

• Lovely and unique elliptic curve to the front and back of the keyboard.
• Compatibility: designed with long-term support in mind. Compatible with Bakeneko60-like PCBs, open-source plate file availability for all layout options.
• Case layout options: Winkeyless (WKL) or Winkey (WK).
• Three mounting styles for end-user to explore:

  • “Hamburger” mount - offering that “old-school” top-mount with softening the upstroke.
  • Isolation gasket mount - everybody likes a tasty sandwich, heh?
  • O-ring mount - keeping up with the trends and that o-so-nice thock.
  • Hybrid mount (Experimental) - "Hamburger" mount in the back, gasket mount in the front and vice-versa.

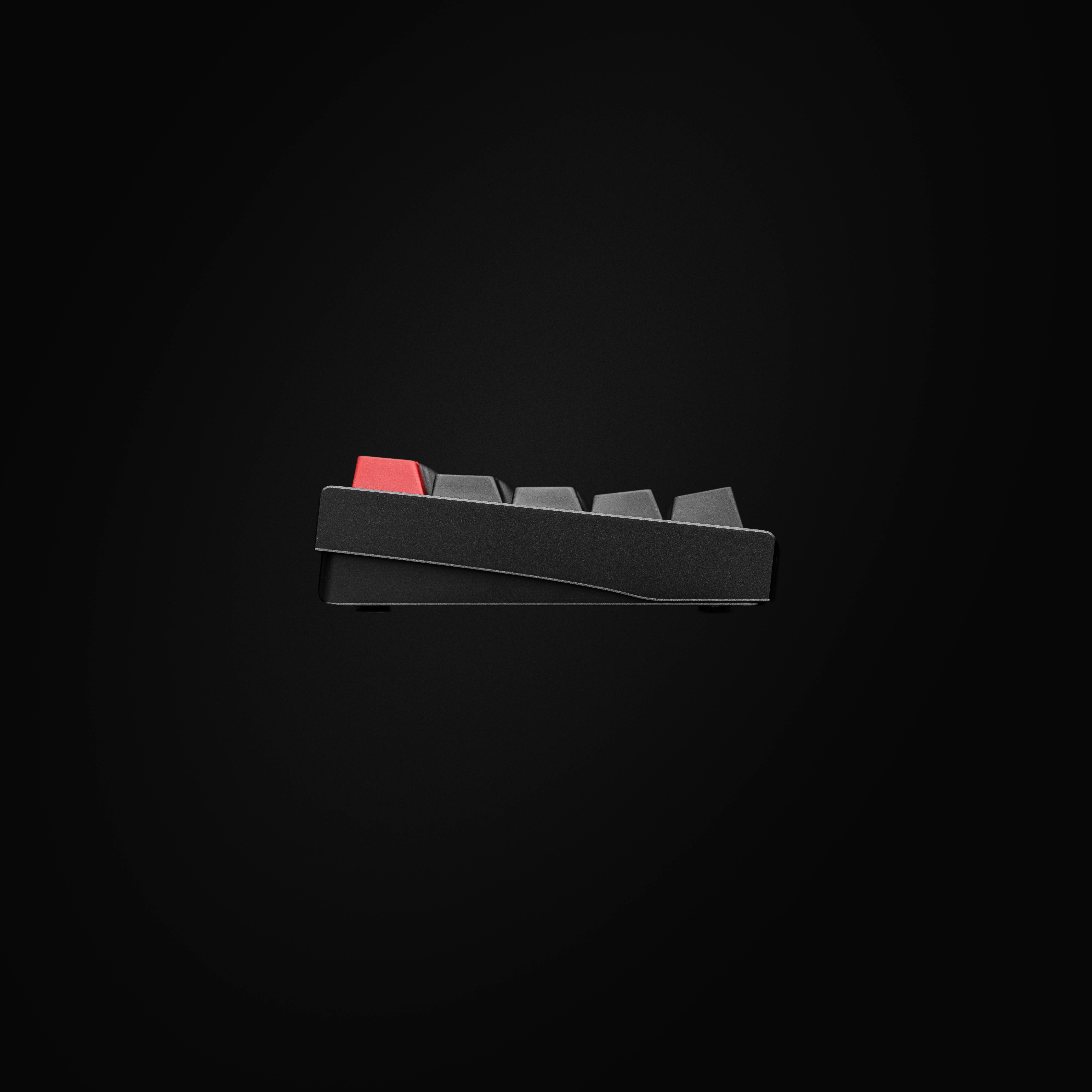

• Typing angle: 6 degrees

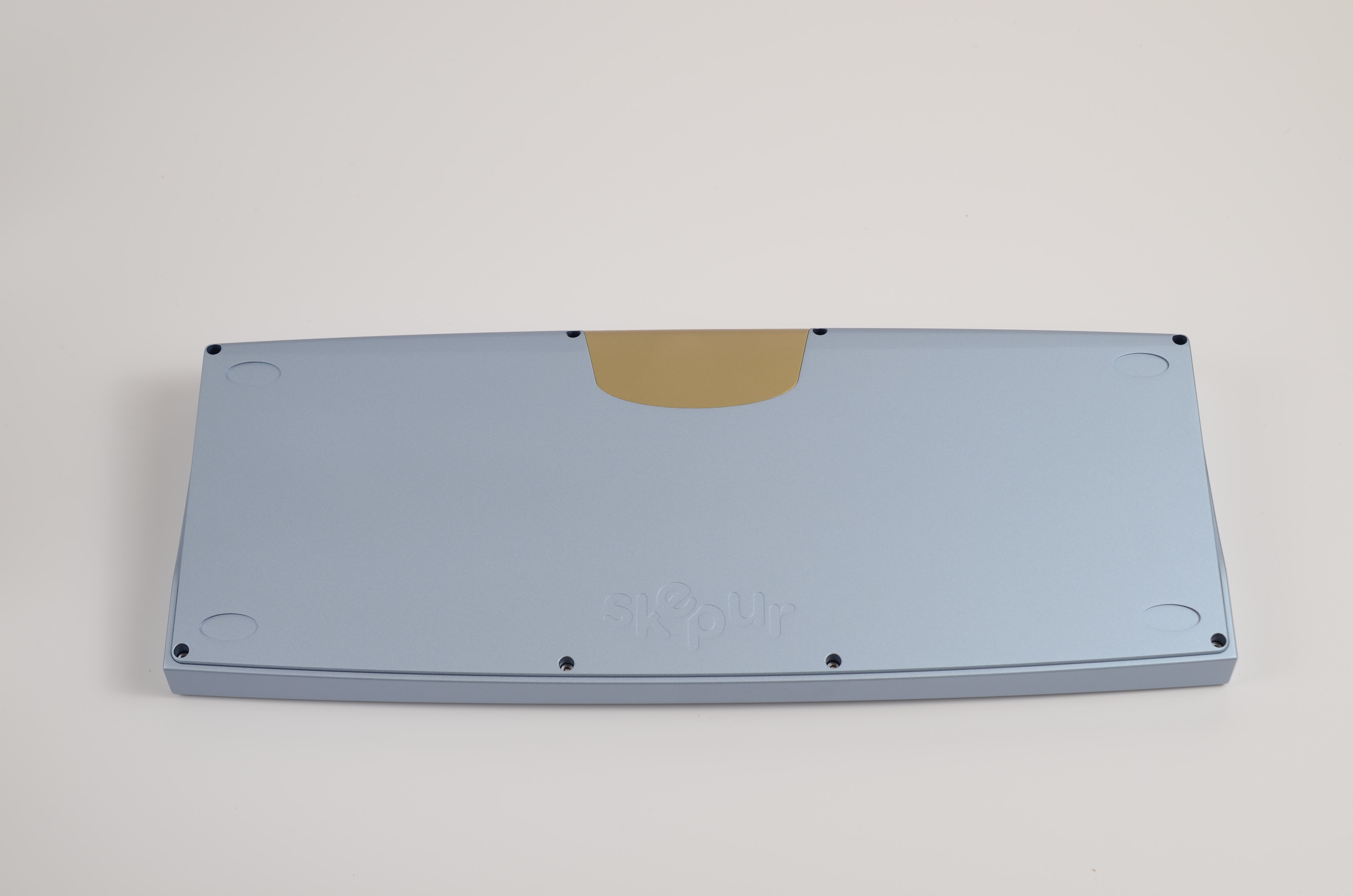

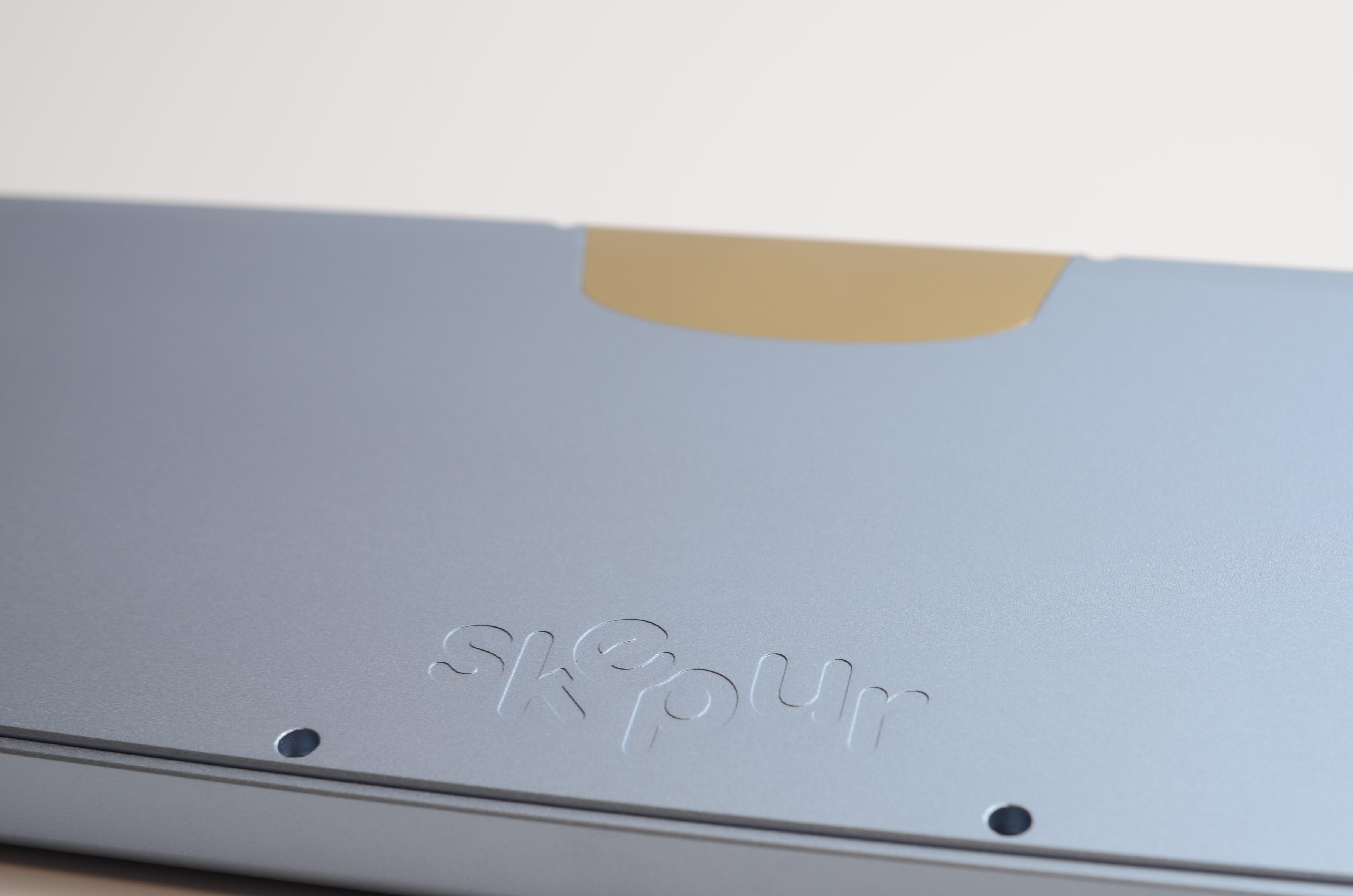

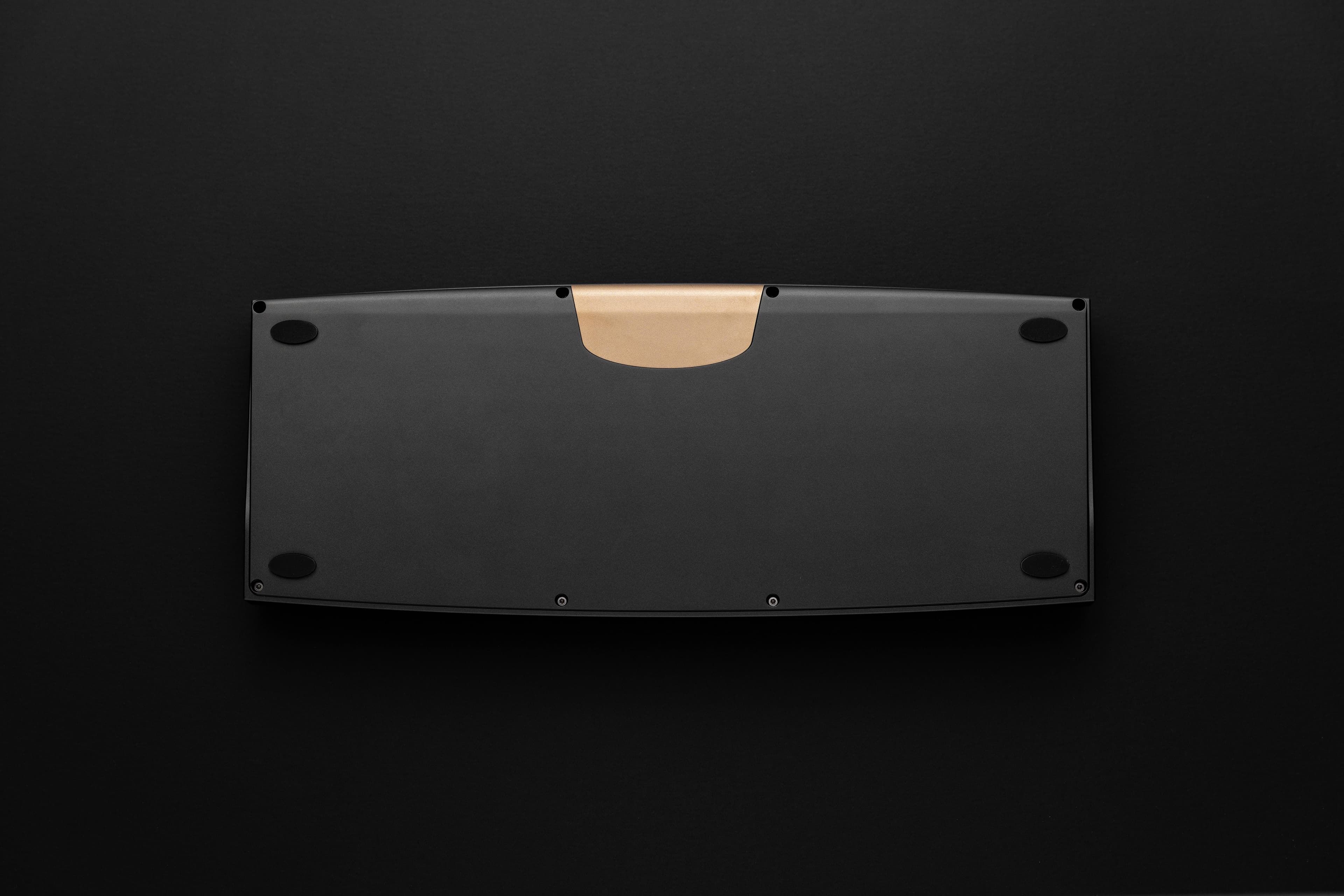

• Case materials: Aluminium case w/ brass accent piece.
• Plate materials: Aluminium; FR4; POM; Carbon Fiber.

Comment: Gaskets will come with light adhesive so they will be easily removable/re-apply-able when switching mounting styles.

Group buy information

Group buy will run from November 26th till December 16th 2022. Estimated ship date - late Q2 / early Q3 2023.

Colourways

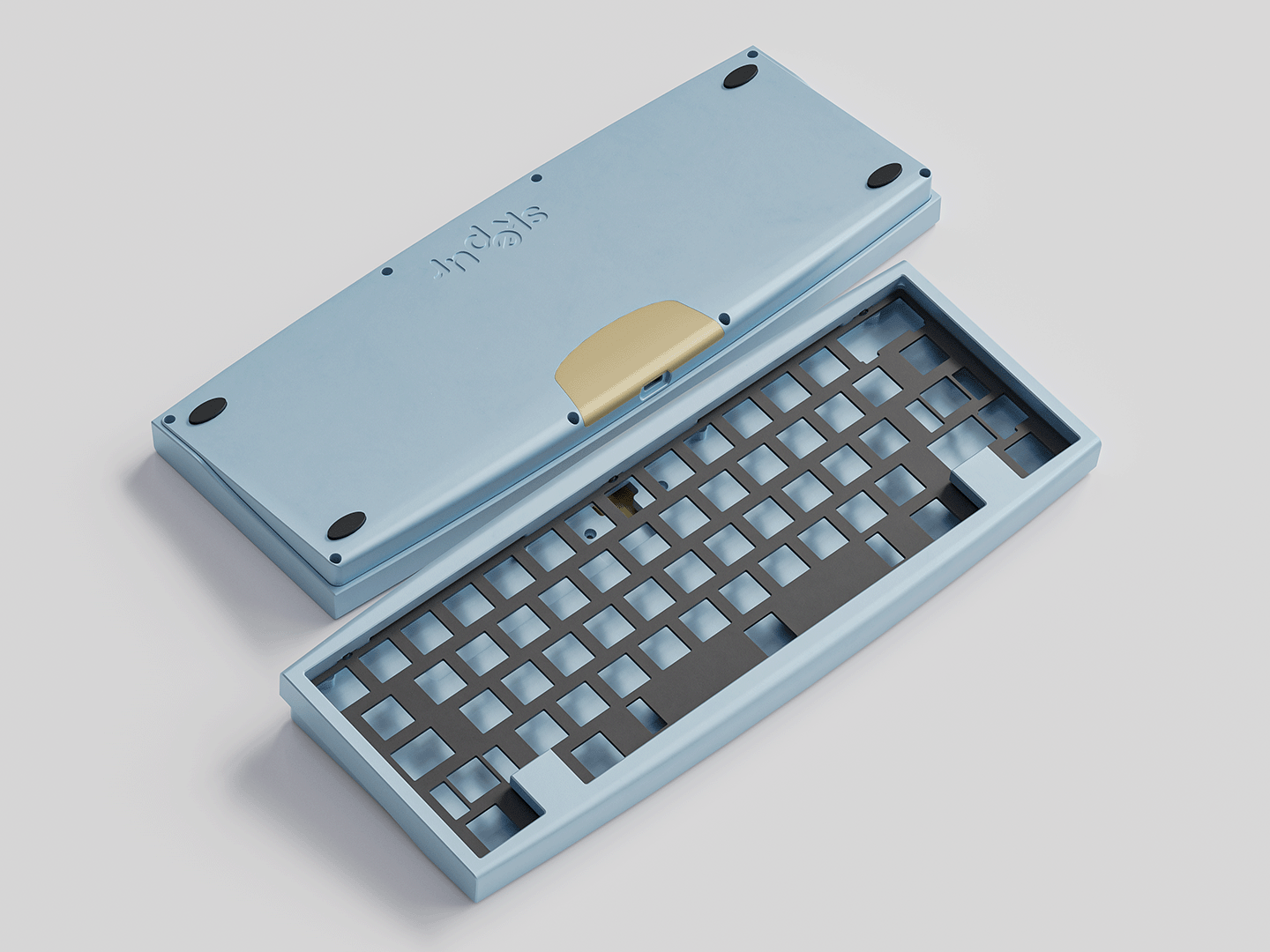

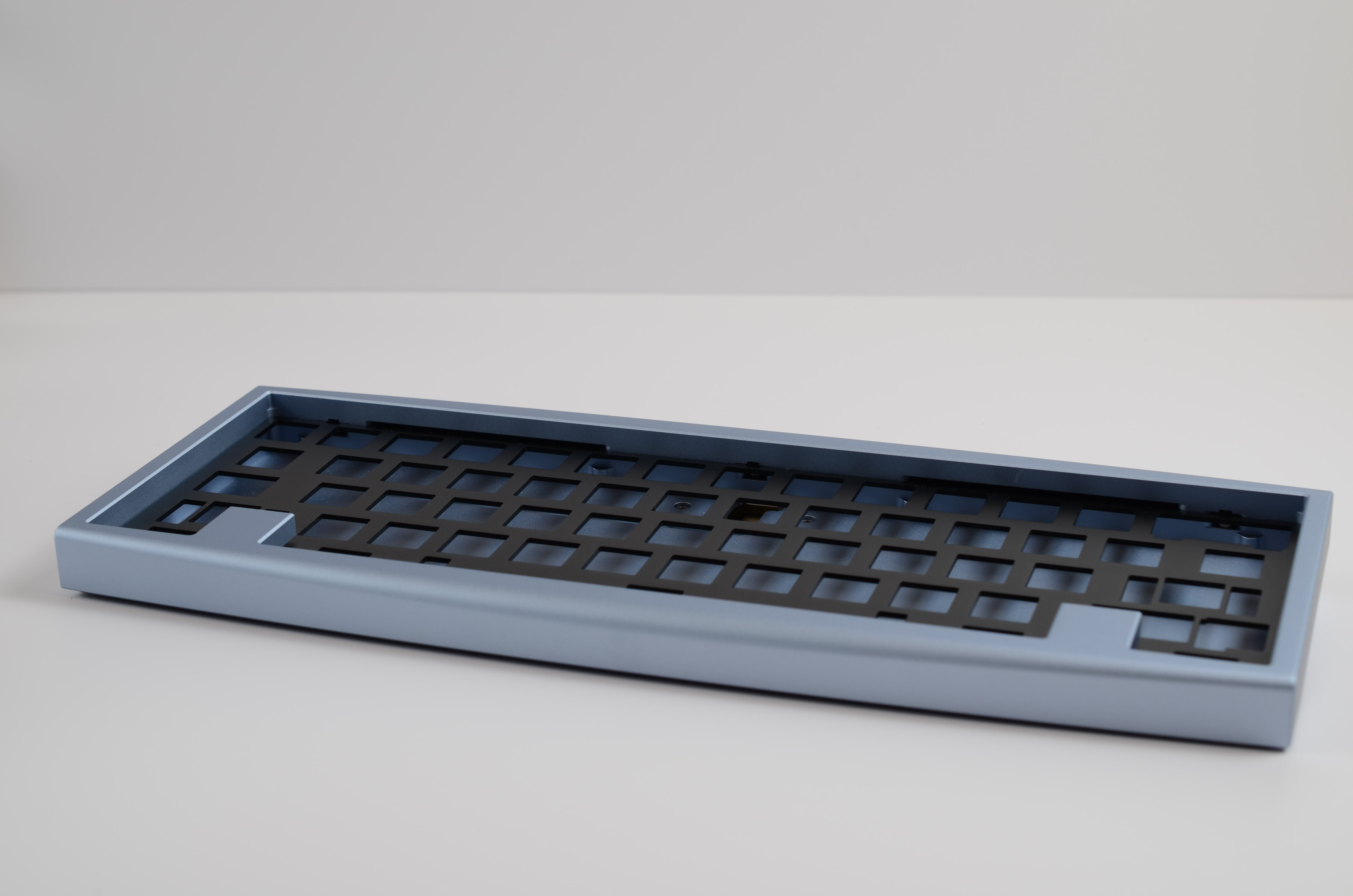

Ice Blue

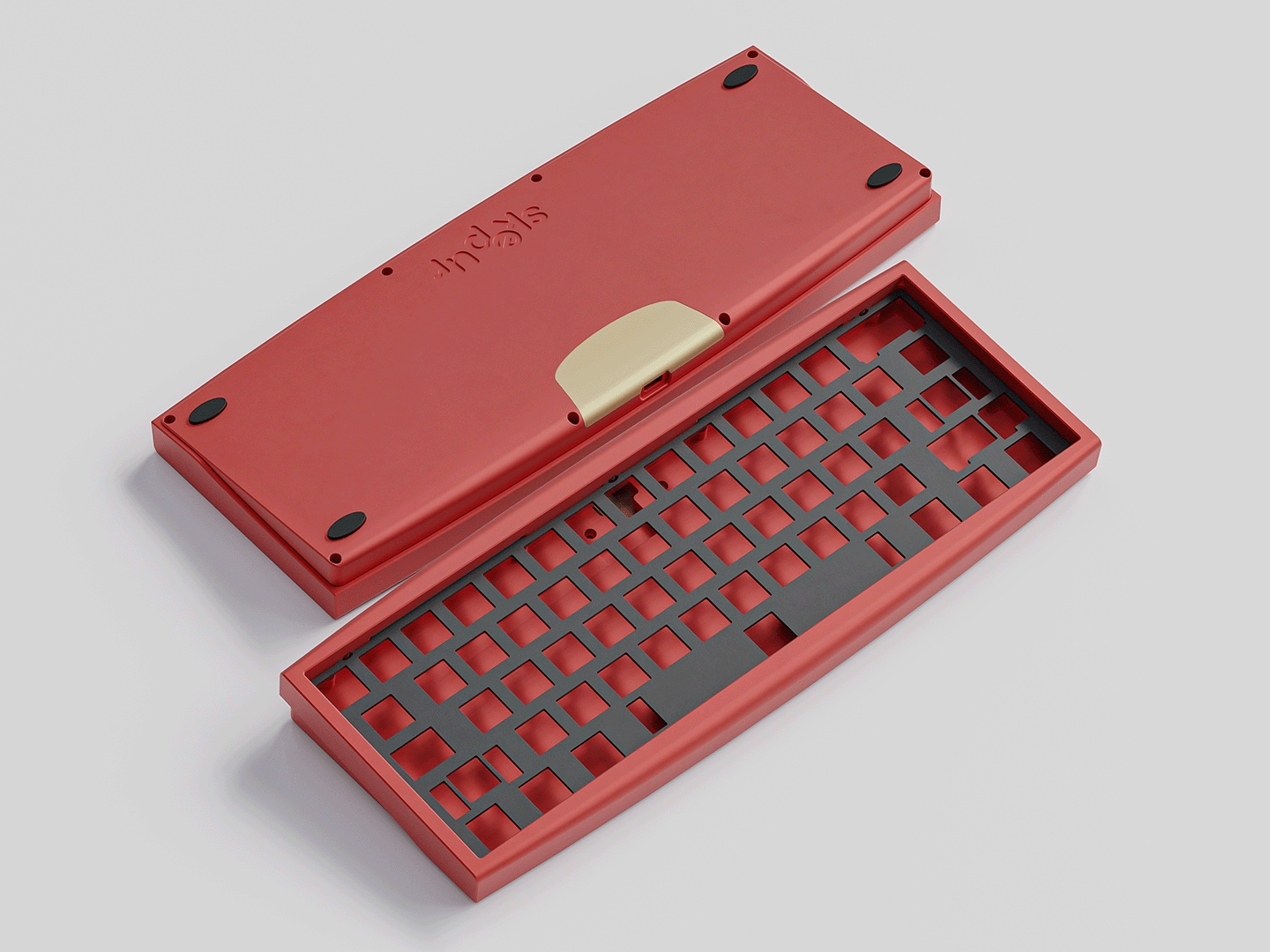

Pure Red

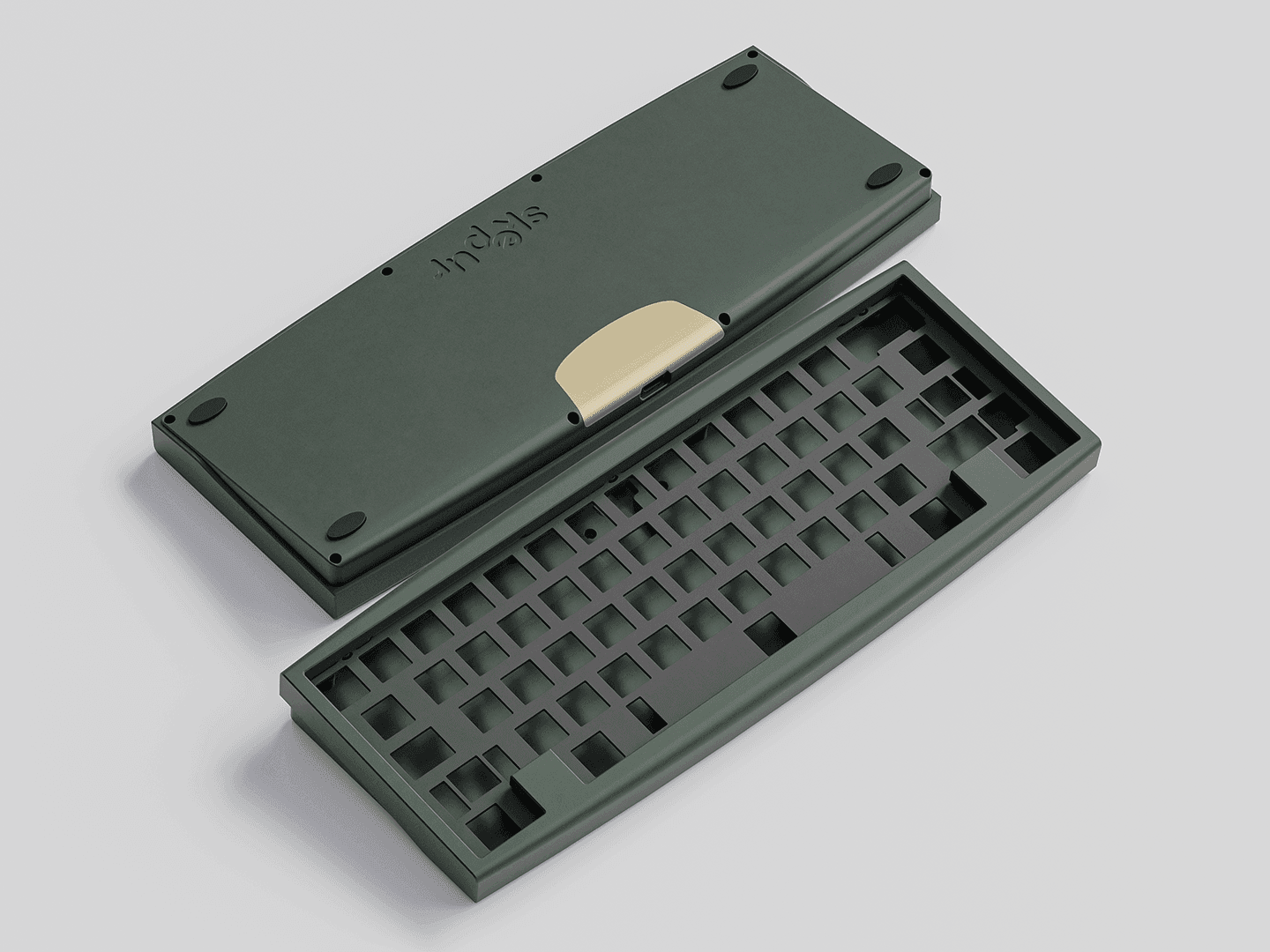

Dark Green

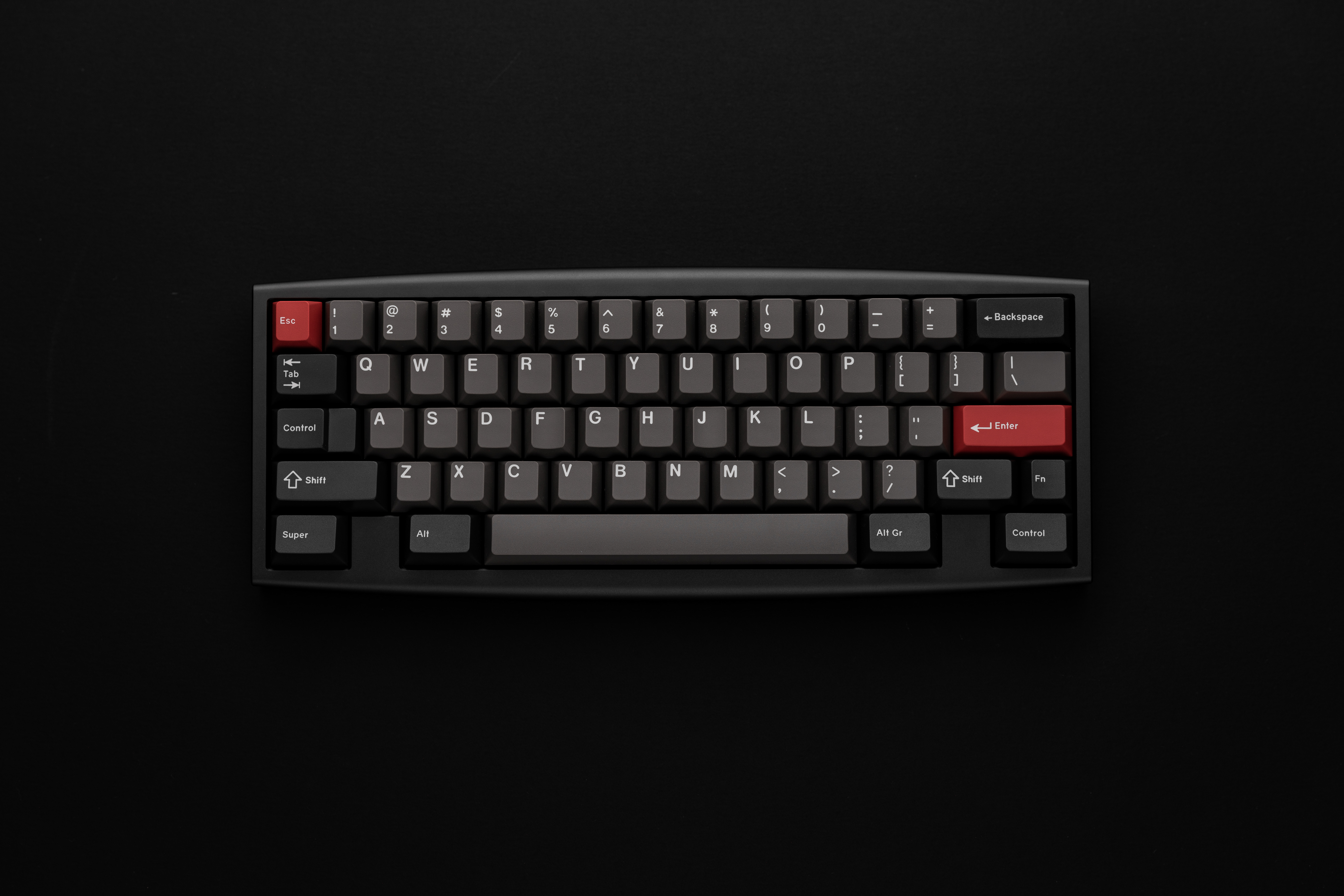

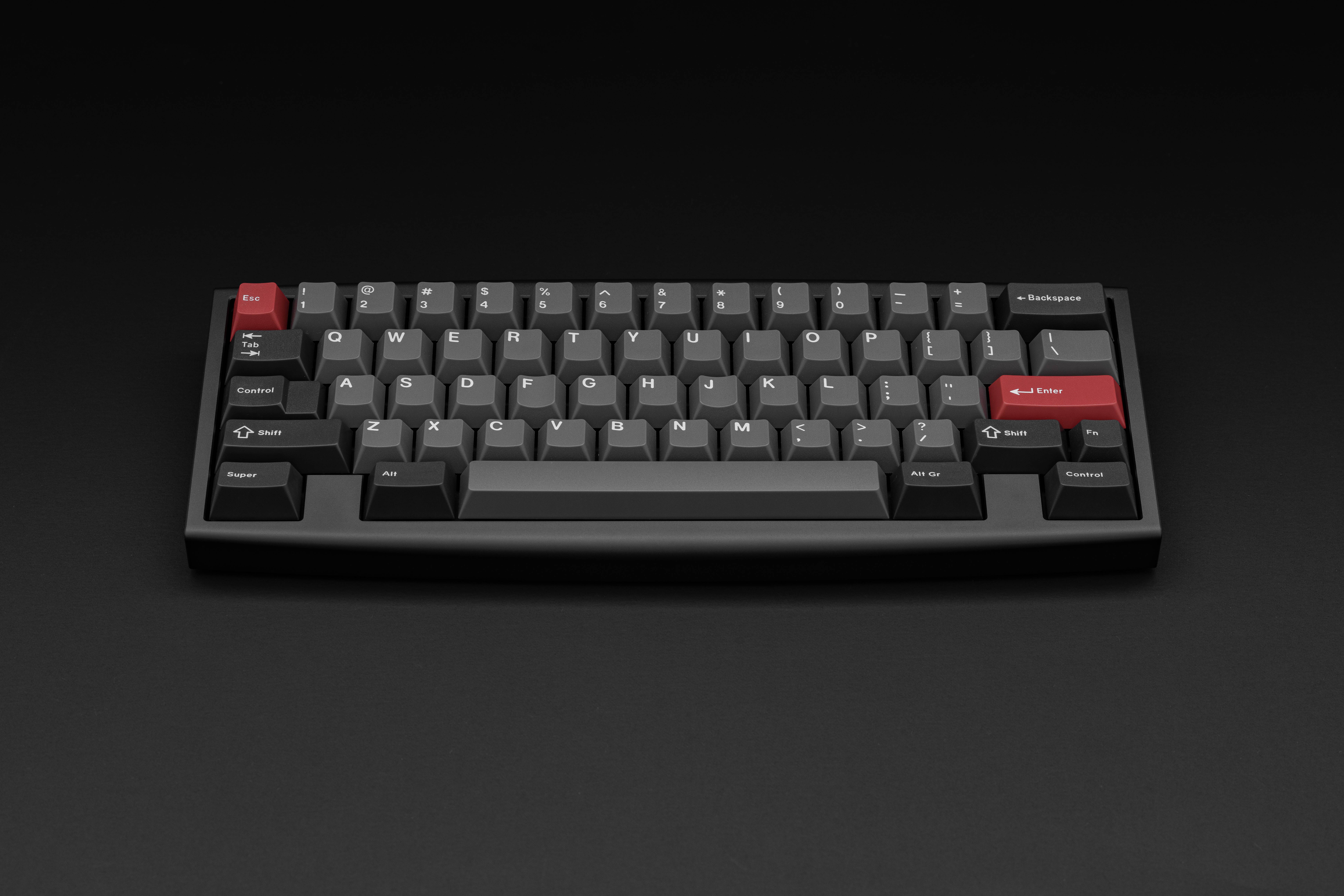

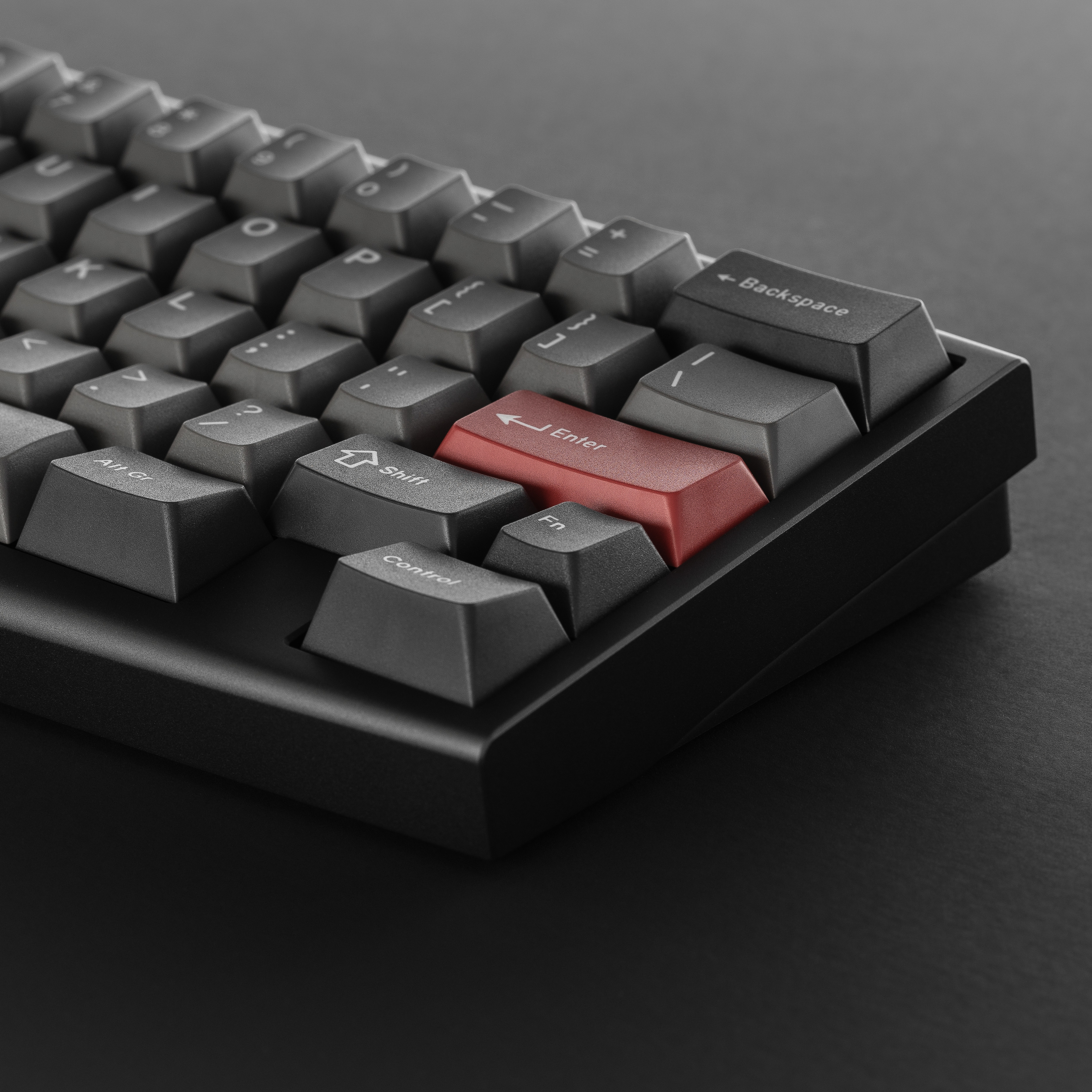

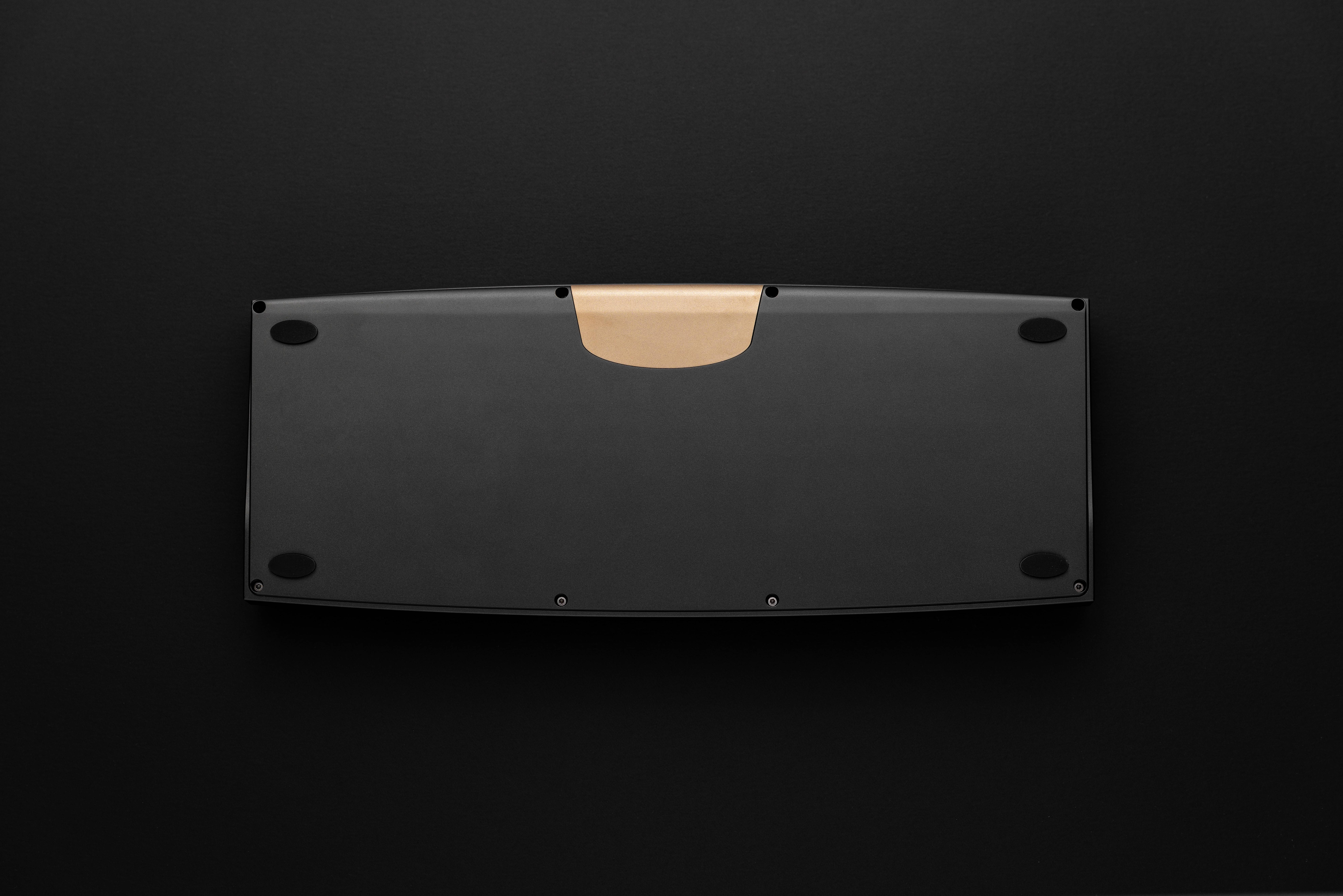

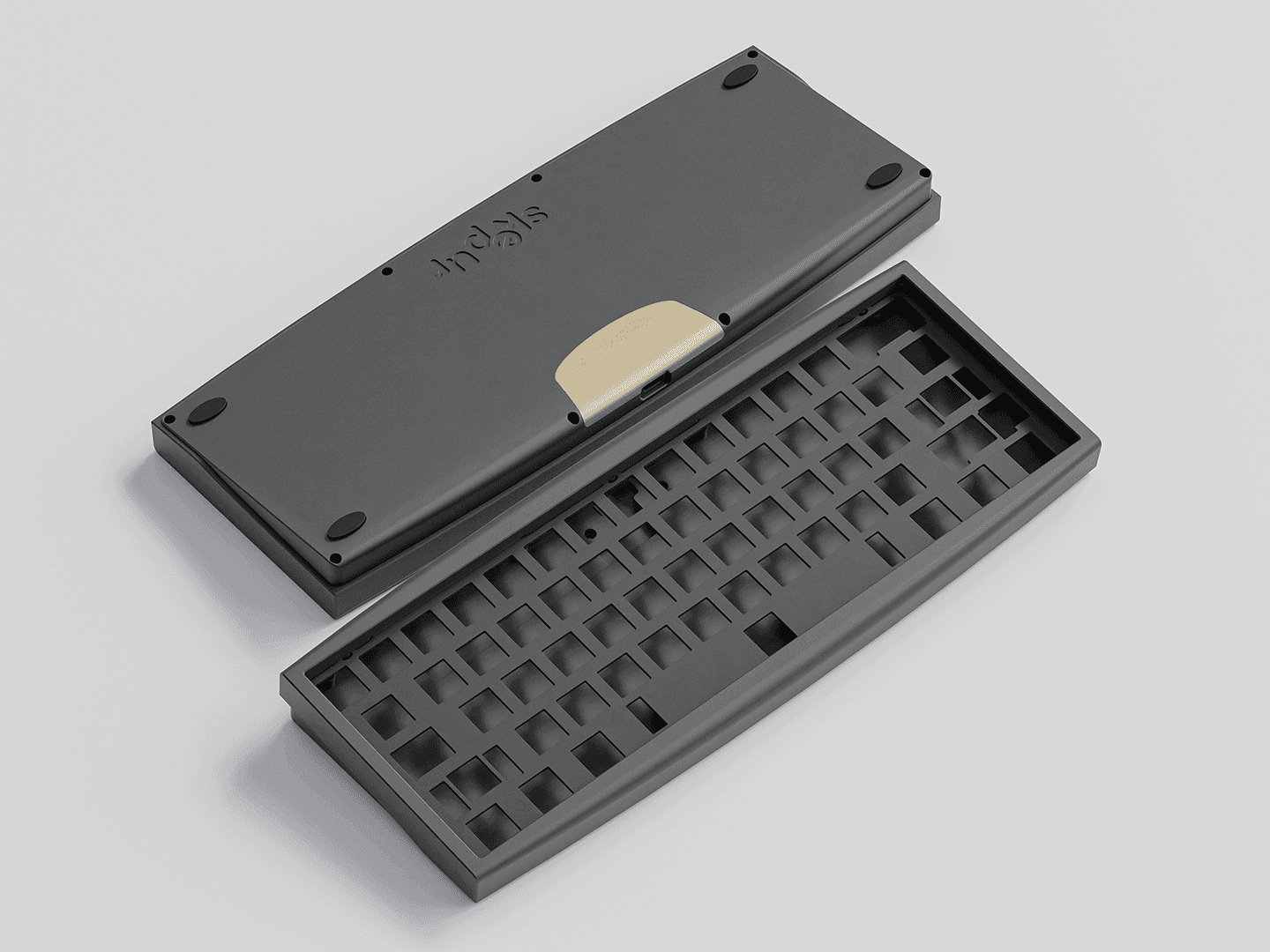

Dark Gray


Included in base kit + list of add-ons

The base kit will contain the following:

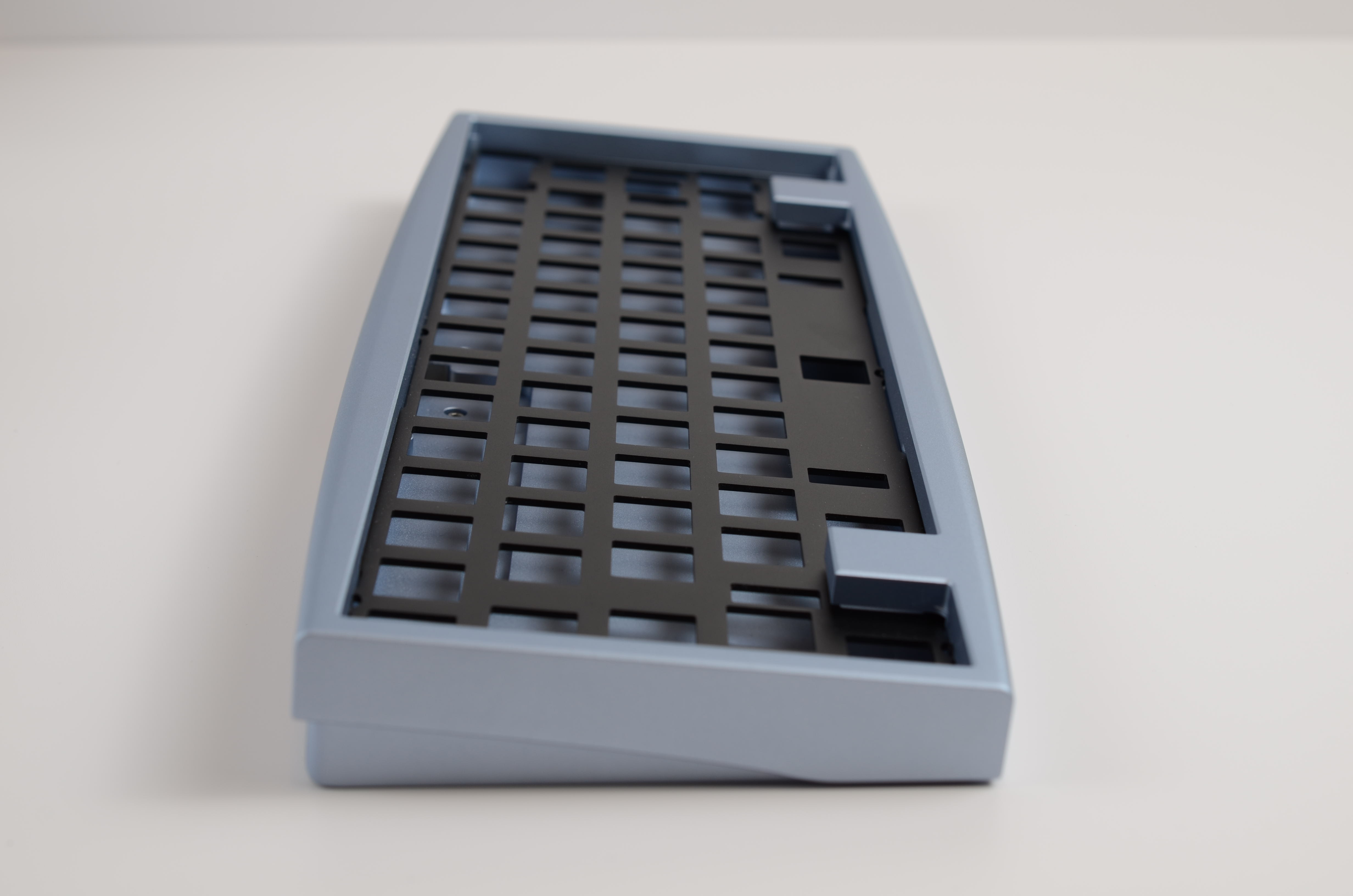

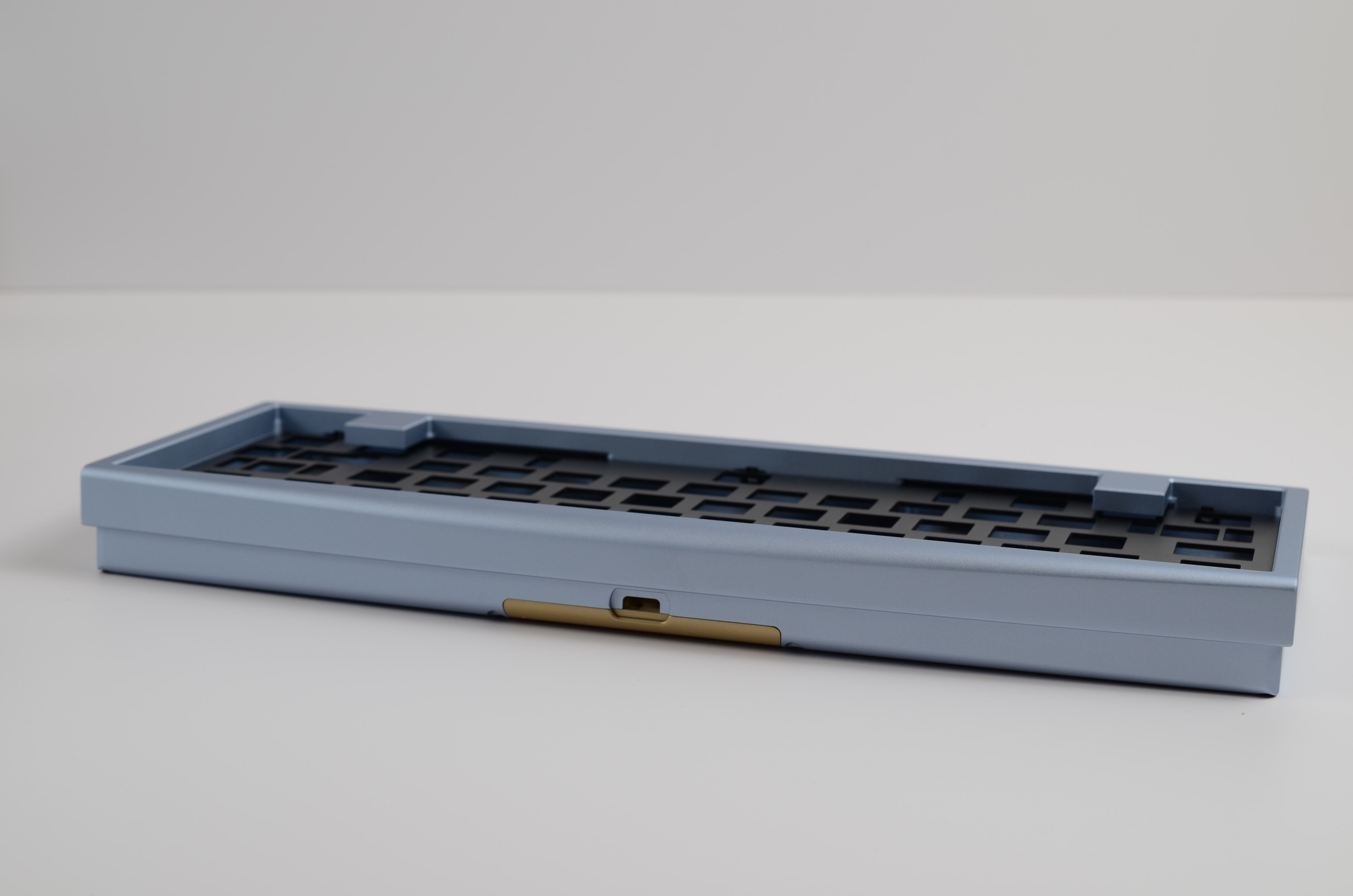

• Ellipse keyboard case - top piece/bottom piece/weight

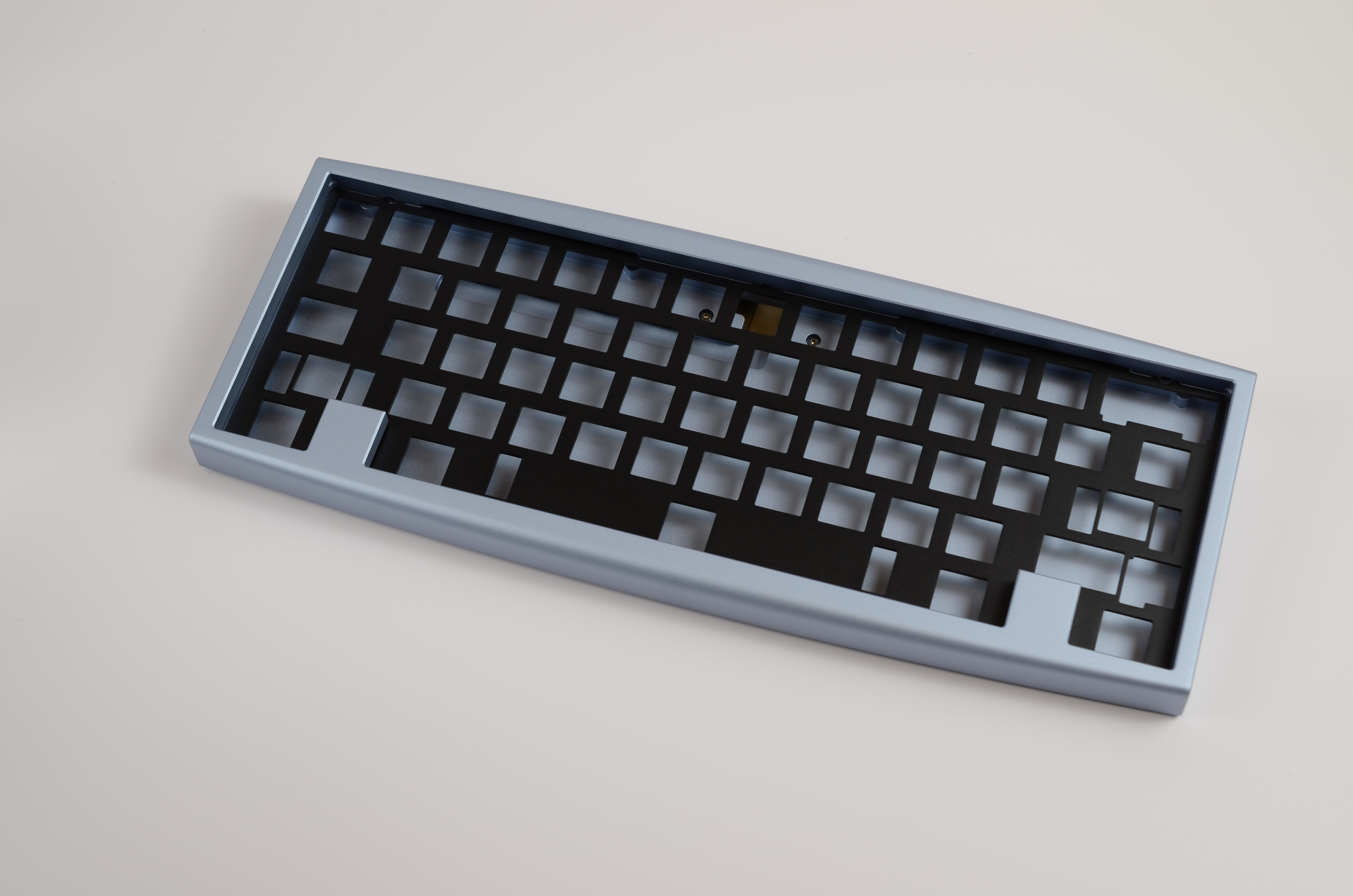

• Full aluminium plate in black - ANSI with Tsangan bottom row
• CK carry case + microfiber cloth
• All necessary hardware: case screws (8x), plate screws (6x), DB screws (4x), gaskets (8x), gummy O-ring (duro - 50A (1x), "hamburger" O-rings
• PCB (1x - solderable OR hot-swap, depending on your choice) & DB with JST cable (1x)
• Custom die-cut bumpons/feet (4x)

Add-ons offered:

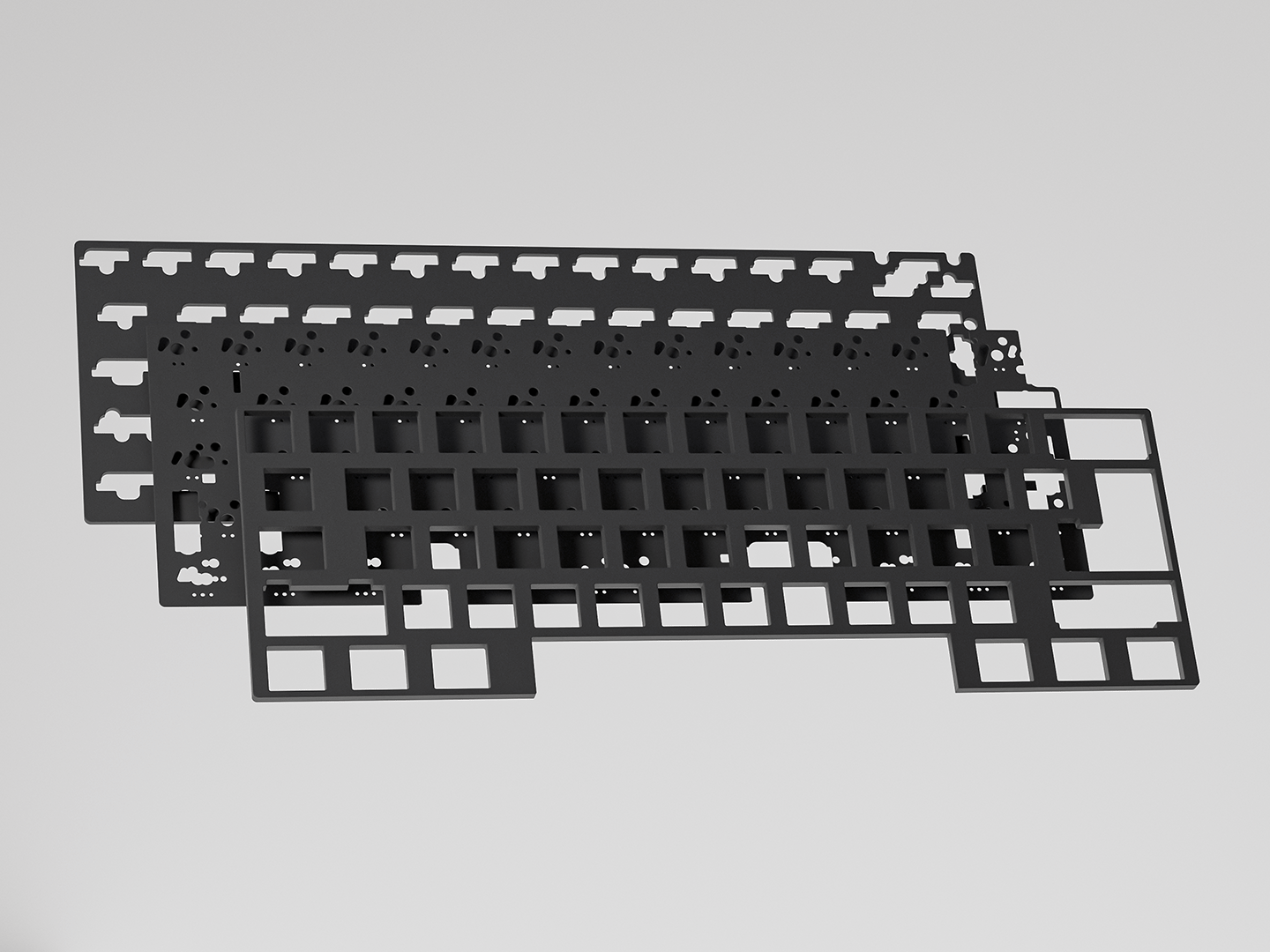

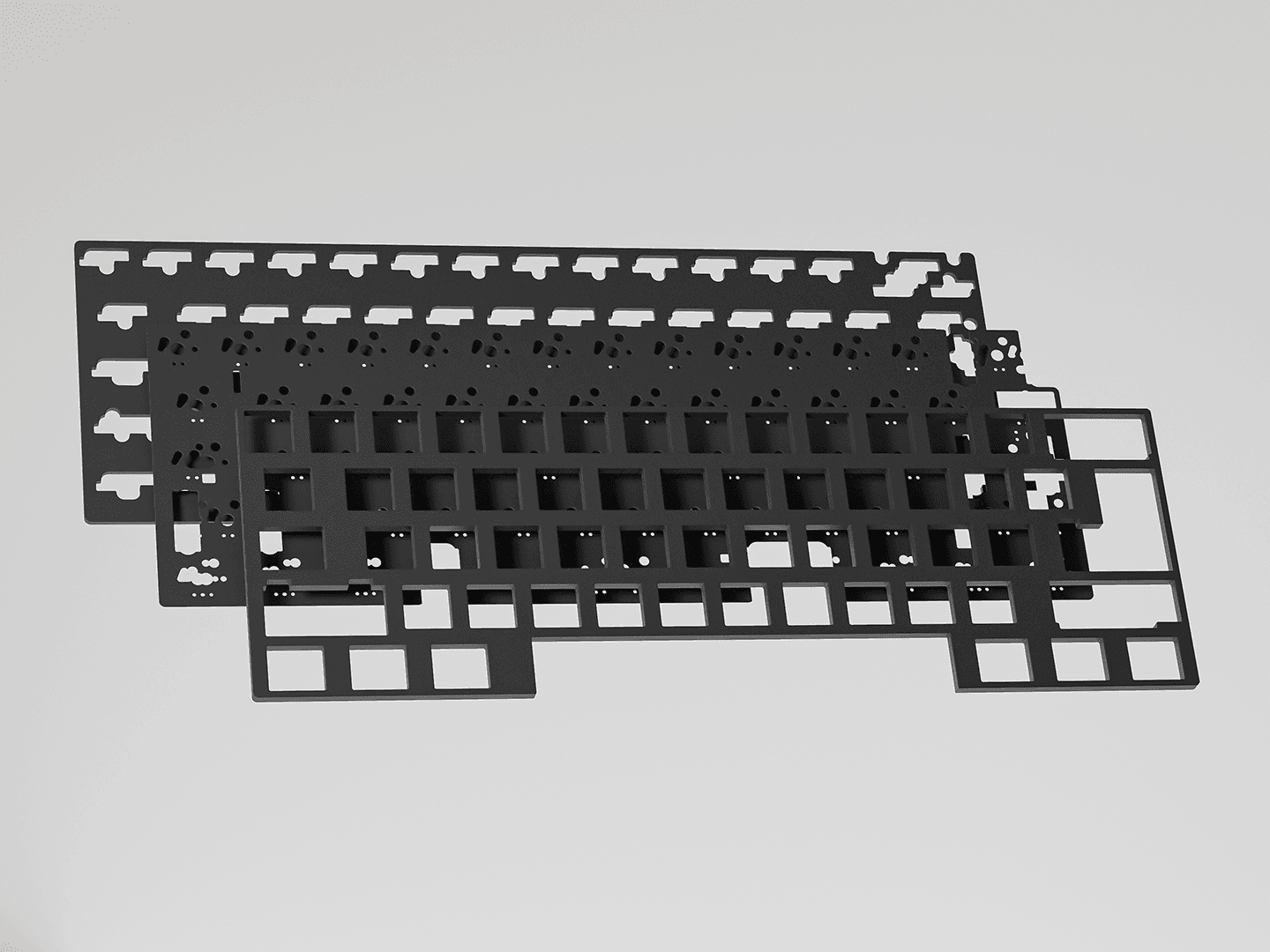

• Extra plate options:

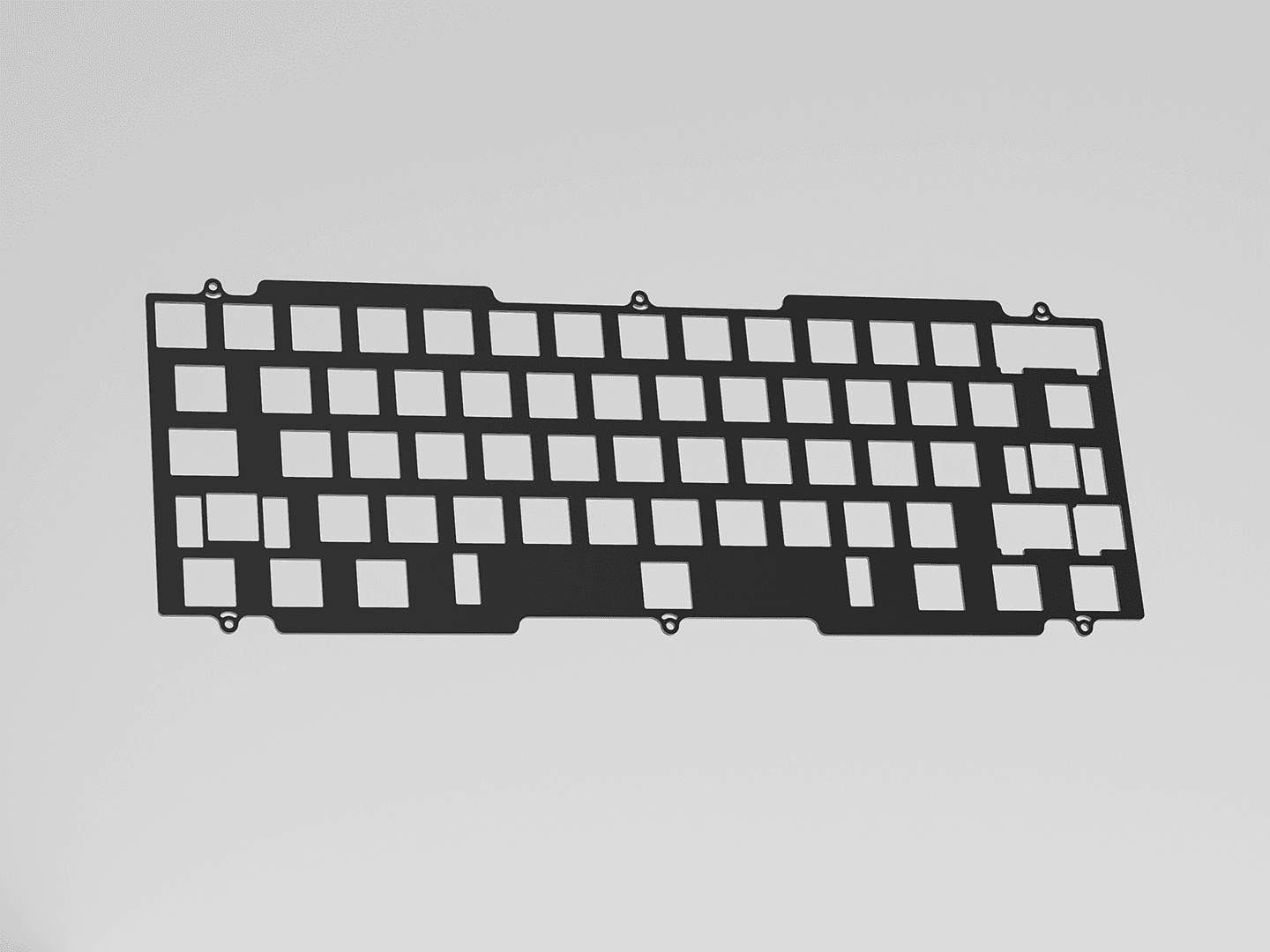

  • Black full & half aluminium plates

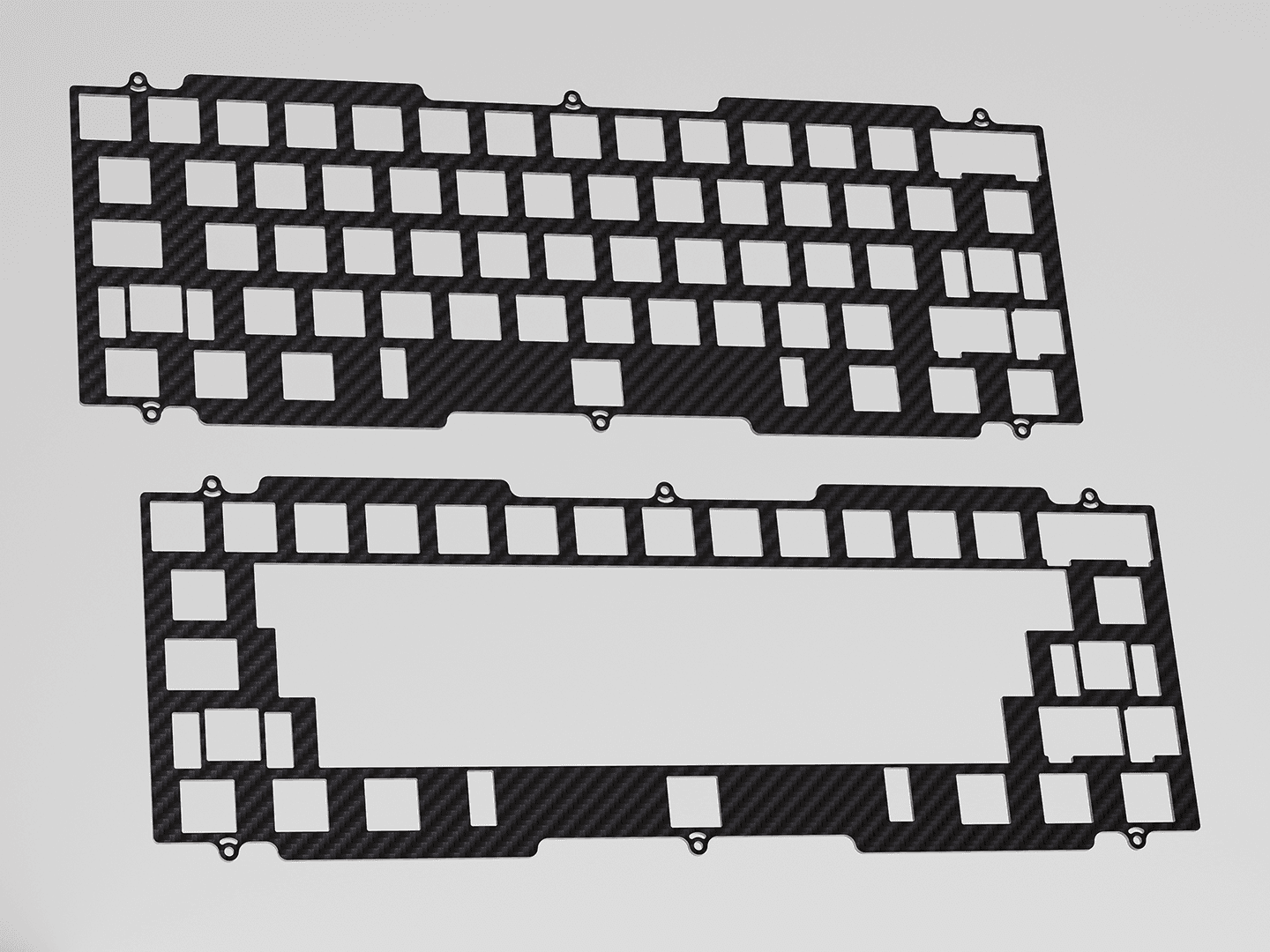

  • Full & half carbon fiber plates
  • Full POM plate
  • Full FR4 plate
• Extra DB & JST cable kit
• Optional foam dampening kit
• Extra PCBs - both solderable and hot-swap variants
• Extra bumpons/feet

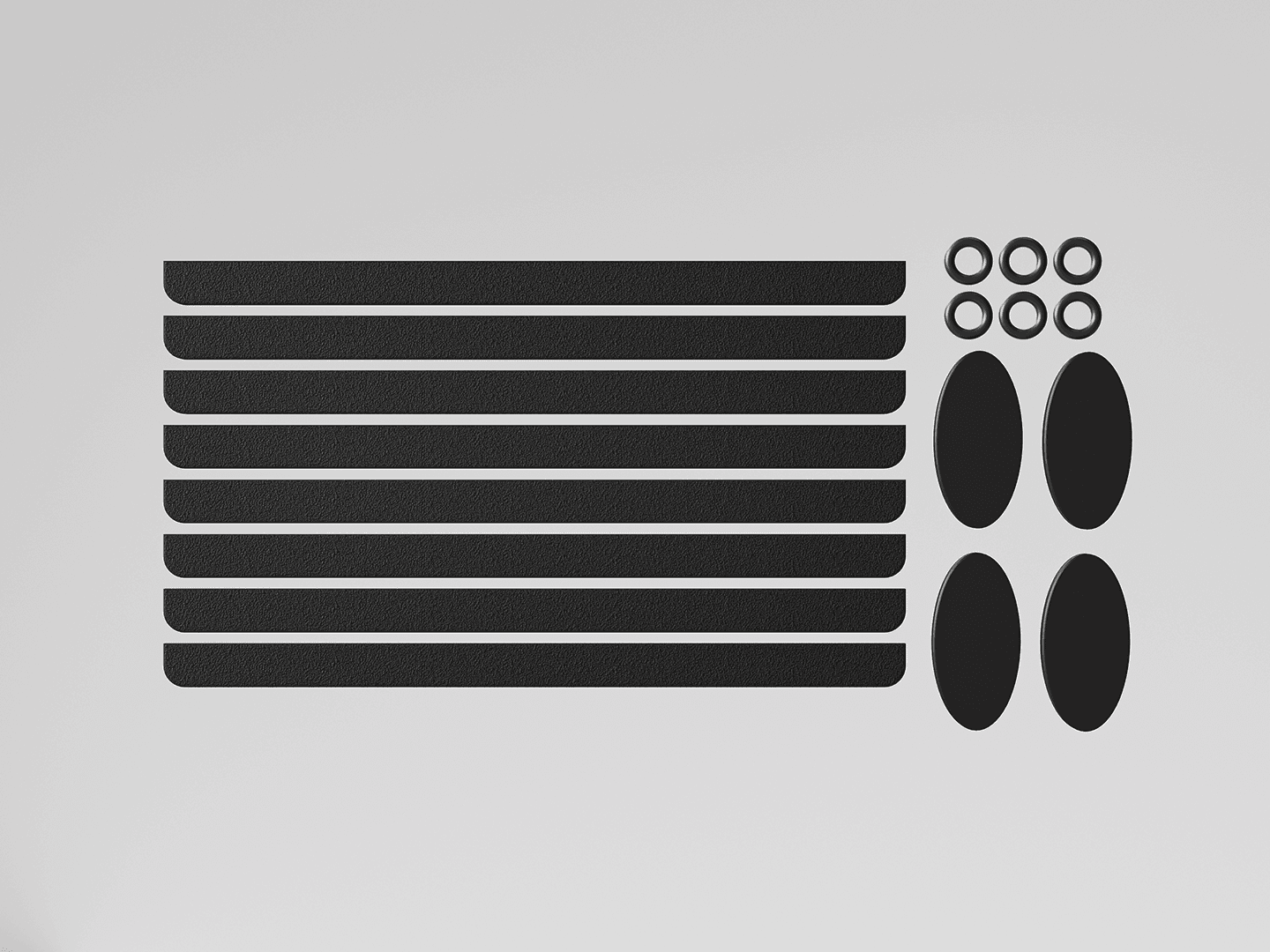

• Extra gaskets
• Extra gummy O-rings
• Extra "hamburger" O-rings kit

Renders of add-ons


Please check layout compatibility depending on your PCB choice.

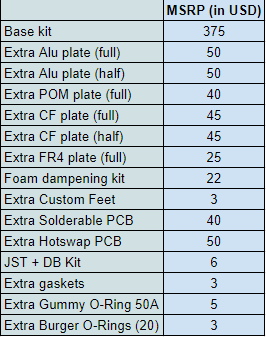

Pricing


Vendors

• The Main vendor will be Cannon Keys.
• Proxies:

  • UK - Proto[typist]
  • OCE - Daily Clack
  • Europe - Oblotzky Industries
  • Asia - ilumKB
