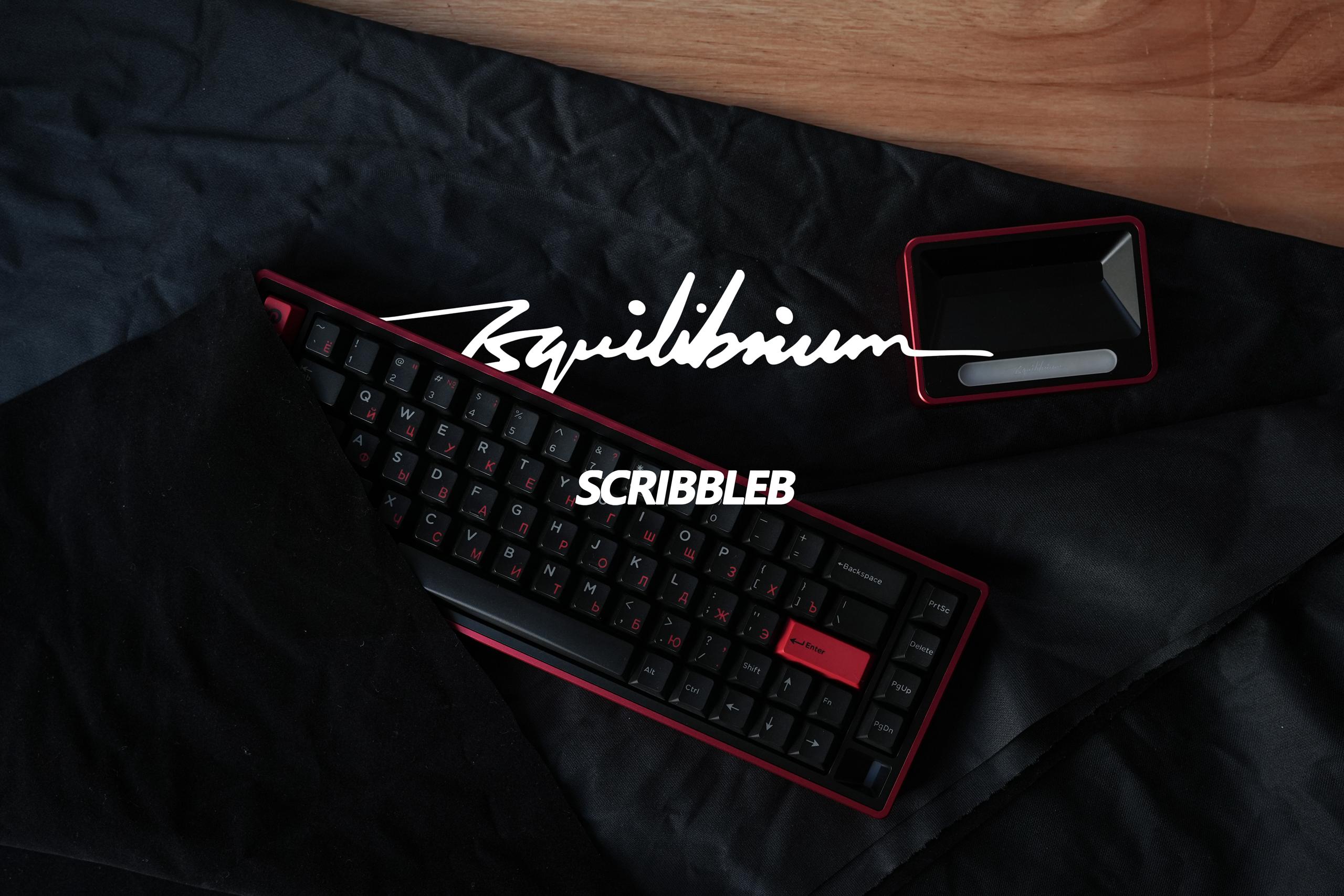

1. Intro

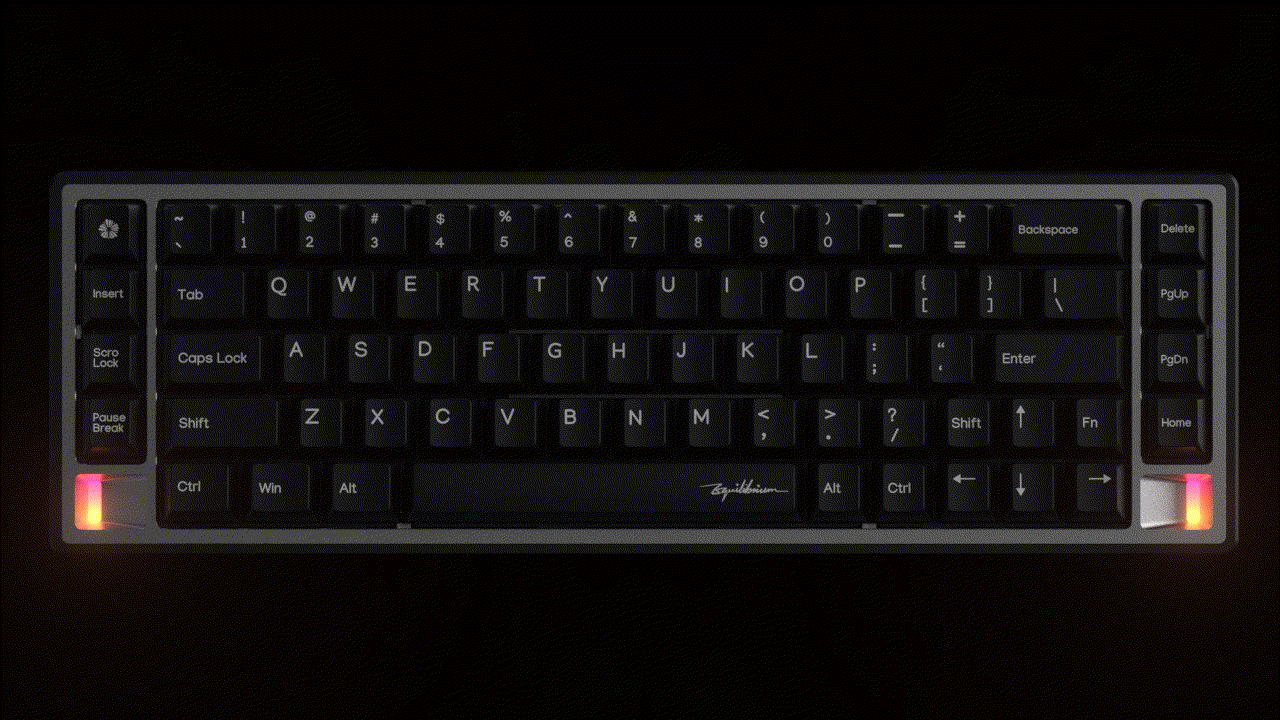

Hello everyone, we are SCRIBBLEB (an abbreviation for SCRIBBLE LEB).After a year and a half of hard work, we proudly introduce the EQUILIBRIUM layout mechanical keyboard kit, featuring an extremely symmetrical design with custom function keys evenly distributed on both sides. The exclusive cyberpunk-inspired mother-of-pearl inlay backplate combines traditional craftsmanship with modern personalized design, with colors changing based on the viewing angle. Each backplate is unique. R2 will soon be available for sale, and we are recruiting regional agents worldwide.

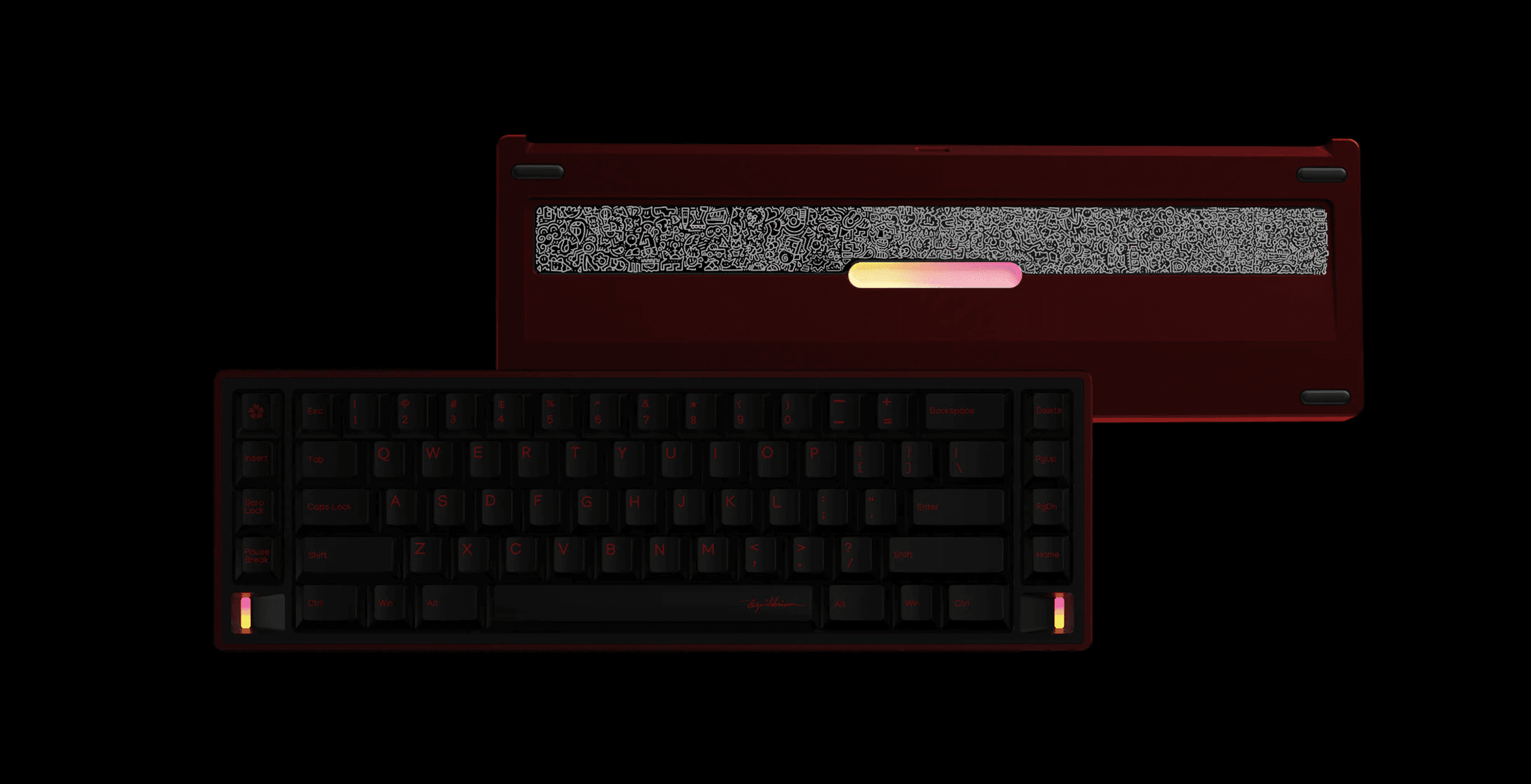

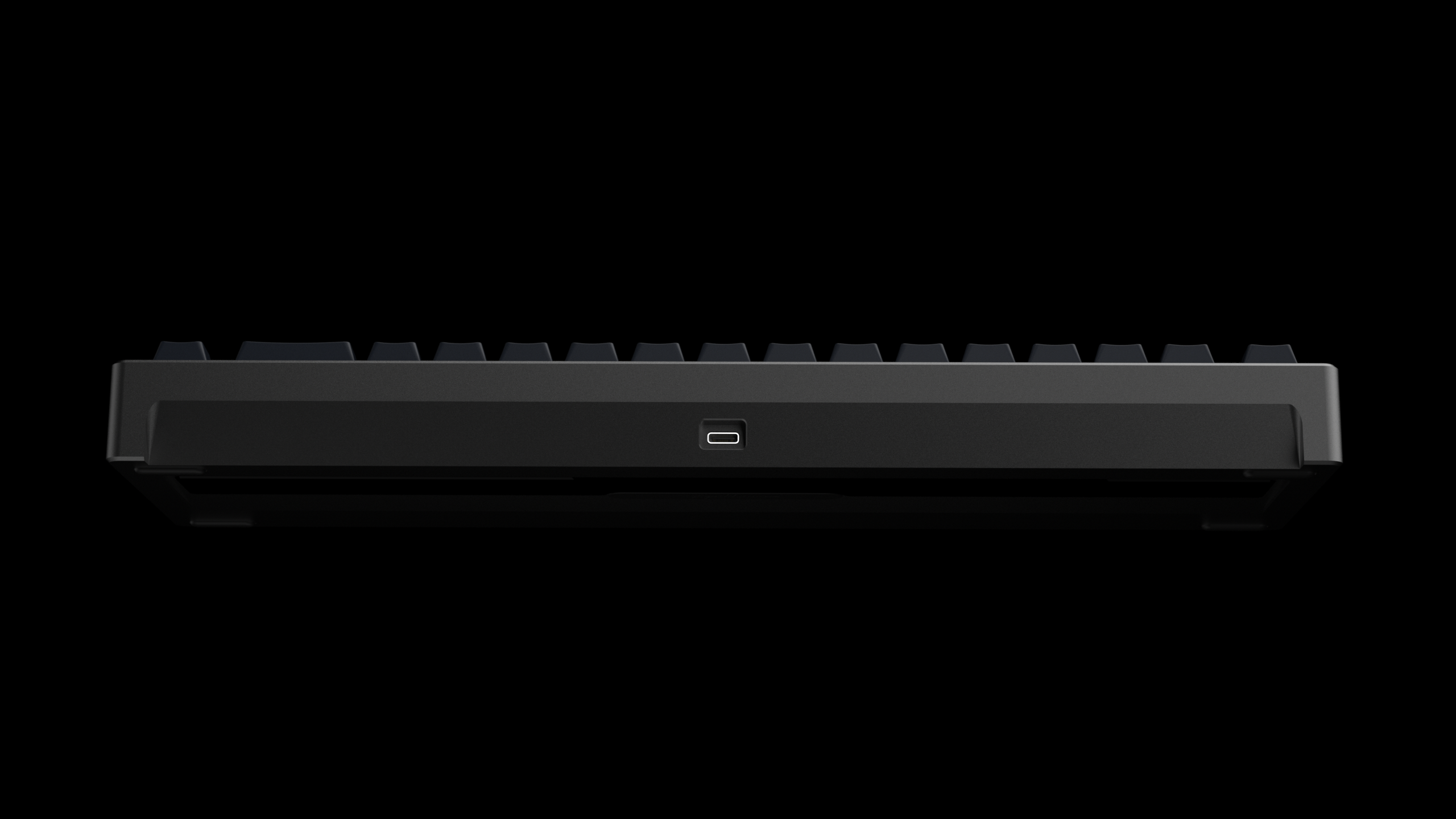

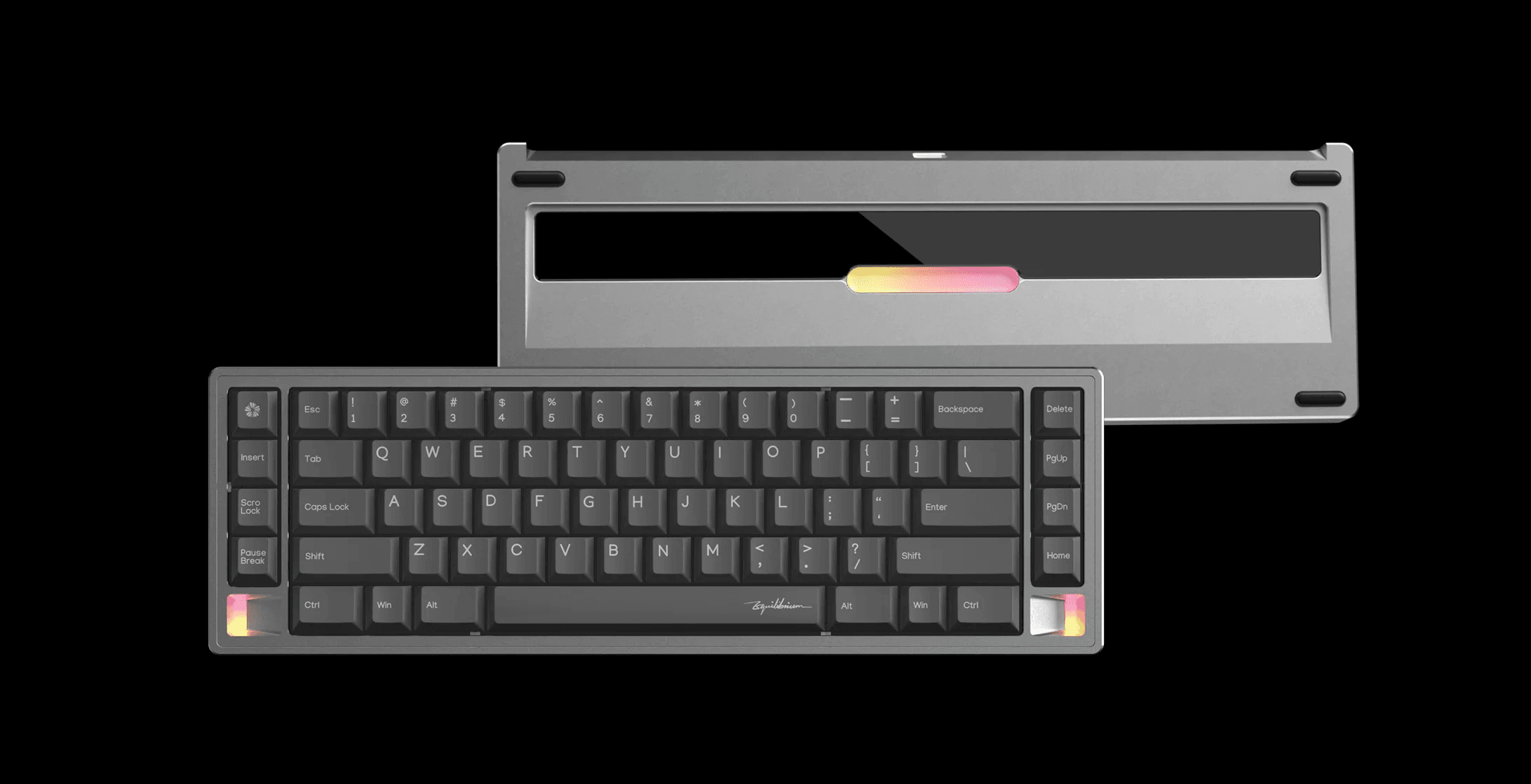

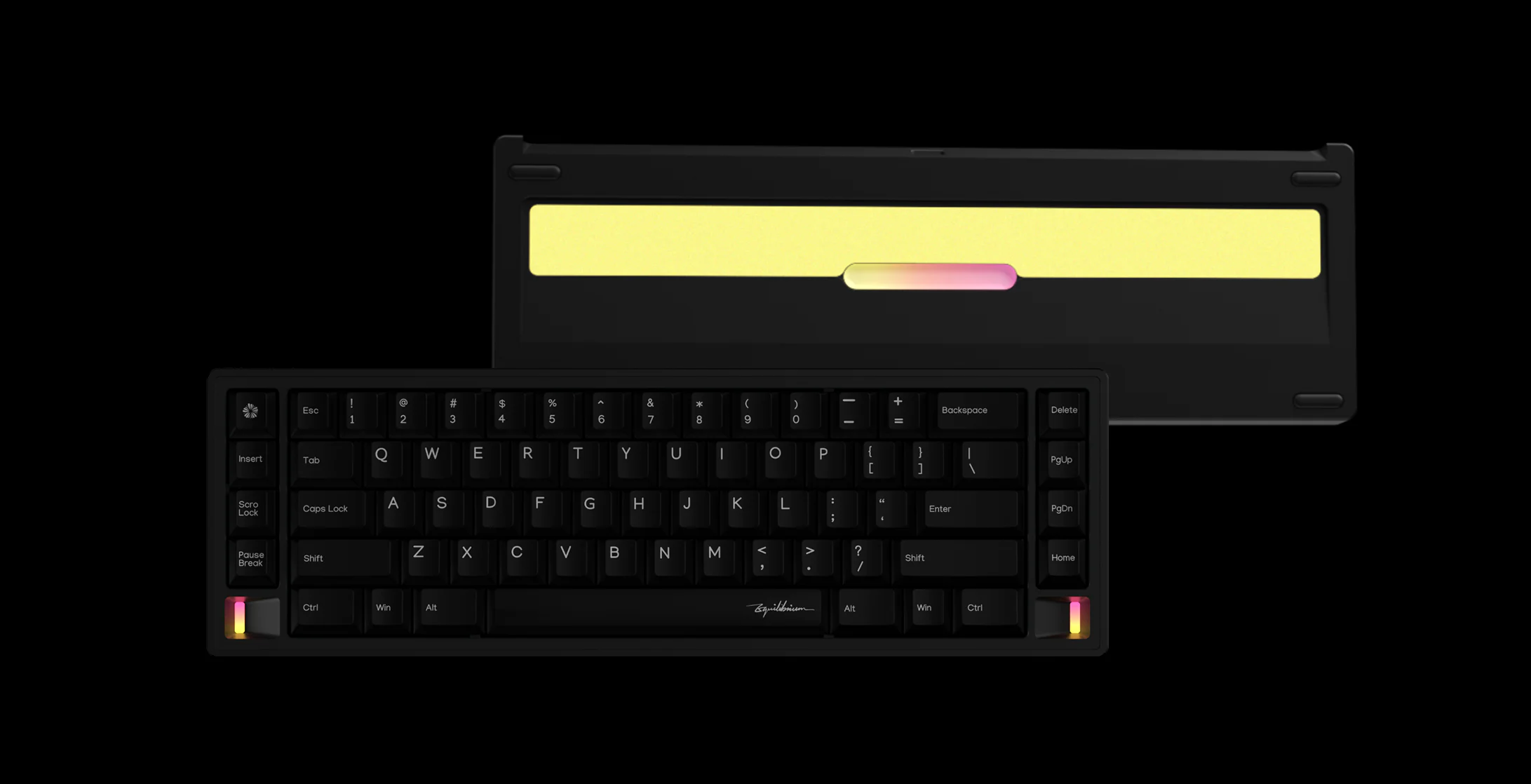

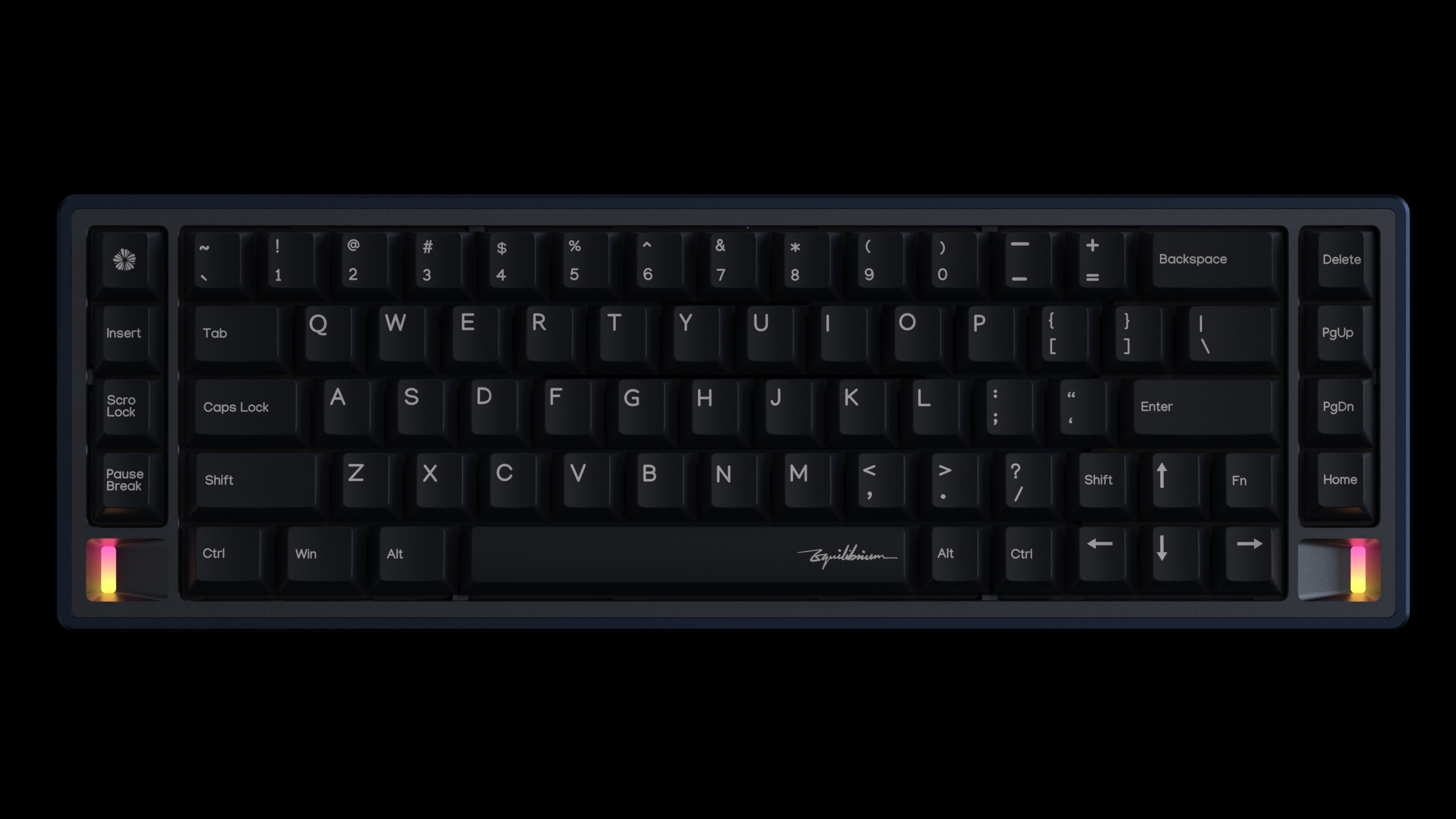

2. Design

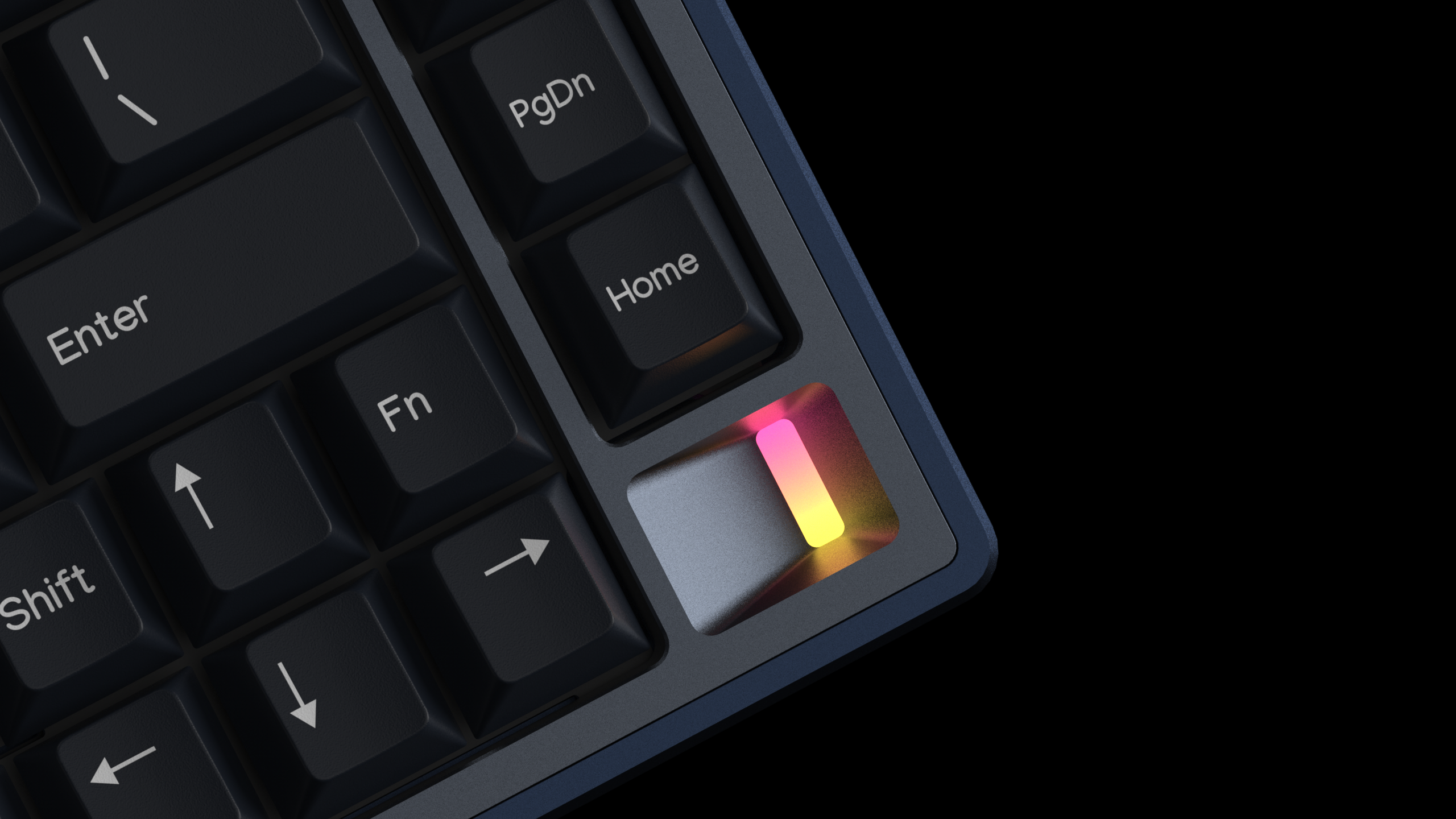

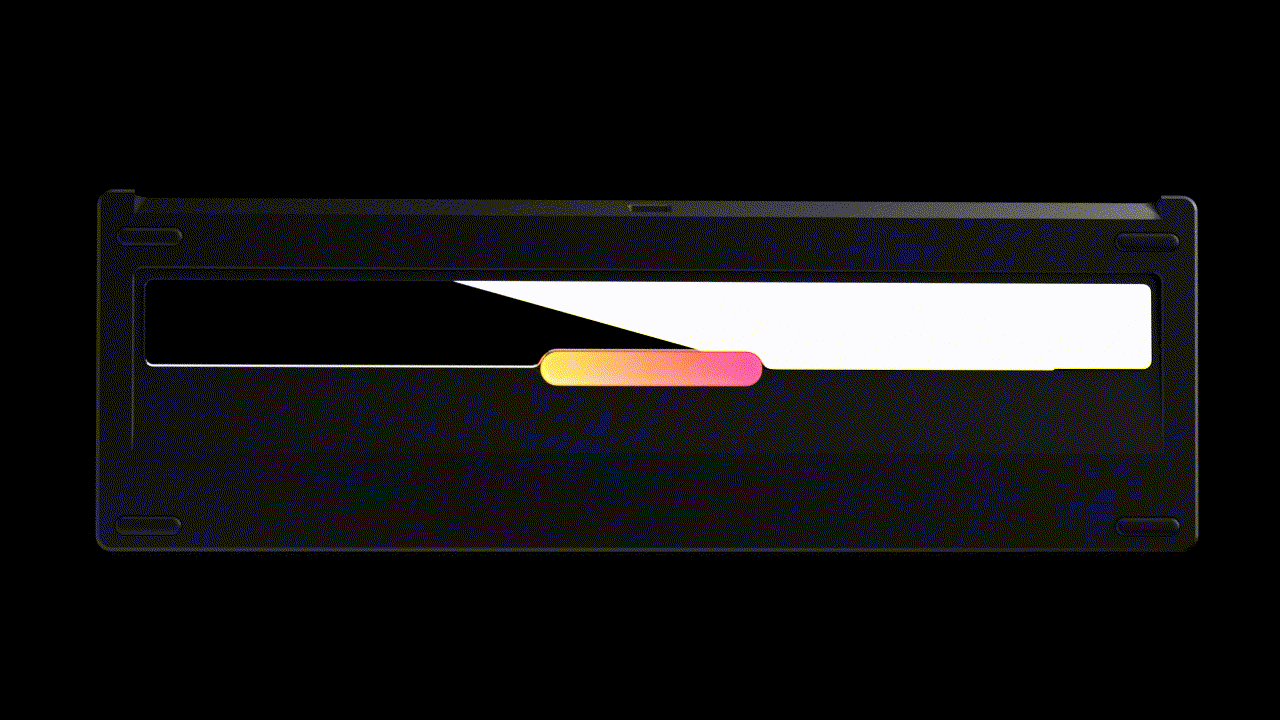

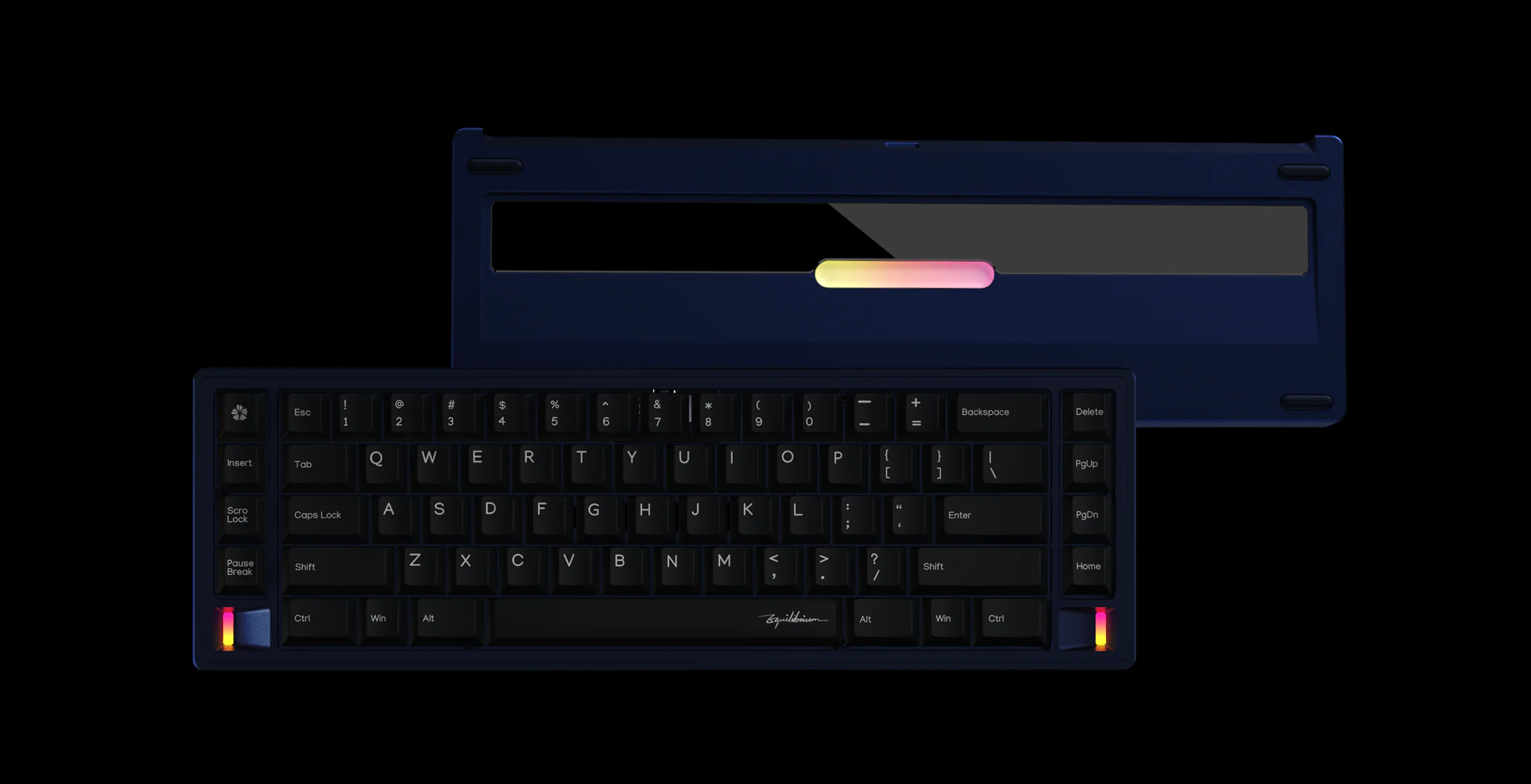

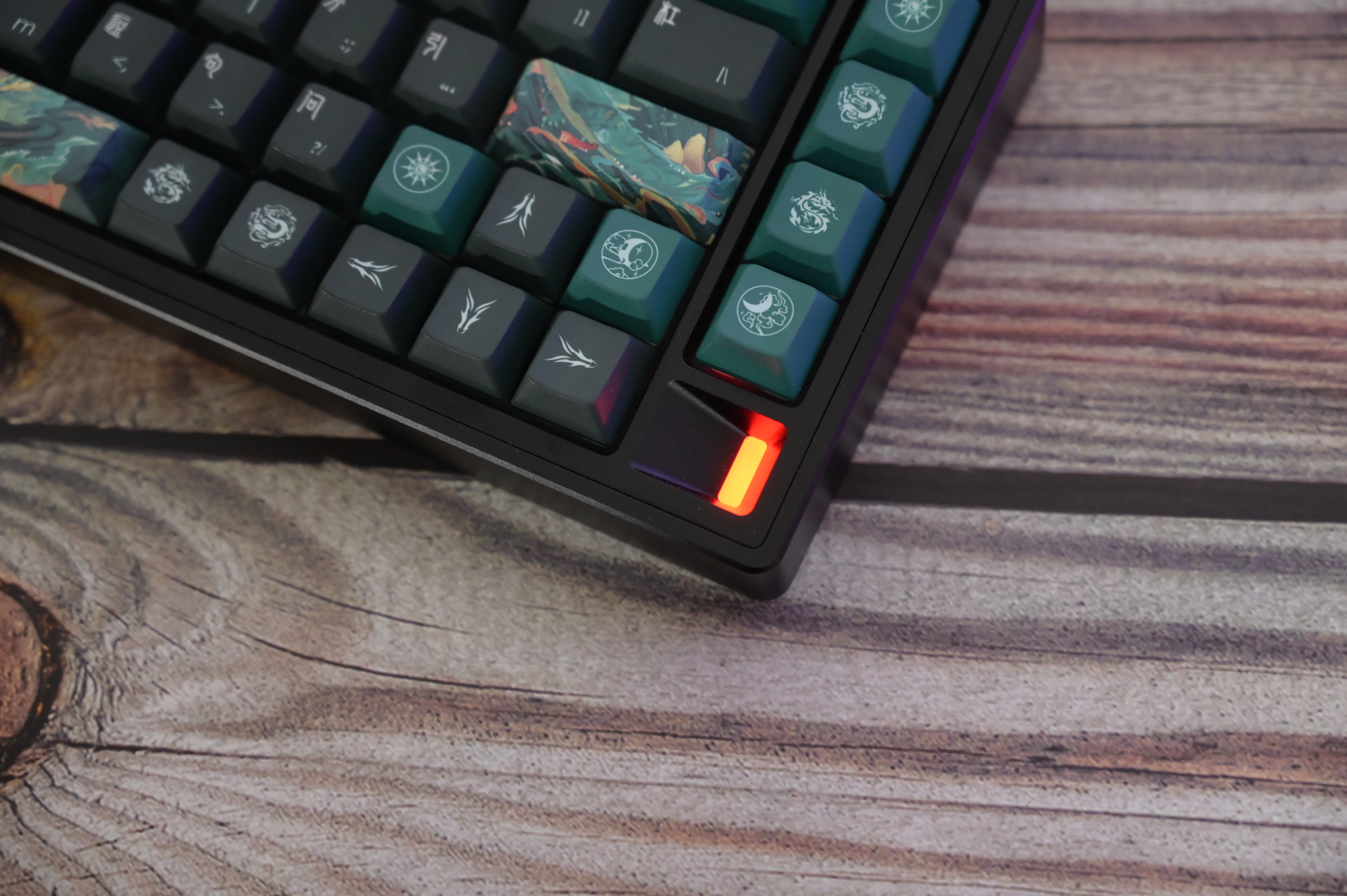

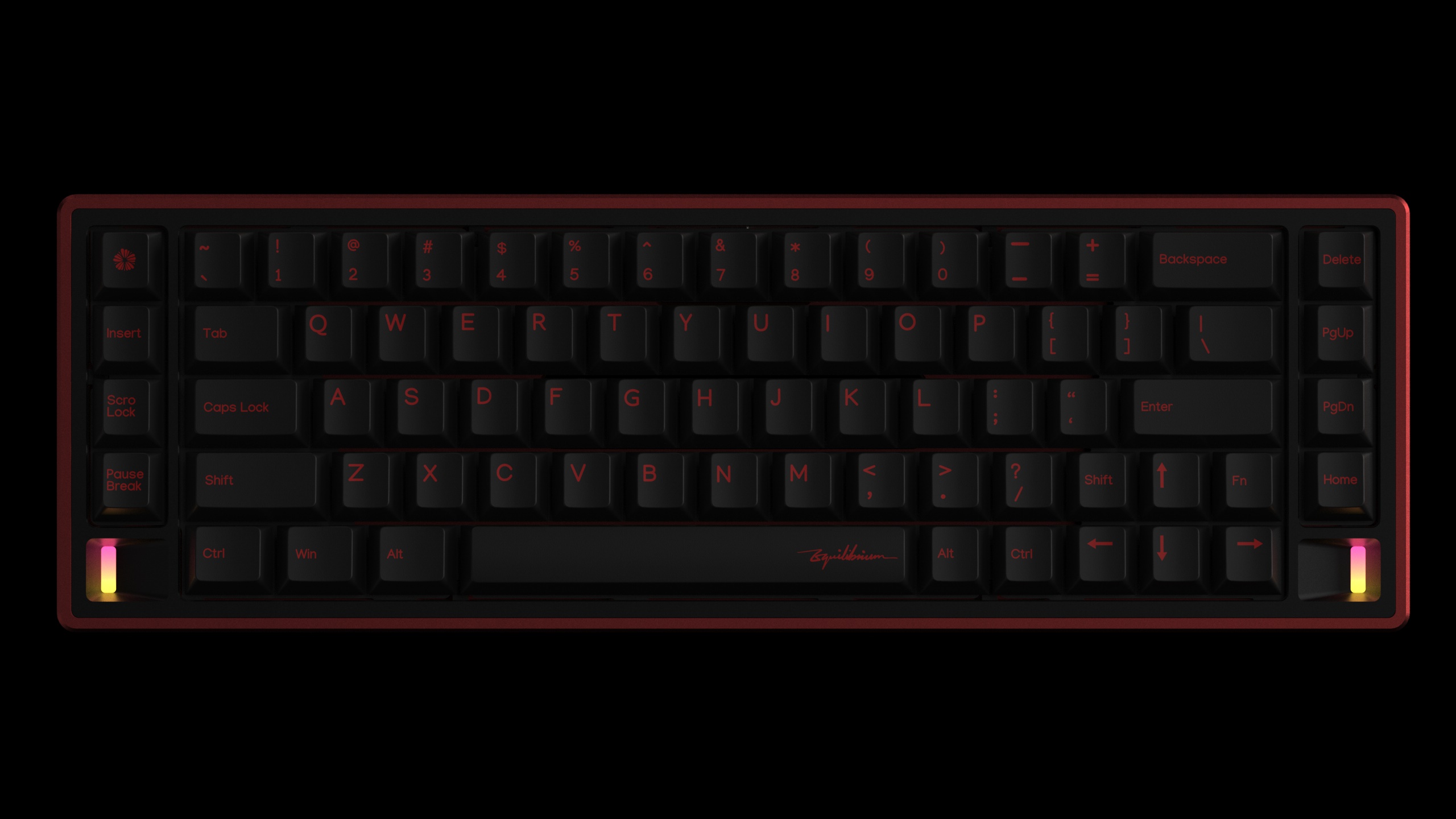

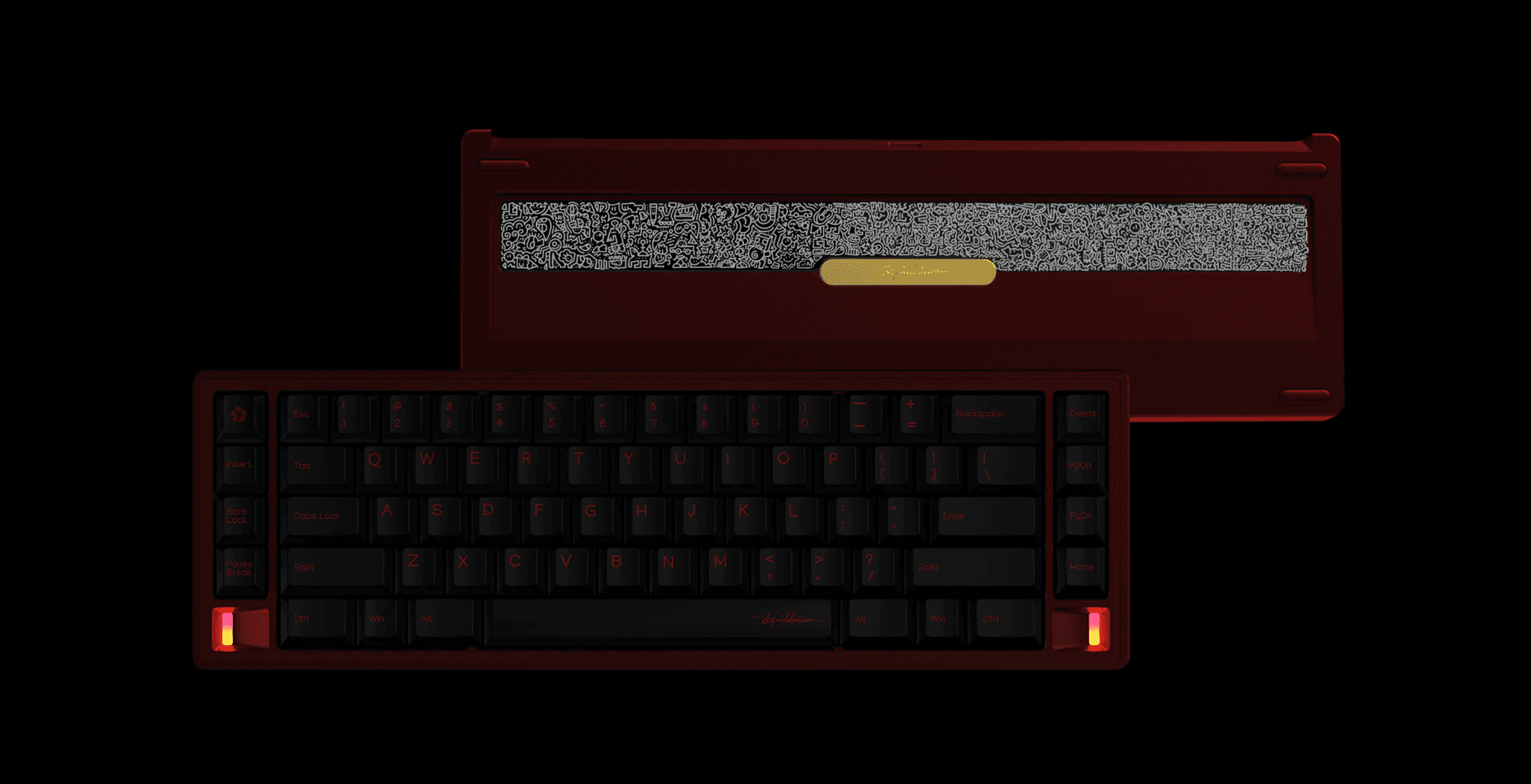

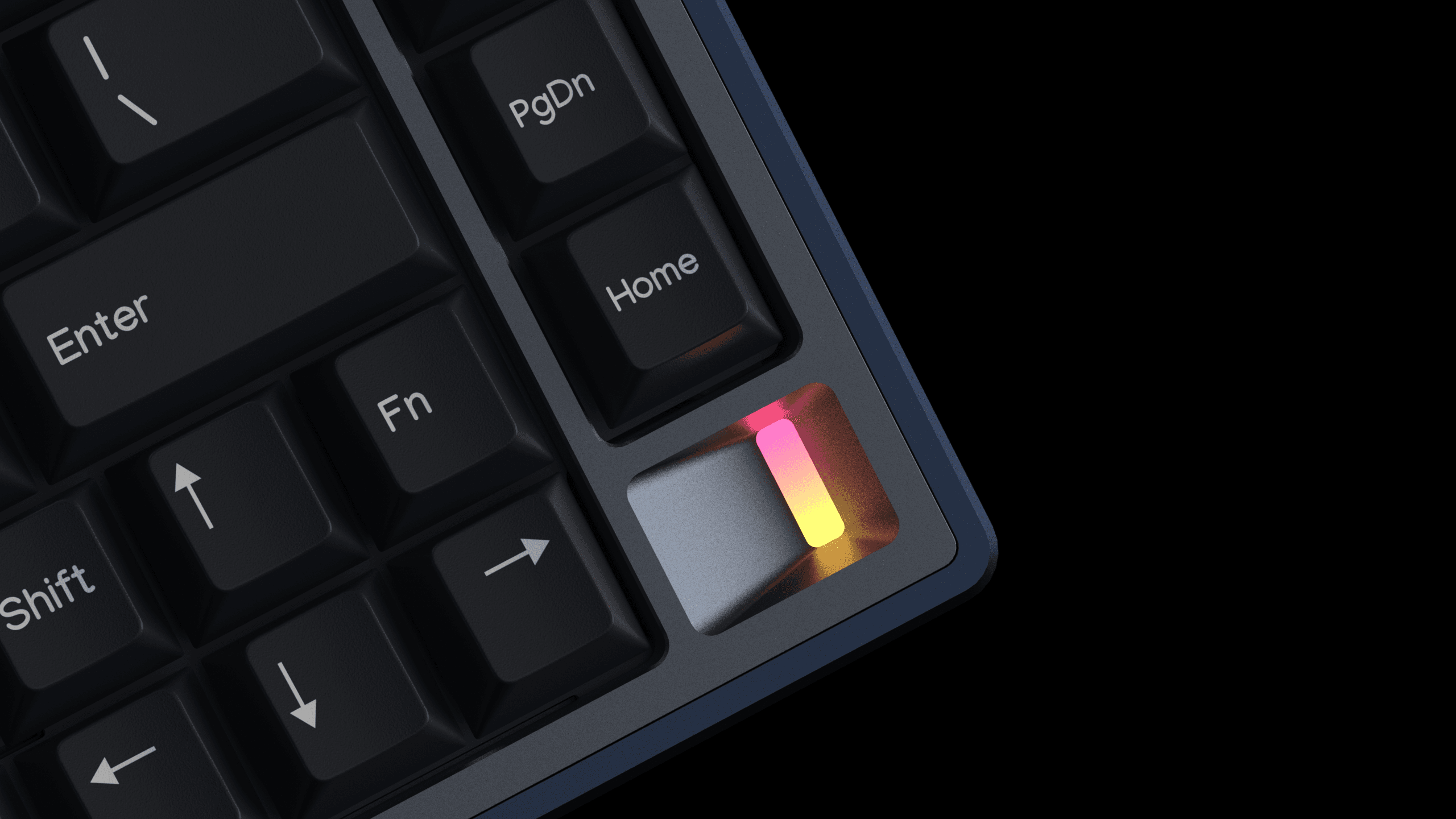

Light （Open and close independently）










3.Specifications
- Layout: 4+60+4 / 4+64+4
- Mounting system: Bottom mount and battery cover plate mount

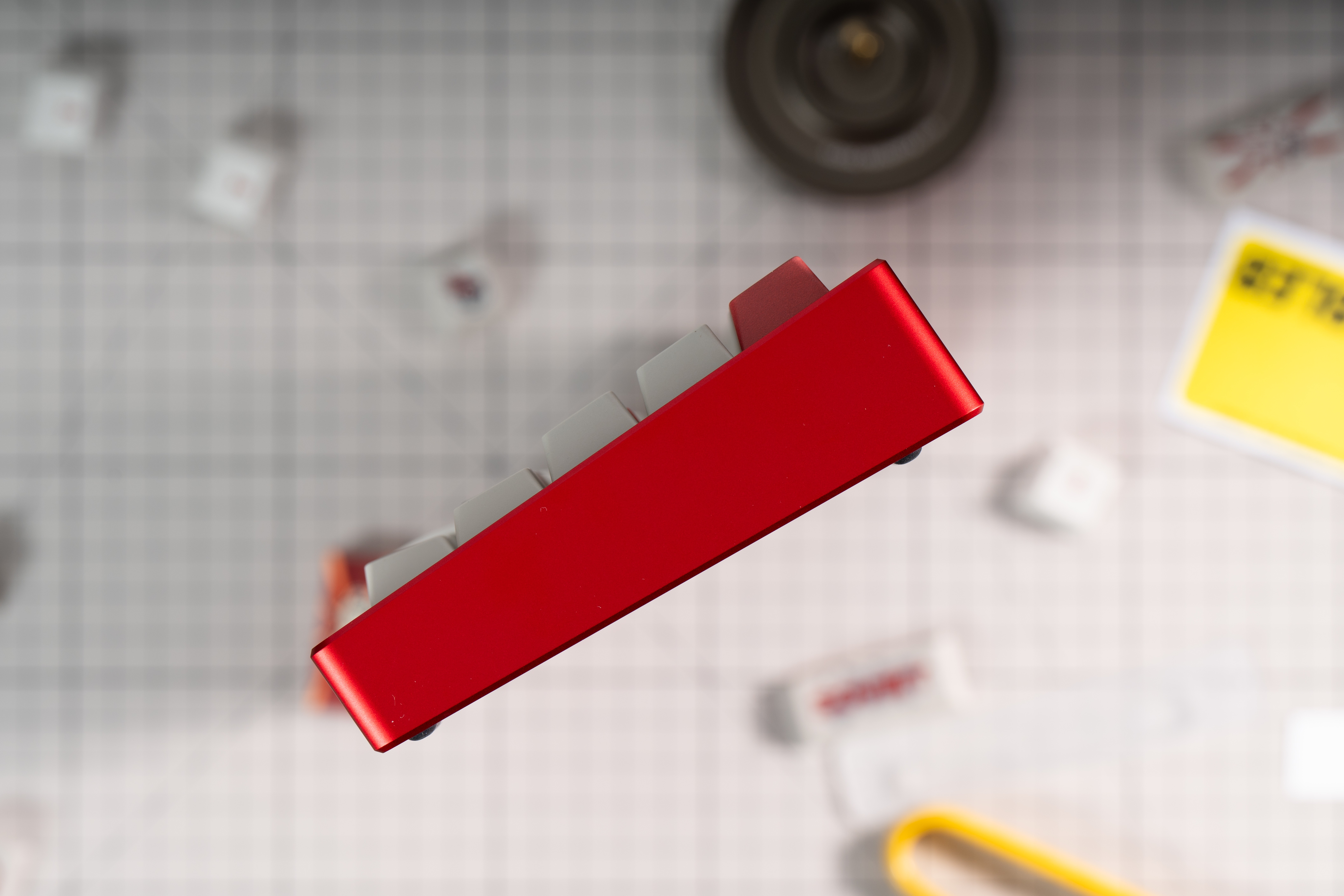

- Typing Angle: 5°
- Plate:Plate: 1.5mmPC , 1.5mmFR4
- PCB: 1.2MM（Hot-swap）
-Connection modes:1.Single mode (supports VIA/QMK)
2.Tri-mode (2 x 1200mAh batteries + 2.4G receiver)Wired, Bluetooth, 2.4G (does not support VIA/QMK)
- Weight after assembly: ± 1600g (aluminum kit)




Parts included with the kit:
-Keyboard case: Alu top case / alu bottom case
- Battery cover
- Badge
- Weight
- Plate
- Hot-swap PCB
- 2.4 Receivers
- Daughterboard cable
- Batteries 1200mAh x 2
- Light guide silicone gel
- 4X custom-designed rubber feet
- 12X gasket silicone pellets
- Poron cotton
- Poron sandwich cotton
- Ixpe pad
- Light-blocking foam
- Hand-carry keyboard bag

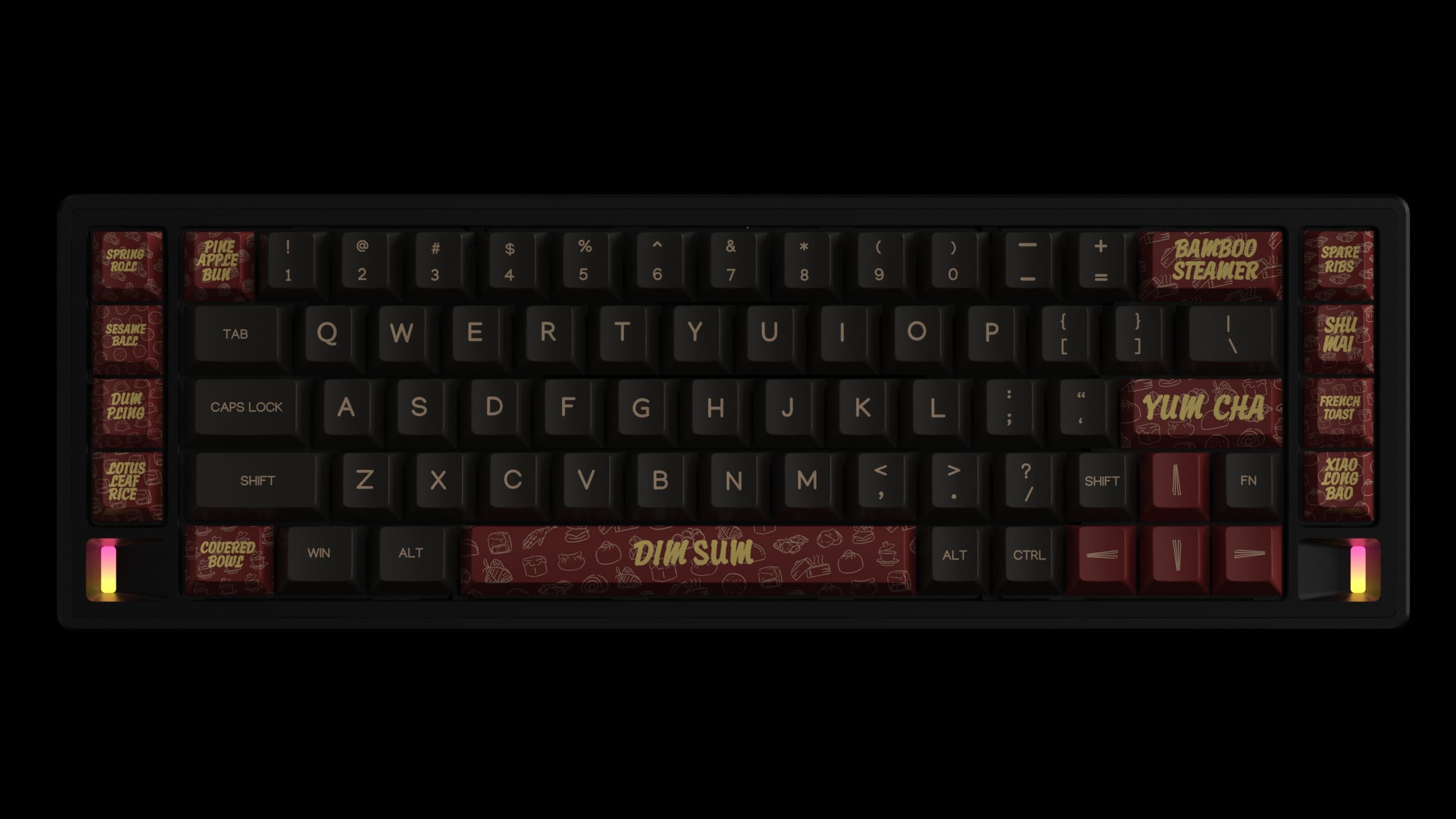

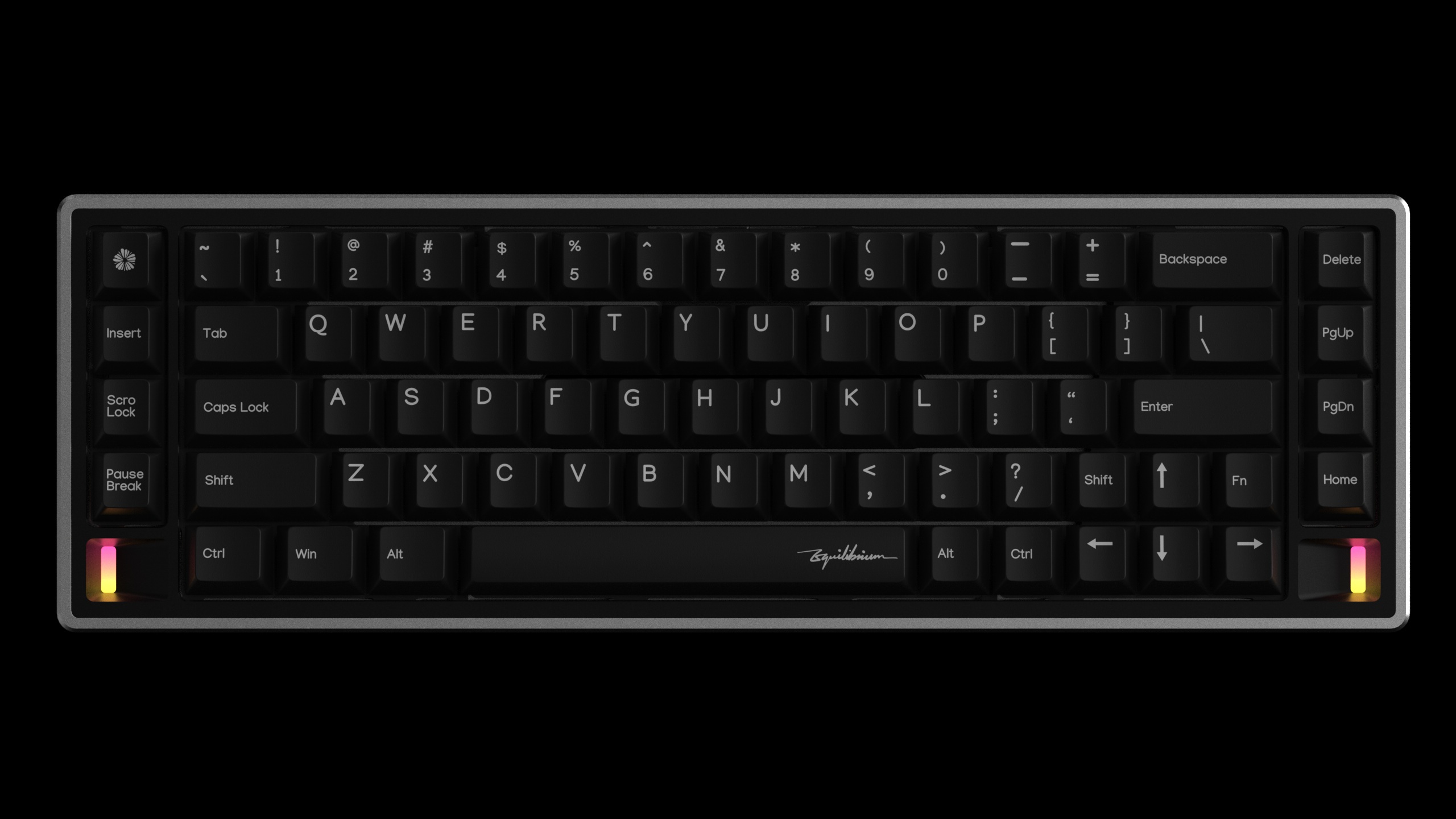

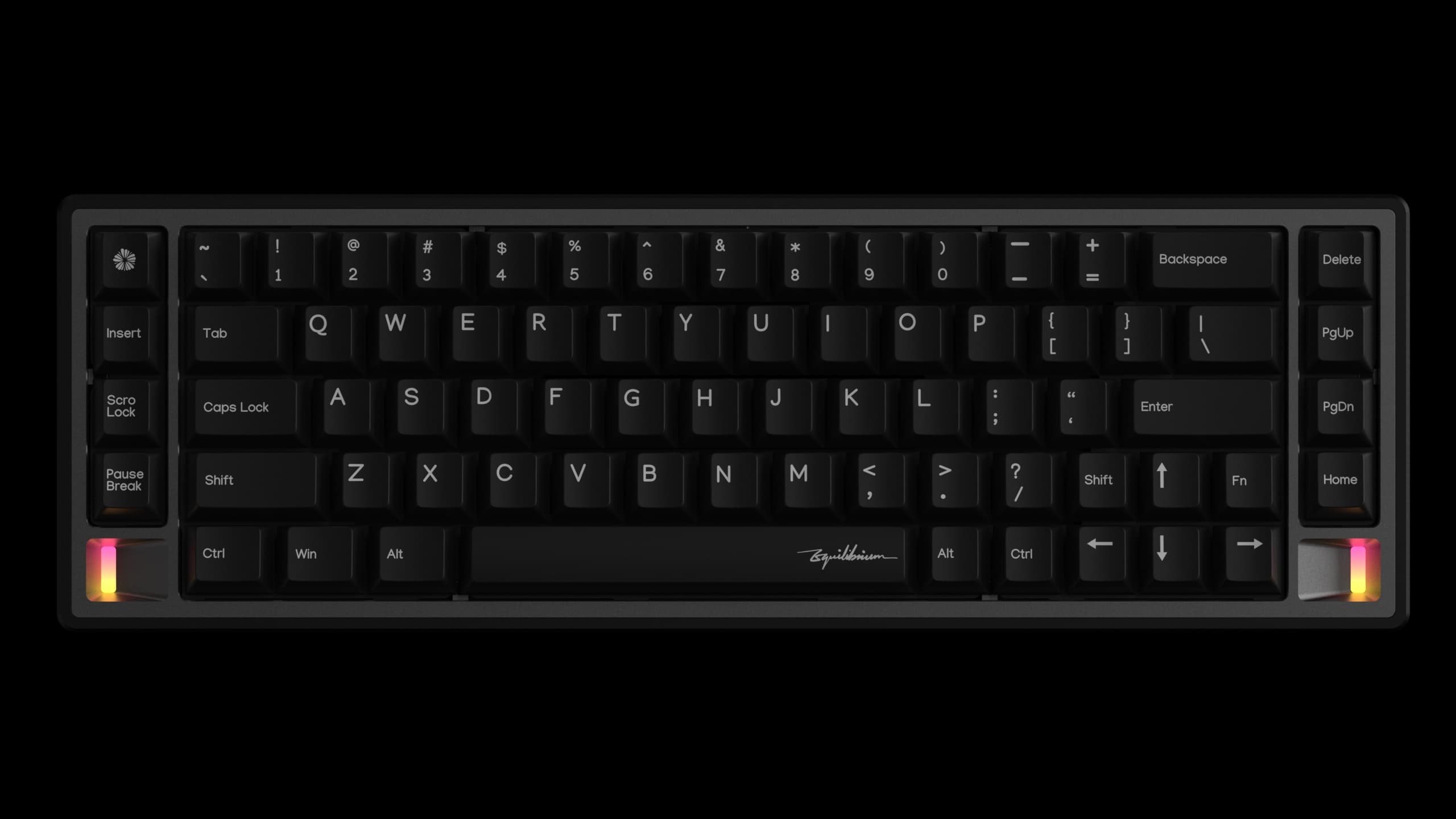

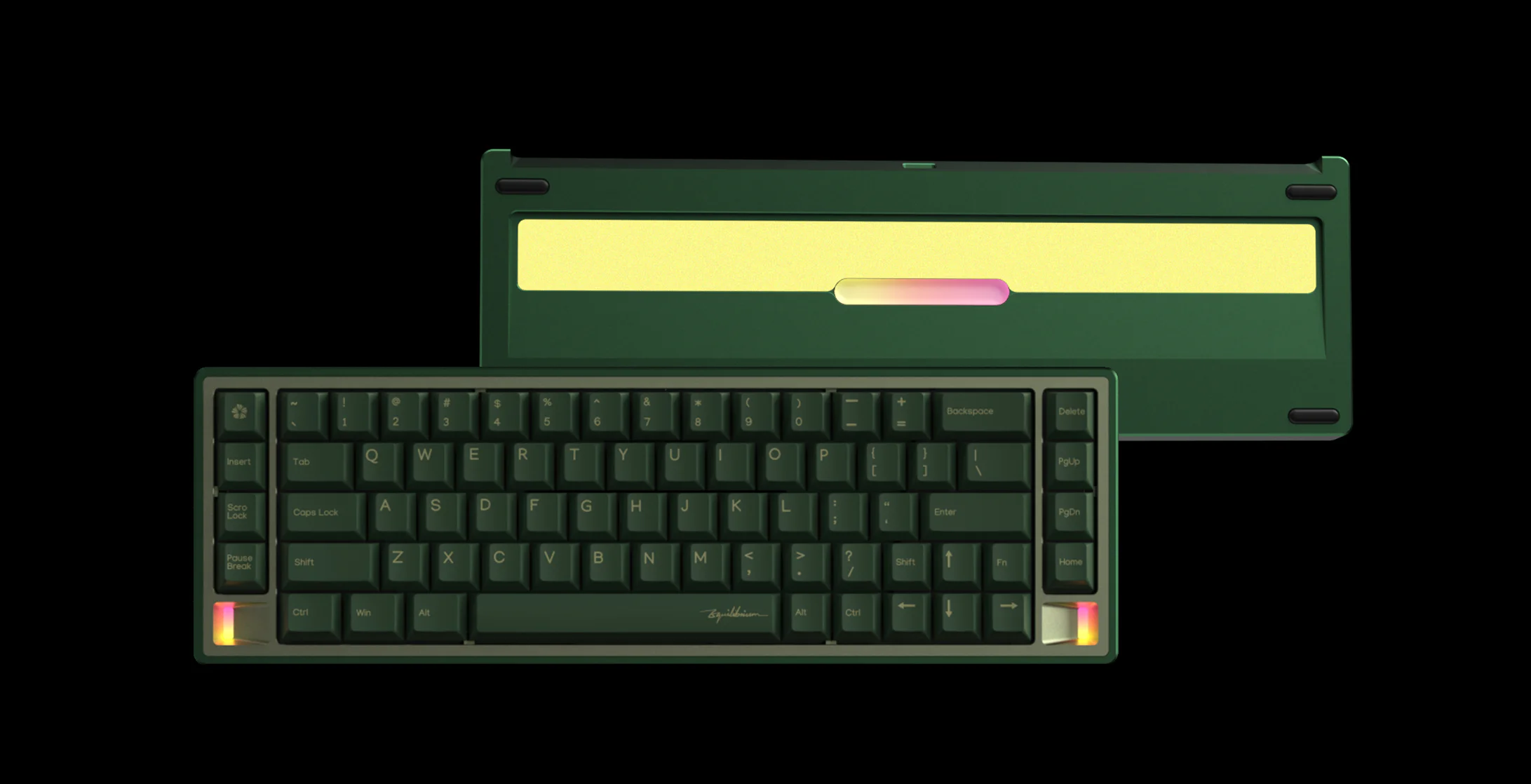

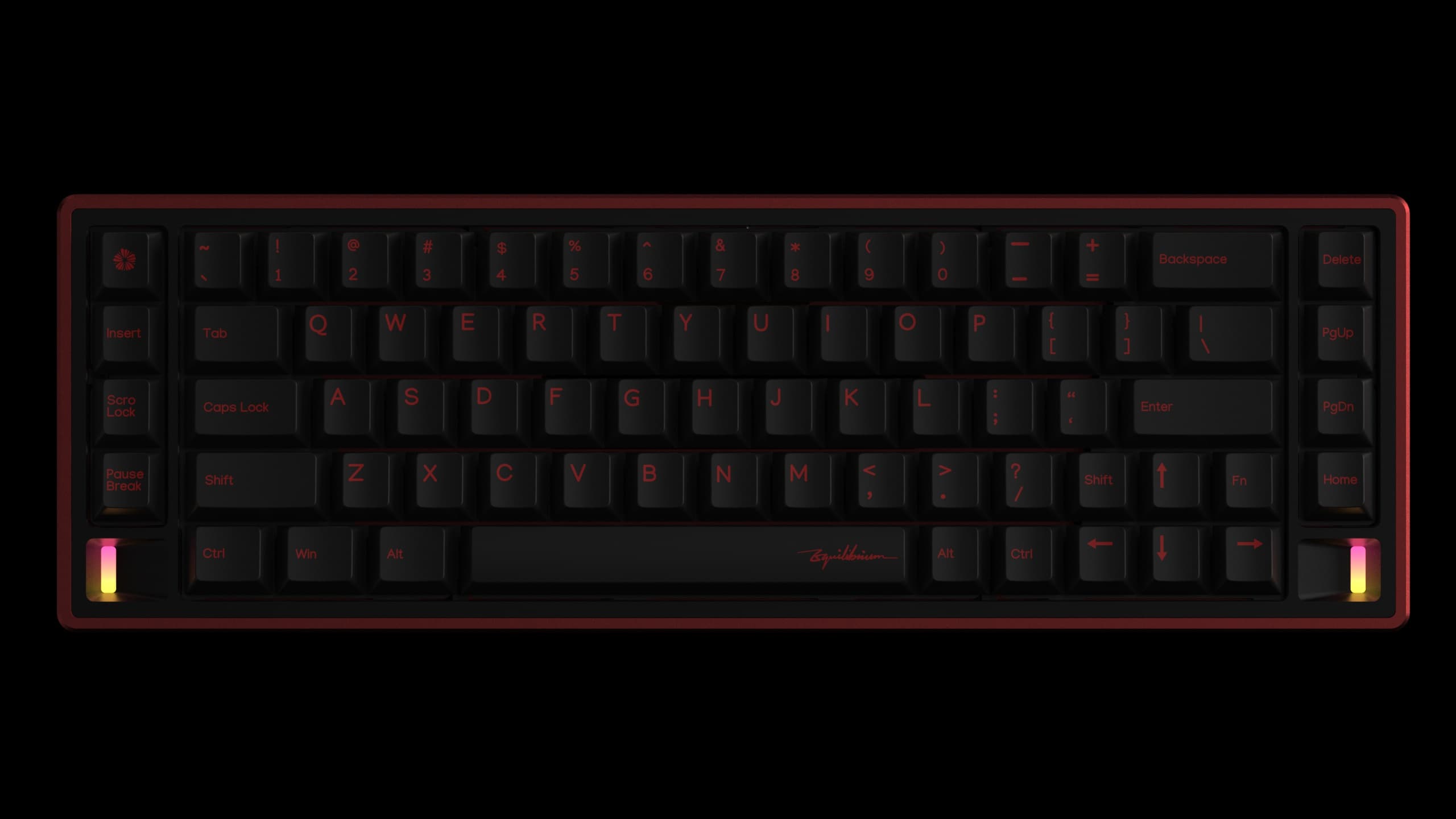

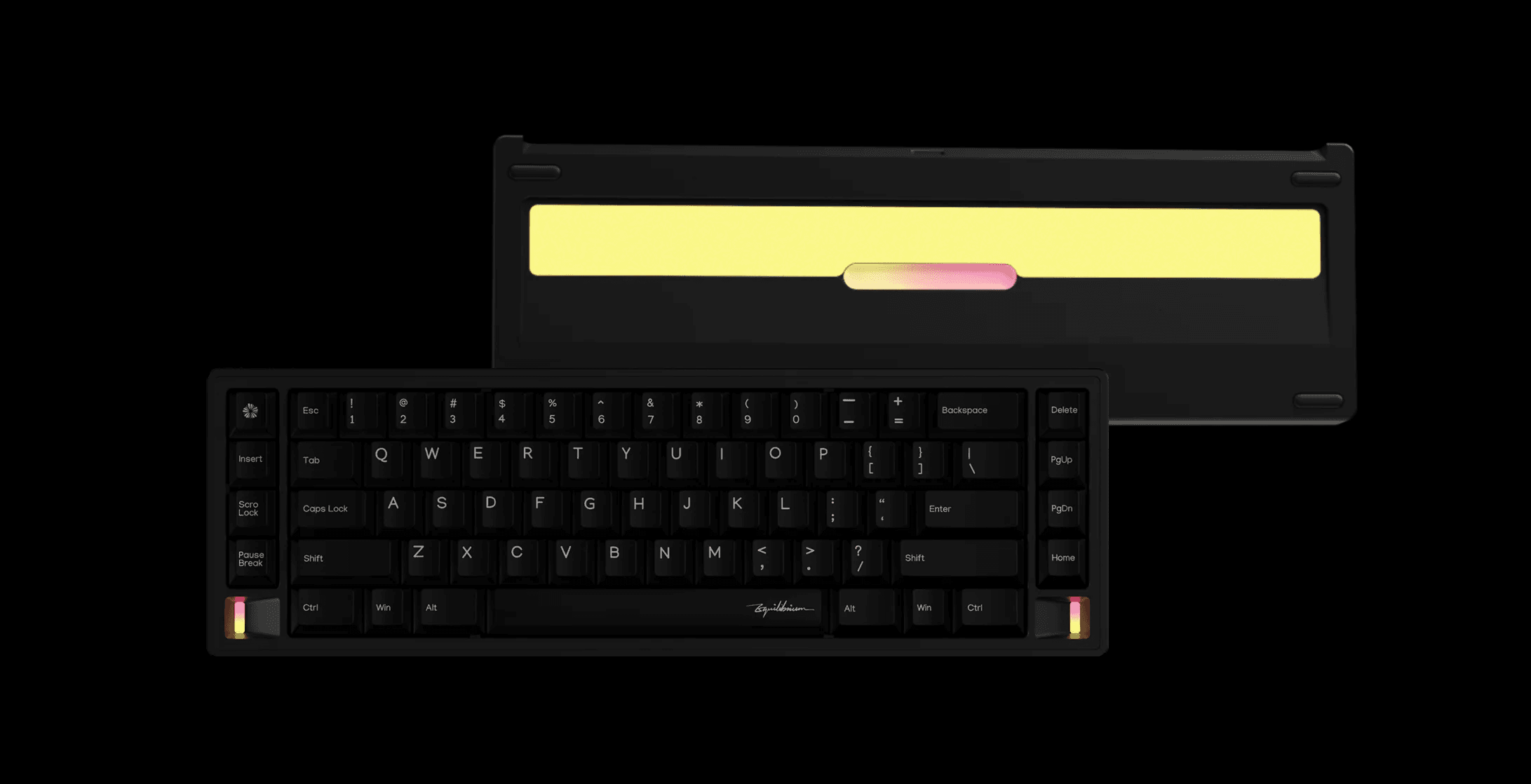

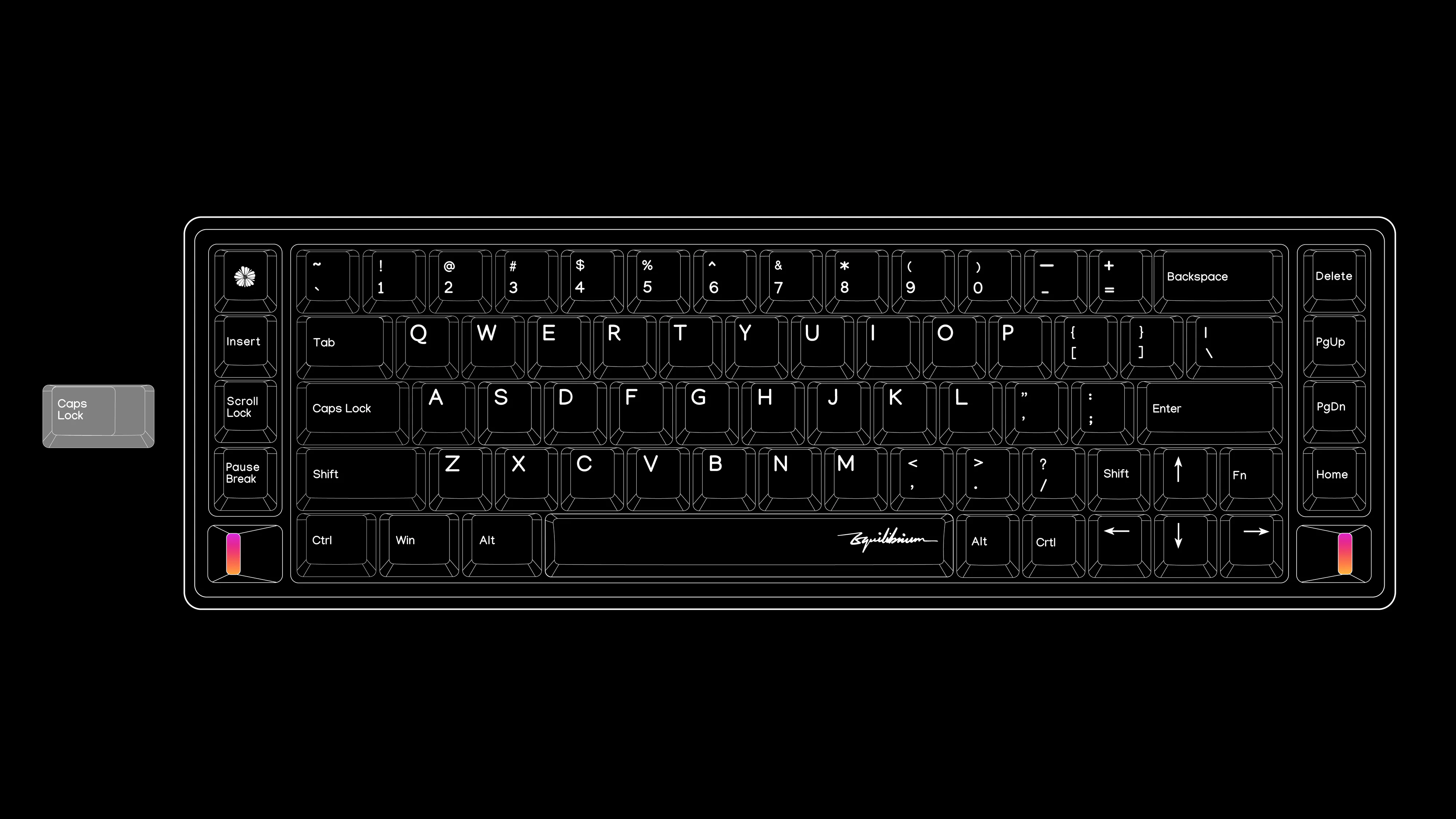

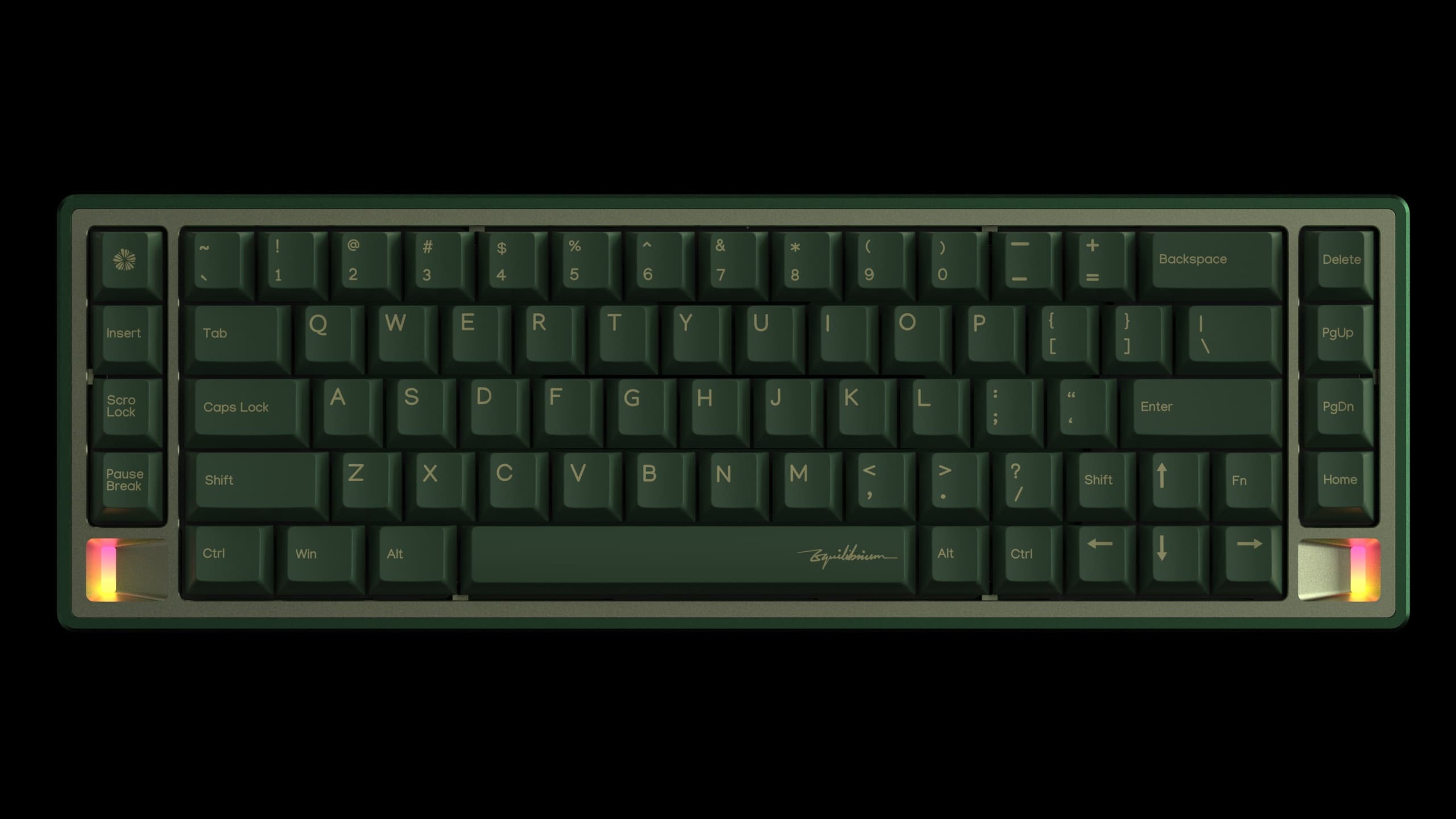

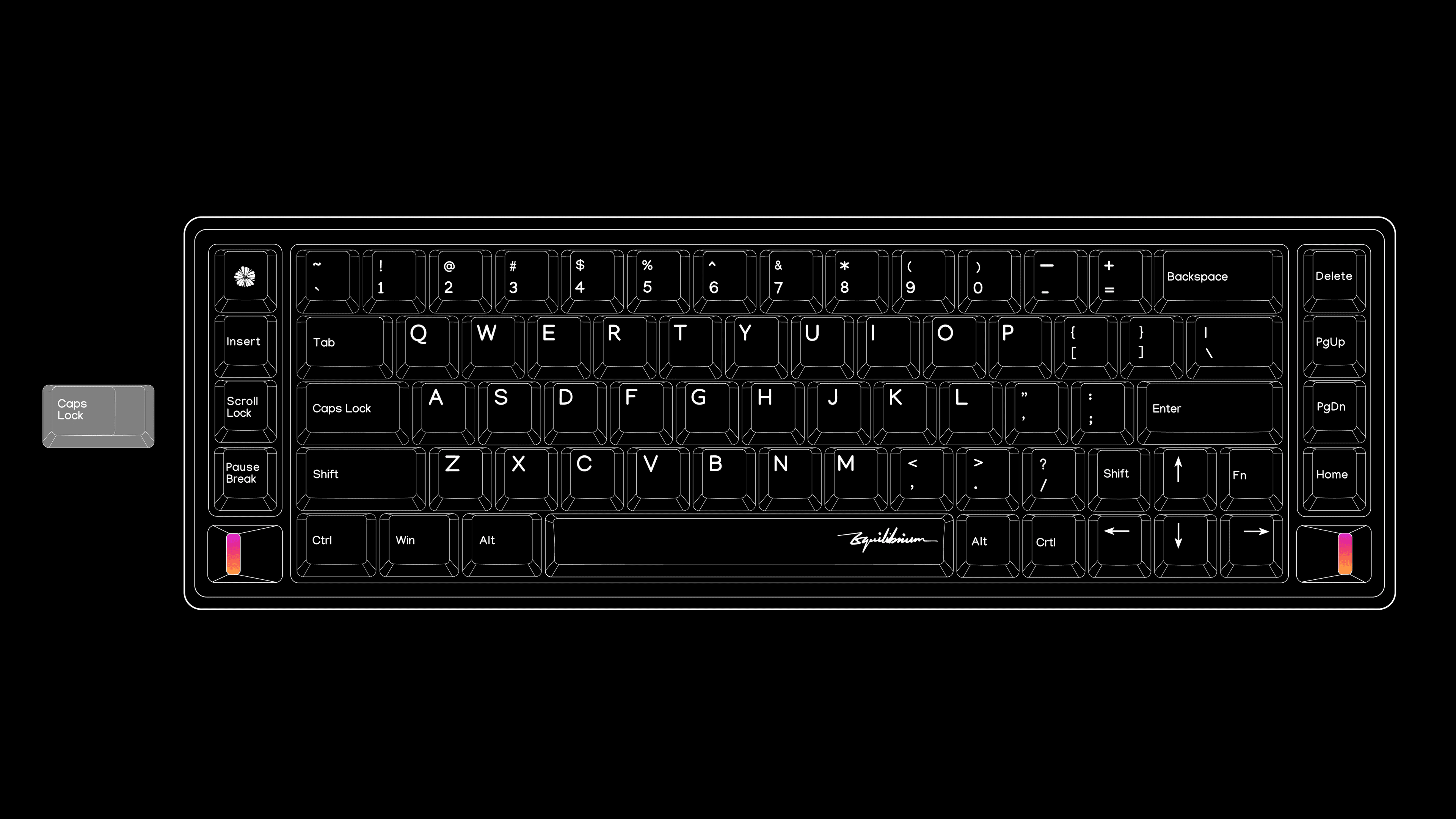

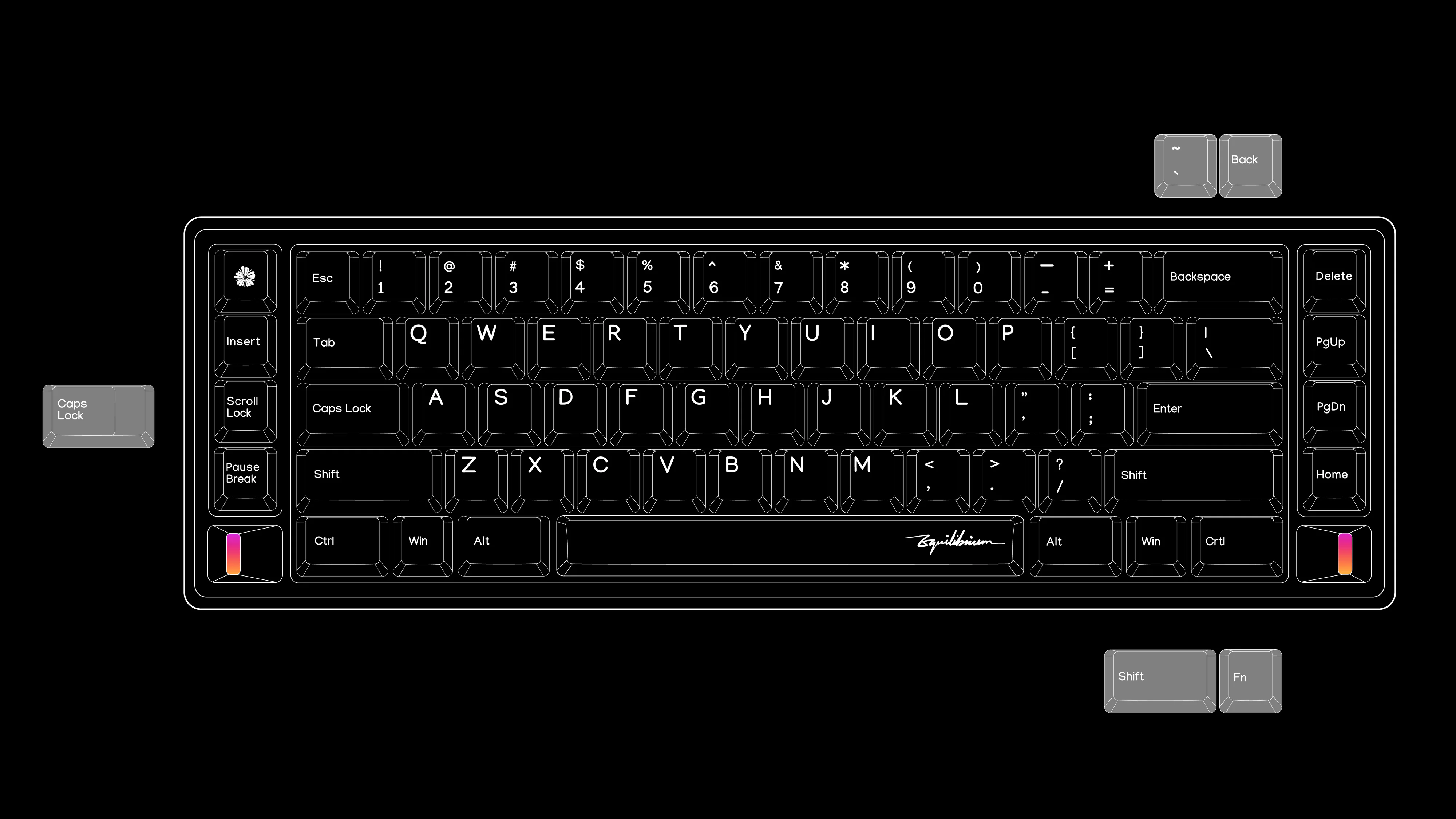

4.Layout
Optional slotted or unslotted PCB, with the choice of hot-swappable tri-mode (does not support VIA) or hot-swappable single-mode (supports VIA/QMK).

2u backspace can replace with 2 1u

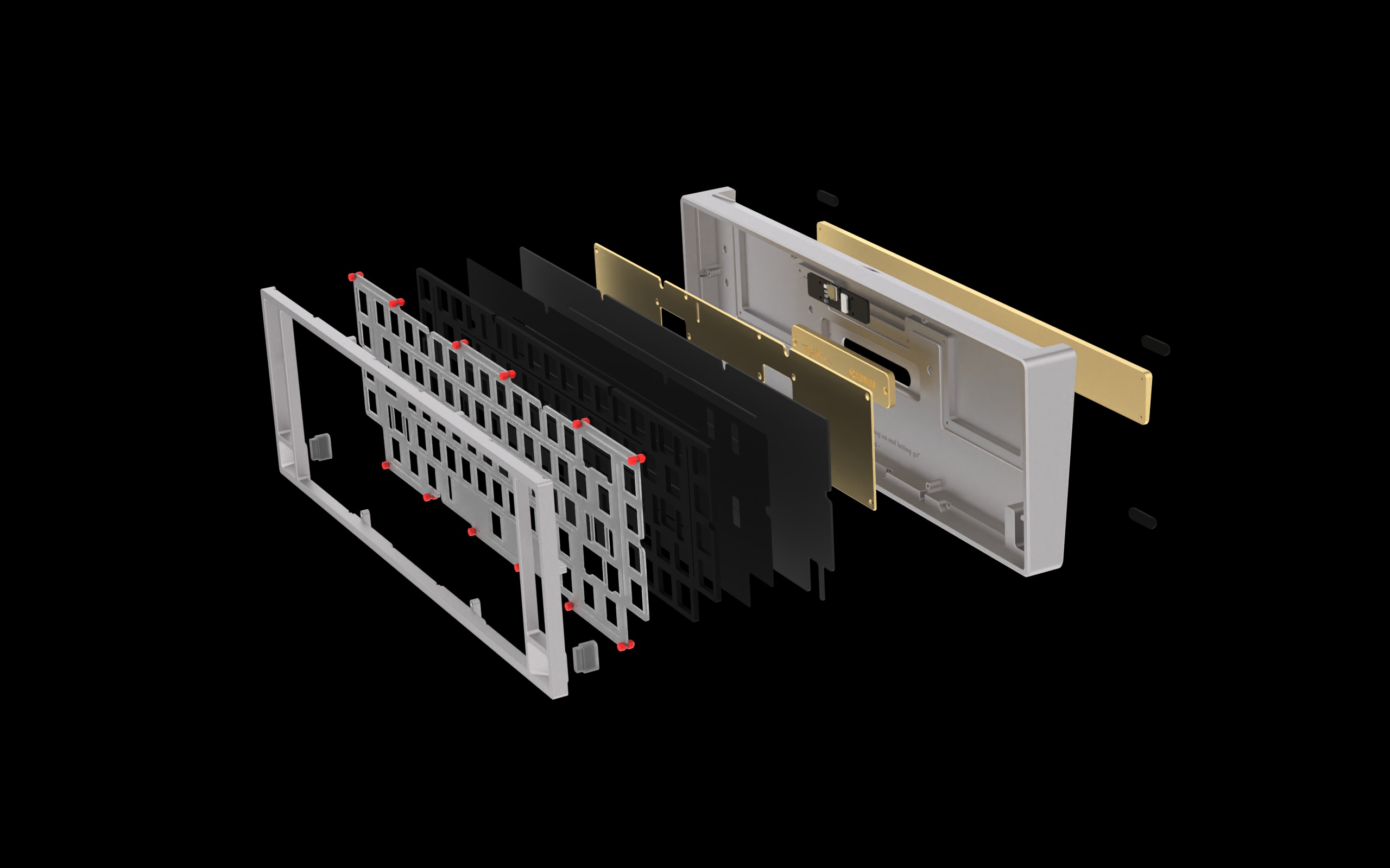

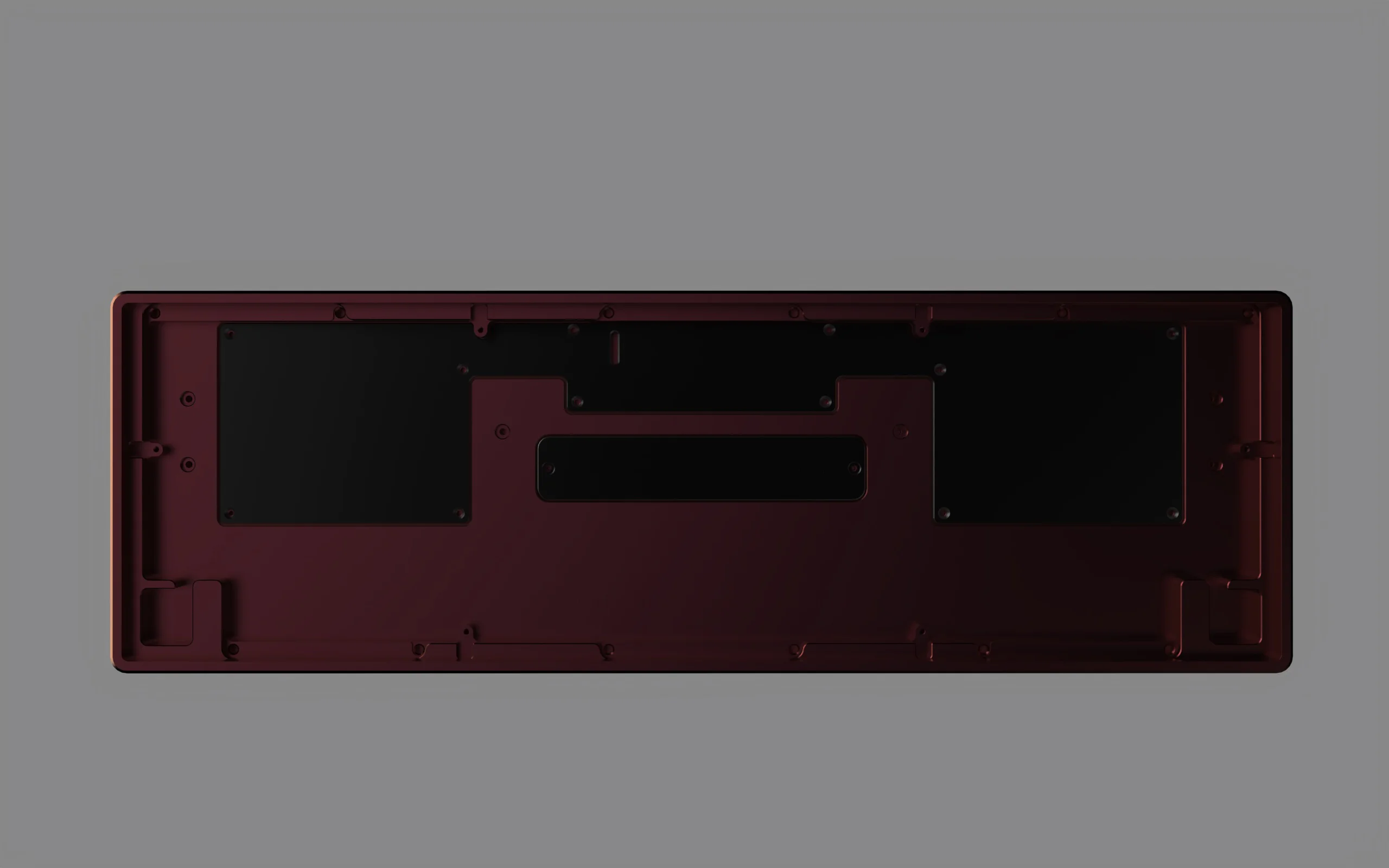

5. CONSTRUCTIONS

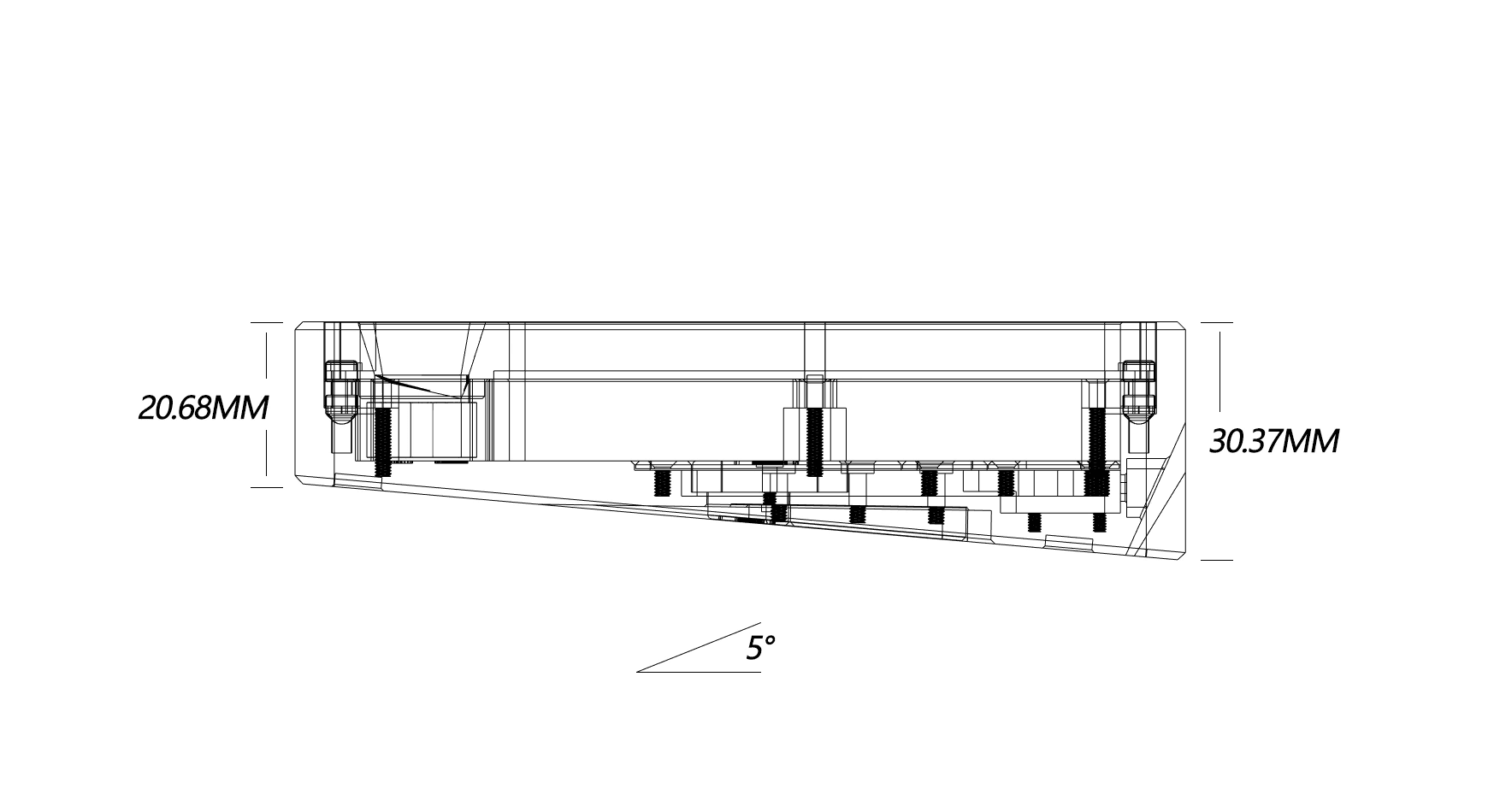

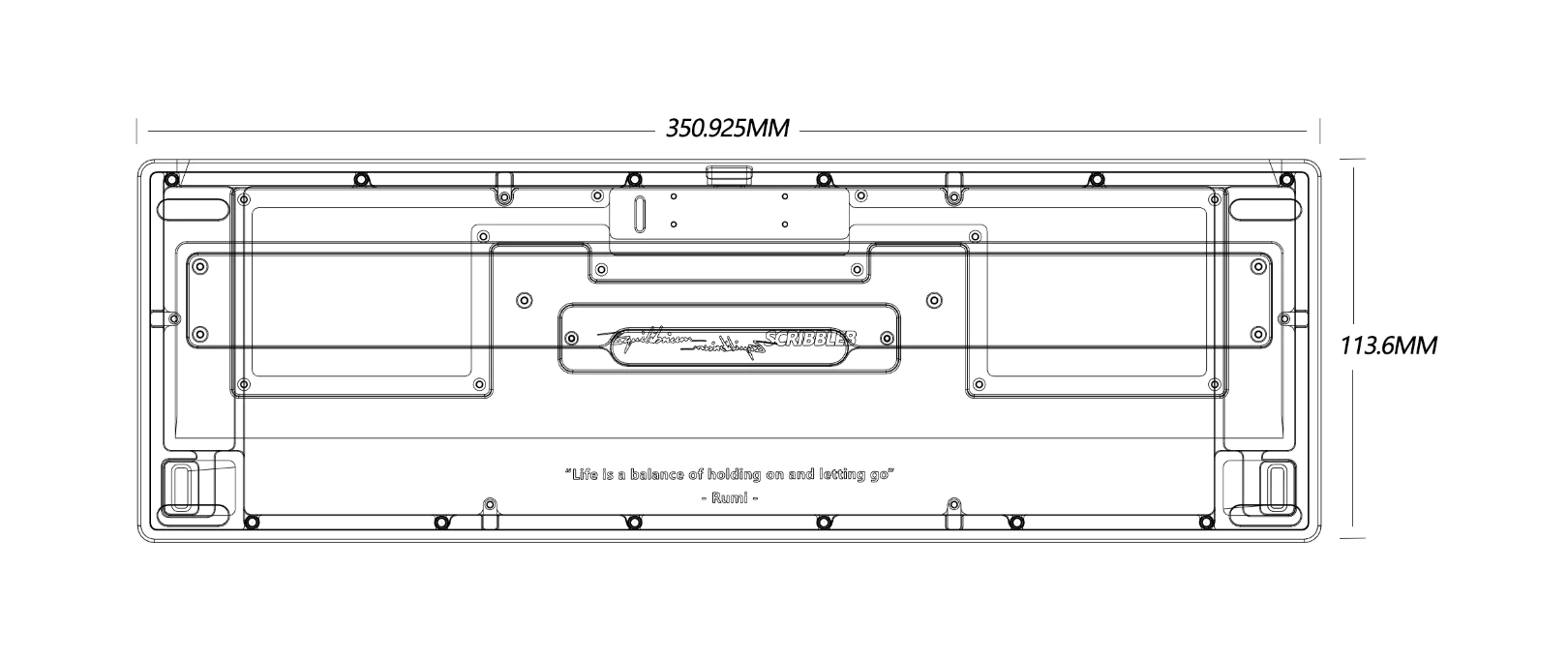

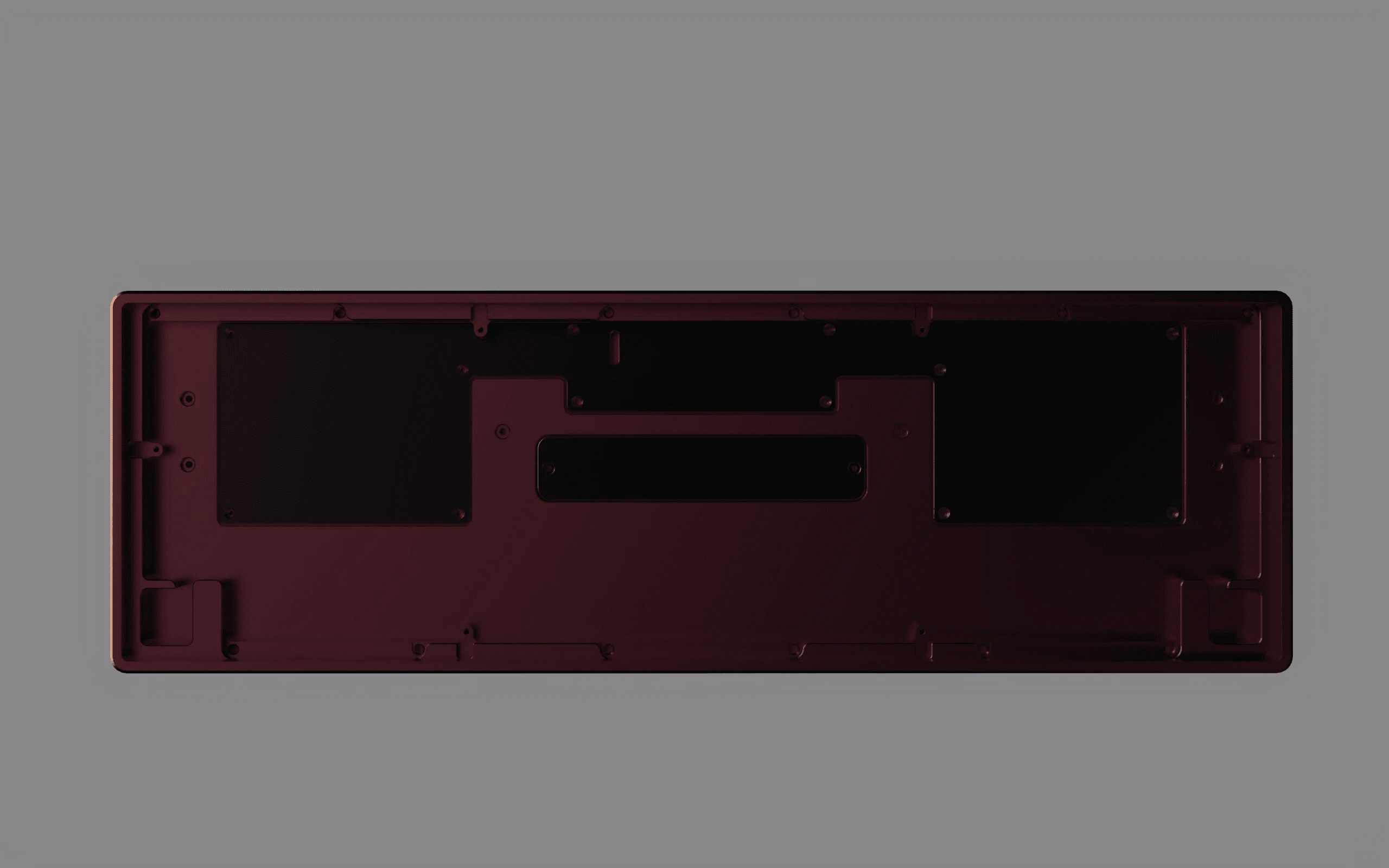

•Size

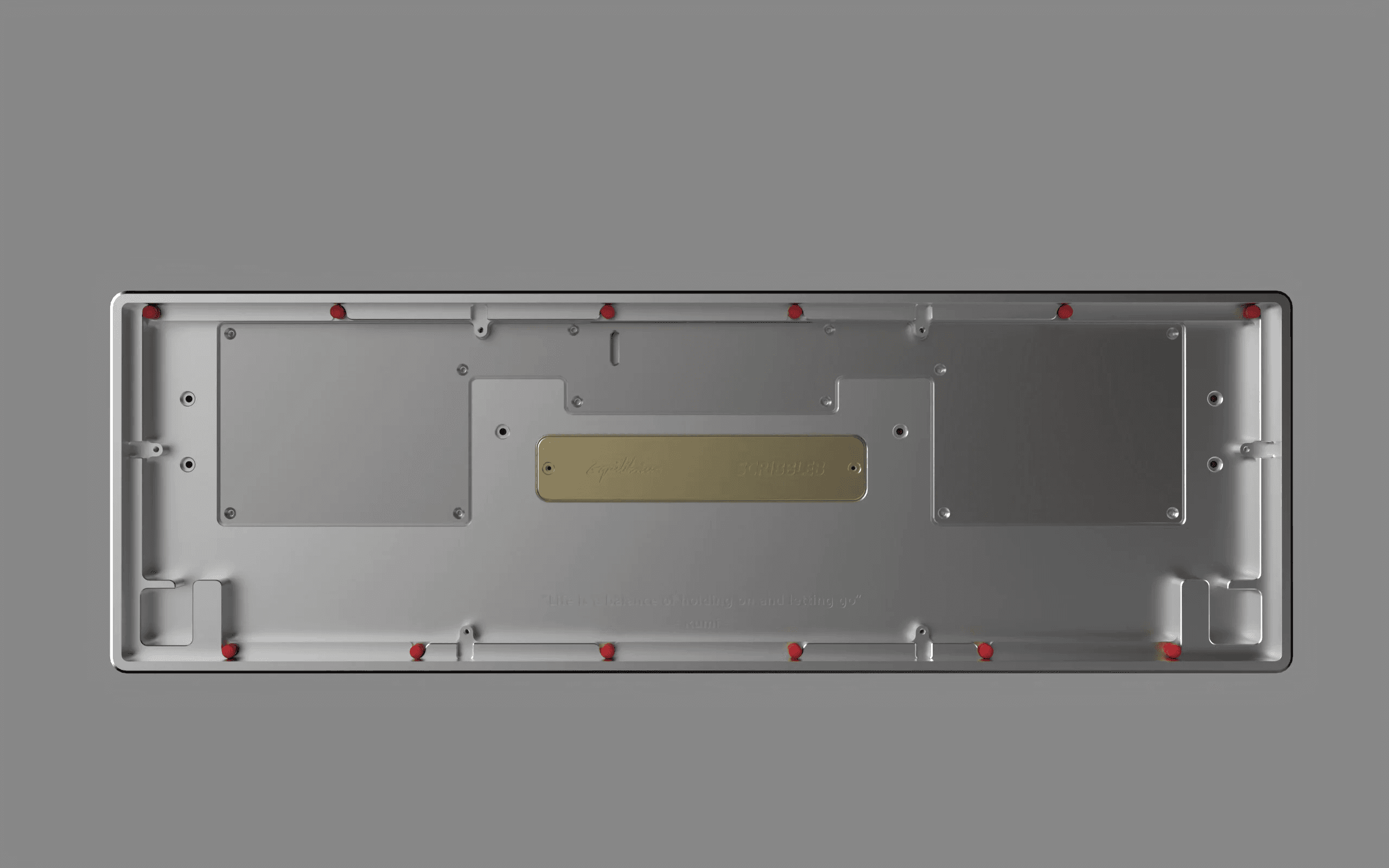

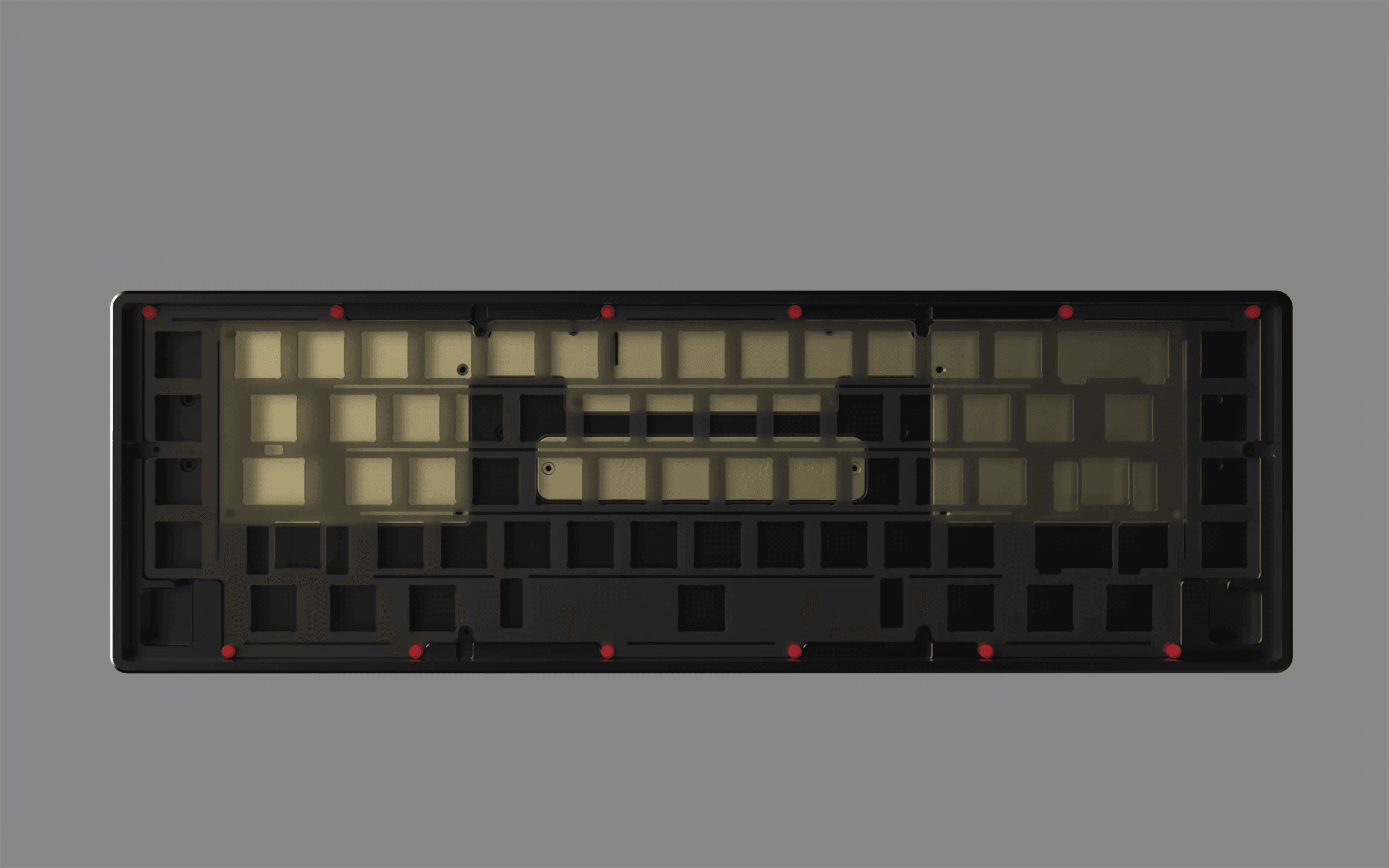

• Inner padding mounting method（two options）

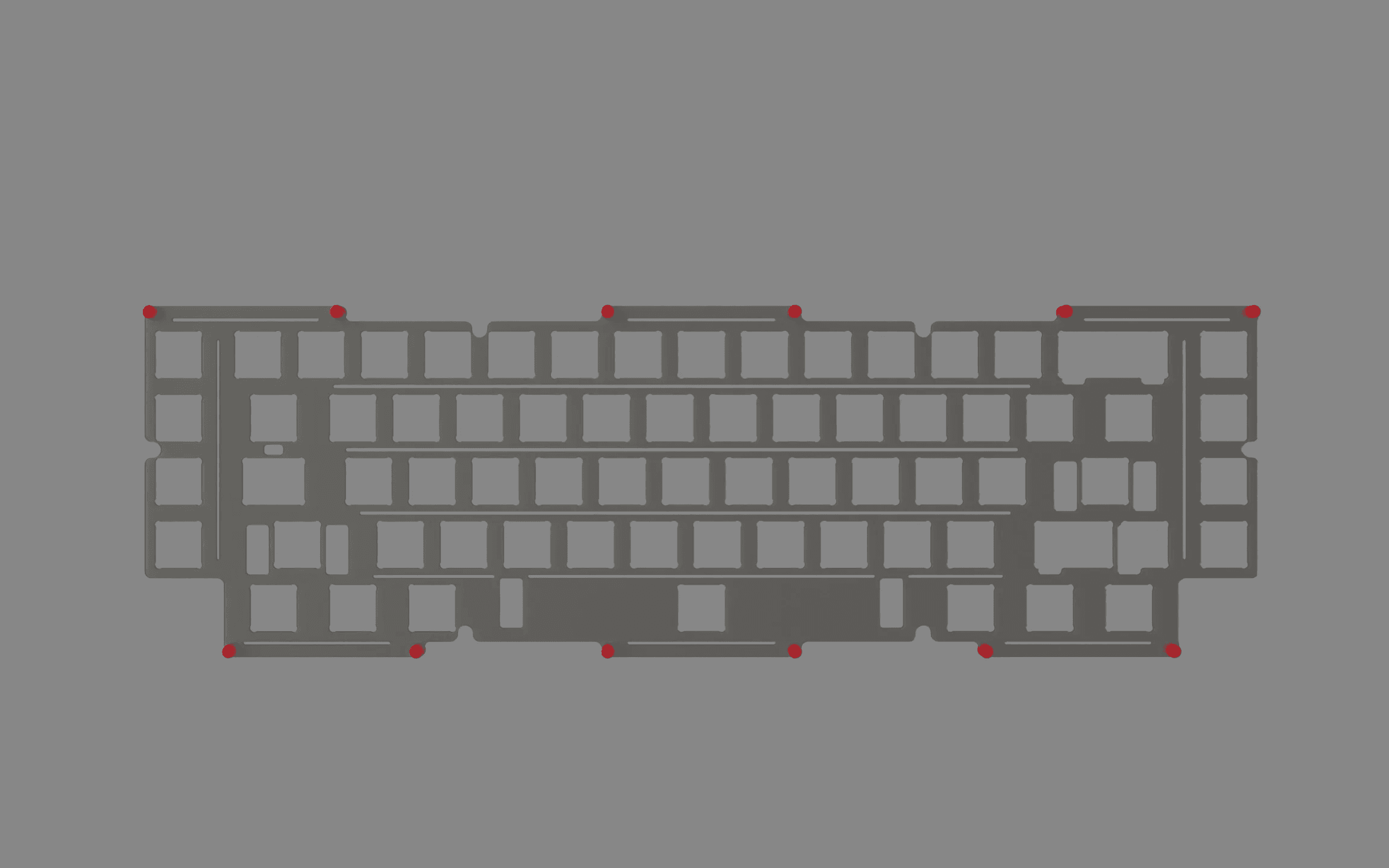

1、Silicone pellets

Assembling effect


2.Poron

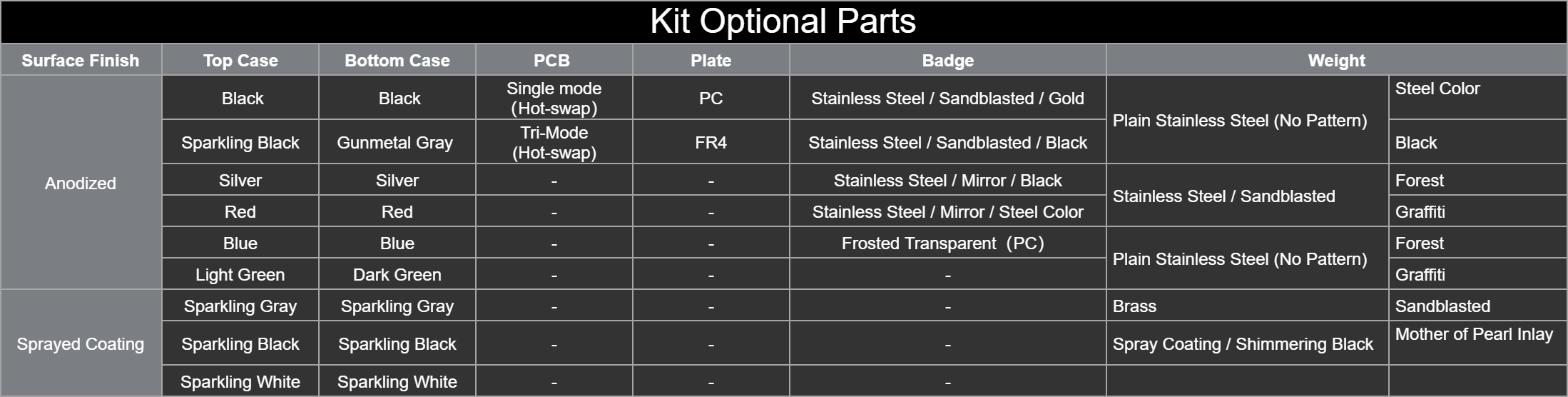

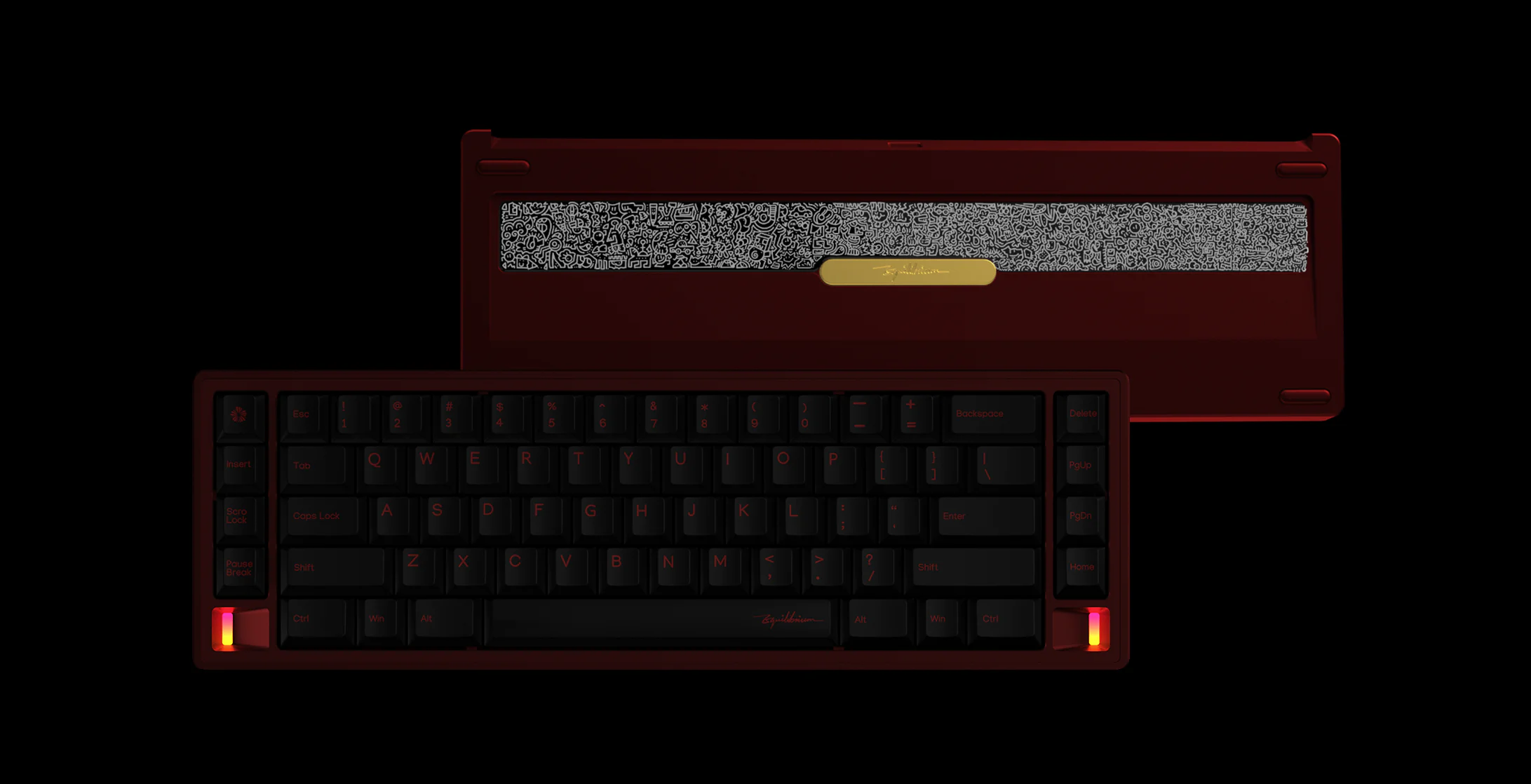

6. Color Options

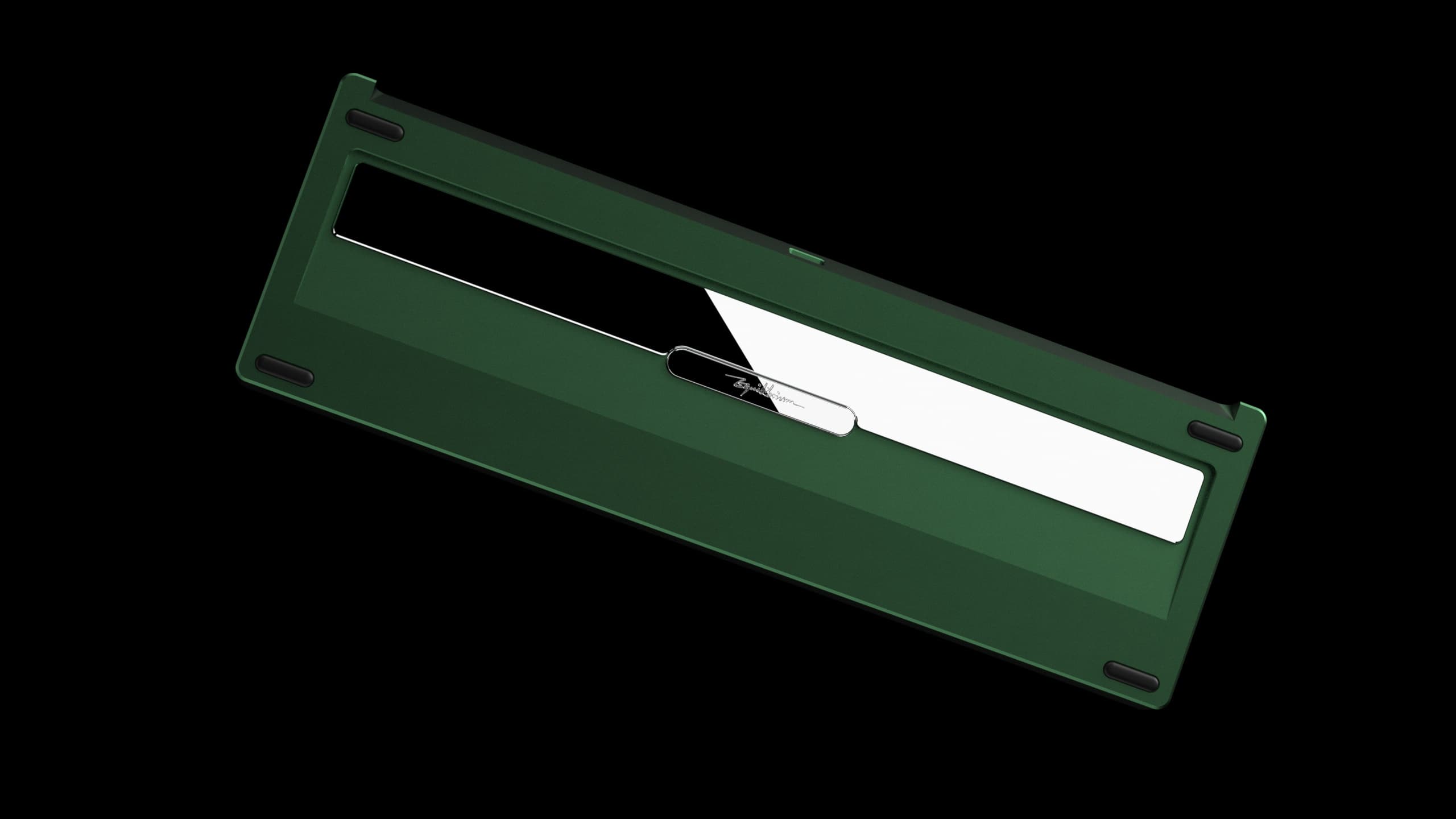

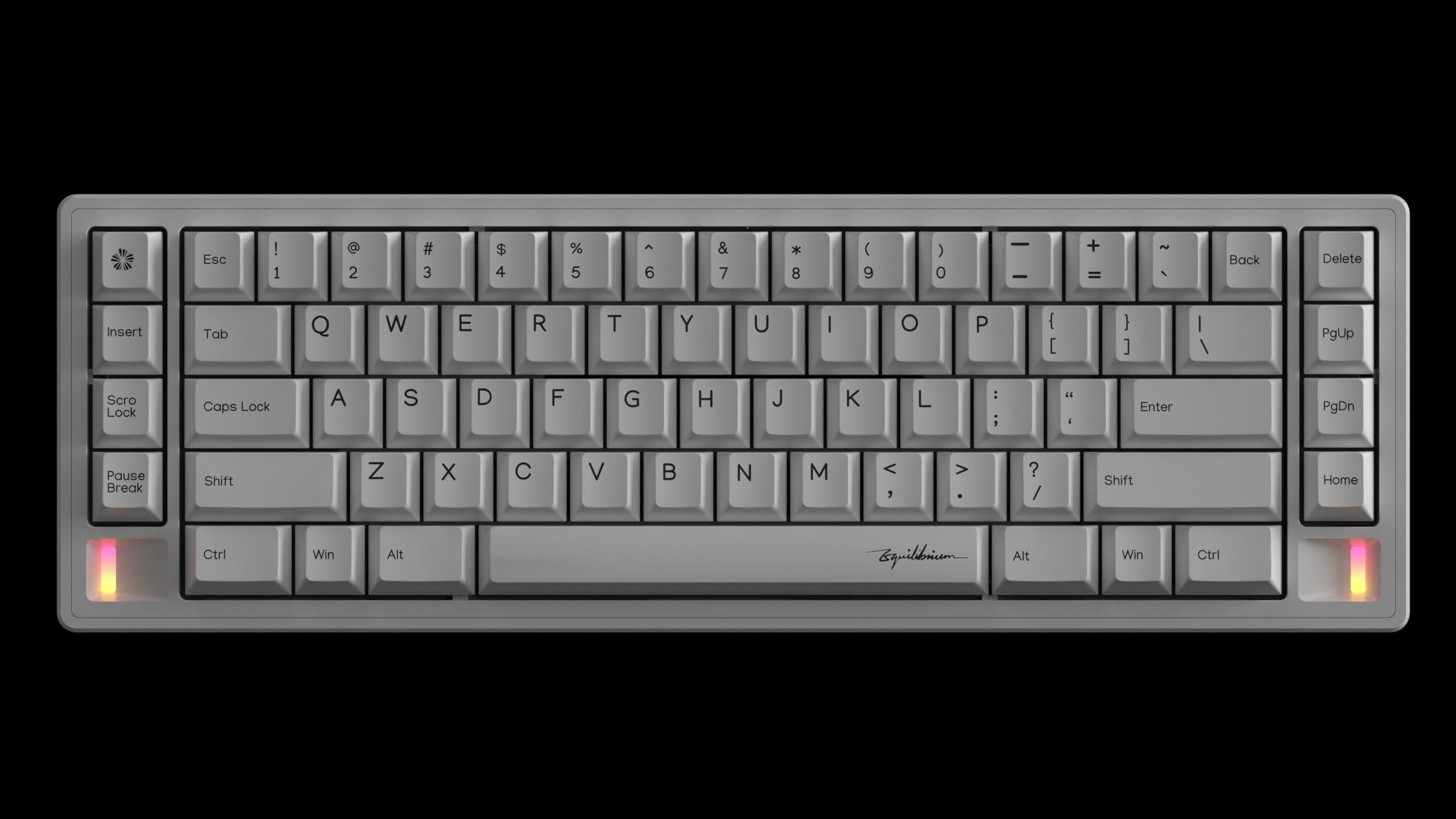

•Case

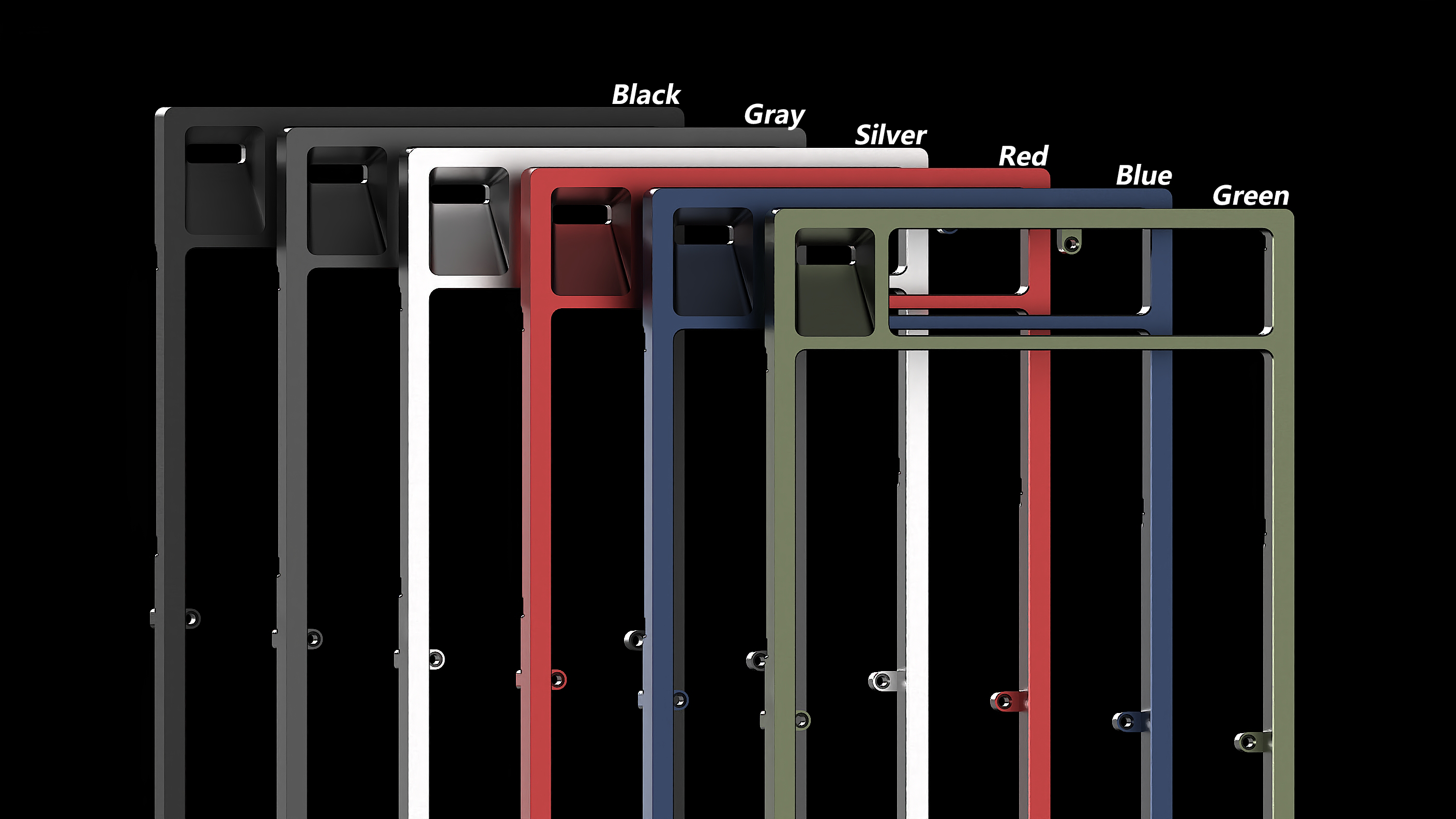

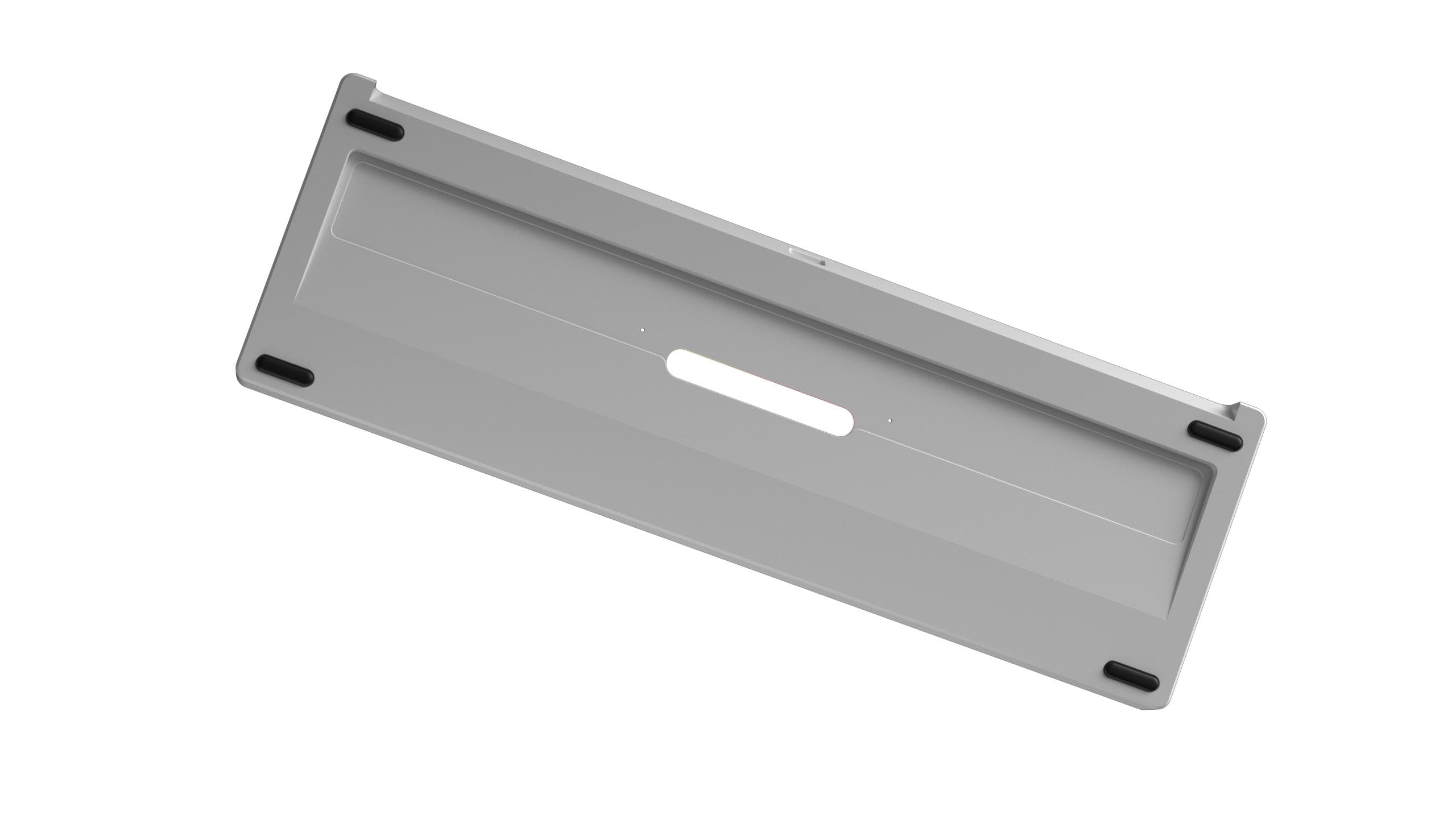

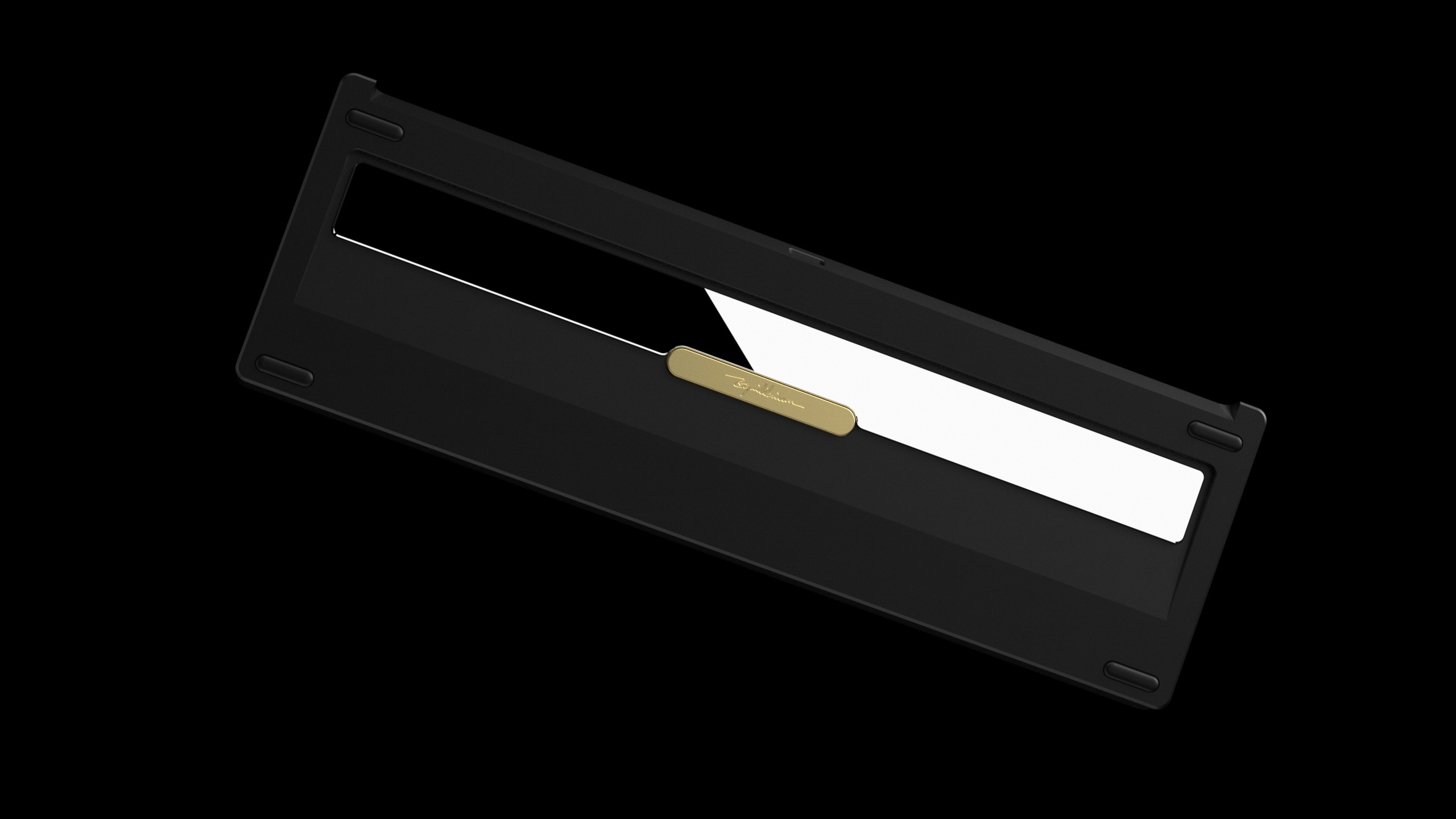

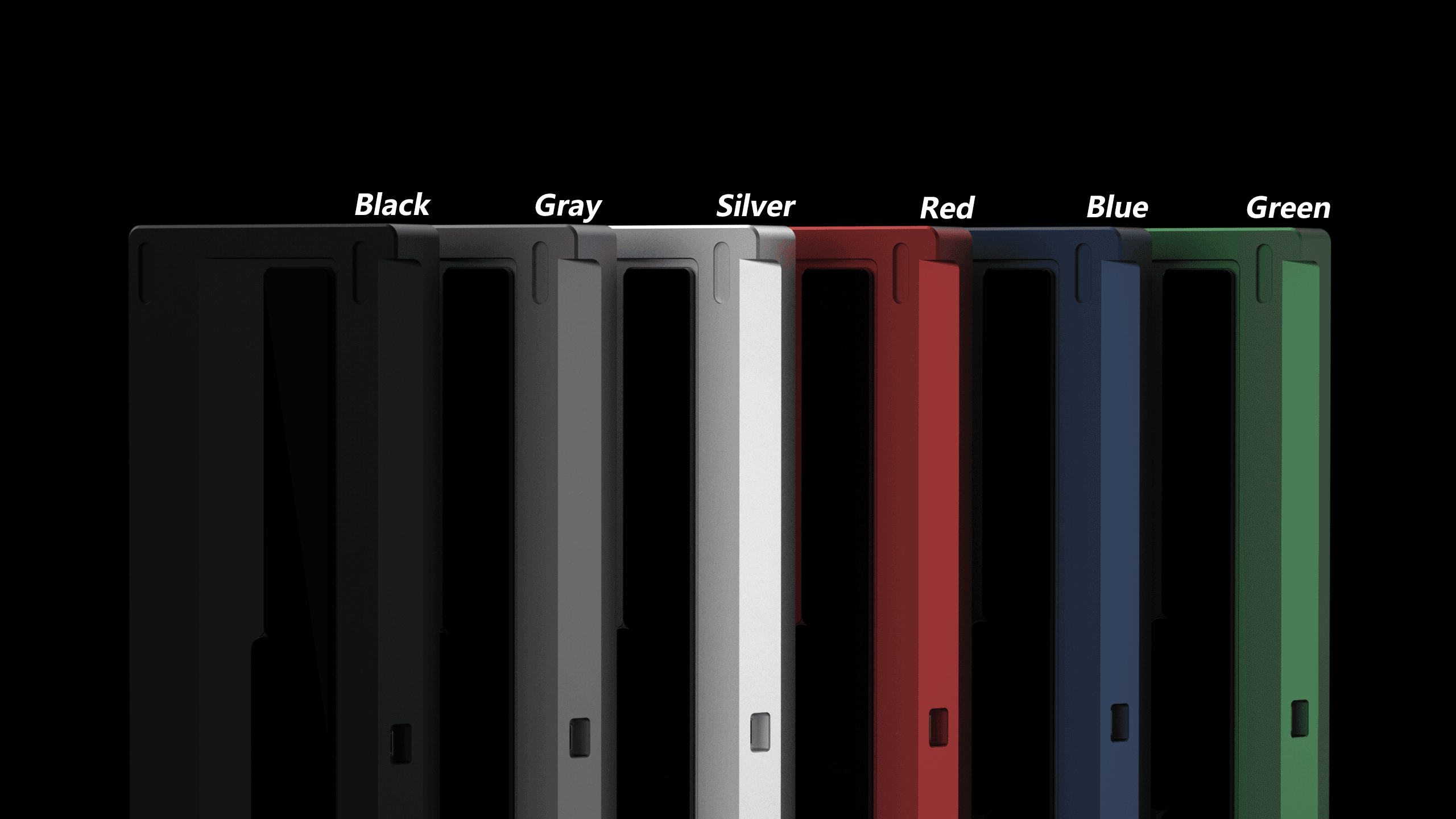

-Anodized Aluminum




The colors of the anodized top and bottom covers can be freely mixed and matched.The following pictures are only part of the mix and match display.








- Spray Coated Case（Spray-coated with glitter)

Sparkling Gray、Sparkling Black、Sparkling White(The colors of the Sprayed Coating top and bottom covers also can be freely mixed and matched.)

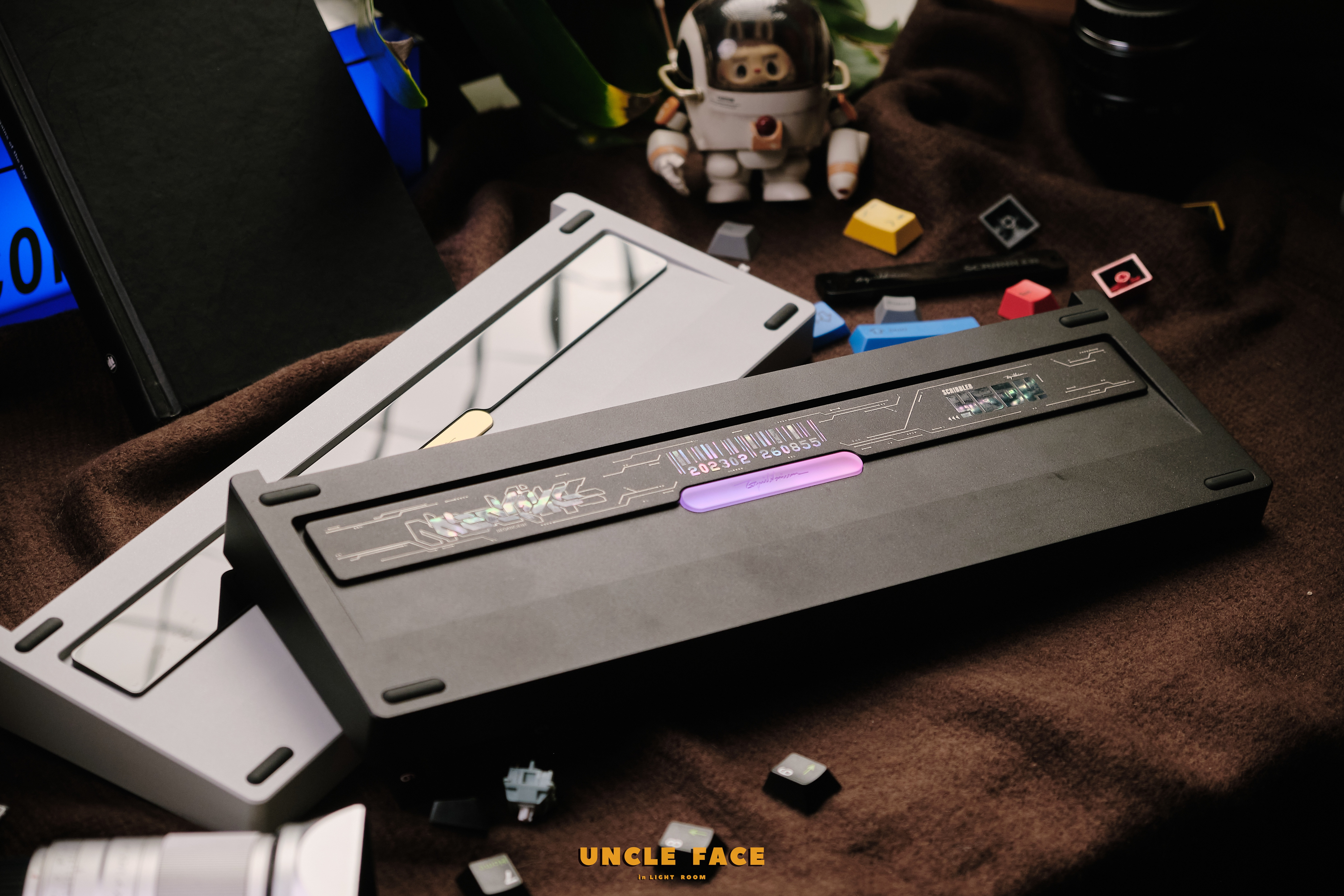

Spray coated finish by Sparkling Gray and Black.The image cannot fully capture the sparkling effect of the keyboard's coating.

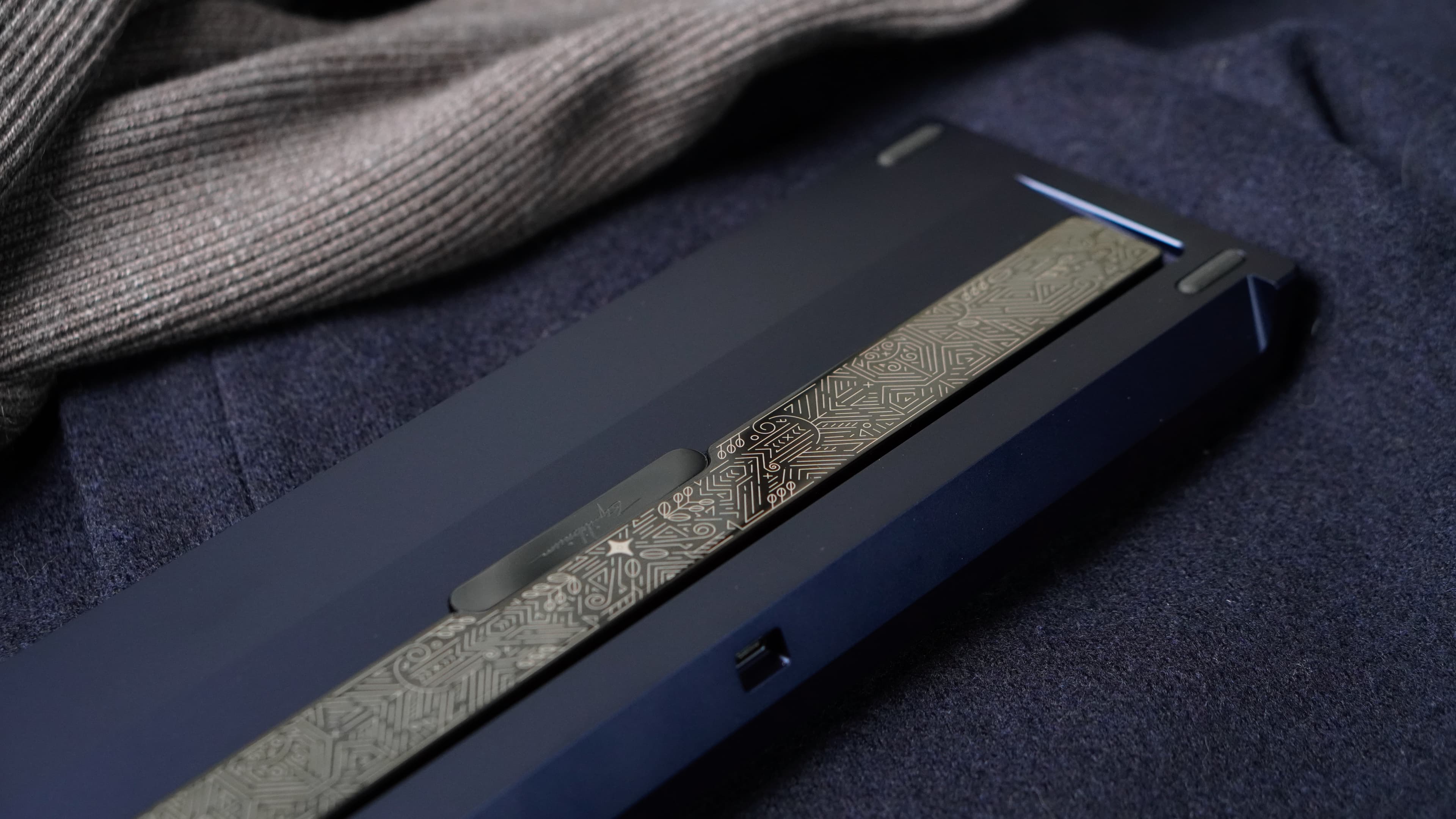

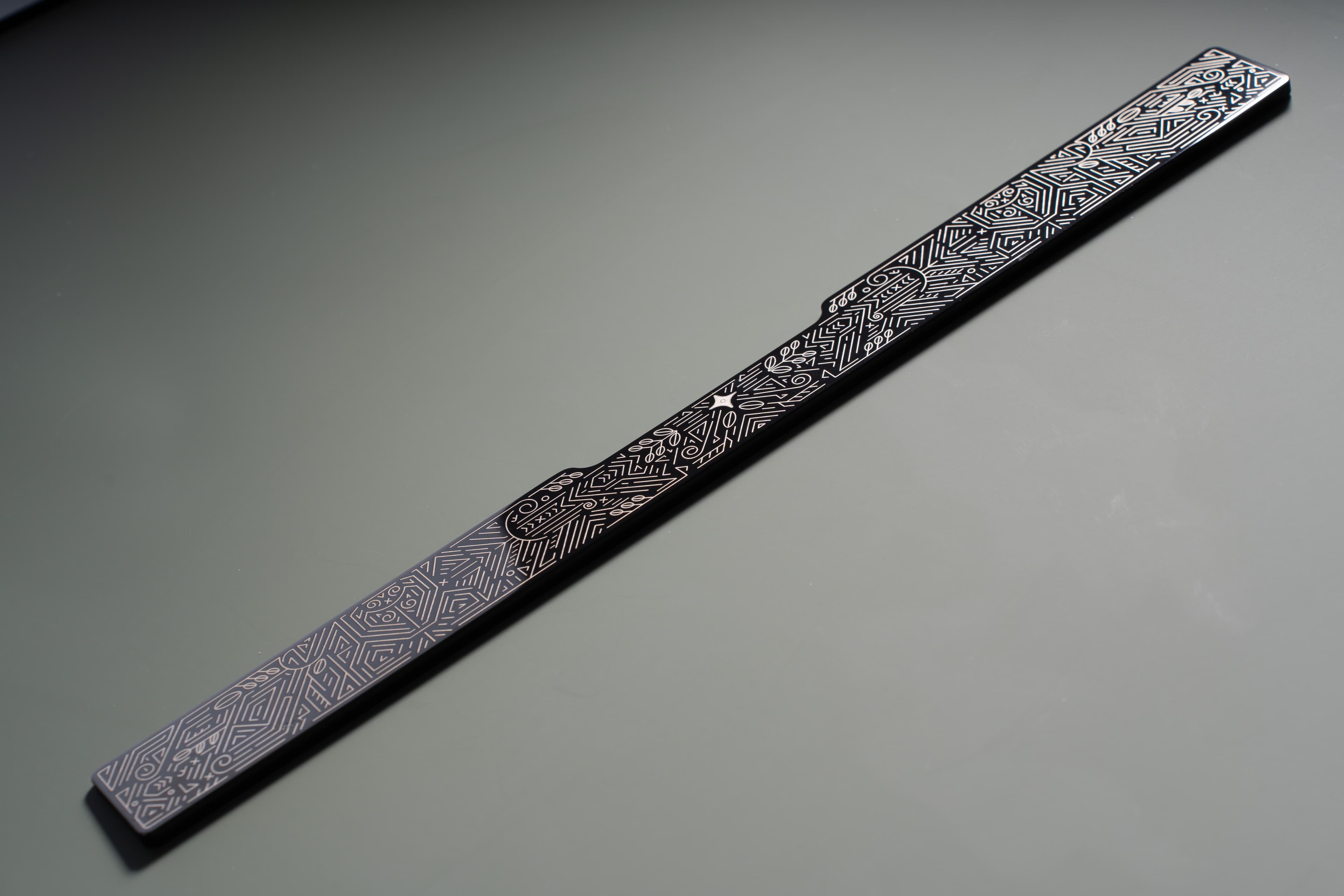

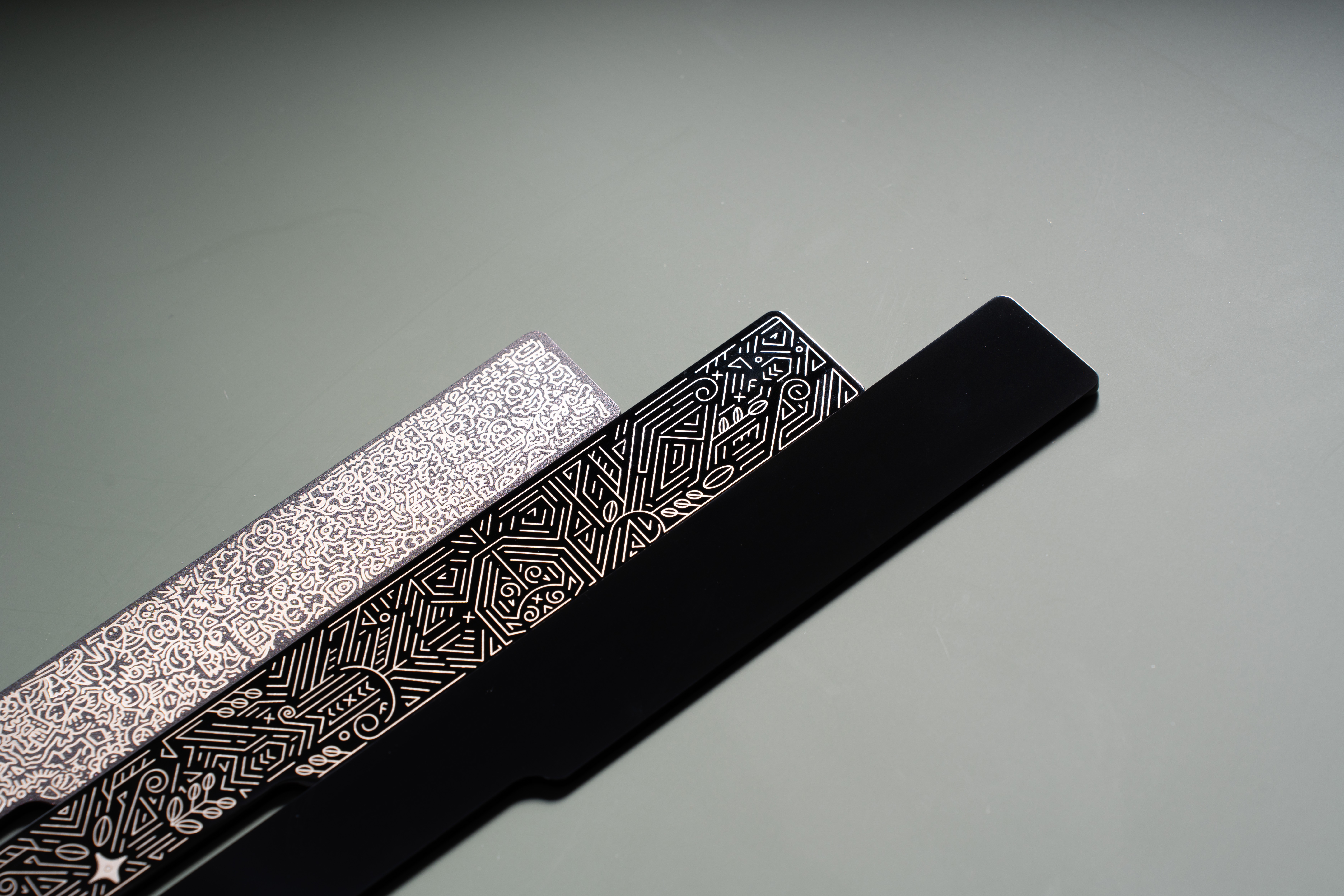

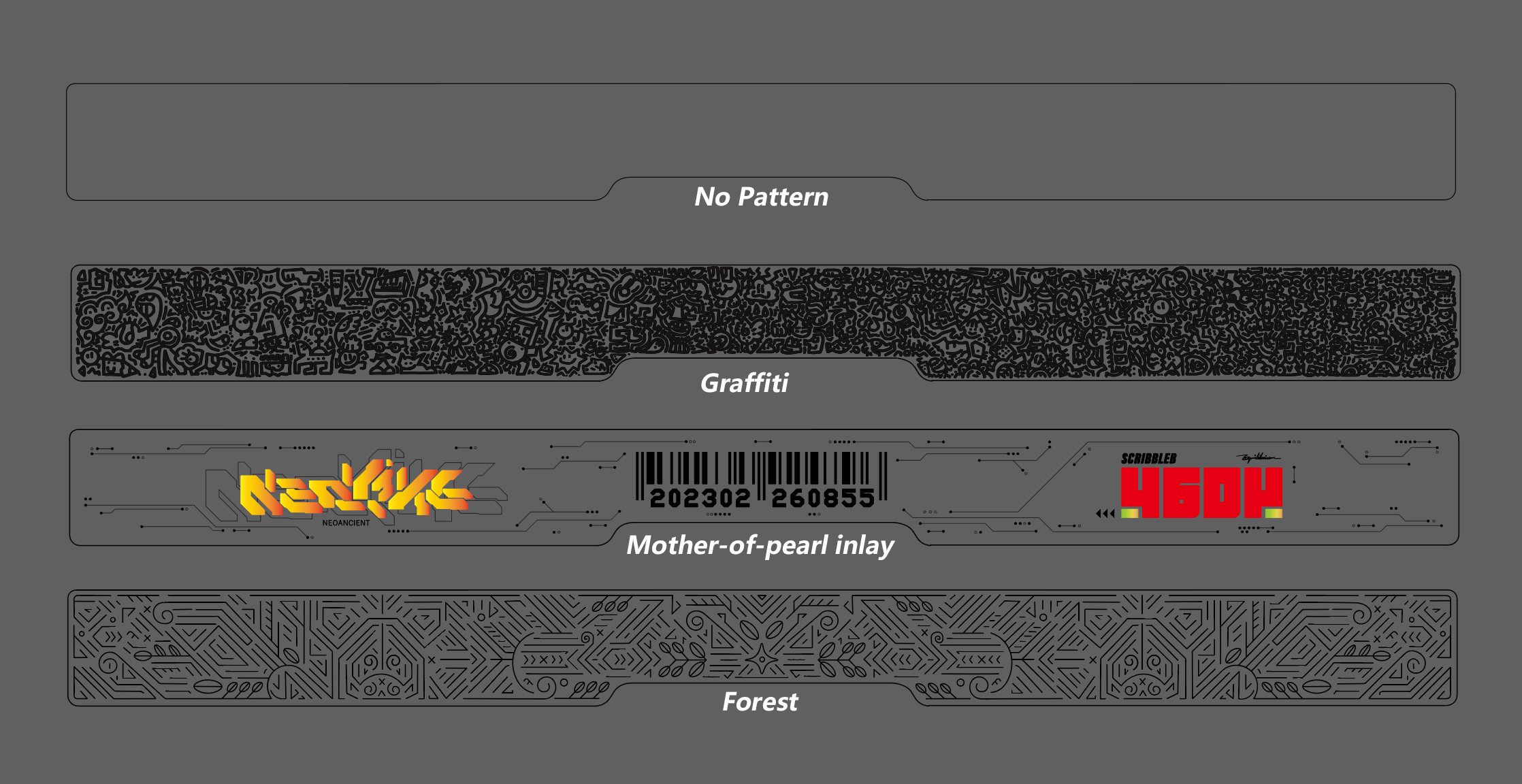

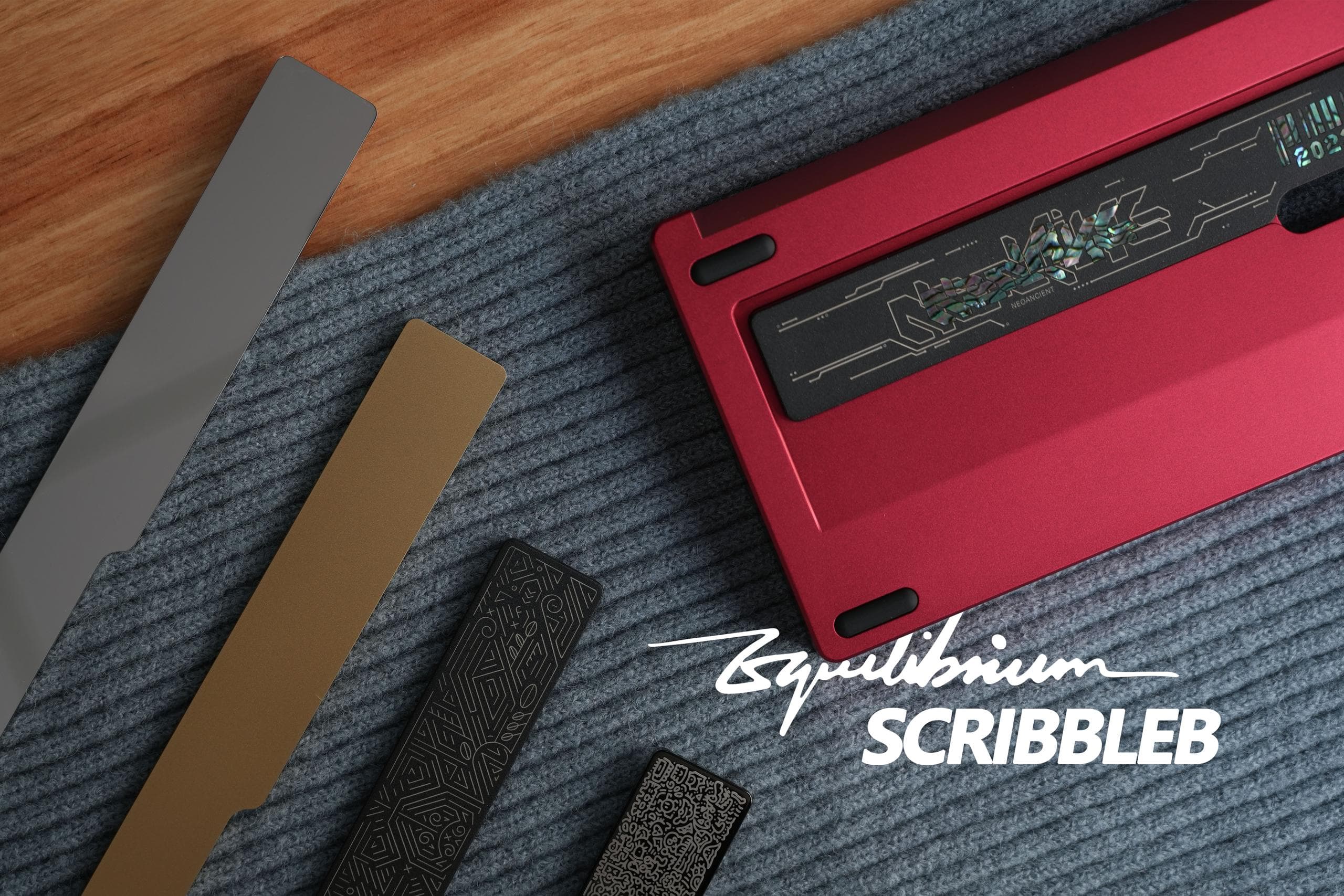

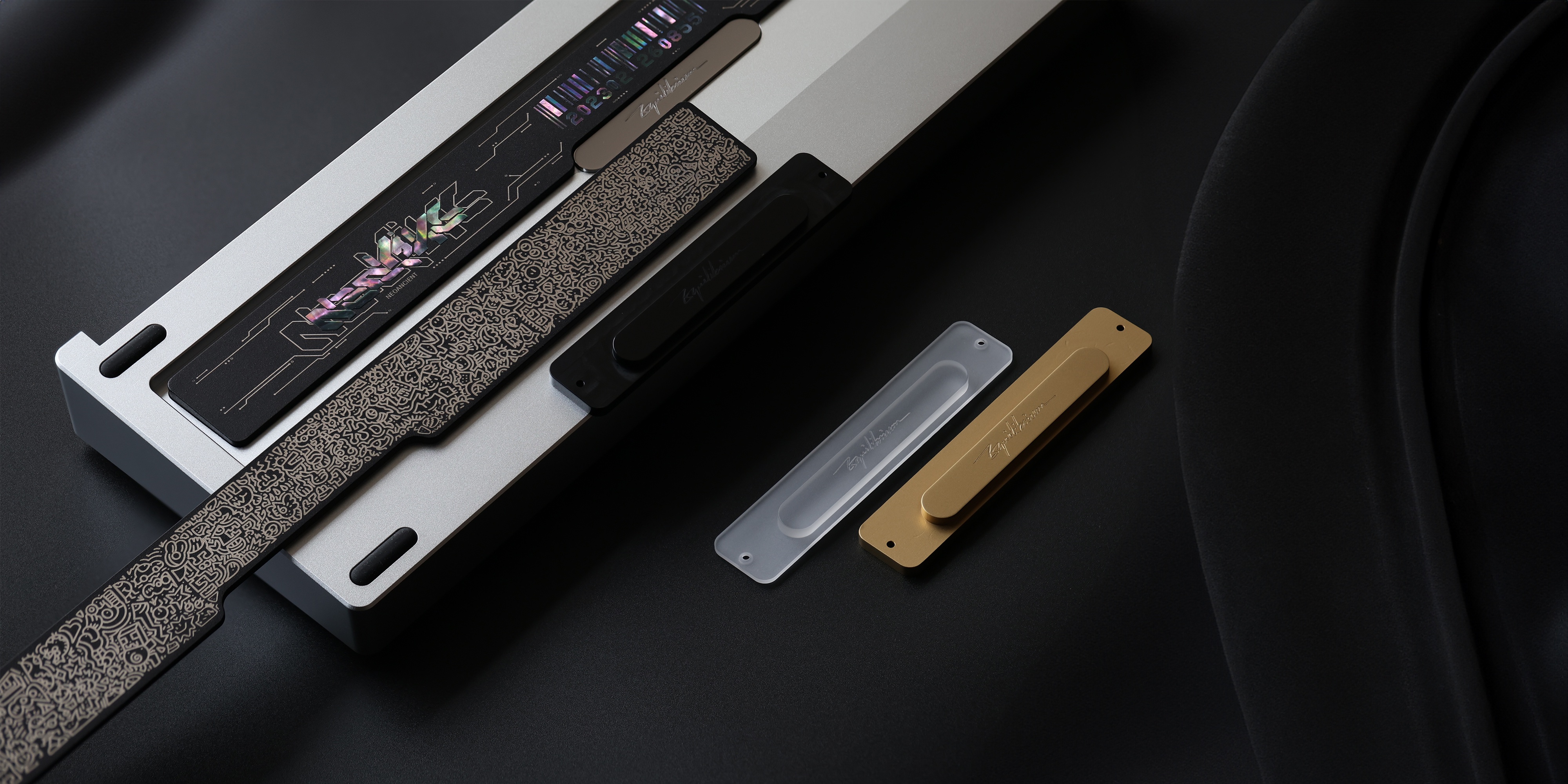

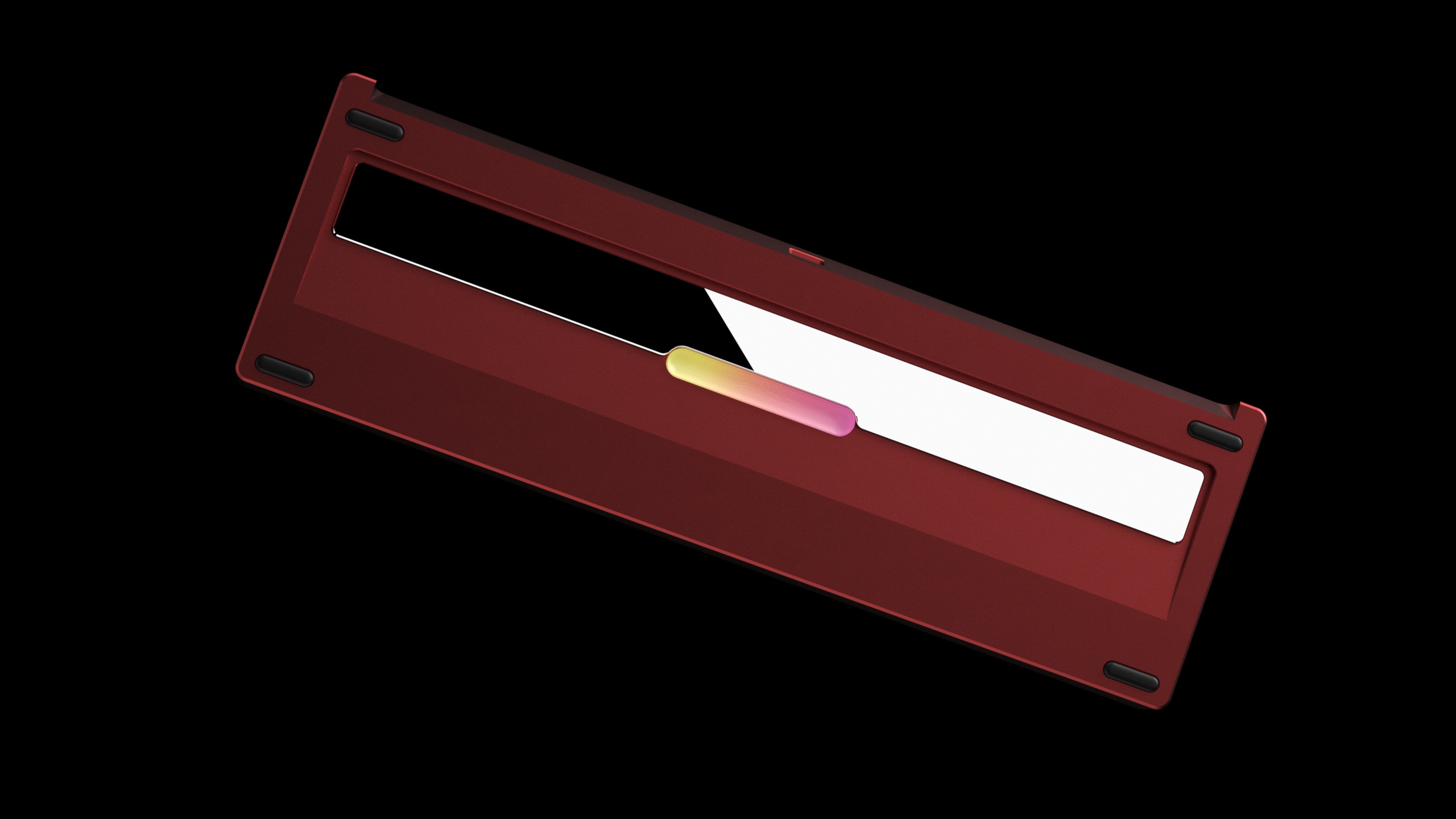

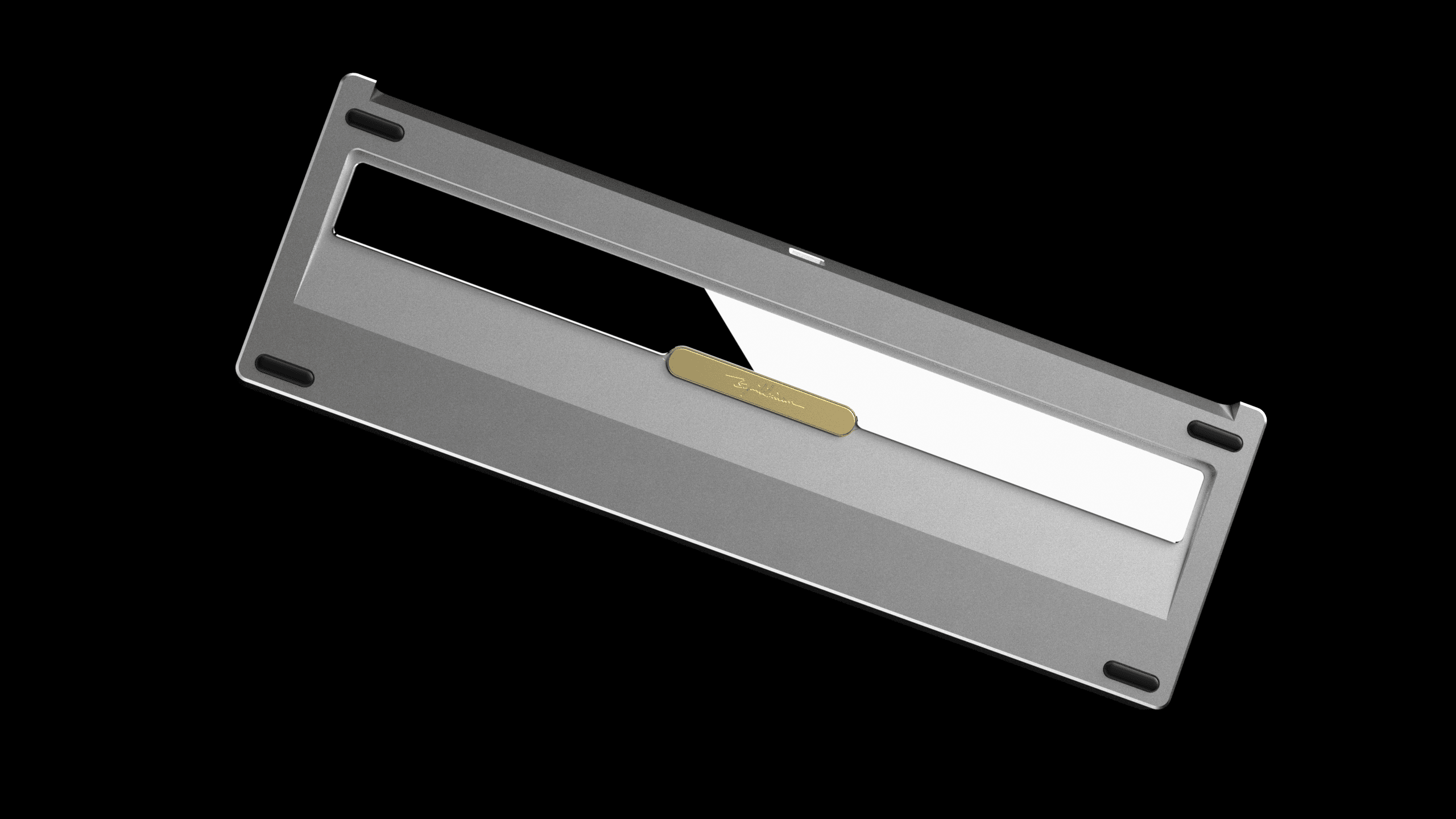

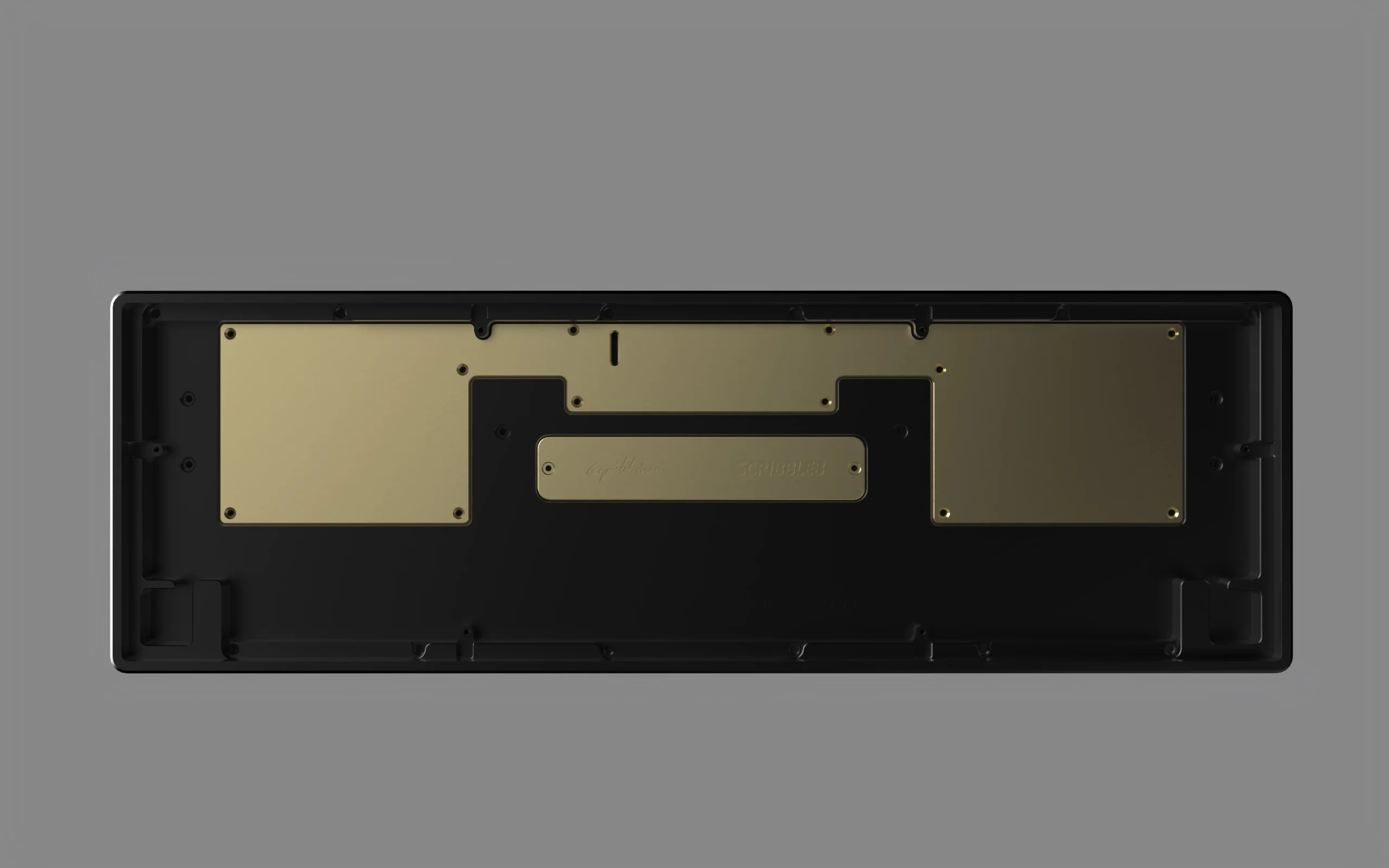

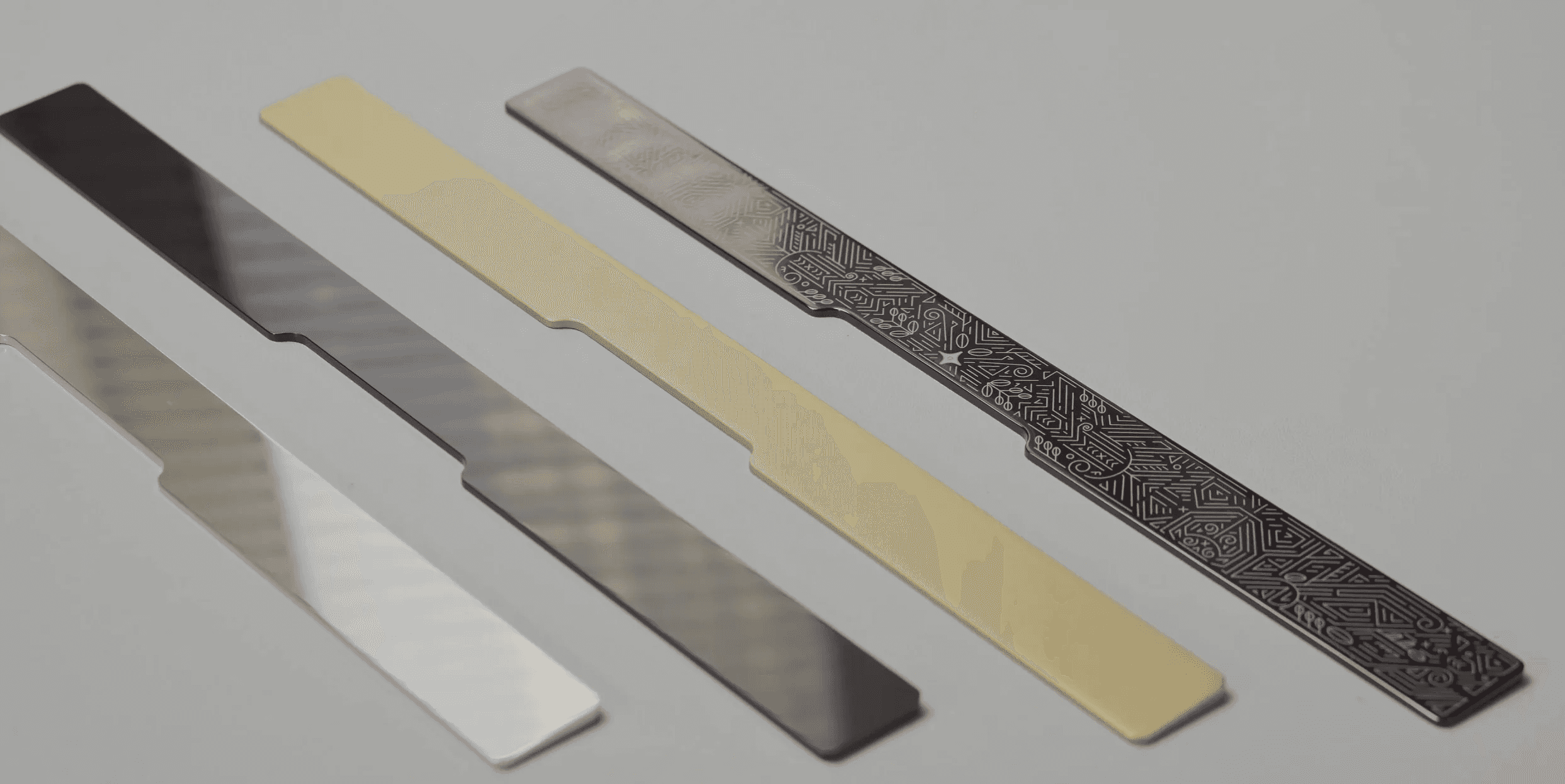

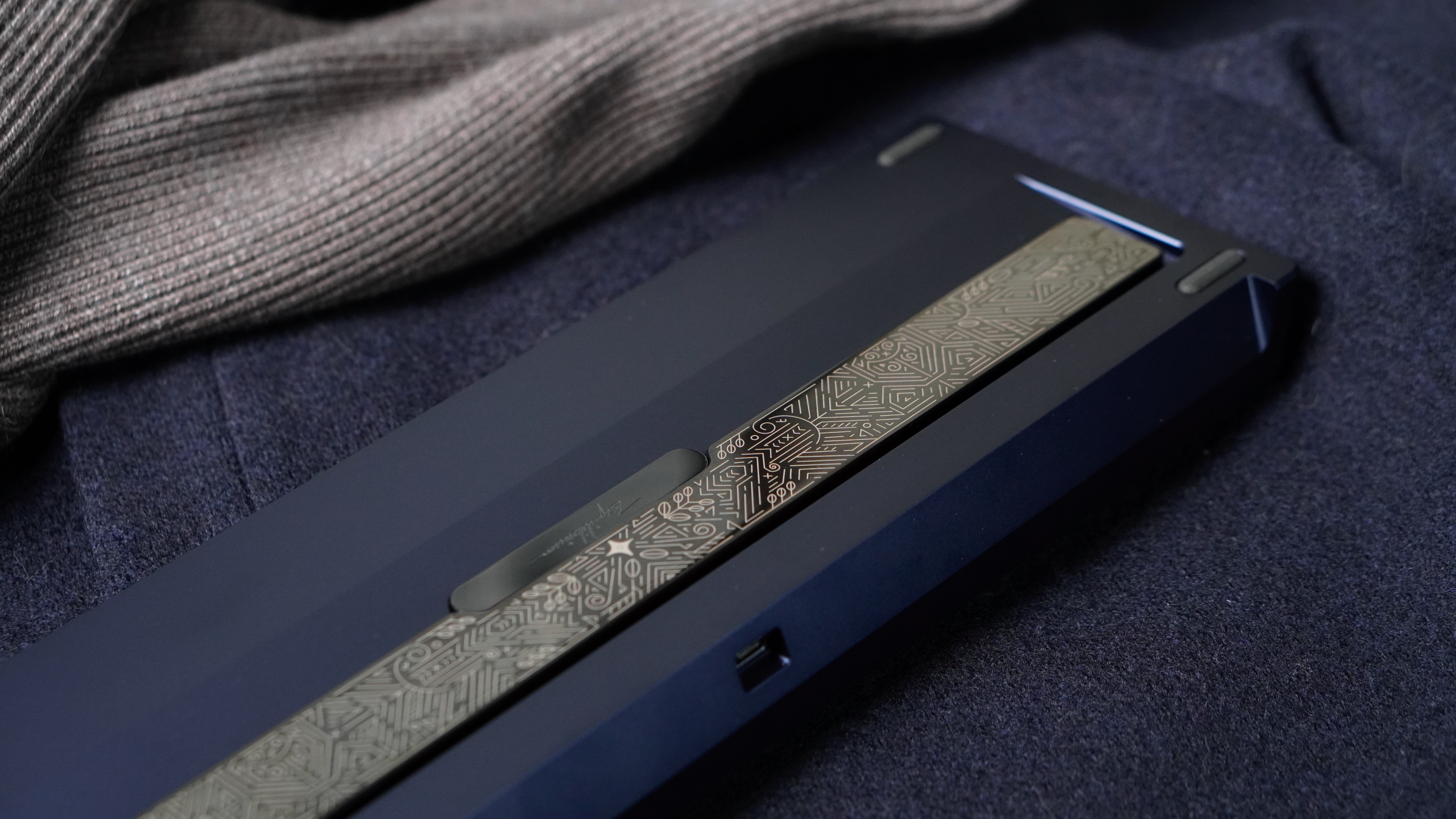

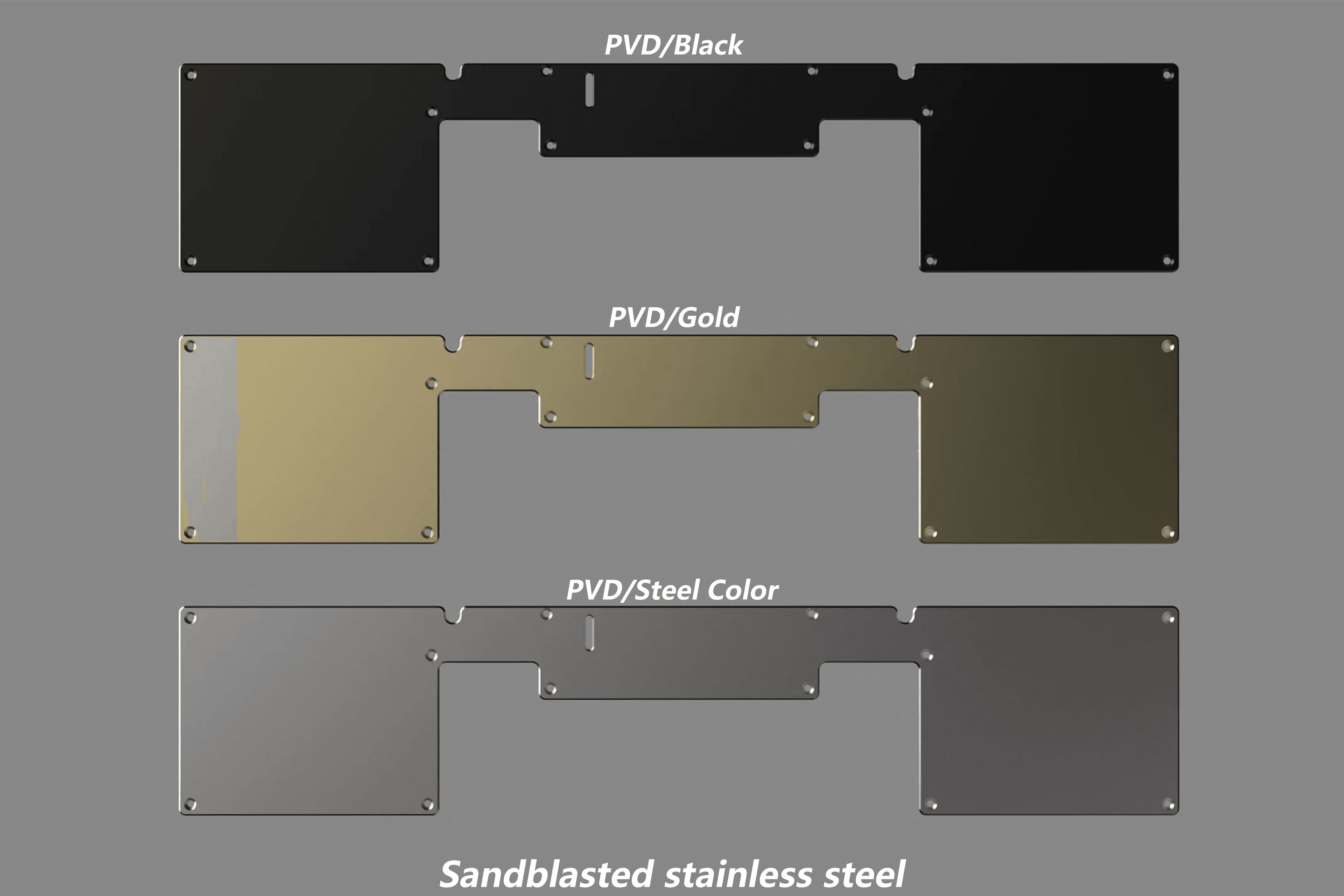

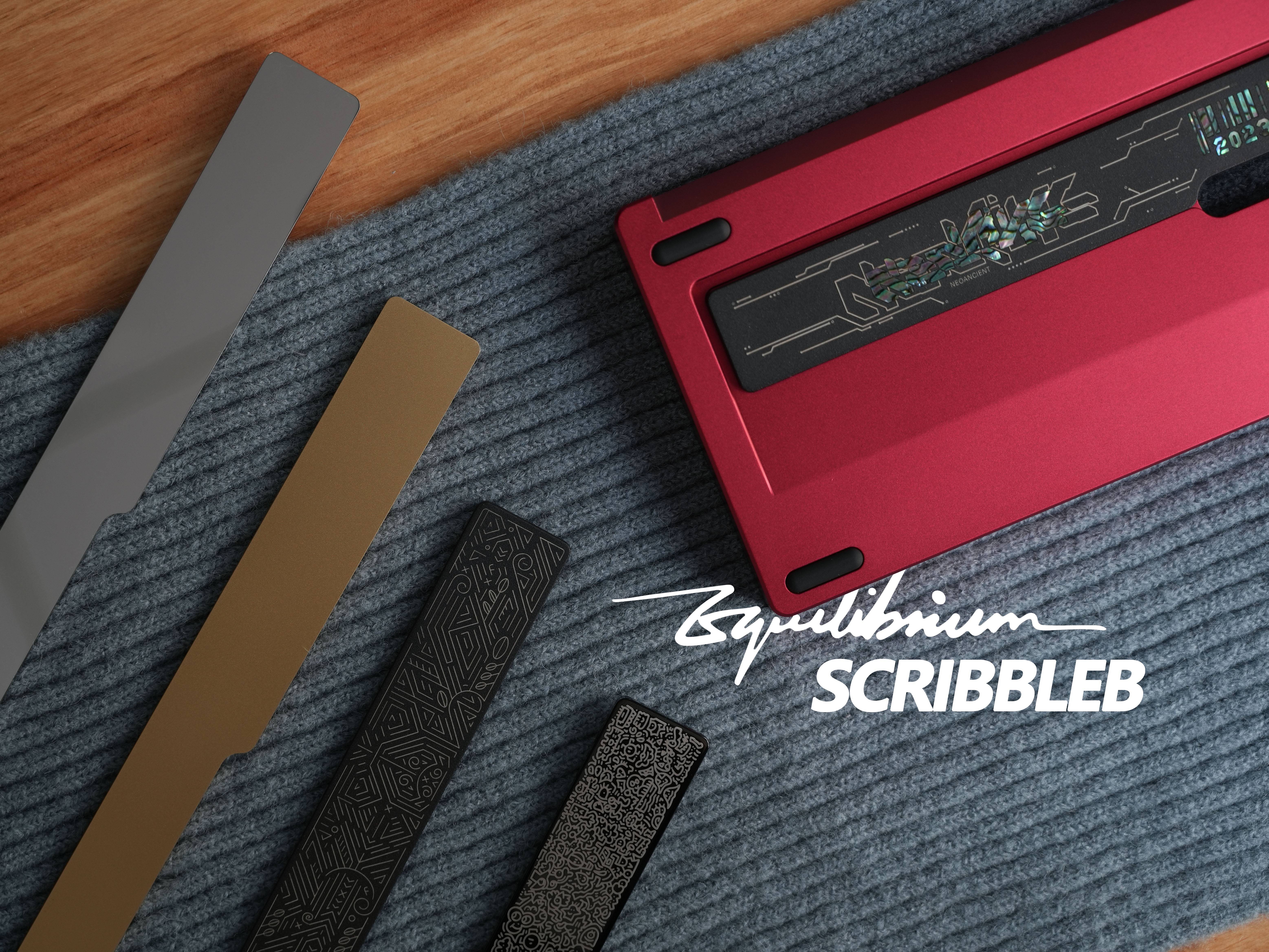

•Weight


In addition to patterns, there are various surface finish options for the weight, including sandblasted matte, polished mirror, and glitter-coated finishes.
The real product photos will be introduced next.

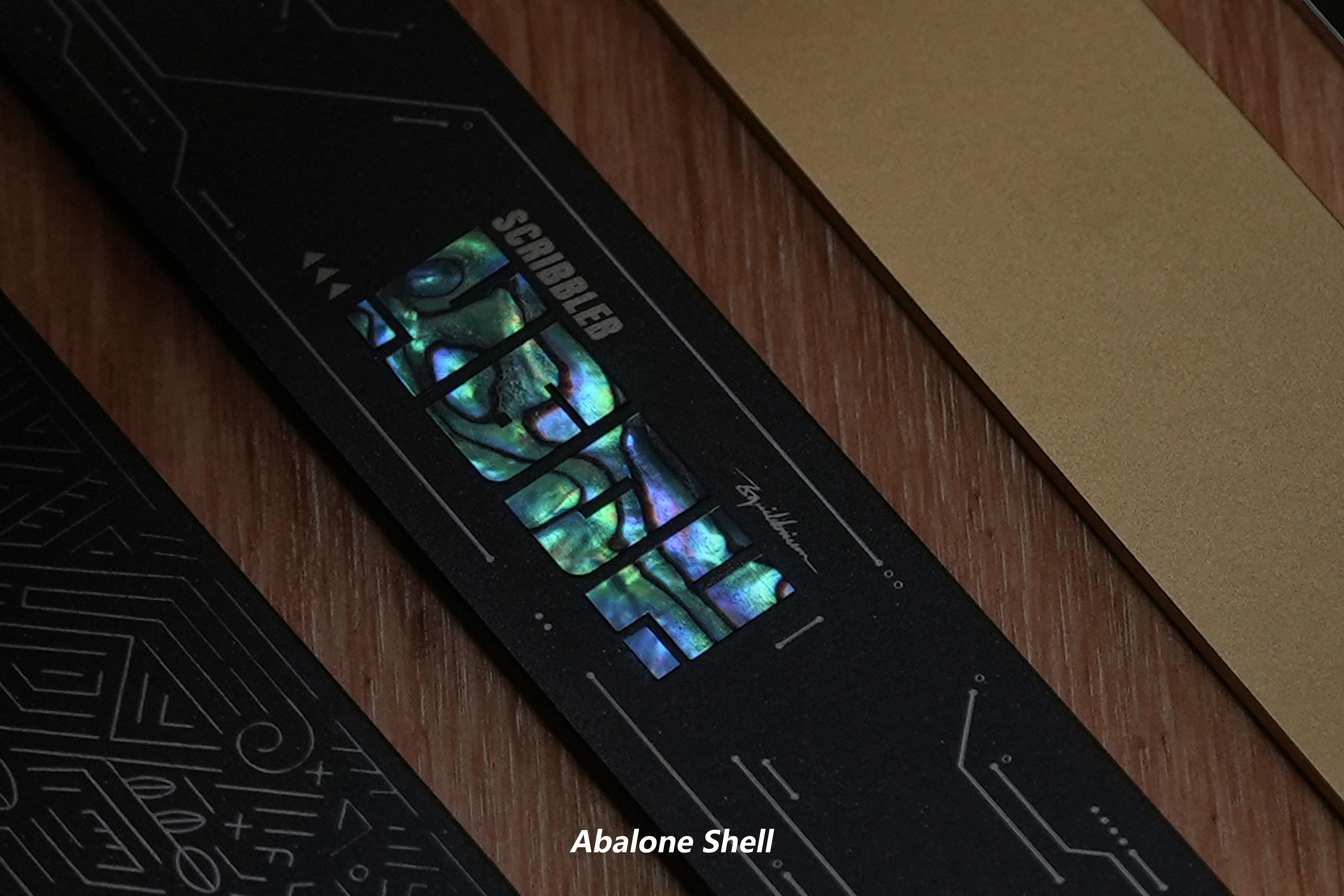

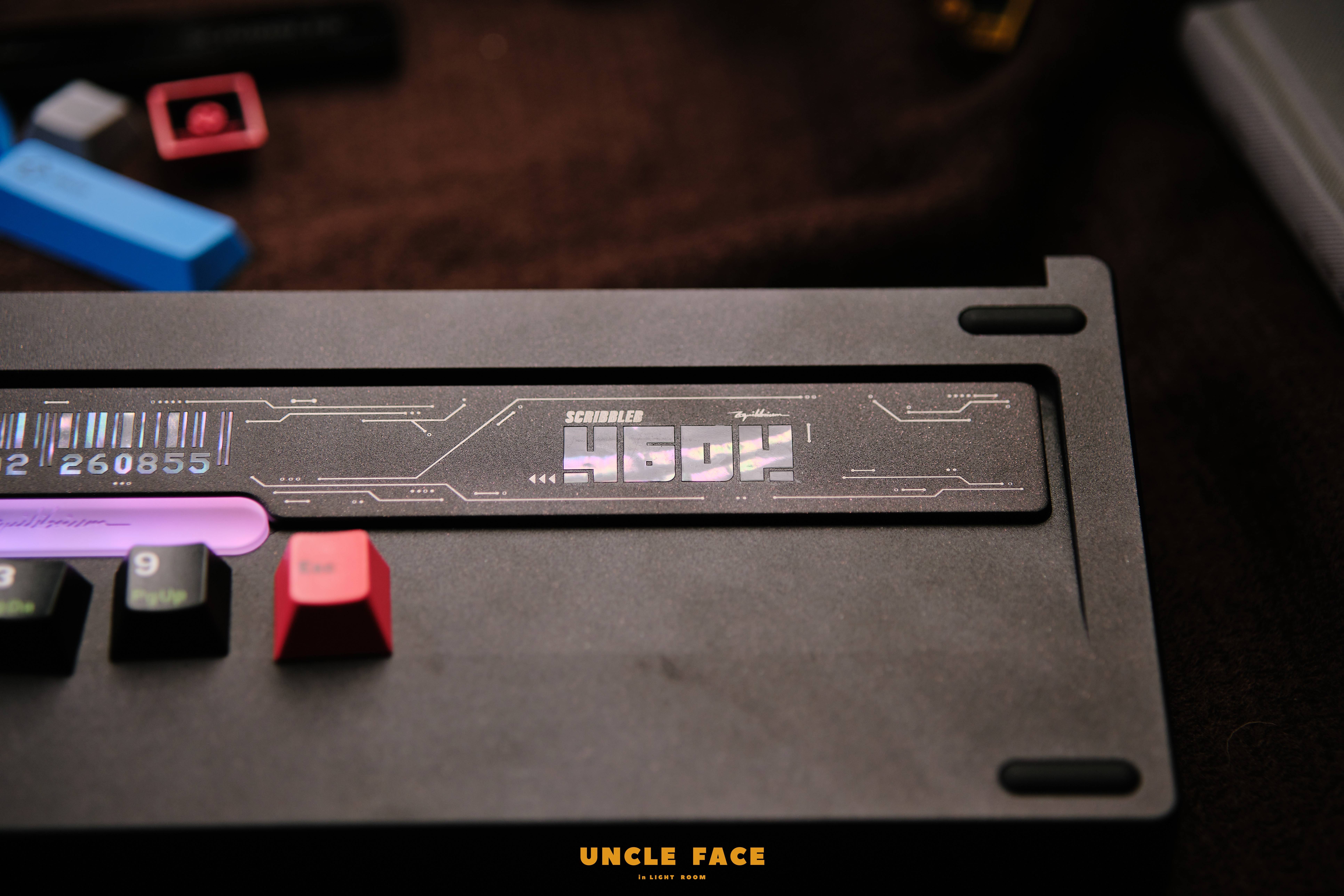

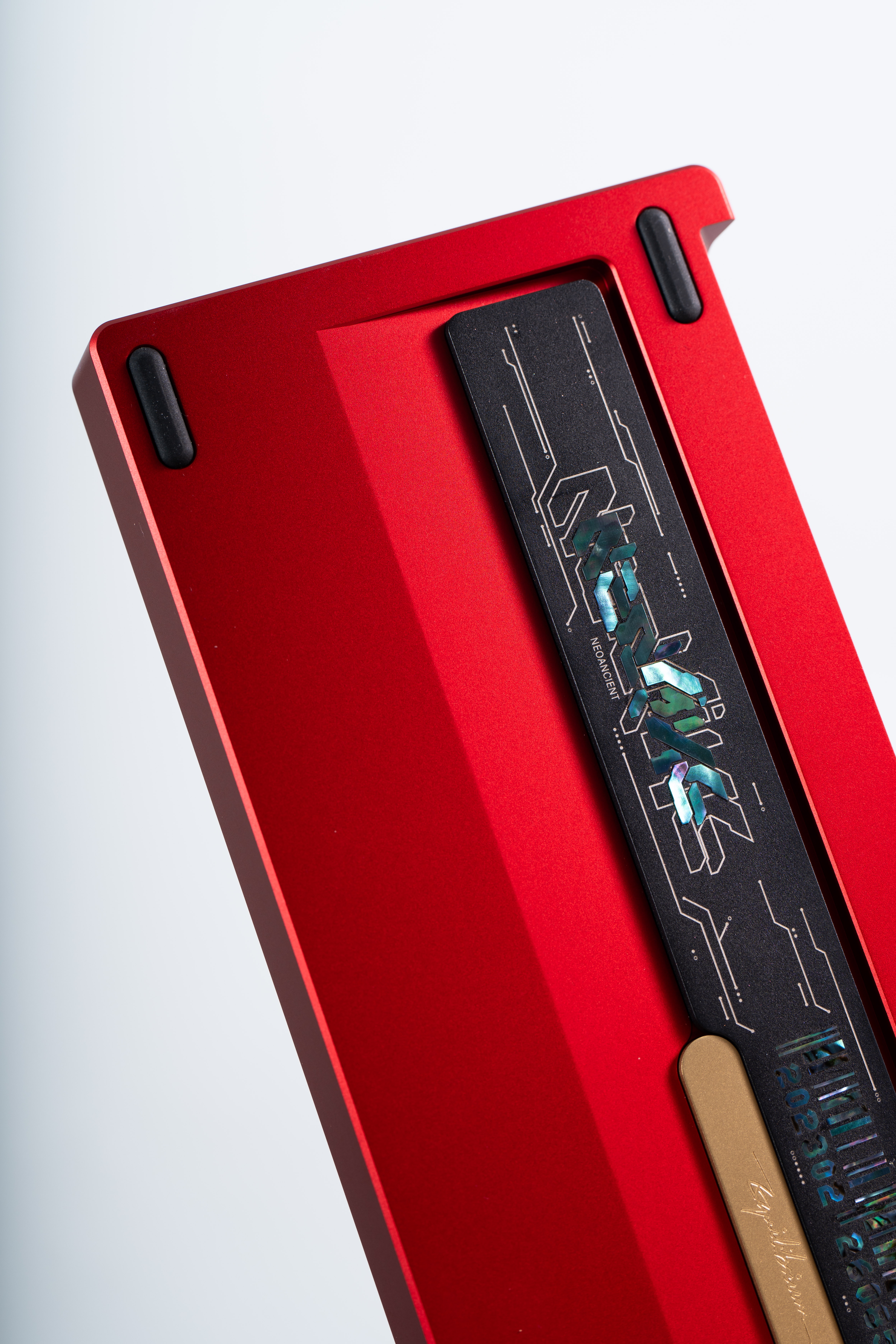

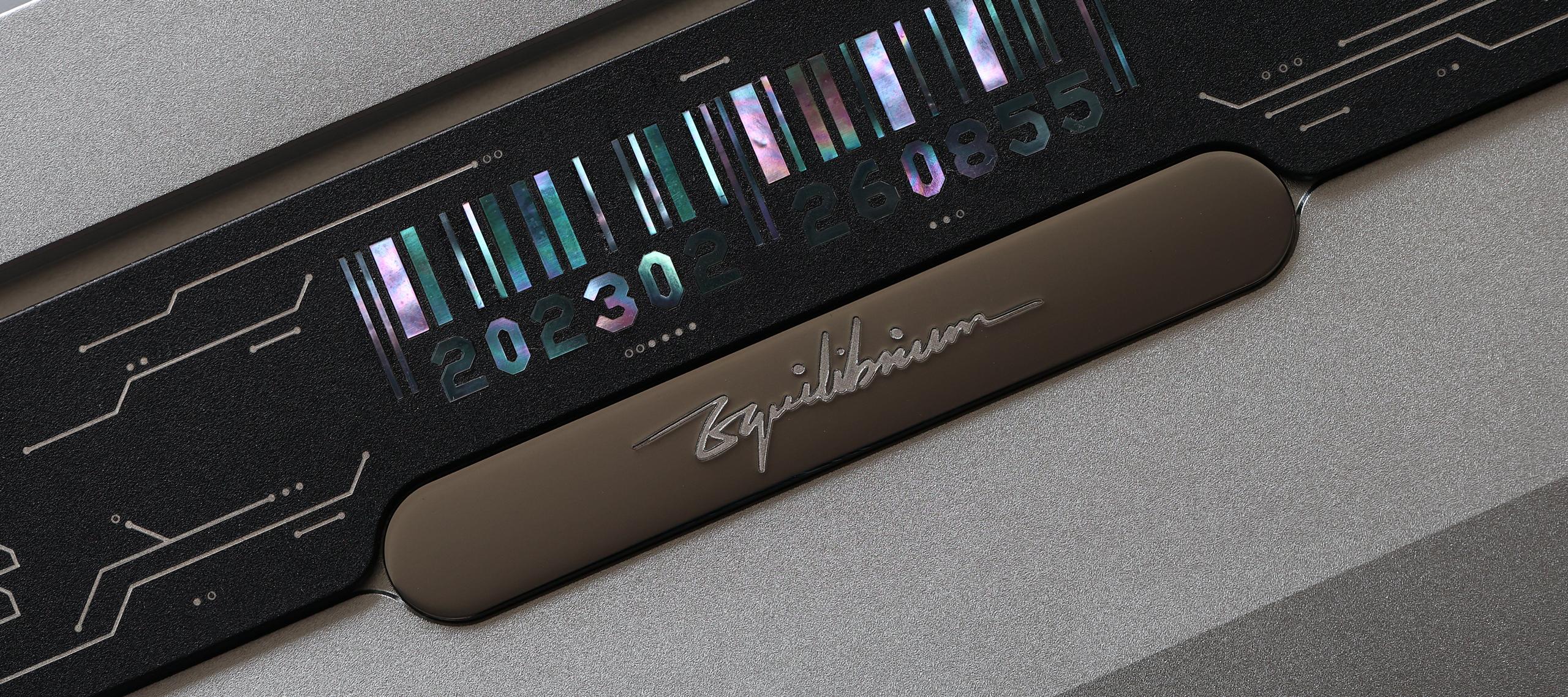

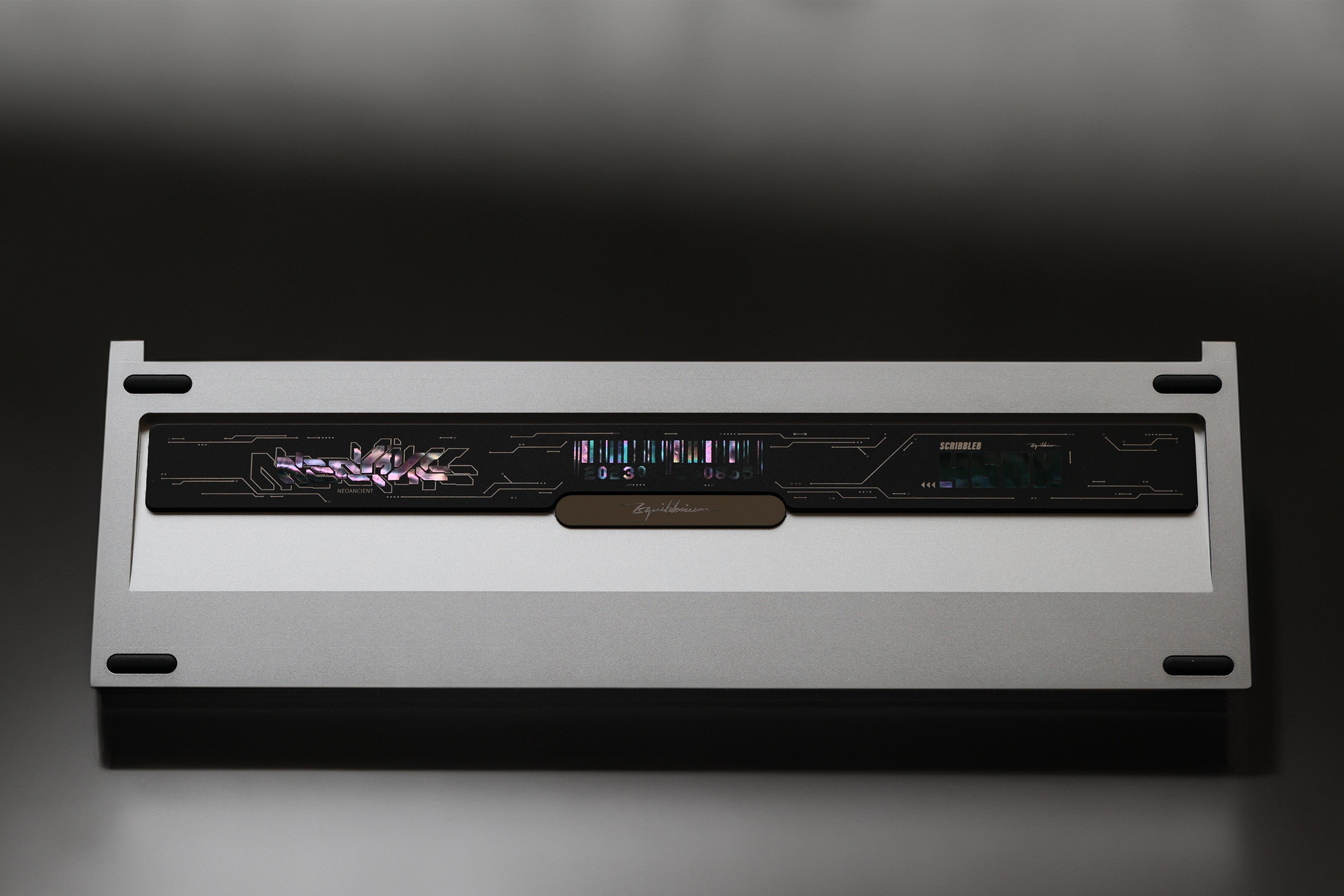

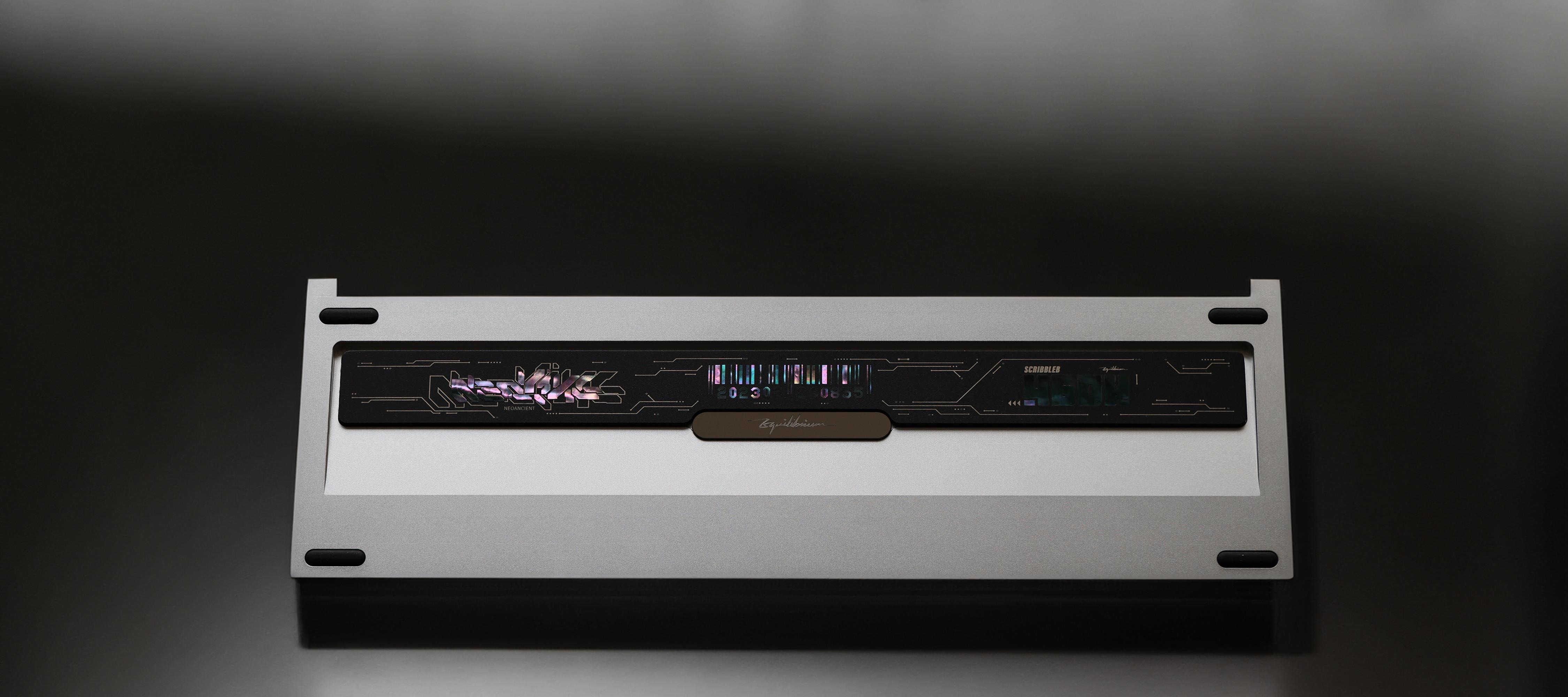

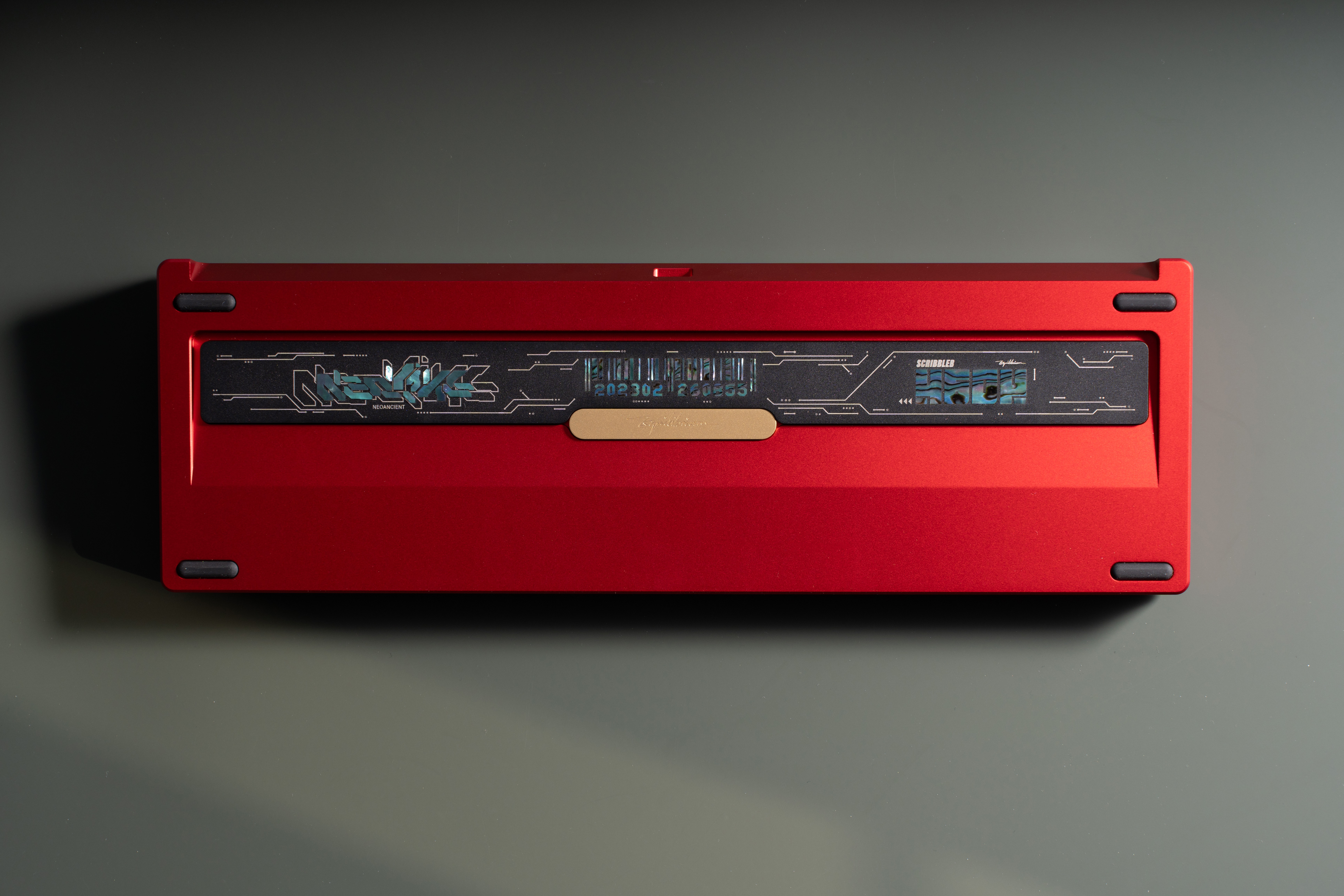

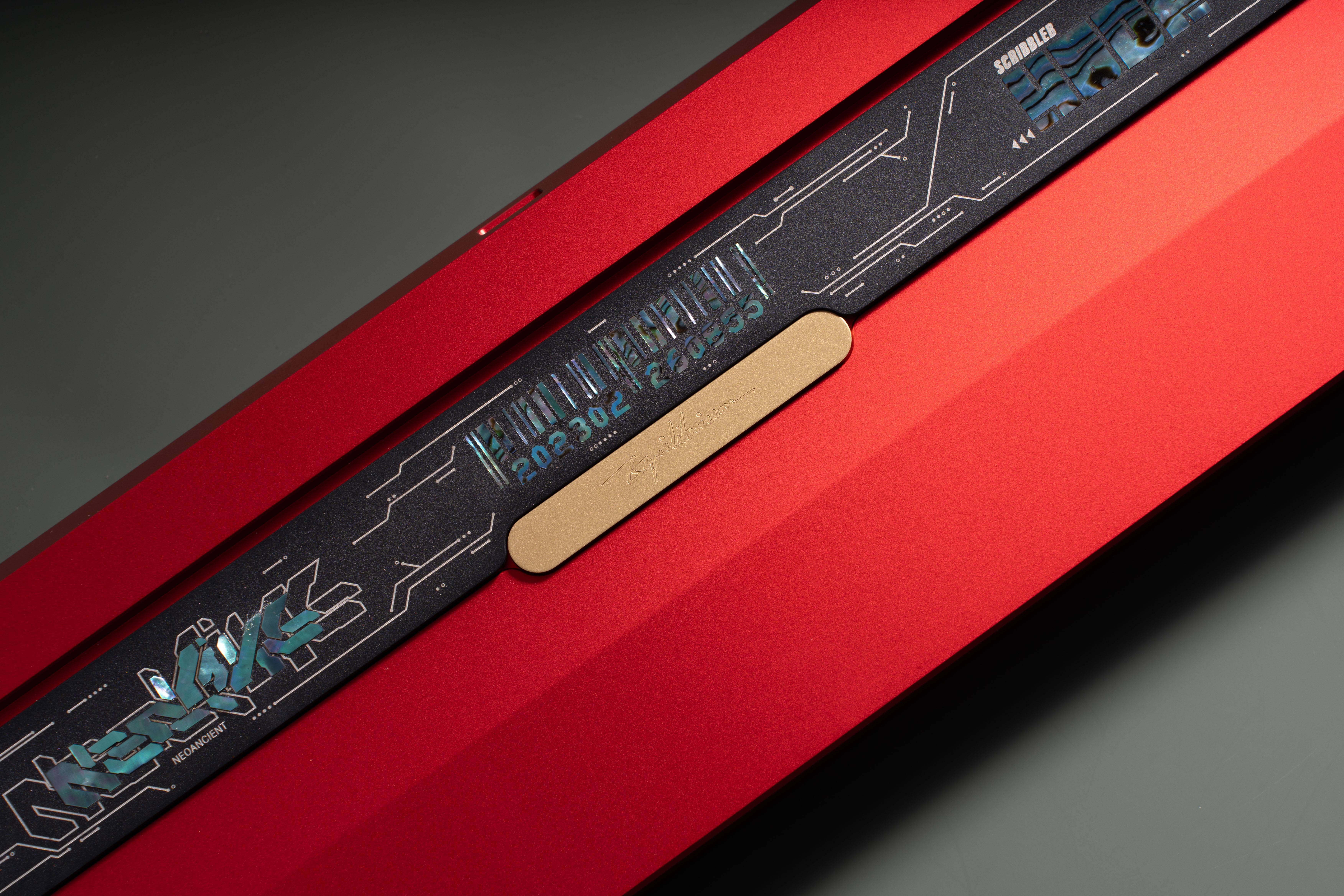

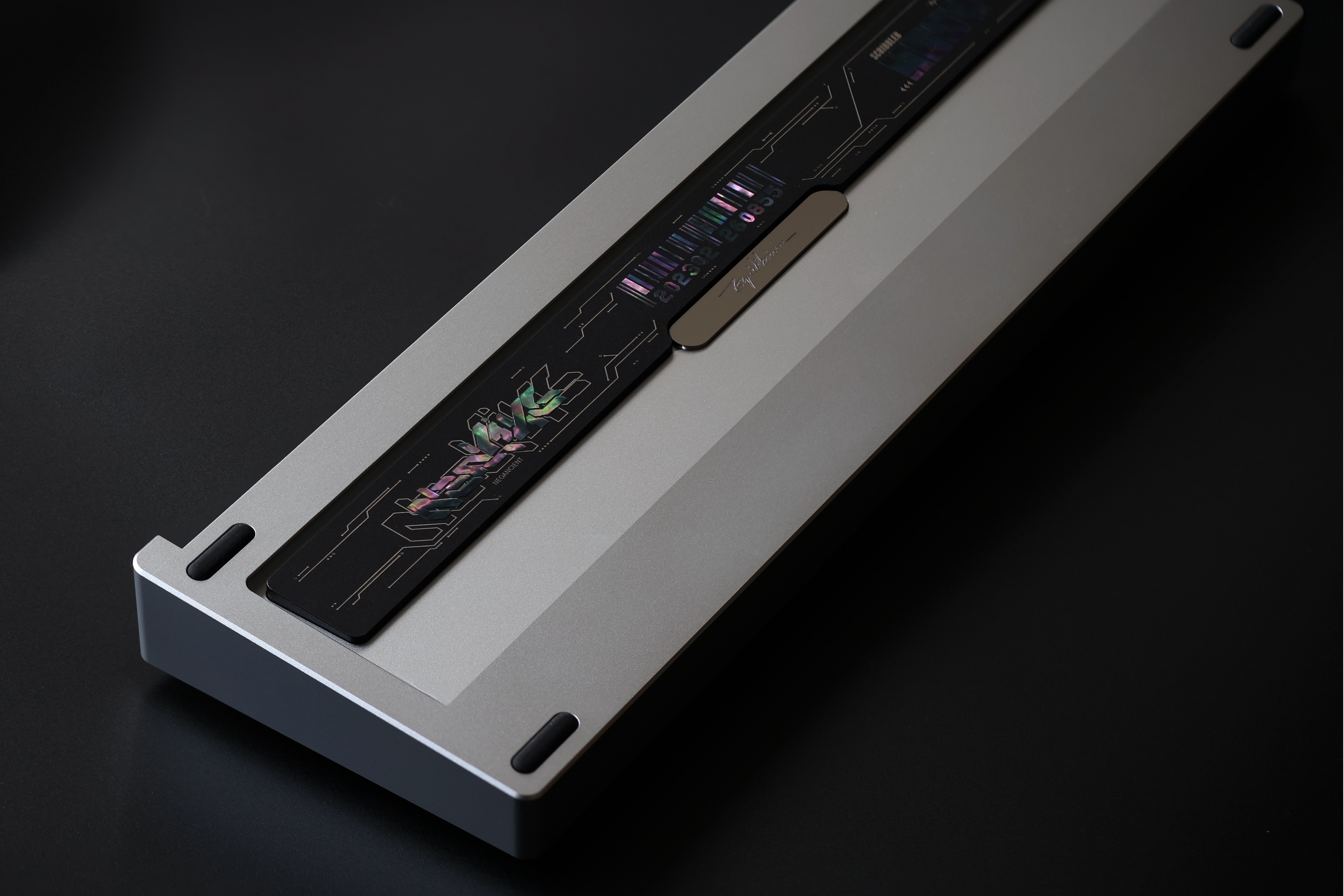

-Mother-Of-Pearl inlay Weight

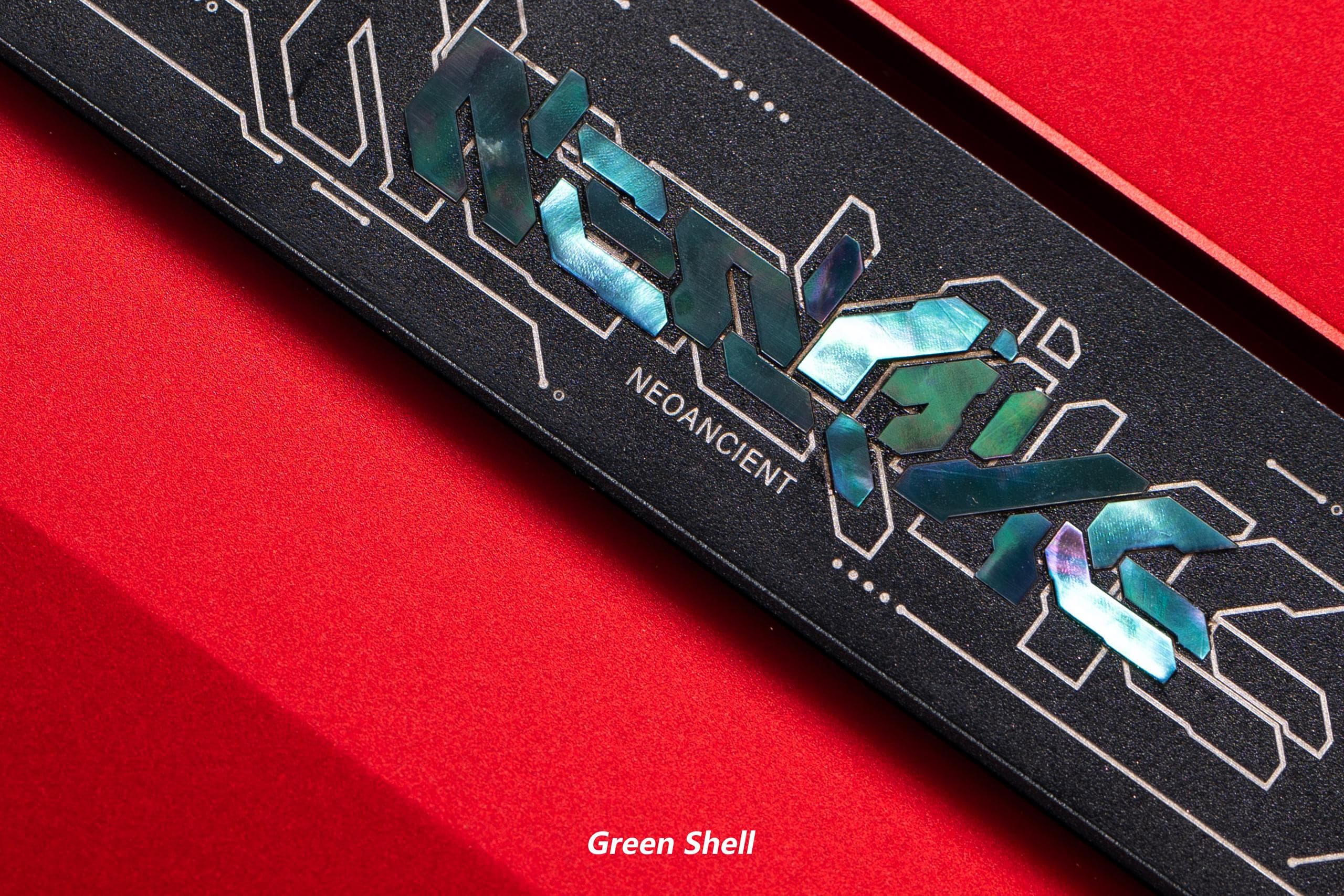

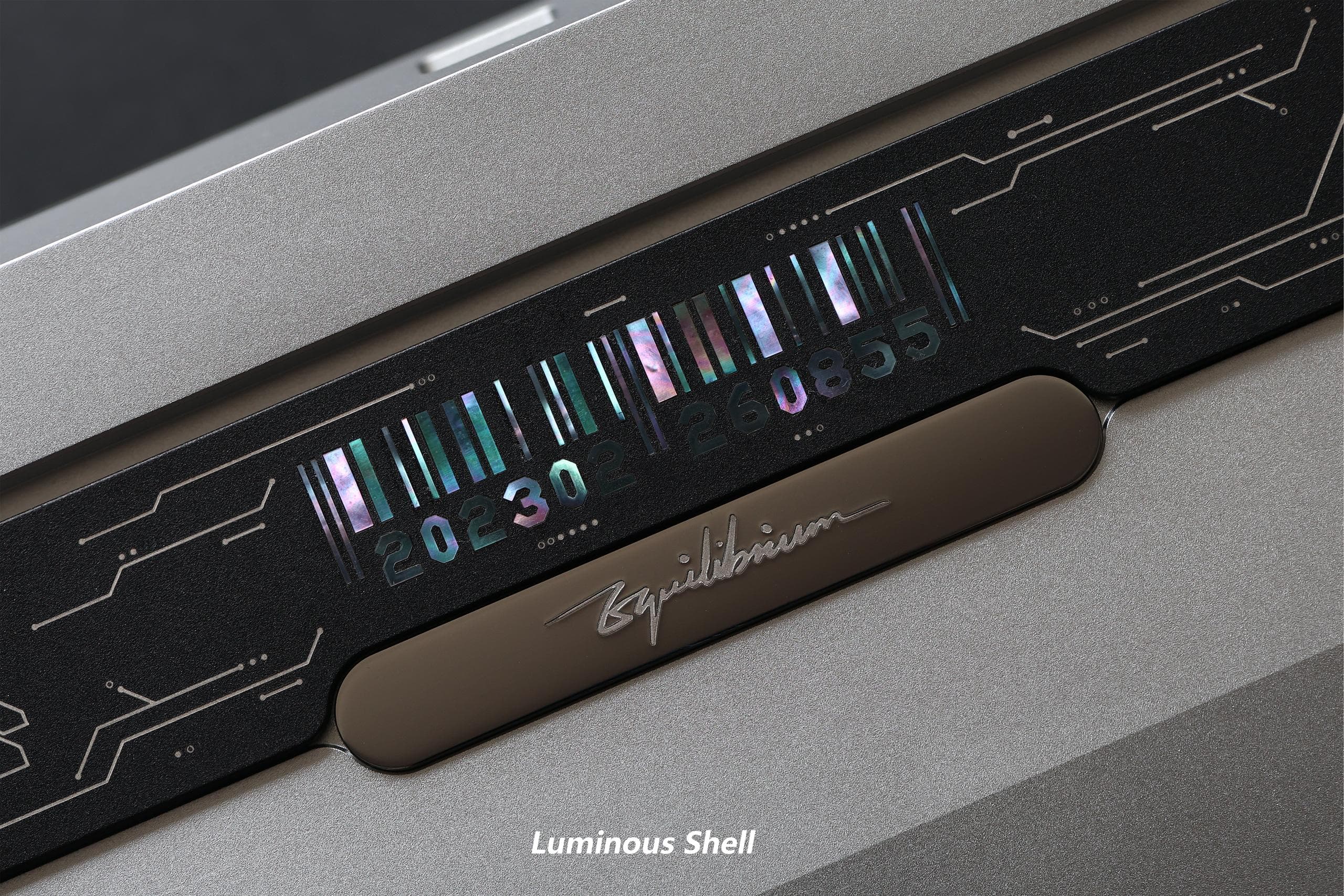

Green Shell, Luminous Shell, and Abalone Shell。Three types of inlays are shipped randomly.
Combining traditional craftsmanship with modern personalized design, also known as "Cyber Mother-of-Pearl".
Each mother-of-pearl inlay is set by hand, which is time-consuming, labor-intensive, and has a high material loss rate.
However, the result isfantastic! Please note: Due to different angles, the glossy effect varies. Each mother-of-pearl counterweight is unique and cannot be identical to thereference picture.
Please refer to the actual product received for the final appearance.



The color changes when you look at it from different angles.In the R2 group purchase, the central stripe and numbers do not have mother-of-pearl inlays.

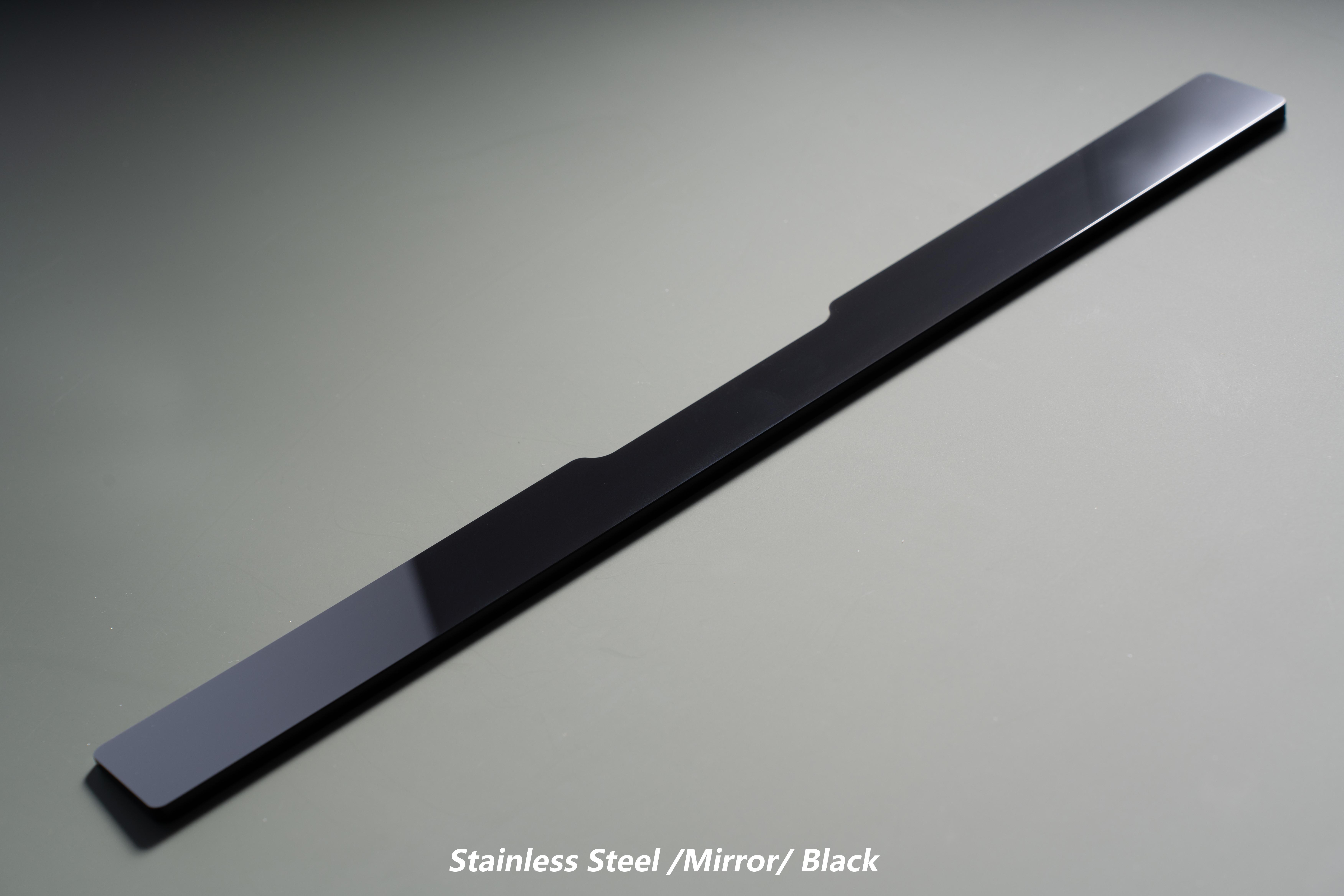

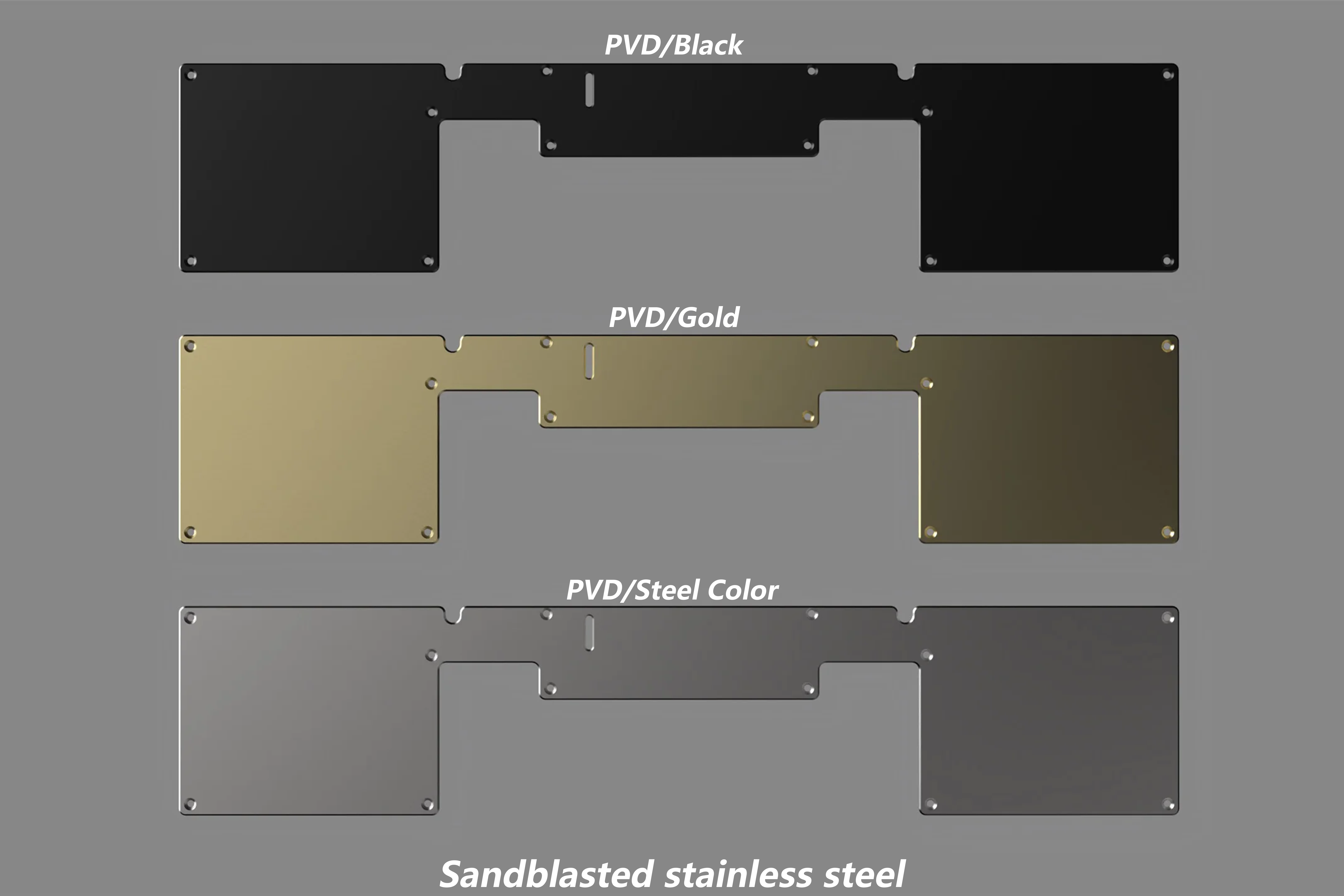

- Plain Stainless Steel Weight (No Pattern)

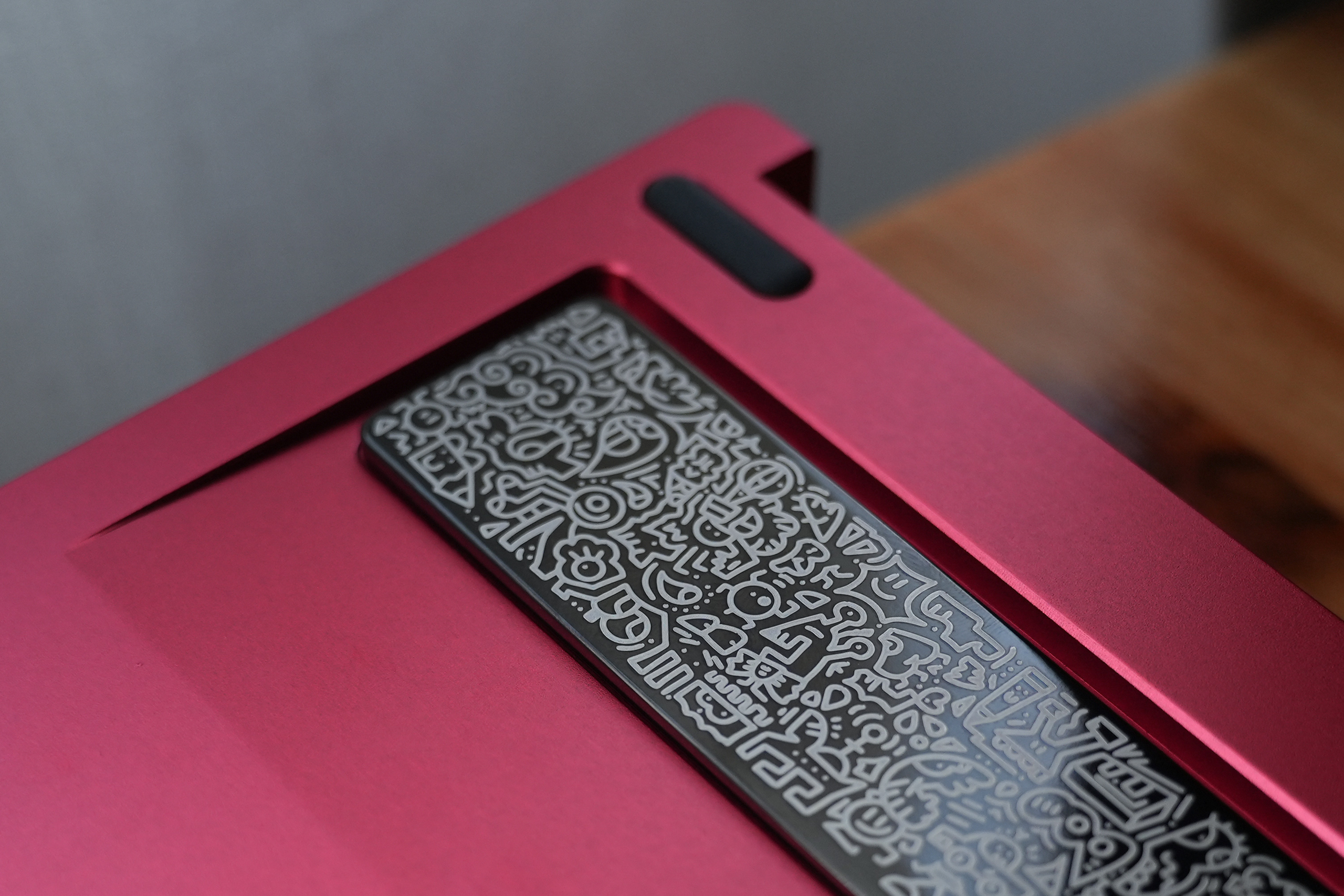

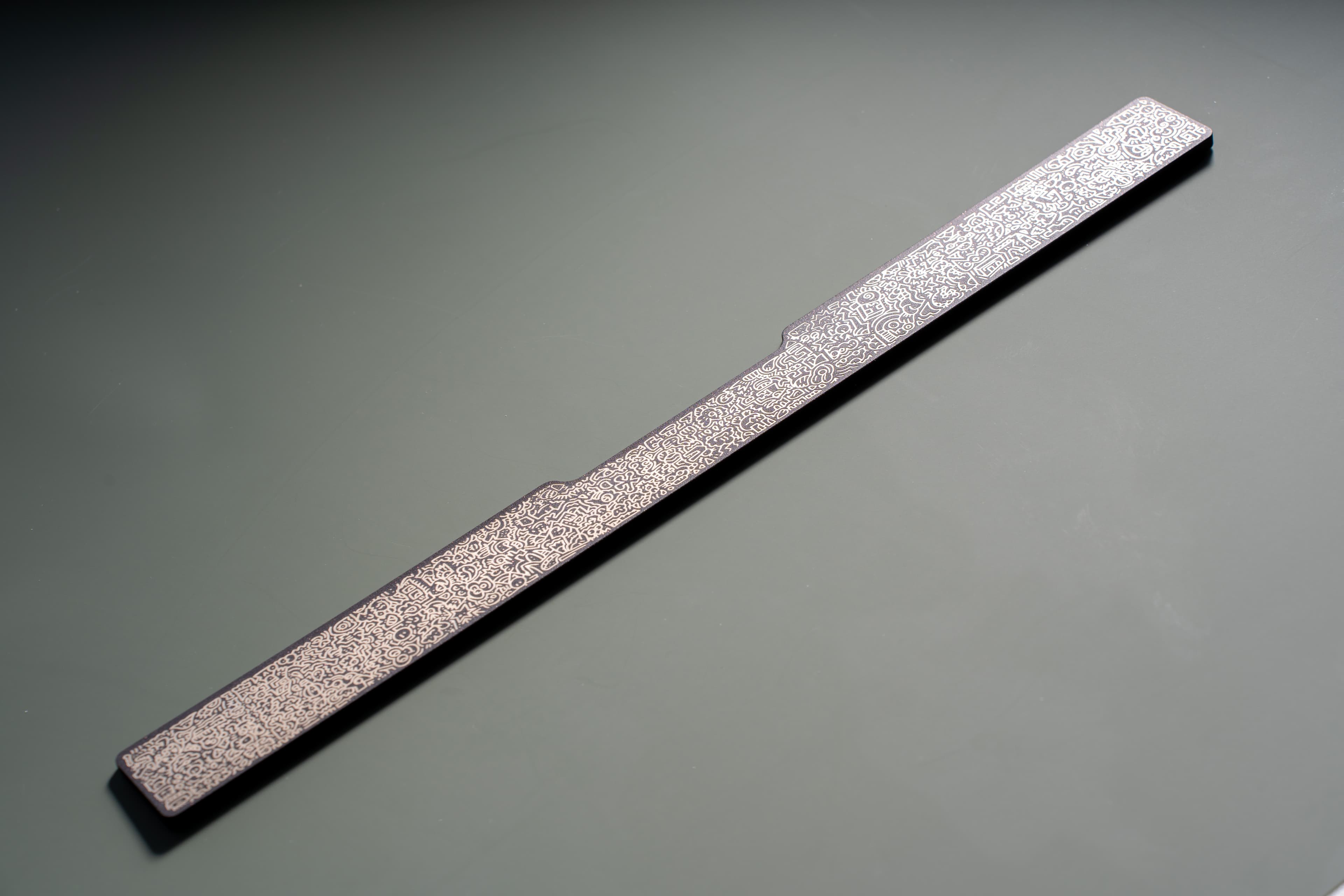

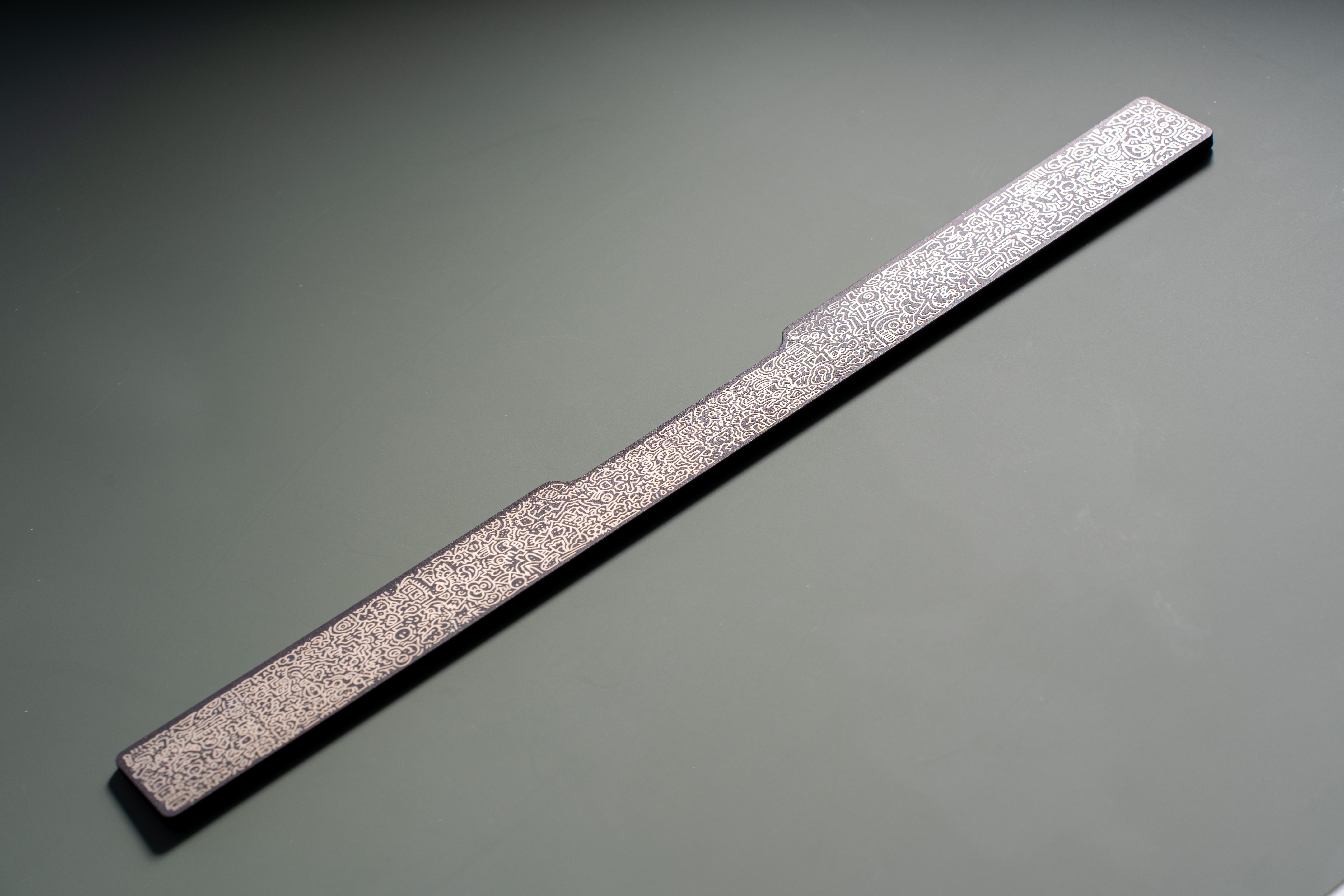

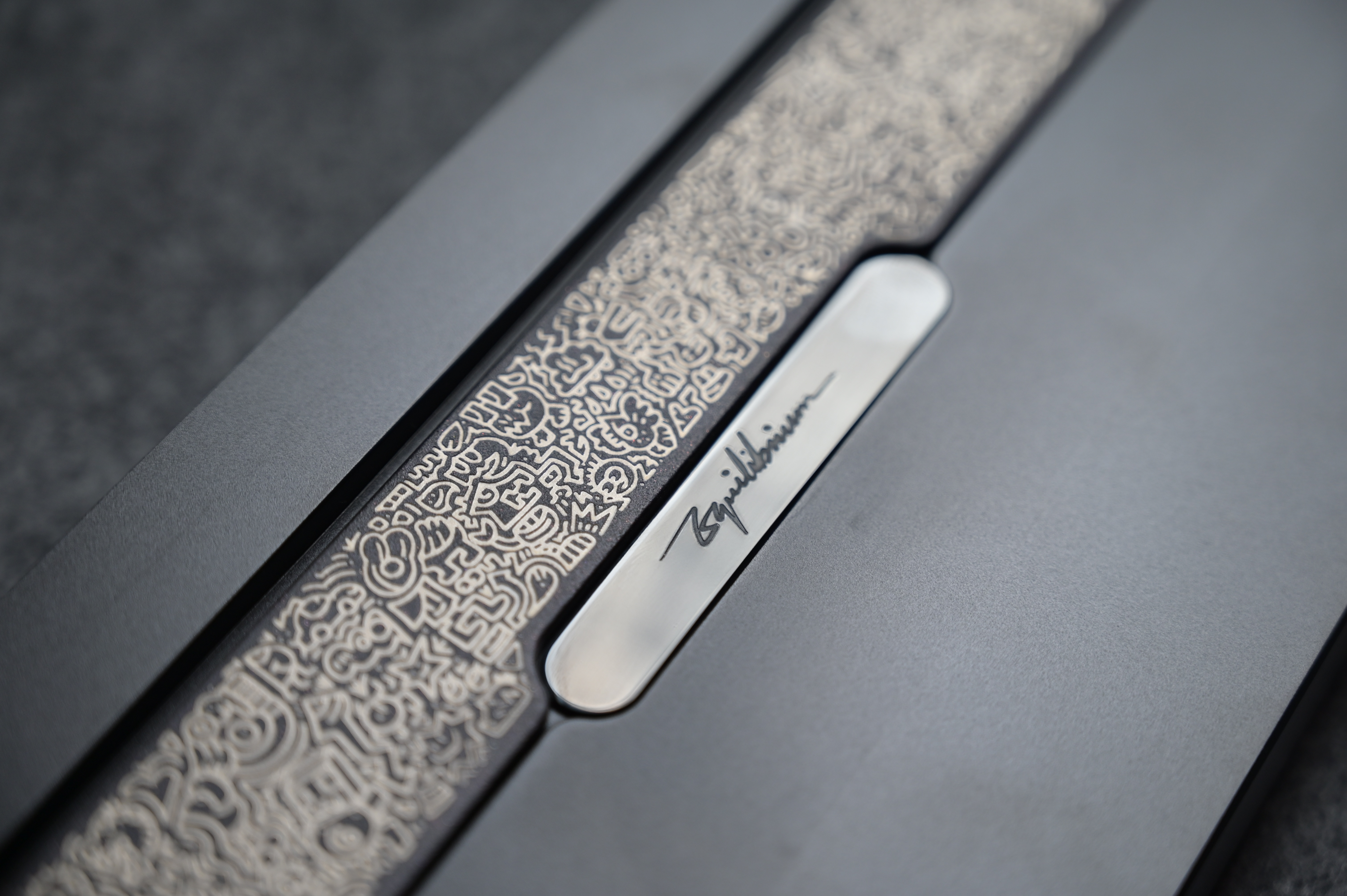

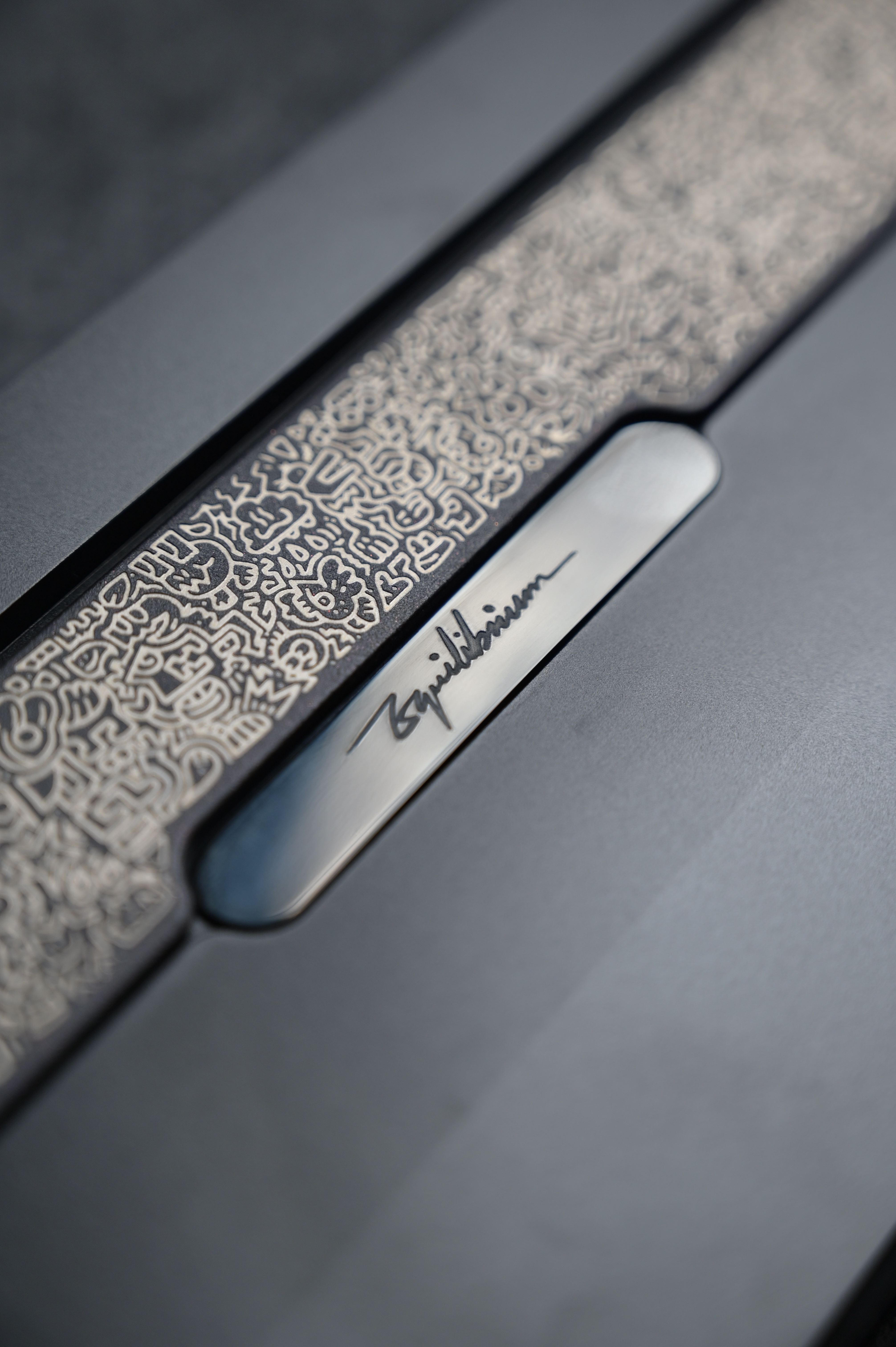

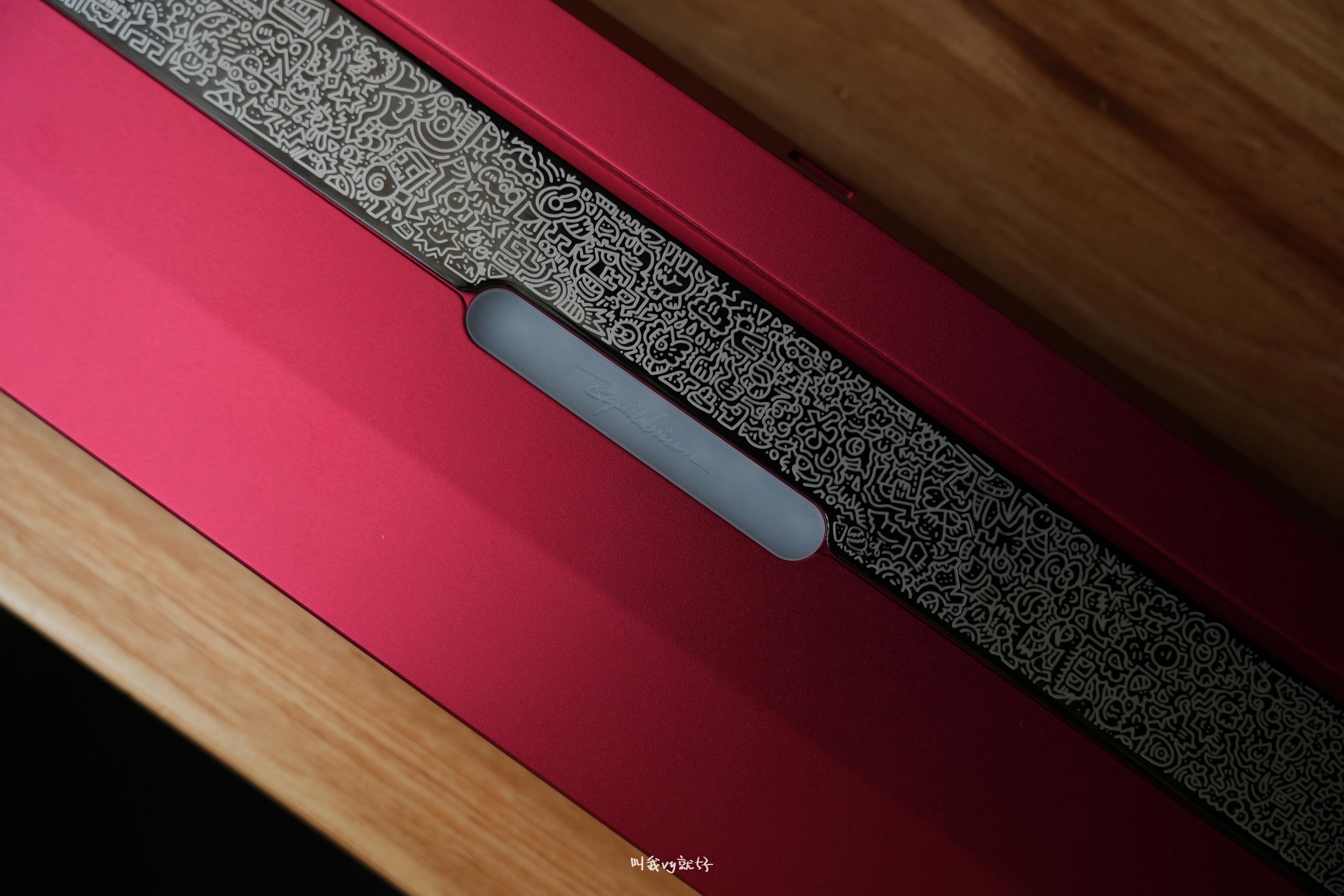

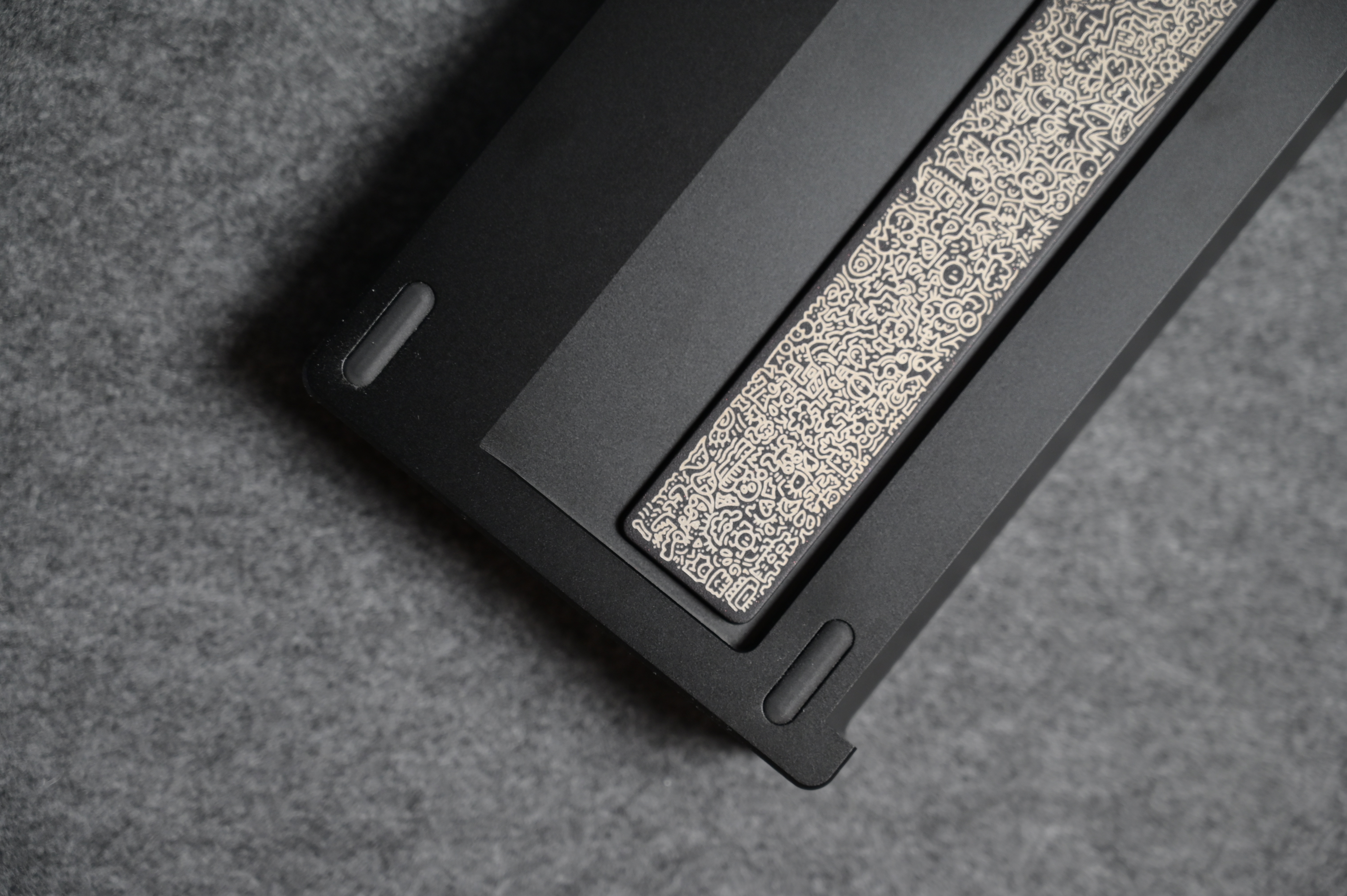

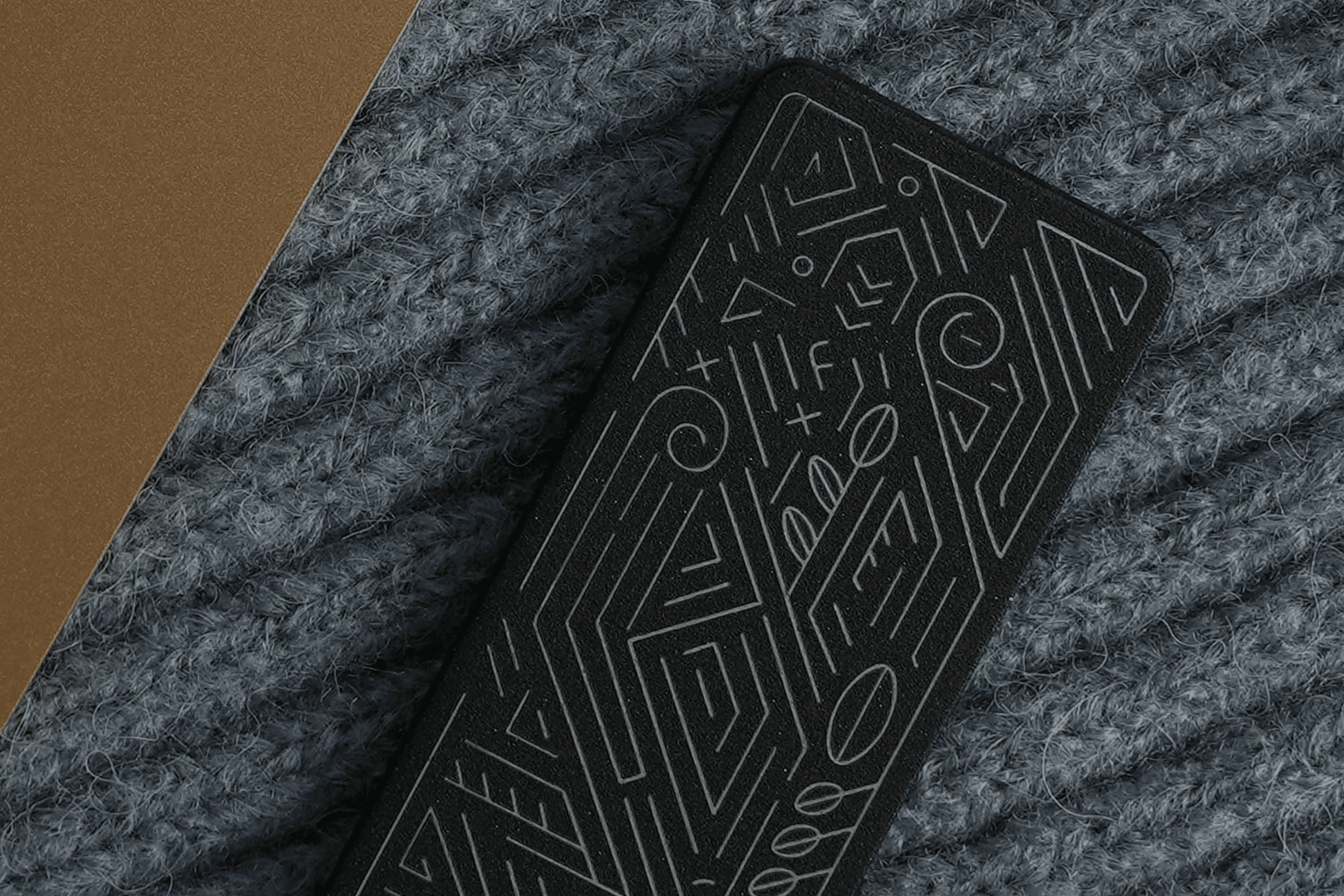

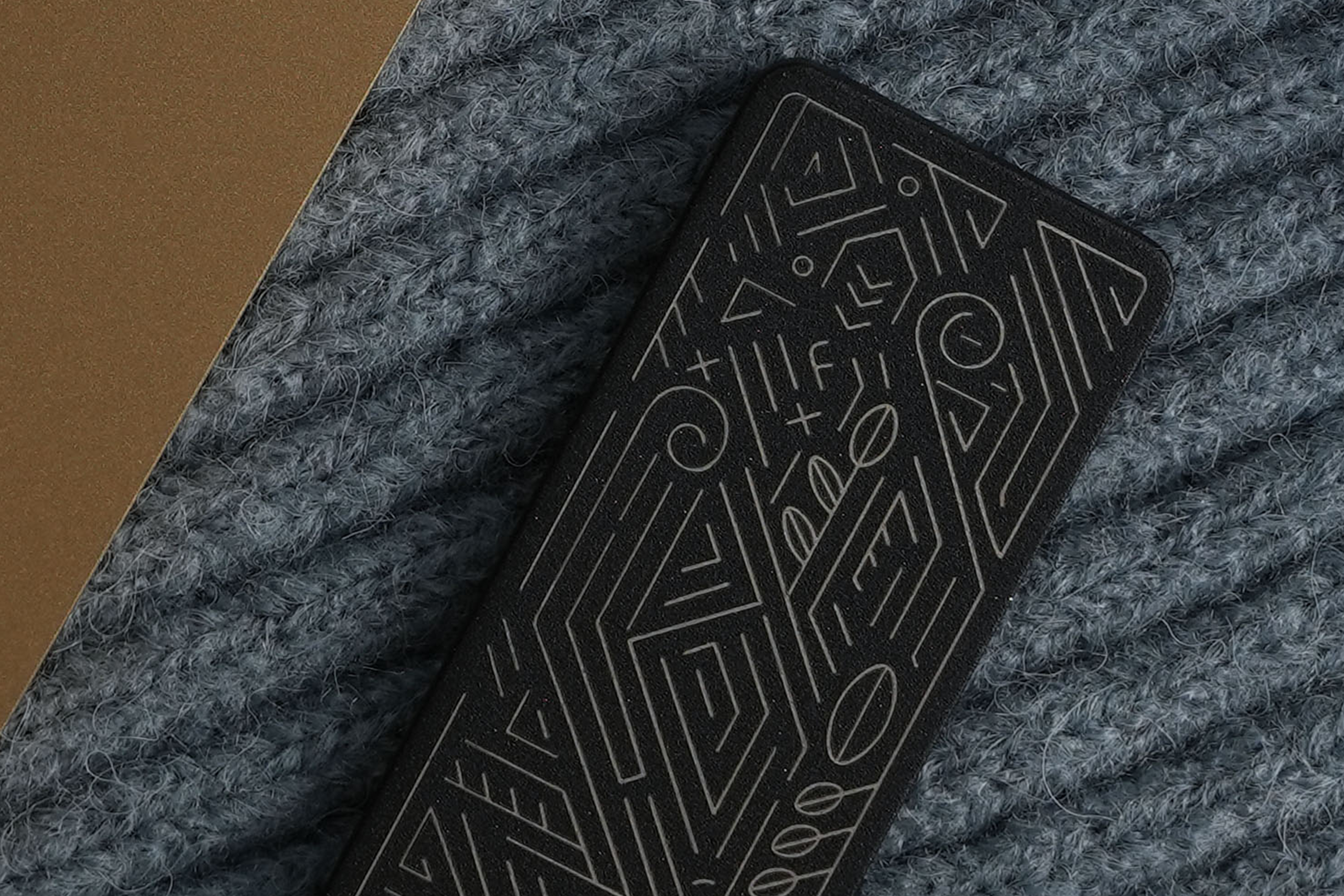

- Graffiti Weight（Mirror/Spray Coating）

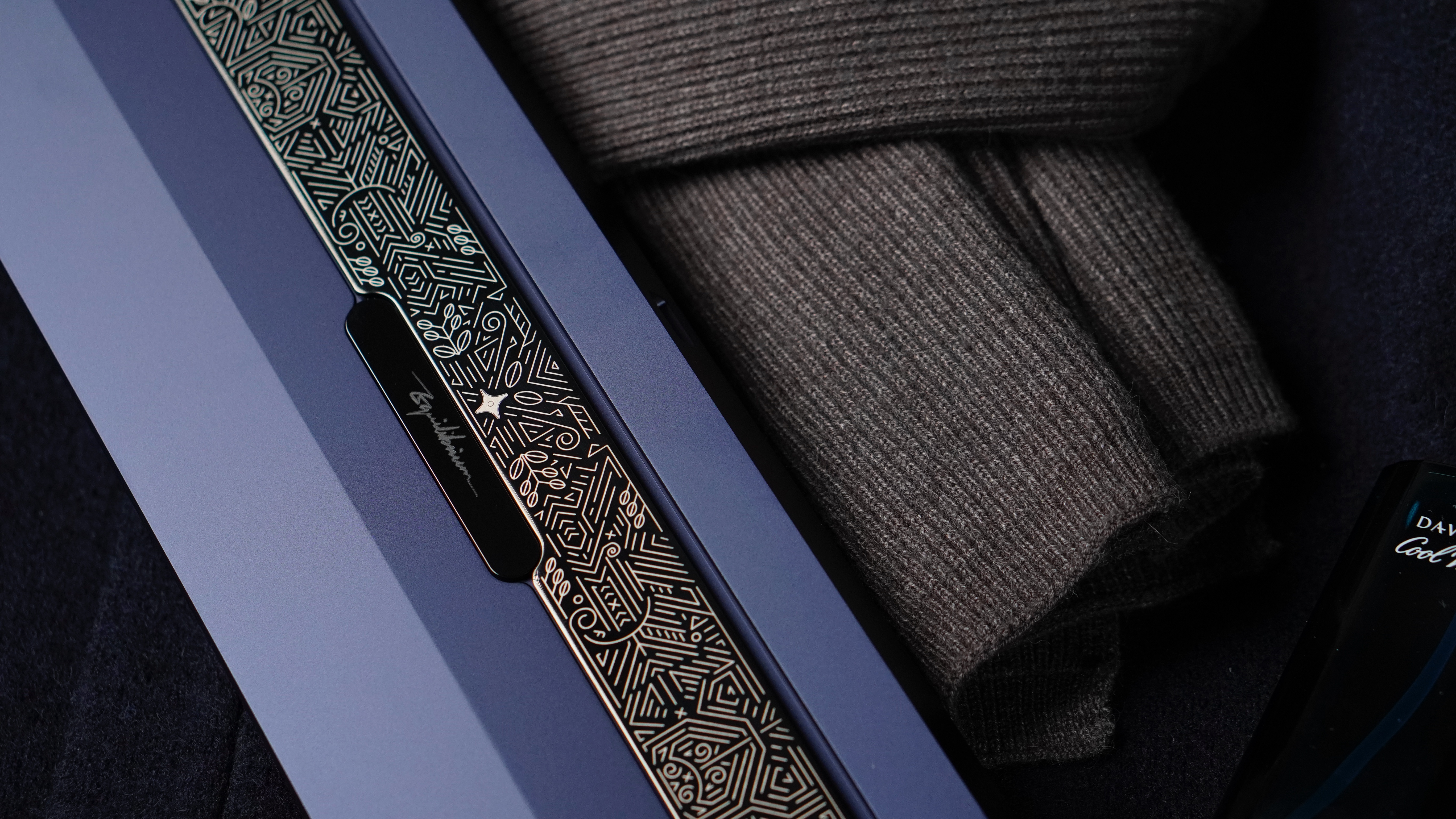

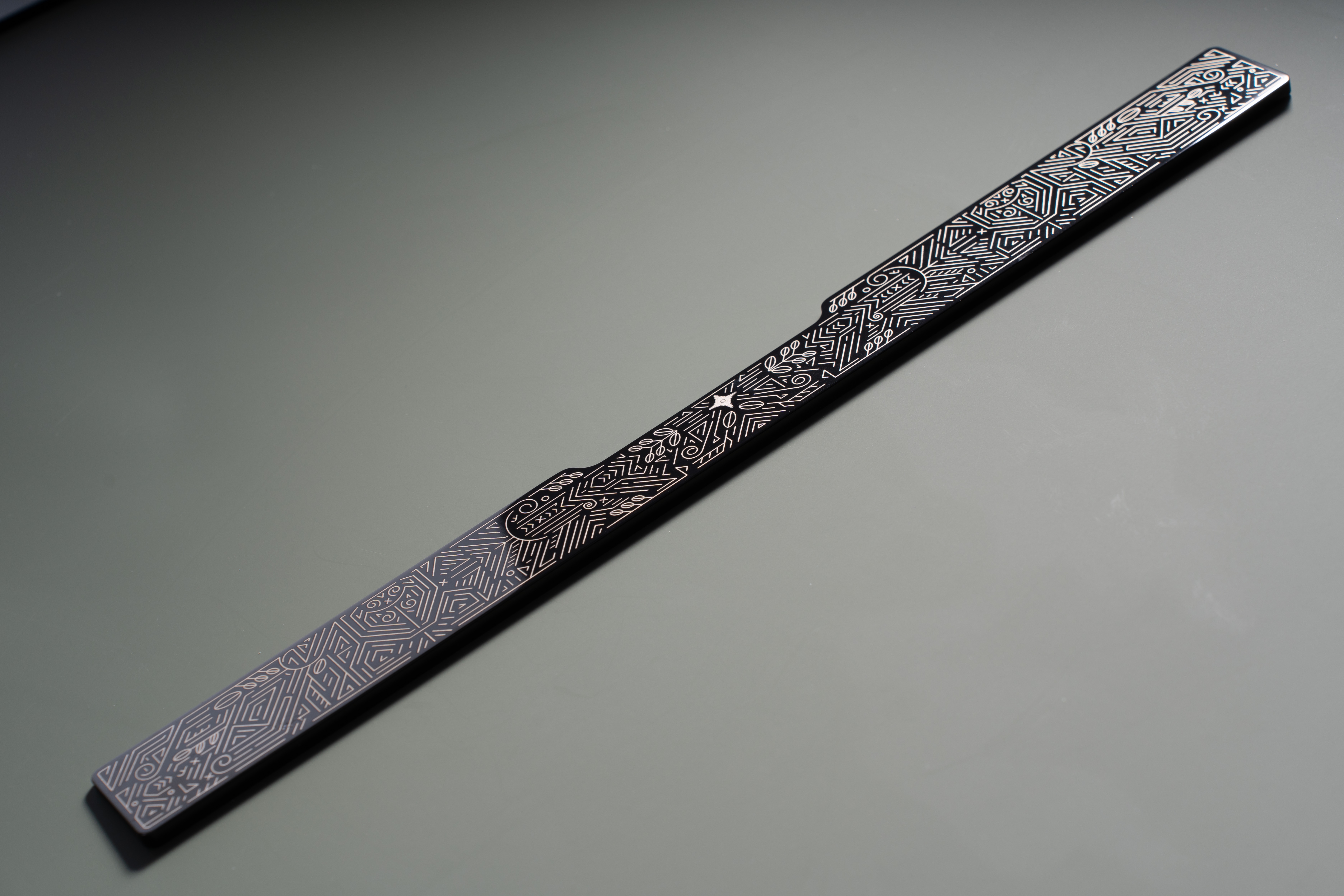

- Forest Weight（Mirror/Spray Coating）

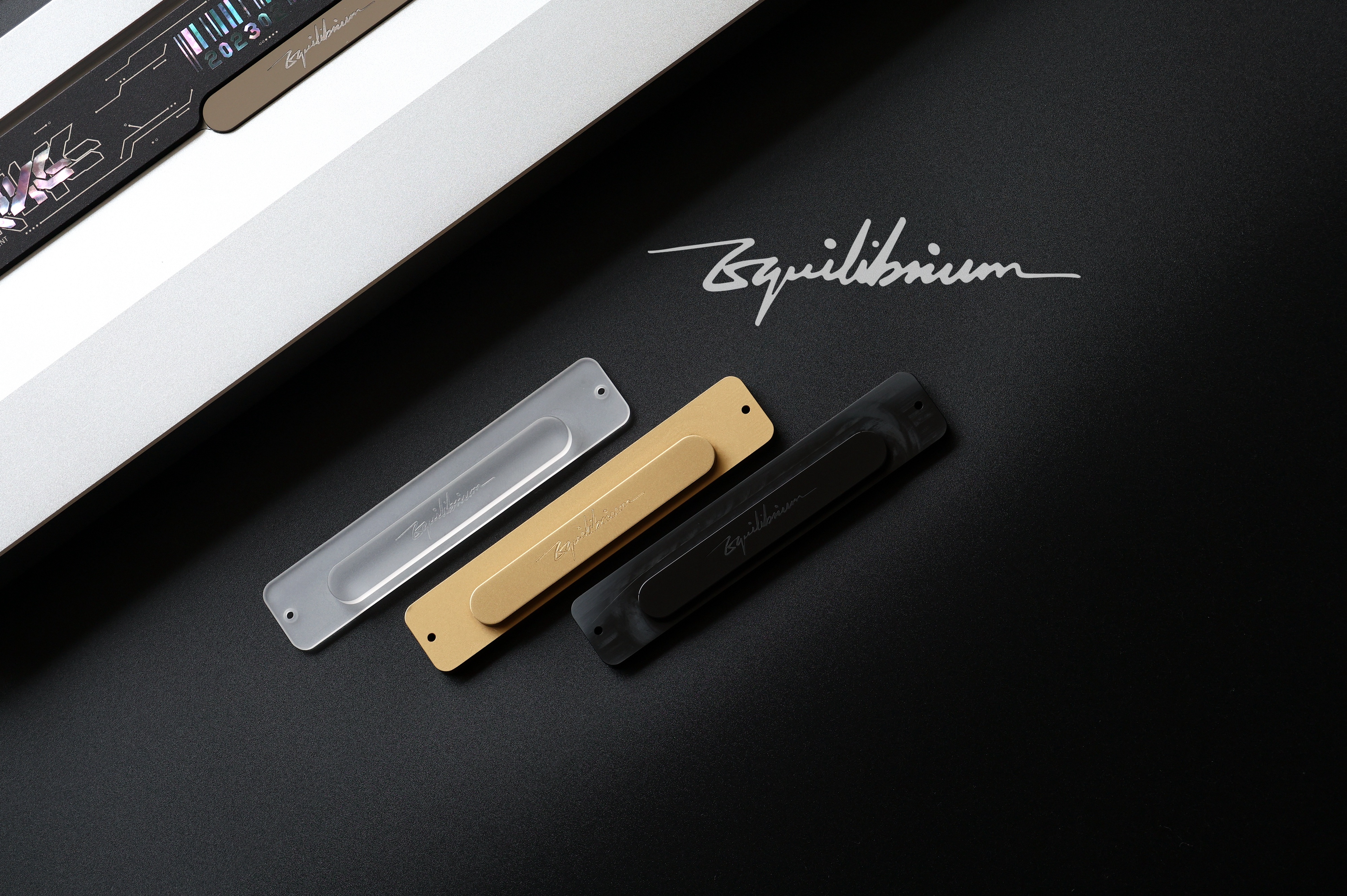

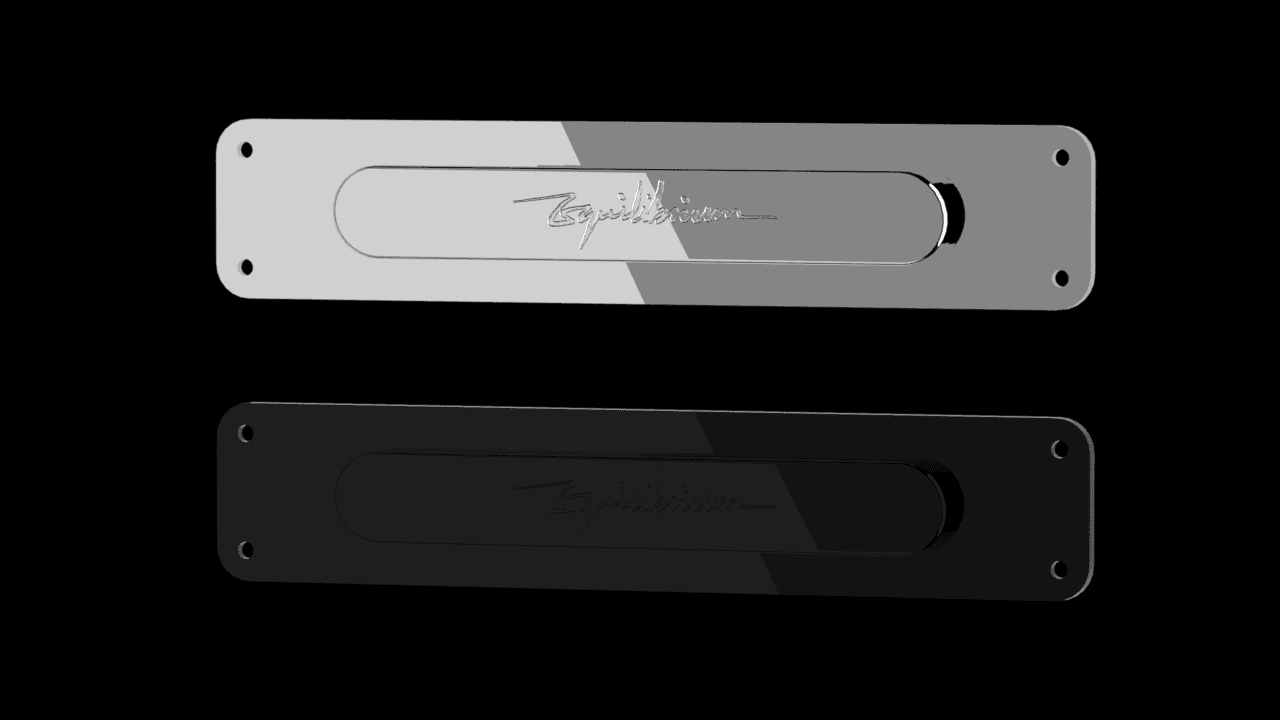

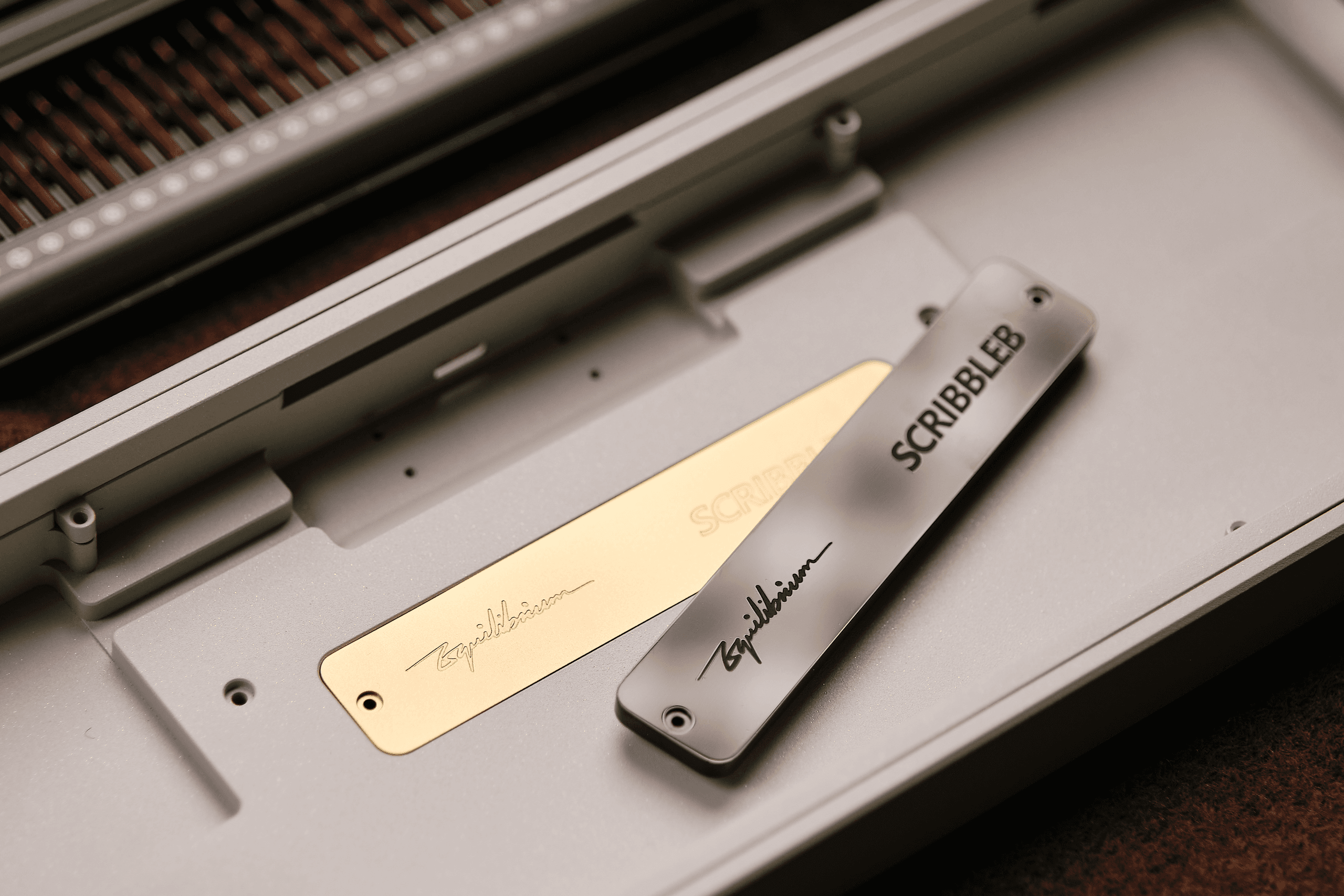

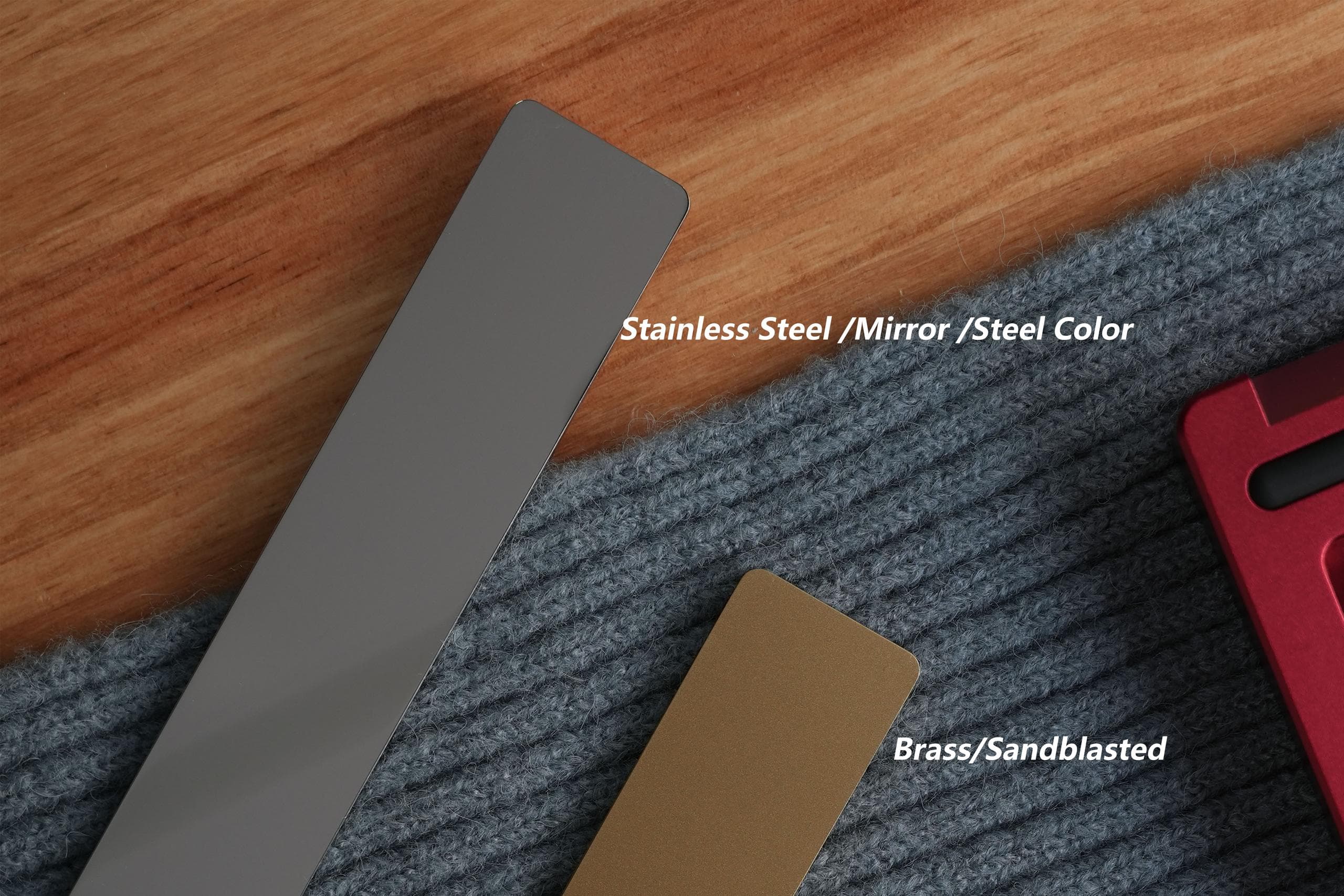

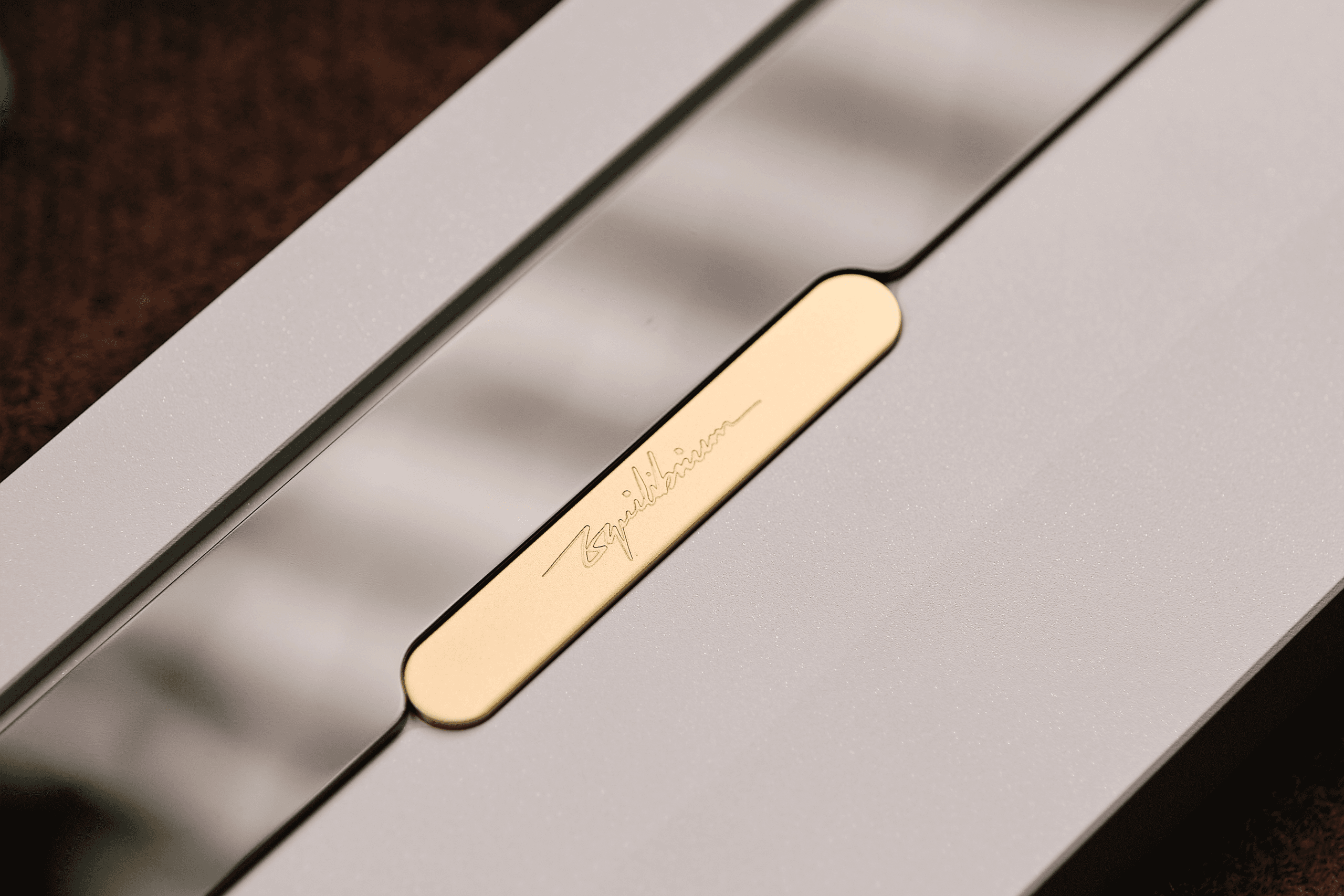

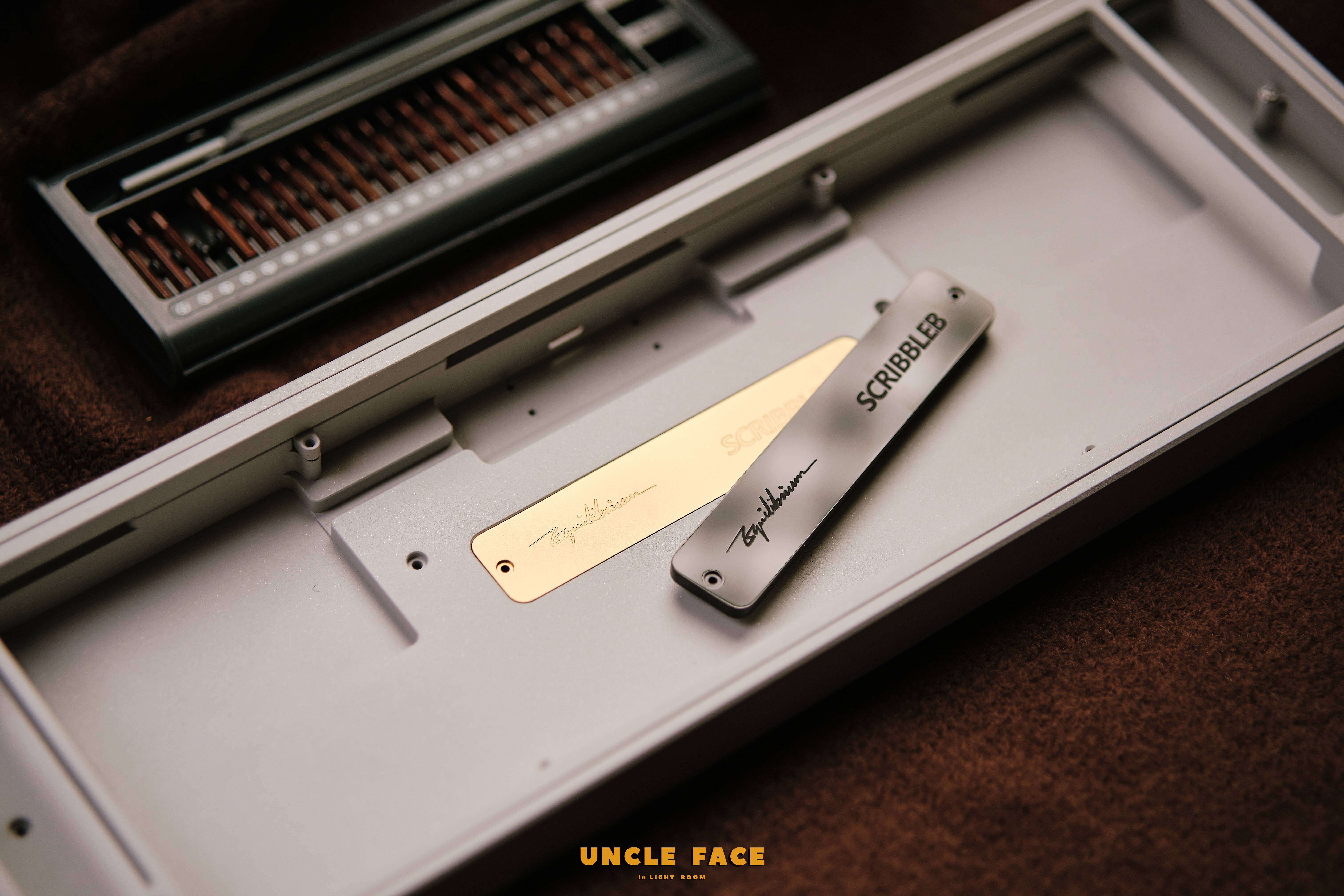

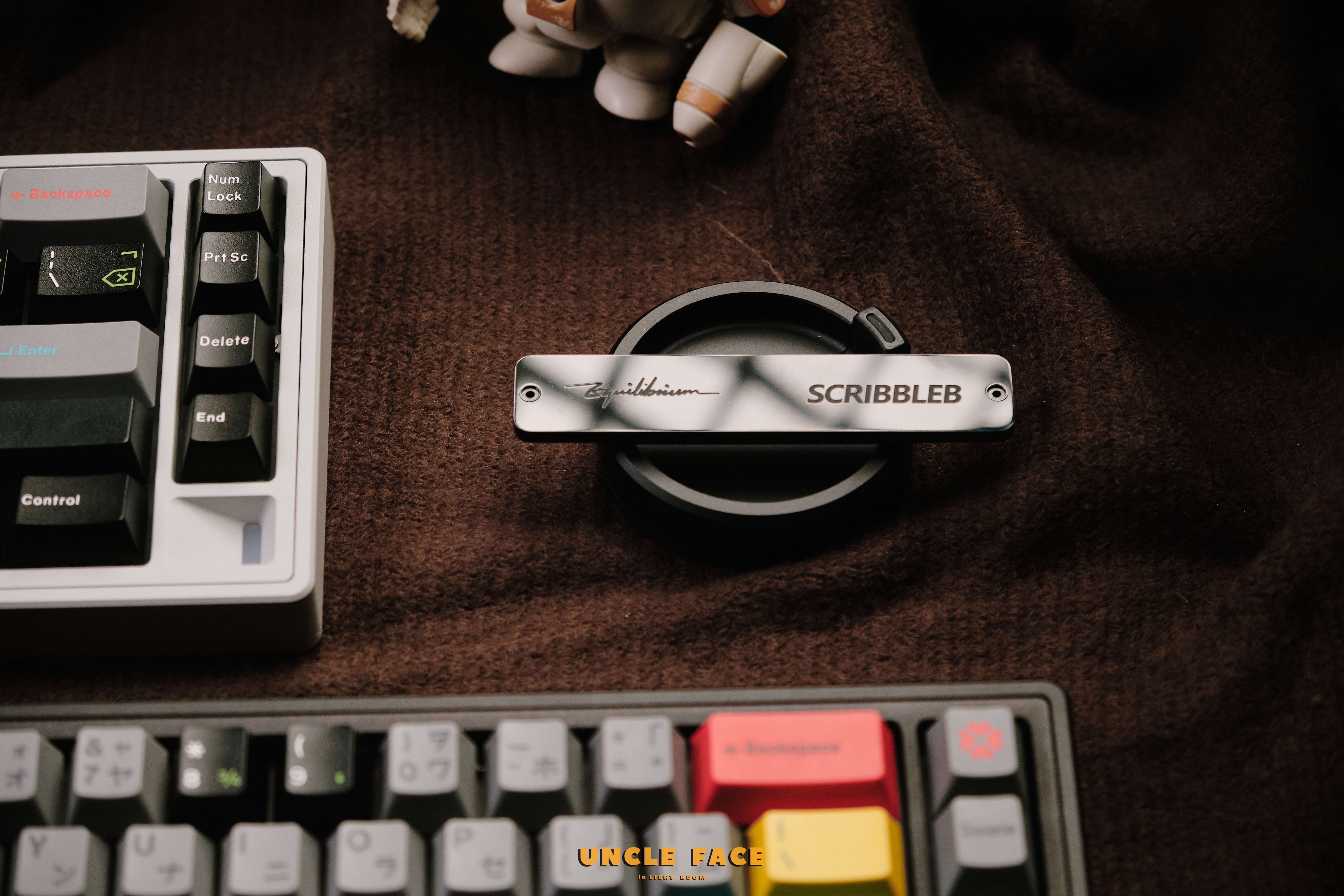

•Badge

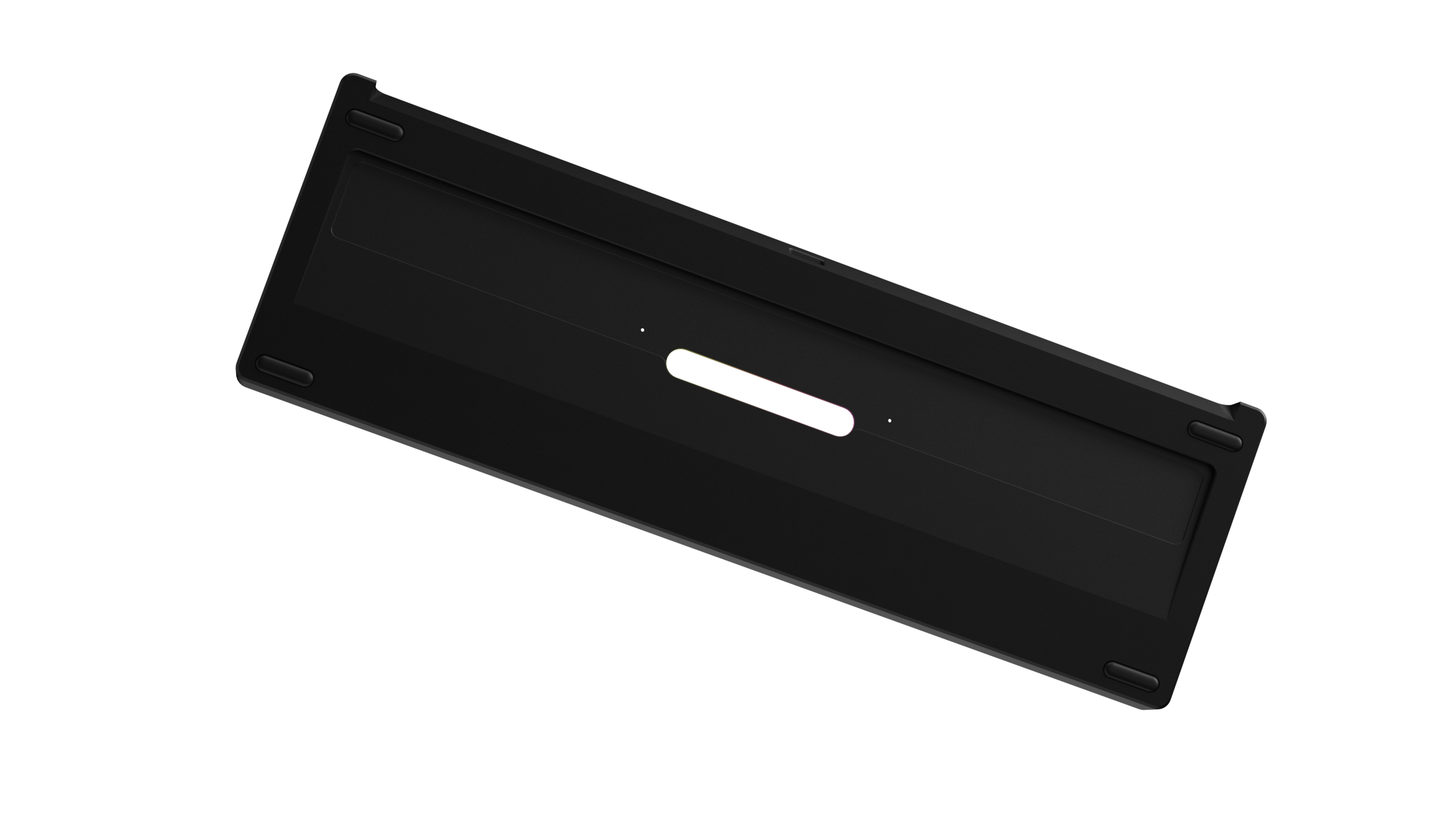

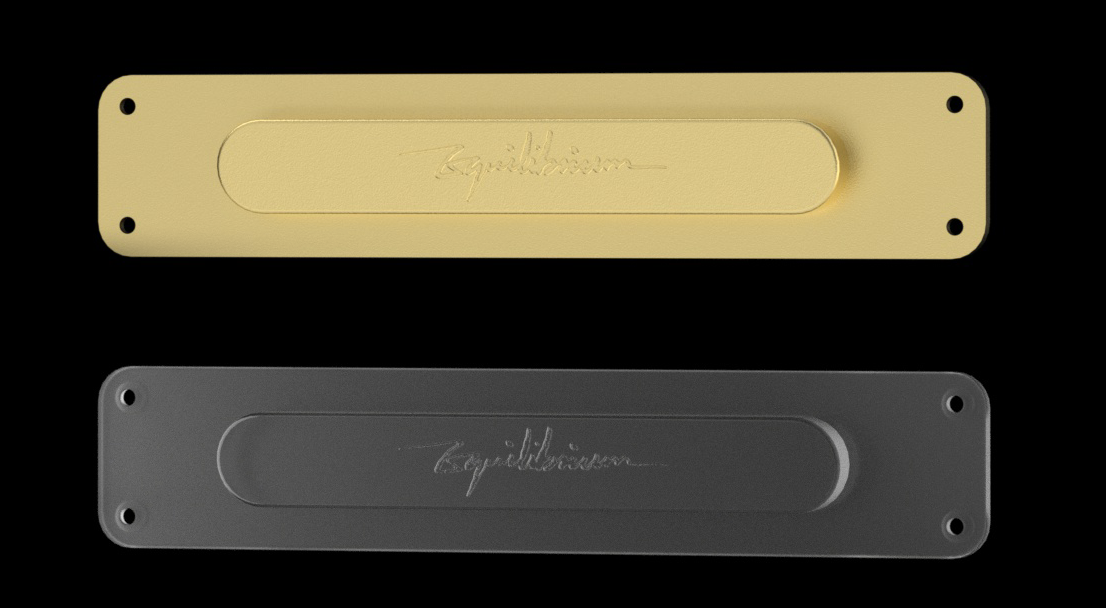

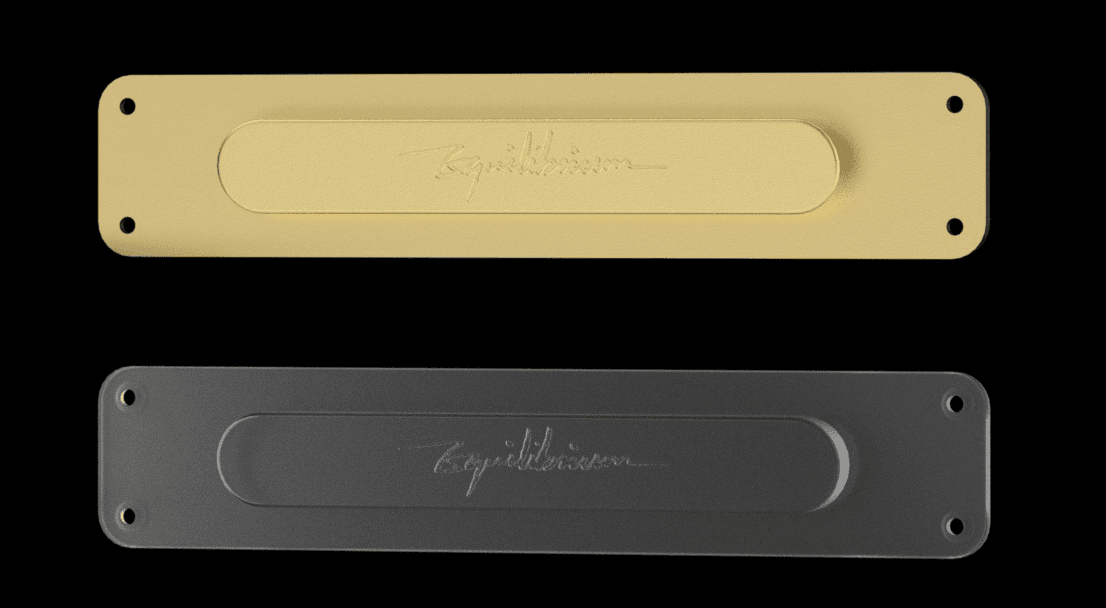

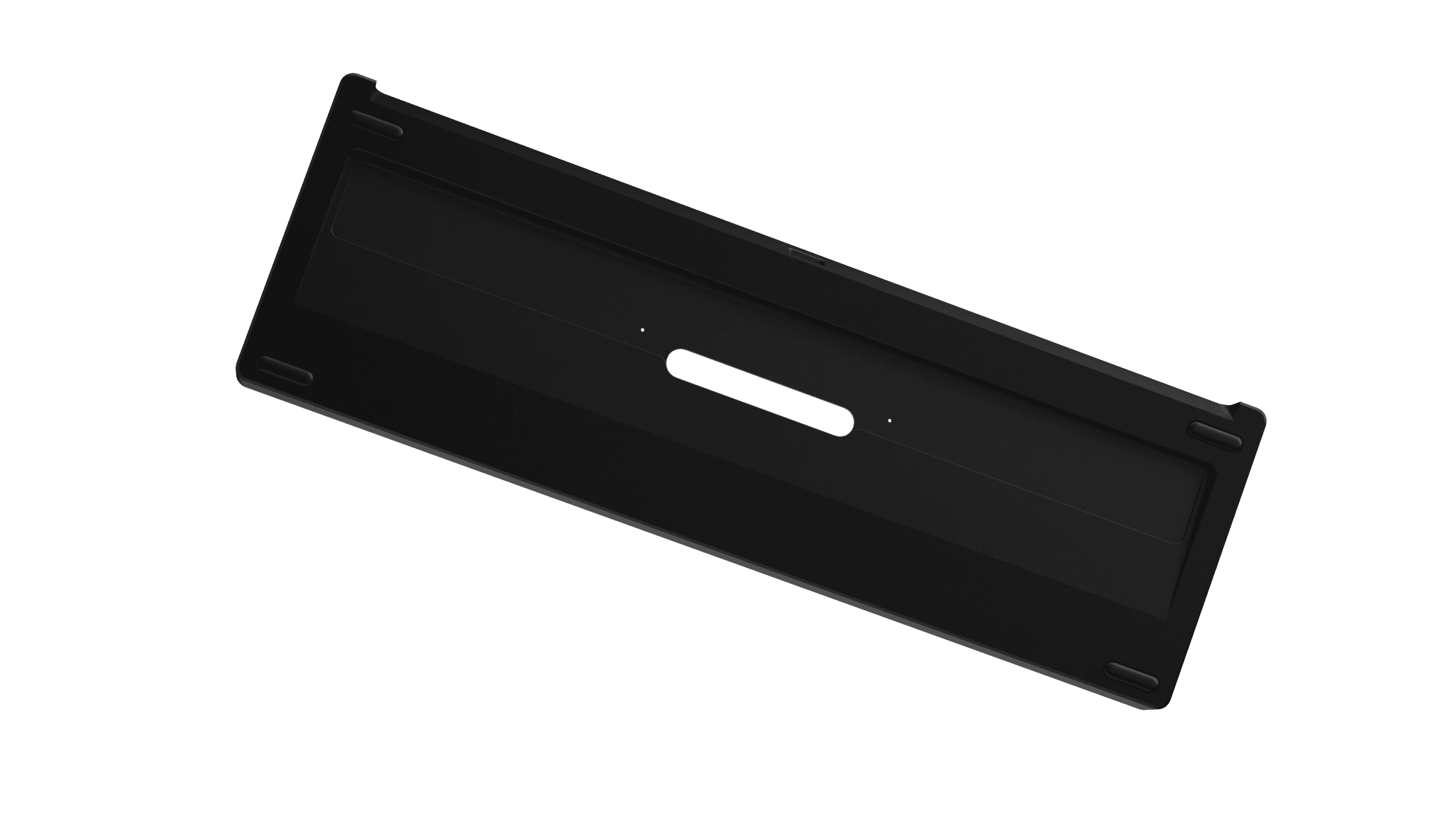

•Battery cover


Battery cover free choice, included in the kit.

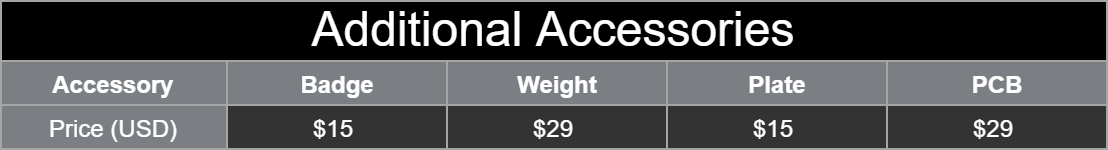

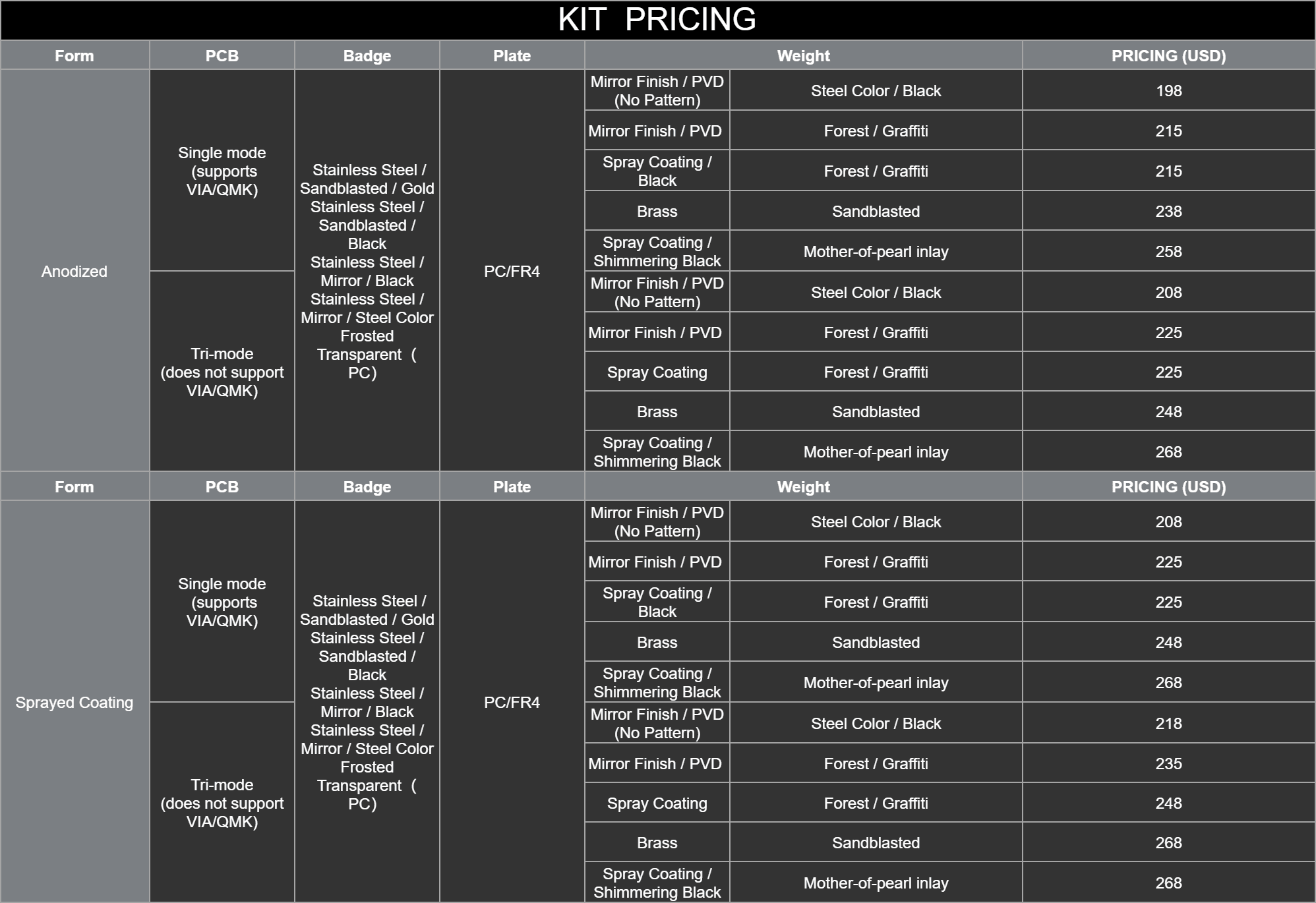

7.Pricing(Est.)






Tentative price, up to $25 variance.
Mother-of-pearl inlay weight is not available for additional purchase.



8.Vendor
Recruiting regional agents worldwide.
Discord: https://discord.gg/uPqMHy4TpB

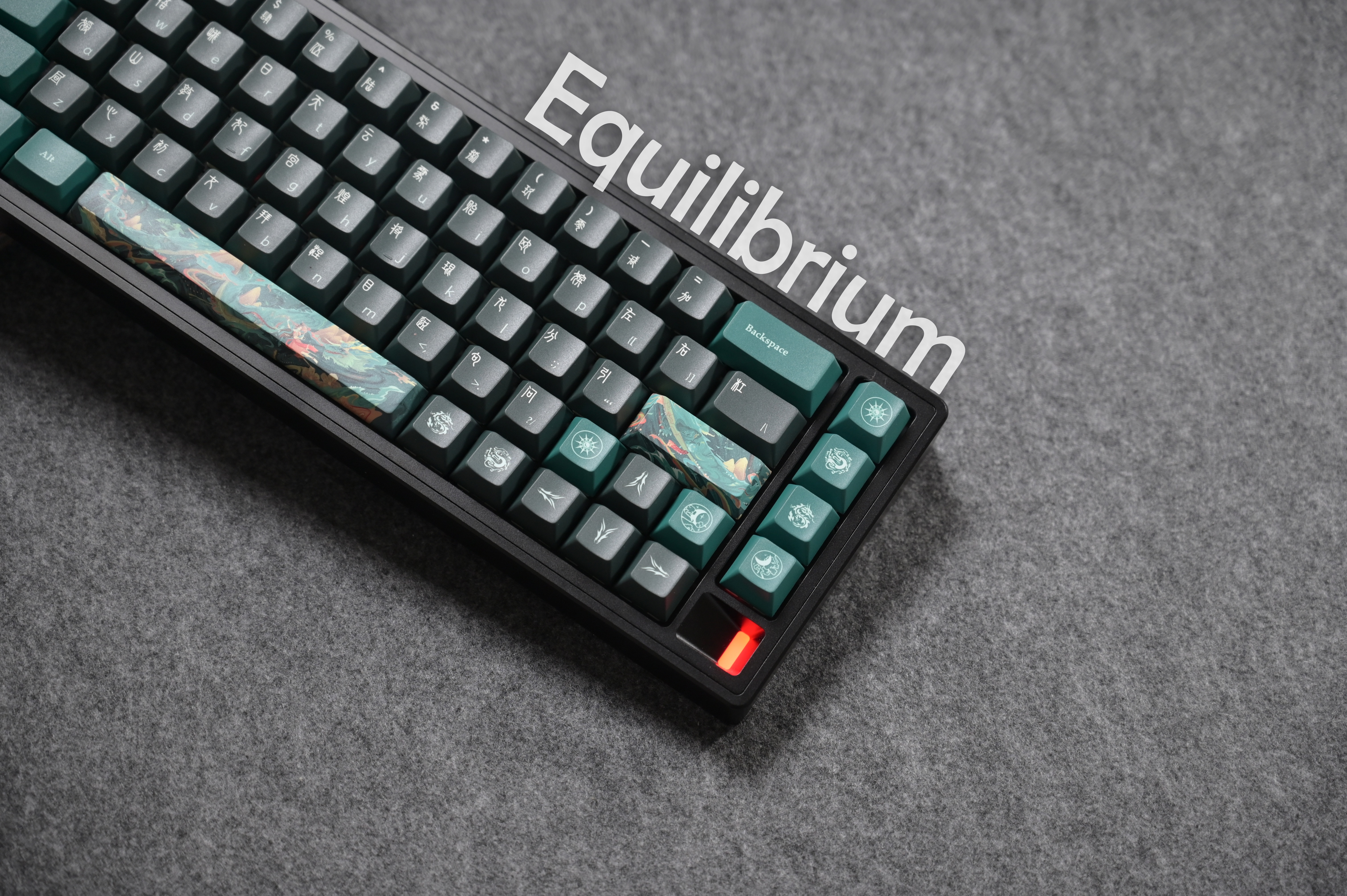

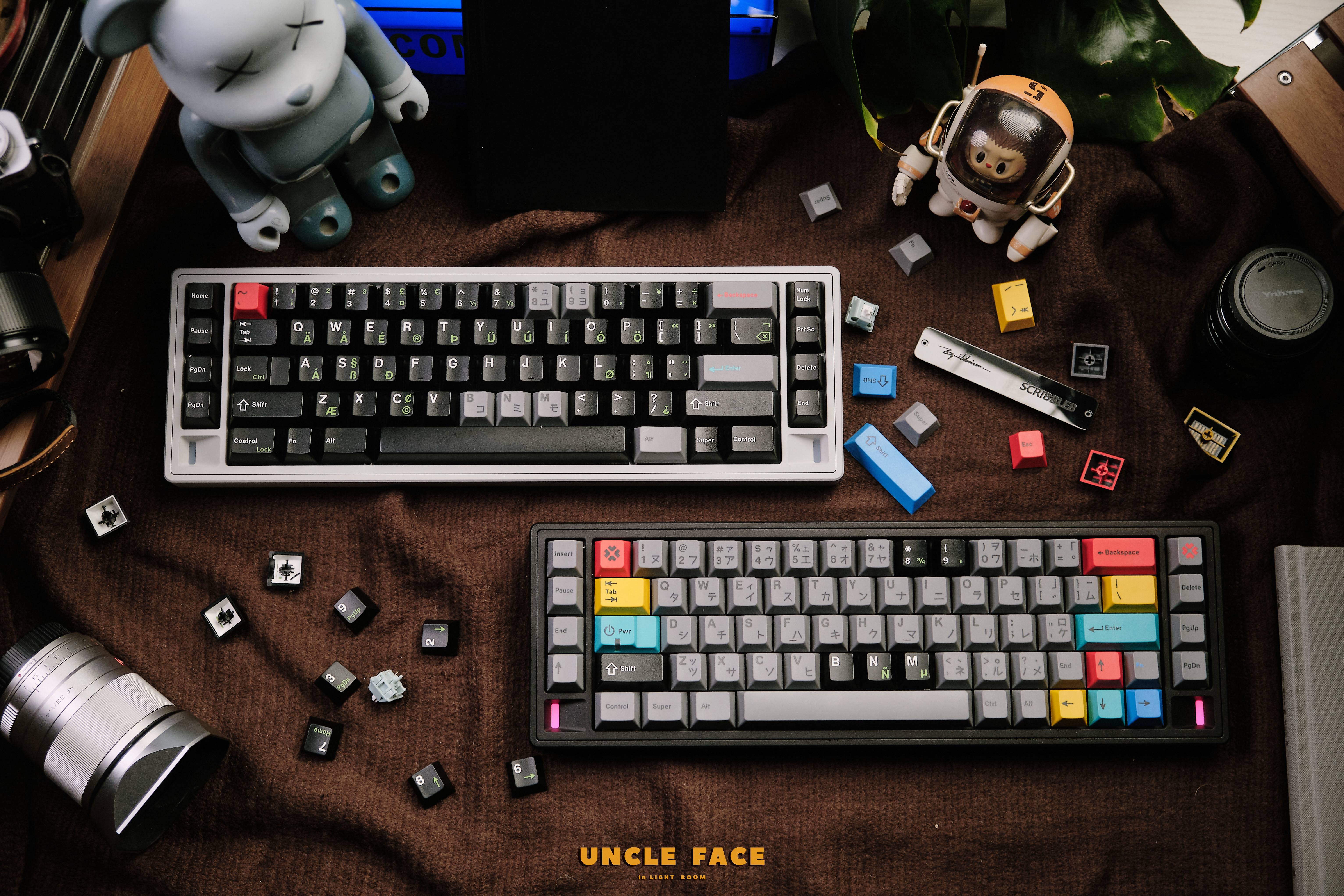

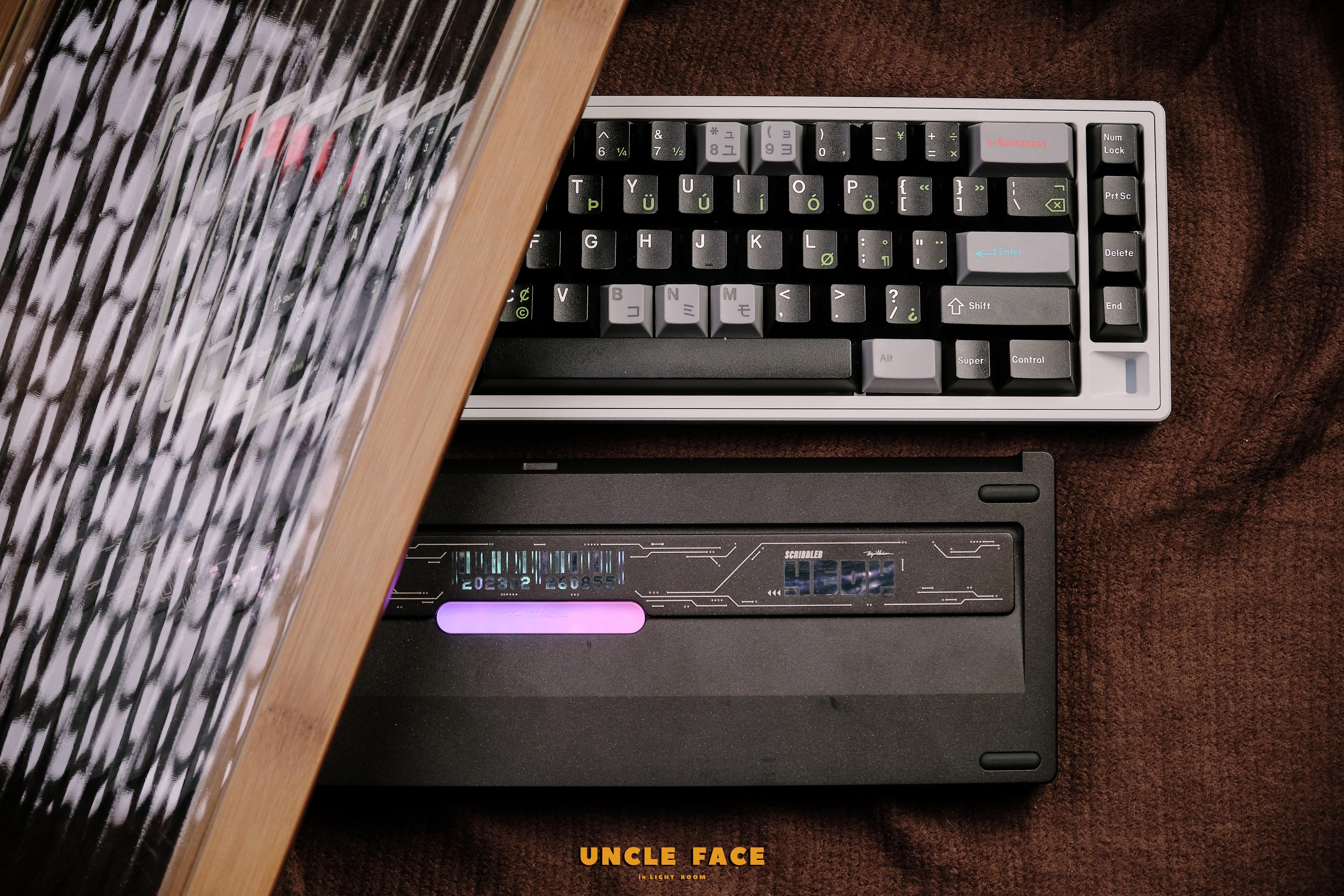

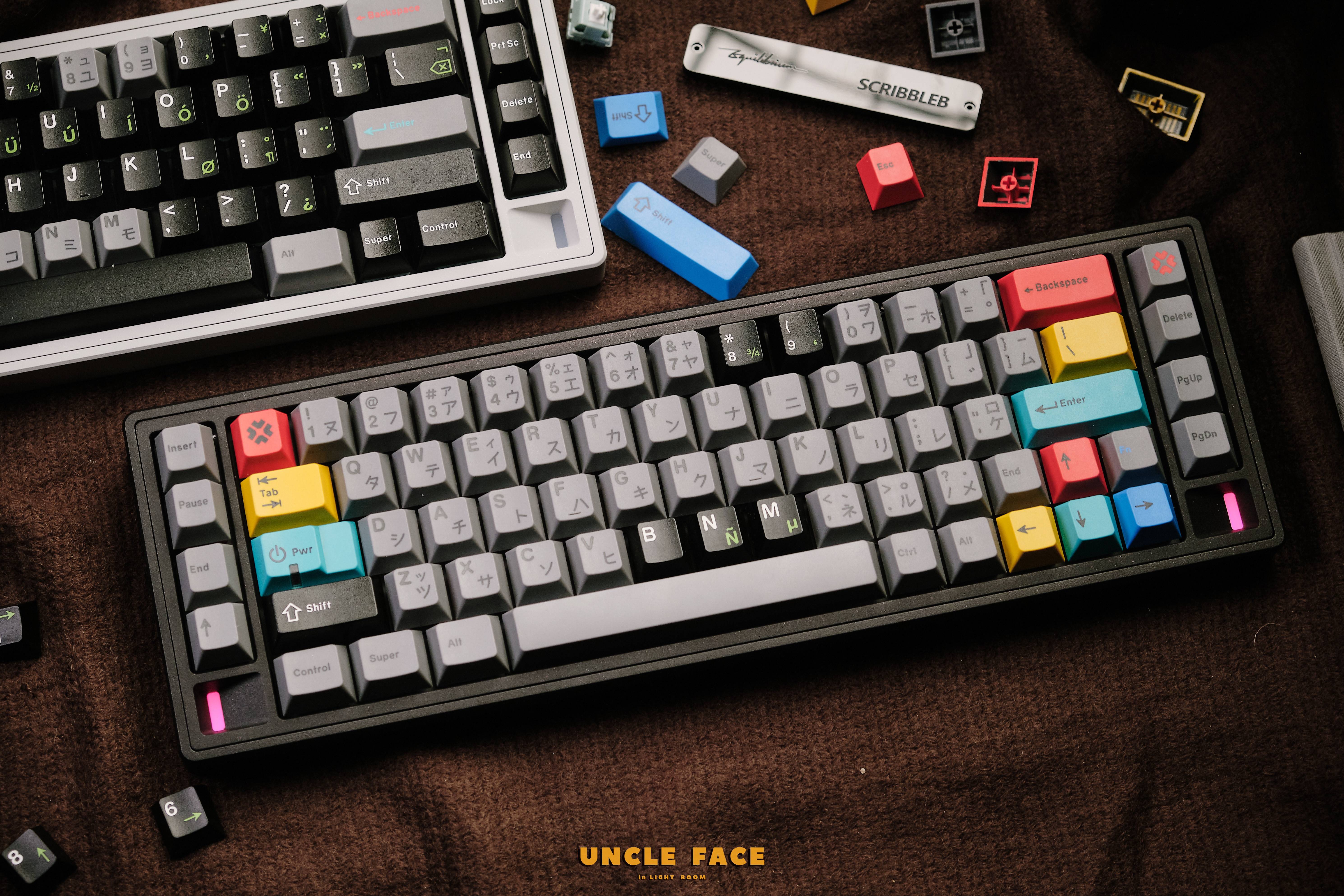

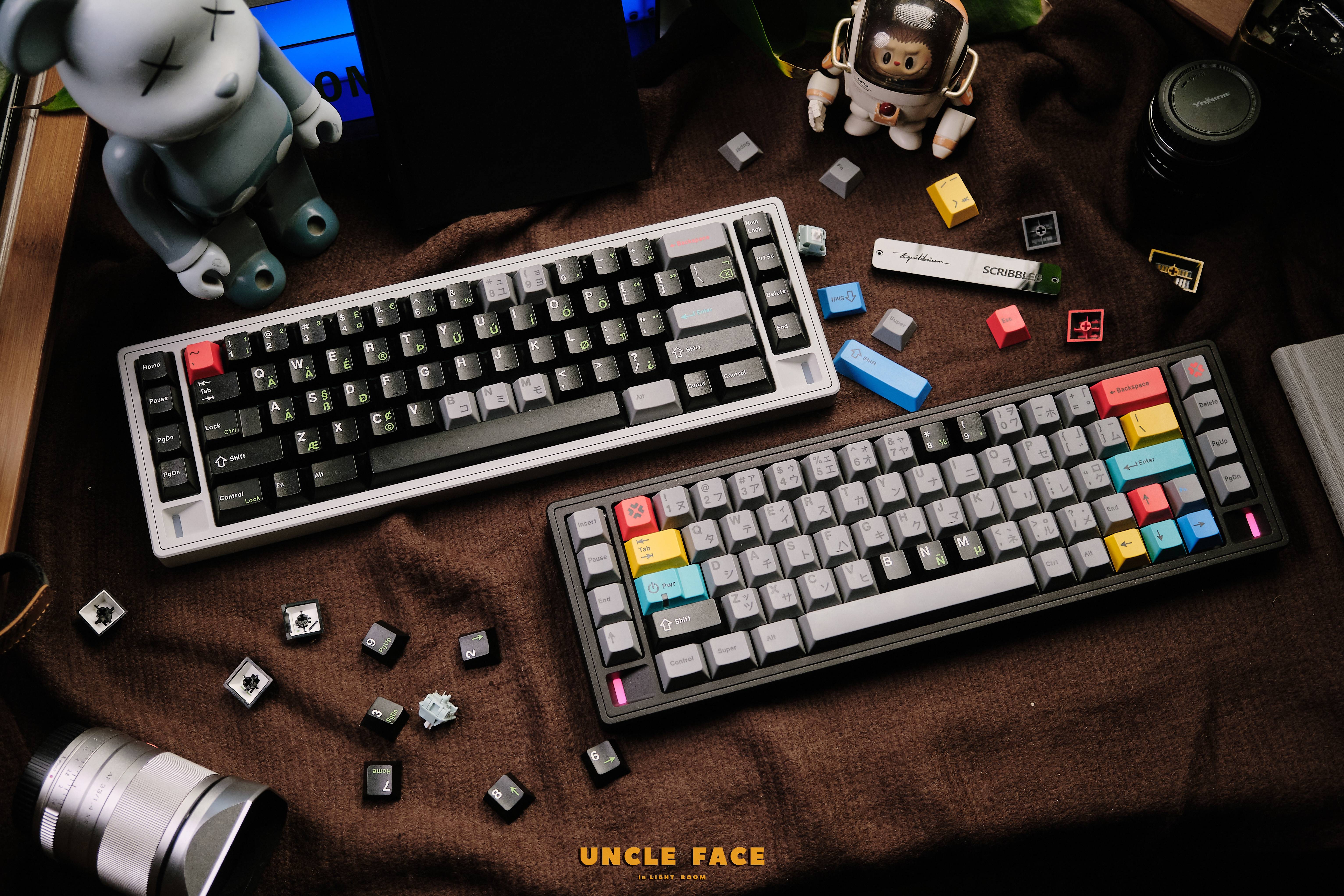

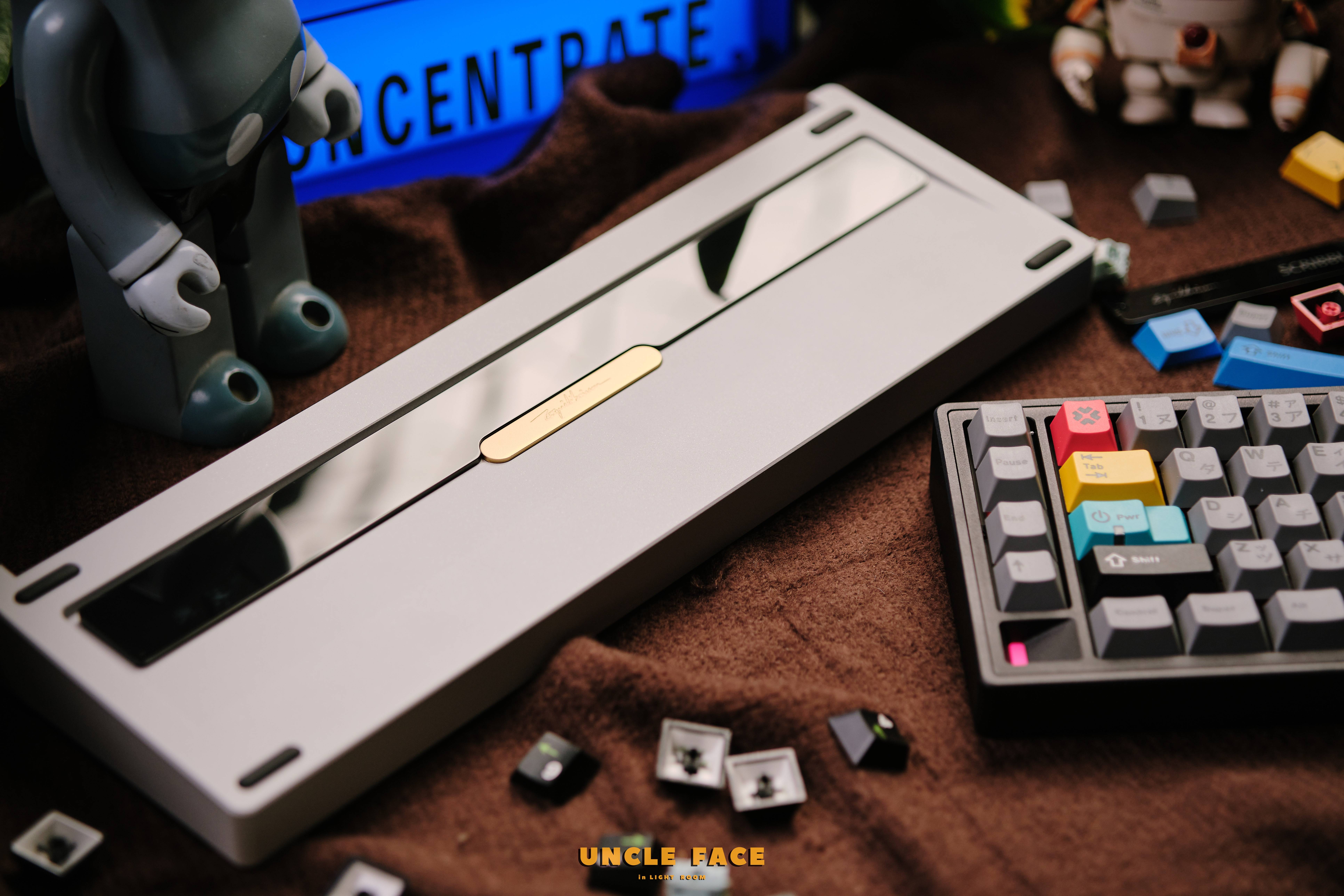

9. Kit Real-World Display

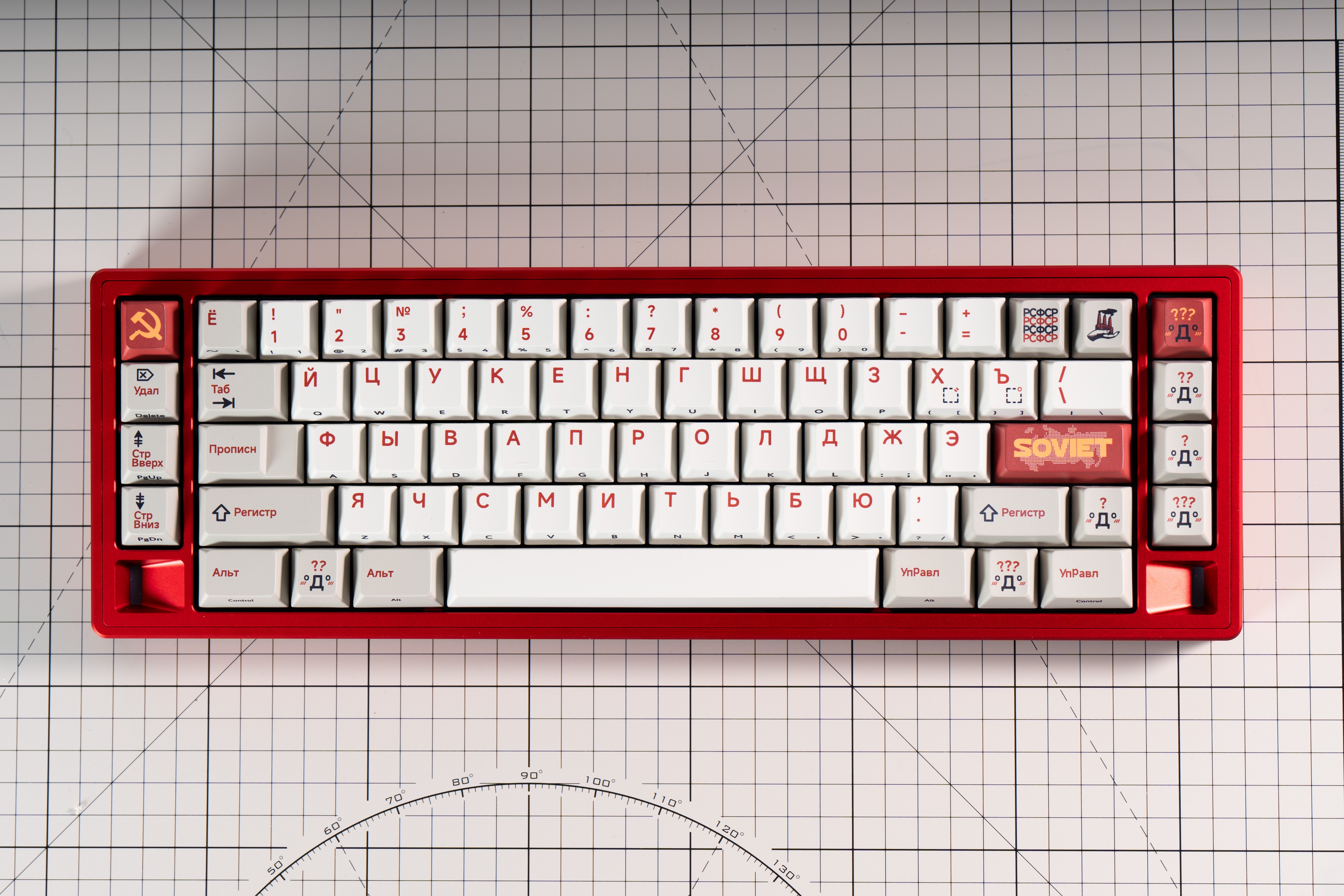

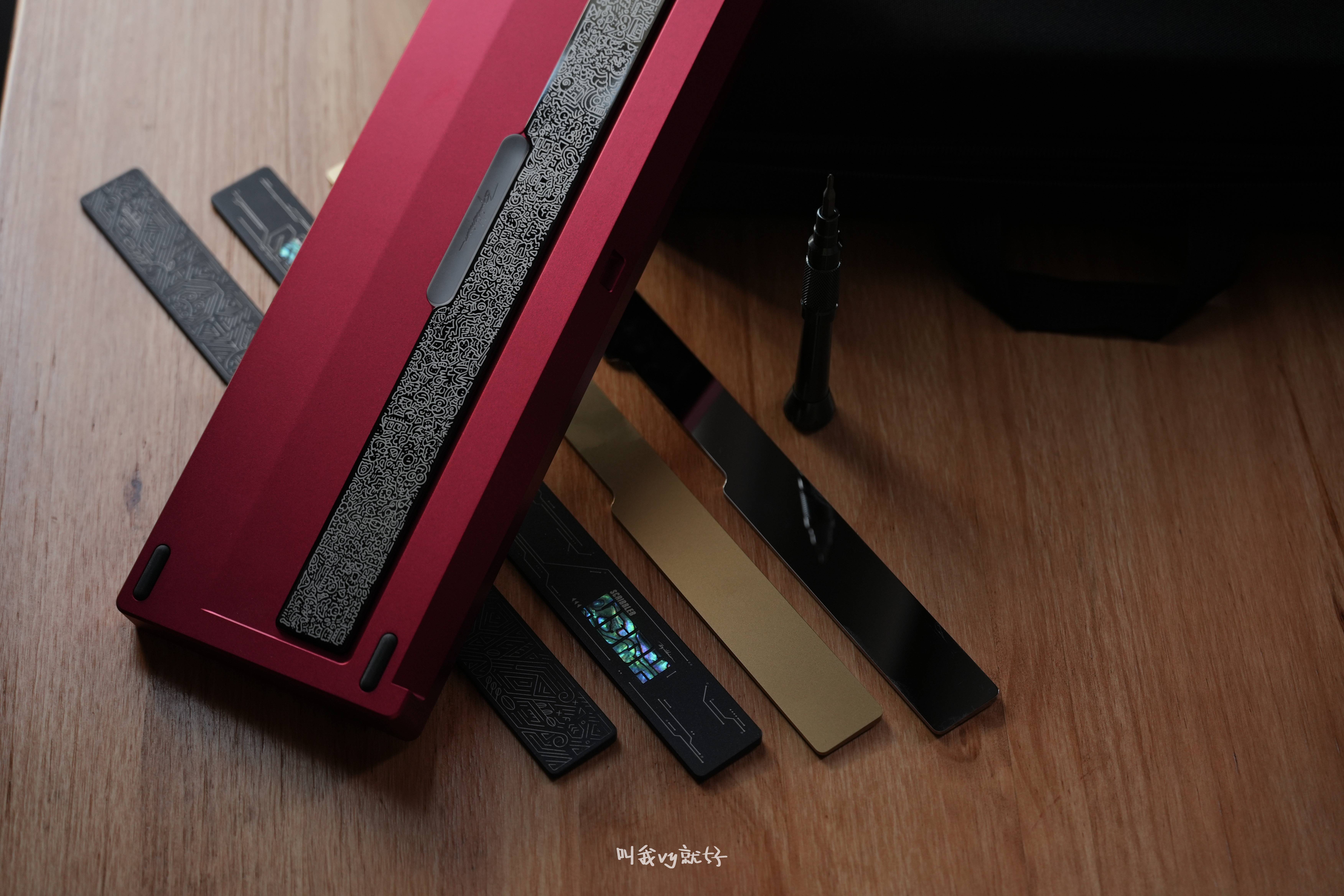

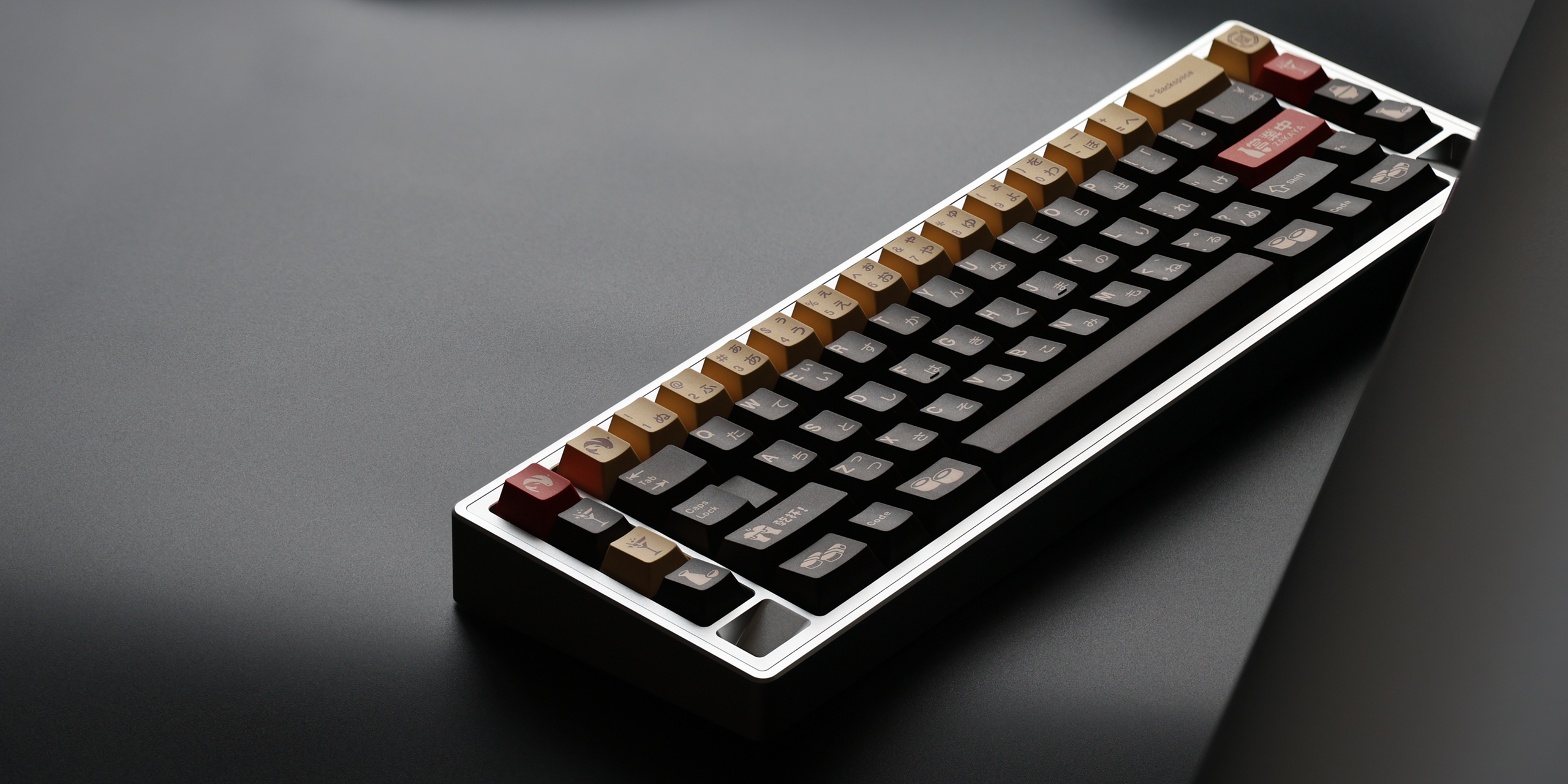

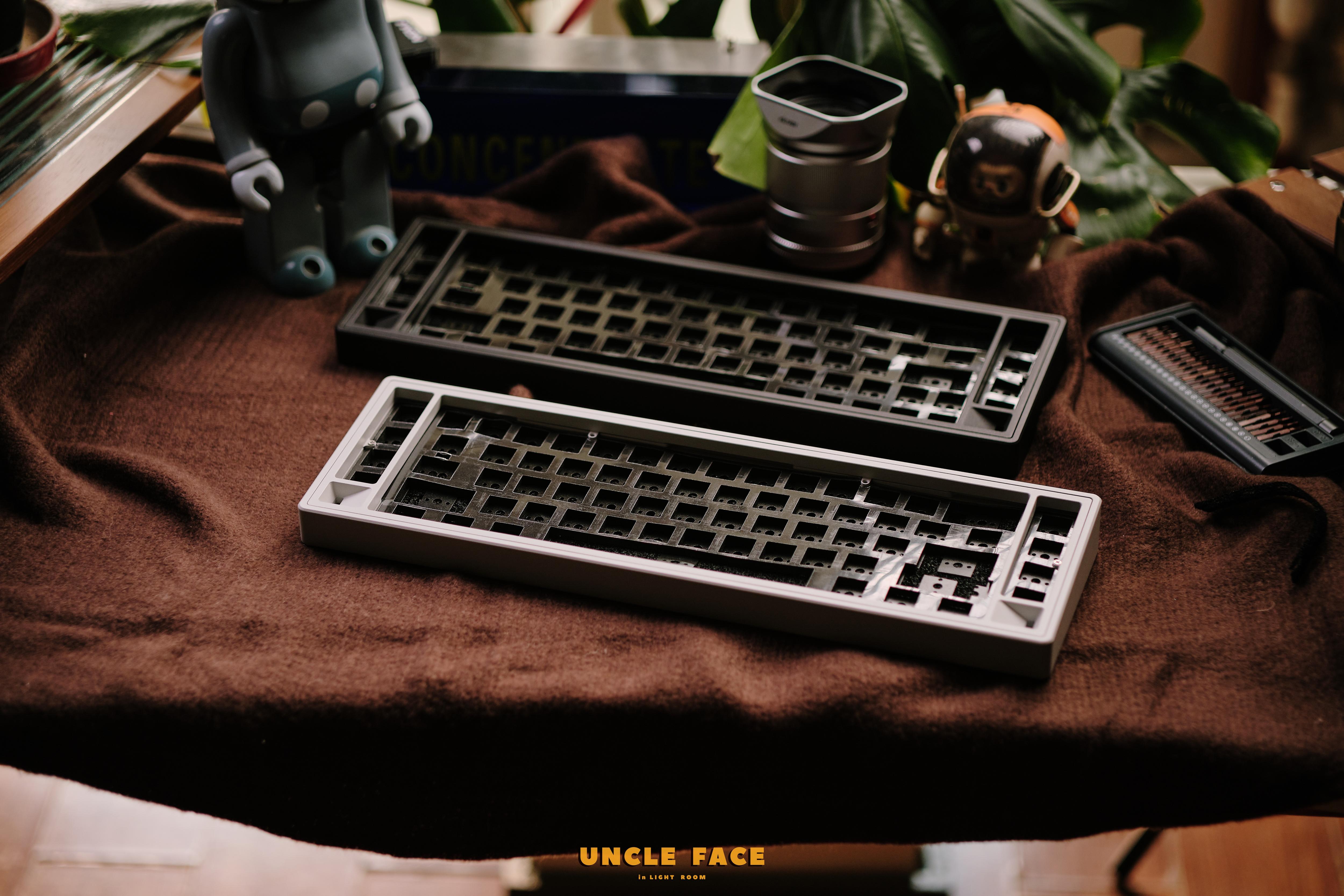

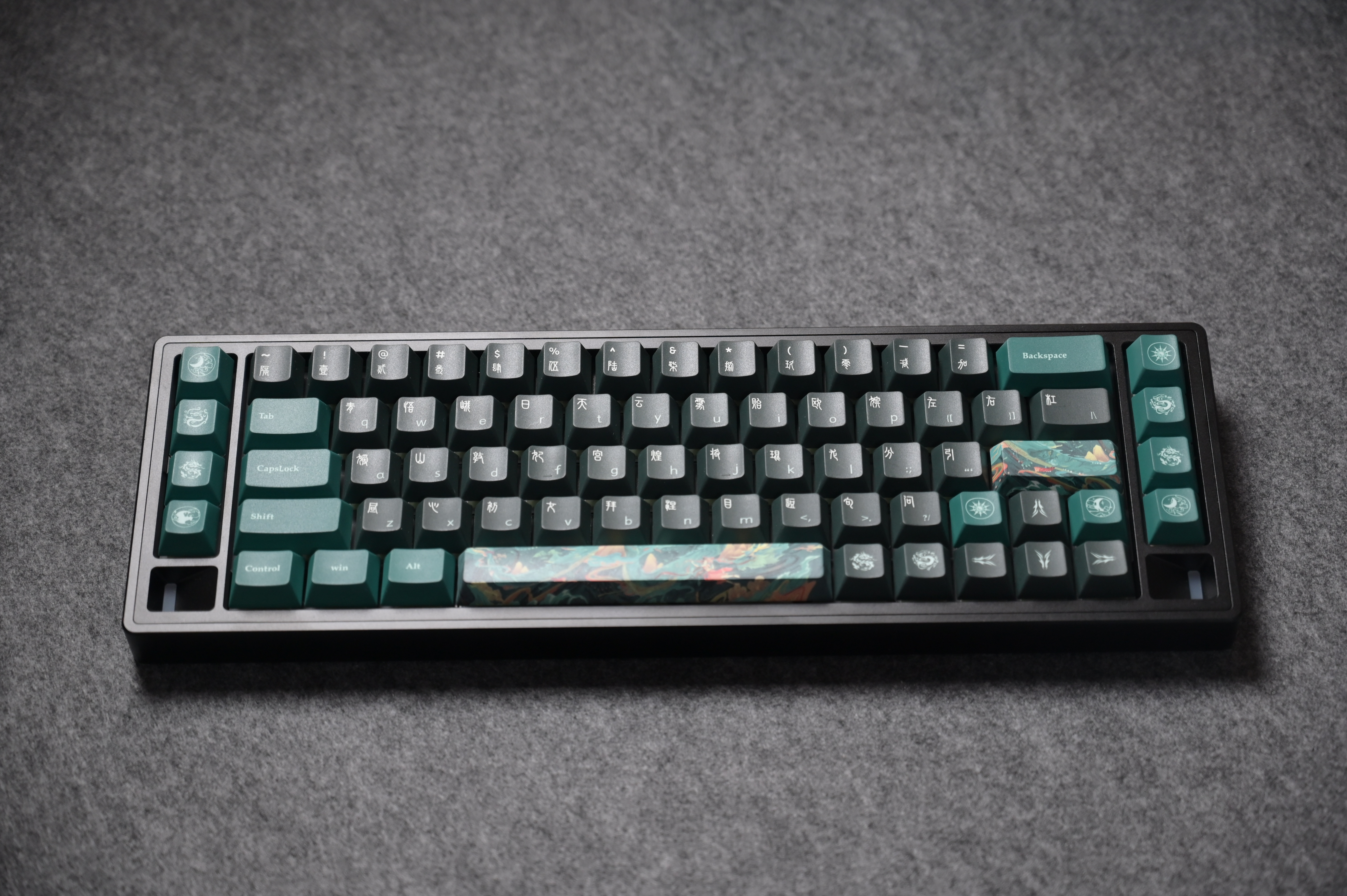

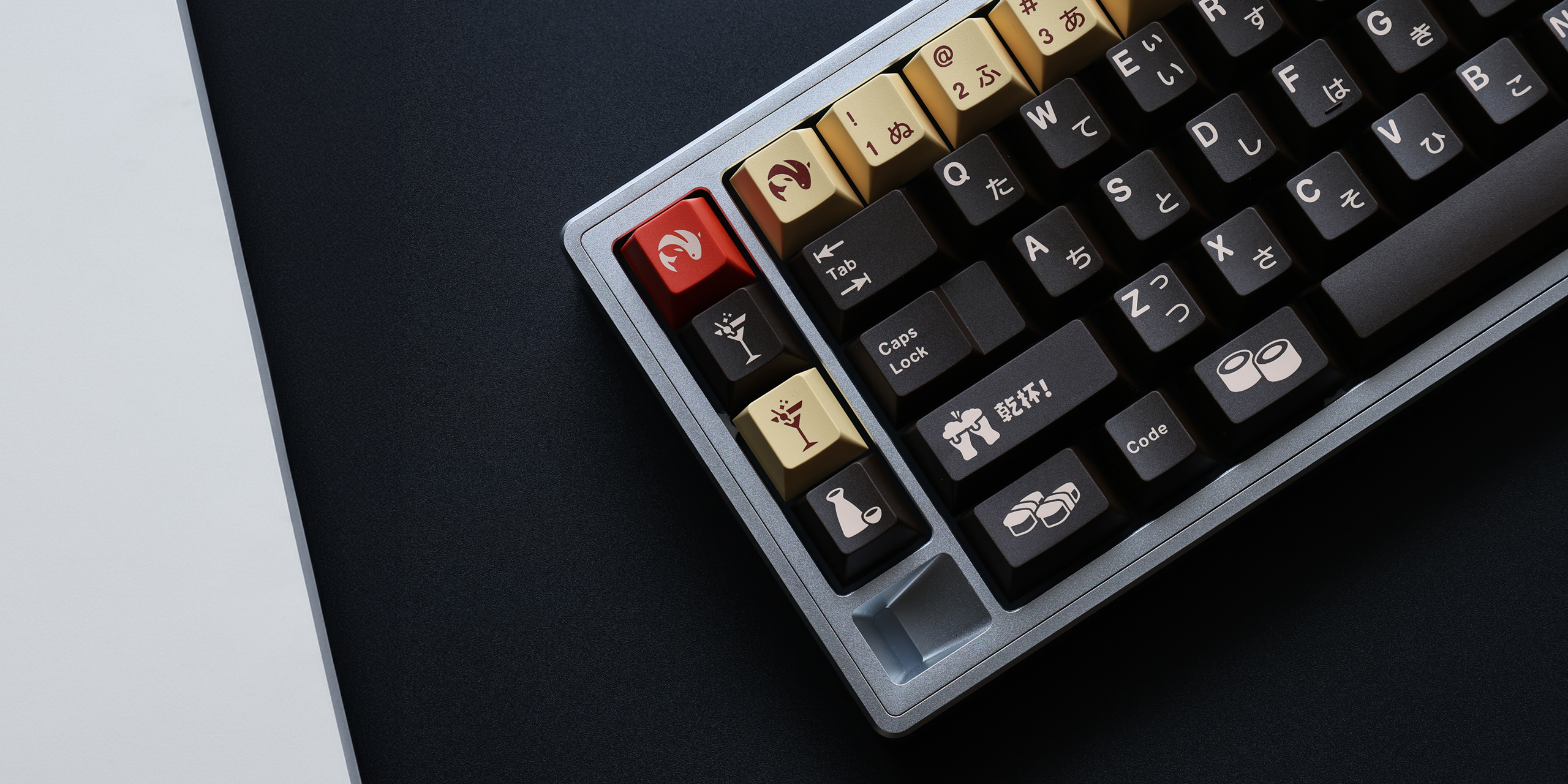

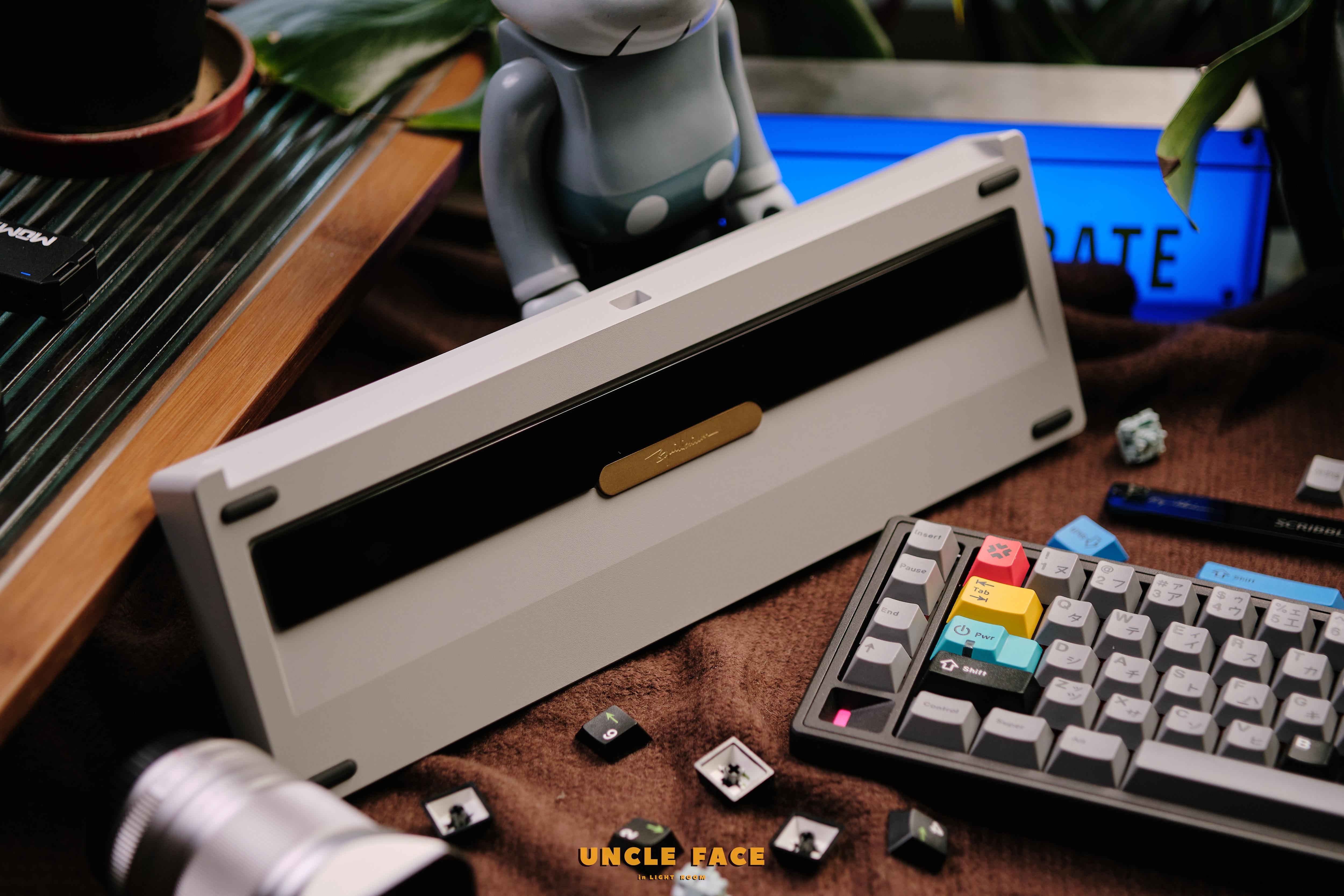

The actual effect of freely combining the case, weight, and Badge of the kit.

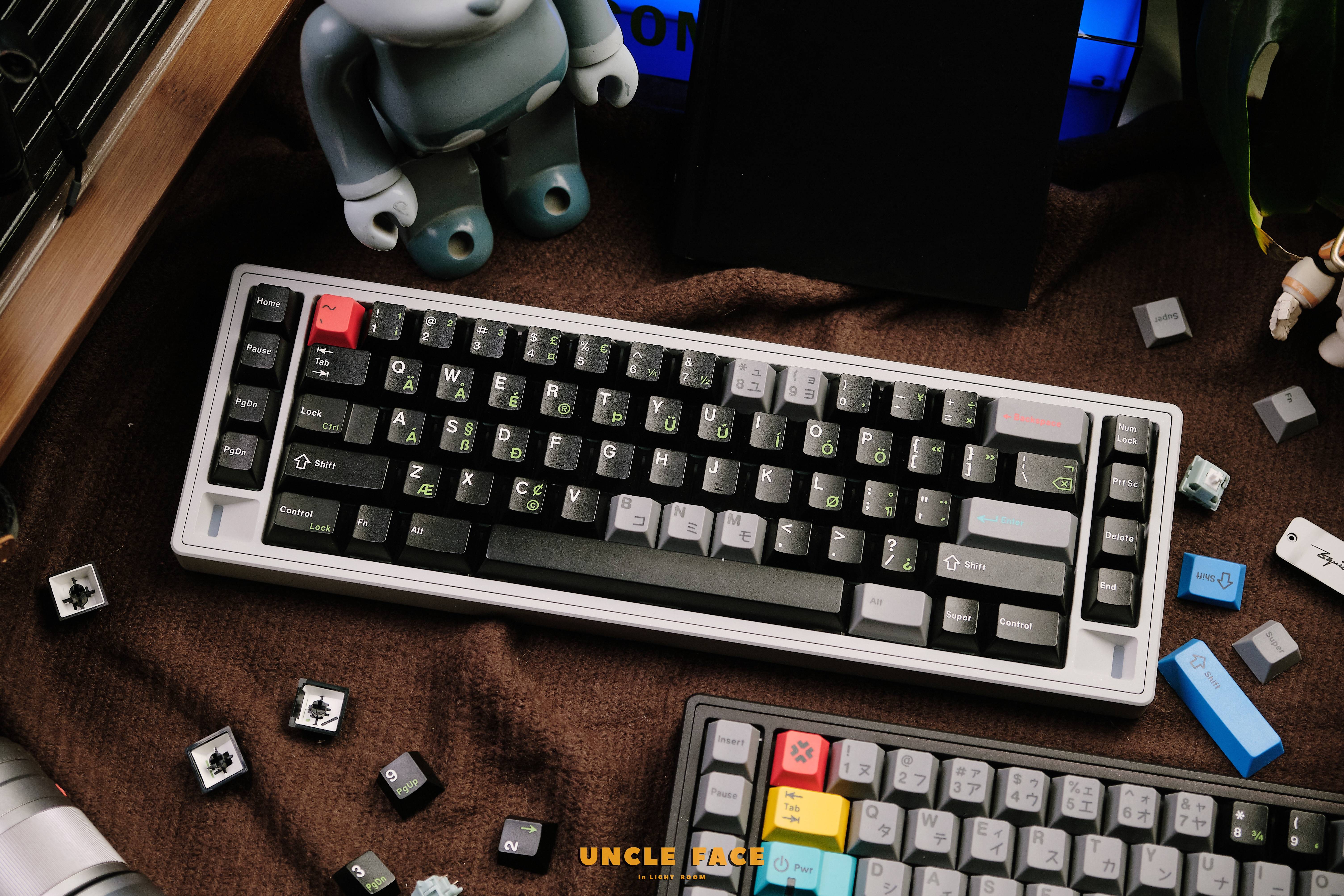

- Anodized Sliver(Top:Sliver, Bottom: Sliver) + Mother-of-pearl inlay Weight + Stainless Steel / Mirror / Steel Color Badge

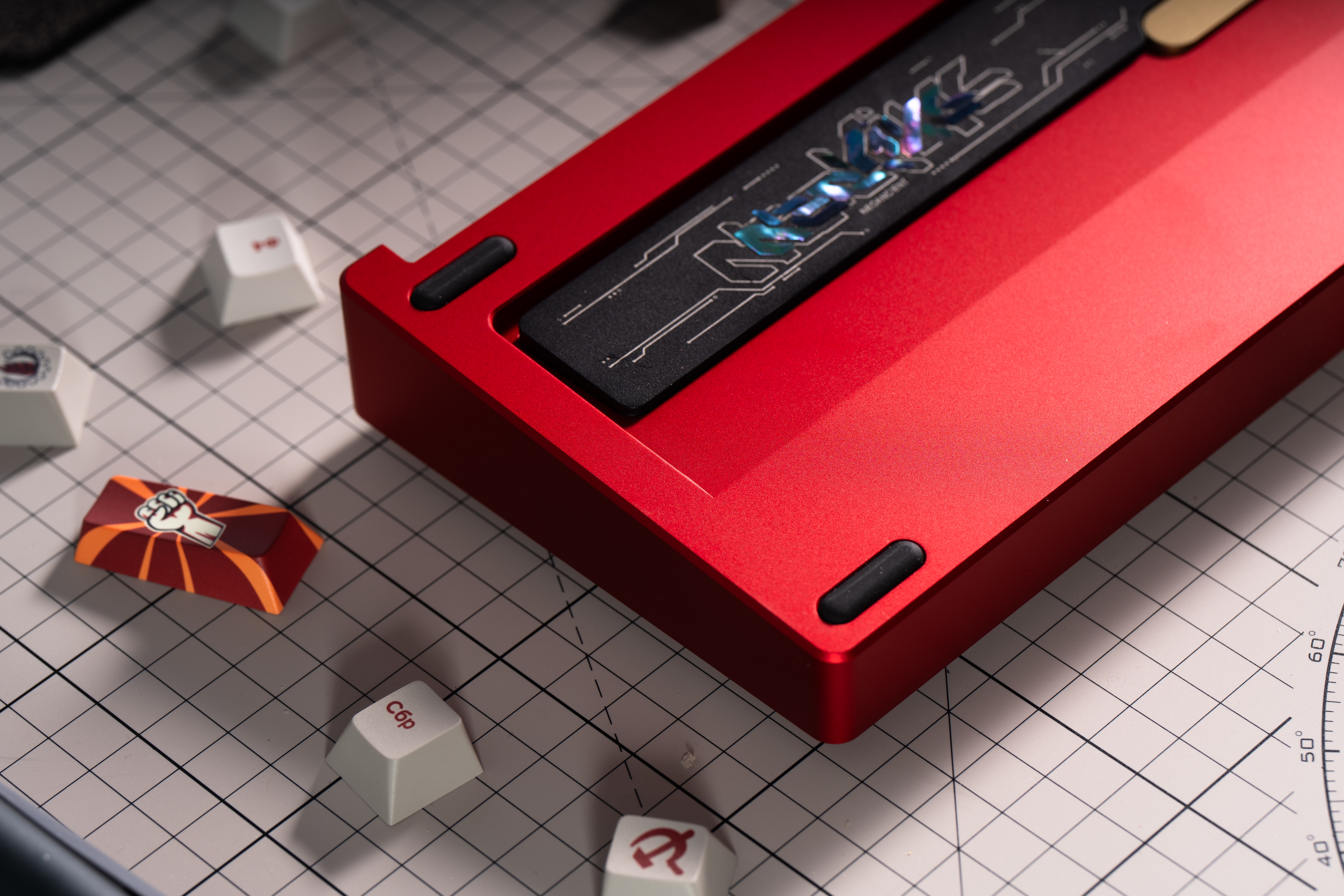

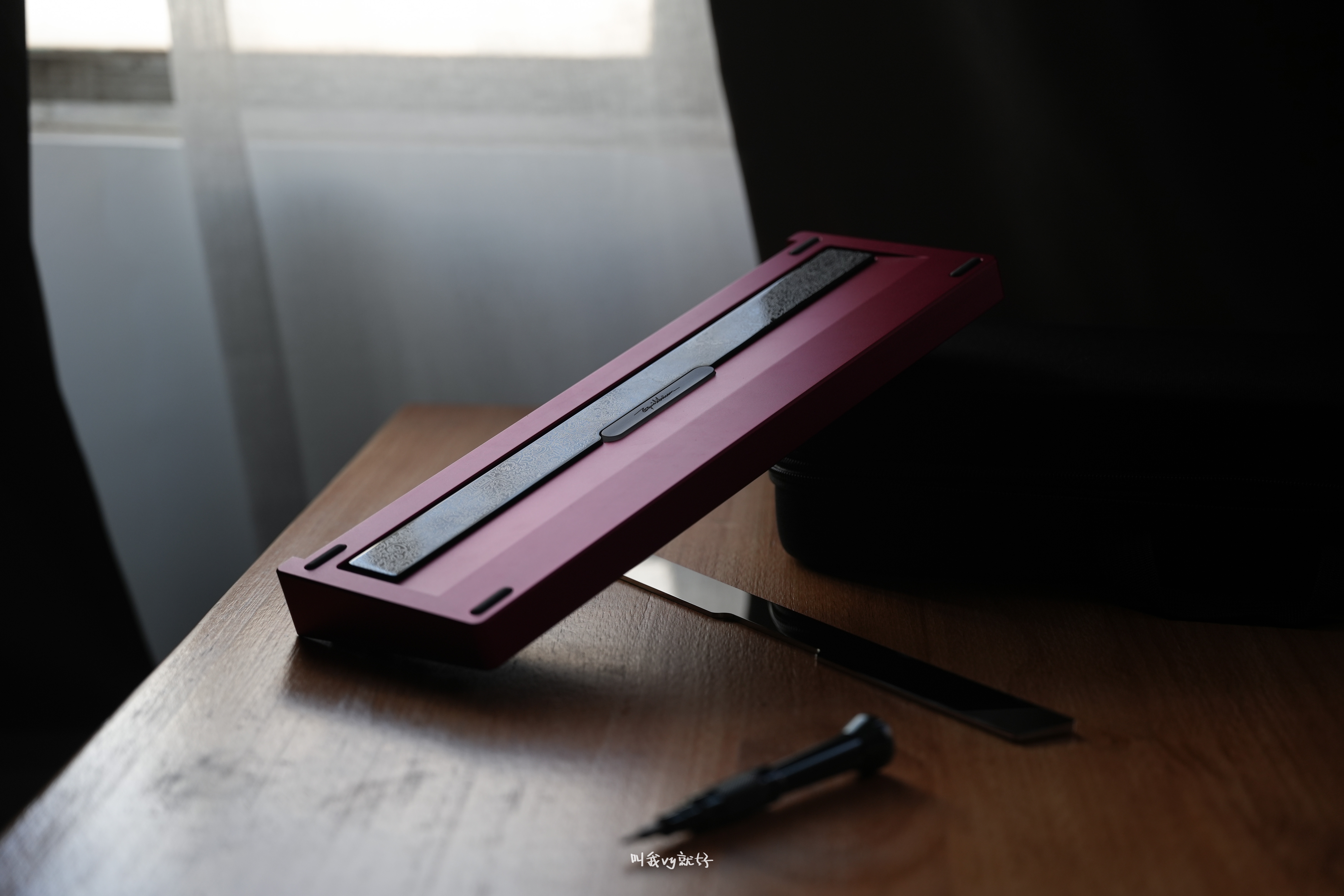

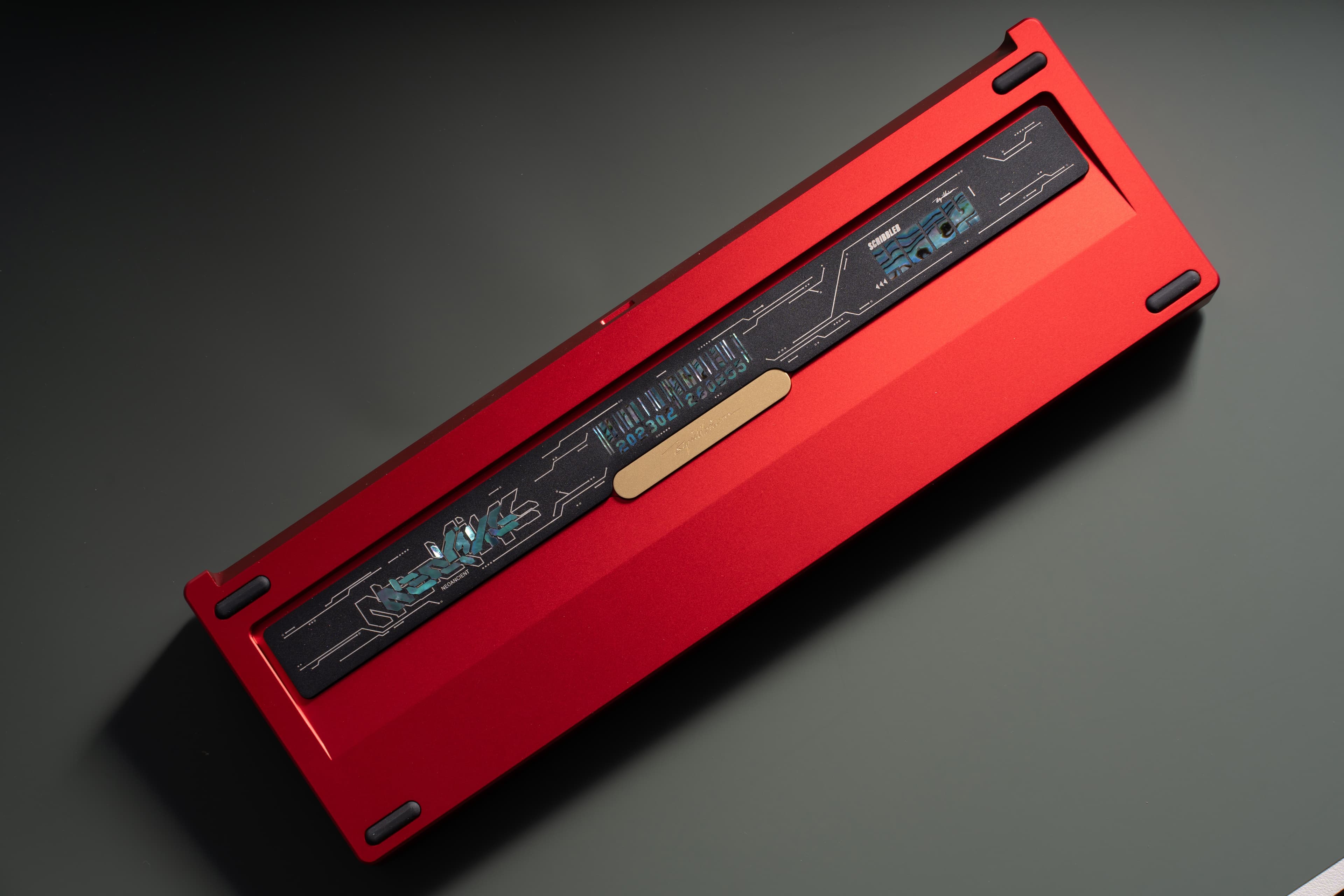

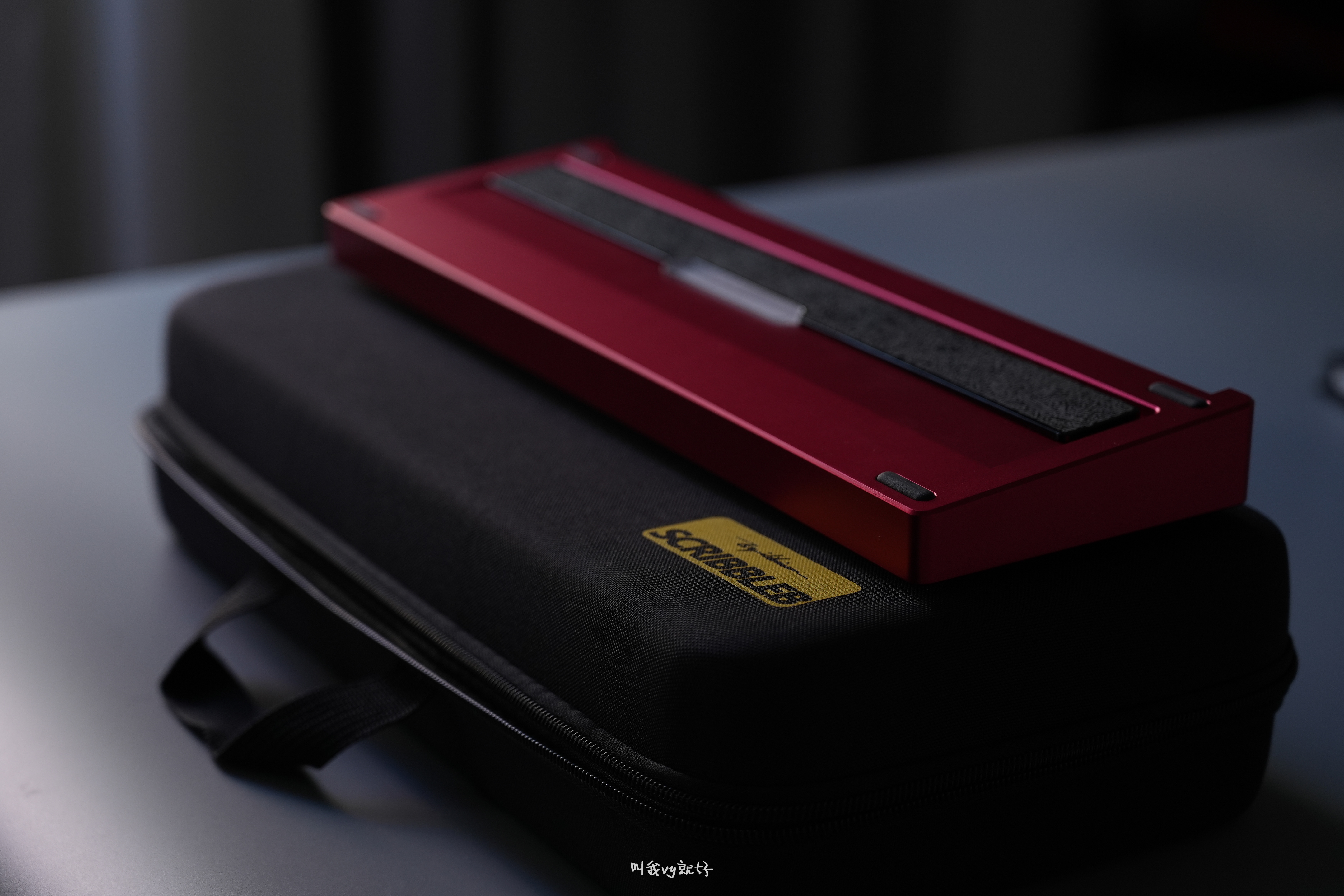

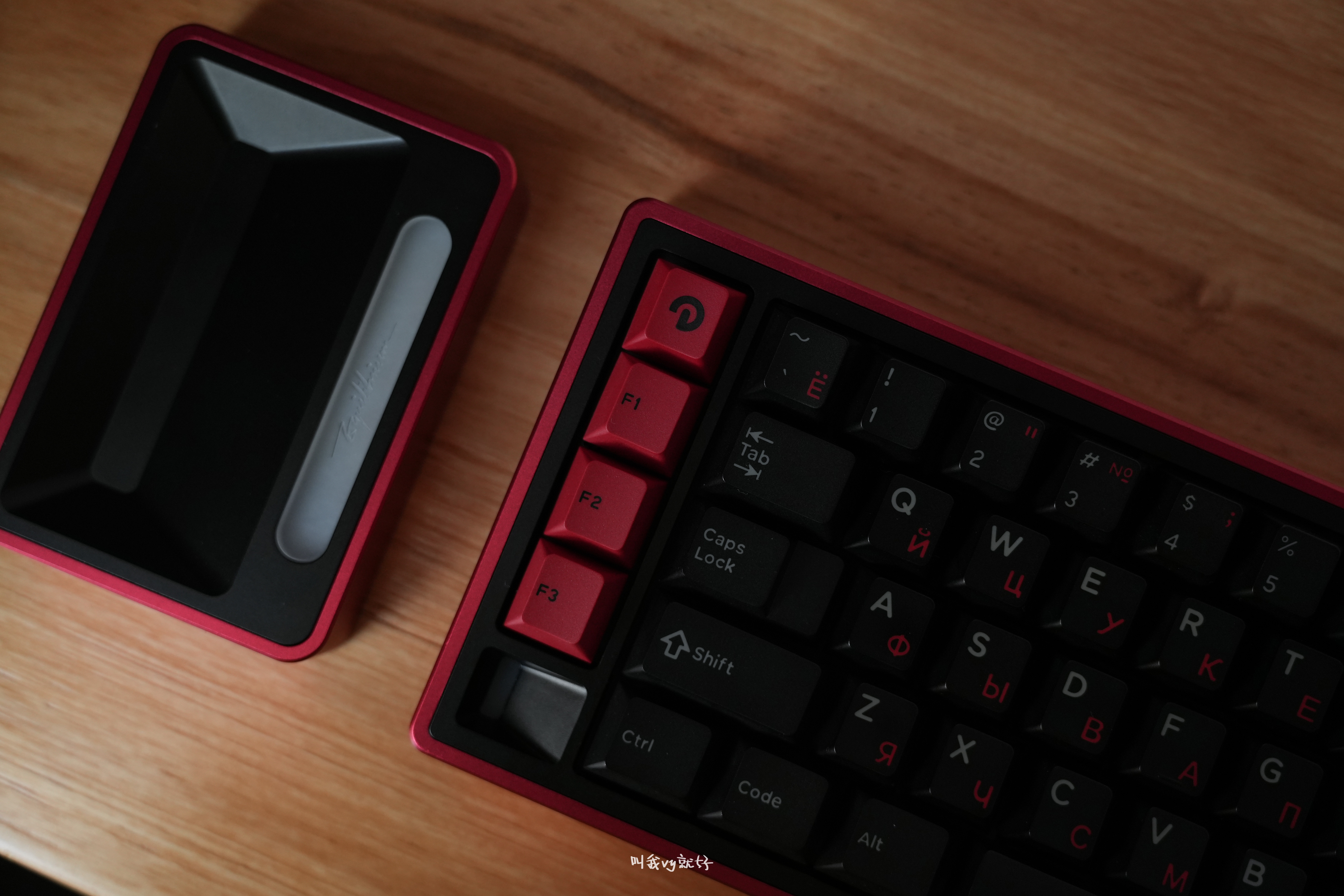

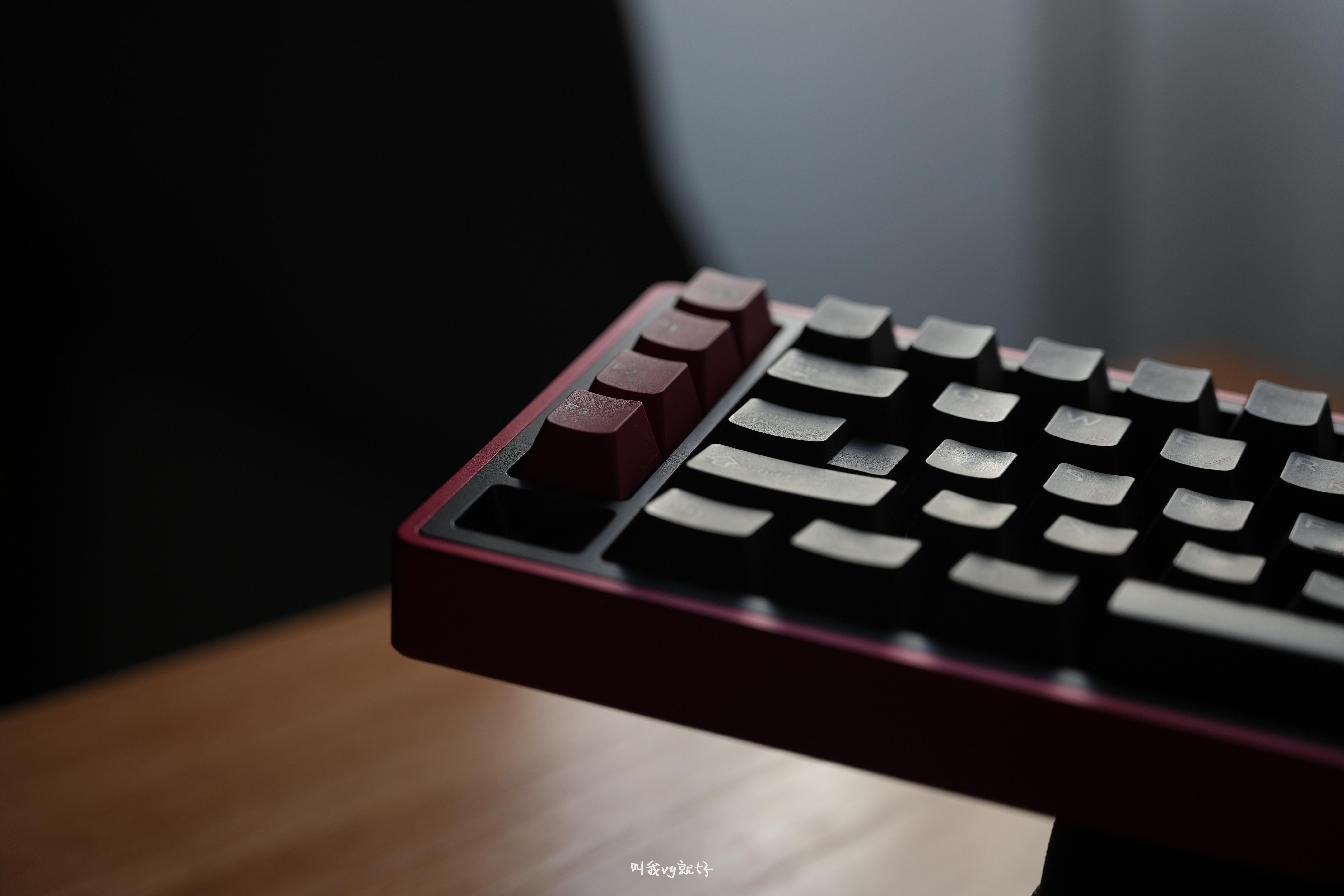

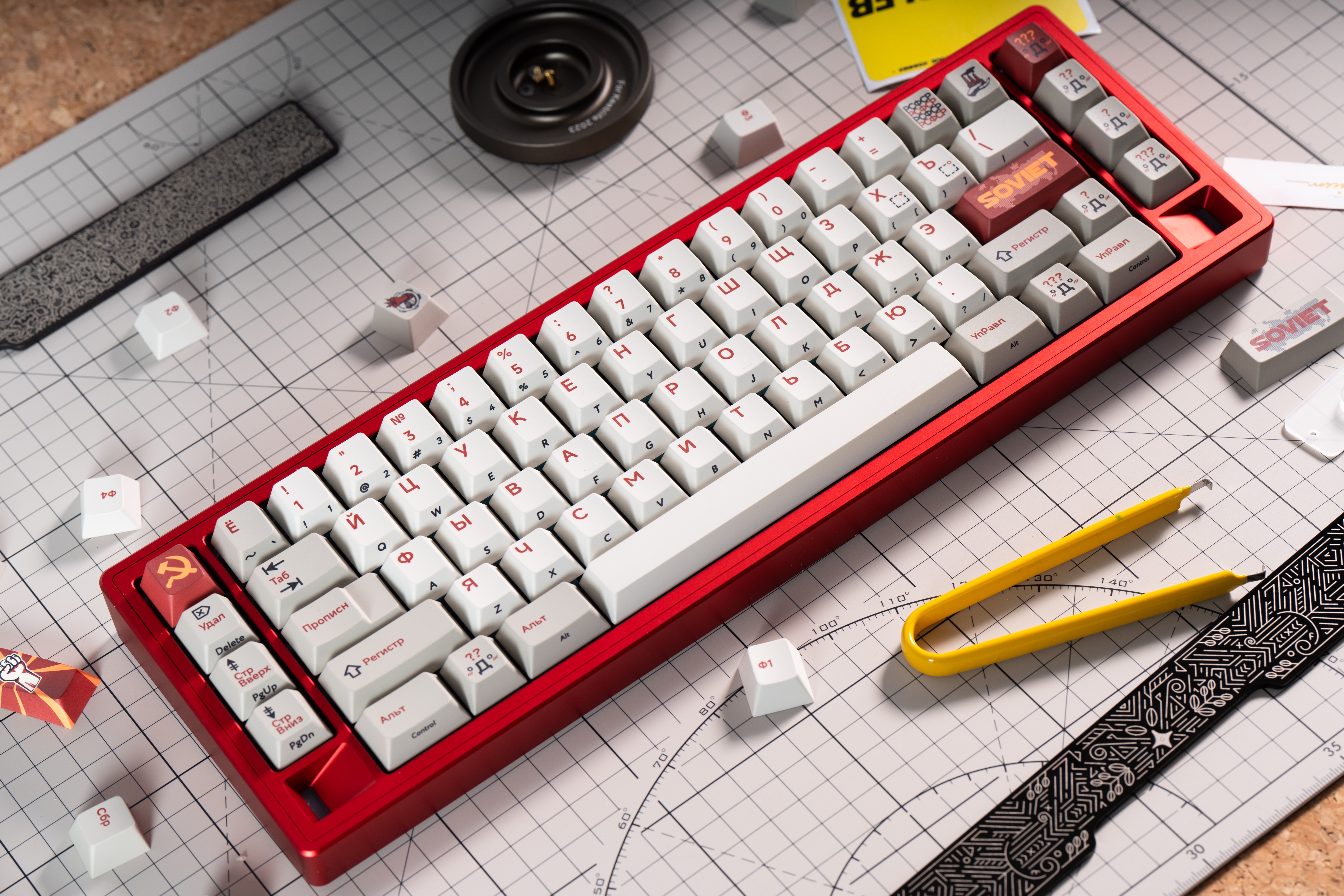

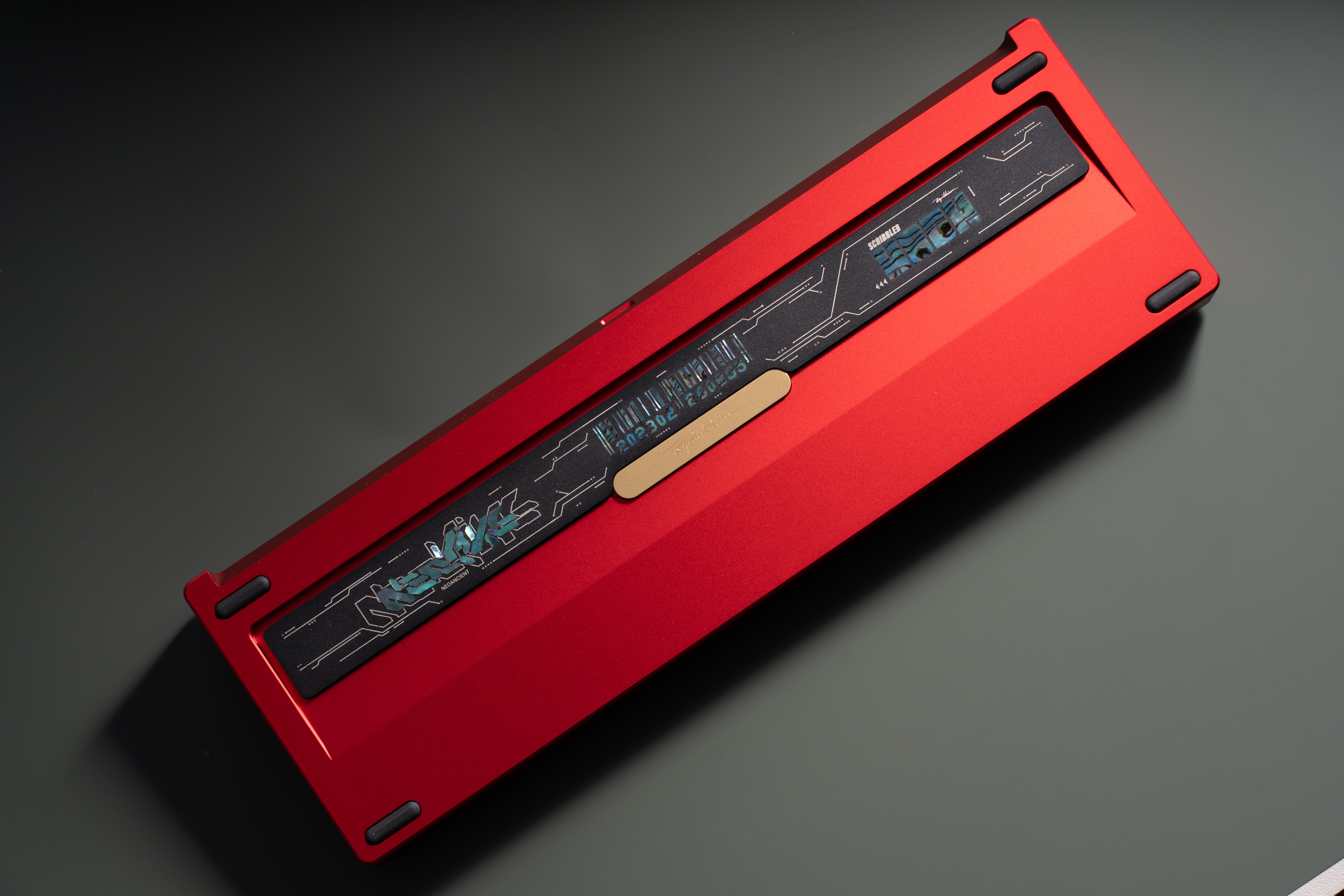

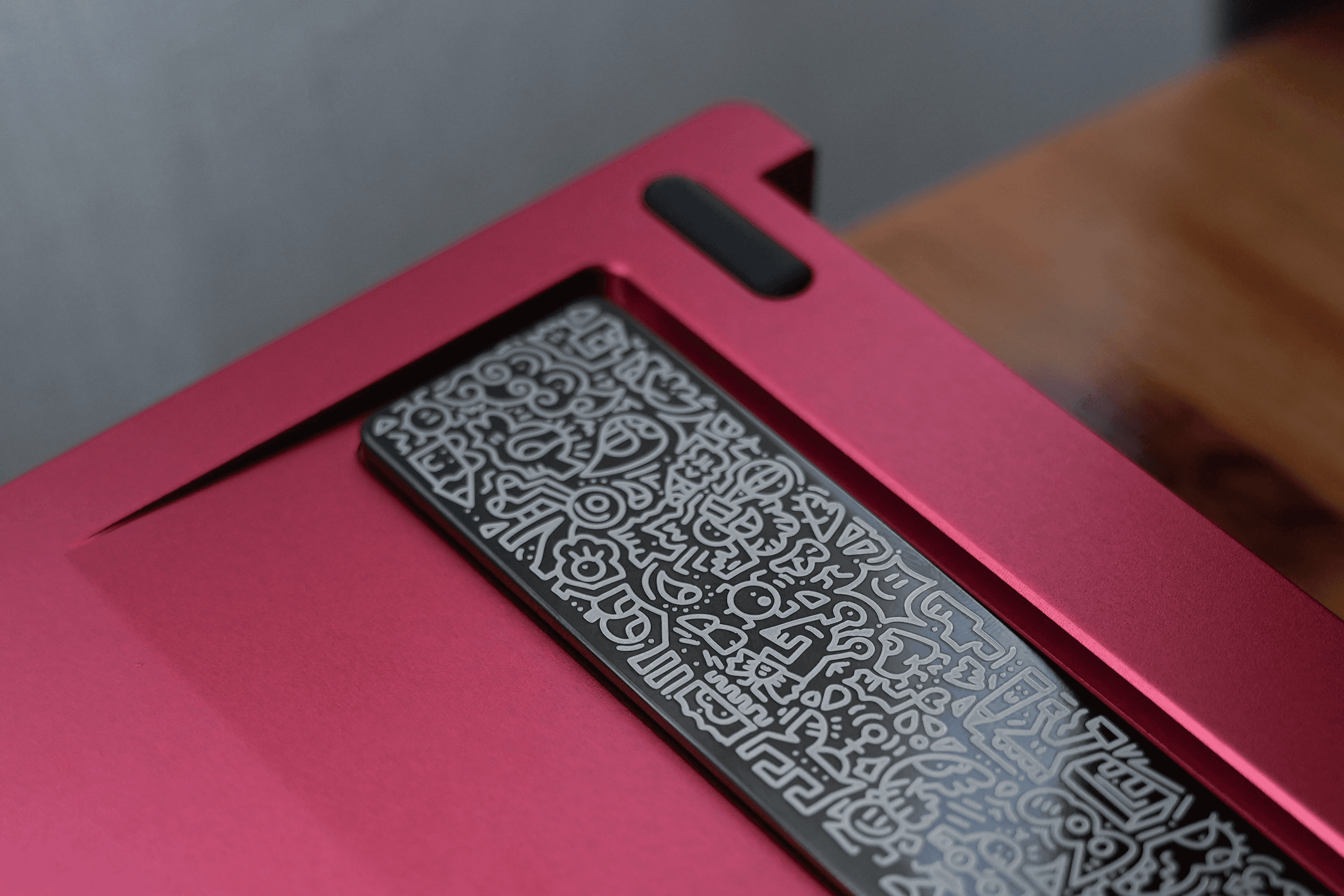

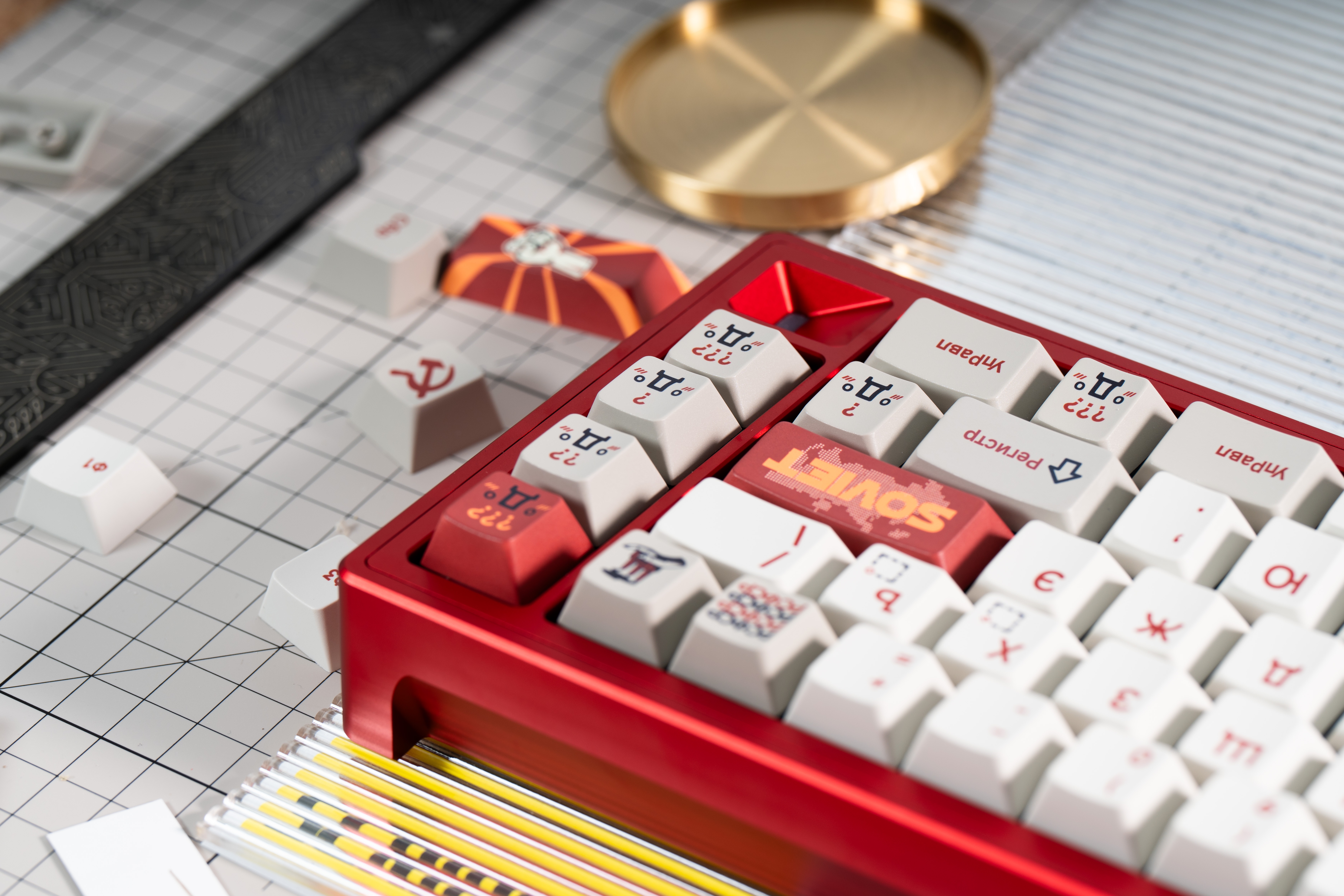

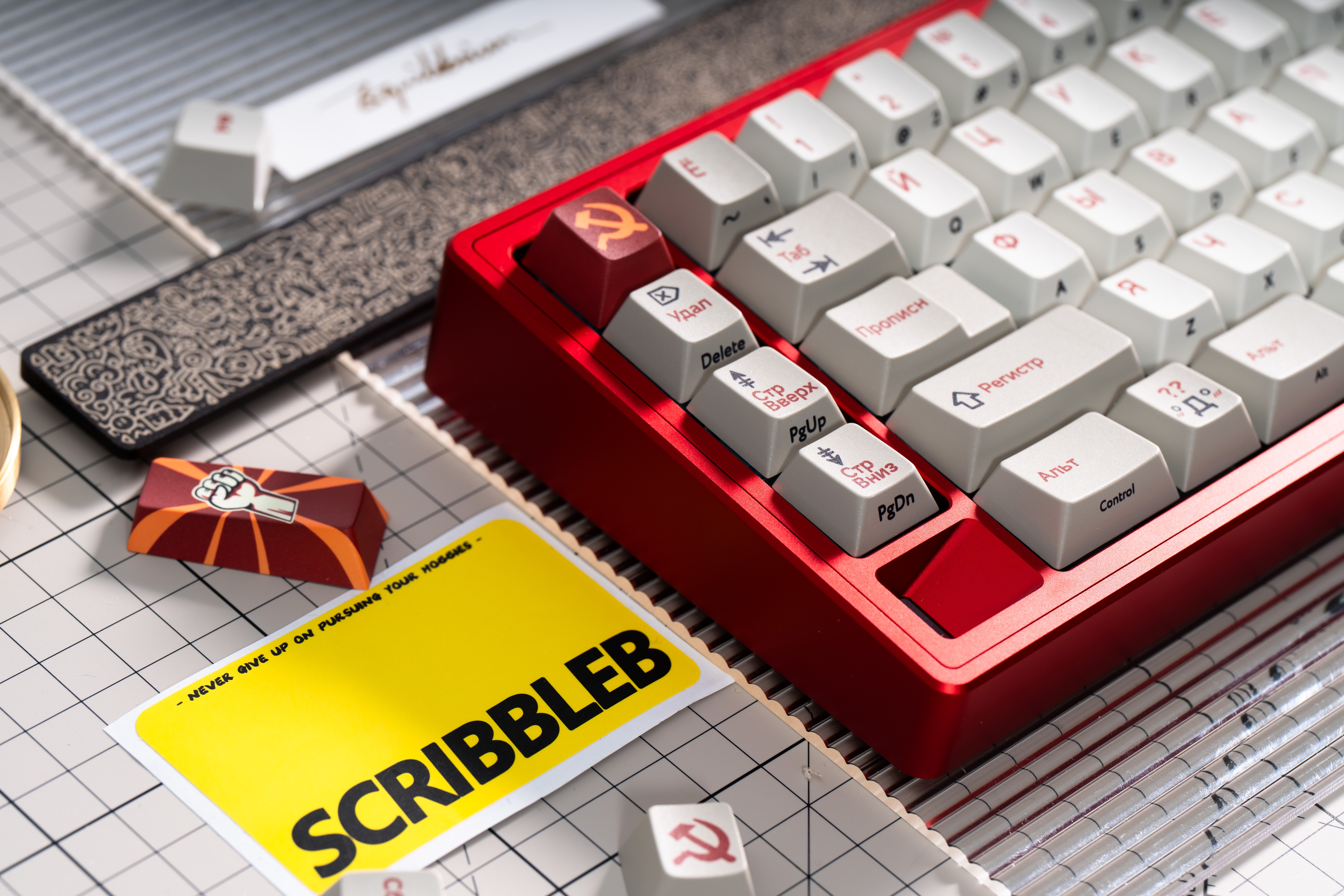

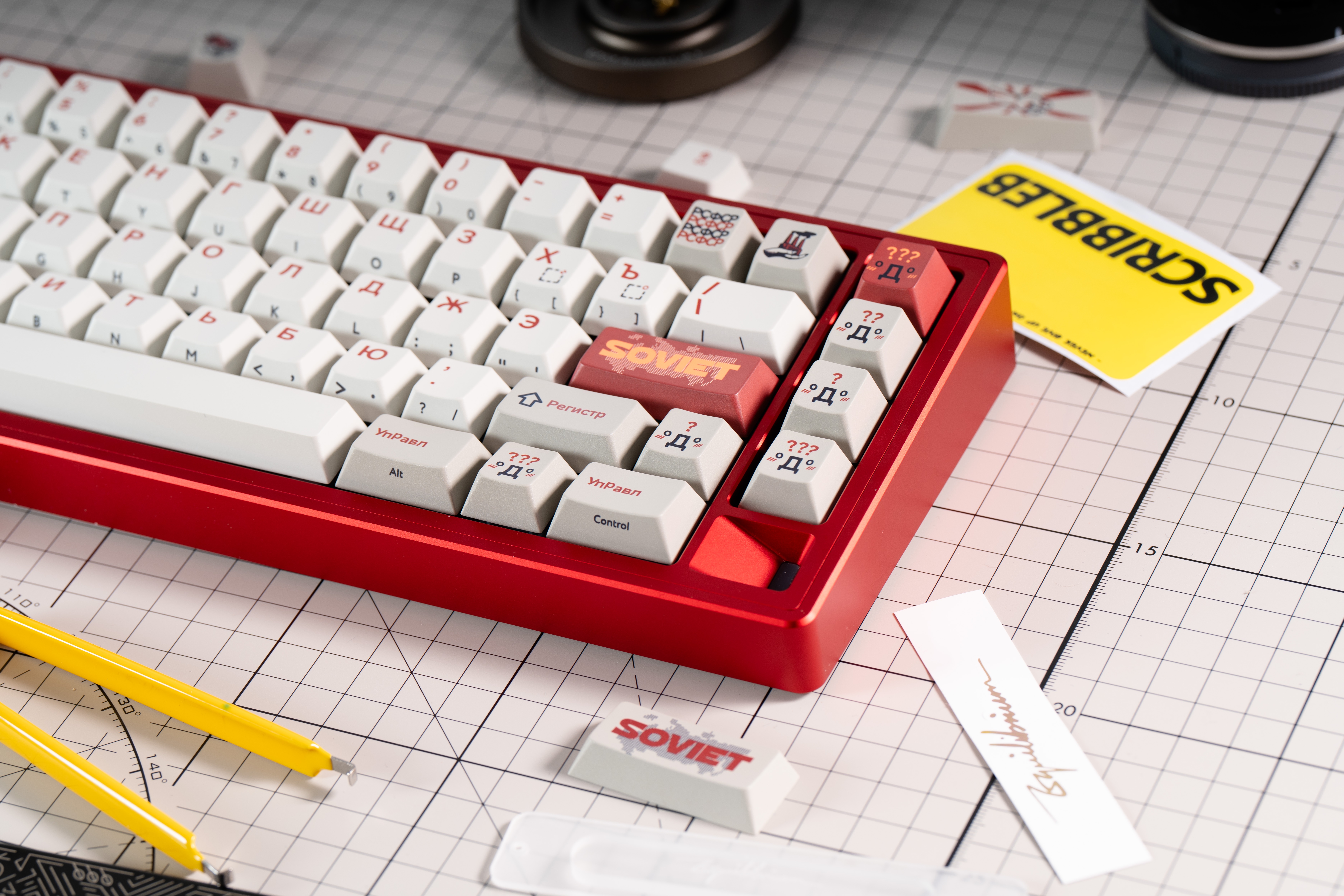

- Anodized Deep Red (Top:Red , Bottom :Red ) + Mother-of-pearl inlay Weight + Stainless Steel / Sandblasted / Gold Badge

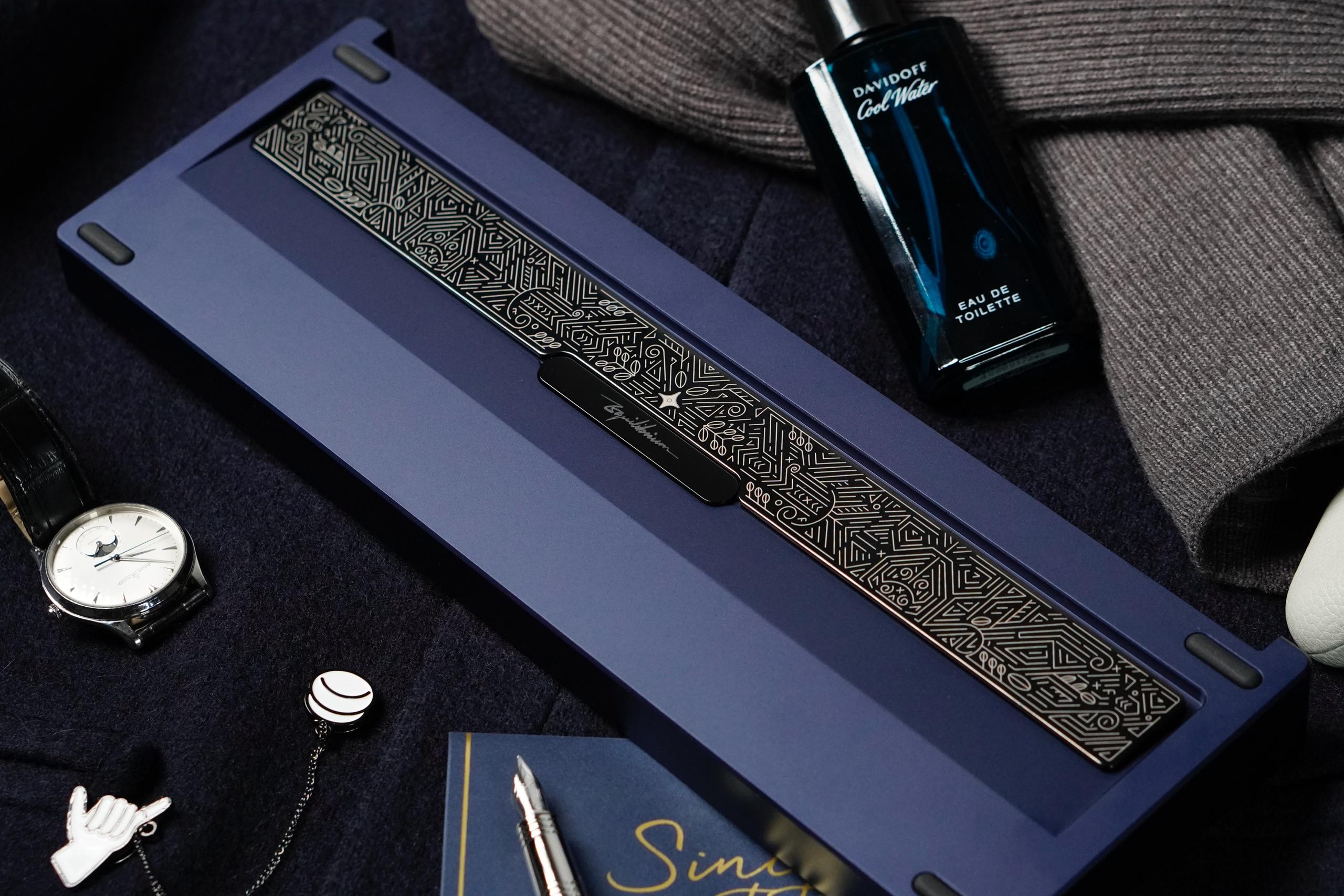

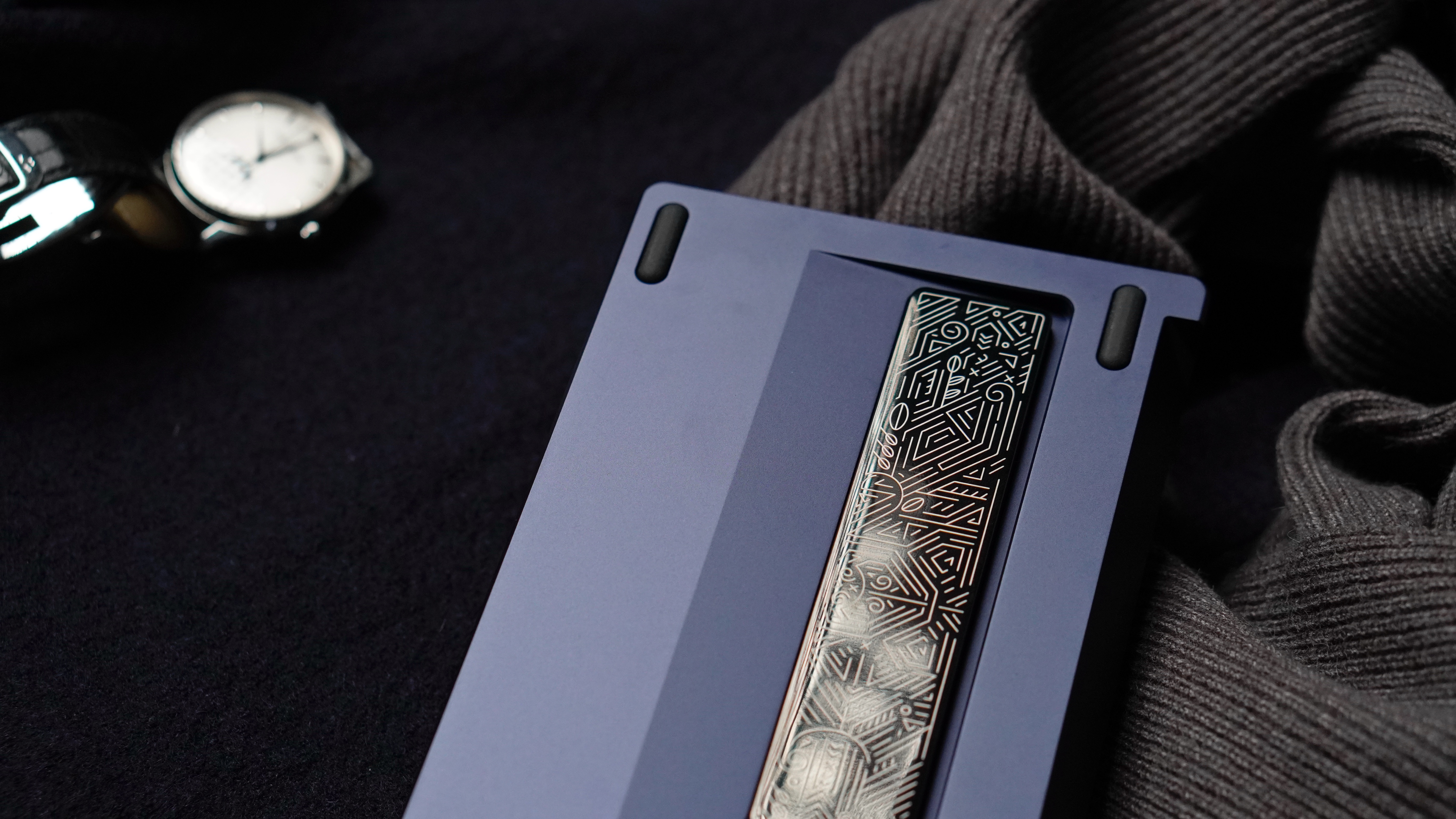

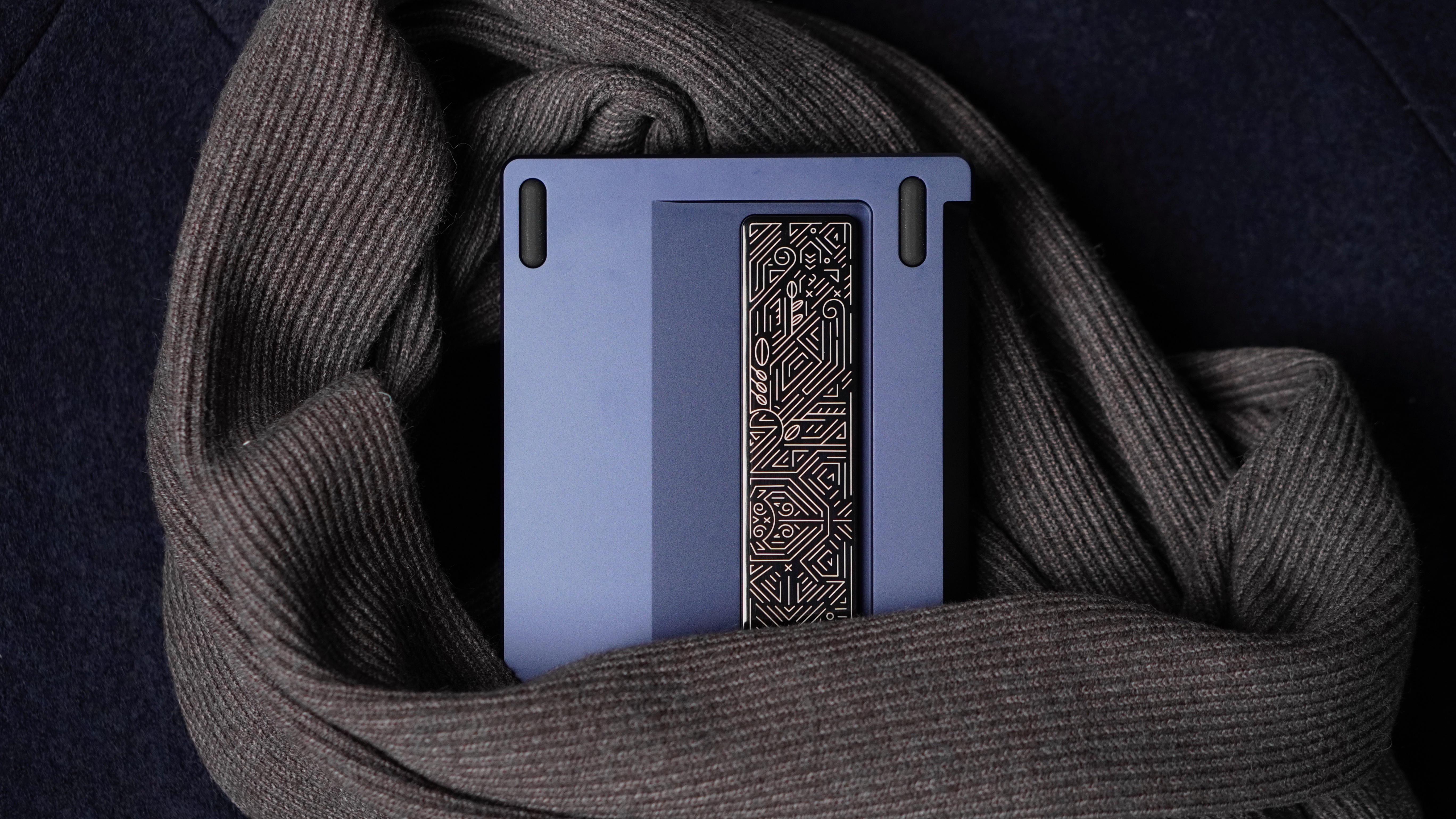

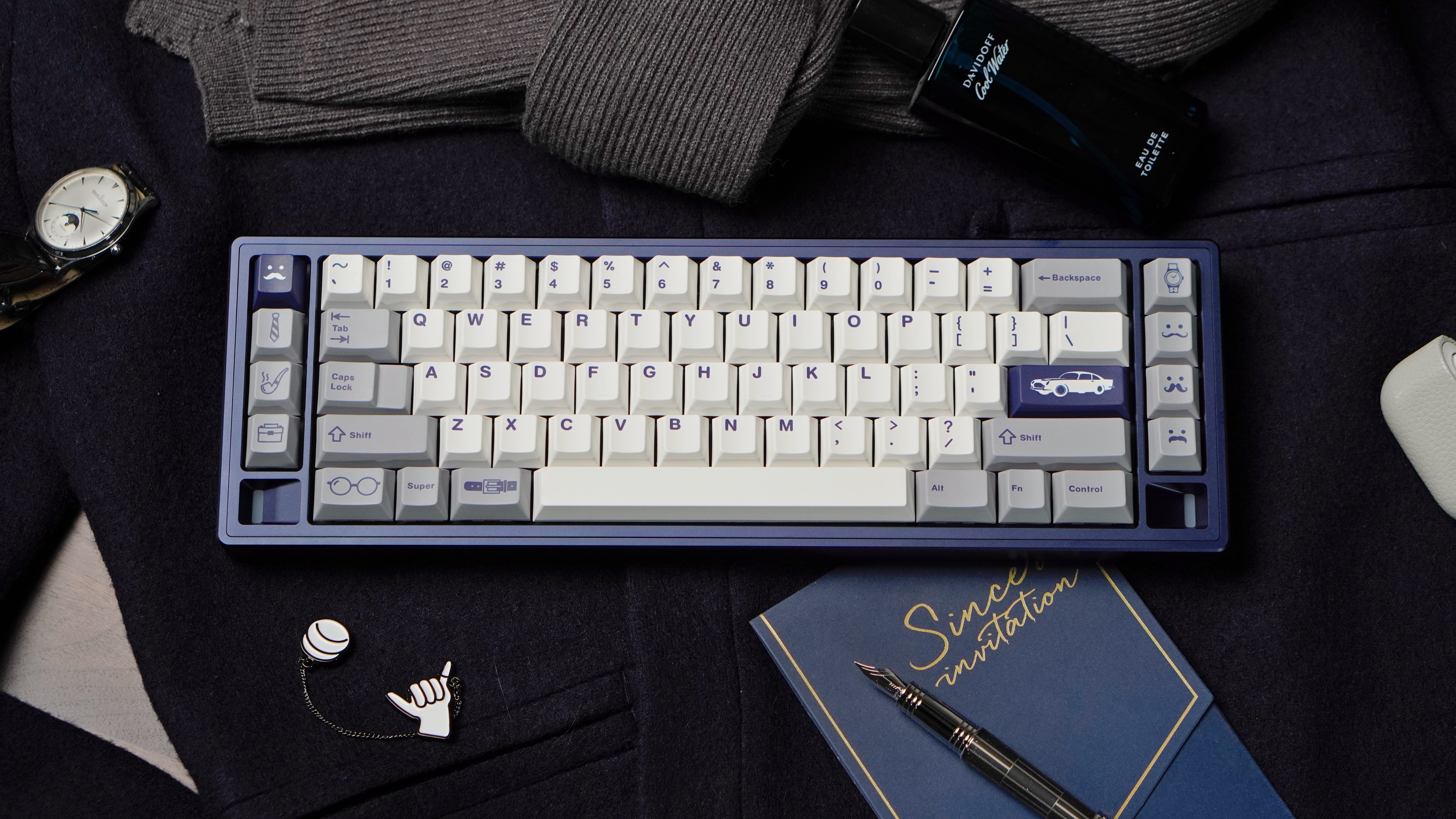

- Anodized Navy Blue (Top: Blue, Bottom: Blue) + Forest /Mirror Finish / Black Weight + Stainless Steel / Mirror / Black Badge

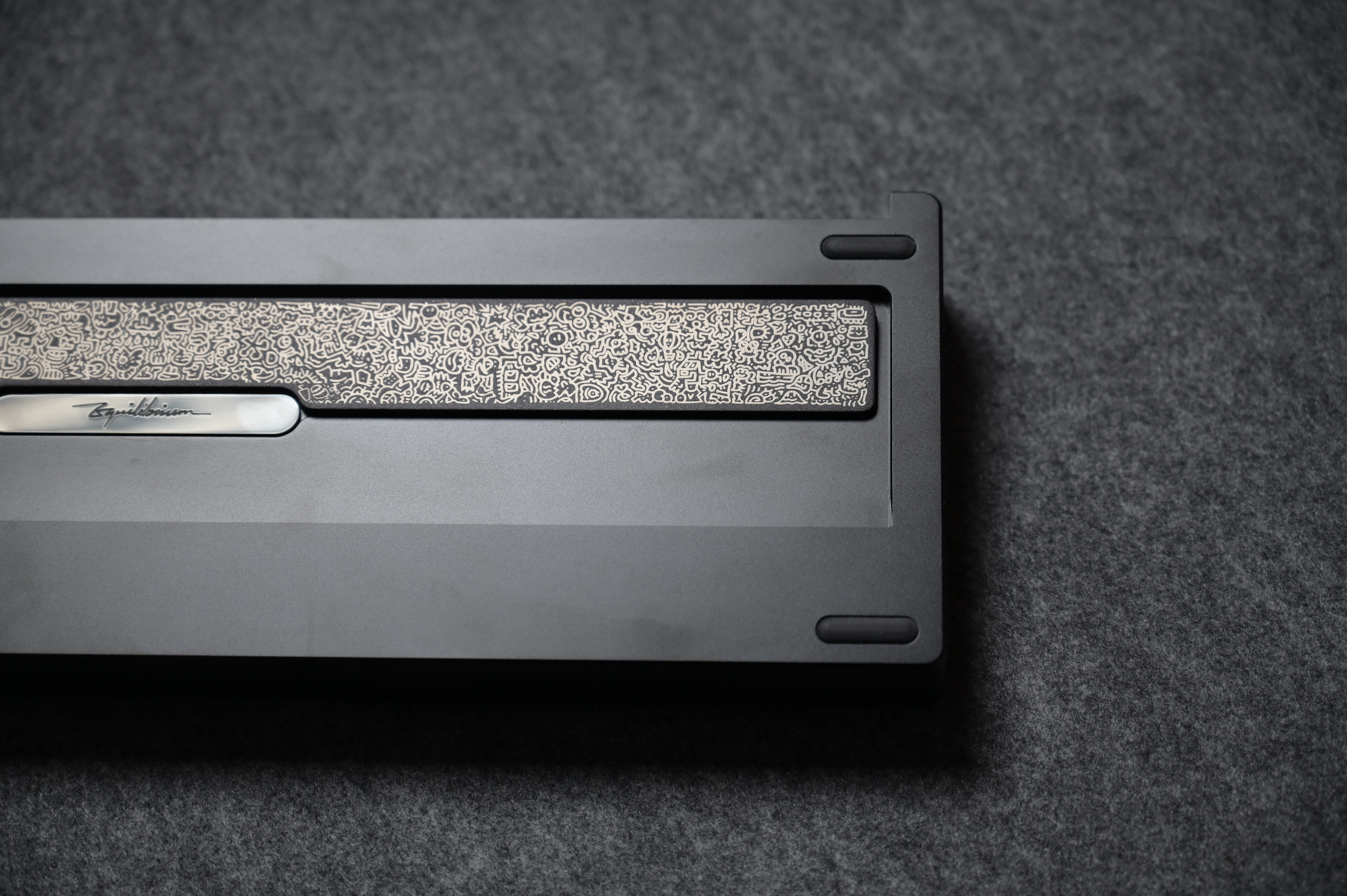

- Anodized Black (Top: Black, Bottom: Black) +Graffiti / Spray Coating / Black Weight +Frosted Transparent（PC）Badge







- Anodized Black & Red (Top: Black, Bottom: Black) +Graffiti /Mirror Finish / Black Weight + Frosted Transparent（PC）Badge







- Spray Coated Sparkling Gray (Top: Gray , Bottom: Gray )+Stainless Steel /Mirror/Black Weight (No Pattern)+Stainless Steel / Sandblasted / Gold Badge







- Spray Coated Sparkling Black (Top: Black , Bottom: Black )+Mother-of-pearl inlay Weight +Frosted Transparent（PC）Badge

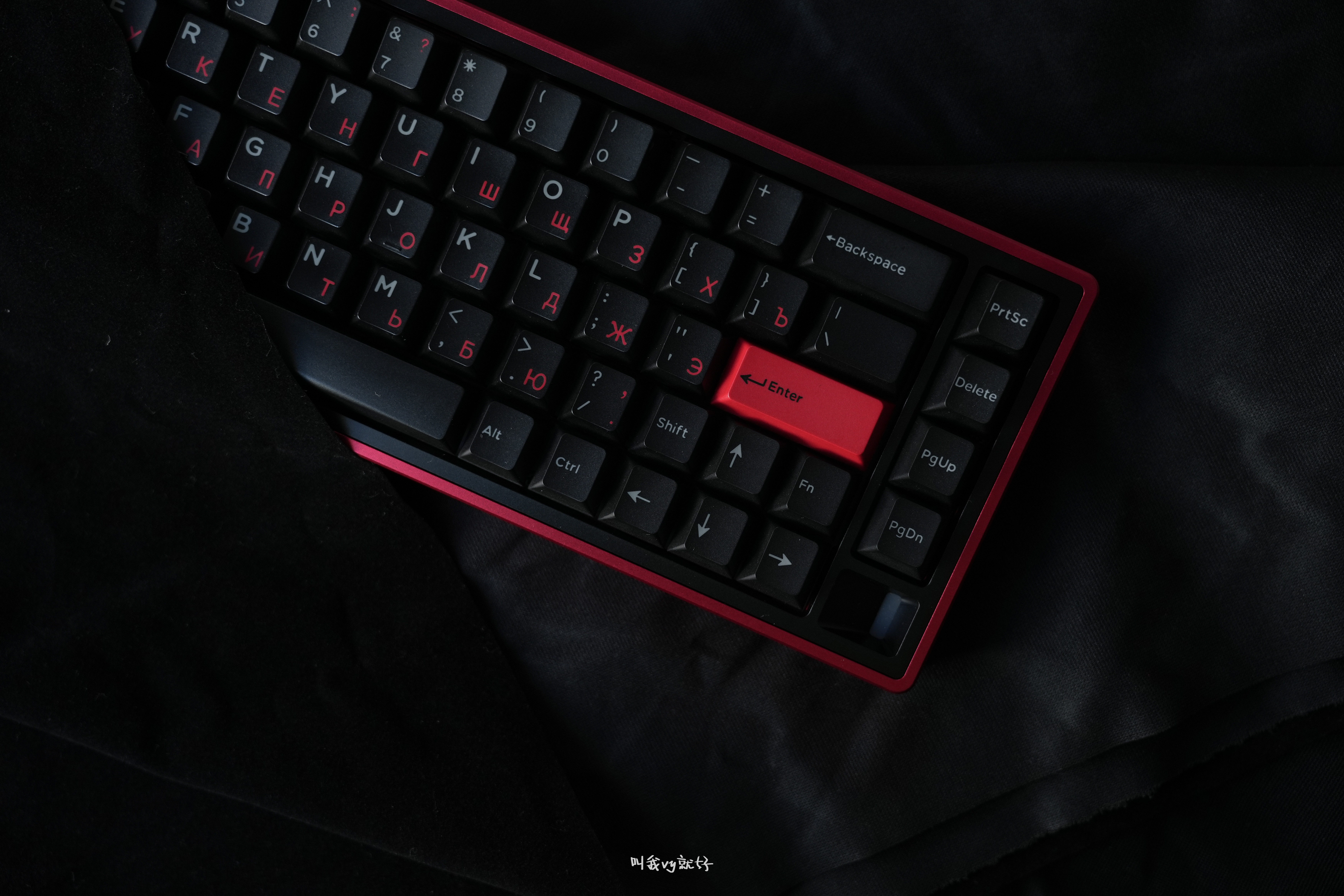

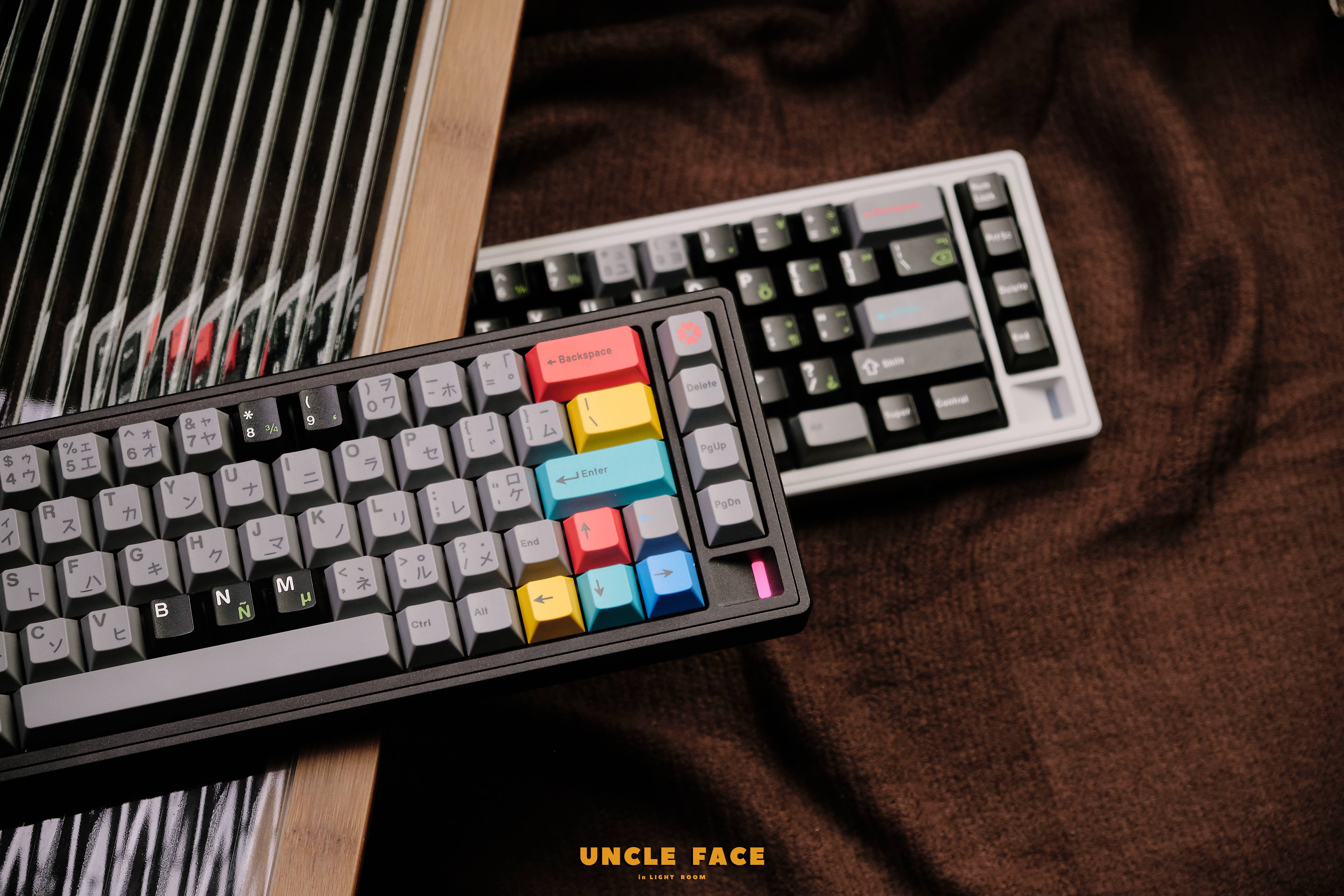

10. Media（R1 Dual mode version）
