Ethereal
FRL TKL with a Pen Bar

My brother has always been a fan of stationary and I've always loved the aesthetics of a Pen Bar so combining my favourite layout and desired side profile, I'd like to introduce my keyboard, Ethereal.


0. IC Link
If you are interested in this project, it would mean a great deal if you could fill in this IC!
https://docs.google.com/forms/d/1iRFFn-eF78n0selObaqfGI7qZ7xRUQbkT9LpJ88hOto/edit#settings


1. Details

• Case Angle: 8°
• Materials: Aluminum 6063 Top and Bottom Case, Brass C360 Weight, Aluminum 6063 Penbar
• Mounting: Gummy O-ring Mount
• Plate: 1.5mm Alu Full Plate (Half Plate to be released after GB) Potential for other plate options
• Colours: TBA
• PCB: 1.6mm Solder PCB Designed by Chubbymonk with USB-C daughterboard - configurable with QMK/VIA/VIAL
• Layout Options:

2. To Do List

• Prototype 2 to be produced
• Organise Vendors and Pricing
• Packaging Design
• Finalise Pricing
• GB

3. Vendors and Pricing
Vendors and Pricing TBA. If there are any vendors interested, please feel free to contact me on discord at ehtna#9688 or on Instagram @keeb.aru. I would love to work with you guys!


4. Photos + Soundtests

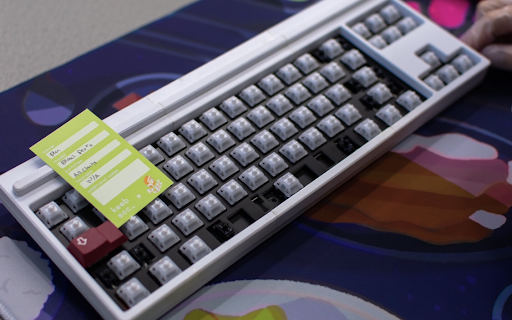

V1 Proto in Black and Blue
Note* Previous engravings limited to r1 Proto round

Proto 0: 3dp

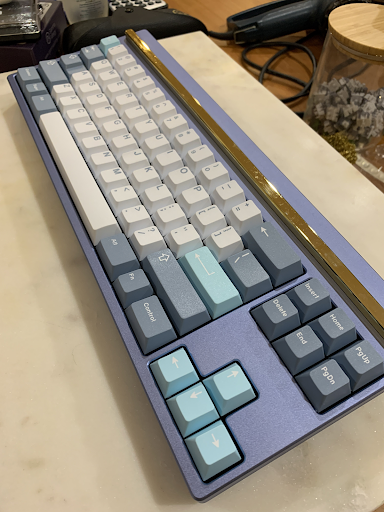

Proto 1: Black





Proto 1: Blue

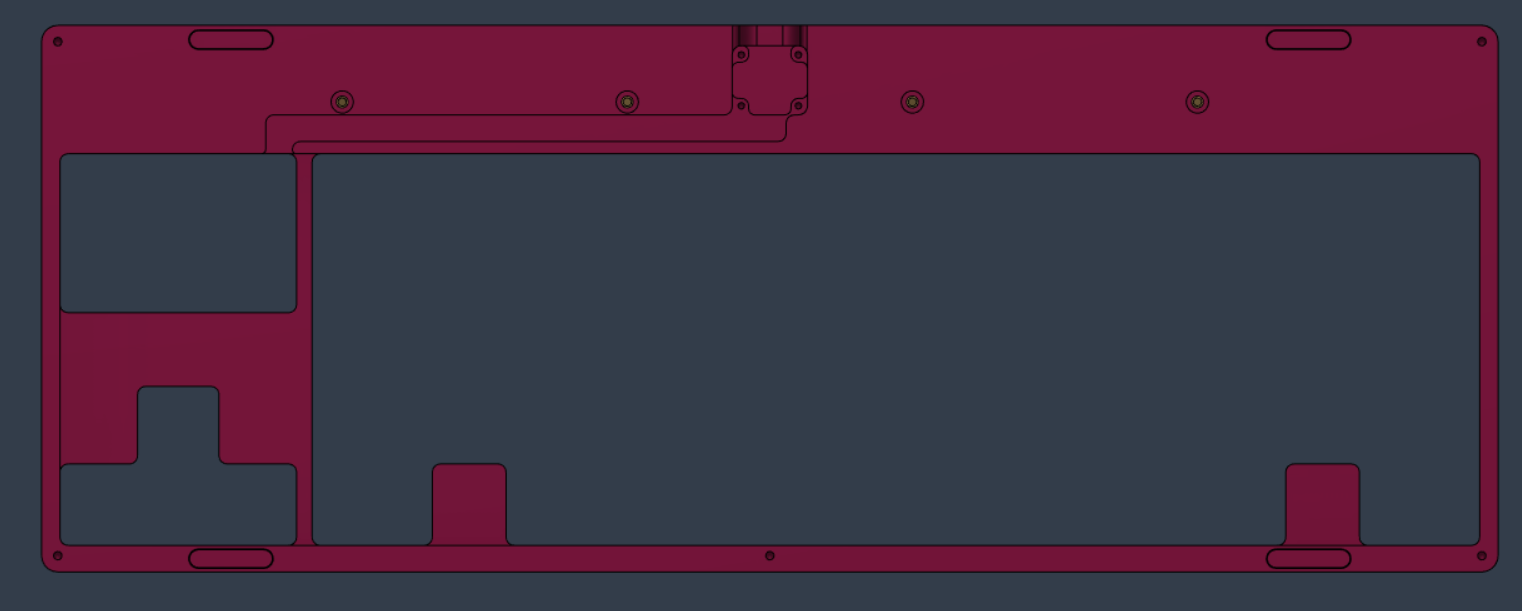

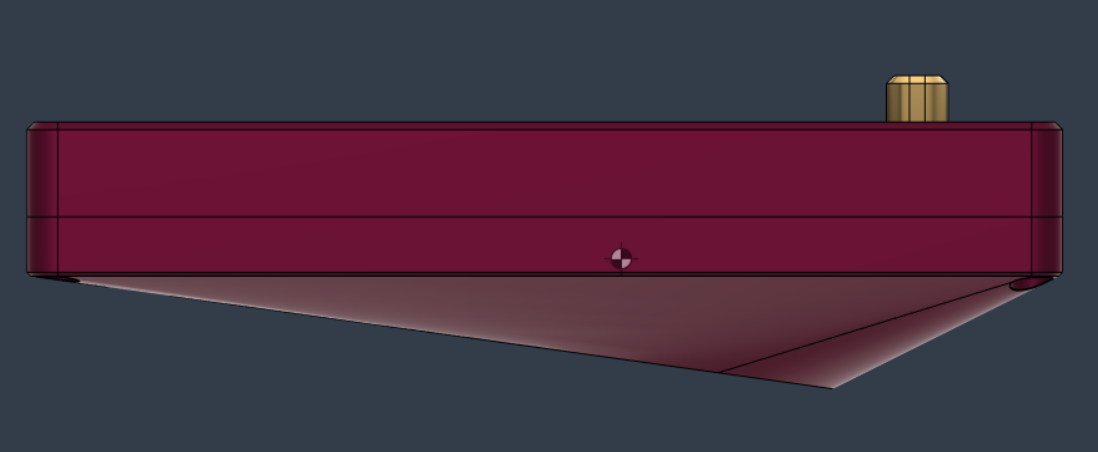

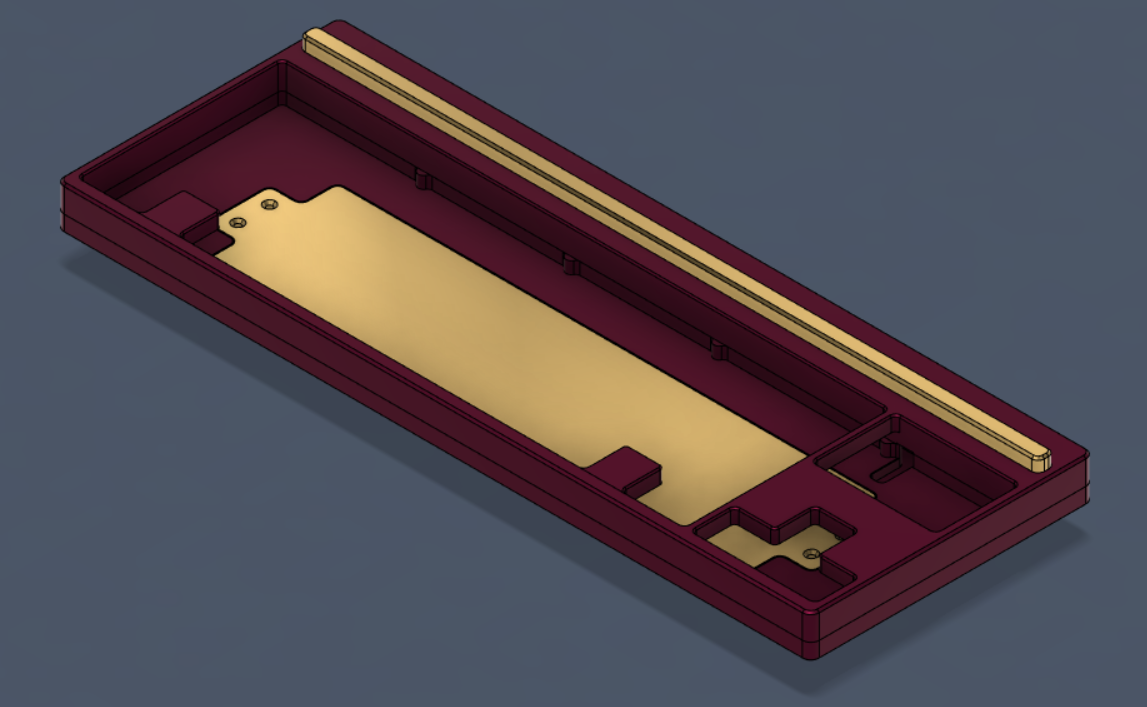

Proto R2 Case (Renders TBA)









Soundtest: Proto 0 (Rode NT-USB)
3dp Proto Sound Test: Fr4 Plate + Allclacks (Lubed with 105 on springs, 205 on rails)
https://voca.ro/119AJzRbubmo
Soundtest: Proto 1
Alu Proto Sound Test: Fr4 Plate + Tungsten Switches Lubed with 205g0
https://voca.ro/15wWPIUGTuAz
Fr4 + All clacks (Alu Case)
https://vocaroo.com/1fmXX2NA2zcl

Sound Tests with Video will be uploaded when I get my Proto 1 back from being cerakoted. Build Vod to be uploaded for R2


5. Changes from R1

• Penbar switched from Magnet Mount to Screw Mount
• JST cutout slightly deeper to ensure no clearance issues
• Change from Internal Weight to External
• Added WKL Version
• Case angle changed from 6° to 8°

FAQ

• Do you have a Server?

Not currently. A discord server is in the works and will be announced on my Instagram. For now, please follow @keeb.aru on Instagram for updates. I will also update the Geekhack with any announcements/updates.

• How many units will there be?

The amount of Units depends on community reception. I don't know at this stage and will be judged through IC

• Will Hotswap be offered

Currently unsure. If you would like Hotswap, please indicate it in the IC



A massive Thank You to the Specsavers group you guys have been the best. Especially @trulychewyie for helping me through joining in the R1 Proto Run and being a great friend. Check him out for your custom cable needs! Also Chubbymonk for all your help and having to deal with me over this whole project. Your help means the world to me.
