Who knew that when I posted the first Evolv IC four years ago, that project would go on to become such a self-fulfilling prophecy as the board evolved through version after version. I could not be more proud of what I and all those who helped along the way accomplished, so without any futher ado, Evolv is here:

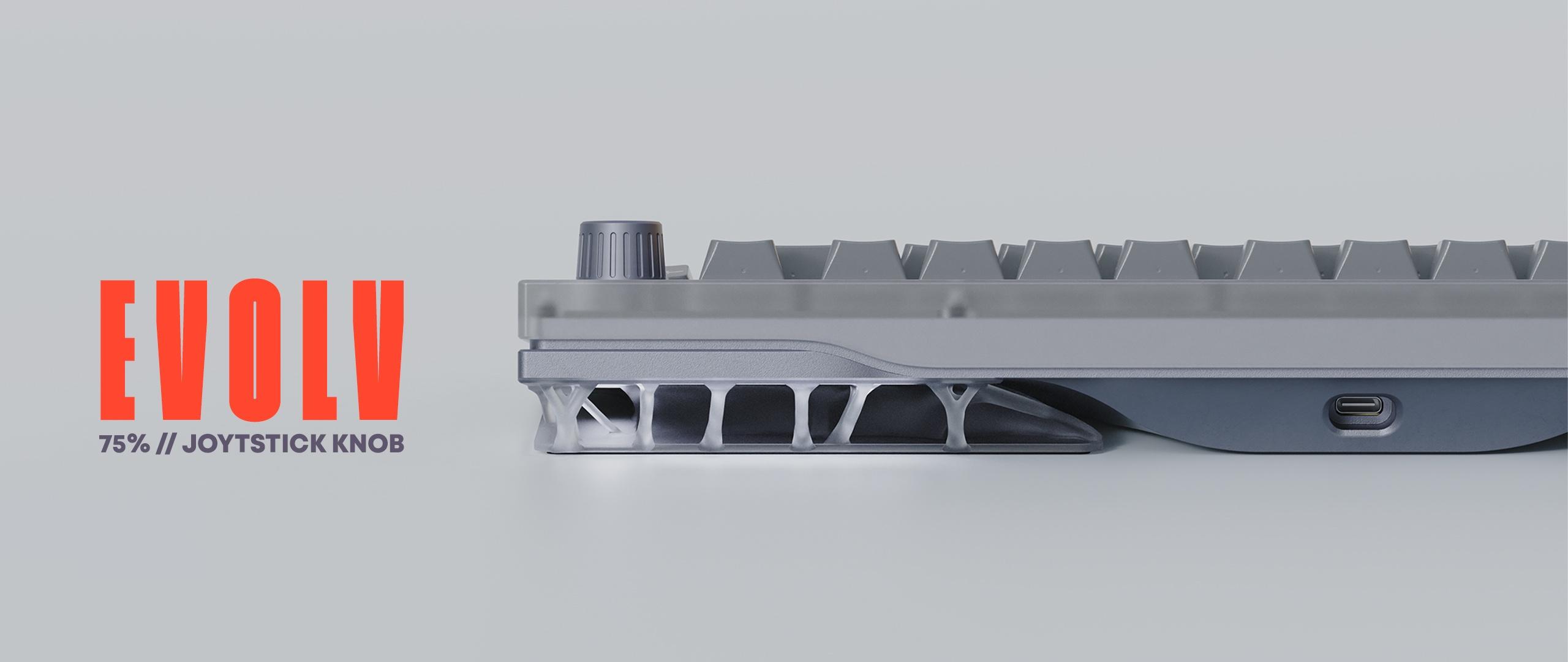

Evolv is a 75% full isolation gasket keyboard, featuring
a 4-key macro column,
a joystick knob,
a lil right shift,
and of course,
the tendrils.




Evolv is available in one of six pre-configured colorways, or you can design your own
(Images are clickable and send you to the corresponding product page)




If our pre-configured colorways are not quite matching your aesthetic, you can mix and match top cases, bottom cases and tendrils to configure your own colorway; making the Evolv uniquely yours.
*All “Design Your Own” Evolvs ship with a standard Anodized Black Aluminum Knob, for further customization, feel free to add a knob of your choice from the Add-Ons & Extras section below.

Quick Facts

Features

75% layout w/ 4-key macro column
F13 Function Row
Optional Joystick Knob
Interchangeable Accent Pieces (The Tendrils)
Two Piece Case Design
ESD & Reverse Current Protection

Case Specs

Case Dimensions: 337 x 120mm
Front Height: 14mm w/o feet, 15mm w/ feet
Back Height: 37mm
Case Angle: 8°
Fully Built Weight: Up to 6.3lbs (Relic)

Unbuilt Weights

PC Top – Alu Bottom: 1.9lbs
PC Top – S.S. Bottom: 4.5lbs
PC Top – Copper bottom: 5lbs
Alu Top – Alu Bottom: 2.2lbs
Alu Top – S.S. Bottom: 4.8lbs
Alu Top – Copper Bottom: 5.3lbs

General Info.

Vendor: Archetype
Pricing: Starting at $372 (All Aluminum)
Lead Time: Approx. Q4 2024
Pre-Order Ends: Feb. 29th, 2024 11:59PM PST

Design



Inspired by the intersection between nature and humanity, Evolv pushes generative algorithms to create a strikingly modern design rooted in traditional aesthetics. Subtle details such as the front lip and custom logo reinforce ideas of hand-crafted precision, while larger features like the joystick knob and the accentuated seam between the top and bottom cases push the board in a more contemporary direction.



From the back, Evolv is unmistakably unique. The tendrils, which have always defined the board have evolved into accent pieces, seamlessly blending into the curves of the board, doing so without compromising critical functionality. The daughterboard and bottom gaskets are all firmly installed in beautifully machined pieces of billet metal, allowing Evolv to function without the tendrils present.



Evolv’s PCB ships with multiple layout options, supporting various preferences with a single universal plate.
Full or Split Backspace
Standard or Stepped Caps Lock
Full or Split Left Shift
Ansi or ISO Enter

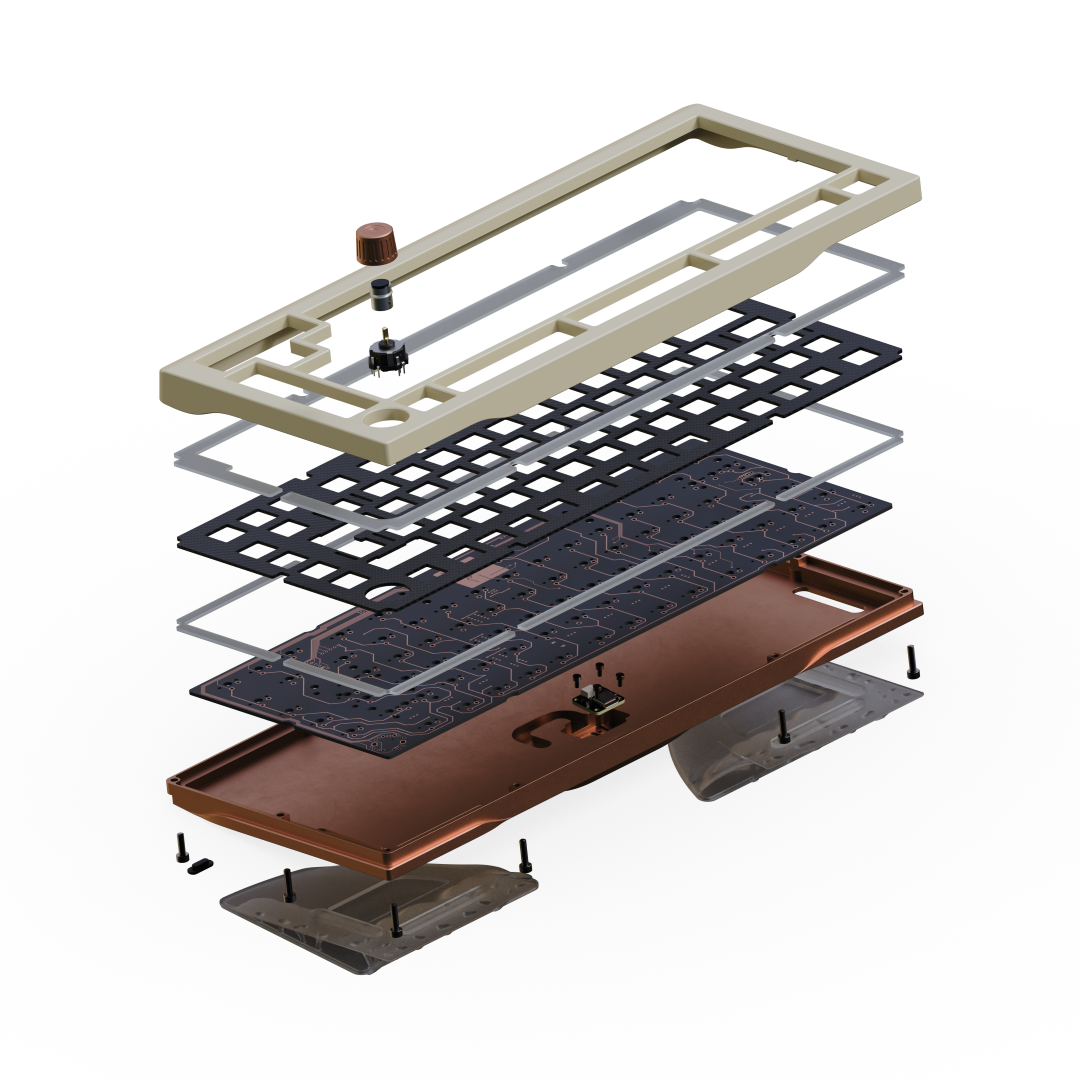

Mounting System



Taking queues from boards like the J-series and the Kepler, Evolv sandwiches a plate between two near-continuous gaskets, creating a consistent typing experience that highlights the natural characteristics of your chosen switch.

The Bottom



Skipping on a separate weight, the entire bottom case of Evolv is machined from a single block of dense metal to create a resonance chamber, which when combined with the gaskets and carbon fiber plate, allows those deep thocky low notes we all love so much to shine through. For those that prefer a lighter board, anodized aluminum bottoms are available in three different colors (Red, Black & Gray).

The Tendrils



Interchangeable accent pieces magnetically mounted to the bottom of the board, the tendrils are Evolv’s new take on personalization. Clear and smoked options available during group buy depending on your chosen colorway. We plan to offer multiple colors and styles post delivery so that your Evolv can become uniquely yours.

The Joystick



No corner badges or logos; instead, Evolv features an evolution to the knob: the rotary joystick. With users able to assign macros to five unique positions plus a rotation, it packs more functionality than one can ask for in a small space.

The PCB & Daughter Board



Designed by Gondolindrim, Evolv’s PCB is meant to be simple and elegant. RGB LEDs on the bottom of the PCB illuminate the tendrils from the top, further accentuating their design with a subtle glow. The through-line of traditionalism carries to the optional capslock LED, allowing a windowed cap to shine through when the key is active. The PCB is QMK and VIA compatible and connects via a JST cable to the latest version of the universal daughterboard, the C5. Note: Hotswap PCB will still require soldering for the rotary or joystick encoder.

The Plate



Along the way, Evolv dropped it's initial concept of a perfect algorithmically designed plate, because it turns out the community had already found the light in isolation mounting. Complementing the continuous gaskets, the unique properties of carbon fiber allow low frequency vibrations –in the form of bounce– to enhance an overall firm experience, all in pursuit of tactile & auditory perfection. Plate files will be available post GB for the adventurous, however we advise caution and do not recommend using ultra flexible materials such as (PP, POM & Polycarbonate) as it may cause the PCB to bottom out.

The Gallery



The Thank You

Evolv has been a four-year journey, one so many people have been involved in and would not have come to completion without. I cannot thank any of the following people enough:

The Archetype team
Abec13
Armani
Bachoo
James AKB
LBaron
Protozoa
Ragan
Stef
Yangsta
& Most of all, the buyers of Evolv CE
