Hi guys, Big A here! Finally here to announce the GB！
Keyboard specs:
6063 aluminum
6.5° degree typing angle
PCB: QMK/VIA Compatible, Daughter Board Type C design
Gasket mount (poron gaskets)
3.5MM dampener between plate and PCB
1.5-2MM bottom case dampener

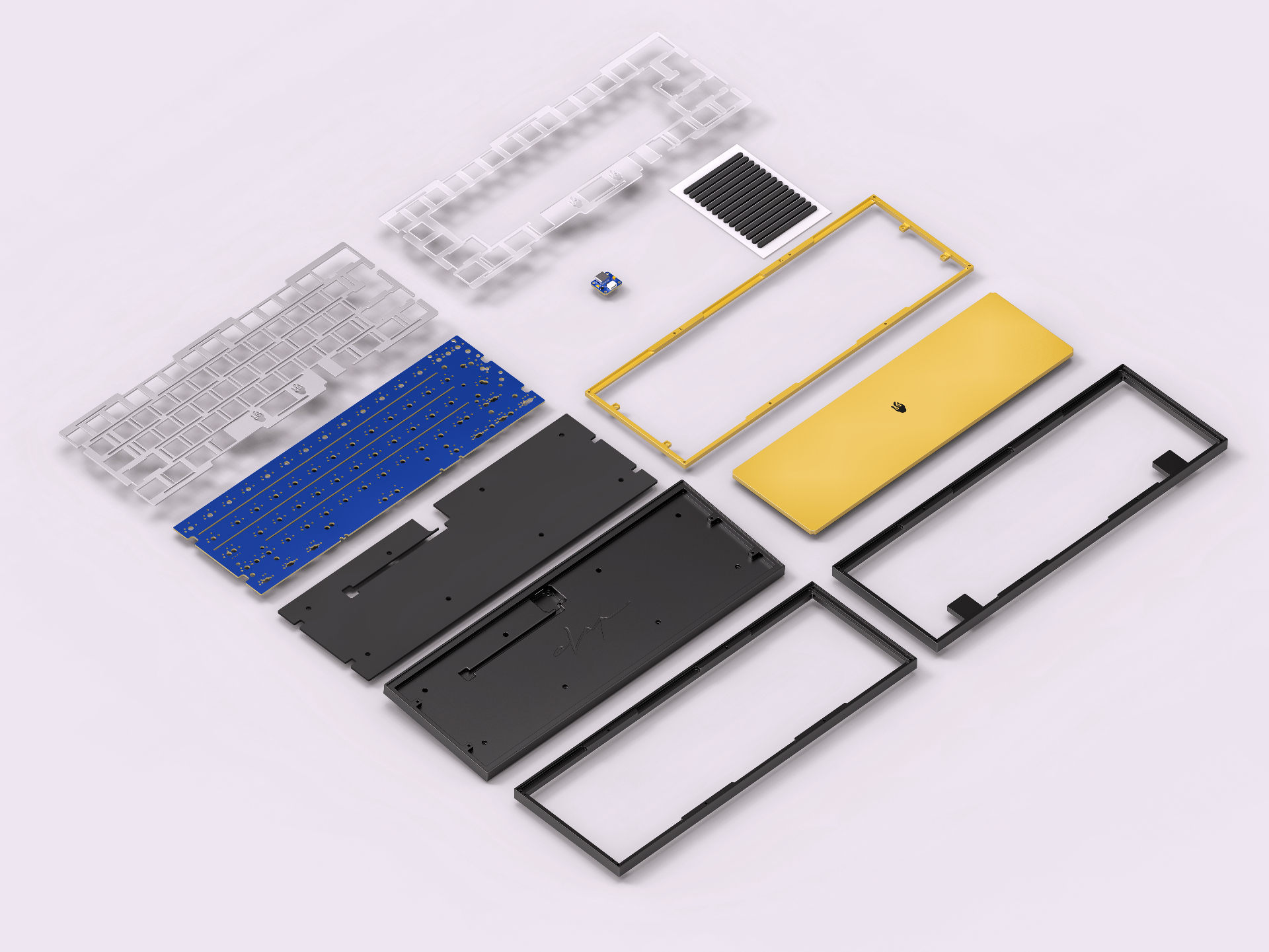

Keyboard parts:
Top, bottom case (aluminum anodized+e finishes)
Middle frame Brass+sand blasted finish
Bottom plate (brass+sand blast)
Plates (Aluminum, Fr4 PC full plates) Half plates files will be release after the GB
Badge (aluminum anodized) E-white or yellow ish.
PCB Solder+Daughter board
Weight and dimensions:
Width: 297.75MM or (11.7 inch)
Depth: 108.25MM or (4.2 inch)
Front height: 20MM or (0.7 inch)
Weight (without any kind of plate): 1.6KG or (3.5LBS)

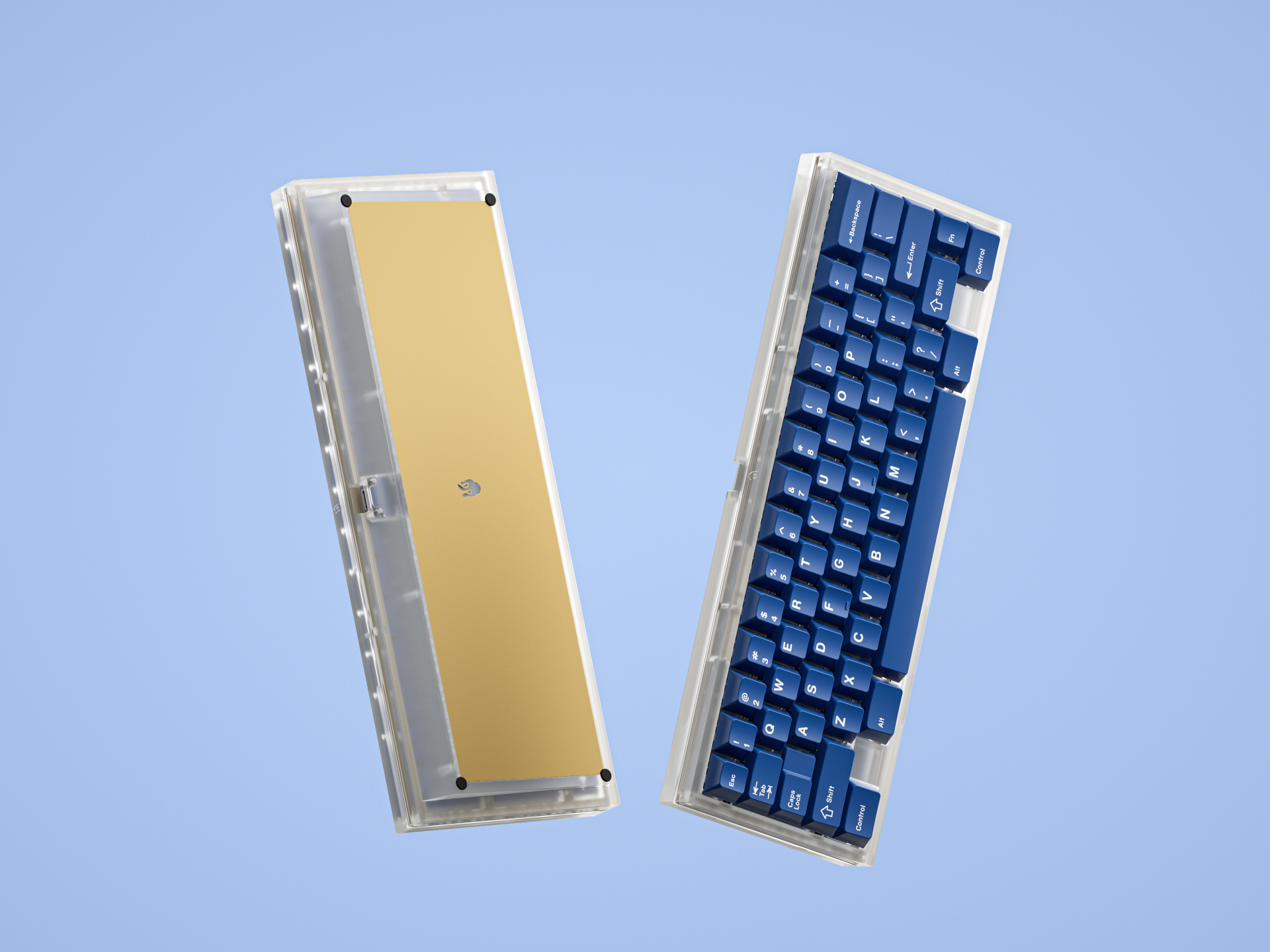

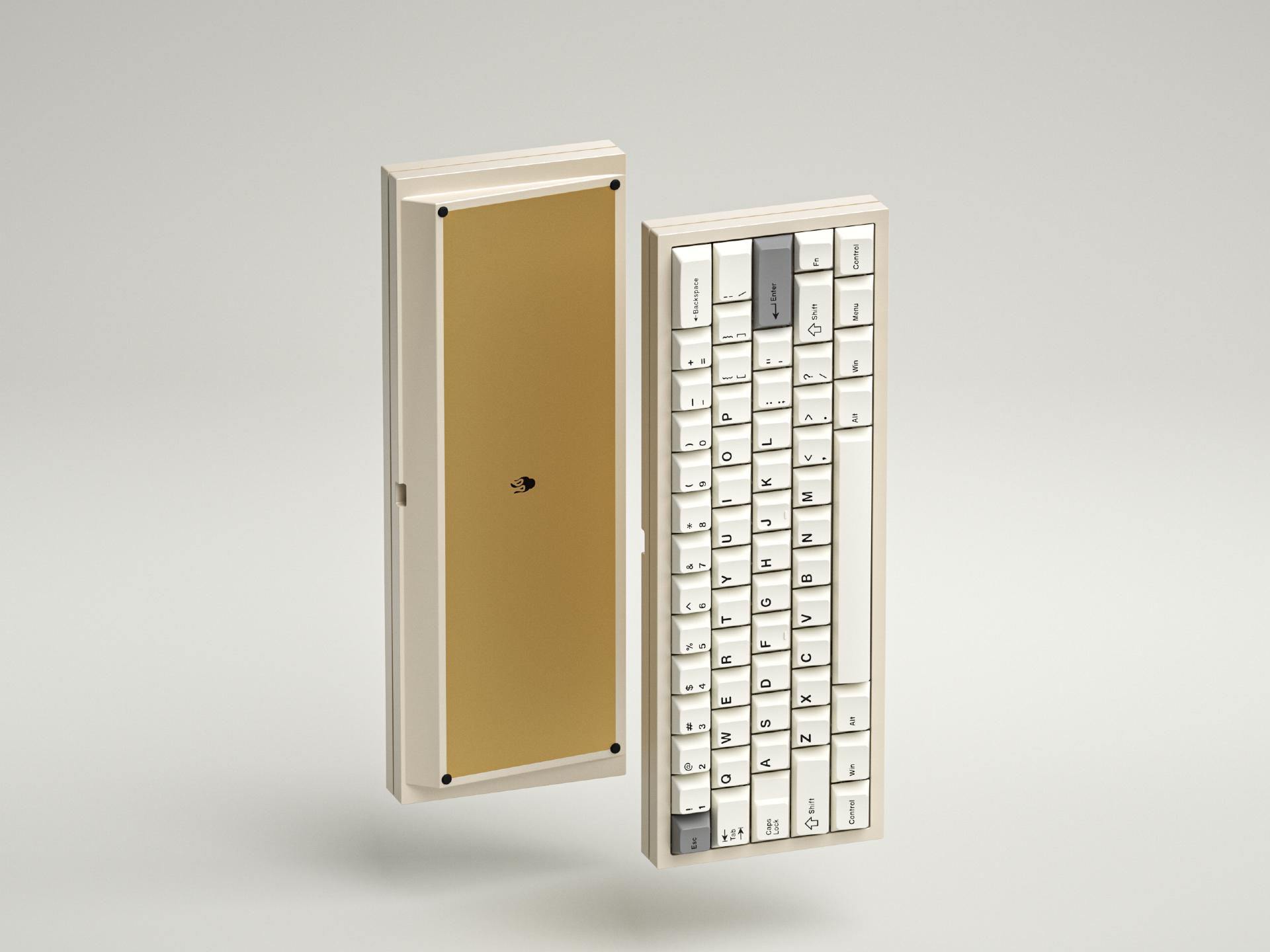

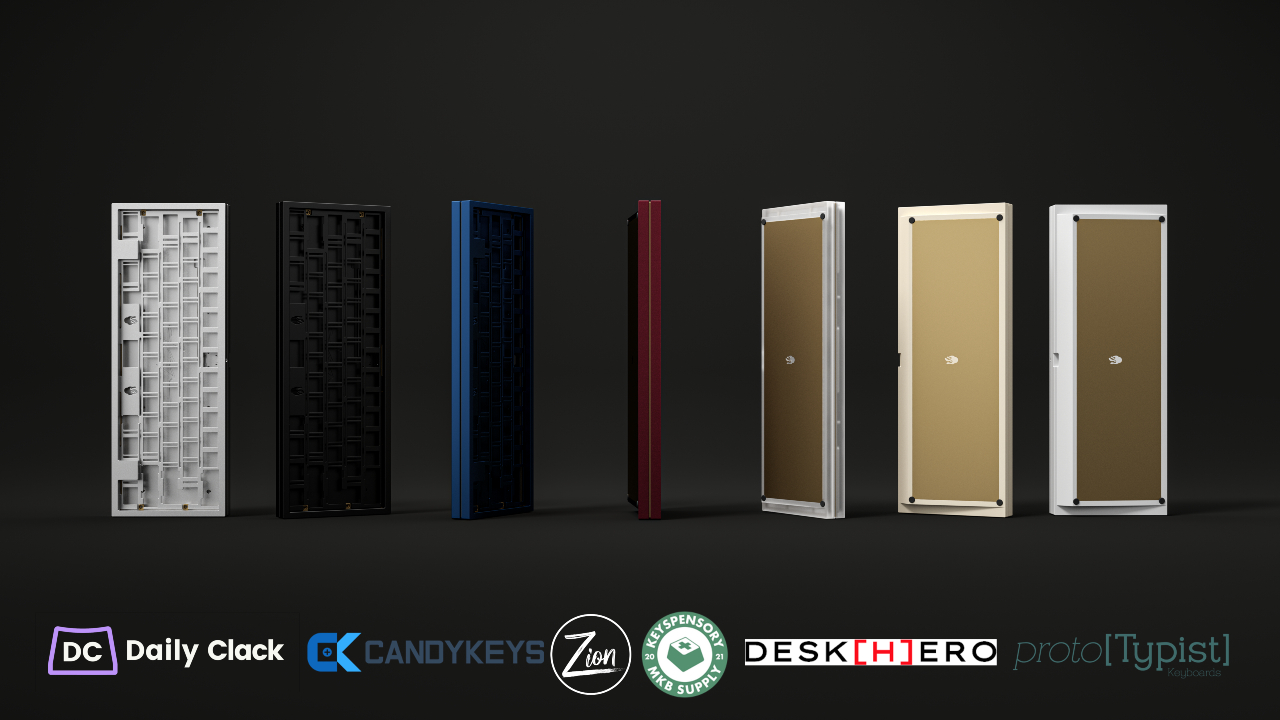

Case finishes:
Anodized: Black, navy blue, wine red
PC
E-white
E-yellow “burgundy”
GroupBuy Information，Vendors, Quantity
US: Keyspensory: 100 units
Canada: Deskhero: 30 units
EU: Candykeys: 70 units
SEA: Zion Studios: 50 units
Oceania: DailyClack: 50 units
UK: Prototypist:30 units
CN: Zfrontier or CLAP: 50 units
Format: FCFS and raffle according to vendor
Total Quantity: 380 units
ETA: 6 Months (June 2022) Pricing：
Base kit 450USD includes：
Aluminum case
Mid brass piece
Bottom brass weight
Aluminum plate
Solder PCB
Poron gaskets
Other necessary parts
Extras pricing:Plates
Alu 25$
Fr4 20$
PC 30$
Extras pricing:Weight
Brass 90$
Extras pricing:PCB
Solder 40$
Alexotos prototype build VOD
I would like to thank all the vendors for helping out with the GB, thanks to Freather for the PCB design, thanks to Yogurt and York for amazing renders, thanks to everyone who supported this project from the beginning. From the bottom of the heart, wish you all a great new 2022!
