flash | 60% WKL, Top Mount, 3.1kg

60% WKL, Top Mount, 3.1kg


Flash is small but strong

As a fan of anime, I tried to melt the character's mood into the housing.
I designed it to be simple, but to reveal individuality.
It contains structural characteristics that I like.
Top mount, 8 deg, brass bottom, 3.1kg.

IC Thread







Specifications

Mount : Top Mount

Plate : Standard

Weight : 3.1kg (built)

Materials
Top case: A6061, anodized
Bottom case: Brass, sandblasted & clear-coated
Plate: A5052, anodized

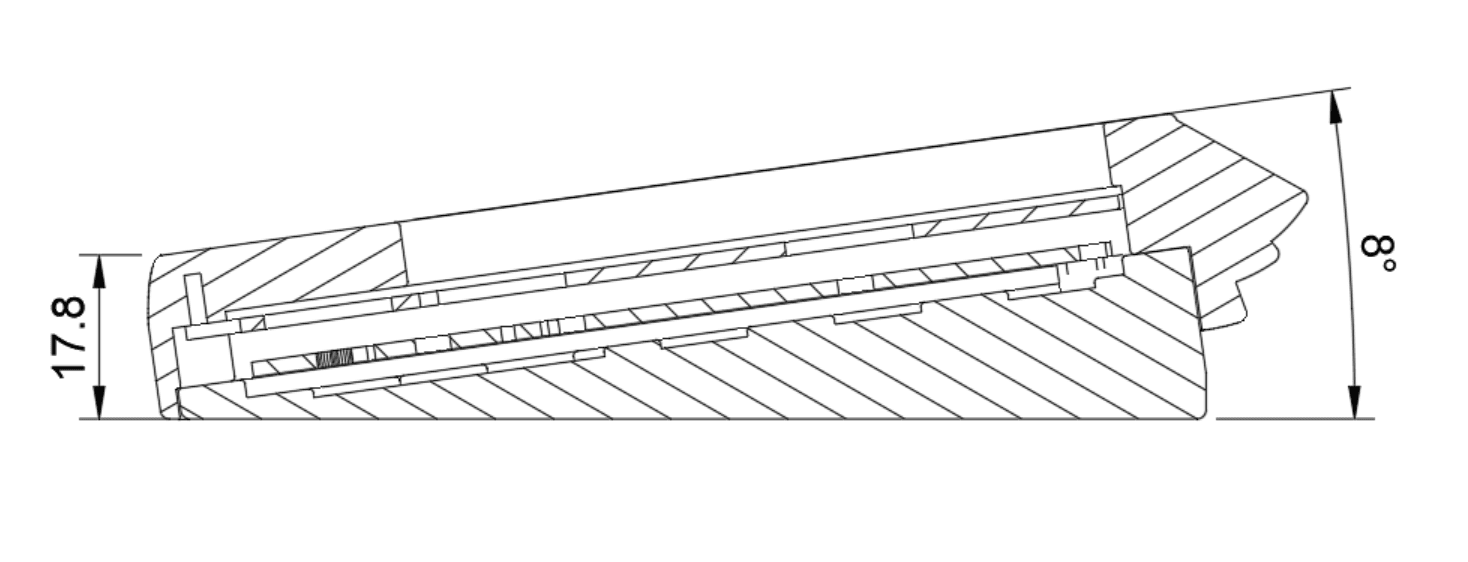

Front Height & Typing Angle

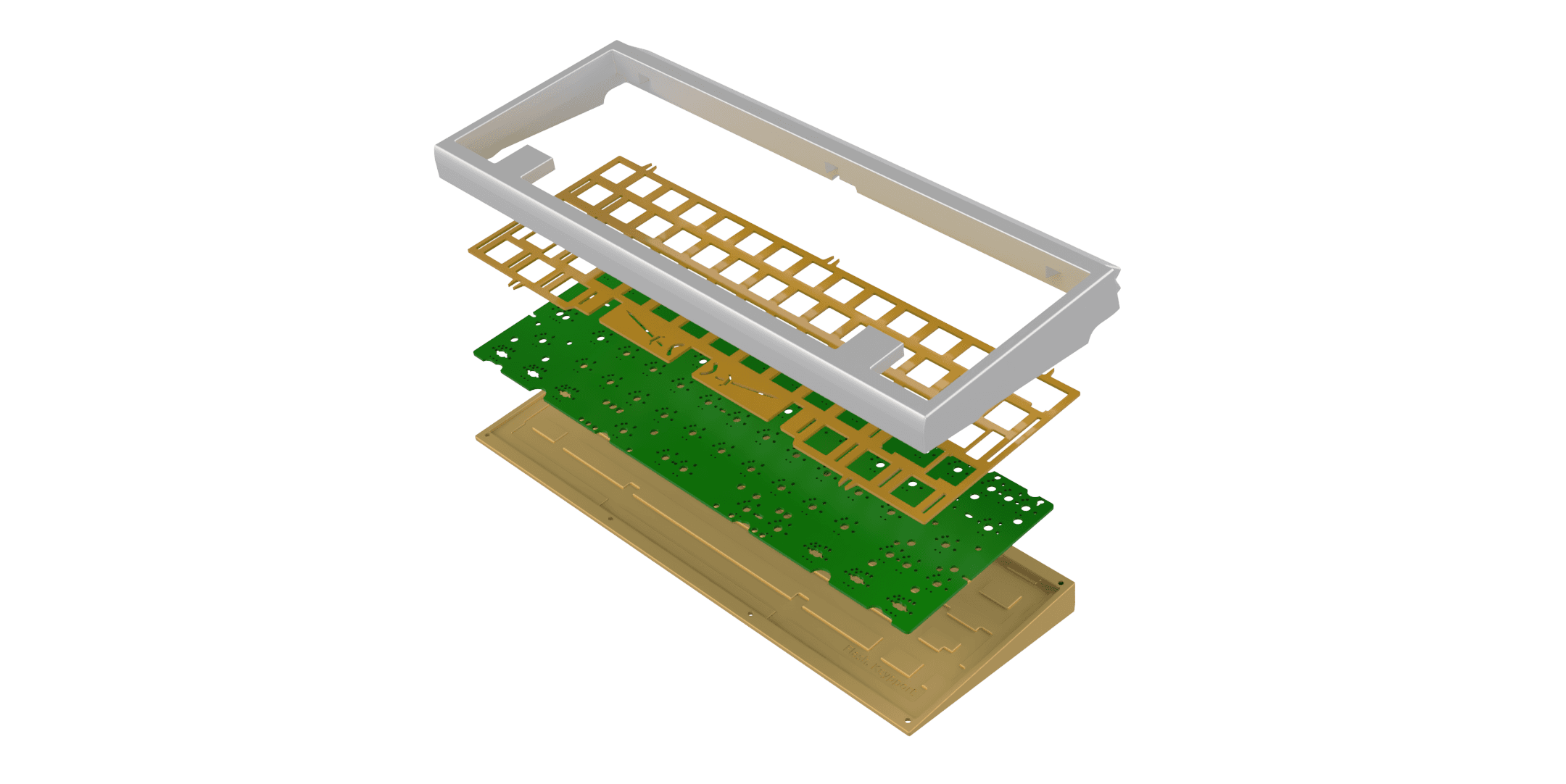

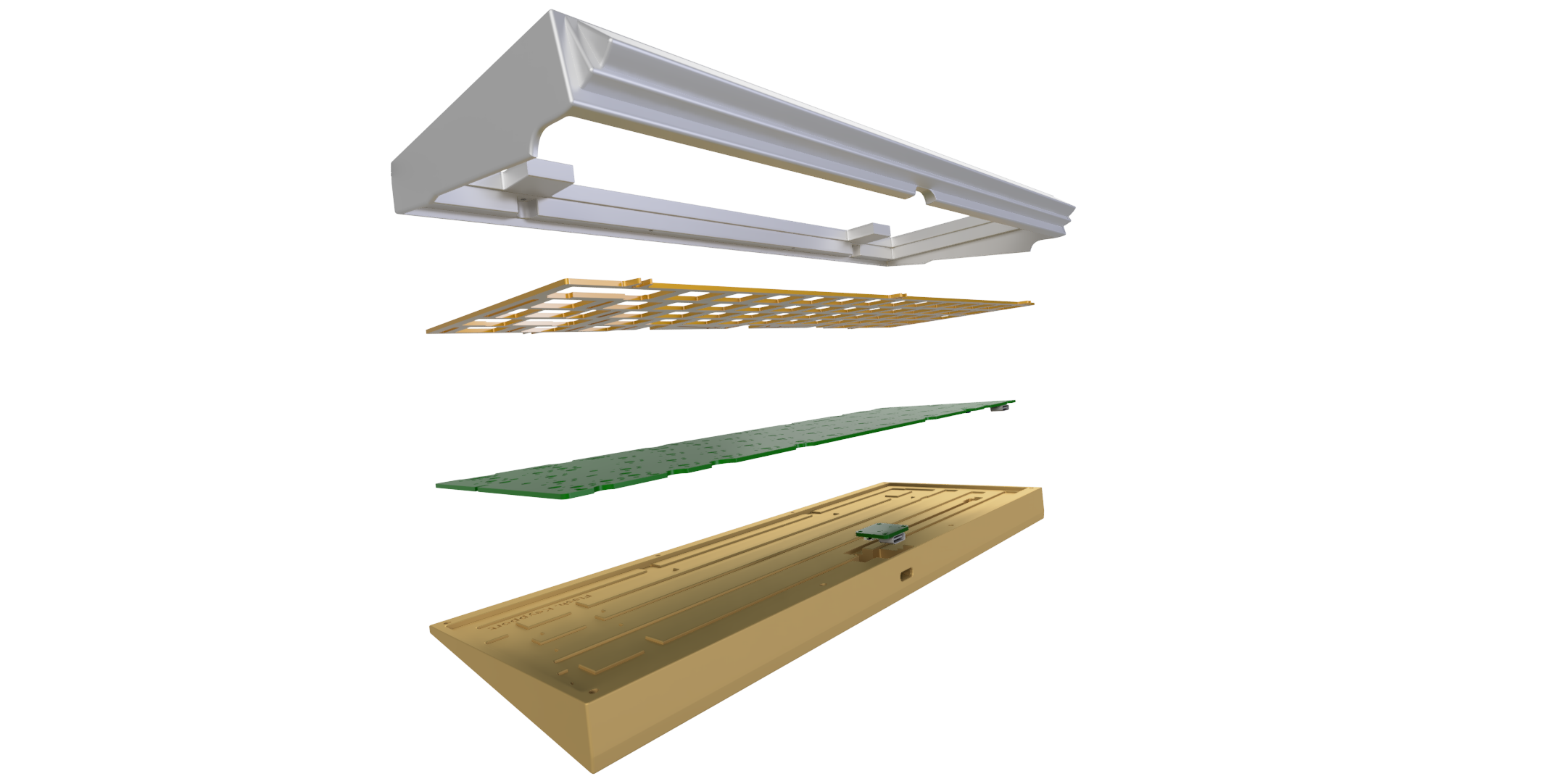

Exploded View

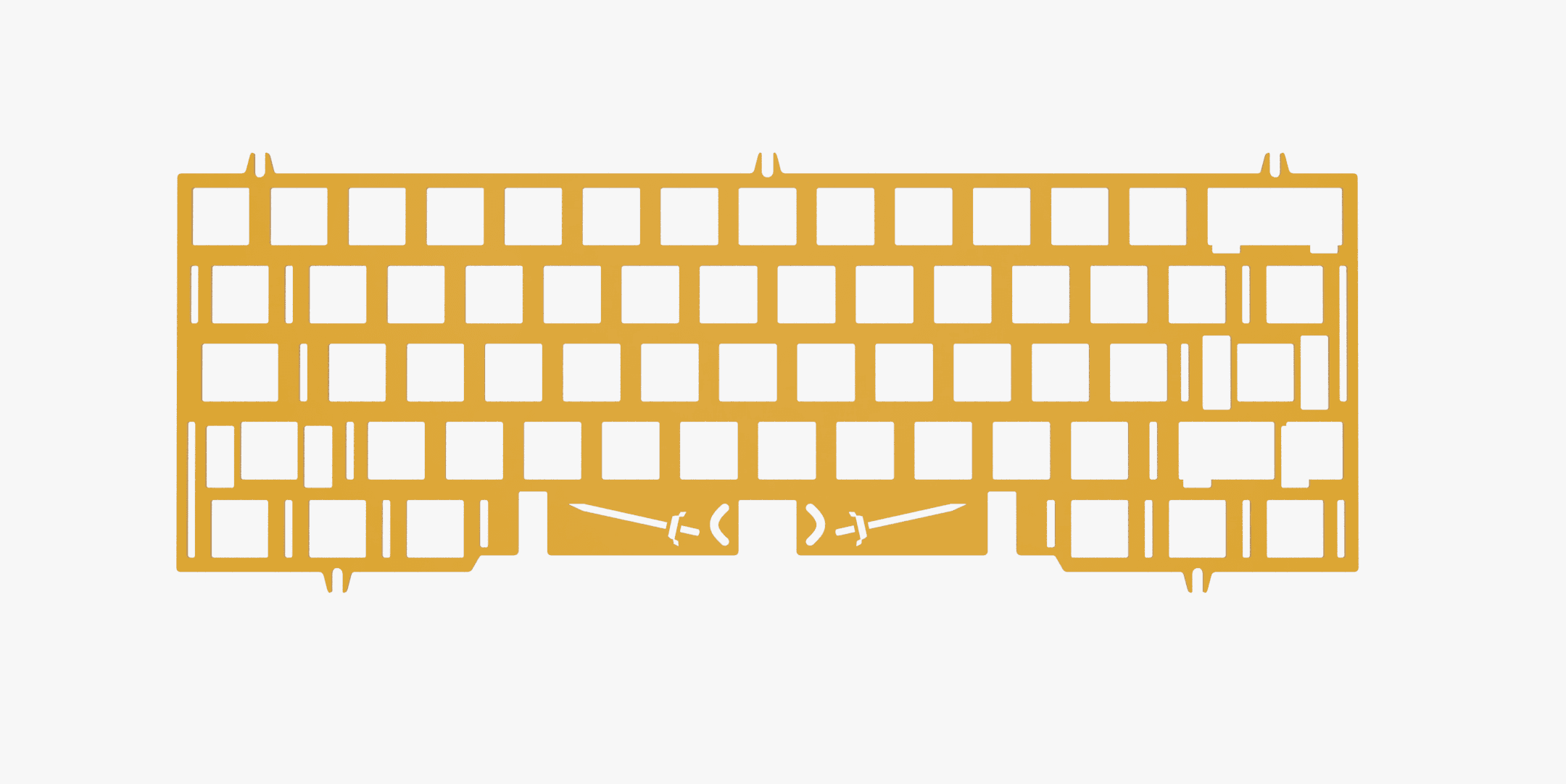

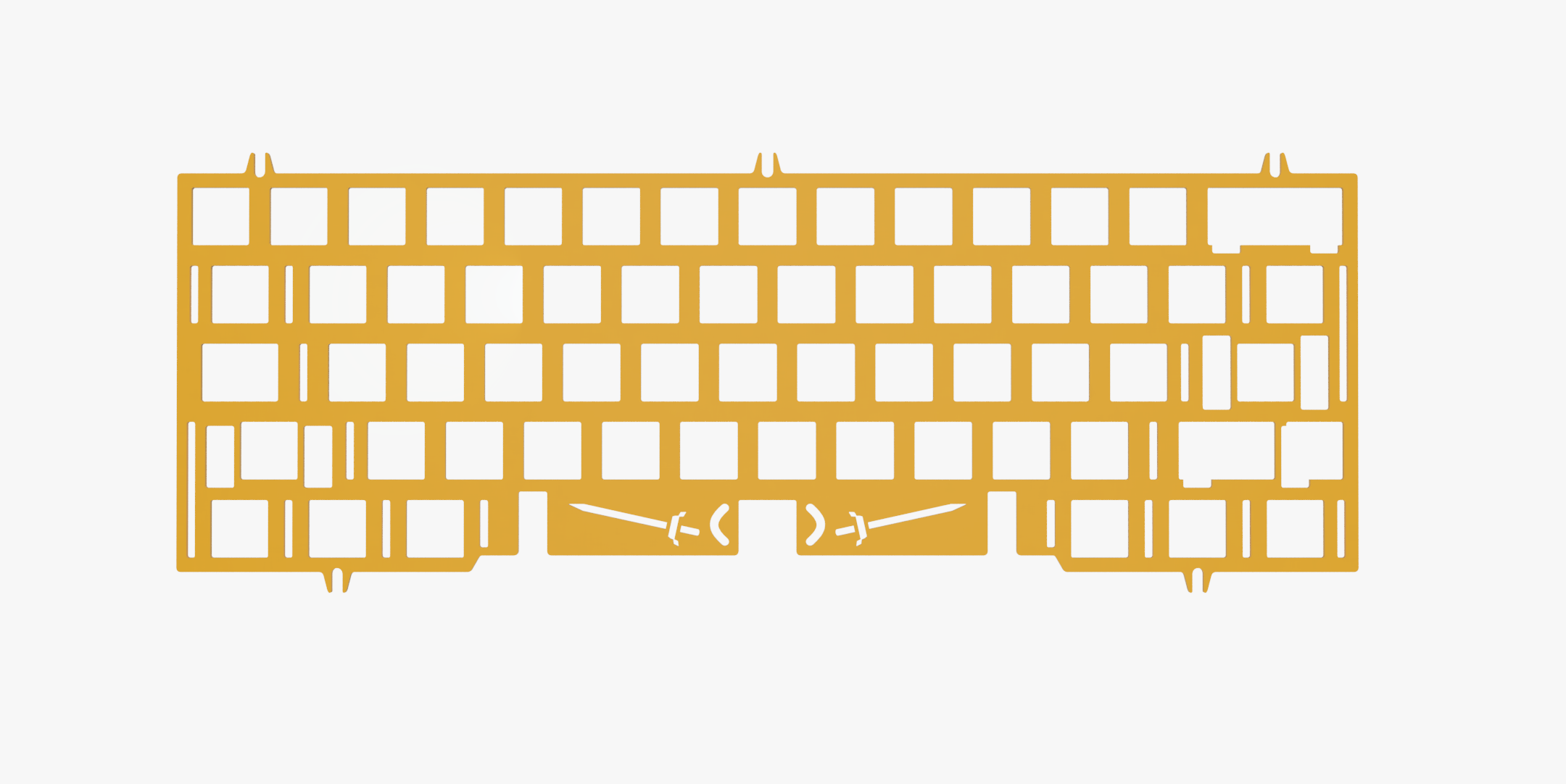

Plate



Color: Gold color fixed.

Design Interpretation
1. Removed the screw around the spacebar, which presses harder when typing compared to other keys.
2. To reduce distance deviation, 5 screw holes are placed in a 'W' shape.

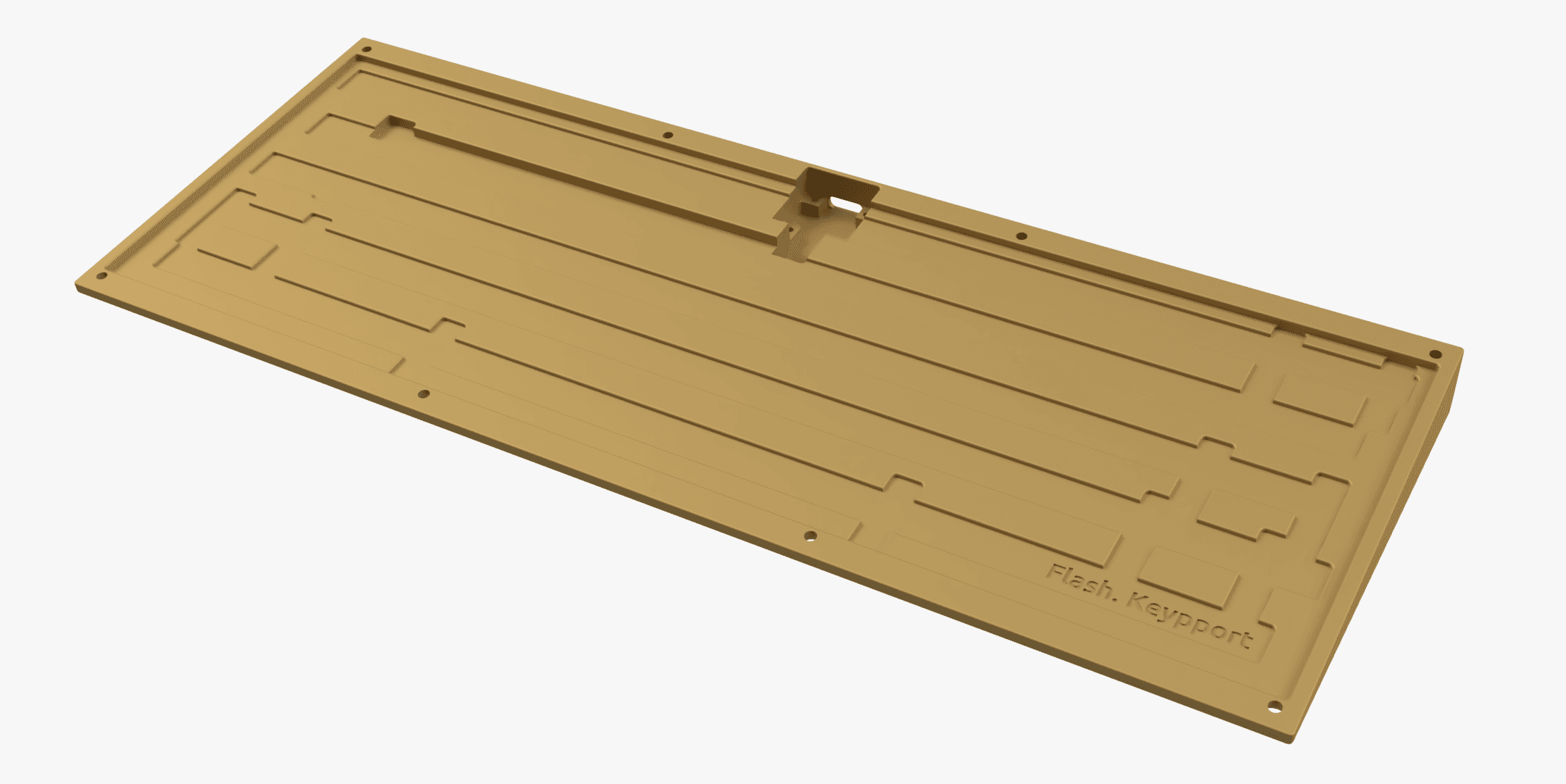

Brass Bottom



Why Use Brass?
The keyboard doesn't necessarily have to be heavy. Especially for gasket mounting.
However, heavy brass has the advantage of damping vibrations when using a foamless top mount.

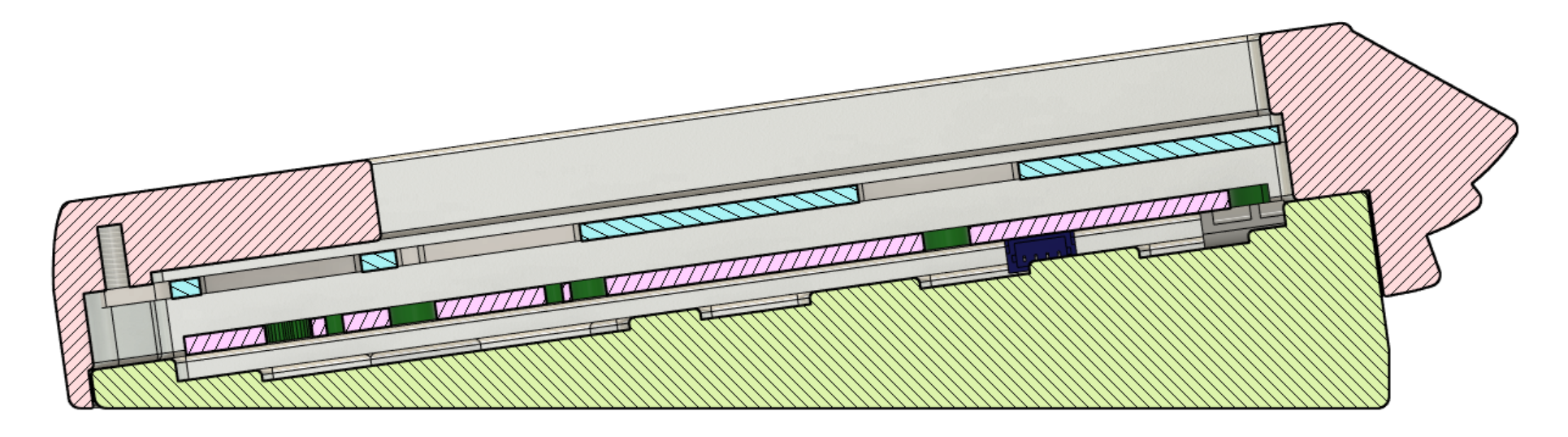

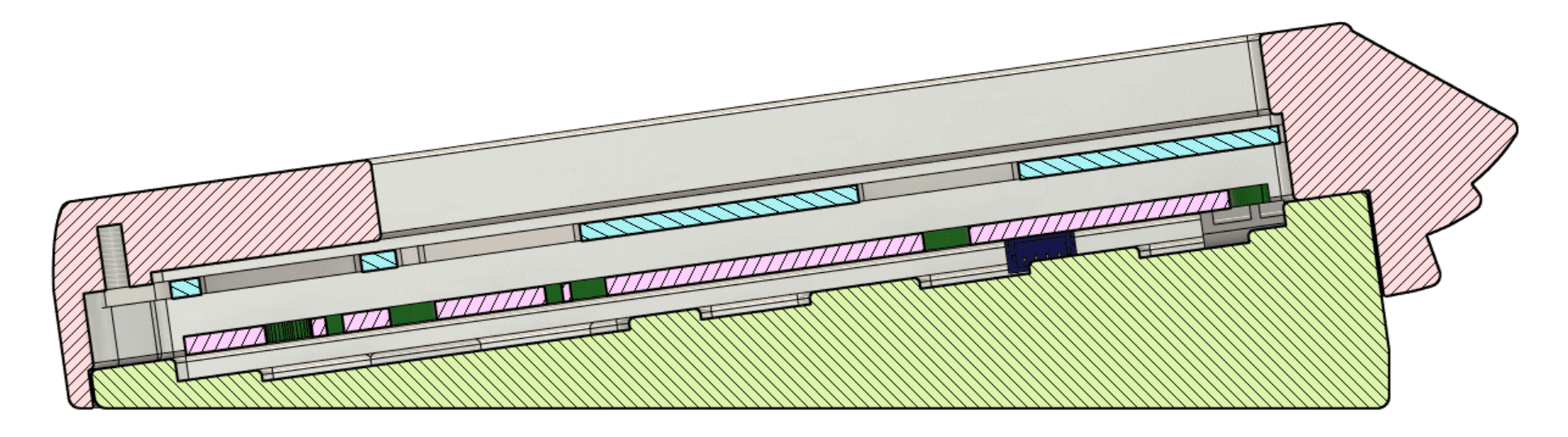

Section Analysis
Reduced the gap between the floor and the PCB by raising the floor height except for switches, stabilizers, and small component locations.

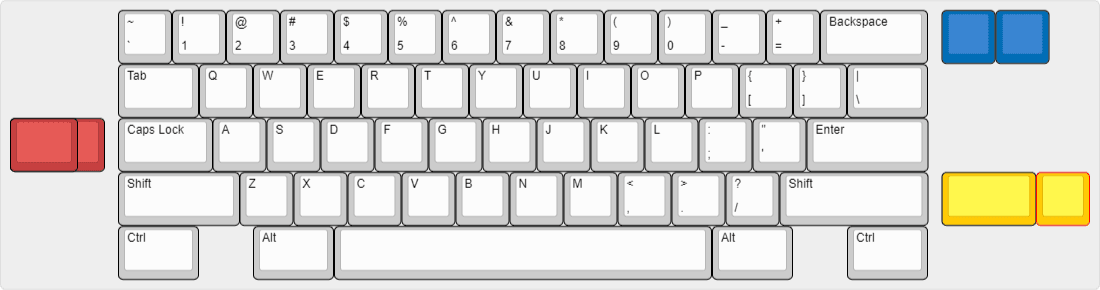

Layout



60% WKL Fixed



For more details, check out the
Flash Official Document





00:00 27th Sep - 23:59 29th Sep
(KST)



FCFS
The order form will be uploaded to the
Discord Announcement Channel at the start of the sale

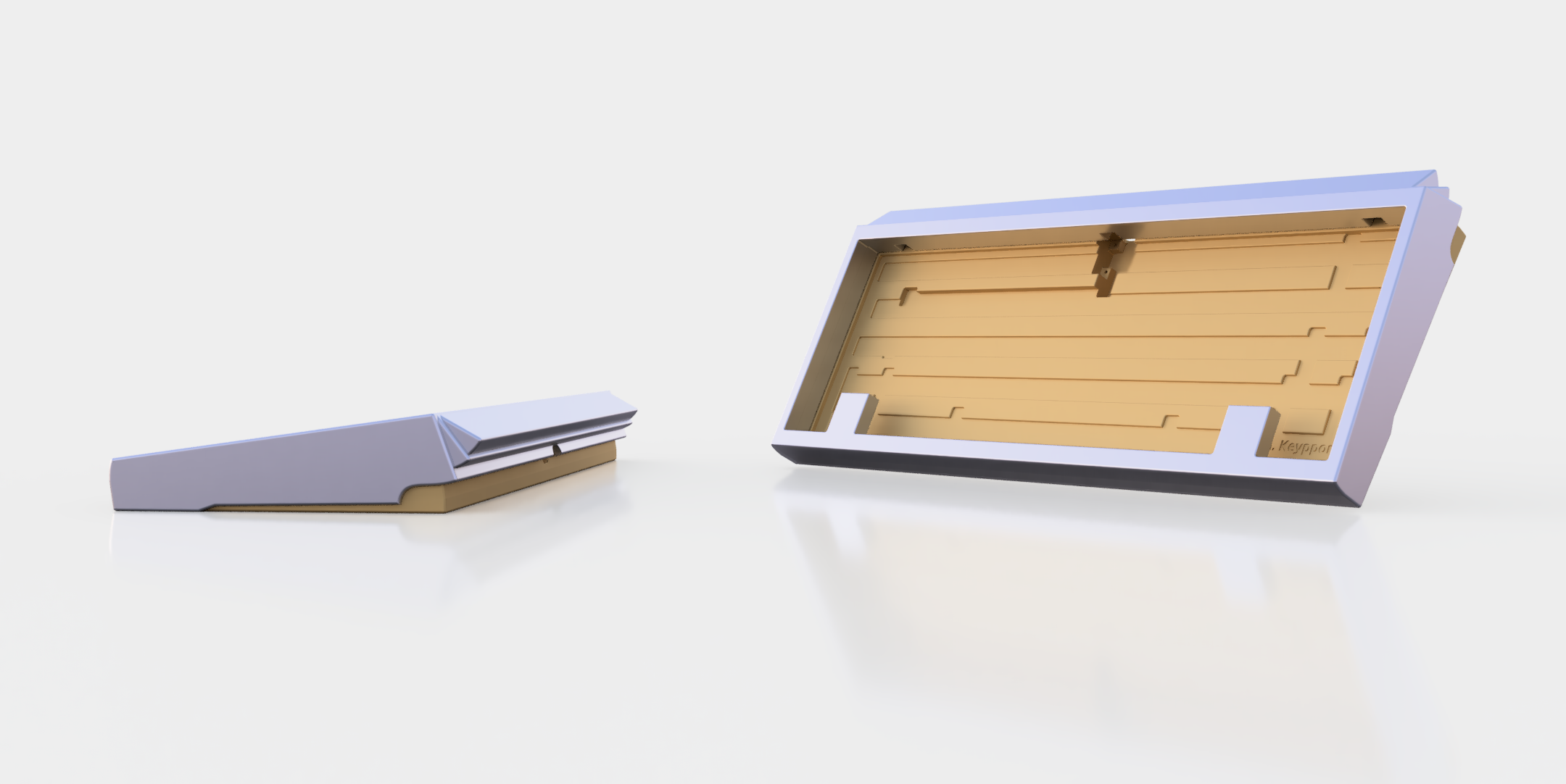

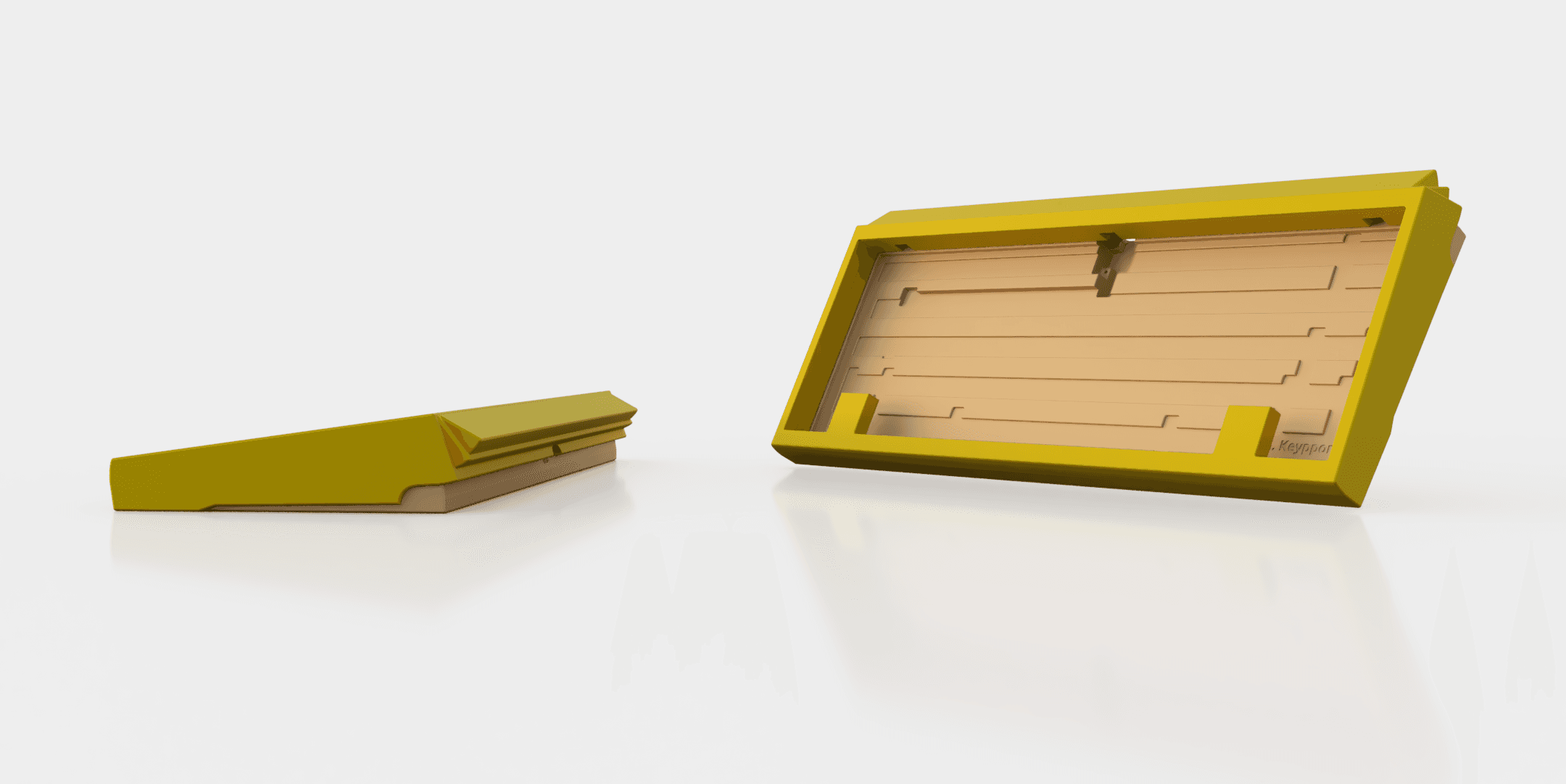

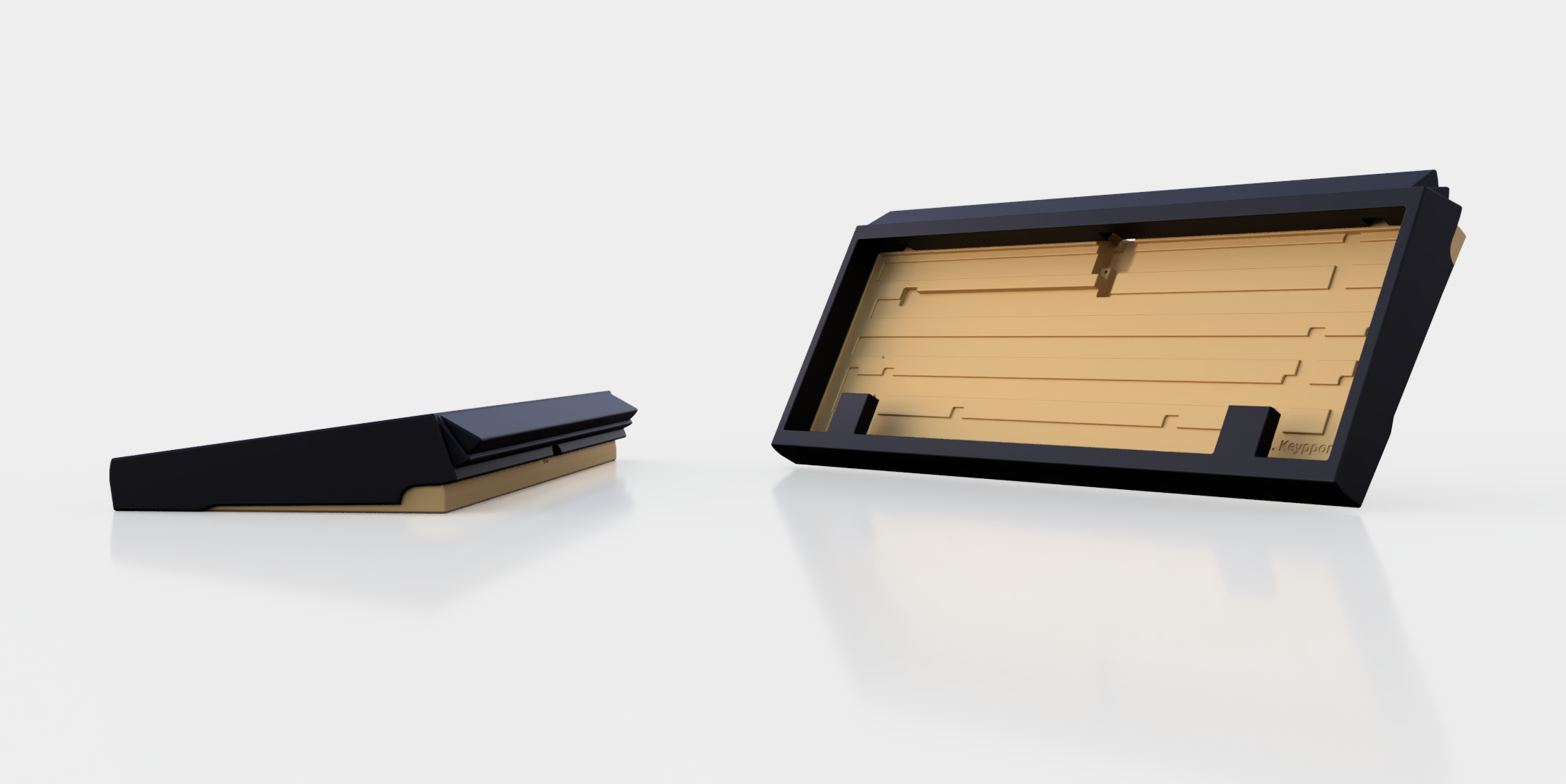

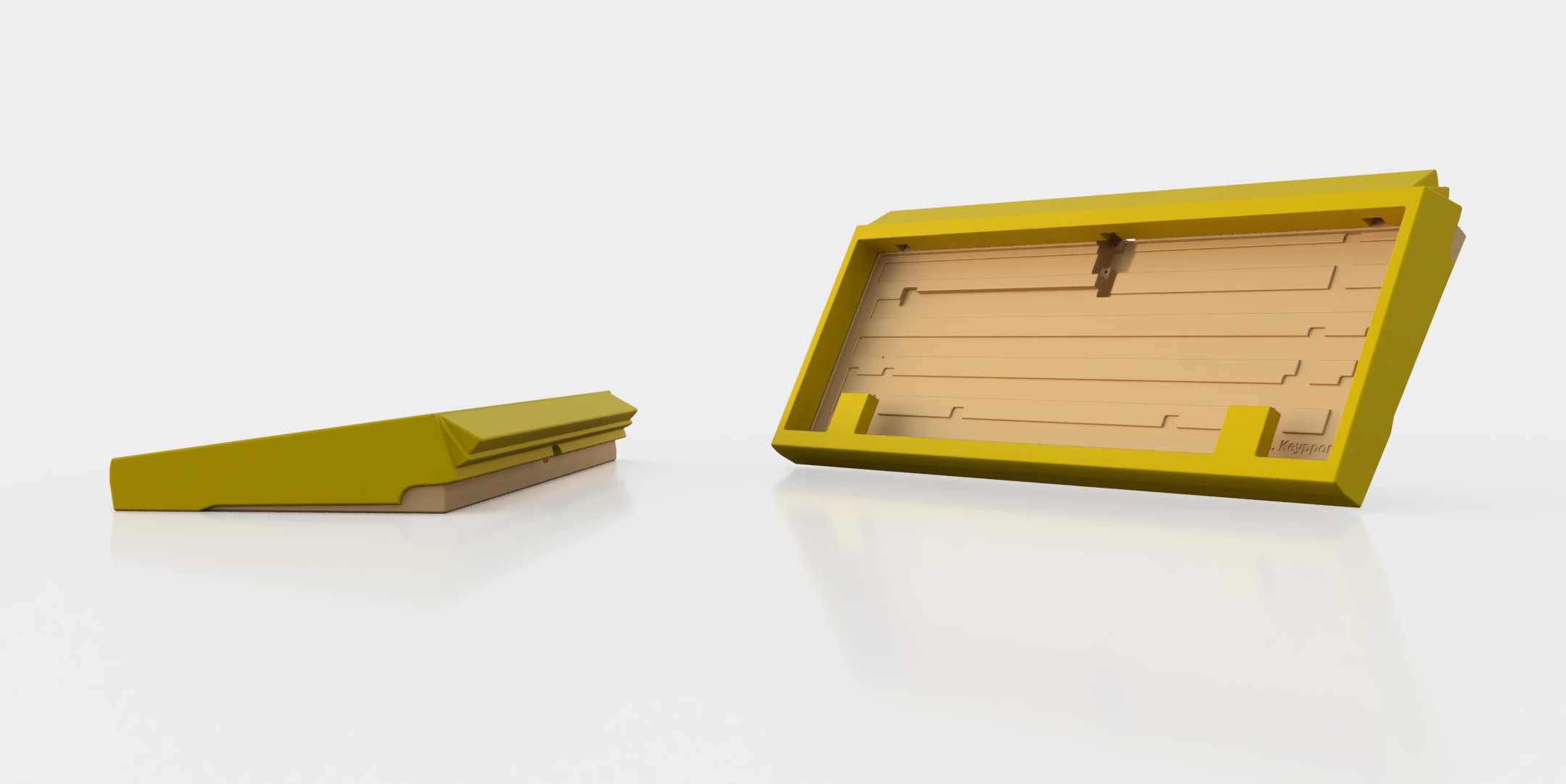

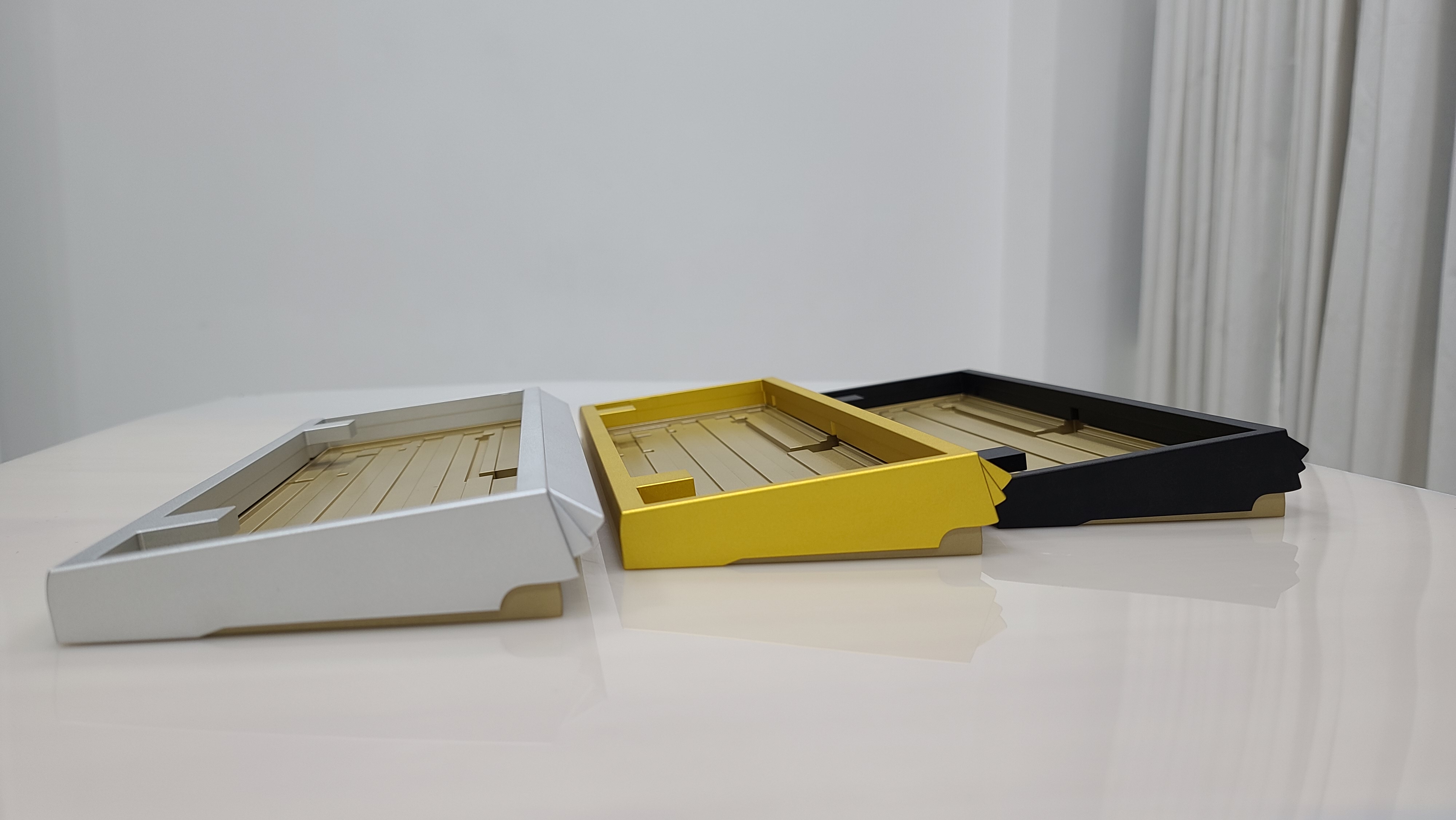

Colors
Silver / Black / Mustard



Price
As more people buy together, the price decreases in stages


Base kit
Alu Top
Brass Bottom
Screws and bumpons
*ADD-ONs are NOT INCLUDED

QTYPrice ($)50~99300100~199280200~300260
MOQ : 50 units
MAX : 300 units

ADD-ONs
Solderable PCB : $45 -> $39
Daughterboard & JST cable: $10 -> $9
(Custom PCB and Daughterboard by Hiney)
Alu plate: $20
*Non-Korean buyers will be charged a 4.4% PayPal fee



Shipping

LocationsStandard kit ($)Korea3East Asia, SEA40NA, EU, Oceania60OthersProxy is recommended
Adding additional items to your order may contribute to slightly higher shipping costs
based on dimension and total weight.
Delivery within 3 months after the end of GB.
*There may be delays in case of natural disasters.



Media




Gift for Early Bird
The first 100 people participating in the Discord channel will receive an Alu Plate
and the 101st~200th entrants will receive a Daughterboard & JST Cable





✨ Touching the logo will summon you to KEYPPORT World ✨



Thank you to everyone who supported my project,
and I will do my best to provide you with a satisfying typing experience.
