Discover refined precision with the ZT60, a premium 60% ortholinear keyboard engineered for both form and function. The ZT60 features a clean ortholinear layout that enhances finger symmetry and ergonomics without compromising usability. Designed with meticulous attention to detail, it supports most standard keycap sets and offers extensive layout customization options, combining versatility with aesthetic elegance.
UPDATE Aug 5, 2021Hey everyone,
Sorry things went a little quiet recently around the ZT60.
I wanted to wait for the new prototype to arrive before I make an update.
It just arrived, so here’s the latest update!
I’ve been trying to figure some things out regarding the feedback I’ve received on the keyboard’s layouts, and I have come up with another updated design.
A few people have mentioned to me that the new layout I proposed will not work--the 1.75u backspace key in my renders does not actually exist!
I overlooked that the 1.75u backspace key in the 40% kits is for row 2 instead of row 1.
To solve this problem, I have decided to add custom machined novelty keycaps for the escape and backspace keys (1.25u and 1.75u, keycap design not finalized yet).
This will, however, come at a premium (~CAD$100). The original layout with the staggered number row will still be an option.
Group buy date is still to be determined, but I’m aiming for an end date before the end of the year.

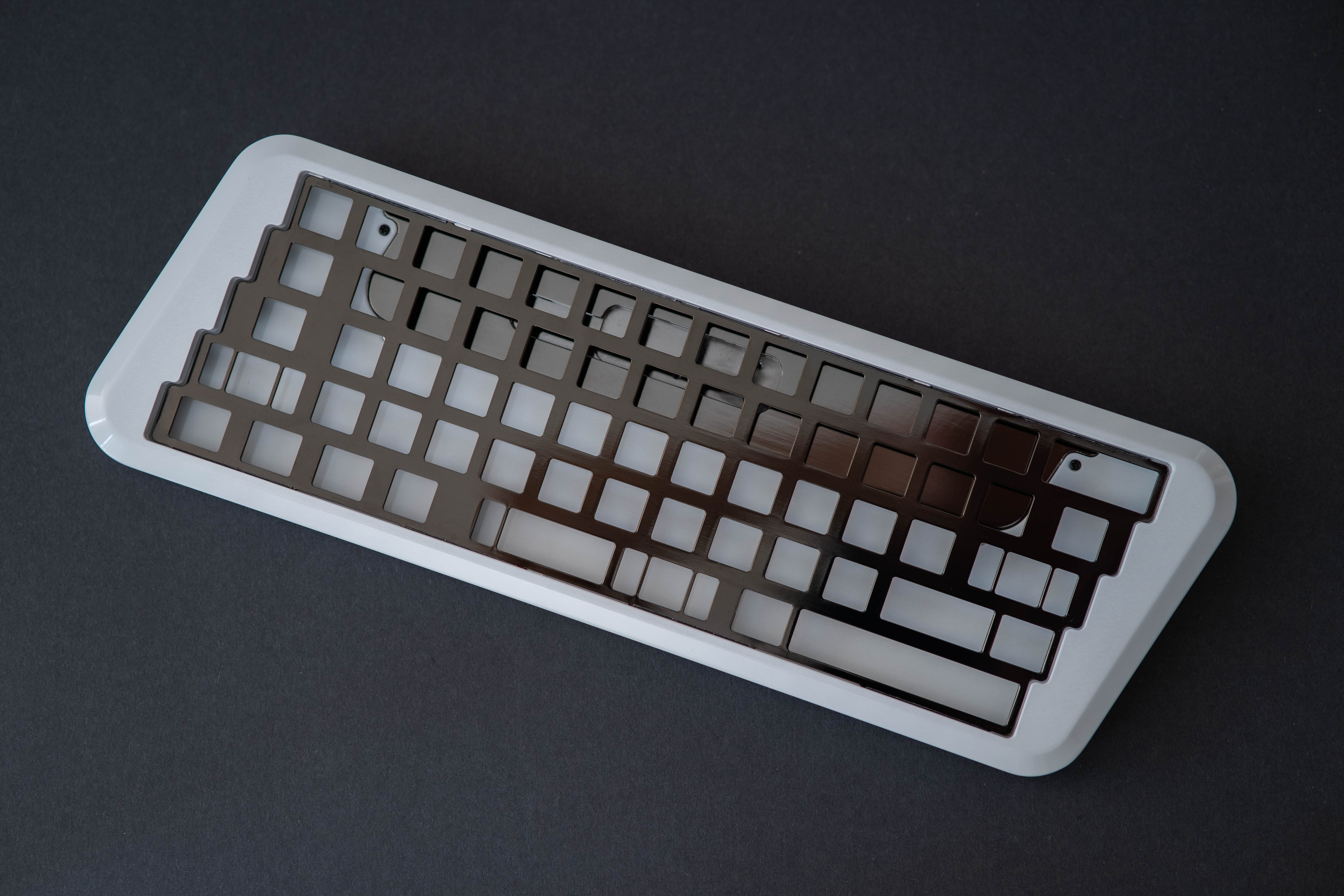

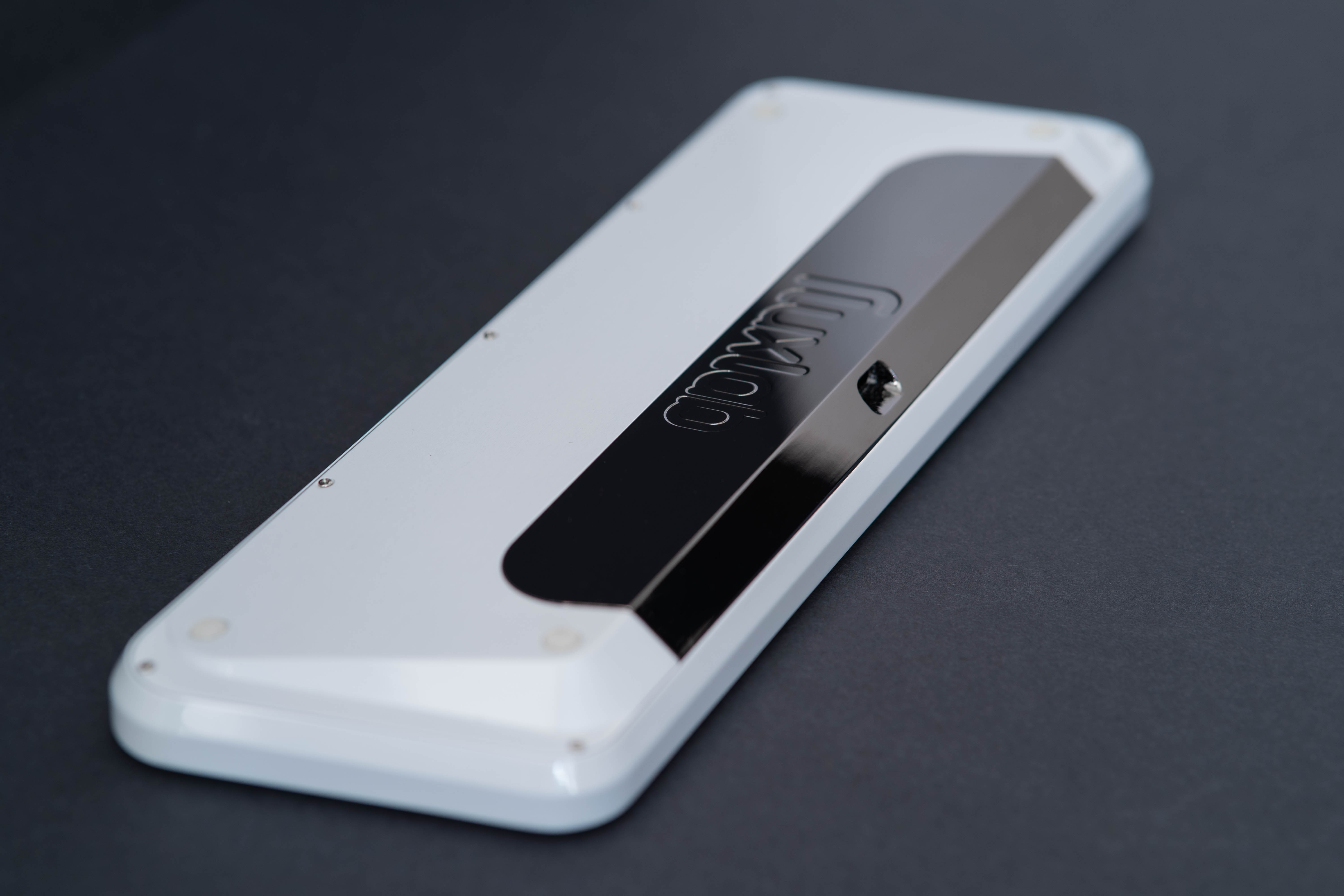

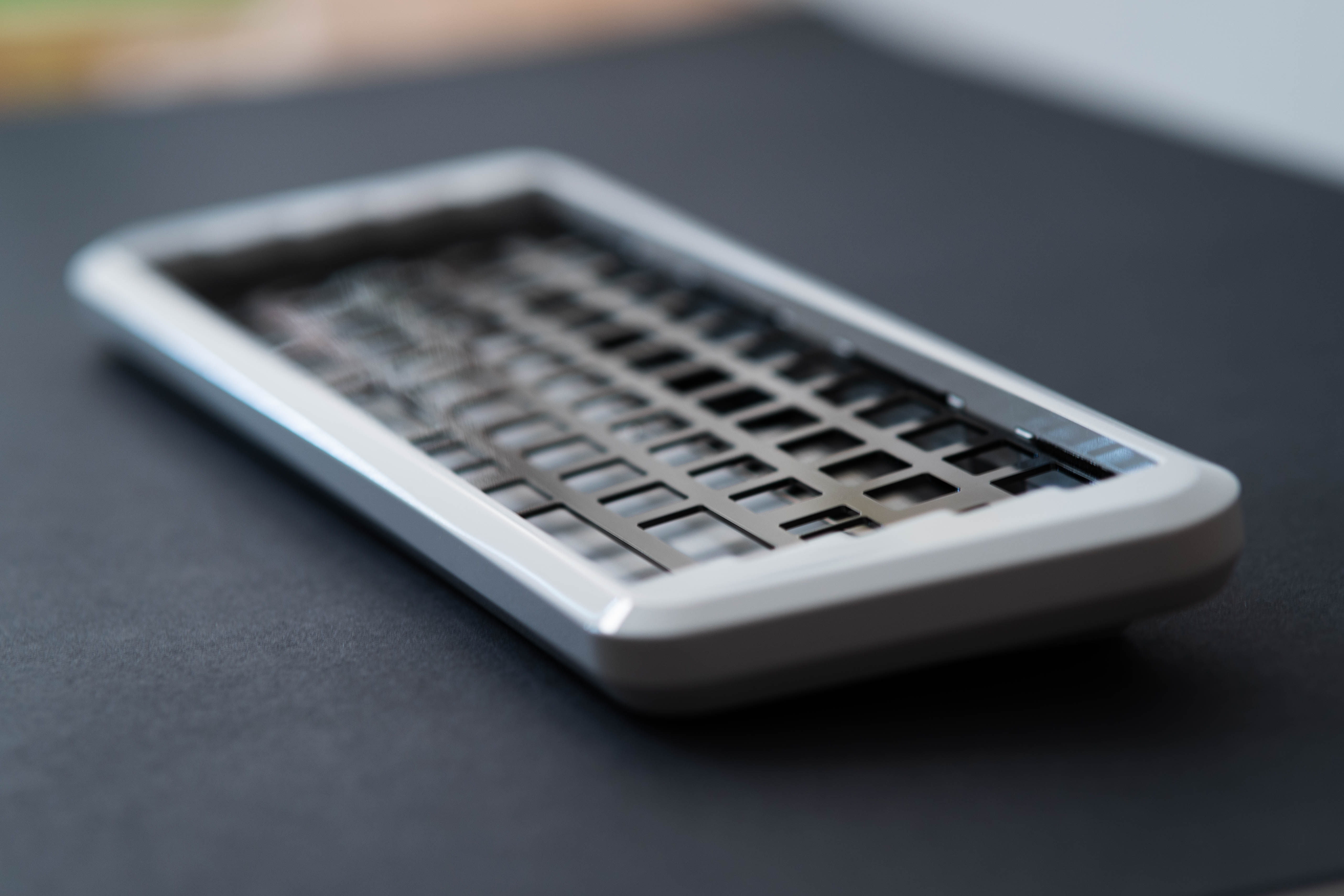

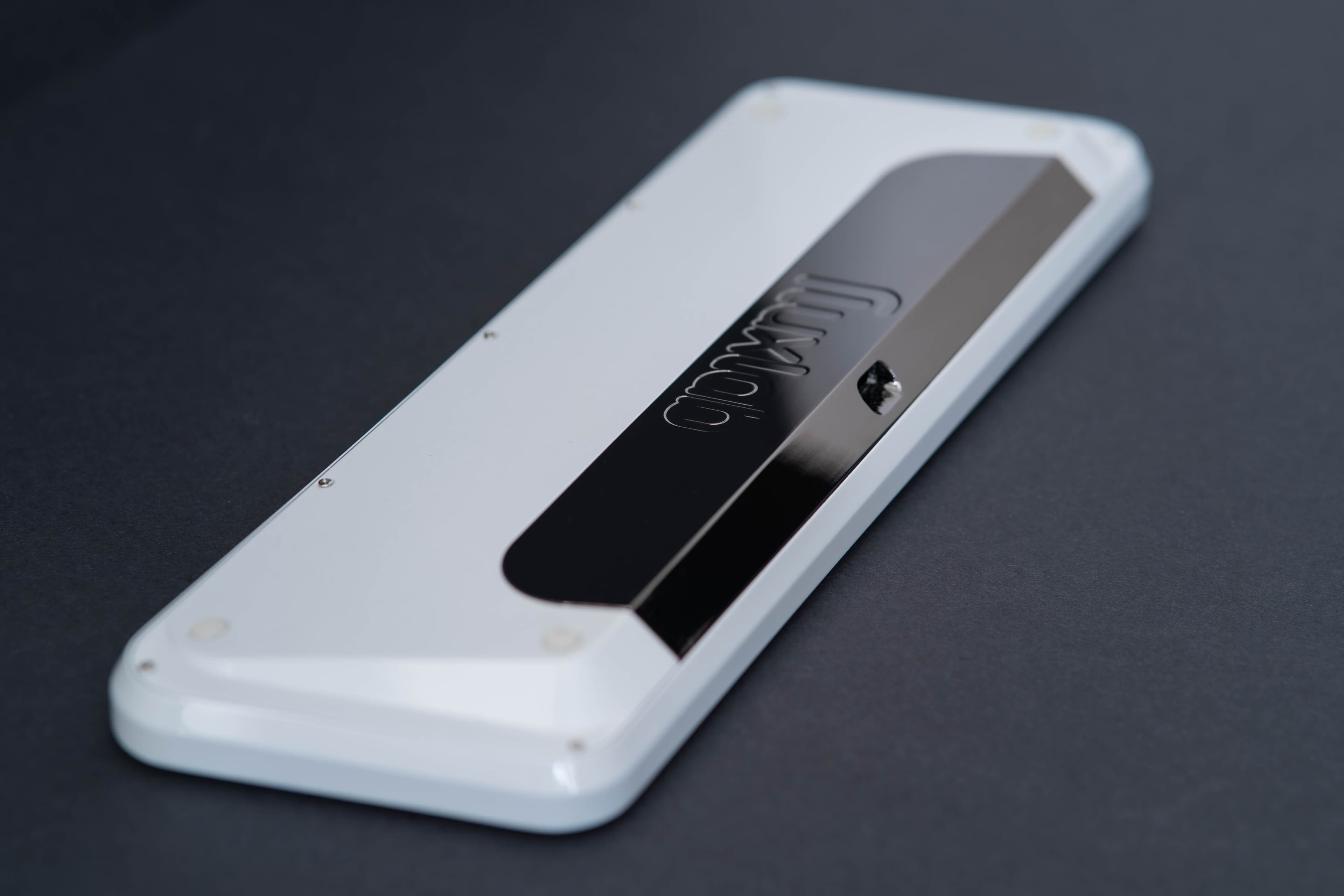

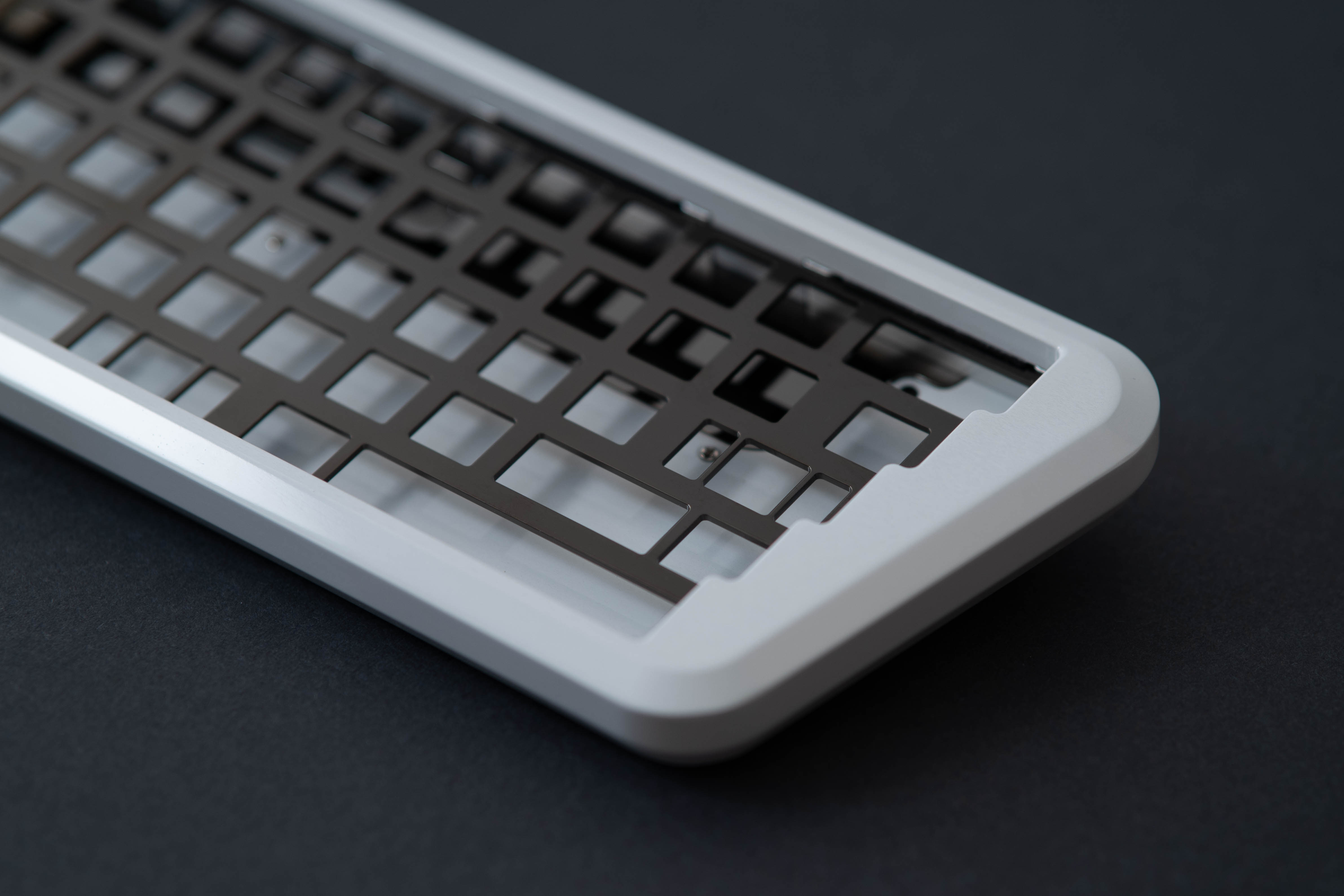

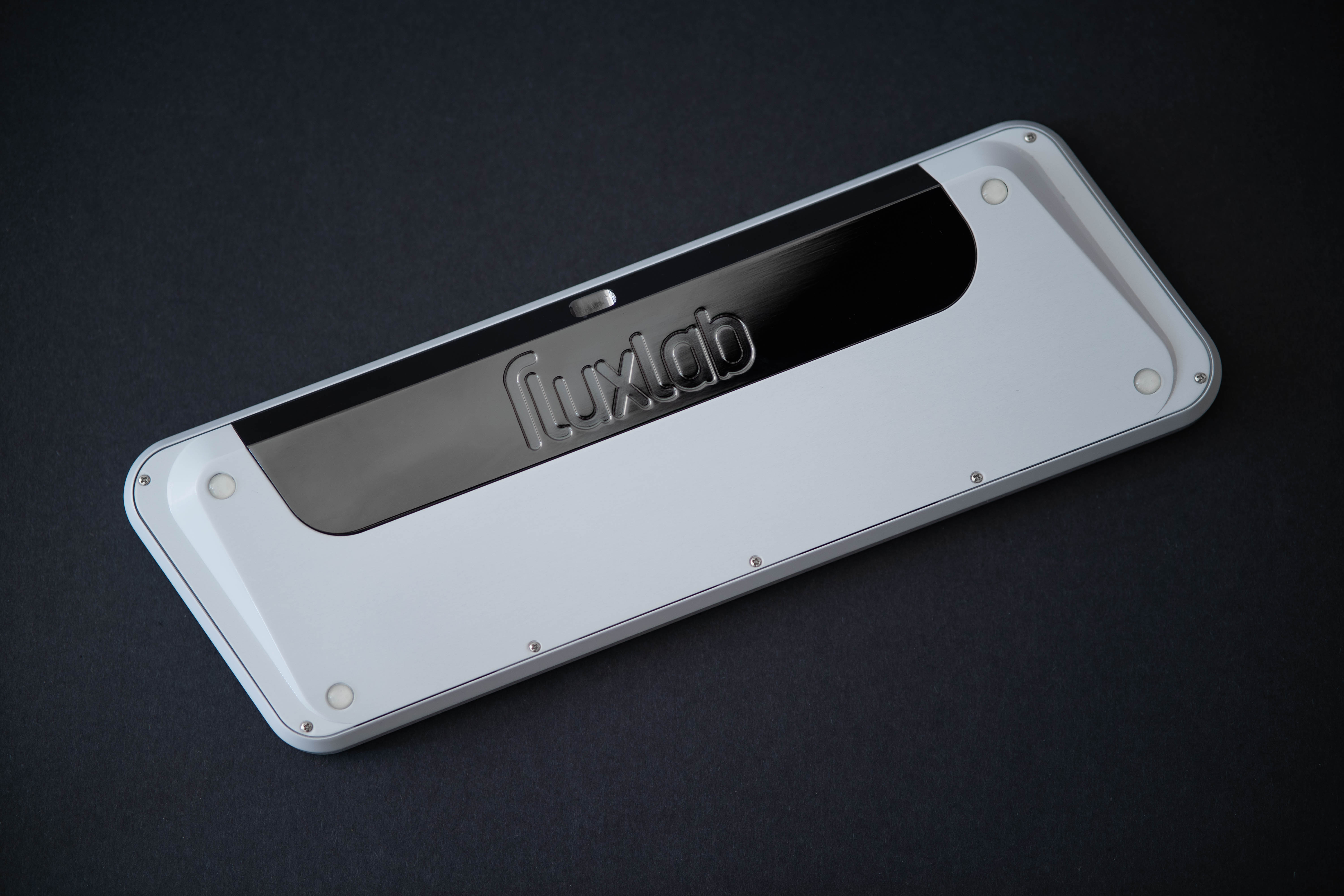

I’ve attached some photos of the new ZT60 production sample below.
There are some surface imperfections which I am sorting out with my supplier currently.
I will be posting a sound test video within the next few weeks.
Jason
UpdatesApril 28, 2021: New aligned number row layout option, new rendersAugust 5, 2021: Production sample received, new photos
Hello!
My name is Jason.
I have just completed the Zplit group buy and would like to introduce a new keyboard: the FluxLab ZT60.
The ZT60 will be a premium, 60% ortholinear keyboard for most high-end keysets.
While running the Zplit GB, I realized that my product did not have the same quality as many other keyboards.
Surface finish was not perfect, packaging was rough, and official QMK and VIA firmware support was not ready.
So, for the ZT60, I will be focusing on giving you a premium experience throughout, starting from the unboxing to the first typing test.
The ZT60 has been in development for almost a year, and I have been using a prototype of it as my main keyboard for the past 6 months.
Many changes have since been made to the design.
I will be posting regular updates on the FluxLab Discord server: https://discord.gg/ngQMCMBKjw
Alternatively, updates will also be posted on the FluxLab Instagram page: https://instagram.com/flxlb
Thanks,
Jason
Production Sample Images
Sound test will be posted here.The Design
The FluxLab ZT60 is a 60% ortholinear keyboard with support for most high-end keysets.
As long as the keyset has 1u/1.75u and 2u shift keys, it will be fully compatible with the ZT60.
It will support various bottom-row layout features, such as a 6.25u spacebar, a 7u spacebar, split spacebars, and an arrow cluster.

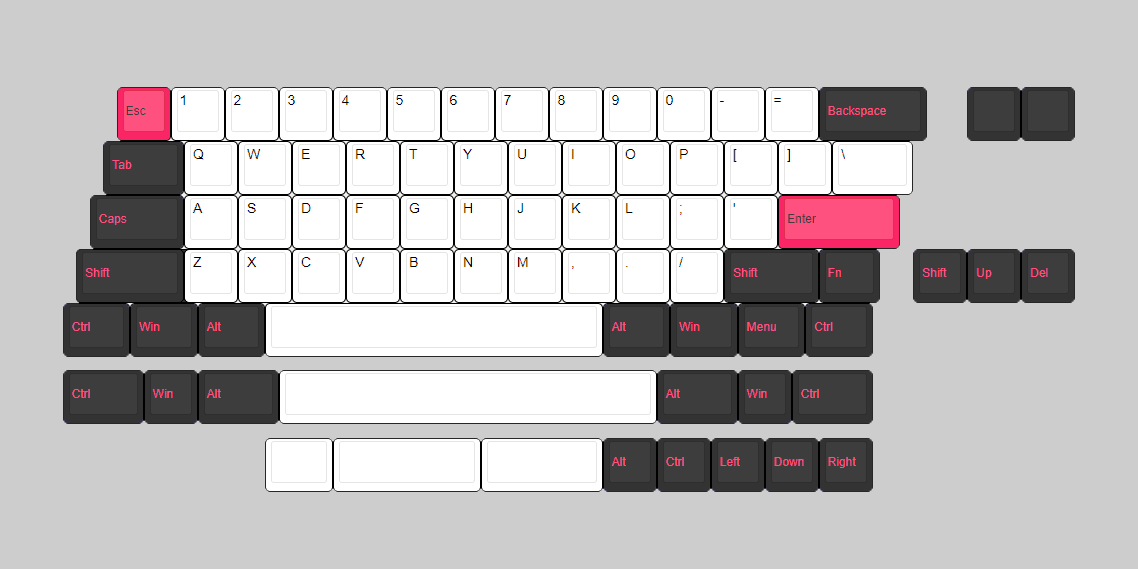

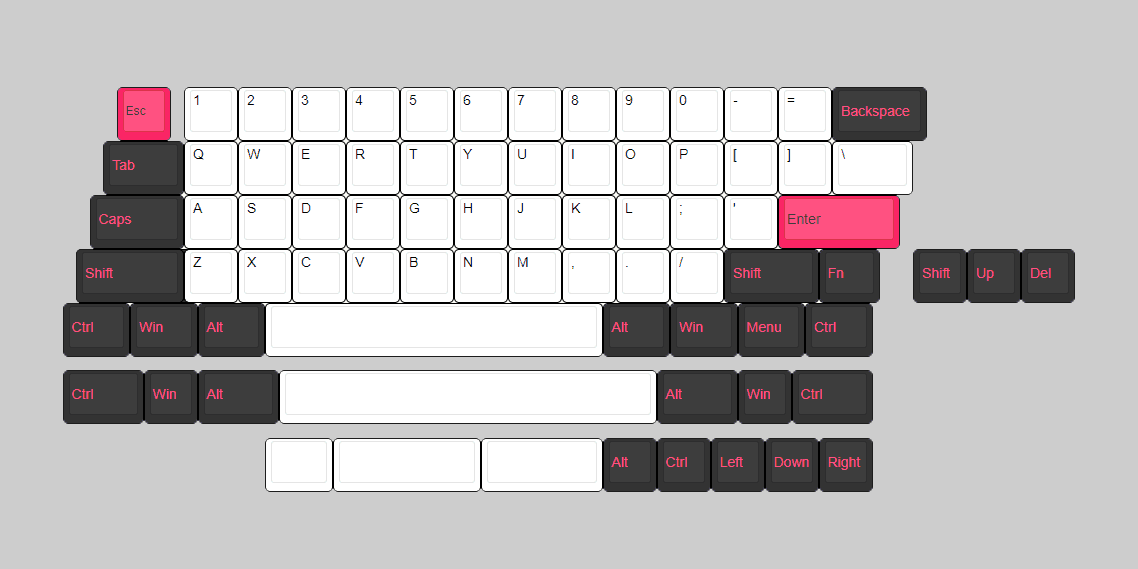

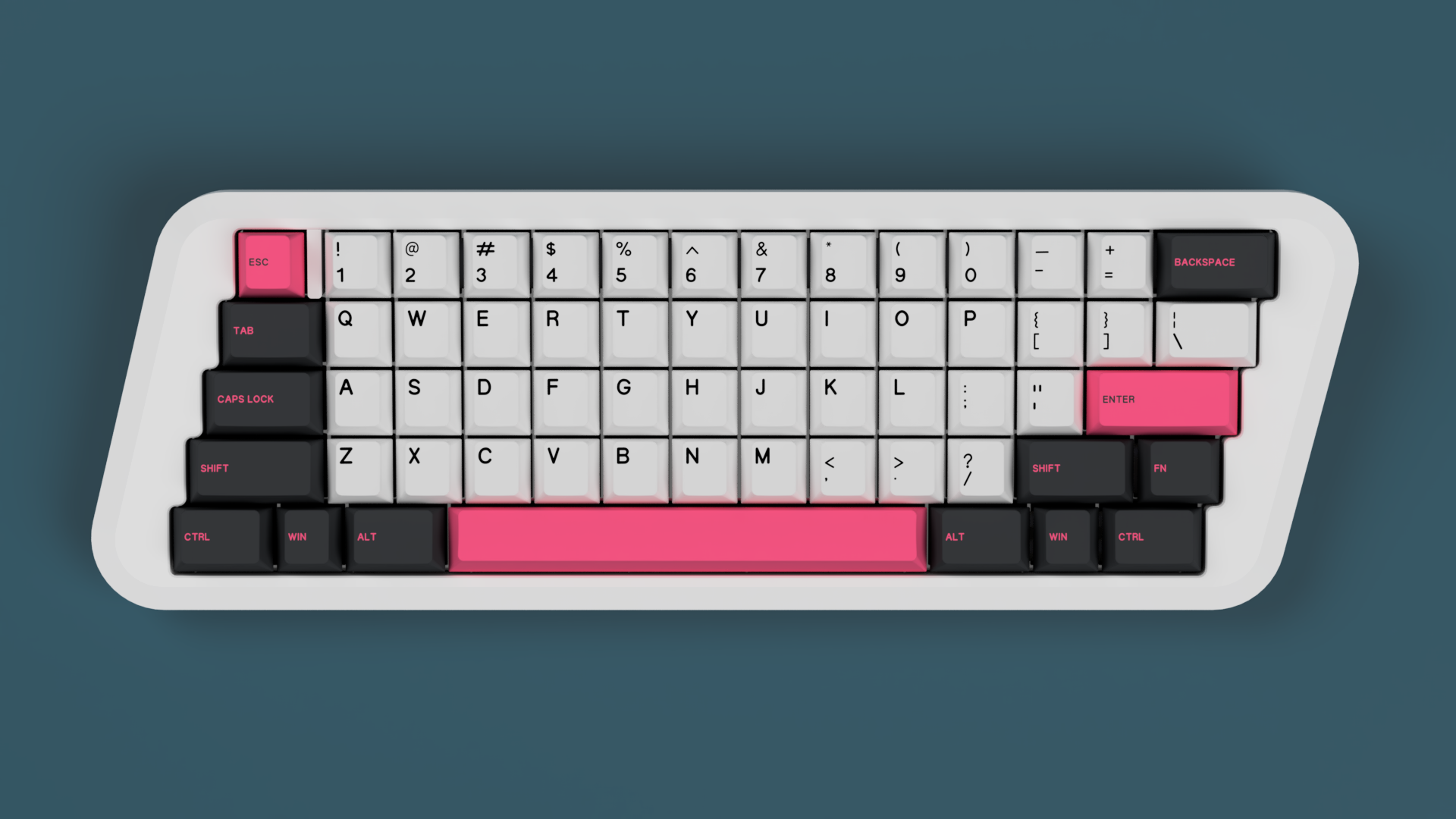

The image below illustrates all the layout options available.
Default
Aligned number row

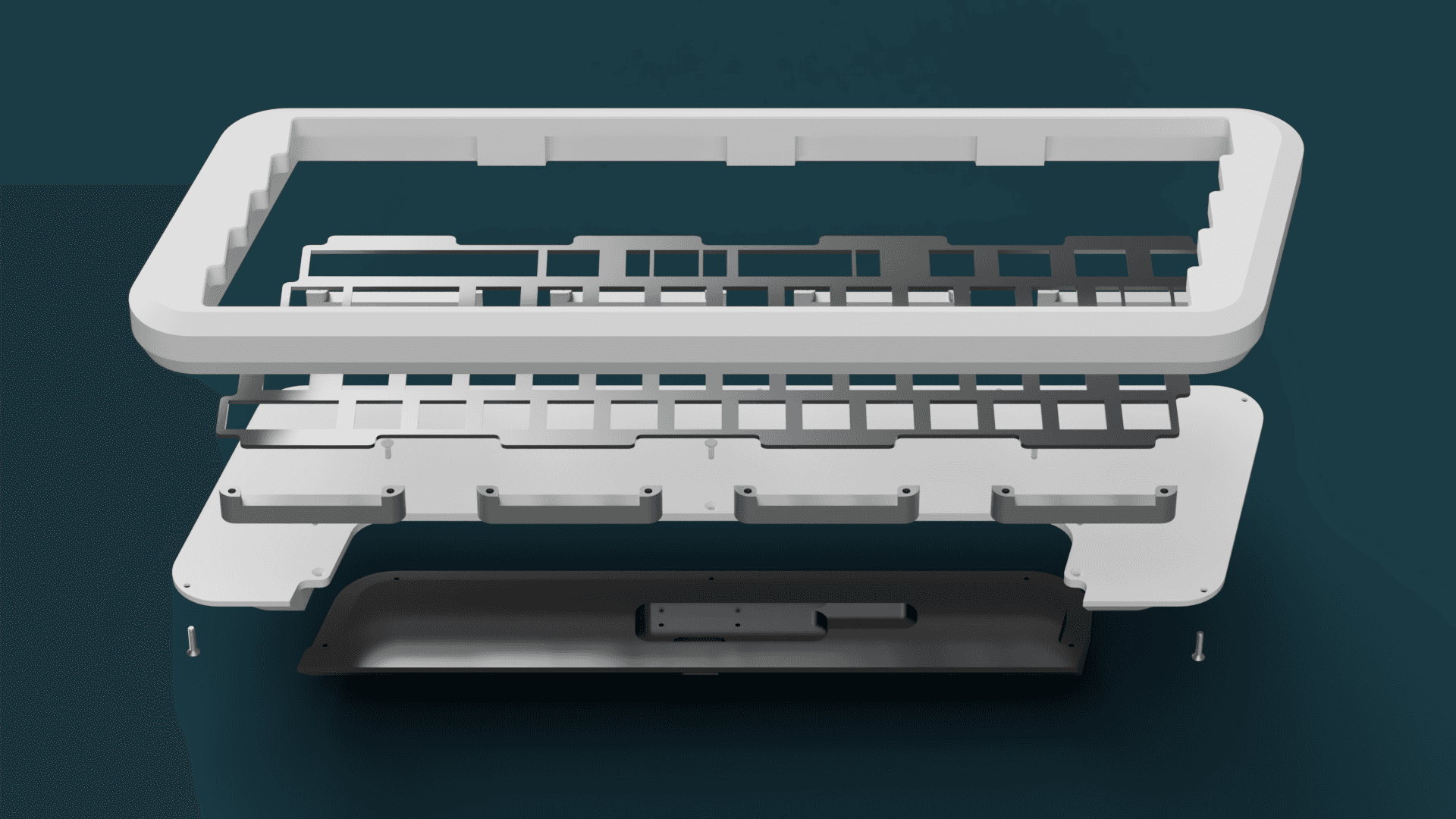

Case SpecificationsPlate Mount: Gasket
Weight: ~2 kg
Case Material: 6063 aluminum
Weight Material: C36000 brass
Gasket Material: Poron and silicone
Typing Angle: 6.9 degrees
Case Surface Finish: Electrophoresis coating or anodized
Plate Surface Finish: PVD coated
Color Options: White or black
Case Feet: Adhesive rubber feet
Plate OptionsBrass
POM
FR-4
PCB SpecificationsMCU: Atmel ATMEGA32U4
Connector: USB-C (with daughterboard)
Switch direction: South-facing
Protection: ESD, overvoltage, overcurrent
Hotswap: Mill-max service or Kailh (depending on interest)
Switch compatibility: MX only
Lighting: None
Firmware: QMK and VIA installed out of the box

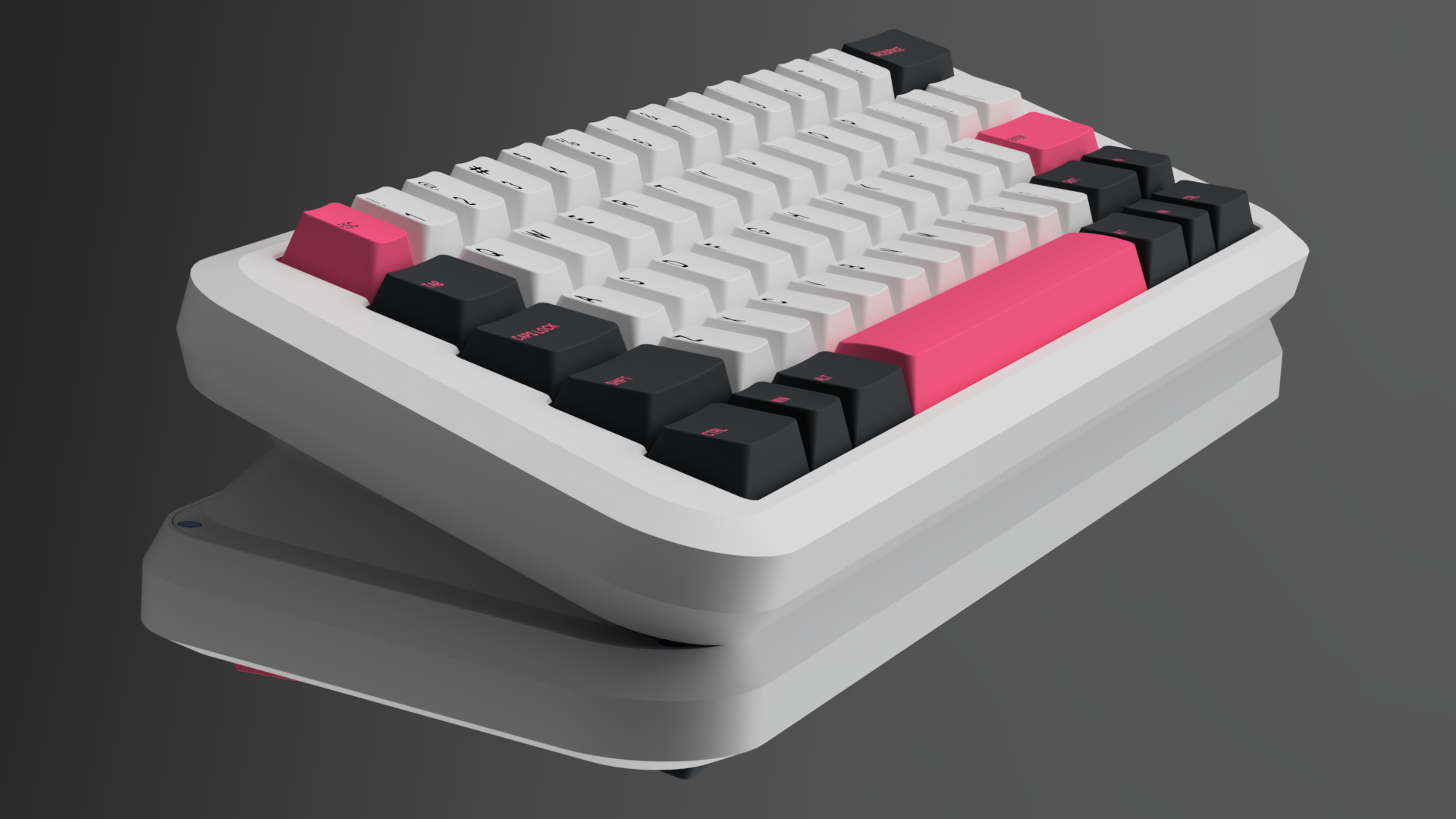

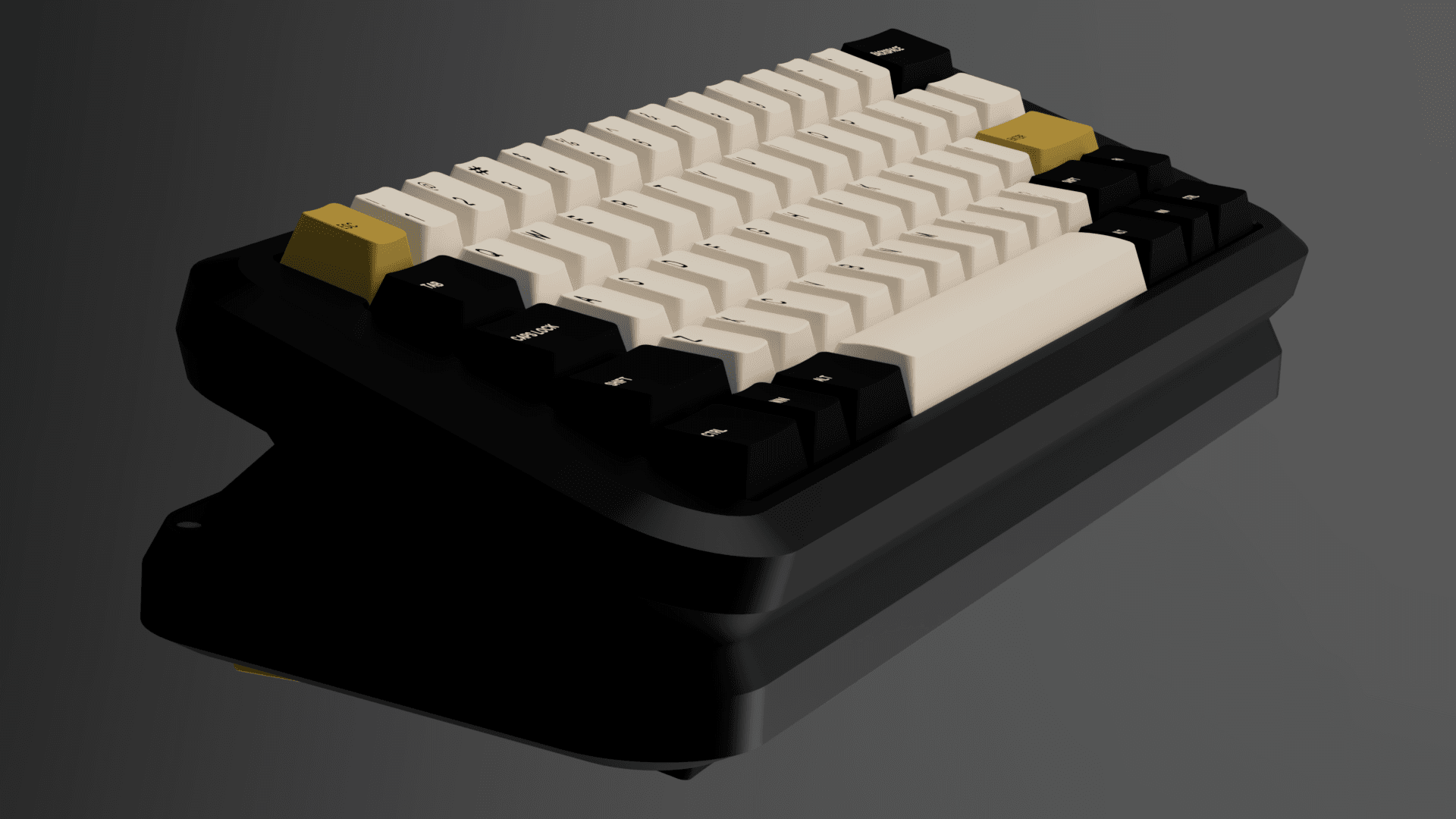

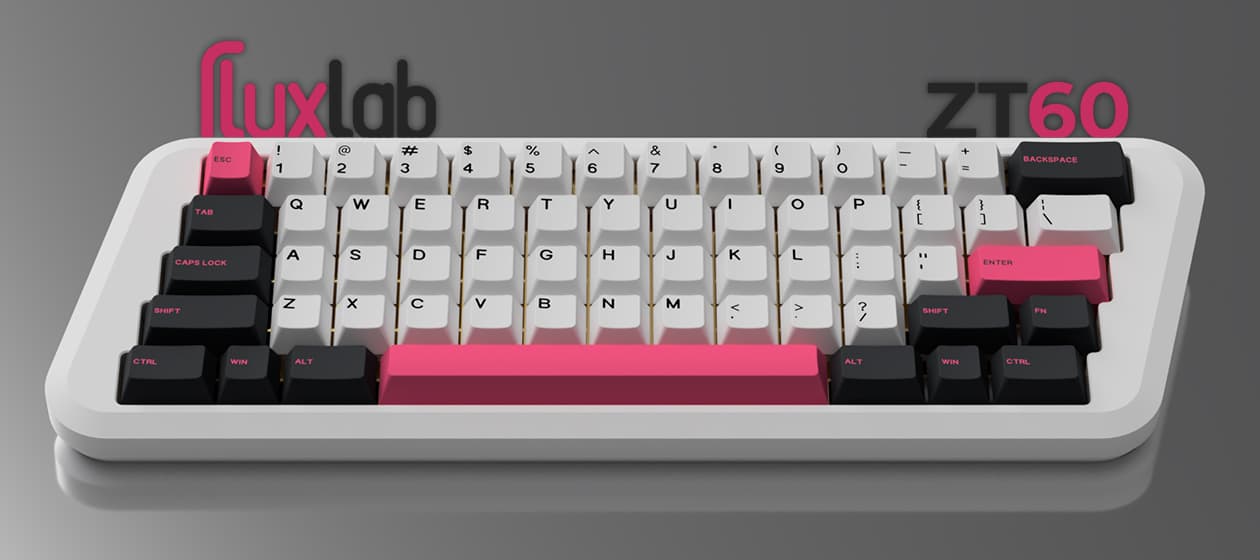

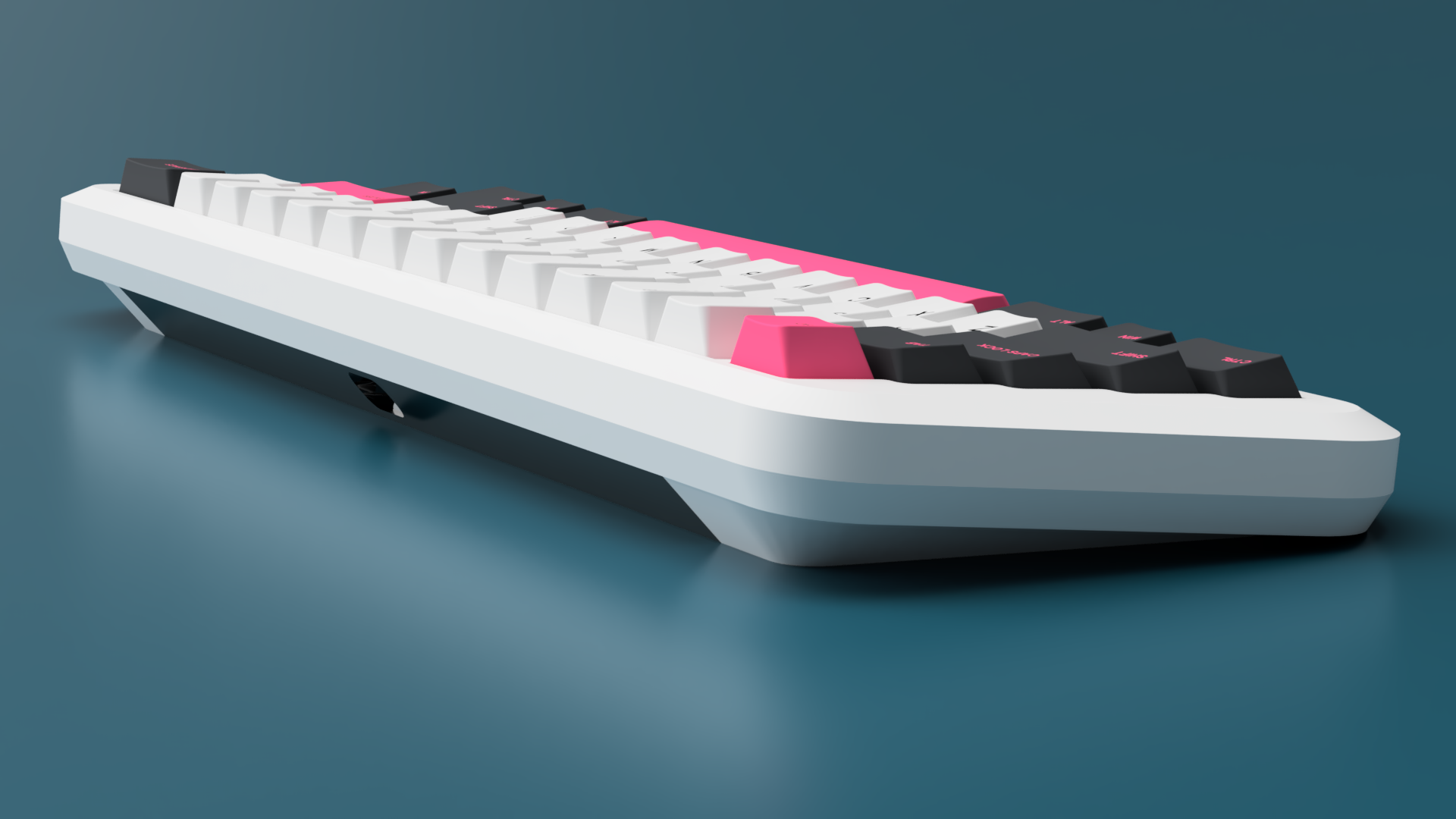

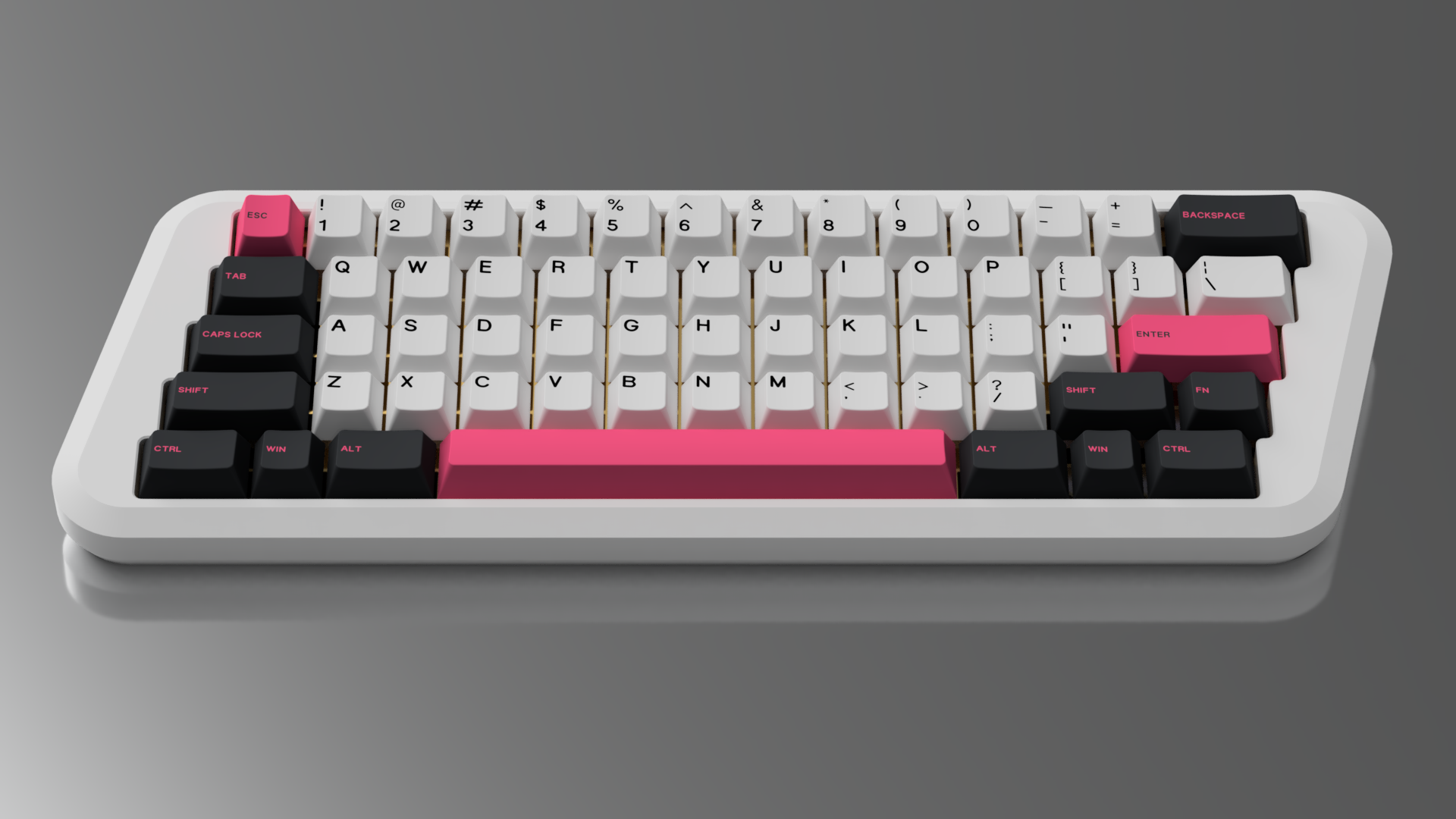

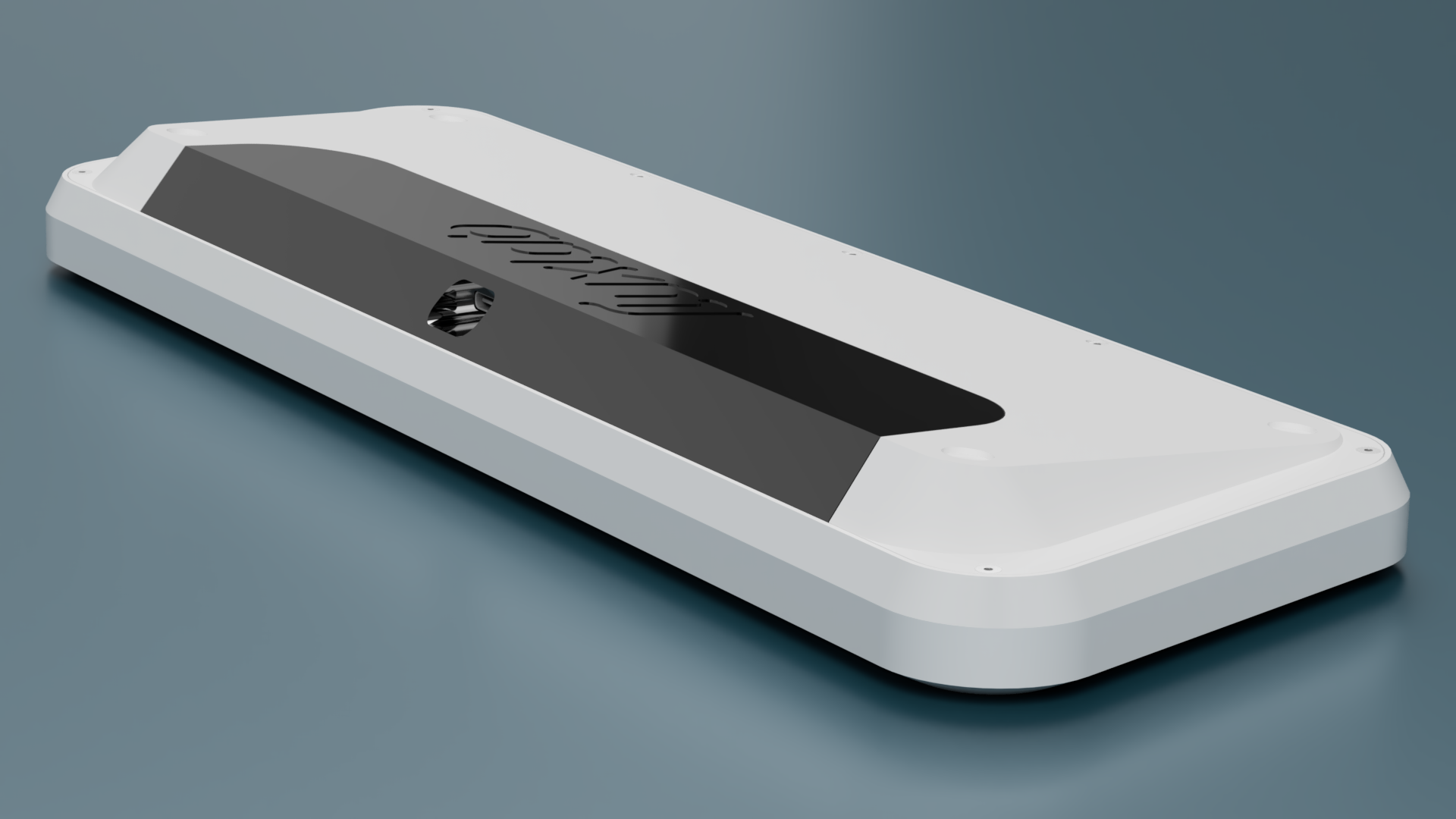

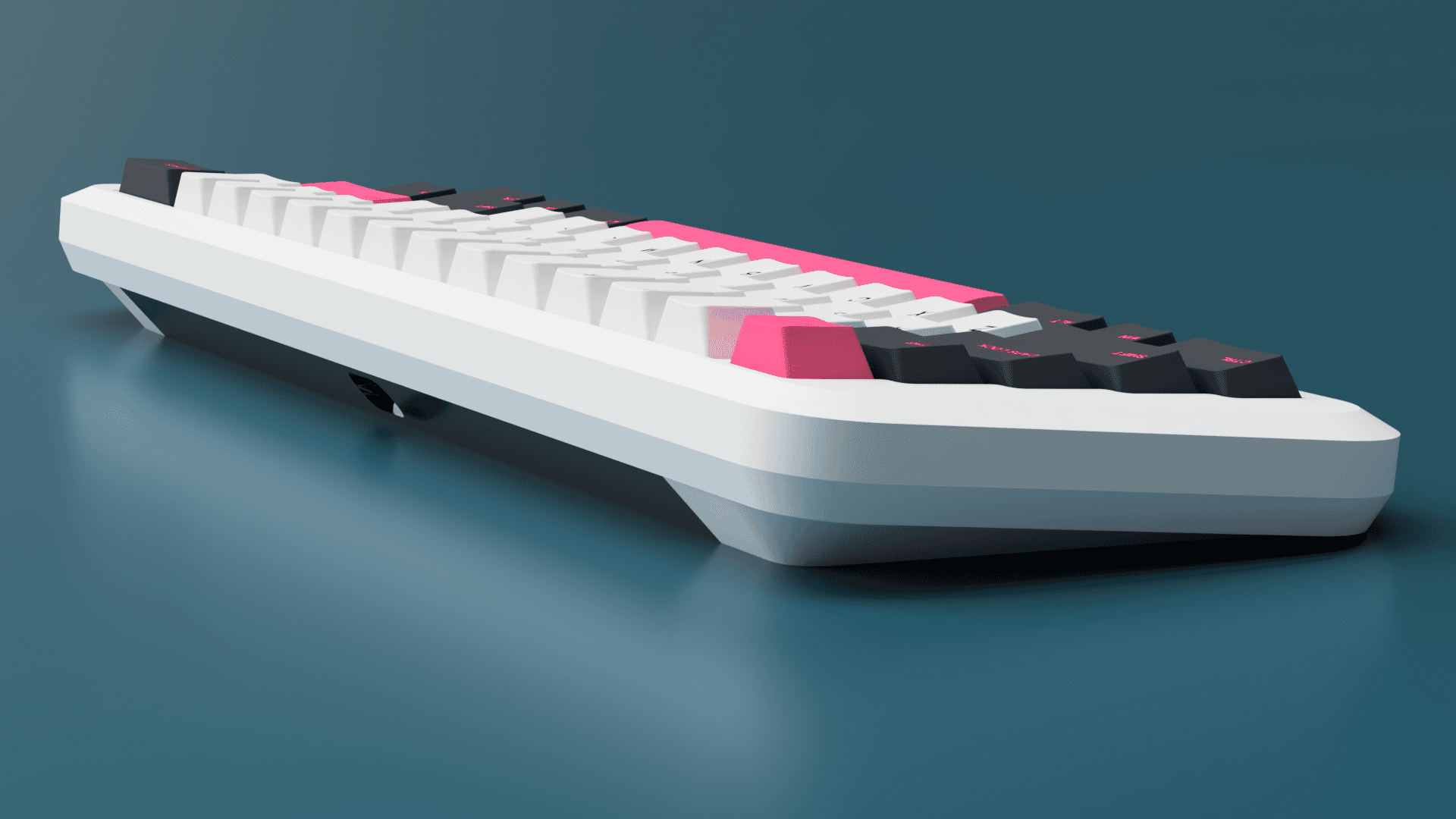

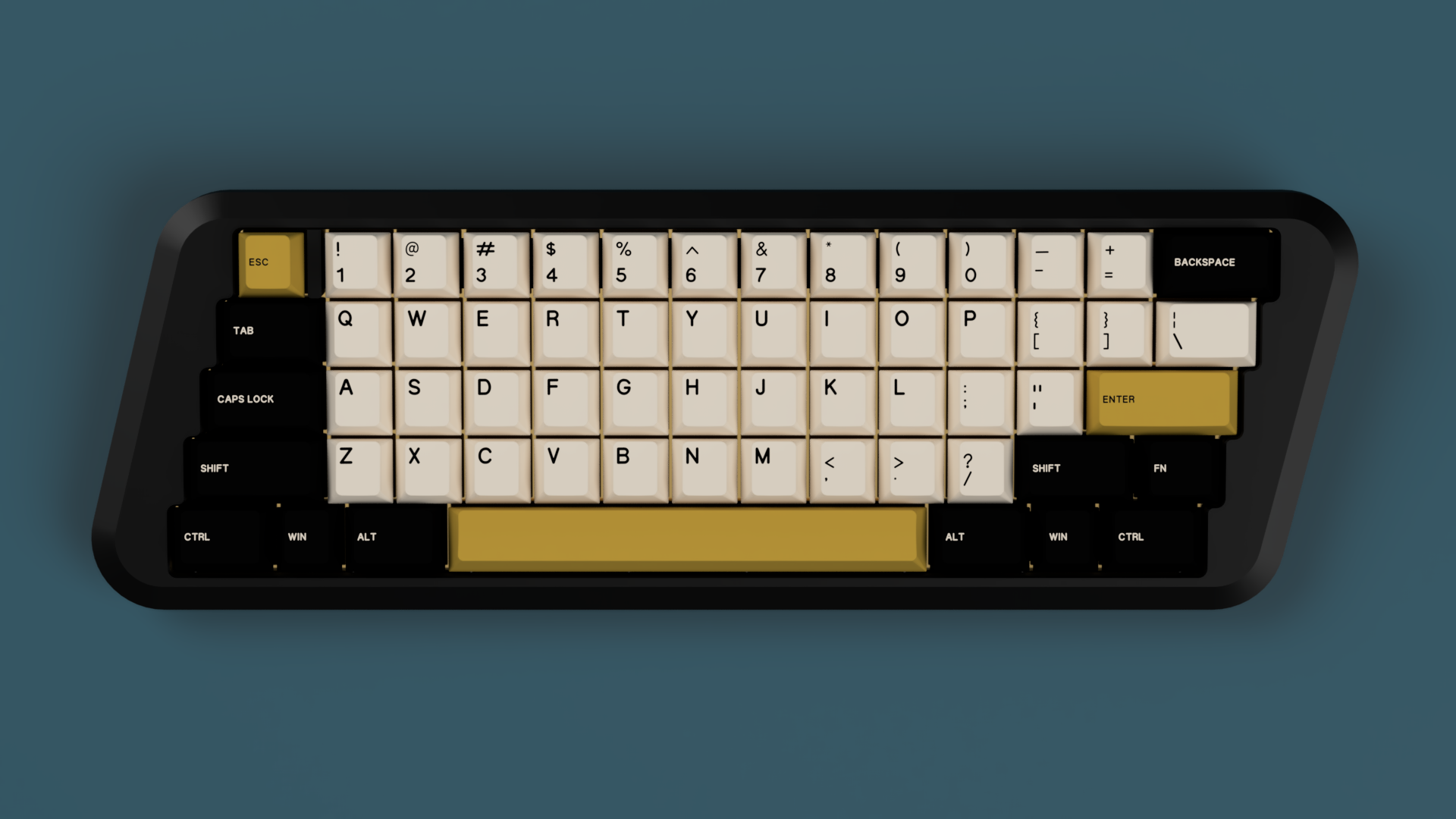

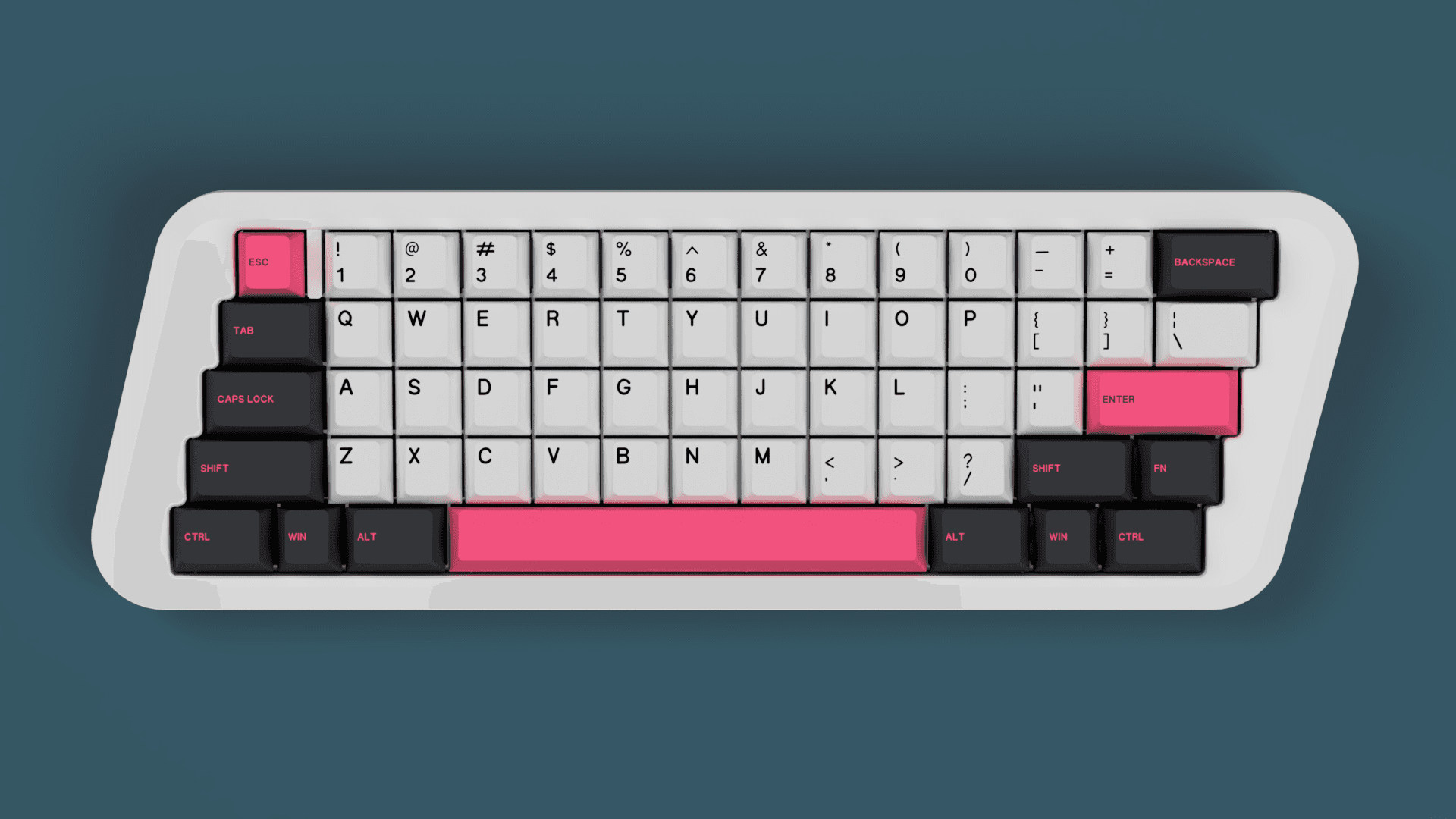

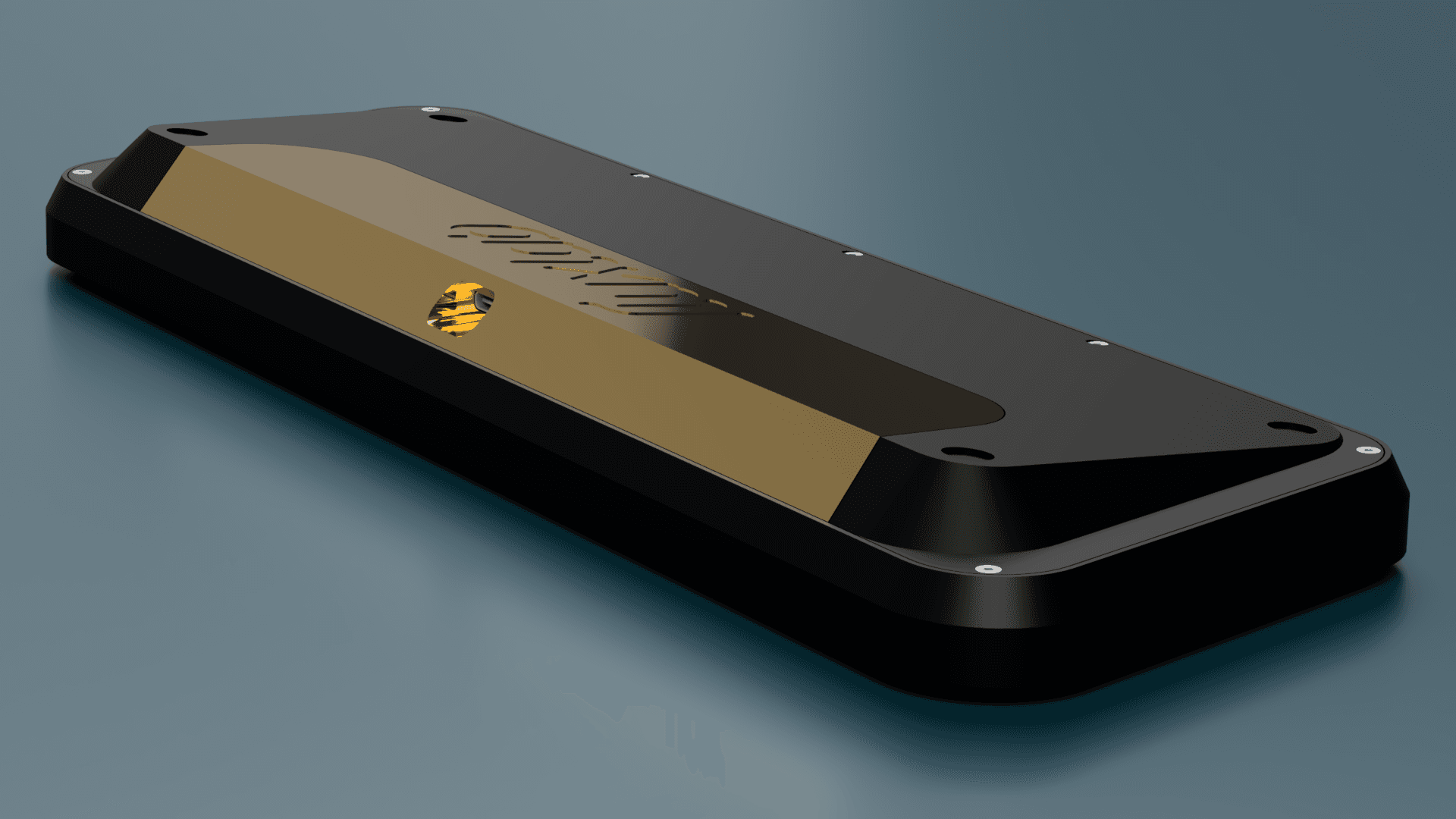

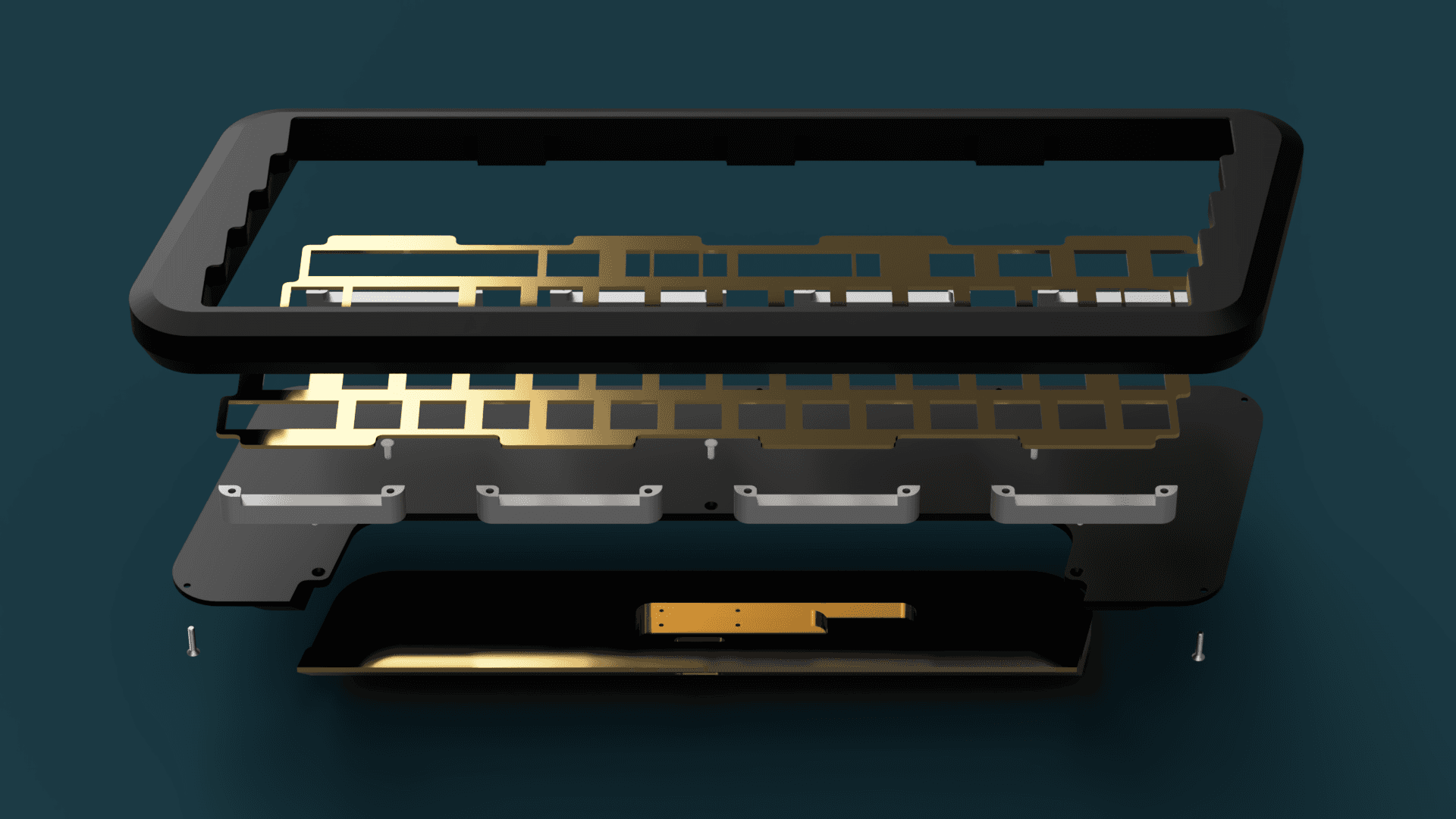

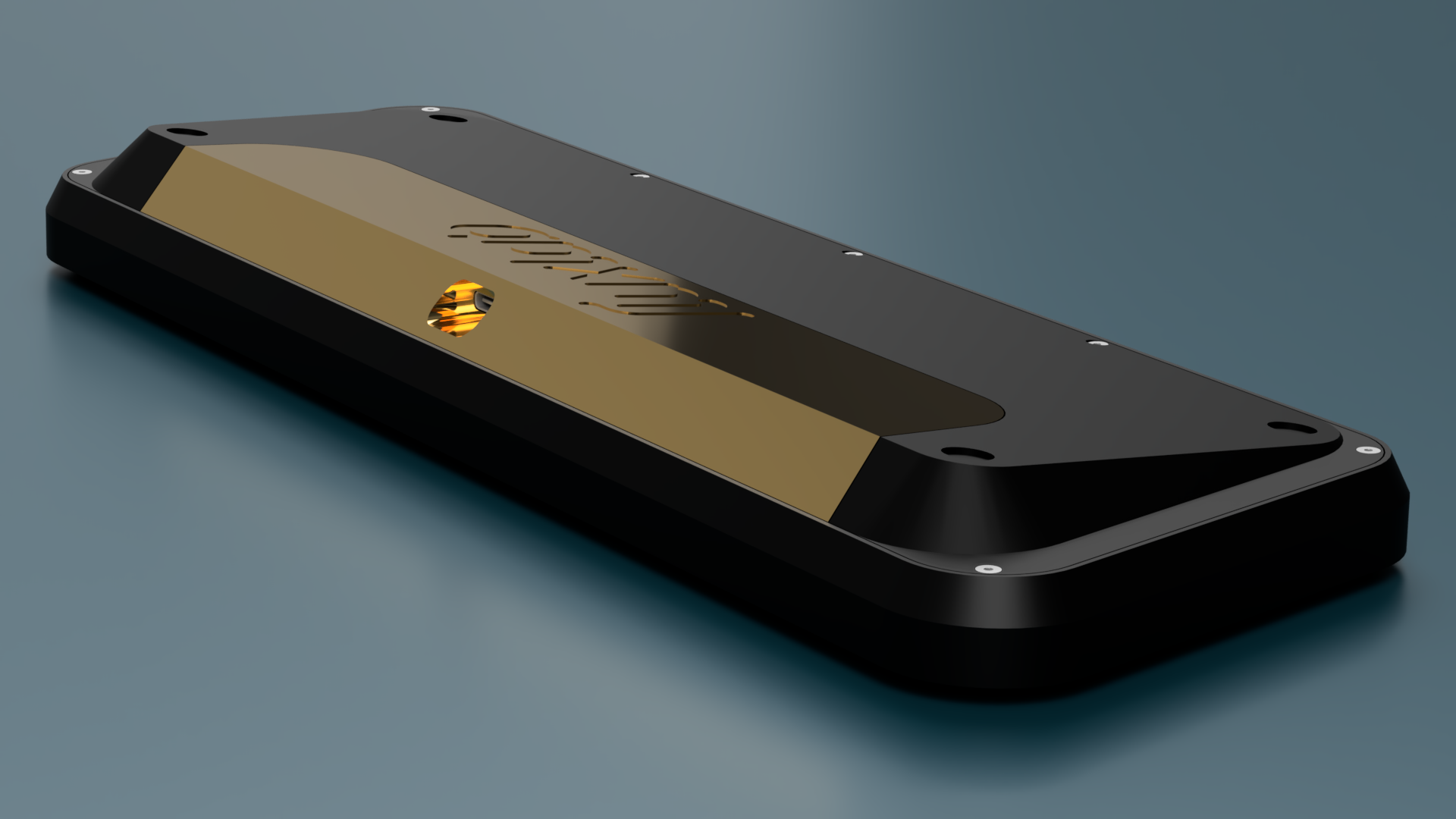

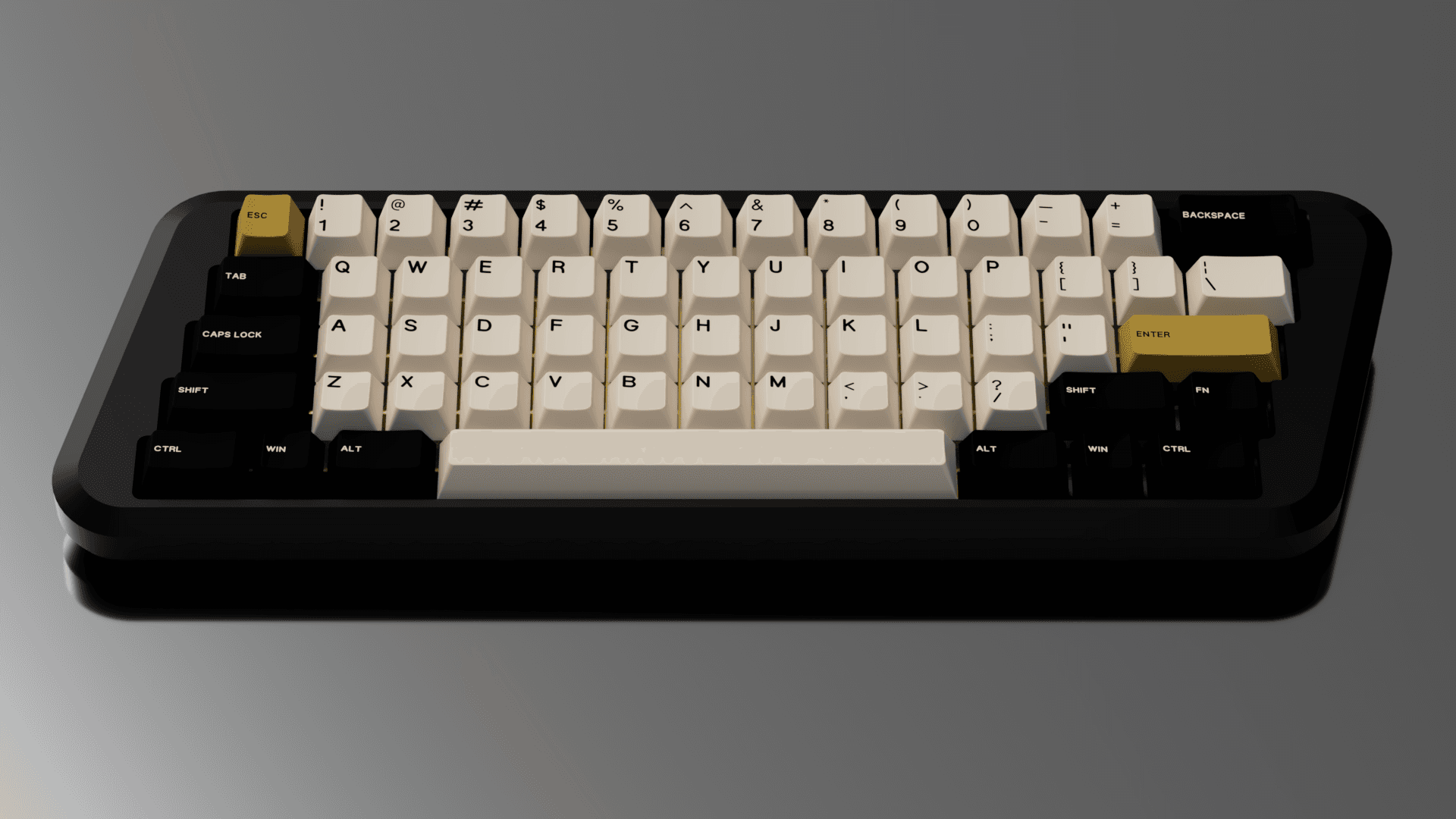

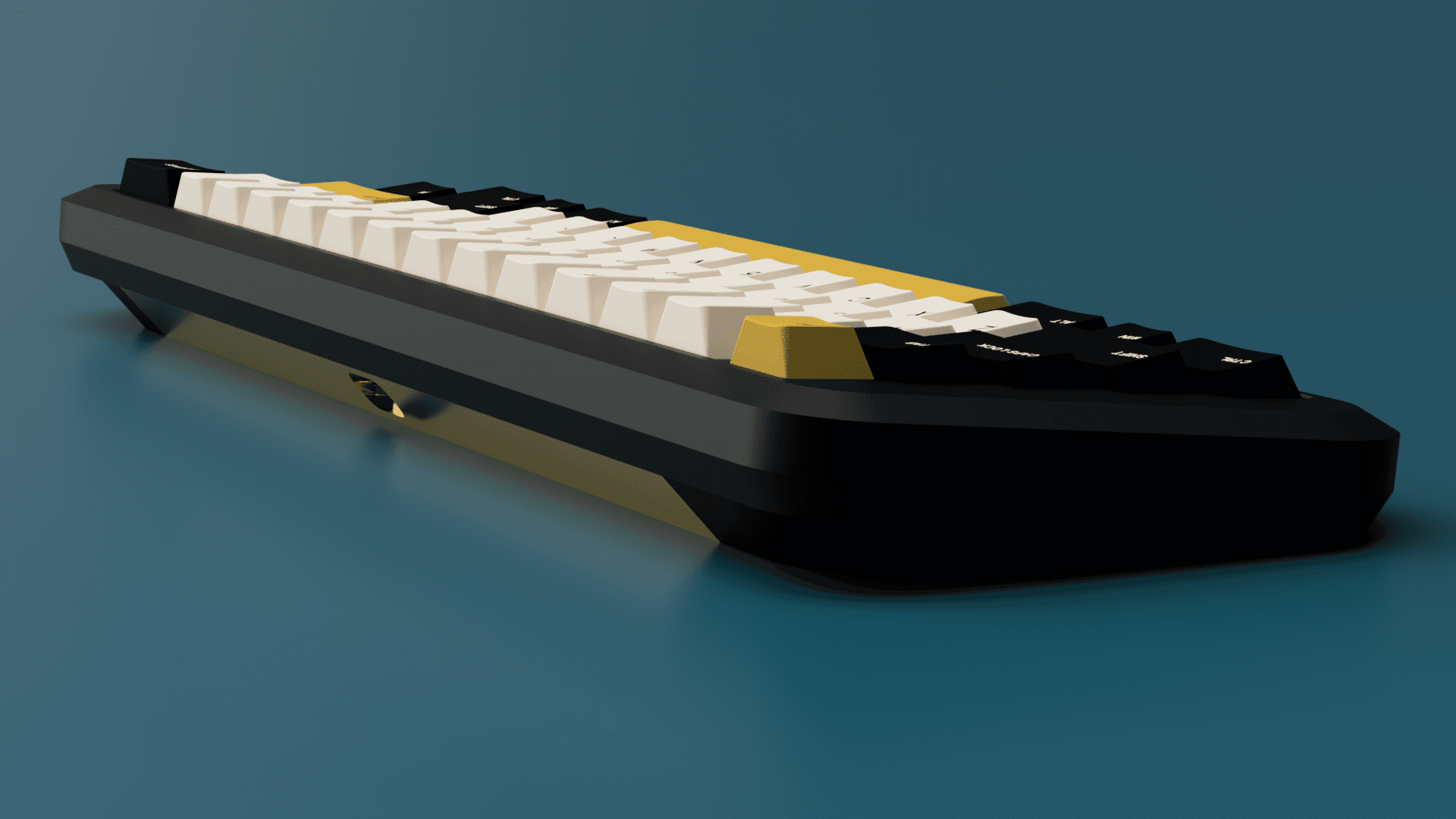

Renders
PricingExact final pricing is not yet determined, but will be in the range of CAD$500-650 (~USD$400-500).
Group buy will be run through my website, flxlb.ca, which will use Shopify to process payments.Timeline*I will be generous with the estimated dates.
Group Buy date to be determined2nd monthReceive final samples
4th monthReceive case parts, PCBs, and packaging
Inspect parts
Test PCBs
Assemble and package if quality requirements are satisfied
6th monthReceive new parts if required
Assemble and package
Begin shipping
Frequently Asked QuestionsCan the number row be aligned with the rest of the alpha keys?I've added a new layout option for this! It will require a 1.75u backspace key. There will also be a separate plate and blocker for this option, which may be slightly more expensive.
Will there be an EU vendor?If there is enough interest for this keyboard, I will definitely reach out to EU vendors.
Will there be a hotswap option?There will either be a mill-max hotswap soldering service or a fully integrated Kailh hotswap PCB option, depending on interest.
Are there any other colour options?Currently, the confirmed colours are e-white and black. I may choose a third colour from the feedback I receive.
