Fox Lab - Leaf 60

IC: https://geekhack.org/index.php?topic=98689.0


Information:

• Default kit:
  • Aluminum/PC top and bottom cases
  • Aluminum/PC plate
  • Atmega32u4 PCB with USB C

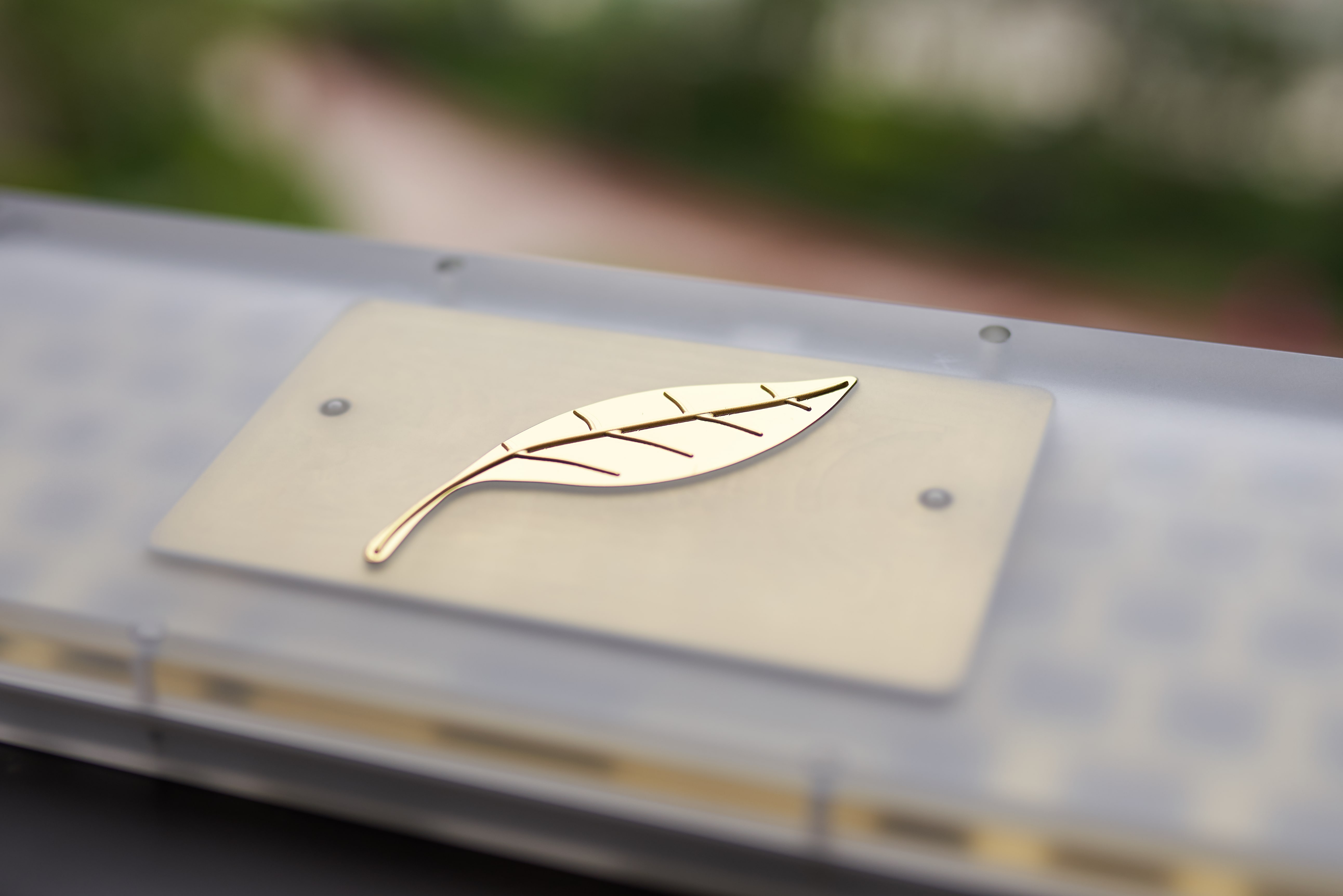

  • Aluminum/PC bottom leaf shape accessory
  • Gaskets, rubber feet, screws, custom box
• Price for default kit: $275 excluding PayPal fee and shipping

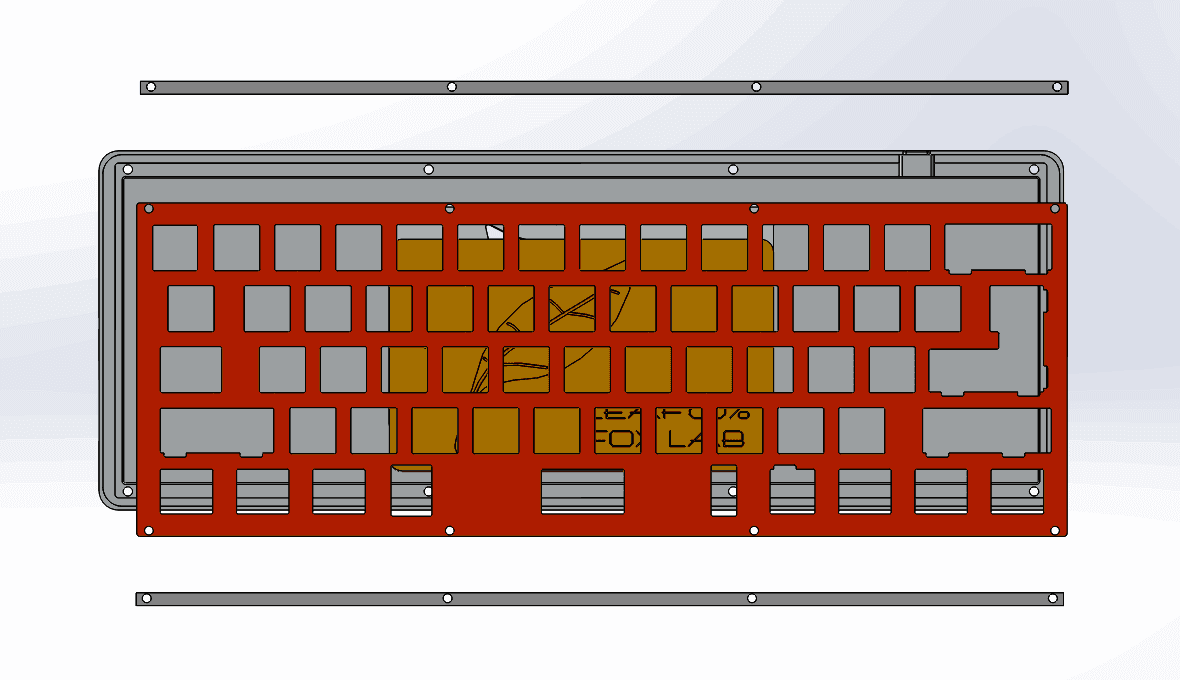

Plate mounting: sandwich mount with gaskets


Colors

For regular kits:

• E-white*
• E-black*
• E-red*
• MAO white
• Anodizing yellow
• Anodizing purple
• Matte clear PC
• Opaque black PC

* Electrophoretic coating (e-coating) is technically similar to powder coating but way smoother, even smoother than most anodizing.

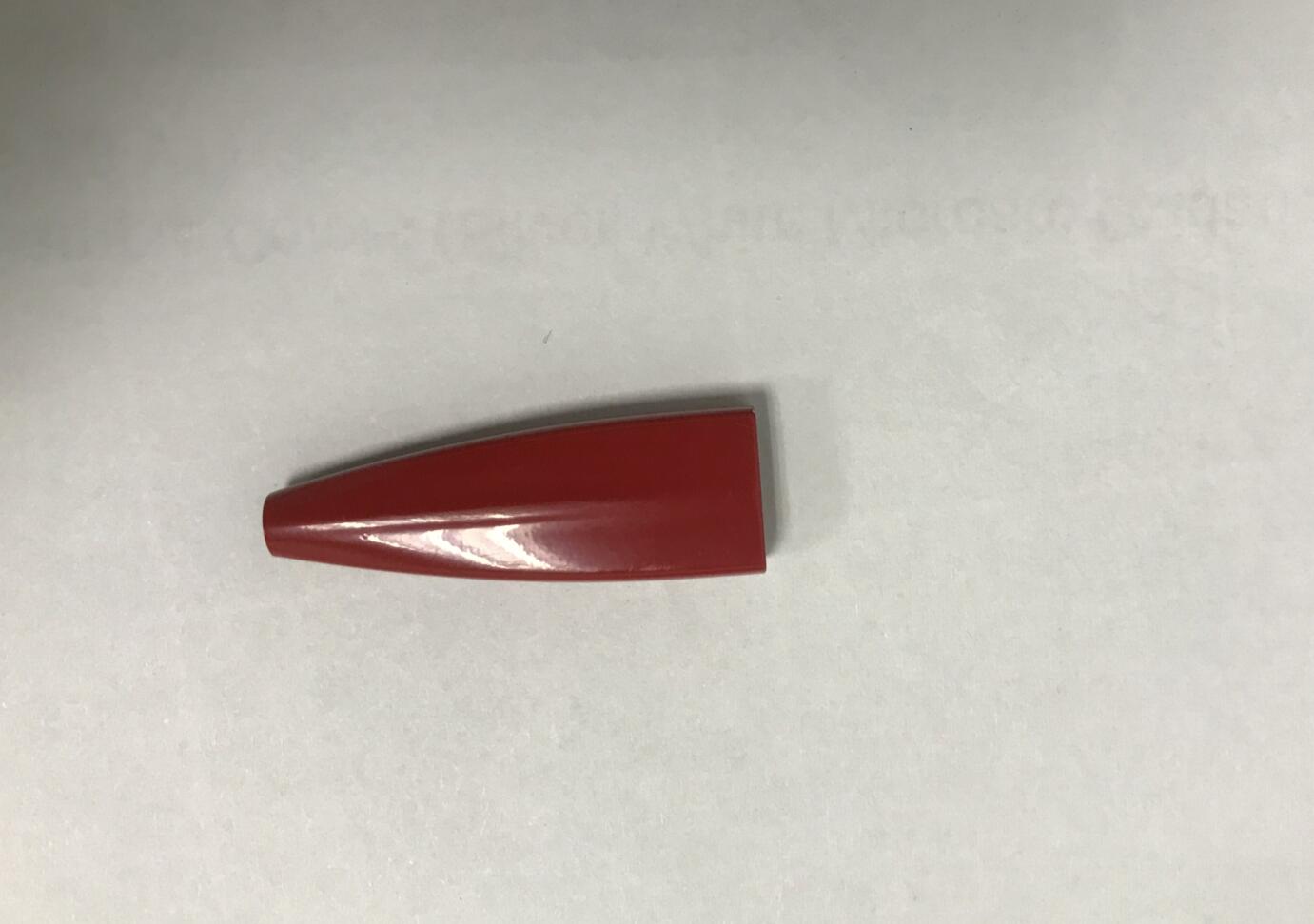

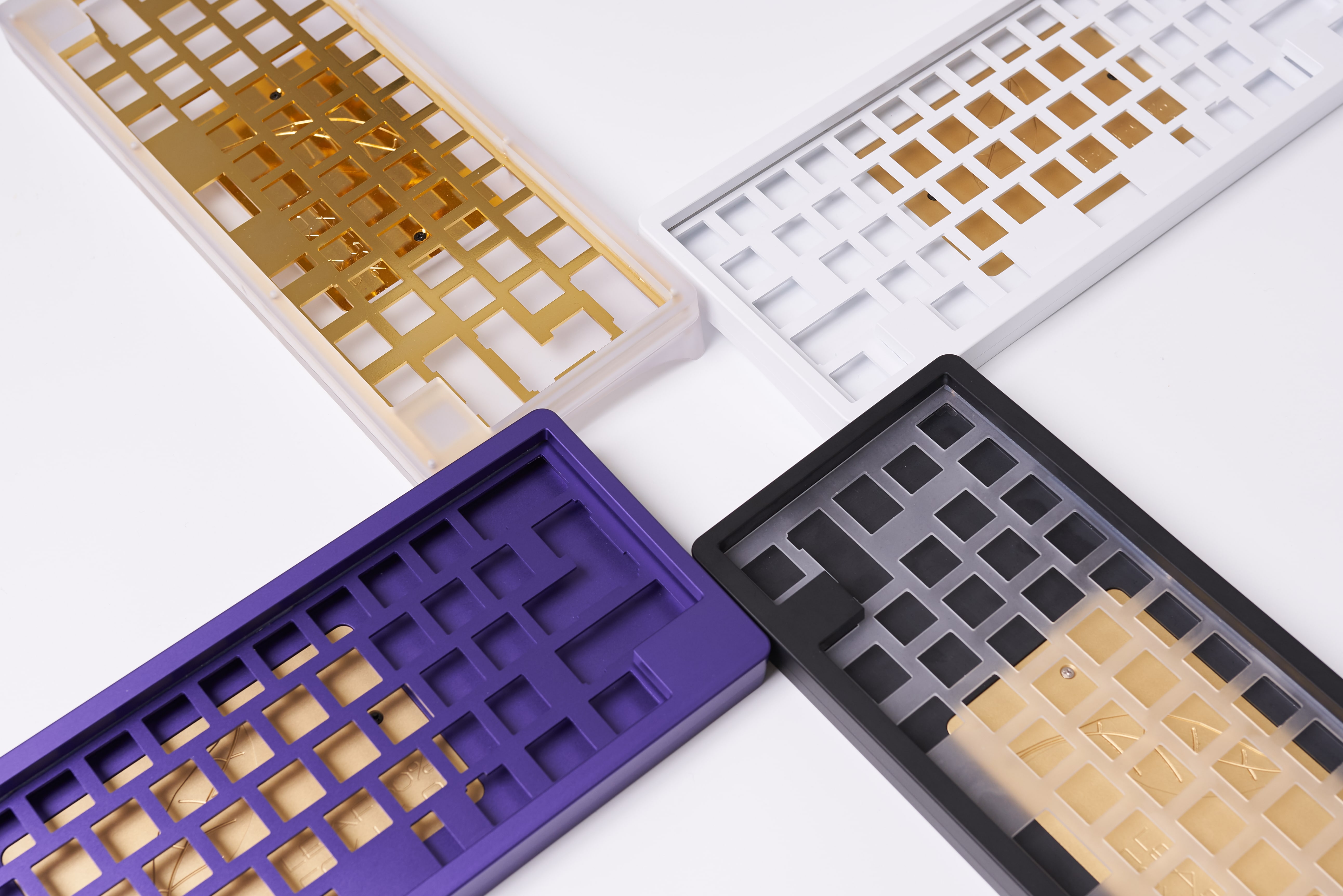

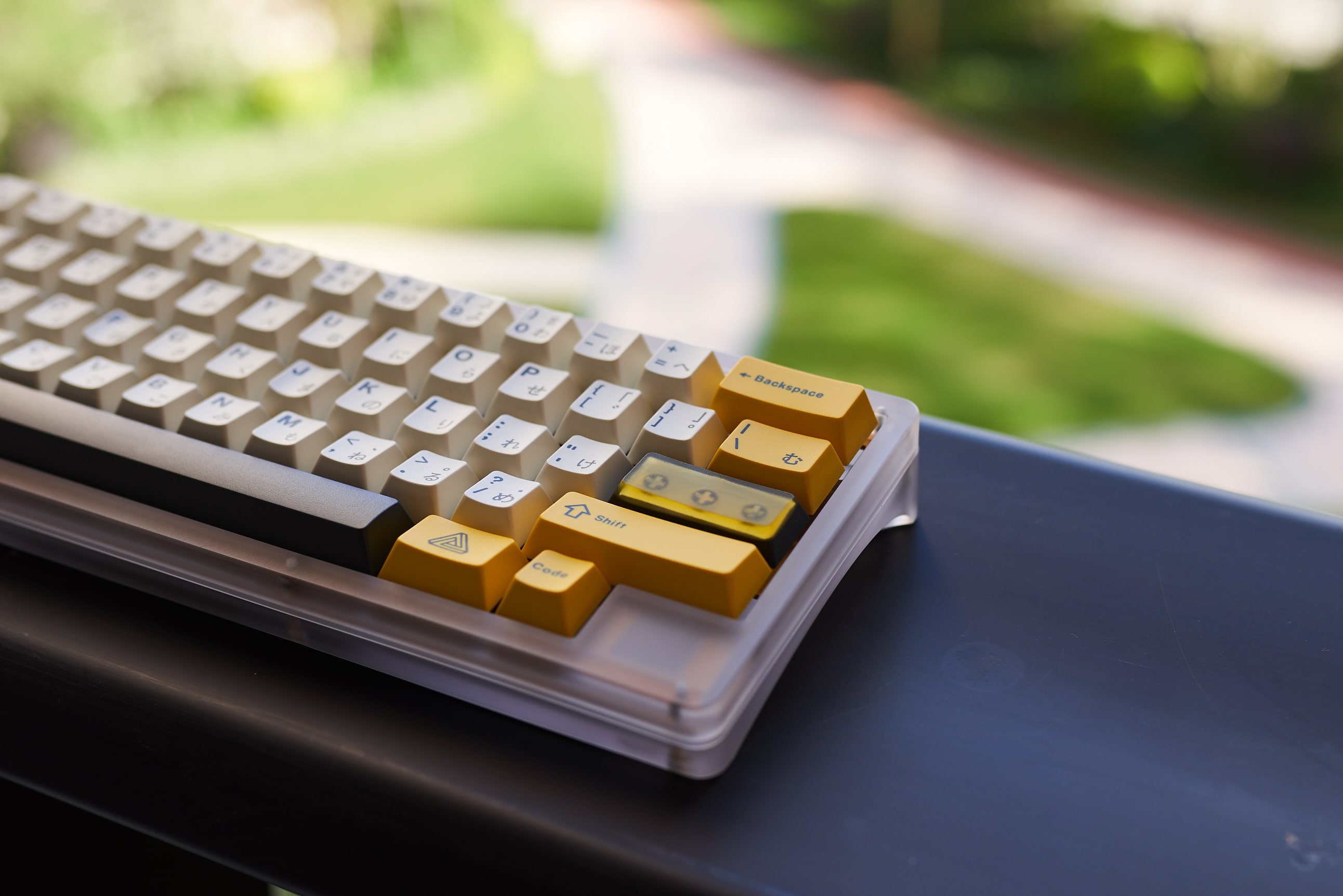

Color samples: Clear PC, Opaque black PC, purple, E-white, Yellow, E-black, E-red

For full brass PVD version: silver, gold, rose gold. A photo of one full brass Orange 75 for your reference.


PCB and Plate

PCB layout:

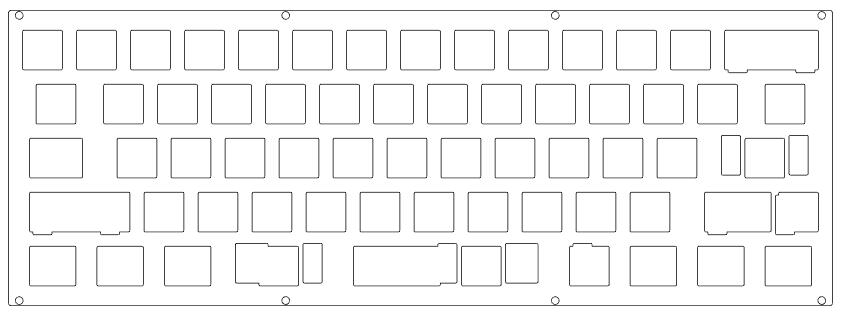

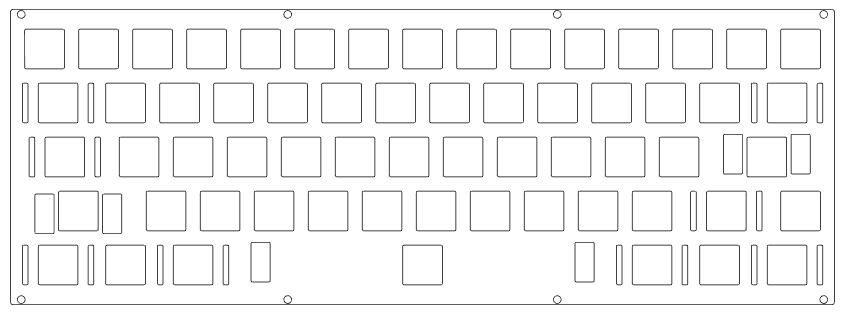

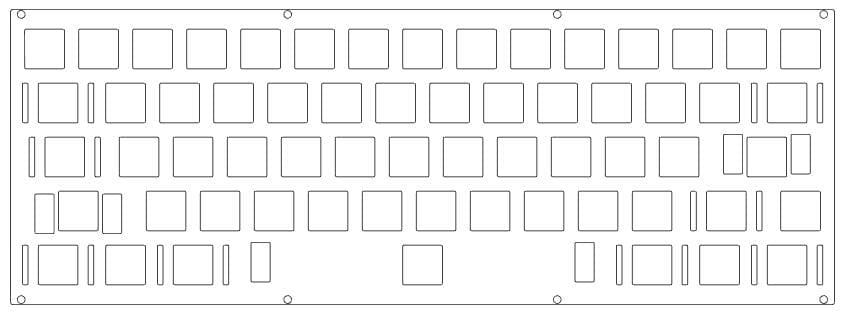

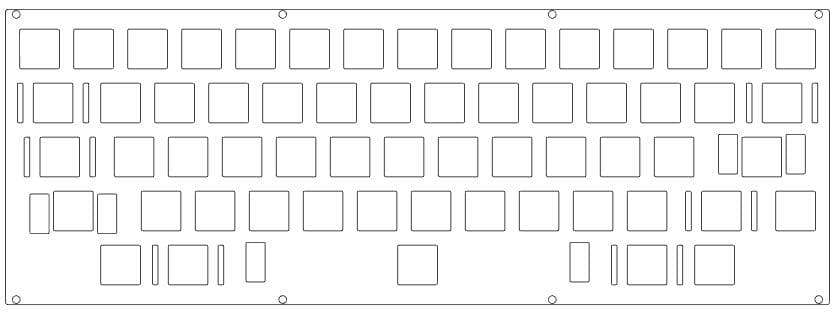

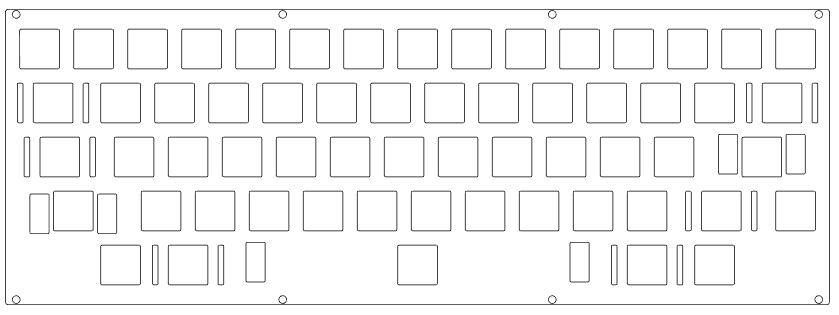

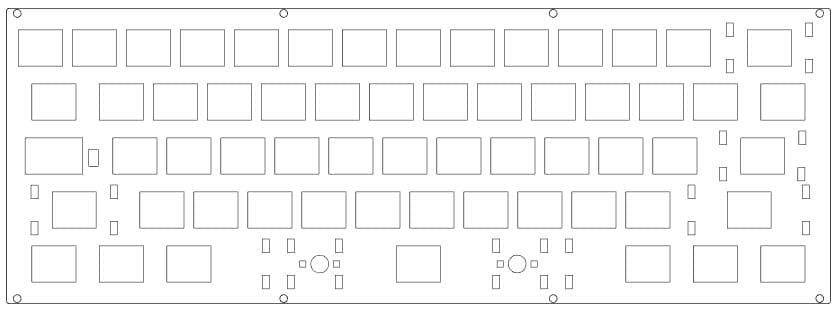

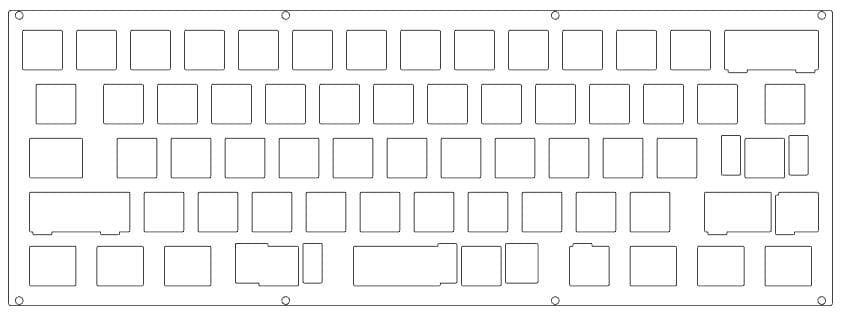

Plate layout:


Placing an Order

• Regular kits: $275
• Extra PCB: $37
• Extra aluminum/PC plate: $25
• Upgrade to / extra sandblasted brass weight: $45 / $56
• Upgrade to / extra sandblasted brass plate: $37 / $45
• Gold PVD finish for plate or weight: $12 (silver and rose gold are not available)
• Full brass PVD kit: $560
• PayPal transaction fee: 5%
• The estimated shipping fee for a regular kit is $40. You'll be inviced again before shipping.

Timeline:

• GB opens for one week.
• Expected shipping date is in April. CNY and other holiday have been considered.

Terms

We'll do our best to do QC but we cannot guarantee every board is 100% perfect.
If there are blemishes, depending on the condition of the boards, possible solutions include replacement, return item chargeback, and partial refunds.


Update:

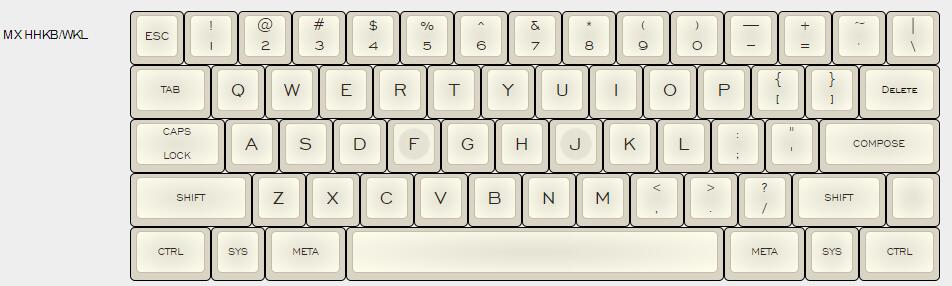

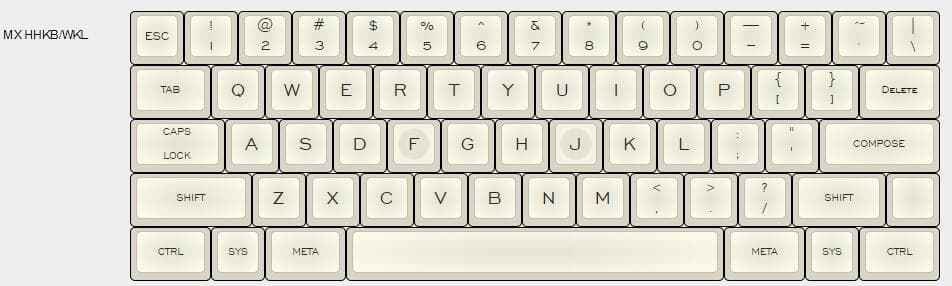

As so many people asked, dedicated WKL plate can be available, but only in black/clear PC.
You can write a note in the last question in the order form and tell me to replace the PC layout to dedicated WKL.

The current "WKL" plate is meant to be used for the hotswap PCB.

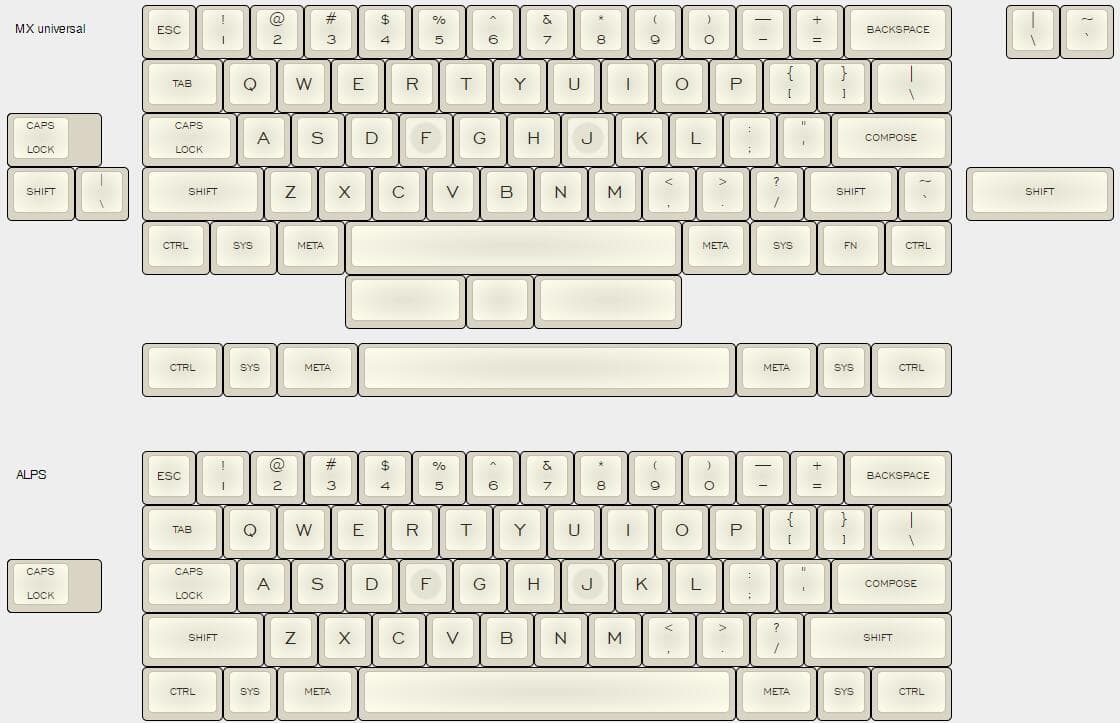

The universal plate is a must-have.
The dedicated HHKB plate is requested in the IC.

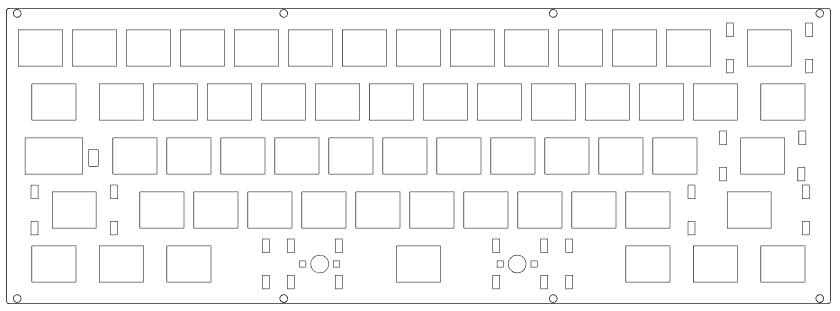

The ALPS plate is also a must-have.
There's no one that I want to delete, so I make compromise and provide 5th option in PC material only.

I can not provide any more options guys LOL


Update on 01/23:

stop accepting orders.
Deadline for payment is 01/25 everywhere in the world.



QMK Configurator:

• https://config.qmk.fm/#/foxlab/leaf60/hotswap/LAYOUT_60_tsangan_hhkb
• https://config.qmk.fm/#/foxlab/leaf60/universal/LAYOUT_all

Big thanks for MechMerlin's help!
