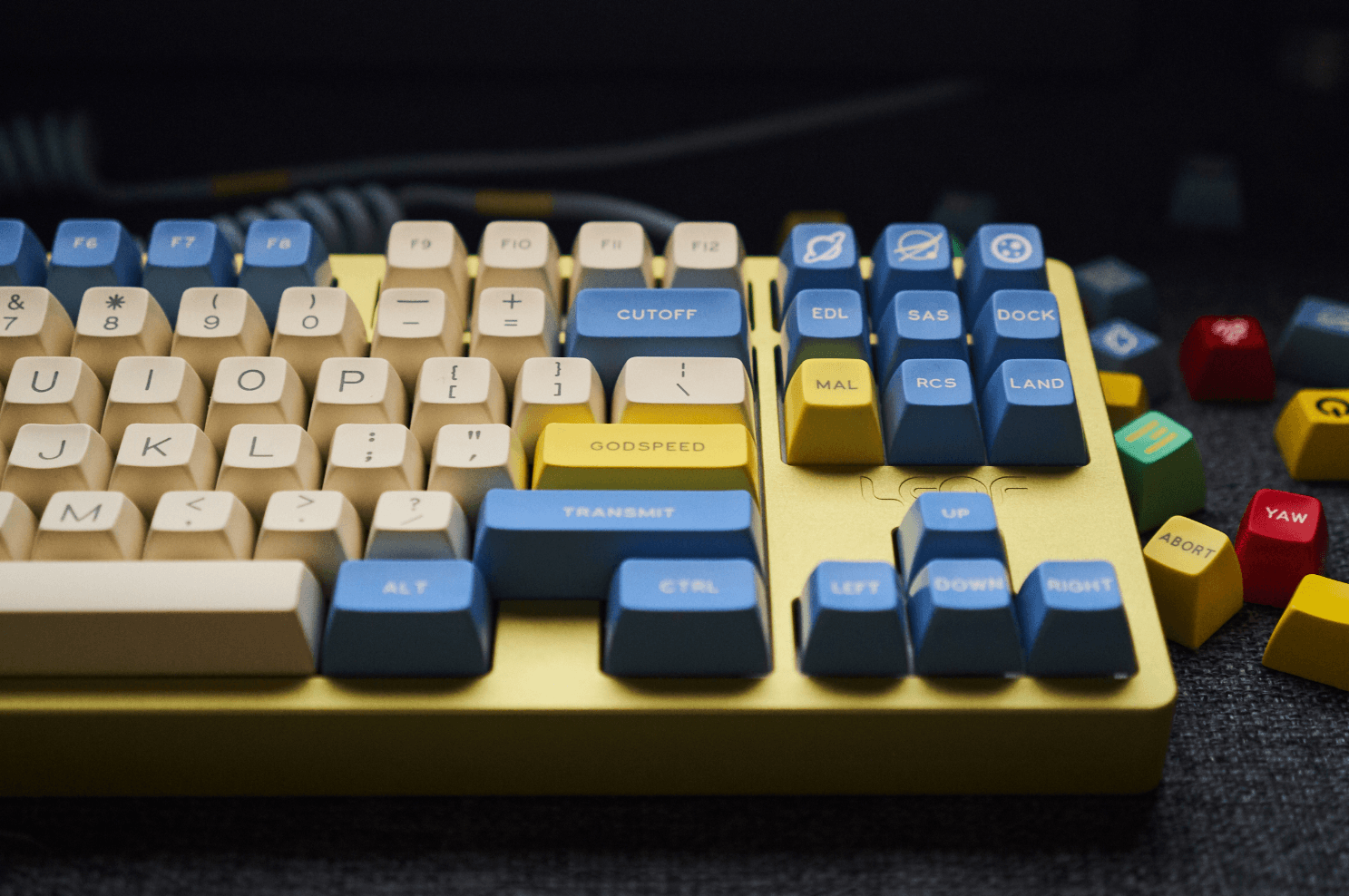

Fox Lab Leaf 80

IC: https://geekhack.org/index.php?topic=96716.0



Information:

• Default kit:

  • aluminu top and bottom cases

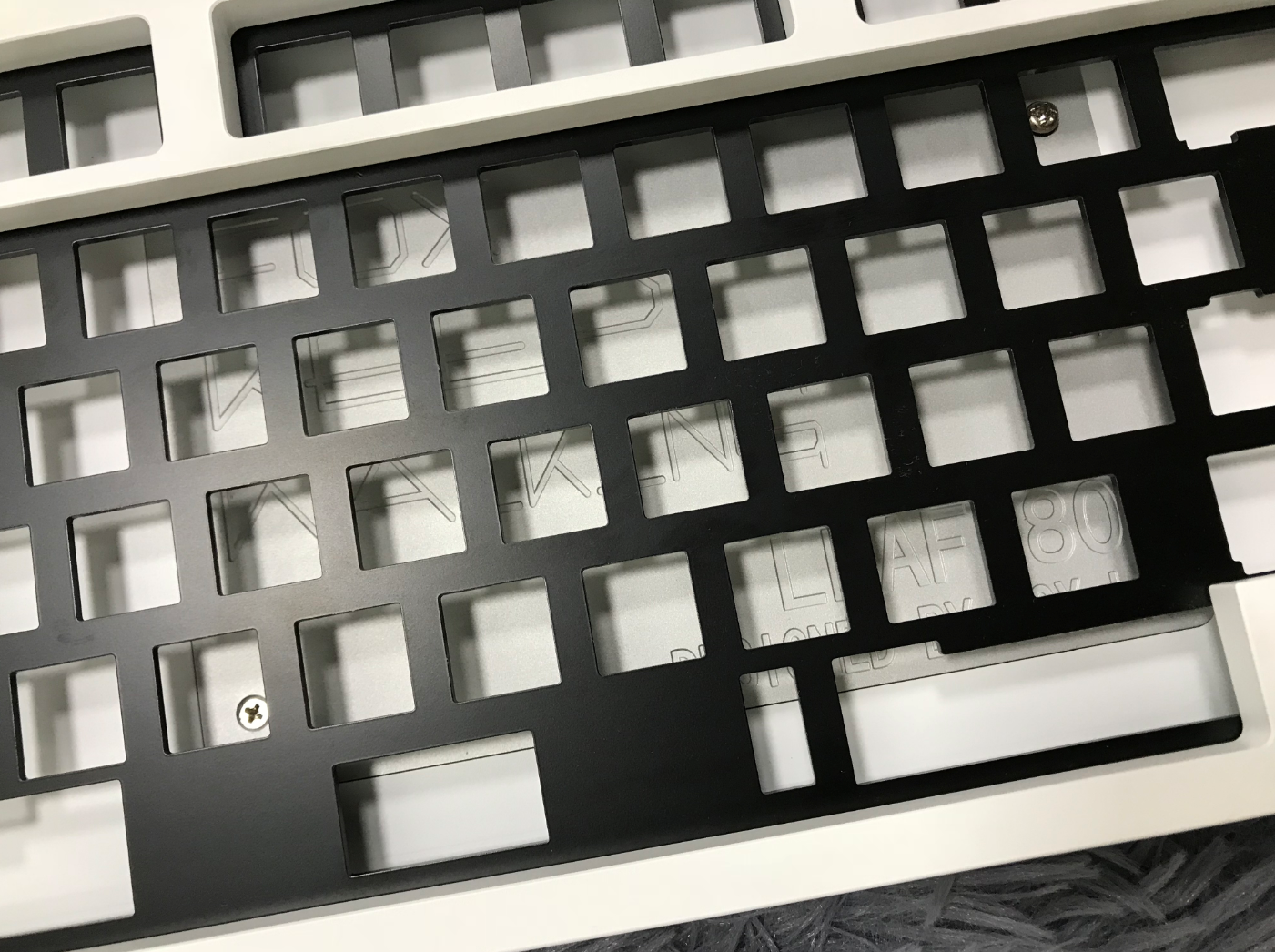

  • aluminum plate (MX or 1.2mm ALPS)
  • ATmega32A PCB with USB Mini

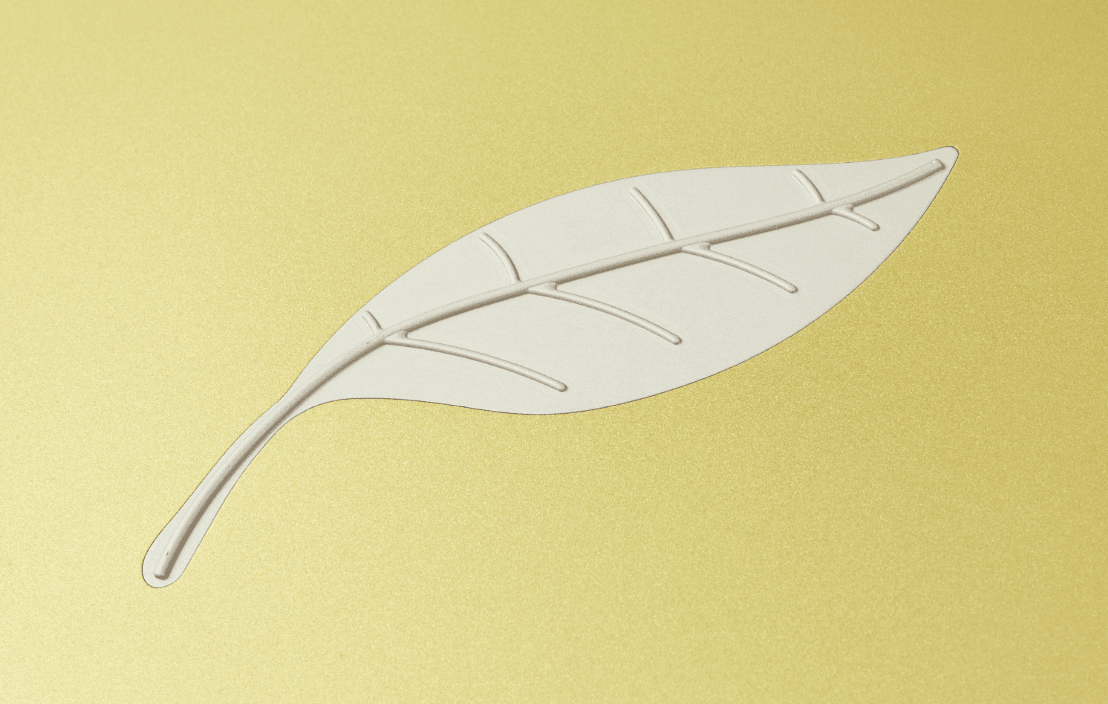

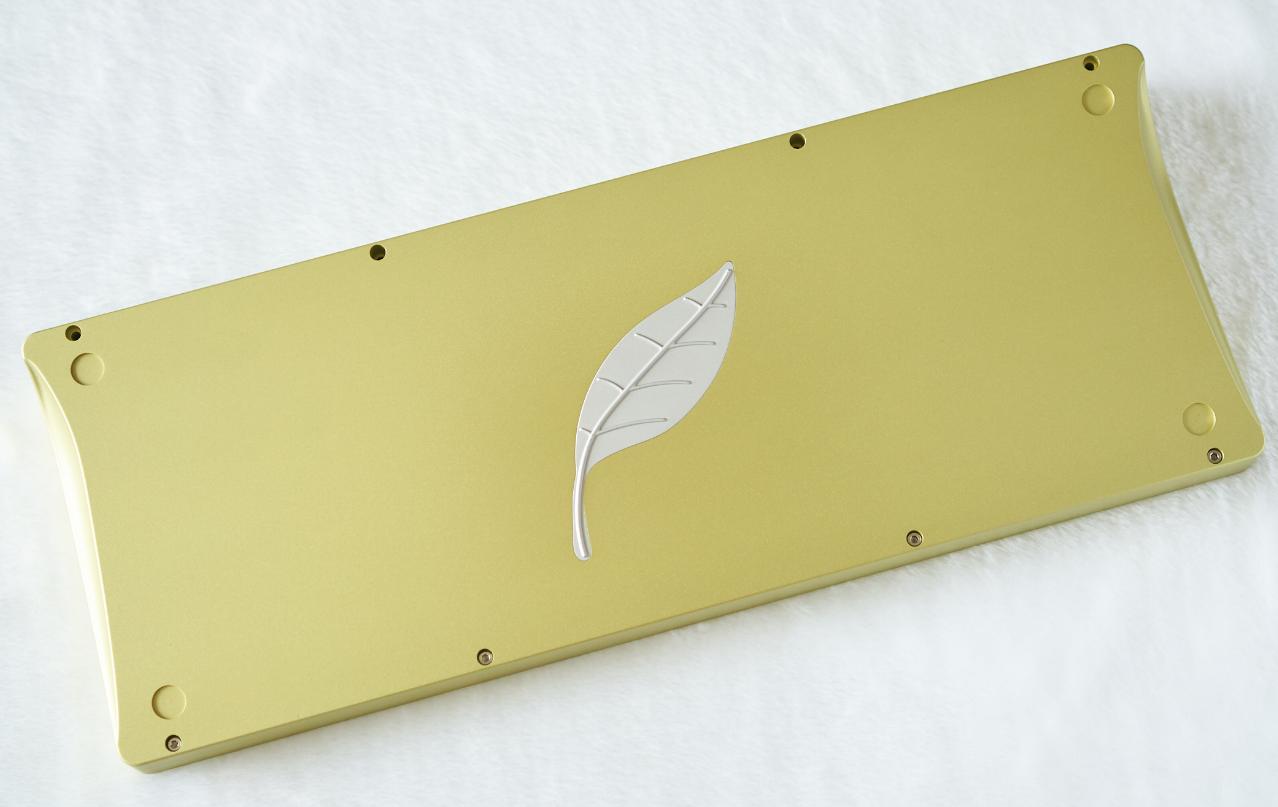

  • aluminum bottom leaf shape accessory
  • rubber feet and screws
• Price for default kit: $320 without shipping
• 2kg with aluminum bottom accessory or 2.8 kg with brass weight
• 19mm front
• 5.5 degree angle
• Case layout: standard, WKL
• PCB layout:

  • MX switches: ANSI and ISO for both WK and WKL
  • ALPS switches: ANSI WKL, staggered capslock

Colors

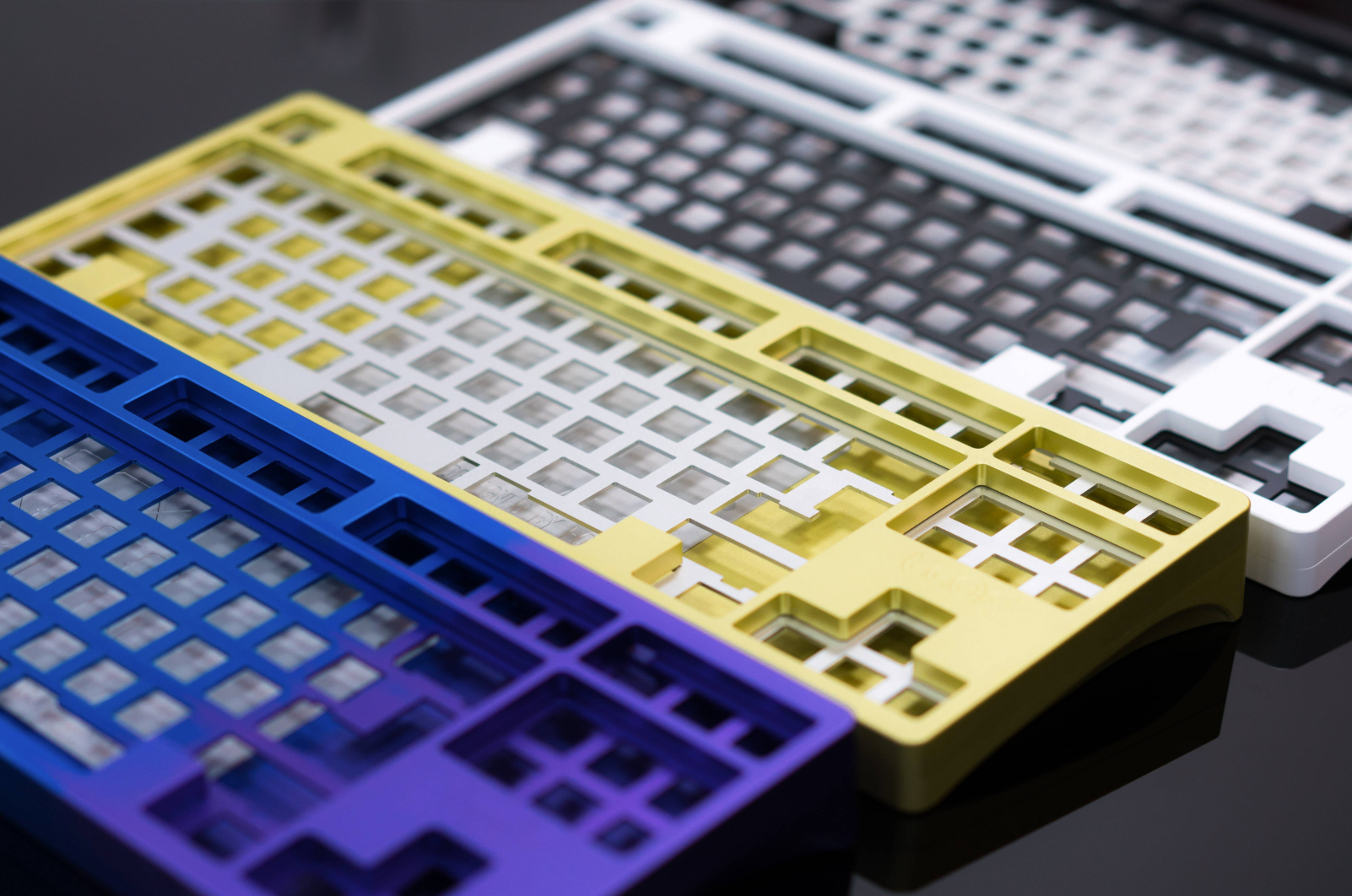

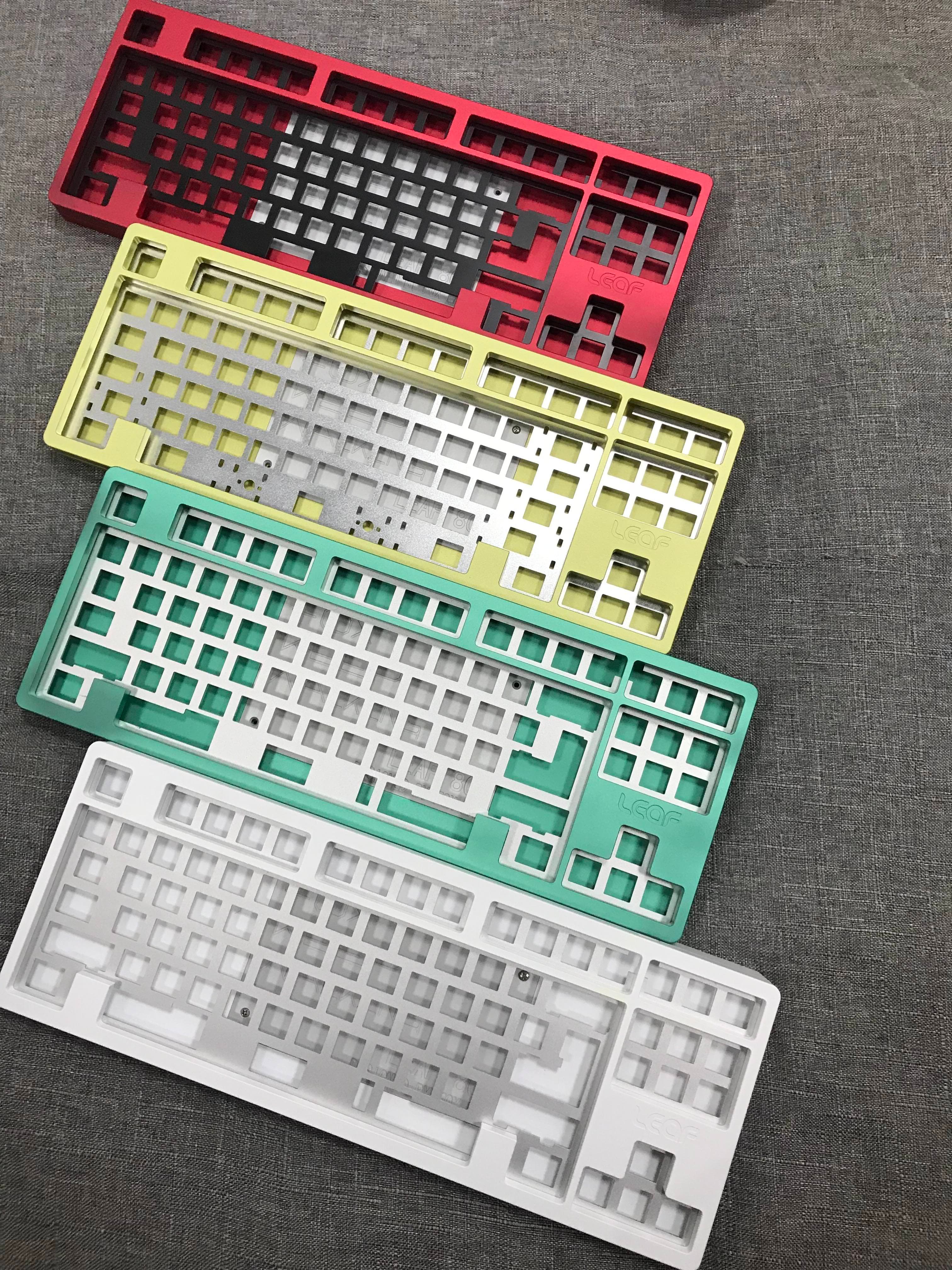

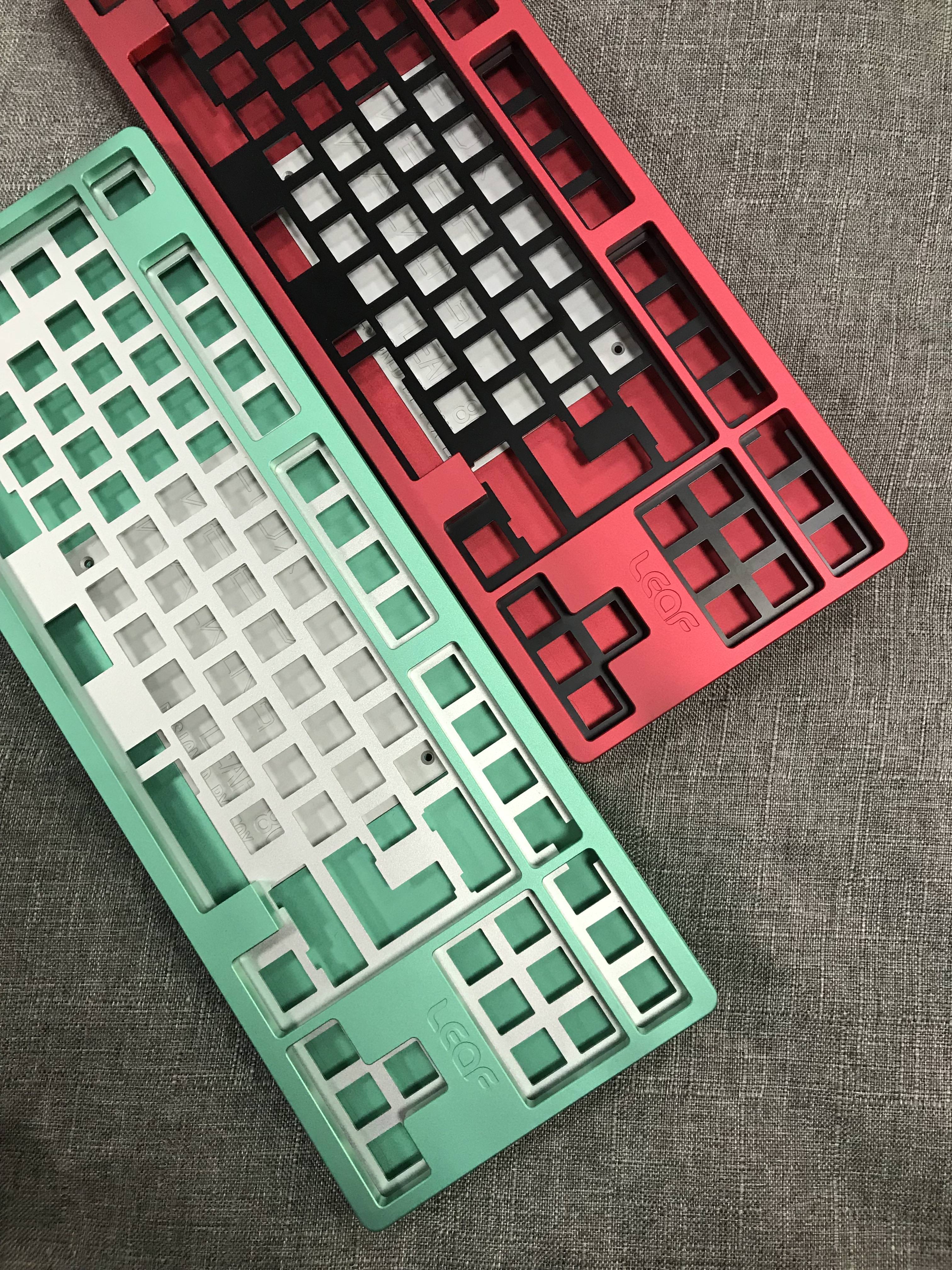

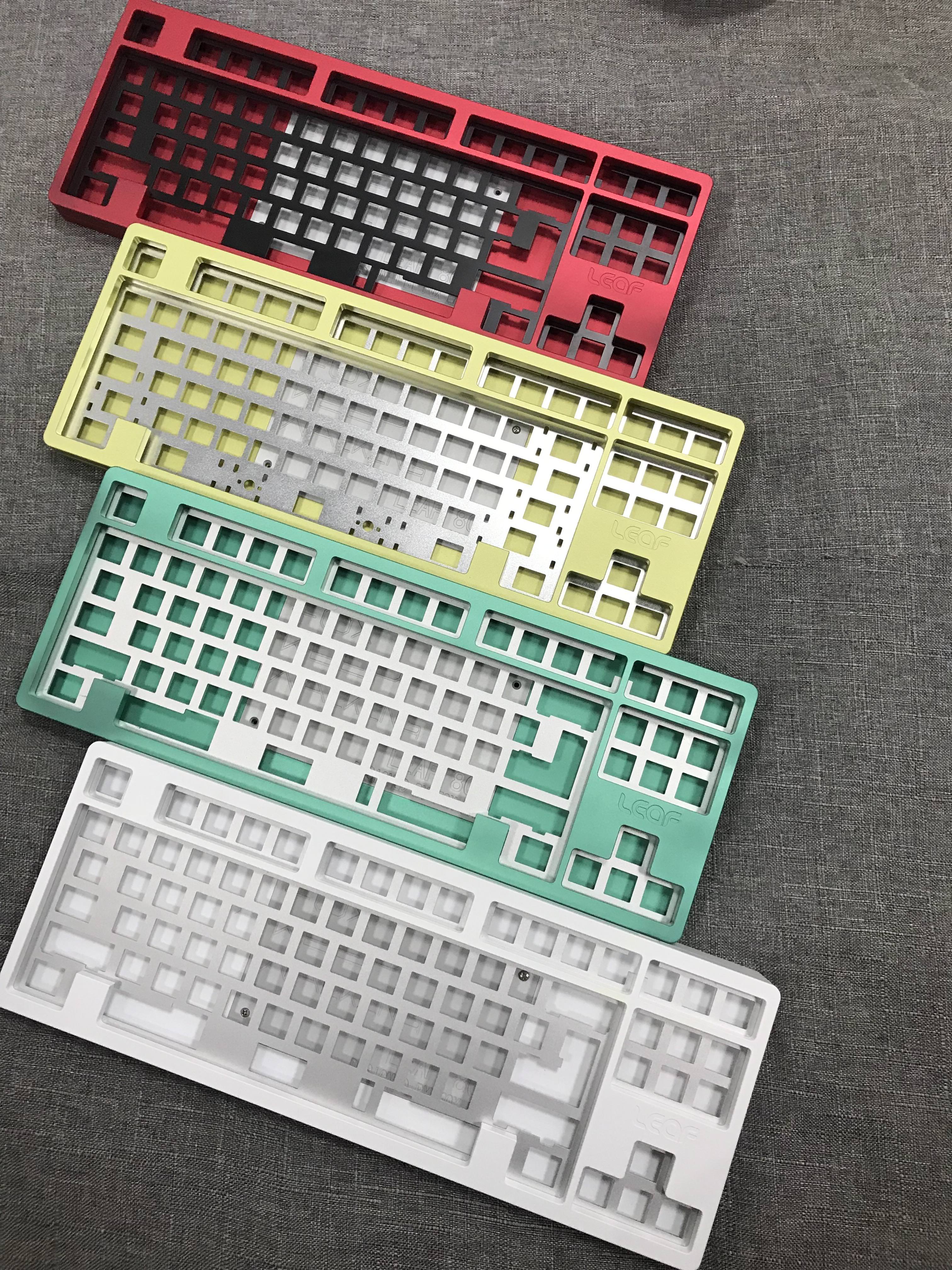

Case colors:

• E-coating black *
• E-coating white *
• MAO white
• Anodizing yellow
• Anodizing red

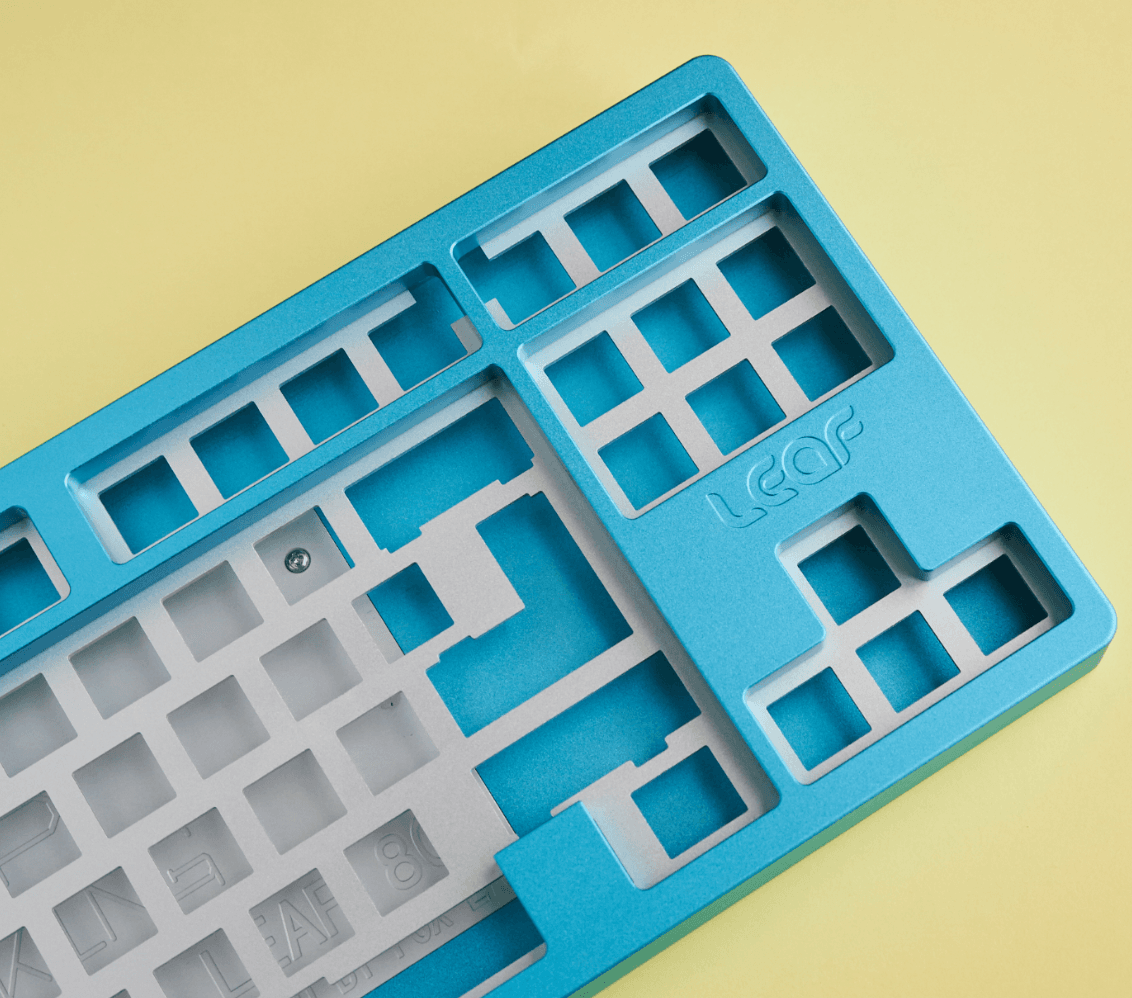

• Anodizing blue
• Anodizing green

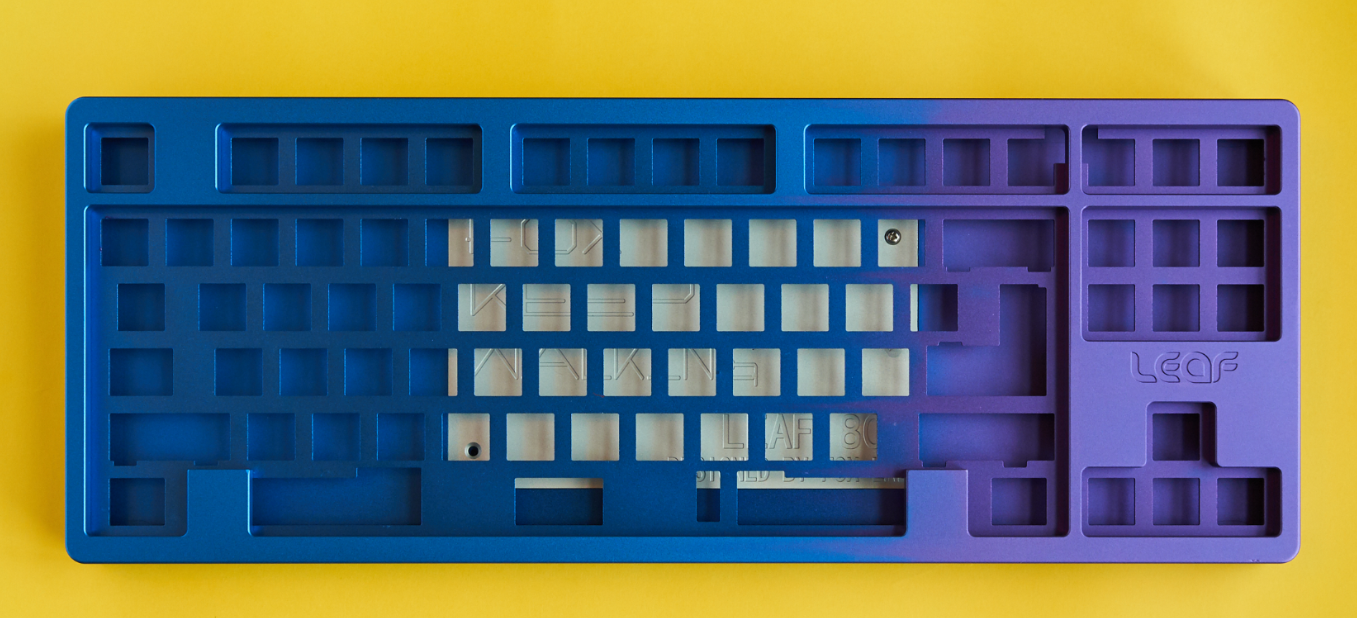

• Blue=>purple gradient anodizing **

0. Brass: only available for plate and weight. Brass parts will be polished or sand-blasted.

* Electrophoretic coating (e-coating) is technically similar to powder coating but way smoother, even smoother than most anodizing. The black and white e-coating are both matte colors.
** Gradient anodizing: blue on left and purple on the right side. The proportion of two colors will be 5:5 to 7:3. The separation line of top and bottom housings won't be exactly the same.












- GB link on zFrontier: kit, extra parts
- GB opens until 08/25 Eastern Time (ET)
- Expected shipping date: November 2018


Update: As several people asked, I decided to make a small batch of leaf 80 without the "leaf" engraving on the top case. Please PM me with your order # and screenshot if you want to remove the engraving. [/list]
