Welcome to Fusion60 Group Buy.
Fusion60 inspired by 2 of the most well known keyboard case, Fjell and Kira. Design by Vulcan and manufactured by Kbdfans It features a heavy 2.5kg modern 8 degree case, with thick bevels builds from solid aluminum and brass block that are CNC Machined to maintain precision in quality.
F60 comes with a custom made PCB that can form side glow light effect that bleeds from the signature geometrical side cut out. Although it comes with a custom PCB, F60 also supports universal 60% PCB such as DZ60, 6X, Zeal and many more.
Specifications ;
- 60% (Standard, Winkeyless, HHKB)
- High Profile
- Top Mount
- 8 Degree Angle
- Case Material: Aluminium
- Weight Material: Brass
- Case Finish: Bead Blasted and Anodized
- Plate material: 1.5 mm Brass
- Supports most PCBs
- 2kg
Fusion60 kit Include :
- Aluminum Case
- Brass weight（Sandblasting）
- Brass plate（Sandblasting）
- PCB （QMK Firmware）
- Stabilizers (Cherry Stabilizers )
- Screws
Note :
If you are using the Fusion60 PCB and want to have side glow effect you will need to do this :
- Carefully separate both sides LED PCB from the main PCB
- Solder 4 cable each side of the LED PCB to the main PCB
- Screw both LED PCB to the top case
The reason we do this is because we need to place the LED just a bit higher than the PCB and get it as close as possible to the side to get a bright bleeding effect.
We have already tried many methods but this one works best.
This LED assembly is a bit hard and takes trial and error.. I know it's not the best design, but it's the best i can do to keep the PCB key layout and the price low.
Time：
The starting time is January 12, 2019, 12:00am EST
End time is February 12, 2019, 12:00am EST
Because of the Chinese New Year, the Chinese factory is on a 20-day holiday. The order is expected to be shipped in May 2019.
This is the expected time, it could be earlier, it could be later,
Join us on discord
https://discord.gg/cDWnyJCase Color :

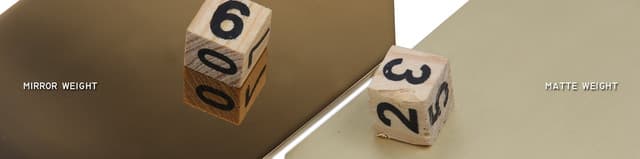

Weight Finish Option :

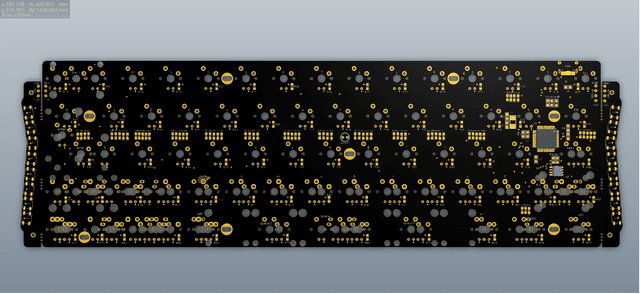

PCB :

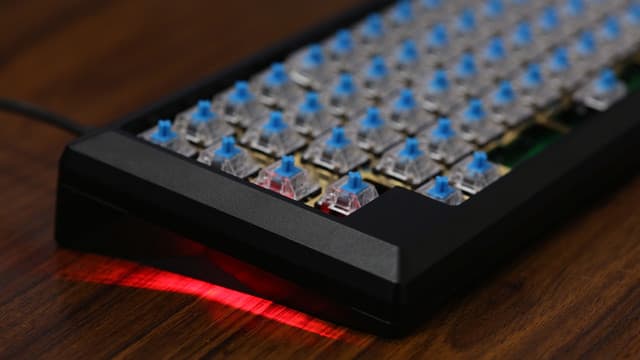

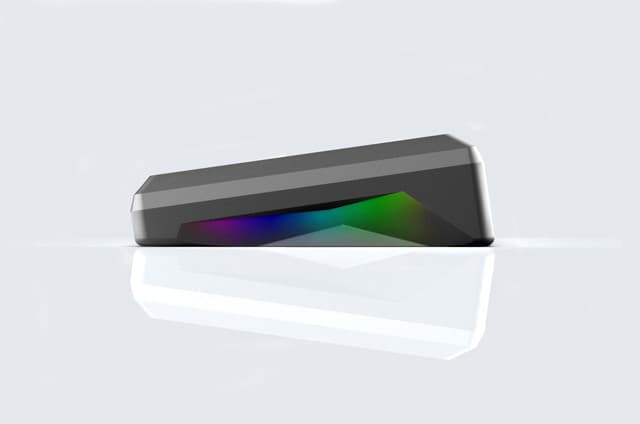

Side Glow :

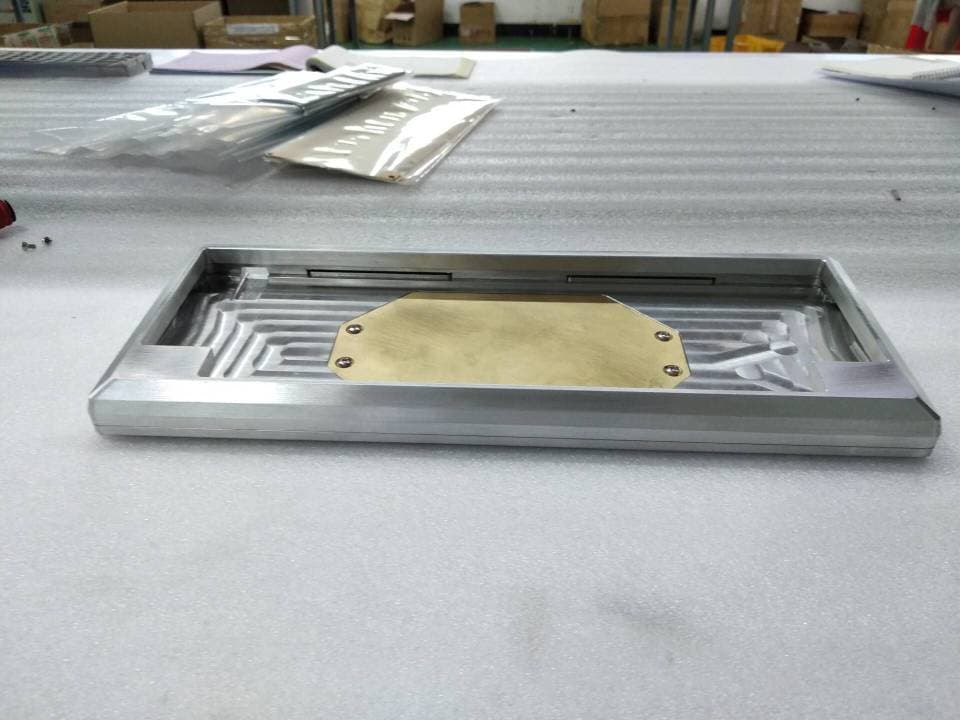

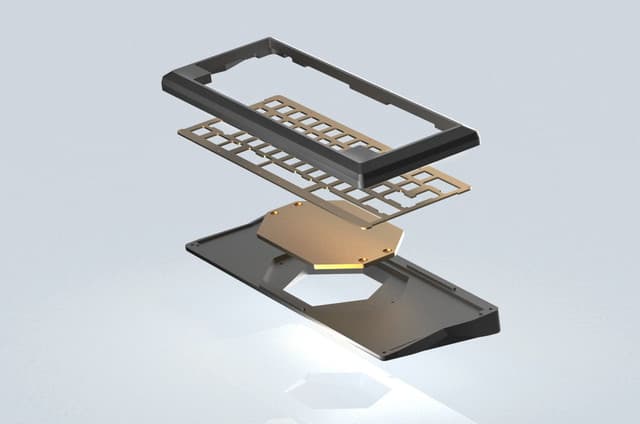

Inside View:

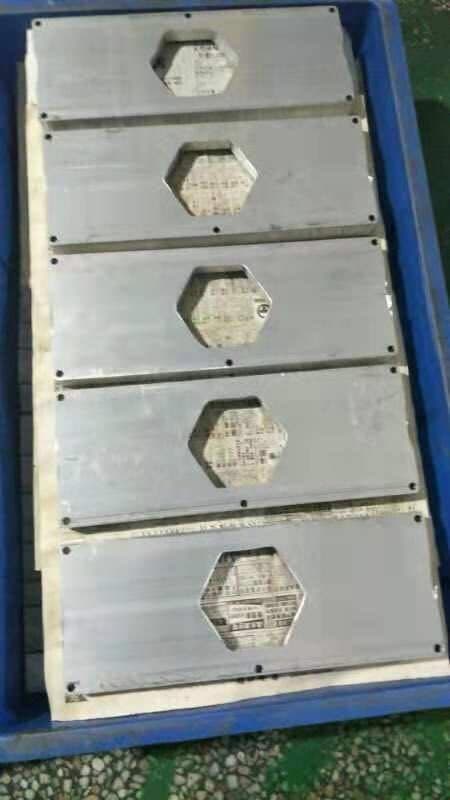

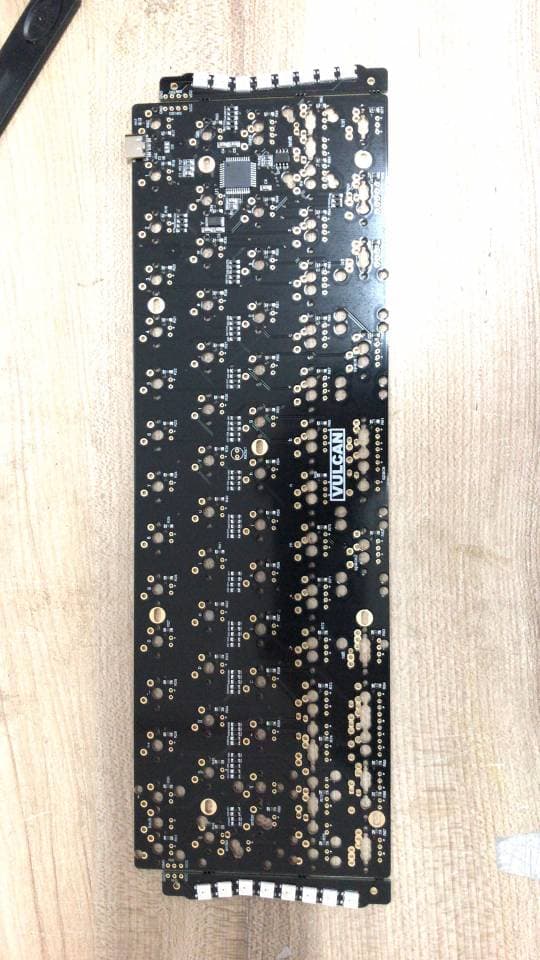

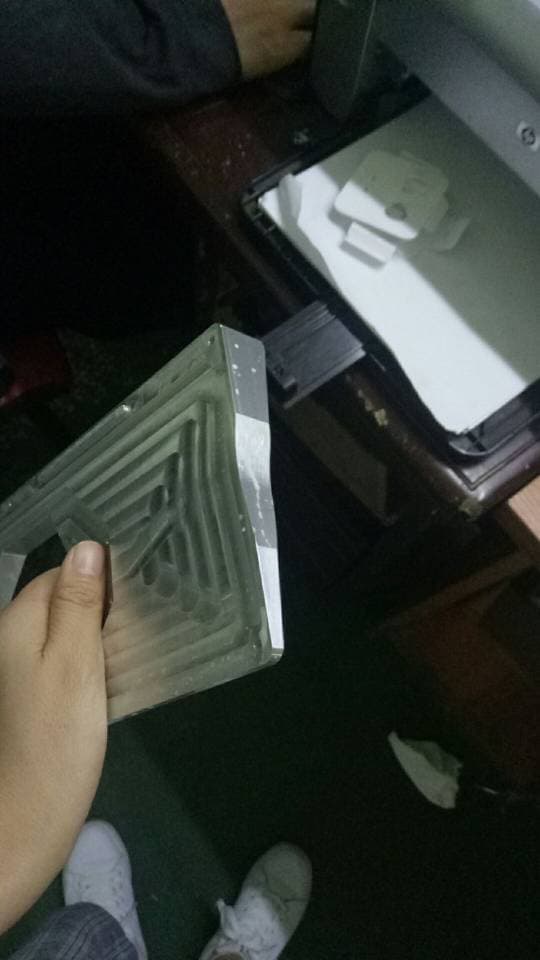

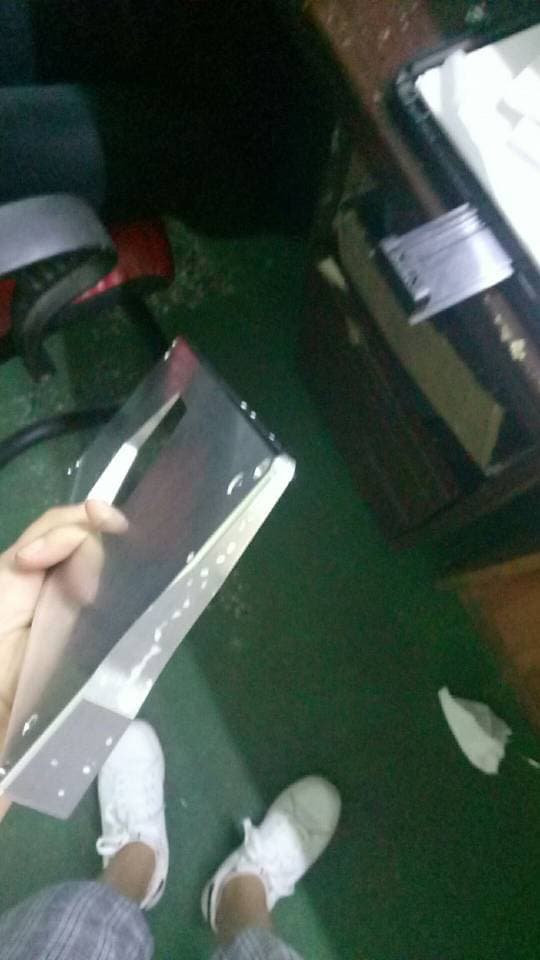

Real Prototype Photo :
PRICE :
$230 Include Shipping
PREORDER:
Click Here DXF PLATE FILE
https://drive.google.com/open?id=1YeNXacuwnlqMjsAz3Ur3o28WW7Gt015w
