Badge
On the right side of the kit is a badge with a height difference to highlight the sense of hierarchy, so that the front of the entire keyboard will not be too "flat". In order to interpret the minimalist theme of geometry, no fonts or content are designed.
Interior

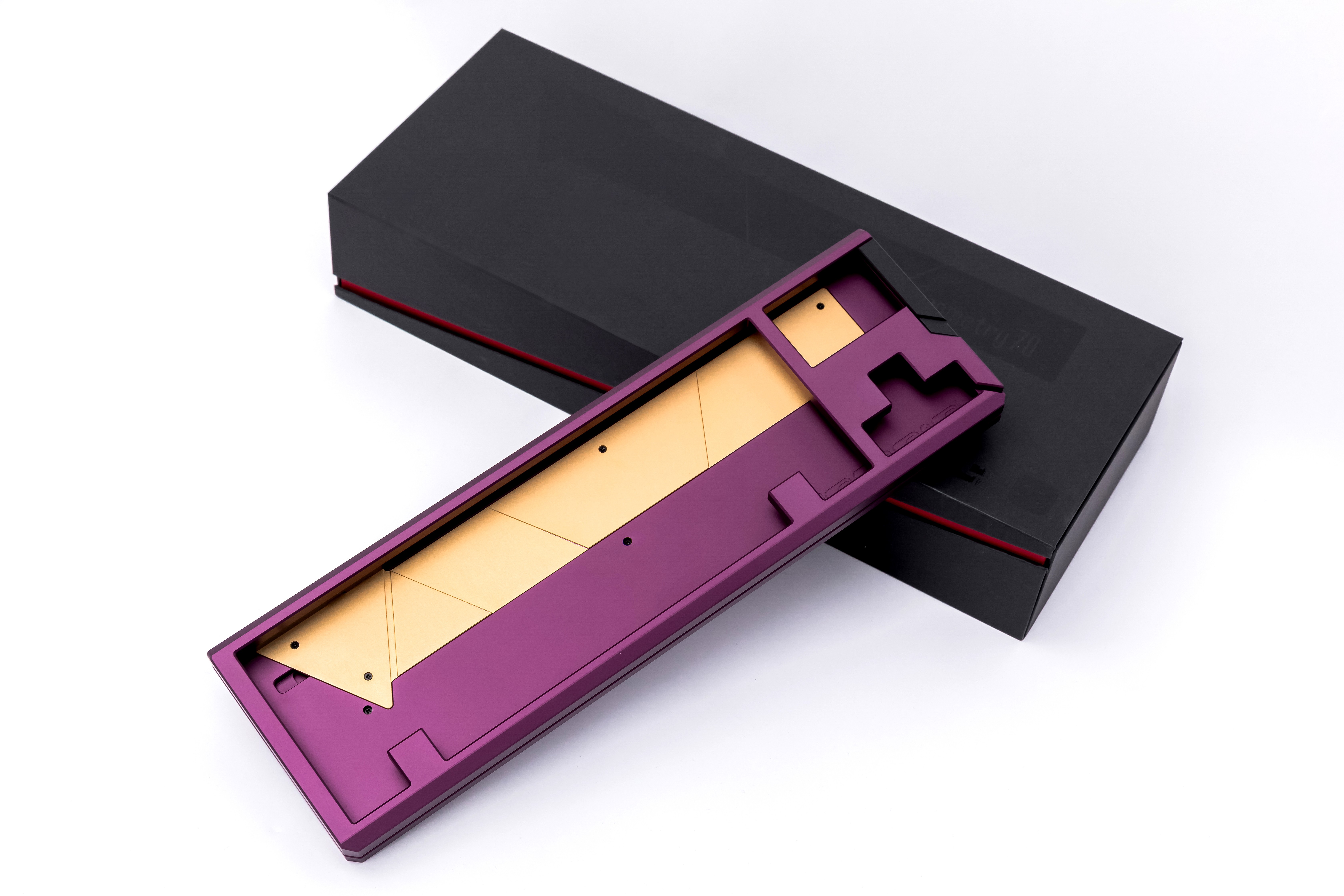

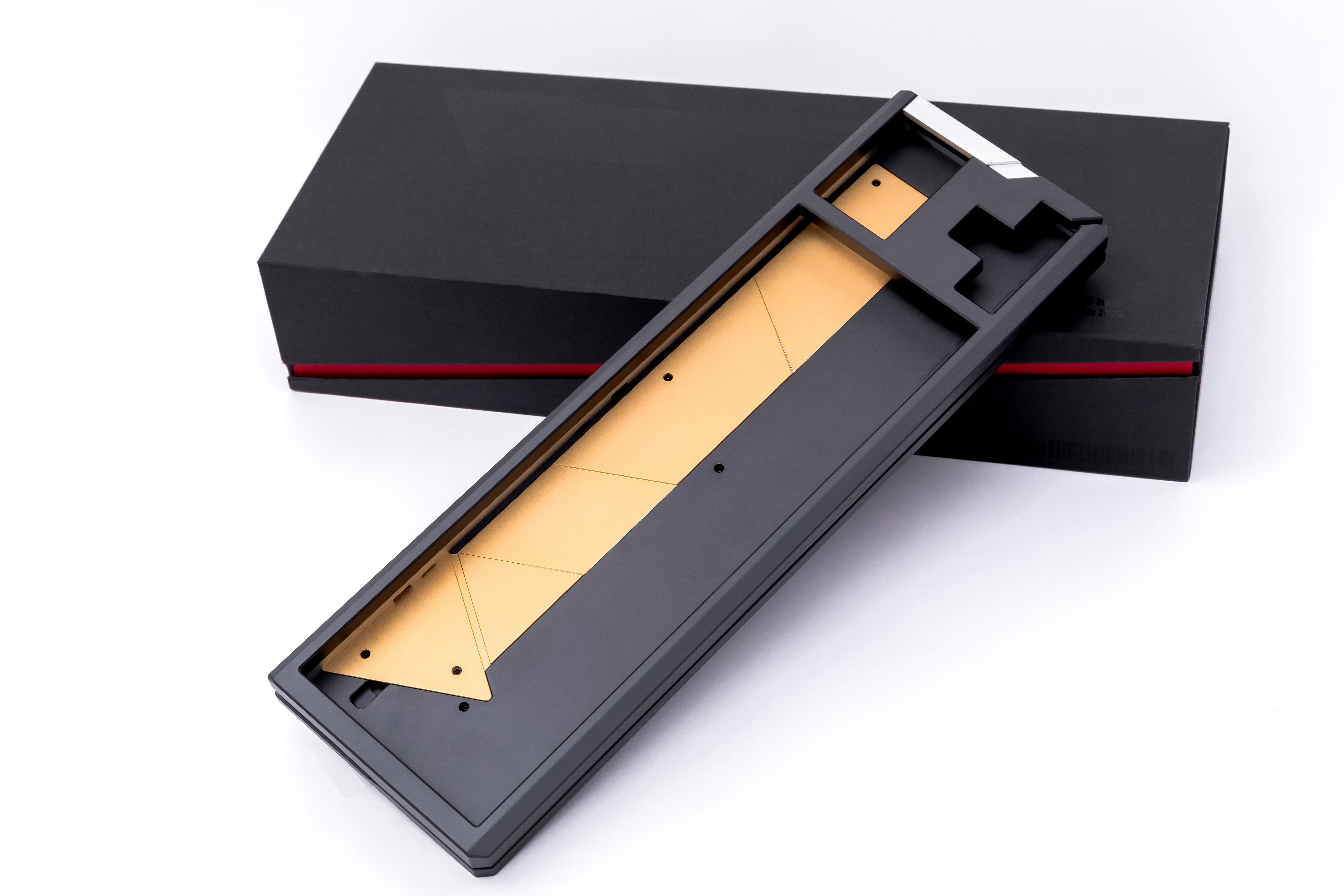

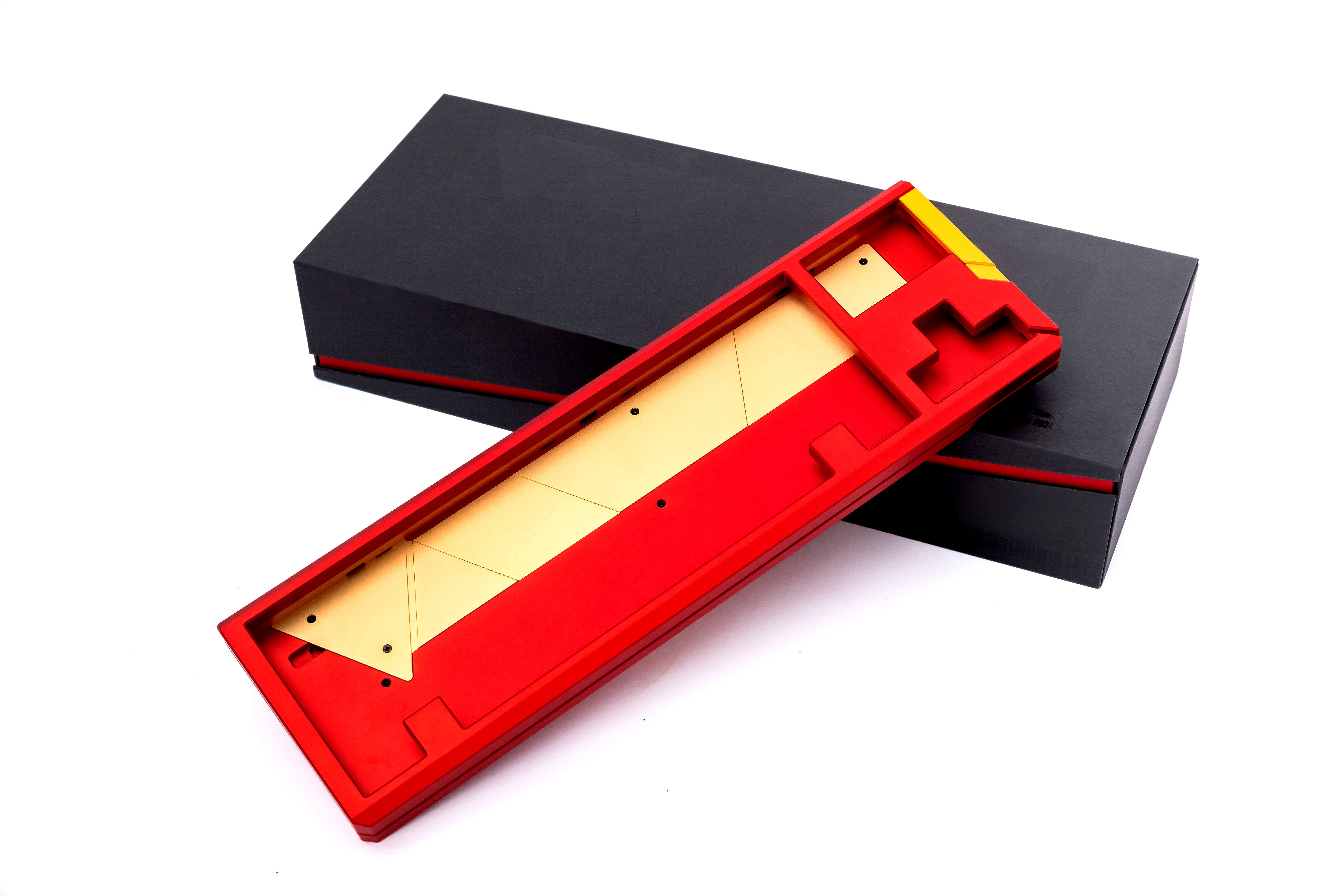

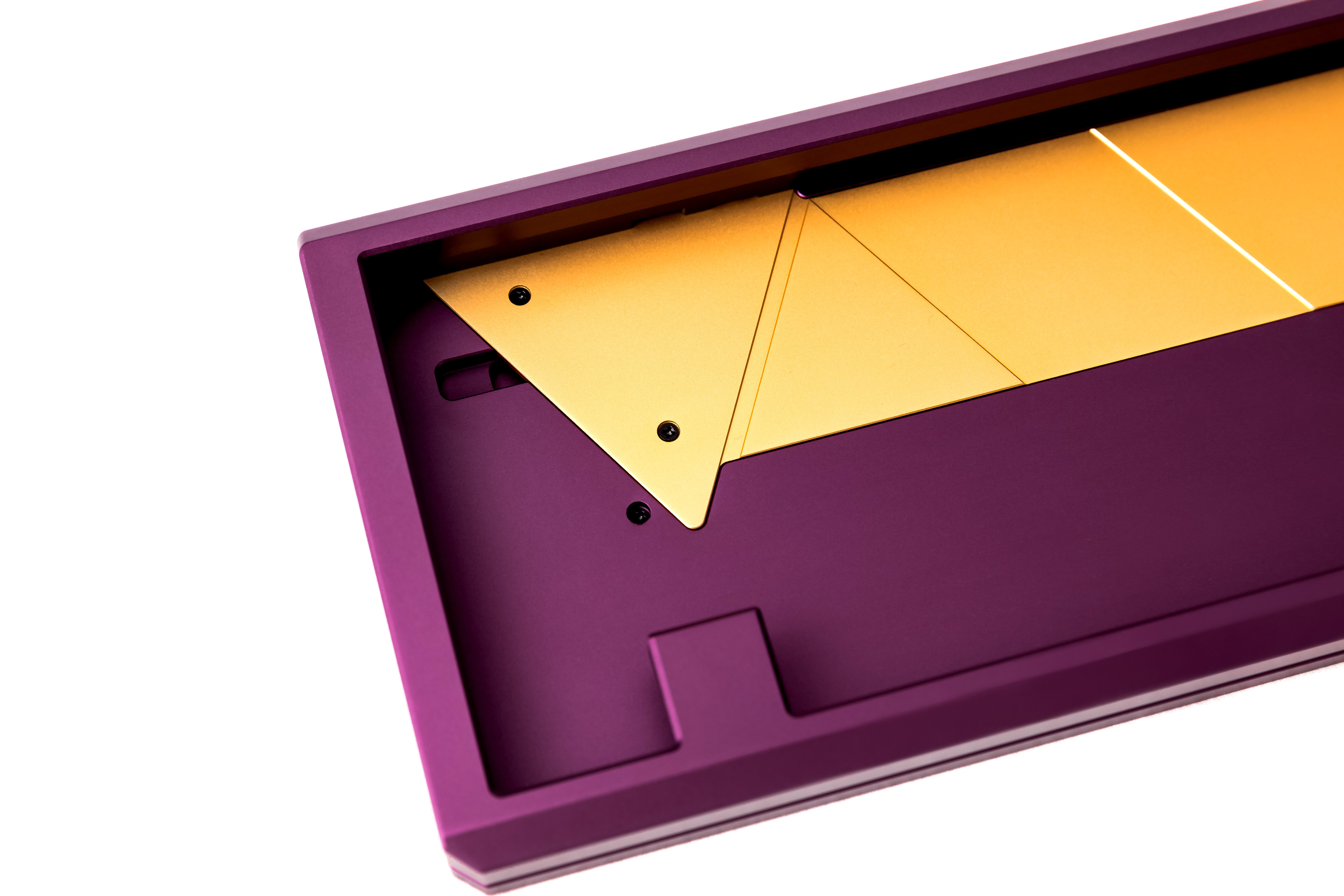

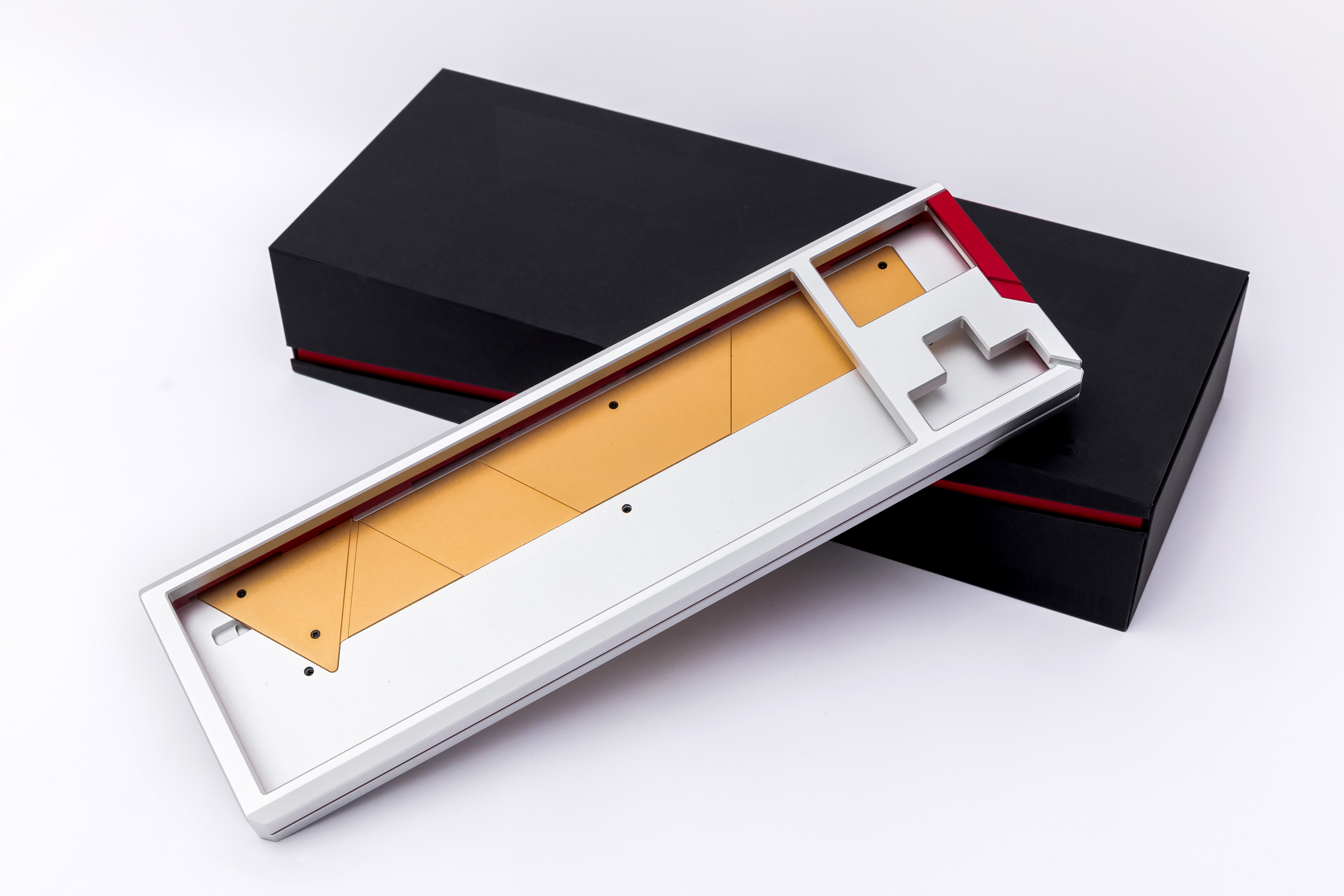

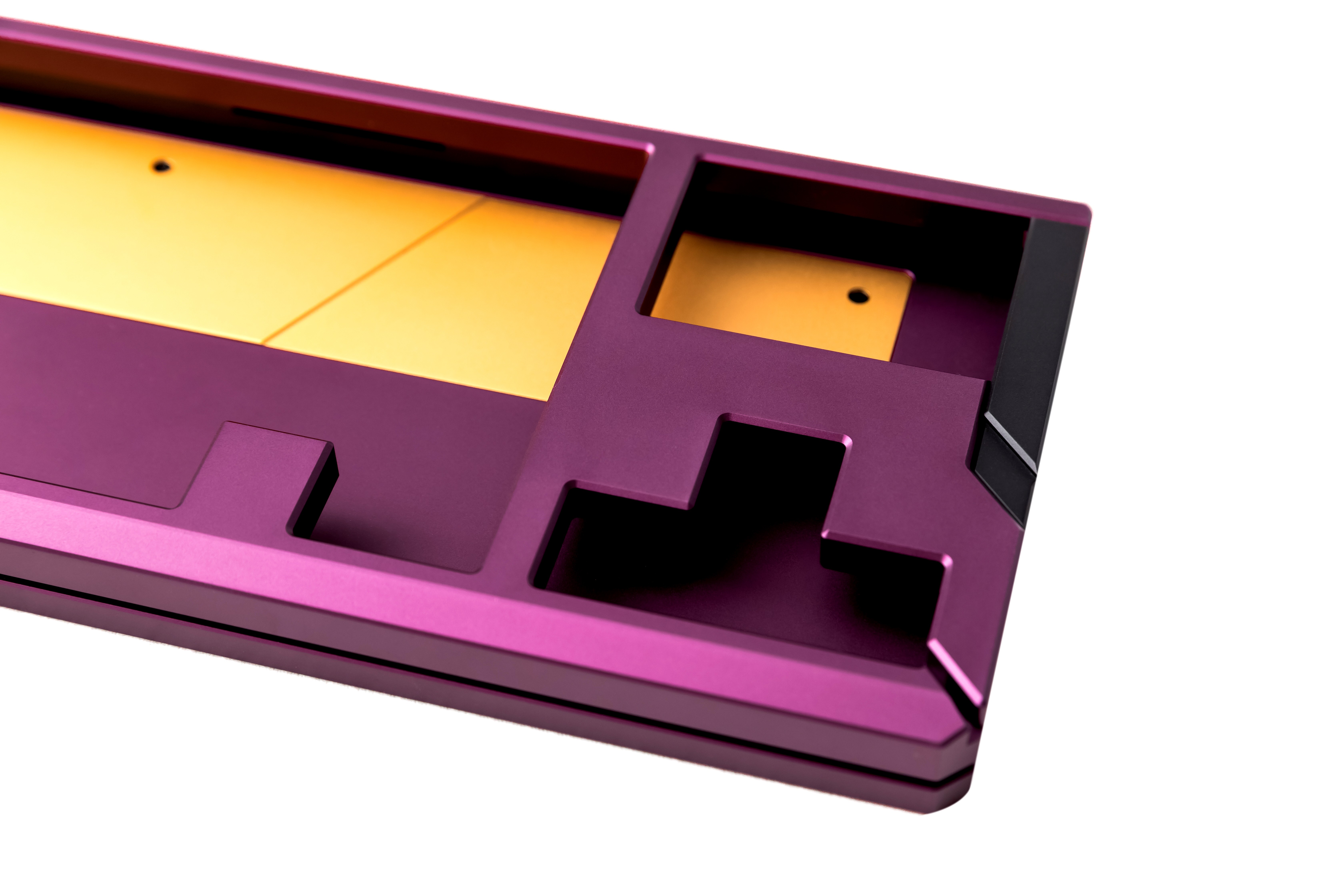

The interior of the kit uses a sandblasted brass cover to cover the battery and small board, making the interior more refreshing and simple. Several geometric figures are lightly outlined on the cover to fit the theme, making it more spacious and visually impactful.
Note: It is normal for unpolished brass to have surface oxidation after several months of use and is not covered by after-sales service.
Side

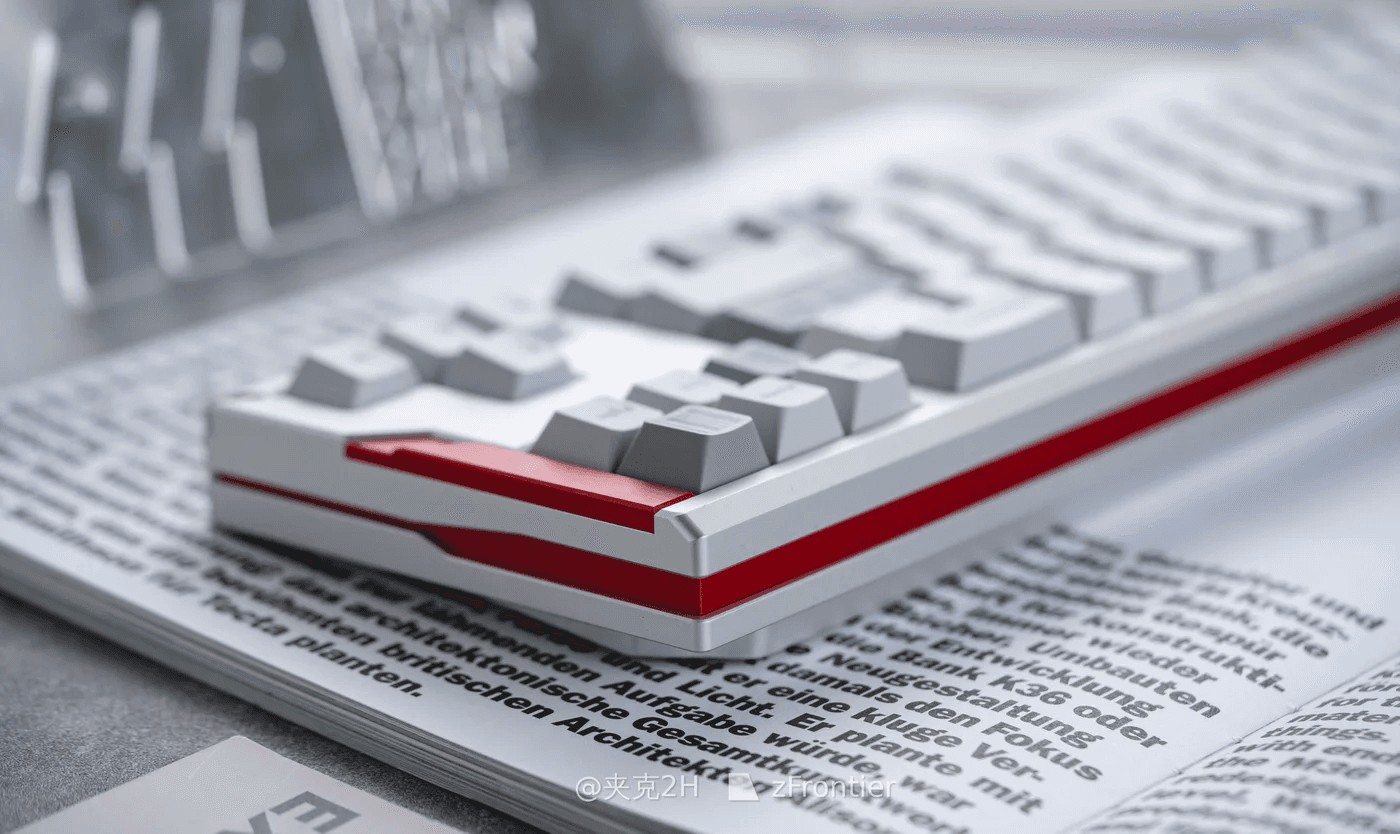

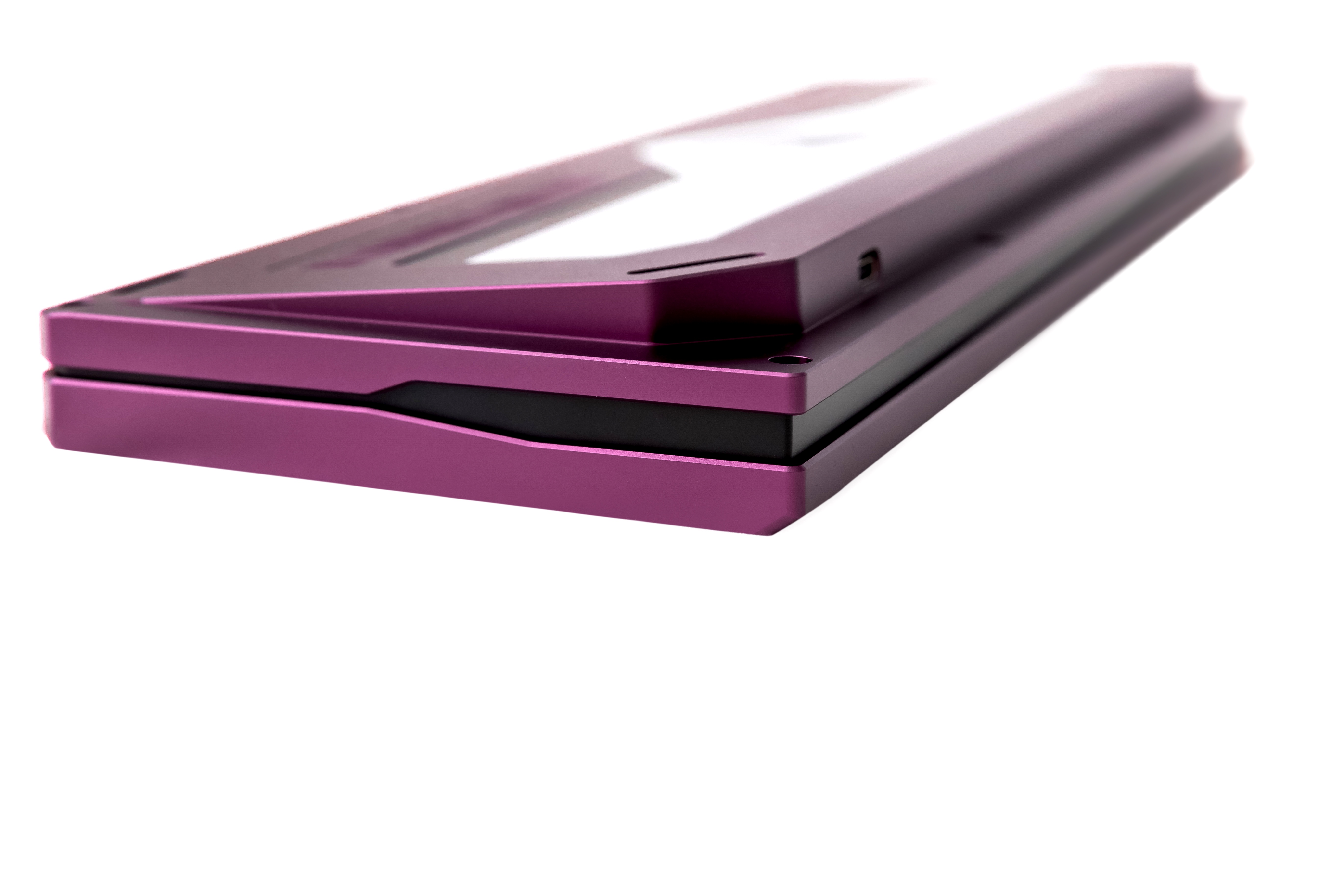

Because of the existence of the middle frame, after assembly, part of the middle frame will be exposed on the side, so the middle frame is designed to be the same color as the badge, so that the overall color of the kit will have a better sense of hierarchy, and the contrasting colors on the side will also enhance the appearance of the kit.
Weight

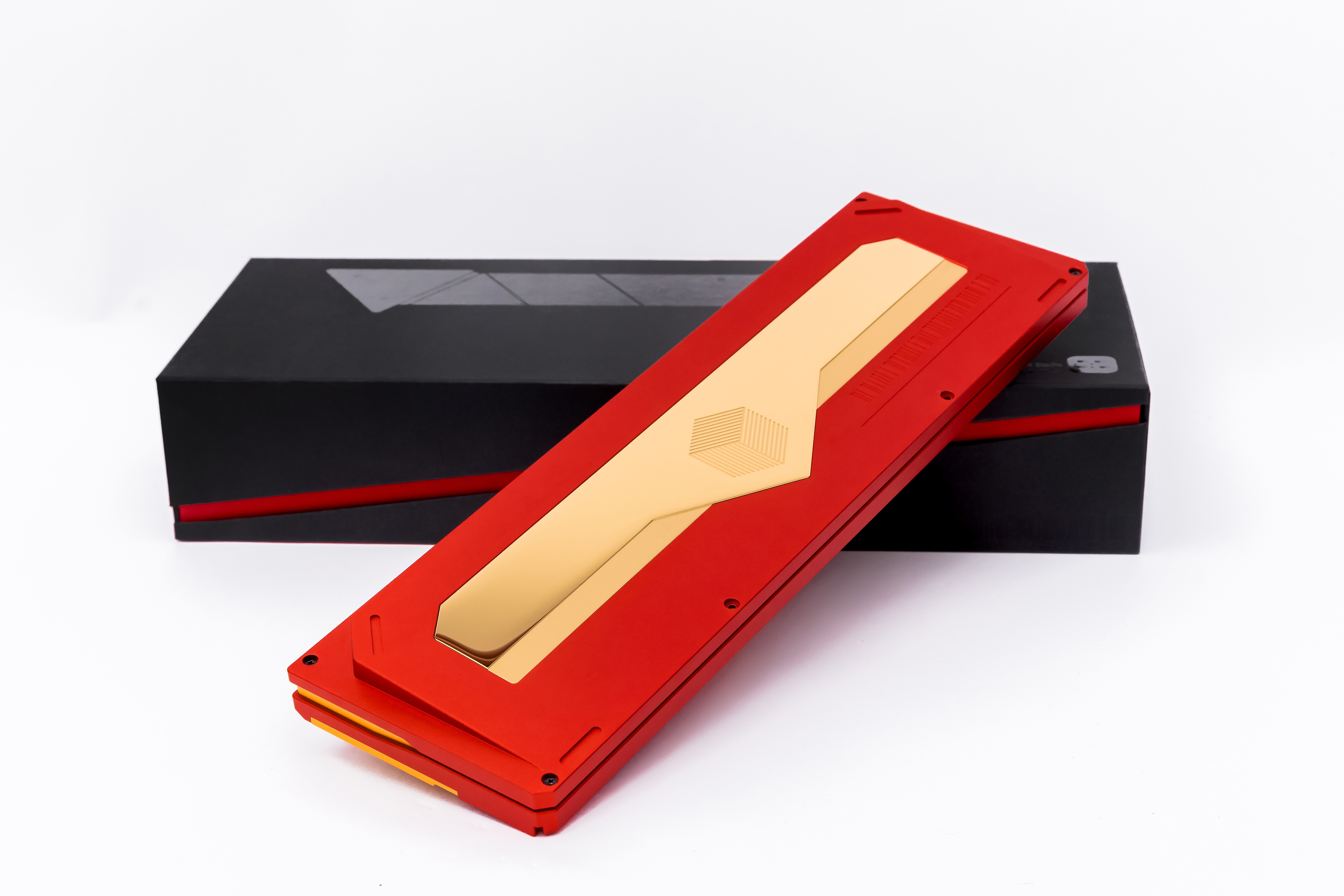

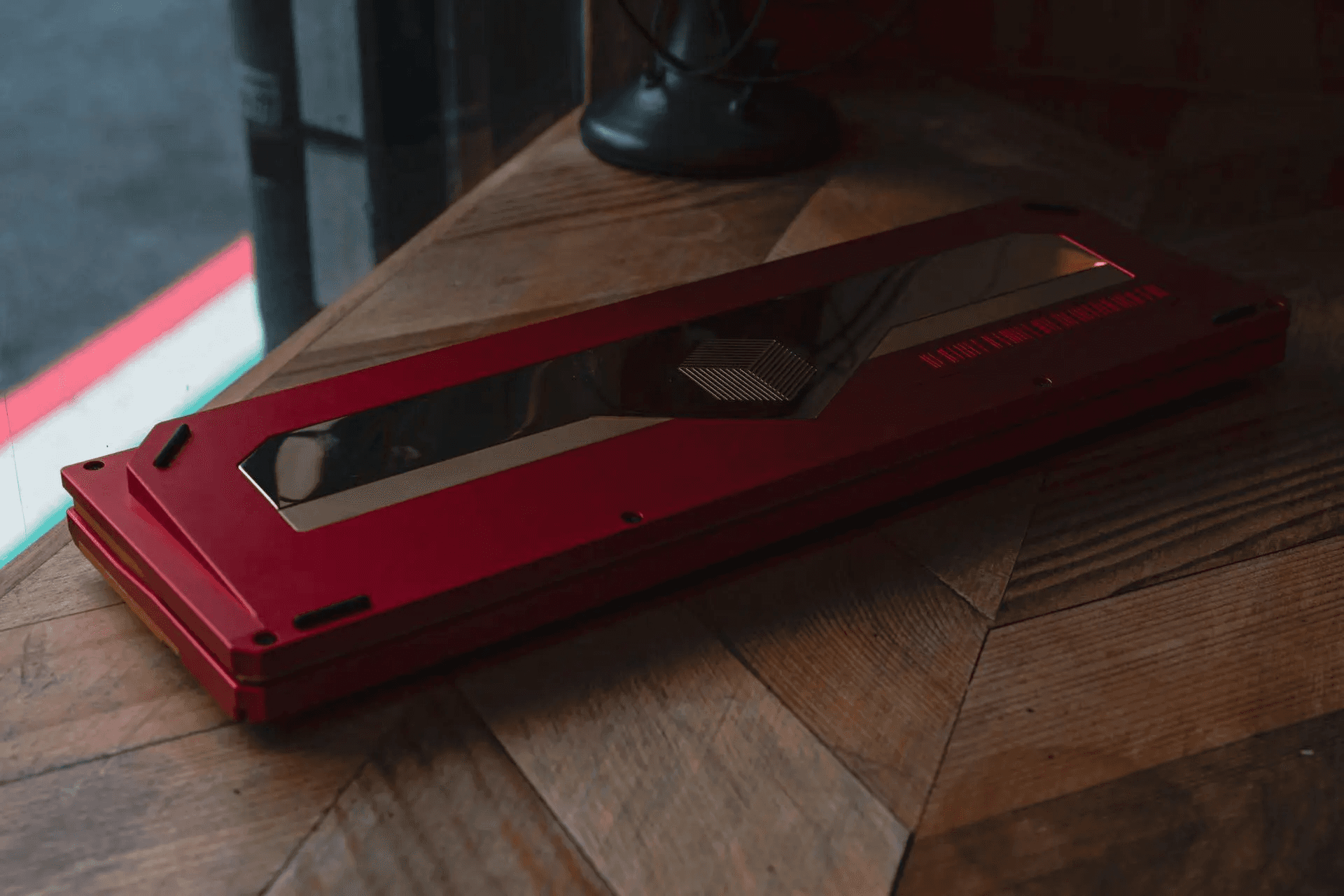

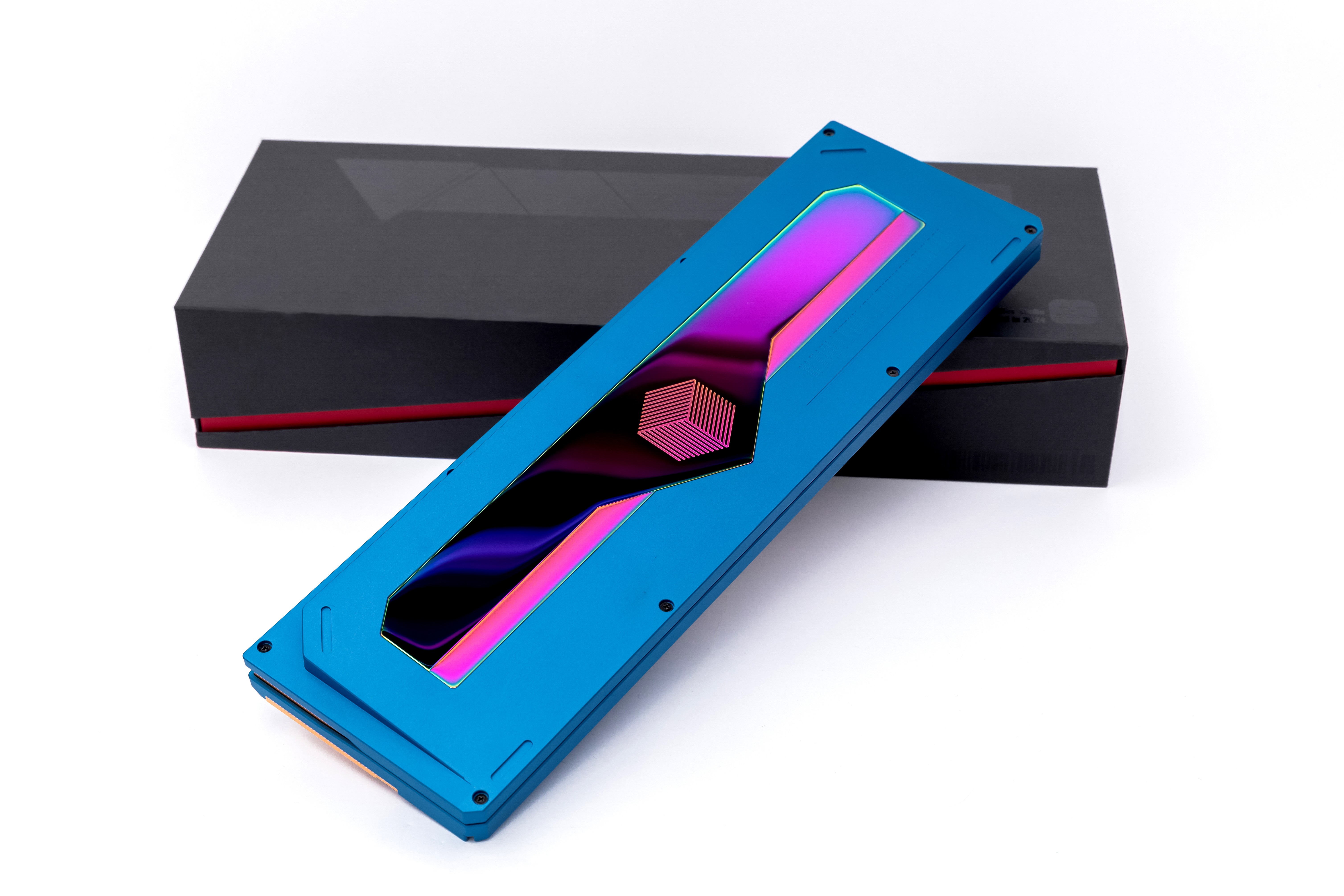

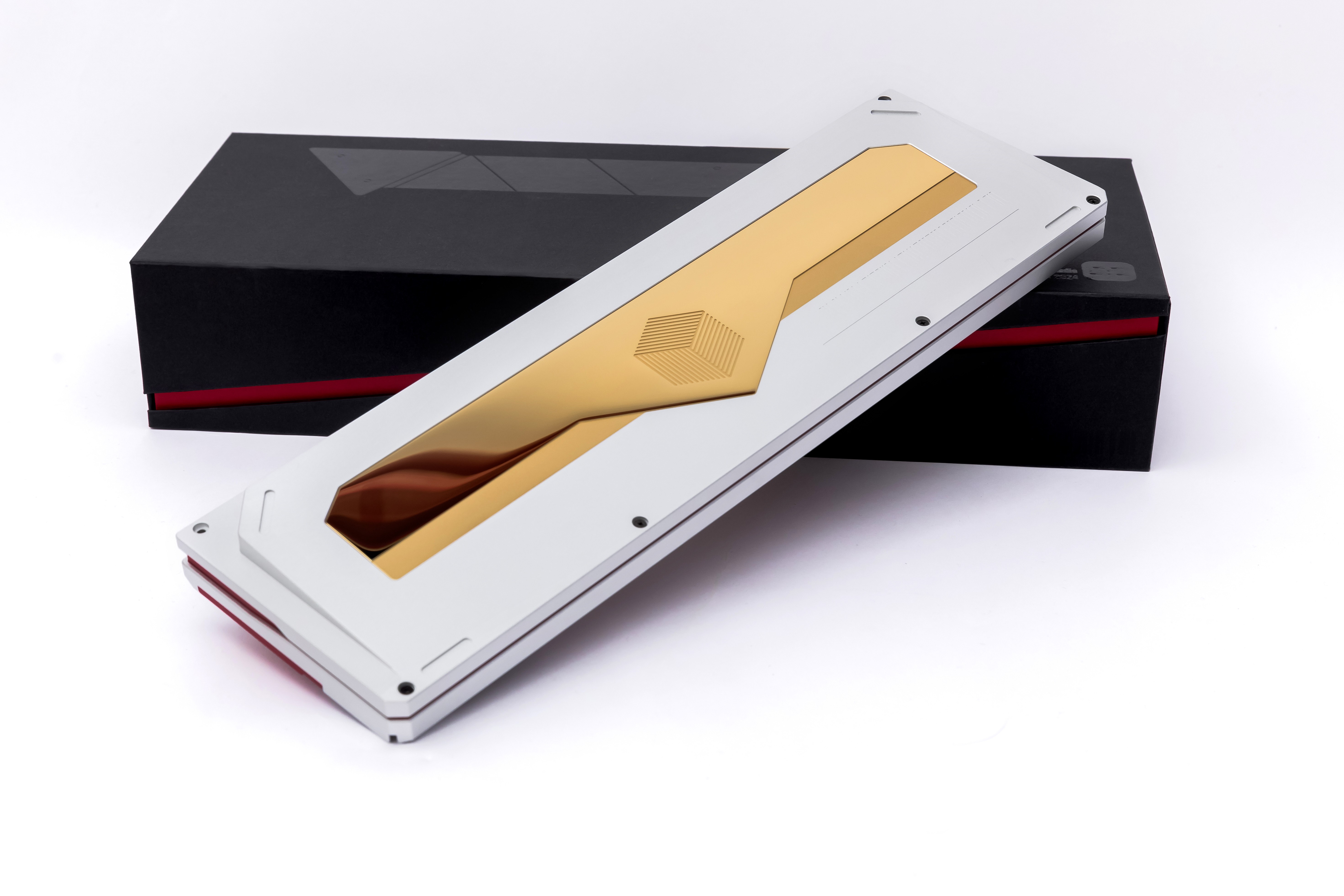

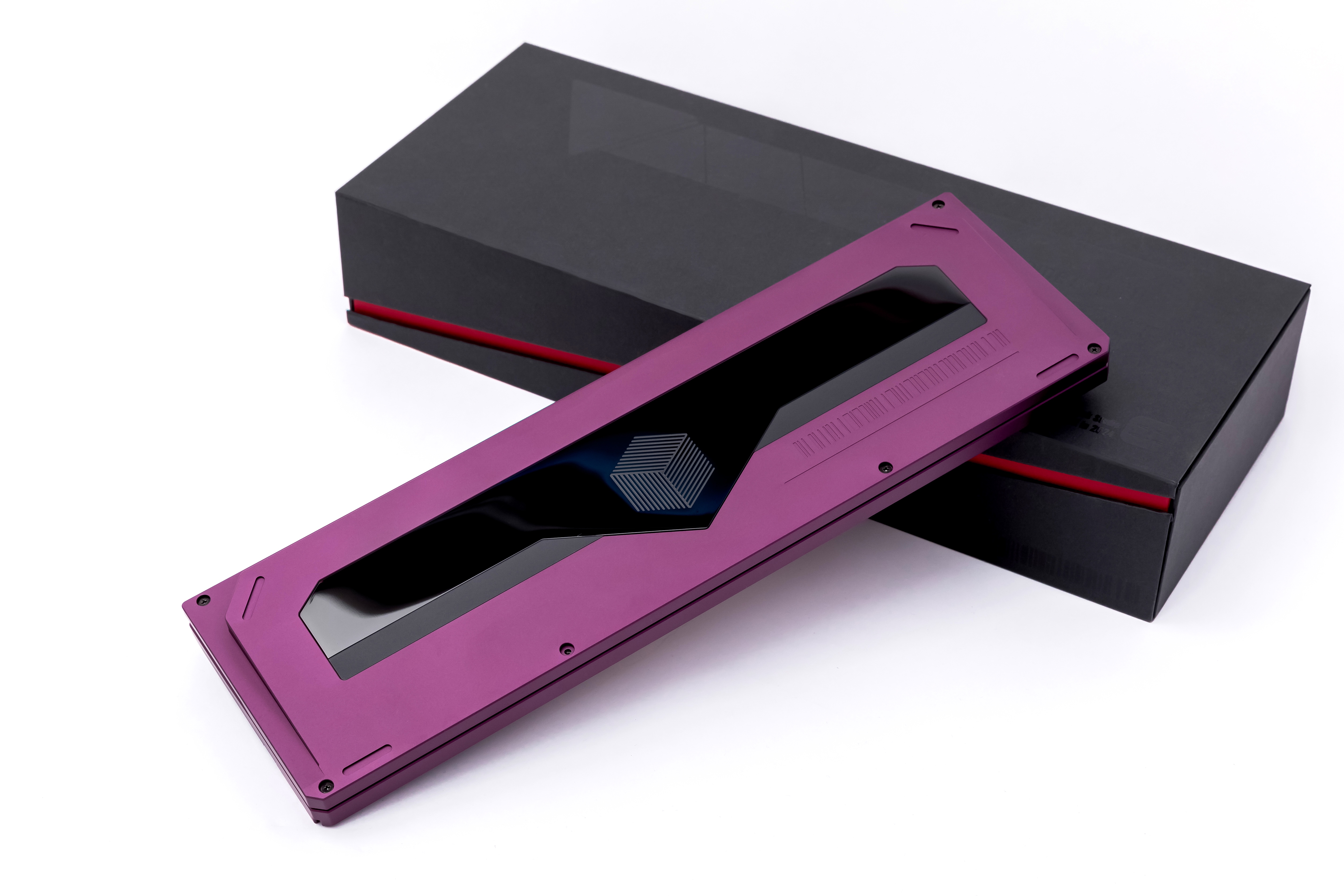

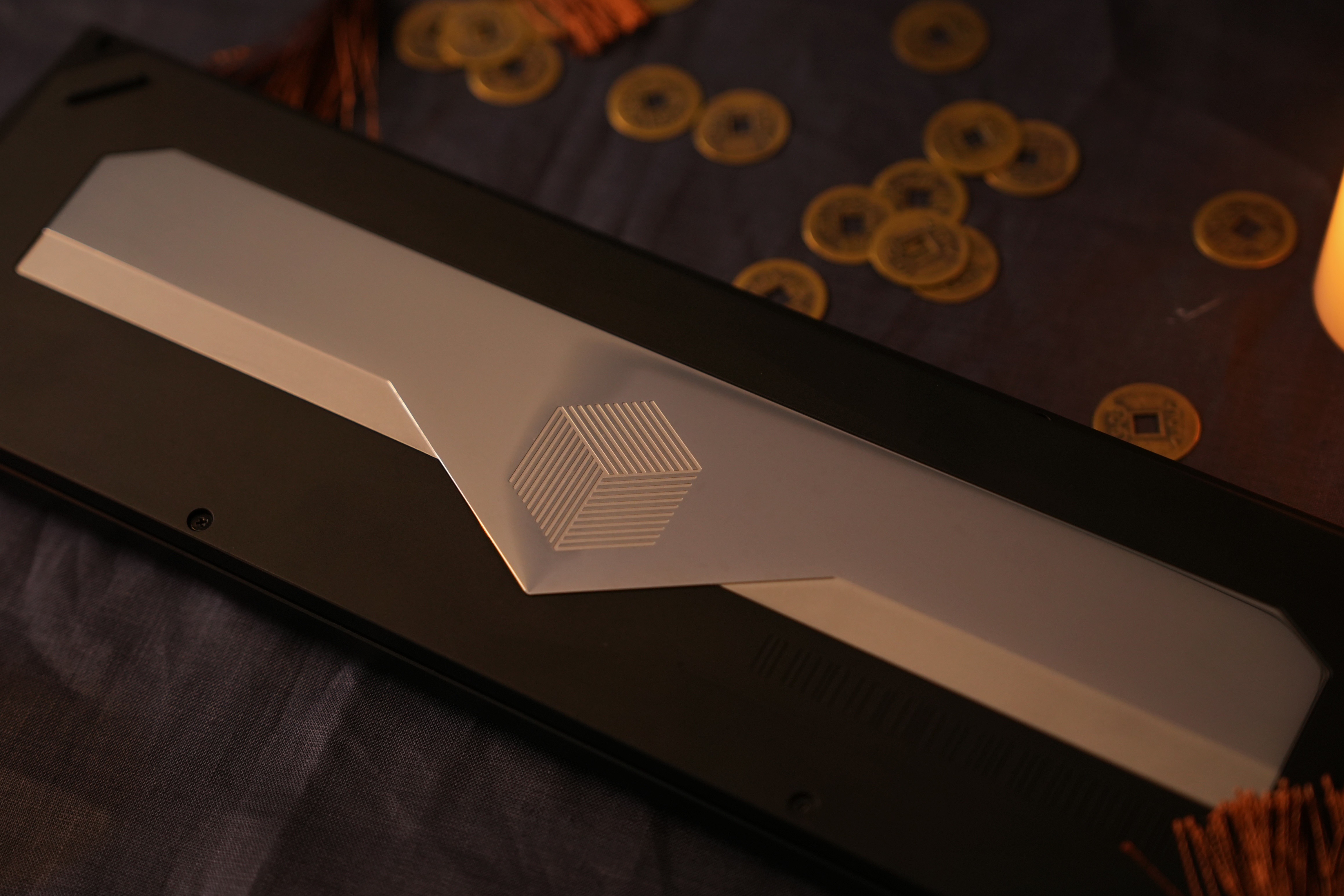

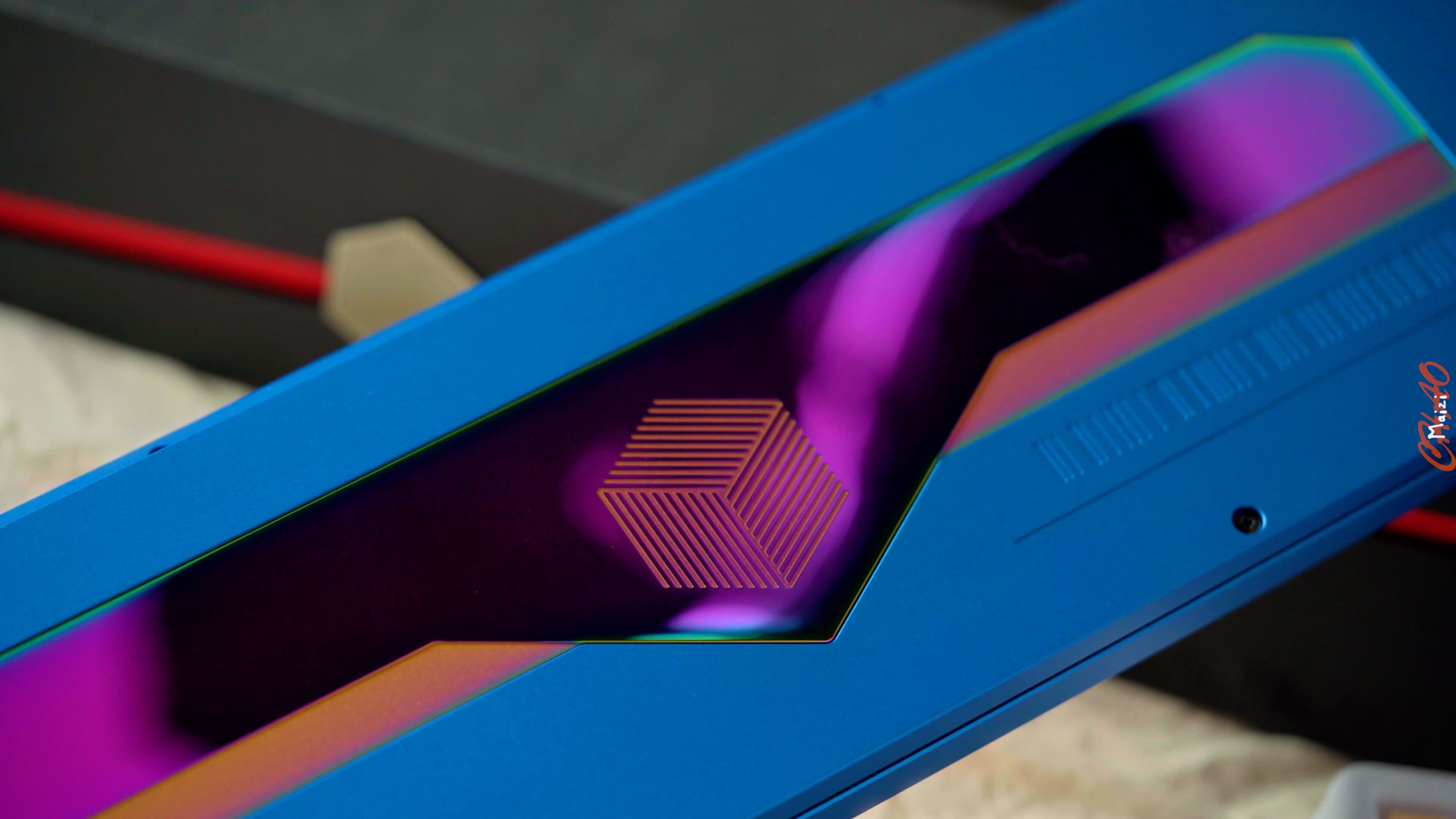

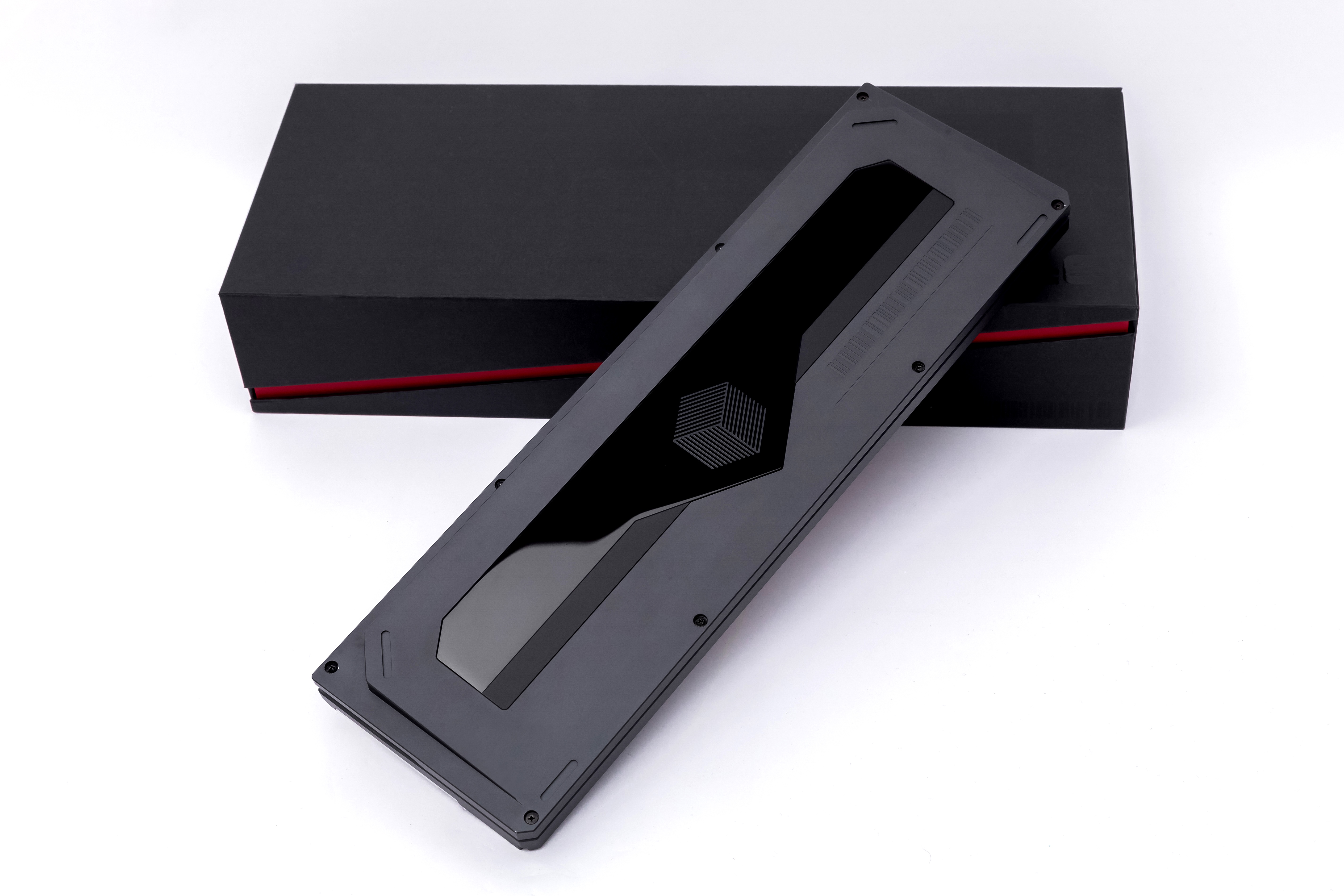

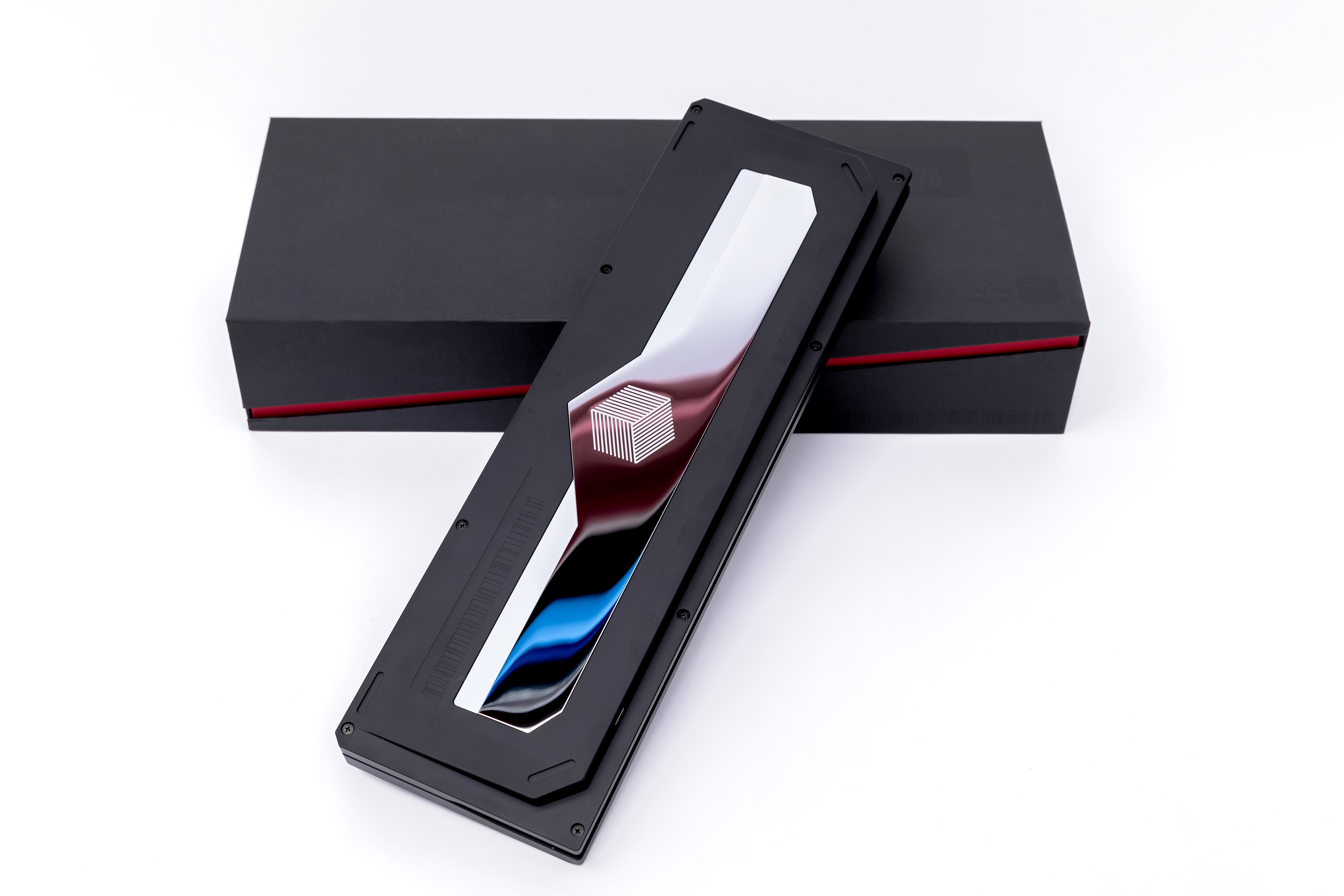

The bottom of the Geometry 70% uses a piece of PVD stainless steel, with a more complex geometric figure in the middle. This figure is the theme logo of the kit, indicating geometry. The protruding inverted triangle below is matched with the mirror trapezoids on both sides, and the trapezoids are sunken to increase the level.
There is a row of barcodes on the lower right side of the weight. If you use Baidu to scan, you can find the Geometry 70% keyboard on Baidu. This is also a more interesting design point, and it also makes the back not so monotonous.
3. Features2 Mounts Support
Geometry 70% can support WK or WKL layout. You can choose the layout you like when you purchase.

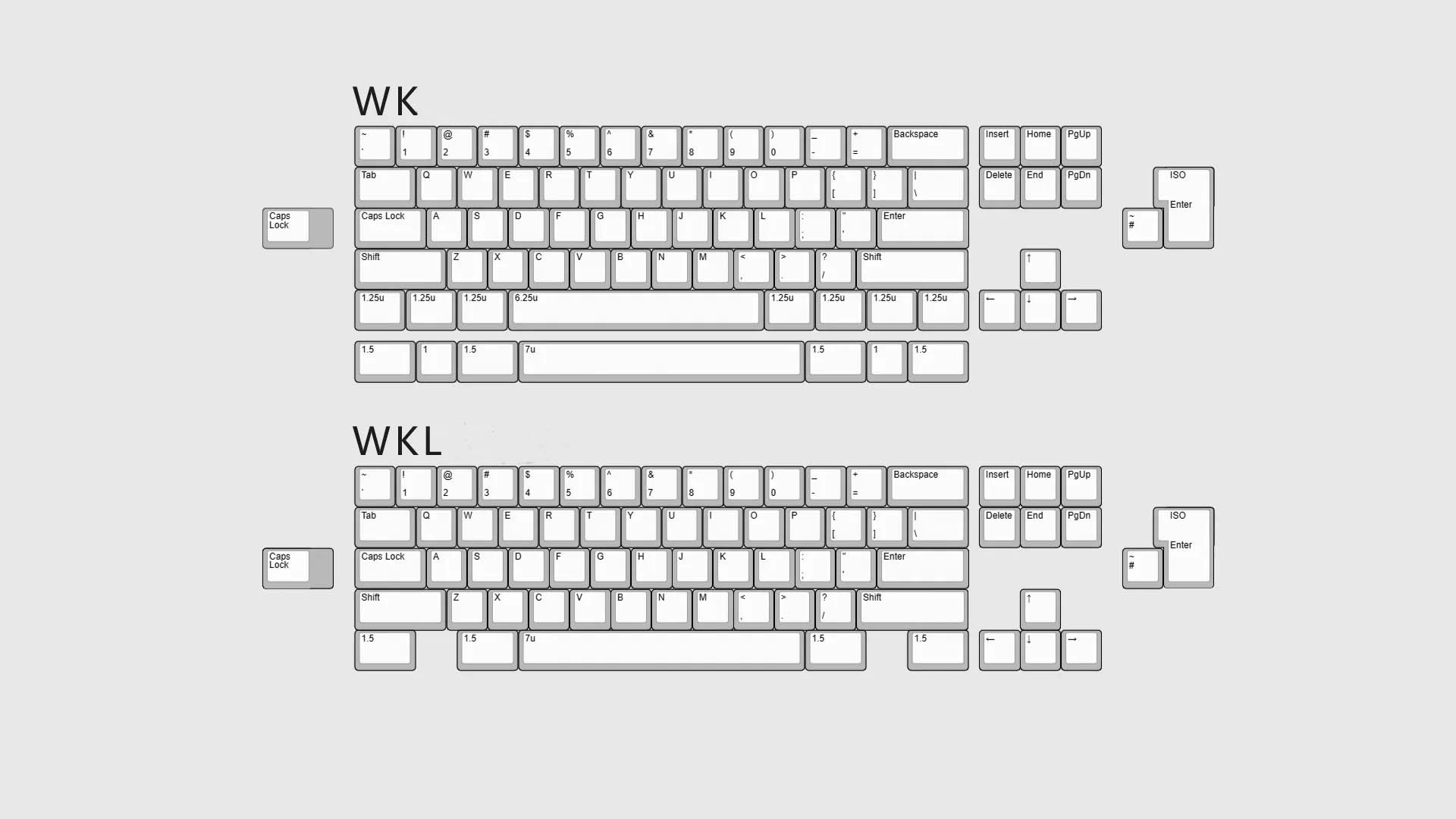

WK/WKL Layout Support
The Geometry 70% supports dual structure switching between Top mount and Gasket mount. It is the best choice for those who want to experience multiple structures.

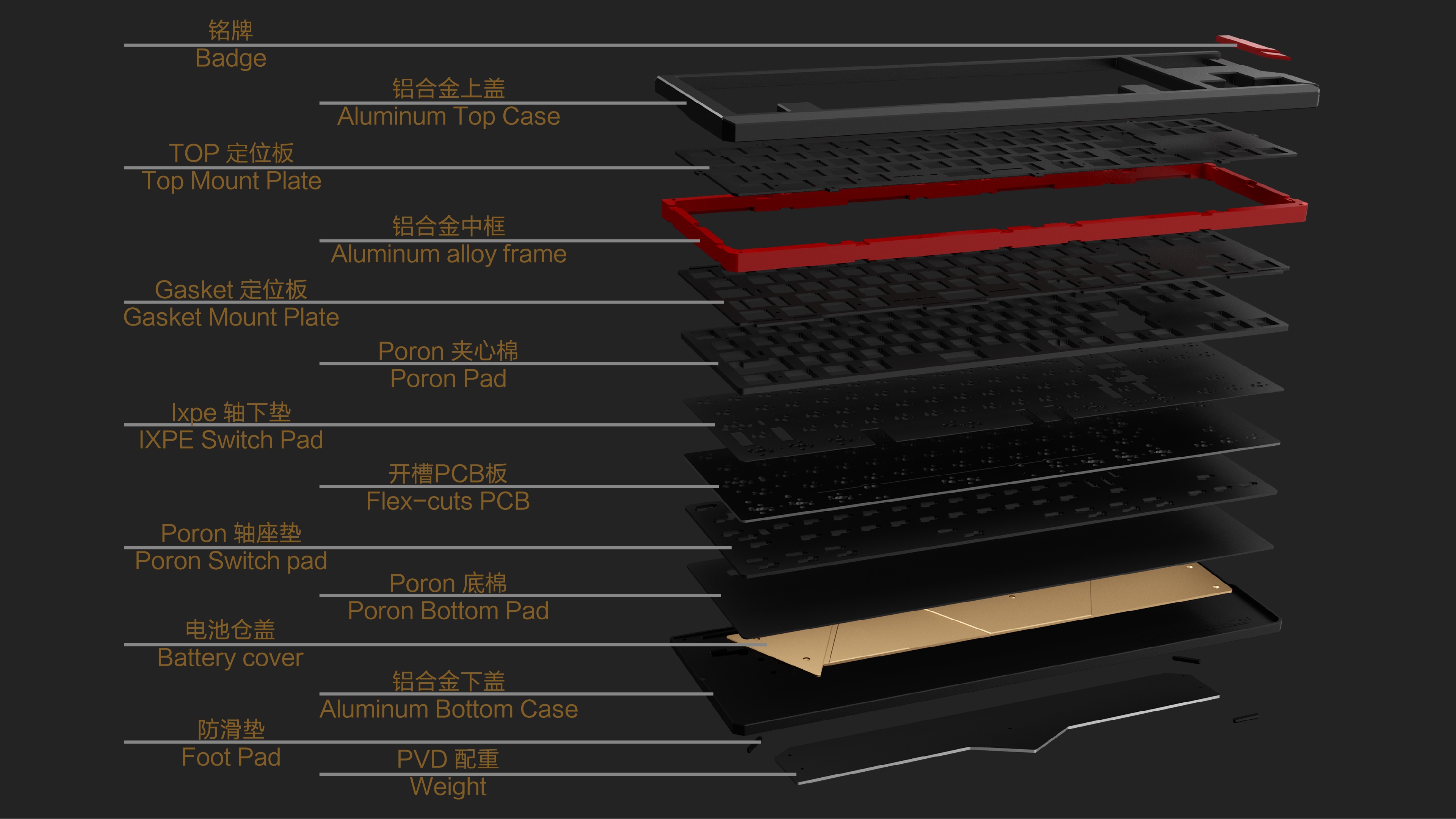

Multi-layer Structure
The multi-layer structure design greatly improves the typing experience of Geometry 70%. It meets the needs of ordinary users and avid typists.
2 Types Of Connections
Support Bluetooth and Type-C wired 2 connection modes. The dual-mode connection meets users’ different usage requirements, and there are 3 devices can be freely switched in Bluetooth mode.
Long-Lasting Battery Life
The Geometry 70% offers a 4000mAh battery, delivering up to 1-2 weeks of usage. Long battery life ensures uninterrupted work and entertainment, allowing you to stay productive and stay connected wirelessly for longer, without the need for frequent charging. What's more, it allows you to charge and use at the same time in wired mode.
VIA Support
VIA is a tool that enables keyboard configuration. With the VIA configurator, you can map keys to the physical layout of your keyboard.
4. Color OptionsPhotos IRL More
5. Specifications
Layout: 70%
Mount:Gasket Mount & Top Mount
Case Material: 6063 CNC Aluminum
Surfacing: Anodized, PVD
Acoustic:0.5mm IXPE pad, 3.5mm Poron pad, 1mm bottom pad, 1mm switch bottom pad
Weight: Stainless steel PVD+ Frosted geometric weight (4 colors optional: Black, Silver, Gold, Chroma)
Net Weight:1.5kg
Weight With Package: 2.45kg
Size: 373*115*32mm
Typing Angle: 7°
Compatible System: Support Windows & Mac
Battery: 4000mAh (2000mAh*2)
Rolling rate: 1000Hz (Wired), 125Hz (Bluetooth)
Front Height: 20.5mm
Back Height: 32mm
Caps indicator light: Yes
Latency: 3ms(Wired), 8ms(Bluetooth)
Support VIA (Do not support QMK)
Add on: Alu plate with flex-cuts (Including one Top mount plate and one Gasket mount plate)

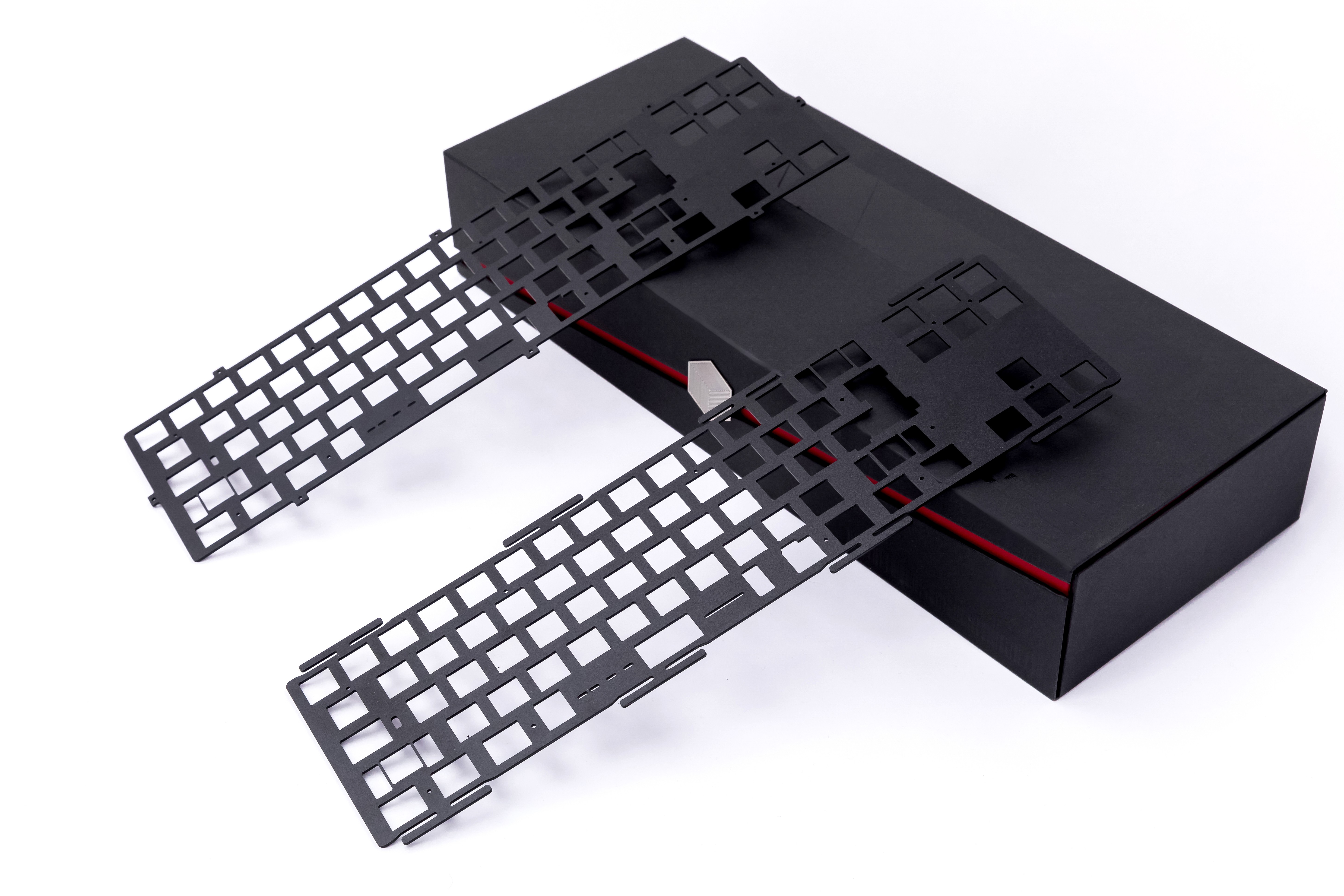

PVD Weight(Black/Silver/Gold/Chroma)Plate
Top mount support plate
Gasket Mount support plate
1.5 mm thickness
Without flex-cuts
PC material
Support ANSI &ISO layout
Support stepped caps lock
Support 7U, 6.25U spacebar

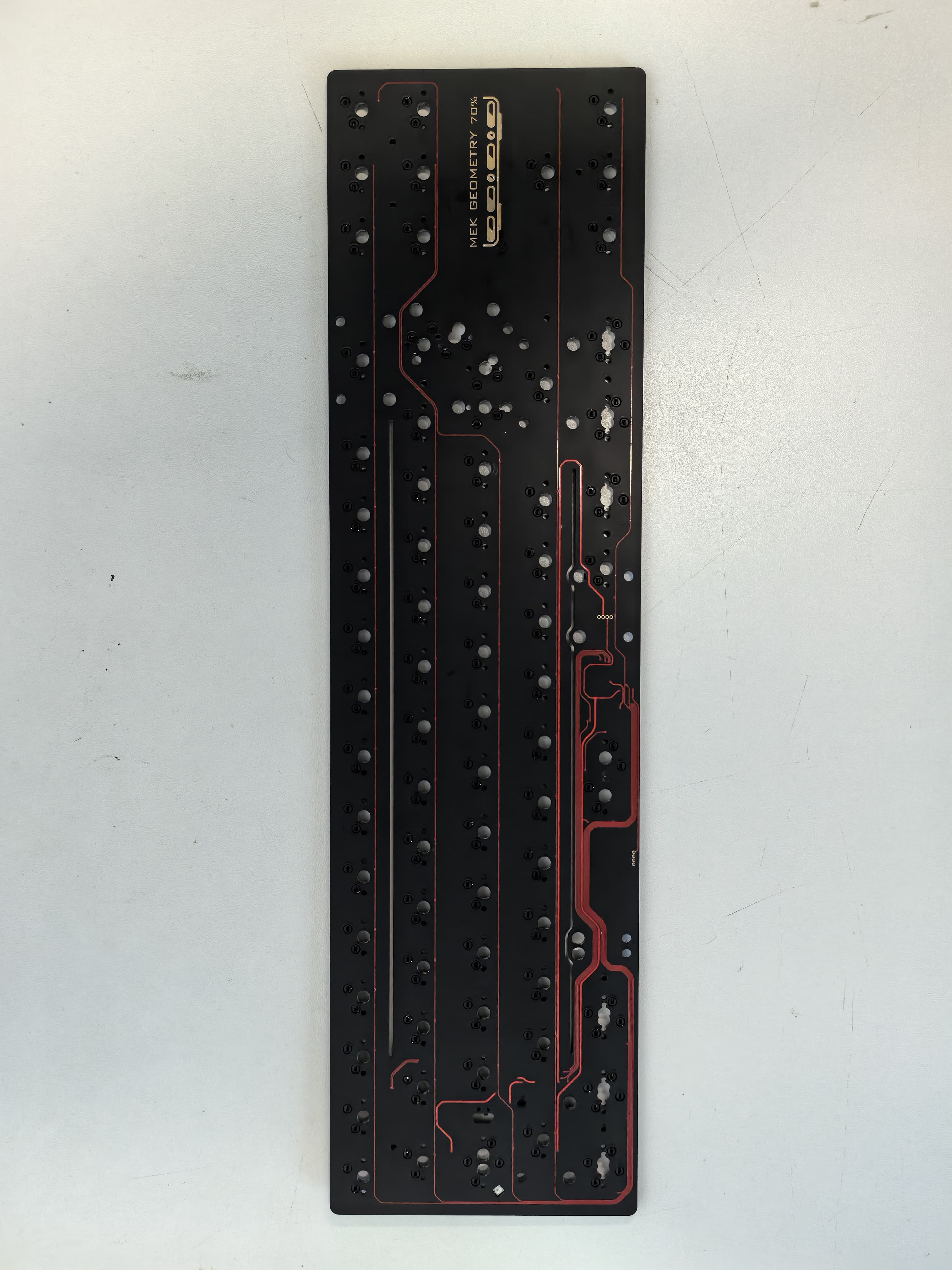

PCB
Hotswappable
1.2 mm thickness
With Flex-cuts
Only PCB mounted stabs compatible
Support ANSI & ISO layout
Support WK/WKL
Support VIA
Does not support QMK
Support stepped caps lock
Support 7U, 6.25U spacebar
6. Inside the boxAluminum top case * 1
Aluminum bottom case * 1
Aluminum dual structure conversion middle frame * 1
Aluminum badge * 1
Brass sandblasted battery cover * 1
Stainless steel PVD + frosted geometric weight * 1
Black PC plate (Gasket) * 1
Black PC plate (Top) * 1
Type-C daughterboard + silicone cable * 1
Bluetooth dual-mode hot-swappable PCB * 1
0.5mm IXPE pad * 1
3.5mm Poron pad * 1
1mm bottom pad * 1
1mm switch bottom pad * 1
Screw bag * 1
Foot pad * 4
Mek geometric packaging box * 1
7. Reviews (TBD)TAZAKEYSamuel TanSeungupKBDWabi sabiMerkeebsSamuel TanAkeynoteMCZ StudioKeebtunesTazakey 8. GB Information Time: Sep 4th - Sep 30th, 2024, GMT+8 GB Price: 239USD Estimated Shipping Time: December 20249. VendorsWelcome to join our Discord and follow our Instagram,TikTok for more discussion, latest update and questions!
