GH-122.2016 R1 PCB - Completed!

Shipped!

All PCBs that can be shipped have been shipped!

- Ron | samwisekoi


The GH-122 project got over-complexified and died of its own weight last time around. But I still want an MX F-122 style keyboard. (I use an F-122 at work, but it would be too loud for home.)

So I went back to the drawing board and came up with a design that has all the essential features of the original GH-122, but without the elevety-seven things that made it too complex to finish.

This board is ready to order!

GH-122.2016 Group Buy

COST:
If we order 20 of these, they will be $50 USD each, plus shipping ($15 for USPS Large Game Box to CONUS addresses).

Features:
- 7x24 Keyboard Matrix
- Teensy++ 2.0 Controller
- 100% Through-Hole Components
- 150+ Switch positions
- Full ANSI, ISO, and IBM F-122 Layout support (including dual split shift keys)
- 1.25 or 1.50 Modifiers with 6.25 or 7.00 spacebar
- PCB-mount switches and stabilizers in all positions.
- All 2.00 positions can be split into 2x1.00 keys
- Centered or offset Caps Lock positions

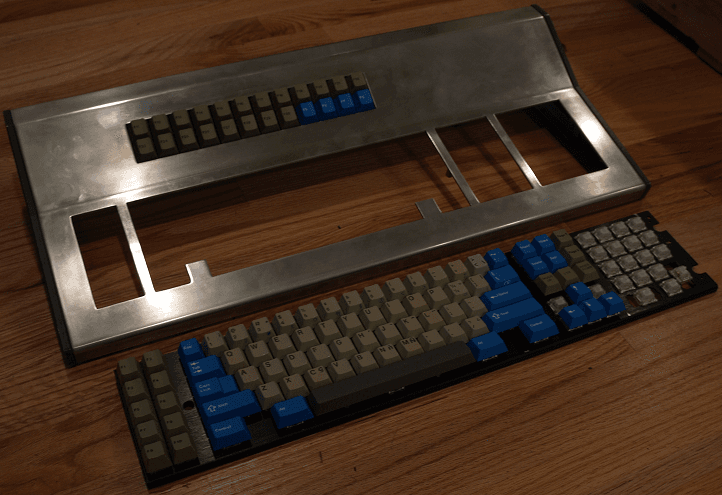

- PCB can be cut to fit Unicomp PC-122 case
- PCB can be cut and bent full-width
- CAPS (2x) plus NUM and SCRL LEDs
- All switch positions have pads and holes but not wiring for backlighting
- V++, Ground, and 2x PWM pads provided for expansion/backlight control
- Extra 2.00 position added to every row in left banks.
- Bonus switch position to enable a left-hand arrow block.

PCB will be 19.500" x 6.50" x 0.62" thick, black solder mask with white silkscreen.
- To be manufactured in traditional 0.062" material.
- Eight 0.125" mounting holes around edge of PCB.
- Made in USA.

Caveats
Sorry, no ALPS support for this pass.

What is left to do?
⊠ Find 20 0 more homes for a giant keyboard.
⊠ Talk Metalliqaz into adding this to his Easy AVR USB Keyboard Firmware and Keymapper.
⊠ Collect money
⊠ Order PCBs
⊠ Wait a couple of weeks.
⊠ Test PCBs with Easy Keymap
□ Ship PCBs to happy homes.

Please reply to this thread to confirm final interest in buying this PCB.

- Ron | samwisekoi
