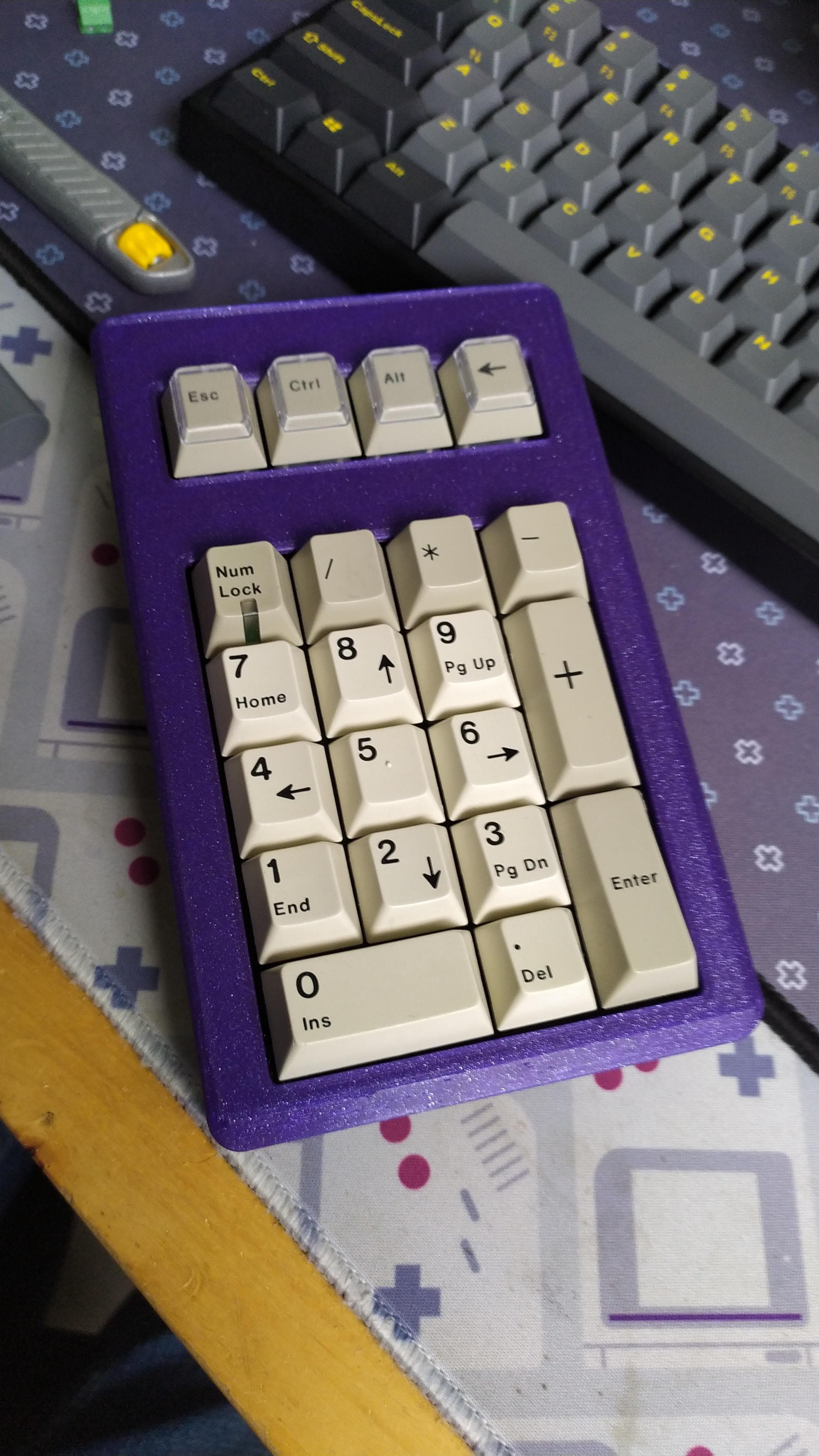

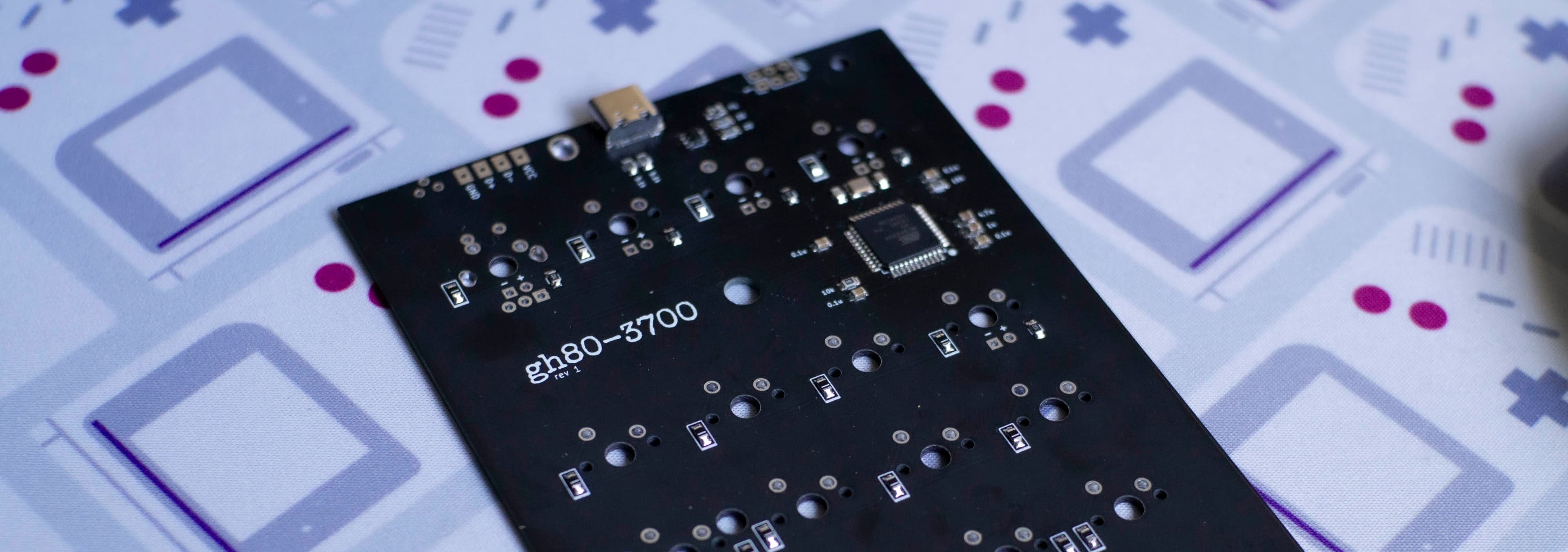

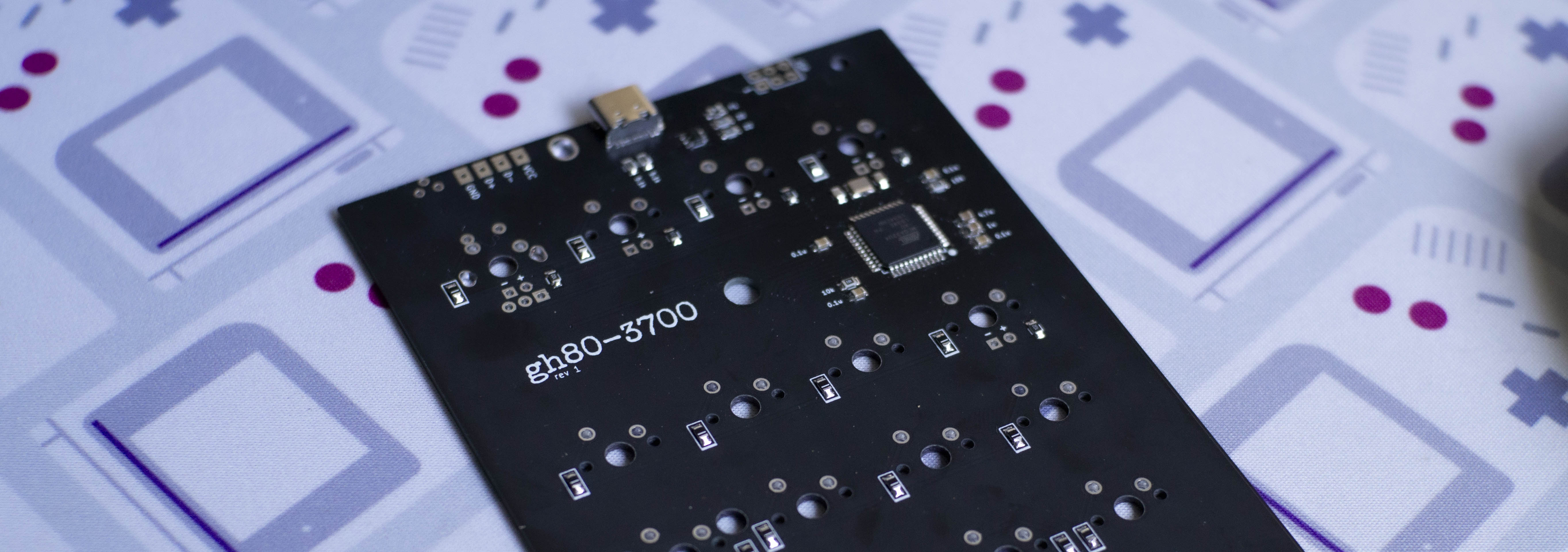

The GH80-3700...is the way to make your Cherry numpad modern again. (Note: this is just a PCB, no case included)
It has pads to solder your own cable to, or you can use any USB-C cable while still keeping the vintage look,
as the cable connector is hidden inside. There is room for a rotary encoder as well.
For all your indication needs, the top row has individually controllable led locations just like the numpad toggle key does.
It also features a fuse and an ESD protection chip to protect the MCU and other parts of the PCB.
Features- Designed to fit the Cherry G80-3700 numpad case
- Compatible with QMK Firmware and VIA Configurator (if you flash a VIA compatible .hex file)
- USB type C with C-C support
- ESD protection and fuse
- 5 individual LED locations, can all be used in QMK
- Rotary encoder support (top right key position)
- ISP header
Pictures

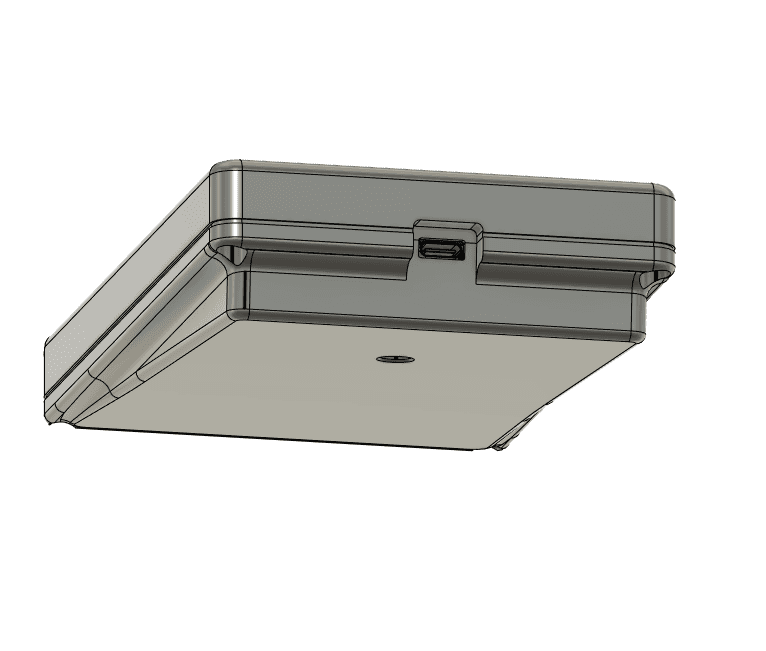

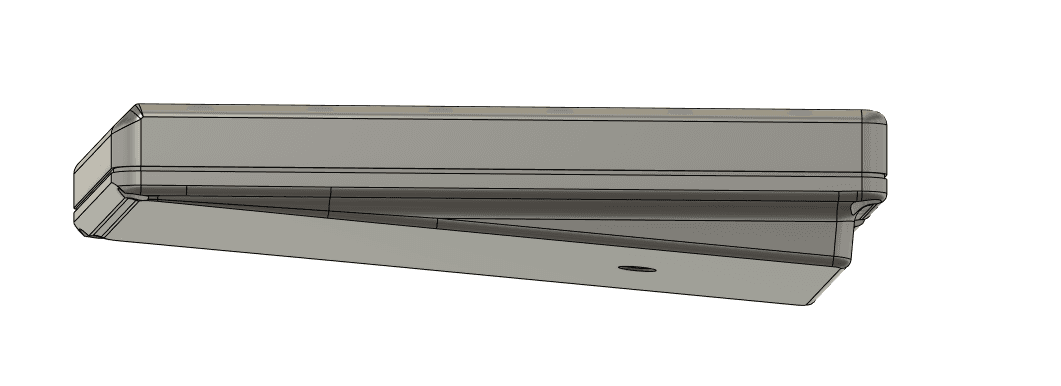

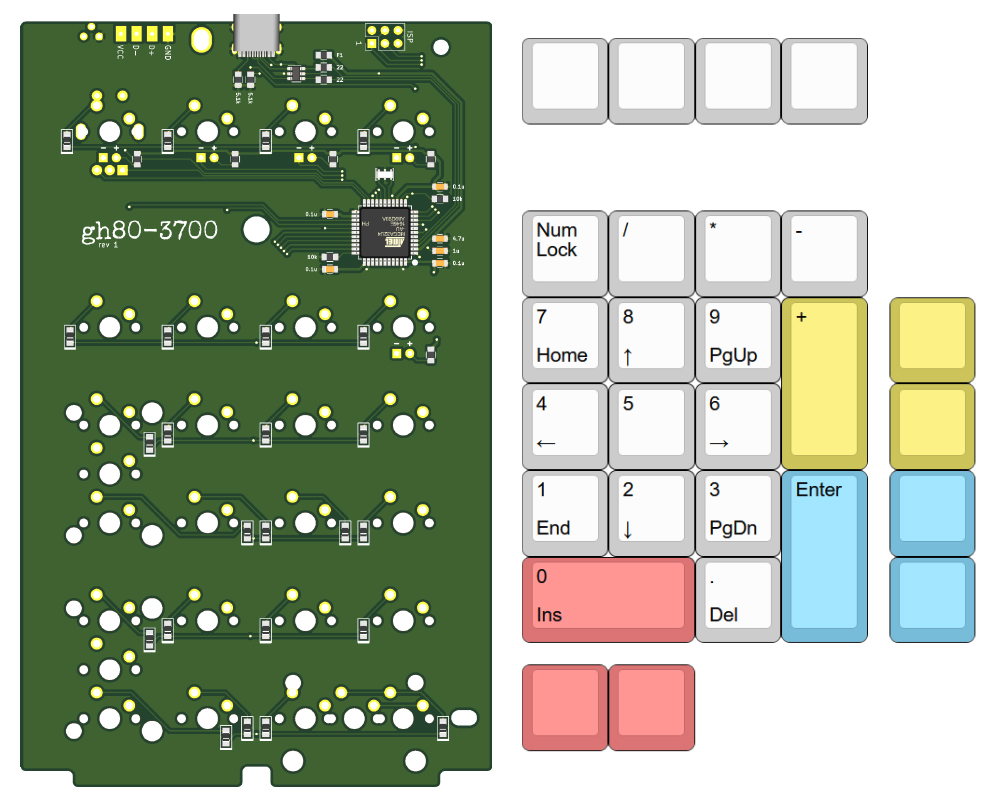

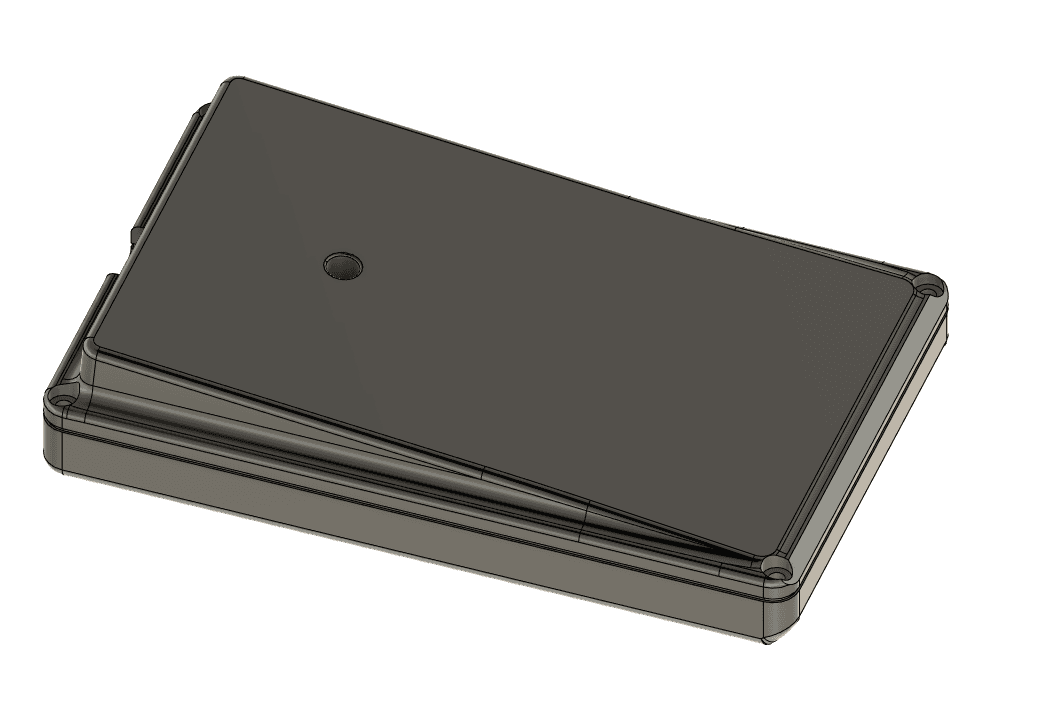

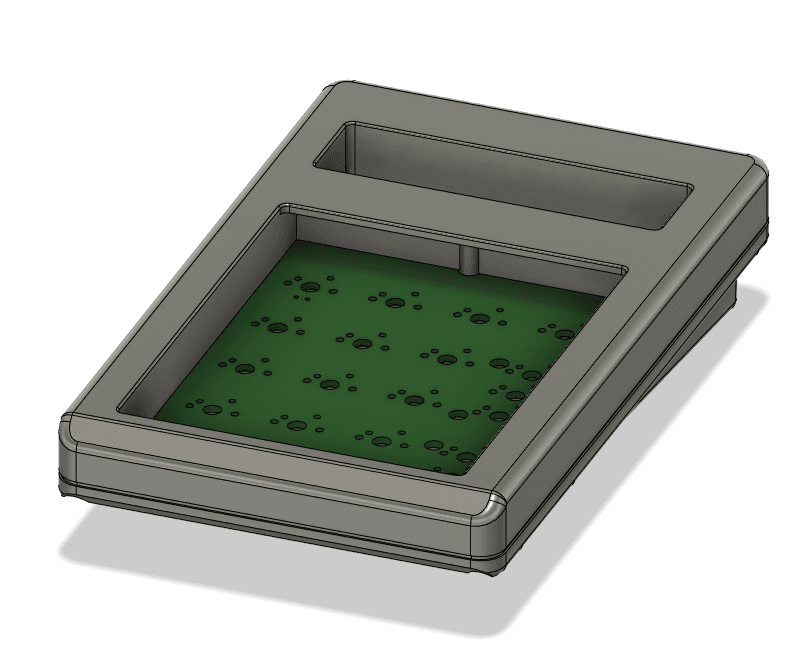

Render and layout support

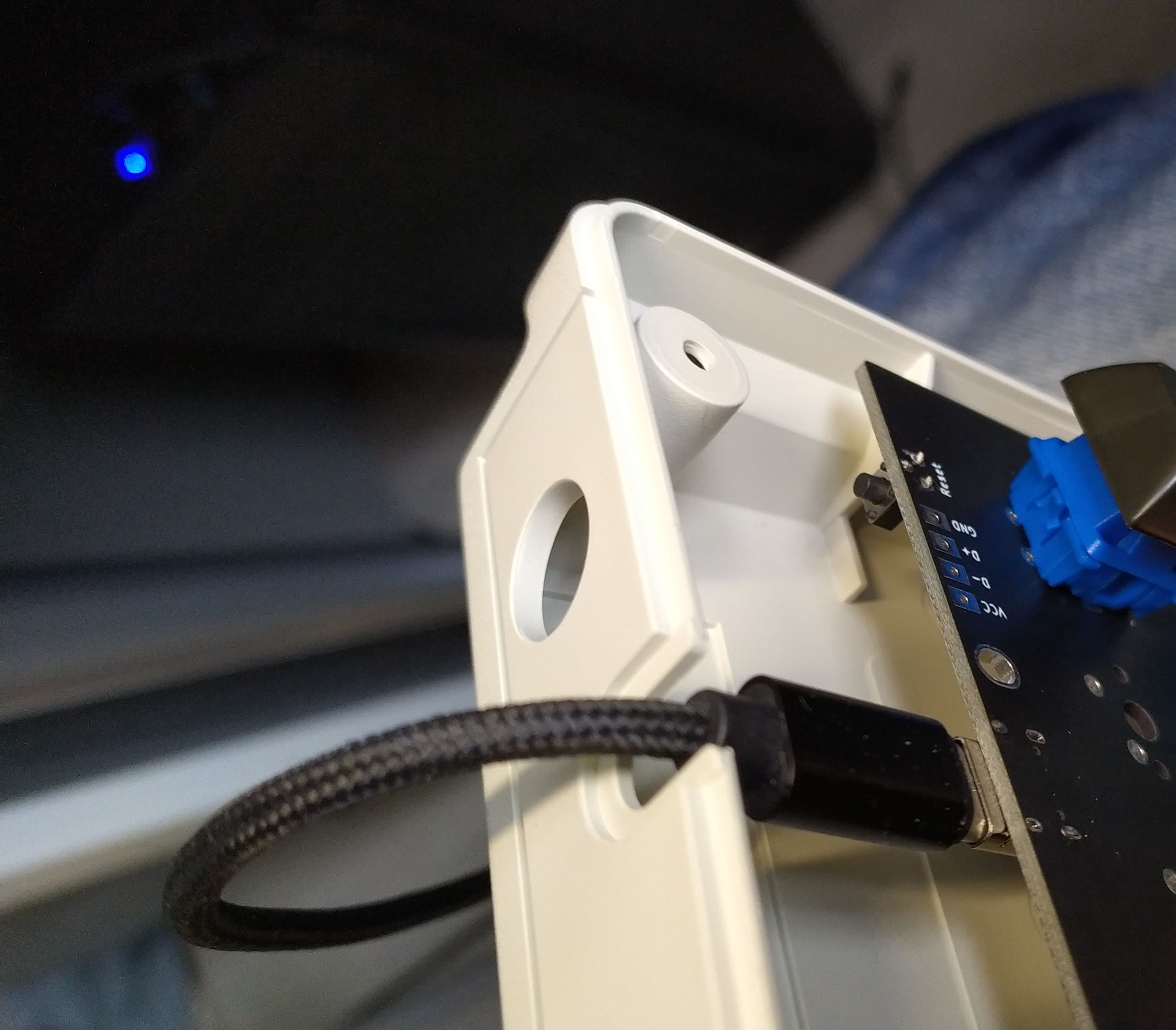

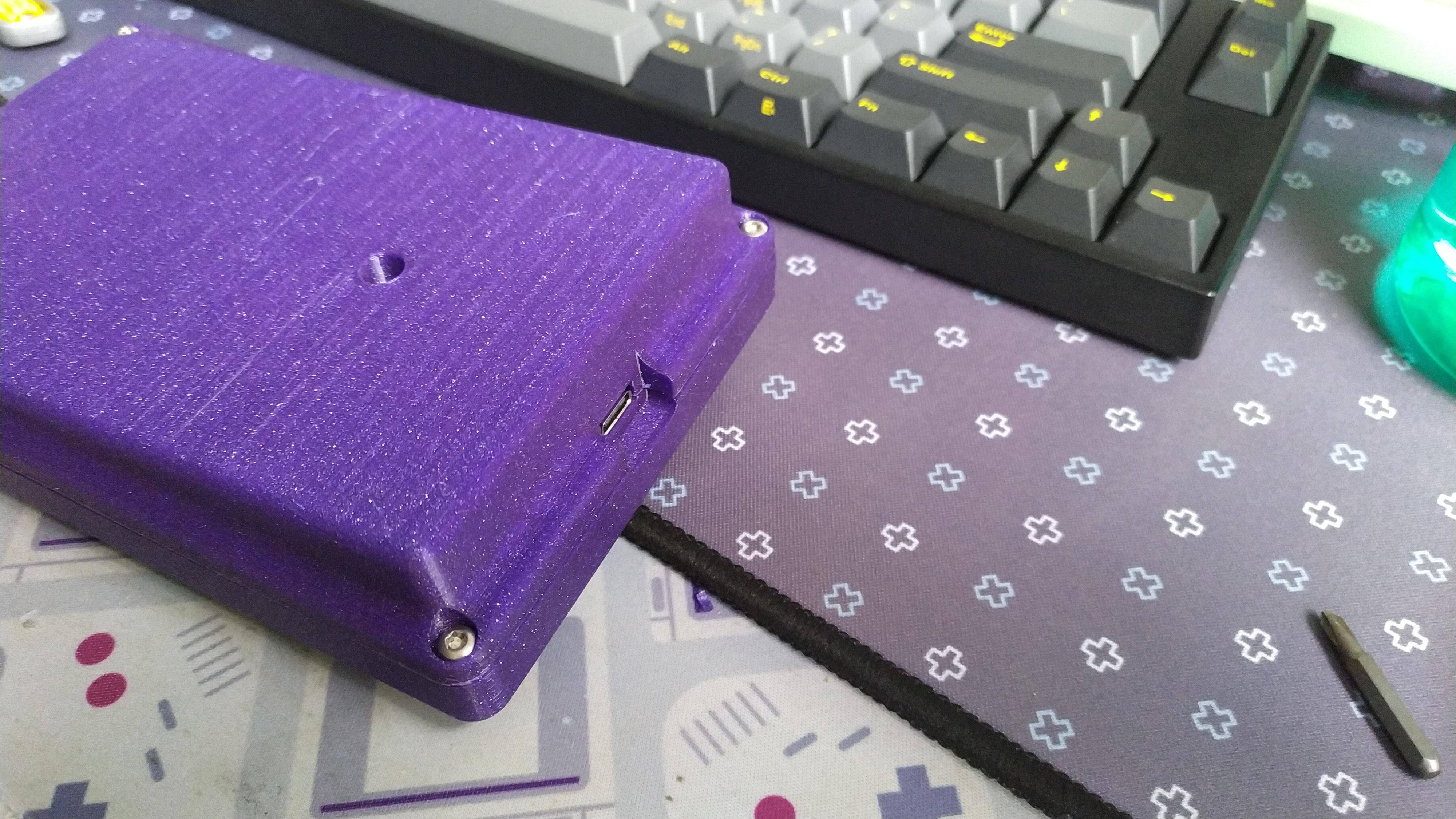

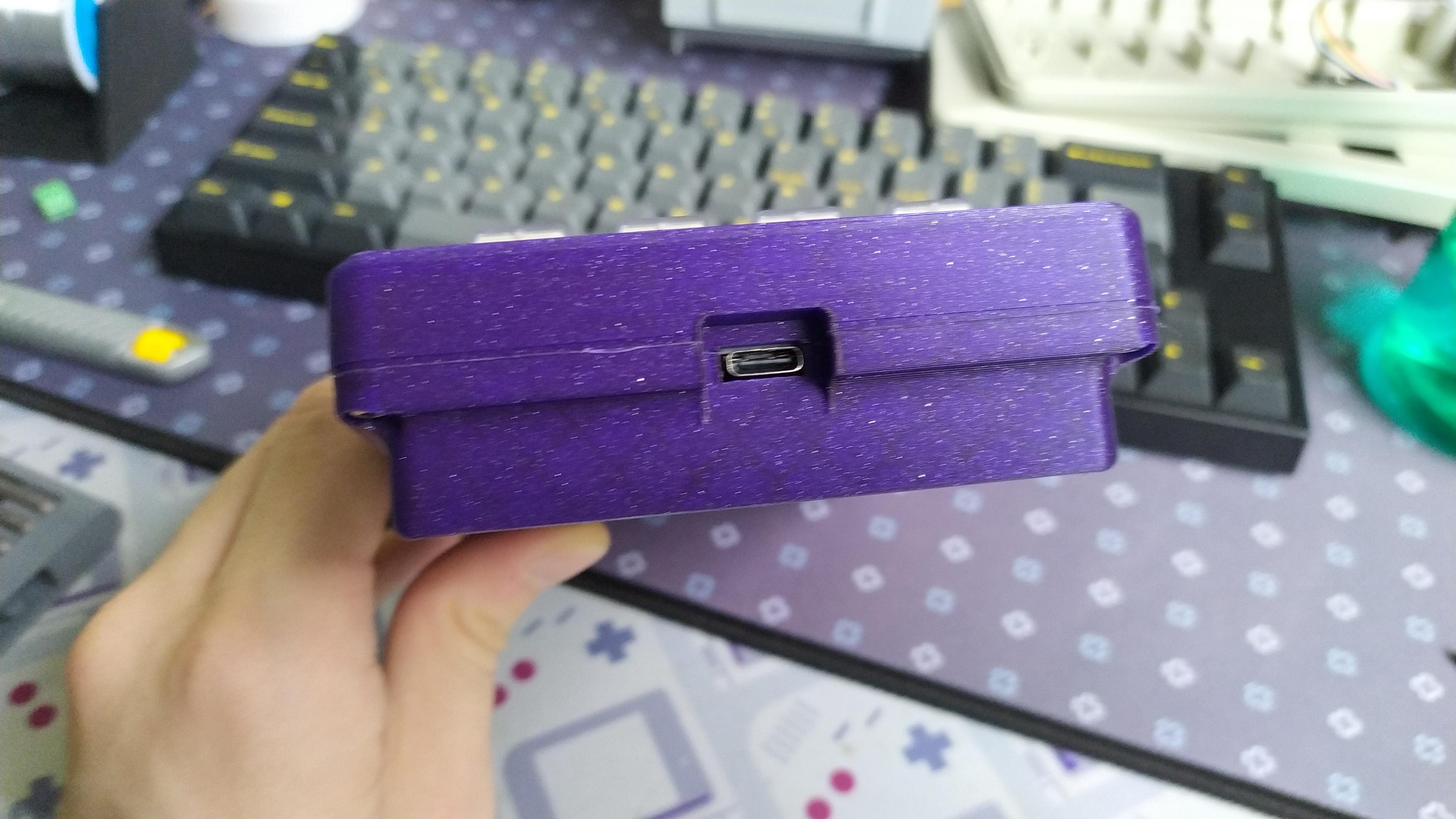

Cable hidden in case

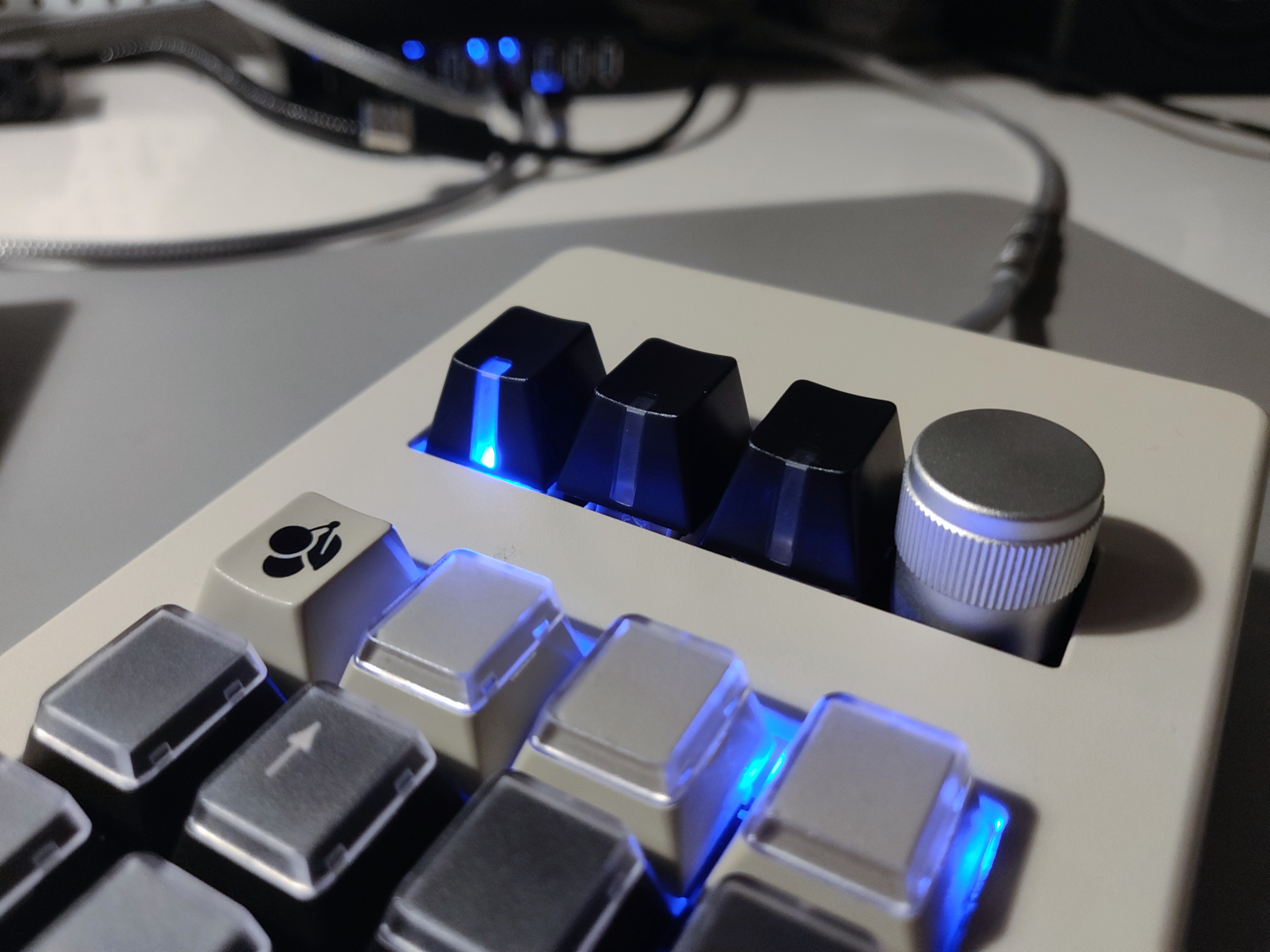

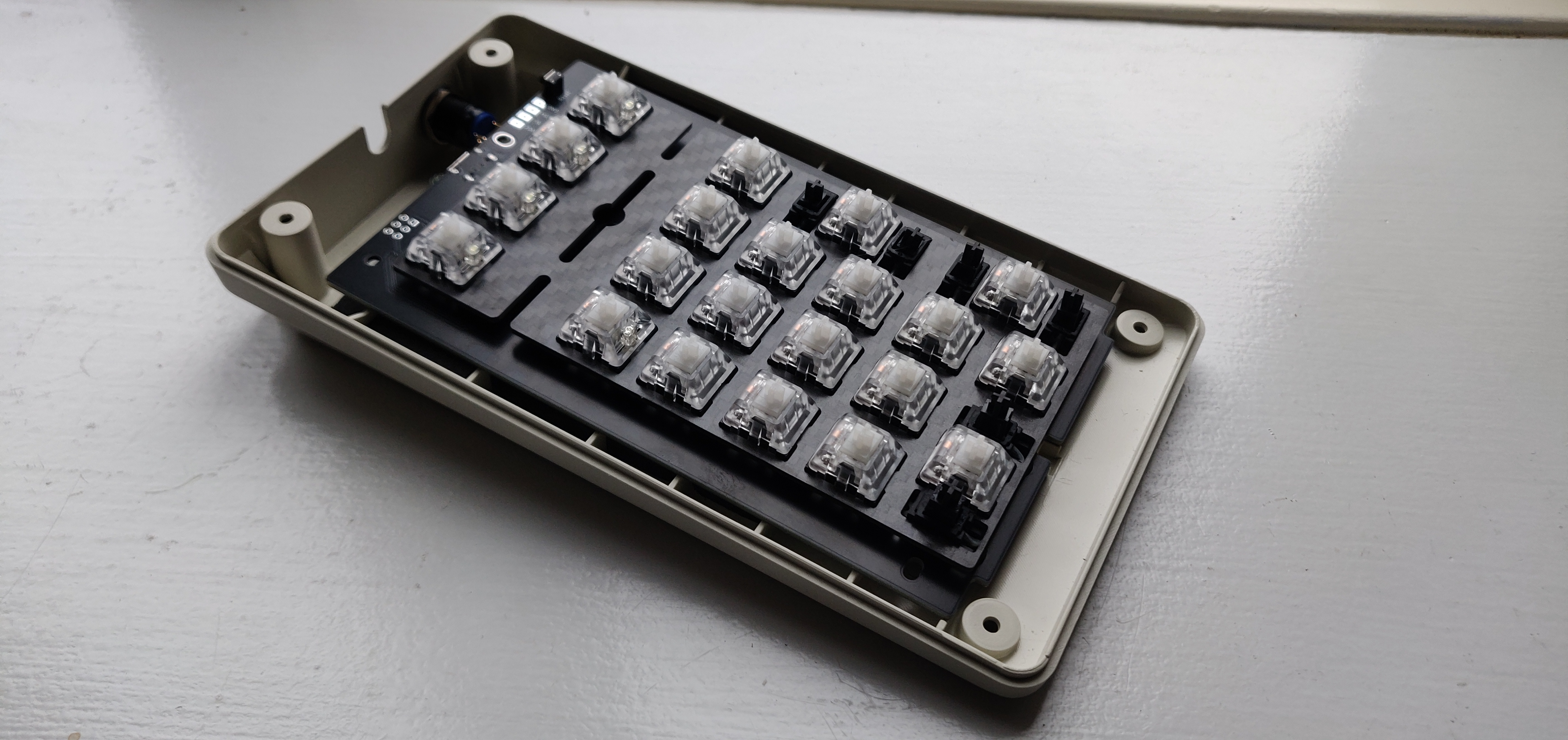

Rotary encoder & LEDs
Plate file will be made available.
Pricing & where to getThis PCB will cost 25 euro excluding shipping.I will ship anywhere and I've made sure it's decently affordable even for people outside of the EU. This group buy is limited to 50 PCBs.
You can get it here right now, group buy closes May 31st.Thanks to ISO_returns for some of the pictures and for making this happen in the first place, by letting me borrow his G80-3700.
