Glacier80
Sales Information:
- Sales Format: FCFS In-stock and GB
- Quantity: 200pcs instock and 800 GB
- Instock Breakdown:
There will be 100 WKL units and 100 WK units these will be evenly divided by the 5 colors choices. This means there will be 20 of each color per layout, but this will be split in half because of of each combo of color and layout will be divided by type of PCB either Hotswap or soldered.
ex. if you want In-stock Dark Blue Hotswap WKL there is will only be 10 Available.
- Fulfilment: instock: 2 to 4 weeks after GB closes and GB 2-3 months
- Sale Date: Jan 14 @ 7pm EST and GB will be open for 1 month
- Cost:
1xBoard kit: $405 USD
1xShipping(worldwide): $60 USD
- Extras cost
Hot-swap or Soldered PCB: 45$
Foam Kit: 15$
POM/PC/Foam Plate (support either soldered or Hot-swap version): 40$
For GB only Brass plate
Hello everyone, This is CreateKeebs and this is our 3rd board that we would like to share with you.
First of all, thank you very much for your support for the thera75. As a new team, 1200 units were sold out in 7 days which was beyond our's expectation and made us deeply feel everyone's enthusiasm.
During the design phase of Glacier80, we were thinking about what is the goal of the board. Is it a softer typing experience? Balance? or a deeper sound?
In the end, we decided to make Glacier80 highlight the original sound of the switch while achieving a flexy typing experience. We have also made a journey into new materials, Mercedes Benz has always been synonymous with high-end brands, especially its high-end series MAYBACH. MAYBACH's beacon is the highlight of the whole series and also a symbol of nobility, because the material used in this beacon is Nickel alloy, rather than Alu or ss. The hardness of nickel is HRC28. Simply speaking, it is harder than stainless steel. It is precisely because of this hardness that we rarely see CNC machining workpiece of this material in daily life, but there is a way to achieve this, that is, through the integrated forming process of nickel electroforming. The common MAYBACH and Mercedes-benz beacon is made of this process
Basic information:
- Layout: TKL with F13
- Color: Black, Blue 2756C, Burgundy 676C
- Material: Top and Bottom case aluminum, while the weight, logo, artisan by nickel electroforming process
- Degree: 6.5 °
- Structure:plateless leaf-spring gasket with an optional plate
- PCB: Hotswap & Soldered both will support VIA/QMK
- Plate: 1.5mm PC/POM/PORON
- Weight: nickel cobalt alloy
- logo: Nickel cobalt alloy
- Artisan: nickel cobalt alloy
- Gakest: 2mm poron
- Will use USB-C daughter board to JST

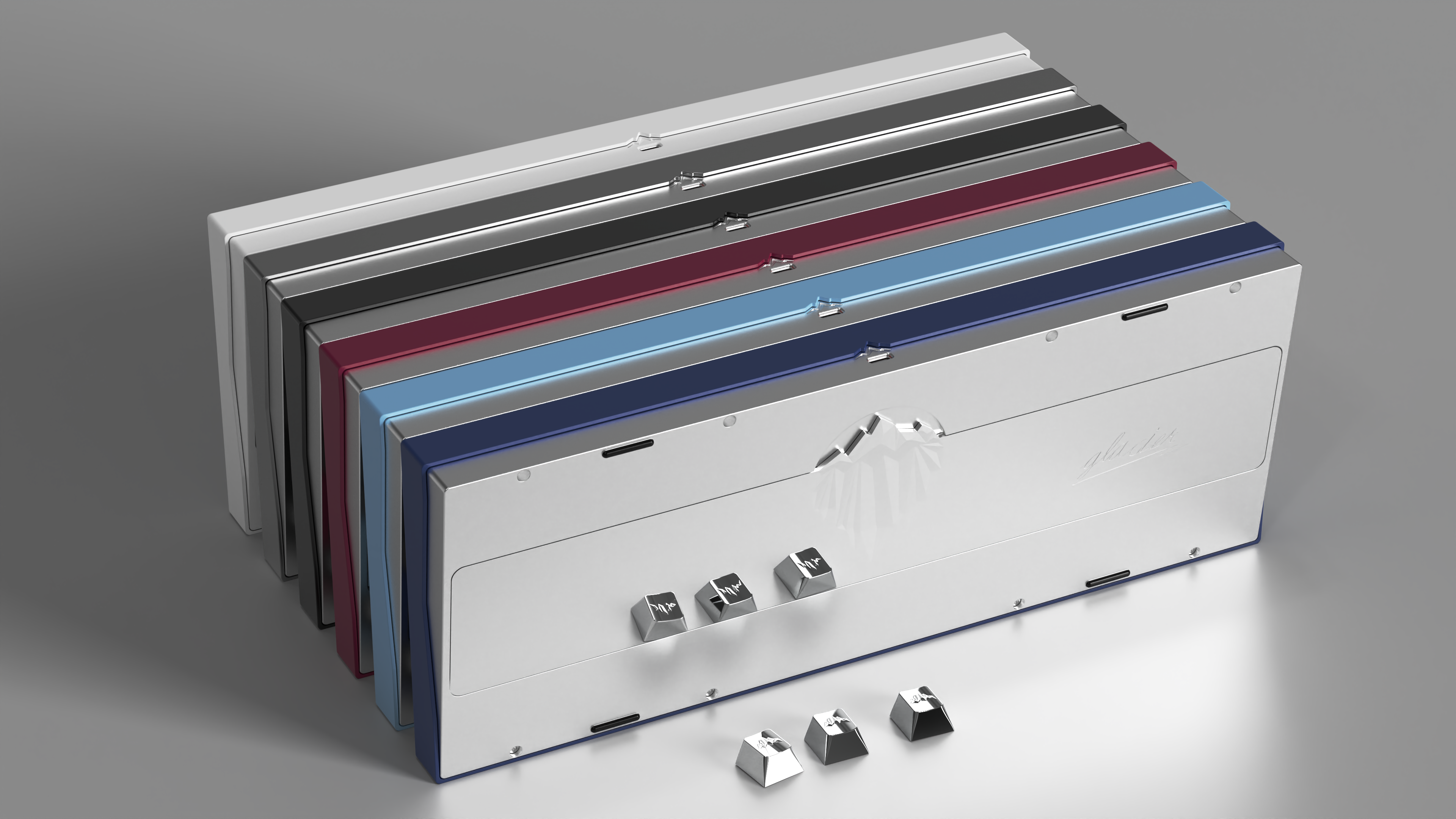

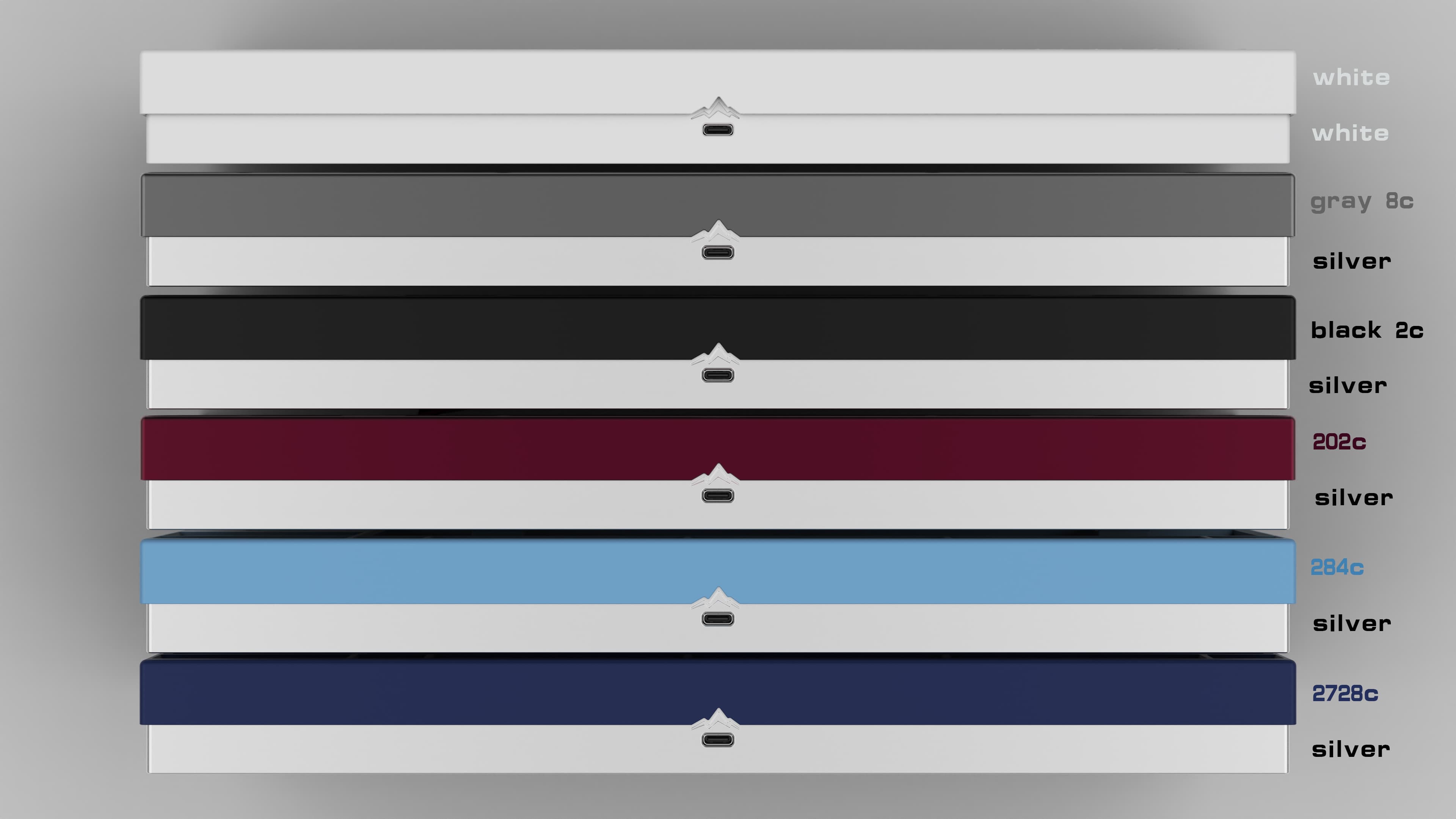

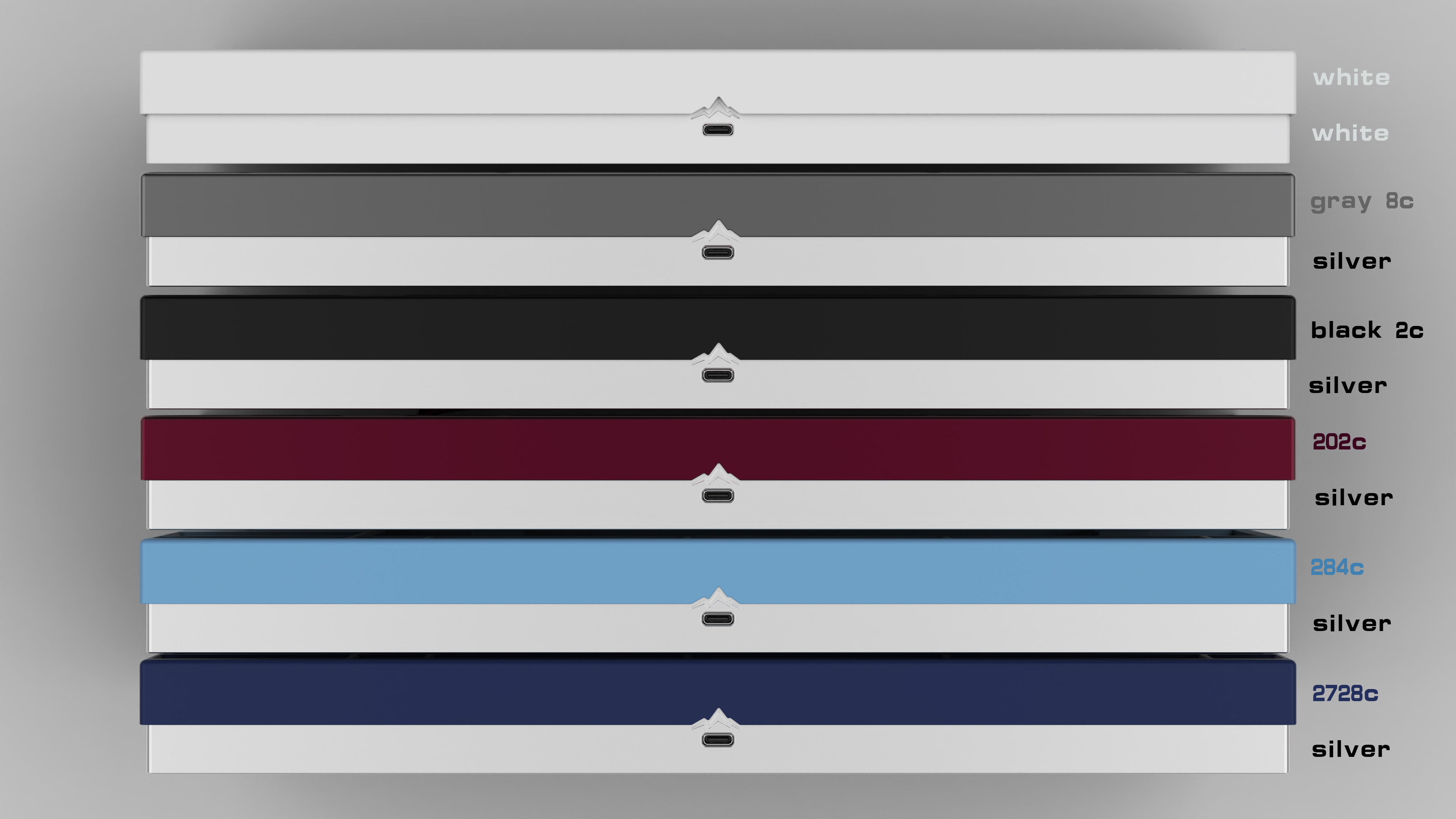

Colors
PCB and layout:
The PCB is 1.6mm has flex cuts and leaf-springs. With the last GB, a lot of people abandoned the Thera75 because it was soldered only, so for the Glacier80 we also added the hot-swap PCB option, which can also be used with the PC/POM plates to achieve a soft typing. Soldered PCBs support ISO, step CAPS, left shift split, 6.25U and 7U space options; Hot-swap PCB supports only 7U space with WKL. Both PCBS support QMK/VIA
Soldered
Hotswap
Appearance:

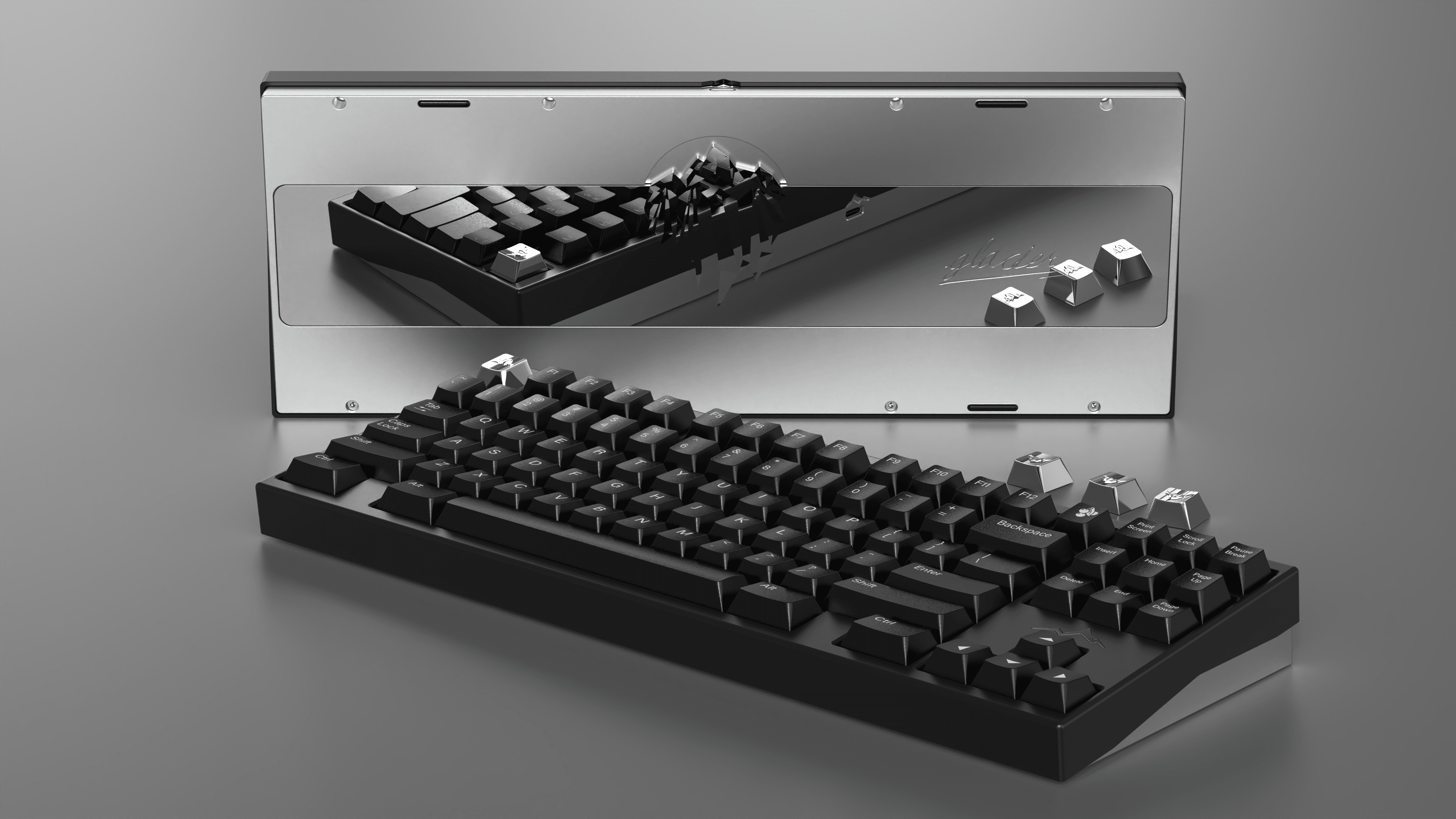

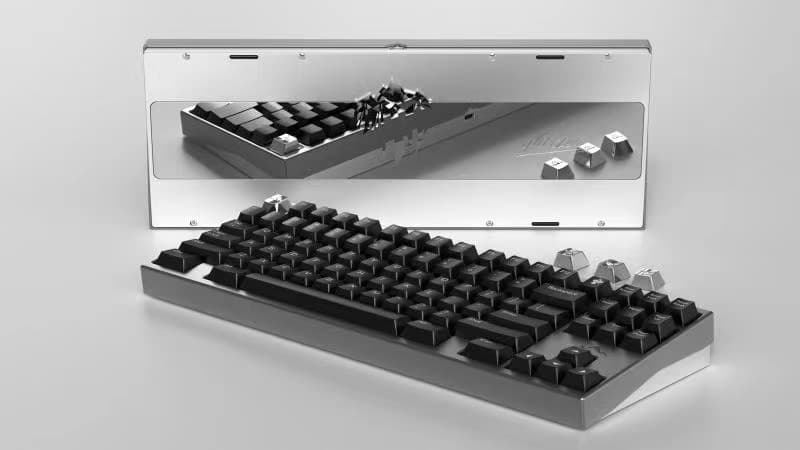

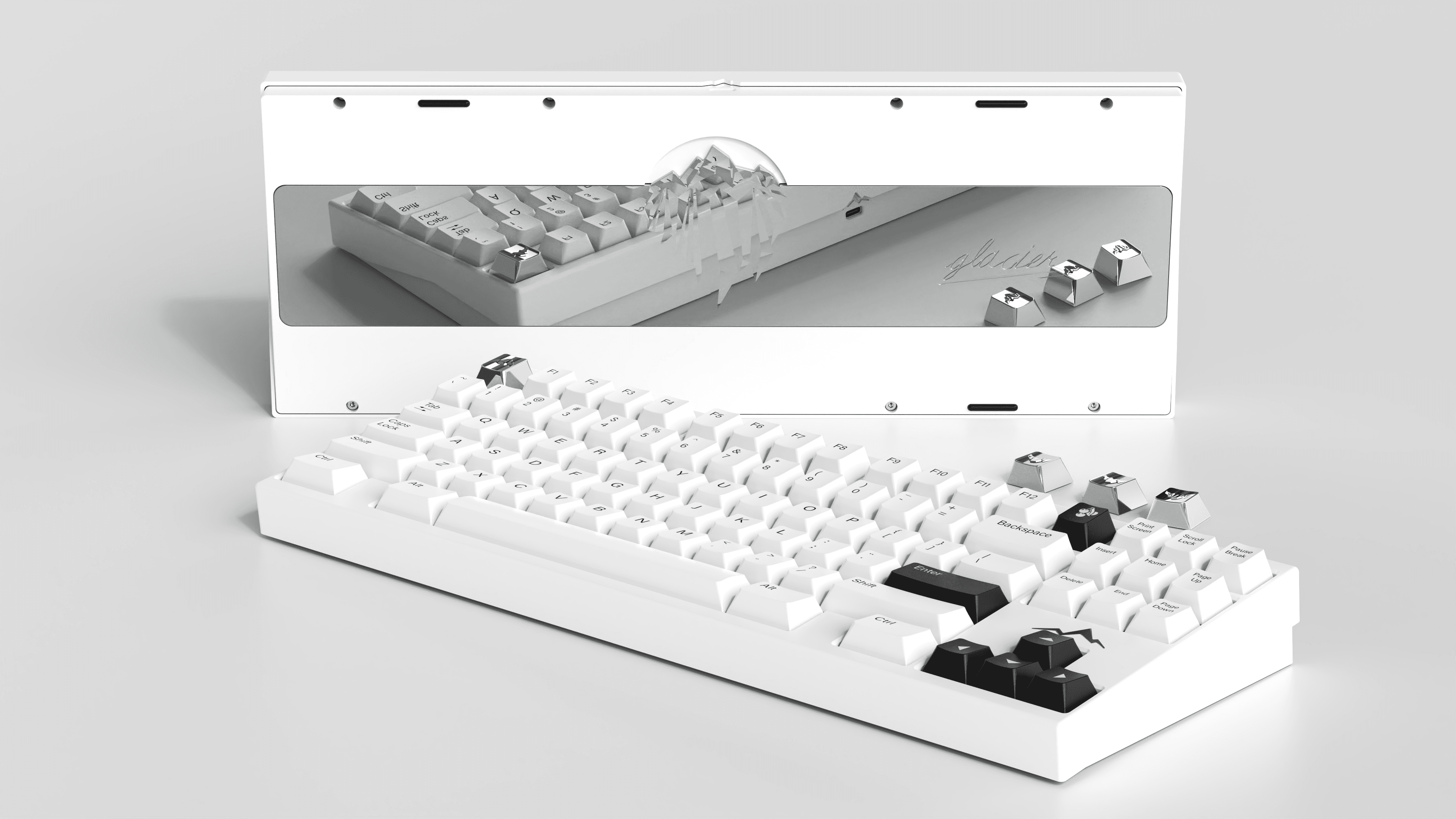

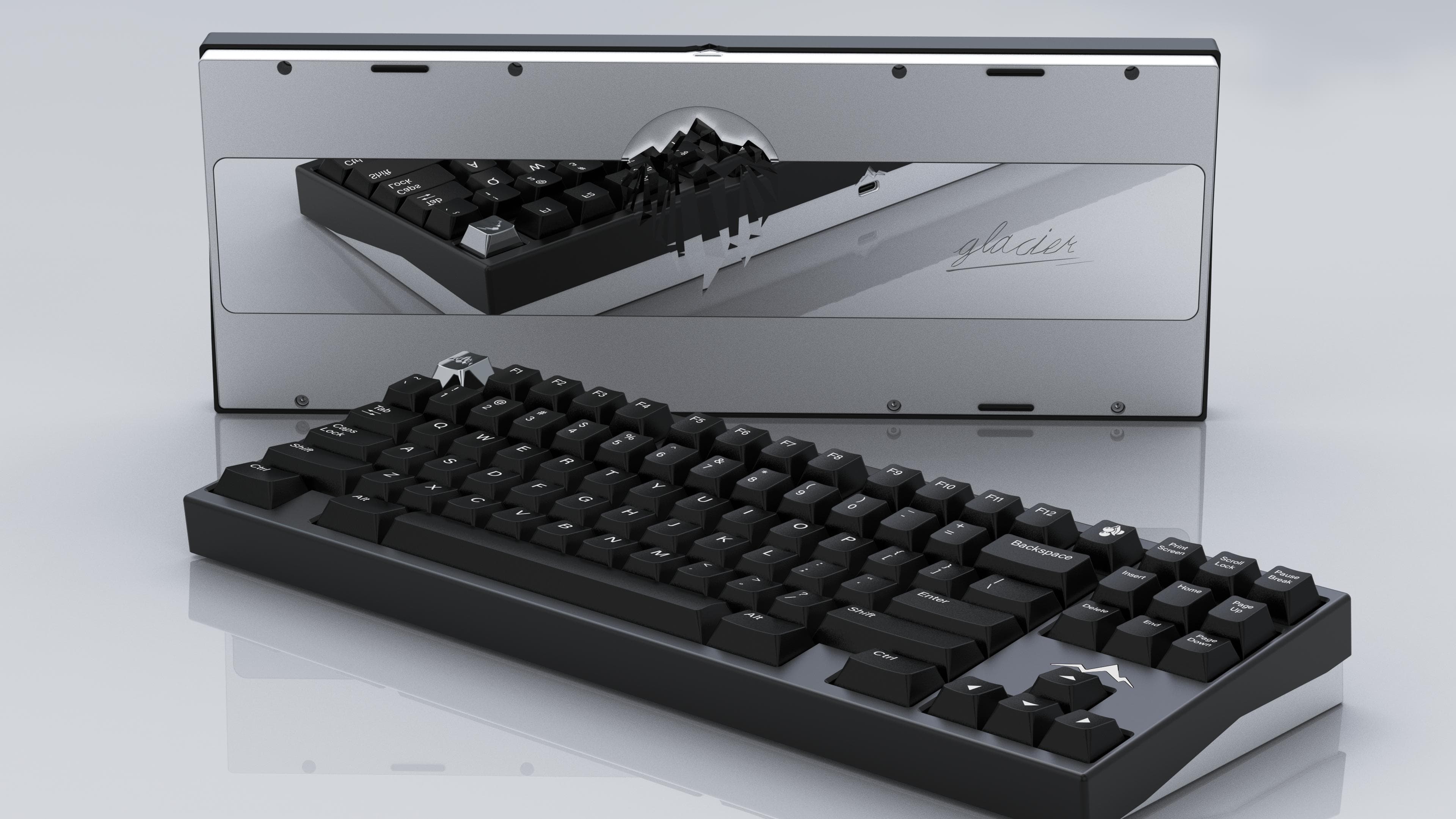

The keyboard is TKL with F13, also support WKL. The outline of glacier is set above the direction area, which emphasizes the theme of this work -- glacier. You can also choose an iceberg themed keycap, so that the front view of the keeb is more distinctive.
The side profile of the keyboard is designed with a 270° collision color top and bottom cover. The turning lines on both sides modify the spreading part of the glacier and outline the peak of the glacier above the Type-c interface. This design creates a visual change through the bend of the hard line, eliminating the heavy look of the side, while the peak of the glacier breaks the top line, making the top line simple but not plain.

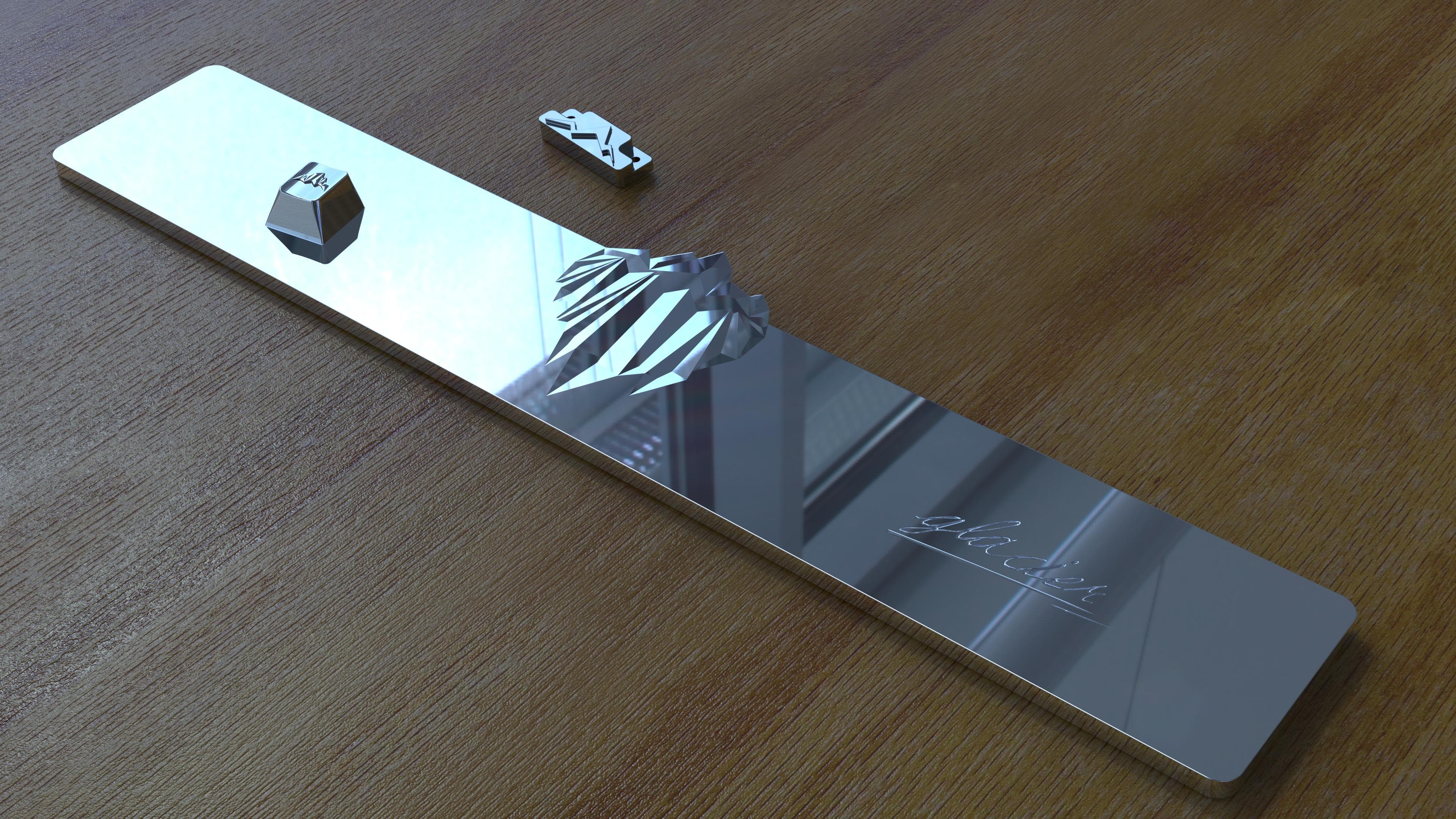

The bottom of the keyboard is a mirror weight (electroplated nickel). Here we have a full version of the iceberg, in keeping with the fact that glaciers are mostly hidden under water. Similarly, the crest of the glacier protrudes from the top of the rectangular weight, breaking up too many parallel lines to give the back a dull look. At the same time, the glacier part made a 3D visual effect, breaking the restriction of two-dimensional plane, producing a sense of 3D layers.
weight, logo and artsian are made of the same process (nickel and cobalt alloy material) as the Mercedes-benz Maybach standard, manufactured in a full vacuum environment. Compared with the traditional PVD mirror, its mirror part can achieve better gloss and flawless effect, and is not easy to scratch and more durable

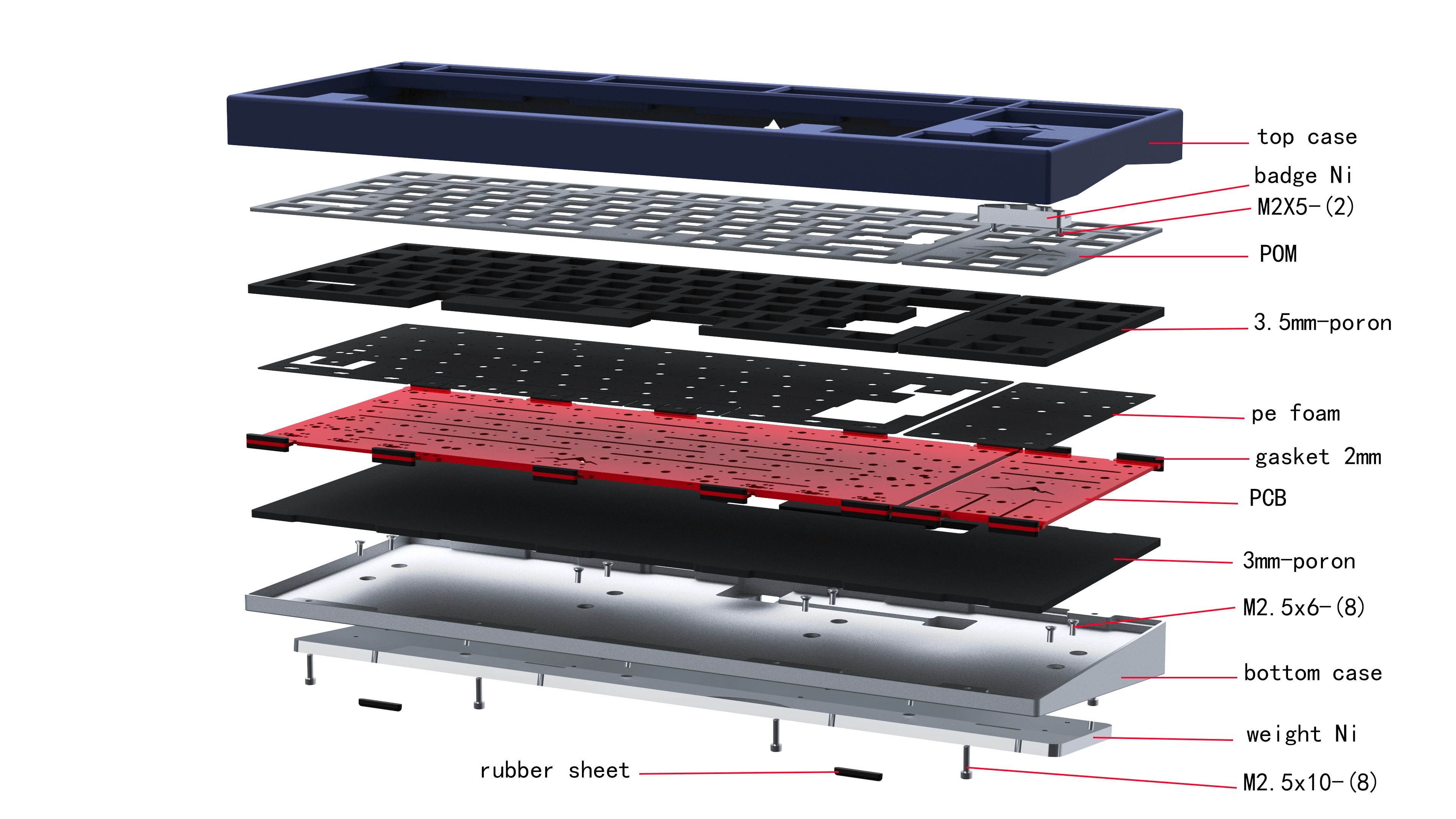

Breakdown
Structural :
The plateless design can restore the original sound of the switch to the maximum extent, gaskets give typing a more soft, therefore, GLACIER80 is designed with plateless Gasket structure as the original intention. Poron is still selected as the material of gasket and bottom foam.
Plate foam is 3.5mm poron is included to fill the space under the switch when choosing plateness structure.
The keboard will provide PC/POM/Poron plates for players to choose from, and the plates will be slotted.

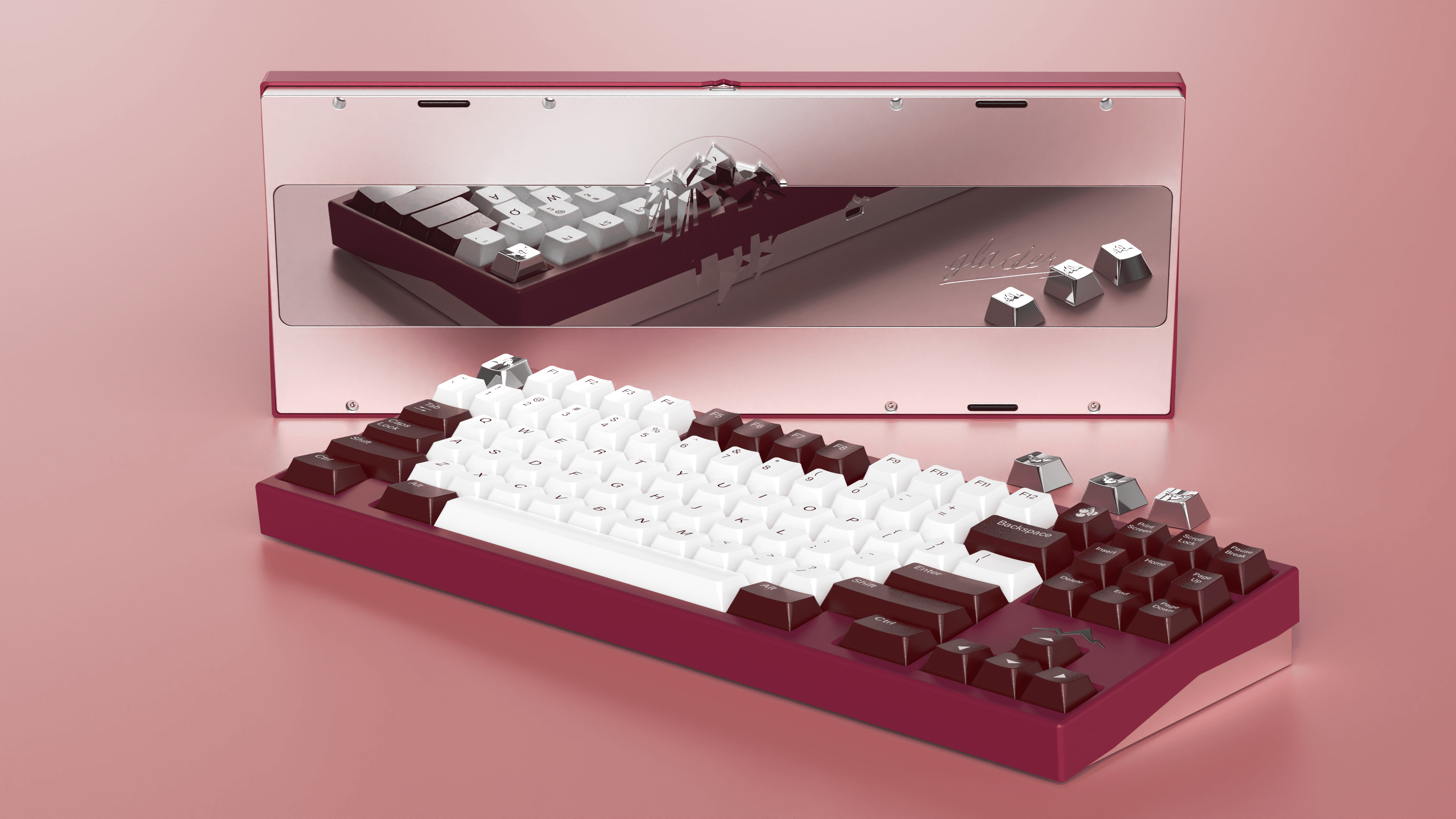

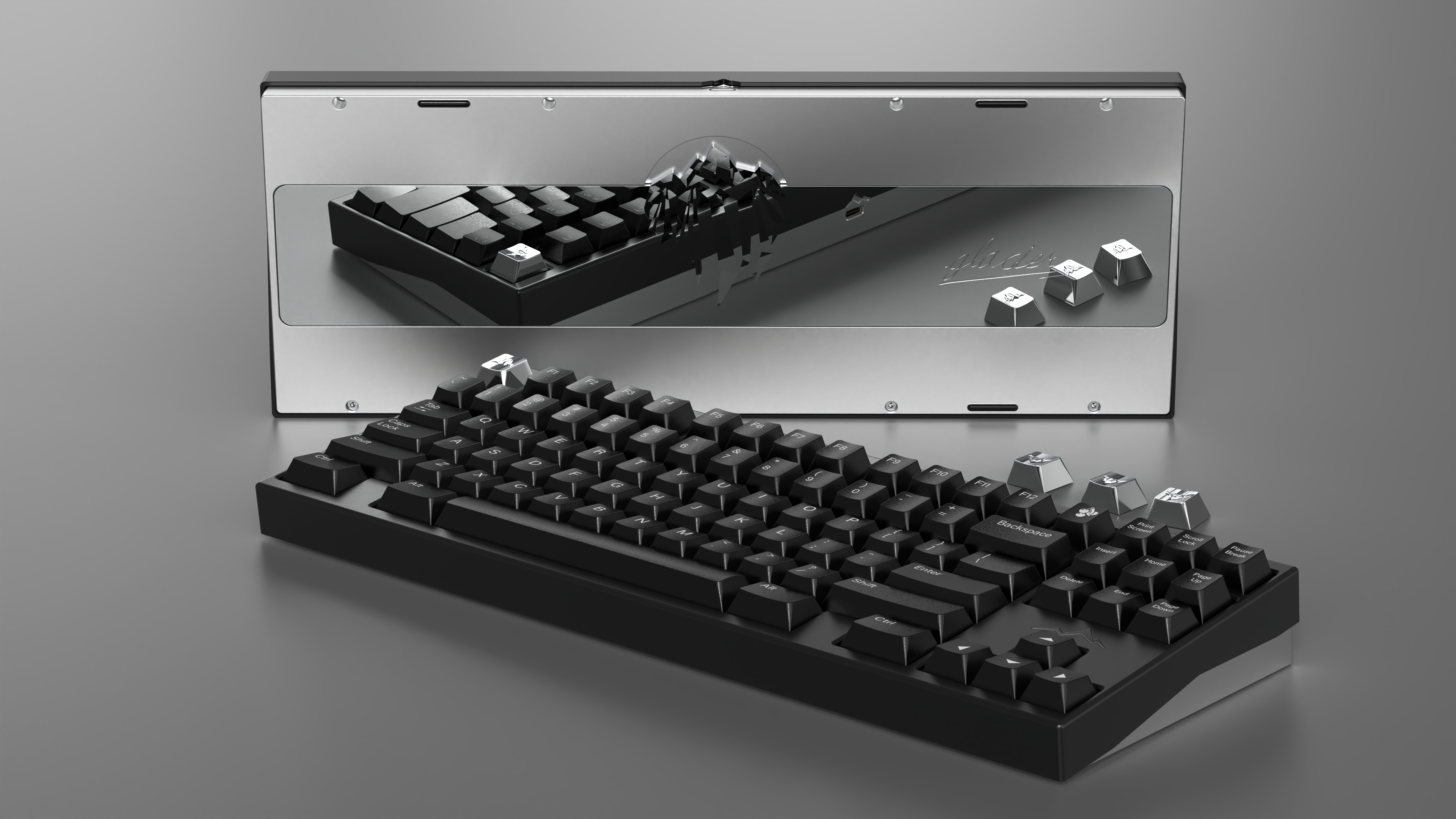

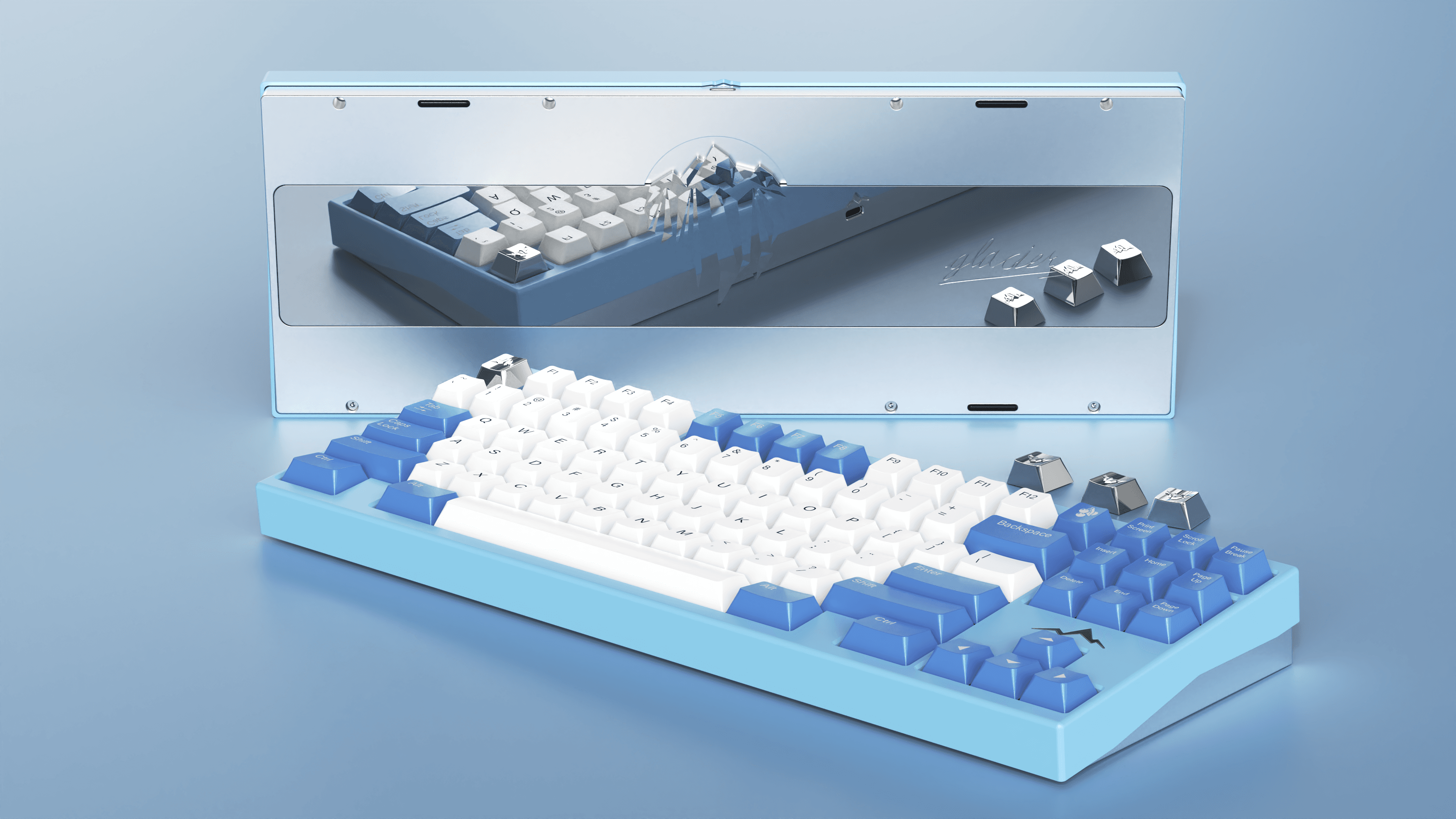

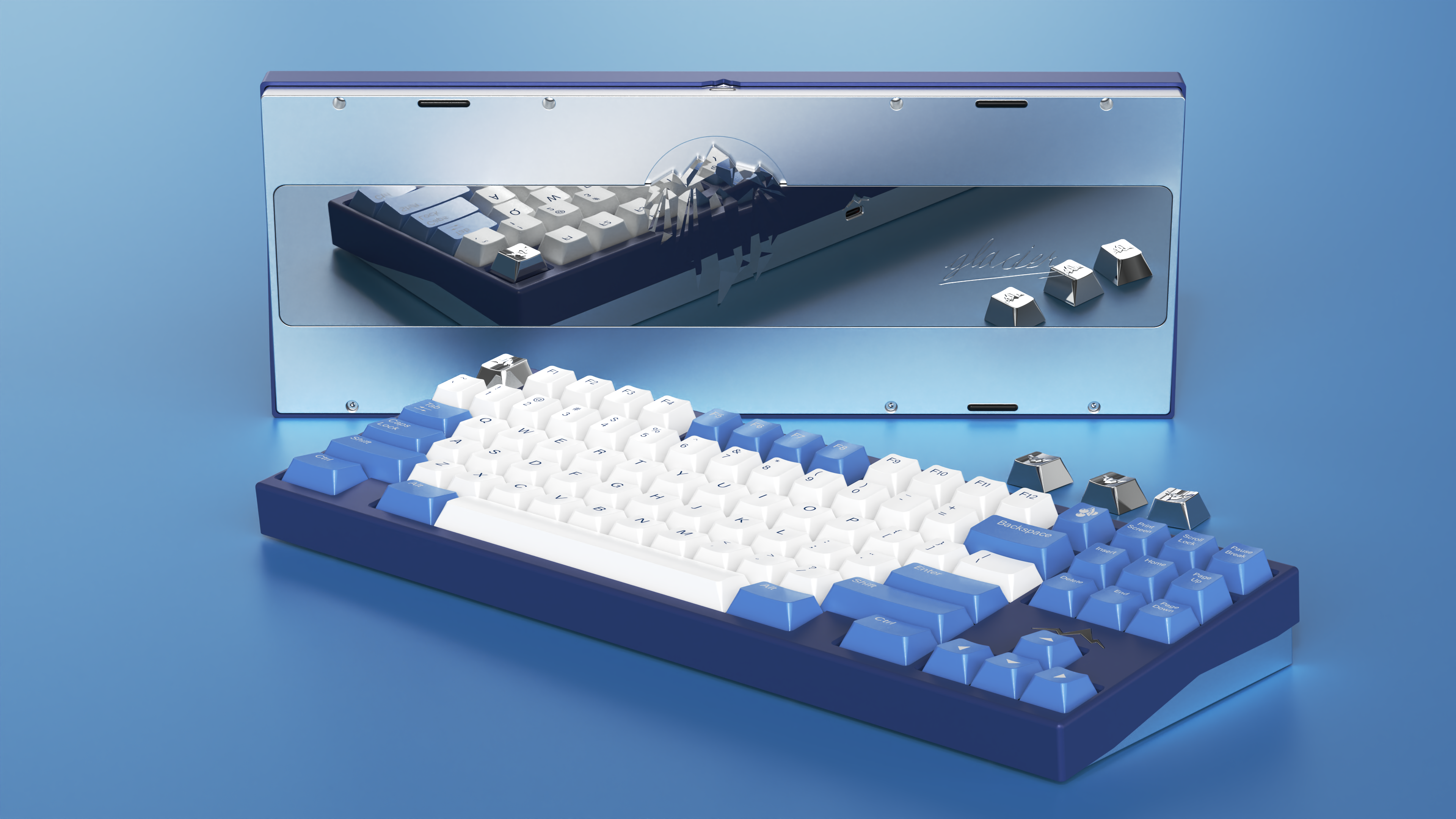

Renders
Thank you for your time!
