By an IC for this KIT, I found there are members who want this eagerly.
So I will run a GB for this KIT for a limited period.

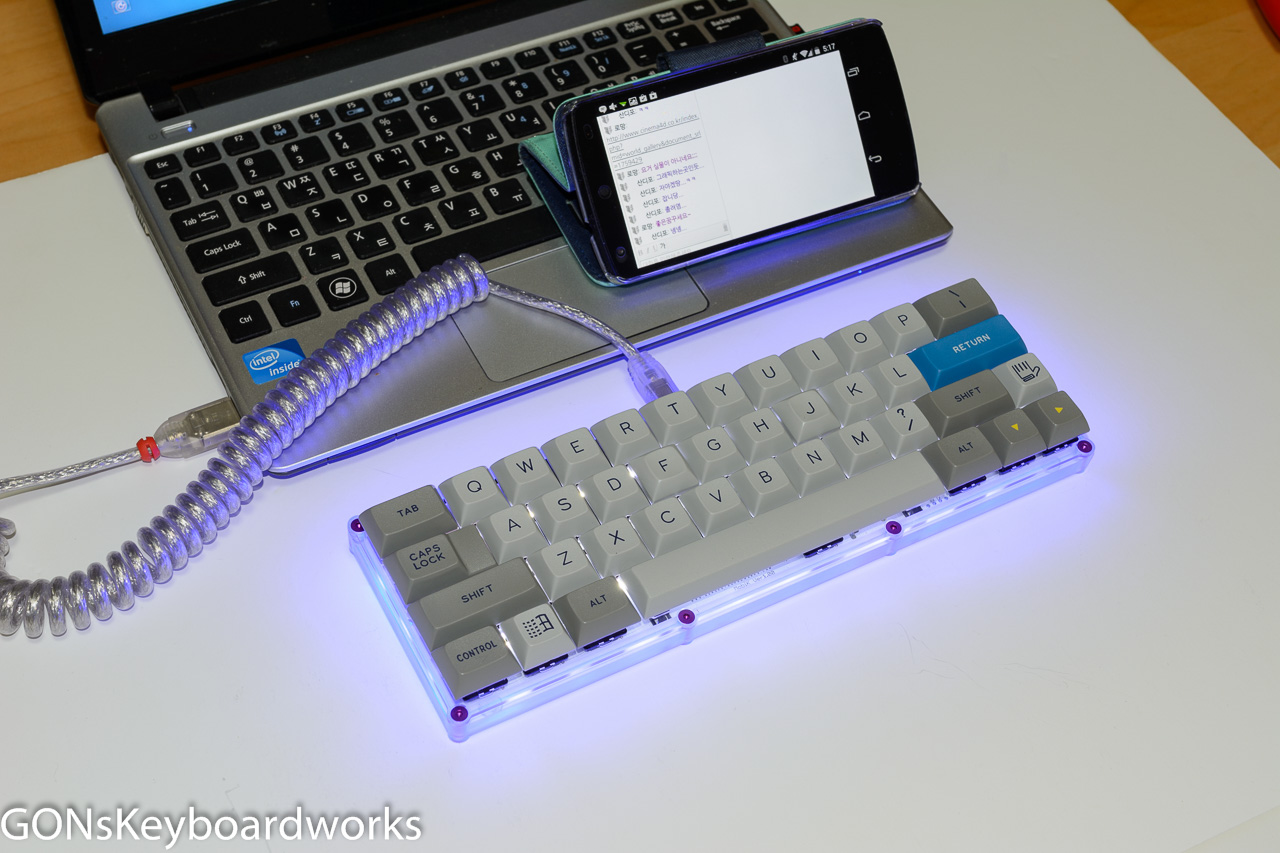

The first picture show you Mobik's actual phycal dimension.

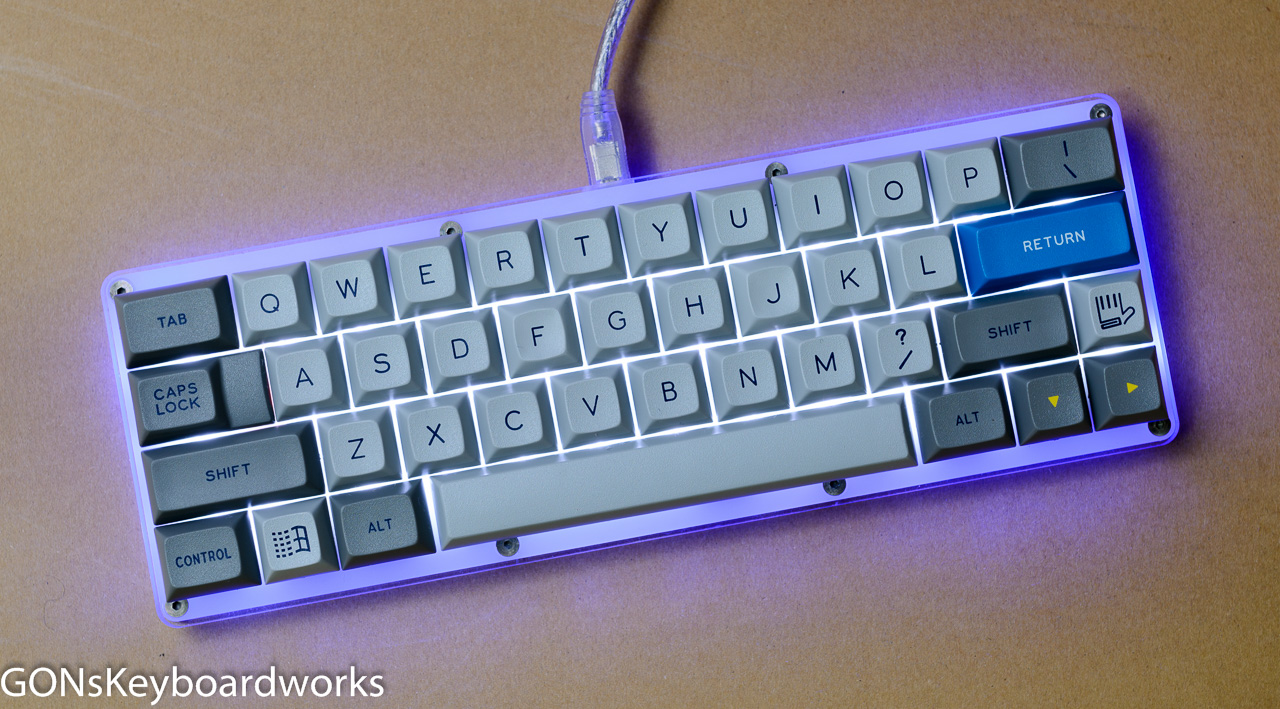

The second one show you its actual material(Diffusing 2T Polycarbornate TOP and BOTTOM)
GON NS NerD Crystal MobiK Complete DIY Set
This set includes:
GON NS NerD Crystal MobiK Housing /w AL anodized bolts, CNC-machined Polycarbonate and Diffusing finish
New NerD MobiK White PCB supporting FB155BC_S Wireless Module
New MX Clears or Blacks(One should be chosen.)
A set of Stabilizers for MobiK KBD
GON Diodes(Very easy to solder on NerD PCBs)
RED Switch Stickers
470R Resistors 50pcs for In-Switch Backlight LED or On-PCB Backlight LED
150R Resistors 50pcs for Side LED
Optional FB155BC_S Wireless Module + KSD02S Slide Switch + Li-Pol Battery /w PCM + GON Charger Circuit Parts
What you further need for better customization:
Optional Switch Springs
DIP LEDs for In-Switch Backlight LEDs
SMD LEDs for Side LED(50pcs) or for On-PCB Backlight LED(50pcs)
Lub for Switch Slider - Krytox 103 and 107(Mix them to get your favorite viscousity)
Mini-USB Cable
Lub for Springs - Not sold at GONsKeyboardworks, sorry
This board is also based on NerD controller. So NerDy GUI is available.
http://www.gonskeyboardworks.com/manuals/110-nerdy-gui.html This product does NOT include Assembly Service.
(If you want you, contact me.)
Order is open now.
The pricing will be returned to it original price from Nov 1st.
Ordered items will be shipped in November.
(If you order assembly, it will take longer.)
Ordering Page Direct Linkhttp://www.gonskeyboardworks.com/group-buys/130-gon-ns-nerd-crystal-mobik-complete-diy-set.html[/size]
