h87a returns again, with both a SOUTH and a NORTH version - this is in reference to the spacebar stabilizer direction. Some cases need a north-facing to allow for the PCB to fit properly.
MOST keyboards will fit either. Check the plate of your keyboard to verify which you'd be better off with. The south-facing ones will have cutouts that extend below the switch cutouts, and the north-facing will have cutouts extending above the switch cutouts.
I have updated my compatibility list to reflect this, and showing which of my other PCBs fit in boards:
Hiney TKL PCB compatibility spreadsheetBuy Duration: Jan. 18, 2021 - Feb. 15, 2021
Vendors/Pricing:USA:
hiney / $48.00 USD
UK:
proto[Typist] / £35.00 GBP
EU: Oblotzky will stock these at a later date, he has some on order from me!
Oceania: Coming soon!
SEA: Coming soon!

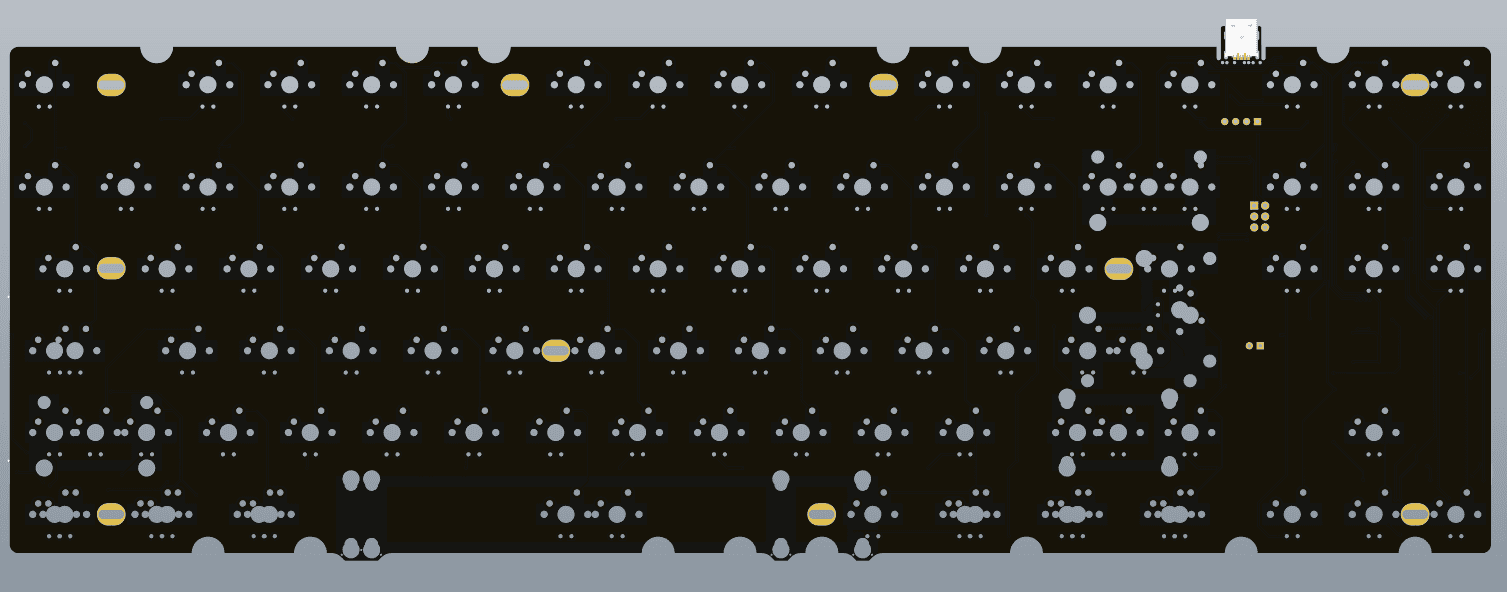

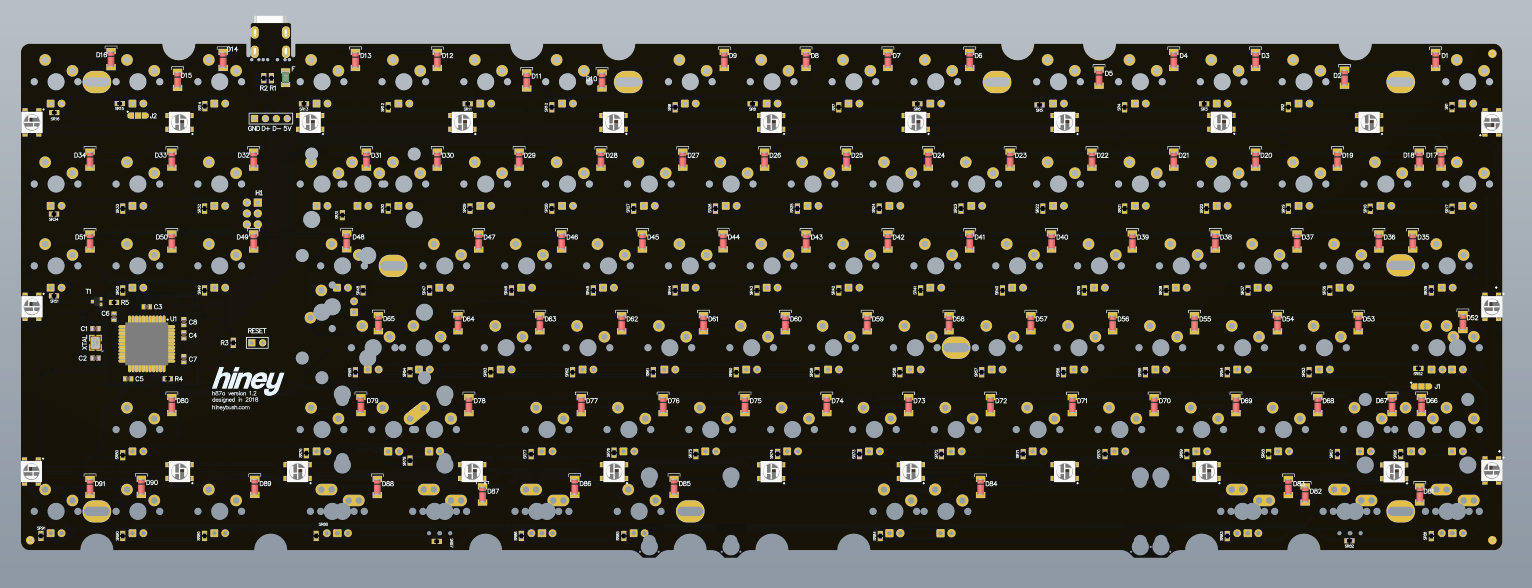

h87aVersion 1.8
- MX + Alps footprints
- South-facing-only or North-facing-only spacebar
- Matte black soldermask + black FR4 core + ENIG (gold) plated pads
- 1.6mm thickness only
- RGB Underglow
- QMK + VIA compatible
- USB Mini port
Old stuff:
More
Round 4 begins May 17, 2020 and ends June 7, 2020.
h87aVersion 1.8
- MX + Alps footprints
- South-facing-only spacebar
- Matte black soldermask + black FR4 core
- 1.6mm thickness only - thinbois come later
h88Version 1.1
- MX + Alps footprints
- North-facing-only spacebar
- Gloss red soldermask + black FR4 core
- 1.6mm thickness only - thinbois come later
Designed for TGR Jane V2 CE, Finder Works N-Dash, Monokei x Biso KFE
PricingUSD
h87a: $48
h88: $48
I am also offering an FR4 plate combo for h88 on my site, $70 for a PCB+plate combo.AvailabilitySite/links live on Sunday!h87a:
switchmod.net - US ONLY.
h88:
hiney.ccInternational proxies:EU: Mykeyboard.eu
https://mykeyboard.eu/catalogue/category/group-buys/hineybush-h87h88-pcb_291/Canada: Apex Keyboards
https://www.apexkeyboards.ca/products/h87https://www.apexkeyboards.ca/products/h88Aus: Daily Clack
https://dailyclack.com/products/h87a-tkl-pcb?_pos=1&_sid=51171c2b8&_ss=rhttps://dailyclack.com/products/h88a-tkl-pcb?_pos=1&_sid=db9e087a0&_ss=rAsia: Monokei
https://monokei.co/products/h87a-h88-pcbMore to be announcedround 2
GROUP BUY OPENS: Mar 18 2019
GROUP BUY CLOSES: Apr 19 2019Estimated manufacturing time: 4-6 weeks
Estimated shipping date: ~ Mid May 2019 Mid June 2019
MOQ: 50 Units
Price: h87a normal (1.6mm): $45 each
h87a thin (1.2mm) $48
h87alps: $48There are no price breaks for this product.
The product price does not include PayPal fees (2.9% + $0.30), this fee is added to your shipping charge. (PayPal fees are: $1.30 for US, $1.98 for international)
Ordering internationally?
Check out your respective location's shop to save money on shipping:
EU:
https://mykeyboard.eu/catalogue/category/group-buys/hineybush-keyboards_149/Note: The MyKeyboard.eu price includes 21% VAT, import shipping and PayPal fees.
Asia/Pacific:
https://goo.gl/forms/uIUbC9T8alERB5593Australia:
https://dailyclack.com/collections/coming-soon/products/h87a-tkl-pcbTo check/estimate compatibility:
https://docs.google.com/spreadsheets/d/1fZ8FtTGDl222hXnomQJgKmwRnWvg2VuoJ-GeAafVTLc/edit?usp=sharingLook at the "h87a" column.
You must use screw-in stabilizers on AT LEAST the spacebar and 2.75 right shift.I CANNOT GUARANTEE THAT THIS PCB WILL FIT YOUR CASE, even if it is listed as "probable" by the spreadsheet linked above. If you have doubts, wait until someone else with your case tries this PCB.
Specs:- TKL PCB, programmable via QMK. - https://github.com/hinnebusch/qmk_firmware/tree/master/keyboards/h87a
- MX plate/PCB mount only. NO ALPS SUPPORT ON THIS VERSION
- "Skinny A87" form factor - same footprint as B87, but same USB placement and stab layout as A87.
- Standard ANSI and WKL bottom rows, ISO enter, short right and left shifts, 2u backspace
- Top-side Mini USB port
- Bi-directional spacebar and right shift stabilizer mounting (north or south) - You must use screw-in stabilizers on AT LEAST these two positions
- RGB underglow
- One-color in-switch LED
- Powered by Atmega32U4 MCU
- No physical reset switch - just short two pins on the PCB (for case compatibility)
- In-switch indicator lights - connected via jumpers
- Pins to solder a daughter board on (Moon TKL, for example)
- Fully soldered and pre-programmed with a basic TKL map out of the box
- SPI pins
- Breakaway USB port for cases that use USB daughterboards
- Matte black solder mask w/ white text
Round 3
Product link:
https://hineybush.com/products/h87aIC Link:
https://geekhack.org/index.php?topic=96501.0other vendors ordering:
MyKeyboard.eu (Europe)
iLumKB (Asia)
Apex Keyboards (Canada)
Daily Clack (Australia)
Will update with product links soon!
