Haven60 by Garner
Unique & Customizable
Inspired by vintage Victorian furniture, the Haven60 gives a unique impression on the desk with its bold and curvy design.
Haven60 is designed to be compatible with standard 60% PCBs to support a wide range of layouts and allows you to use a PCB of your own preference.
This way the keyboard supports anything from split spacebar and split backspace to arrow keys and HHKB. Both ANSI and ISO.
_________________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________________

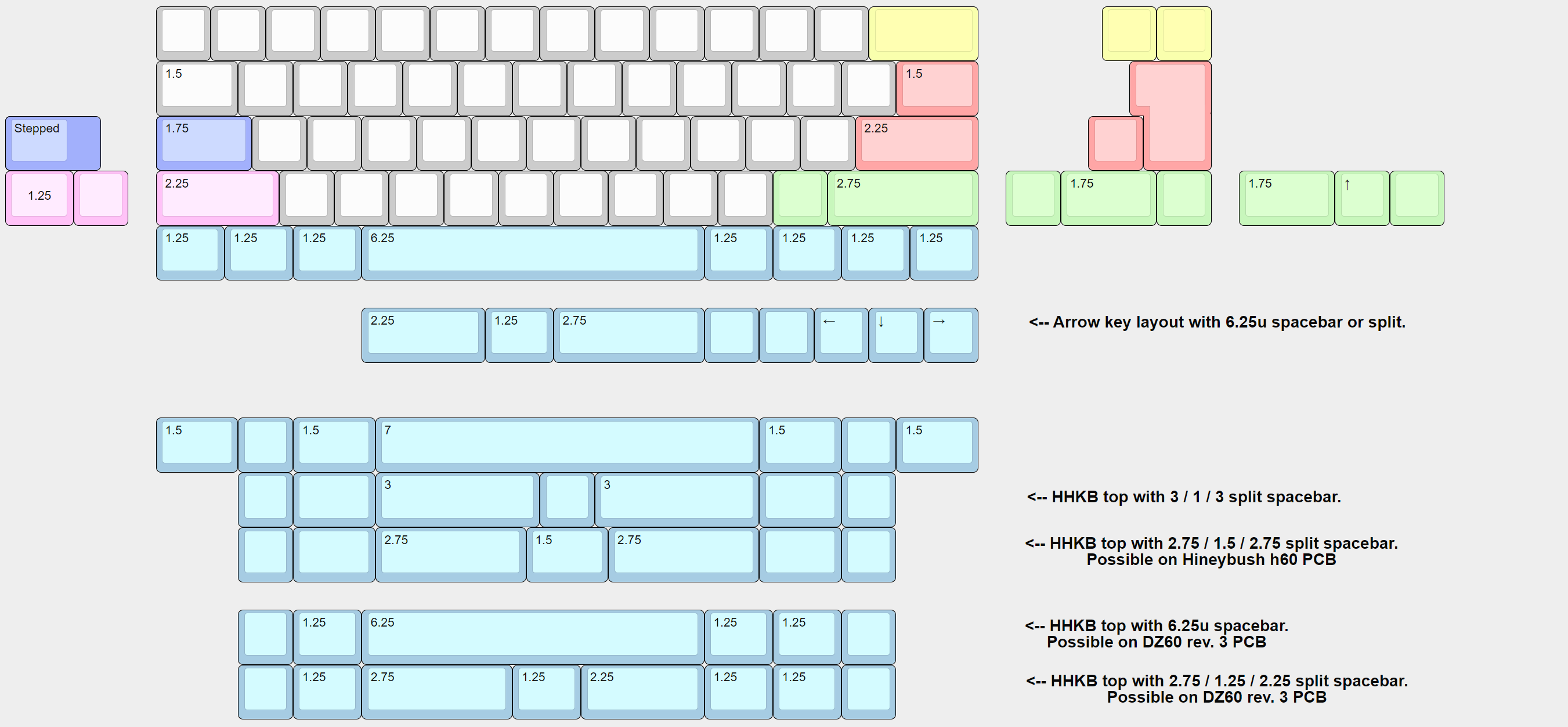

Supported Layouts

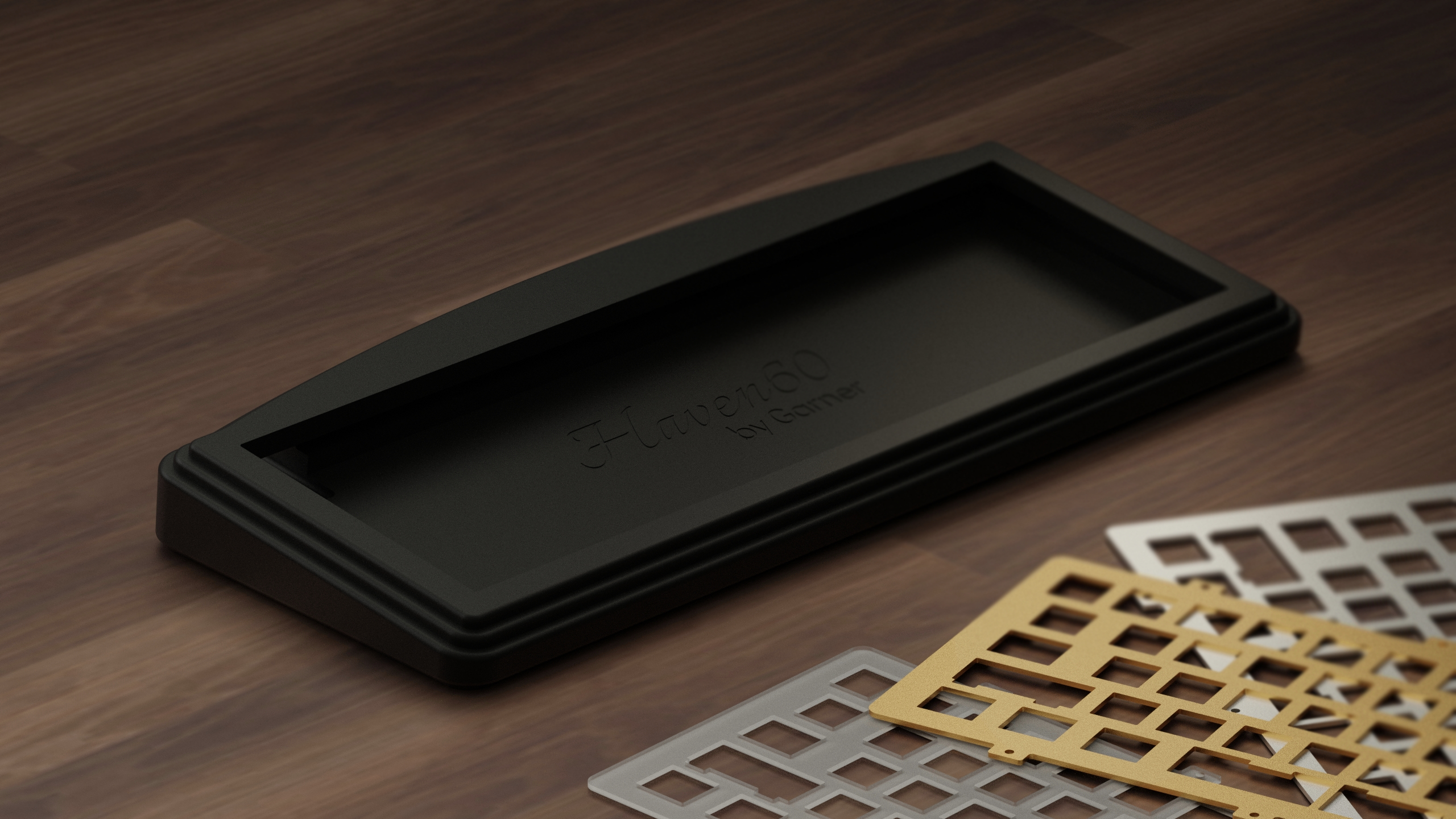

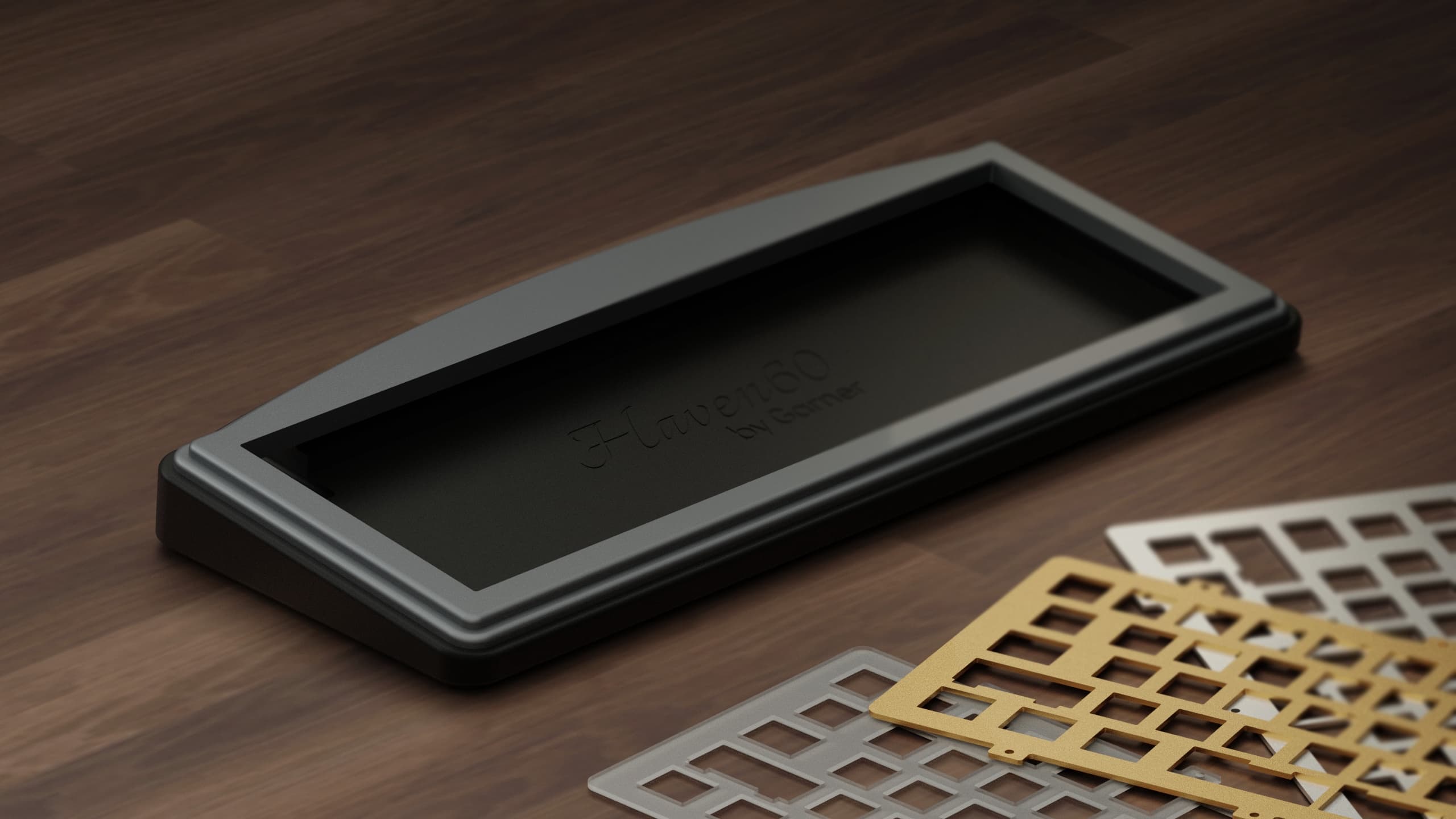

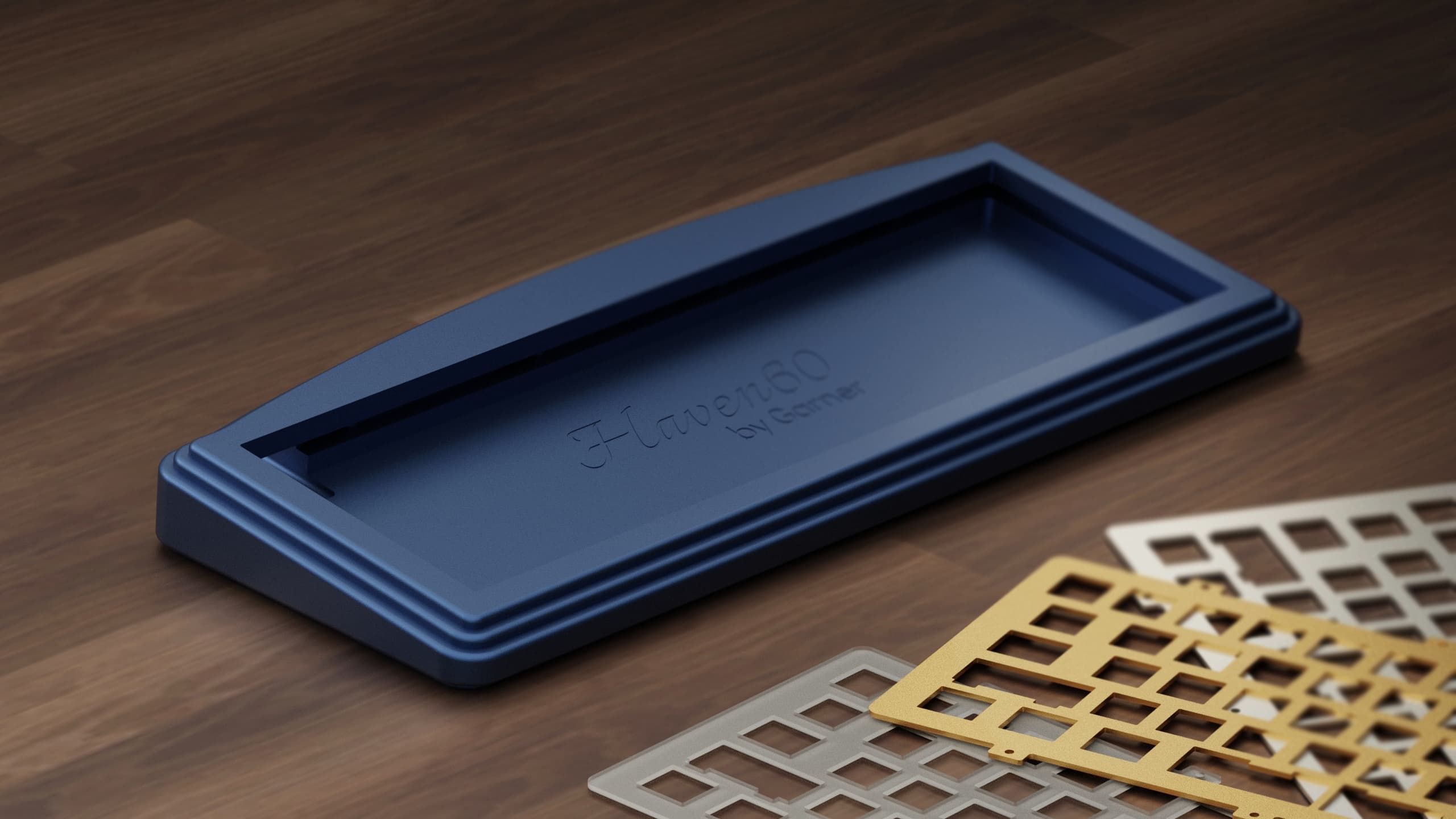

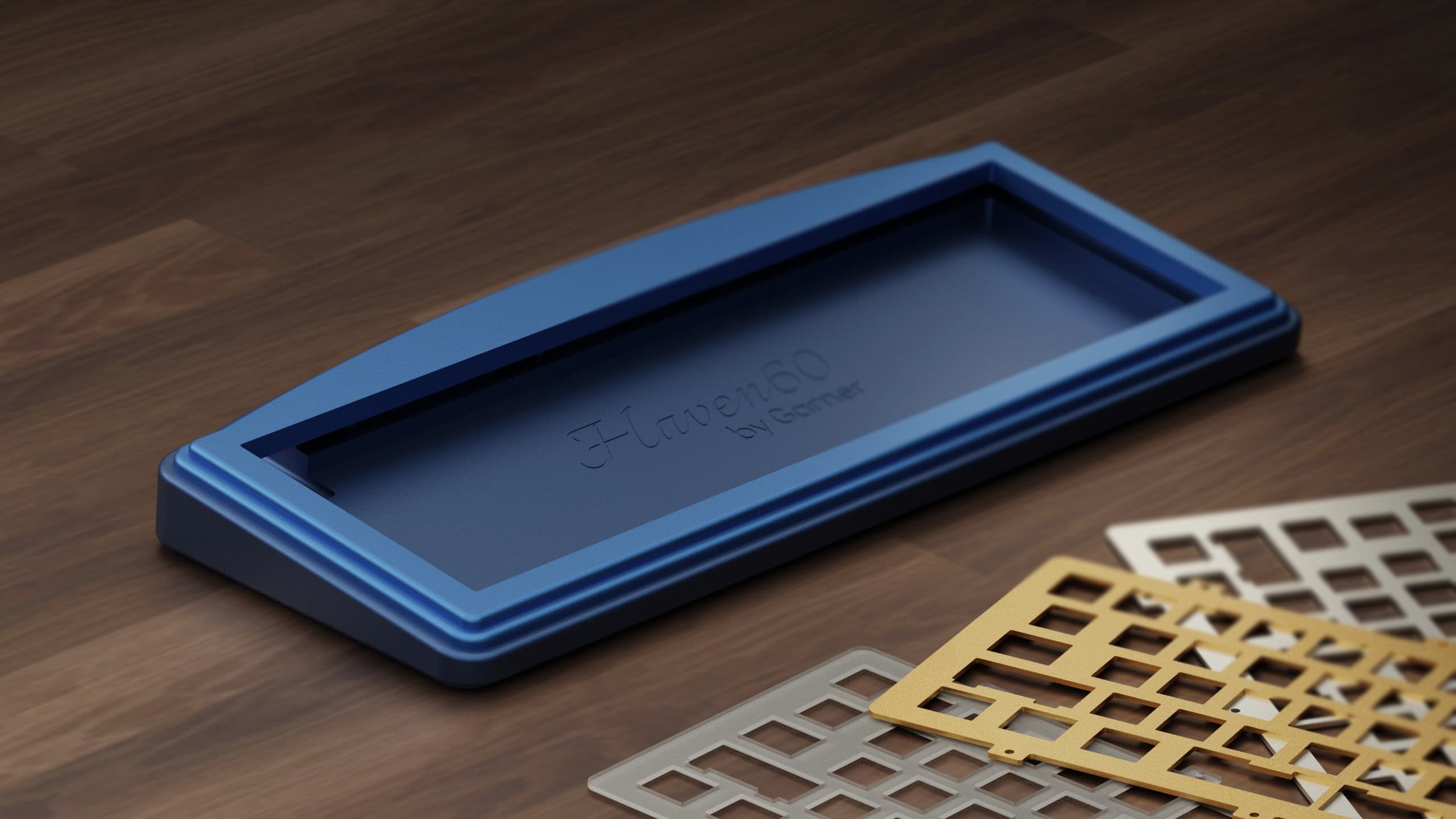

PCB plate will be available in aluminum, brass and polycarbonate.

_________________________________________________________________________________________________________________________________________

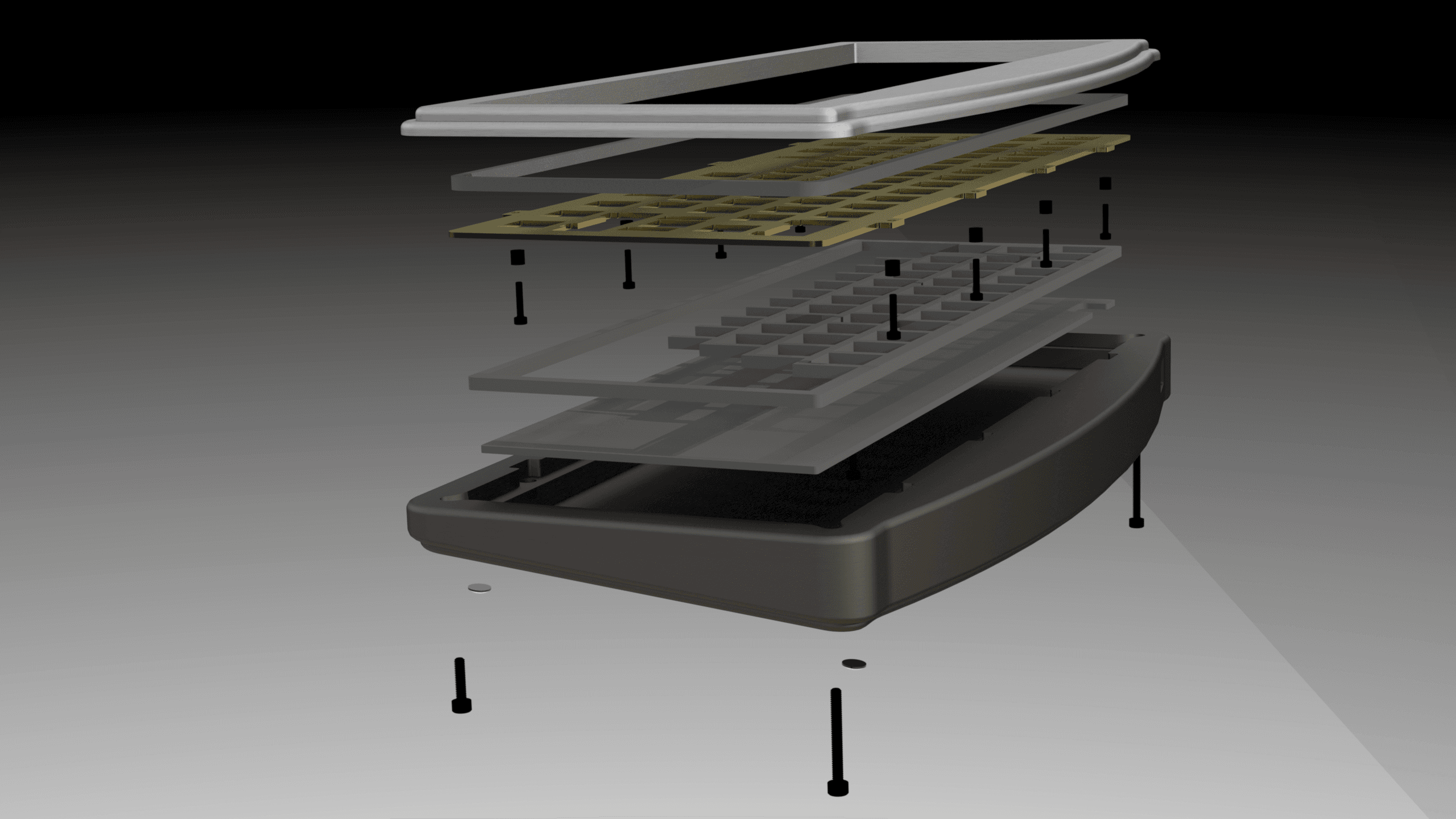

Revamped Top Mount Concept
This mounting system provides a combination of gasket mount and top mount.
The idea is that the cylindrical rubber gaskets will allow the board's flex to be adjustable.
More details and showcase further below.

_________________________________________________________________________________________________________________________________________
Group buy infoThis keyboard is sold without PCB and comes with a plate that supports a wide range of layouts for maximum customizability.
Make sure your PCB supports the listed layouts above and have USB-C placed at the top left corner (the GH60/dz60/pok3r standard).
I have compiled a list of compatible PCBs further below, (and I'm sure there are more).

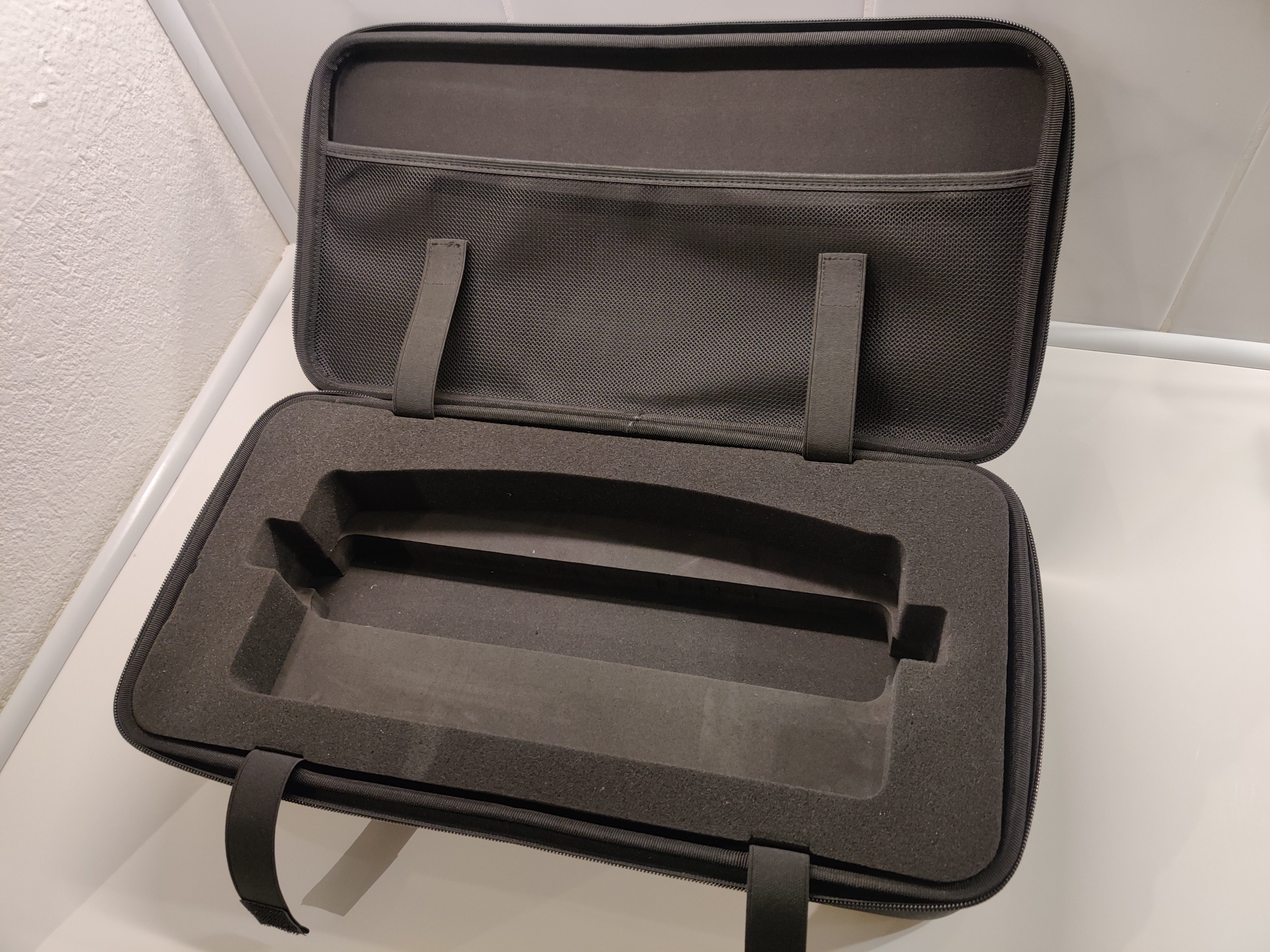

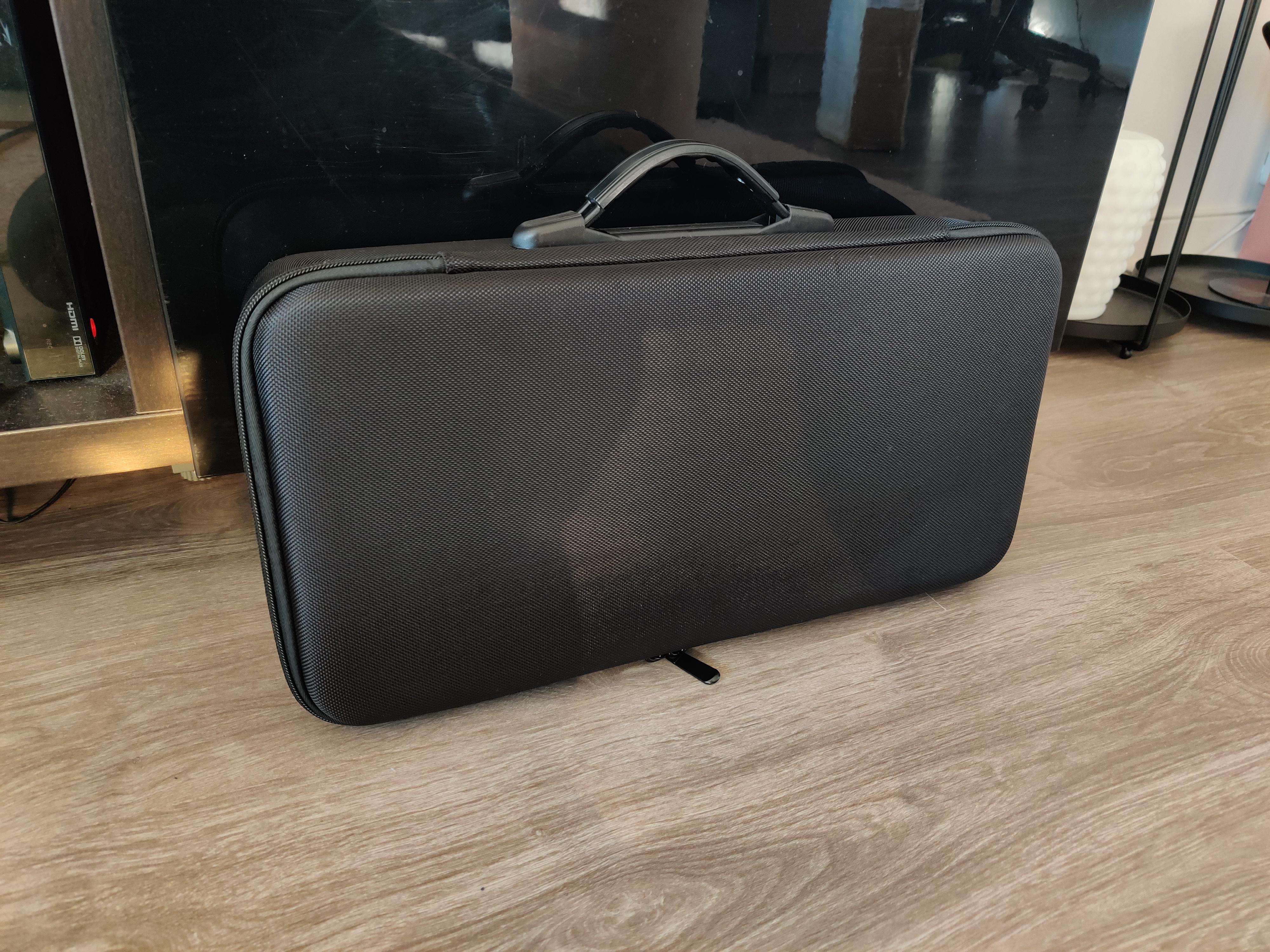

There is also a matching custom wrist rest to be offered as well as a carrying case with cutout for both the keyboard and the wrist rest!VendorsUS: Mechs & Co. - 95 units
EU: CandyKeys - 50 units
CA: Desk[H]ero - 50 units
ASIA: Zion Studios - 50 units
GB will be live from February 10th to March 11th, FCFS.
Final dispatch is expected 4-6 months after GB has ended.
Pricing
Base kit: $310 USD
Includes full keyboard kit with WK or HHKB top, gaskets, fasteners, aluminum plate and case foam.
Options:
PCB Foam+$25 USDBrass Plate+$30 USDPC Plate+$35 USDCarrying case+$40 USDMatching Wrist rest +$80 USDExtras / Additionals:
Extra Aluminum plate +$25 USDExtra Brass plate+$40 USDExtra PC plate+$45 USDMOQKeyboard: 100 units
Wrist rest: 40 units
Carrying case: 25 units
_________________________________________________________________________________________________________________________________________
Technical information
Keyboard Size:60%Case angle:6°Weight:~1.8kg unbuilt (4lbs)Front Height:~20mm (0.78")Case Material:Anodized aluminumPCB Plate Material:Aluminum, brass and polycarbonateGasket material:EPDM (high quality closed cell rubber)Wrist rest material: Anodized aluminum with clear polished polycarbonate
_________________________________________________________________________________________________________________________________________Color Options

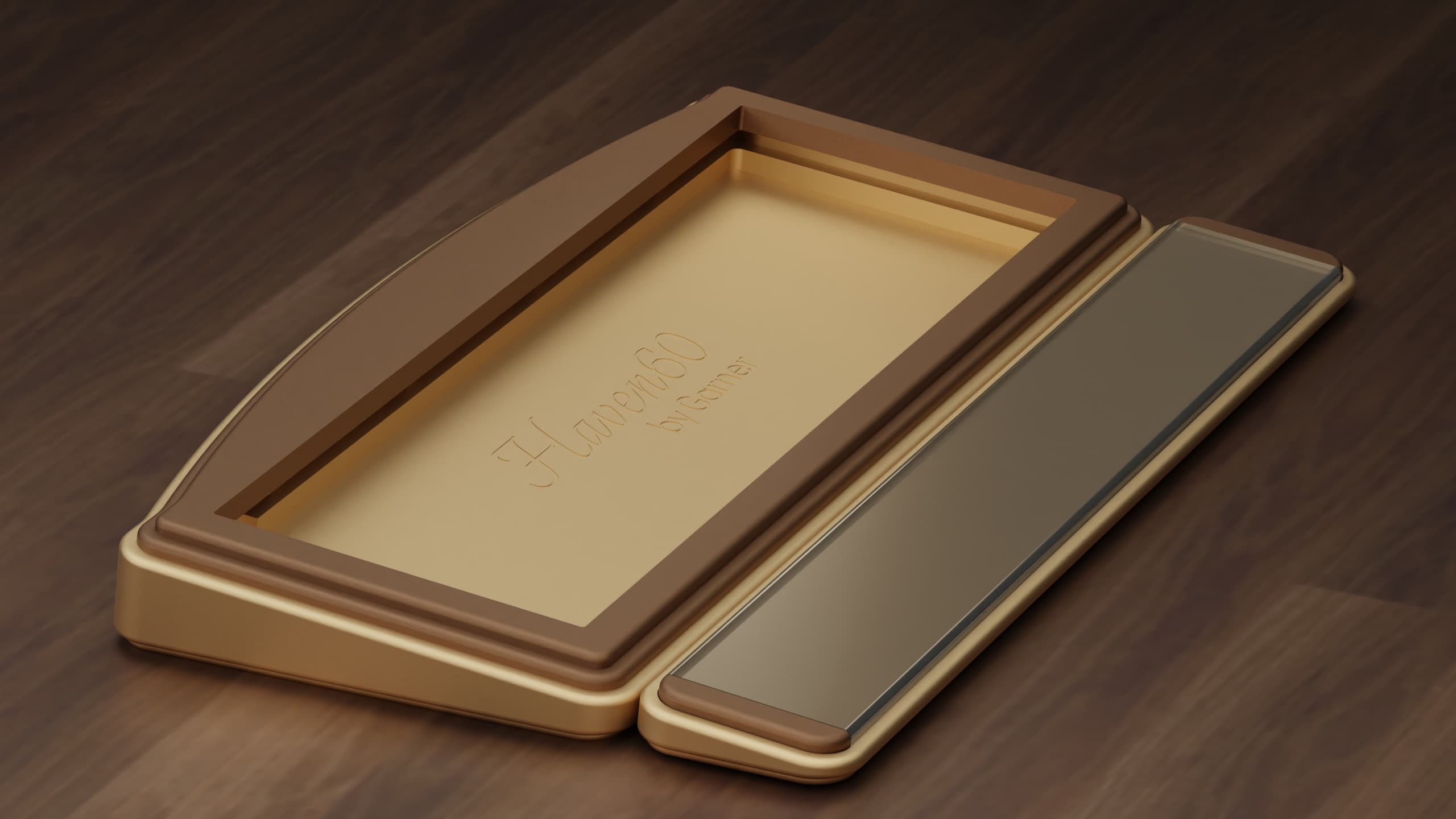

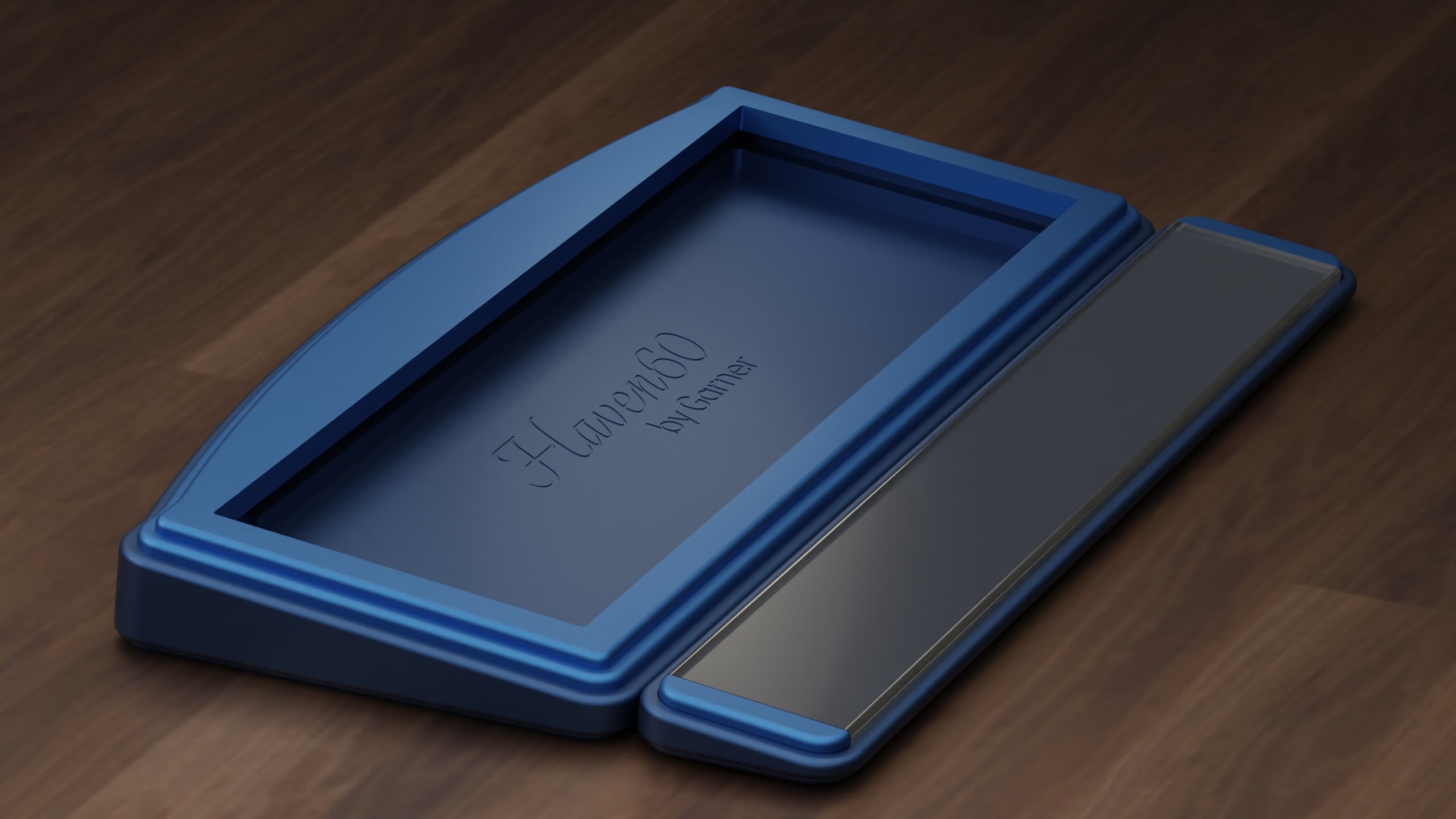

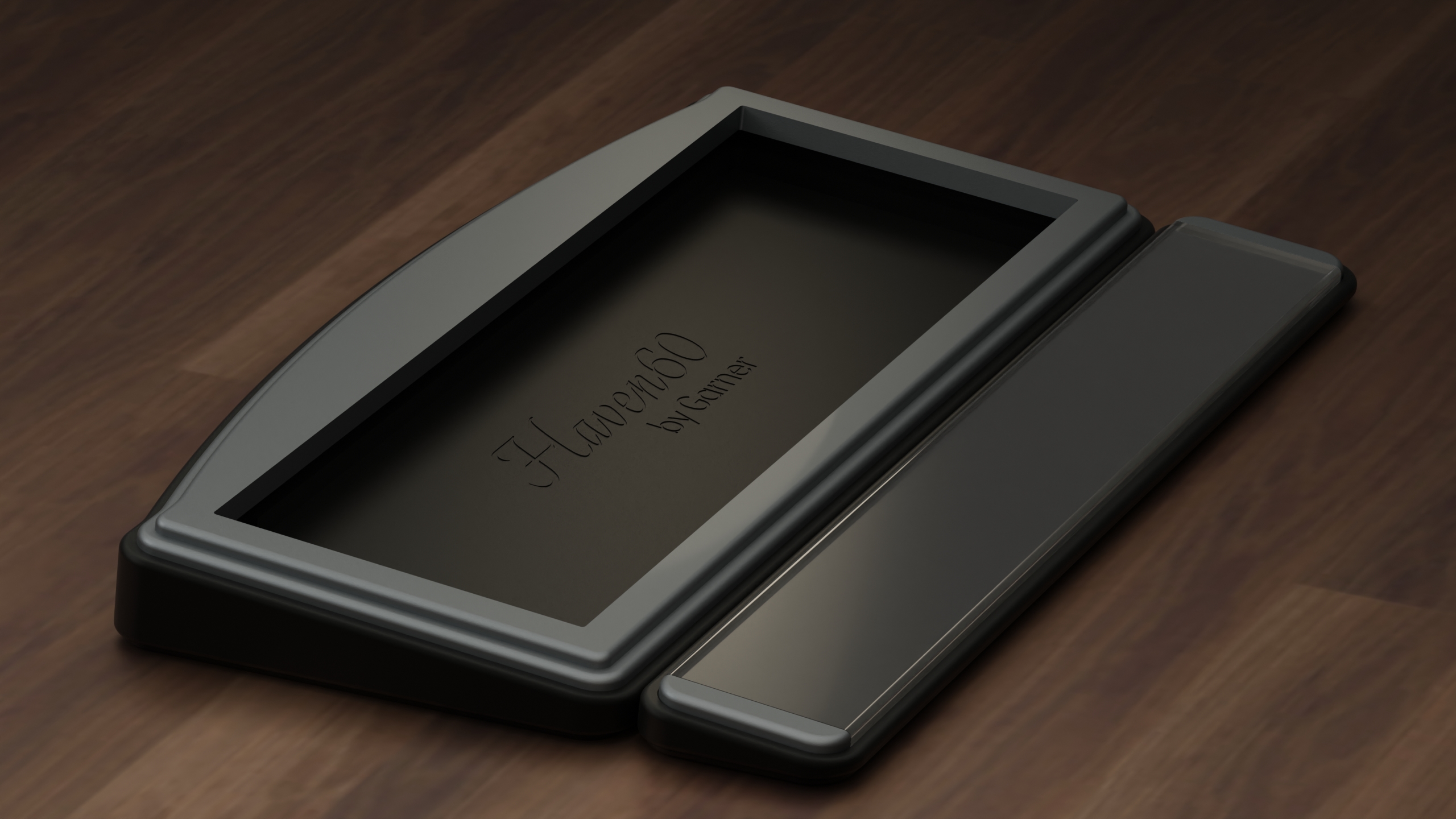

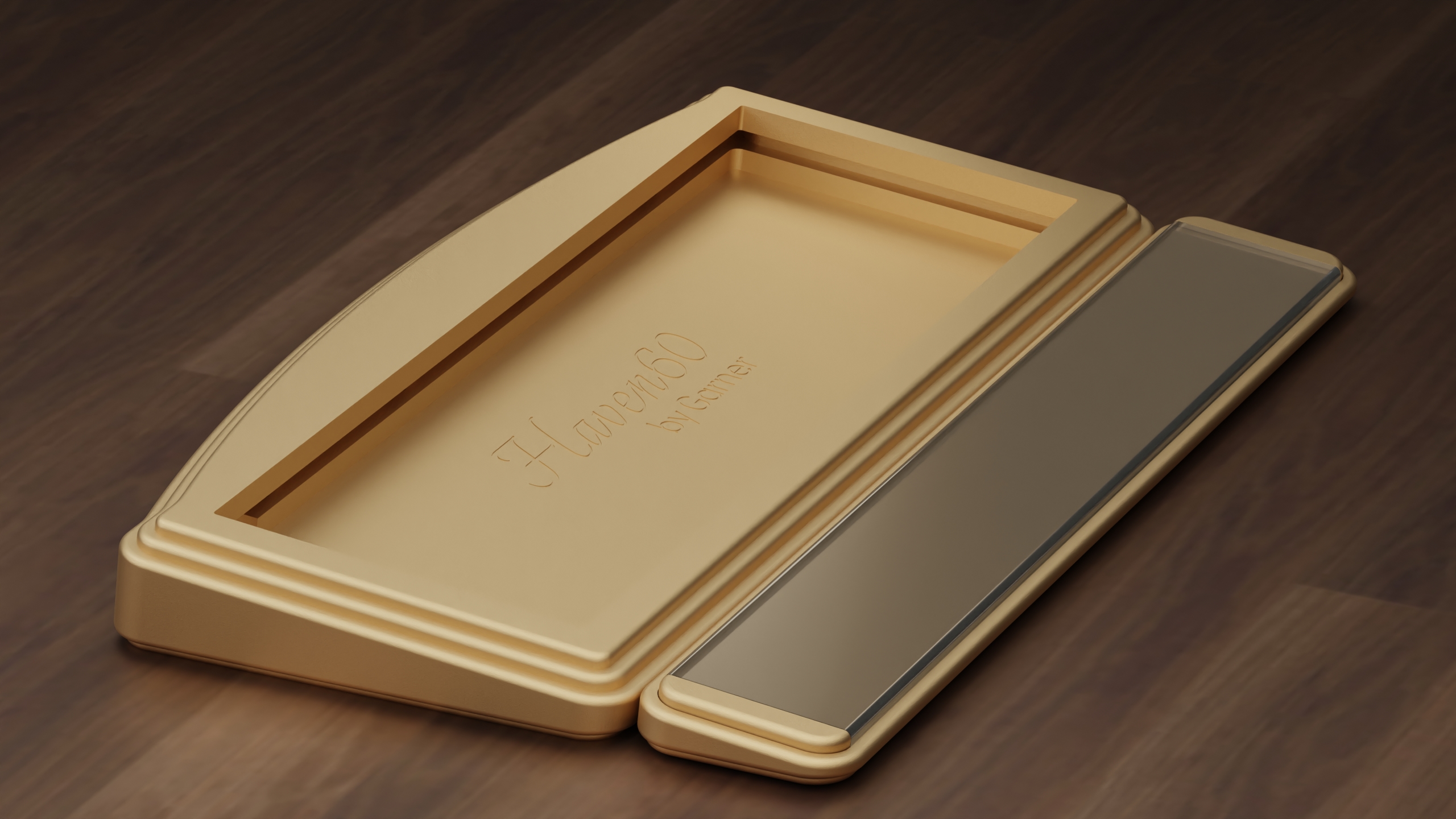

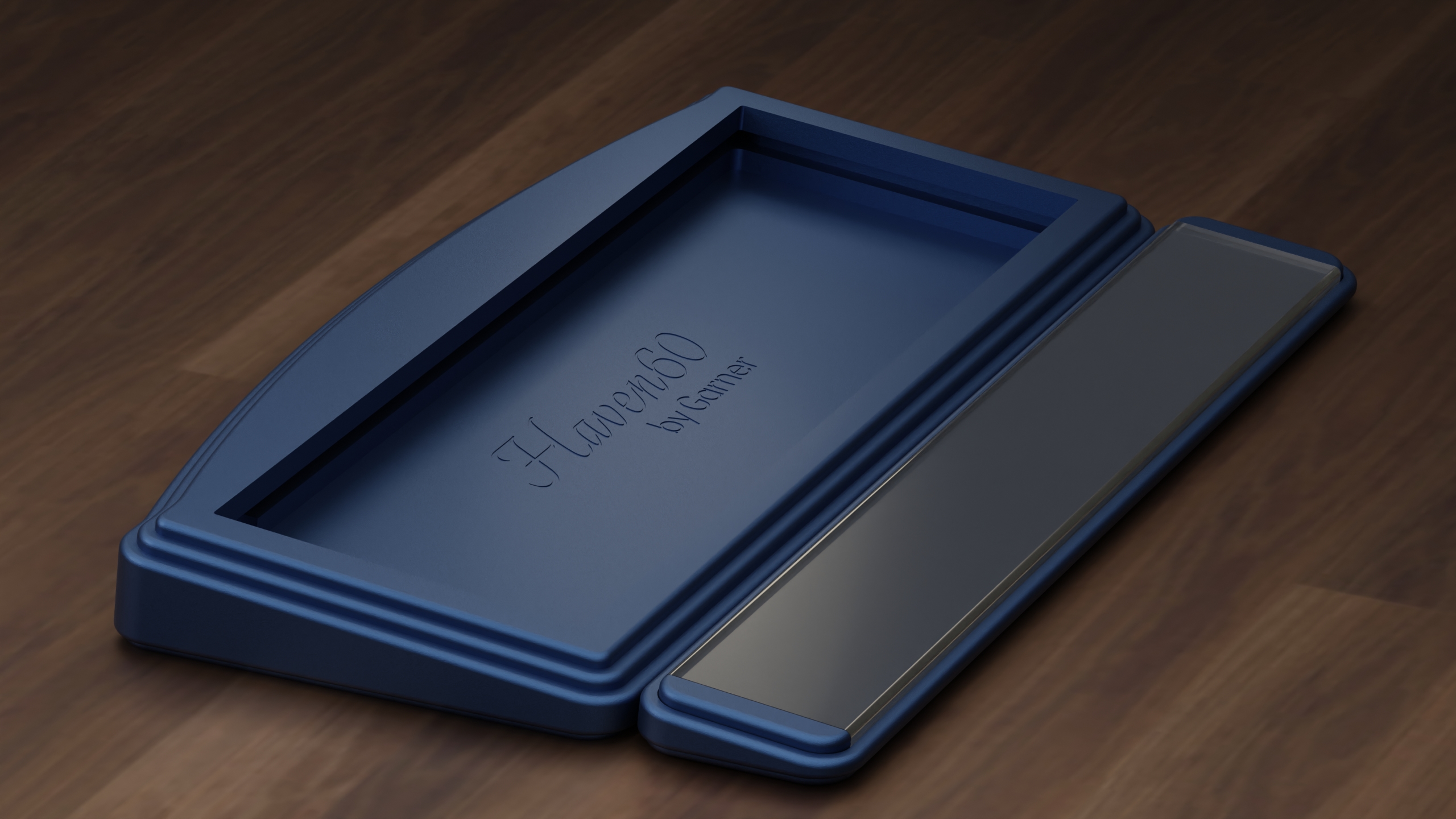

Featured with the optional wrist rest.
The pictures below are only renders, for accurate colors, please see the prototype photos further below.
The single color finishes are the same color as the bottom of the two-colored versions.
The text on the bottom piece will be laser engraved like the proto in the build VOD.

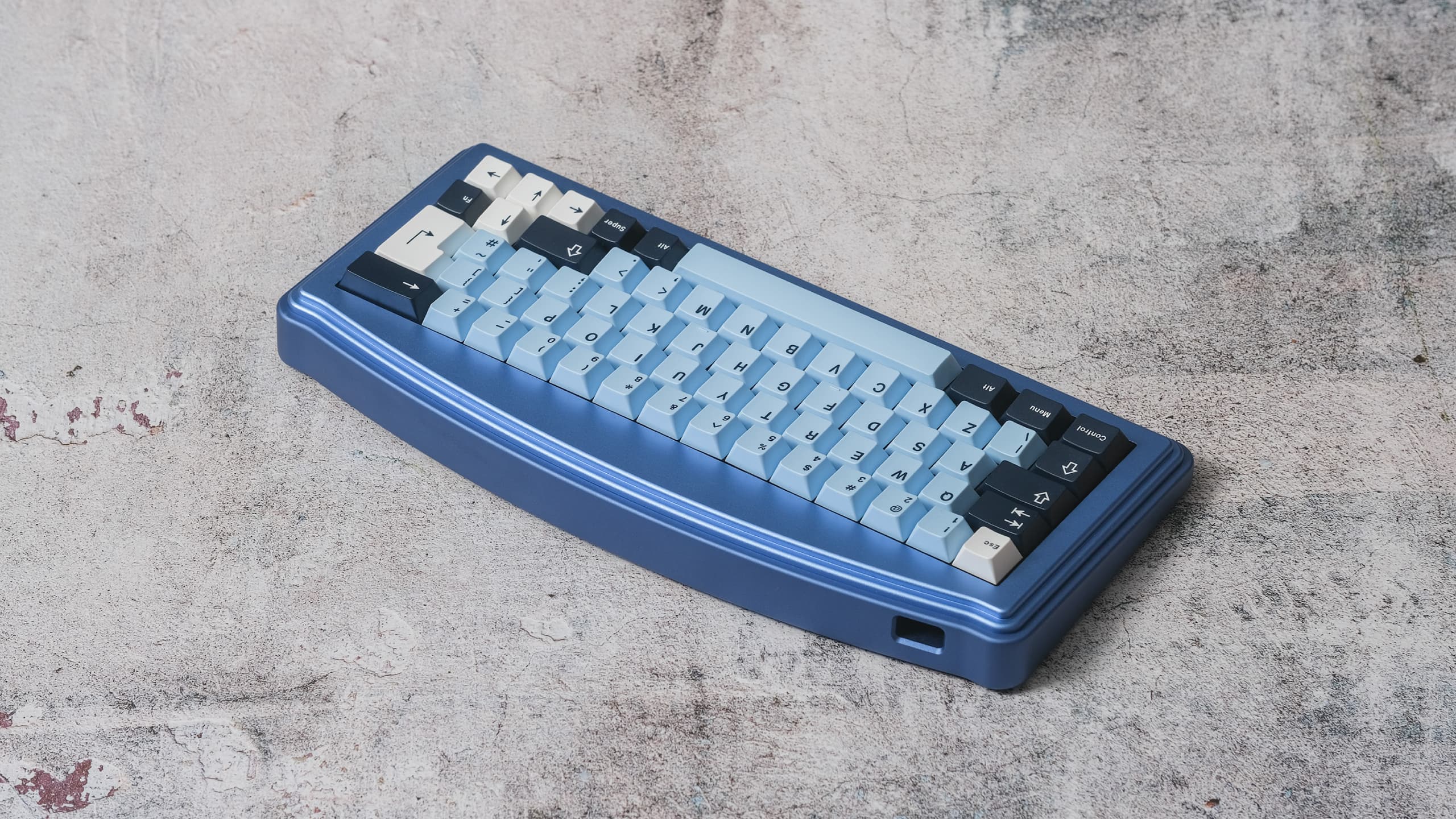

Ocean Blue

Marine Blue

Stone Grey

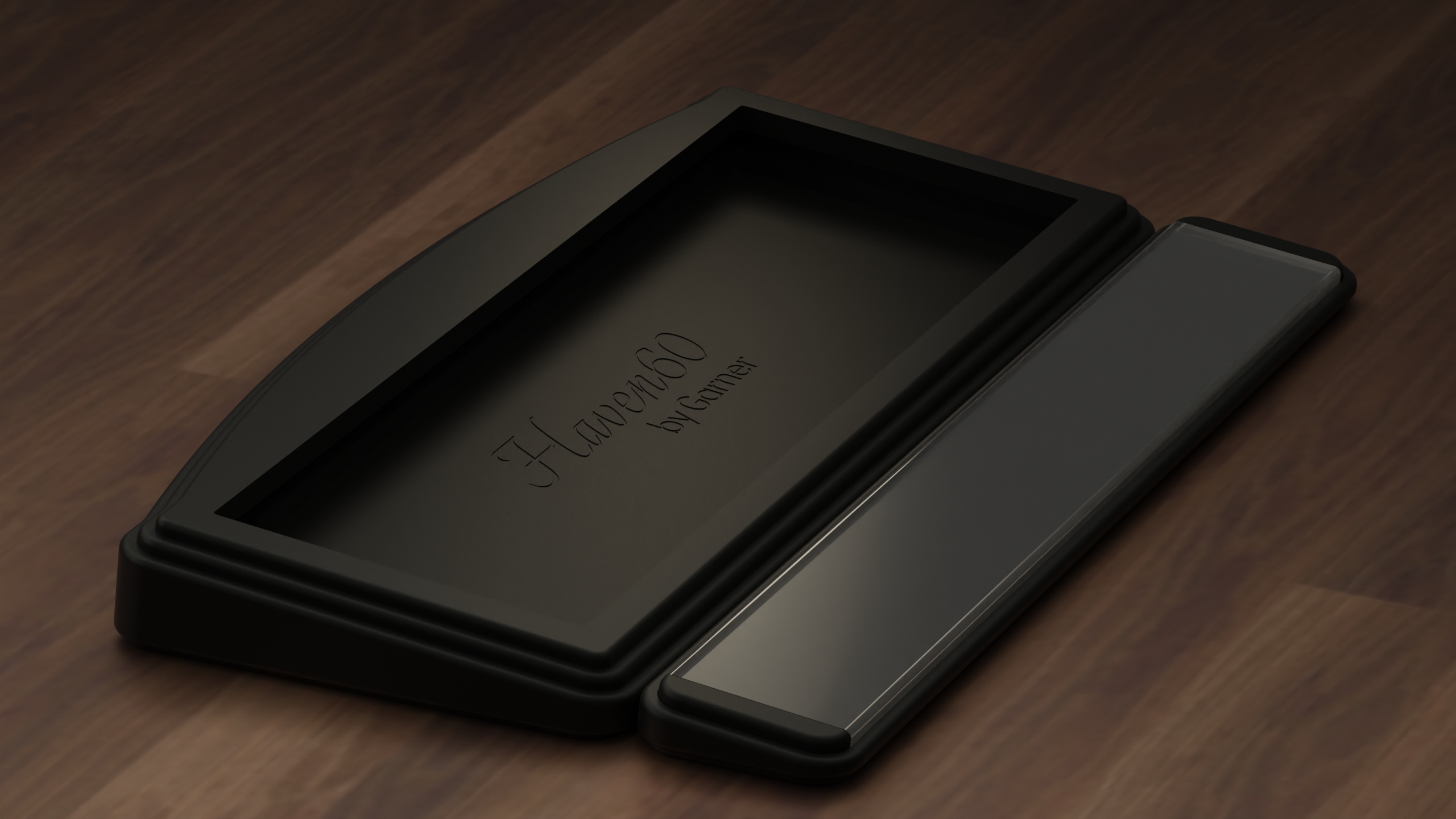

Night Black

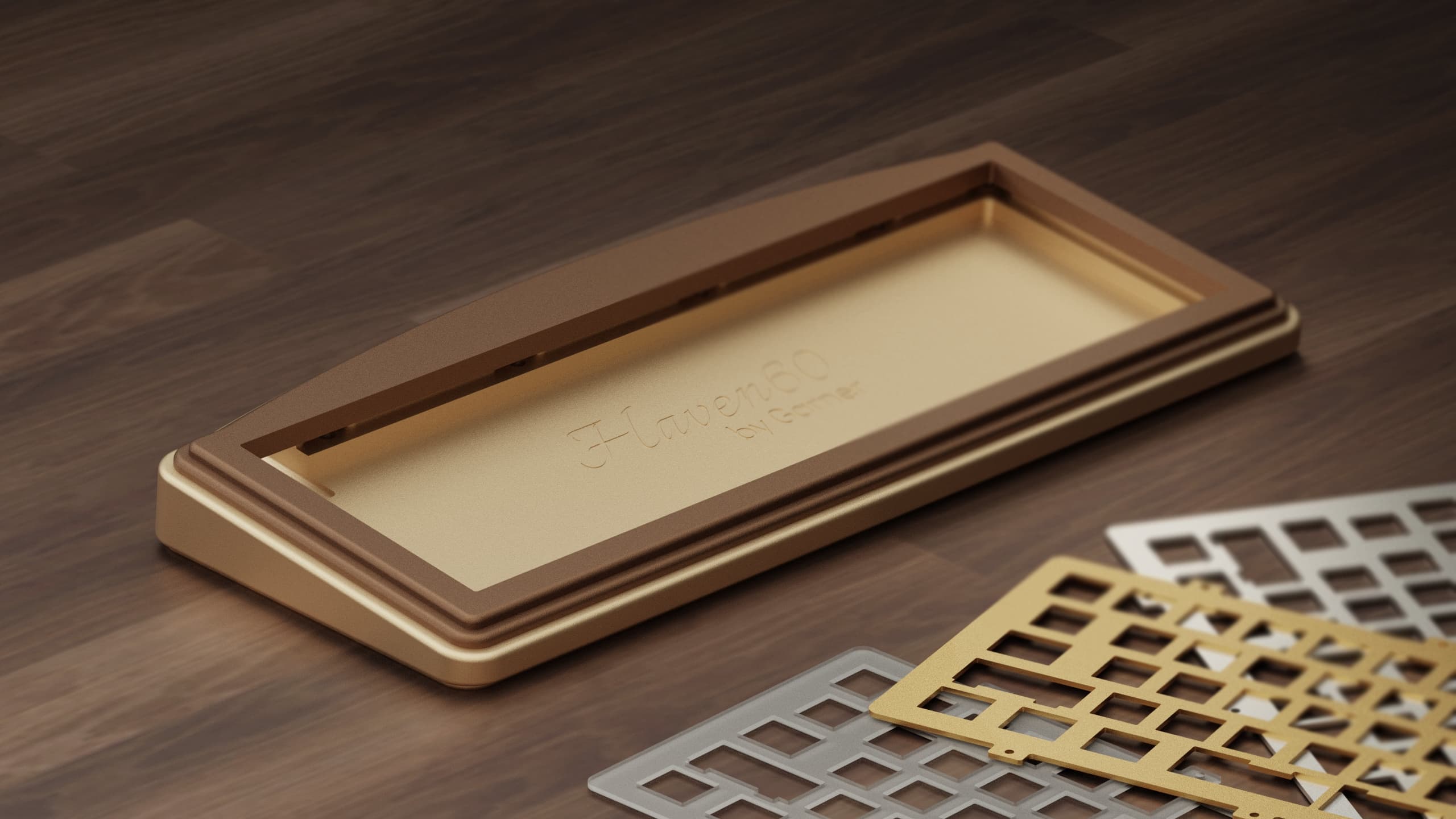

Earth Brown

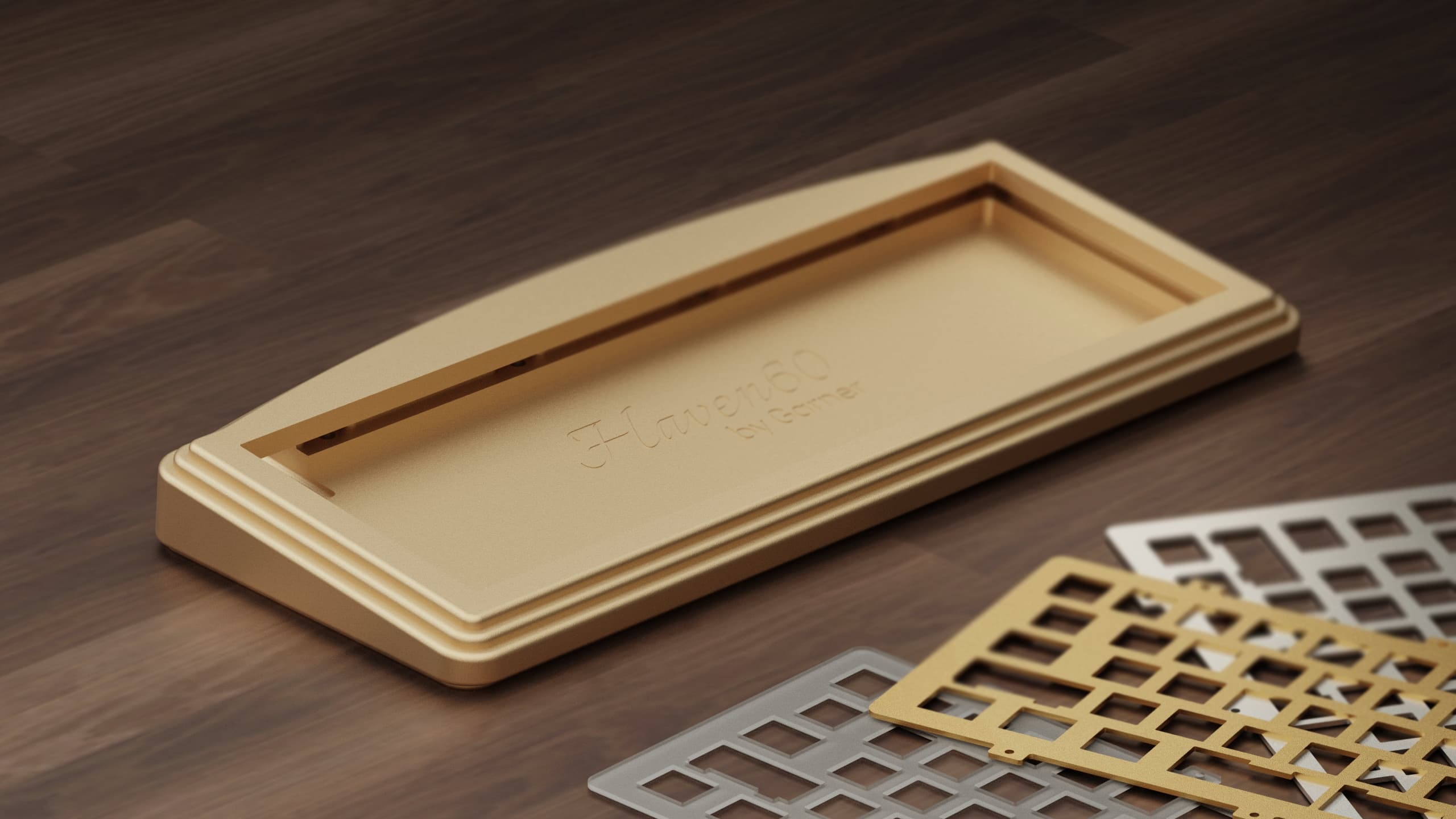

Champagne Beige

_________________________________________________________________________________________________________________________________________

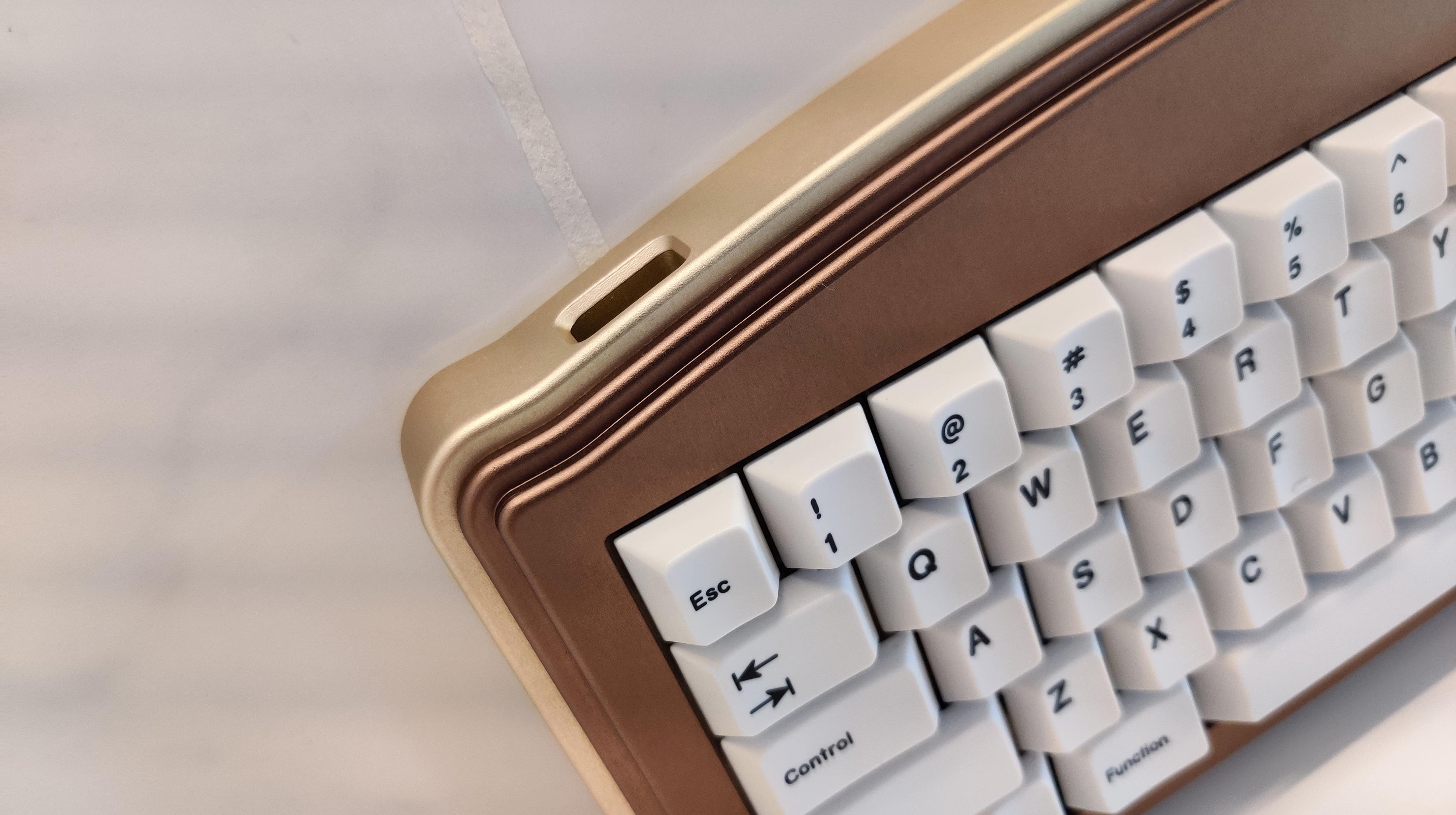

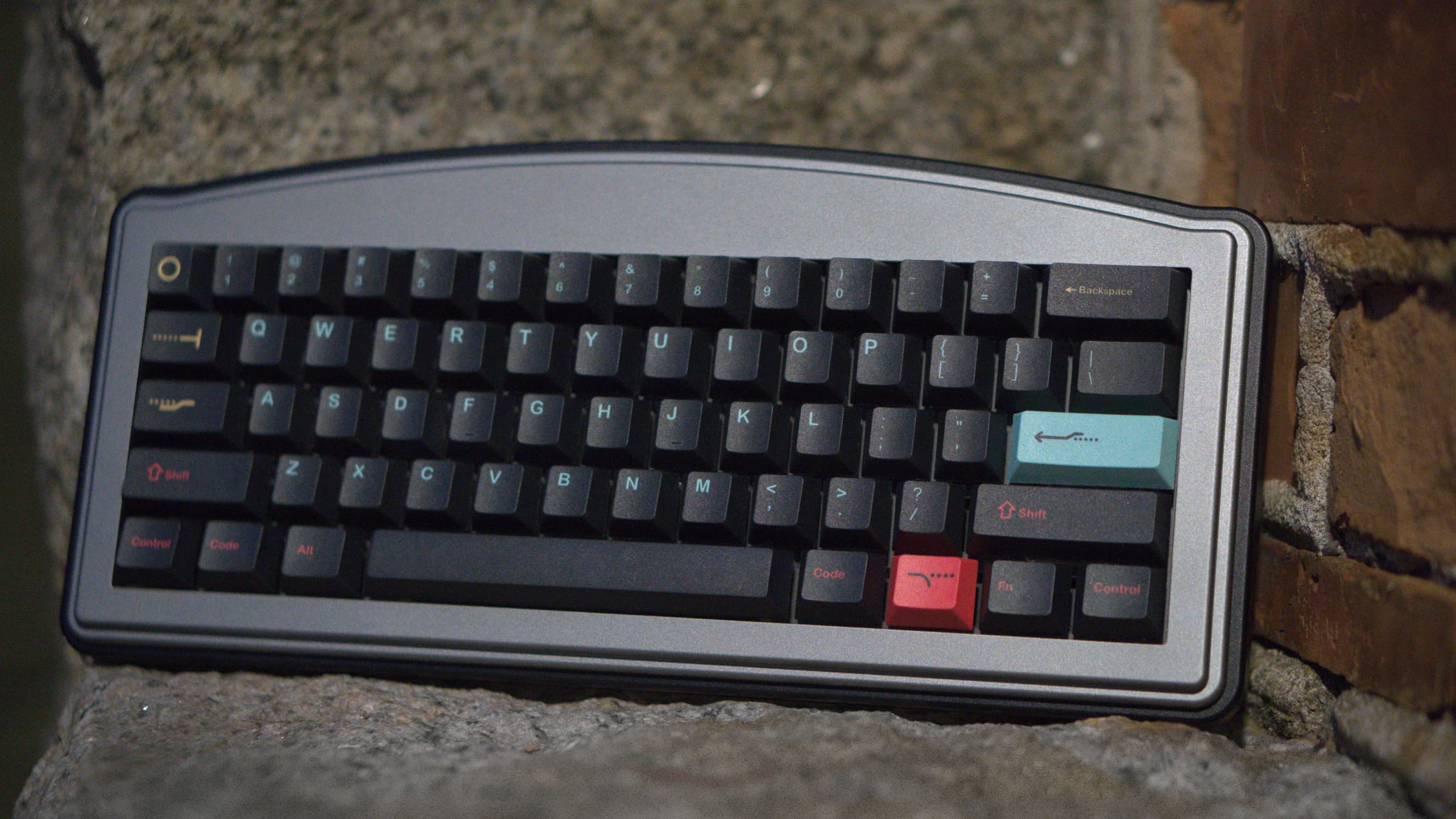

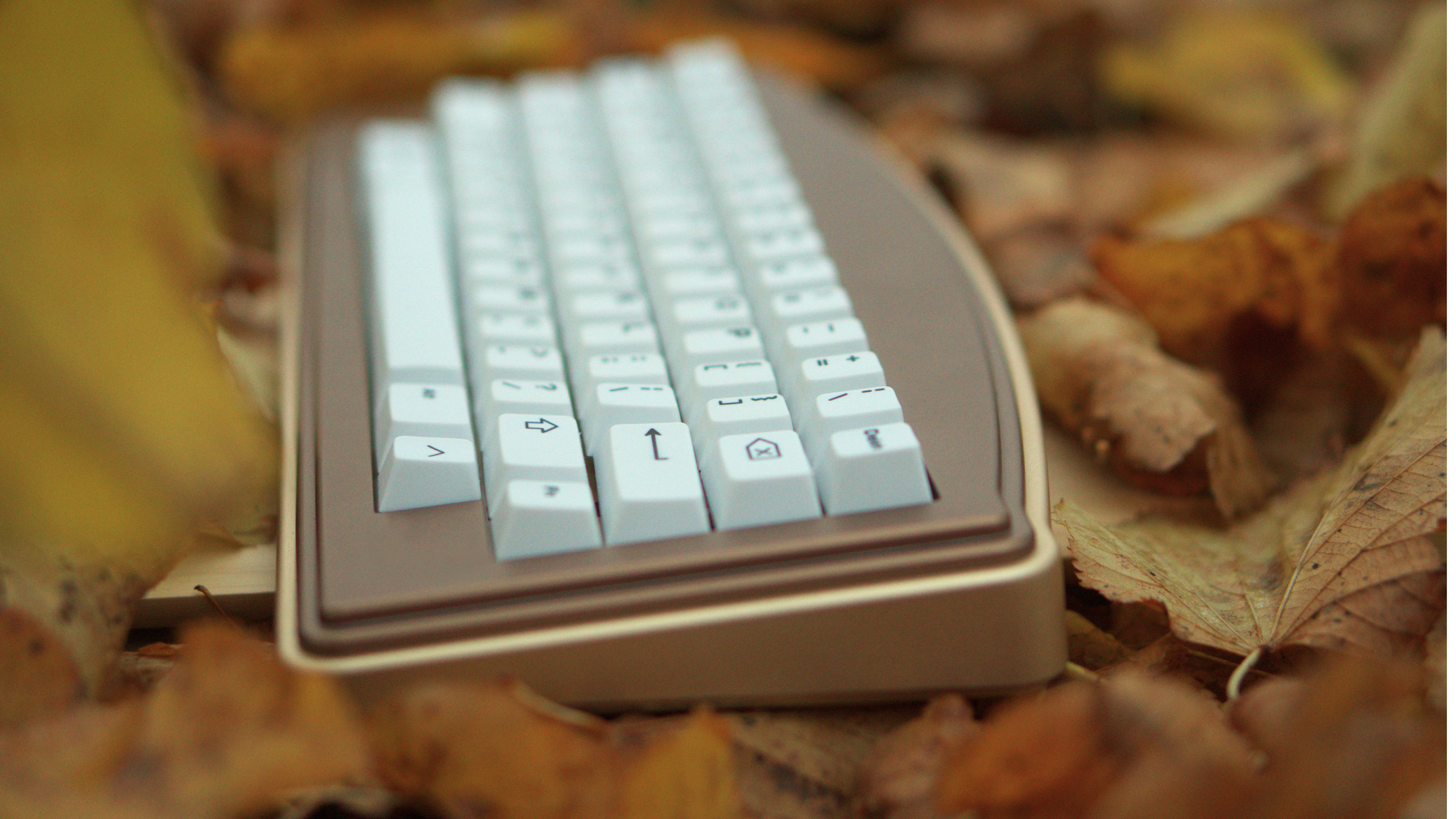

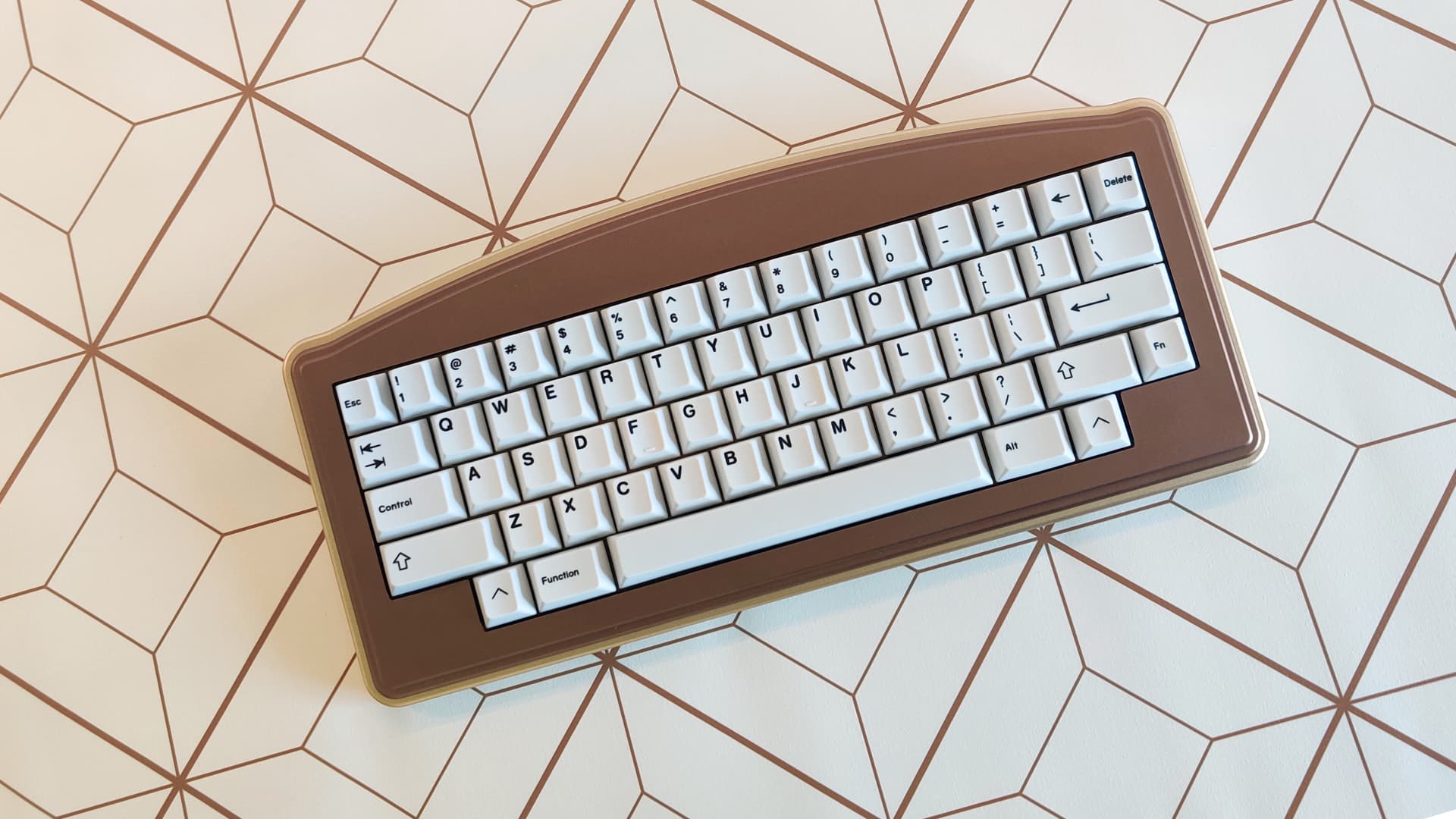

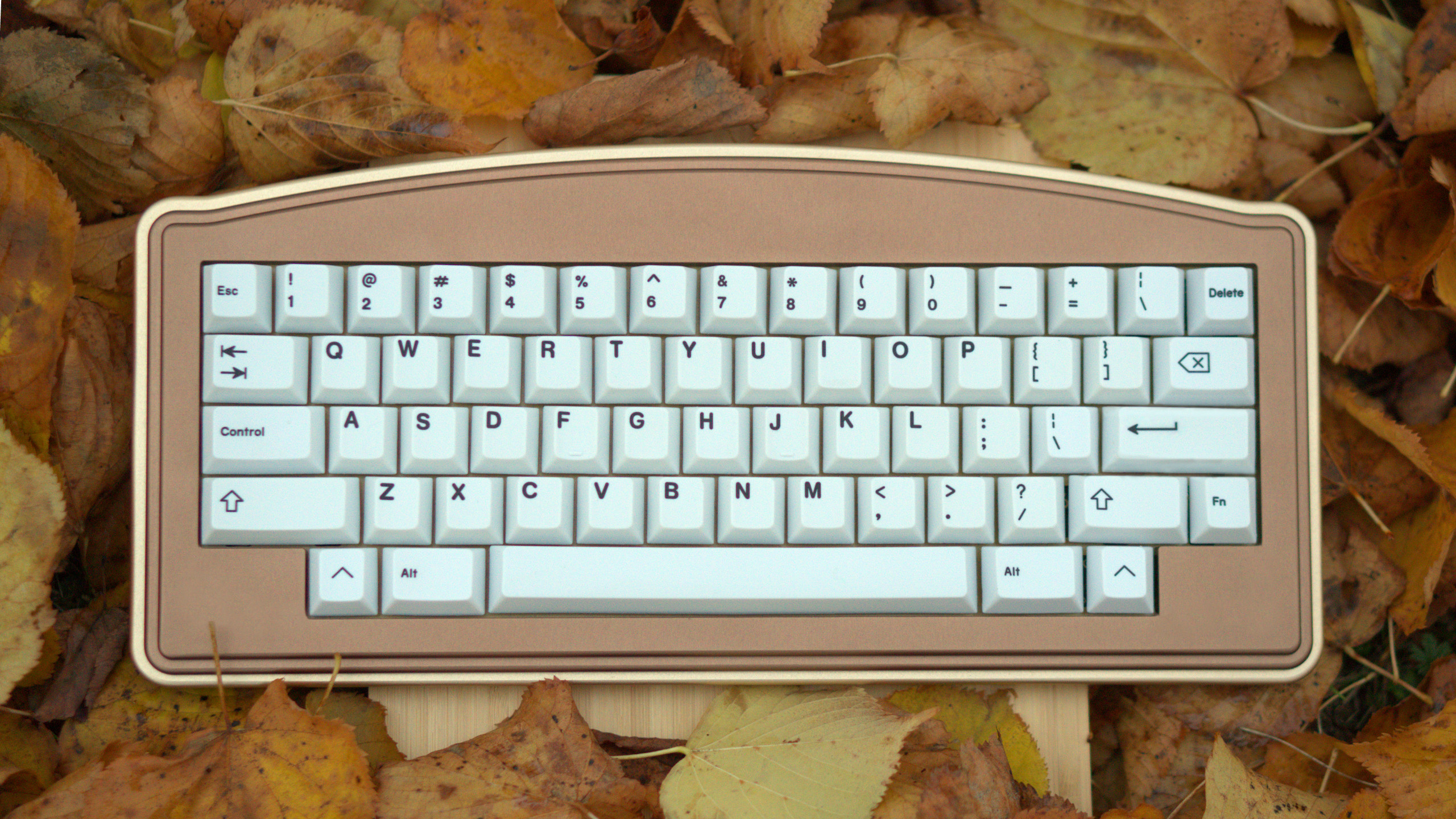

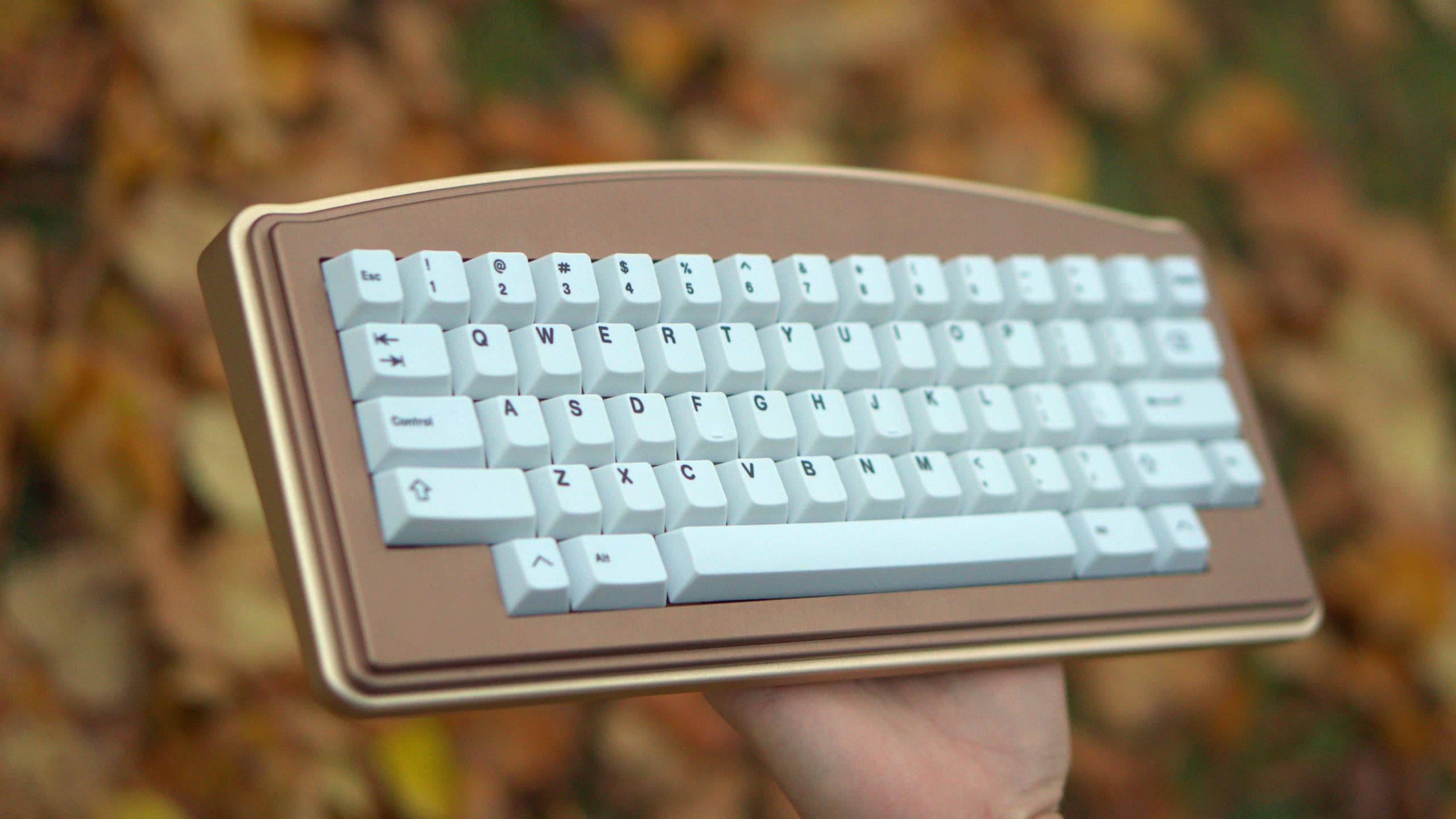

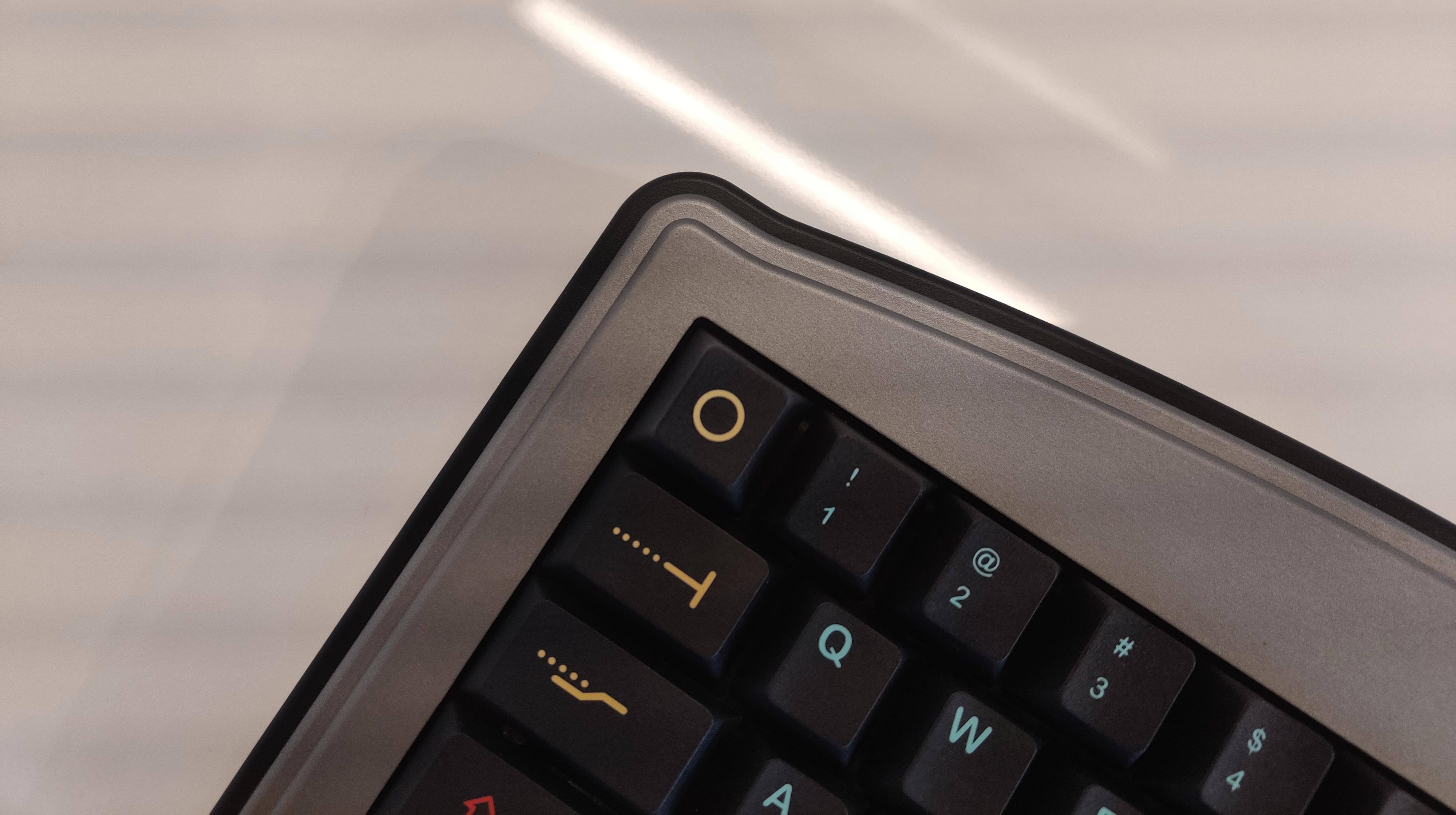

Prototypes

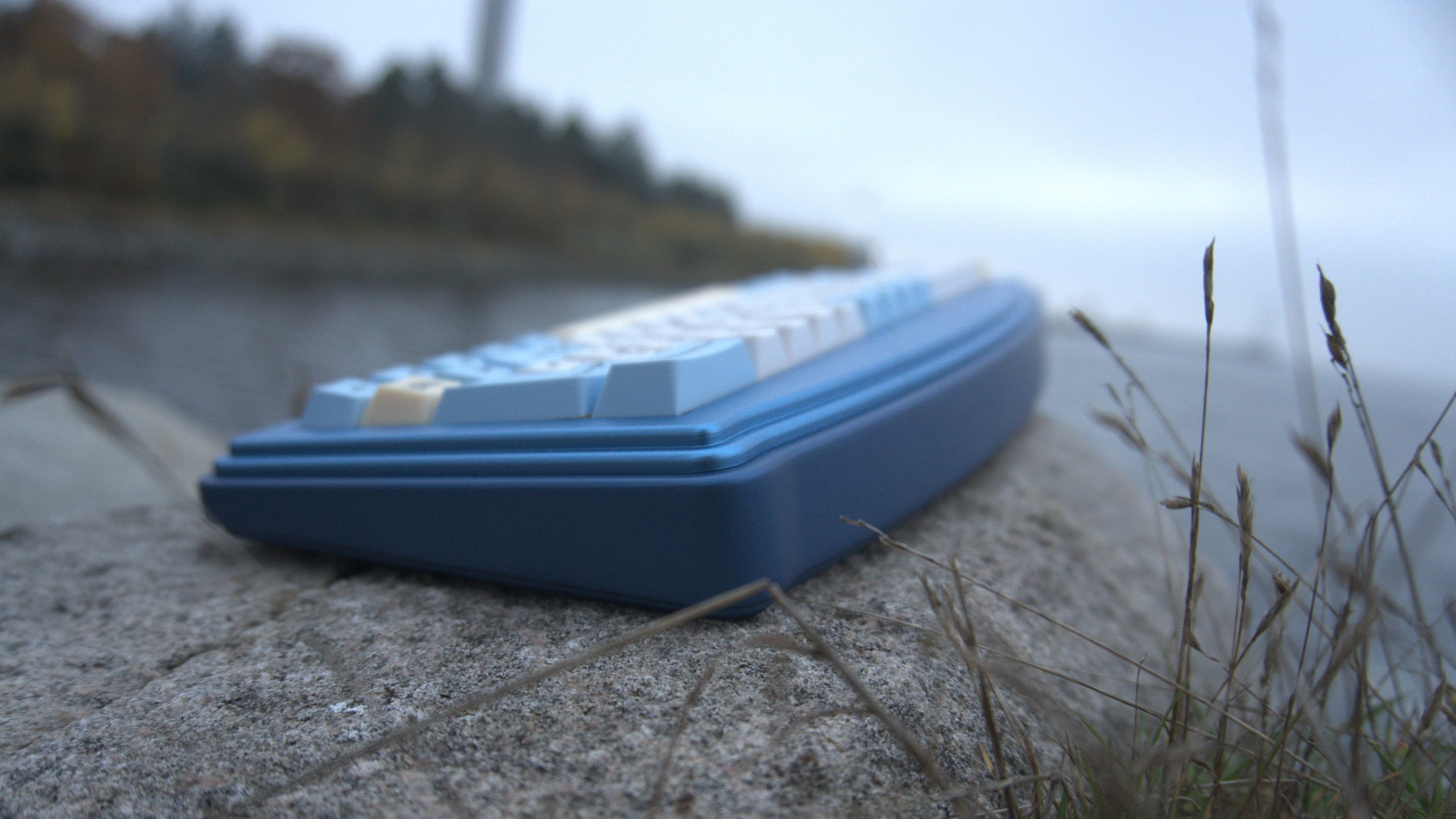

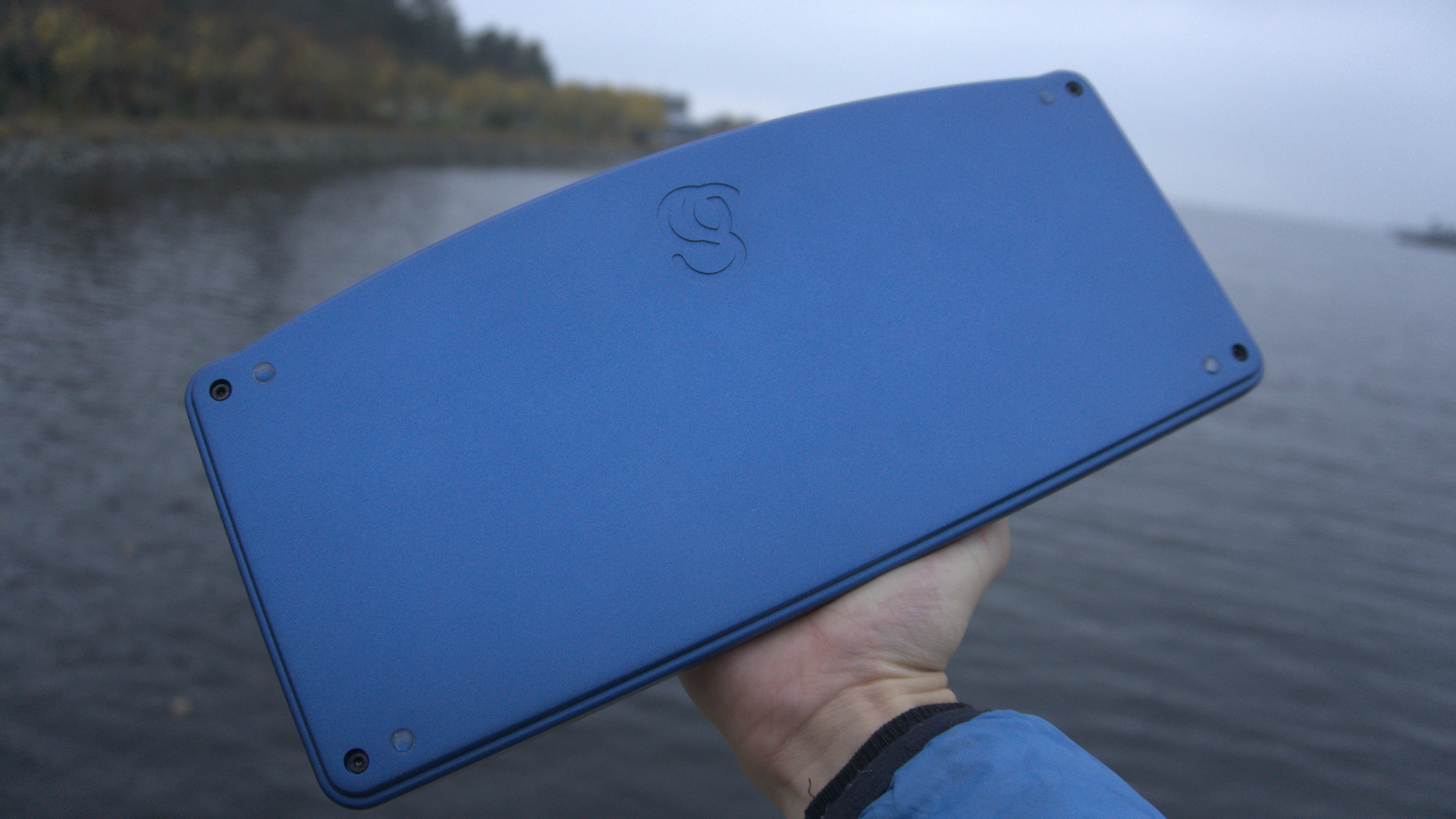

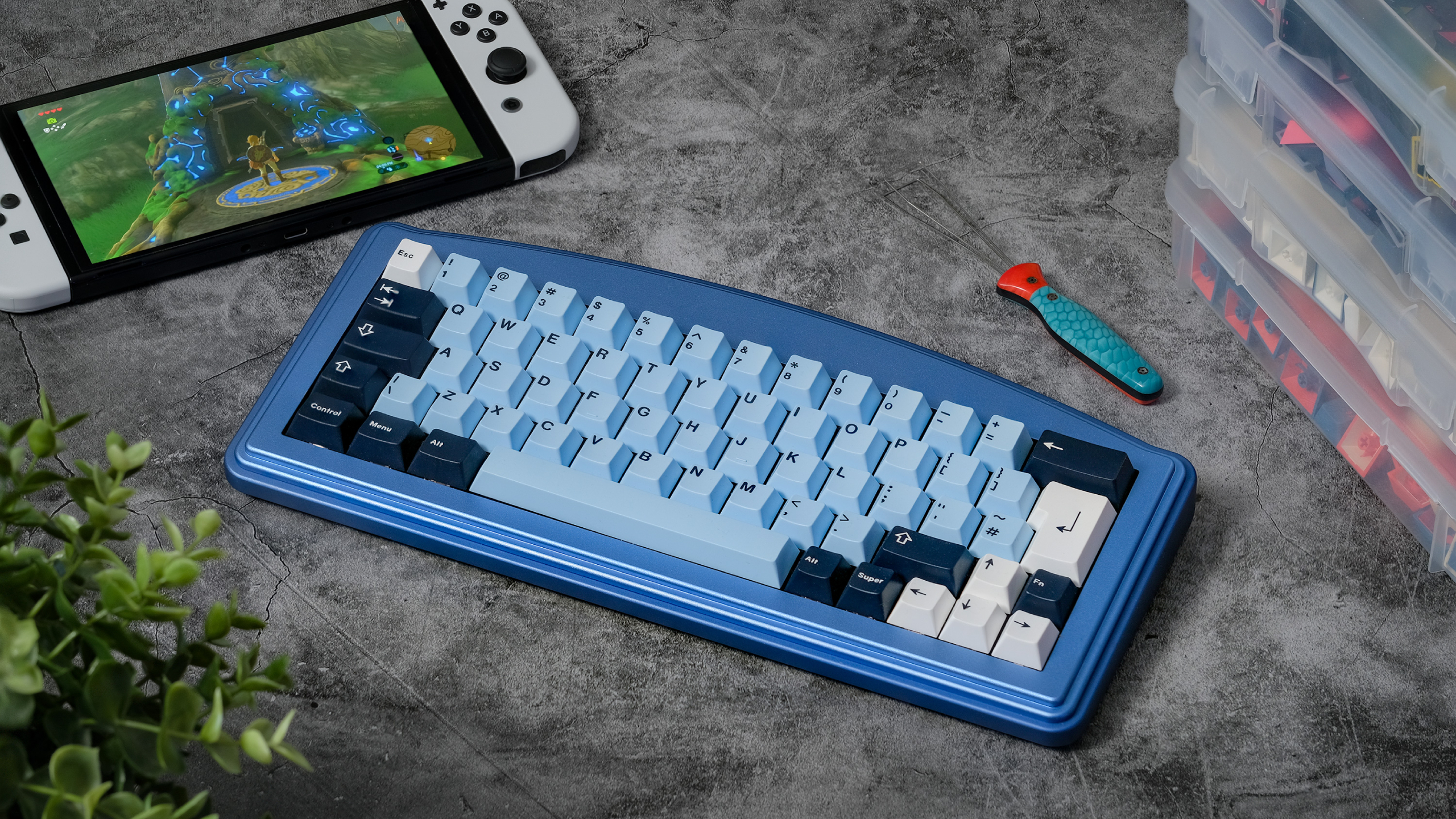

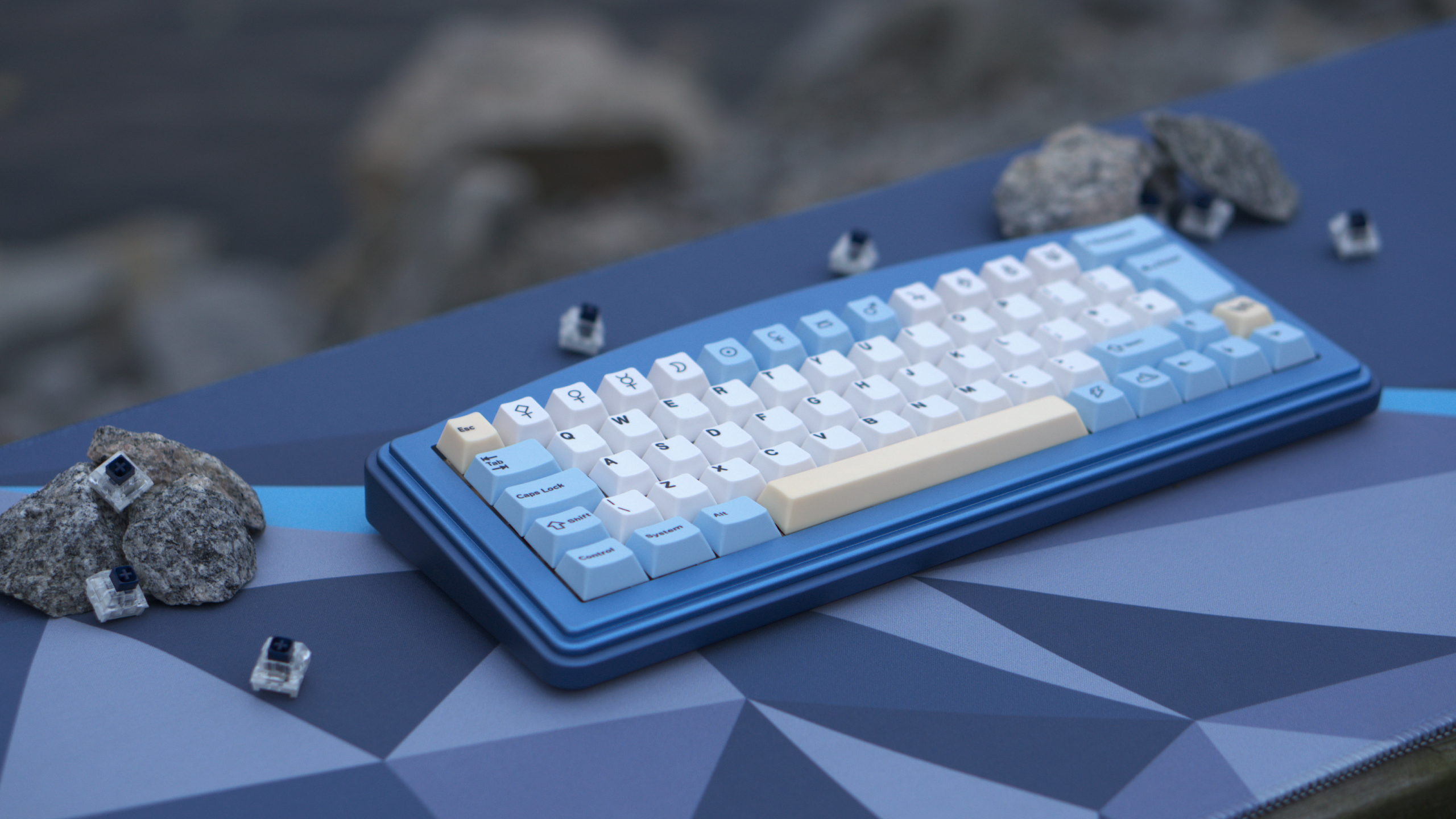

Ocean Blue Full album

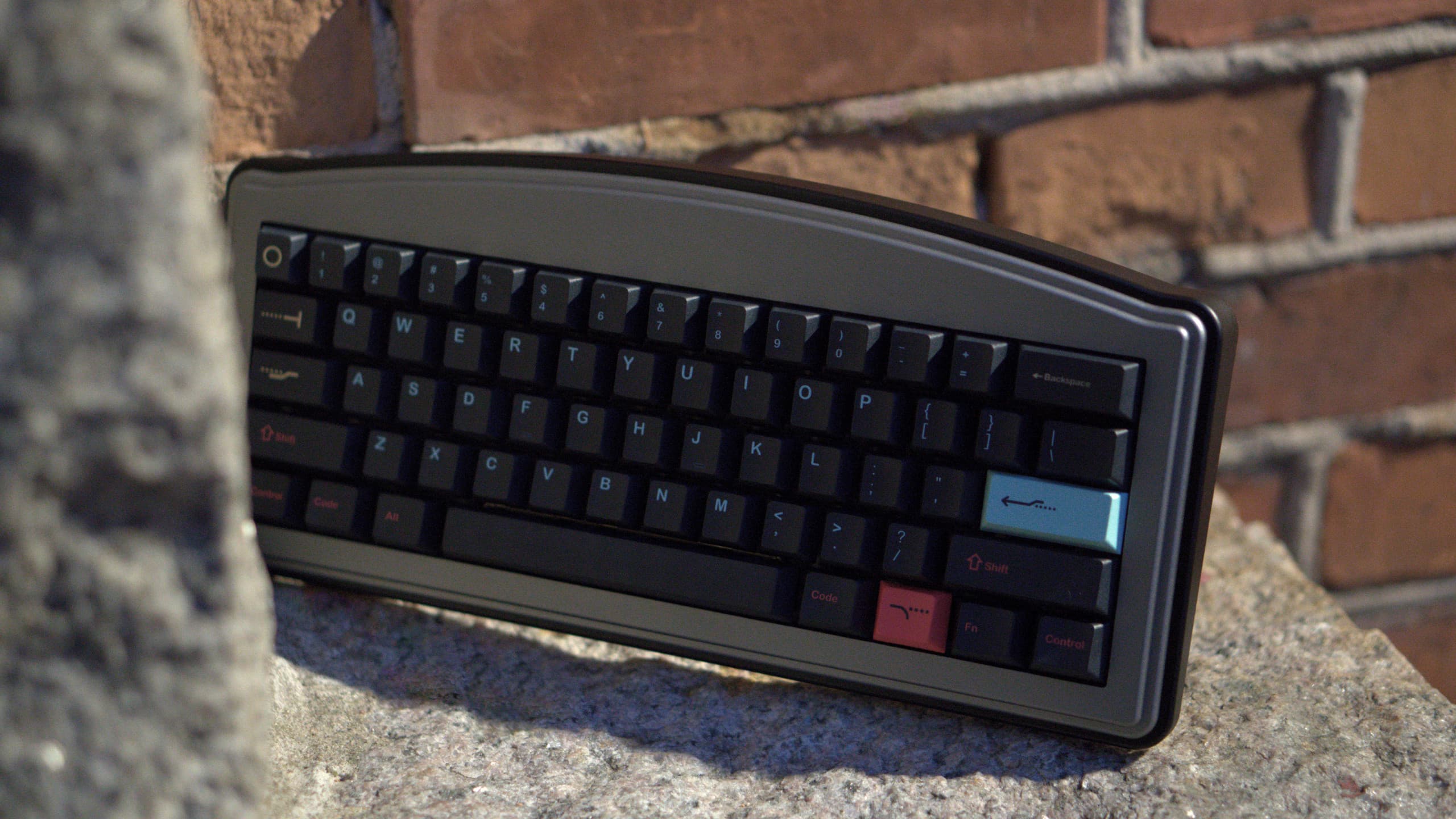

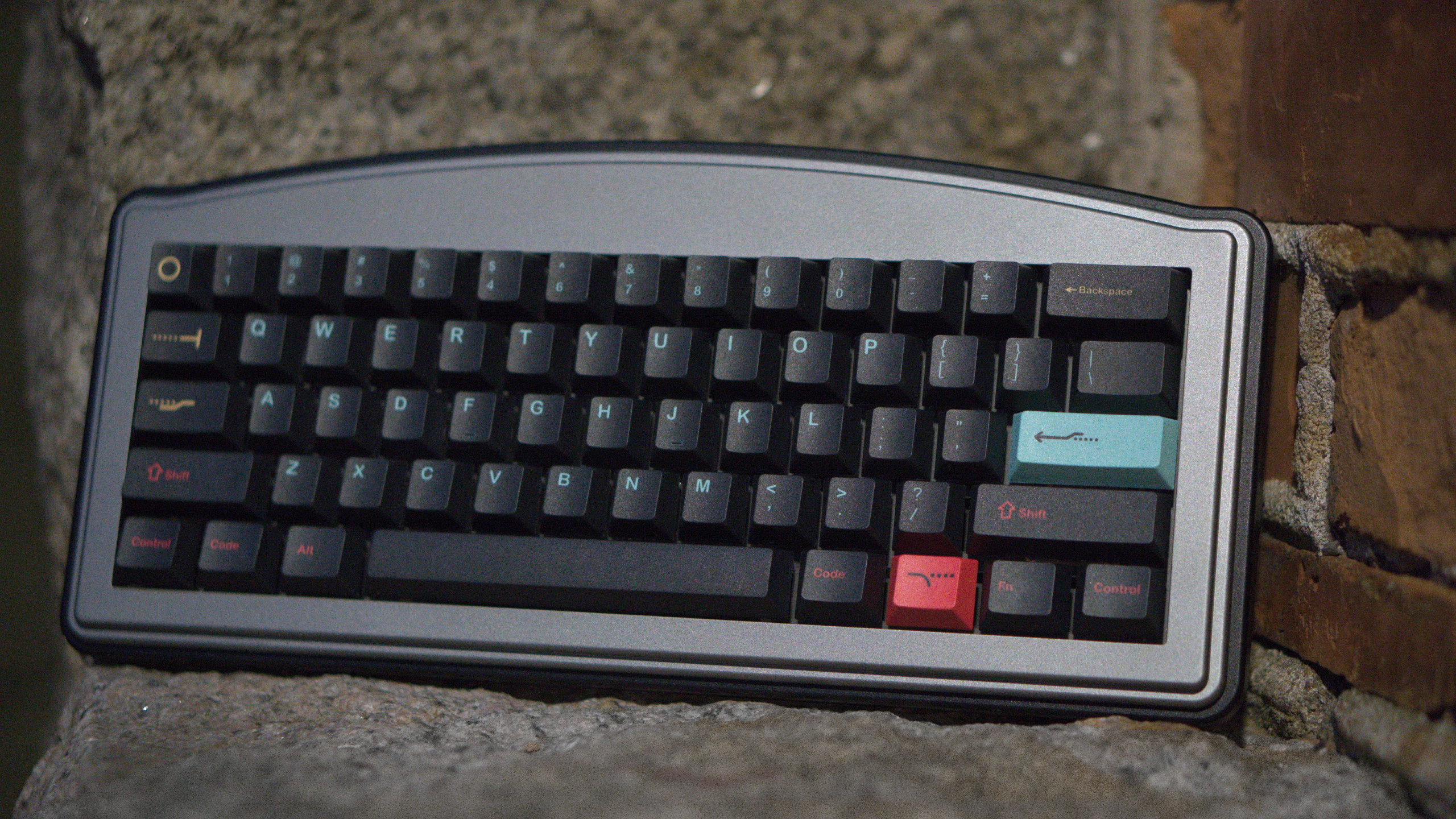

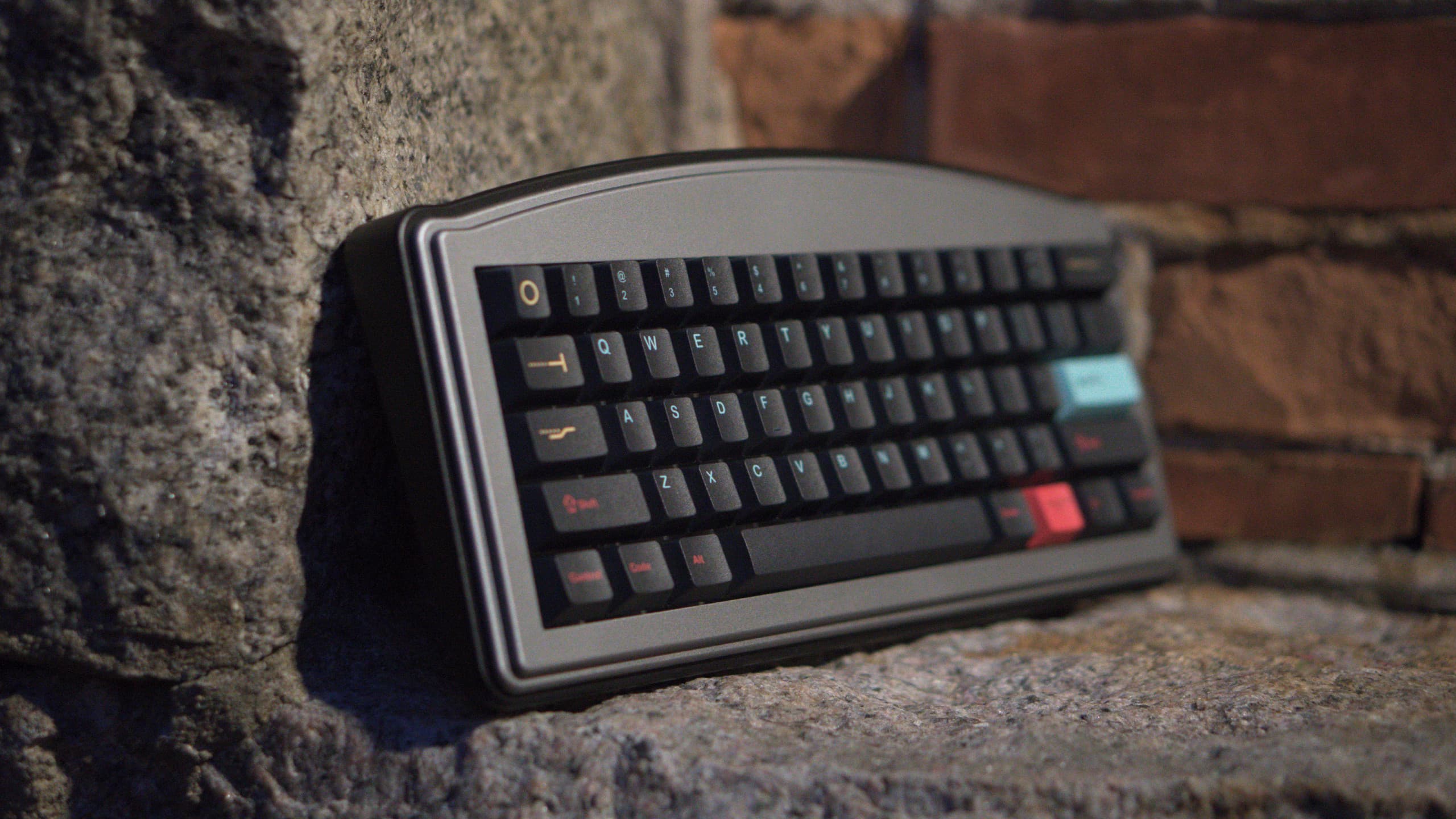

Stone Grey Full album

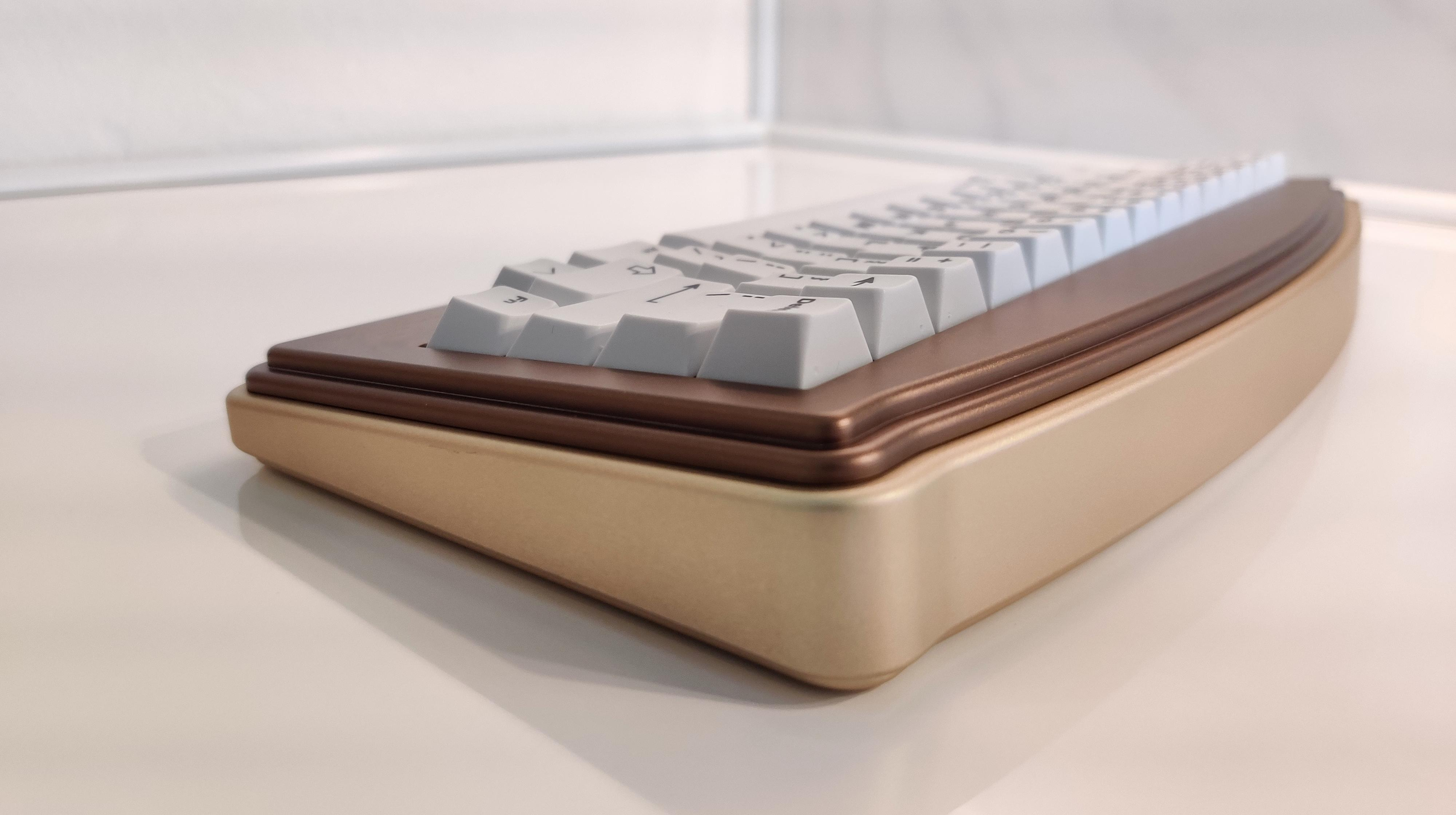

Earth Brown Full album



_________________________________________________________________________________________________________________________________________

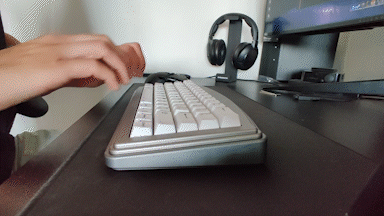

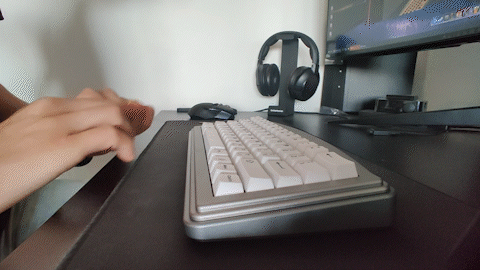

Prototype Tests

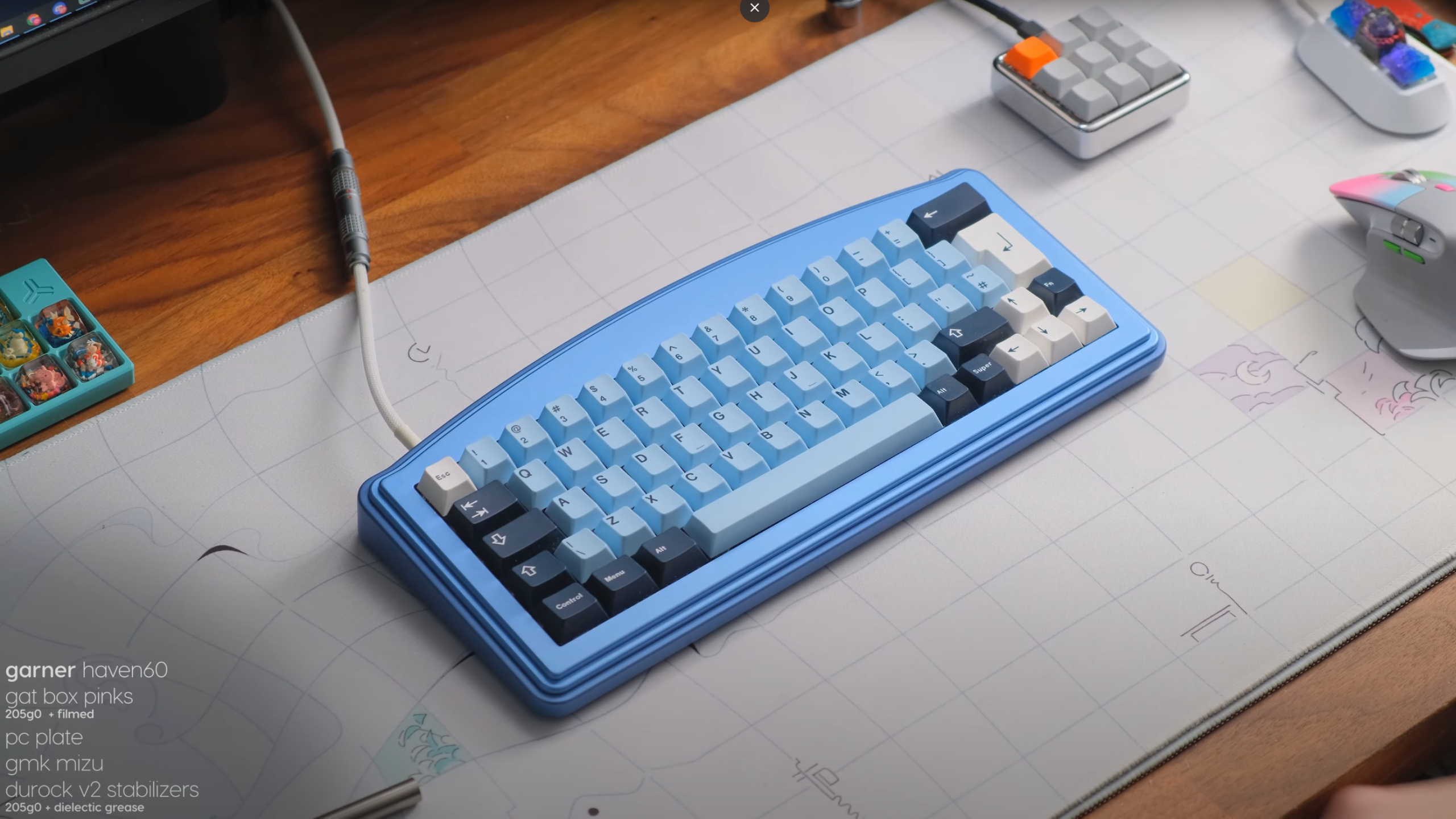

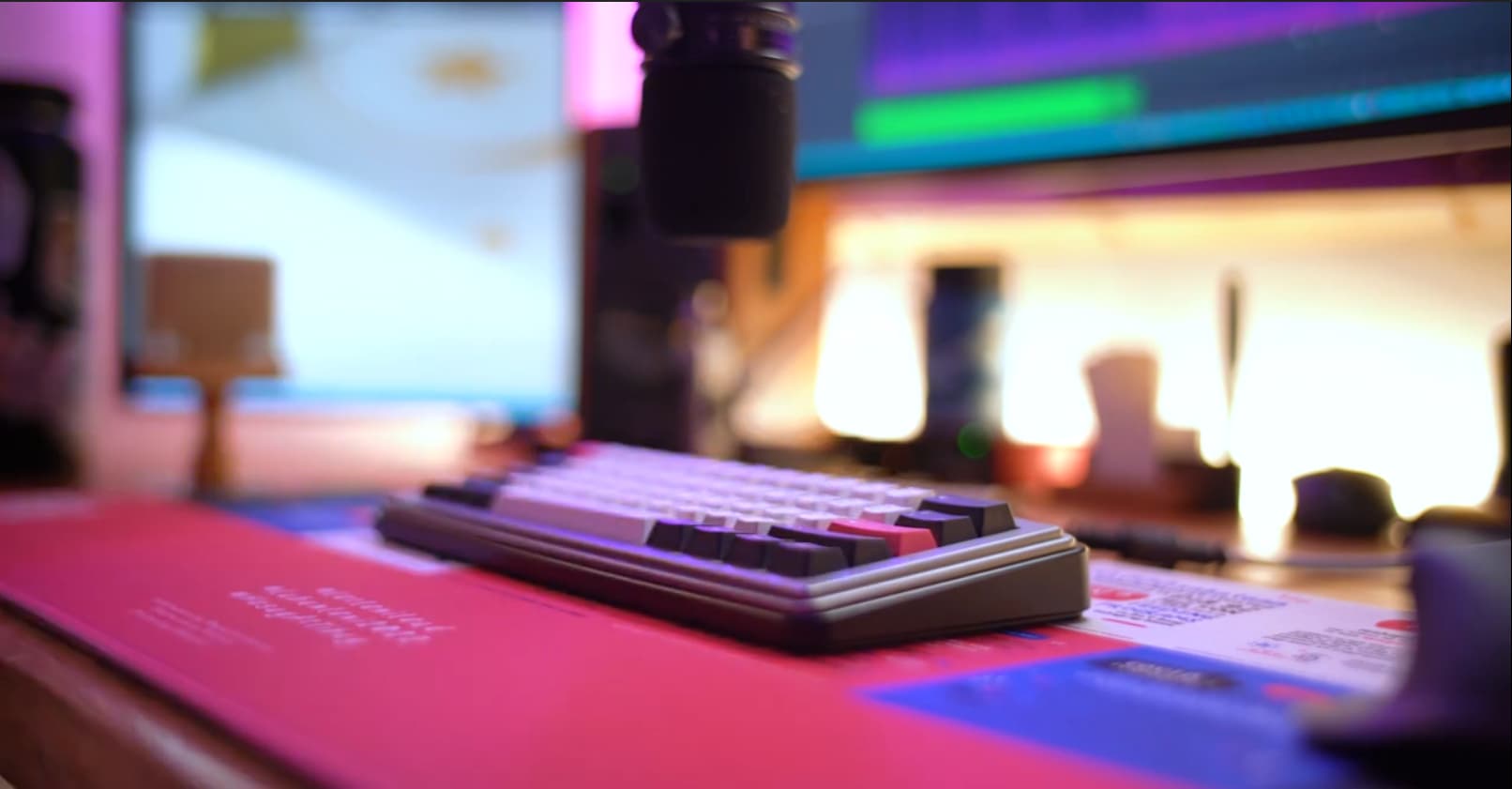

Hyperlapse Build and Review by Alexotos!
Prototype build video and typing test from Zion Studios!
Typing test from Filledtypes: Brass plate
Typing test from Alexotos: Polycarbonate plate
_________________________________________________________________________________________________________________________________________Flex configuration

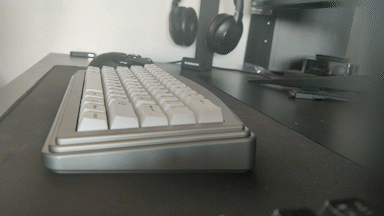

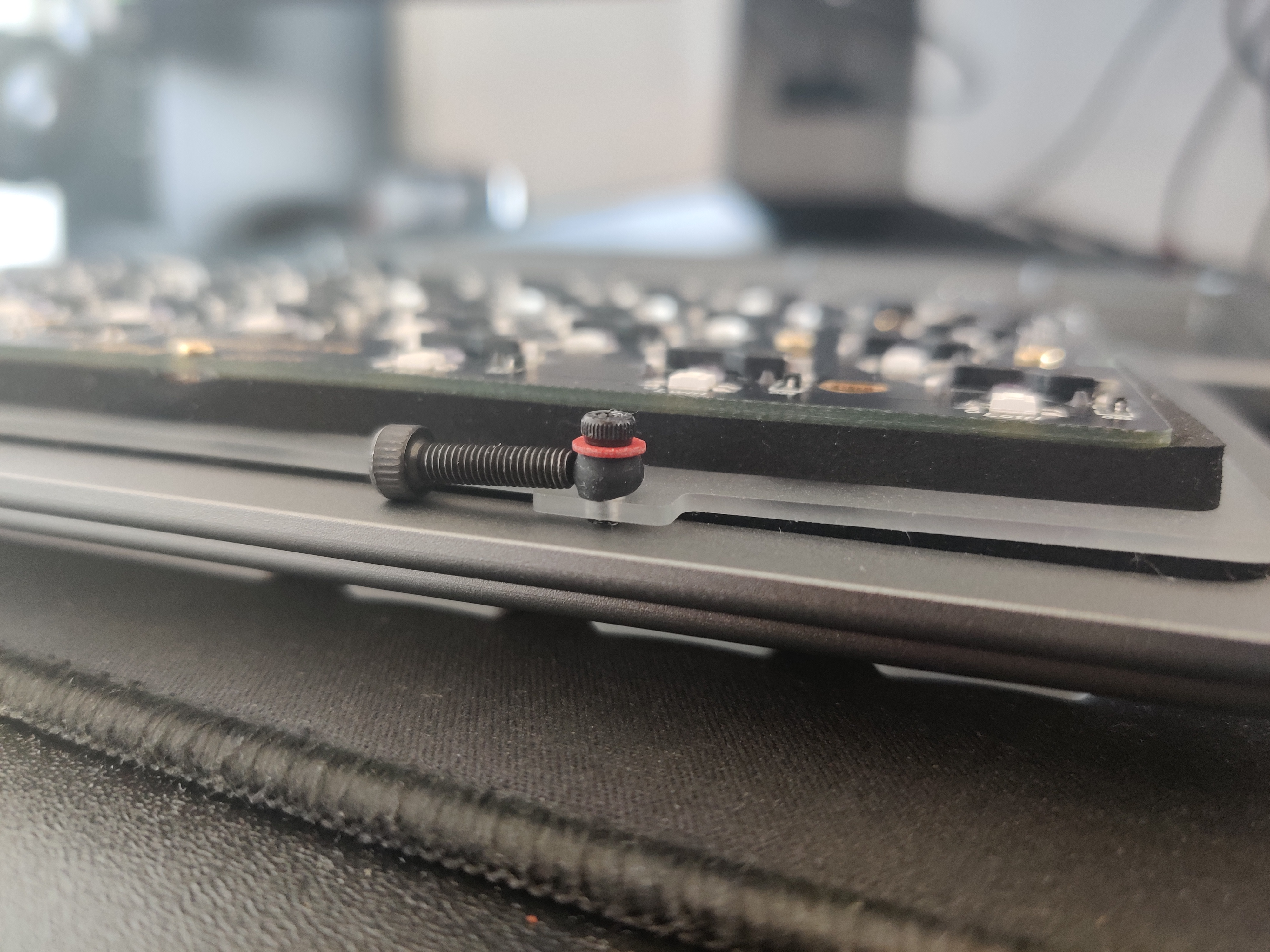

Haven60's flexibility can be configured by simply adjusting the tightening of the plate screws, below are a few examples to show the span of possible flex.
Going for high flex requires you to skip case foam. Album here

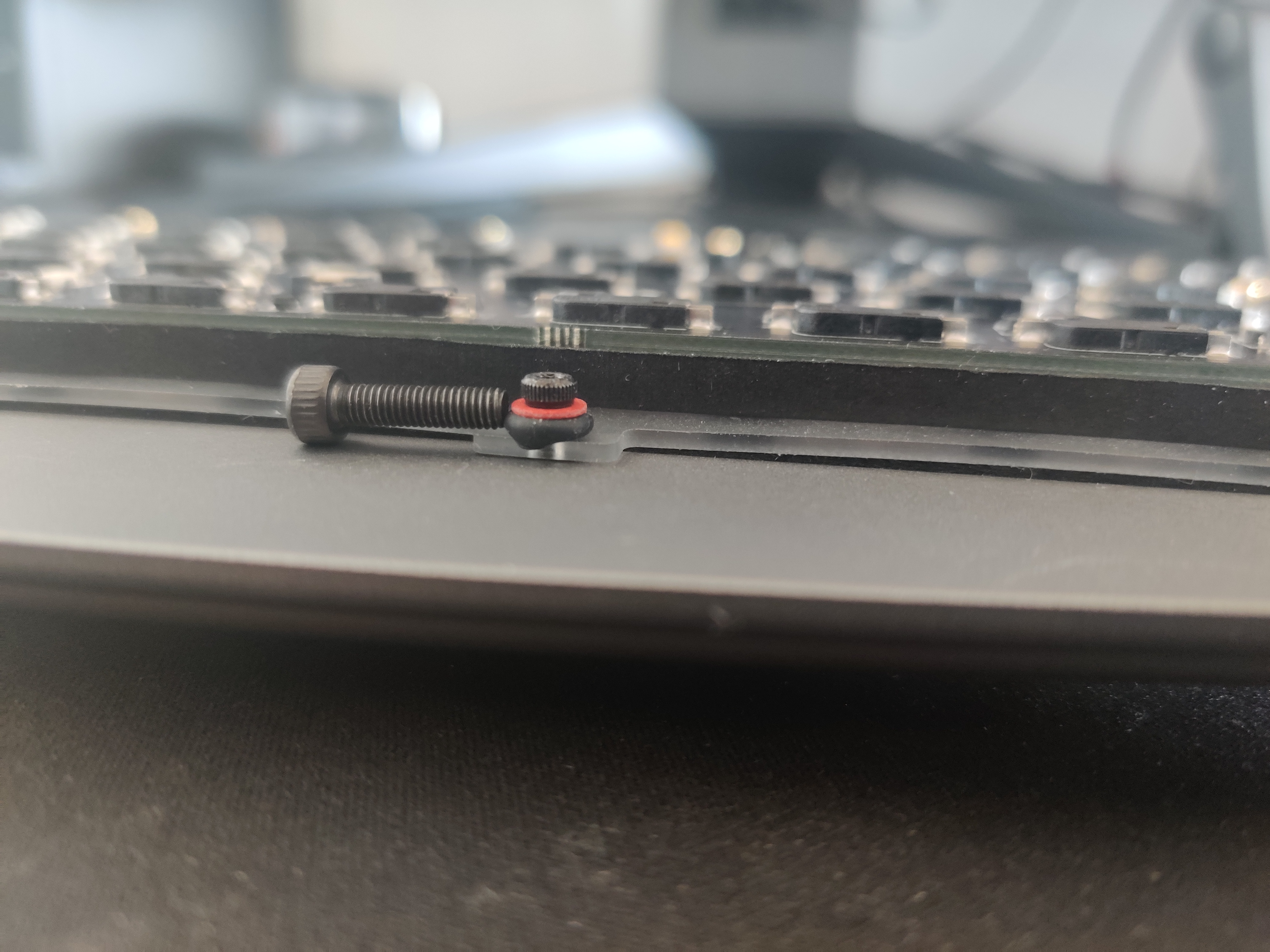

The plate is allowed to move vertically thanks to the synergy between cylindrical rubber gaskets on the screws and the top frame gasket.
This means there is less stress applied to the PCB as it isn't being bent from fixed points.
Maximum flex ~3mm screw distance (m3 screw as reference) | Polycarbonate plate | PCB foam | No bottom case foam

Low flex ~1.5mm screw distance (half m3 screw as reference) | Polycarbonte Plate | PCB foam | No bottom case foam

No flex Screws fastened just until you start gettting a bit of resistance | Polycarbonate Plate | PCB foam | Bottom case foam

_________________________________________________________________________________________________________________________________________
FAQ and other information
Does this keyboard include PCB?
No, the keyboard is designed to fit the standard 60% PCB's like dz60/gh60 with USB-C in the upper left corner.
Several PCBs have been tested during the prototype stage and I made a list of those that are confirmed compatible:
DZ60 rev. 3
DZ60 RGB v2 Hot Swap
BM60 RGB Hot swap
XD60
For HHKB with split spacebar these will likely fit:
H60 by Hineybush
NOP60 by Checkerboards
Plate files will be released when the units have been shipped out.
How can we contact you / receive news about this and future projects?
You can join the Discord channel here.
And follow my Instagram here
Forum signature code below if you'd like to support the project.
