Hello everyone,
This is Hiexa Key. We are glad to meet you here. Today, we are going to introduce our first custom keyboard - the Hiexa V65.
For the production,
100% fully CNC finish, which allows us to better control quality and improve the craftsmanship of the custom keyboard!
For the design,
we have adopted a simple and atmospheric design language so you can enjoy it for a long time and experience the purely customized keyboard!
For the configuration,
Hiexa V65 adopts a tri-mode HS PCB, which supports VIA & QMK, customized ball catch structure, magnetic connector assembly process, and other configurations.Render Gallery

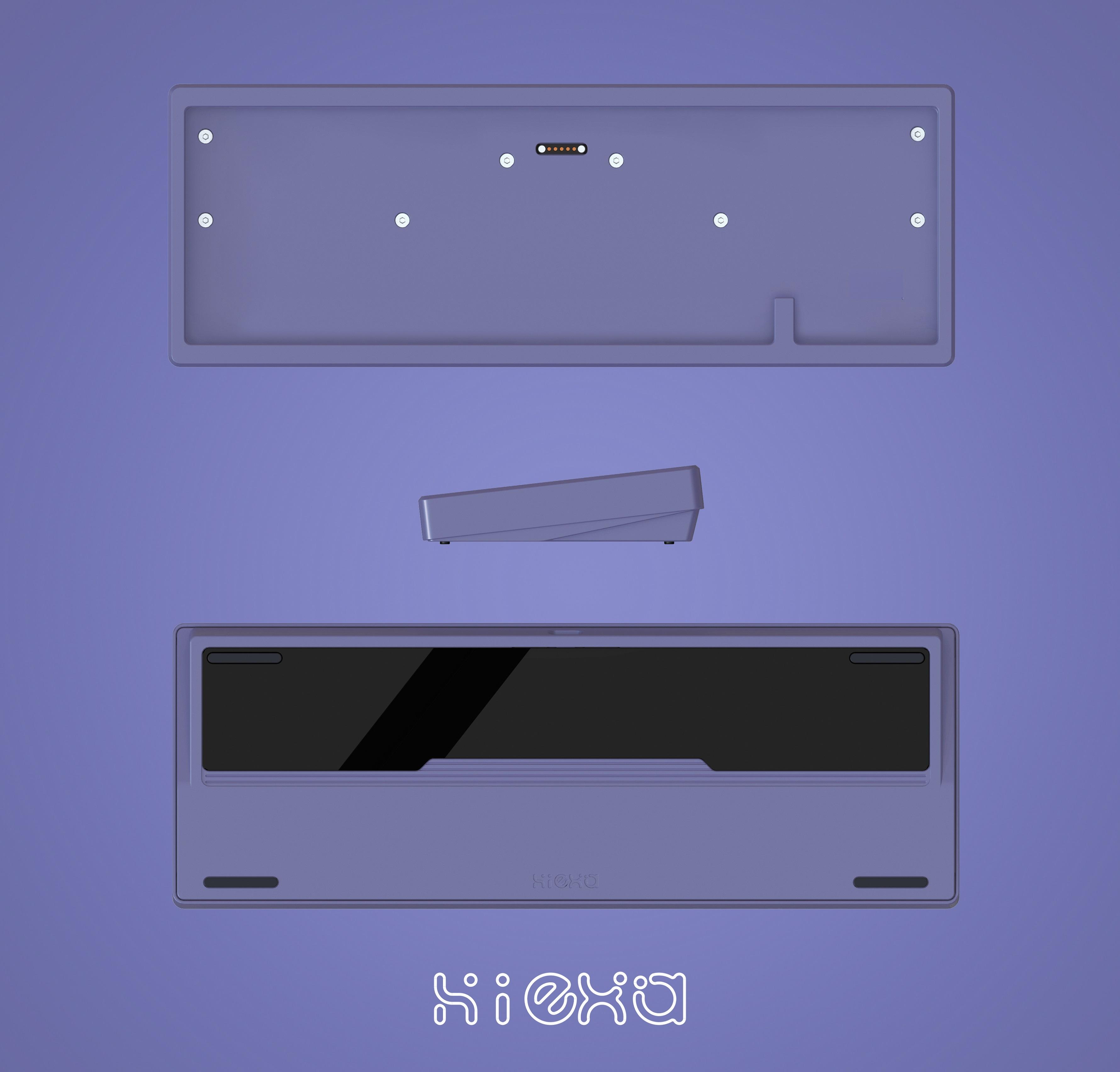

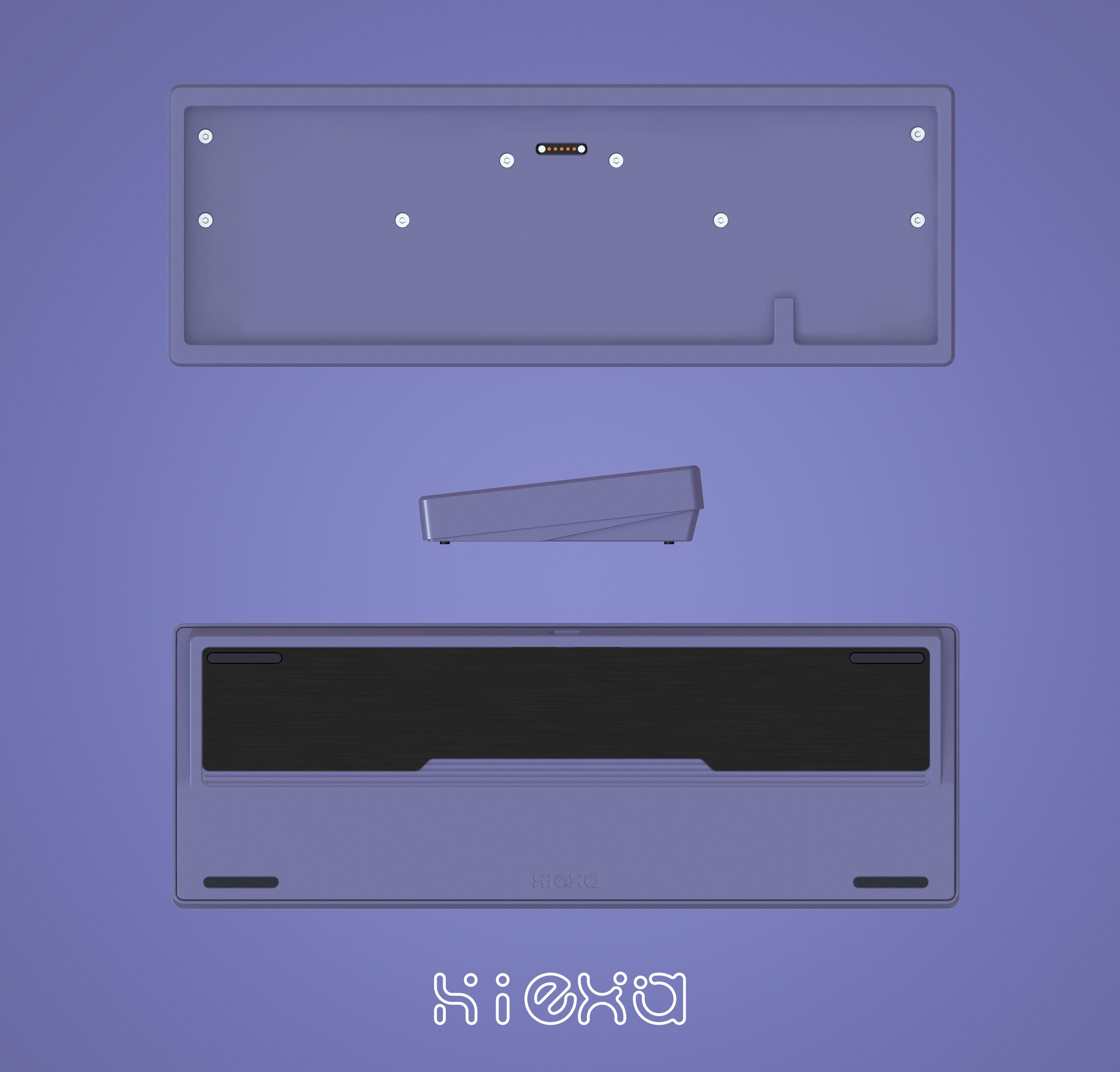

Midnight Purple-Mirror Weight Midnight Purple-Brushed Weight

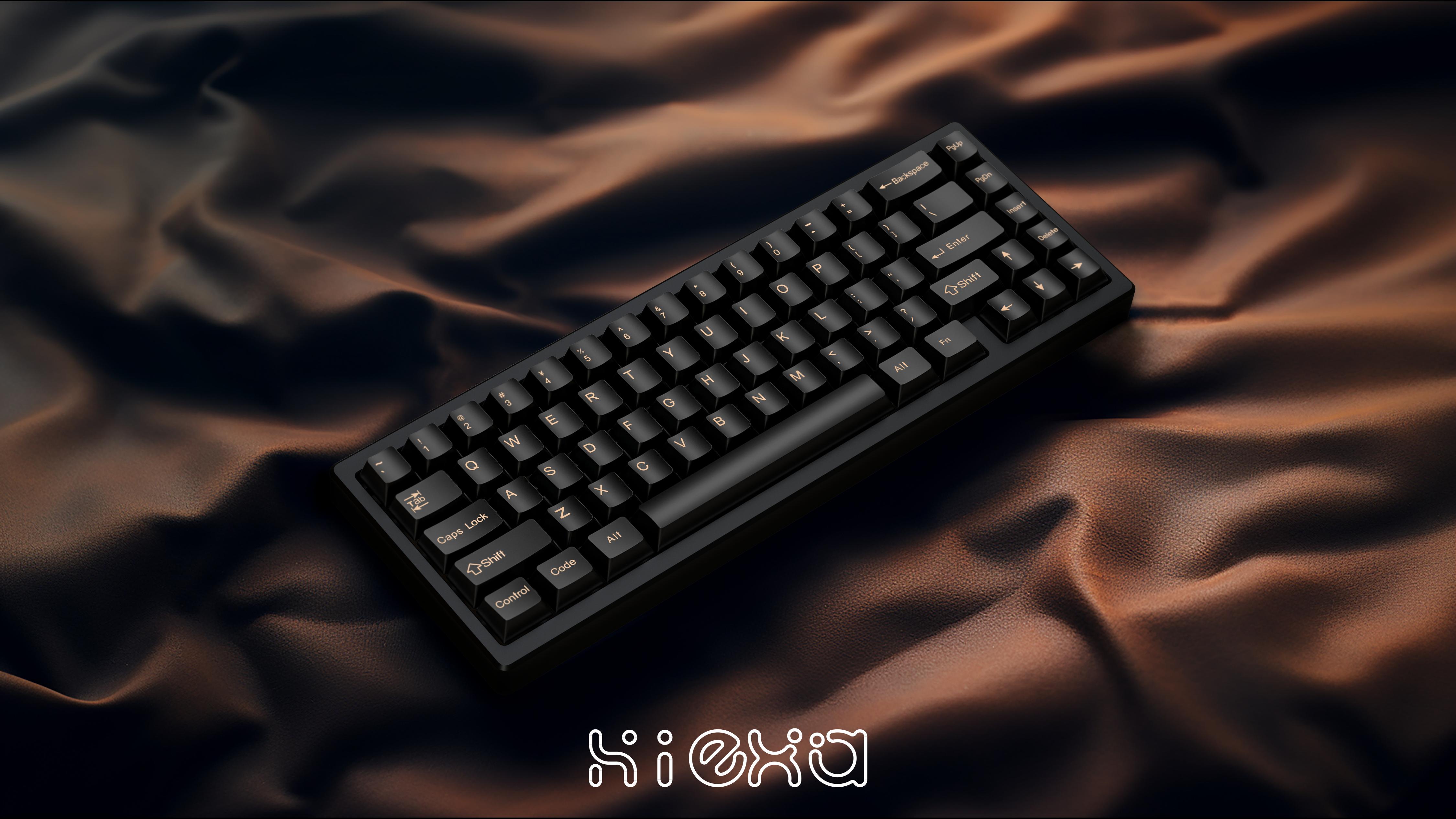

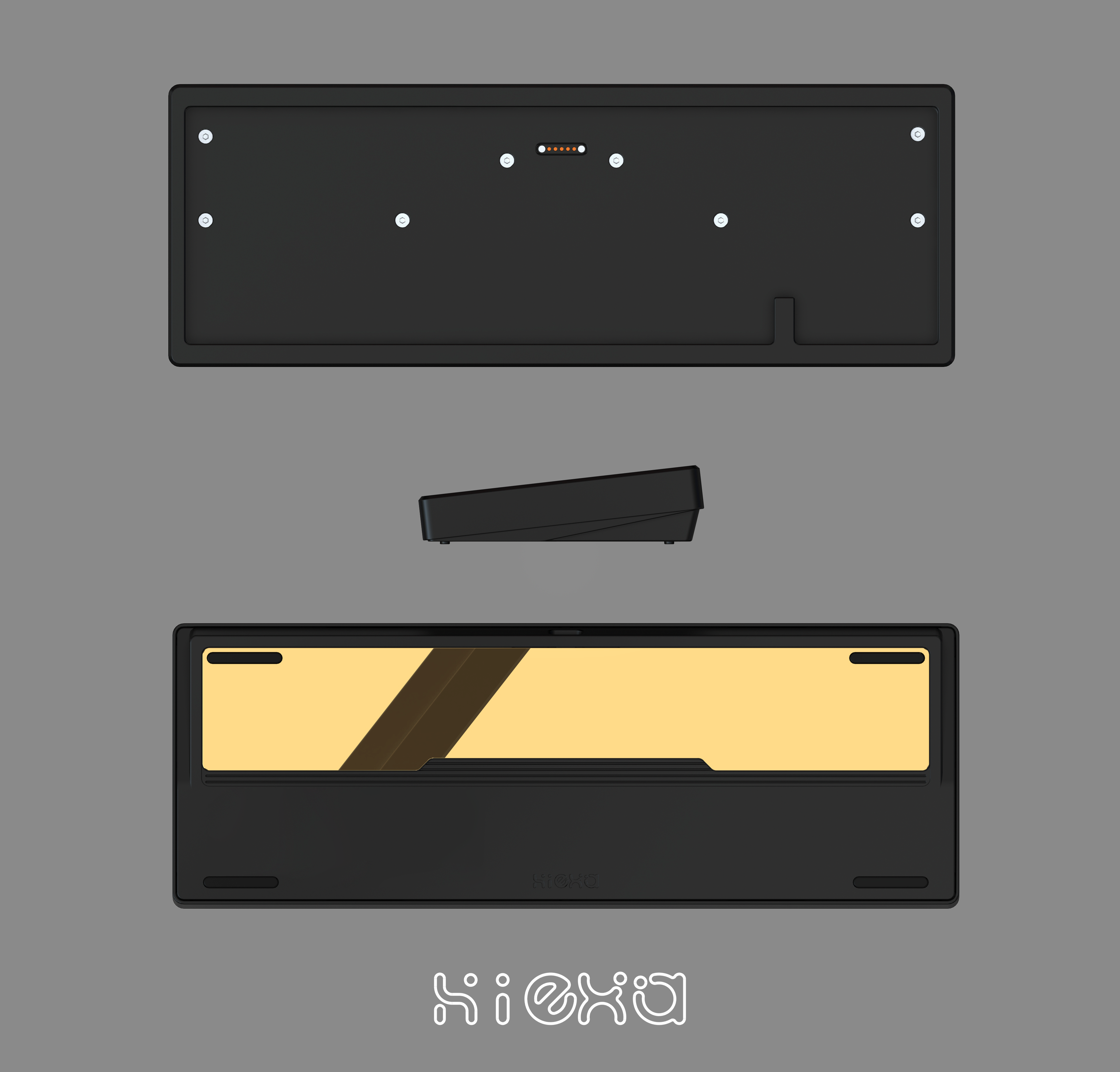

Black-Mirror Weight Black-Brushed Weight

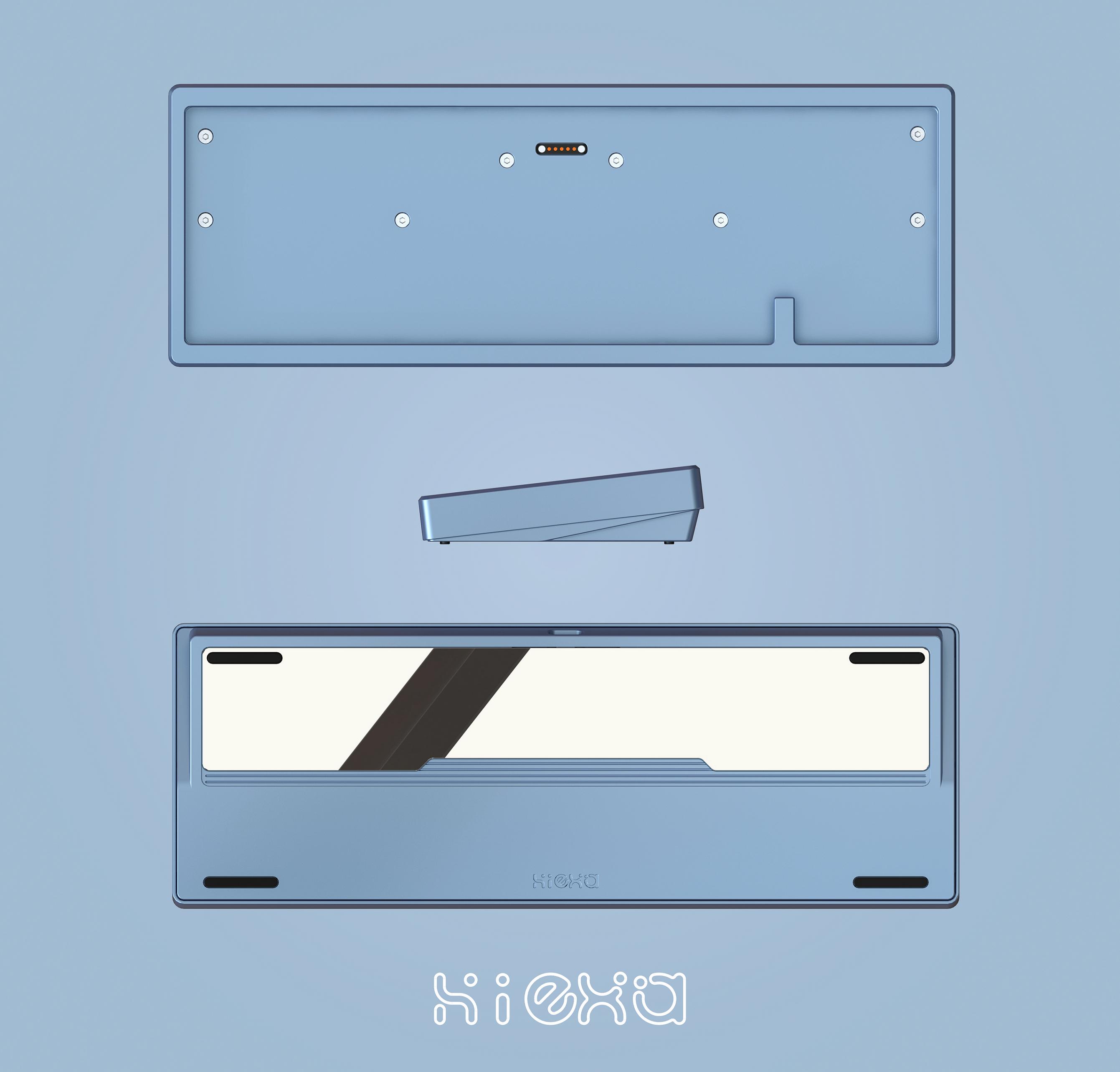

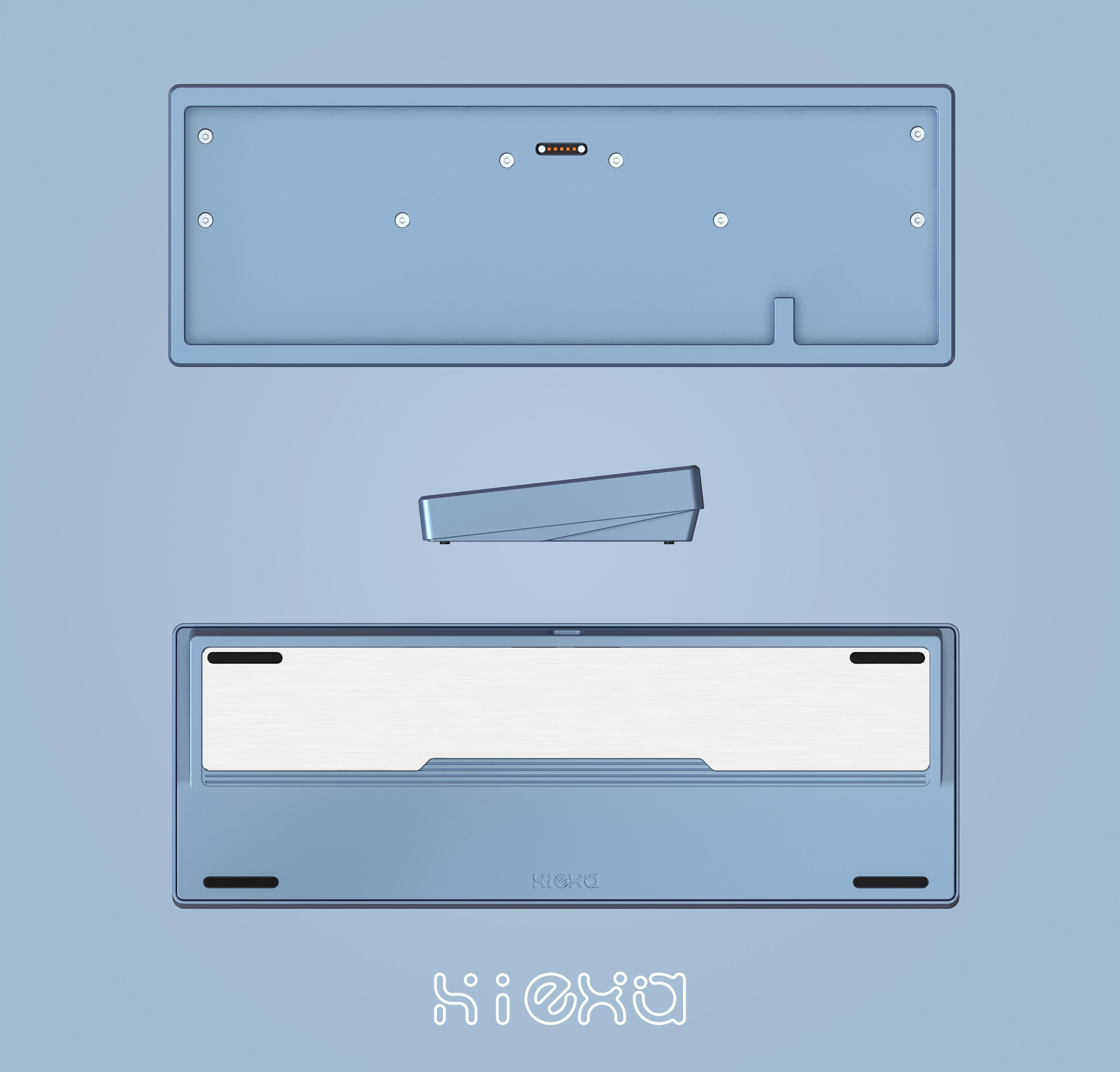

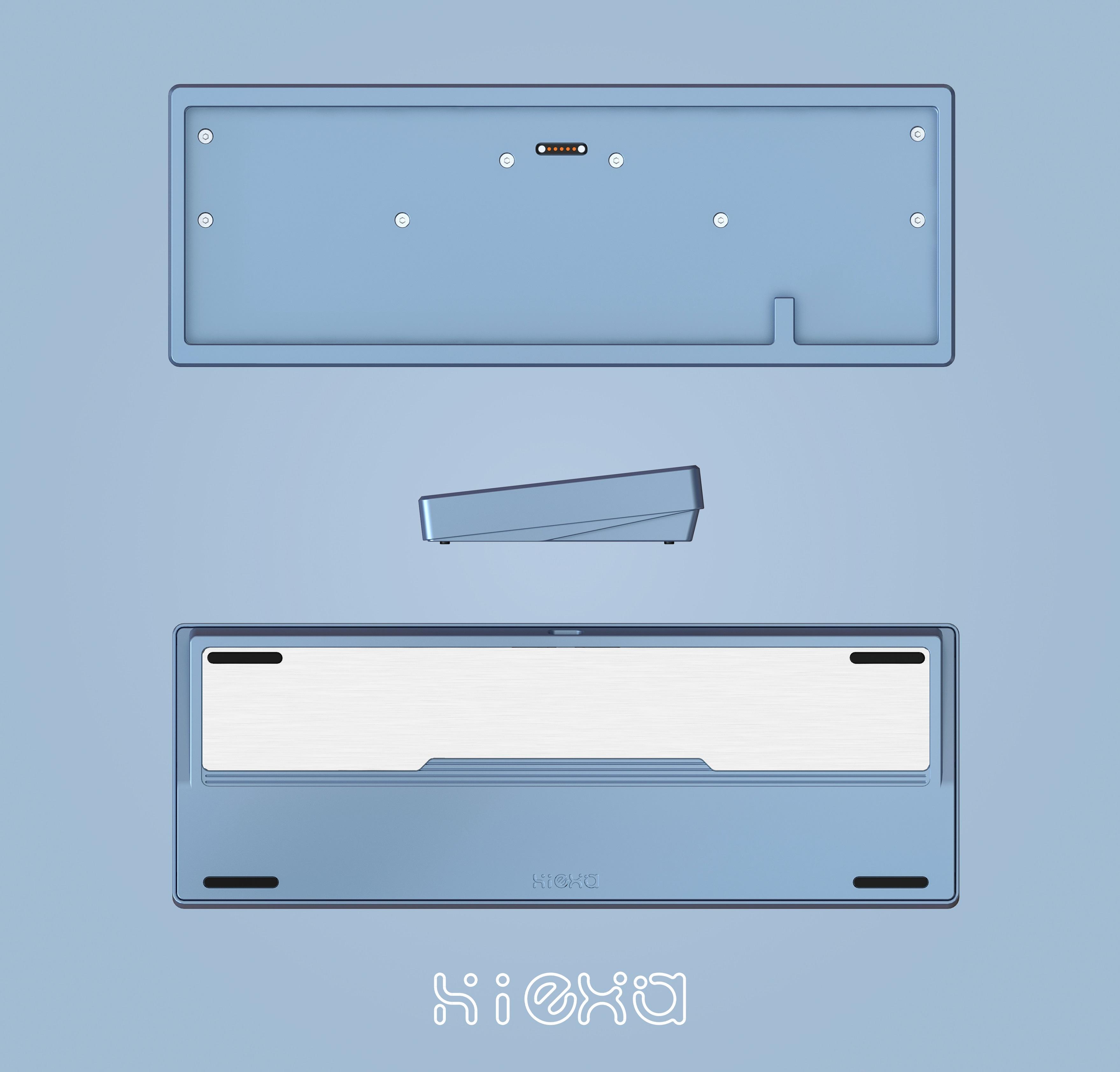

Ice Blue-Mirror Weight Ice Blue-Brushed Weight

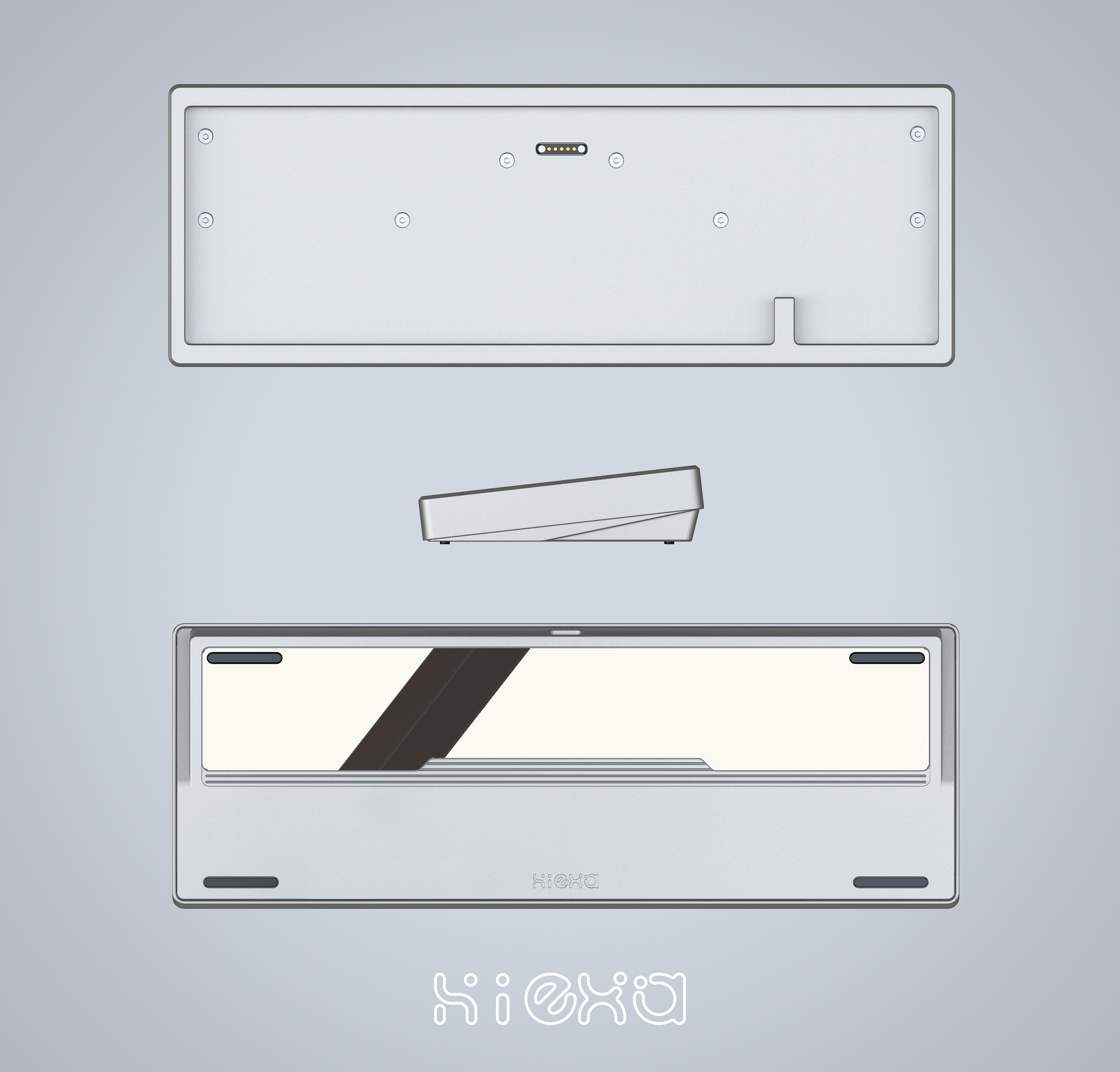

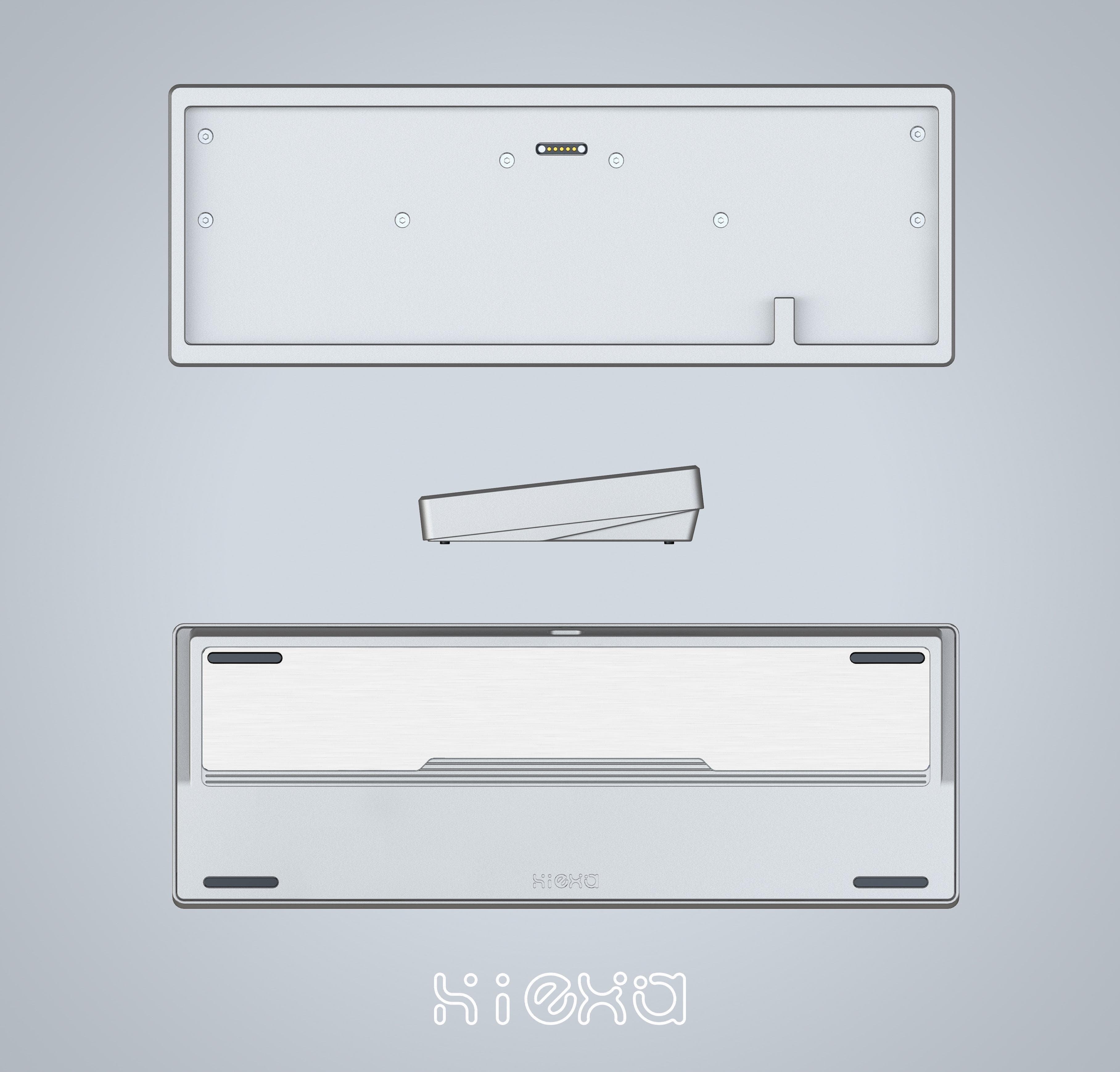

Silver-Mirror Weight Silver-Brushed Weight

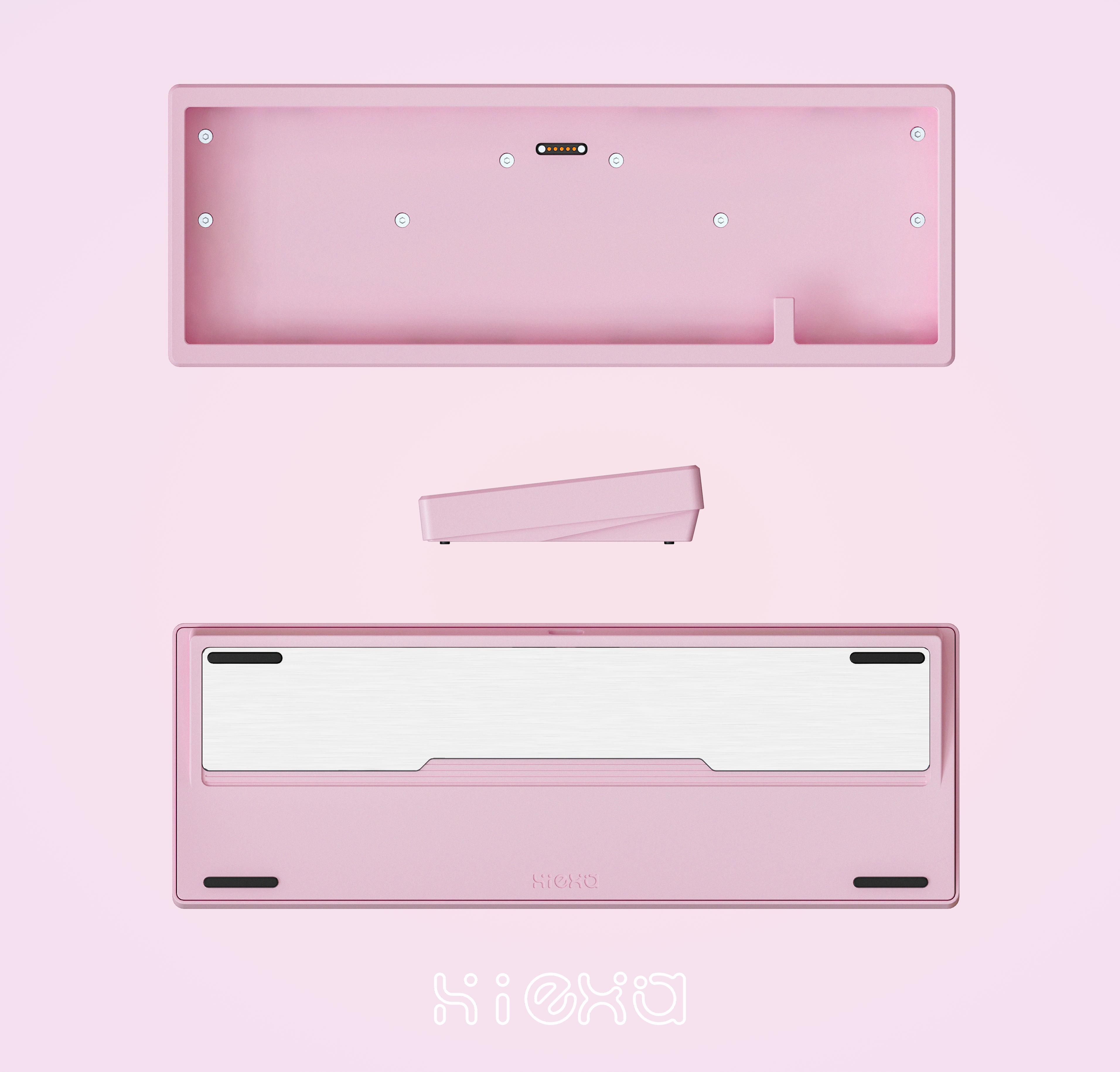

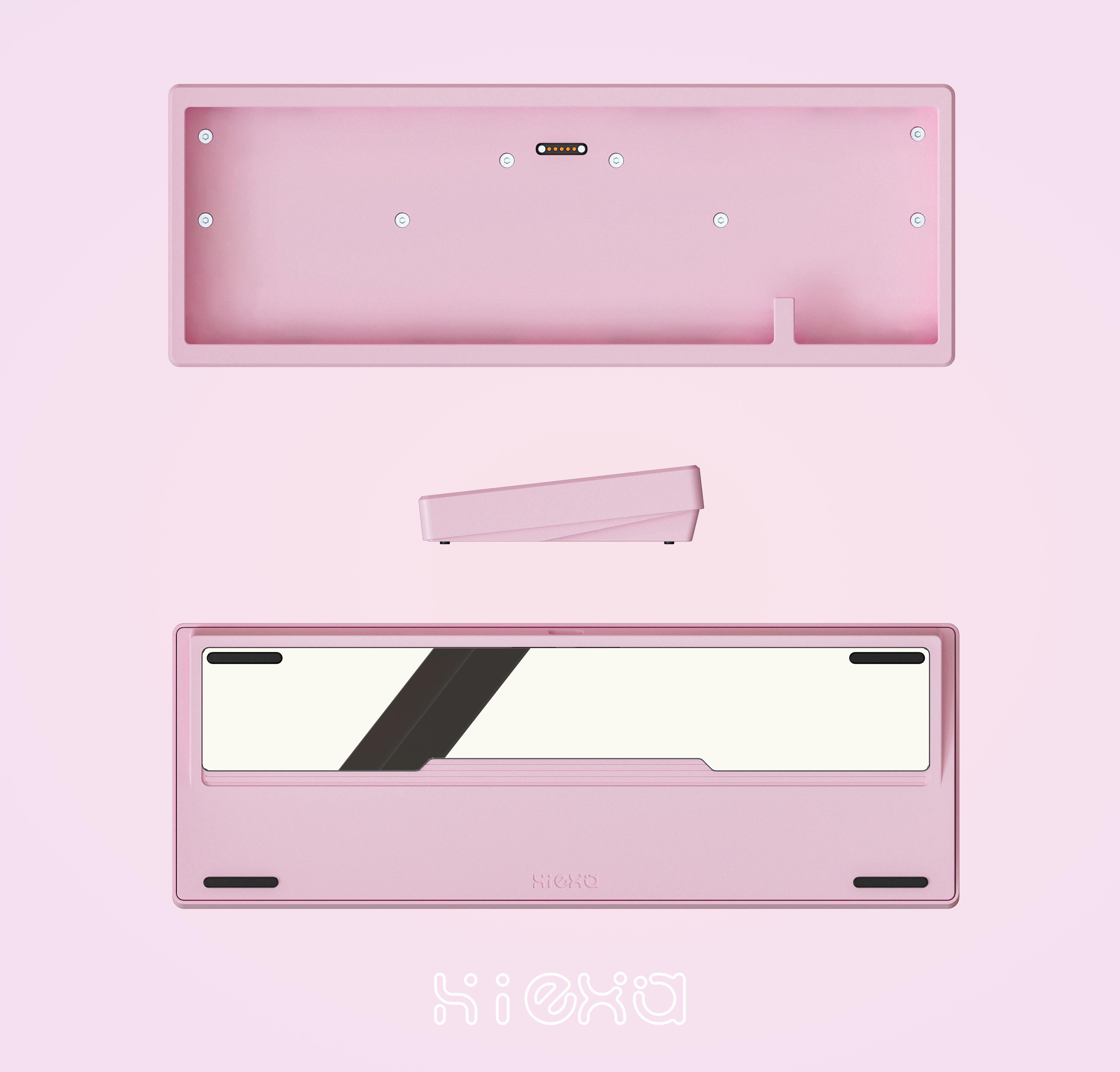

Pink-Mirror Weight Pink-Brushed Weight

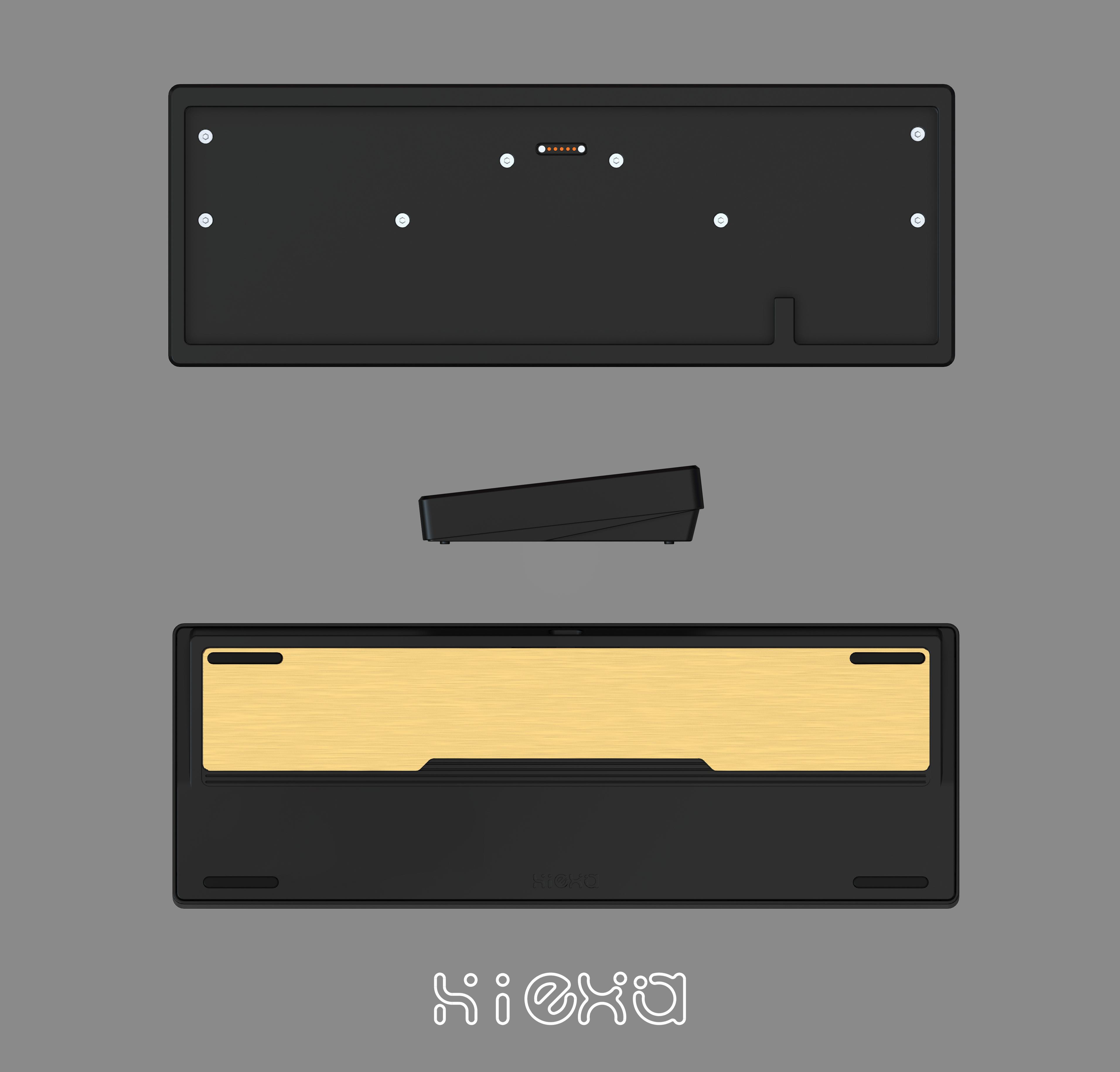

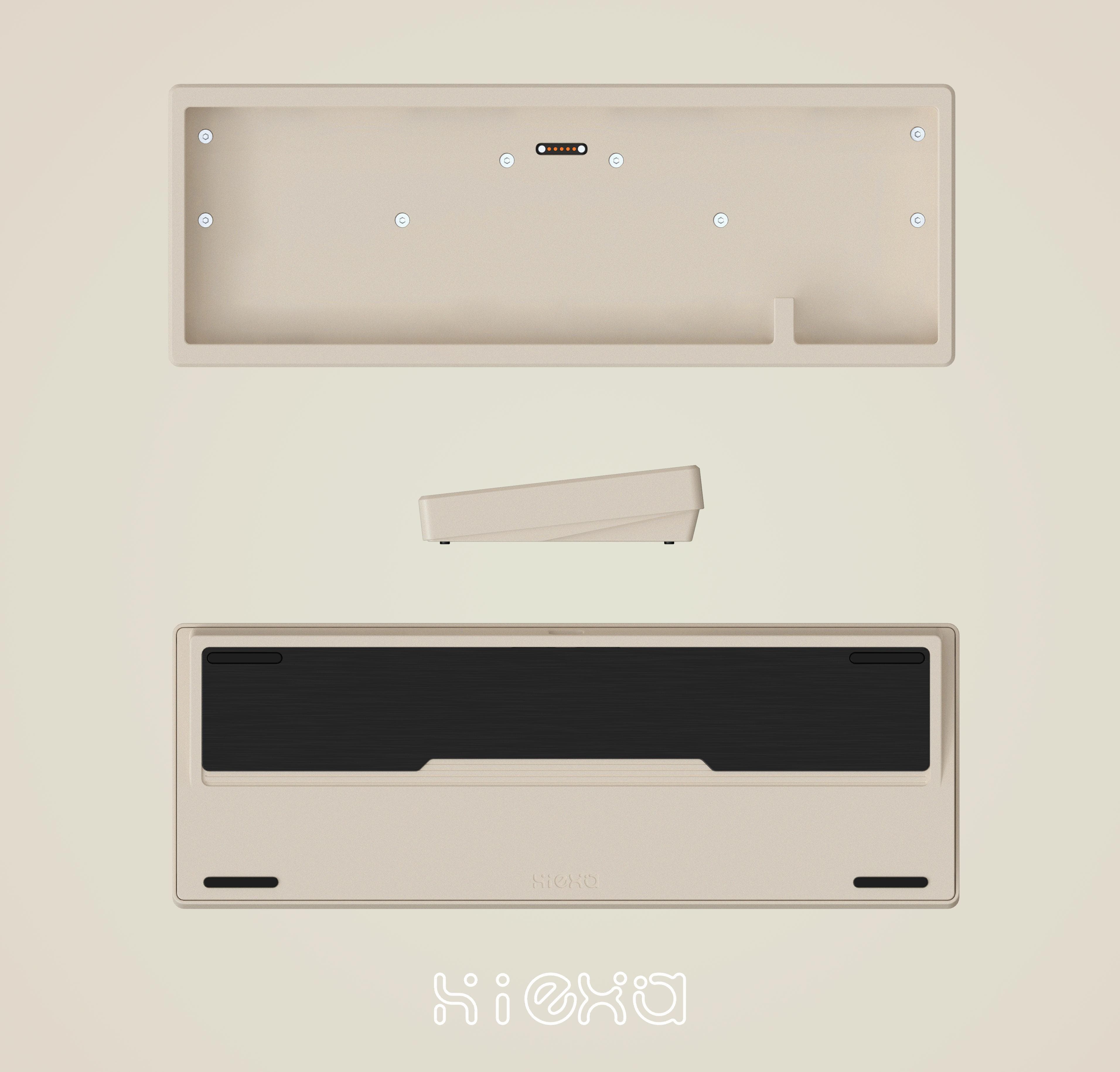

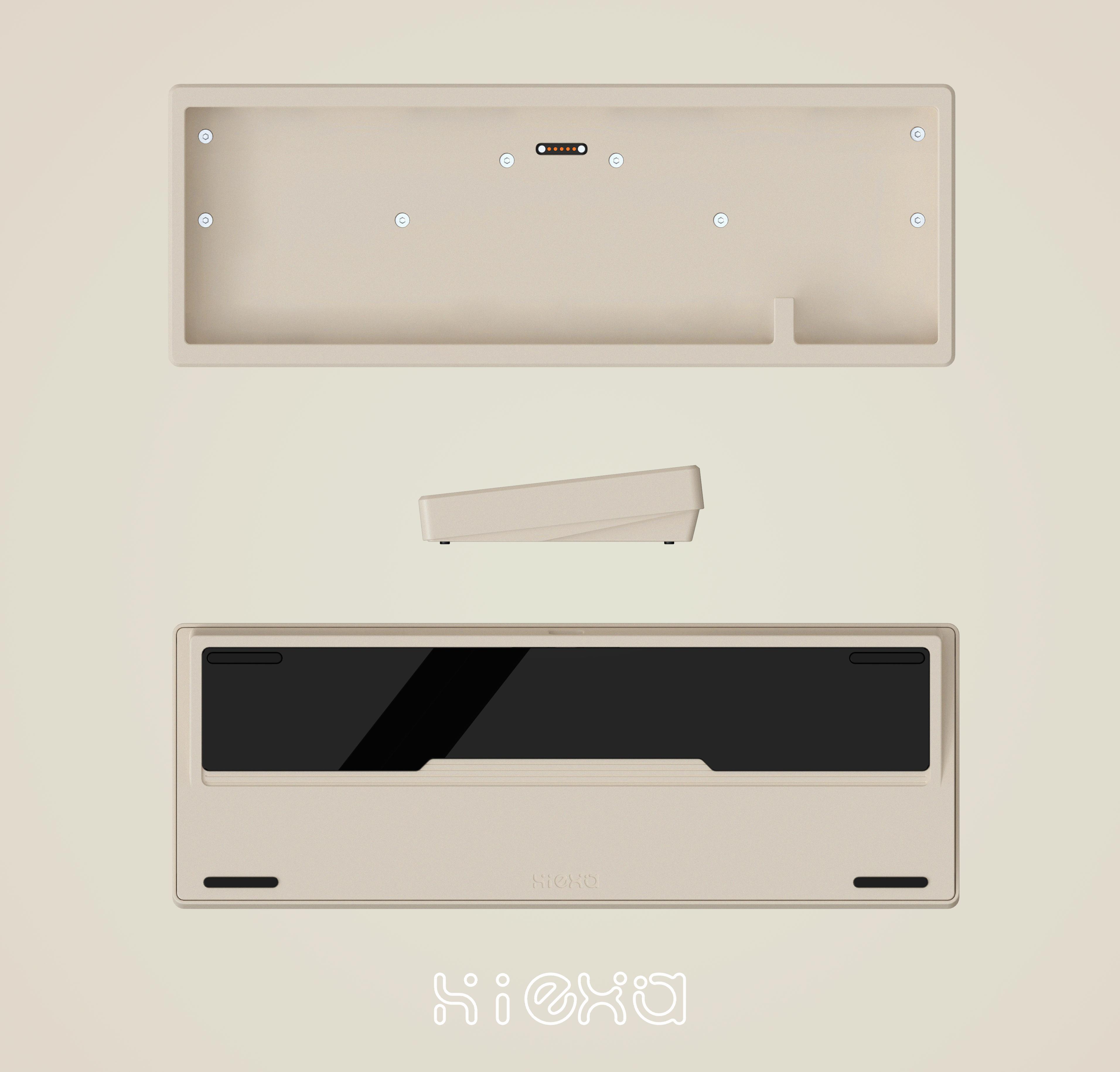

Latte-Mirror Weight Latte-Brushed Weight

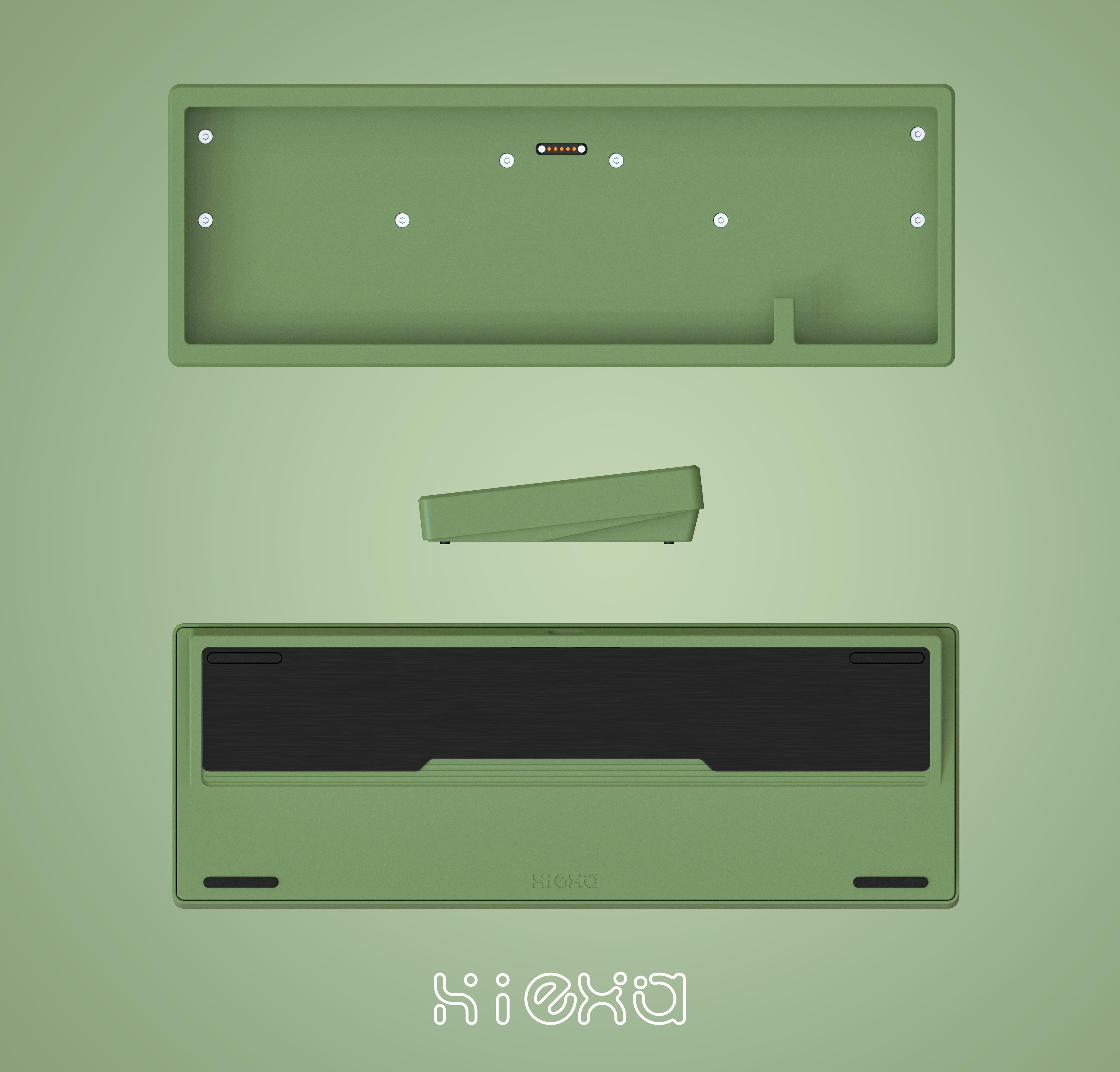

Avocado-Mirror Weight Avocado-Brushed Weight

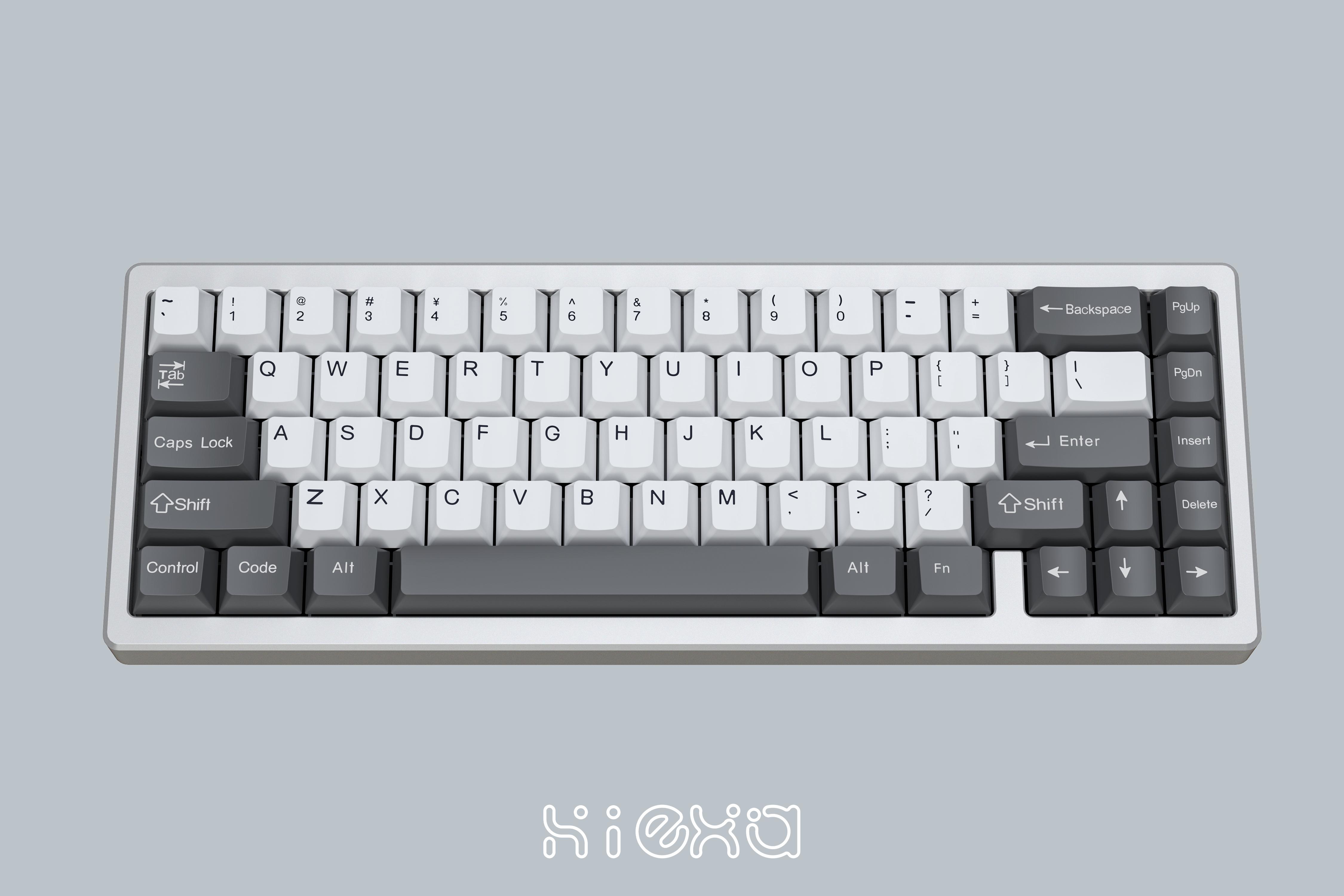

DesignFront design
----
We adopts a simple and practical design language.

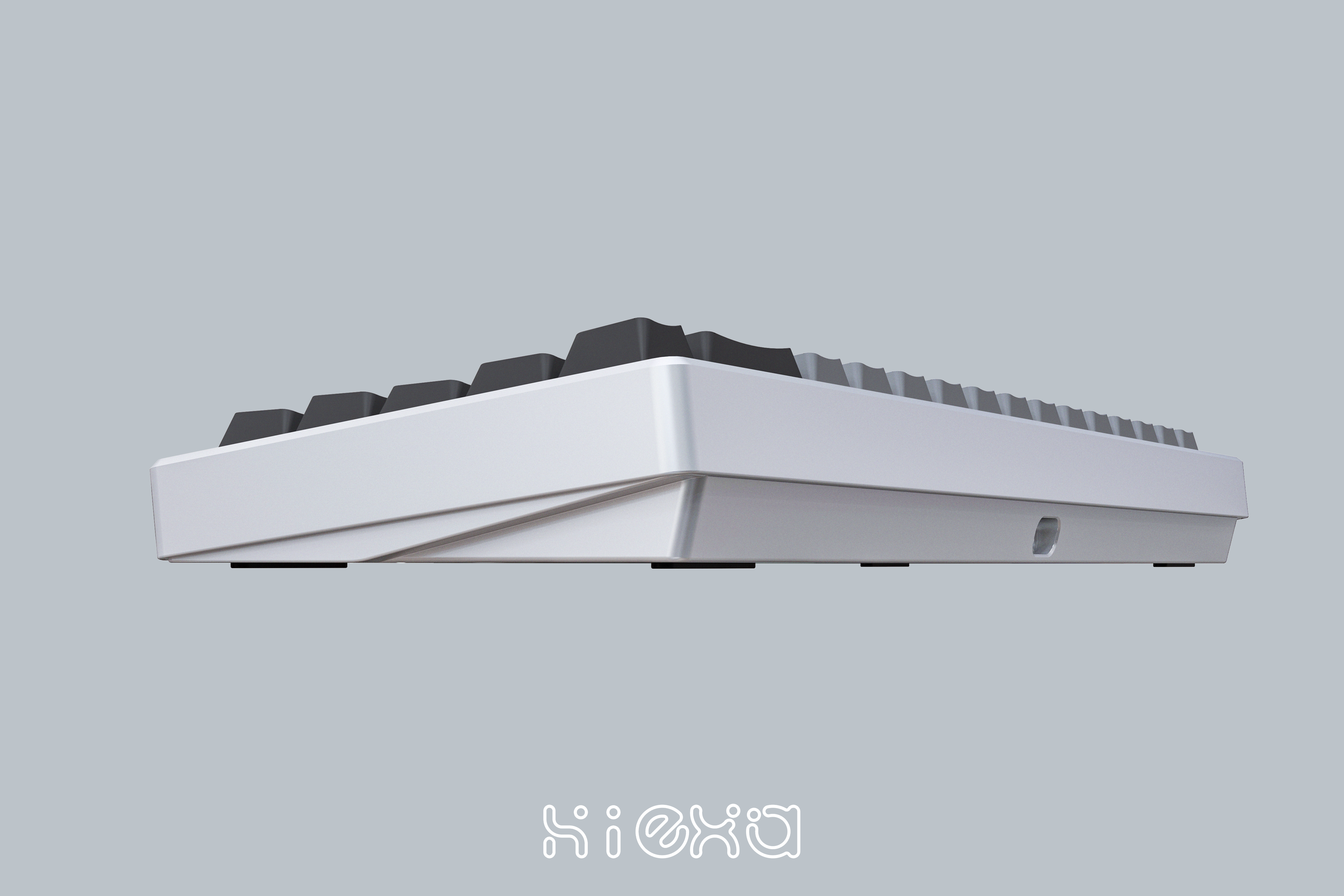

Side design
----
The line-cutting technique makes the side profile more design-oriented and customized.

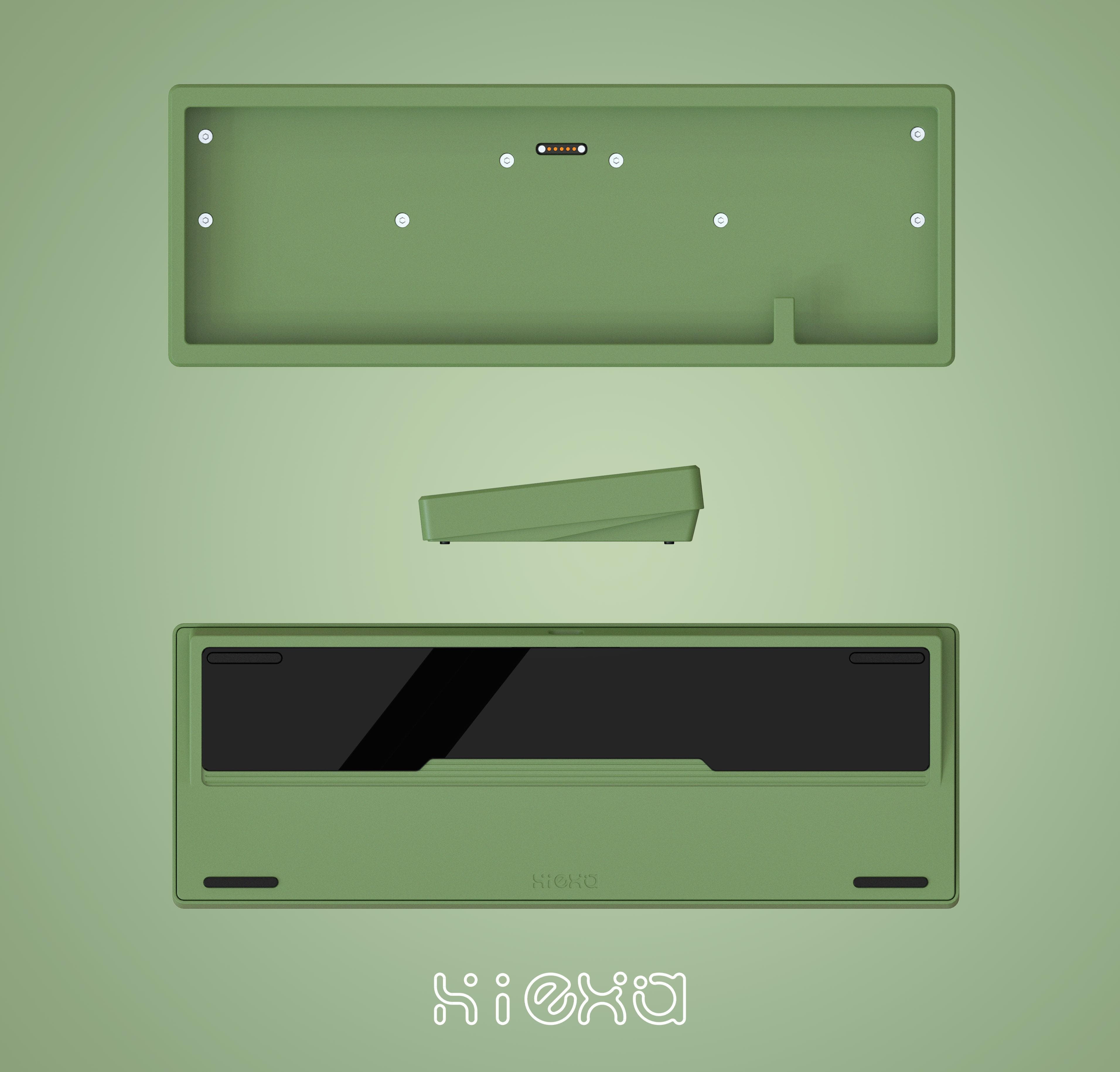

Back design
----
We used the case's contour to echo the weight balance lines, creating an elegant visual experience between the weight and the bottom case.

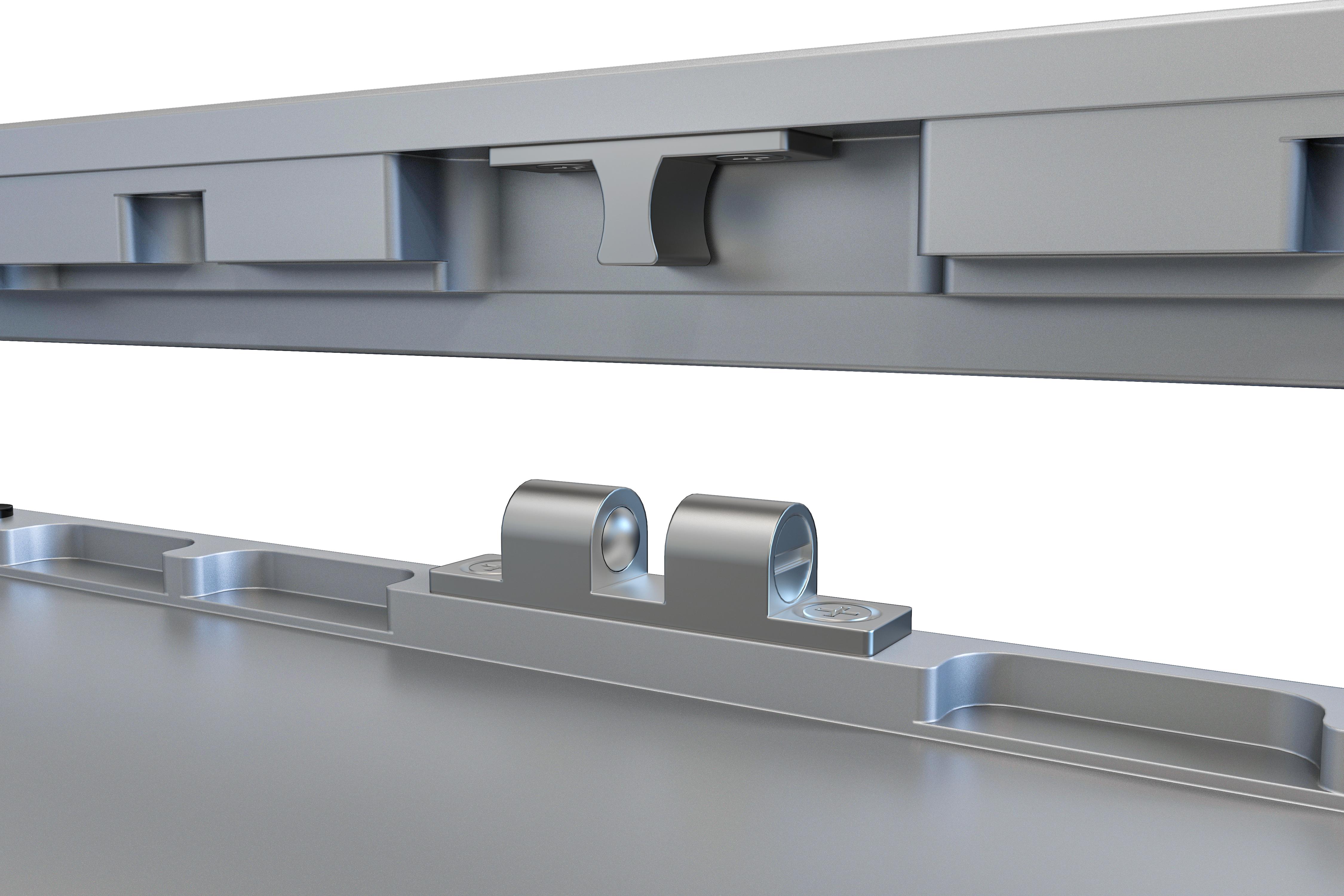

StructureBall Catch Structure
---
We have adopted a suitable ball catch for the keyboard case, which can be symmetrically distributed on the shell.

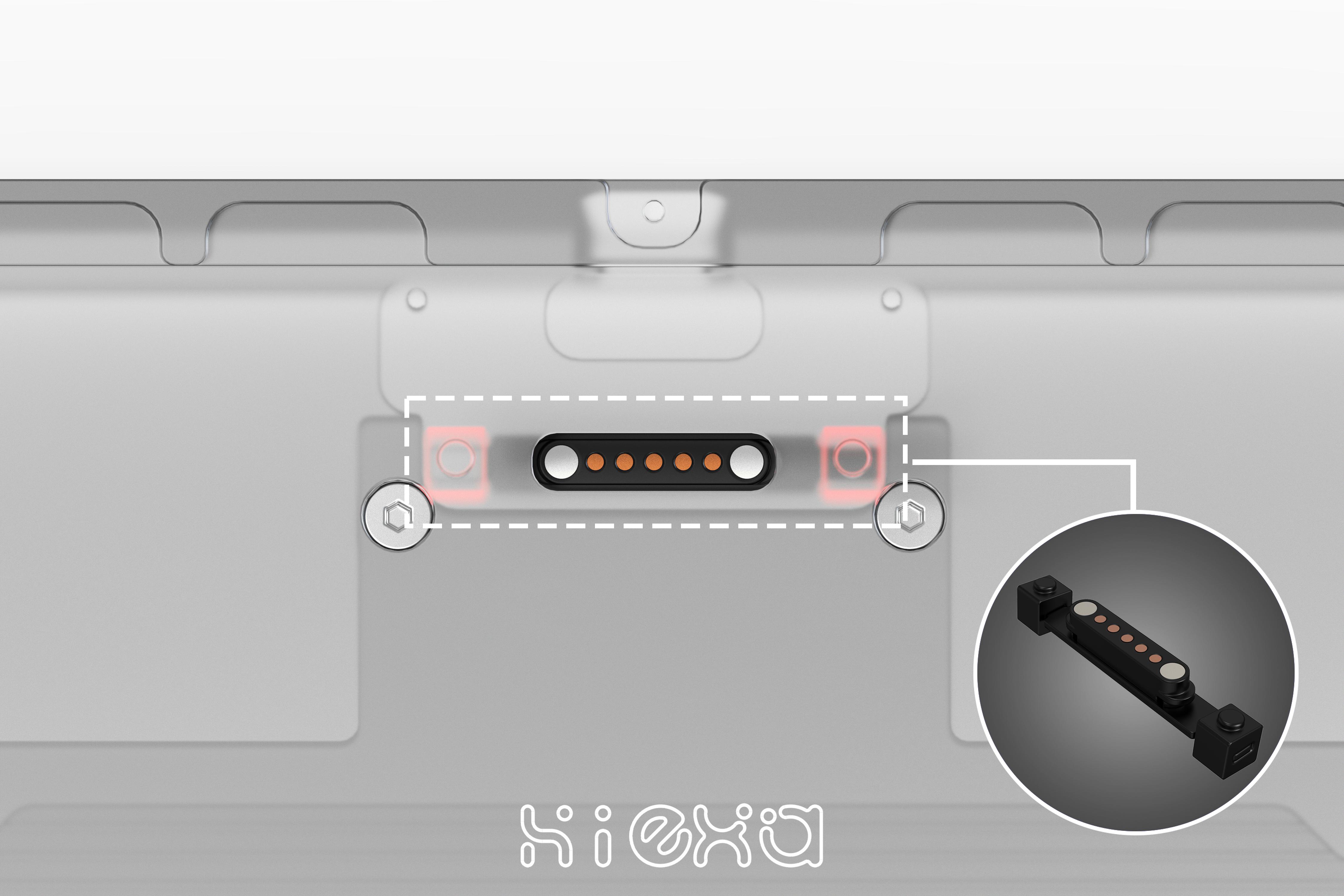

Magnetic Connector
---
Able to simplify the assembly process.
We customized and opened molds for the fixed silicone at both ends of the daughter board,
which were designed with limit points to stabilize the inner liner connection.

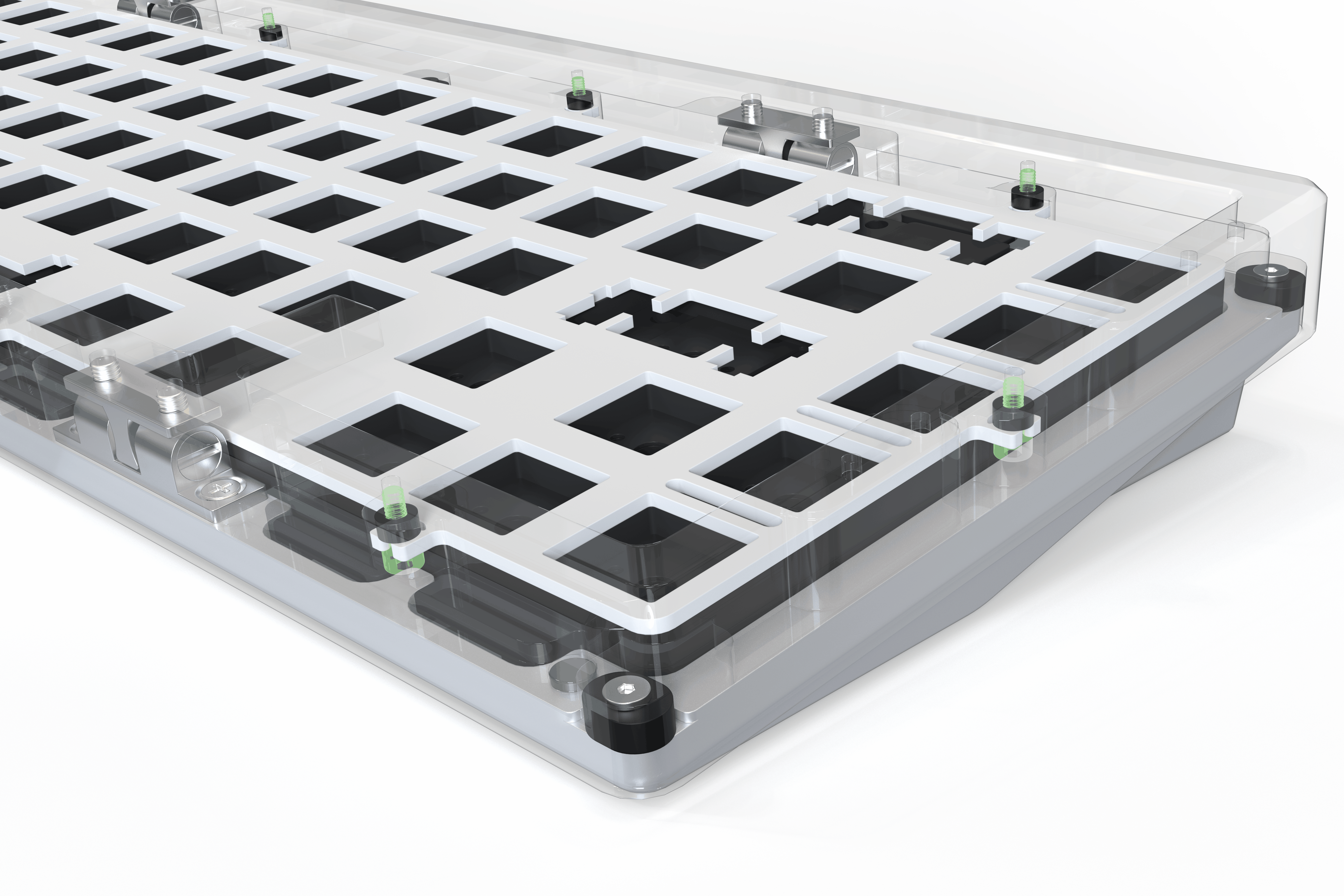

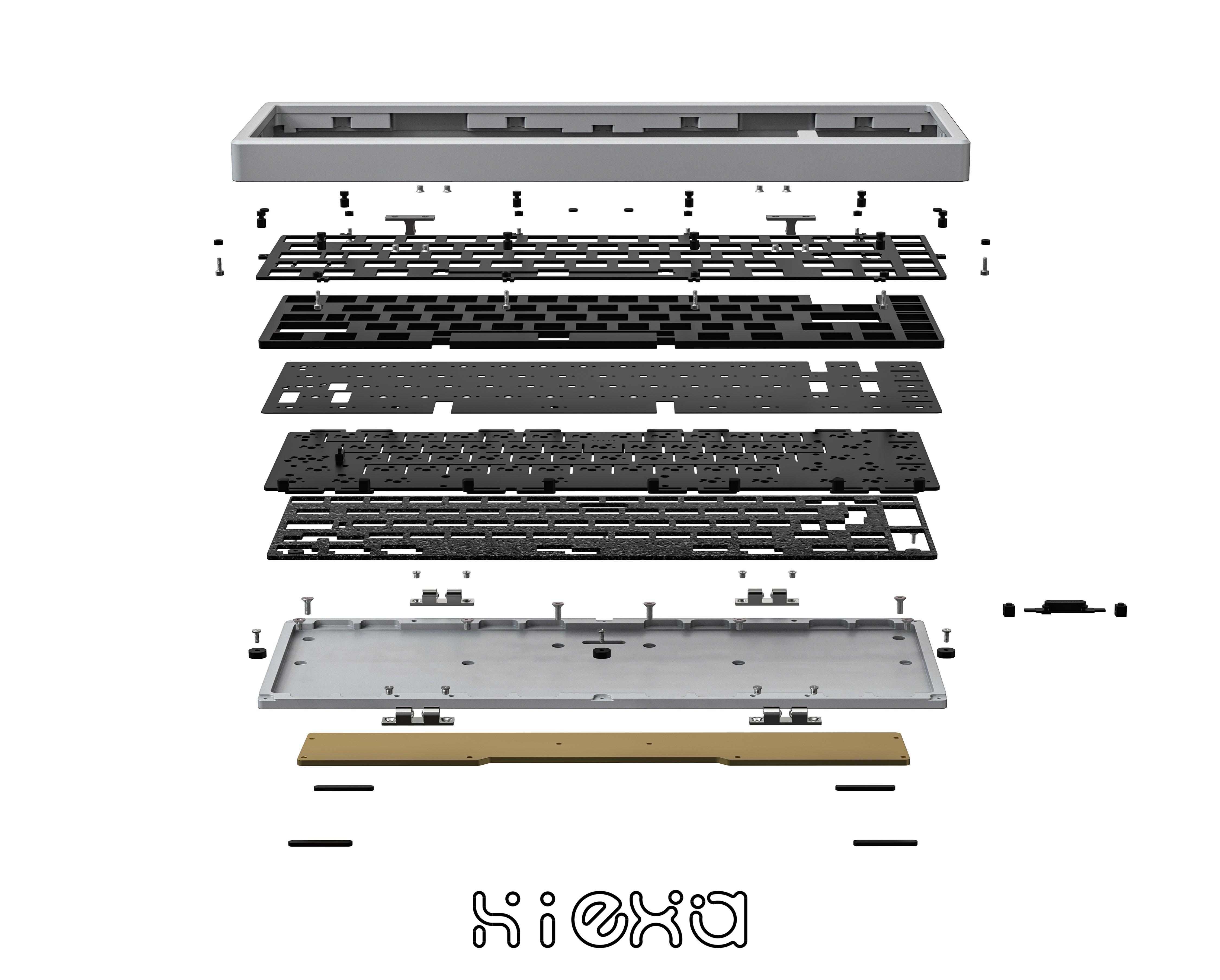

3 in 1 Mount
---
It can support PCB GASKET, Plate GASKET, and TOP mount. You can customize your keyboard structure.
Anti-collision silicone
----
it avoids the hard contact between the top and bottom cases when assembled, significantly reducing the case's resonance and hollowness.
Typing SoundTri-mode HS PCB----wired, Bluetooth 5.0, and 2.4G mode.
Support QMK/VIA

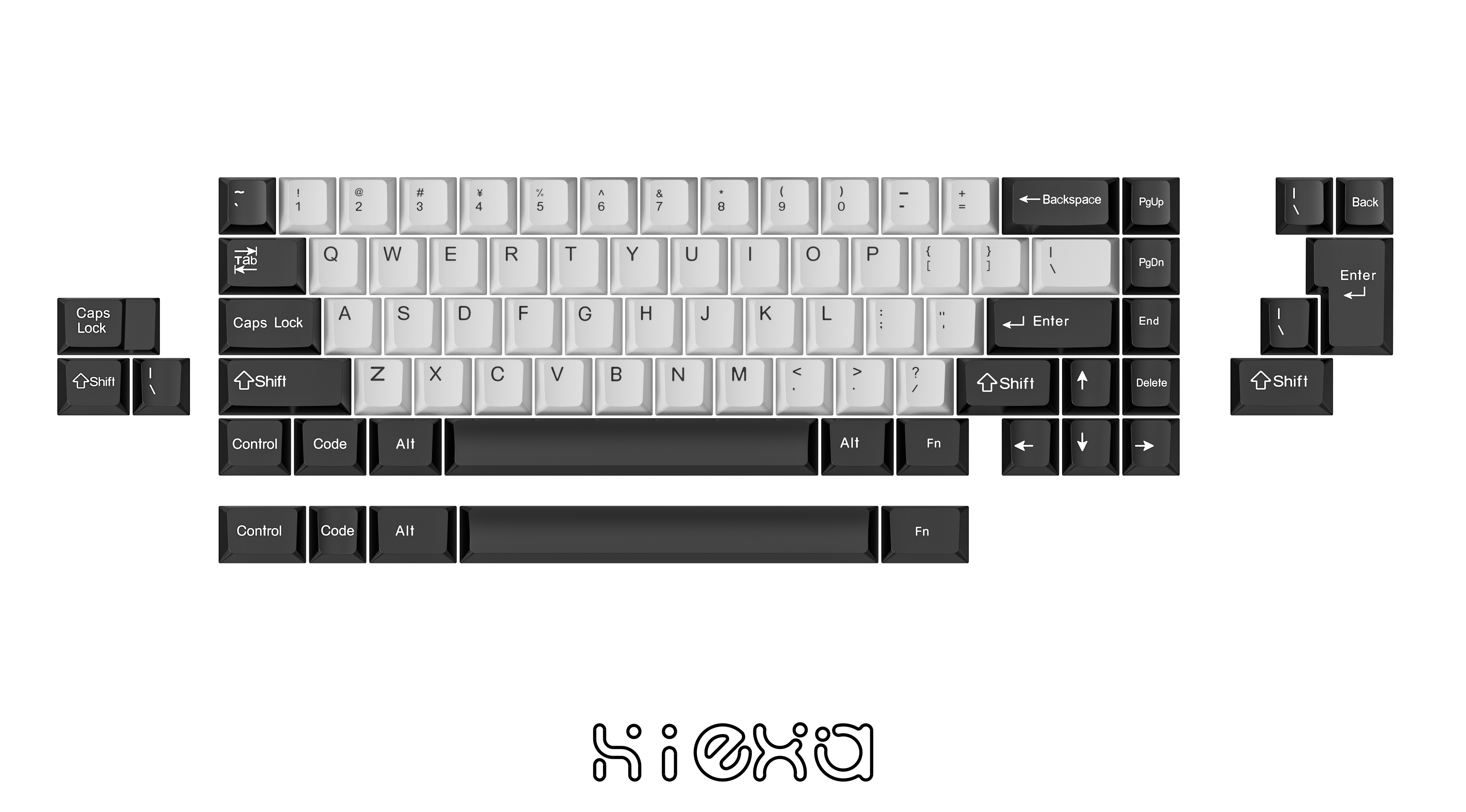

Support multiple layout
Include 4400MHA capacity battery

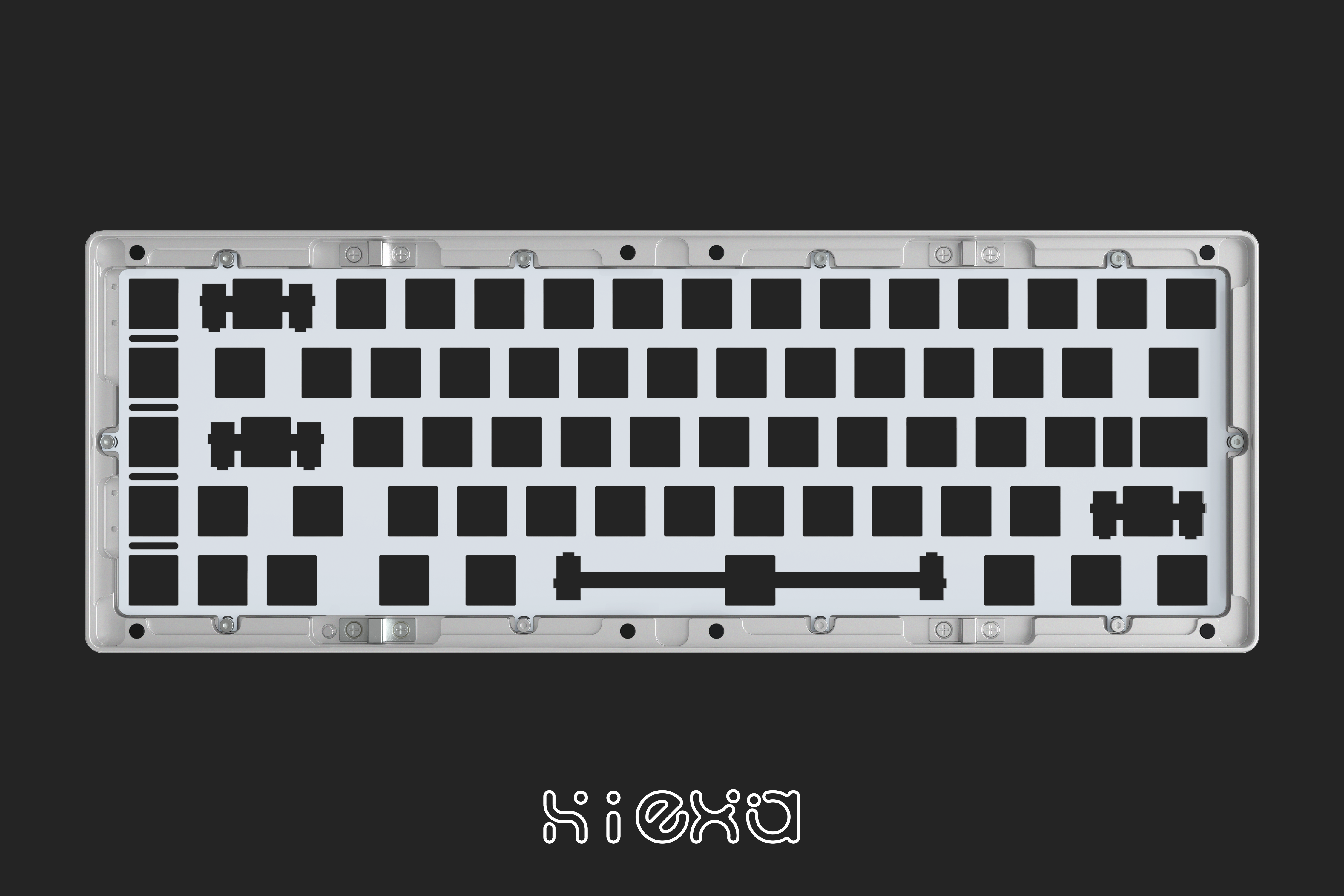

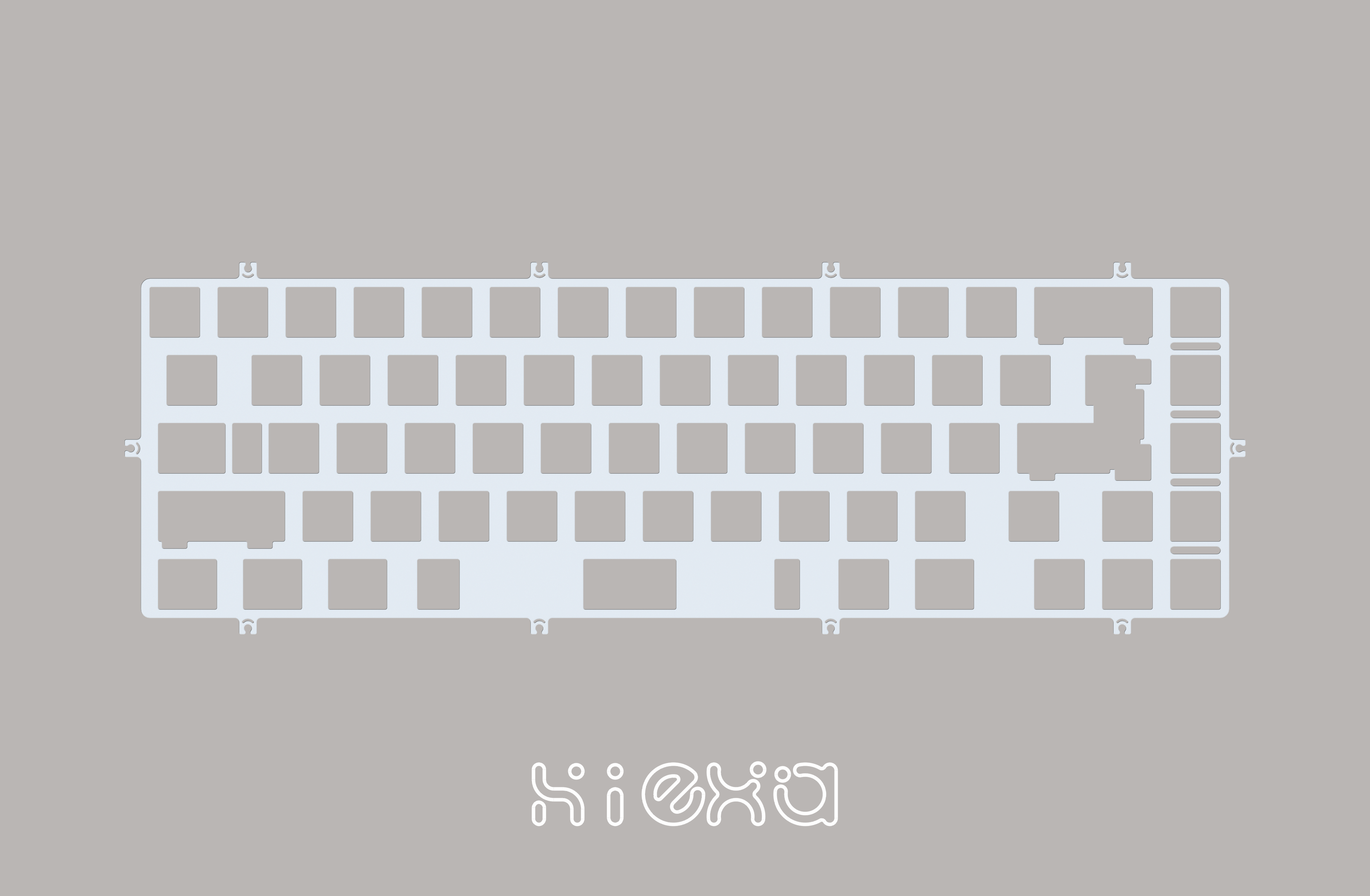

Default Plate
----Non-flex cut POM
Foam
----
We adopt the mature scheme which verified by the market:
PORON plate foam + IXPE foam + EPDM case foam and PET insulating foam.Color Option and FinishCase
---

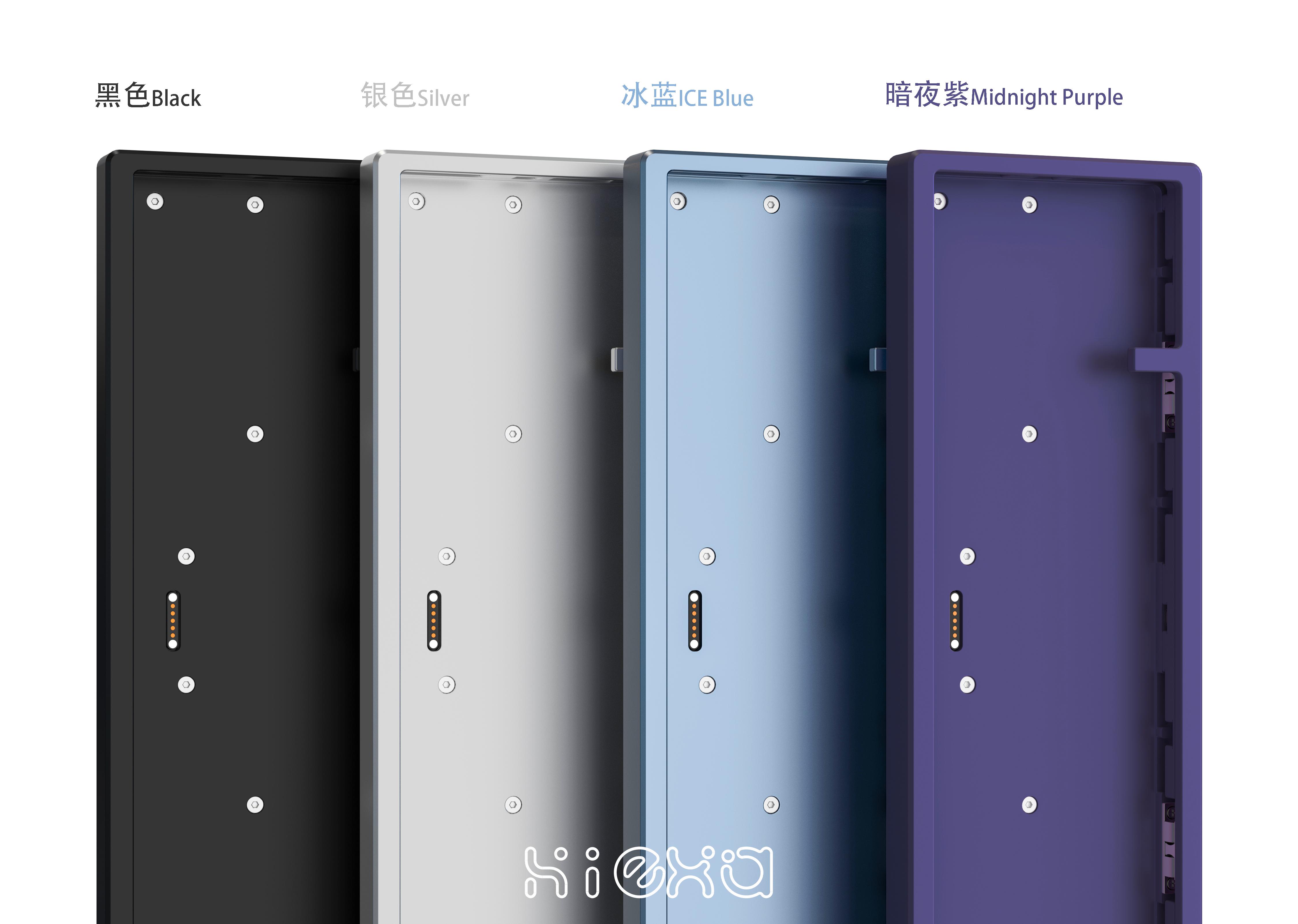

Seven colors and two finishes
Anodized Case: Midnight Purple, Black, Ice Blue, Silver

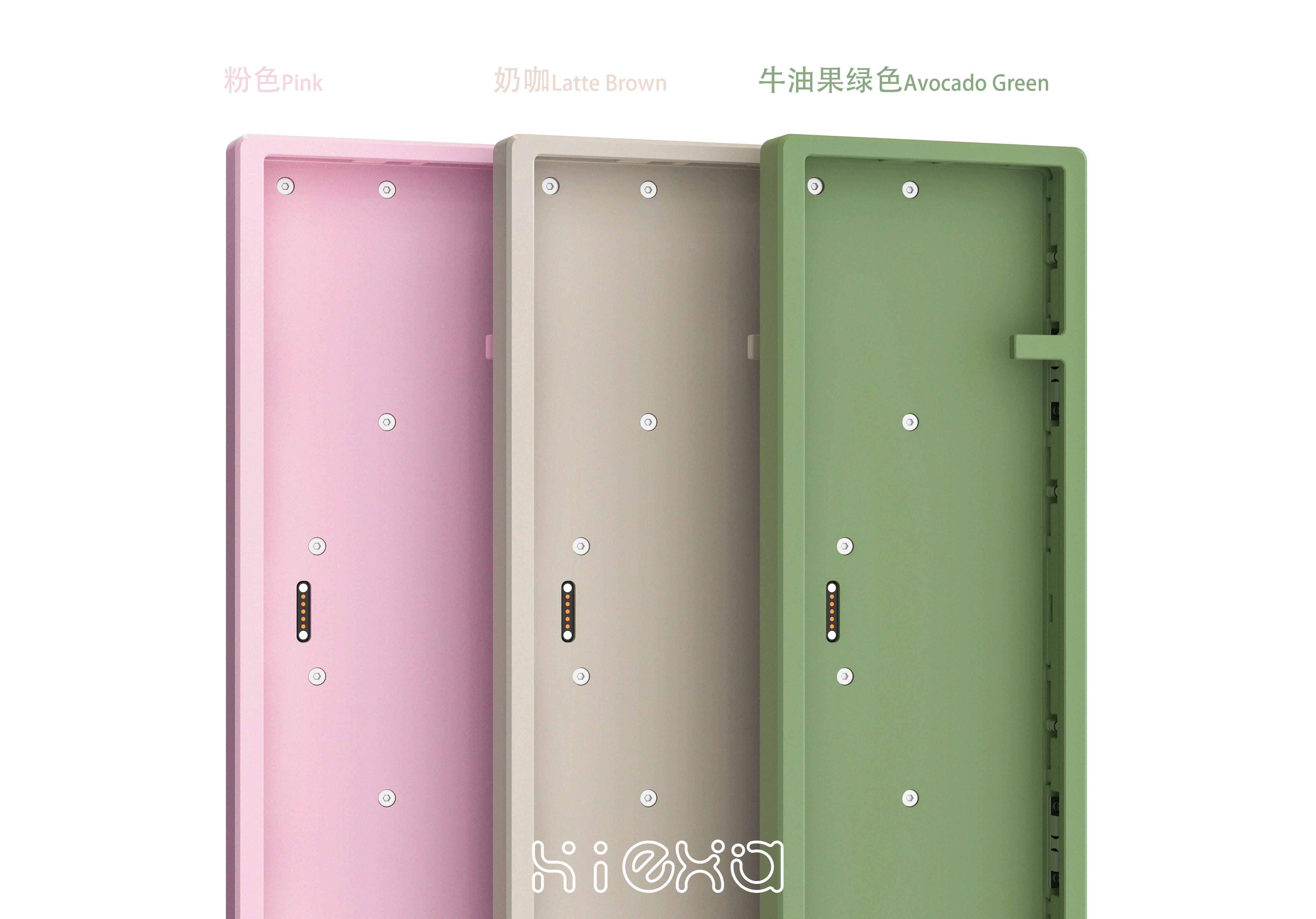

Glitter Spray-coated Case: Pink, Latte, Avocado

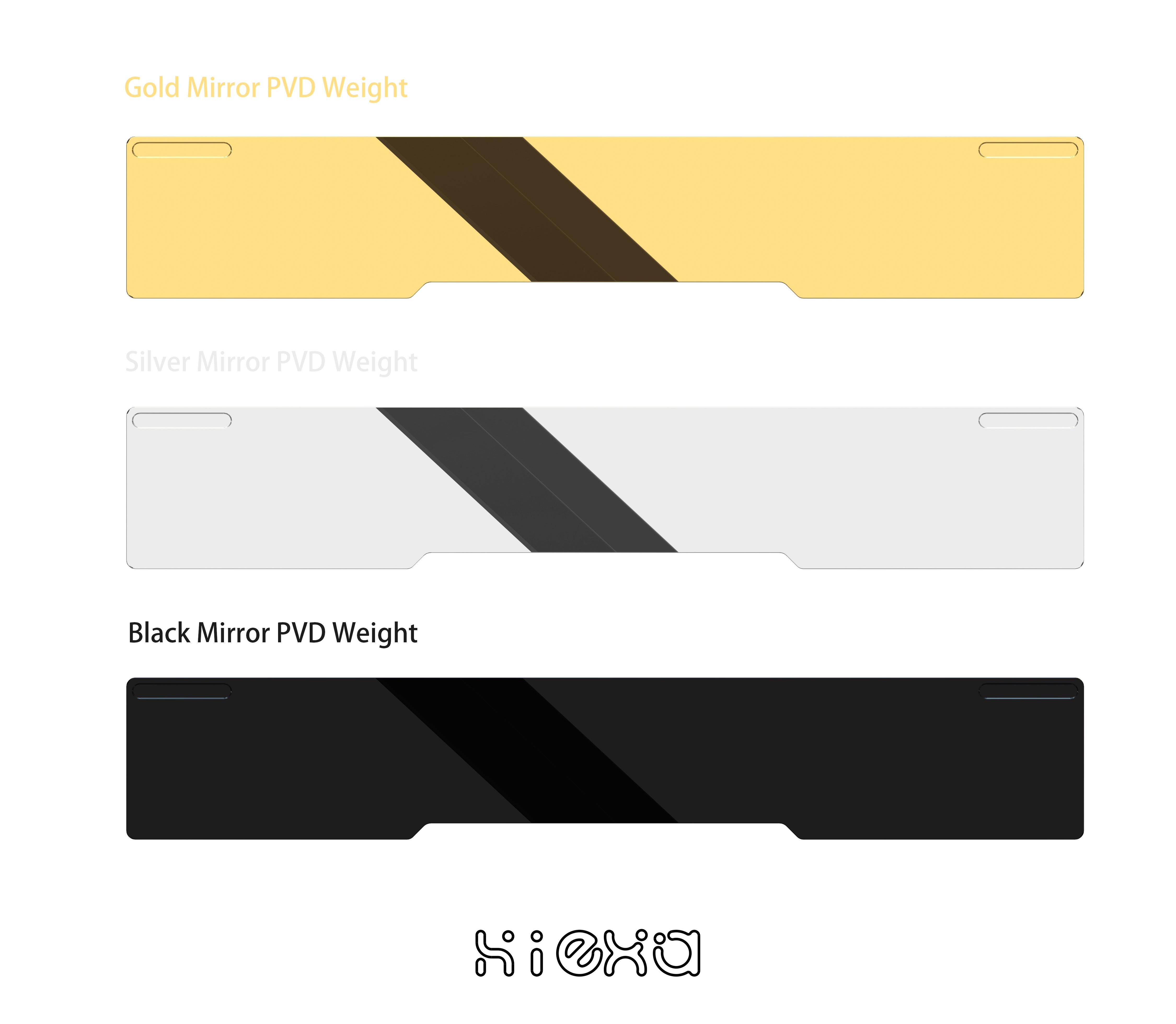

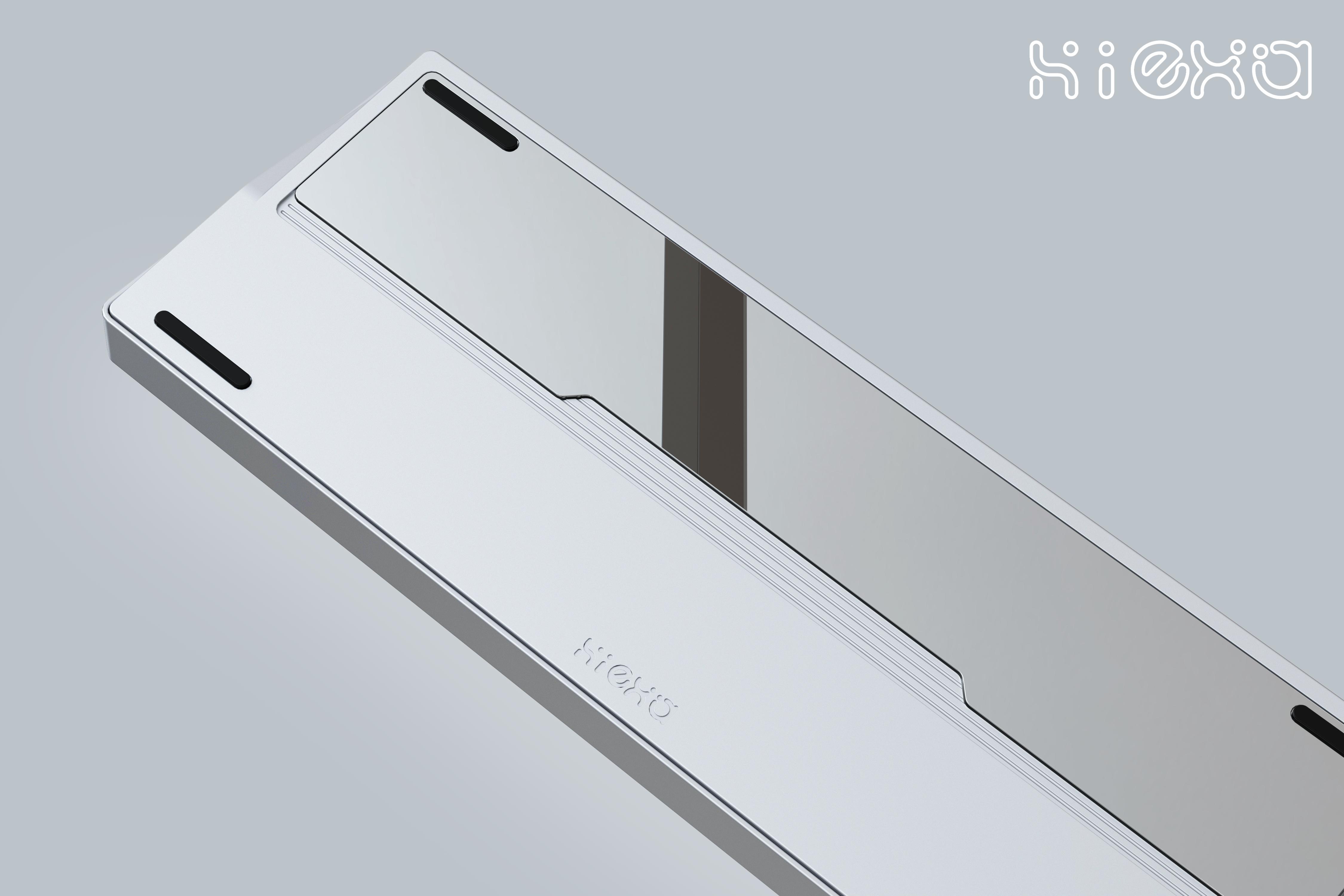

Weight
---
Three colors and two finishes
Mirror PVD Weight: Gold, Silver,Black

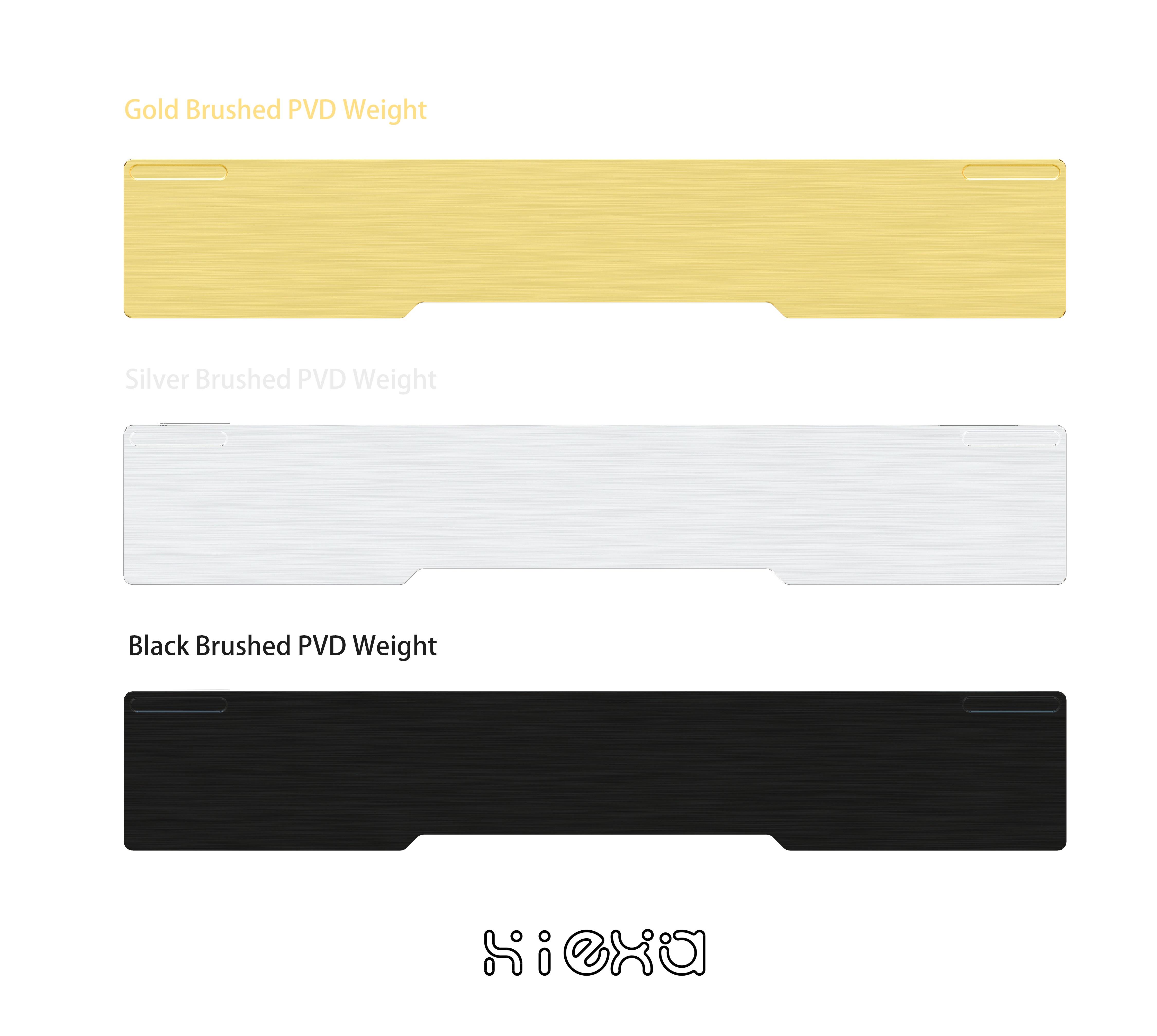

Brushed PVD Weight: Gold, Silver,Black
Default SpecificationTyping angle: 6.5°
Front height: 18.6mm
Front length and width: 320mm*115mm
Support PCB stabilizers
Weight
Before assembly：1260g
After assembly：1580g
Price We are sure the price will be very competitive. You can make a guess first. We will update you in future posts.VendorWe are looking for vendors now. If you are interested, please get in touch with us. We can discuss more details.
And we very welcome customers giving us recommendations about the vendor you are reliable in your local market.ReviewerThe prototypes are ready to ship for review. If you are interested, please contact us to discuss the details of the collaboration.IC FormPlease fill out the IC form to share your thoughts with us. It means a lot to us.
DiscordJoin our official Discord for updates and Big Giveaway Promo.
Thank you so much for your time.
