HLB - Poorkoi V2 - A 60% Bottom polycarbonate Keyboard

Hi, HLB team Here!

In 2024 we ran our first public group-buy with the PoorKoi 1, an acrylic stacked keyboard. 30 happy users were very surprised by the clack of this simple 60% made with love. This was our first project, mistakes were made, but we learned a lot and we got confident that we could push even further: having the same thing in a cnc'd alu/polycarbonate version!
We are aiming for the same clack and feeling with the alu/polycarbonate version – with an affordable price. No brass weight or copper that are expensive if you don't sell 200 units. Simple design with references of the v1.

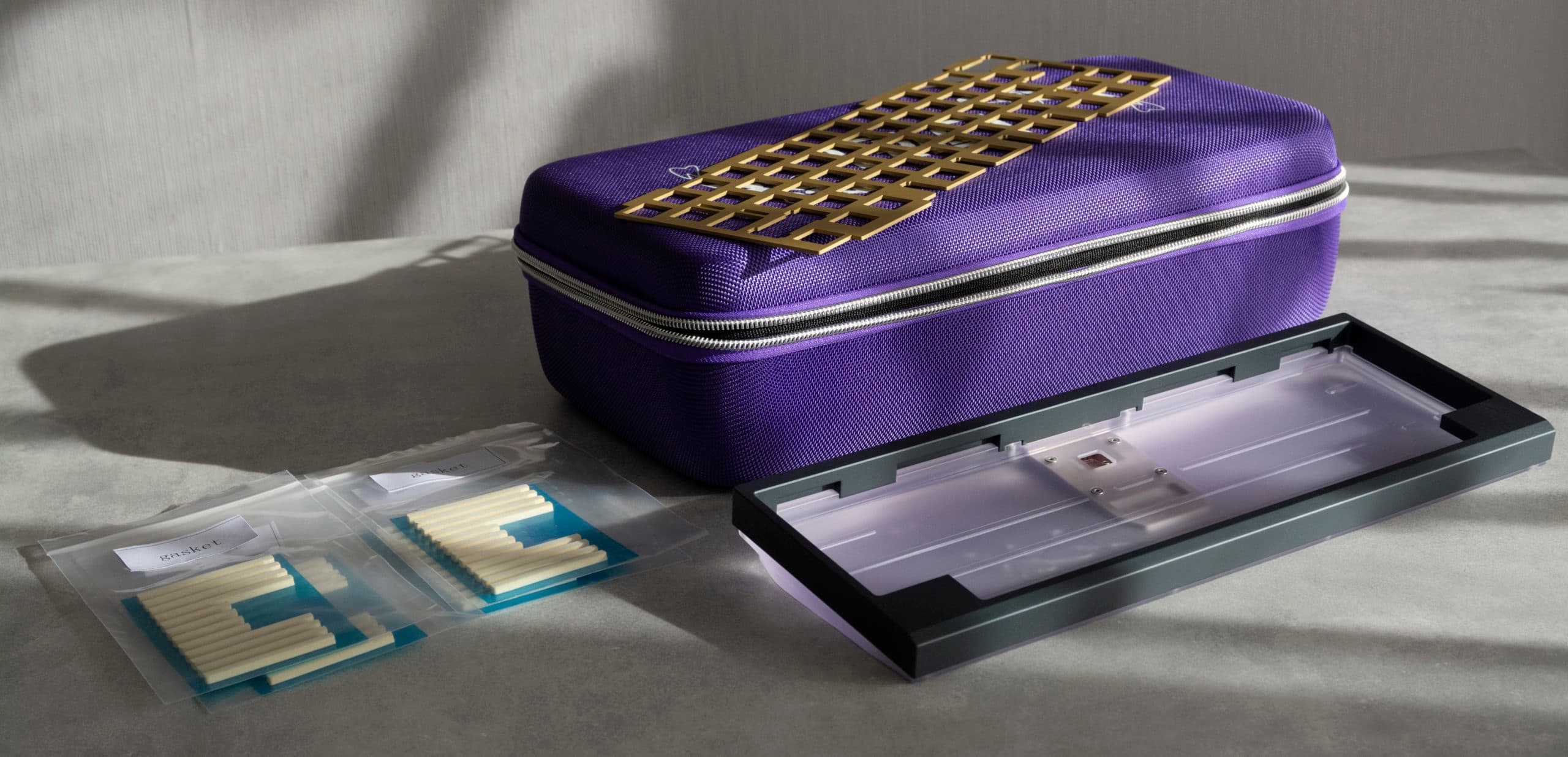

We had to make a stand between affordability and customization with a trusty and high-quality manufacturer – DDS while upgrading our game: laser cut Poron gaskets, custom carrying case, in house hotswap pcb (as well as new solder one) !


You can find us on Discord










Specifications
• 60% Poron gasket mount
• 7° typing angle
• WK/WKL/HHKB
• Polycarbonate bottom with central aluminium part
• Brass plate
• Geon feet D7
• 1.6mm HS/Solder PCB

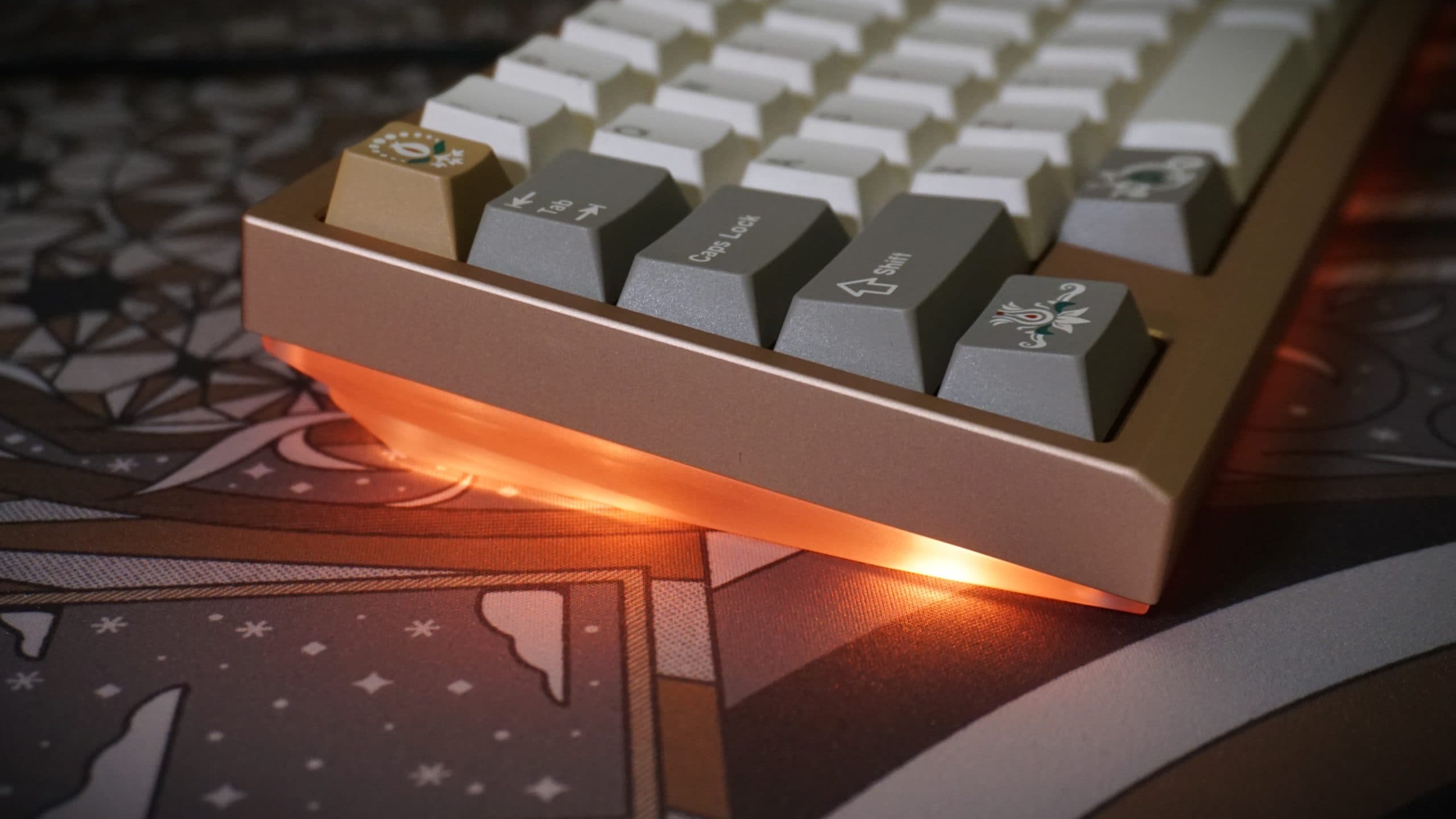

• RGB underglow
• Capslock / layers indicator
• Unified DB C5
• Compatibility with venom HE PCB (7U only)
• Compatibility with Cupilot EC60x PCB and Dynacap

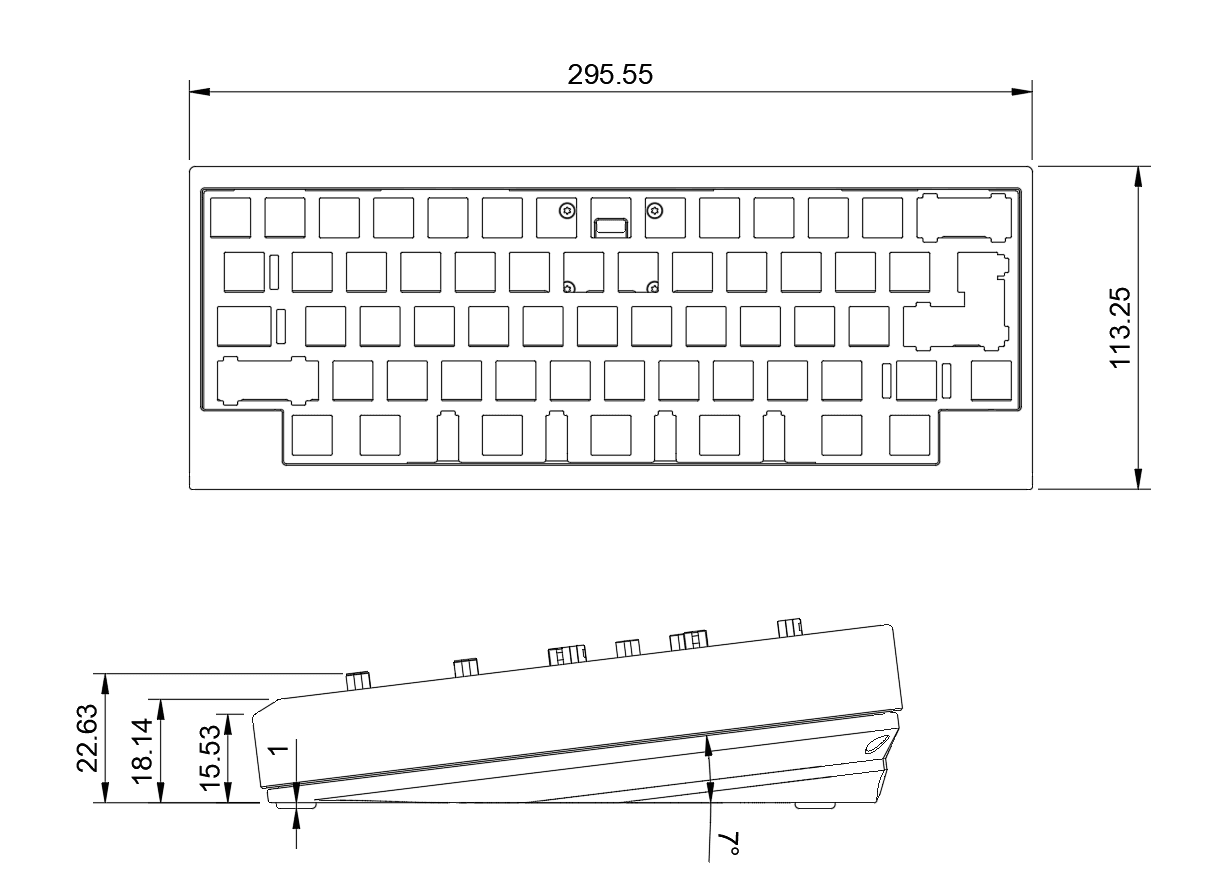

Without feet:

• 18mm front height
• 23mm EKH
• Weight full built (aluminium top)= 950gr


Compatibility

Hotswap Layouts


Solder Layouts




Project's status
First renders => done
Keyboard prototypes => done
PCB prototypes => done
GeekHack IC => estimated december 2025
Group-buy => estimated january 2026

Where
EU: Deltakeyco
US: Unikey
UK: TBD
KR: TBD
CN: Unikey

Estimated commercial targets, not final - we aim between 295€ to 250€ VAT excluded depending on MOQ.








All informations on the project : https://github.com/H3lli0n/PoorKoi2/
More pictures : https://www.oliversphotoblog.com/2025/12/07/hlb-poorkoi-2/
