Holiday time by the Aegean Sea - Thera75 V2

by made in China

$270.00

geekhackenriched

0 followers0 bookmarks0 comments

Description

First, we would like to express our heartfelt gratitude to all who have been supporting us with high expectations in the past year. At this point of time, we’re here bringing you--Thera75 V2.

Kit Introduction

If Thera-V1 shows the night scenery of this Aegean Sea Island through the image of the auditorium with star badge and stainless-steel weight; then in Thera V2, we will set this island as the starting point to start our summer journey to the Aegean Sea.

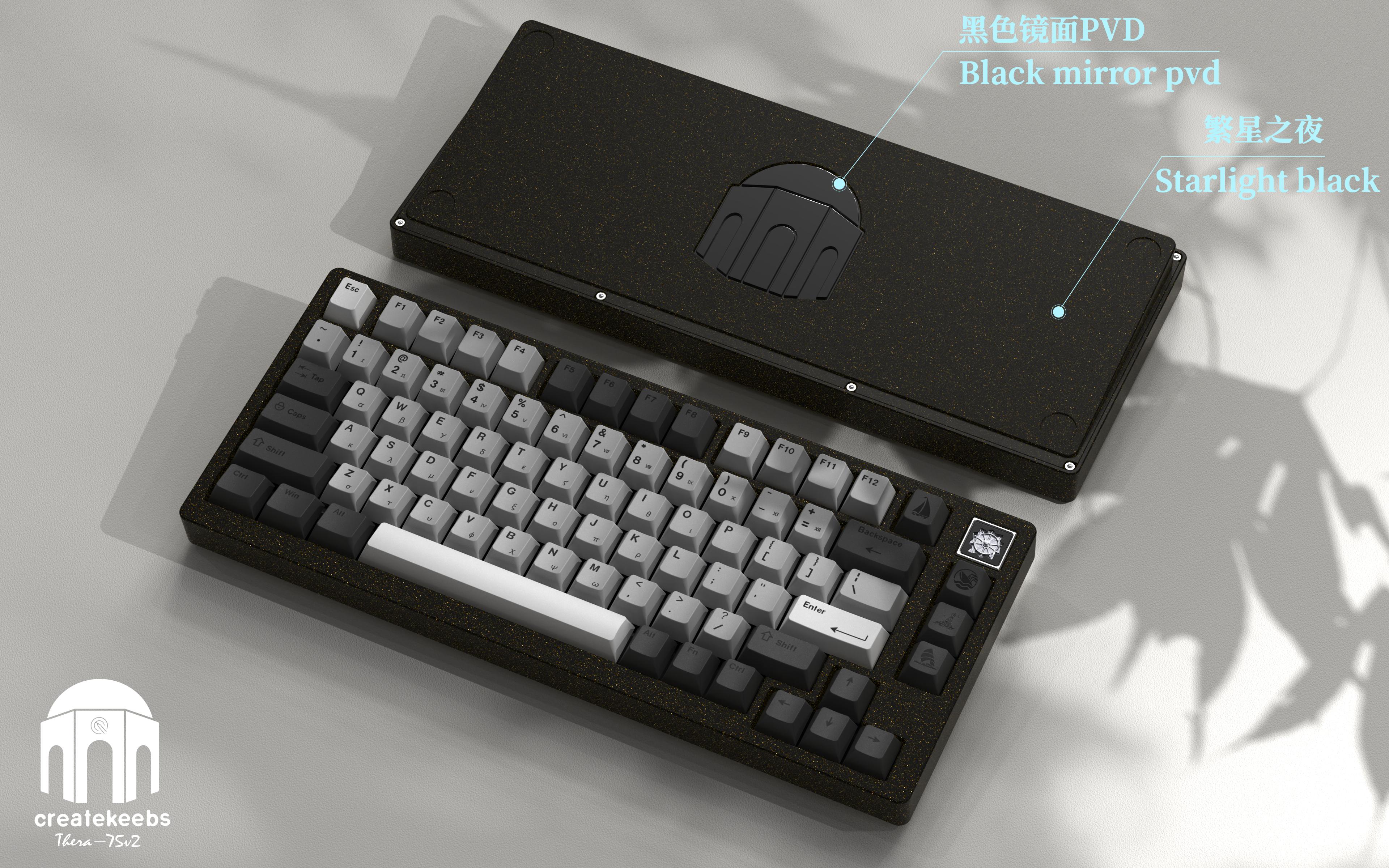

On the back of Thera V2, we still choose the dome auditorium: the iconic building on Thera, as the weight. The difference is that we make the weight a silhouette of the auditorium this time, making this design element bridges two generations, and emphasizing the starting point of this journey.

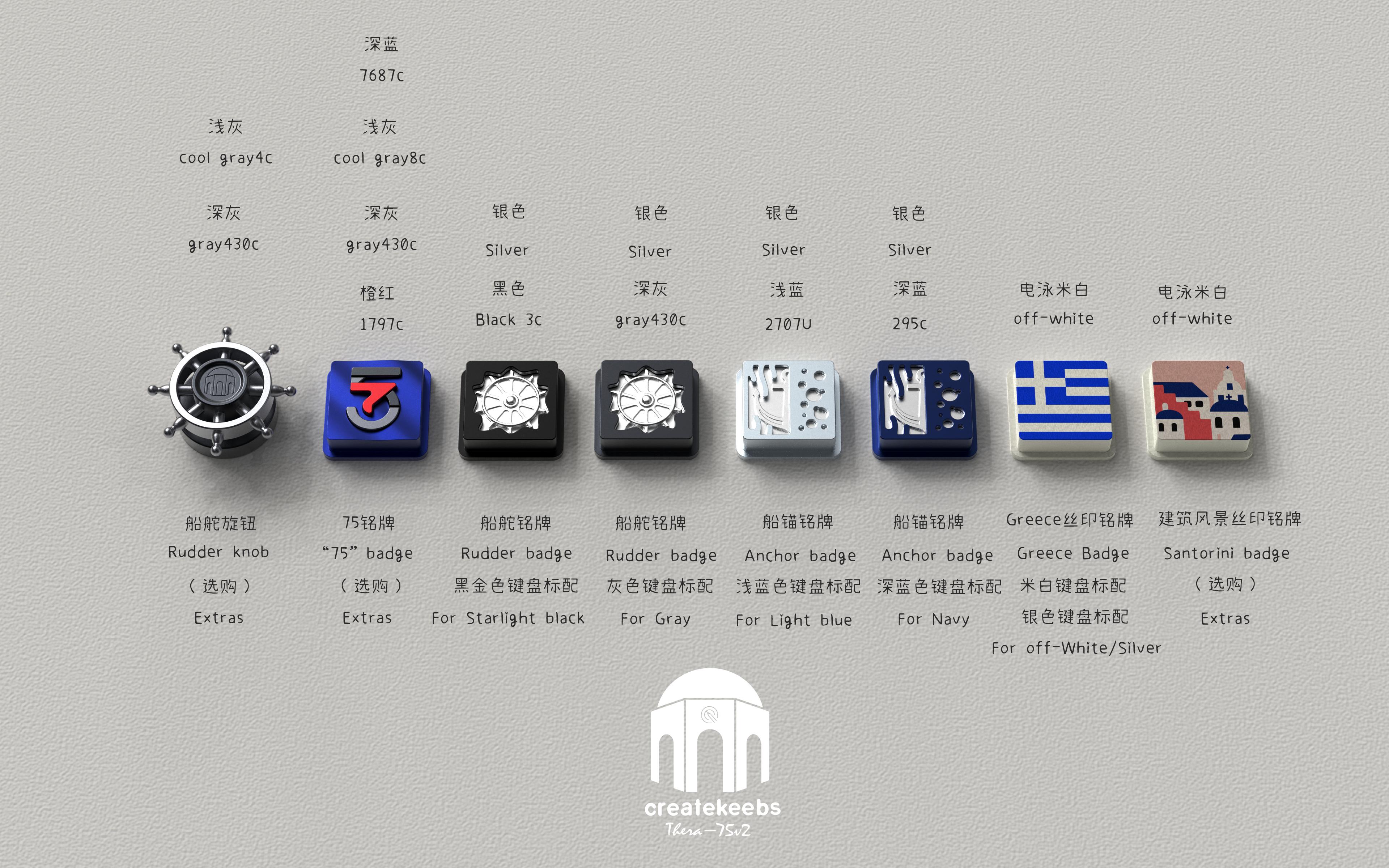

Badge

Let’s start with the obvious, on the front badge, we bring the biggest difference, it’s square now, it can also be an optional rotary knob (DIY). We provide three standard badges to choose from, corresponding to the six colorways, as well as two additional badges and a knob for extra.

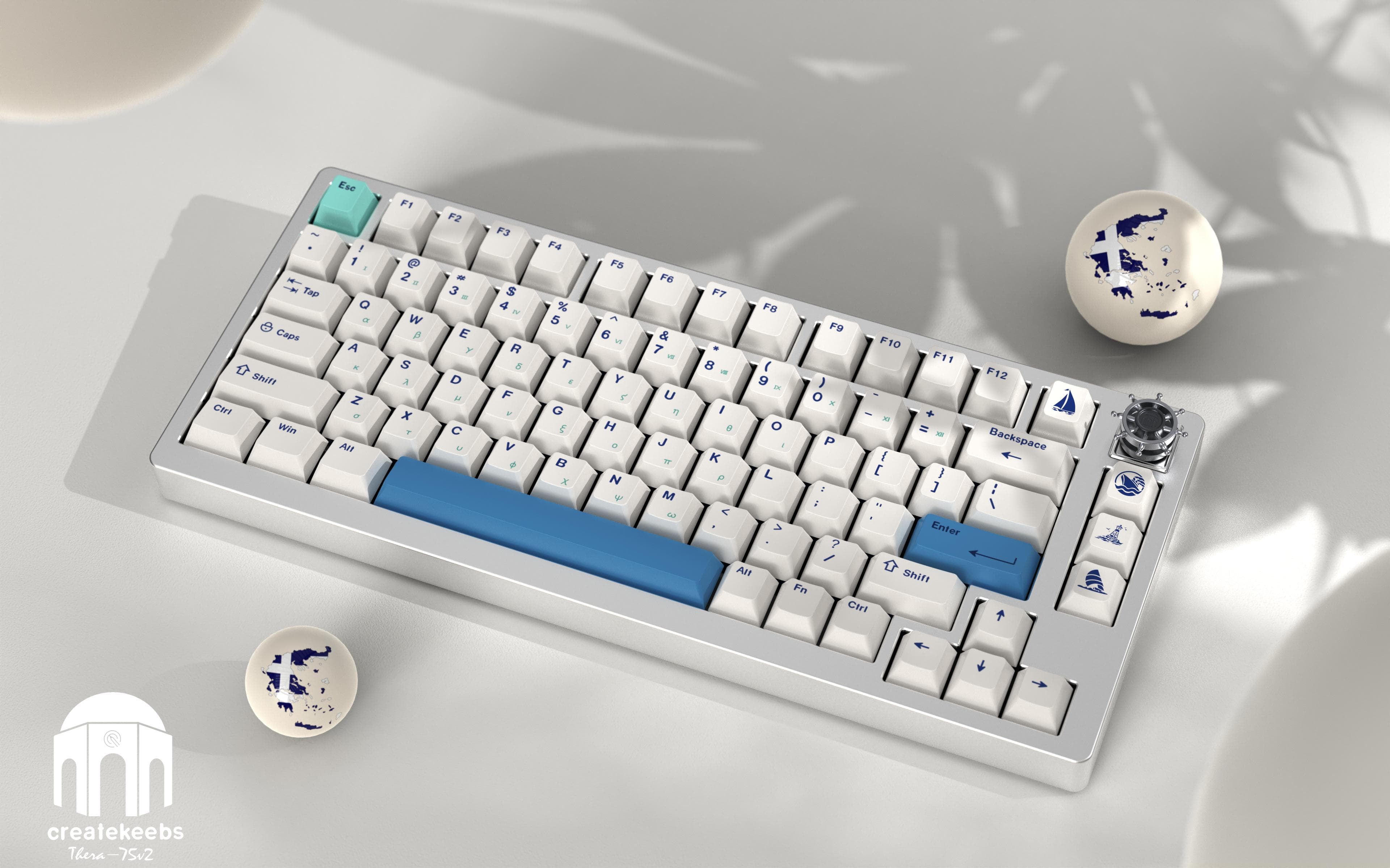

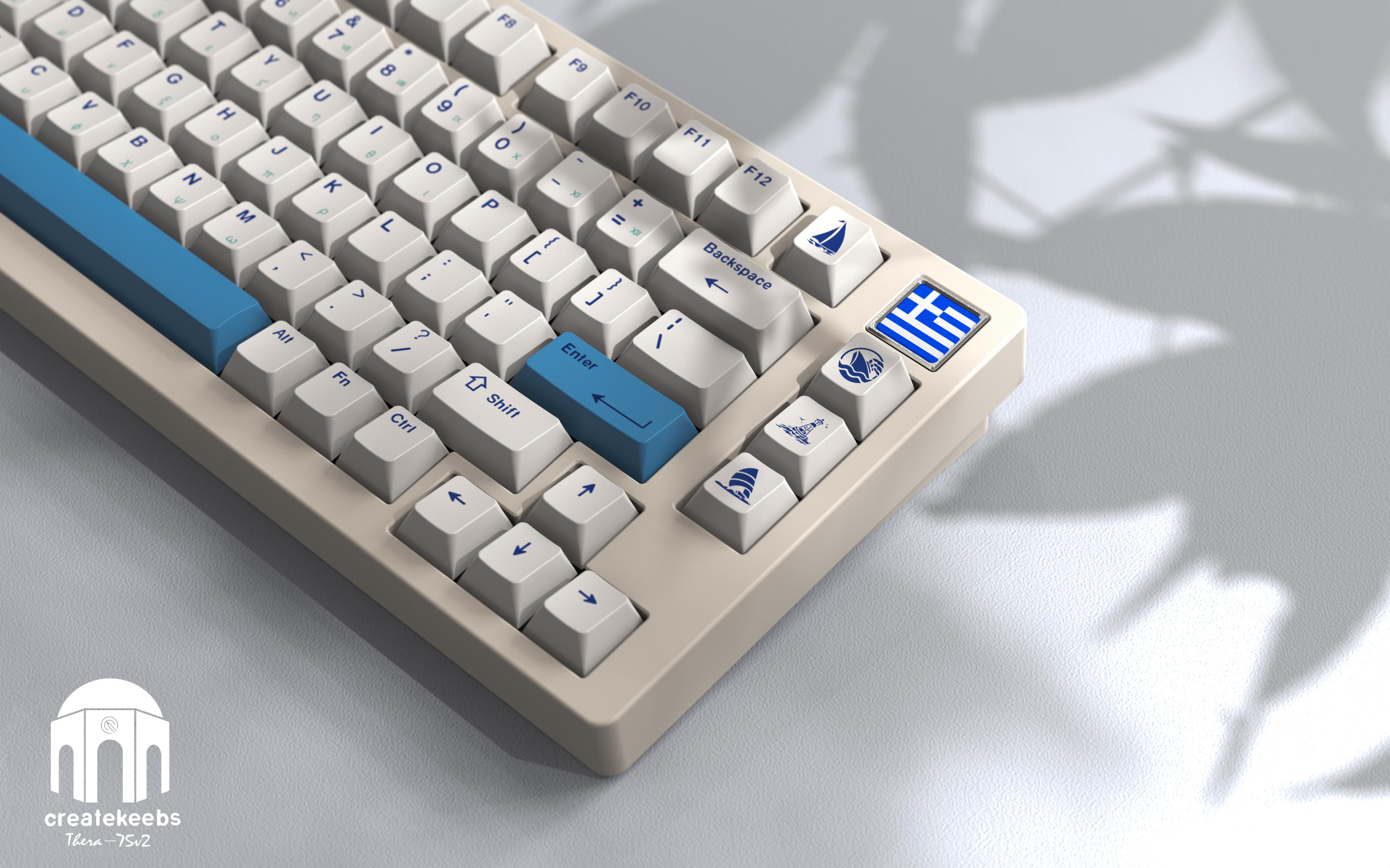

Greece badge (matching white and silver): Your starting point of the journey, Santorini, on the Thera Island in Greece.

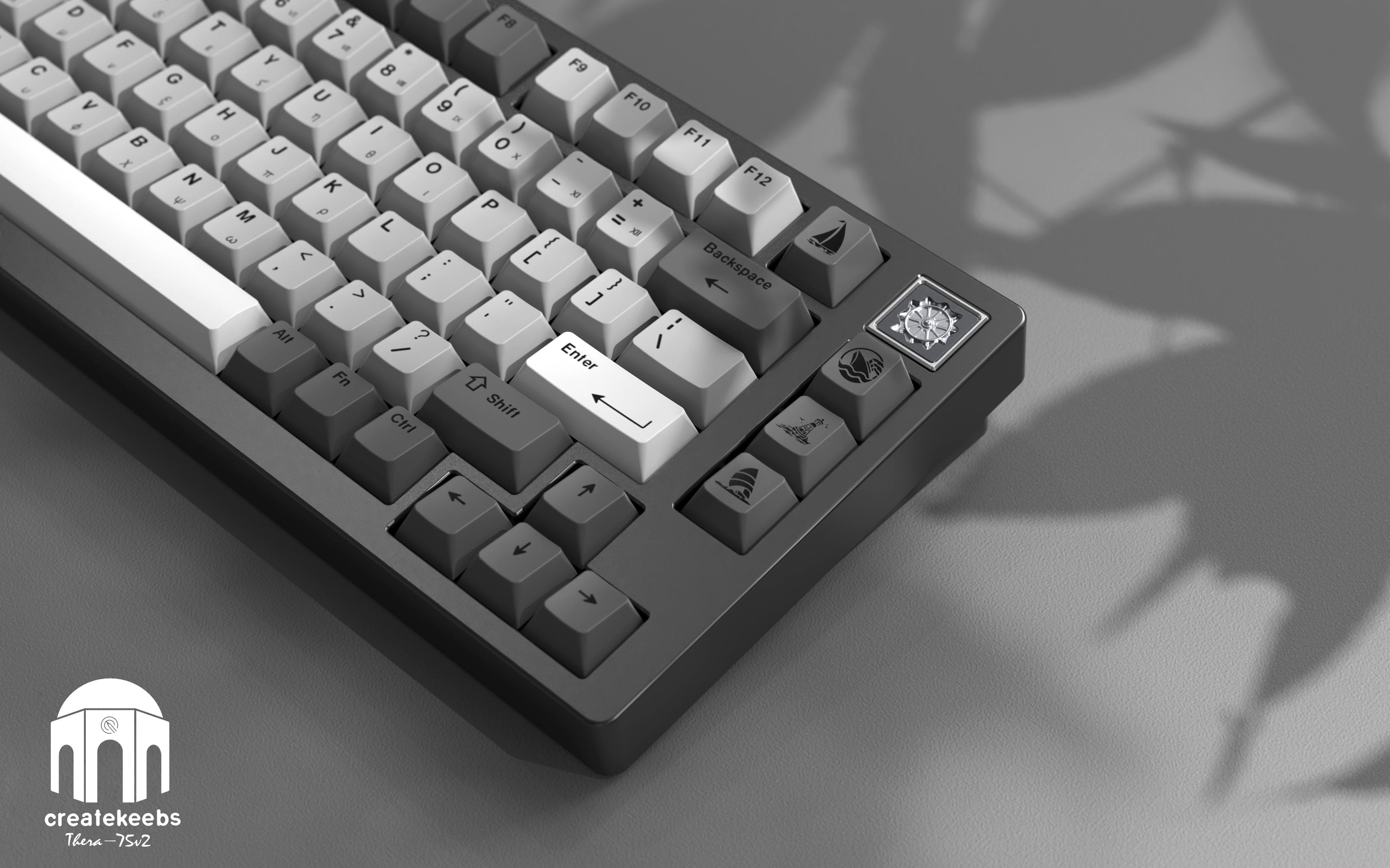

Rudder badge (matching gray and starlight black): The steering wheel that determines the direction of your travel.

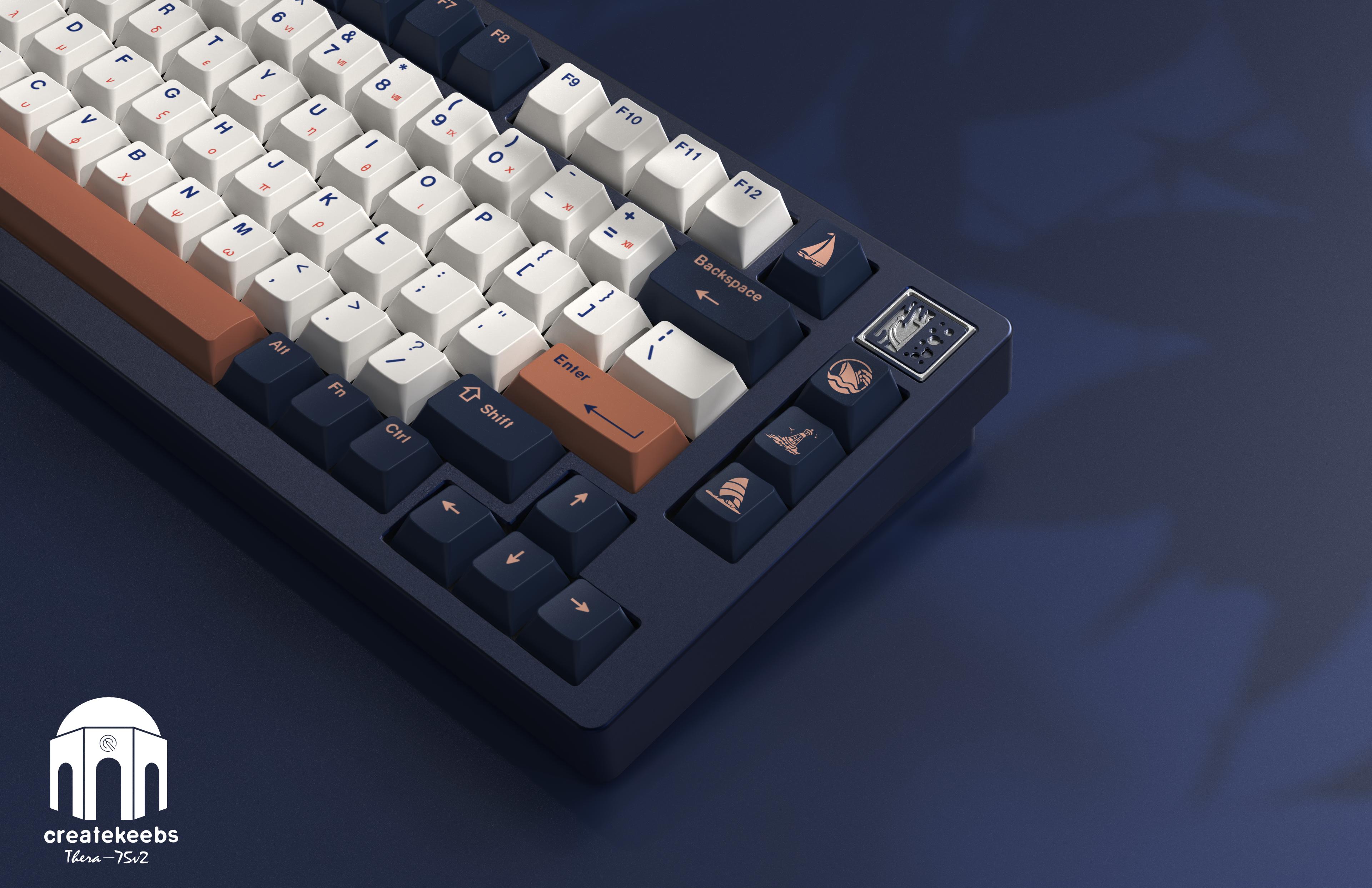

Anchor badge(both matching Navy and light blue respectively): Keeps you safe in the port.
75 Badge (optional): assembled by three different parts, which represents the blue sea, the red weather vane, and grey rocks near the cliffs along your journey through the bayside.
Santorini (optional):The iconic buildings on the Thera Island

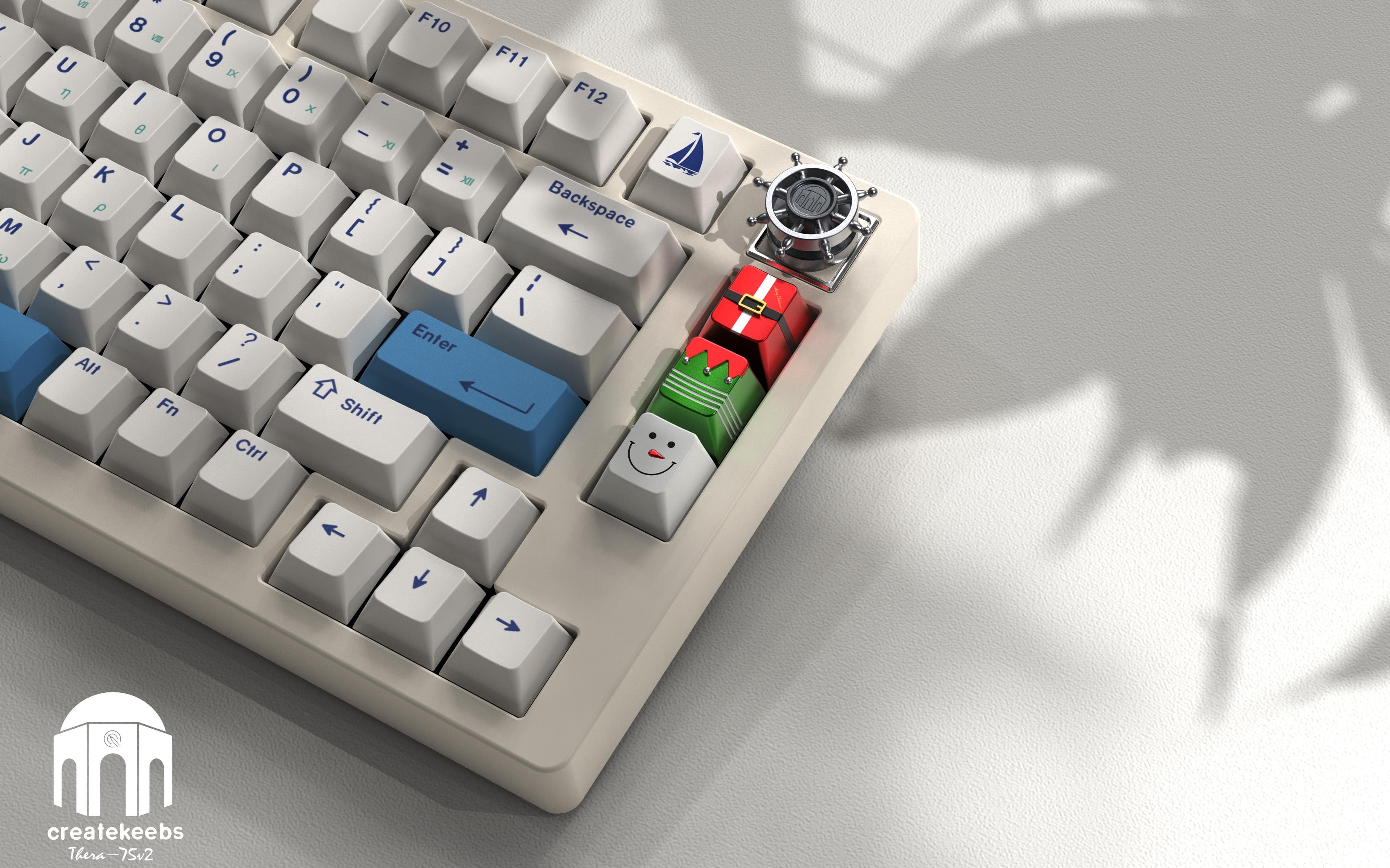

Rudder Knob (optional): Steering Wheel knob (Assembled by 11 small parts)

Internal Structure

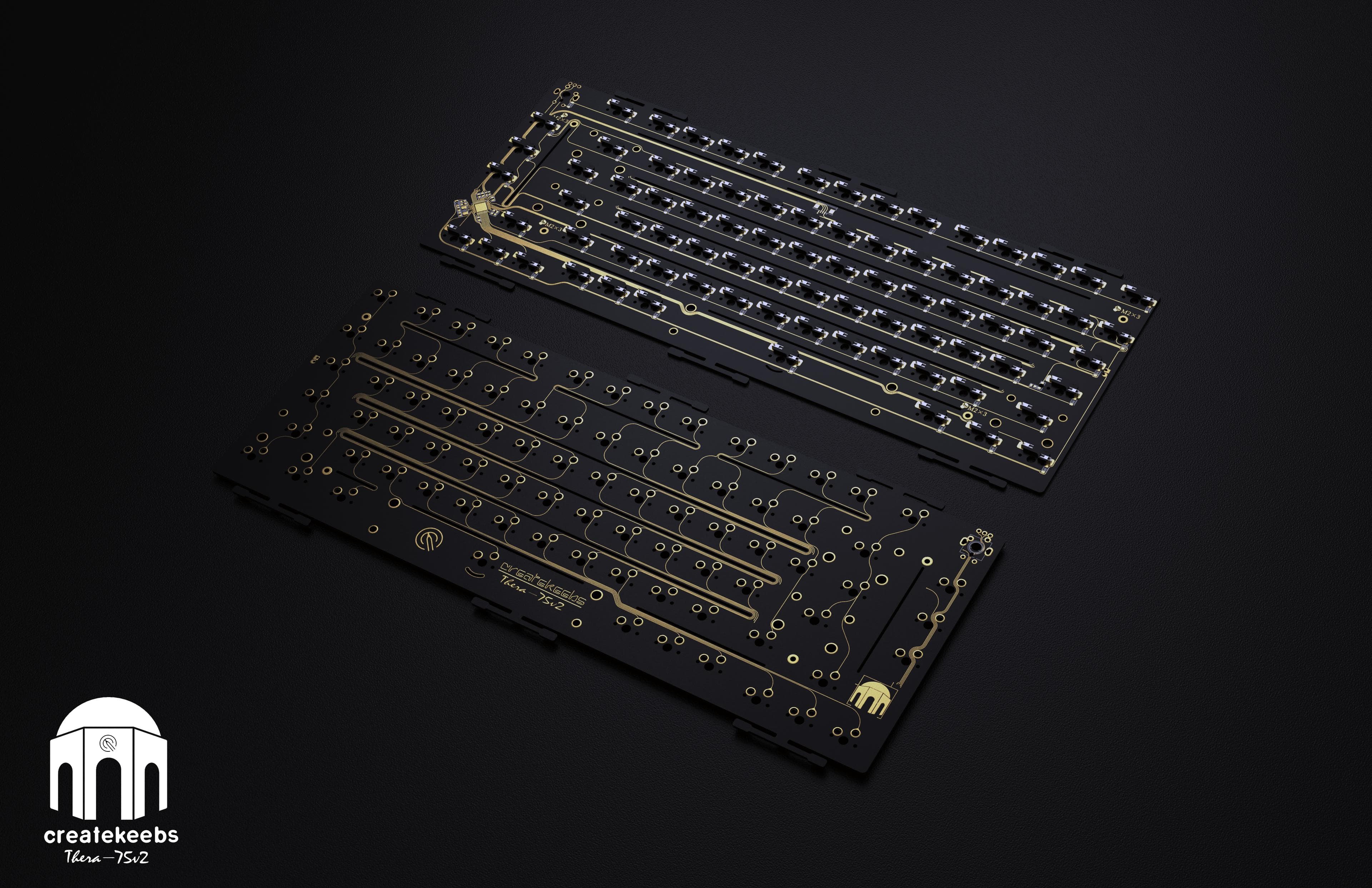

PCB

In addition to the hot-swap PCB option, we generally follow the design of the previous generation of Thera the keep the signature soft typing experience. As you can see, we will use a new PCB material to provide better strength and sound performance. We also replaced the gasket material with silicon for even better sound and easier installation. Another upgrade is that the Thera now support multi-mounting-system: PCB Gasket plateless or with plate and Top Mount.
Both Hotswap and Soldered PCB can be added with a volume knob but need to be purchased separately.

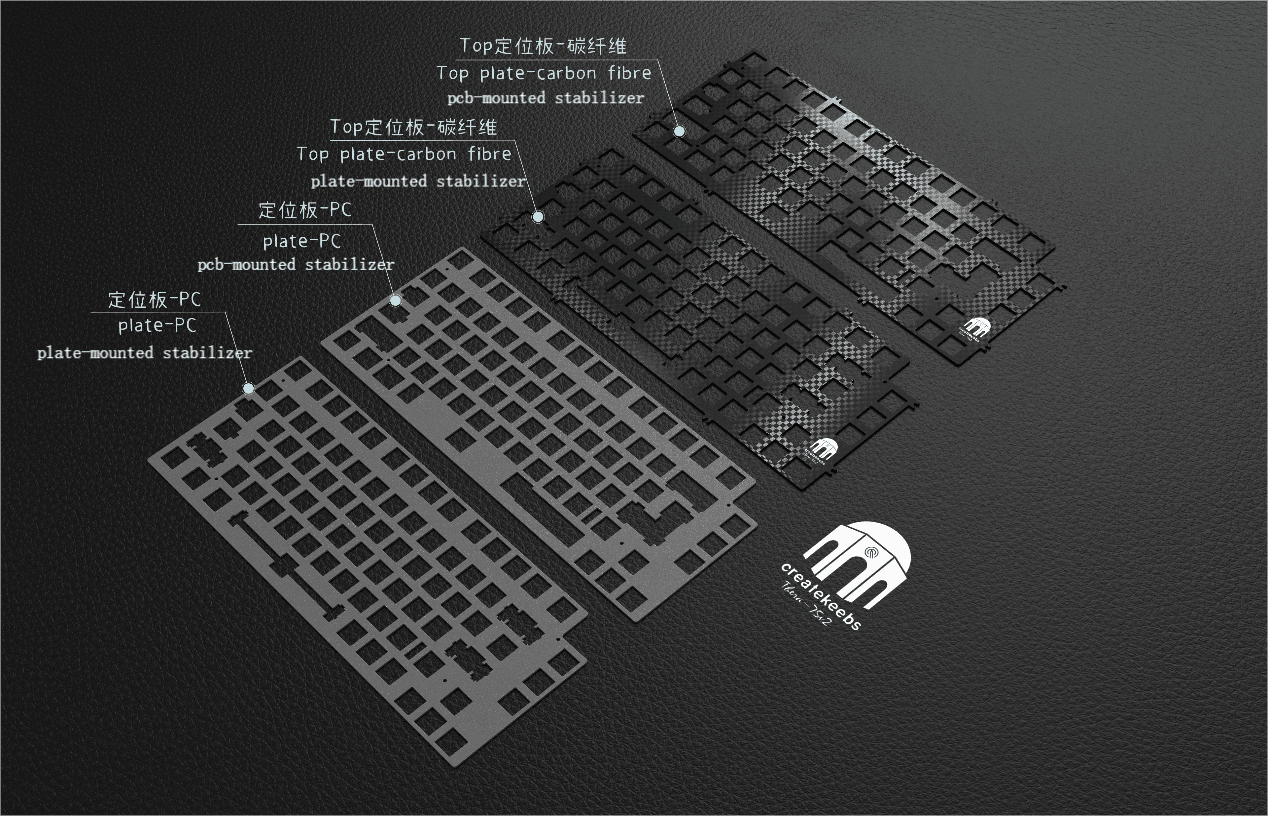

Plates

For the instock sale, we will provide PC plate (supports Gasket mount) and carbon fibre plate (Top mount). And we highly recommend you to try the plateless build, so much flex *chefkiss*
The plates will be in 2 different options: for plate mount stabilizers or PCB mount stabilizers.

Too less options?
We are glad to announce the collab with @hypekeyboards.ca (https://hypekeyboards.ca/) to bring you more variety on the plates directly at the start of the GB! Our friend will provide 2-3 more options on the material, join his discord (https://discord.gg/HjQyN5mjNy) to get more details on that!

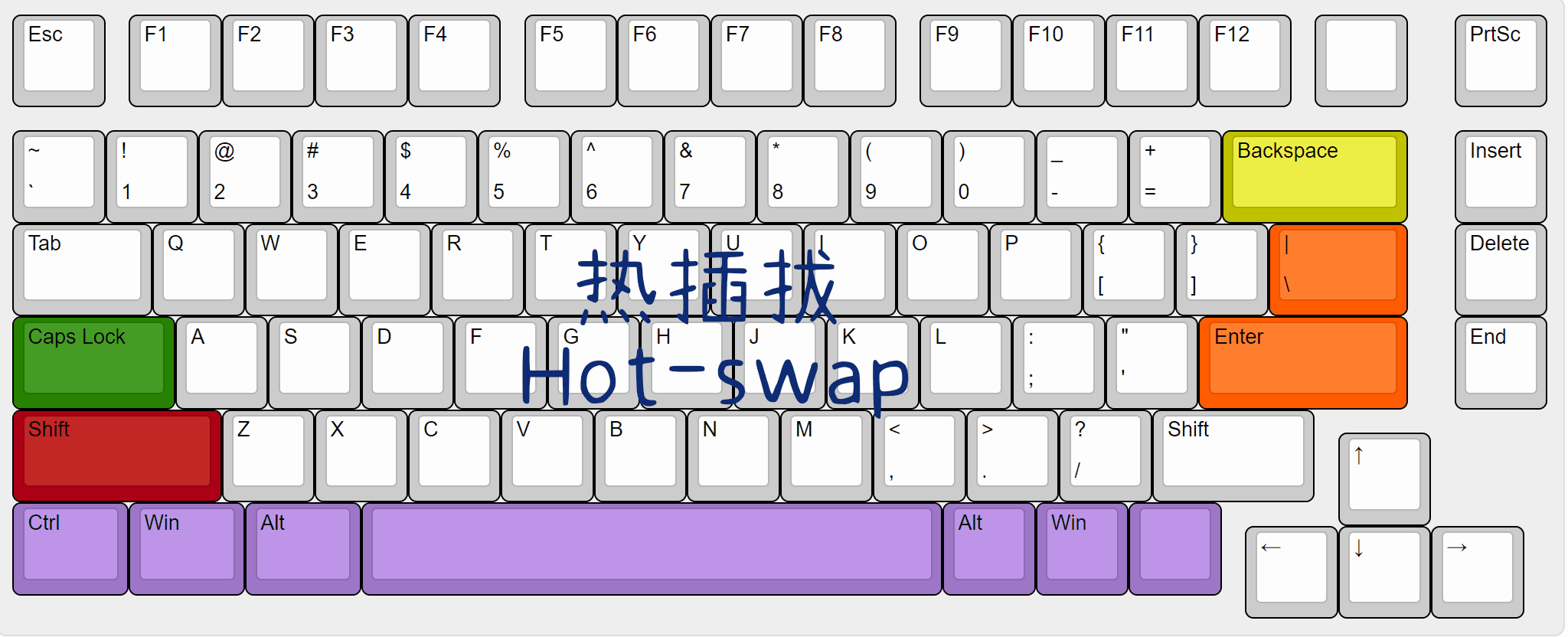

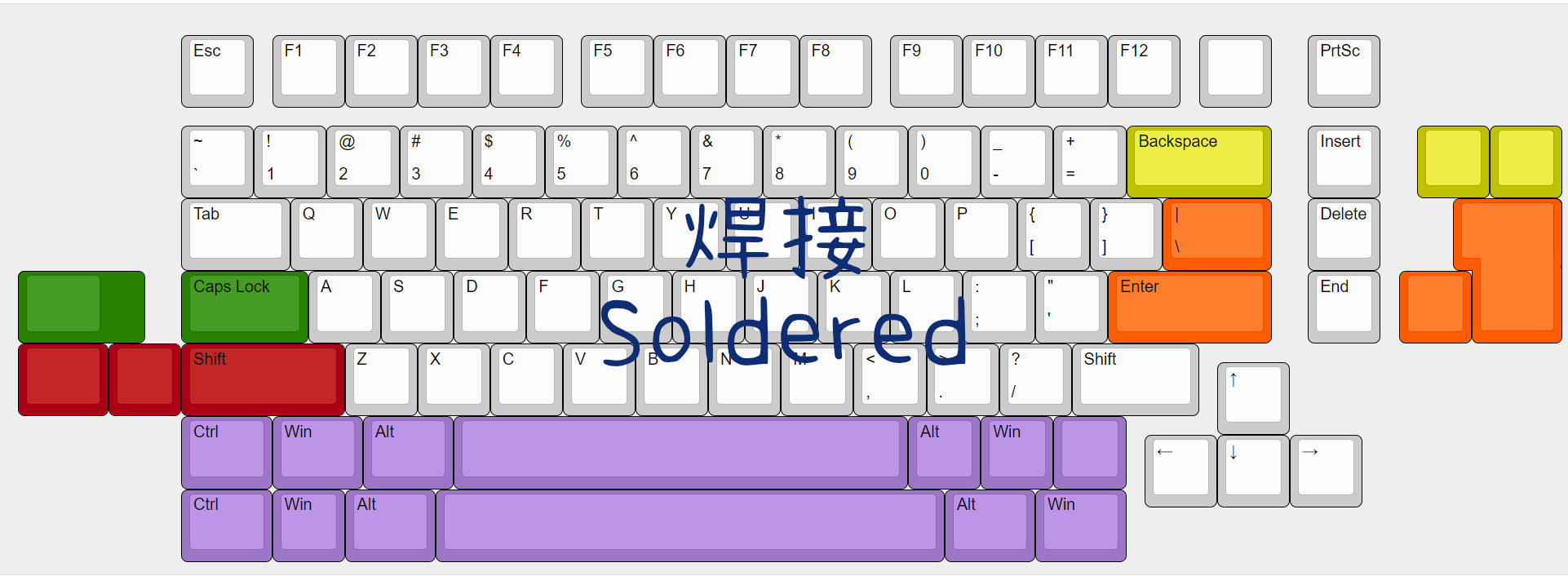

Keymap

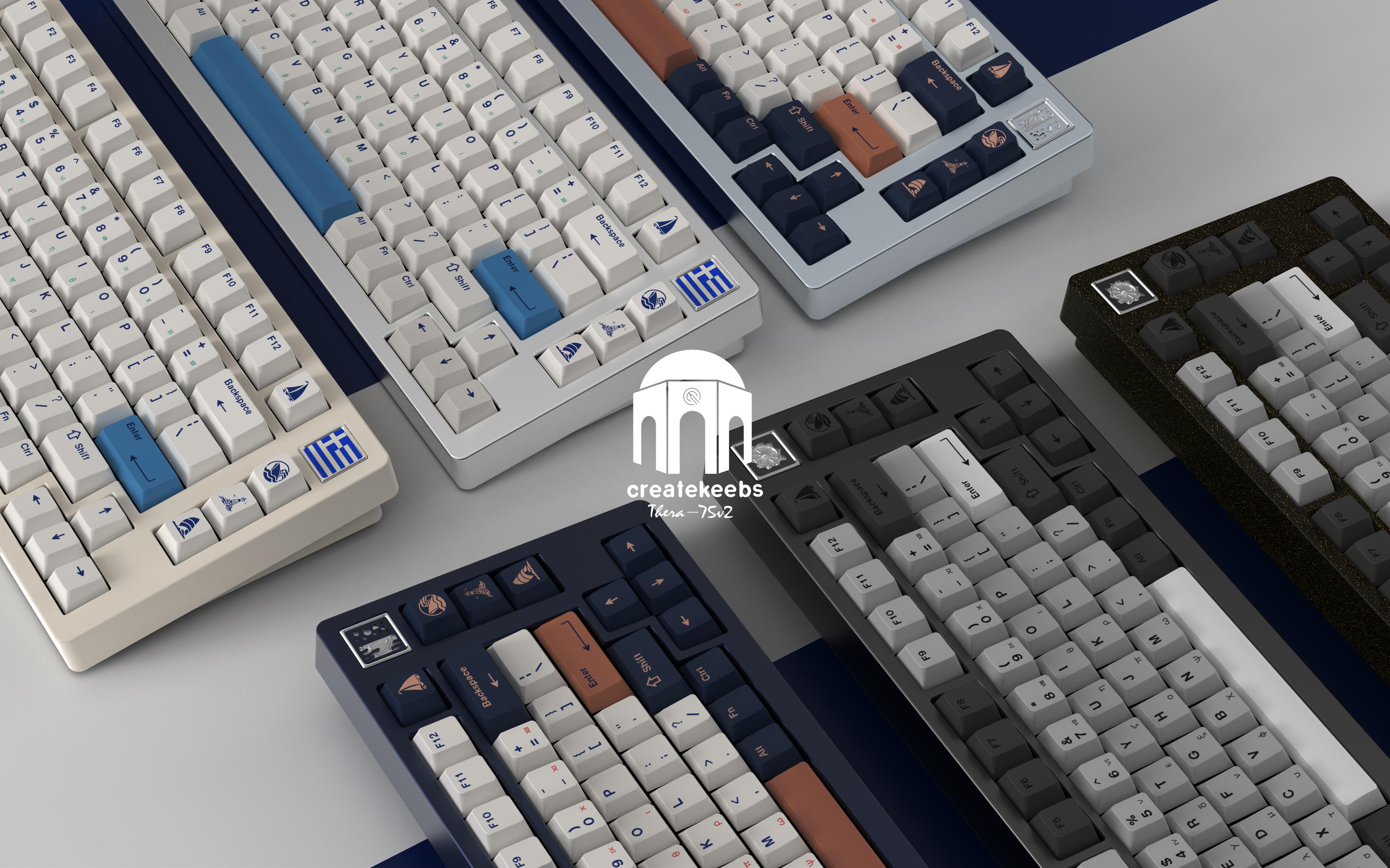

Color options

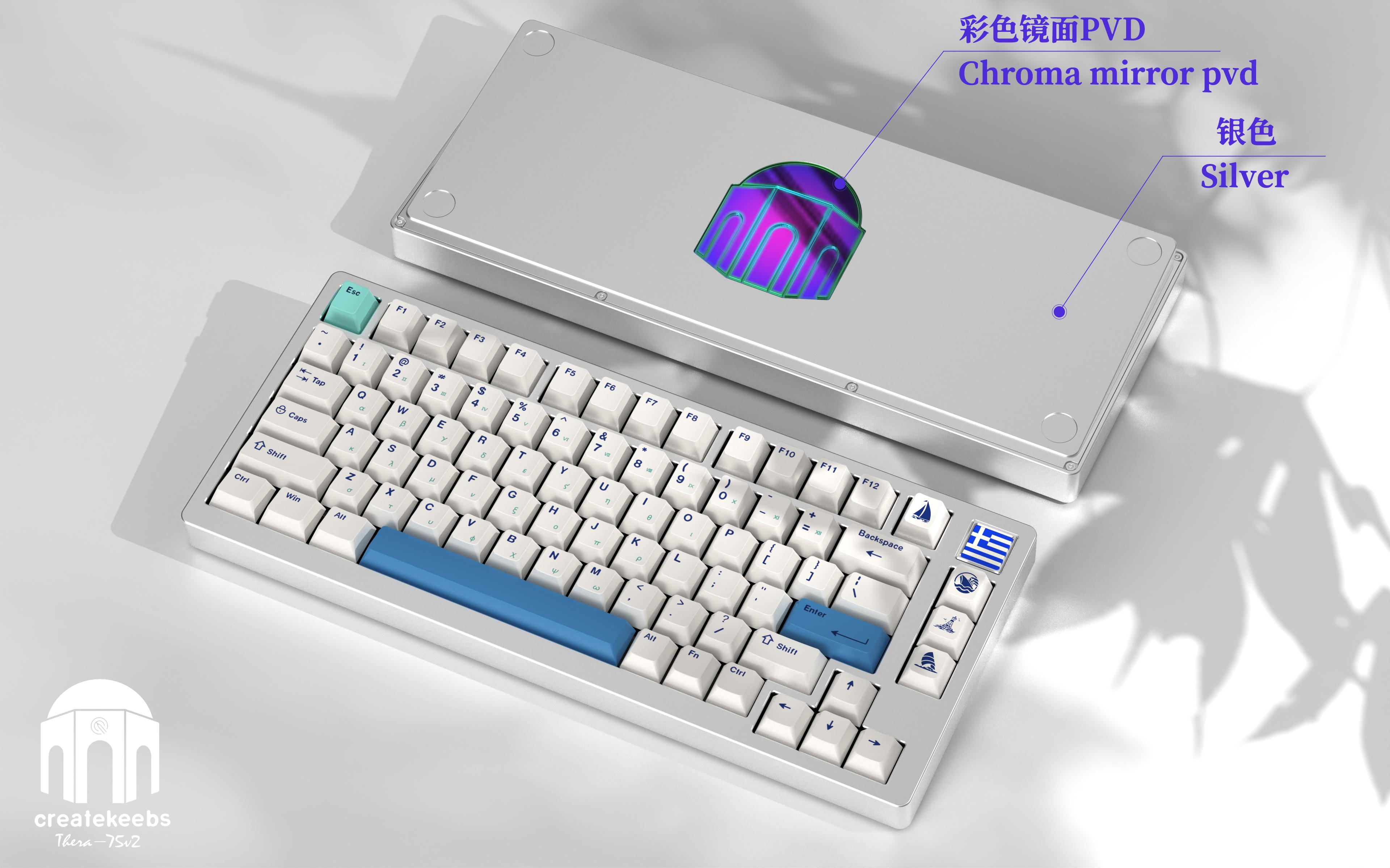

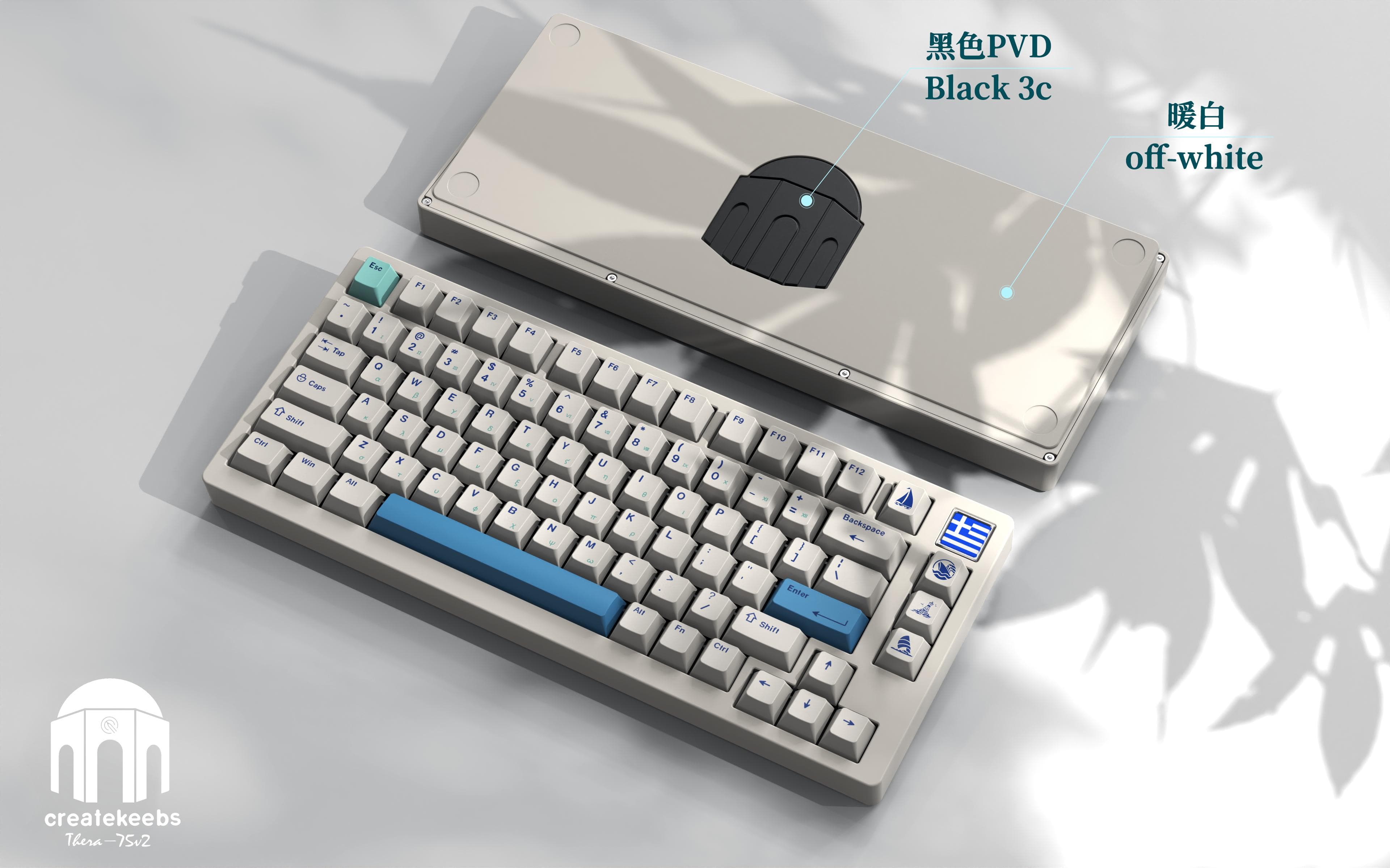

Off-white

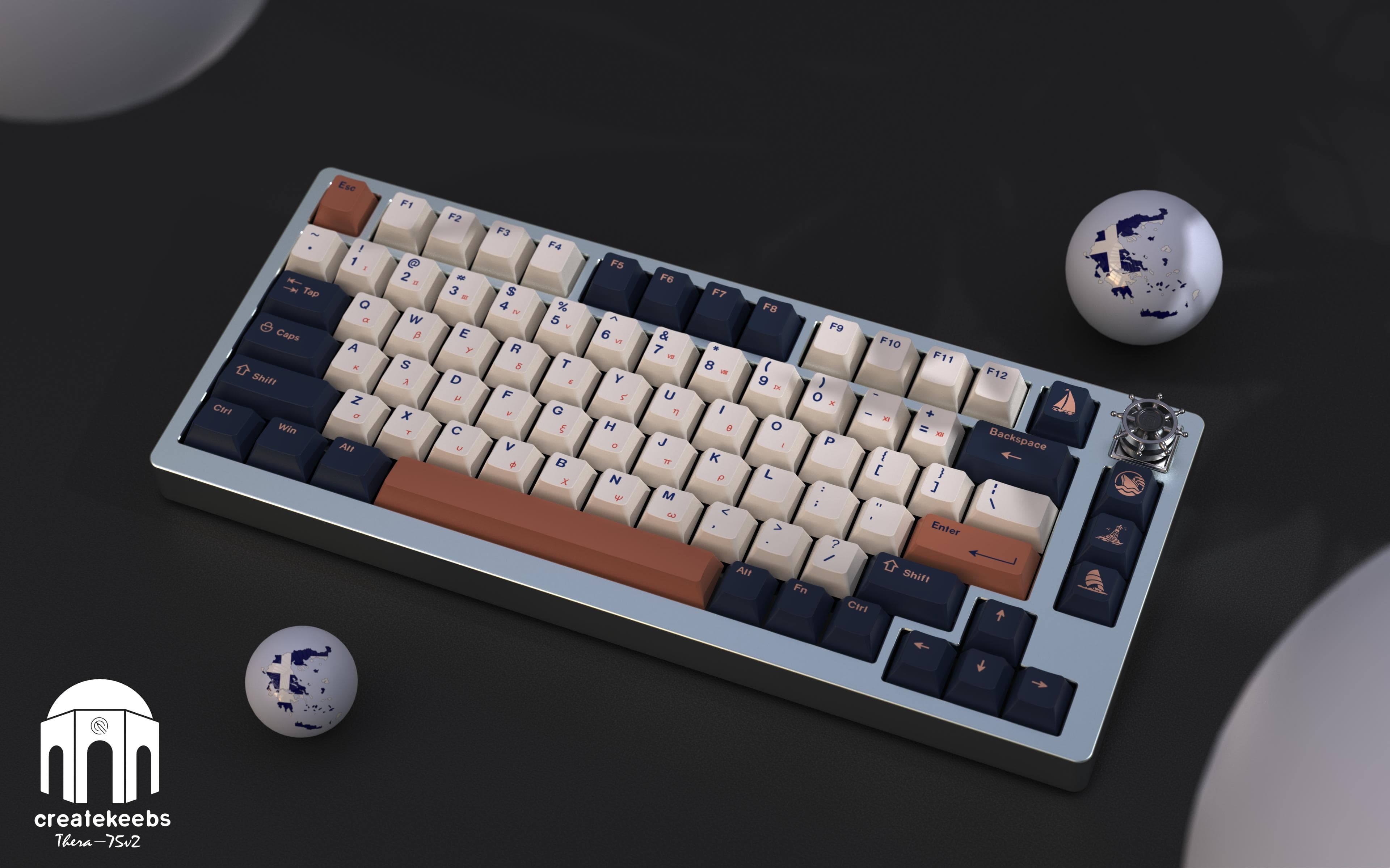

Silver

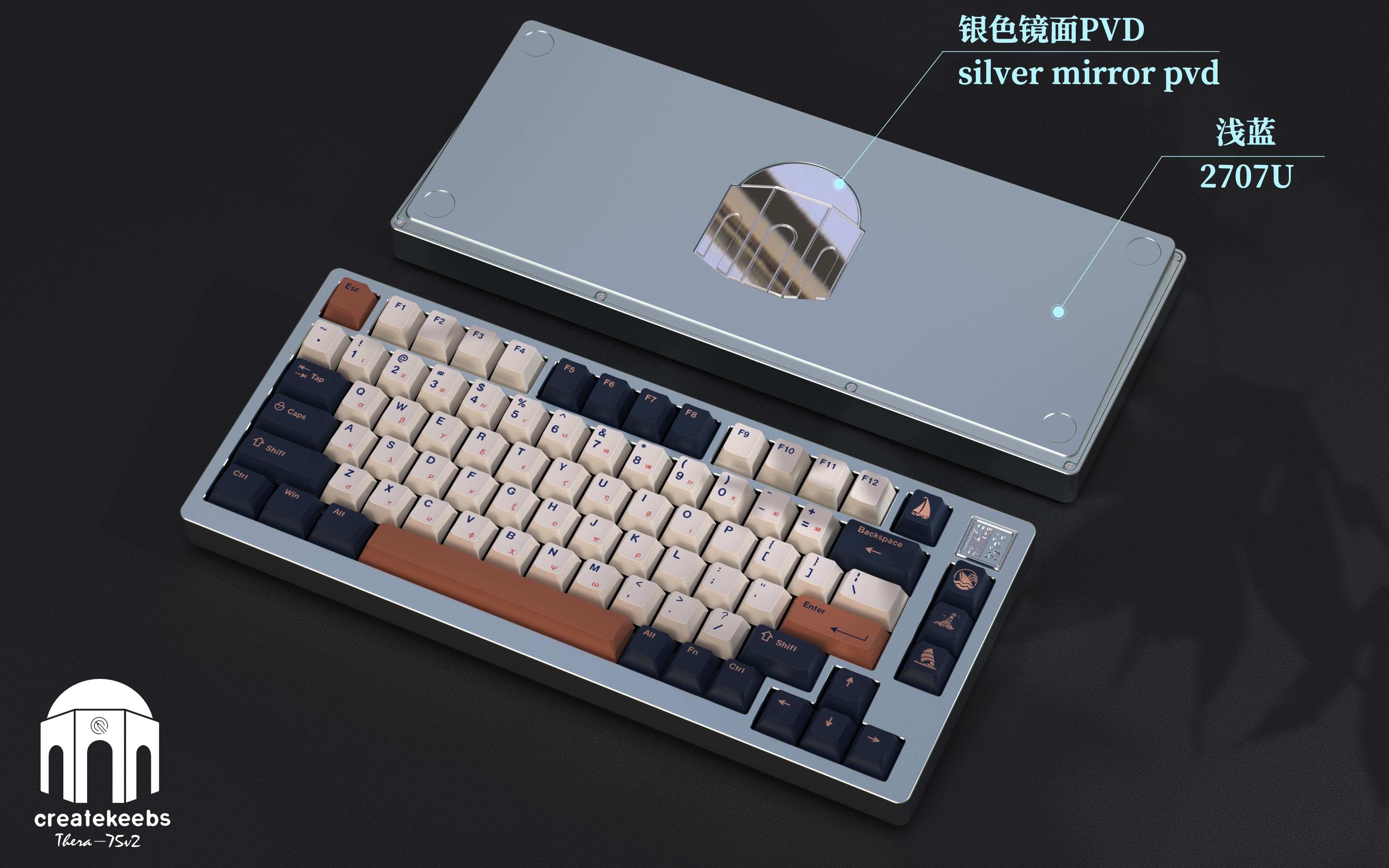

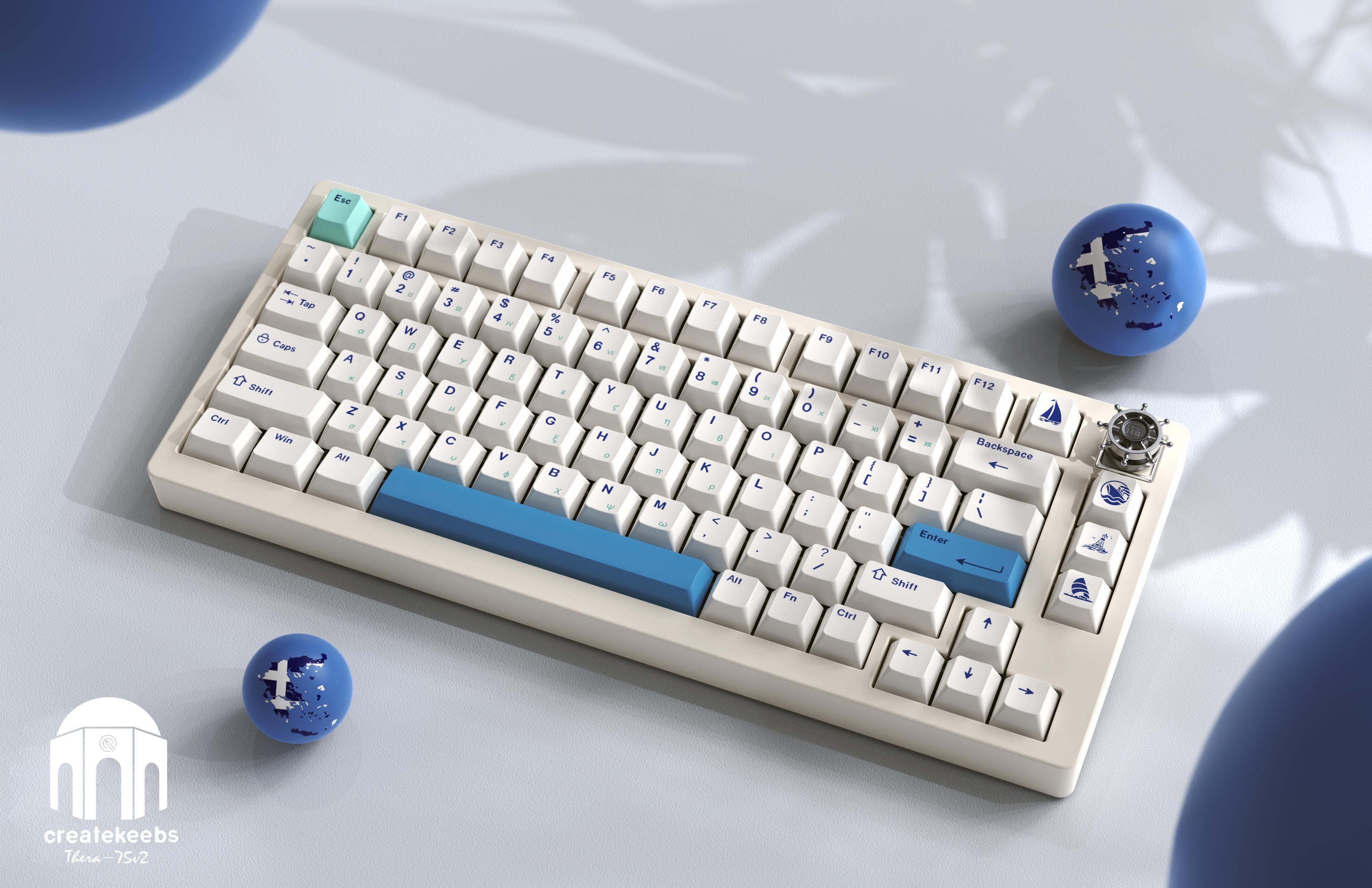

Light blue

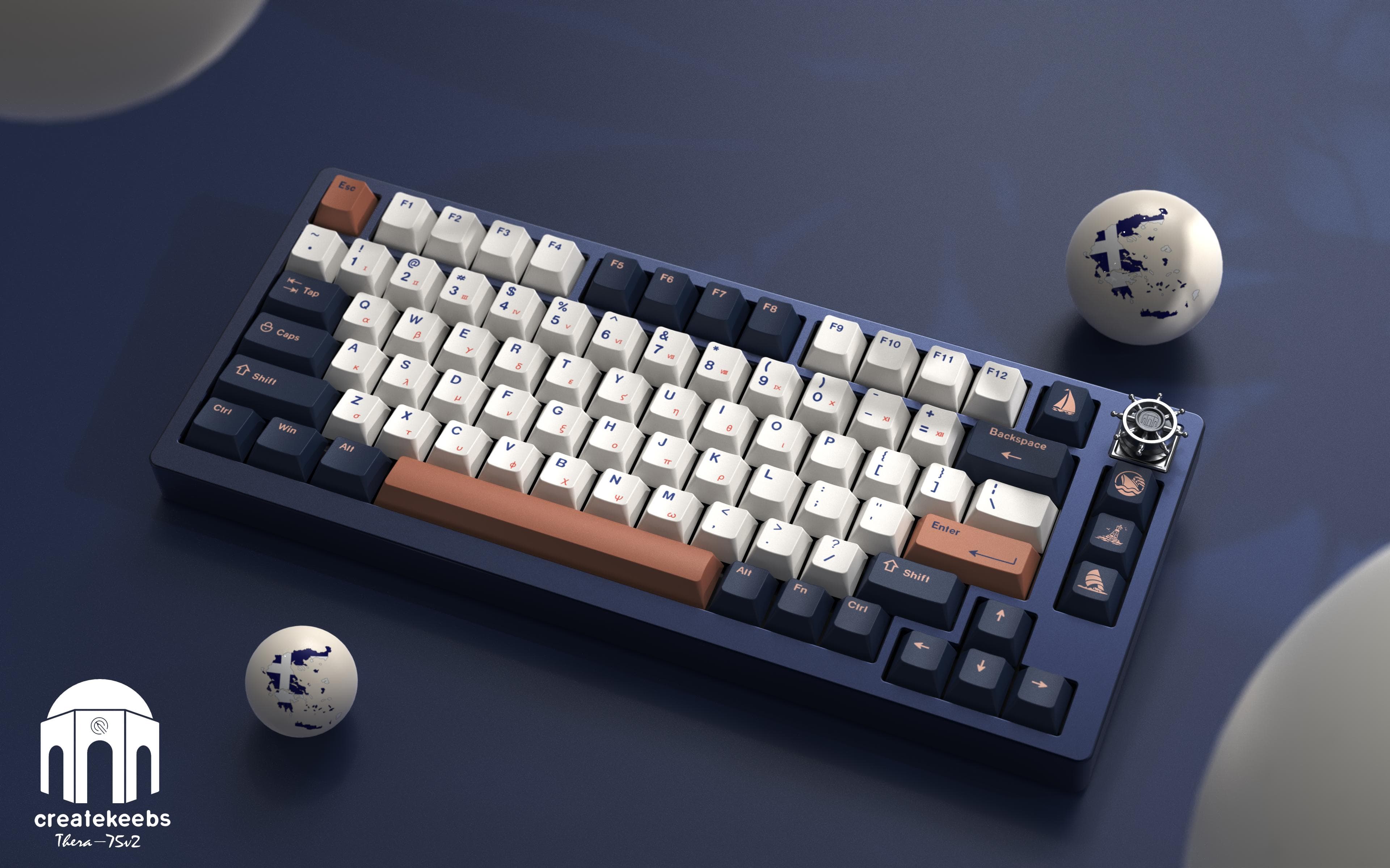

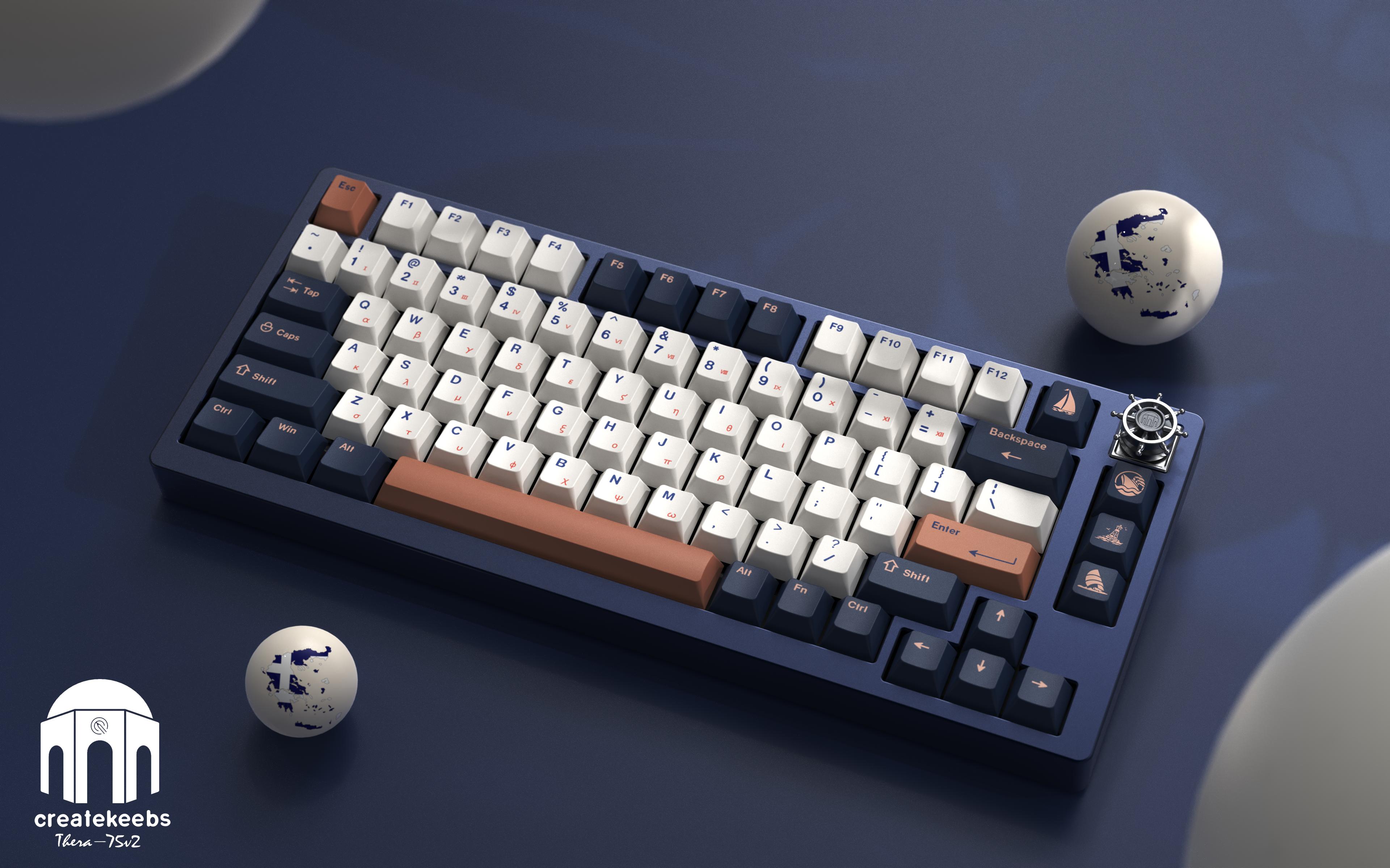

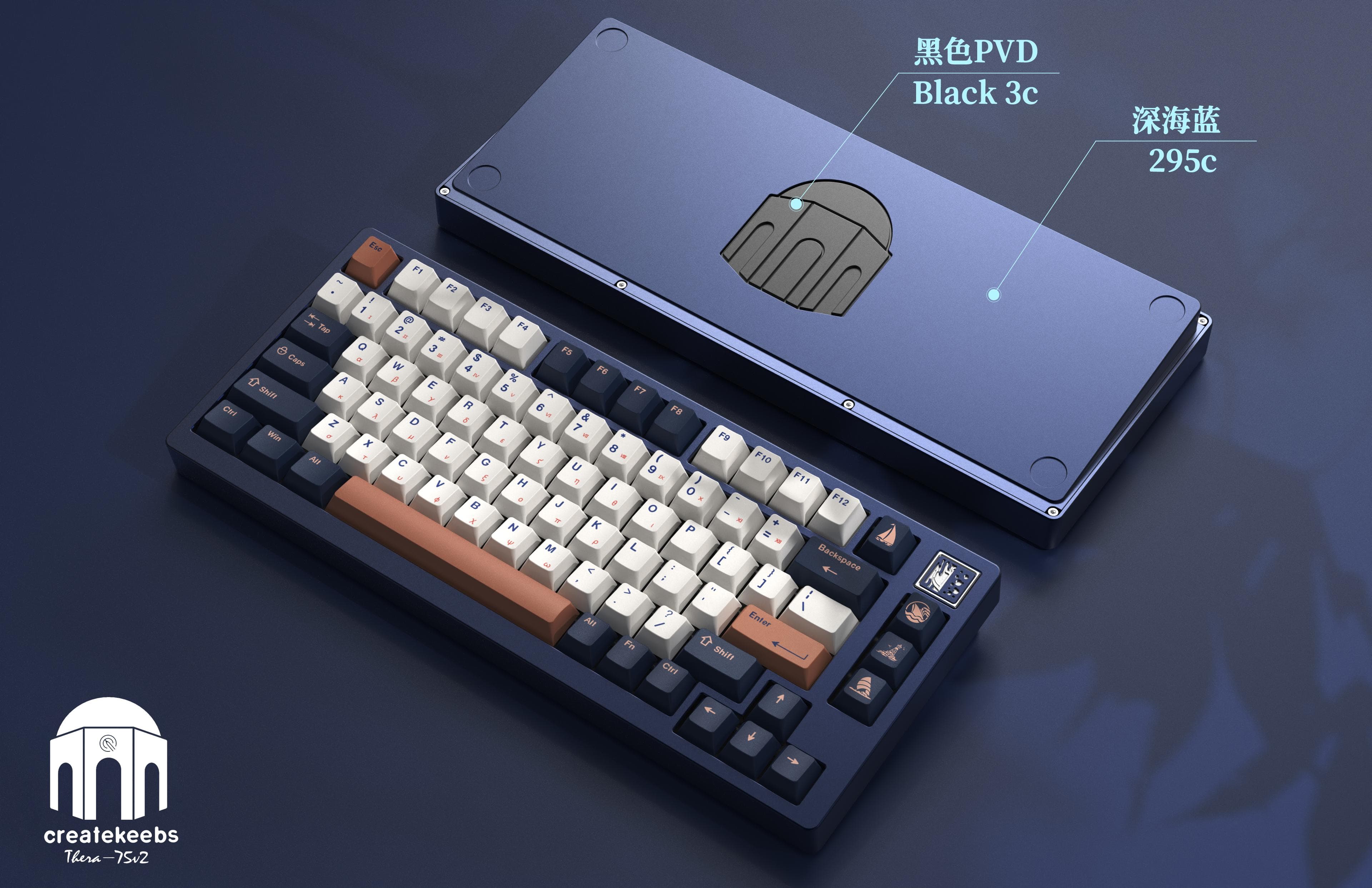

Navy 295C

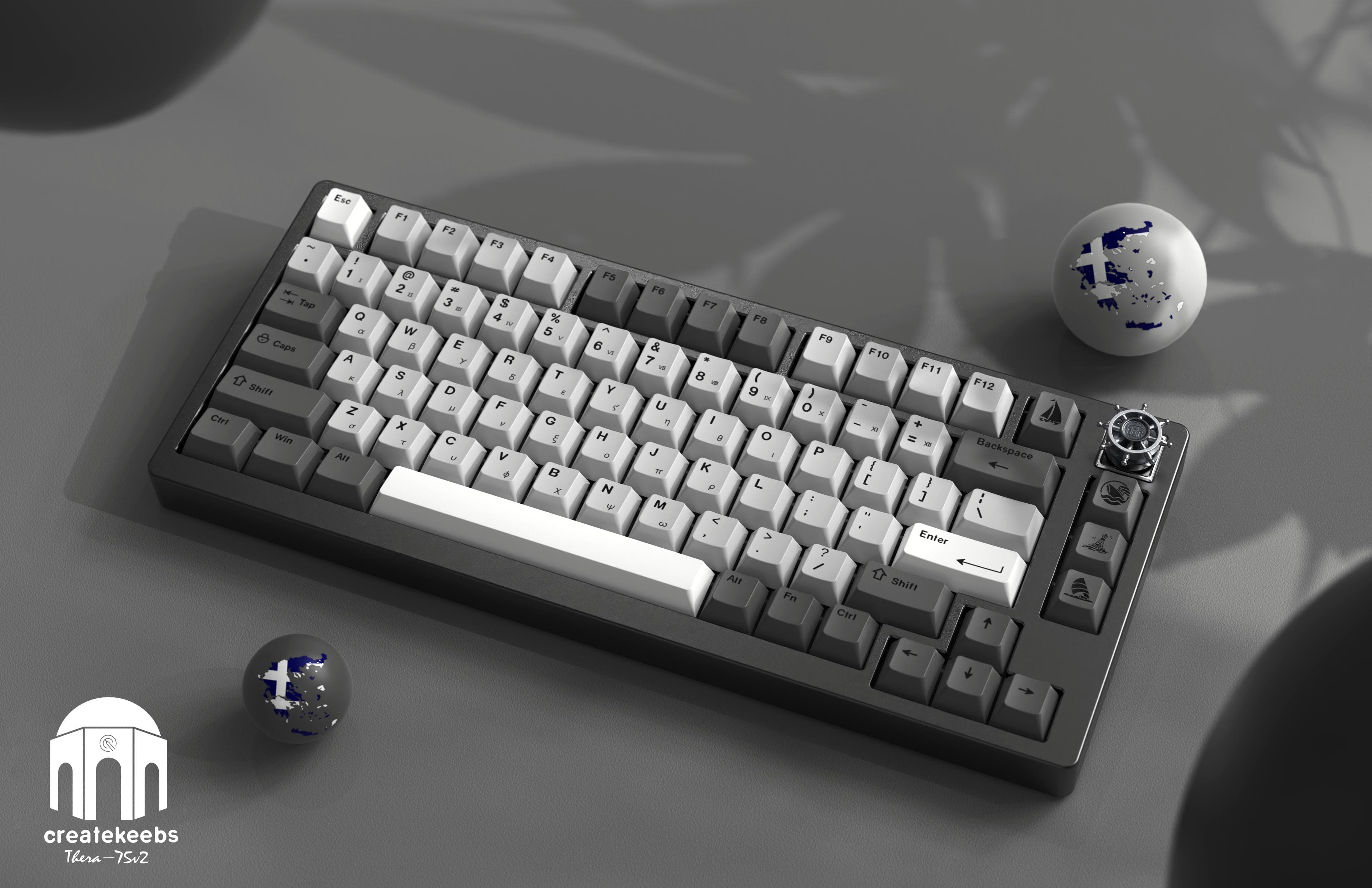

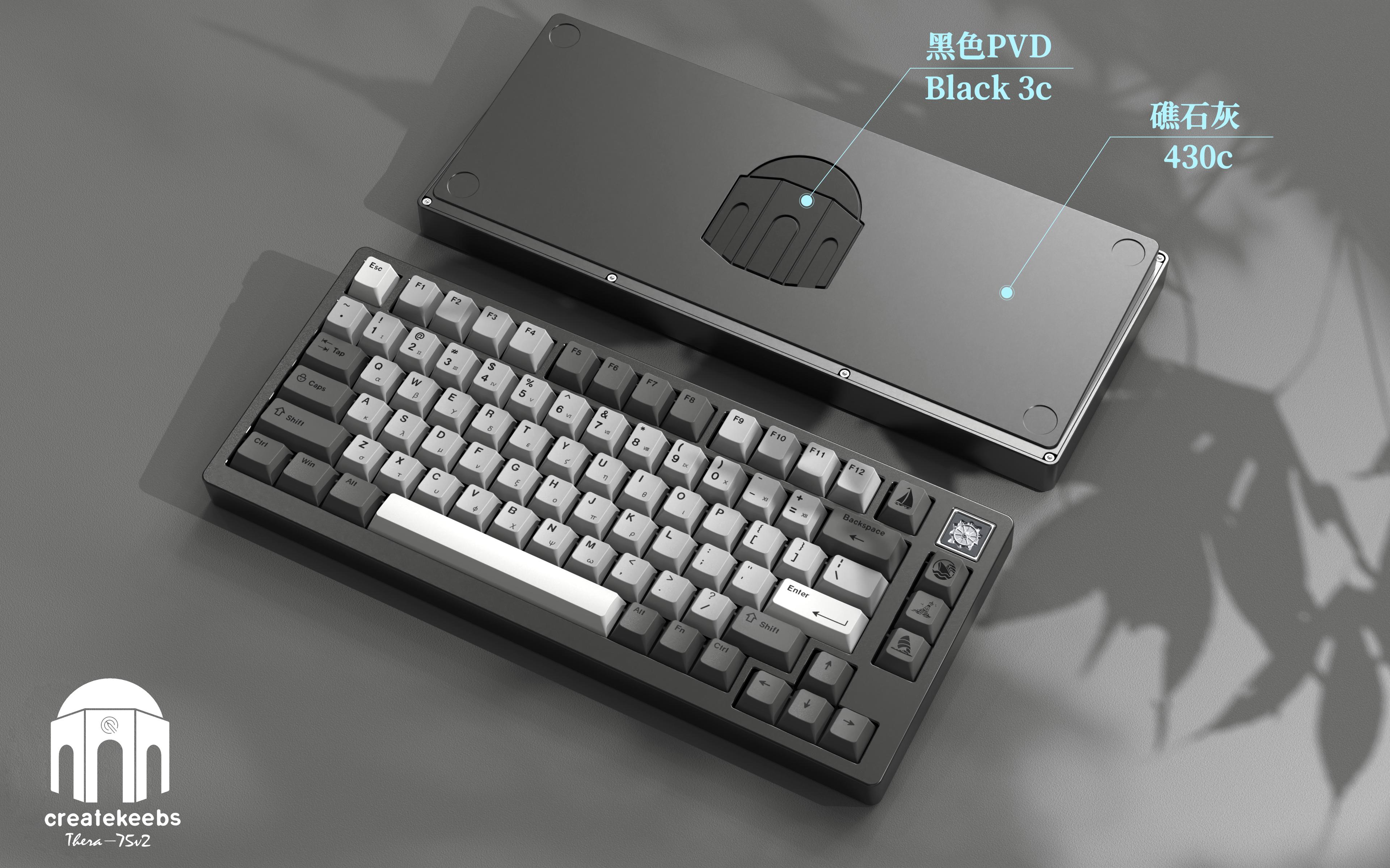

Grey 430c

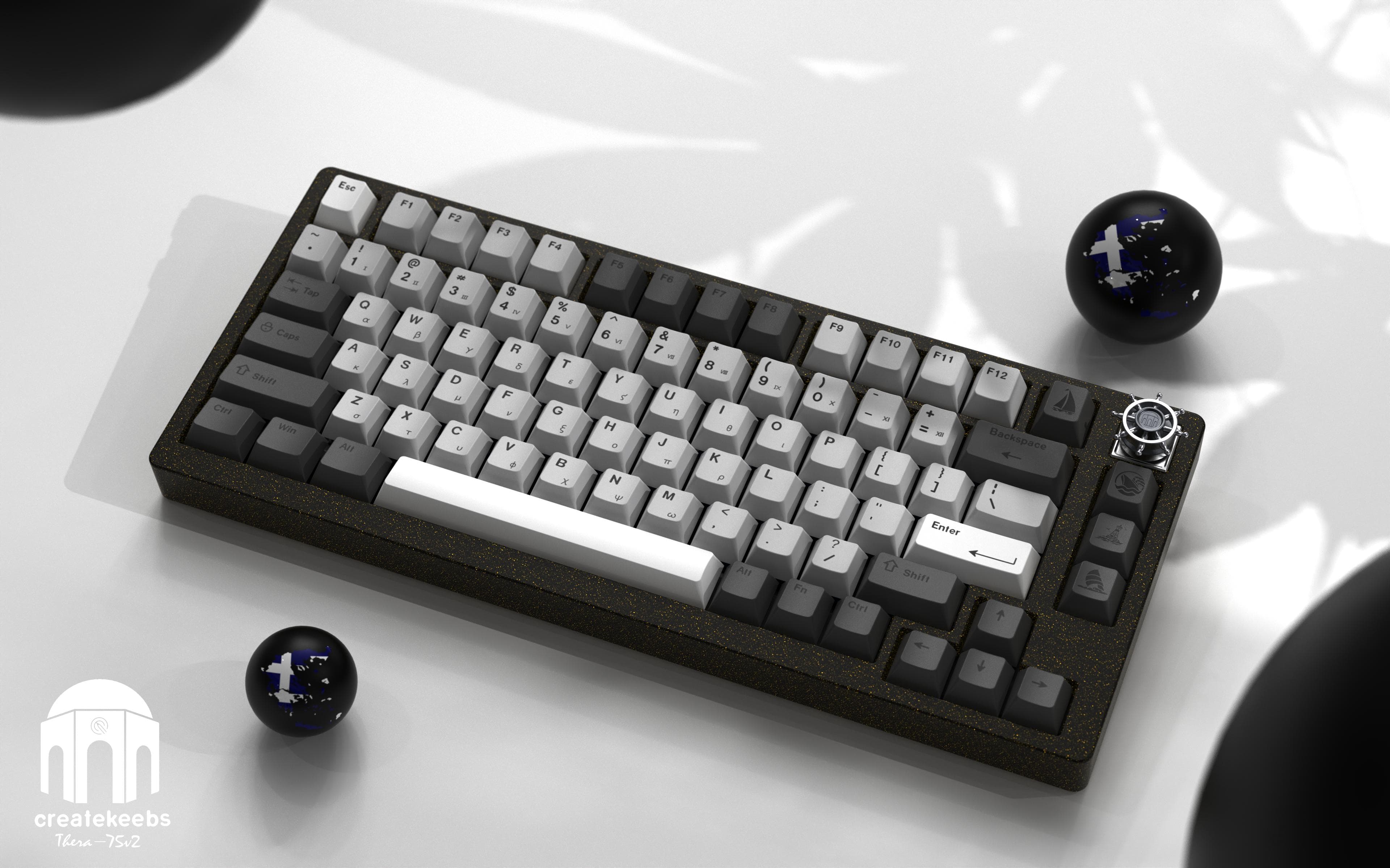

Starlight black

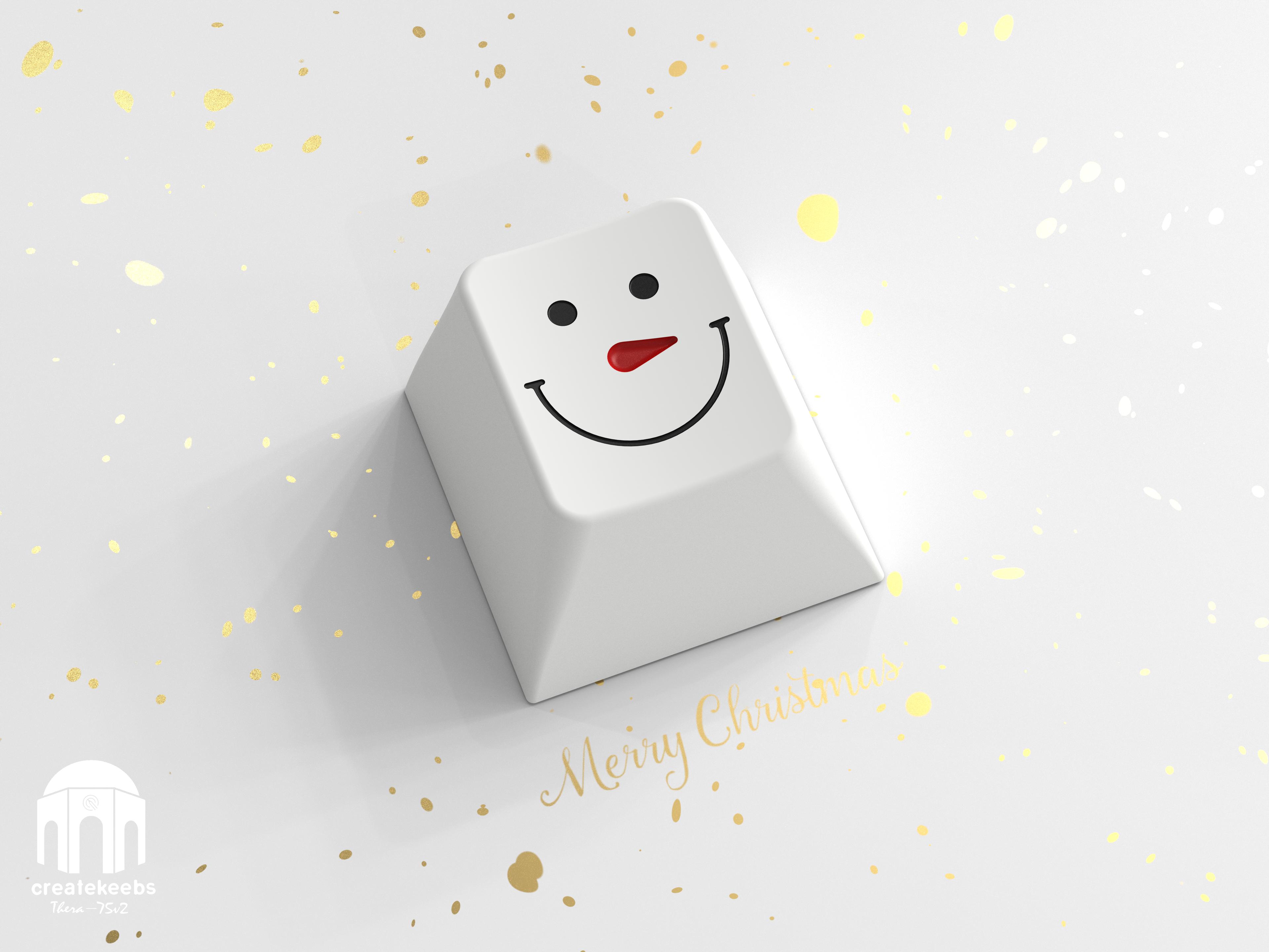

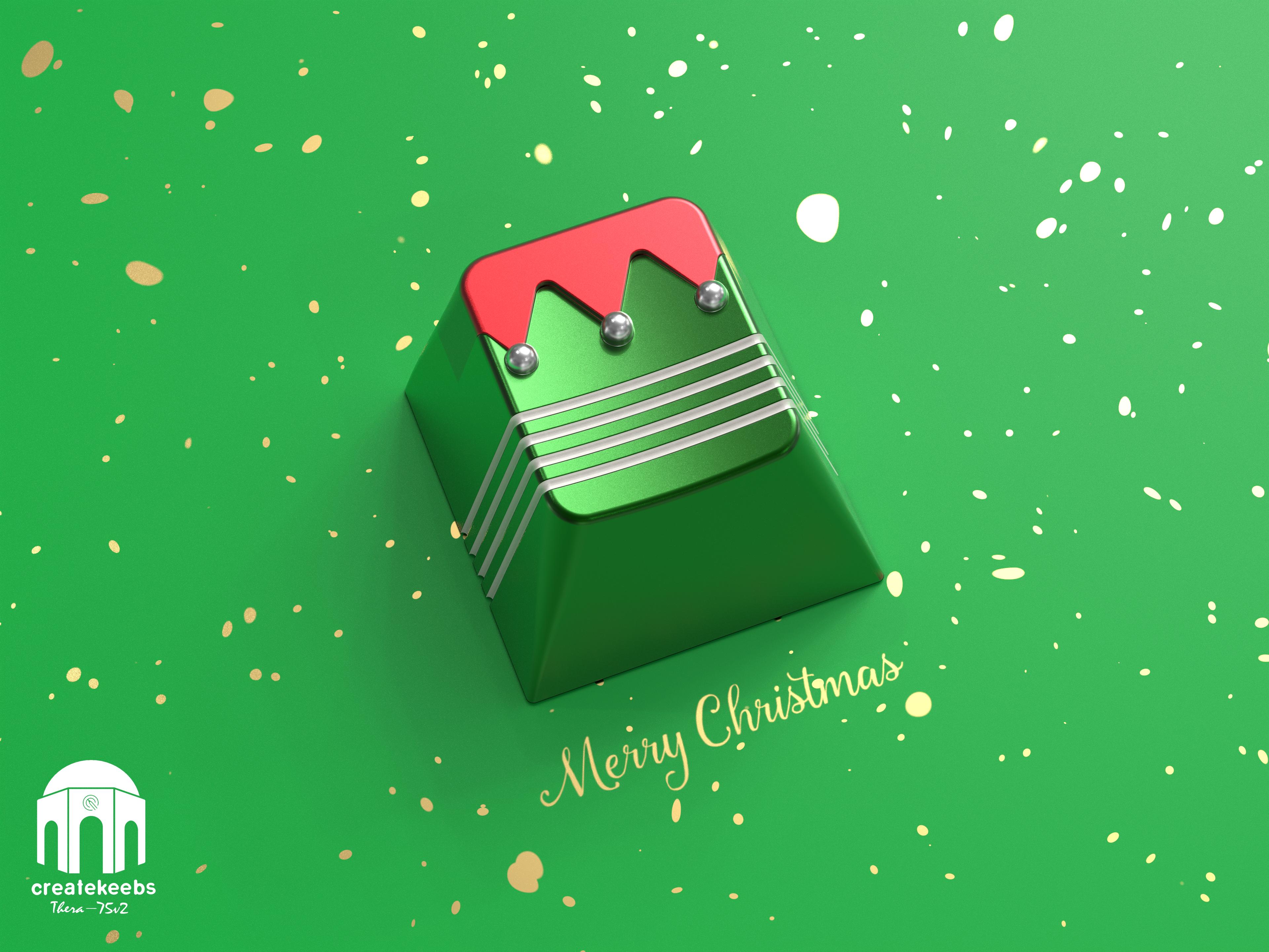

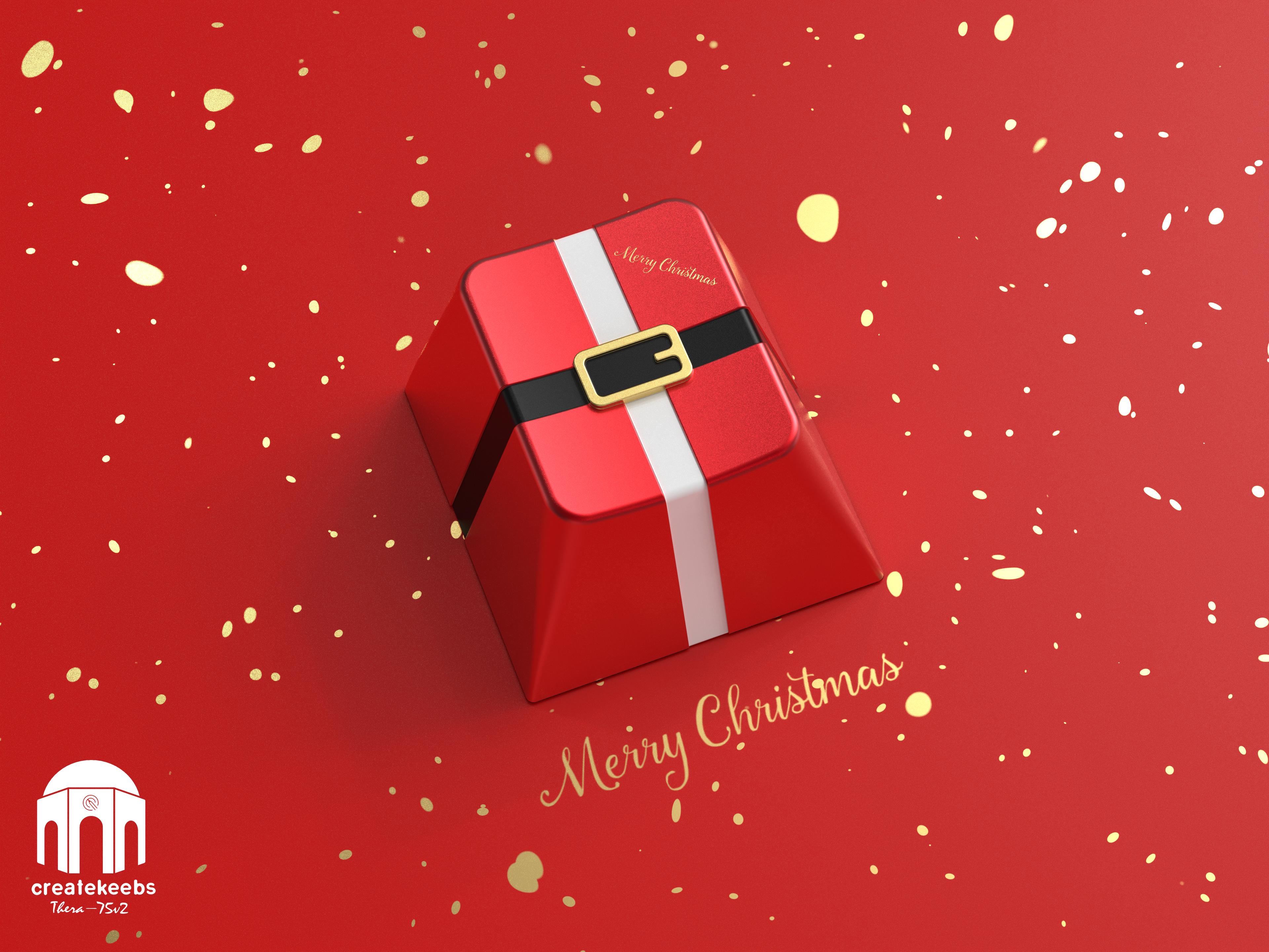

Artisan keycaps

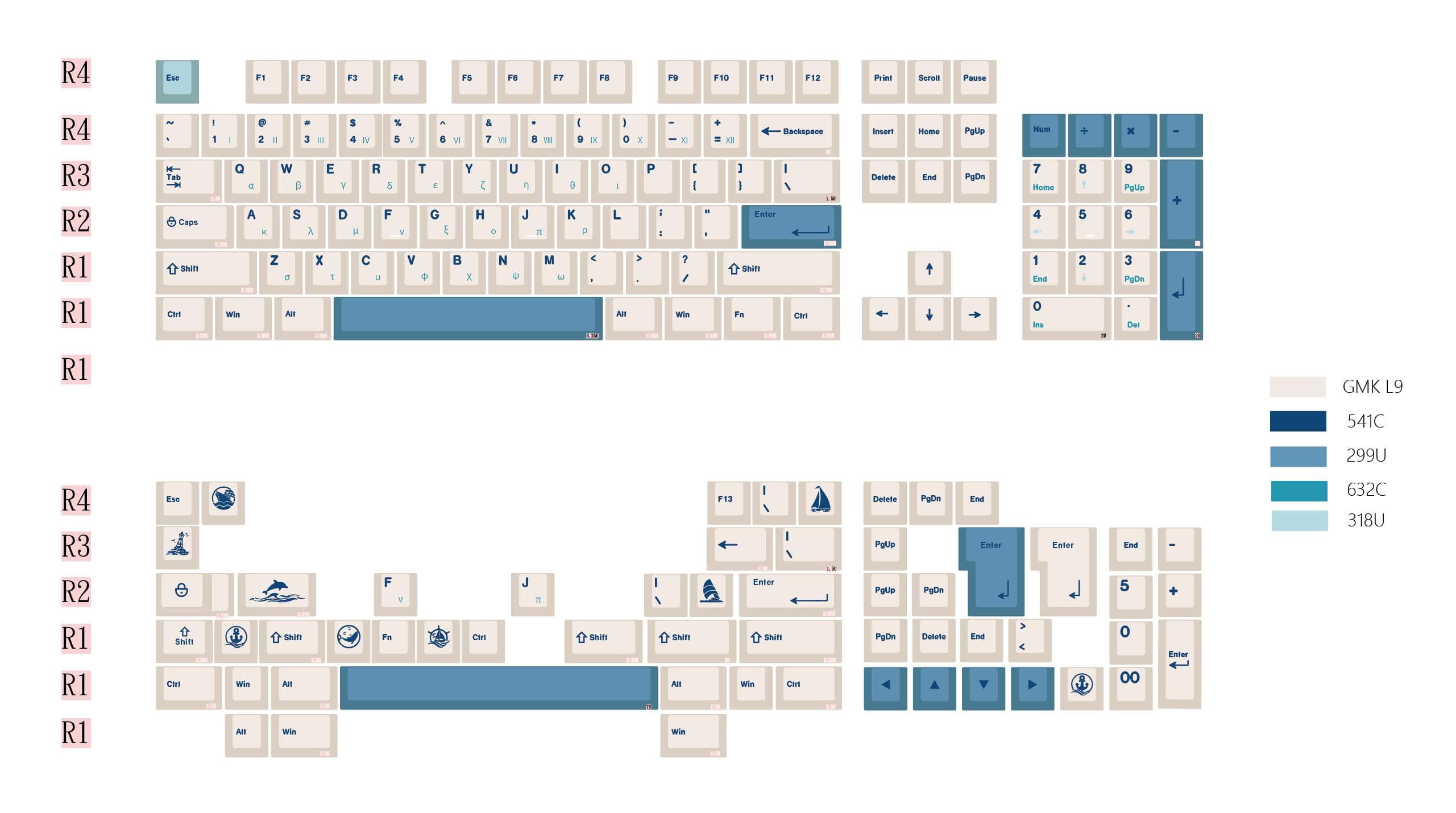

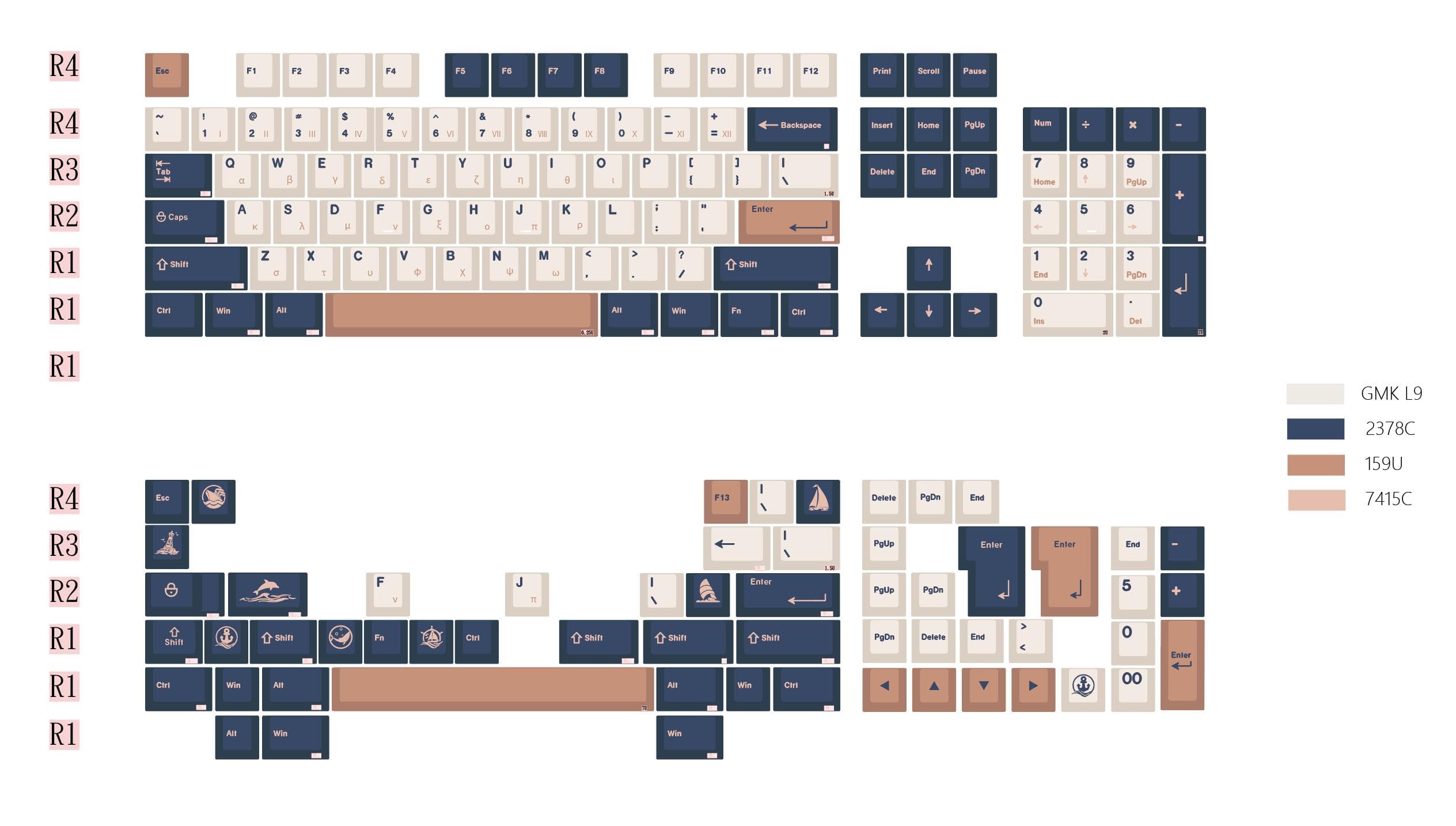

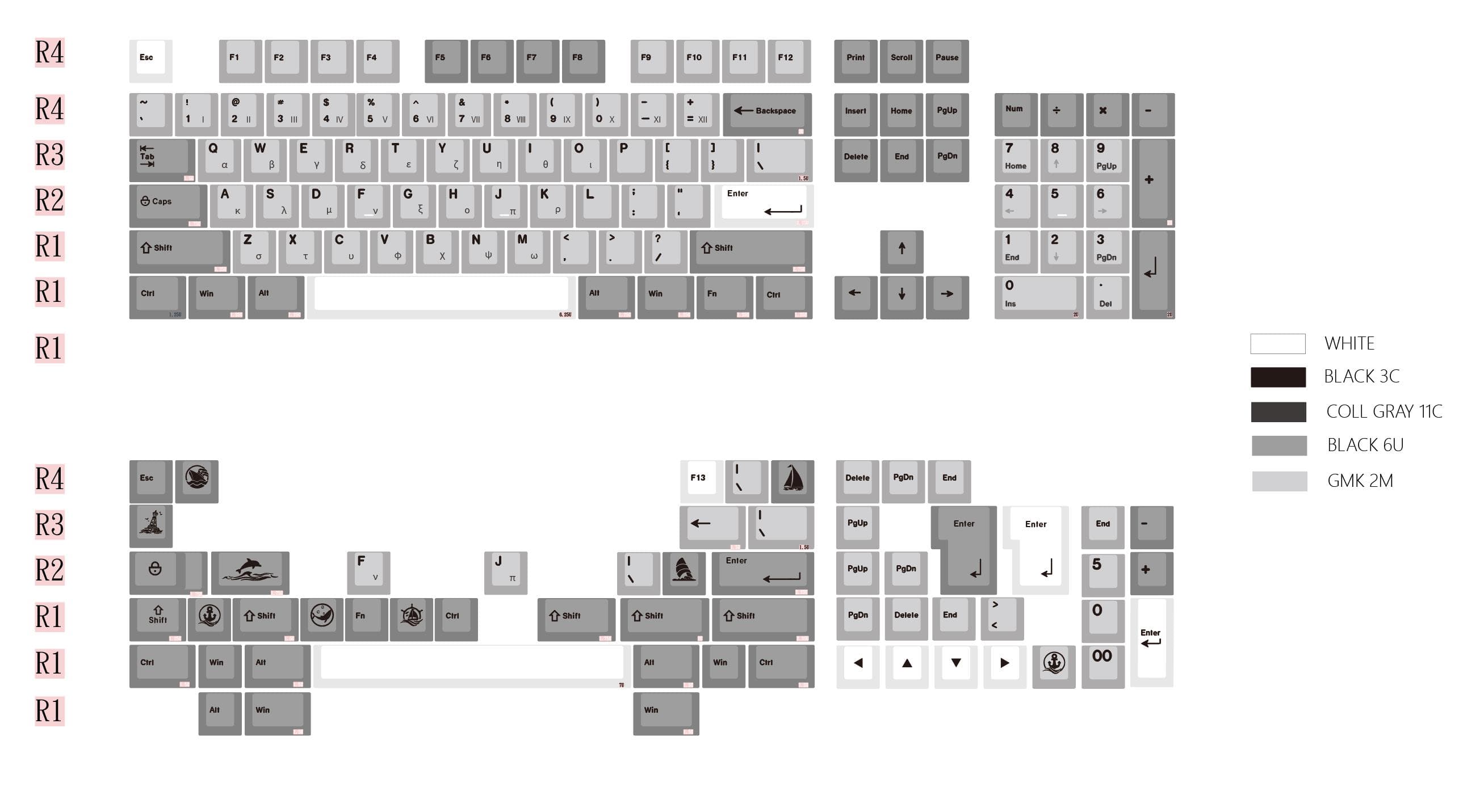

Theme Keycaps

We also prepared some sets of Thera theme keycaps for you to choose from, from retro warm white and gray color scheme with some themed keycaps with Greek letters.

General infomation
1.Keyboard Kit color:
Off-White
Grey 430C
Navy 295C
Light blue 2707U
Silver
Starlight Black (infused with gold particles)
2.Case:6063 Alu
3.Weight(optional):
Stainless steel black matte PVD
Stainless steel silver mirror PVD
Stainless steel black mirror PVD
Stainless steel chroma PVD
Stainless steel chroma mirror PVD
4.Badge & Knob:
Greece/Navy anchor/Light blue anchor/Grey rudder/Black rudder/
Santorini badge/75 badge/Rudder knob
5.Mounting: Top Mount/PCB Gasket Mount (Plateless supported)
6.PCB: 1.6mm Soldered, Hotswap, Bluetooth hotswap
7.Plate material:
1.5mm PC plate supports PCB gasket mount
1.5mm Carbon Fiber plate supports top mount
8.Matching Theme Keycaps (optional): Three colorways
9.Artisan keycaps: 3 designs

Box Content

1*Top case
1*Bottom case
1*weight (can be freely choosed)
1*badge (bundled with case colors)
1*PCB (wired hotswap / wired soldered / Bluetooth hotswap)
1*1.5mm Plate(PC / Carbon Fiber)
1 set of Foam kit:
1*1mm + 1*2mm bottom case poron foam
1*3.5mm switch poron foam
1*2mm hot-swap poron foam
1*5mm switch poron foam (recommended for plateless building)
2*3mm battery cavity foam
1*0.5mm IXPE poron foam
1 set of Silicone gasket socks
1 set of Screws and drivers

Sales Information

Instock quantities: 200 pcs (only Grey, Navy, off-white)
Middle September.Lasts 3 days.
More details will be announced on our discord soon! https://discord.gg/H3dZPybP8h
Fulfillment one week.

GB unlimited:
oEnd October
oLasts 1 months
oFulfillment 4-6 months depending on the final total quantity.

Quantity:
Raffle limited: 100pcs (only Grey, Navy, off-white)
GB unlimited (all 6 colors)

Price:
Standard kit: $270~$305 (Depending on the weight option)
Bluetooth Version kit: $305$~$335 (Depending on the weight option)

Regional Vendors: will be announced soon! (US, CA, EU, SEA, KR, JP, ID/MY, VIET, THA, PH, AUS, and few more)

Additional Extras and price:
PCB: $30 wired solder & hotswap, $65 Bluetooth hotswap
Plate: $25(pc/Carbon Fiber)
Black matte Weight/Chroma weight: $30
Mirror weight: $65
Foam kit: $15
Keycaps: $50
Greece badge: $20
Anchor badge: $20
Rudder badge: $20
Santorini badge: $20
75 badge: $40
Rudder knob: $45
Artisan keycaps:$45

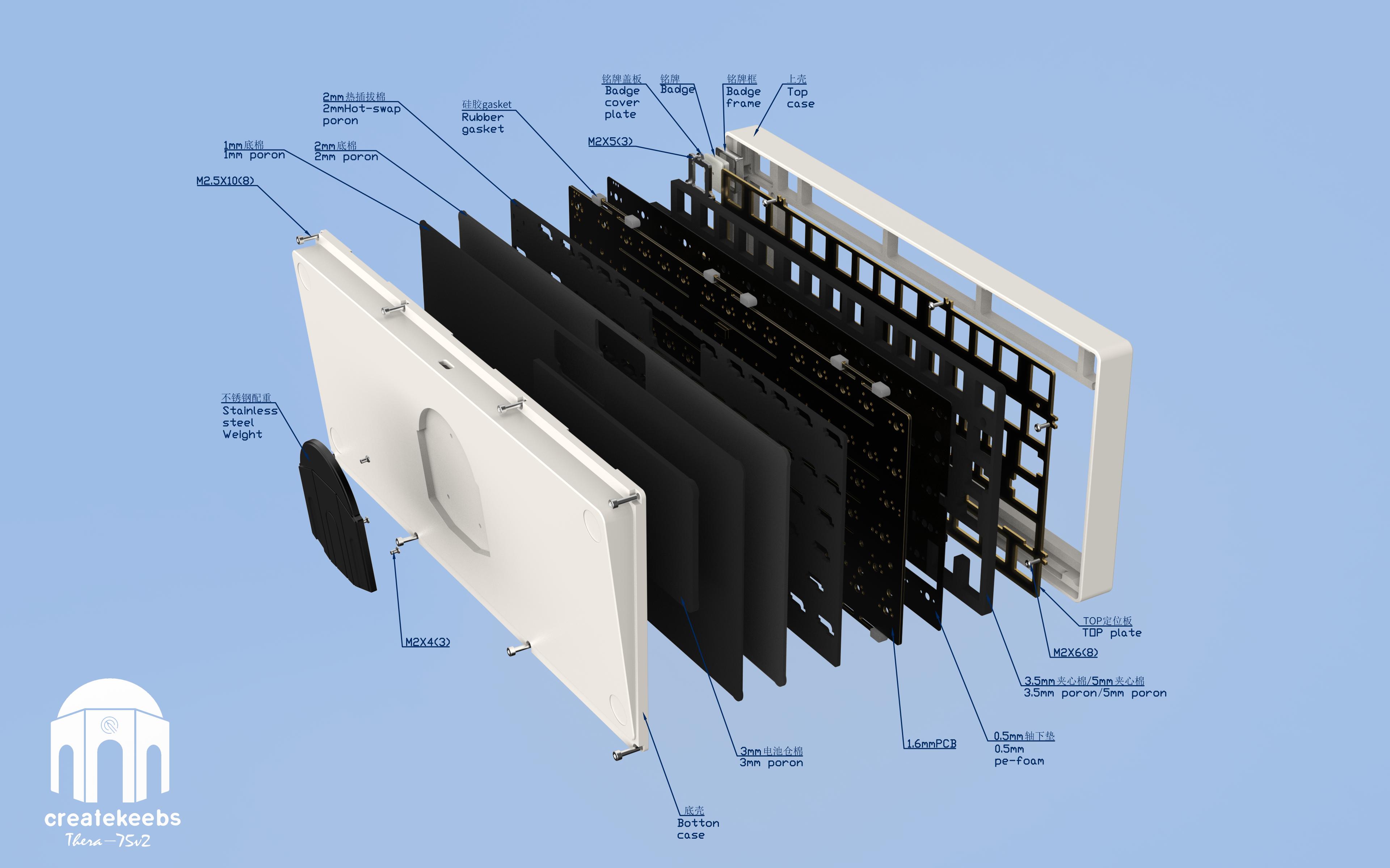

Explosive view
